The document outlines the creation and implementation of a REST API using Grails, explaining the principles of REST, such as statelessness and the use of HTTP methods. It details how to expose domain classes as REST resources and provides guidelines on customizing responses, including using JSON and XML formats. Additionally, it covers CRUD operations via curl commands, error handling, and configuring read-only attributes for resources.

1. •REST Api using Grails

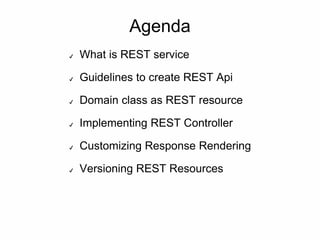

2. Agenda
✔ What is REST service
✔ Guidelines to create REST Api
✔ Domain class as REST resource
✔ Implementing REST Controller
✔ Customizing Response Rendering
✔ Versioning REST Resources

3. What is REST service
✔ Service:- App that is hosted in backend and ready to
serve data
✔ REST is stand for (Representational State Transfer)

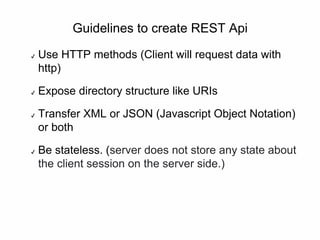

4. Guidelines to create REST Api
✔ Use HTTP methods (Client will request data with
http)
✔ Expose directory structure like URIs
✔ Transfer XML or JSON (Javascript Object Notation)
or both
✔ Be stateless. (server does not store any state about
the client session on the server side.)

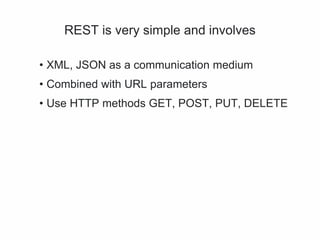

5. REST is very simple and involves
• XML, JSON as a communication medium
• Combined with URL parameters
• Use HTTP methods GET, POST, PUT, DELETE

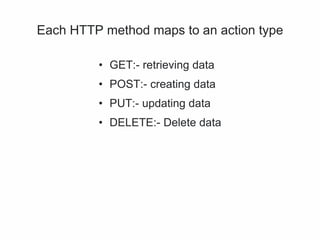

6. Each HTTP method maps to an action type
• GET:- retrieving data
• POST:- creating data
• PUT:- updating data
• DELETE:- Delete data

7. Domain classes as REST resources
• Expose a domain class as a REST resource. It can be done by adding grails.rest.Resource @Resource
• Specify a URI@Resource(uri = '/persons')
• Now domain is available as a REST resource either JSON or XML formats. Default type is XML.
• Ex:-
• package com
• import grails.rest.Resource
• @Resource(uri = '/persons')
• class Person {
• static constraints = {
• }
• }

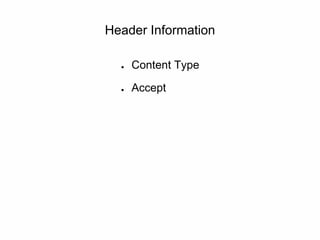

8. Header Information
● Content Type
● Accept

9. • package com
• import
grails.rest.Resource
• @Resource(uri =
'/persons')
• class Person {
• String firstName
• String lastName
• Long age
• static constraints = {
• }
• <person id="1">
• <age>25</age>
• <firstName>Vijay</firstNa
me>
• <lastName>Shukla</lastN
ame>
• </person>

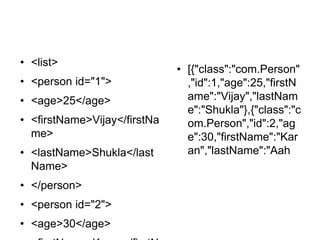

10. • <list>
• <person id="1">
• <age>25</age>
• <firstName>Vijay</firstNa
me>
• <lastName>Shukla</last
Name>
• </person>
• <person id="2">
• <age>30</age>
• [{"class":"com.Person"
,"id":1,"age":25,"firstN
ame":"Vijay","lastNam
e":"Shukla"},{"class":"c
om.Person","id":2,"ag
e":30,"firstName":"Kar
an","lastName":"Aah

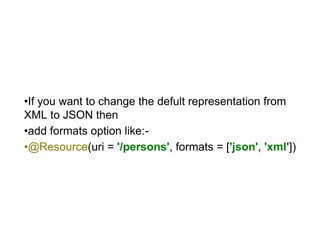

11. •If you want to change the defult representation from
XML to JSON then
•add formats option like:-
•@Resource(uri = '/persons', formats = ['json', 'xml'])

12. • [{"class":"com.Person","i
d":1,"age":25,"firstName
":"Vijay","lastName":"Sh
ukla"},{"class":"com.Per
son","id":2,"age":30,"first
Name":"Karan","lastNa
me":"Aahuja"}]
• Instead of using the file
extension in the URI,
you can also obtain a
JSON response using
the ACCEPT header.
• curl -i -H "Accept:
application/json"

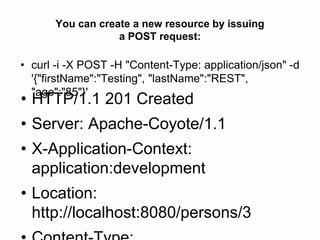

13. You can create a new resource by issuing
a POST request:
• curl -i -X POST -H "Content-Type: application/json" -d
'{"firstName":"Testing", "lastName":"REST",
"age":"85"}'
• HTTP/1.1 201 Created
• Server: Apache-Coyote/1.1
• X-Application-Context:
application:development
• Location:
http://localhost:8080/persons/3

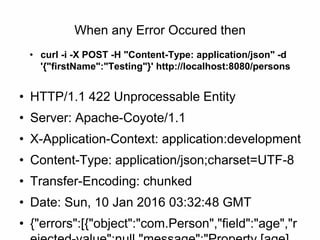

14. When any Error Occured then
• curl -i -X POST -H "Content-Type: application/json" -d
'{"firstName":"Testing"}' http://localhost:8080/persons
• HTTP/1.1 422 Unprocessable Entity
• Server: Apache-Coyote/1.1
• X-Application-Context: application:development
• Content-Type: application/json;charset=UTF-8
• Transfer-Encoding: chunked
• Date: Sun, 10 Jan 2016 03:32:48 GMT
• {"errors":[{"object":"com.Person","field":"age","r

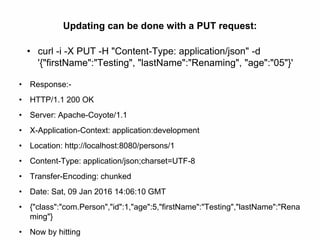

15. Updating can be done with a PUT request:
• curl -i -X PUT -H "Content-Type: application/json" -d
'{"firstName":"Testing", "lastName":"Renaming", "age":"05"}'
• Response:-
• HTTP/1.1 200 OK
• Server: Apache-Coyote/1.1
• X-Application-Context: application:development
• Location: http://localhost:8080/persons/1
• Content-Type: application/json;charset=UTF-8
• Transfer-Encoding: chunked
• Date: Sat, 09 Jan 2016 14:06:10 GMT
• {"class":"com.Person","id":1,"age":5,"firstName":"Testing","lastName":"Rena
ming"}
• Now by hitting

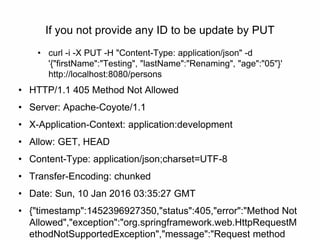

16. If you not provide any ID to be update by PUT
• curl -i -X PUT -H "Content-Type: application/json" -d
'{"firstName":"Testing", "lastName":"Renaming", "age":"05"}'
http://localhost:8080/persons
• HTTP/1.1 405 Method Not Allowed
• Server: Apache-Coyote/1.1
• X-Application-Context: application:development
• Allow: GET, HEAD
• Content-Type: application/json;charset=UTF-8
• Transfer-Encoding: chunked
• Date: Sun, 10 Jan 2016 03:35:27 GMT
• {"timestamp":1452396927350,"status":405,"error":"Method Not
Allowed","exception":"org.springframework.web.HttpRequestM
ethodNotSupportedException","message":"Request method

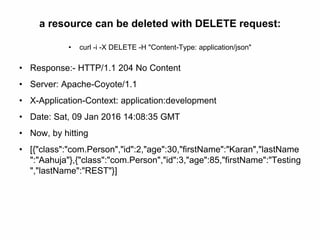

17. a resource can be deleted with DELETE request:
• curl -i -X DELETE -H "Content-Type: application/json"
• Response:- HTTP/1.1 204 No Content
• Server: Apache-Coyote/1.1
• X-Application-Context: application:development
• Date: Sat, 09 Jan 2016 14:08:35 GMT
• Now, by hitting
• [{"class":"com.Person","id":2,"age":30,"firstName":"Karan","lastName
":"Aahuja"},{"class":"com.Person","id":3,"age":85,"firstName":"Testing
","lastName":"REST"}]

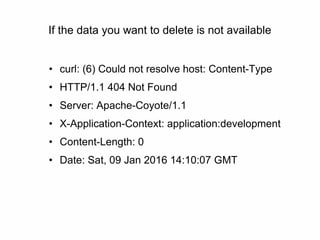

18. If the data you want to delete is not available
• curl: (6) Could not resolve host: Content-Type
• HTTP/1.1 404 Not Found
• Server: Apache-Coyote/1.1
• X-Application-Context: application:development
• Content-Length: 0
• Date: Sat, 09 Jan 2016 14:10:07 GMT

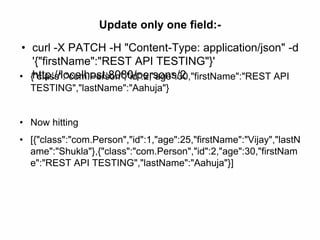

19. Update only one field:-
• curl -X PATCH -H "Content-Type: application/json" -d
'{"firstName":"REST API TESTING"}'
http://localhost:8080/persons/2• {"class":"com.Person","id":2,"age":30,"firstName":"REST API
TESTING","lastName":"Aahuja"}
• Now hitting
• [{"class":"com.Person","id":1,"age":25,"firstName":"Vijay","lastN
ame":"Shukla"},{"class":"com.Person","id":2,"age":30,"firstNam
e":"REST API TESTING","lastName":"Aahuja"}]

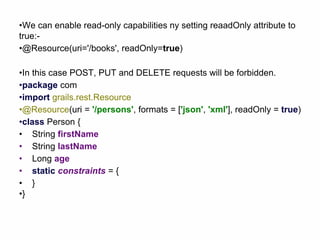

20. •We can enable read-only capabilities ny setting reaadOnly attribute to
true:-
•@Resource(uri='/books', readOnly=true)
•In this case POST, PUT and DELETE requests will be forbidden.
•package com
•import grails.rest.Resource
•@Resource(uri = '/persons', formats = ['json', 'xml'], readOnly = true)
•class Person {
• String firstName
• String lastName
• Long age
• static constraints = {
• }
•}

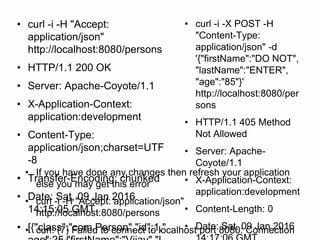

21. • curl -i -H "Accept:
application/json"
http://localhost:8080/persons
• HTTP/1.1 200 OK
• Server: Apache-Coyote/1.1
• X-Application-Context:
application:development
• Content-Type:
application/json;charset=UTF
-8
• Transfer-Encoding: chunked
• Date: Sat, 09 Jan 2016
14:15:05 GMT
• [{"class":"com.Person","id":1,"
• curl -i -X POST -H
"Content-Type:
application/json" -d
'{"firstName":"DO NOT",
"lastName":"ENTER",
"age":"85"}'
http://localhost:8080/per
sons
• HTTP/1.1 405 Method
Not Allowed
• Server: Apache-
Coyote/1.1
• X-Application-Context:
application:development
• Content-Length: 0
• Date: Sat, 09 Jan 2016
• If you have done any changes then refresh your application
else you may get this error
• curl -i -H "Accept: application/json"
http://localhost:8080/persons
• curl: (7) Failed to connect to localhost port 8080: Connection

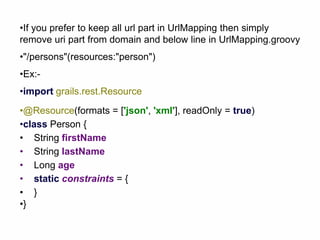

22. •If you prefer to keep all url part in UrlMapping then simply
remove uri part from domain and below line in UrlMapping.groovy
•"/persons"(resources:"person")
•Ex:-
•import grails.rest.Resource
•@Resource(formats = ['json', 'xml'], readOnly = true)
•class Person {
• String firstName
• String lastName
• Long age
• static constraints = {
• }
•}

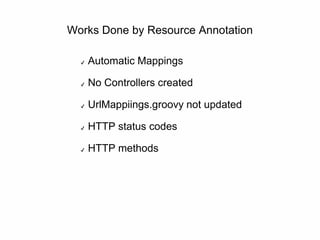

23. Works Done by Resource Annotation
✔ Automatic Mappings
✔ No Controllers created
✔ UrlMappiings.groovy not updated
✔ HTTP status codes
✔ HTTP methods

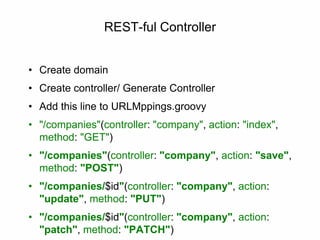

24. REST-ful Controller
• Create domain
• Create controller/ Generate Controller
• Add this line to URLMppings.groovy
• "/companies"(controller: "company", action: "index",
method: "GET")
• "/companies"(controller: "company", action: "save",
method: "POST")
• "/companies/$id"(controller: "company", action:
"update", method: "PUT")
• "/companies/$id"(controller: "company", action:
"patch", method: "PATCH")

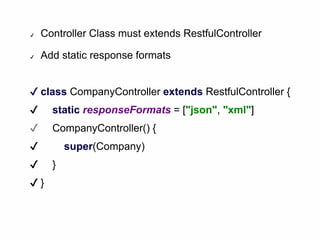

25. ✔ Controller Class must extends RestfulController
✔ Add static response formats
✔ class CompanyController extends RestfulController {
✔ static responseFormats = ["json", "xml"]
✔ CompanyController() {
✔ super(Company)
✔ }
✔ }

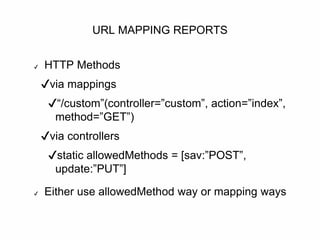

26. URL MAPPING REPORTS
✔ HTTP Methods
✔via mappings
✔“/custom”(controller=”custom”, action=”index”,
method=”GET”)
✔via controllers
✔static allowedMethods = [sav:”POST”,
update:”PUT”]
✔ Either use allowedMethod way or mapping ways

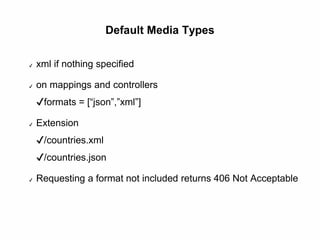

27. Default Media Types
✔ xml if nothing specified
✔ on mappings and controllers
✔formats = [“json”,”xml”]
✔ Extension
✔/countries.xml
✔/countries.json
✔ Requesting a format not included returns 406 Not Acceptable

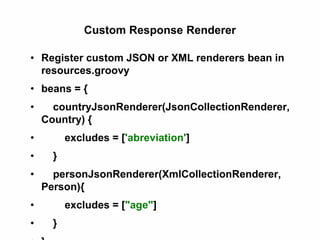

28. Custom Response Renderer
• Register custom JSON or XML renderers bean in
resources.groovy
• beans = {
• countryJsonRenderer(JsonCollectionRenderer,
Country) {
• excludes = ['abreviation']
• }
• personJsonRenderer(XmlCollectionRenderer,
Person){
• excludes = ["age"]
• }

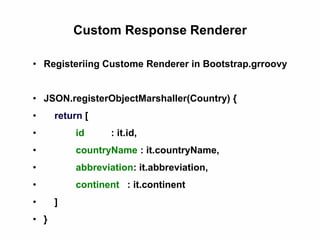

29. Custom Response Renderer
• Registeriing Custome Renderer in Bootstrap.grroovy
• JSON.registerObjectMarshaller(Country) {
• return [
• id : it.id,
• countryName : it.countryName,
• abbreviation: it.abbreviation,
• continent : it.continent
• ]
• }

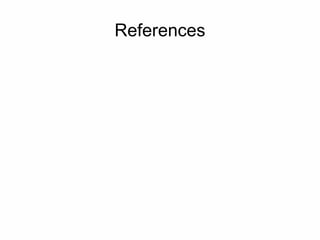

30. References
