1. O C T O B E R 1 1 - 1 4 , 2 0 1 6 • B O S T O N , M A

2. Creating New Streams
Dennis Gove
Bloomberg LP
Copyright 2016 Bloomberg Finance L.P. All rights reserved.

3. 01
Bloomberg
● Largest provider of financial news and information
● Our strength is quickly and accurately delivering data, news and analytics
● Creating high performance and accurate information retrieval systems is core to
our strength

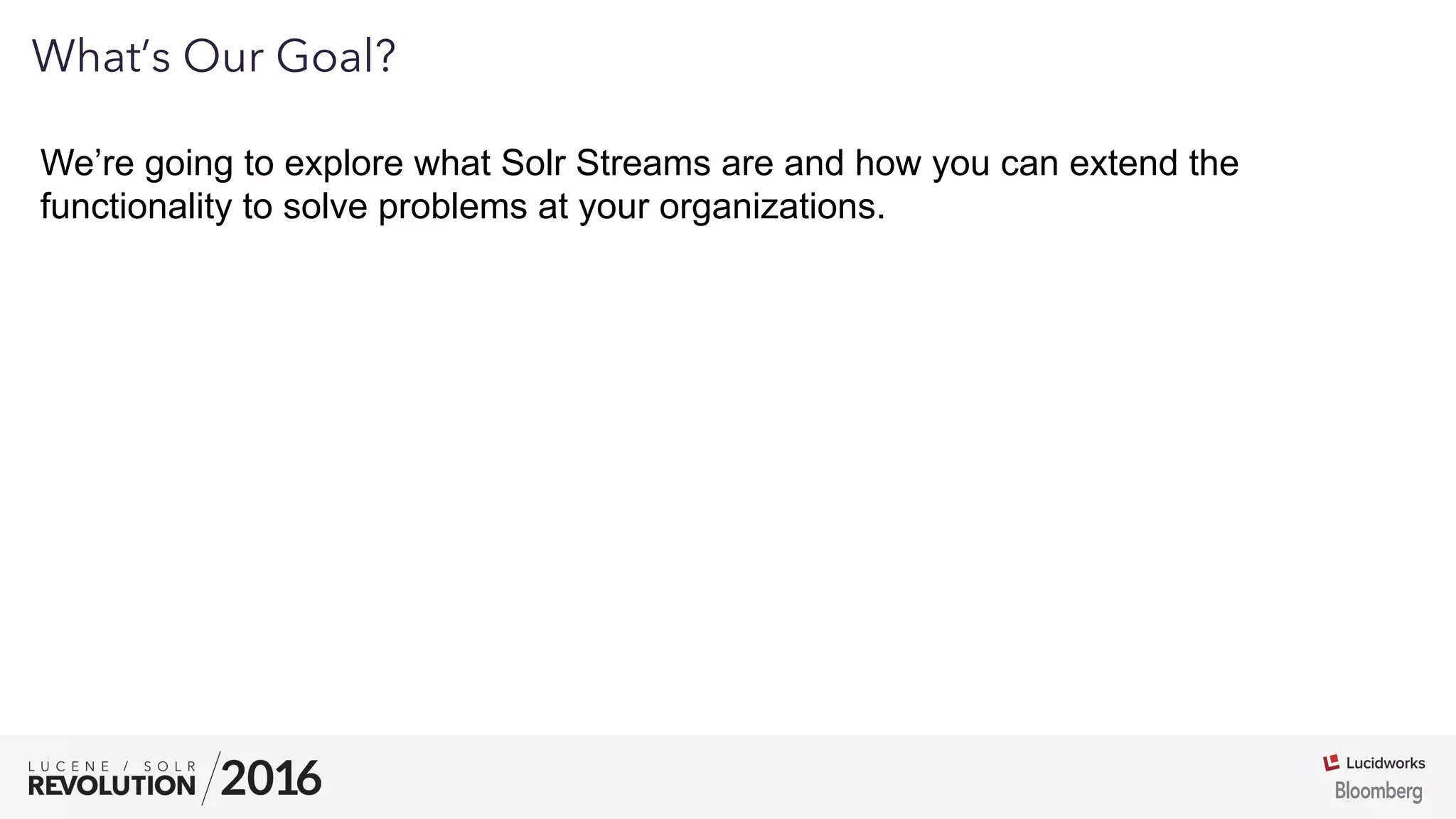

4. 01
What’s Our Goal?
We’re going to explore what Solr Streams are and how you can extend the
functionality to solve problems at your organizations.

5. 02

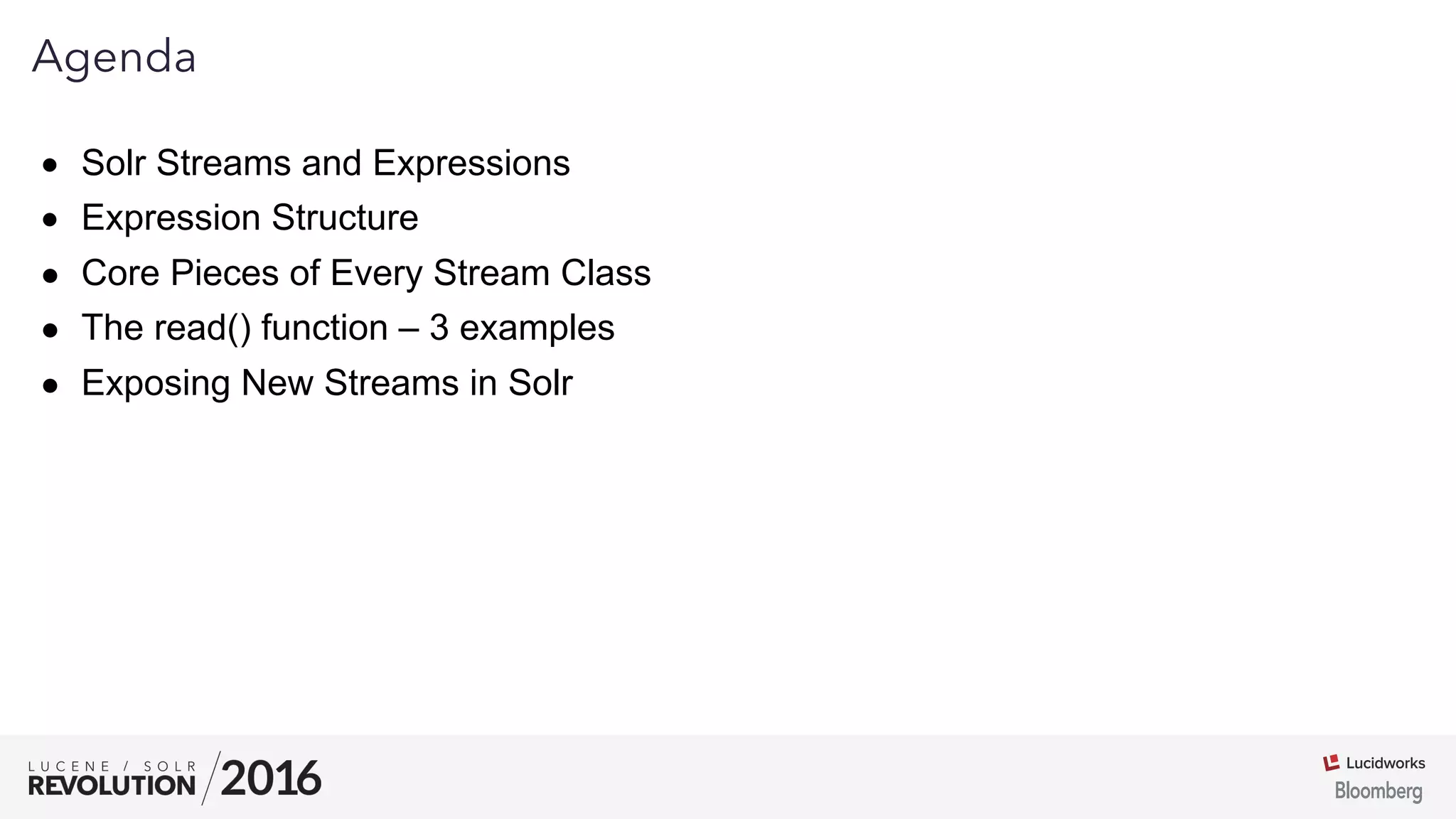

Agenda
● Solr Streams and Expressions
● Expression Structure
● Core Pieces of Every Stream Class
● The read() function – 3 examples
● Exposing New Streams in Solr

6. 03

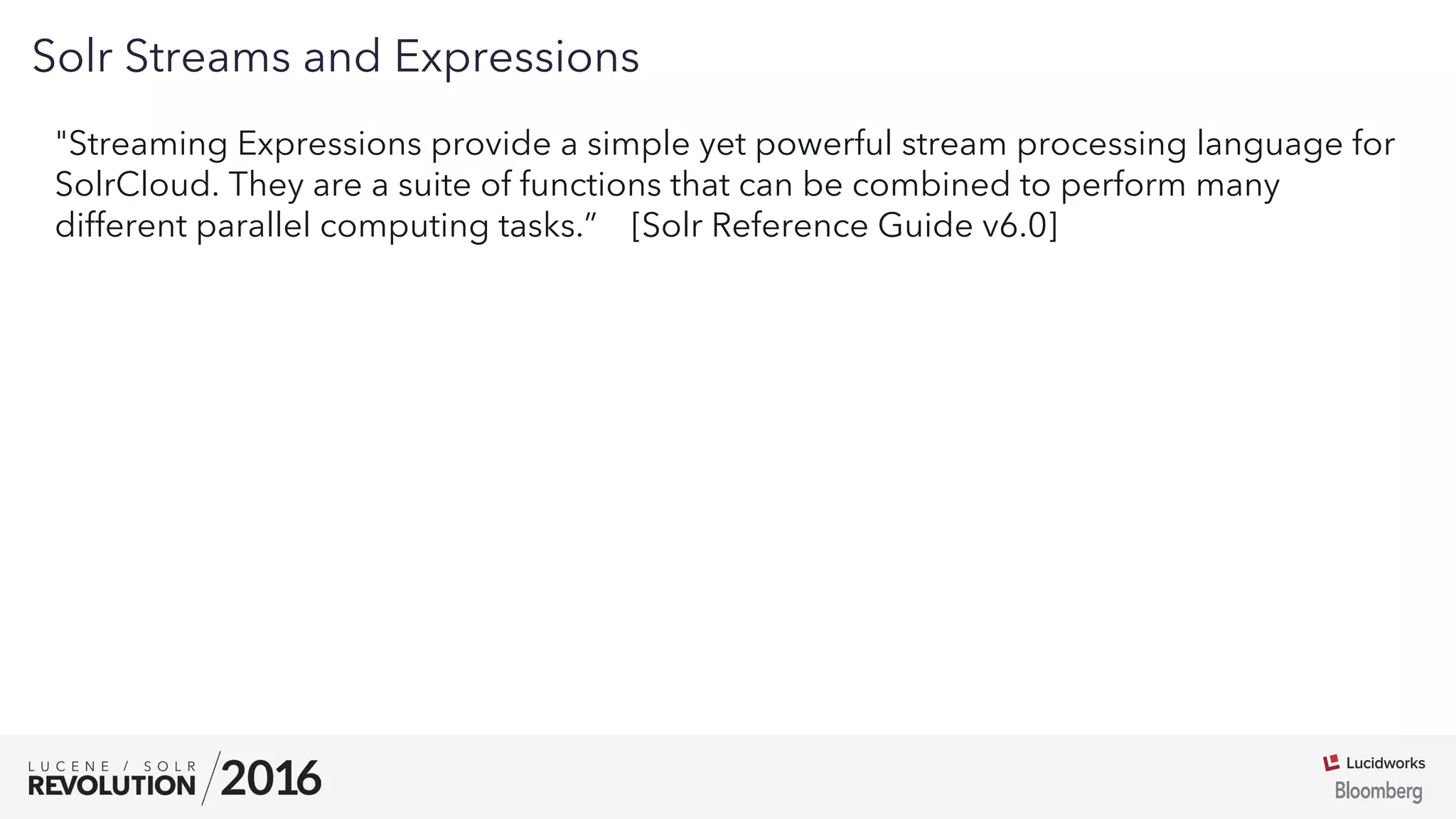

Solr Streams and Expressions
"Streaming Expressions provide a simple yet powerful stream processing language for
SolrCloud. They are a suite of functions that can be combined to perform many
different parallel computing tasks.” [Solr Reference Guide v6.0]

7. 03
Solr Streams and Expressions
"Streaming Expressions provide a simple yet powerful stream processing language for
SolrCloud. They are a suite of functions that can be combined to perform many
different parallel computing tasks.” [Solr Reference Guide v6.0]

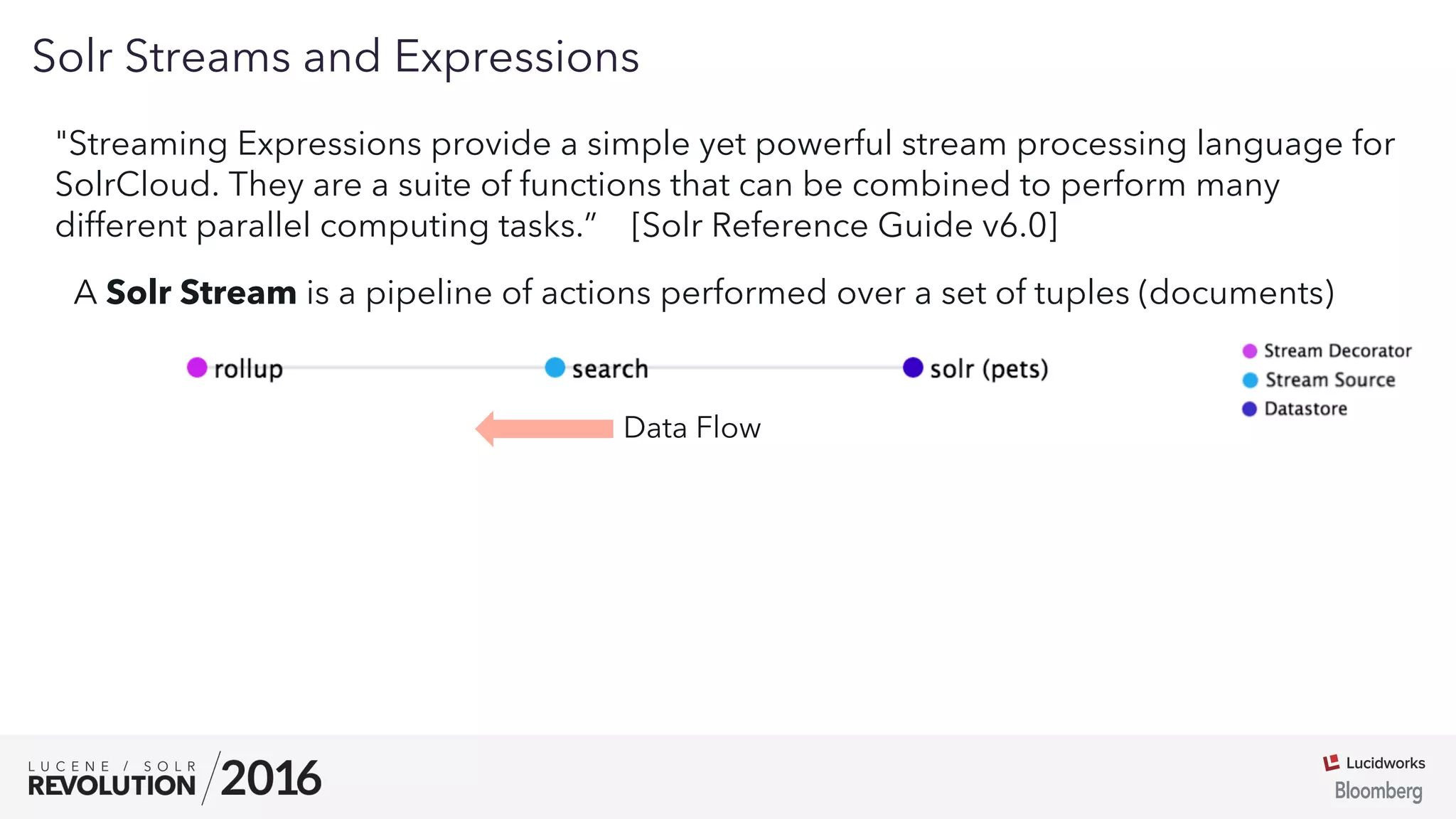

A Solr Stream is a pipeline of actions performed over a set of tuples (documents)
Data Flow

8. 03

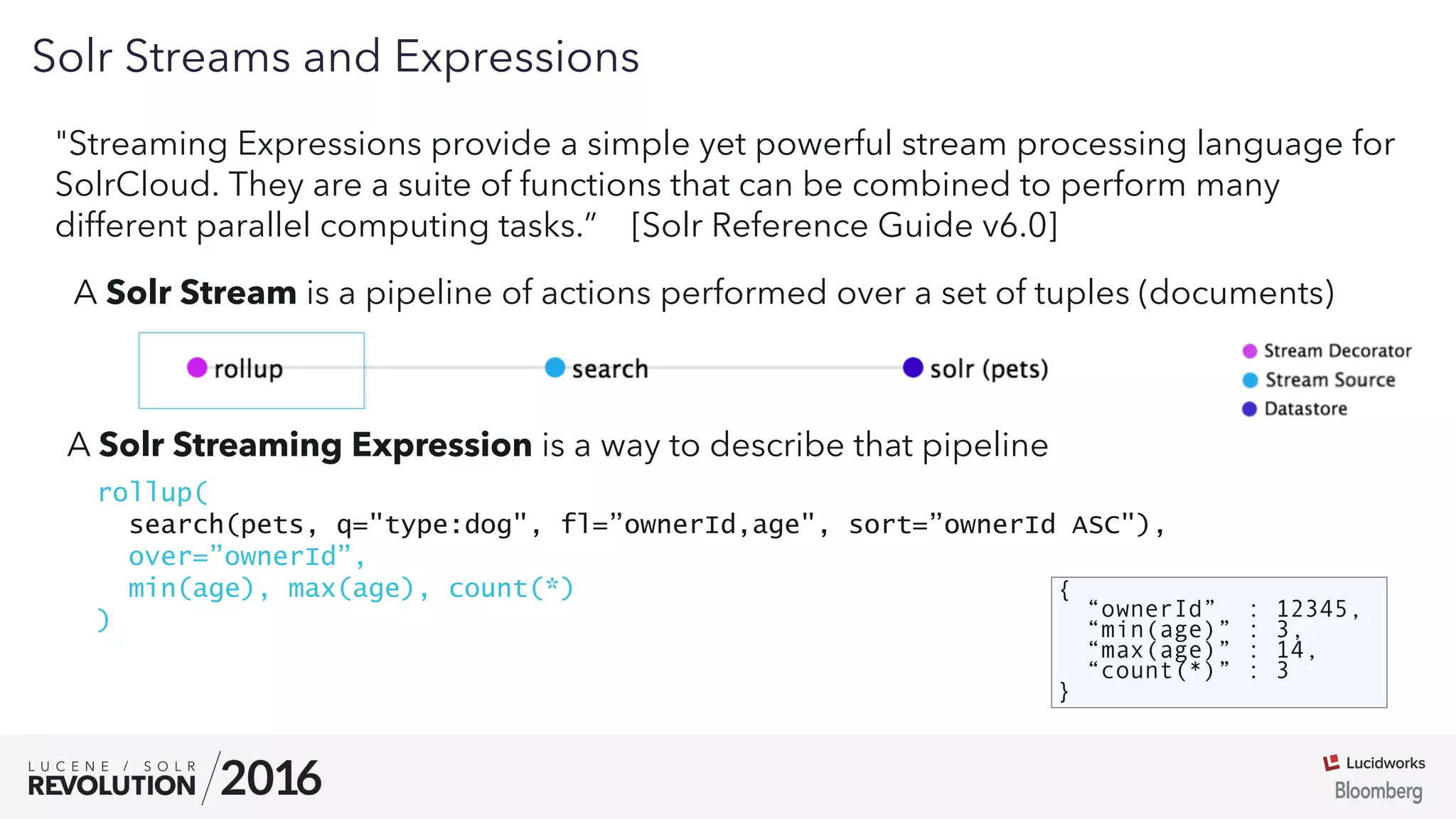

Solr Streams and Expressions
"Streaming Expressions provide a simple yet powerful stream processing language for
SolrCloud. They are a suite of functions that can be combined to perform many
different parallel computing tasks.” [Solr Reference Guide v6.0]

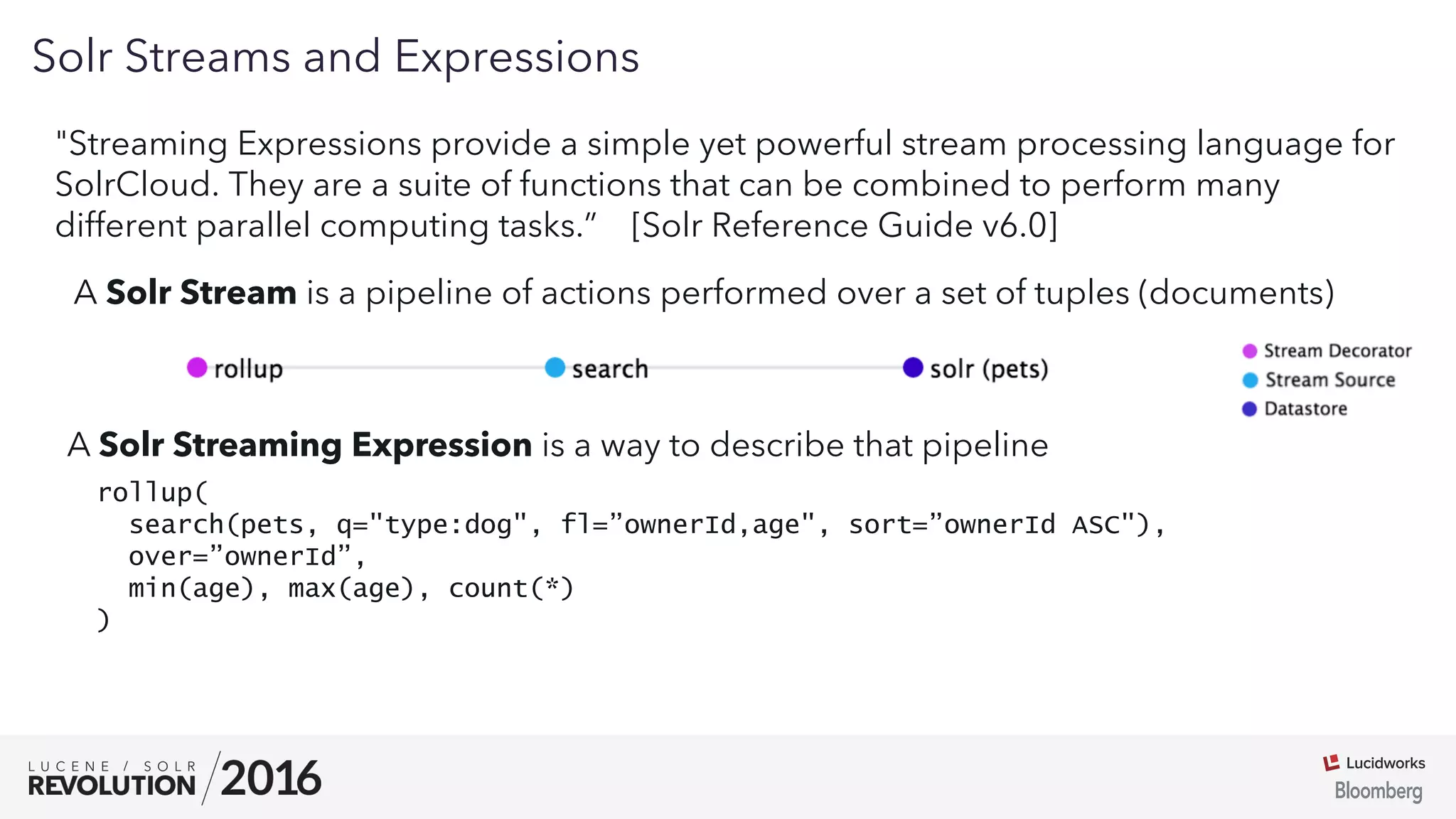

A Solr Stream is a pipeline of actions performed over a set of tuples (documents)
A Solr Streaming Expression is a way to describe that pipeline
rollup(
search(pets, q="type:dog", fl=”ownerId,age", sort=”ownerId ASC"),
over=”ownerId”,
min(age), max(age), count(*)
)

9. 03
Solr Streams and Expressions
"Streaming Expressions provide a simple yet powerful stream processing language for
SolrCloud. They are a suite of functions that can be combined to perform many
different parallel computing tasks.” [Solr Reference Guide v6.0]
A Solr Stream is a pipeline of actions performed over a set of tuples (documents)
{
“ownerId” : 12345,
“age” : 13
}
A Solr Streaming Expression is a way to describe that pipeline
rollup(
search(pets, q="type:dog", fl=”ownerId,age", sort=”ownerId ASC"),
over=”ownerId”,
min(age), max(age), count(*)
)

10. 03
Solr Streams and Expressions
"Streaming Expressions provide a simple yet powerful stream processing language for
SolrCloud. They are a suite of functions that can be combined to perform many
different parallel computing tasks.” [Solr Reference Guide v6.0]
A Solr Stream is a pipeline of actions performed over a set of tuples (documents)
{
“ownerId” : 12345,
“min(age)” : 3,
“max(age)” : 14,
“count(*)” : 3
}
A Solr Streaming Expression is a way to describe that pipeline
rollup(
search(pets, q="type:dog", fl=”ownerId,age", sort=”ownerId ASC"),
over=”ownerId”,
min(age), max(age), count(*)
)

11. 03

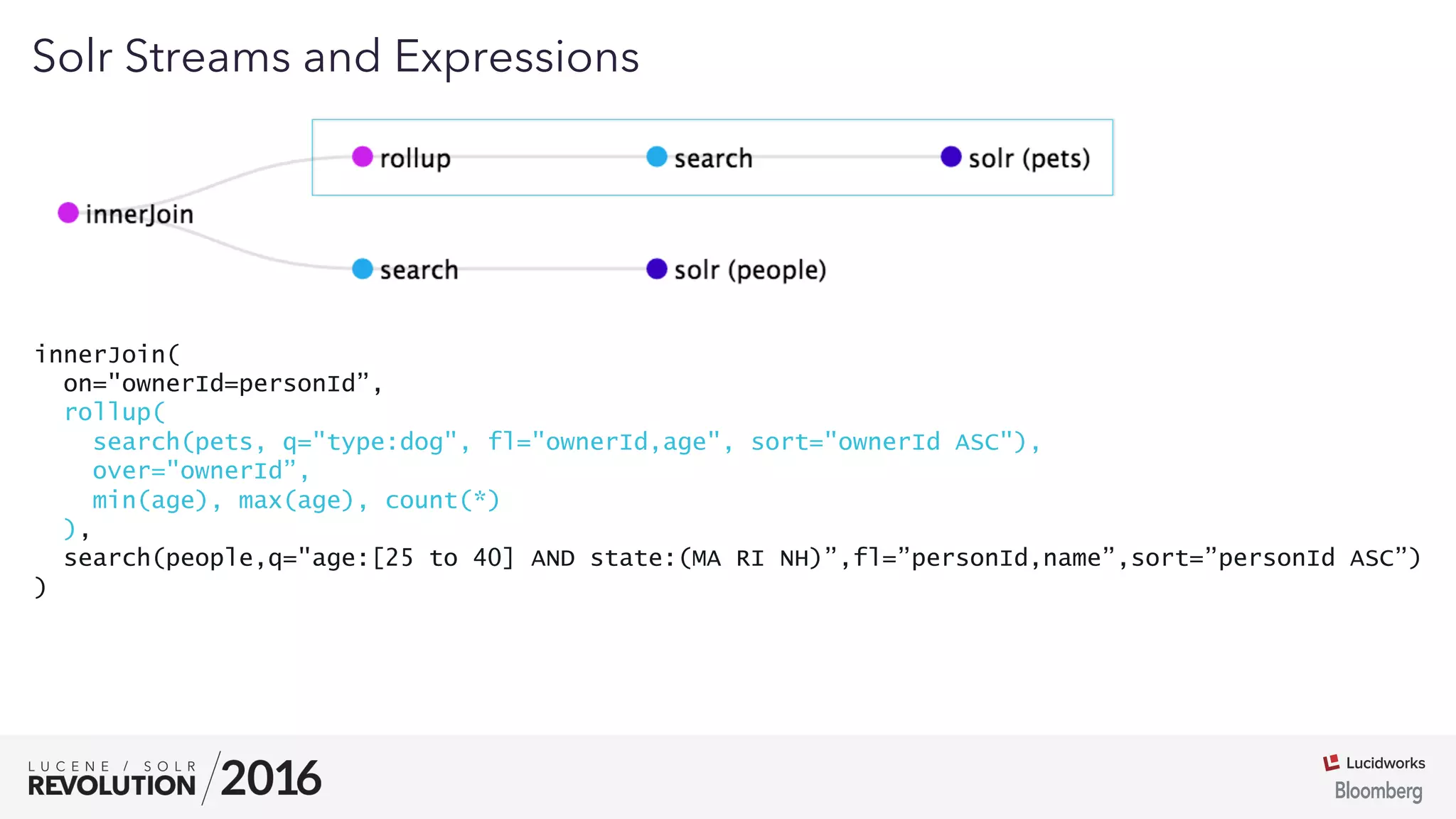

Solr Streams and Expressions
innerJoin(
on="ownerId=personId”,
rollup(
search(pets, q="type:dog", fl="ownerId,age", sort="ownerId ASC"),
over="ownerId”,
min(age), max(age), count(*)
),
search(people,q="age:[25 to 40] AND state:(MA RI NH)”,fl=”personId,name”,sort=”personId ASC”)
)

12. 03

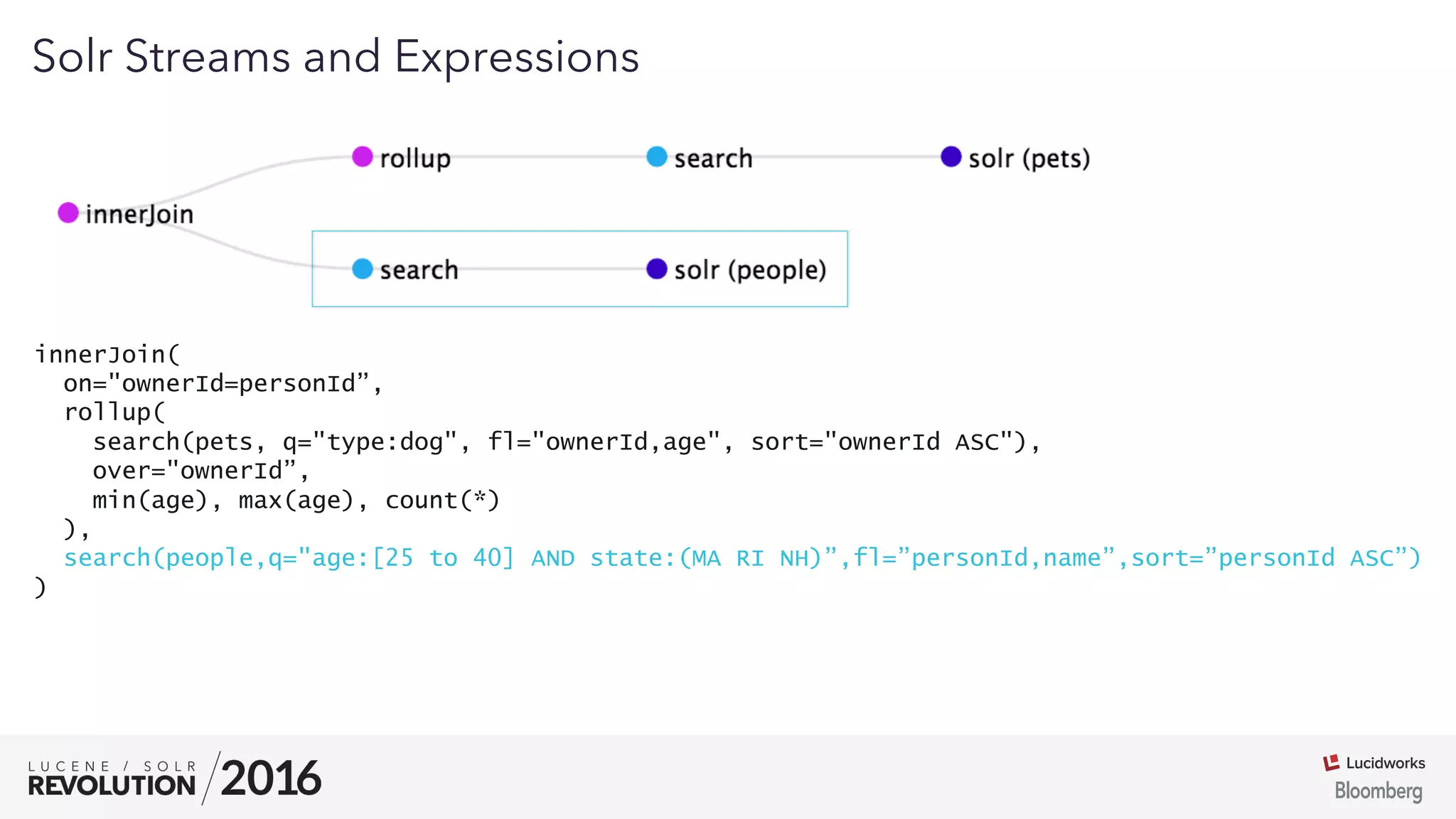

Solr Streams and Expressions
innerJoin(
on="ownerId=personId”,
rollup(
search(pets, q="type:dog", fl="ownerId,age", sort="ownerId ASC"),
over="ownerId”,
min(age), max(age), count(*)
),
search(people,q="age:[25 to 40] AND state:(MA RI NH)”,fl=”personId,name”,sort=”personId ASC”)
)

13. 03

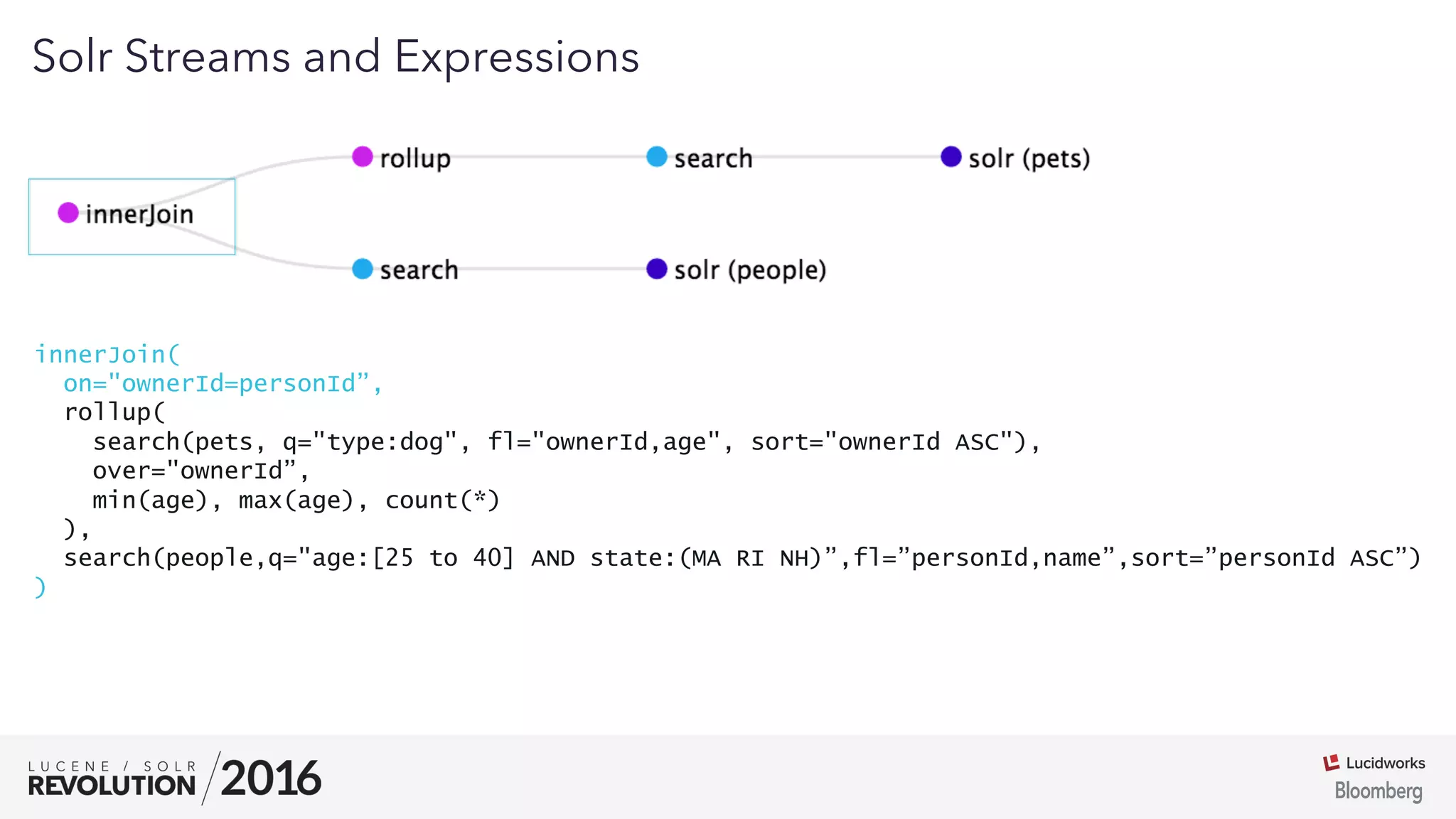

Solr Streams and Expressions
innerJoin(
on="ownerId=personId”,
rollup(
search(pets, q="type:dog", fl="ownerId,age", sort="ownerId ASC"),
over="ownerId”,
min(age), max(age), count(*)
),
search(people,q="age:[25 to 40] AND state:(MA RI NH)”,fl=”personId,name”,sort=”personId ASC”)
)

14. 03
Solr Streams and Expressions

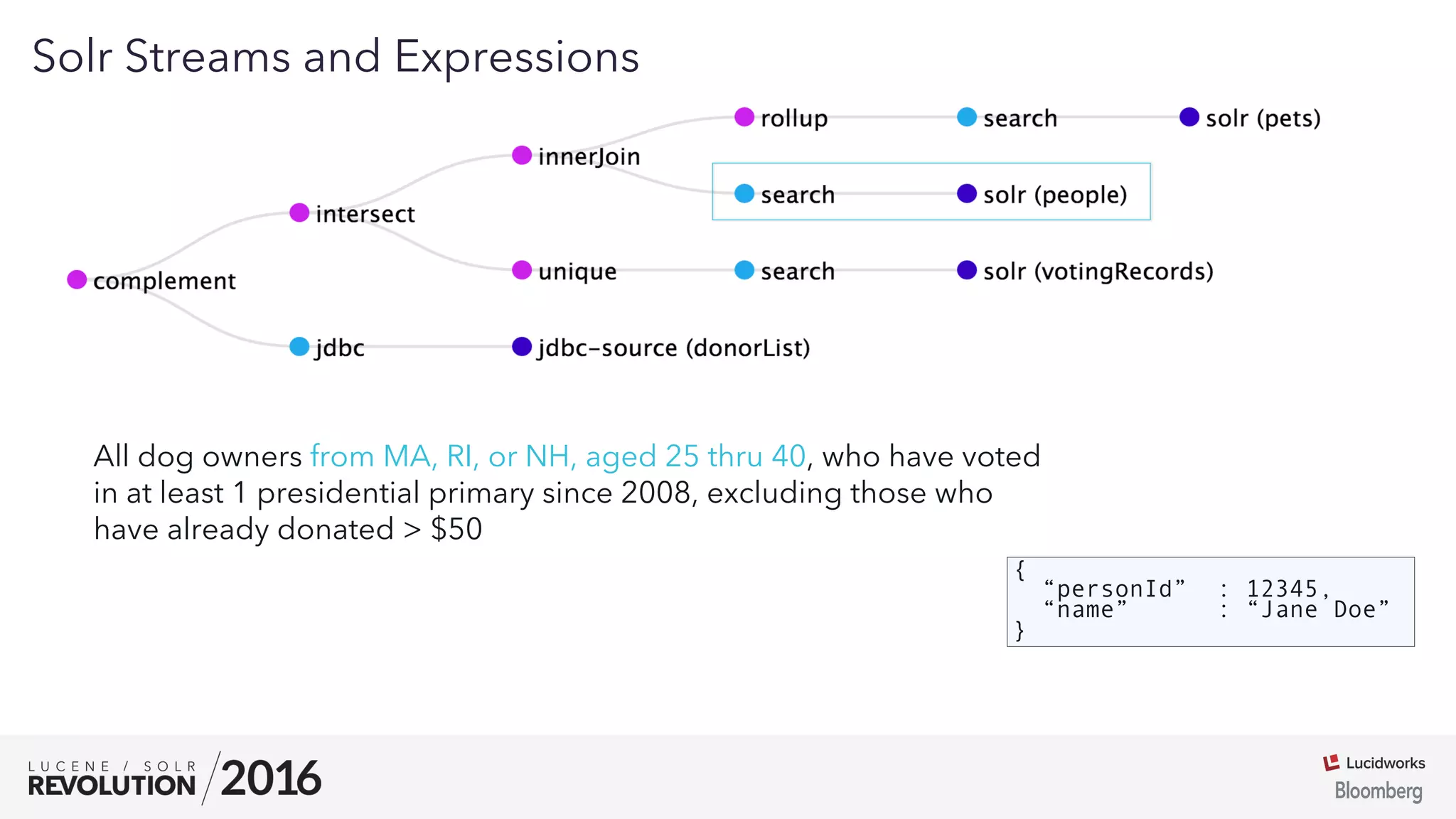

All dog owners from MA, RI, or NH, aged 25 thru 40, who have voted
in at least 1 presidential primary since 2008, excluding those who
have already donated > $50
{
“personId” : 12345,
“name” : “Jane Doe”
}

15. 03
Solr Streams and Expressions
All dog owners from MA, RI, or NH, aged 25 thru 40, who have voted
in at least 1 presidential primary since 2008, excluding those who
have already donated > $50
{
“personId” : 12345,
“name” : “Jane Doe”,
“ownerId” : 12345,
“min(age)” : 2,
“max(age)” : 14,
“count(*)” : 3
}

16. 03
Solr Streams and Expressions
All dog owners from MA, RI, or NH, aged 25 thru 40, who have voted
in at least 1 presidential primary since 2008, excluding those who
have already donated > $50
{
“personId” : 12345,
“name” : “Jane Doe”,
“ownerId” : 12345,
“min(age)” : 2,
“max(age)” : 14,
“count(*)” : 3
}

17. 03

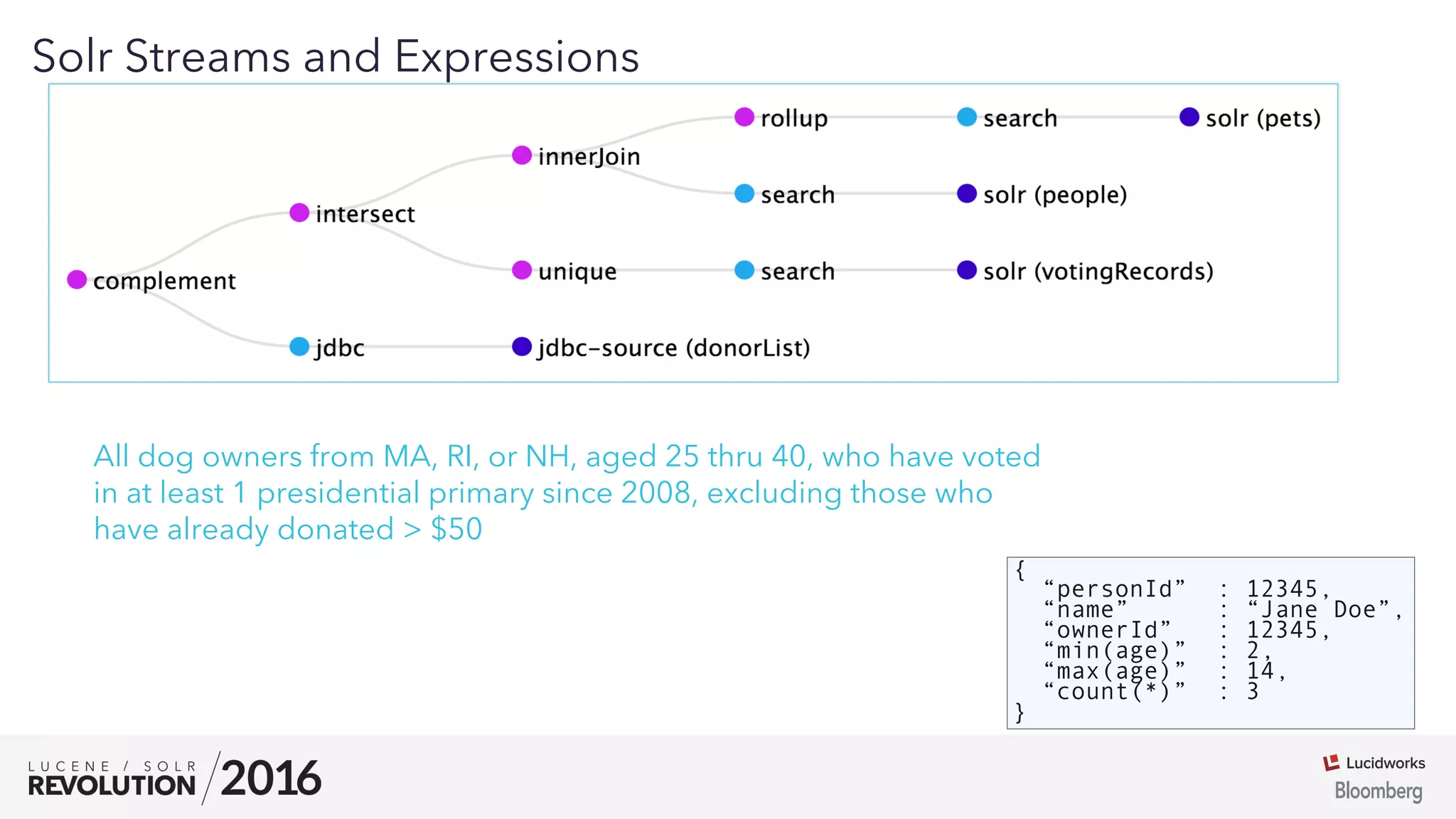

Solr Streams and Expressions

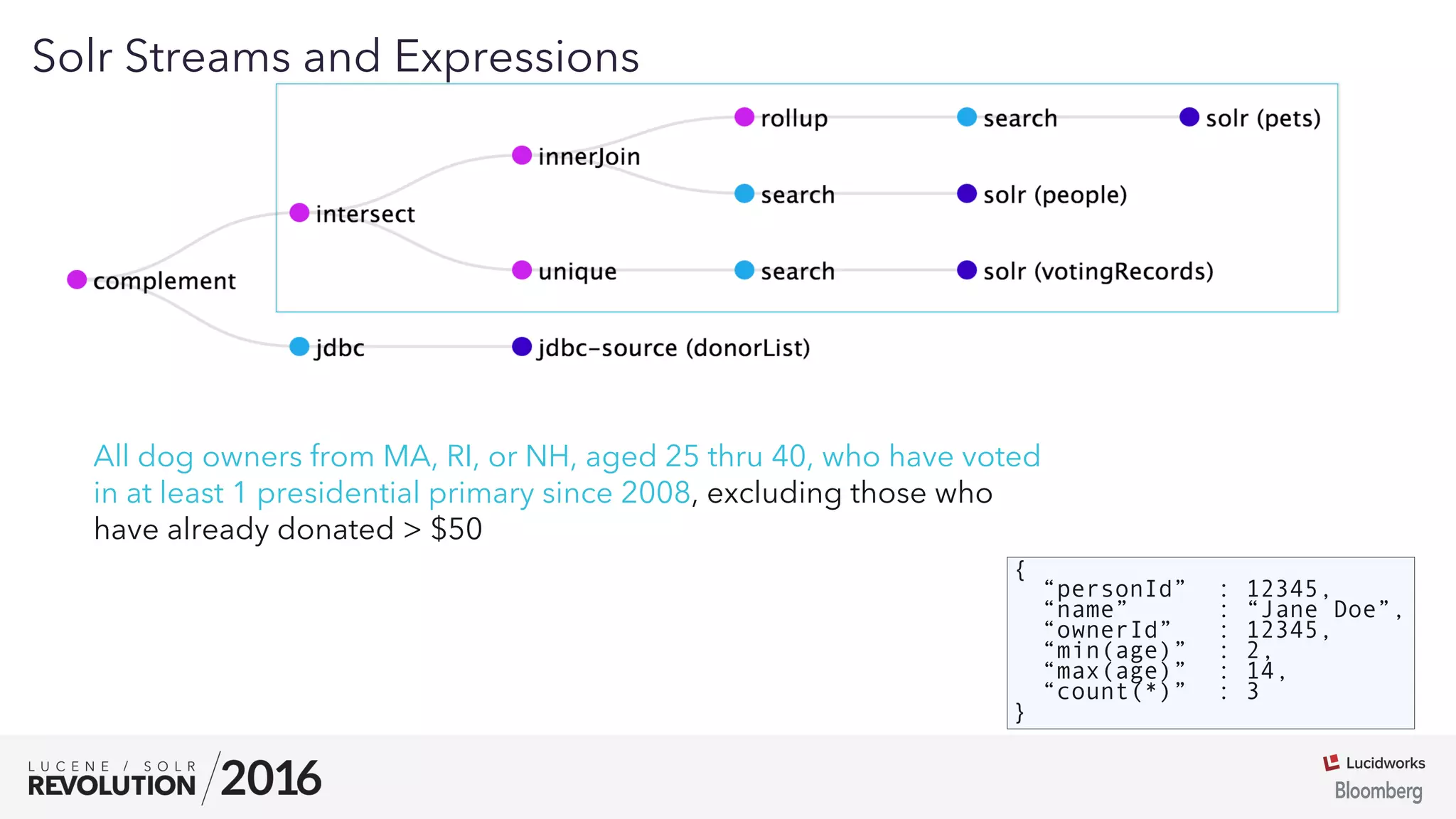

All dog owners from MA, RI, or NH, aged 25 thru 40, who have voted
in at least 1 presidential primary since 2008, excluding those who
have already donated > $50
{
“personId” : 12345,
“name” : “Jane Doe”,
“ownerId” : 12345,
“min(age)” : 2,
“max(age)” : 14,
“count(*)” : 3
}

18. 03

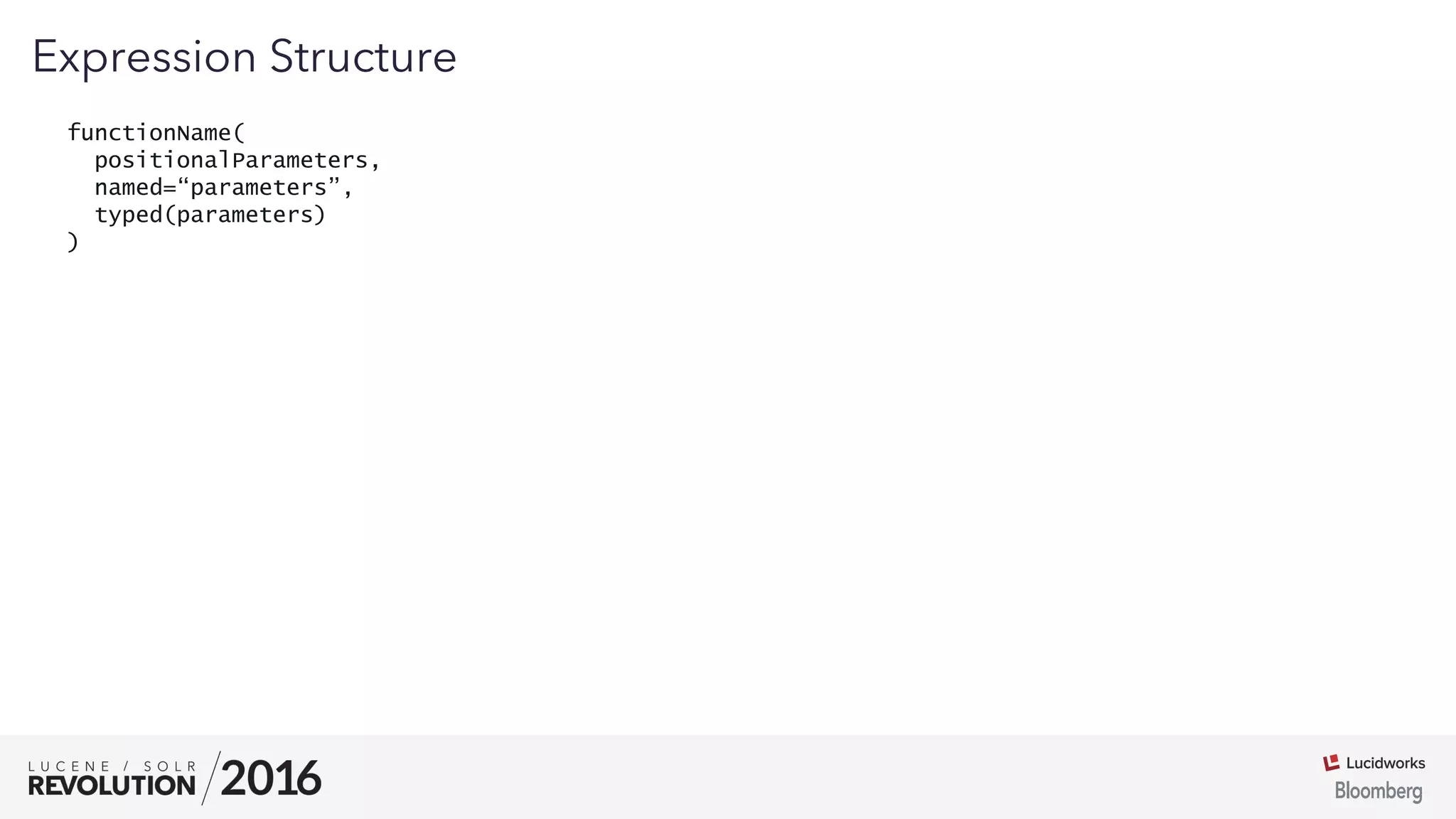

functionName(
positionalParameters,
named=“parameters”,
typed(parameters)
)
Expression Structure

19. 03
functionName(
positionalParameters,
named=“parameters”,
typed(parameters)
)
Expression Structure
update(
petOwners,
batchSize=5,
rollup(
over=“ownerId”,
search(pets, q=*:*, fl=“ownerId,age”, sort=“personId ASC”),
min(age), max(age), count(*)
)
)

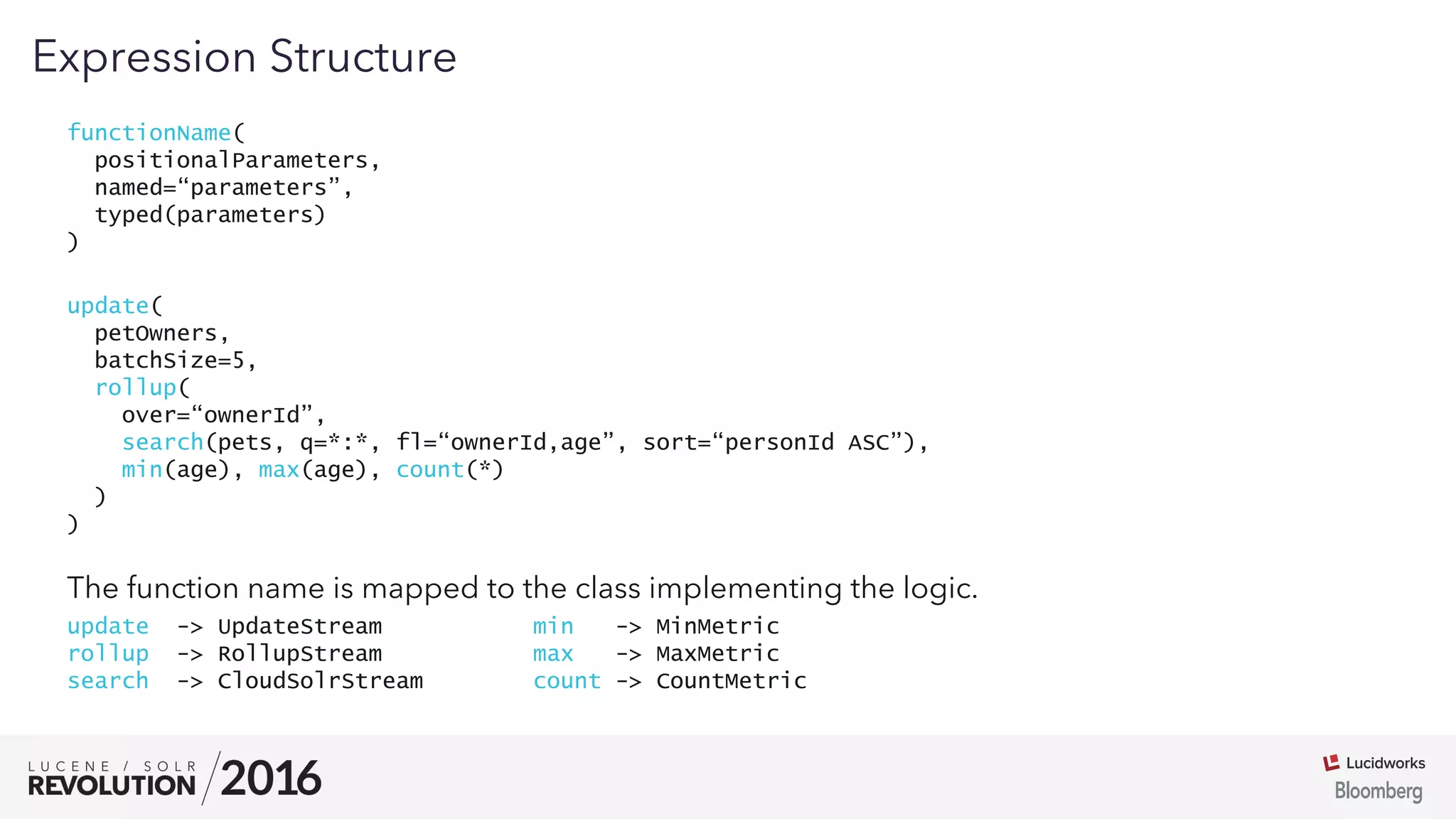

The function name is mapped to the class implementing the logic.
update -> UpdateStream min -> MinMetric
rollup -> RollupStream max -> MaxMetric
search -> CloudSolrStream count -> CountMetric

20. 03
functionName(
positionalParameters,
named=“parameters”,
typed(parameters)
)
Expression Structure
Positional parameters are those expected to be in a particular position.
Most often used to reference collection or field names.
update(
petOwners,
batchSize=5,
rollup(
over=“ownerId”,
search(pets, q=*:*, fl=“ownerId,age”, sort=“personId ASC”),
min(age), max(age), count(*)
)
)

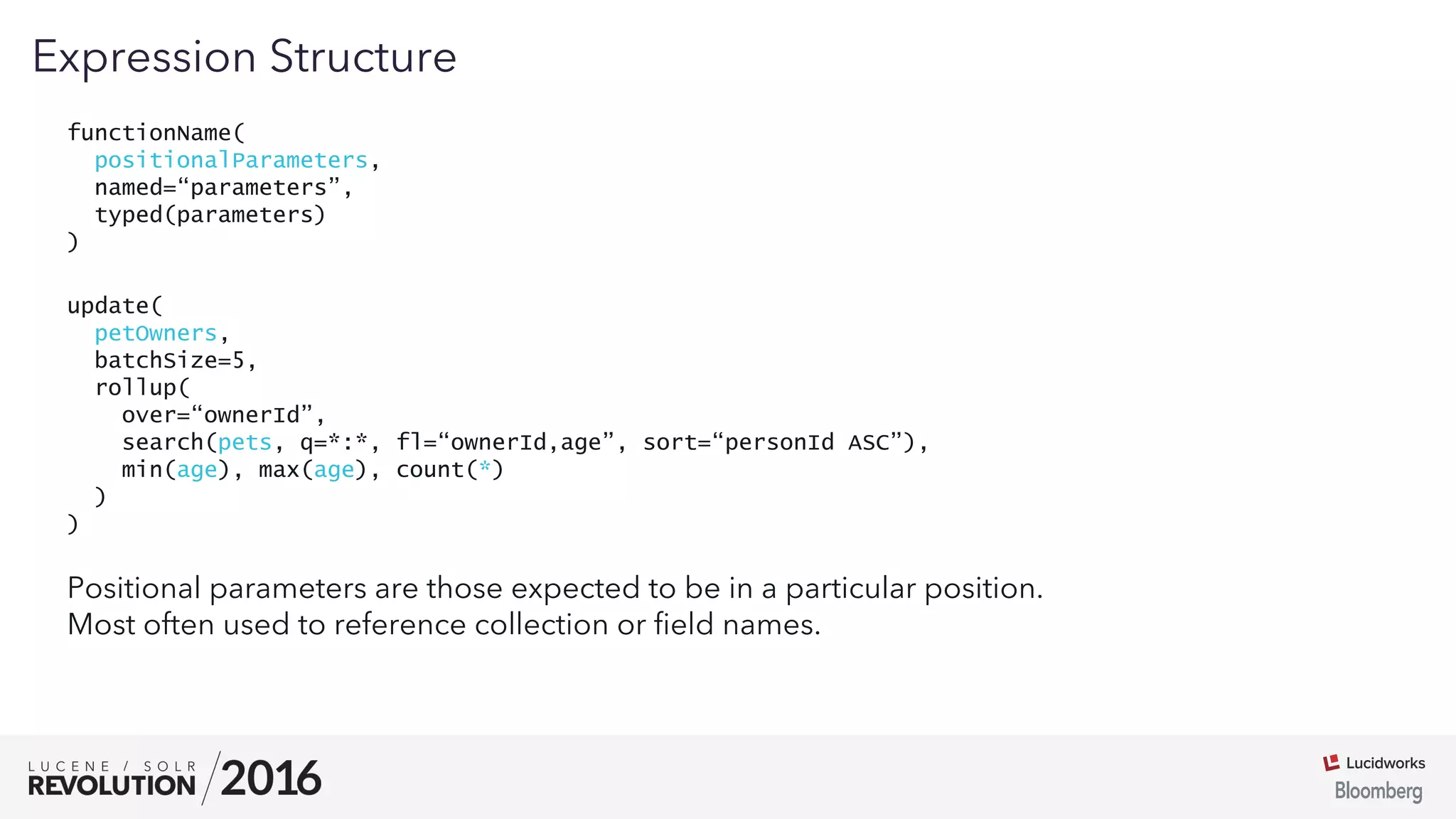

21. 03
functionName(
positionalParameters,
named=“parameters”,
typed(parameters)
)
Expression Structure

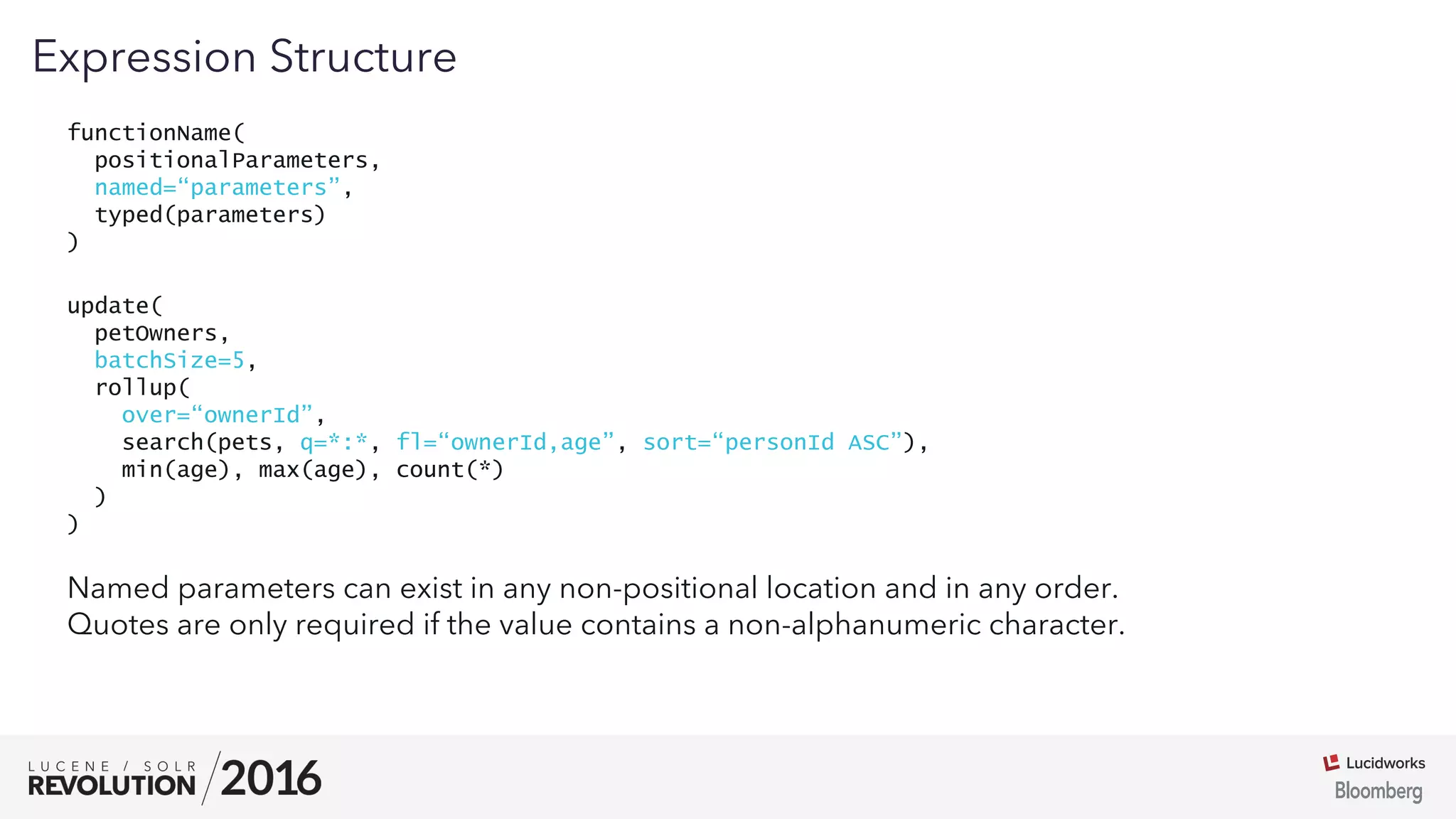

Named parameters can exist in any non-positional location and in any order.
Quotes are only required if the value contains a non-alphanumeric character.
update(
petOwners,
batchSize=5,
rollup(
over=“ownerId”,
search(pets, q=*:*, fl=“ownerId,age”, sort=“personId ASC”),
min(age), max(age), count(*)
)
)

22. 03
functionName(
positionalParameters,
named=“parameters”,
typed(parameters)
)
Expression Structure

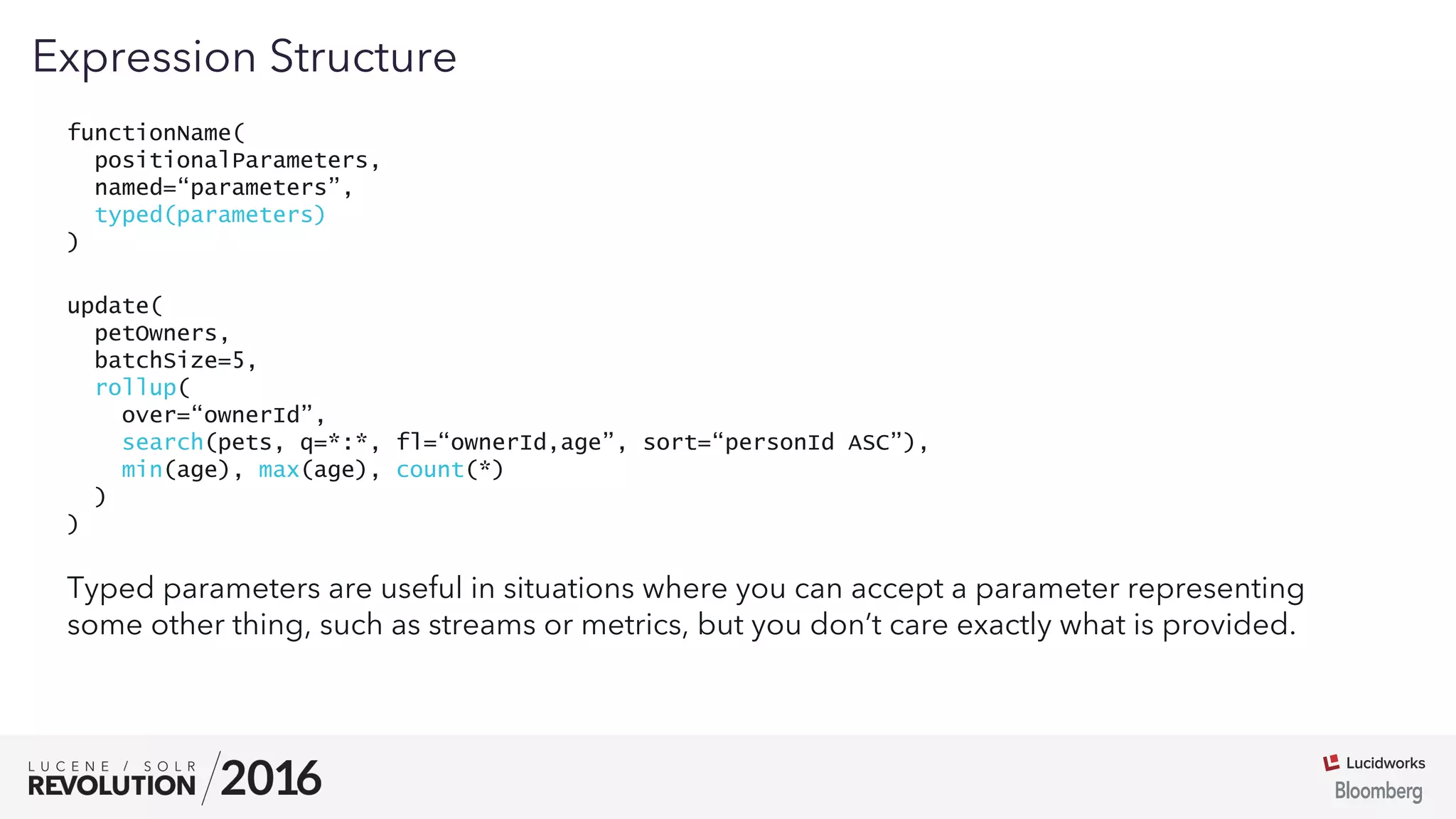

Typed parameters are useful in situations where you can accept a parameter representing
some other thing, such as streams or metrics, but you don’t care exactly what is provided.
update(
petOwners,
batchSize=5,
rollup(
over=“ownerId”,
search(pets, q=*:*, fl=“ownerId,age”, sort=“personId ASC”),
min(age), max(age), count(*)
)
)

23. 03

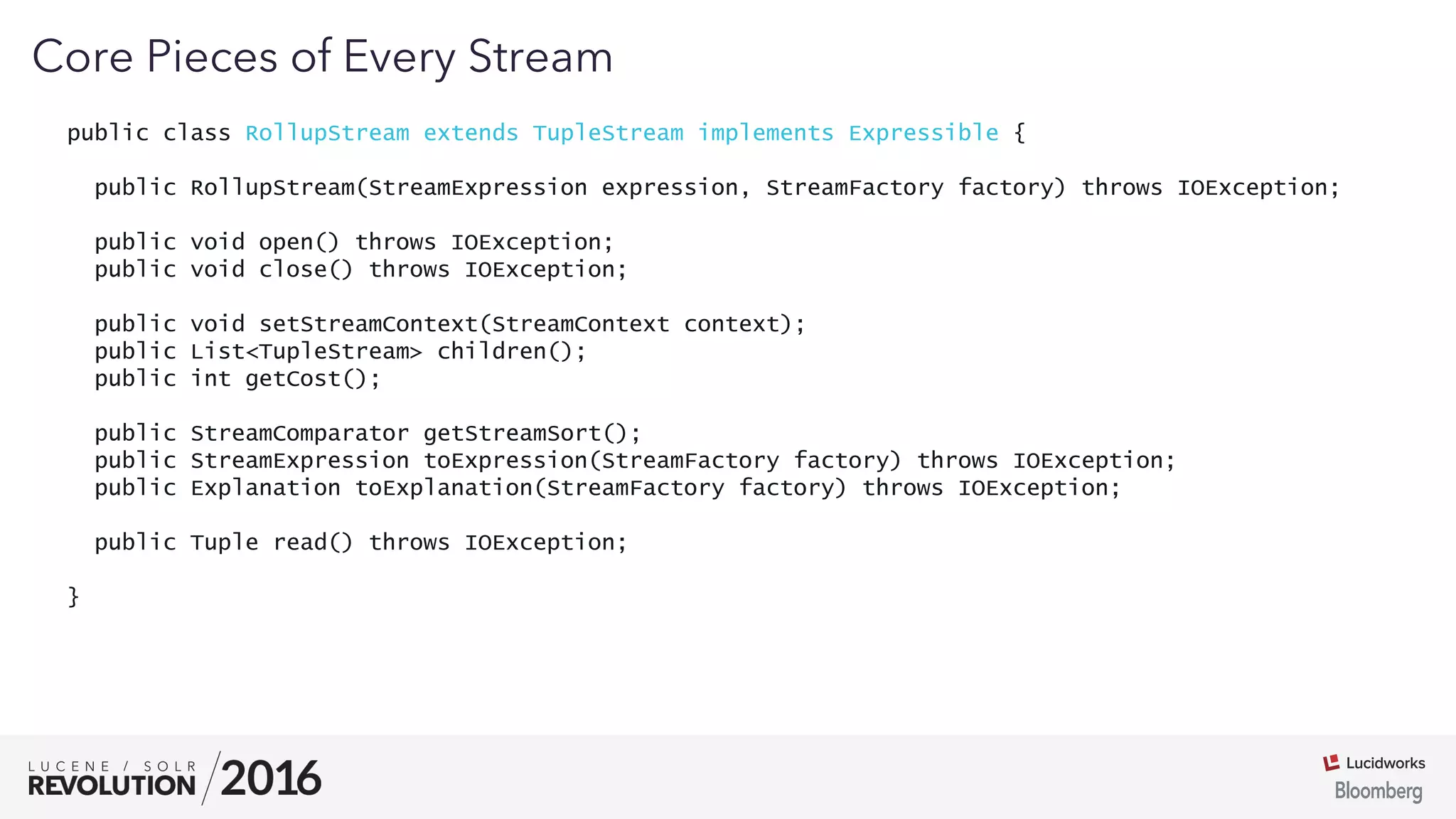

public class RollupStream extends TupleStream implements Expressible {
public RollupStream(StreamExpression expression, StreamFactory factory) throws IOException;
public void open() throws IOException;
public void close() throws IOException;
public void setStreamContext(StreamContext context);
public List<TupleStream> children();
public int getCost();
public StreamComparator getStreamSort();
public StreamExpression toExpression(StreamFactory factory) throws IOException;
public Explanation toExplanation(StreamFactory factory) throws IOException;
public Tuple read() throws IOException;
}
Core Pieces of Every Stream

24. 03
public class RollupStream extends TupleStream implements Expressible {
public RollupStream(StreamExpression expression, StreamFactory factory) throws IOException {
// grab all parameters out
TupleStream incomingStream = extractStream(expression, factory);
List<Metric> metrics = extractMetrics(expression, factory);
String over = extractOver(expression, factory);
......<validate input>......
}
}
Core Pieces of Every Stream

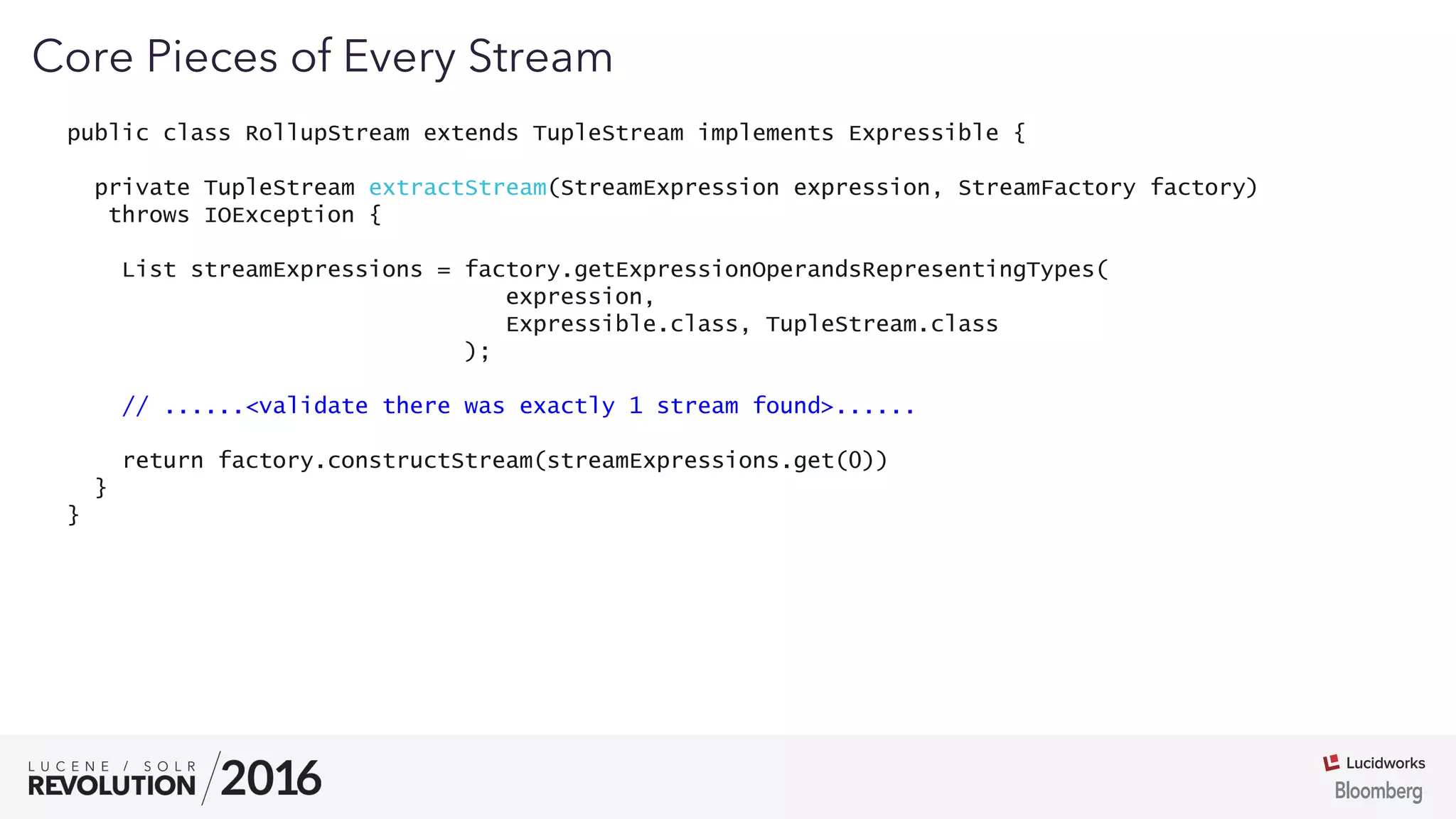

25. 03
public class RollupStream extends TupleStream implements Expressible {
private TupleStream extractStream(StreamExpression expression, StreamFactory factory)
throws IOException {
List streamExpressions = factory.getExpressionOperandsRepresentingTypes(
expression,
Expressible.class, TupleStream.class
);
// ......<validate there was exactly 1 stream found>......
return factory.constructStream(streamExpressions.get(0))
}
}
Core Pieces of Every Stream

26. 03

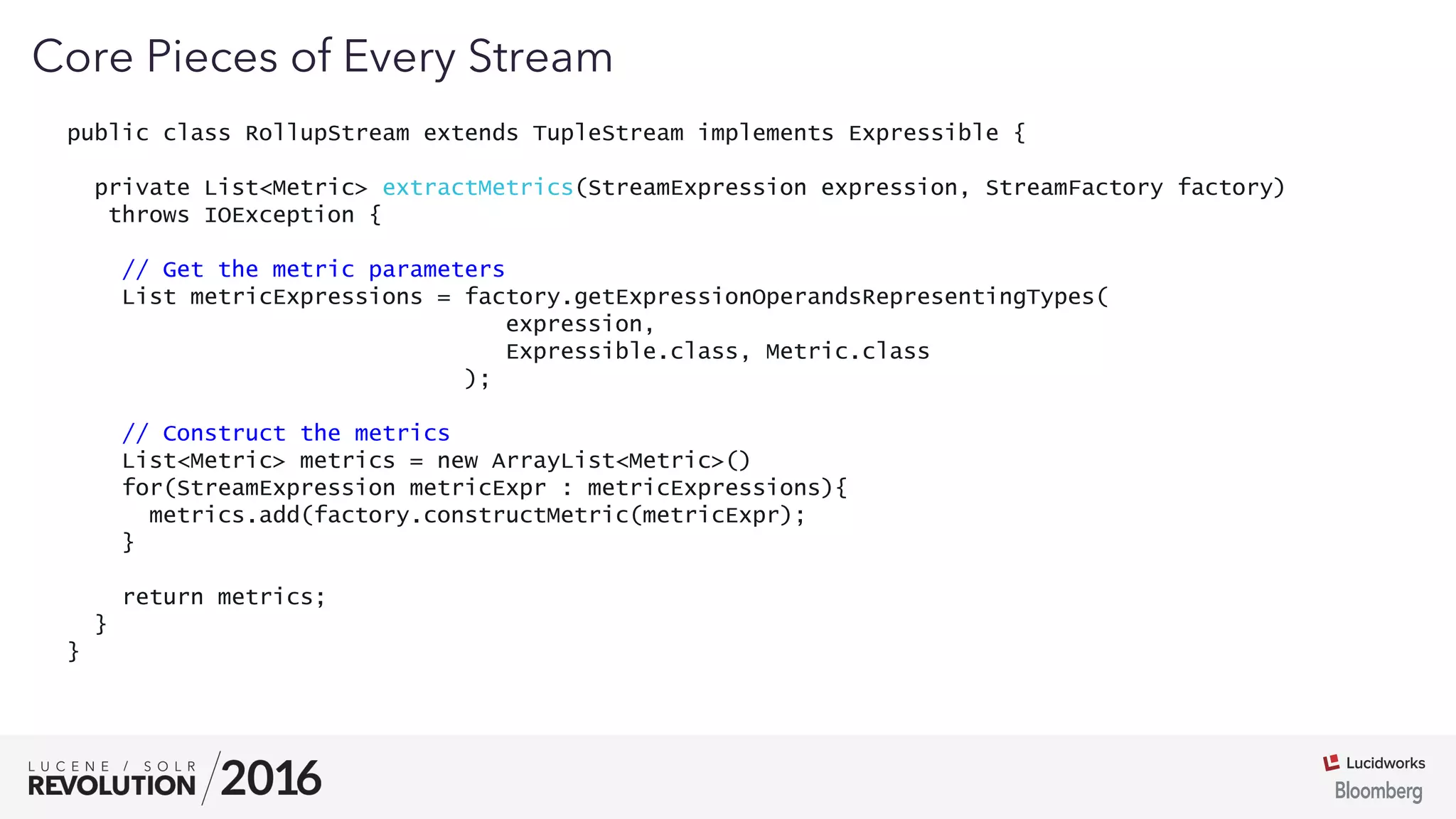

public class RollupStream extends TupleStream implements Expressible {
private List<Metric> extractMetrics(StreamExpression expression, StreamFactory factory)
throws IOException {
// Get the metric parameters
List metricExpressions = factory.getExpressionOperandsRepresentingTypes(
expression,
Expressible.class, Metric.class
);
// Construct the metrics
List<Metric> metrics = new ArrayList<Metric>()
for(StreamExpression metricExpr : metricExpressions){
metrics.add(factory.constructMetric(metricExpr);
}
return metrics;
}
}
Core Pieces of Every Stream

27. 03

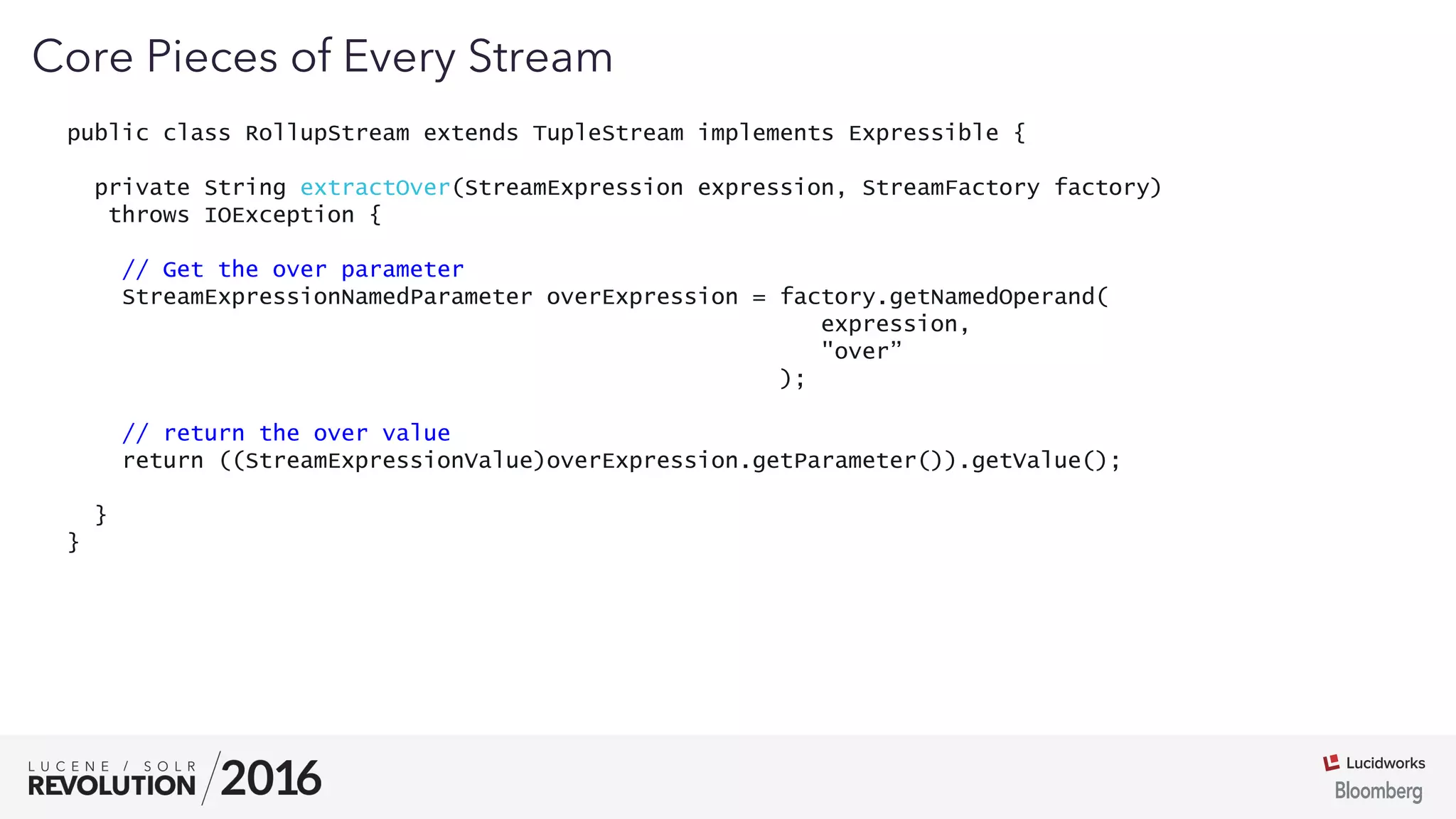

public class RollupStream extends TupleStream implements Expressible {
private String extractOver(StreamExpression expression, StreamFactory factory)
throws IOException {
// Get the over parameter
StreamExpressionNamedParameter overExpression = factory.getNamedOperand(
expression,
"over”
);
// return the over value
return ((StreamExpressionValue)overExpression.getParameter()).getValue();
}
}
Core Pieces of Every Stream

28. 03

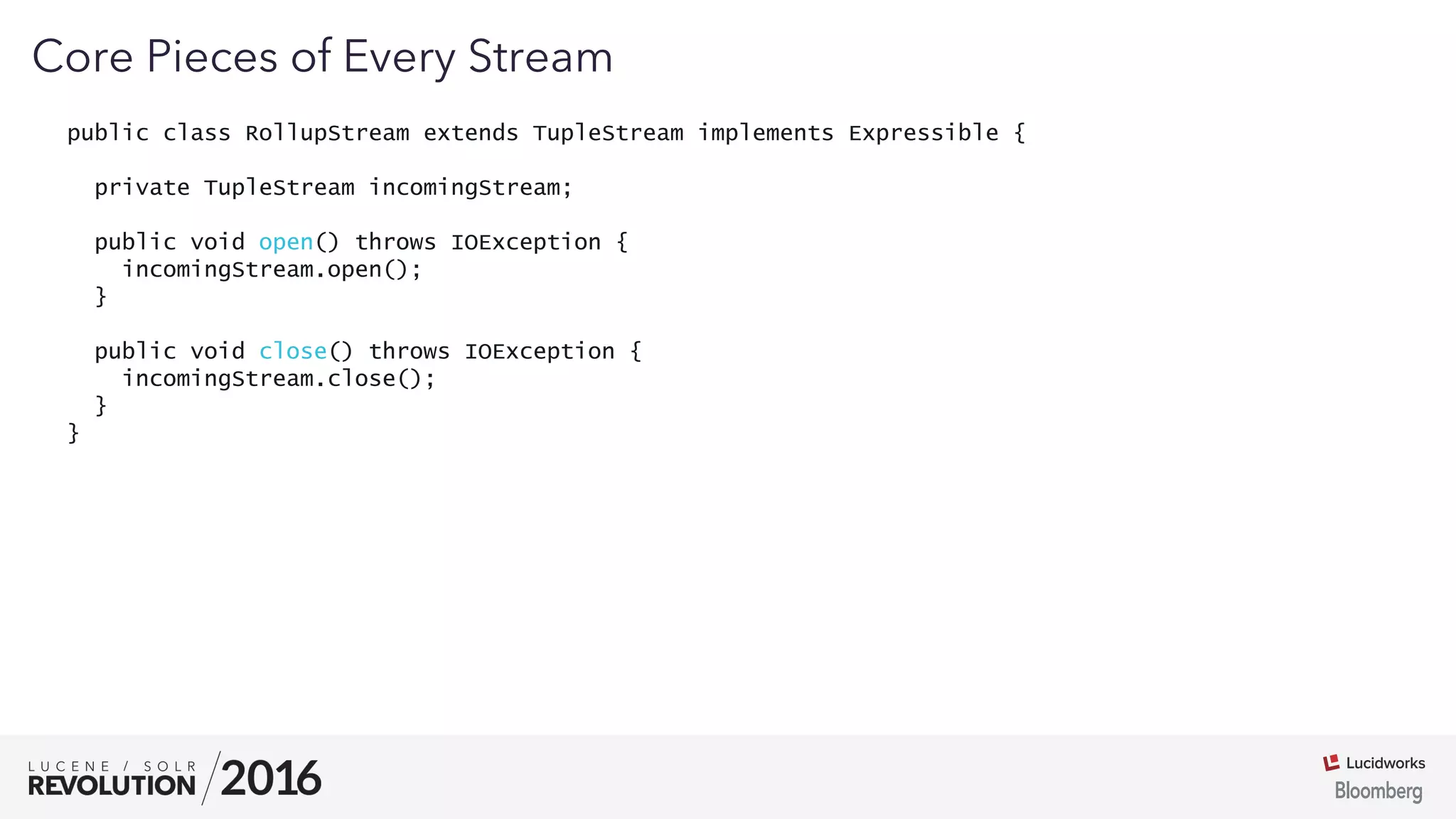

public class RollupStream extends TupleStream implements Expressible {
private TupleStream incomingStream;
public void open() throws IOException {
incomingStream.open();
}
public void close() throws IOException {
incomingStream.close();
}
}
Core Pieces of Every Stream

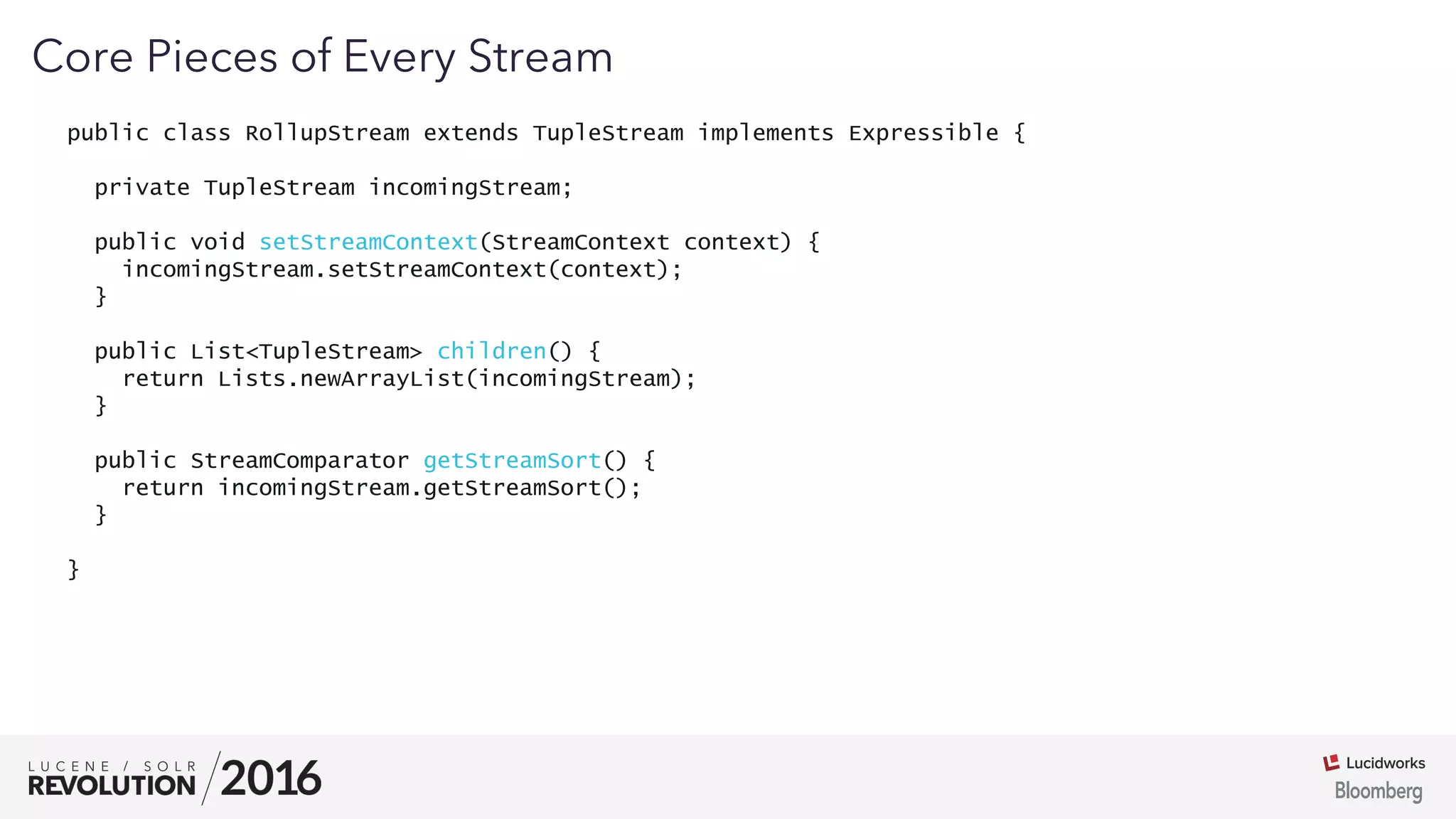

29. 03
public class RollupStream extends TupleStream implements Expressible {
private TupleStream incomingStream;
public void setStreamContext(StreamContext context) {
incomingStream.setStreamContext(context);
}
public List<TupleStream> children() {
return Lists.newArrayList(incomingStream);
}
public StreamComparator getStreamSort() {
return incomingStream.getStreamSort();
}
}
Core Pieces of Every Stream

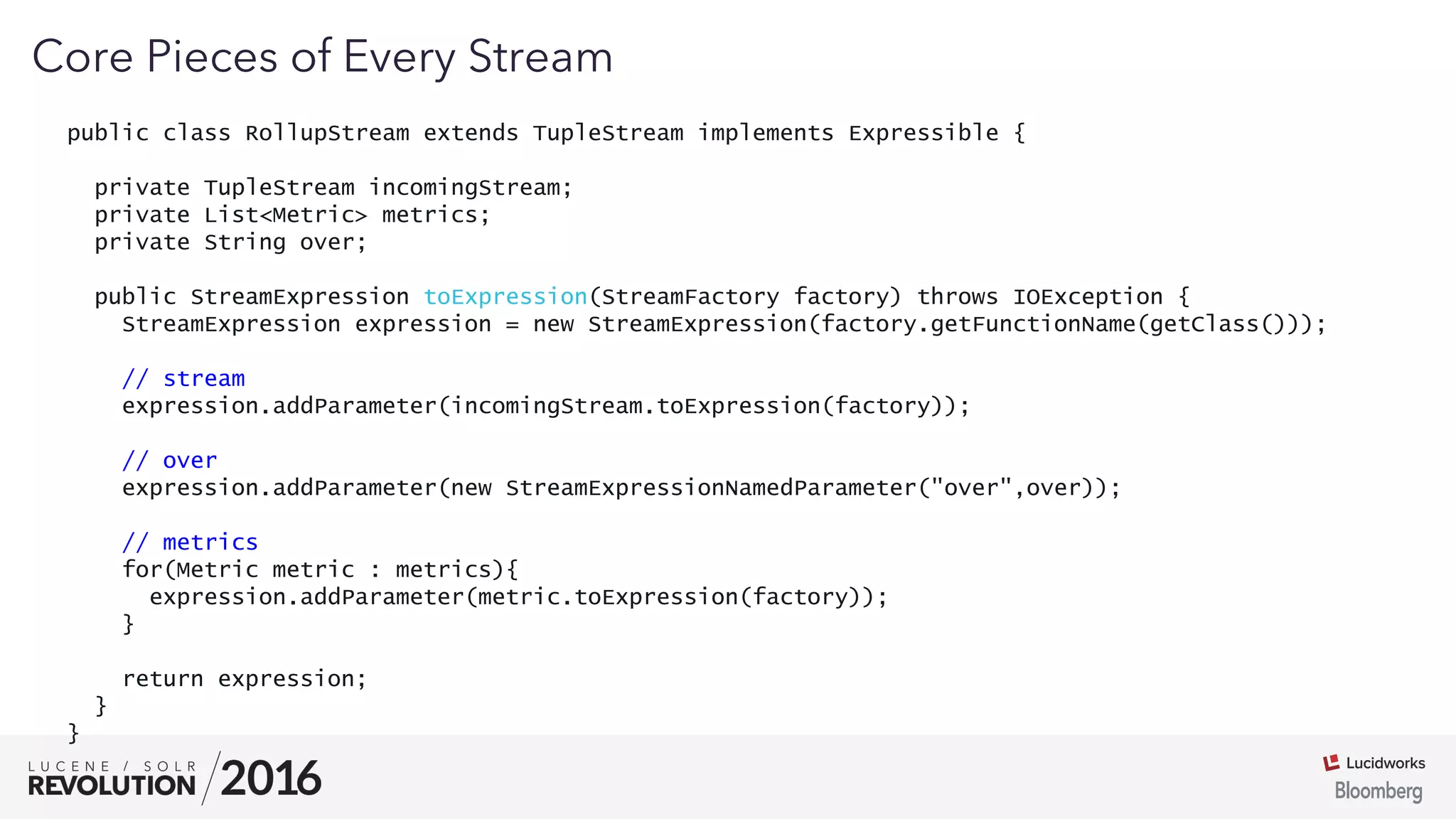

30. 03
public class RollupStream extends TupleStream implements Expressible {
private TupleStream incomingStream;
private List<Metric> metrics;
private String over;
public StreamExpression toExpression(StreamFactory factory) throws IOException {
StreamExpression expression = new StreamExpression(factory.getFunctionName(getClass()));
// stream
expression.addParameter(incomingStream.toExpression(factory));
// over
expression.addParameter(new StreamExpressionNamedParameter("over",over));
// metrics
for(Metric metric : metrics){
expression.addParameter(metric.toExpression(factory));
}
return expression;
}
}
Core Pieces of Every Stream

31. 03

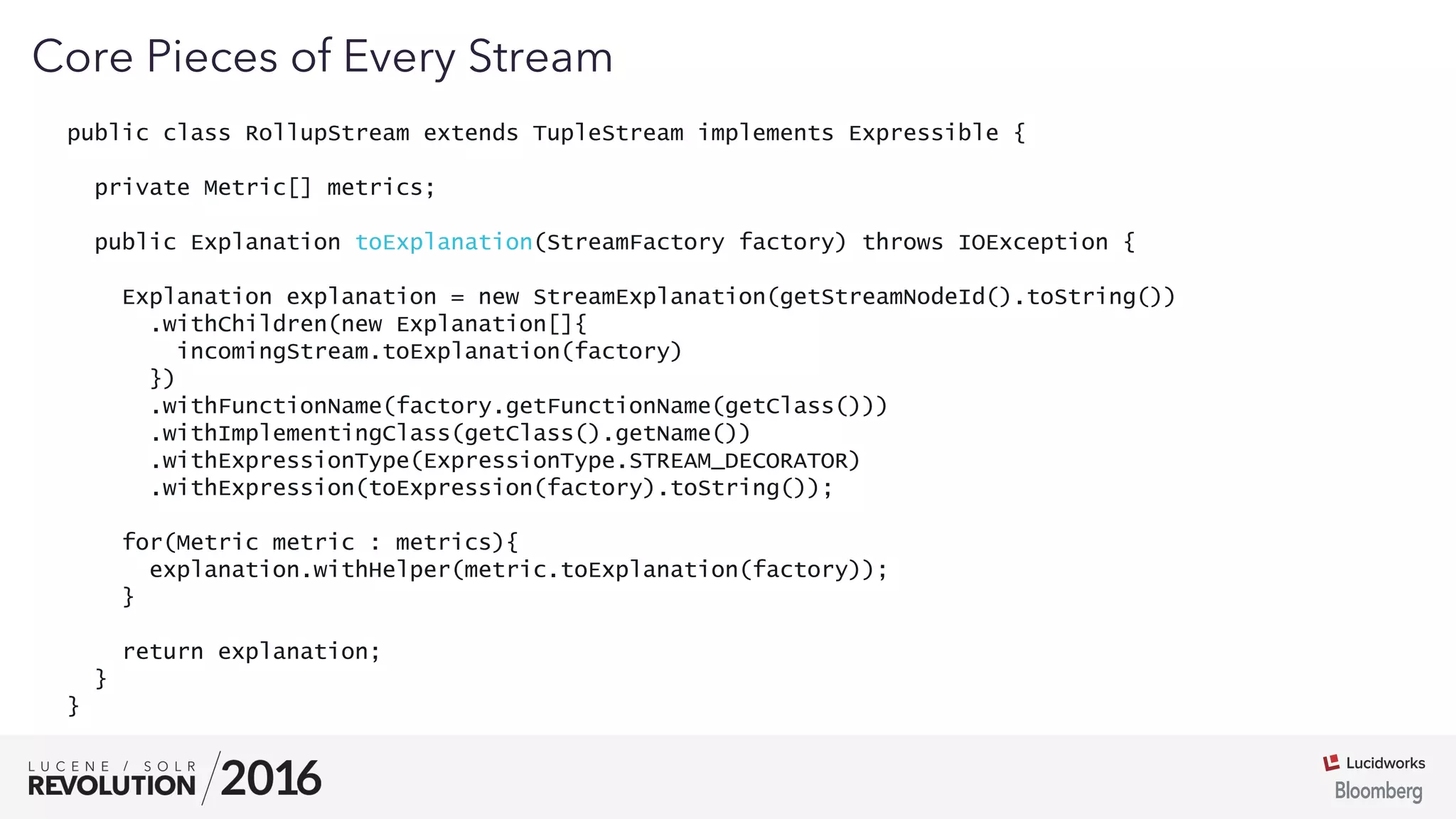

public class RollupStream extends TupleStream implements Expressible {
private Metric[] metrics;
public Explanation toExplanation(StreamFactory factory) throws IOException {
Explanation explanation = new StreamExplanation(getStreamNodeId().toString())
.withChildren(new Explanation[]{
incomingStream.toExplanation(factory)
})
.withFunctionName(factory.getFunctionName(getClass()))
.withImplementingClass(getClass().getName())
.withExpressionType(ExpressionType.STREAM_DECORATOR)
.withExpression(toExpression(factory).toString());
for(Metric metric : metrics){
explanation.withHelper(metric.toExplanation(factory));
}
return explanation;
}
}
Core Pieces of Every Stream

32. 01

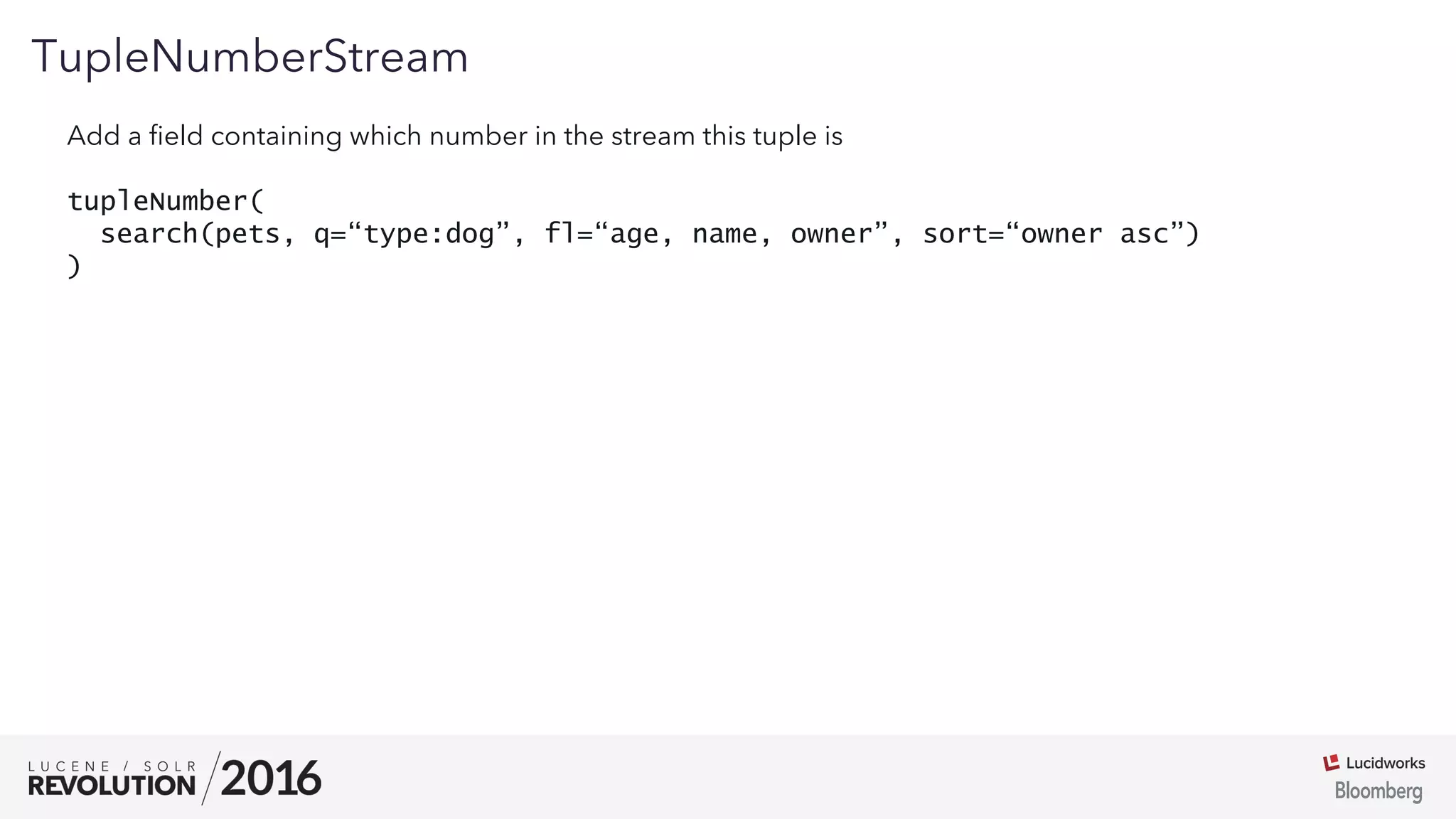

TupleNumberStream
Add a field containing which number in the stream this tuple is
tupleNumber(
search(pets, q=“type:dog”, fl=“age, name, owner”, sort=“owner asc”)
)

33. 01
TupleNumberStream – read()
public class TupleNumberStream extends TupleStream implements Expressible {
private long tupleNumber = 0;
/**
* Read and return the next tuple.
* For each tuple we will add a field 'tupleNumber' containing the number of this tuple
* in the stream. Numbers start at 1.
*/
public Tuple read() throws IOException {
Tuple nextTuple = incomingStream.read();
tupleNumber += 1;
nextTuple.fields.put("tupleNumber", tupleNumber);
return nextTuple;
}
}

34. 01

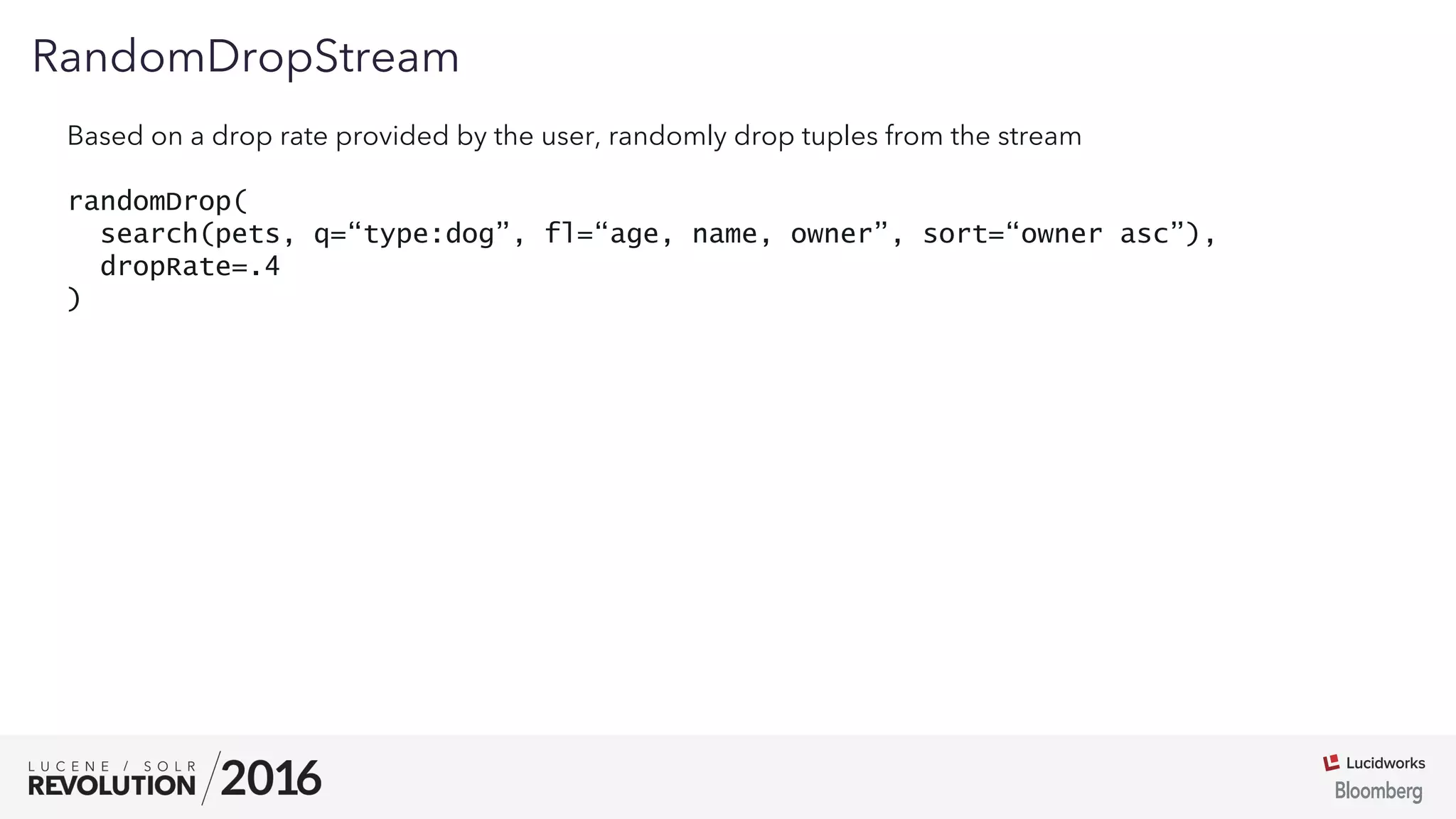

RandomDropStream
Based on a drop rate provided by the user, randomly drop tuples from the stream
randomDrop(
search(pets, q=“type:dog”, fl=“age, name, owner”, sort=“owner asc”),
dropRate=.4
)

35. 01

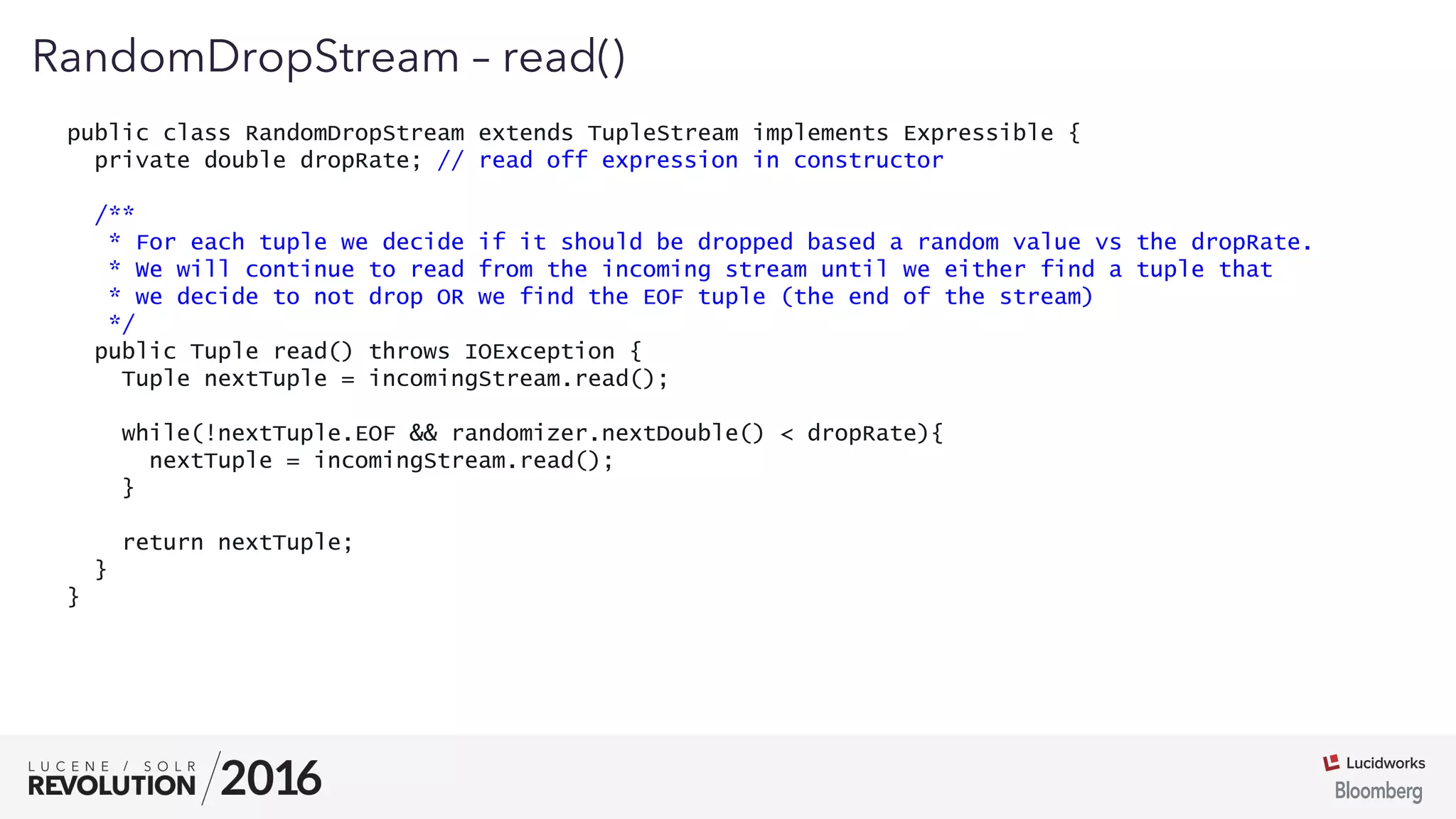

RandomDropStream – read()
public class RandomDropStream extends TupleStream implements Expressible {
private double dropRate; // read off expression in constructor
/**
* For each tuple we decide if it should be dropped based a random value vs the dropRate.
* We will continue to read from the incoming stream until we either find a tuple that
* we decide to not drop OR we find the EOF tuple (the end of the stream)
*/
public Tuple read() throws IOException {
Tuple nextTuple = incomingStream.read();
while(!nextTuple.EOF && randomizer.nextDouble() < dropRate){
nextTuple = incomingStream.read();
}
return nextTuple;
}
}

36. 01

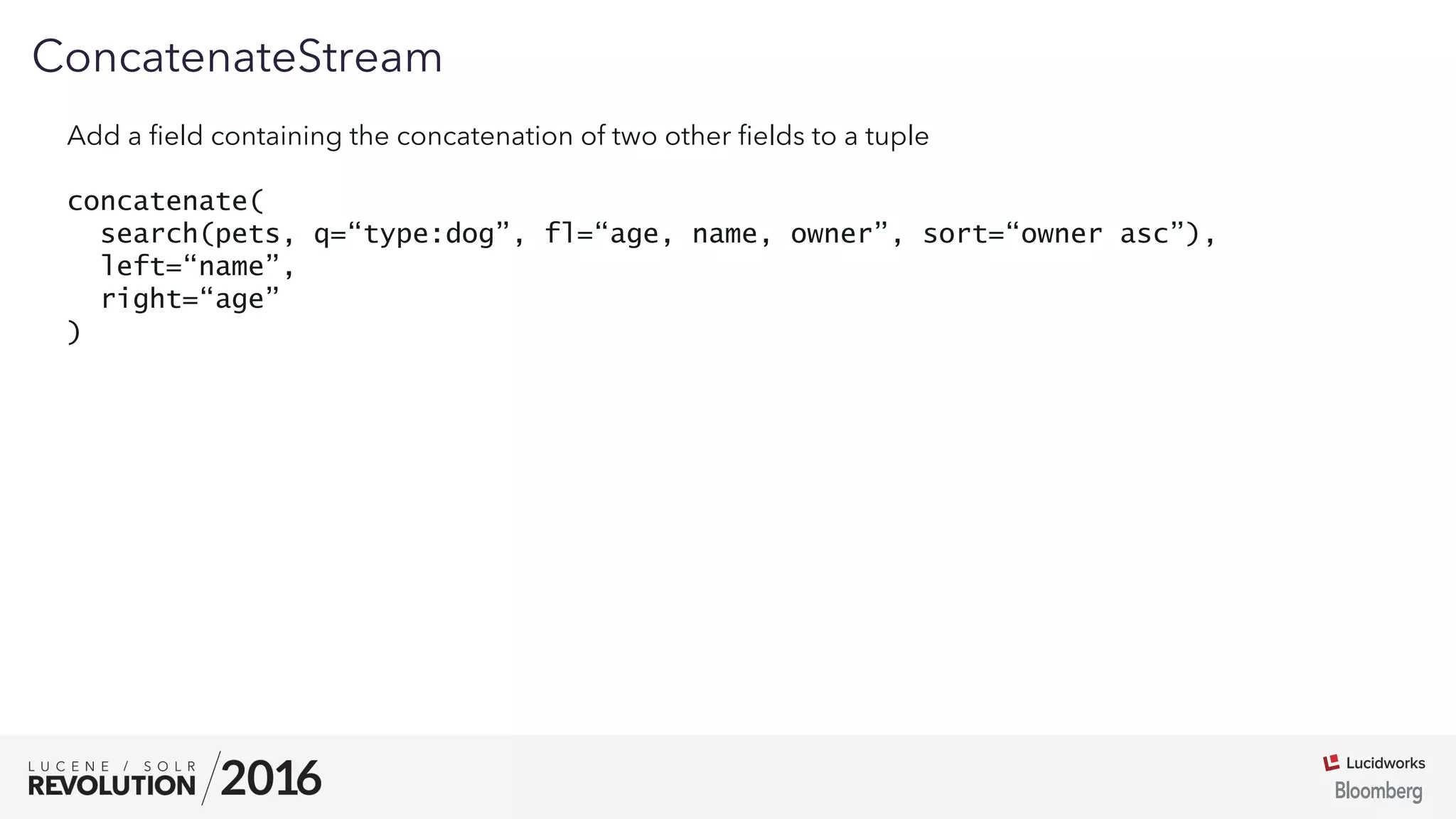

ConcatenateStream
Add a field containing the concatenation of two other fields to a tuple
concatenate(
search(pets, q=“type:dog”, fl=“age, name, owner”, sort=“owner asc”),
left=“name”,
right=“age”
)

37. 01
ConcatenateStream– read()
public class ConcatenateStream extends TupleStream implements Expressible {
private String leftField; // read off expression in constructor
private String rightField; // read off expression in constructor
/**
* Read and return the next tuple.
* For each tuple, add a field made up of the concatenation of two fields
*/
public Tuple read() throws IOException {
Tuple tuple = incomingStream.read();
if(!tuple.EOF){
if(tuple.fields.containsKey(leftField) && tuple.fields.containsKey(rightField)){
tuple.fields.put(
"newField",
tuple.get(leftField).toString() + tuple.get(rightField).toString()
);
}
}
return tuple;
}
}

38. 01

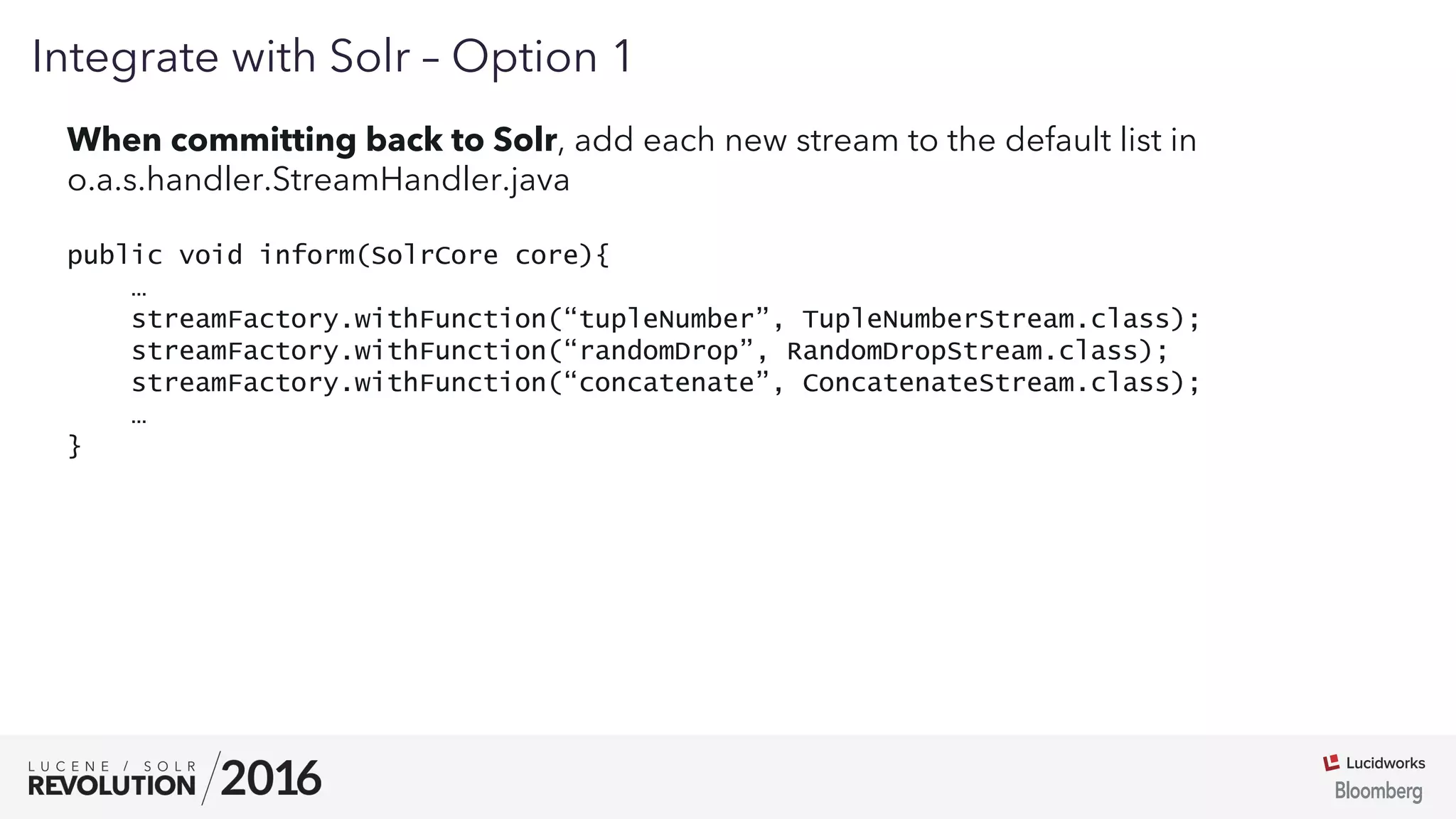

Integrate with Solr – Option 1
When committing back to Solr, add each new stream to the default list in
o.a.s.handler.StreamHandler.java
public void inform(SolrCore core){
…
streamFactory.withFunction(“tupleNumber”, TupleNumberStream.class);
streamFactory.withFunction(“randomDrop”, RandomDropStream.class);
streamFactory.withFunction(“concatenate”, ConcatenateStream.class);
…
}

39. 03
facet
features
gatherNodes
jdbc
model (Solr 6.3)
random
search
shortestPath
stats
train
topic

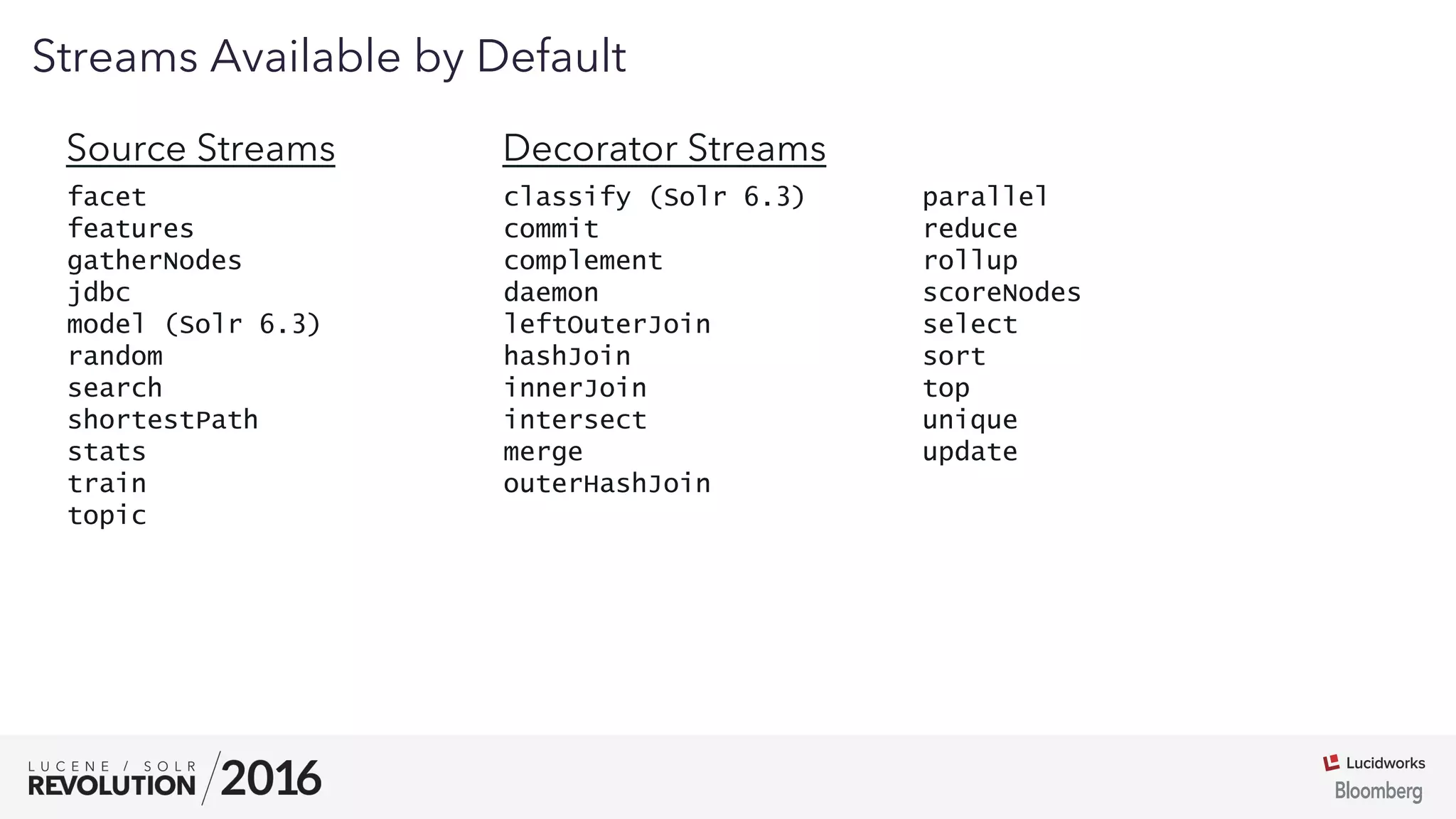

Streams Available by Default
classify (Solr 6.3)
commit
complement
daemon
leftOuterJoin
hashJoin
innerJoin
intersect
merge
outerHashJoin
parallel
reduce
rollup
scoreNodes
select
sort
top
unique
update
Source Streams Decorator Streams

40. 01
Integrate with Solr – Option 2
When keeping internal to your organization, add each new stream to the
solrconfig.xml of each collection you want to use it in (Solr 6.3)
<config>
...
<expressible name=“tupleNumber” class=“your.name.space.TupleNumberStream”/>
<expressible name=“randomDrop” class=“your.name.space.RandomDropStream”/>
<expressible name=“concatenate” class=“your.name.space.ConcatenateStream”/>
...
</config>

41. 01

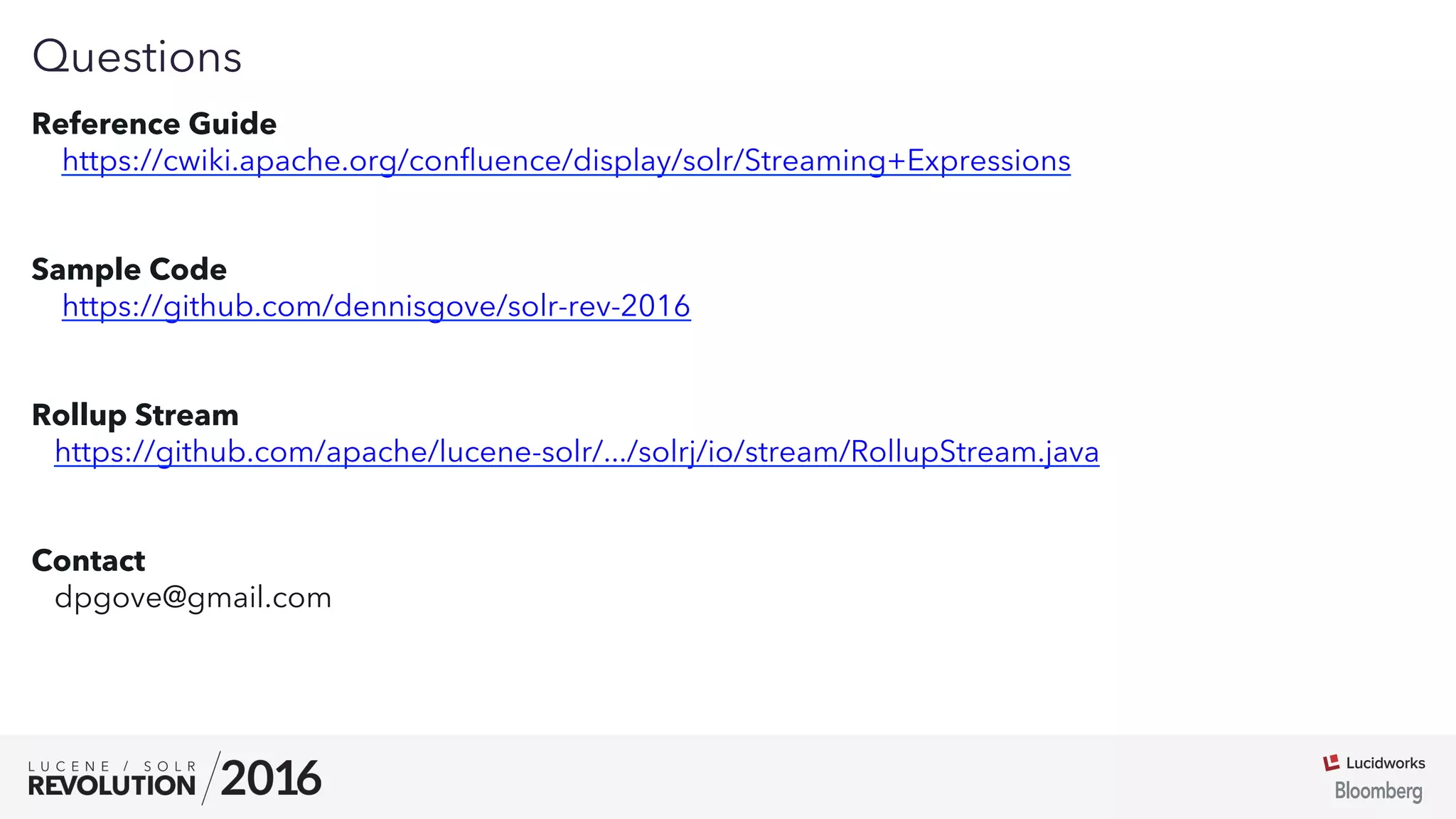

Questions
Reference Guide
https://cwiki.apache.org/confluence/display/solr/Streaming+Expressions
Sample Code
https://github.com/dennisgove/solr-rev-2016
Rollup Stream
https://github.com/apache/lucene-solr/.../solrj/io/stream/RollupStream.java
Contact
dpgove@gmail.com
