This document describes the Frankel appliance, a type of removable functional orthodontic appliance developed in the 1950s. It summarizes the four main types of Frankel appliances (FR I-IV) and their indications. The key components and mechanisms of action of the FR I appliance are described in detail, including its acrylic parts (buccal shields, labial pads, lingual shield) and how they work to correct muscle posture and spatial disorders through forces on the periosteum.
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Bioprogressive therapy /certified fixed orthodontic courses by Indian dental ...Indian dental academy
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and offering a wide range of dental certified courses in different formats.
Indian dental academy provides dental crown & Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit www.indiandentalacademy.com ,or call
0091-9248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Bioprogressive therapy /certified fixed orthodontic courses by Indian dental ...Indian dental academy
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and offering a wide range of dental certified courses in different formats.
Indian dental academy provides dental crown & Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit www.indiandentalacademy.com ,or call
0091-9248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Maxillomandibular elastics (or intermaxillary elastics) are commonly used because of their simplicity; however, a lack of understanding of their force system can lead to many serious problems.
Elastics are usually classified by the direction of the force (eg, Class II or Class III elastics).
Sometimes force magnitude is considered, but point of force application is left out. Therefore, many different types of Class II elastics can be applied. There are short or long elastics.
Often too many elastics are used when a single resultant elastic at the correct location would work better. However, sometimes more than a single elastic is needed when the attachment point is not directly accessible.
All maxillomandibular elastics and their actions should be analyzed in three dimensions.
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Biomechanics of molar distalization /certified fixed orthodontic courses by I...Indian dental academy
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and offering a wide range of dental certified courses in different formats.
Indian dental academy provides dental crown & Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit www.indiandentalacademy.com ,or call
0091-9248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Tweed merrifield philosophy /certified fixed orthodontic courses by Indian ...Indian dental academy
The Indian Dental Academy is the Leader in
continuing dental education , training dentists
in all aspects of dentistry and offering a wide
range of dental certified courses in different
formats.
Indian dental academy provides dental crown &
Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit
www.indiandentalacademy.com ,or call
0091-9248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Treatment of class ii non compliant /certified fixed orthodontic courses b...Indian dental academy
The Indian Dental Academy is the Leader in
continuing dental education , training dentists
in all aspects of dentistry and offering a wide
range of dental certified courses in different
formats.
Indian dental academy provides dental crown &
Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit
www.indiandentalacademy.com ,or call
0091-9248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Maxillomandibular elastics (or intermaxillary elastics) are commonly used because of their simplicity; however, a lack of understanding of their force system can lead to many serious problems.
Elastics are usually classified by the direction of the force (eg, Class II or Class III elastics).
Sometimes force magnitude is considered, but point of force application is left out. Therefore, many different types of Class II elastics can be applied. There are short or long elastics.
Often too many elastics are used when a single resultant elastic at the correct location would work better. However, sometimes more than a single elastic is needed when the attachment point is not directly accessible.
All maxillomandibular elastics and their actions should be analyzed in three dimensions.
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Biomechanics of molar distalization /certified fixed orthodontic courses by I...Indian dental academy
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and offering a wide range of dental certified courses in different formats.
Indian dental academy provides dental crown & Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit www.indiandentalacademy.com ,or call
0091-9248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Tweed merrifield philosophy /certified fixed orthodontic courses by Indian ...Indian dental academy
The Indian Dental Academy is the Leader in
continuing dental education , training dentists
in all aspects of dentistry and offering a wide
range of dental certified courses in different
formats.
Indian dental academy provides dental crown &
Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit
www.indiandentalacademy.com ,or call
0091-9248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Treatment of class ii non compliant /certified fixed orthodontic courses b...Indian dental academy
The Indian Dental Academy is the Leader in
continuing dental education , training dentists
in all aspects of dentistry and offering a wide
range of dental certified courses in different
formats.
Indian dental academy provides dental crown &
Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit
www.indiandentalacademy.com ,or call
0091-9248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Frankel appliance /certified fixed orthodontic courses by Indian dental academy Indian dental academy
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and offering a wide range of dental certified courses in different formats.
Indian dental academy provides dental crown & Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit www.indiandentalacademy.com ,or call
00919248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Frankles appliance Is a myofunctional appliance
Functional appliance are removable or fixed appliances that aim to utilize eliminate or guide the forces arising from muscle function,tooth eruption and growth inorder to alter skeletal and dental relationship
Bionator /certified fixed orthodontic courses by Indian dental academy Indian dental academy
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and offering a wide range of dental certified courses in different formats.
Indian dental academy provides dental crown & Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit www.indiandentalacademy.com ,or call
0091-9248678078
Frankel ortodontic appliance by thomas /certified fixed orthodontic courses ...Indian dental academy
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and offering a wide range of dental certified courses in different formats.
Indian dental academy provides dental crown & Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit www.indiandentalacademy.com ,or call
00919248678078
Bionator (2) /certified fixed orthodontic courses by Indian dental academy Indian dental academy
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and offering a wide range of dental certified courses in different formats.
Indian dental academy provides dental crown & Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit www.indiandentalacademy.com ,or call
0091-9248678078
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and
offering a wide range of dental certified courses in different formats.for more details please visit
www.indiandentalacademy.com
Frankel’s functional regulator /certified fixed orthodontic courses by India...Indian dental academy
The Indian Dental Academy is the Leader in continuing dental education , training dentists in all aspects of dentistry and offering a wide range of dental certified courses in different formats.
Indian dental academy provides dental crown & Bridge,rotary endodontics,fixed orthodontics,
Dental implants courses.for details pls visit www.indiandentalacademy.com ,or call
0091-9248678078
selection of preformed arch wires during the alignment stage of preadjusted o...MaherFouda1
This slideshow helps clinicians in the orthodontic field to select the proper arch wire for their patients to achieve proper and efficient treatment and outcomes.
micro teaching on communication m.sc nursing.pdfAnurag Sharma
Microteaching is a unique model of practice teaching. It is a viable instrument for the. desired change in the teaching behavior or the behavior potential which, in specified types of real. classroom situations, tends to facilitate the achievement of specified types of objectives.
Explore natural remedies for syphilis treatment in Singapore. Discover alternative therapies, herbal remedies, and lifestyle changes that may complement conventional treatments. Learn about holistic approaches to managing syphilis symptoms and supporting overall health.
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journeygreendigital
Tom Selleck, an enduring figure in Hollywood. has captivated audiences for decades with his rugged charm, iconic moustache. and memorable roles in television and film. From his breakout role as Thomas Magnum in Magnum P.I. to his current portrayal of Frank Reagan in Blue Bloods. Selleck's career has spanned over 50 years. But beyond his professional achievements. fans have often been curious about Tom Selleck Health. especially as he has aged in the public eye.
Follow us on: Pinterest
Introduction
Many have been interested in Tom Selleck health. not only because of his enduring presence on screen but also because of the challenges. and lifestyle choices he has faced and made over the years. This article delves into the various aspects of Tom Selleck health. exploring his fitness regimen, diet, mental health. and the challenges he has encountered as he ages. We'll look at how he maintains his well-being. the health issues he has faced, and his approach to ageing .
Early Life and Career
Childhood and Athletic Beginnings
Tom Selleck was born on January 29, 1945, in Detroit, Michigan, and grew up in Sherman Oaks, California. From an early age, he was involved in sports, particularly basketball. which played a significant role in his physical development. His athletic pursuits continued into college. where he attended the University of Southern California (USC) on a basketball scholarship. This early involvement in sports laid a strong foundation for his physical health and disciplined lifestyle.
Transition to Acting
Selleck's transition from an athlete to an actor came with its physical demands. His first significant role in "Magnum P.I." required him to perform various stunts and maintain a fit appearance. This role, which he played from 1980 to 1988. necessitated a rigorous fitness routine to meet the show's demands. setting the stage for his long-term commitment to health and wellness.
Fitness Regimen
Workout Routine
Tom Selleck health and fitness regimen has evolved. adapting to his changing roles and age. During his "Magnum, P.I." days. Selleck's workouts were intense and focused on building and maintaining muscle mass. His routine included weightlifting, cardiovascular exercises. and specific training for the stunts he performed on the show.
Selleck adjusted his fitness routine as he aged to suit his body's needs. Today, his workouts focus on maintaining flexibility, strength, and cardiovascular health. He incorporates low-impact exercises such as swimming, walking, and light weightlifting. This balanced approach helps him stay fit without putting undue strain on his joints and muscles.
Importance of Flexibility and Mobility
In recent years, Selleck has emphasized the importance of flexibility and mobility in his fitness regimen. Understanding the natural decline in muscle mass and joint flexibility with age. he includes stretching and yoga in his routine. These practices help prevent injuries, improve posture, and maintain mobilit
HOT NEW PRODUCT! BIG SALES FAST SHIPPING NOW FROM CHINA!! EU KU DB BK substit...GL Anaacs
Contact us if you are interested:
Email / Skype : kefaya1771@gmail.com
Threema: PXHY5PDH
New BATCH Ku !!! MUCH IN DEMAND FAST SALE EVERY BATCH HAPPY GOOD EFFECT BIG BATCH !
Contact me on Threema or skype to start big business!!
Hot-sale products:
NEW HOT EUTYLONE WHITE CRYSTAL!!
5cl-adba precursor (semi finished )
5cl-adba raw materials
ADBB precursor (semi finished )
ADBB raw materials
APVP powder
5fadb/4f-adb
Jwh018 / Jwh210
Eutylone crystal
Protonitazene (hydrochloride) CAS: 119276-01-6
Flubrotizolam CAS: 57801-95-3
Metonitazene CAS: 14680-51-4
Payment terms: Western Union,MoneyGram,Bitcoin or USDT.
Deliver Time: Usually 7-15days
Shipping method: FedEx, TNT, DHL,UPS etc.Our deliveries are 100% safe, fast, reliable and discreet.
Samples will be sent for your evaluation!If you are interested in, please contact me, let's talk details.
We specializes in exporting high quality Research chemical, medical intermediate, Pharmaceutical chemicals and so on. Products are exported to USA, Canada, France, Korea, Japan,Russia, Southeast Asia and other countries.
Knee anatomy and clinical tests 2024.pdfvimalpl1234
This includes all relevant anatomy and clinical tests compiled from standard textbooks, Campbell,netter etc..It is comprehensive and best suited for orthopaedicians and orthopaedic residents.
These lecture slides, by Dr Sidra Arshad, offer a quick overview of physiological basis of a normal electrocardiogram.
Learning objectives:
1. Define an electrocardiogram (ECG) and electrocardiography
2. Describe how dipoles generated by the heart produce the waveforms of the ECG
3. Describe the components of a normal electrocardiogram of a typical bipolar leads (limb II)
4. Differentiate between intervals and segments
5. Enlist some common indications for obtaining an ECG
Study Resources:
1. Chapter 11, Guyton and Hall Textbook of Medical Physiology, 14th edition
2. Chapter 9, Human Physiology - From Cells to Systems, Lauralee Sherwood, 9th edition
3. Chapter 29, Ganong’s Review of Medical Physiology, 26th edition
4. Electrocardiogram, StatPearls - https://www.ncbi.nlm.nih.gov/books/NBK549803/
5. ECG in Medical Practice by ABM Abdullah, 4th edition
6. ECG Basics, http://www.nataliescasebook.com/tag/e-c-g-basics
Prix Galien International 2024 Forum ProgramLevi Shapiro
June 20, 2024, Prix Galien International and Jerusalem Ethics Forum in ROME. Detailed agenda including panels:
- ADVANCES IN CARDIOLOGY: A NEW PARADIGM IS COMING
- WOMEN’S HEALTH: FERTILITY PRESERVATION
- WHAT’S NEW IN THE TREATMENT OF INFECTIOUS,
ONCOLOGICAL AND INFLAMMATORY SKIN DISEASES?
- ARTIFICIAL INTELLIGENCE AND ETHICS
- GENE THERAPY
- BEYOND BORDERS: GLOBAL INITIATIVES FOR DEMOCRATIZING LIFE SCIENCE TECHNOLOGIES AND PROMOTING ACCESS TO HEALTHCARE
- ETHICAL CHALLENGES IN LIFE SCIENCES
- Prix Galien International Awards Ceremony
Title: Sense of Smell
Presenter: Dr. Faiza, Assistant Professor of Physiology
Qualifications:
MBBS (Best Graduate, AIMC Lahore)
FCPS Physiology
ICMT, CHPE, DHPE (STMU)
MPH (GC University, Faisalabad)
MBA (Virtual University of Pakistan)
Learning Objectives:
Describe the primary categories of smells and the concept of odor blindness.
Explain the structure and location of the olfactory membrane and mucosa, including the types and roles of cells involved in olfaction.
Describe the pathway and mechanisms of olfactory signal transmission from the olfactory receptors to the brain.
Illustrate the biochemical cascade triggered by odorant binding to olfactory receptors, including the role of G-proteins and second messengers in generating an action potential.
Identify different types of olfactory disorders such as anosmia, hyposmia, hyperosmia, and dysosmia, including their potential causes.
Key Topics:
Olfactory Genes:
3% of the human genome accounts for olfactory genes.
400 genes for odorant receptors.
Olfactory Membrane:
Located in the superior part of the nasal cavity.
Medially: Folds downward along the superior septum.
Laterally: Folds over the superior turbinate and upper surface of the middle turbinate.
Total surface area: 5-10 square centimeters.
Olfactory Mucosa:
Olfactory Cells: Bipolar nerve cells derived from the CNS (100 million), with 4-25 olfactory cilia per cell.
Sustentacular Cells: Produce mucus and maintain ionic and molecular environment.
Basal Cells: Replace worn-out olfactory cells with an average lifespan of 1-2 months.
Bowman’s Gland: Secretes mucus.
Stimulation of Olfactory Cells:
Odorant dissolves in mucus and attaches to receptors on olfactory cilia.
Involves a cascade effect through G-proteins and second messengers, leading to depolarization and action potential generation in the olfactory nerve.
Quality of a Good Odorant:
Small (3-20 Carbon atoms), volatile, water-soluble, and lipid-soluble.
Facilitated by odorant-binding proteins in mucus.
Membrane Potential and Action Potential:
Resting membrane potential: -55mV.
Action potential frequency in the olfactory nerve increases with odorant strength.
Adaptation Towards the Sense of Smell:
Rapid adaptation within the first second, with further slow adaptation.
Psychological adaptation greater than receptor adaptation, involving feedback inhibition from the central nervous system.
Primary Sensations of Smell:
Camphoraceous, Musky, Floral, Pepperminty, Ethereal, Pungent, Putrid.
Odor Detection Threshold:
Examples: Hydrogen sulfide (0.0005 ppm), Methyl-mercaptan (0.002 ppm).
Some toxic substances are odorless at lethal concentrations.
Characteristics of Smell:
Odor blindness for single substances due to lack of appropriate receptor protein.
Behavioral and emotional influences of smell.
Transmission of Olfactory Signals:
From olfactory cells to glomeruli in the olfactory bulb, involving lateral inhibition.
Primitive, less old, and new olfactory systems with different path
New Drug Discovery and Development .....NEHA GUPTA
The "New Drug Discovery and Development" process involves the identification, design, testing, and manufacturing of novel pharmaceutical compounds with the aim of introducing new and improved treatments for various medical conditions. This comprehensive endeavor encompasses various stages, including target identification, preclinical studies, clinical trials, regulatory approval, and post-market surveillance. It involves multidisciplinary collaboration among scientists, researchers, clinicians, regulatory experts, and pharmaceutical companies to bring innovative therapies to market and address unmet medical needs.
263778731218 Abortion Clinic /Pills In Harare ,sisternakatoto
263778731218 Abortion Clinic /Pills In Harare ,ABORTION WOMEN’S CLINIC +27730423979 IN women clinic we believe that every woman should be able to make choices in her pregnancy. Our job is to provide compassionate care, safety,affordable and confidential services. That’s why we have won the trust from all generations of women all over the world. we use non surgical method(Abortion pills) to terminate…Dr.LISA +27730423979women Clinic is committed to providing the highest quality of obstetrical and gynecological care to women of all ages. Our dedicated staff aim to treat each patient and her health concerns with compassion and respect.Our dedicated group ABORTION WOMEN’S CLINIC +27730423979 IN women clinic we believe that every woman should be able to make choices in her pregnancy. Our job is to provide compassionate care, safety,affordable and confidential services. That’s why we have won the trust from all generations of women all over the world. we use non surgical method(Abortion pills) to terminate…Dr.LISA +27730423979women Clinic is committed to providing the highest quality of obstetrical and gynecological care to women of all ages. Our dedicated staff aim to treat each patient and her health concerns with compassion and respect.Our dedicated group of receptionists, nurses, and physicians have worked together as a teamof receptionists, nurses, and physicians have worked together as a team wwww.lisywomensclinic.co.za/
Ocular injury ppt Upendra pal optometrist upums saifai etawah
Removable functional appliance 3
1. Part 3
dr Maher FOUDA
Faculty of Dentistry
Mansoura Egypt
Professor of orthodontics
Removable functional
appliance
2. A new orthodontic philosophy and system of removable appliance
therapy was developed in East Germany in the late 1950s by
Professor Rolf Frankel. Although there are four fundamental designs)
of the Frankel appliance, they are often grouped together for
description as the function regulator or FR.
FRANKEL APPLIANCES
Fränkel appliance type III (FR-III))
3. thorough grounding in orofacial physiology, growth and
development, as well as orthodontic diagnosis.
Synonyms: Functional corrector, vestibular appliances, Frankel
appliance, exercise device, oral gymnastics, orofacial orthopedic
appliance, functional regulator.
The FR is not just another appliance suitable for indiscriminate or
routine use but an exercising device demanding

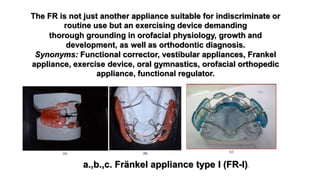

a.,b.,c. Fränkel appliance type I (FR-I))
4. T Y P E S O F FUNC T I ONA L R E GUL AT O R S
Functional regulator (FR) I: This is used for correction of Class I and Class II division 1
malocclusion.
FR Ia:
• Used in Class I malocclusion with minor crowding.
• Used in delayed development of the basal bone and dental structure.
FR Ib:
• Used in Class II division 1 malocclusion with deep bite and overjet less than 7 mm.
FR Ic:
• Used in severe Class II division 1 with overjet more than 7 mm.
Functional regulator II: This is used for correction of Class II division 1 and 2 malocclusions.

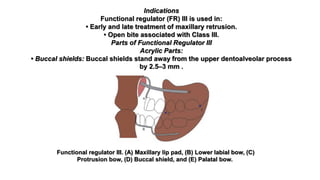

Functional regulator III: This is used for treatment of Class III due to maxillary deficiency.
Functional regulator IV: This is used for treatment of open bite and bimaxillary protrusion.
Functional regulator V: Functional appliances that incorporate headgear. FR V is used in high
angle cases.
5. Rationale of Functional Regulator
Frankel’s approach is based on the importance of the form–
function relationship in craniofacial morphogenesis. In general
orthopedics, it has been claimed that of all the functional factors
that play a part in the etiology of skeletal deformities, aberrant
postural performance is the most important. Refer to Box 33.10
for differences between activator and functional regulator.
6. In Frankel’s view, the primary aim of the functional therapy is to
recognize a faulty postural performance of the orofacial
musculature and to treat it by orthopedic exercises. The essential
problem for him was to design and construct an ‘exercise device’
that would interfere directly with the functional environment and
result in the correction of the poor postural behavior.
Frankel appliance (FR1).

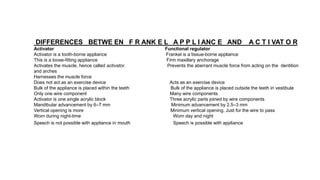

7. DIFFERENCES BETWE EN F R ANK E L A P P L I ANC E AND A C T I VAT O R
Activator Functional regulator
Activator is a tooth-borne appliance Frankel is a tissue-borne appliance
This is a loose-fitting appliance Firm maxillary anchorage
Activates the muscle, hence called activator. Prevents the aberrant muscle force from acting on the dentition
and arches
Harnesses the muscle force
Does not act as an exercise device Acts as an exercise device
Bulk of the appliance is placed within the teeth Bulk of the appliance is placed outside the teeth in vestibule
Only one wire component Many wire components
Activator is one single acrylic block Three acrylic parts joined by wire components
Mandibular advancement by 6–7 mm Minimum advancement by 2.5–3 mm
Vertical opening is more Minimum vertical opening. Just for the wire to pass
Worn during night-time Worn day and night
Speech is not possible with appliance in mouth Speech is possible with appliance
8. Faulty muscle posture is seen as having an adverse
environmental effect on:
1. The spatial relationships of the maxilla and/or the
mandible, that is, the sagittal, vertical and transverse basal
arch relationships.
2. The development in space of the dentoalveolar structures.
Frankle 3 appliance.

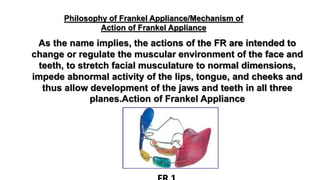

9. As the name implies, the actions of the FR are intended to
change or regulate the muscular environment of the face and
teeth, to stretch facial musculature to normal dimensions,
impede abnormal activity of the lips, tongue, and cheeks and
thus allow development of the jaws and teeth in all three
planes.Action of Frankel Appliance
Philosophy of Frankel Appliance/Mechanism of
Action of Frankel Appliance

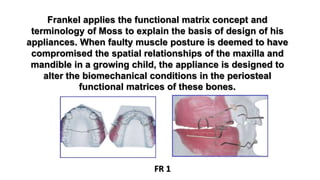

10. Frankel applies the functional matrix concept and
terminology of Moss to explain the basis of design of his
appliances. When faulty muscle posture is deemed to have
compromised the spatial relationships of the maxilla and
mandible in a growing child, the appliance is designed to
alter the biomechanical conditions in the periosteal
functional matrices of these bones.
FR 1

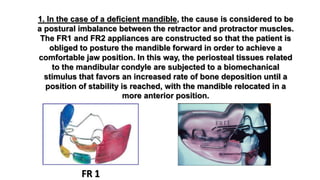

11. 1. In the case of a deficient mandible, the cause is considered to be
a postural imbalance between the retractor and protractor muscles.
The FR1 and FR2 appliances are constructed so that the patient is
obliged to posture the mandible forward in order to achieve a
comfortable jaw position. In this way, the periosteal tissues related
to the mandibular condyle are subjected to a biomechanical
stimulus that favors an increased rate of bone deposition until a
position of stability is reached, with the mandible relocated in a
more anterior position.

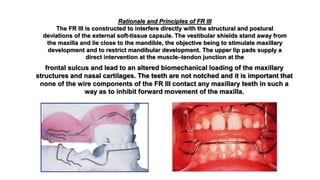

12. 2. In the case of a deficient maxilla, the FR3 appliance is
constructed so that periosteal tension is produced at the
superior sulci. The vestibular shields and upper lip pads
counteract the restricting effect of aberrant posture
within the labial muscle groups and normal maxillary
growth is restored.

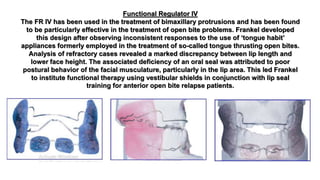

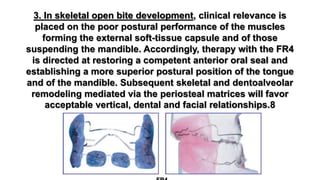

13. 3. In skeletal open bite development, clinical relevance is
placed on the poor postural performance of the muscles
forming the external soft-tissue capsule and of those
suspending the mandible. Accordingly, therapy with the FR4
is directed at restoring a competent anterior oral seal and
establishing a more superior postural position of the tongue
and of the mandible. Subsequent skeletal and dentoalveolar
remodeling mediated via the periosteal matrices will favor
acceptable vertical, dental and facial relationships.8
14. The second of Moss’s concepts concerns the capsular functional
matrix. Frankel sees the muscular portions of the walls of the
oral and nasopharyngeal spaces as forming a capsular matrix,
the volume of which has an important morphogenetic influence
on the development of the dentoalveolar structures.
15. Specifically, he claims that an aberrant postural pattern of
the external muscular environment may unfavorably
influence the eruptive path and restrain the normal
physiologic process of decrowding and uprighting of the
teeth during eruption. By means of the vestibular shields of
the functional regulators, the erupting dentition is
protected from the adverse forces generated by the
existing perioral musculature, allowing for spontaneous
decrowding of the teeth.
16. Vestibular Area of Operation
The major part of Frankel appliance is confined to the oral vestibule. The
buccal shields and lip pads hold the
labial and buccal musculature, the buccinator mechanism, from acting on the dentition.
1. The vestibular shields eliminate perioral soft-tissue pressure that arises from:27
a. Muscular forces associated with aberrant postural patterns in the orofacial muscles.
b. Subatmospheric pressure generated in the oral cavity, which acts to suck the lips
and cheeks against the teeth and into the interocclusal space.
c. Elimination of these restraining muscle pressures allows the inherent bone inducing
potential of the erupting tooth to be expressed in a more buccal direction.
17. 2. The periphery of the vestibular shield is deliberately extended into the vestibular
reflection so that tension is produced in the soft tissues. This pull on the soft
tissue is transferred to the periosteum, with two possible effects:
a. The tension in the periosteum may contribute mechanically to an outward
bending of the thin buccal plate, thereby facilitating outward drift of the teeth.
b. Direct tension in the periosteum is known to stimulate deposition of new
alveolar bone28 and this is claimed to occur on the facial aspect of the alveolus in
response to FR treatment.
18. 3. The outer surfaces of the vestibular shield are presented to the
musculature as a correct configuration of the dentoalveolar process.
The orofacial musculature is trained to function in harmony with the
dental arches as they attain correct width and shape.
4. Bilateral tension on the maxilla at the level of the sulcus is claimed
to stimulate widening of the midpalatal suture.
19. Tongue Function
Although Frankel appliance gives more importance to buccinator
mechanism, the tongue also plays a significant role in molding the arches.
1. In contrast to most other functional jaw orthopedic appliances, the FR
intervenes very little with the tongue posture and the tongue is free to exert
more force in forward and lateral direction.
2. After removal of the appliance, the perioral soft-tissue pressure will
continue to be reduced while the tongue pressure is increased because it is
elevated into a palatal position. This favors long-term stability of arch
expansion.
20. Muscle Re-education
Function regulator treatment is claimed to accomplish its skeletal and dental
corrections by modifying behavior aberrations involving the orofacial
musculature. Freeland29 (1979) compared the muscle patterns in a
group of patients before and after treatment with the FR1 to those of a
control group and concluded that the FR did indeed affect muscle activity.
FR1
21. Exercise Device
Frankel appliance apart from restricting the faulty muscle posture also acts as an exercise
device. That is, it stimulates normal function while eliminating aberrant muscle activity.
Hence, full-time wear of the appliance is recommended along with functional exercises.
Anteroposterior Correction
Increased activity of the superior head of the lateral pterygoid muscle is associated with
functional appliance wear. Skeletal adaptation proceeds until muscle activity is restored.
Maxillary Restraining Effect
Frankel appliances have a restraining effect on the maxillary teeth and arch.30
22. Decrowding during eruption is a feature of the entire Frankel
appliance. The vestibular screens are deliberately extended into the
vestibular sulcus so that tension is created in the soft tissues. This
causes outward bending of the thin buccal plate, thereby
facilitating outward drift of the teeth.
Decrowding during Eruption

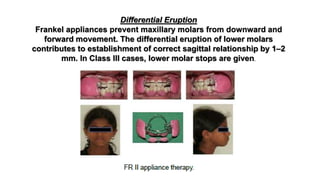

23. Differential Eruption
Frankel appliances prevent maxillary molars from downward and
forward movement. The differential eruption of lower molars
contributes to establishment of correct sagittal relationship by 1–2
mm. In Class III cases, lower molar stops are given.

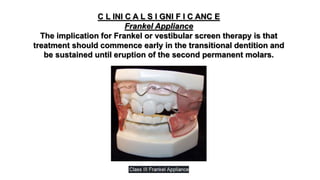

24. C L INI C A L S I GNI F I C ANC E
Frankel Appliance
The implication for Frankel or vestibular screen therapy is that
treatment should commence early in the transitional dentition and
be sustained until eruption of the second permanent molars.
25. Indications of Functional Regulator
The indications of functional regulator can be studied under each type.
Indications of FR I
• Class I
• Early treatment: Discrepancy between tooth size and arch size in patients with
normal overbite.
• Late treatment: Mild crowding in the presence of adequate apical base.
• Class II division 1
• Early treatment: Mandibular retrusion with normal overbite.
• Late treatment:
- Mandibular retrusion with normal overbite, overjet more than 7 mm.
- Mandibular retrusion with crowding. In this, prefunctional fixed appliance,
treatment is done to correct crowding.
- Mandibular retrusion with open bite.

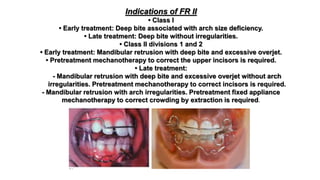

26. Indications of FR II
• Class I
• Early treatment: Deep bite associated with arch size deficiency.
• Late treatment: Deep bite without irregularities.
• Class II divisions 1 and 2
• Early treatment: Mandibular retrusion with deep bite and excessive overjet.
• Pretreatment mechanotherapy to correct the upper incisors is required.
• Late treatment:
- Mandibular retrusion with deep bite and excessive overjet without arch
irregularities. Pretreatment mechanotherapy to correct incisors is required.
- Mandibular retrusion with arch irregularities. Pretreatment fixed appliance
mechanotherapy to correct crowding by extraction is required.
27. Indications of FR III
• Early and late treatment of maxillary retrusion.
• Open bite: Open bite associated with Class III.
Indication of FR IV
• FR IV is used in early treatment of skeletal open bite and bimaxillary
protrusion.
Indications of FR V
• High-angle cases.
• Vertical growth pattern.
Indications of FR as Retainer
• FR type used as the last appliance should be worn as retainer.
• After fixed appliance mechanotherapy.
• After oral surgery, FR is used as exercise device to prevent relapse.
28. Functional Regulator (FR) I
The functional regulator (FR) I is composed of two buccal
shields, two labial pads, one lingual pad and wire
parts. The appliance consists of acrylic parts and wire components.
The features of FR Ib are described and the differences between
other types, namely, FR Ia, Ic and FR II, are given at the end.
29. Parts of Frankel appliance. (A) Labial and buccal views. (A) Labial bow, (B) Canine loop, (C)
Buccal shields, (D) Lip pads (pelot). The wire assembly anchors the appliance on the
maxillary arch at the mesial first molar embrasure. (B) (A) A cross-palatal stabilizing wire on
the maxillary arch, (B) Maxillary loped lingual arch or protrusion bow, (C) Lower lingual
wires, (D) Buccal shield, (E) Lip Pelots or pads, (F) Lower lingual pad or plate. No
interocclusal acrylic is used and no interference with eruption of mandibular teeth occurs.
A lingual acrylic pad or plate is the only contact with the lower arch, maintaining it in a
protrusive relationship in the trough provided by the lingual acrylic pad and the lip pelot.
Sagittal advancement usually is accomplished in two steps of 3 mm each, with a simple
advancement of the posturing trough.
30. Acrylic Parts
Buccal Shields
They extend deep into the sulci in the apical region of the maxillary first premolar and
tuberosity region. In areas where expansion of the dental arch and alveolar process is
required, the shields stand away from the lateral aspects of teeth and alveolus. In the
maxillary teeth and alveolus, the
gap between the shield and teeth surface is double the wax thickness. In the
mandible, only a single layer of wax is added. The thickness of the buccal shield
should be 2.5 mm.

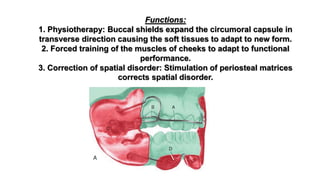

31. Functions:
1. Physiotherapy: Buccal shields expand the circumoral capsule in
transverse direction causing the soft tissues to adapt to new form.
2. Forced training of the muscles of cheeks to adapt to functional
performance.
3. Correction of spatial disorder: Stimulation of periosteal matrices
corrects spatial disorder.
32. Labial Pads/Pelot
Lip pads are rhomboid-shaped and fit the labial surface of the
mandibular frontal alveolar process. It is tear drop-shaped in cross-
section. This permits free seating of the lip pads in the vestibule.
There should be 5 mm distance from the upper edges of the lip pad
to the gingival margin. The distal edge of the lip pad should not
overlap the canine root protuberance.
Lip pads hold the lips
away from the teeth and
force the lips to stretch
to form an oral seal. The
lip pad is positioned
low in the vestibule and
must have the proper
inclination
to avoid soft tissue
irritation.
33. (A) Lip pad supports the lower lip and improves lip posture
in patients with faulty muscle balance.

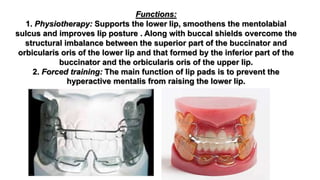

34. Functions:
1. Physiotherapy: Supports the lower lip, smoothens the mentolabial
sulcus and improves lip posture . Along with buccal shields overcome the
structural imbalance between the superior part of the buccinator and
orbicularis oris of the lower lip and that formed by the inferior part of the
buccinator and the orbicularis oris of the upper lip.
2. Forced training: The main function of lip pads is to prevent the
hyperactive mentalis from raising the lower lip.
35. Lingual Shield
The lingual shield is situated or placed below the gingival margin of the mandibular teeth.
This extends up to the distal of the second premolar. It is positioned by the two
connecting wires to the buccal shield.
Functions Forced Training In mandibular retrusion cases, the mandible is kept in the
advanced position by the supporting action of lingual and labial shields. Whenever the
mandible tries to slide back to its original position, the lingual shield elicits a pressure
sensation on the lingual aspect of the alveolar process . This sensory input activates the
proprioceptors in the gingiva and periosteum to stimulate the protractors of mandible.
(B) Lingual shield: Mechanism of action stimulates
the protractor muscles by activating proprioceptors
The lingual pad or flange determines the
anteroposterior and vertical
mandibular posture for most functional
appliances. A, The small lingual pad from a
Frankel appliance;
B, the extensive lingual flange from a
modified activator; C, the lingual components
not only
position the mandible forward but, D, also
exert a protrusive effect on the mandibular
incisors
when the mandible attempts to return to its
original position, especially if some
component of the
appliance contacts these teeth.

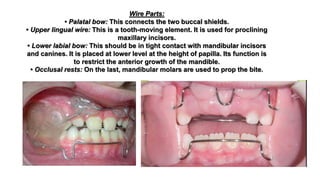

36. Wire Components
Vestibular Wires
Lower labial wires or vestibular wires are the connecting wires between the labial pad
and buccal shield. It is made from 0.9 mm wire and serves as the skeleton for the lower
lip pads.
Maxillary Labial Bow
Maxillary labial bow is made from 0.9 mm wire and usually lies in the middle of the labial
surfaces of the maxillary incisors. It runs gingivally at right angles between the lateral
incisor and canine and forms a gentle curve distally at the height of middle of canine root
and re-embedded in buccal shield.

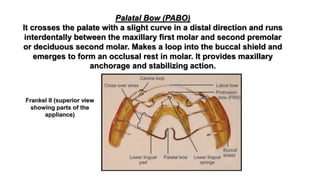

38. Palatal Bow (PABO)
It crosses the palate with a slight curve in a distal direction and runs
interdentally between the maxillary first molar and second premolar
or deciduous second molar. Makes a loop into the buccal shield and
emerges to form an occlusal rest in molar. It provides maxillary
anchorage and stabilizing action.
Frankel II (superior view
showing parts of the
appliance)

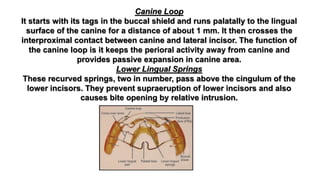

39. Canine Loop
It starts with its tags in the buccal shield and runs palatally to the lingual
surface of the canine for a distance of about 1 mm. It then crosses the
interproximal contact between canine and lateral incisor. The function of
the canine loop is it keeps the perioral activity away from canine and
provides passive expansion in canine area.
Lower Lingual Springs
These recurved springs, two in number, pass above the cingulum of the
lower incisors. They prevent supraeruption of lower incisors and also
causes bite opening by relative intrusion.
40. Crossover Wires
They connect the lingual shield with buccal shields. They run between
the mandibular first and second premolars.
Construction Bite for Class II Correction
Frankel advocates minimal sagittal or forward advancement. The
mandible is advanced by 2.5–3 mm only. Vertical opening also should be
very minimal, just enough for the crossover wires to pass through up to
2–2.5 mm.
41. Differences Between FR Ia and Ic and FR II
• FR Ia: There is lower lingual wire loops instead of lingual shield.
• FR Ic: Buccal shields are split horizontally and vertically into two
parts for incremental advance.
• FR II: Addition of upper palatal protrusion bow behind upper
incisors; modified canine loop.
42. Clinical Management of Functional Regulators
The treatment with functional regulator can be classified into three stages or
phases: (1) initial treatment phase, (2) active treatment phase, and (3)
retention phase.
1. Initial Treatment Phase
This phase is for the patients to get used to the appliance and handle it as an
orthopedic exercise device combined with lip seal training. The initial phase
consists of the following:
.
FR-2 appliance: Frontal and lateral views.
Delivery of the appliance:
i. All margins are checked for smoothness.
ii. Check for the proper shape of the lip pads.
43. iii. Check the fit of the appliance in maxilla and mandible separately.
iv. Peripheral portions of shields contact without producing blanching.
v. Instruct the patient the method of appliance wear.
vi. Palpate the face on the outside to make sure there are no sharp edges.
vii. After insertion, ask the patient to speak. During speaking, the vestibular
shields loosen up the tight musculature, which helps in adapting to the
appliance.
44. C L INI C A L S I GNI F I C ANC E
Features of an Ideal Patient for Treatment with FR I and FR II
Skeletal Features
1. Normal maxillary position in the sagittal and vertical dimensions.
2. Retrognathic mandible.
3. Normal or reduced lower face height.
Dental Features
1. Normal relationship of the maxillary denture to the maxilla in the sagittal and vertical
dimensions.
2. Normal relationship of the mandibular denture to the mandible in the sagittal and vertical
dimensions.
3. Mild crowding in the mandibular arch or in both arches is acceptable, but axial rotations
and bodily displacements of individual teeth require a separate phase of fixed appliance
treatment.
Maturation
Early mixed dentition, 7–9 years.

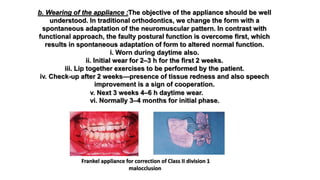

45. b. Wearing of the appliance :The objective of the appliance should be well
understood. In traditional orthodontics, we change the form with a
spontaneous adaptation of the neuromuscular pattern. In contrast with
functional approach, the faulty postural function is overcome first, which
results in spontaneous adaptation of form to altered normal function.
i. Worn during daytime also.
ii. Initial wear for 2–3 h for the first 2 weeks.
iii. Lip together exercises to be performed by the patient.
iv. Check-up after 2 weeks—presence of tissue redness and also speech
improvement is a sign of cooperation.
v. Next 3 weeks 4–6 h daytime wear.
vi. Normally 3–4 months for initial phase.
Frankel appliance for correction of Class II division 1
malocclusion

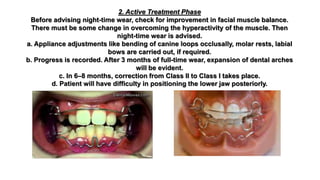

46. 2. Active Treatment Phase
Before advising night-time wear, check for improvement in facial muscle balance.
There must be some change in overcoming the hyperactivity of the muscle. Then
night-time wear is advised.
a. Appliance adjustments like bending of canine loops occlusally, molar rests, labial
bows are carried out, if required.
b. Progress is recorded. After 3 months of full-time wear, expansion of dental arches
will be evident.
c. In 6–8 months, correction from Class II to Class I takes place.
d. Patient will have difficulty in positioning the lower jaw posteriorly.
47. 3. Retention Treatment Phase
A chance for relapse is less with functional appliances; there is
spontaneous adaptation of form to altered function. Therefore, the action
of the retention phase is to stabilize the restraining effect of the exercise
device achieved during active treatment. The last appliance itself is used
as a retention appliance.

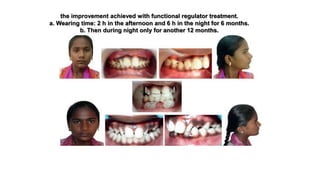

48. the improvement achieved with functional regulator treatment.
a. Wearing time: 2 h in the afternoon and 6 h in the night for 6 months.
b. Then during night only for another 12 months.
49. Functional Regulator III
In functional orthopedic philosophy, maxillary retrognathia is viewed as
a consequence of failure of expansion of the superior part of the
orofacial capsule. Delaires’ (1978) dissections of normal and cleft lip
cadavers led him to postulate that the nasogenal muscles have a direct
influence on maxillary growth and that functional aberrations of these
muscle groups may play an important role in restricting maxillary
development.
50. Rationale and Principles of FR III
The FR III is constructed to interfere directly with the structural and postural
deviations of the external soft-tissue capsule. The vestibular shields stand away from
the maxilla and lie close to the mandible, the objective being to stimulate maxillary
development and to restrict mandibular development. The upper lip pads supply a
direct intervention at the muscle–tendon junction at the
frontal sulcus and lead to an altered biomechanical loading of the maxillary
structures and nasal cartilages. The teeth are not notched and it is important that
none of the wire components of the FR III contact any maxillary teeth in such a
way as to inhibit forward movement of the maxilla.
51. In contrast to the action of the FR II, where the skeletal and dental changes are entirely
functionally induced, the FR III imparts both functional and mechanical effects:
1. The functional effects include stimulation of forward growth of the maxilla,
deposition of new bone on the facial aspect of maxilla33 (about 2 mm in Point A) and
possibly increased growth of the anterior cranial base.34
2. The mechanical aspect of FR III treatment is mediated by contact of the lower labial
connector with the labial surfaces of the mandibular incisors. Lip pressure against the
upper lip pads is transferred to the lower incisors causing retroclination of these teeth
and frequently a posterior rotation of the mandible. This latter effect is particularly
appropriate in Class III malocclusions associated with reduced lower face height.
Diagram illustrating the working principles of FR III
52. Indications
Functional regulator (FR) III is used in:
• Early and late treatment of maxillary retrusion.
• Open bite associated with Class III.
Parts of Functional Regulator III
Acrylic Parts:
• Buccal shields: Buccal shields stand away from the upper dentoalveolar process
by 2.5–3 mm .
Functional regulator III. (A) Maxillary lip pad, (B) Lower labial bow, (C)
Protrusion bow, (D) Buccal shield, and (E) Palatal bow.

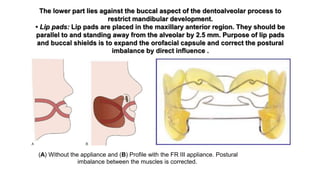

53. The lower part lies against the buccal aspect of the dentoalveolar process to
restrict mandibular development.
• Lip pads: Lip pads are placed in the maxillary anterior region. They should be
parallel to and standing away from the alveolar by 2.5 mm. Purpose of lip pads
and buccal shields is to expand the orofacial capsule and correct the postural
imbalance by direct influence .
(A) Without the appliance and (B) Profile with the FR III appliance. Postural
imbalance between the muscles is corrected.
54. Wire Parts:
• Palatal bow: This connects the two buccal shields.
• Upper lingual wire: This is a tooth-moving element. It is used for proclining
maxillary incisors.
• Lower labial bow: This should be in tight contact with mandibular incisors
and canines. It is placed at lower level at the height of papilla. Its function is
to restrict the anterior growth of the mandible.
• Occlusal rests: On the last, mandibular molars are used to prop the bite.
55. Since the FR III seeks to pre-empt abnormal development and
restore normal growth rather than to correct fully established
malformation, it is important that treatment be initiated as
early as possible. The appliance can be readily used in the
complete deciduous dentition, if necessary.

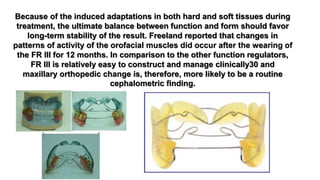

56. Because of the induced adaptations in both hard and soft tissues during
treatment, the ultimate balance between function and form should favor
long-term stability of the result. Freeland reported that changes in
patterns of activity of the orofacial muscles did occur after the wearing of
the FR III for 12 months. In comparison to the other function regulators,
FR III is relatively easy to construct and manage clinically30 and
maxillary orthopedic change is, therefore, more likely to be a routine
cephalometric finding.
57. Functional Regulator IV
The FR IV has been used in the treatment of bimaxillary protrusions and has been found
to be particularly effective in the treatment of open bite problems. Frankel developed
this design after observing inconsistent responses to the use of ‘tongue habit’
appliances formerly employed in the treatment of so-called tongue thrusting open bites.
Analysis of refractory cases revealed a marked discrepancy between lip length and
lower face height. The associated deficiency of an oral seal was attributed to poor
postural behavior of the facial musculature, particularly in the lip area. This led Frankel
to institute functional therapy using vestibular shields in conjunction with lip seal
training for anterior open bite relapse patients.
58. Frankel reasoned that if alterations in the postural activity of the orofacial
musculature can lead to skeletal open bite, then correction of faulty
postural behavior might help to correct the associated skeletal deformity. A
fundamental aim of his therapy was to overcome the deviant pattern of
mandibular rotation through re-establishment of nose breathing by
correcting the lips-apart condition and faulty tongue posture. In fact, lip
seal training alone, in the absence of any appliance treatment, has been
shown to result in closure of open bites.26 However, voluntary training
exercises without an appliance are difficult to sustain for adequate daily
periods throughout the duration of the growth phase. Furthermore, the FR
IV appliance has additional working
principles that contribute to the desired skeletal remodeling changes .
59. Illustration of working principles of FR IV.
Correct extension of the posterior margins of the vestibular shields determines
the location of a new center of rotation for the mandible. From receptors in
these areas, sensory feedback is said to cause reflex distraction of the condyle
from the mandibular fossa, while the chin is rotated upward by the
strengthened anterior vertical muscle chain. Compensatory translative growth
may restore the normal condyle–fossa relationship and increase ramus height.

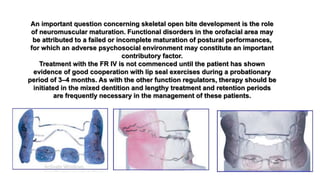

60. An important question concerning skeletal open bite development is the role
of neuromuscular maturation. Functional disorders in the orofacial area may
be attributed to a failed or incomplete maturation of postural performances,
for which an adverse psychosocial environment may constitute an important
contributory factor.
Treatment with the FR IV is not commenced until the patient has shown
evidence of good cooperation with lip seal exercises during a probationary
period of 3–4 months. As with the other function regulators, therapy should be
initiated in the mixed dentition and lengthy treatment and retention periods
are frequently necessary in the management of these patients.
61. Twin Block
Twin blocks are bite blocks that effectively modify the occlusal inclined
plane to induce favorably directed occlusal forces by causing a functional
mandibular displacement. Upper and lower bite blocks interlock at a 70°
angle and are designed for full time wear taking advantage of all functional
forces to the dentition including the masticatory forces. Occlusal inclined
planes give more freedom in forward and lateral excursion and cause less
interference with normal function.

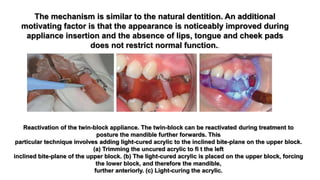

62. The mechanism is similar to the natural dentition. An additional
motivating factor is that the appearance is noticeably improved during
appliance insertion and the absence of lips, tongue and cheek pads
does not restrict normal function..
Reactivation of the twin-block appliance. The twin-block can be reactivated during treatment to
posture the mandible further forwards. This
particular technique involves adding light-cured acrylic to the inclined bite-plane on the upper block.
(a) Trimming the uncured acrylic to fi t the left
inclined bite-plane of the upper block. (b) The light-cured acrylic is placed on the upper block, forcing
the lower block, and therefore the mandible,
further anteriorly. (c) Light-curing the acrylic.
63. T Y P E S O F TWI N B L O C K S
1. Standard twin block
2. Sagittal twin block
3. Reverse twin block for Class III correction
4. Magnetic twin block
(b) Twin-block appliance
modifi ed for treatment of a
Class II division 2
malocclusion. Note the
additional palatal double-
cantilever spring
(highlighted in red circle) in
the upper arch, which is used
to procline the central
incisors. (c) End of functional
stage. The anteroposterior
discrepancy
has been corrected and the
retroclined upper central
incisors proclined to normal
inclinations. Note the
posterior lateral open bites,
which were
closed in the second phase of
fixed appliances.
64. Standard Twin Blocks-Class II Div I
(with good arch form)
• Adams or Delta Clasps, and Anterior Ball clasps for
good retention
•Twin Blocks, at a 70 ؛angle, to advance mandible
• Upper Midline Screw: so upper arch can accomodate
lower arch in advanced position

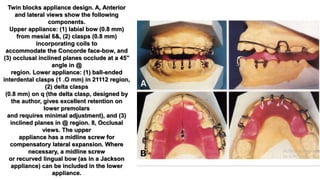

65. Twin blocks appliance design. A, Anterior
and lateral views show the following
components.
Upper appliance: (1) labial bow (0.8 mm)
from mesial 6&, (2) clasps (0.8 mm)
incorporating coils to
accommodate the Concorde face-bow, and
(3) occlusal inclined planes occlude at a 45”
angle in @
region. Lower appliance: (1) ball-ended
interdental clasps (1 .O mm) in 21112 region,
(2) delta clasps
(0.8 mm) on q (the delta clasp, designed by
the author, gives excellent retention on
lower premolars
and requires minimal adjustment), and (3)
inclined planes in @ region. 8, Occlusal
views. The upper
appliance has a midline screw for
compensatory lateral expansion. Where
necessary, a midline screw
or recurved lingual bow (as in a Jackson
appliance) can be included in the lower
appliance.

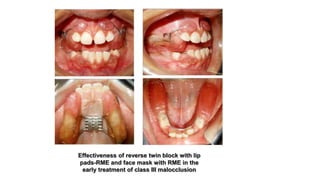

66. Effectiveness of reverse twin block with lip
pads-RME and face mask with RME in the
early treatment of class III malocclusion
67. Standard Appliance Design
The parts of the appliance are: (1) acrylic part, which consists of base
plate and occlusal inclined plane and (2) wire components, which
include labial bow, delta clasp and ball end clasp.

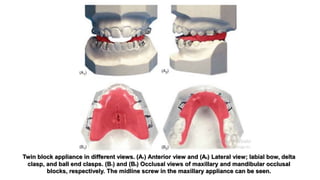

68. Twin block appliance in different views. (A1) Anterior view and (A2) Lateral view; labial bow, delta
clasp, and ball end clasps. (B1) and (B2) Occlusal views of maxillary and mandibular occlusal
blocks, respectively. The midline screw in the maxillary appliance can be seen.
69. Acrylic Part
Twin blocks are two separate appliances . The upper and lower occlusal inclined
planes interlock at an angle of 70° to the occlusal plane.
1. Lower block: The inclined plane must be clear of mesial surface contact with
the lower molar. The lower molar must be free to erupt. The inclined plane on the
lower bite block is angled from the mesial surface of the upper second premolar
or deciduous molar at 70° to the occlusal plane. Buccolingually, the lower block
covers the occlusal surface of the lower premolars or deciduous molars.
2. Upper block: The upper inclined plane is angled from the mesial surface of
the lower first molar. The flat portion passes distally over the remaining upper
posterior teeth in a wedge shape. Upper blocks cover only the lingual cusps of
the posterior teeth.
Upper and lower occlusal blocks with inclined plane.
70. Wire Components :
1. Clasps used: Initially, Adams clasps were used . Now delta clasps are used in
lower premolar and upper first molar. In the lower anterior region, ball end clasps
are used.
2. Labial bow: Use of labial bow is optional and it is used for retention purposes.
It is also used when there is severe proclination and if they have to be uprighted.
the acrylic and wire
components of twin block.
1- Headgear tube. 2- Area where the inclined planes meet. 3-
Anterior lower bite block. 4- Posterior upper bite block.
71. The delta clasps are used for retention in upper appliance.
The clasps incorporate a coiled tube for face bow
attachment, if traction is planned to be applied. Retention may
be increased by placing ball end clasps in the labial or buccal
segments.
An expansion screw in the midline provides compensatory
lateral expansion of the upper arch to accommodate a functional
lower arch protrusion from its retruded position. The labial and
lingual bows, if needed, are included to control upper incisor
angulations.

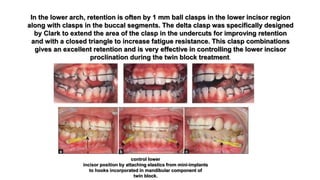

72. In the lower arch, retention is often by 1 mm ball clasps in the lower incisor region
along with clasps in the buccal segments. The delta clasp was specifically designed
by Clark to extend the area of the clasp in the undercuts for improving retention
and with a closed triangle to increase fatigue resistance. This clasp combinations
gives an excellent retention and is very effective in controlling the lower incisor
proclination during the twin block treatment.
control lower
incisor position by attaching elastics from mini-implants
to hooks incorporated in mandibular component of
twin block.
73. The upper bite block covers the lingual cusps of the upper posteriors,
extending to the mesial ridge of the upper second premolar. This improves
retention by allowing the clasp to be flexible. To compensate for the arch
width discrepancy and to allow the inclined planes to interlock in
occlusion, it is necessary to have full occlusal coverage. The lower bite
block extends to the distal marginal ridge of the mandibular second
premolar.

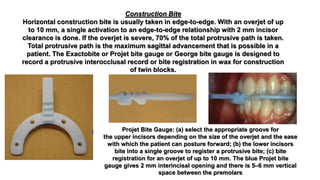

74. Construction Bite
Horizontal construction bite is usually taken in edge-to-edge. With an overjet of up
to 10 mm, a single activation to an edge-to-edge relationship with 2 mm incisor
clearance is done. If the overjet is severe, 70% of the total protrusive path is taken.
Total protrusive path is the maximum sagittal advancement that is possible in a
patient. The Exactobite or Projet bite gauge or George bite gauge is designed to
record a protrusive interocclusal record or bite registration in wax for construction
of twin blocks.
Projet Bite Gauge: (a) select the appropriate groove for
the upper incisors depending on the size of the overjet and the ease
with which the patient can posture forward; (b) the lower incisors
bite into a single groove to register a protrusive bite; (c) bite
registration for an overjet of up to 10 mm. The blue Projet bite
gauge gives 2 mm interincisal opening and there is 5–6 mm vertical
space between the premolars
75. The most common fault in twin block construction is to
make the block too thin. In such conditions, patients can
posture out of the appliance reducing the effectiveness of
the treatment. An important principle is that the block should be thick enough
to open the bite slightly beyond the freeway space. On average, blocks are not
less than 5 mm thick in first premolars or first deciduous molar region. This
thickness is normally achieved in Class II division 1 deep bite cases by
registering 2 mm vertical interincisal clearance.
76. C L INI C A L S I GNI F I C ANC E
Twin Blocks
Twin blocks differ from other removable functional
appliances in that:
• They are two separate pieces of appliances.
• All functional movements are possible with the appliance.
• Eating and speaking are possible with the appliance.

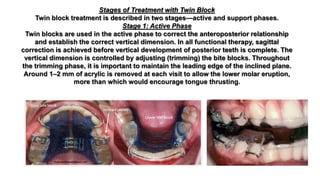

77. Stages of Treatment with Twin Block
Twin block treatment is described in two stages—active and support phases.
Stage 1: Active Phase
Twin blocks are used in the active phase to correct the anteroposterior relationship
and establish the correct vertical dimension. In all functional therapy, sagittal
correction is achieved before vertical development of posterior teeth is complete. The
vertical dimension is controlled by adjusting (trimming) the bite blocks. Throughout
the trimming phase, it is important to maintain the leading edge of the inclined plane.
Around 1–2 mm of acrylic is removed at each visit to allow the lower molar eruption,
more than which would encourage tongue thrusting.

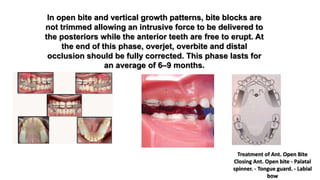

78. In open bite and vertical growth patterns, bite blocks are
not trimmed allowing an intrusive force to be delivered to
the posteriors while the anterior teeth are free to erupt. At
the end of this phase, overjet, overbite and distal
occlusion should be fully corrected. This phase lasts for
an average of 6–9 months.
Treatment of Ant. Open Bite
Closing Ant. Open bite - Palatal
spinner. - Tongue guard. - Labial
bow

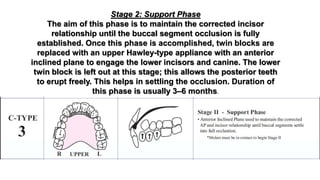

79. Stage 2: Support Phase
The aim of this phase is to maintain the corrected incisor
relationship until the buccal segment occlusion is fully
established. Once this phase is accomplished, twin blocks are
replaced with an upper Hawley-type appliance with an anterior
inclined plane to engage the lower incisors and canine. The lower
twin block is left out at this stage; this allows the posterior teeth
to erupt freely. This helps in settling the occlusion. Duration of
this phase is usually 3–6 months.

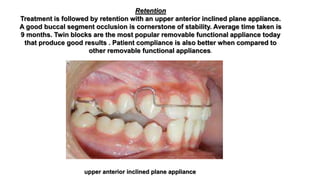

80. Retention
Treatment is followed by retention with an upper anterior inclined plane appliance.
A good buccal segment occlusion is cornerstone of stability. Average time taken is
9 months. Twin blocks are the most popular removable functional appliance today
that produce good results . Patient compliance is also better when compared to
other removable functional appliances.
upper anterior inclined plane appliance
