This project report describes a remote control lamp that allows activating or switching on and off a 230 volt appliance like a bulb using a remote. The objective is to control appliances without having to physically switch them on. It works by using an IR receiver module to accept signals from the remote's IR transmitter, which then activates a relay to power the appliance. Through this project, the student learned about how IR transmitters and receivers work to send and receive signals wirelessly.

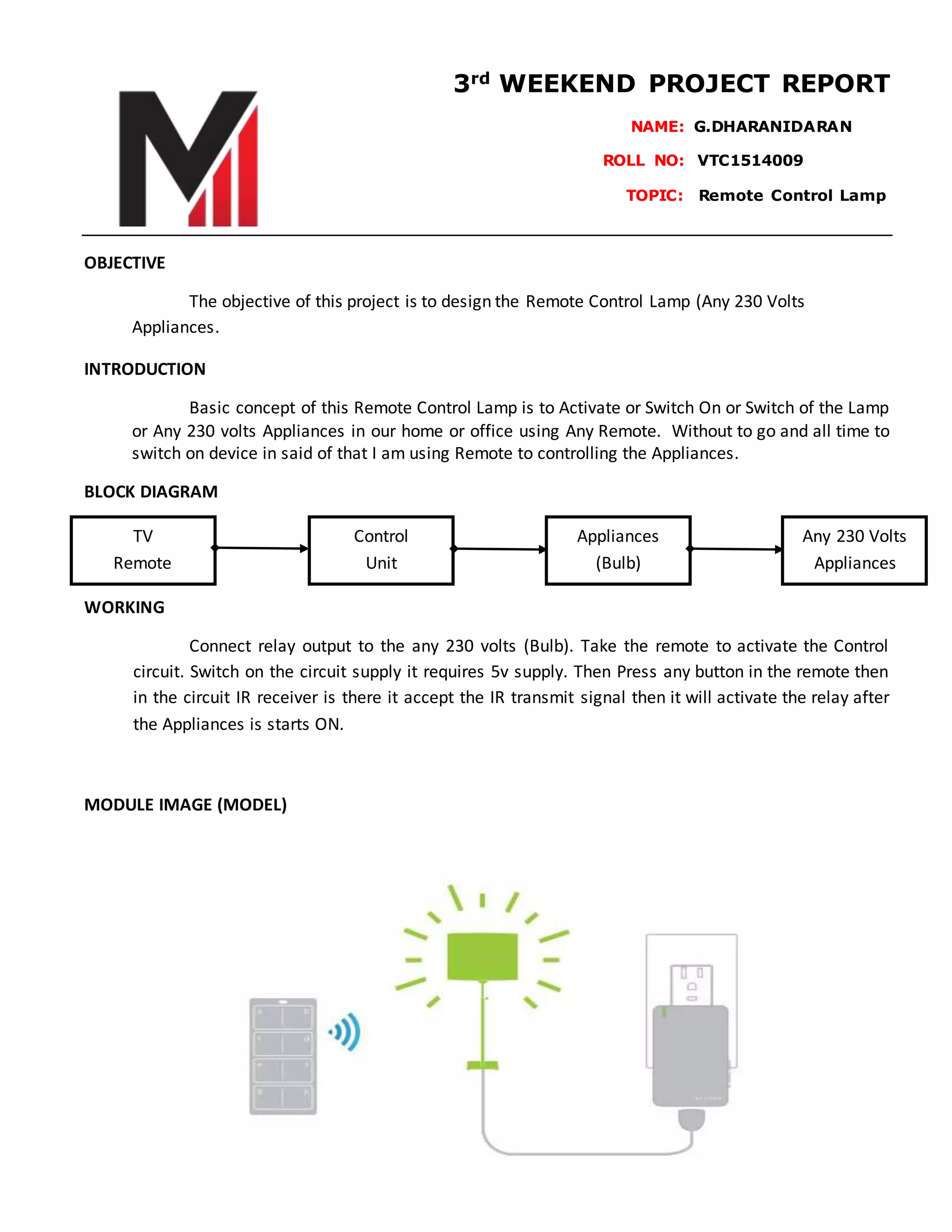

1. 3rd WEEKEND PROJECT REPORT
NAME: G.DHARANIDARAN
ROLL NO: VTC1514009………
TOPIC: Remote Control Lamp
OBJECTIVE
The objective of this project is to design the Remote Control Lamp (Any 230 Volts
Appliances.
INTRODUCTION
Basic concept of this Remote Control Lamp is to Activate or Switch On or Switch of the Lamp
or Any 230 volts Appliances in our home or office using Any Remote. Without to go and all time to
switch on device in said of that I am using Remote to controlling the Appliances.
BLOCK DIAGRAM
WORKING
Connect relay output to the any 230 volts (Bulb). Take the remote to activate the Control
circuit. Switch on the circuit supply it requires 5v supply. Then Press any button in the remote then
in the circuit IR receiver is there it accept the IR transmit signal then it will activate the relay after
the Appliances is starts ON.
MODULE IMAGE (MODEL)
TV
Remote
Control
Unit
Appliances
(Bulb)
Any 230 Volts
Appliances

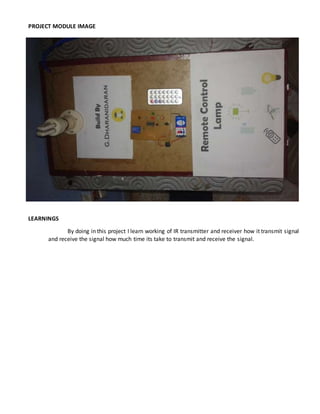

2. PROJECT MODULE IMAGE
LEARNINGS
By doing in this project I learn working of IR transmitter and receiver how it transmit signal
and receive the signal how much time its take to transmit and receive the signal.
