This document outlines the course objectives and content for a database course. The key topics covered include basic concepts, database architecture and design, data modeling using entity relationship diagrams, formulating queries using relational algebra operations like select, project, join and normalization. Specific types of joins discussed in detail are theta, equi, natural, outer and semi joins. Examples are provided for each join type. Lab activities involve practicing queries in MS Access. The next lecture will cover SELECT commands.

1. M.Rabbani

2. Course Objectives
1) Basic Concepts
2) Tools
3) Database architecture and design
4) Flow of data (DFDs)
5) Mappings (ERDs)
6) Formulating queries (Relational algebra)
7) Implementing Schema
8) Built-in Functions
9) Extracting data
10) Working with Joins
11) Normalization
12) Improving performance
13) Advanced topics

3. 6) Formulating queries
(Relational algebra)
 Basic Operations
 Unary Operations
 SELECT
 PROJECT
 Binary Operations
 UNION
 INTERSECTION
 SUBTRACTION
 CARTESIAN PRODUCT
o JOINS
o Theta JOIN
o EQUI JOIN
o NATURAL JOIN
o OUTER JOIN
o SEMI JOIN

4. Lecture overview
o JOINS
o Theta JOIN
o EQUI JOIN
o NATURAL JOIN
o OUTER JOIN
o SEMI JOIN
6) Formulating queries

5. Joins
 Join is a special form of cross product of
two tables
 It is a binary operation that allows
combining certain selections and a
Cartesian product into one operation
 The join operation forms a Cartesian
product of its two arguments, performs a
selection forcing equality on those
attributes that appear in both relation
schemas, and finally removes duplicate
attributes

6. Joins
Following are the different types of joins:
 Theta Join
 Equi Join
 Semi Join
 Natural Join
 Outer Joins

7. Theta join
 In theta join we apply the condition on input
relation(s) and then only those selected rows
are used in the cross product to be merged and
included in the output
 It means that in normal cross product all the
rows of one relation are mapped/merged with all
the rows of second relation, but here only
selected rows of a relation are made cross
product with second relation
 It is denoted as under: R X ɵ S
 If R and S are two relations then ɵ is the
condition, which is applied for select operation
on one relation and then only selected rows are
cross product with all the rows of second
relation

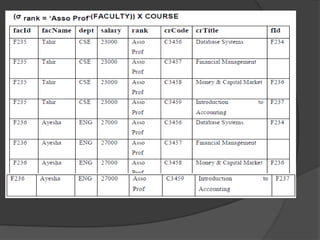

8. Example

10. Equi Join
 This is the most used type of join
 In equi–join rows are joined on the basis of
values of a common attribute between the two
relations
 It means relations are joined on the basis of
common attributes between them; which are
meaningful
 This means on the basis of primary key, which
is a foreign key in another relation
 Rows having the same value in the common
attributes are joined
 Common attributes appear twice in the output

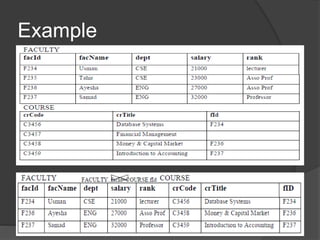

11. Example

12. Natural Join
 This is the most common and general
form of join. If we simply say join, it
means the natural join
 It is same as equi–join but the difference
is that in natural join, the common
attribute appears only once.

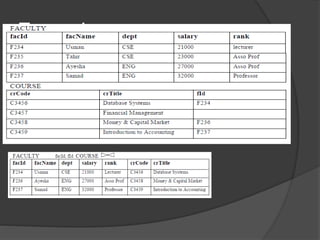

13. Example

14. Left Outer Join
 In left outer join all the tuples of left relation
remain part of the output
 The tuples that have a matching tuple in
the second relation do have the
corresponding tuple from the second
relation
 However, for the tuples of the left relation,
which do not have a matching record in the
right tuple have Null values against the
attributes of the right relation.

15. Example

16. Right Outer Join
 In right outer join all the tuples of right
relation remain part of the output
relation,
 On the left side the tuples, which do not
match with the right relation, are left as
null
 It means that right outer join will always
have all the tuples of right relation and
those tuples of left relation which are not
matched are left as Null

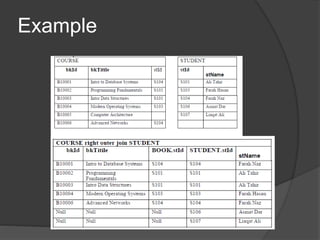

17. Example

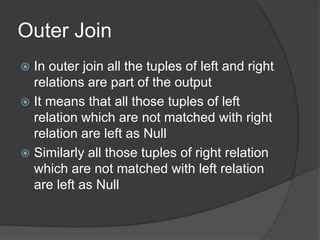

18. Outer Join
 In outer join all the tuples of left and right
relations are part of the output
 It means that all those tuples of left
relation which are not matched with right
relation are left as Null
 Similarly all those tuples of right relation
which are not matched with left relation
are left as Null

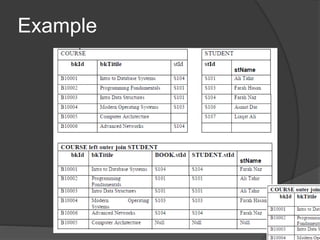

19. Example

20. Semi Join
 In semi join, first we take the natural join
of two relations then we project the
attributes of first table only
 So after join and matching the common
attribute of both relations only attributes
of first relation are projected

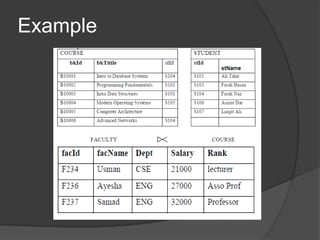

21. Example

22. 6) Formulating queries
(Relational algebra)
 Basic Operations
 Unary Operations
 SELECT
 PROJECT
 Binary Operations
 UNION
 INTERSECTION
 SUBTRACTION
 CARTESIAN PRODUCT
 JOINS
 Theta JOIN
 EQUI JOIN
 NATURAL JOIN
 OUTER JOIN
 SEMI JOIN

23. Lab Activity-11
 MS Access Queries
 Open tables or queries in design view
 Display all records and all fields
 Change datasheet view
 Retrieve a single column
 Retrieve multiple columns

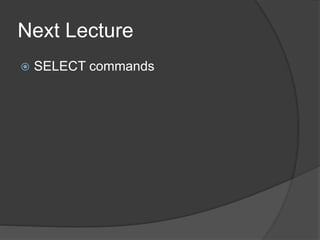

24. Next Lecture
 SELECT commands
