Enabling Ultra-fast Presto in the Cloud with Alluxio
Alluxio is an open source data orchestration system that enables ultra-fast Presto in the cloud. It provides a Presto Alluxio Stack that caches data in Alluxio for faster Presto queries, with benefits like lower latency, more consistent performance, and reduced data transfer. Alluxio's new structured data service provides deeper integration with SQL engines like Presto through features like a catalog service and transformation service. This enables schema-aware optimizations and compute-optimized data formats for further accelerating Presto performance.
More Related Content
Similar to Enabling Ultra-fast Presto in the Cloud with Alluxio
Enabling Ultra-fast Presto in the Cloud with Alluxio
- 1. ALLUXIO 2019 Enabling Ultra-fast Prestoin the Cloud with Alluxio Haoyuan (H.Y.) Li | Founder & CTO | Alluxio | haoyuan@alluxio.com | alluxio.io/slack 2019-12-11 @ Presto Summit NYC

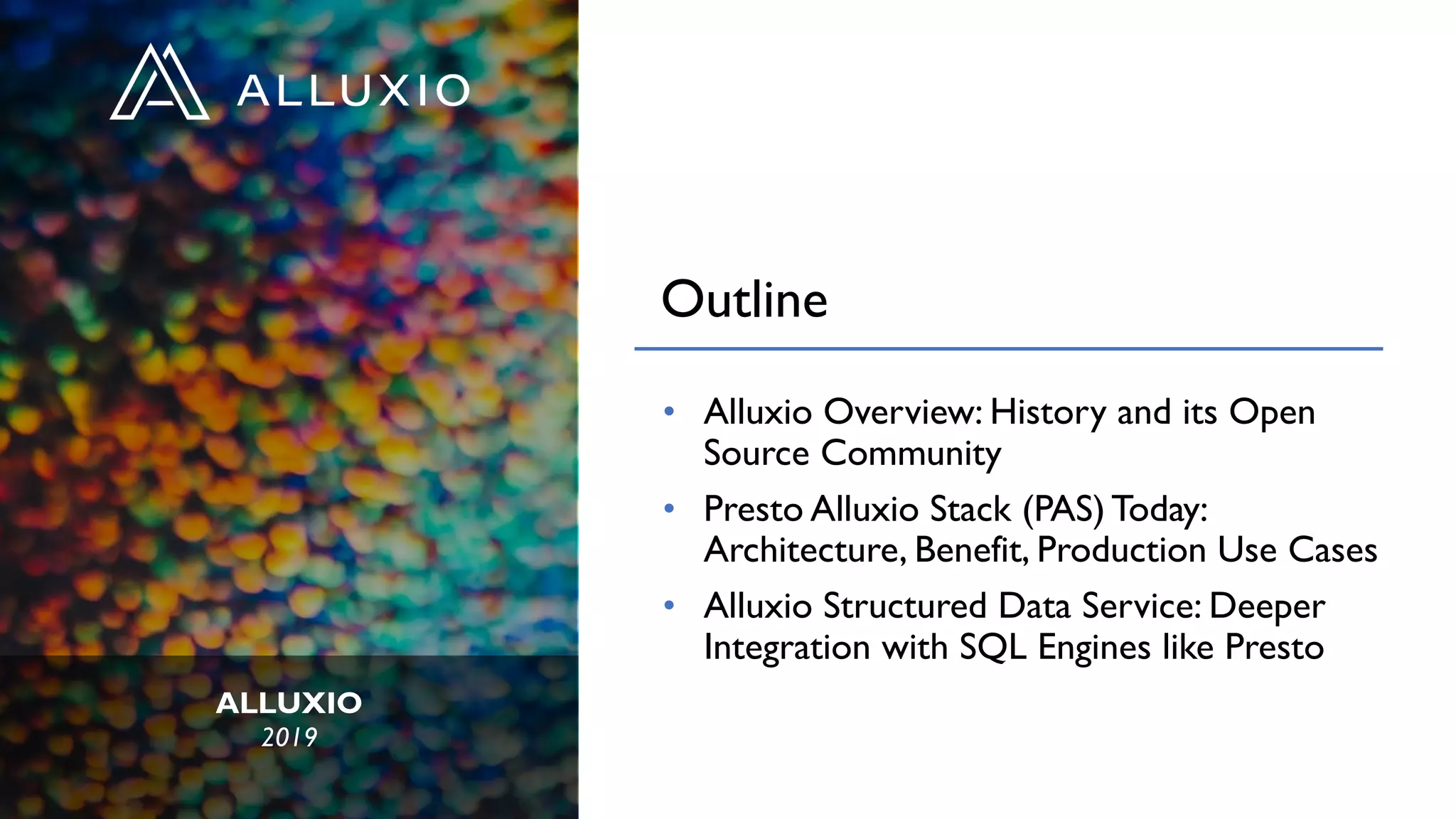

- 2. ALLUXIO 2019 Outline • Alluxio Overview:History and its Open Source Community • Presto Alluxio Stack (PAS) Today: Architecture, Benefit, Production Use Cases • Alluxio Structured Data Service: Deeper Integration with SQL Engines like Presto
- 3. ALLUXIO 2019 Alluxio Overview History andOpen Source Community
- 4. The Alluxio Story OriginatedasTachyon project, at the UC Berkley’s AMP Lab by then Ph.D. student & now Alluxio CTO, Haoyuan (H.Y.) Li. 2013 2015 Open Source project established & company to commercialize Alluxio founded Goal: Orchestrate Data for Analytics & ML in the Cloud for data driven apps such as Big Data Analytics, ML and AI. 2018 20192018
- 5. Open Source StartedFrom UC Berkeley AMPLab 1000+ contributors & growing 4000+ Git Stars Apache 2.0 Licensed GitHub’s Top 100 Most Valuable Repositories Out of 96 Million Join the conversation on Slack slackin.alluxio.io
- 6. Consumer Travel &TransportationTelco & Media Companies Running Alluxio (Learn More) TechnologyFinancial Services Retail & Entertainment Data & Analytics Services
- 7. Four trends drivingthe need for a new architecture Separation of Compute & Storage Hybrid – Multi cloud environments Self-service data across the enterprise Rise of the object store

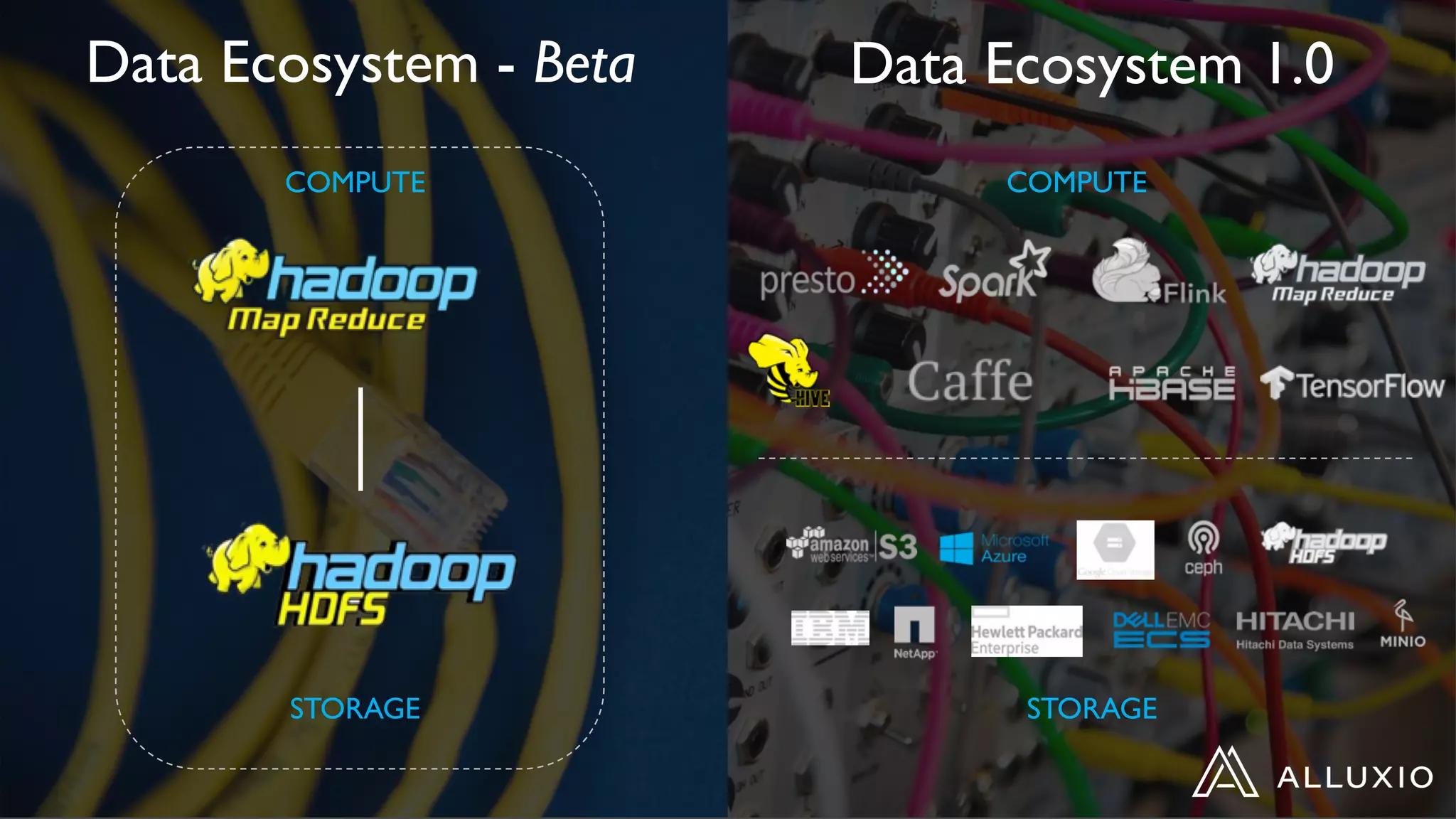

- 8. Data Ecosystem -Beta Data Ecosystem 1.0 COMPUTE STORAGE STORAGE COMPUTE
- 9. Data Ecosystem 1.0– The Challenges STORAGE COMPUTE Complex Low performance Expensive

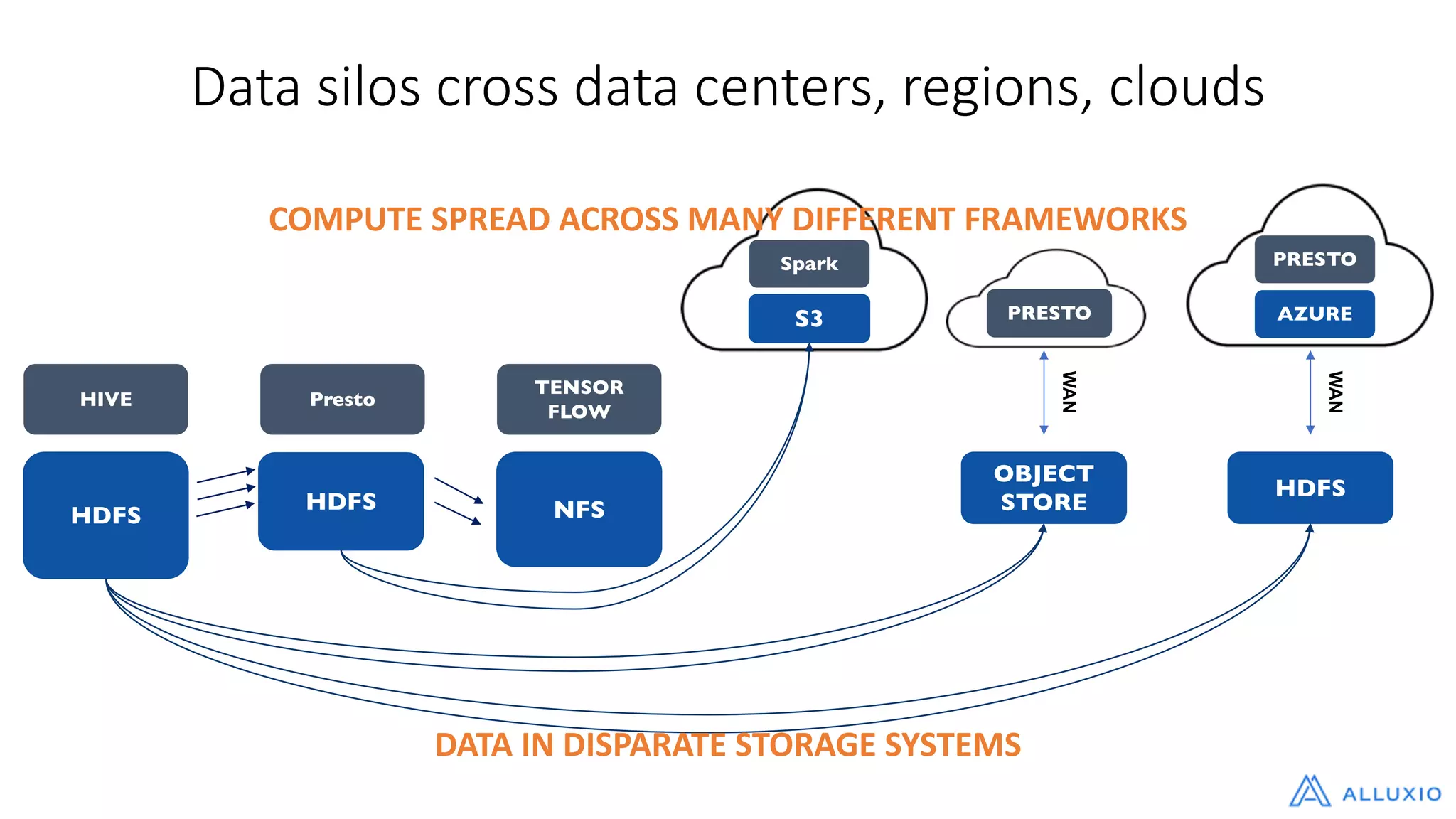

- 10. Data silos crossdata centers, regions, clouds HDFS HIVE HDFS Presto NFS TENSOR FLOW OBJECT STORE PRESTO WAN HDFS WAN S3 Spark AZURE PRESTO DATA IN DISPARATE STORAGE SYSTEMS COMPUTE SPREAD ACROSS MANY DIFFERENT FRAMEWORKS

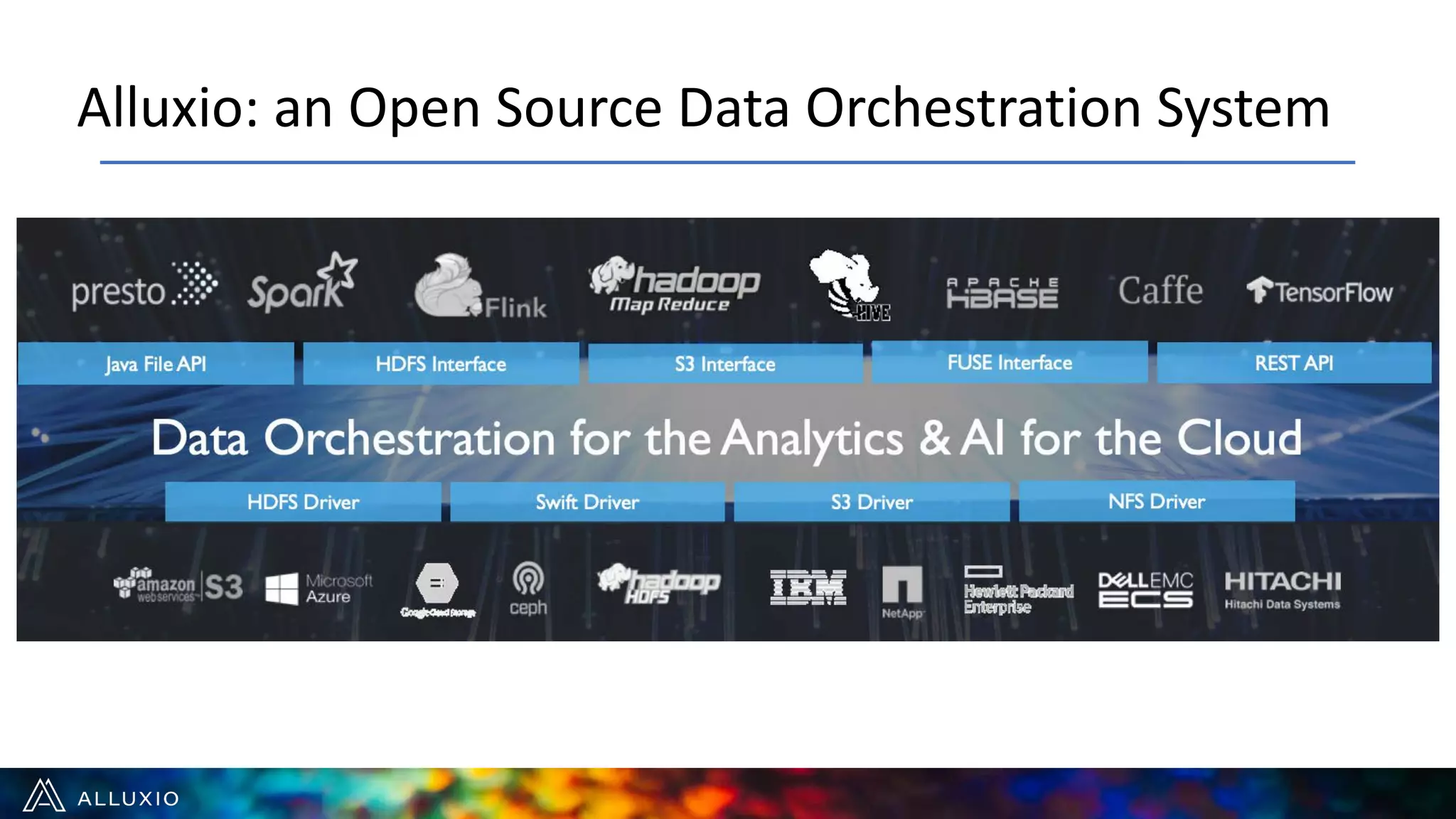

- 11. Alluxio: an OpenSource Data Orchestration System

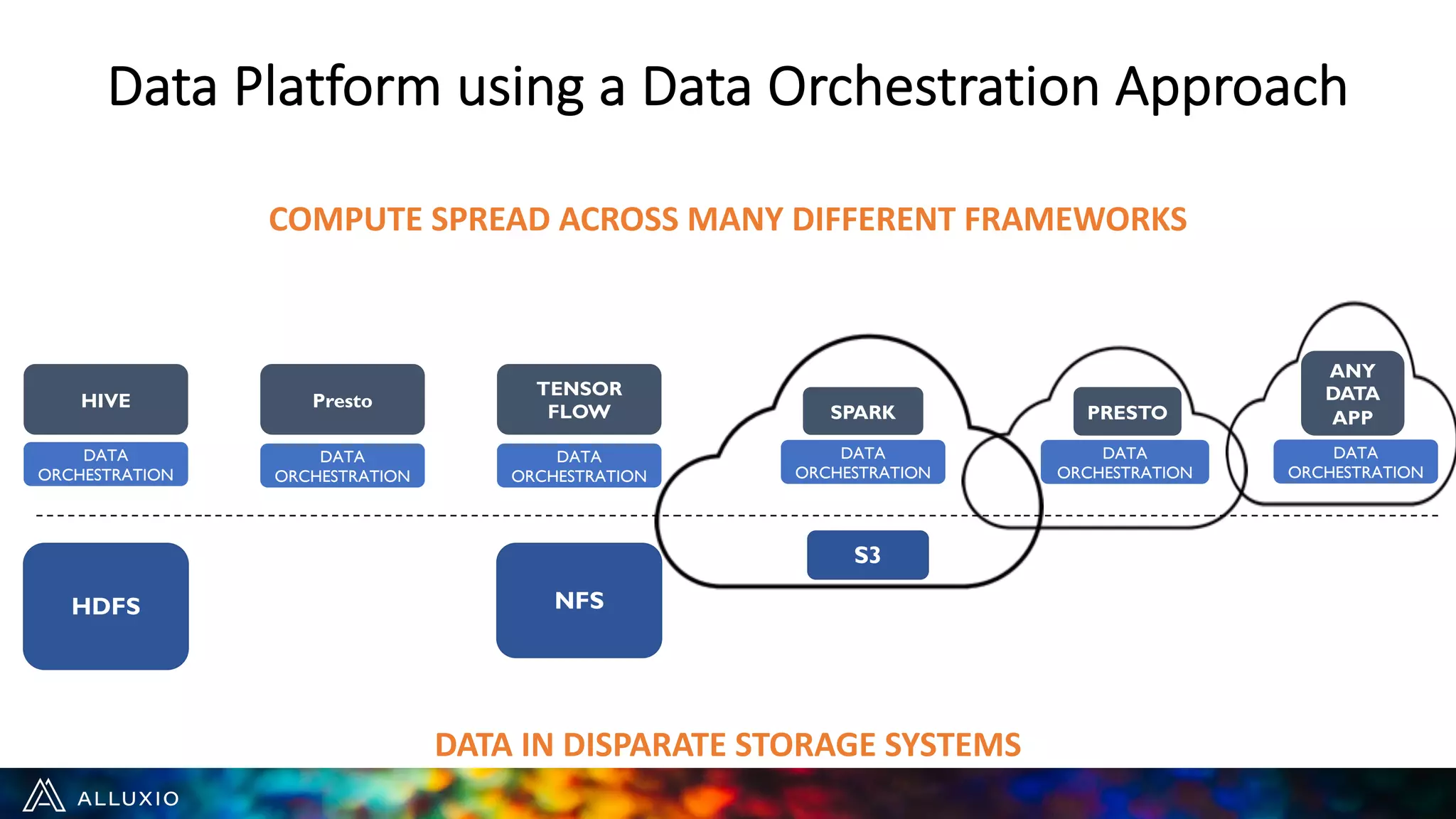

- 12. Data Platform usinga Data Orchestration Approach HDFS HIVE Presto NFS TENSOR FLOW DATA IN DISPARATE STORAGE SYSTEMS PRESTO COMPUTE SPREAD ACROSS MANY DIFFERENT FRAMEWORKS S3 SPARK DATA ORCHESTRATION DATA ORCHESTRATION DATA ORCHESTRATION DATA ORCHESTRATION DATA ORCHESTRATION ANY DATA APP DATA ORCHESTRATION
- 13. ALLUXIO 2019 Presto Alluxio Stack(PAS) Today Architecture, Benefit, Production Use Cases

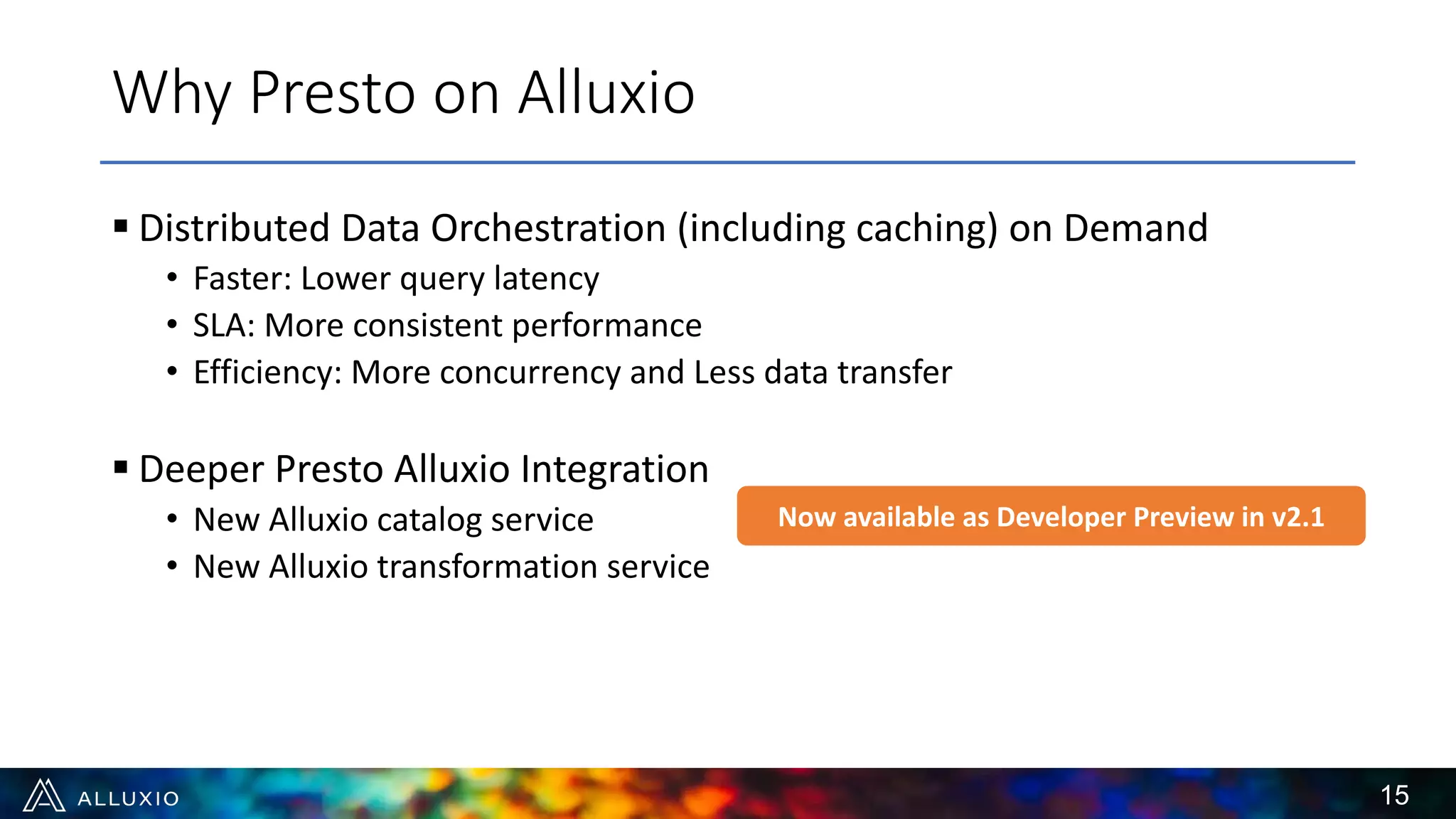

- 14. § Distributed DataOrchestration (including caching) on Demand • Faster: Lower query latency • SLA: More consistent performance • Efficiency: More concurrency and Less data transfer § Deeper Presto Alluxio Integration • New Alluxio catalog service • New Alluxio transformation service Why Presto on Alluxio Now available as Developer Preview in v2.1 15

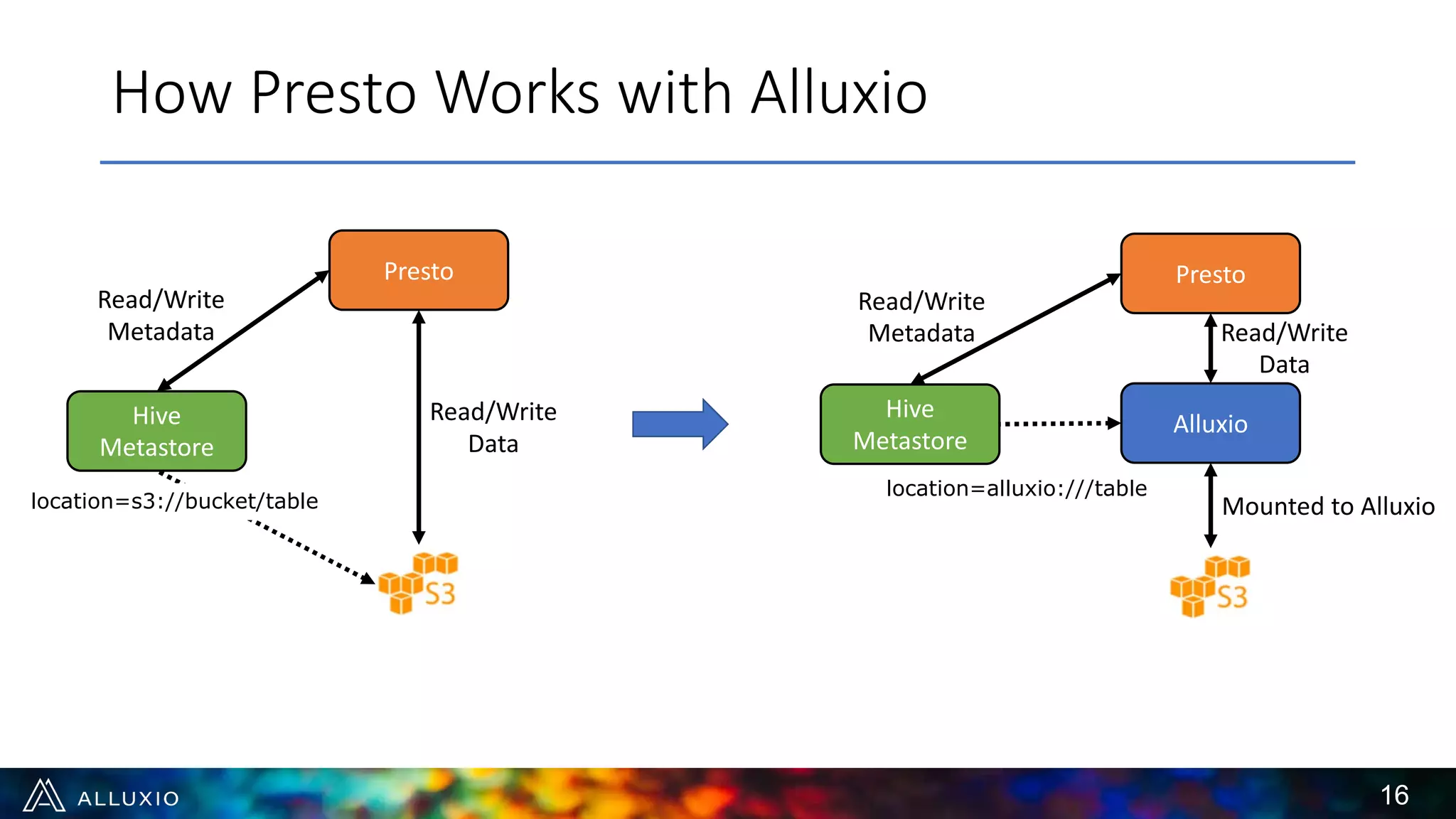

- 15. How Presto Workswith Alluxio Presto Hive Metastore location=s3://bucket/table Read/Write Metadata Read/Write Data Presto Alluxio Mounted to Alluxio Hive Metastore location=alluxio:///table Read/Write Metadata Read/Write Data 16

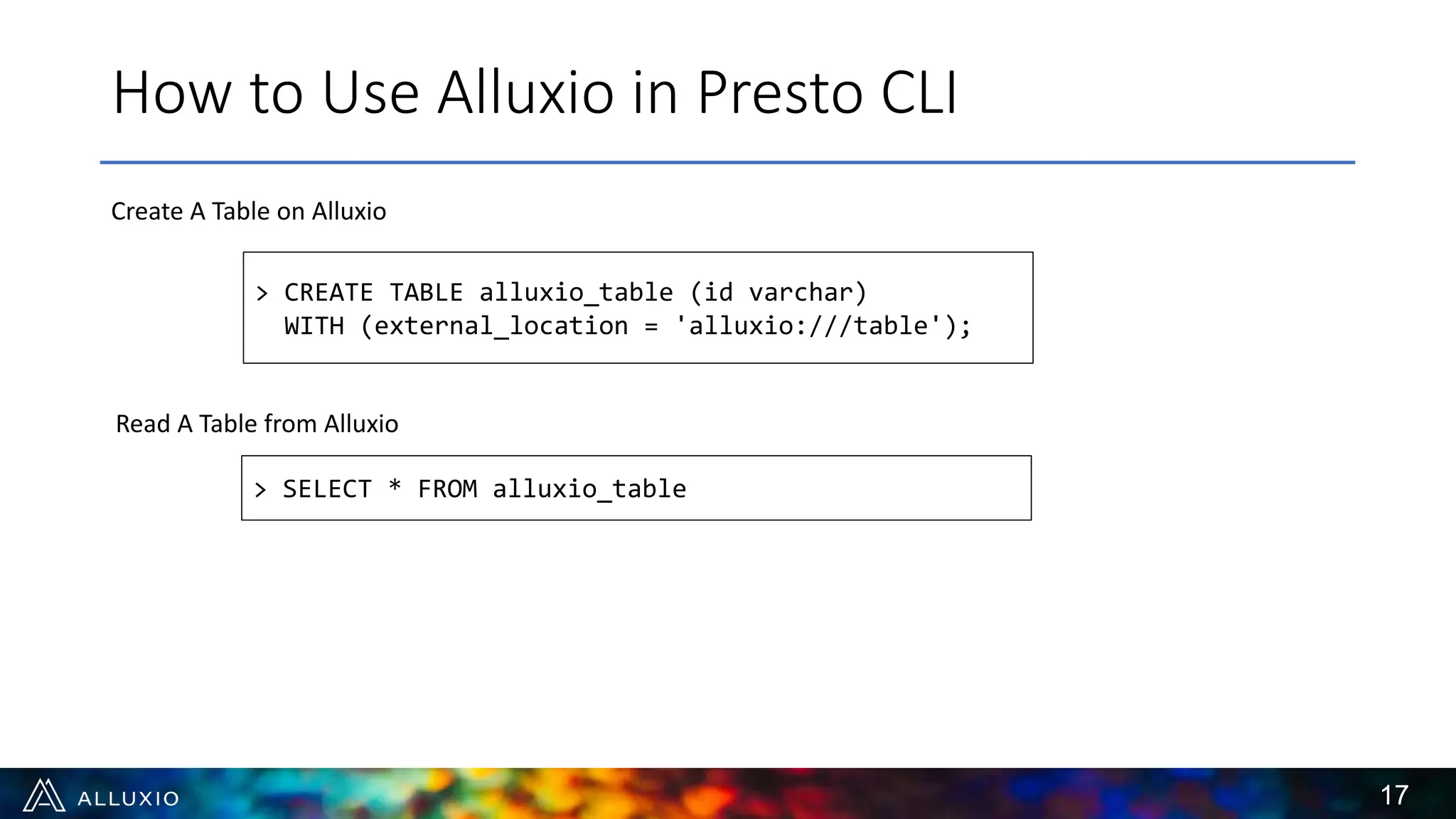

- 16. How to UseAlluxio in Presto CLI > CREATE TABLE alluxio_table (id varchar) WITH (external_location = 'alluxio:///table'); > SELECT * FROM alluxio_table Create A Table on Alluxio Read A Table from Alluxio 17

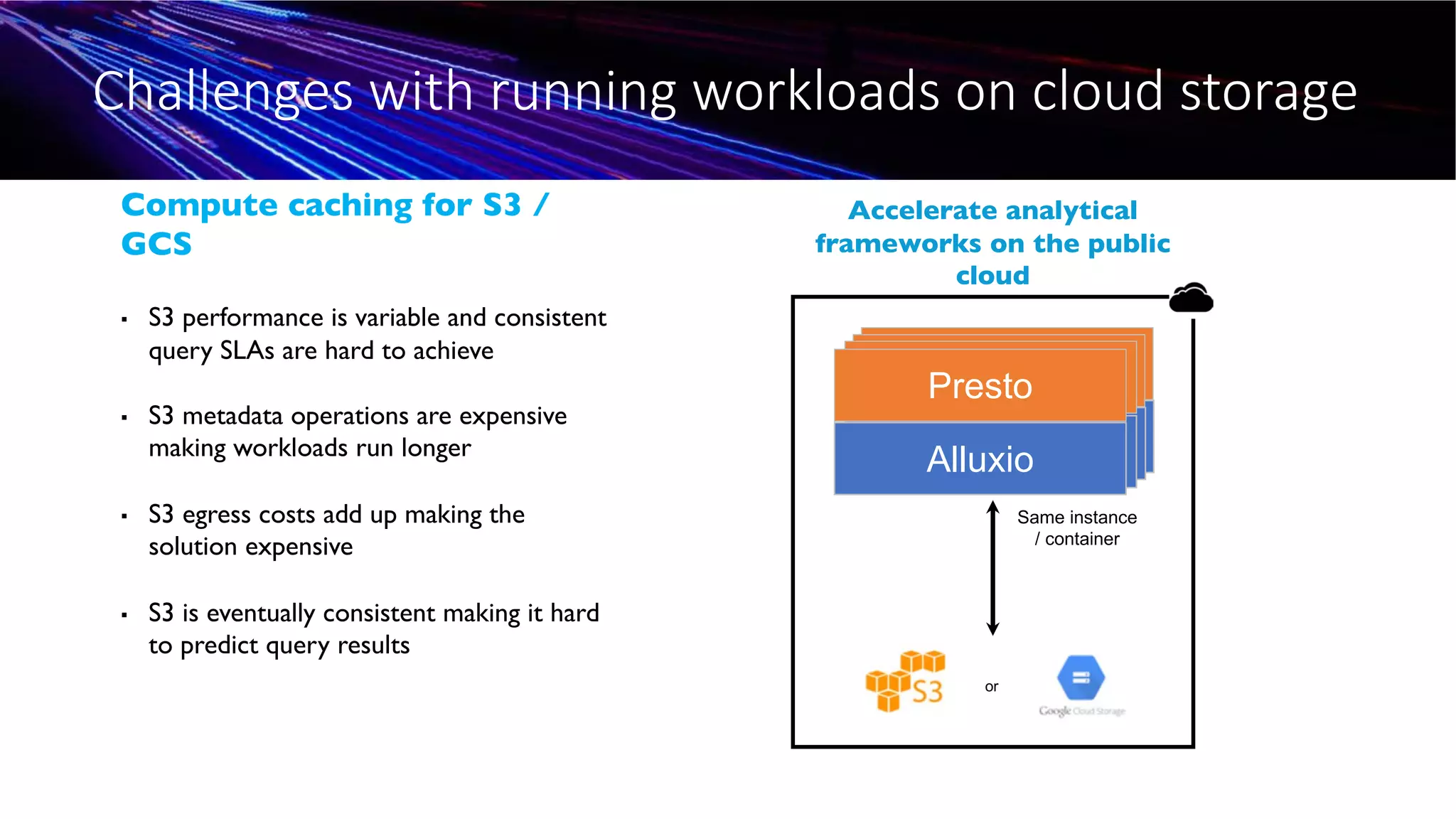

- 17. ▪ S3 performanceis variable and consistent query SLAs are hard to achieve ▪ S3 metadata operations are expensive making workloads run longer ▪ S3 egress costs add up making the solution expensive ▪ S3 is eventually consistent making it hard to predict query results Challenges with running workloads on cloud storage Compute caching for S3 / GCS Accelerate analytical frameworks on the public cloud Same instance / container Alluxio Spark AlluxioAlluxio Spark Alluxio SparkPresto or

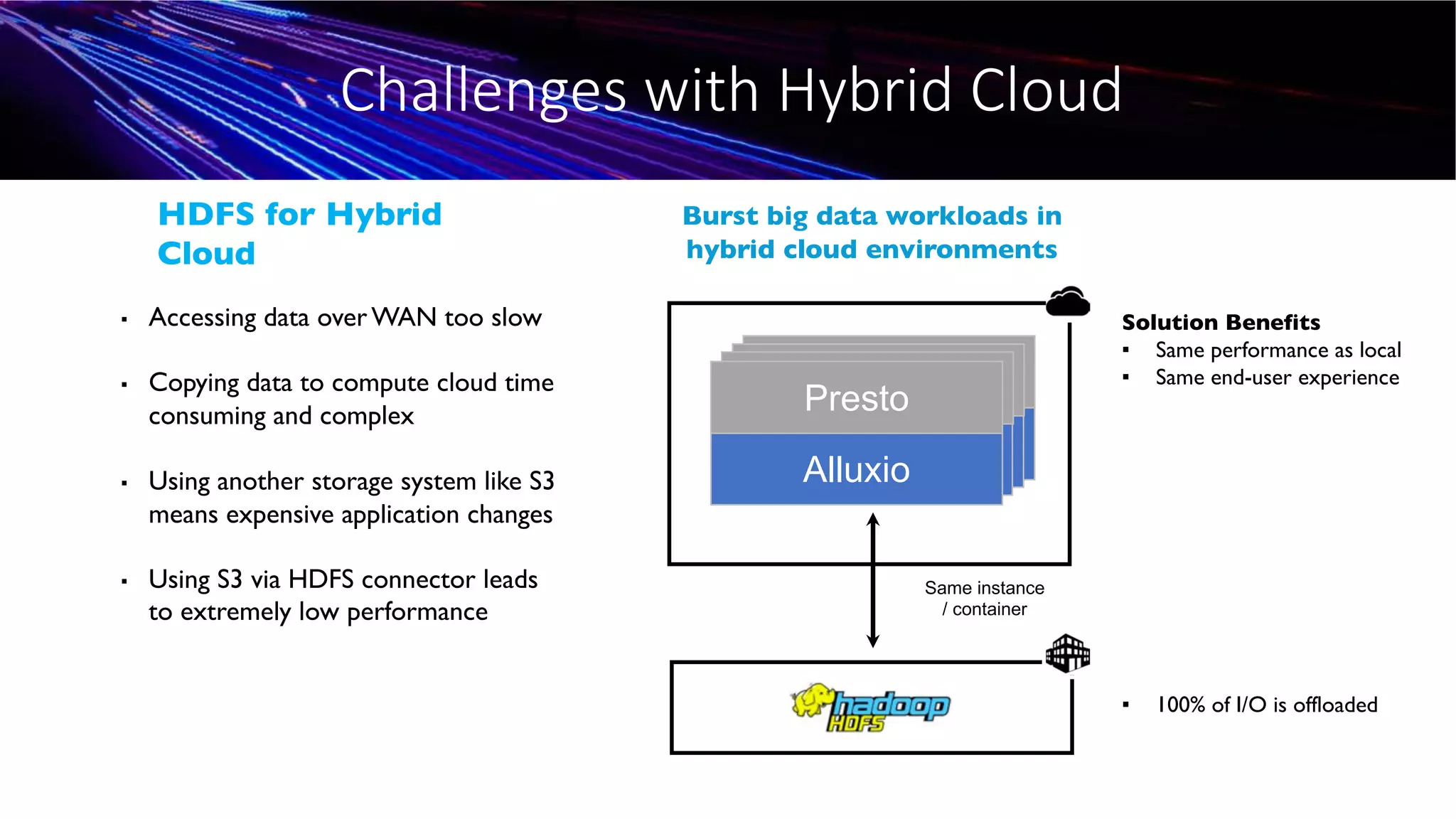

- 18. AlluxioAlluxioAlluxio ▪ Accessing dataover WAN too slow ▪ Copying data to compute cloud time consuming and complex ▪ Using another storage system like S3 means expensive application changes ▪ Using S3 via HDFS connector leads to extremely low performance Challenges with Hybrid Cloud HDFS for Hybrid Cloud Alluxio Burst big data workloads in hybrid cloud environments Same instance / container Solution Benefits ▪ Same performance as local ▪ Same end-user experience ▪ 100% of I/O is offloaded PrestoPrestoPrestoPresto

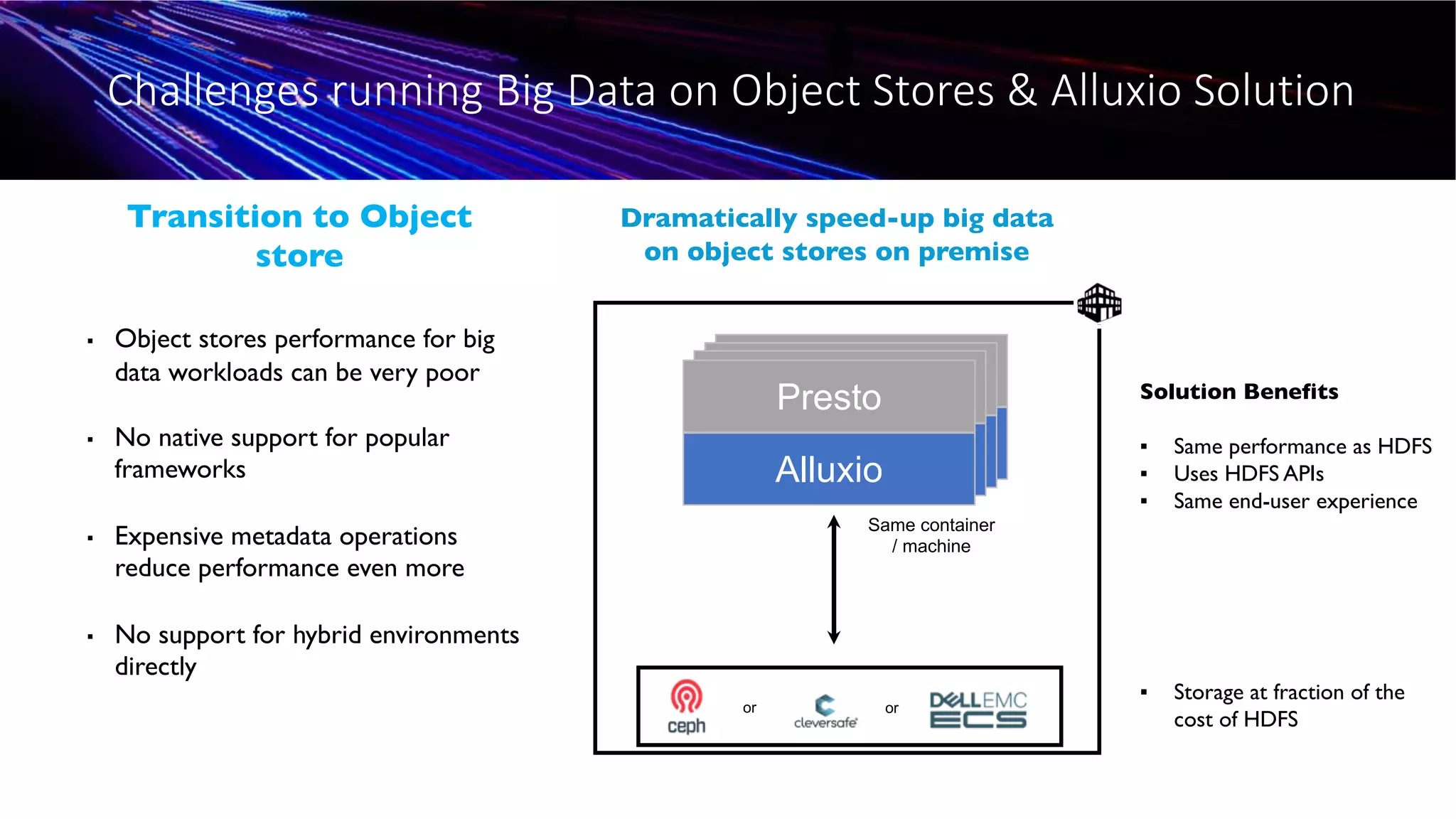

- 19. Alluxio Presto Alluxio Presto Challenges running BigData on Object Stores & Alluxio Solution ▪ Object stores performance for big data workloads can be very poor ▪ No native support for popular frameworks ▪ Expensive metadata operations reduce performance even more ▪ No support for hybrid environments directly Transition to Object store Dramatically speed-up big data on object stores on premise Same container / machine or or Solution Benefits ▪ Same performance as HDFS ▪ Uses HDFS APIs ▪ Same end-user experience ▪ Storage at fraction of the cost of HDFS Alluxio Presto Alluxio Presto

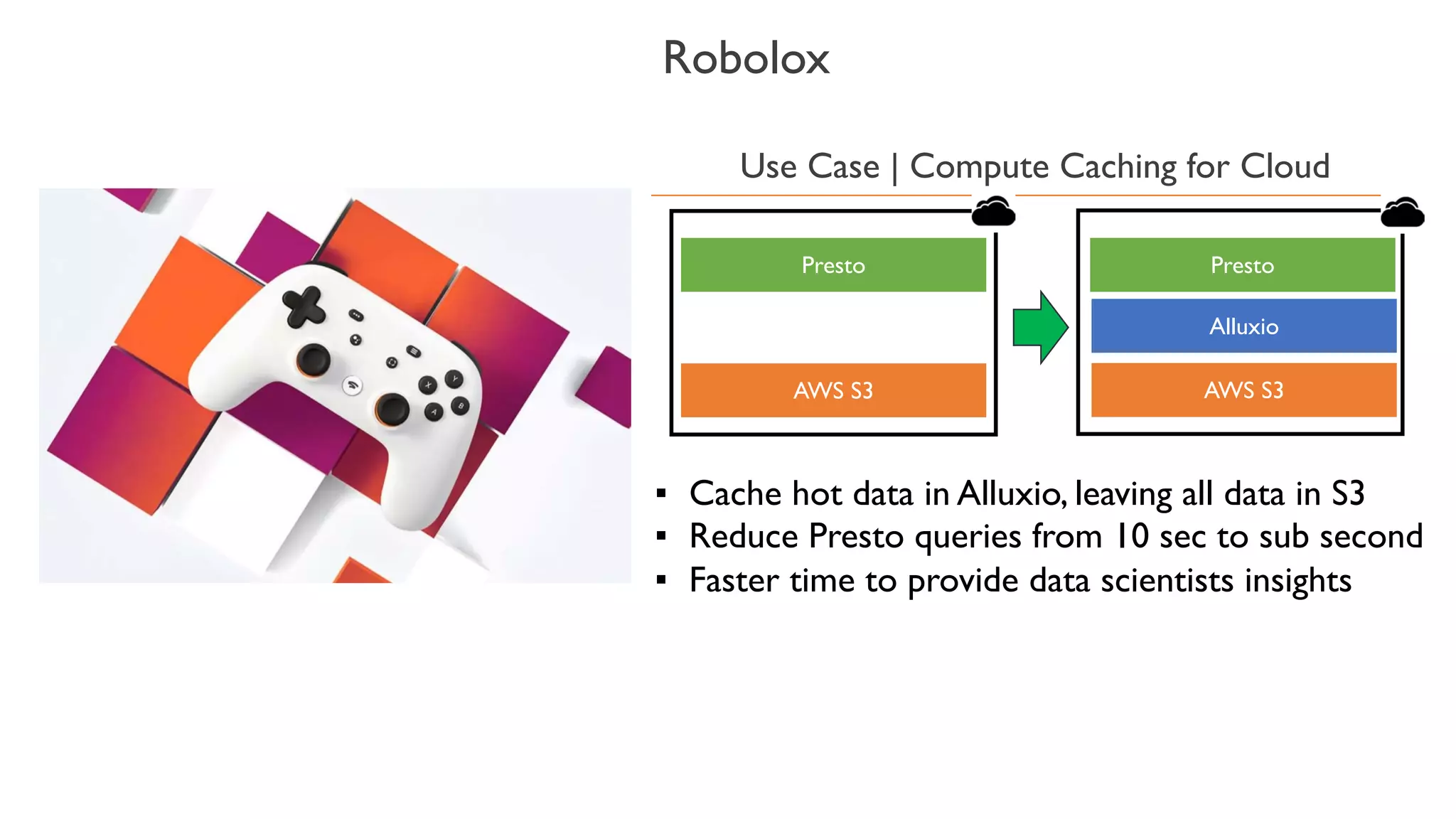

- 20. Alluxio Presto AWS S3 Presto AWS S3 ▪Cache hot data in Alluxio, leaving all data in S3 ▪ Reduce Presto queries from 10 sec to sub second ▪ Faster time to provide data scientists insights Robolox Use Case | Compute Caching for Cloud

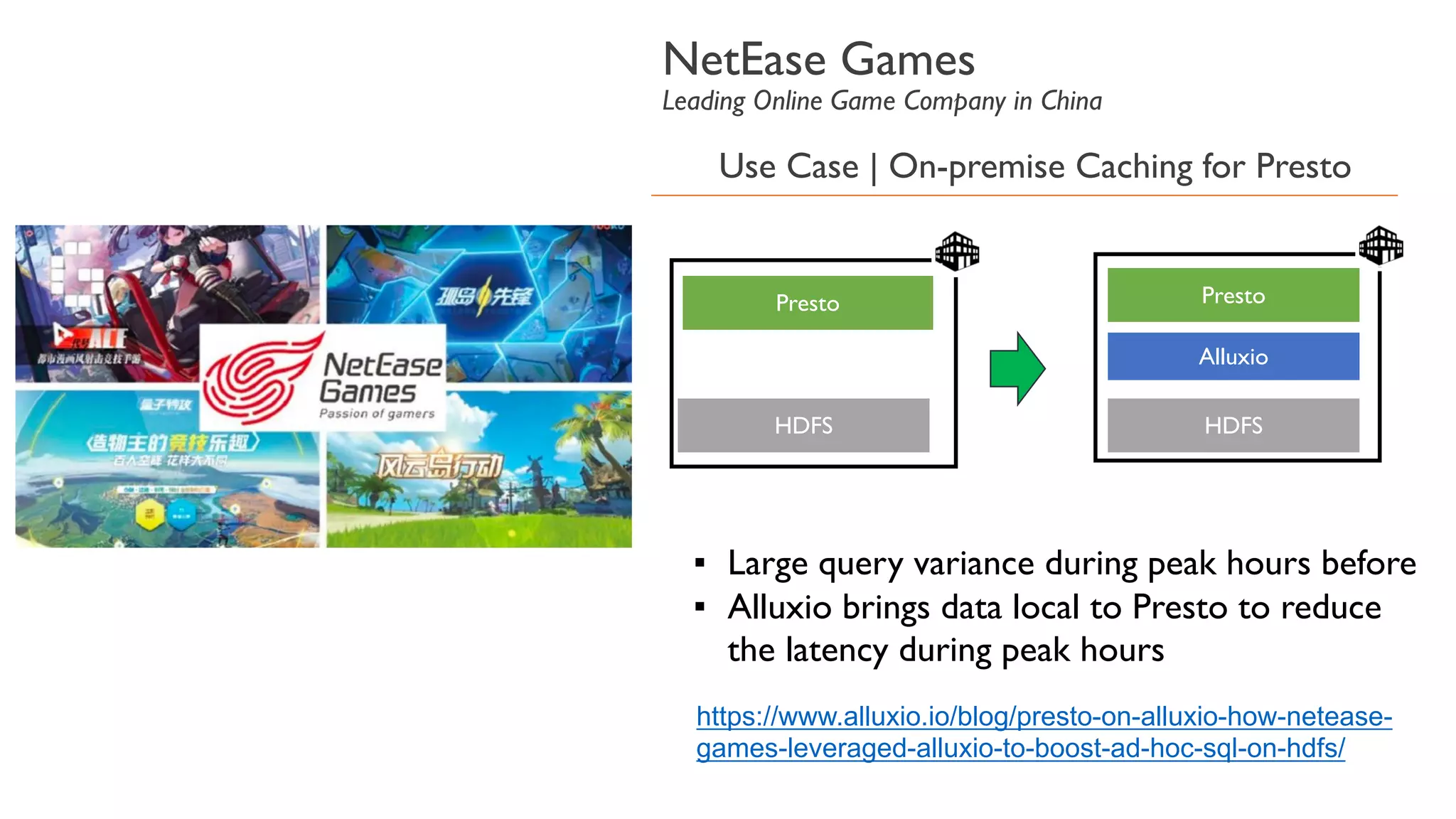

- 21. Use Case |On-premise Caching for Presto HDFS ▪ Large query variance during peak hours before ▪ Alluxio brings data local to Presto to reduce the latency during peak hours NetEase Games Leading Online Game Company in China https://www.alluxio.io/blog/presto-on-alluxio-how-netease- games-leveraged-alluxio-to-boost-ad-hoc-sql-on-hdfs/ Presto HDFS Presto Alluxio

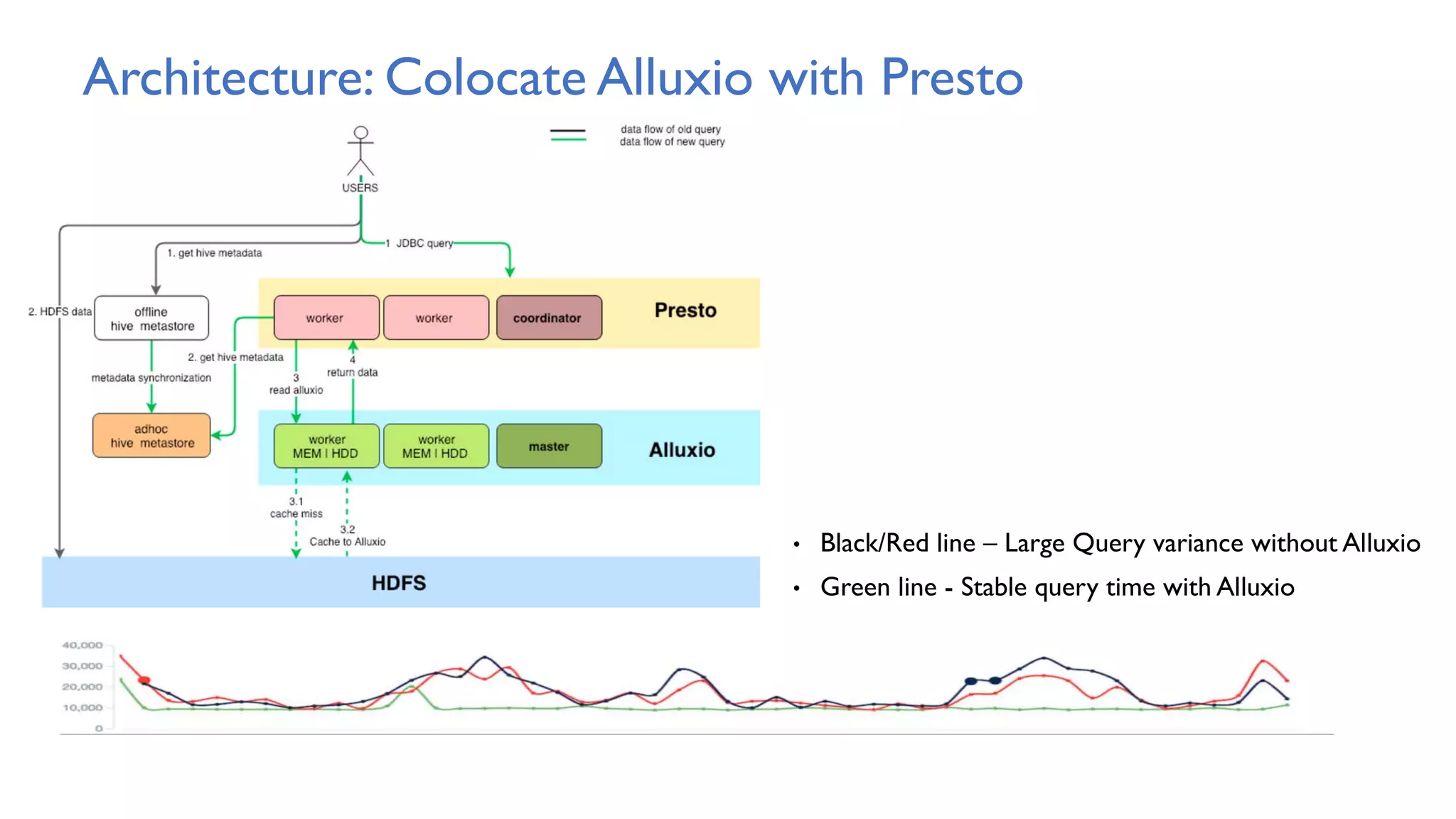

- 22. Architecture: Colocate Alluxiowith Presto • Black/Red line – Large Query variance without Alluxio • Green line - Stable query time with Alluxio

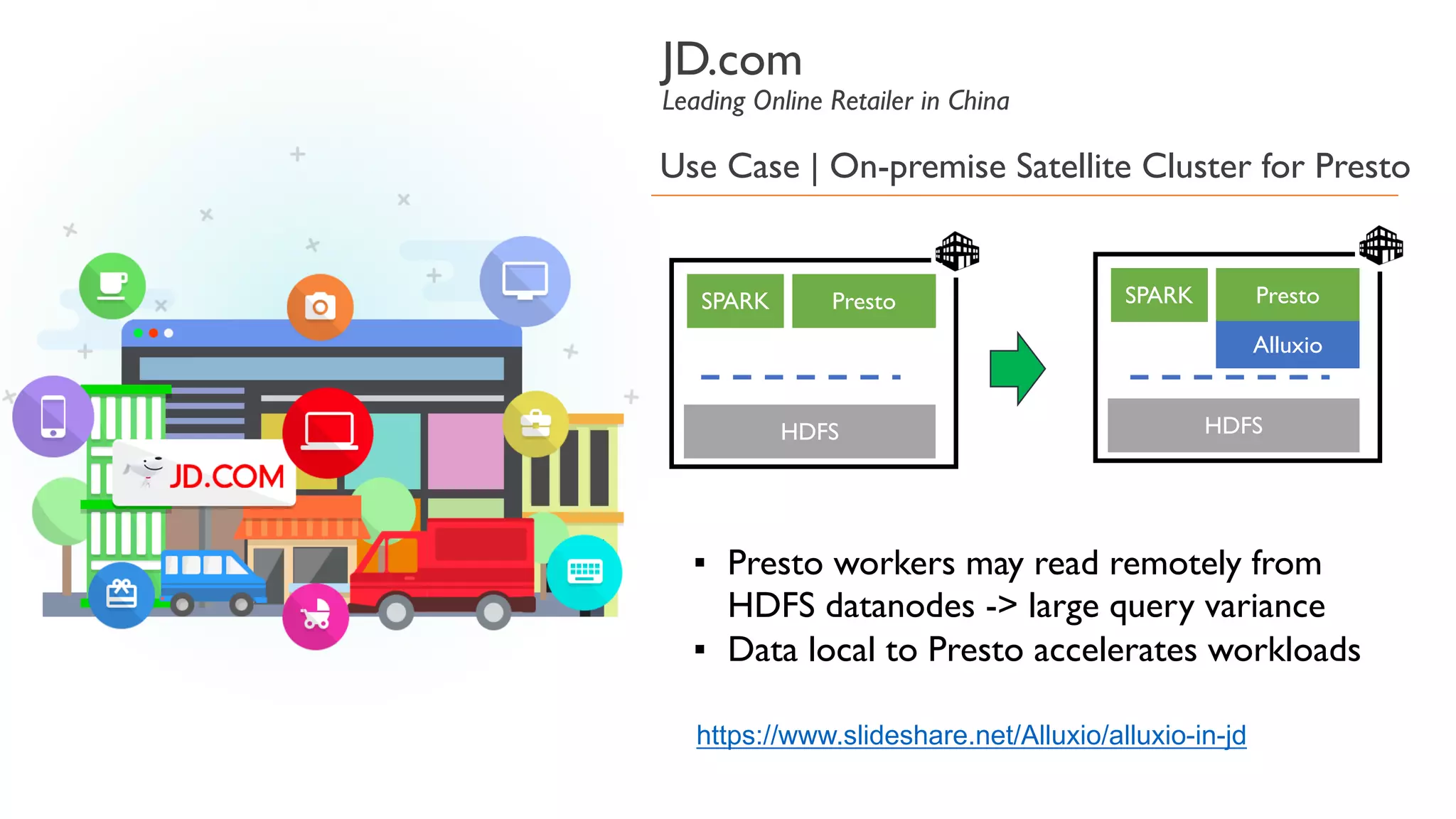

- 23. Use Case |On-premise Satellite Cluster for Presto HDFS SPARK ▪ Presto workers may read remotely from HDFS datanodes -> large query variance ▪ Data local to Presto accelerates workloads JD.com Leading Online Retailer in China https://www.slideshare.net/Alluxio/alluxio-in-jd Presto HDFS SPARK Presto Alluxio

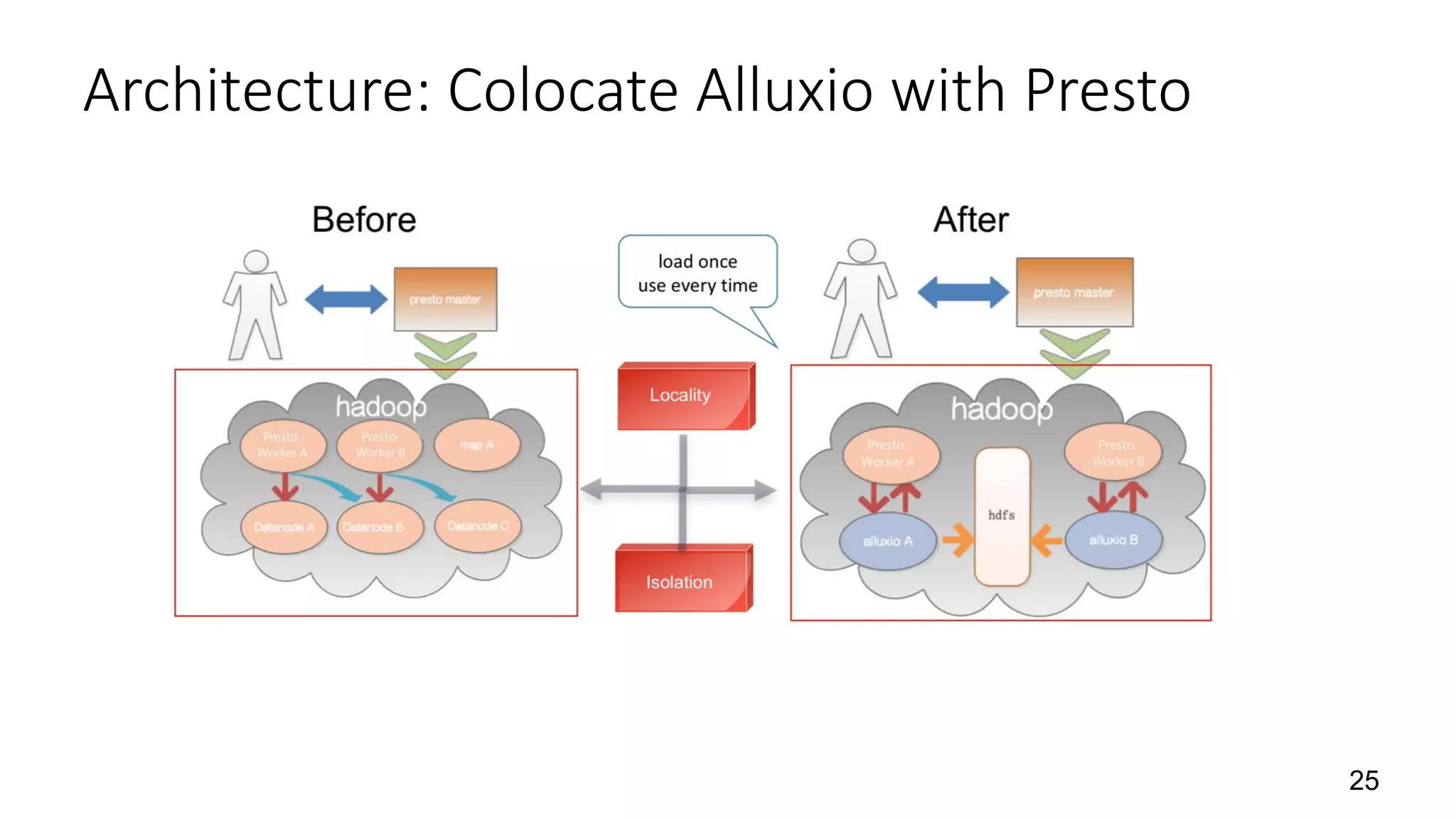

- 24. Architecture: Colocate Alluxiowith Presto 25

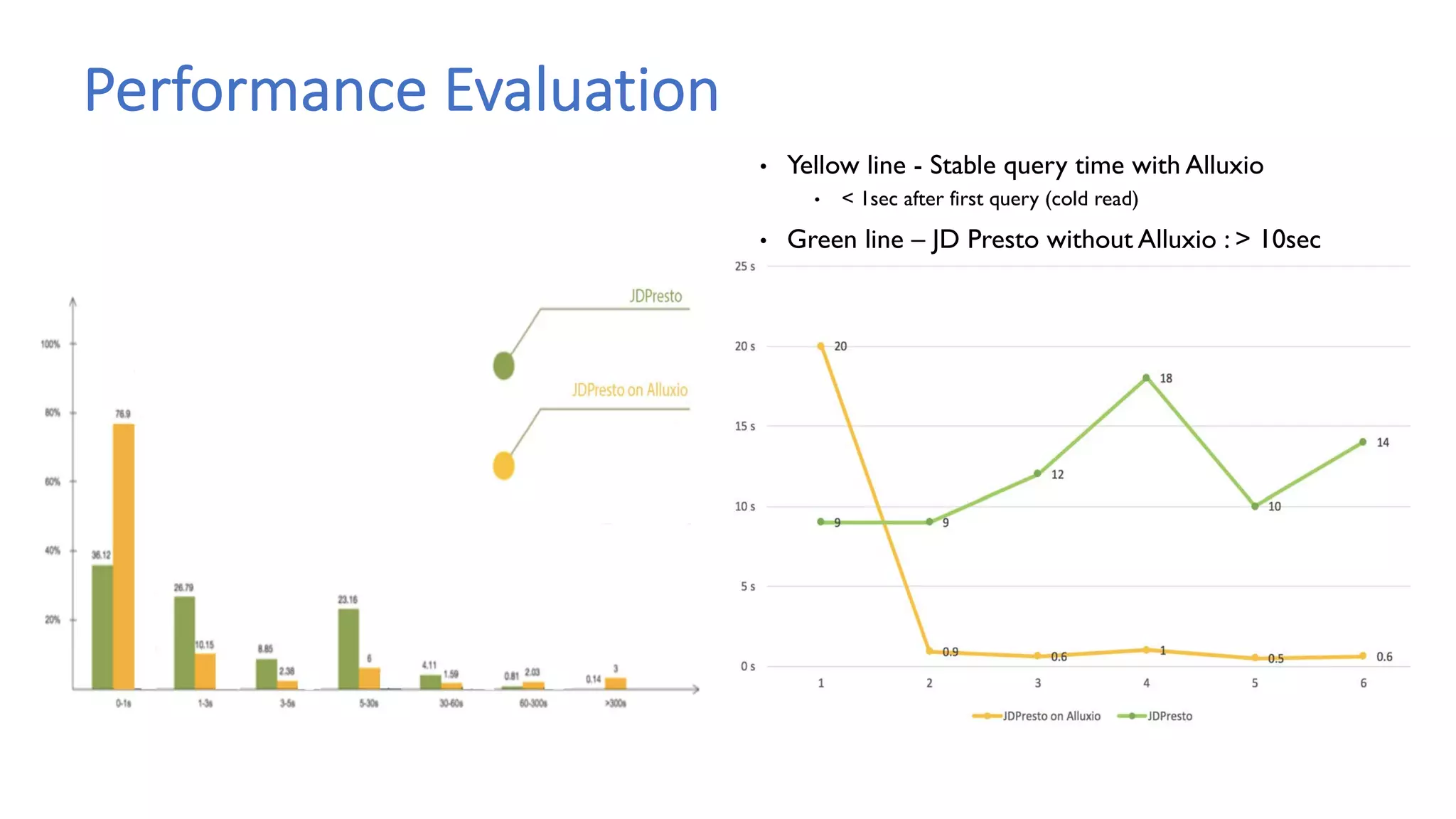

- 25. Performance Evaluation • Yellowline - Stable query time with Alluxio • < 1sec after first query (cold read) • Green line – JD Presto without Alluxio : > 10sec
- 26.

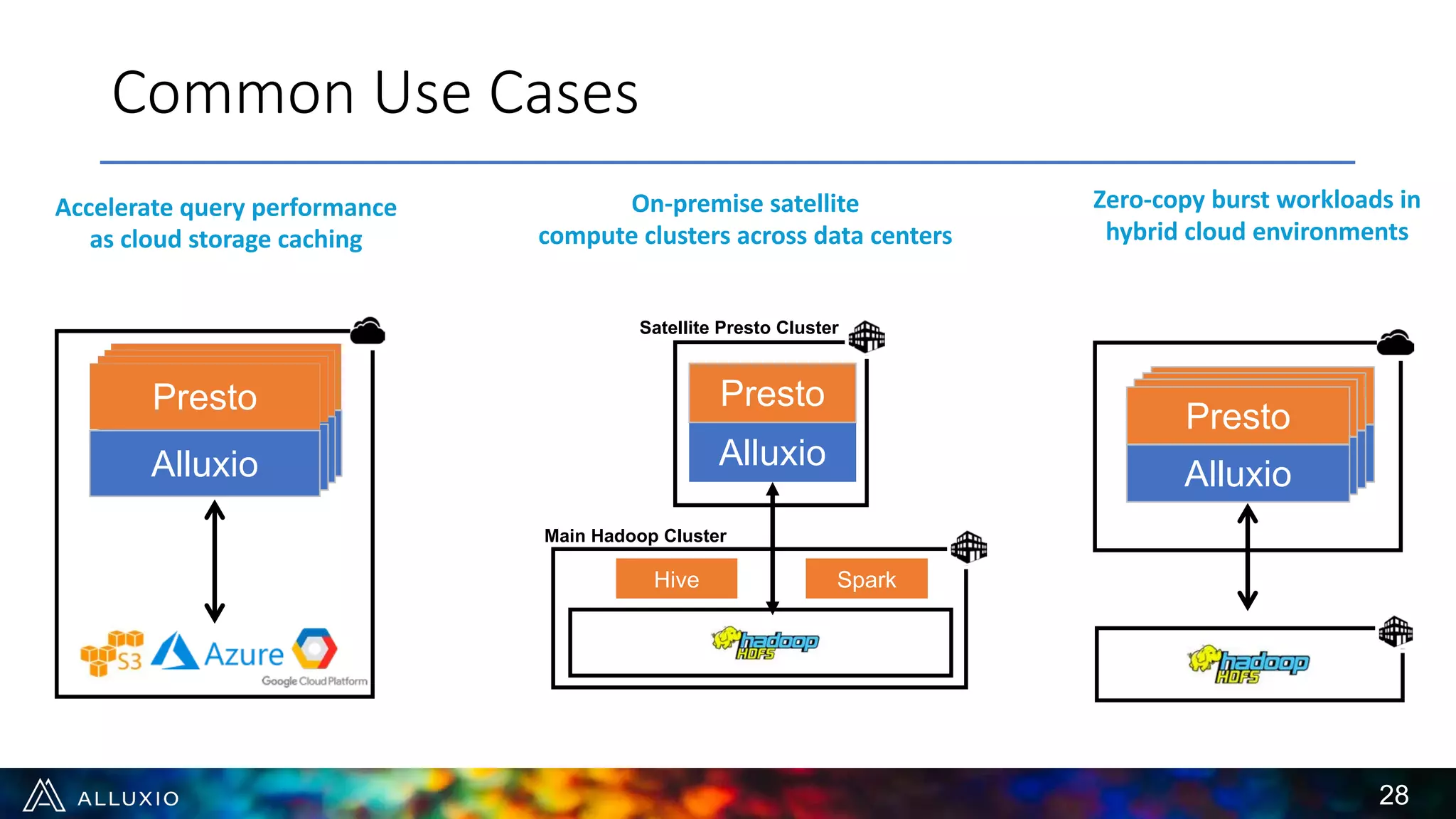

- 27. Common Use Cases Acceleratequery performance as cloud storage caching Alluxio Spark AlluxioAlluxio Spark Alluxio SparkPresto On-premise satellite compute clusters across data centers Satellite Presto Cluster Alluxio SparkHive Main Hadoop Cluster Presto Zero-copy burst workloads in hybrid cloud environments Hive Alluxio Hive Alluxio Hive Alluxio Presto Alluxio 28

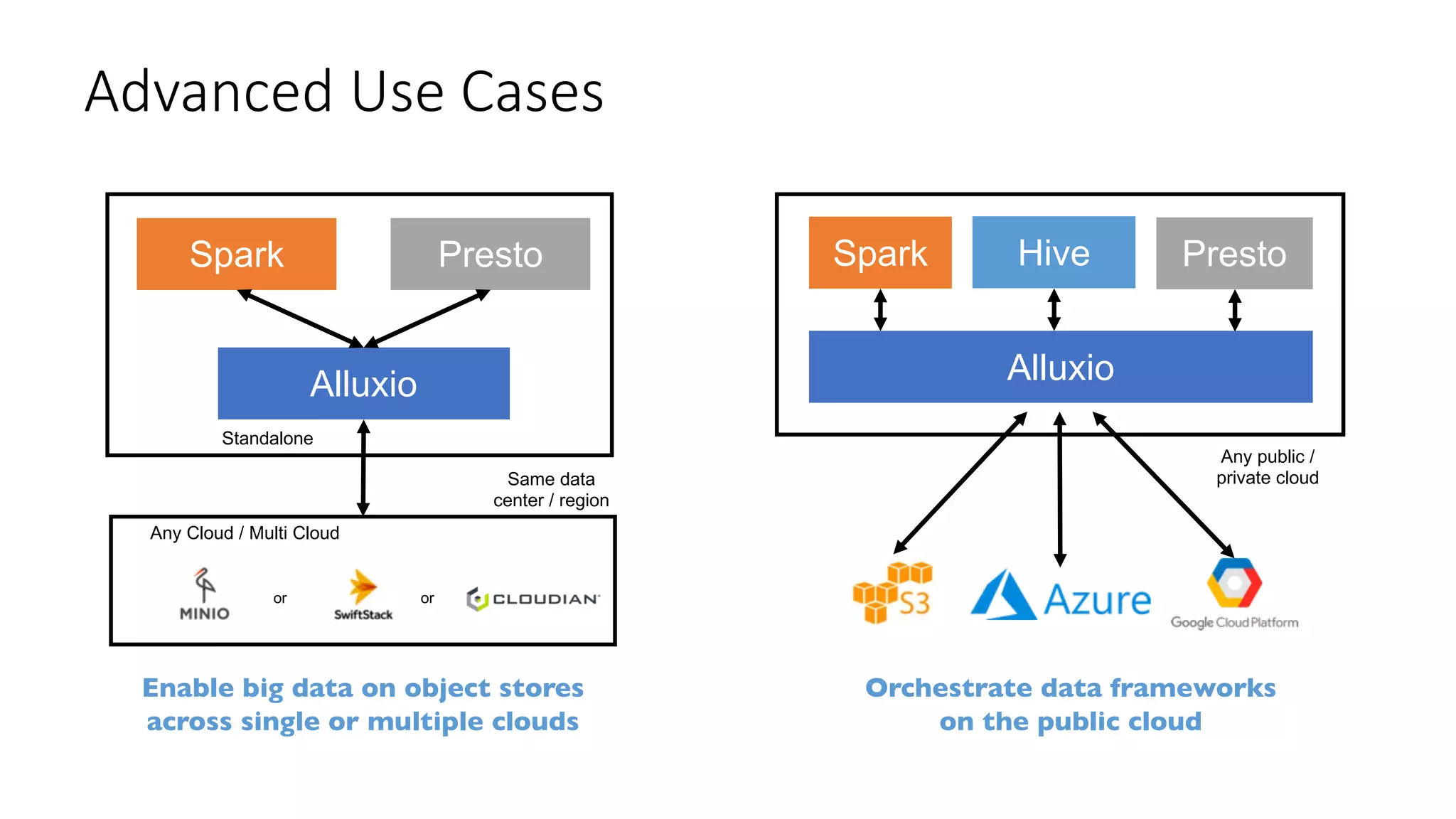

- 28. Advanced Use Cases Spark Alluxio AnyCloud / Multi Cloud Same data center / region Presto Enable big data on object stores across single or multiple clouds Standalone Spark Alluxio Orchestrate data frameworks on the public cloud Any public / private cloud or or PrestoHive
- 29. ALLUXIO 2019 Alluxio Structured DataService Deeper Integration with SQL Engines like Presto Now available as Developer Preview in v2.1

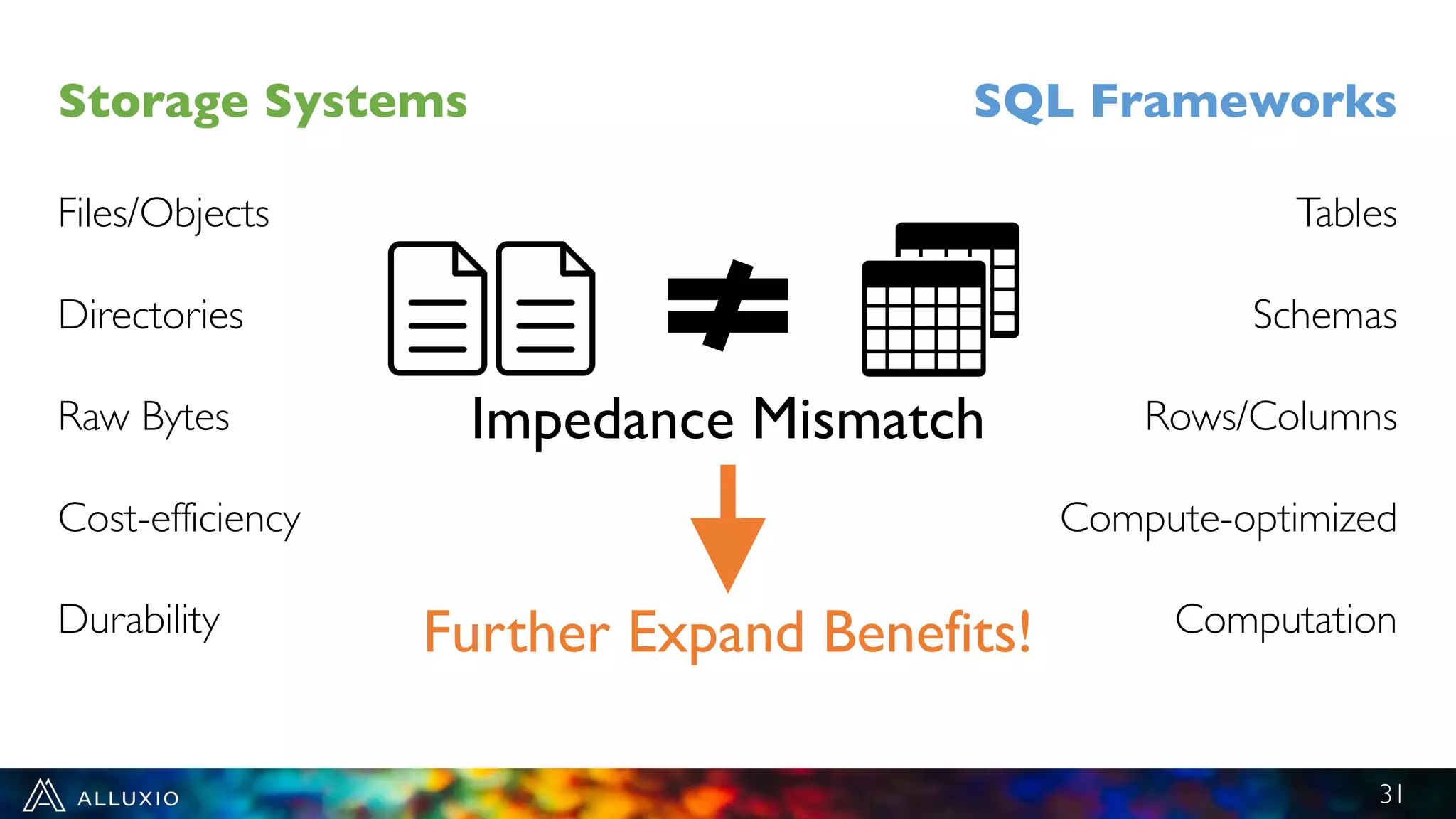

- 30. 31 Storage Systems SQLFrameworks Files/Objects Directories Raw Bytes Cost-efficiency Durability Tables Schemas Rows/Columns Compute-optimized Computation Impedance Mismatch Further Expand Benefits!

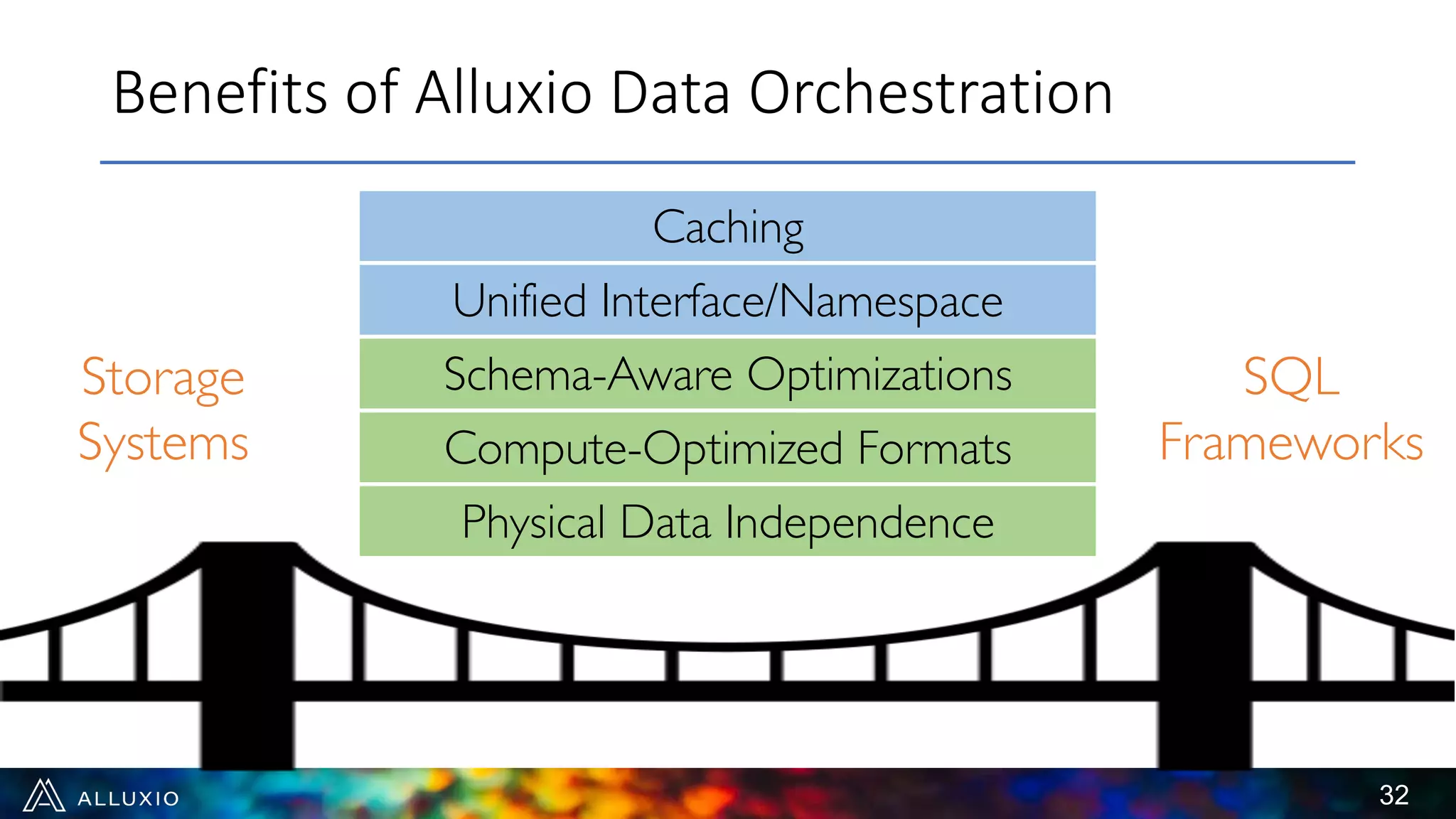

- 31. Benefits of AlluxioData Orchestration 32 Storage Systems SQL Frameworks Caching Unified Interface/Namespace Schema-Aware Optimizations Compute-Optimized Formats Physical Data Independence

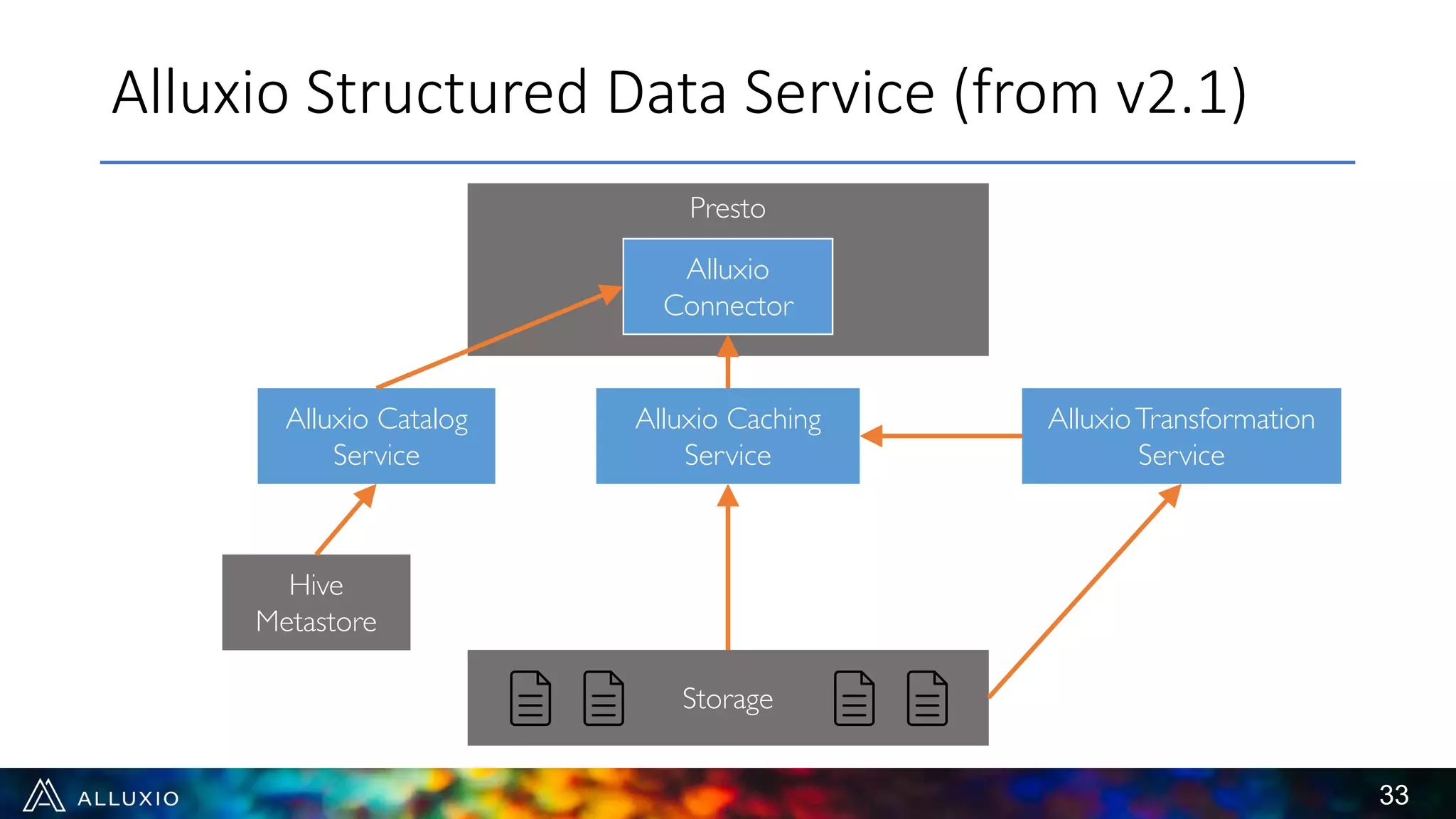

- 32. Alluxio Structured DataService (from v2.1) 33 Presto Alluxio Caching Service Alluxio Catalog Service AlluxioTransformation Service Hive Connector Alluxio Connector Hive Metastore Storage

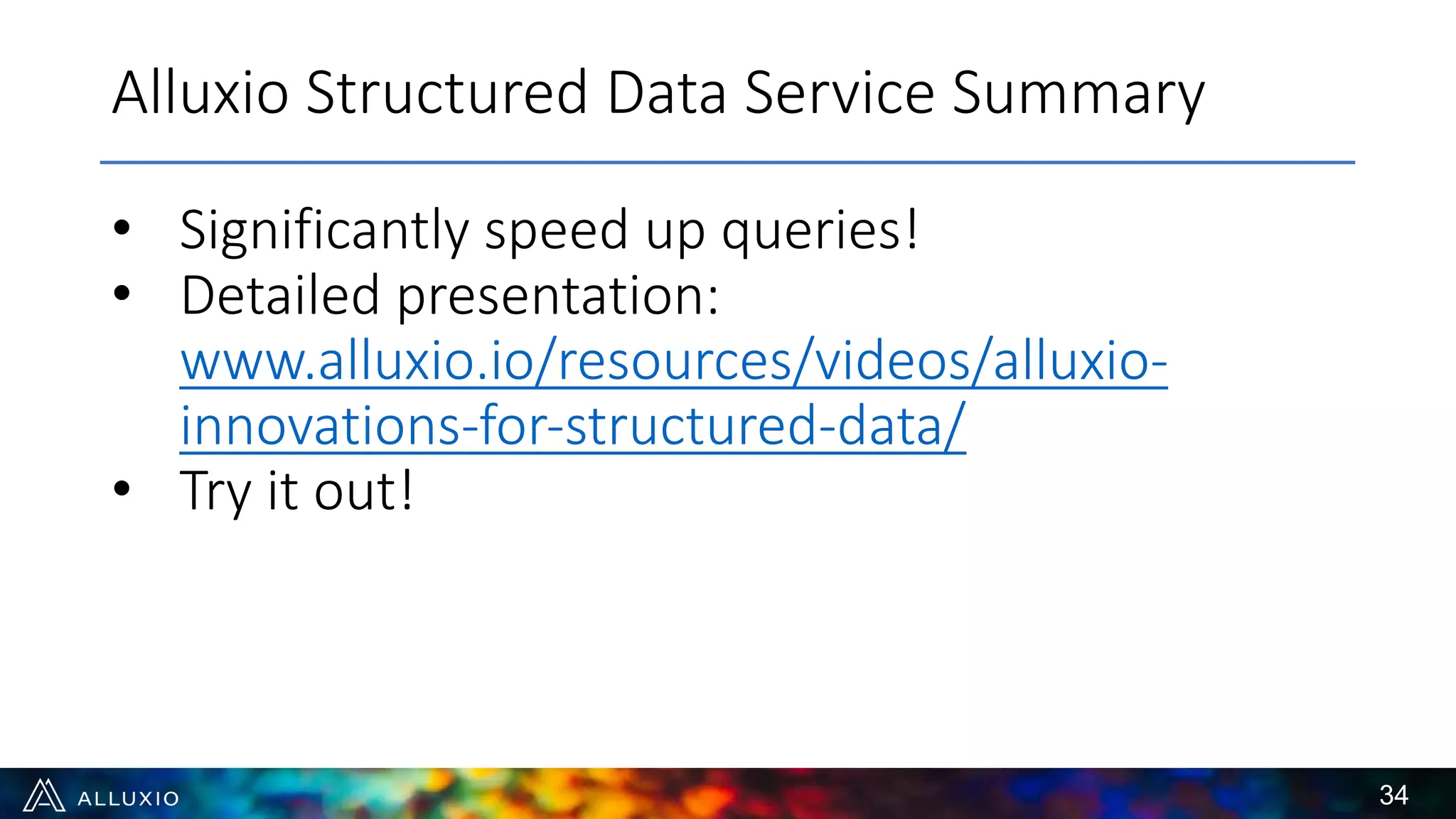

- 33. Alluxio Structured DataService Summary 34 • Significantly speed up queries! • Detailed presentation: www.alluxio.io/resources/videos/alluxio- innovations-for-structured-data/ • Try it out!

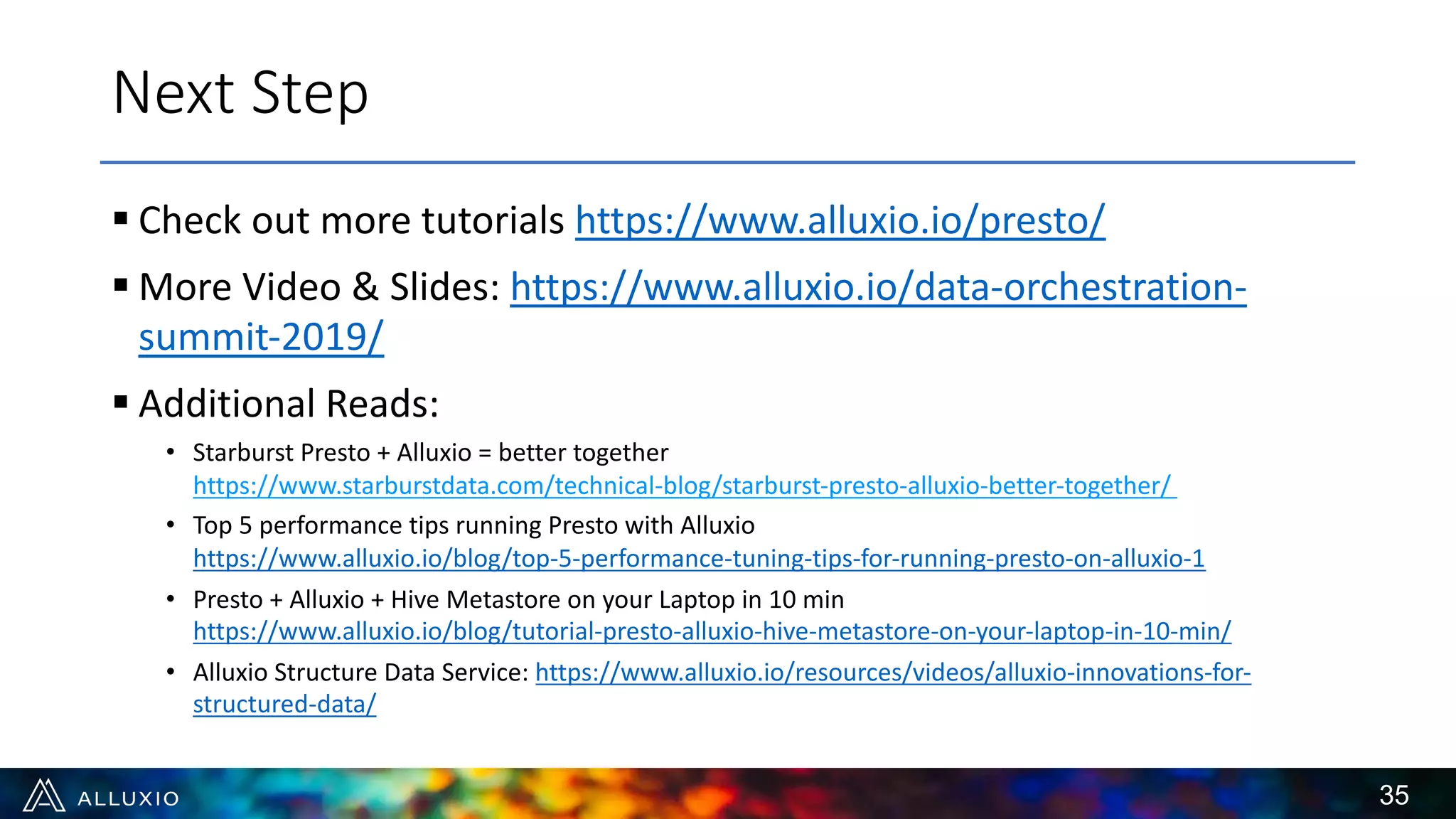

- 34. § Check outmore tutorials https://www.alluxio.io/presto/ § More Video & Slides: https://www.alluxio.io/data-orchestration- summit-2019/ § Additional Reads: • Starburst Presto + Alluxio = better together https://www.starburstdata.com/technical-blog/starburst-presto-alluxio-better-together/ • Top 5 performance tips running Presto with Alluxio https://www.alluxio.io/blog/top-5-performance-tuning-tips-for-running-presto-on-alluxio-1 • Presto + Alluxio + Hive Metastore on your Laptop in 10 min https://www.alluxio.io/blog/tutorial-presto-alluxio-hive-metastore-on-your-laptop-in-10-min/ • Alluxio Structure Data Service: https://www.alluxio.io/resources/videos/alluxio-innovations-for- structured-data/ 35 Next Step
- 35. Thank you! Questions? www.alluxio.io |slackin.alluxio.io | @alluxio | haoyuan@alluxio.com
