1. Redis Streams
@itamarhaber #Tech5 @Fiverr—FEBRUARY 2018

2. Who We Are
Open source. The leading in-memory database platform,
supporting any high performance operational, analytics or
hybrid use case.
The open source home and commercial provider of Redis
Enterprise (Redise
) technology, platform, products & services.
@itamarhaber, Technology Evangelisthello I am

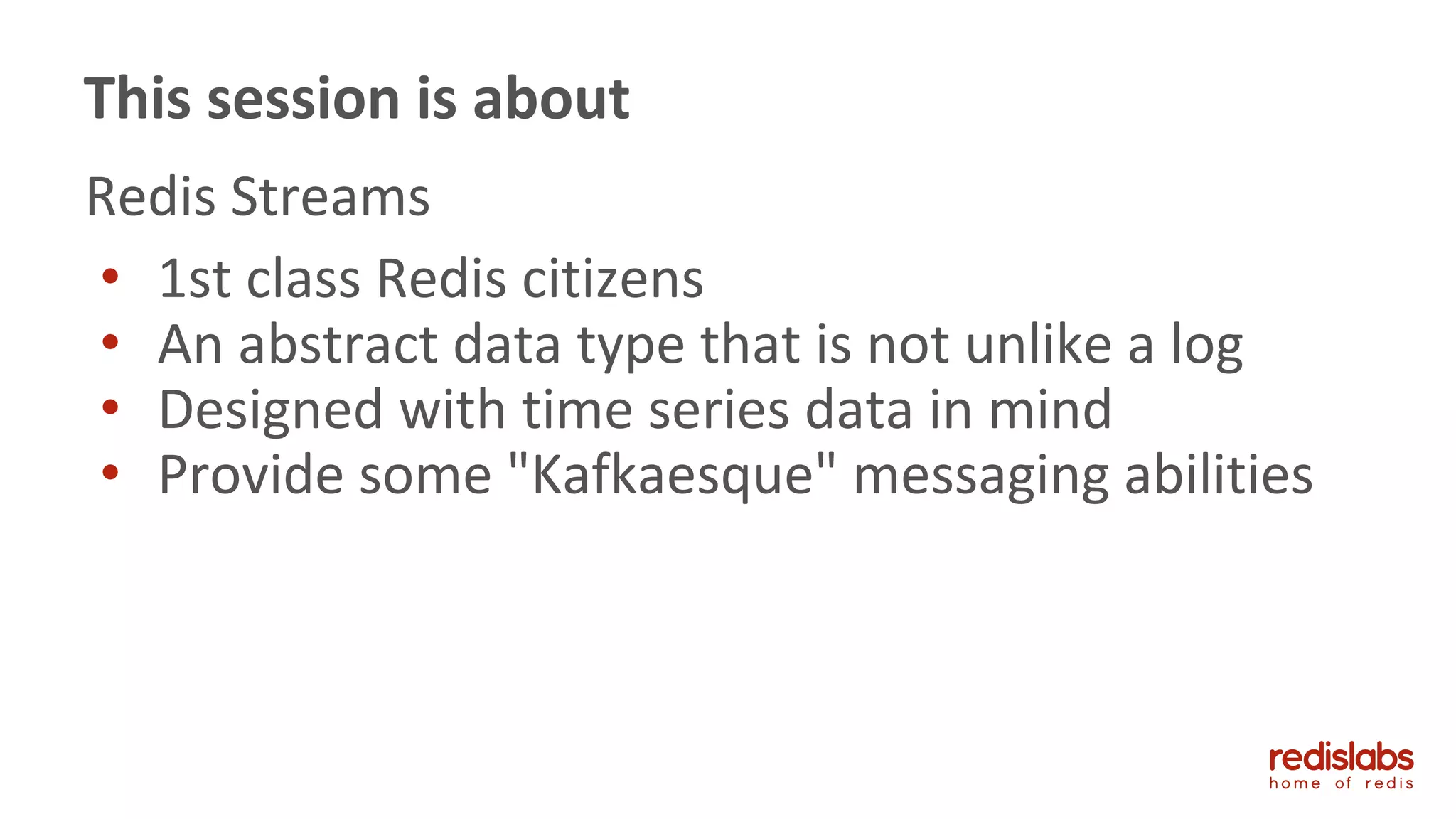

3. Redis Streams
• 1st class Redis citizens
• An abstract data type that is not unlike a log
• Designed with time series data in mind
• Provide some "Kafkaesque" messaging abilities
This session is about

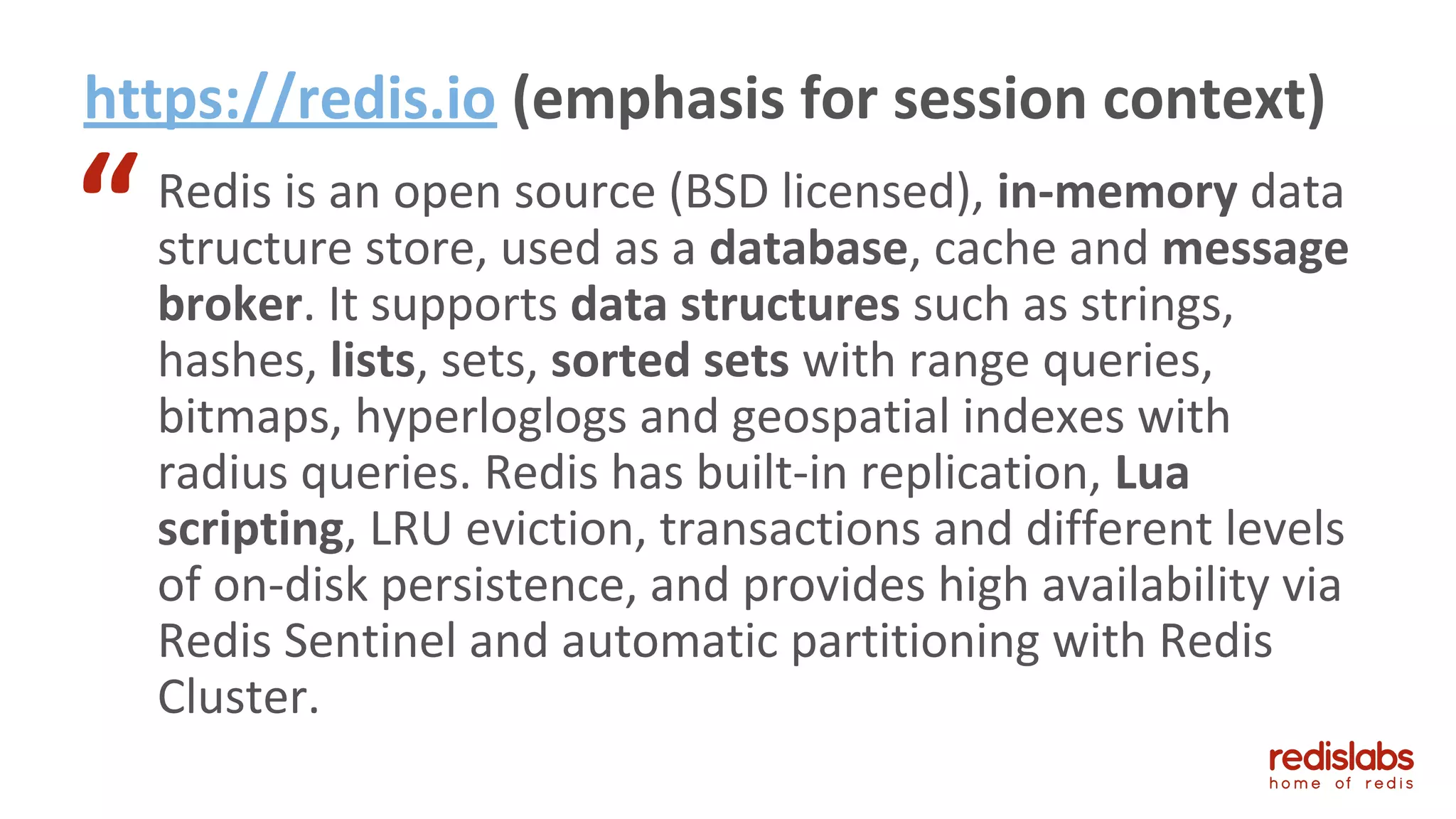

4. https://redis.io (emphasis for session context)
Redis is an open source (BSD licensed), in-memory data
structure store, used as a database, cache and message
broker. It supports data structures such as strings,
hashes, lists, sets, sorted sets with range queries,
bitmaps, hyperloglogs and geospatial indexes with
radius queries. Redis has built-in replication, Lua
scripting, LRU eviction, transactions and different levels
of on-disk persistence, and provides high availability via
Redis Sentinel and automatic partitioning with Redis
Cluster.
“

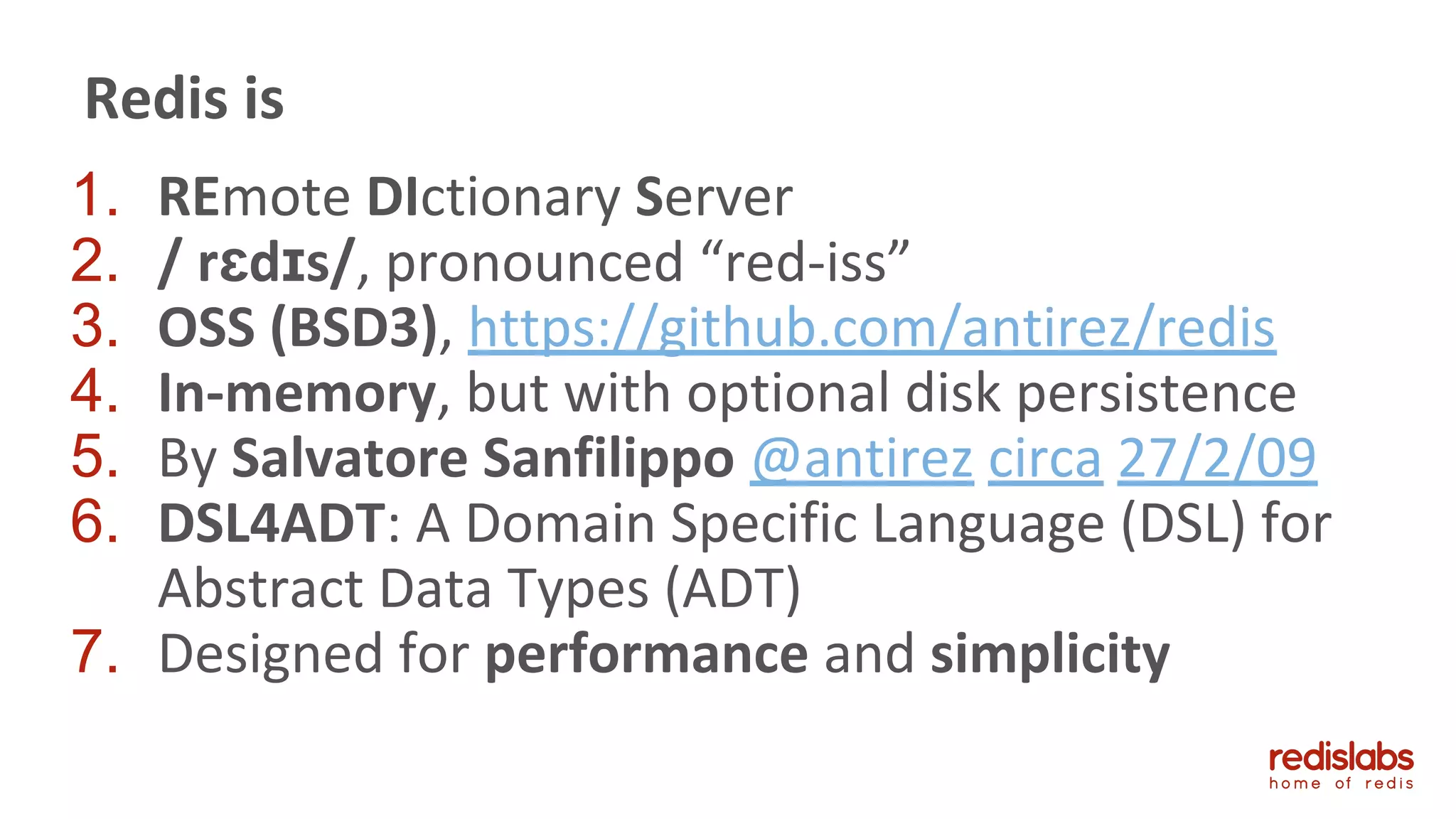

5. 1. REmote DIctionary Server
2. / rɛdɪs/, pronounced “red-iss”
3. OSS (BSD3), https://github.com/antirez/redis
4. In-memory, but with optional disk persistence
5. By Salvatore Sanfilippo @antirez circa 27/2/09
6. DSL4ADT: A Domain Specific Language (DSL) for
Abstract Data Types (ADT)
7. Designed for performance and simplicity
Redis is

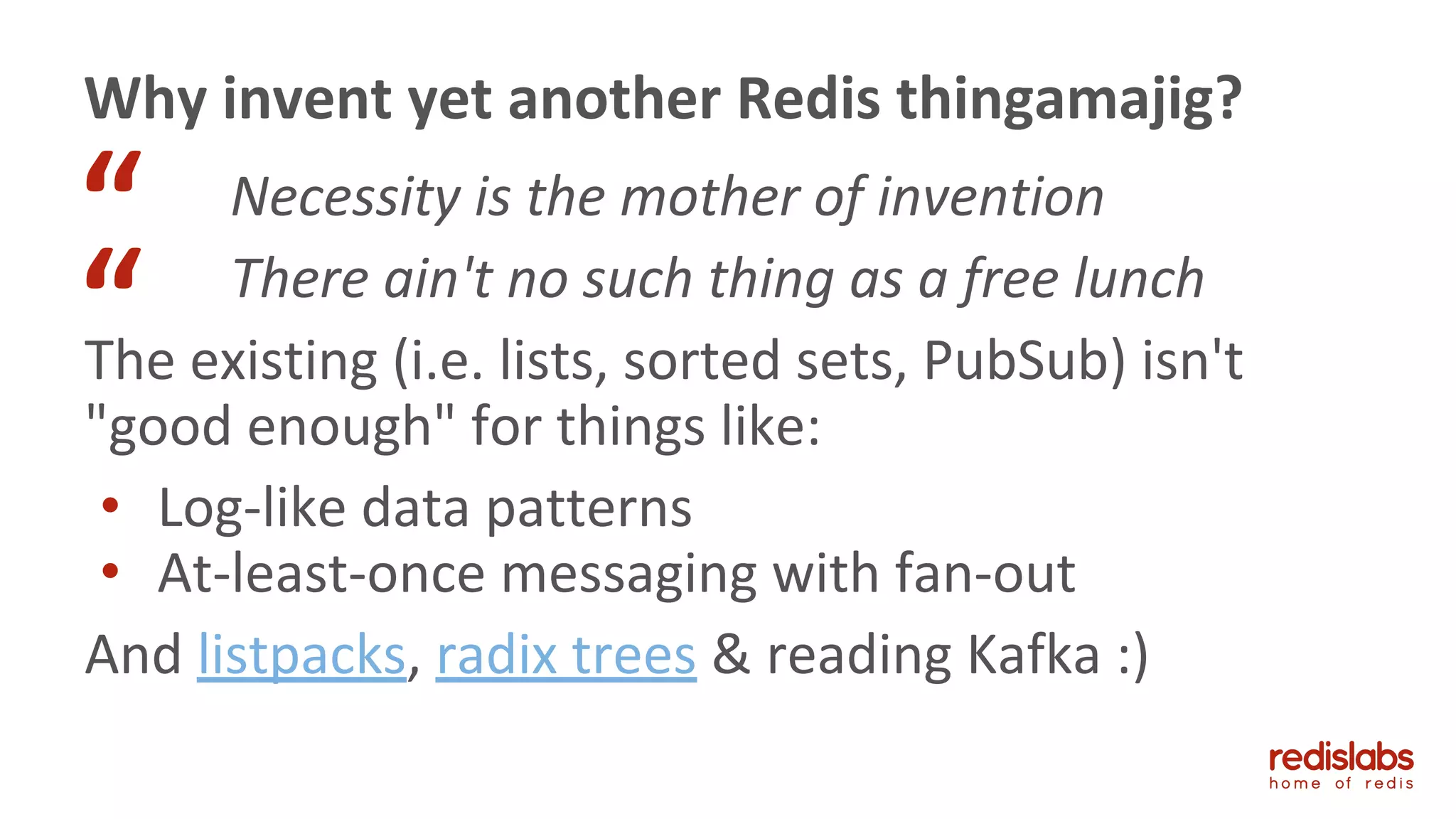

6. Necessity is the mother of invention
There ain't no such thing as a free lunch
The existing (i.e. lists, sorted sets, PubSub) isn't
"good enough" for things like:
• Log-like data patterns
• At-least-once messaging with fan-out
And listpacks, radix trees & reading Kafka :)
Why invent yet another Redis thingamajig?
“
“

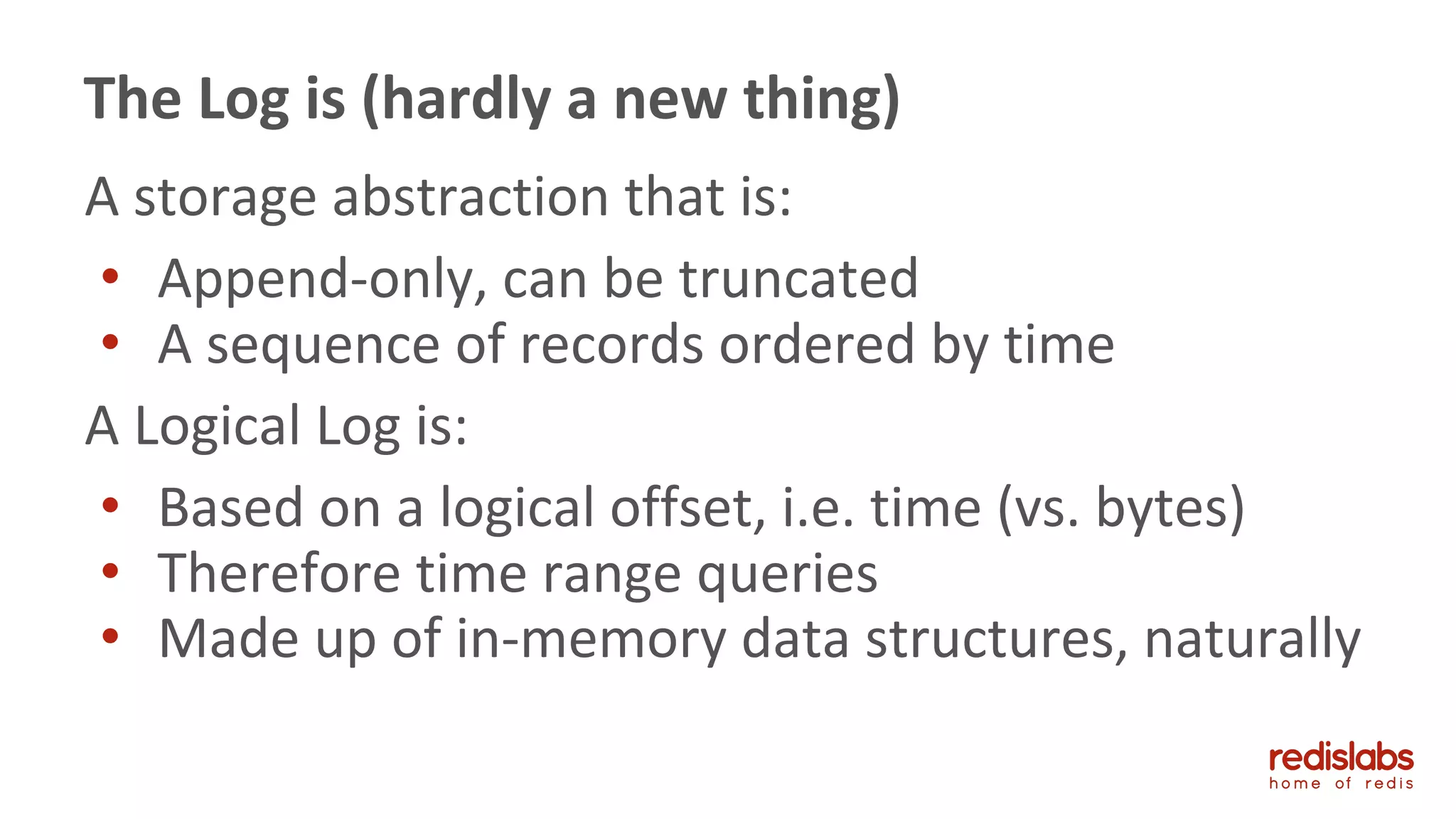

7. A storage abstraction that is:
• Append-only, can be truncated
• A sequence of records ordered by time
A Logical Log is:
• Based on a logical offset, i.e. time (vs. bytes)
• Therefore time range queries
• Made up of in-memory data structures, naturally
The Log is (hardly a new thing)

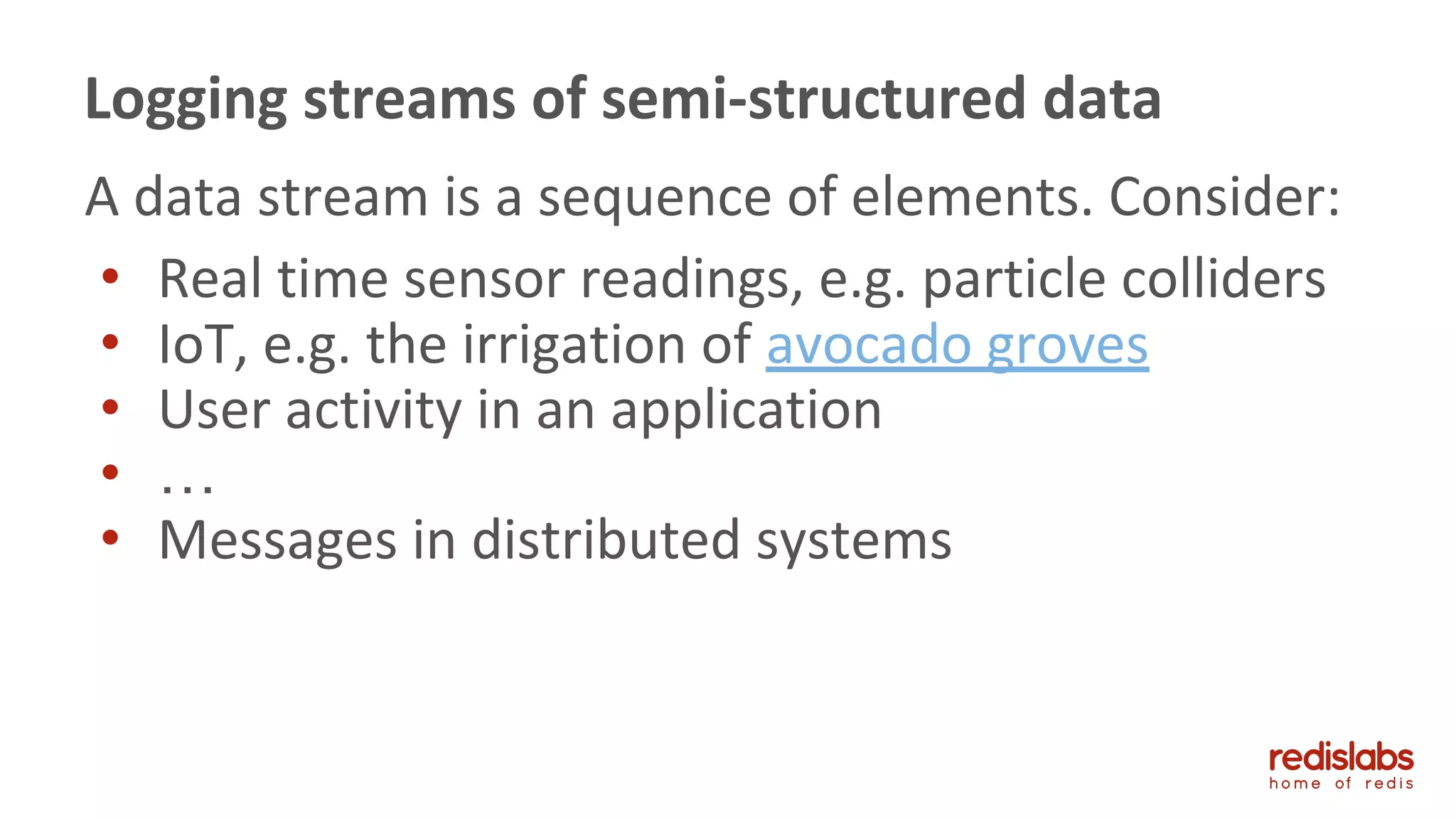

8. A data stream is a sequence of elements. Consider:
• Real time sensor readings, e.g. particle colliders
• IoT, e.g. the irrigation of avocado groves
• User activity in an application
• …
• Messages in distributed systems
Logging streams of semi-structured data

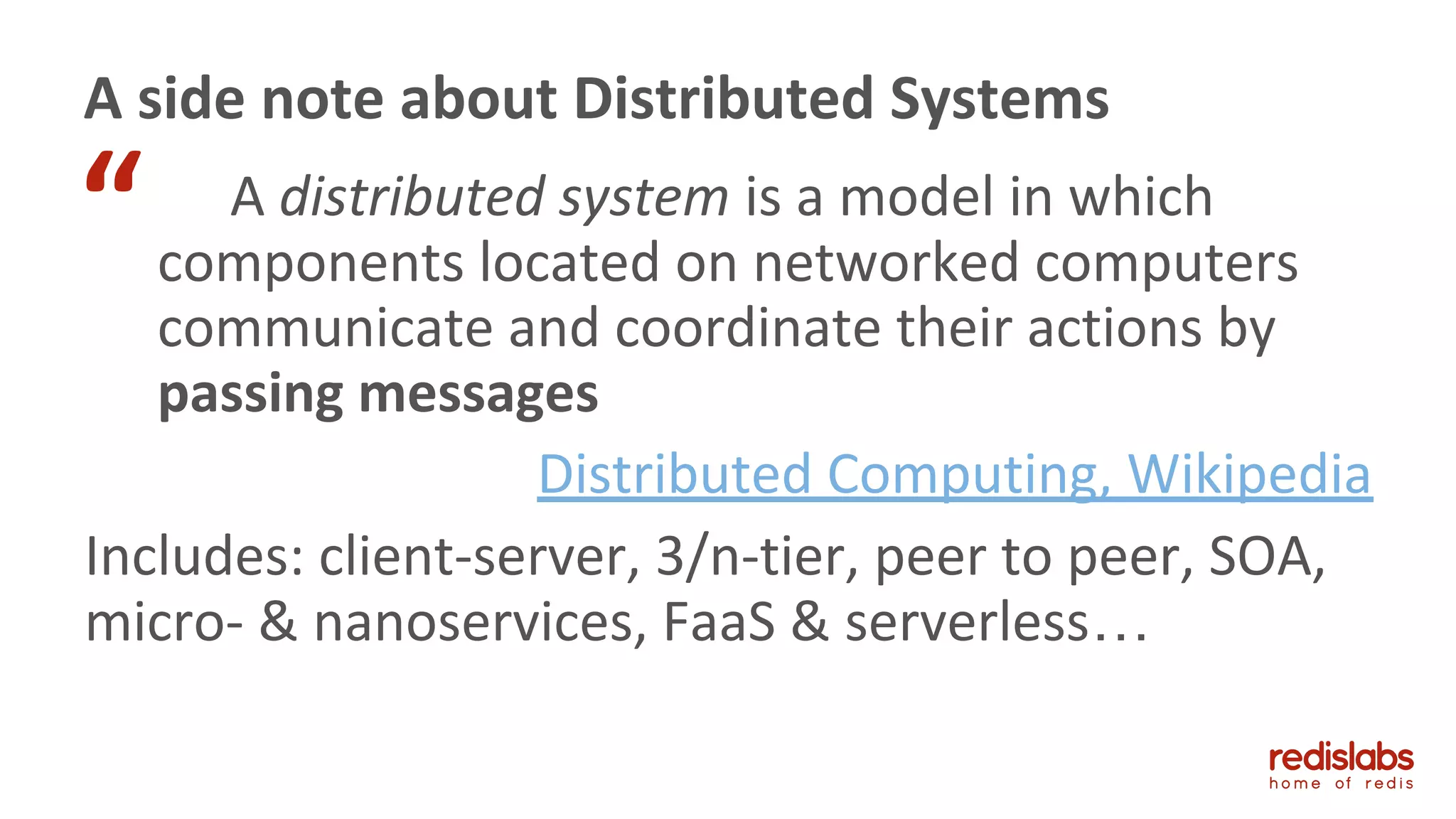

9. A distributed system is a model in which
components located on networked computers
communicate and coordinate their actions by
passing messages
Distributed Computing, Wikipedia
Includes: client-server, 3/n-tier, peer to peer, SOA,
micro- & nanoservices, FaaS & serverless…
A side note about Distributed Systems
“

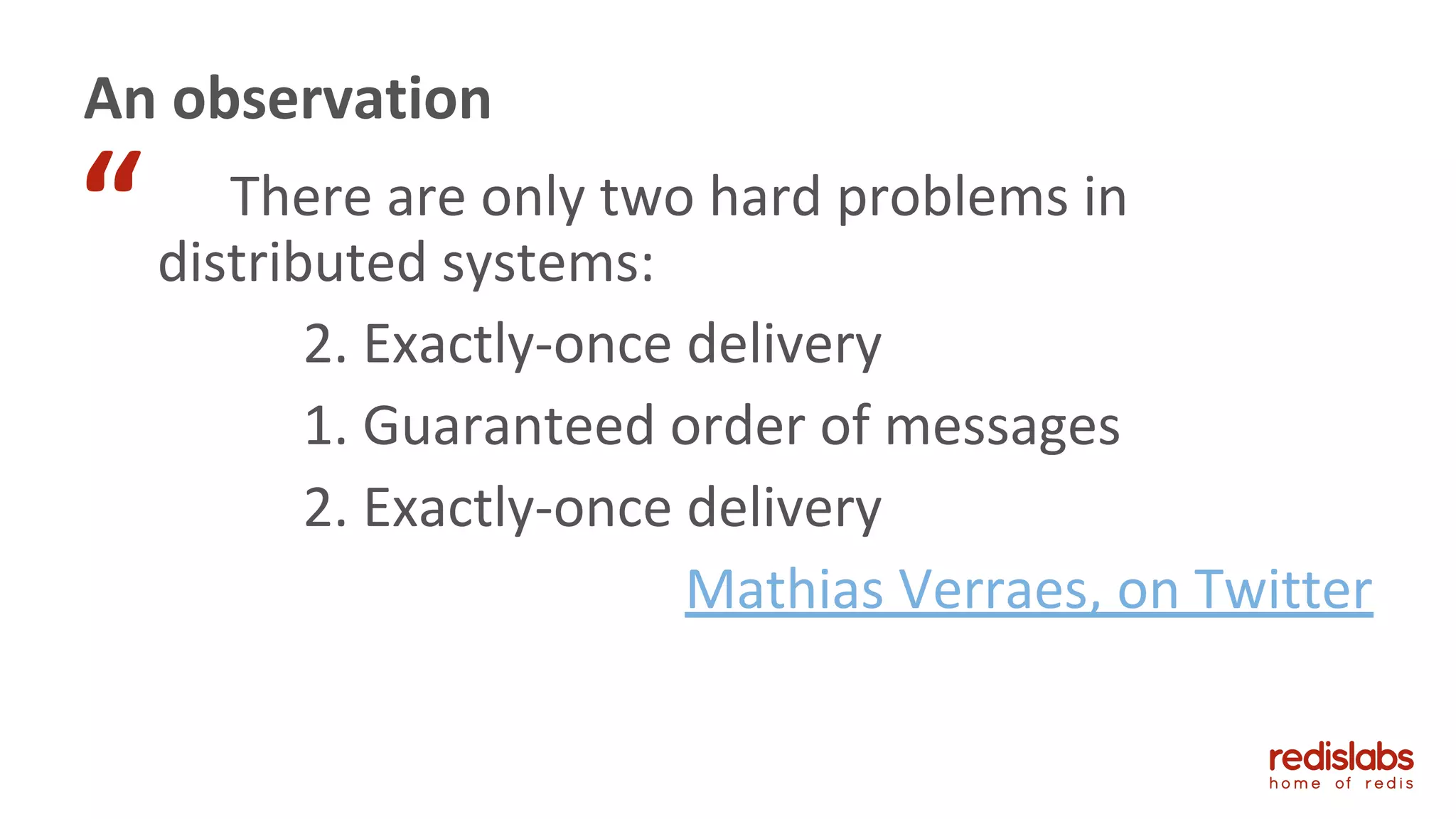

10. There are only two hard problems in
distributed systems:
2. Exactly-once delivery
1. Guaranteed order of messages
2. Exactly-once delivery
Mathias Verraes, on Twitter
An observation
“

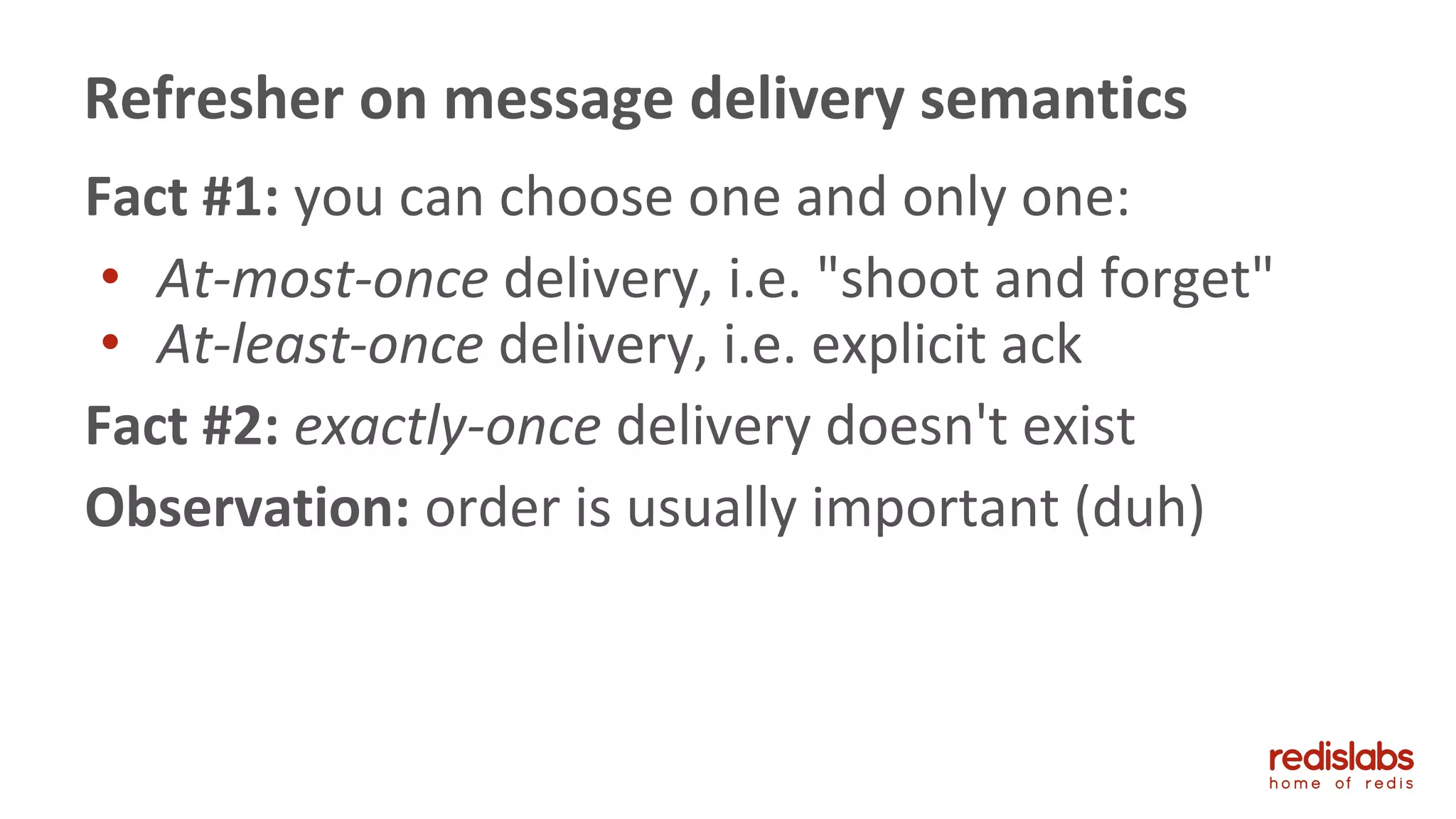

11. Fact #1: you can choose one and only one:
• At-most-once delivery, i.e. "shoot and forget"
• At-least-once delivery, i.e. explicit ack
Fact #2: exactly-once delivery doesn't exist
Observation: order is usually important (duh)
Refresher on message delivery semantics

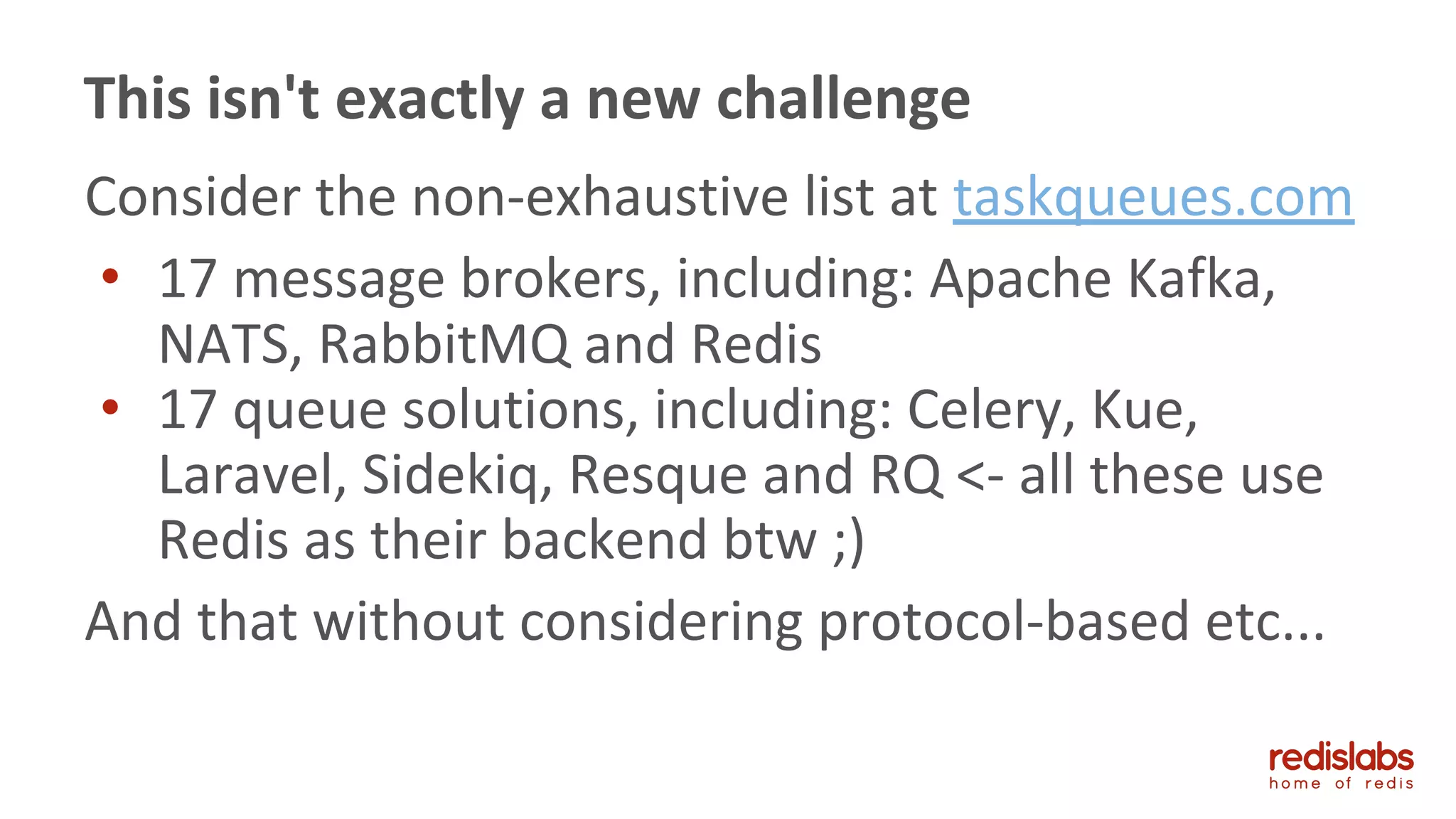

12. Consider the non-exhaustive list at taskqueues.com
• 17 message brokers, including: Apache Kafka,
NATS, RabbitMQ and Redis
• 17 queue solutions, including: Celery, Kue,
Laravel, Sidekiq, Resque and RQ <- all these use
Redis as their backend btw ;)
And that without considering protocol-based etc...
This isn't exactly a new challenge

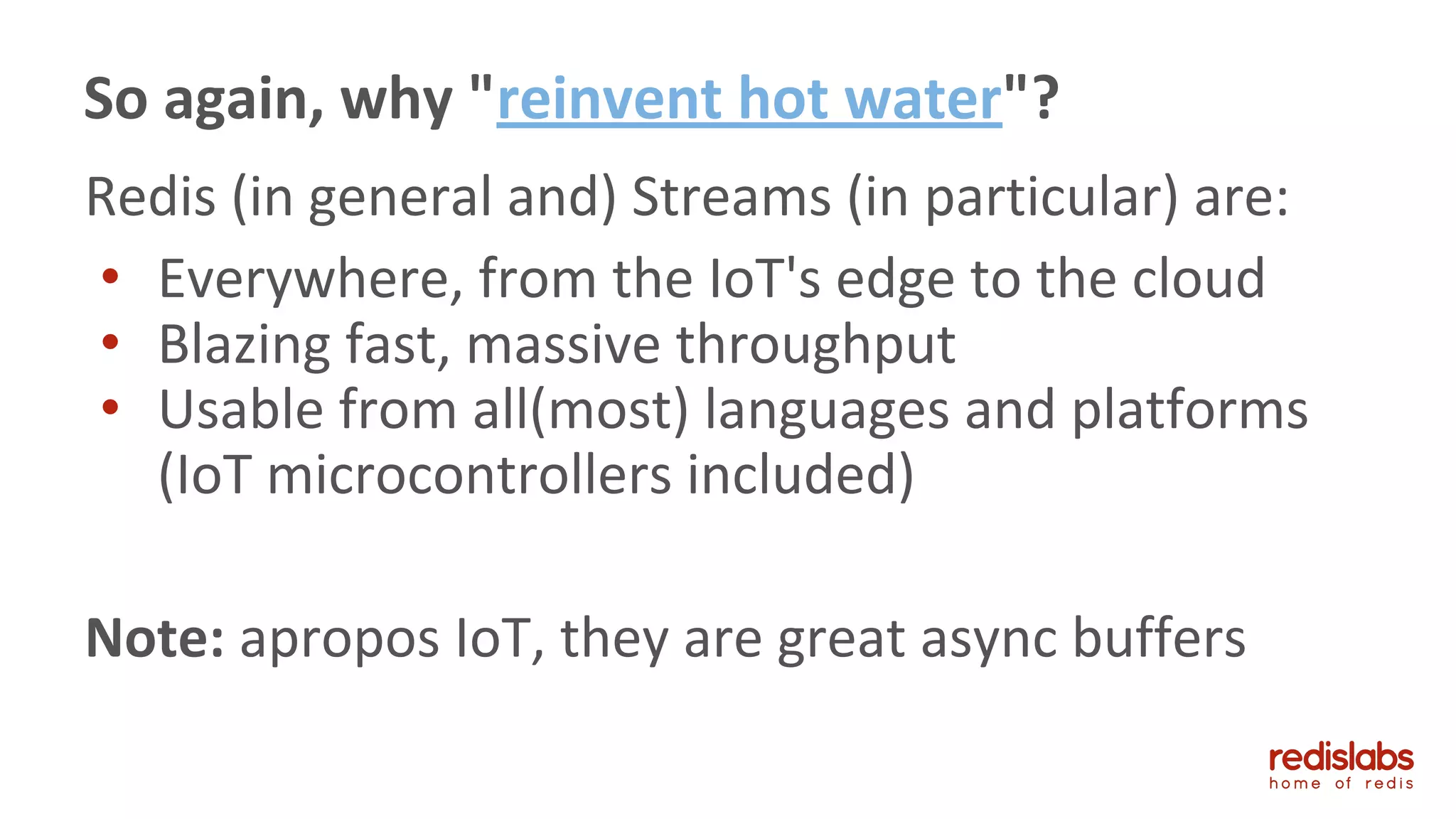

13. Redis (in general and) Streams (in particular) are:
• Everywhere, from the IoT's edge to the cloud
• Blazing fast, massive throughput
• Usable from all(most) languages and platforms
(IoT microcontrollers included)
Note: apropos IoT, they are great async buffers
So again, why "reinvent hot water"?

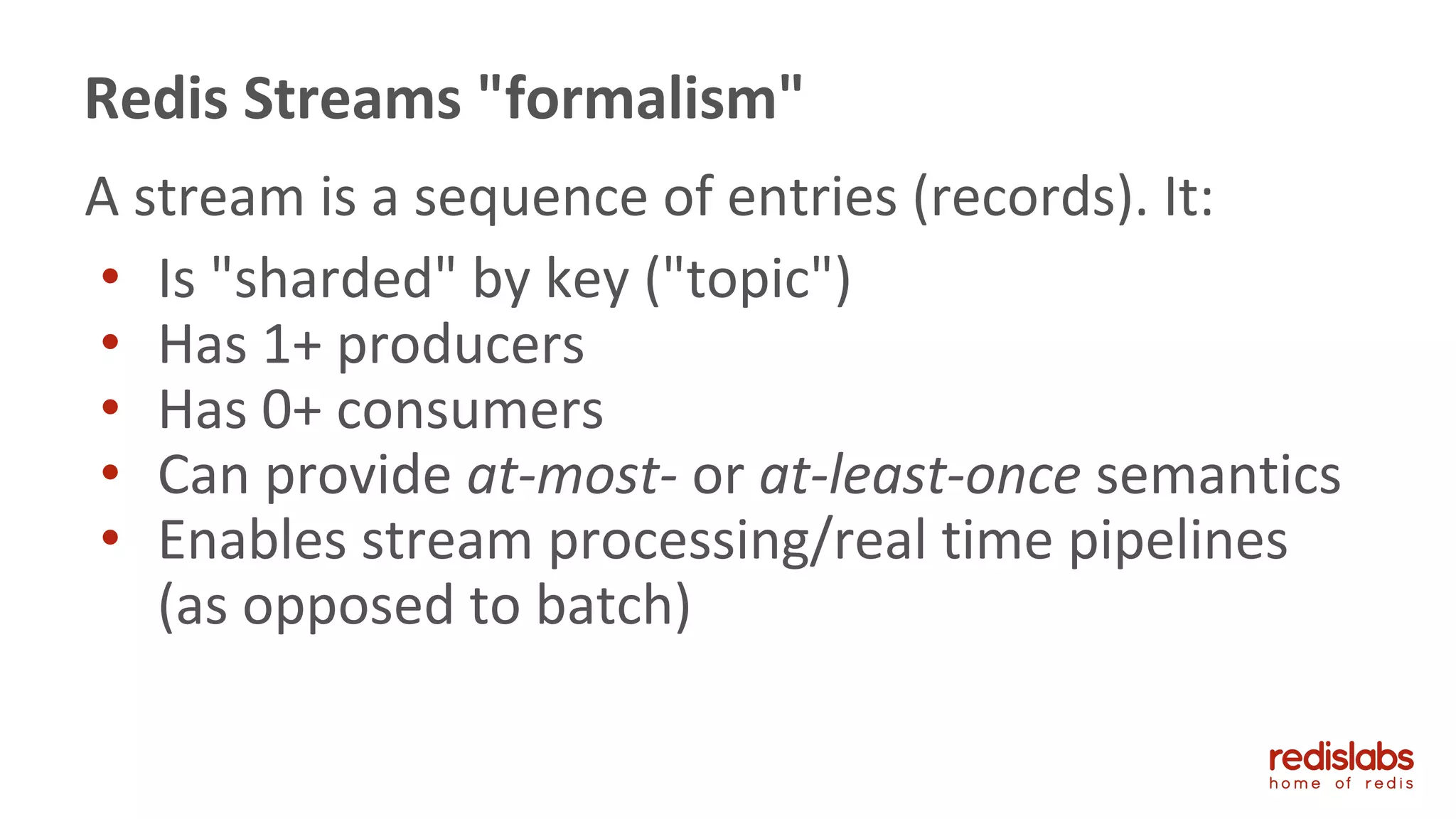

14. A stream is a sequence of entries (records). It:
• Is "sharded" by key ("topic")
• Has 1+ producers
• Has 0+ consumers
• Can provide at-most- or at-least-once semantics
• Enables stream processing/real time pipelines
(as opposed to batch)
Redis Streams "formalism"

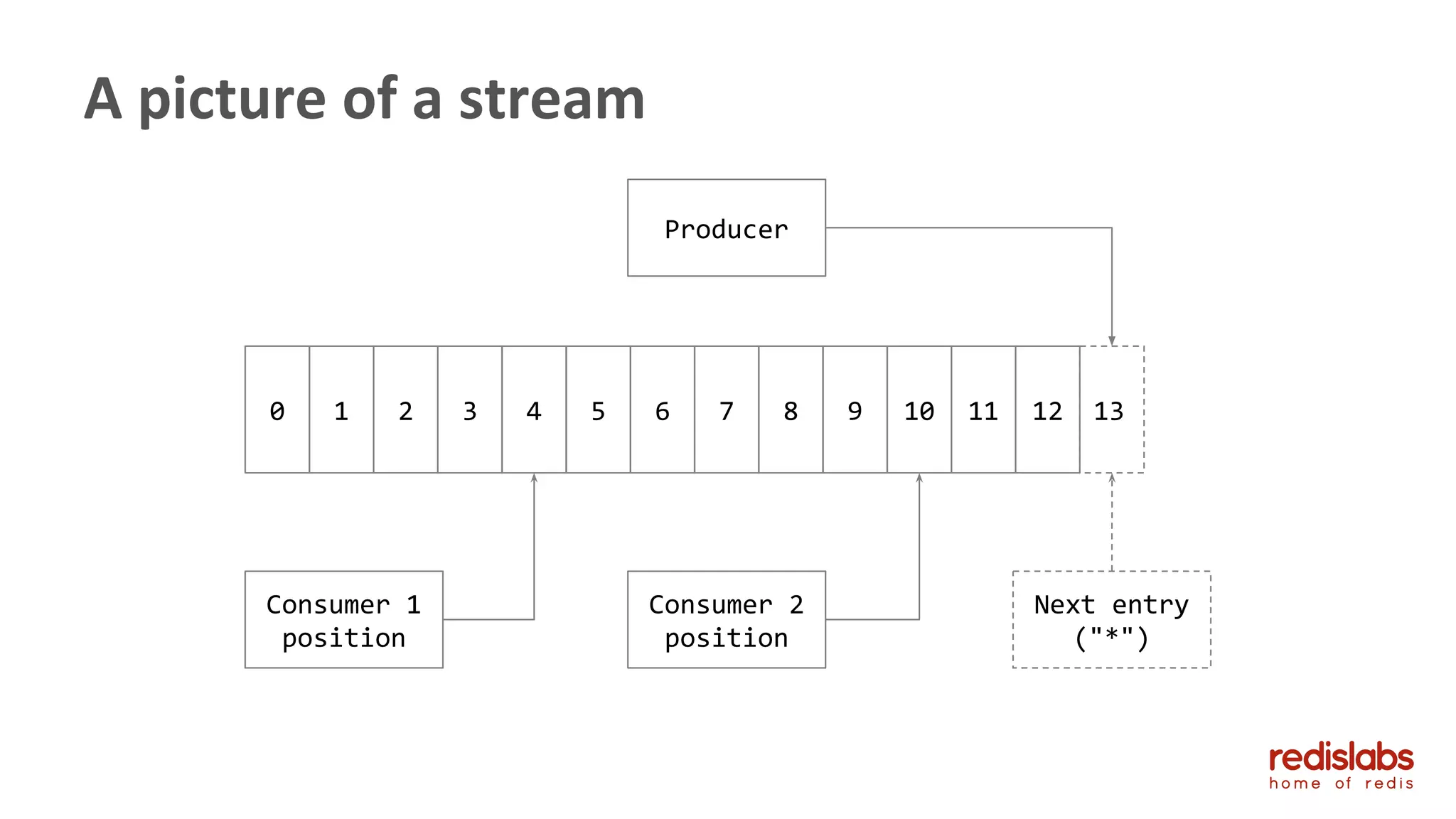

15. A picture of a stream
0 1 2 3 4 5 6 7 8 9 10 11 12 13
Producer
Consumer 1
position
Consumer 2
position
Next entry
("*")

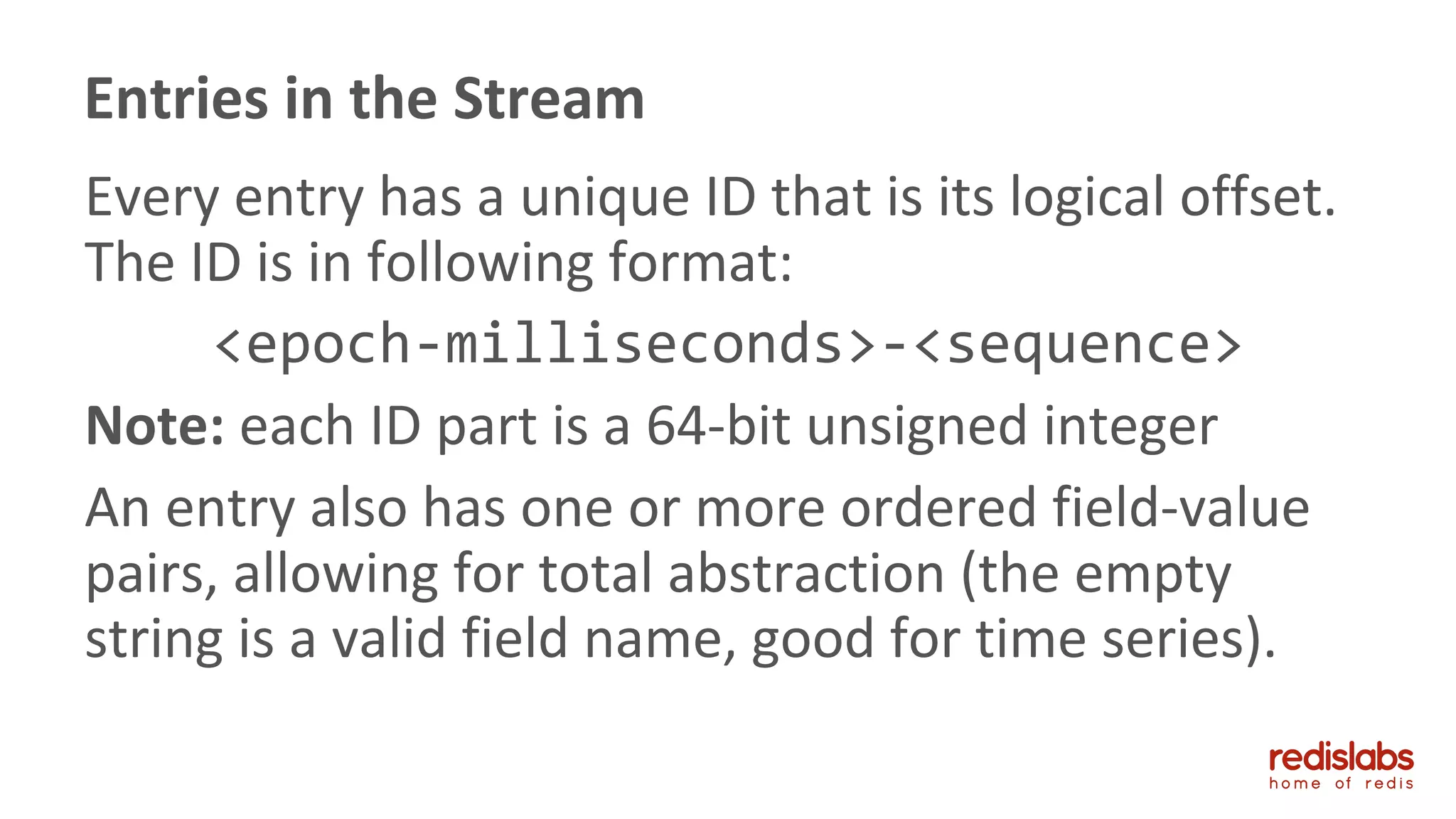

16. Every entry has a unique ID that is its logical offset.
The ID is in following format:
<epoch-milliseconds>-<sequence>
Note: each ID part is a 64-bit unsigned integer
An entry also has one or more ordered field-value
pairs, allowing for total abstraction (the empty
string is a valid field name, good for time series).
Entries in the Stream

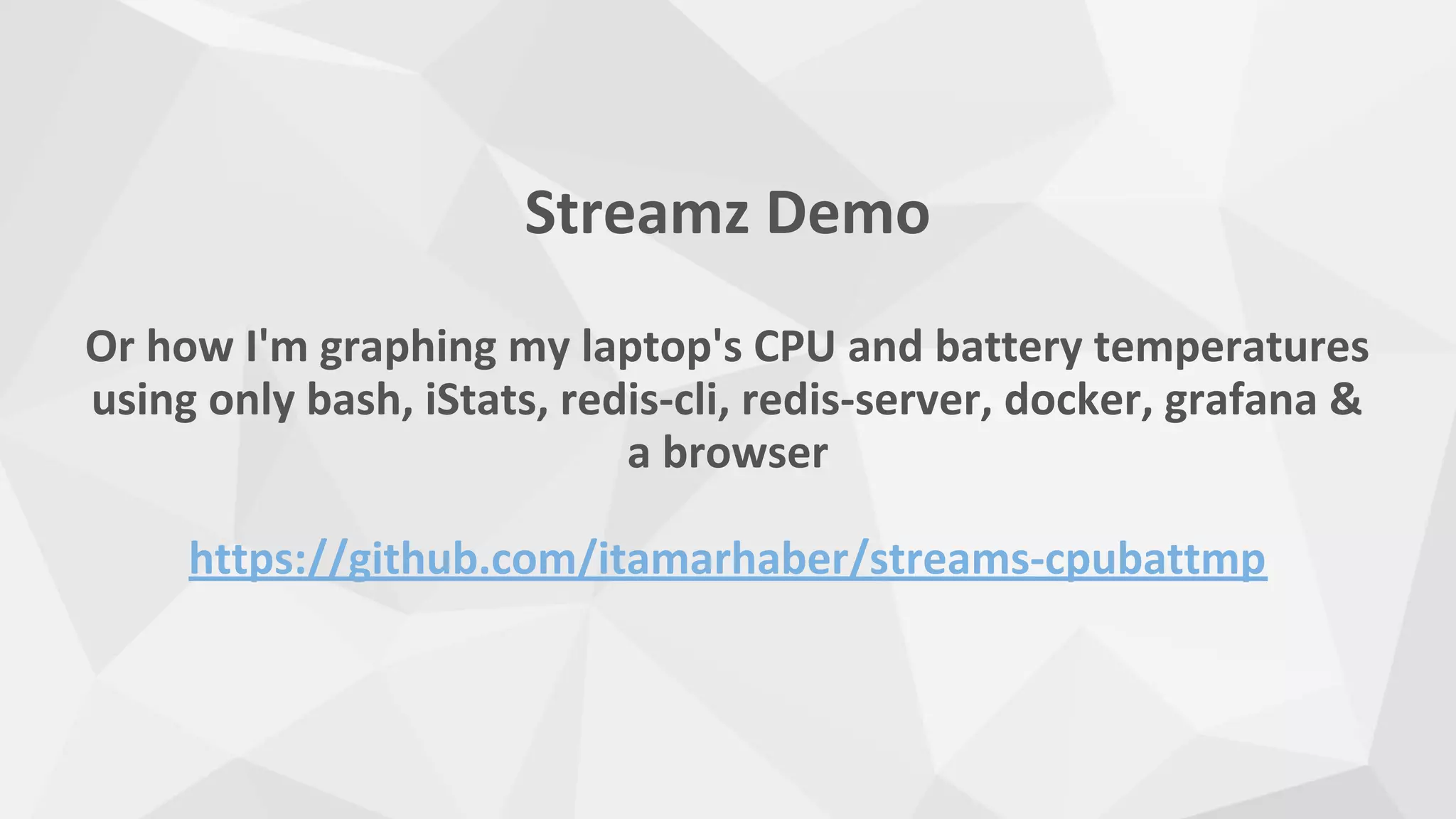

17. Streamz Demo
Or how I'm graphing my laptop's CPU and battery temperatures
using only bash, iStats, redis-cli, redis-server, docker, grafana &
a browser
https://github.com/itamarhaber/streams-cpubattmp

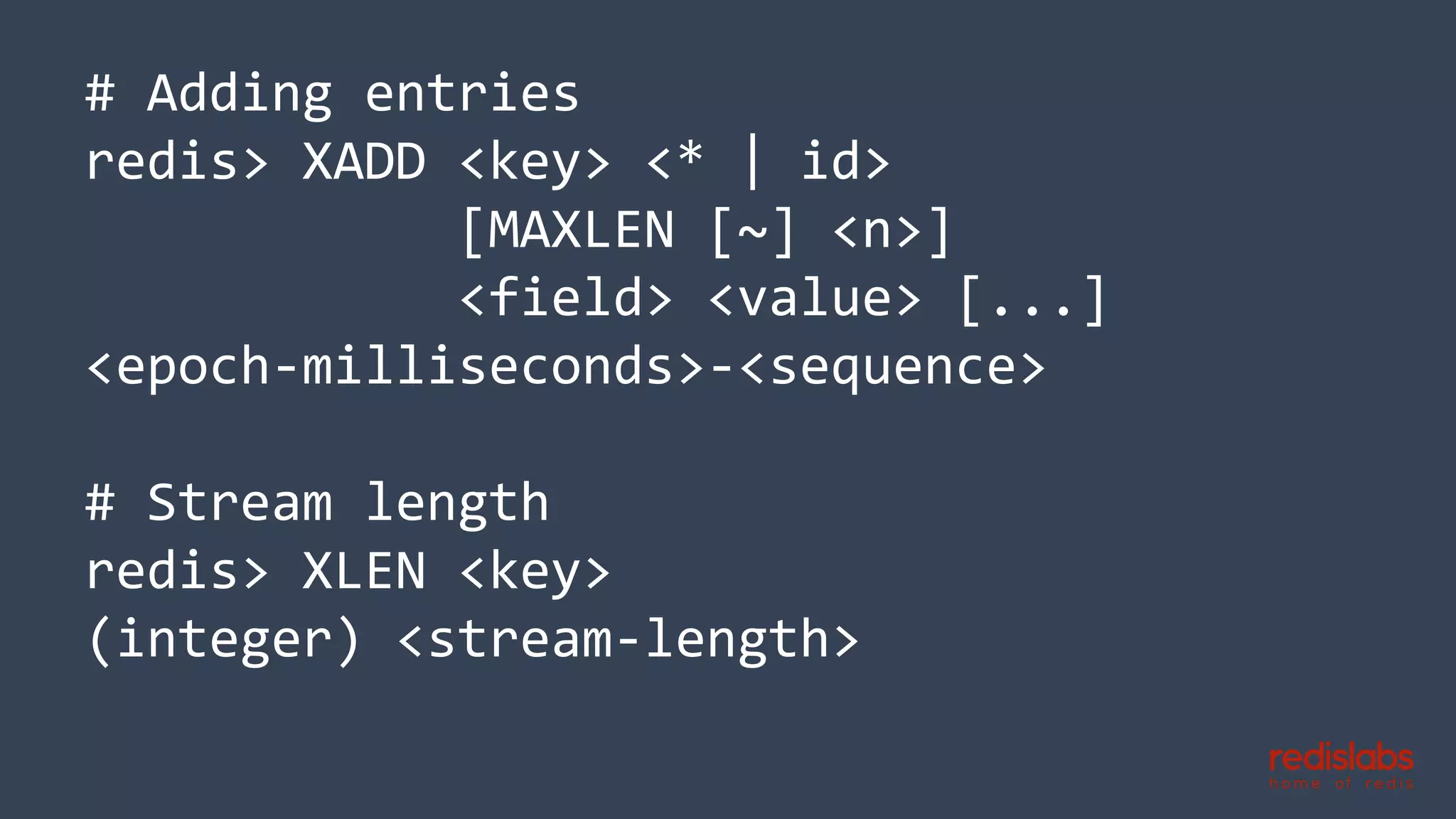

18. # Adding entries
redis> XADD <key> <* | id>
[MAXLEN [~] <n>]
<field> <value> [...]
<epoch-milliseconds>-<sequence>
# Stream length
redis> XLEN <key>
(integer) <stream-length>

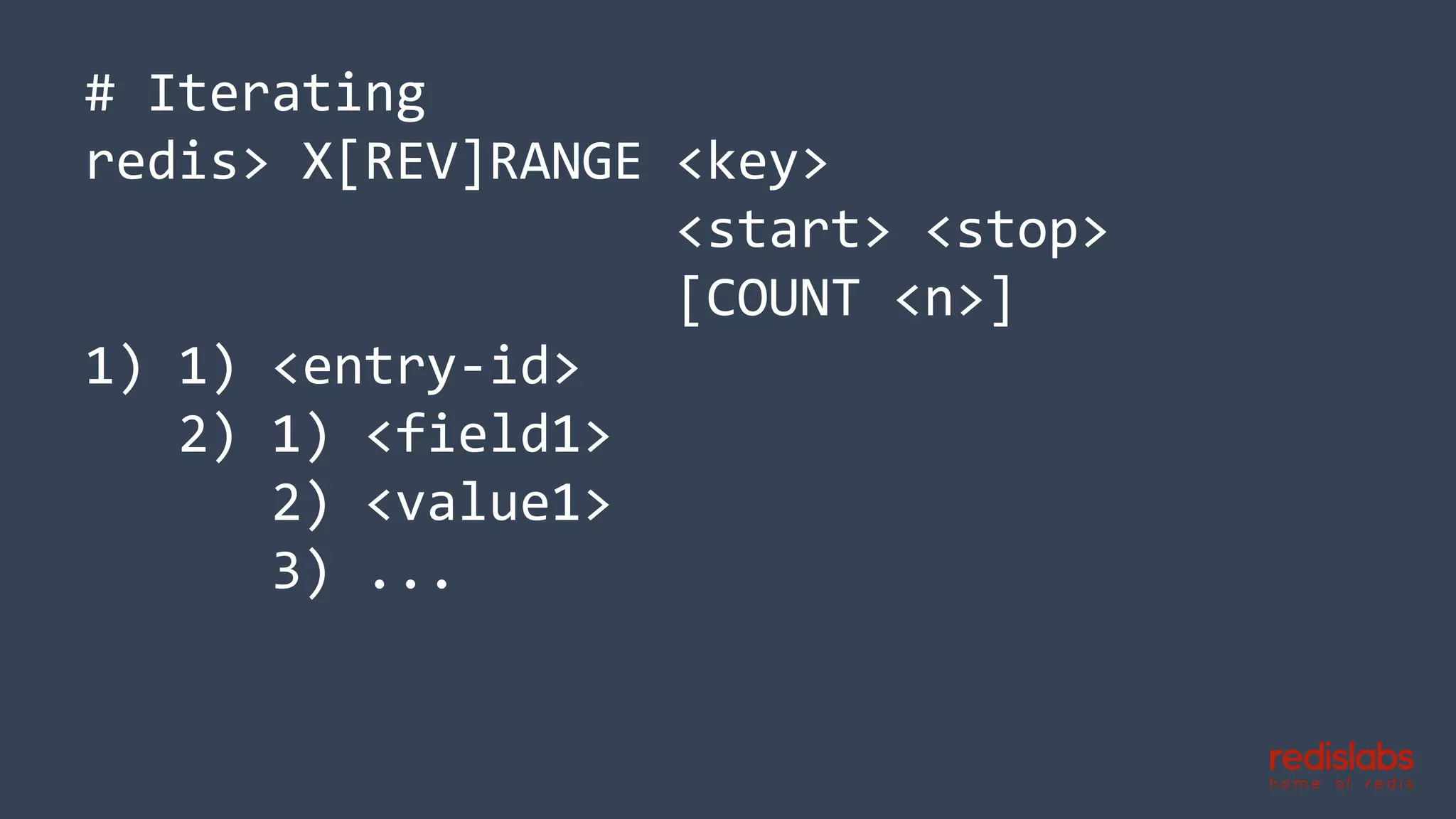

19. # Iterating
redis> X[REV]RANGE <key>
<start> <stop>
[COUNT <n>]
1) 1) <entry-id>
2) 1) <field1>
2) <value1>
3) ...

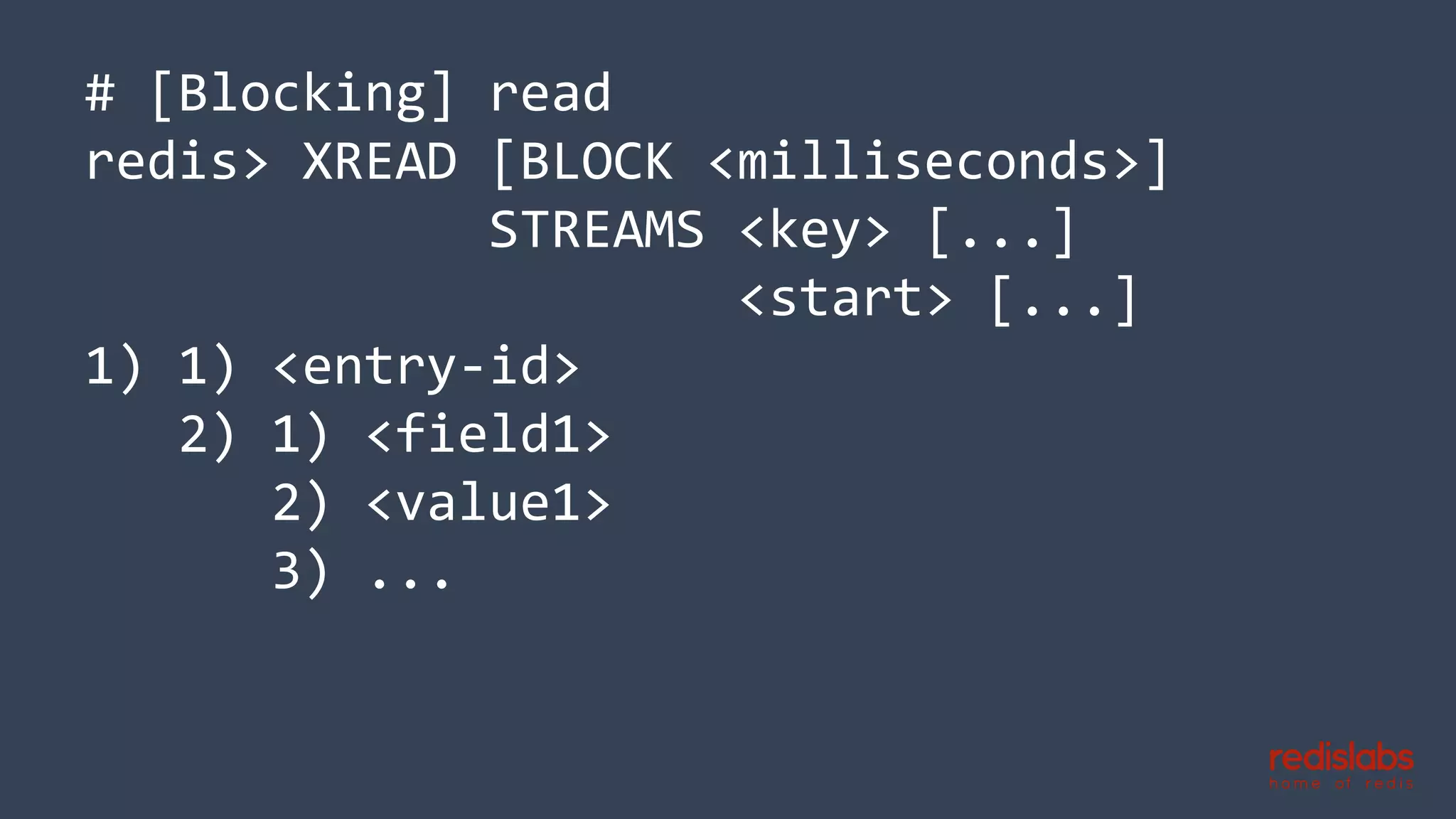

20. # [Blocking] read
redis> XREAD [BLOCK <milliseconds>]
STREAMS <key> [...]
<start> [...]
1) 1) <entry-id>
2) 1) <field1>
2) <value1>
3) ...

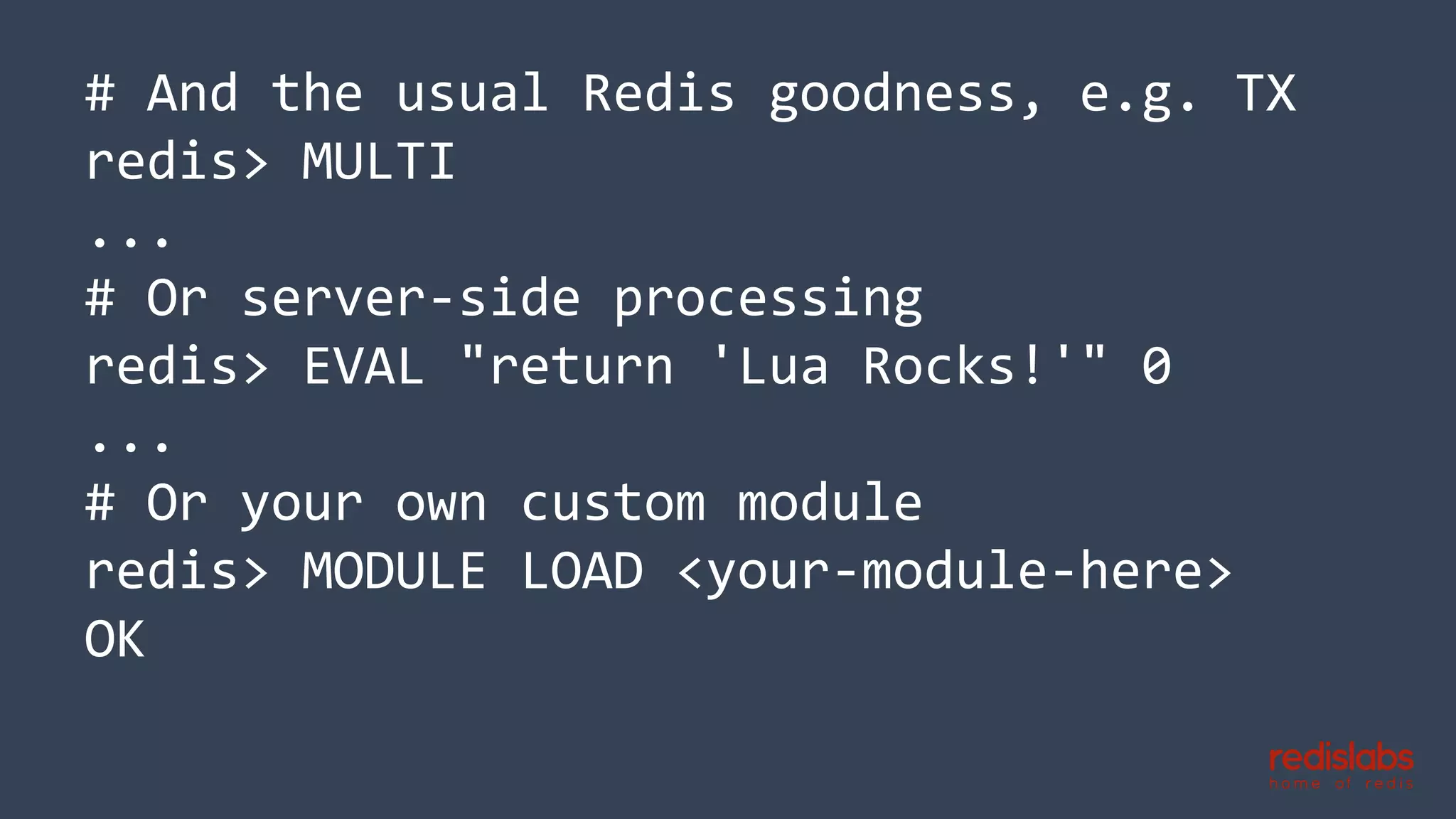

21. # And the usual Redis goodness, e.g. TX
redis> MULTI
...
# Or server-side processing
redis> EVAL "return 'Lua Rocks!'" 0
...
# Or your own custom module
redis> MODULE LOAD <your-module-here>
OK

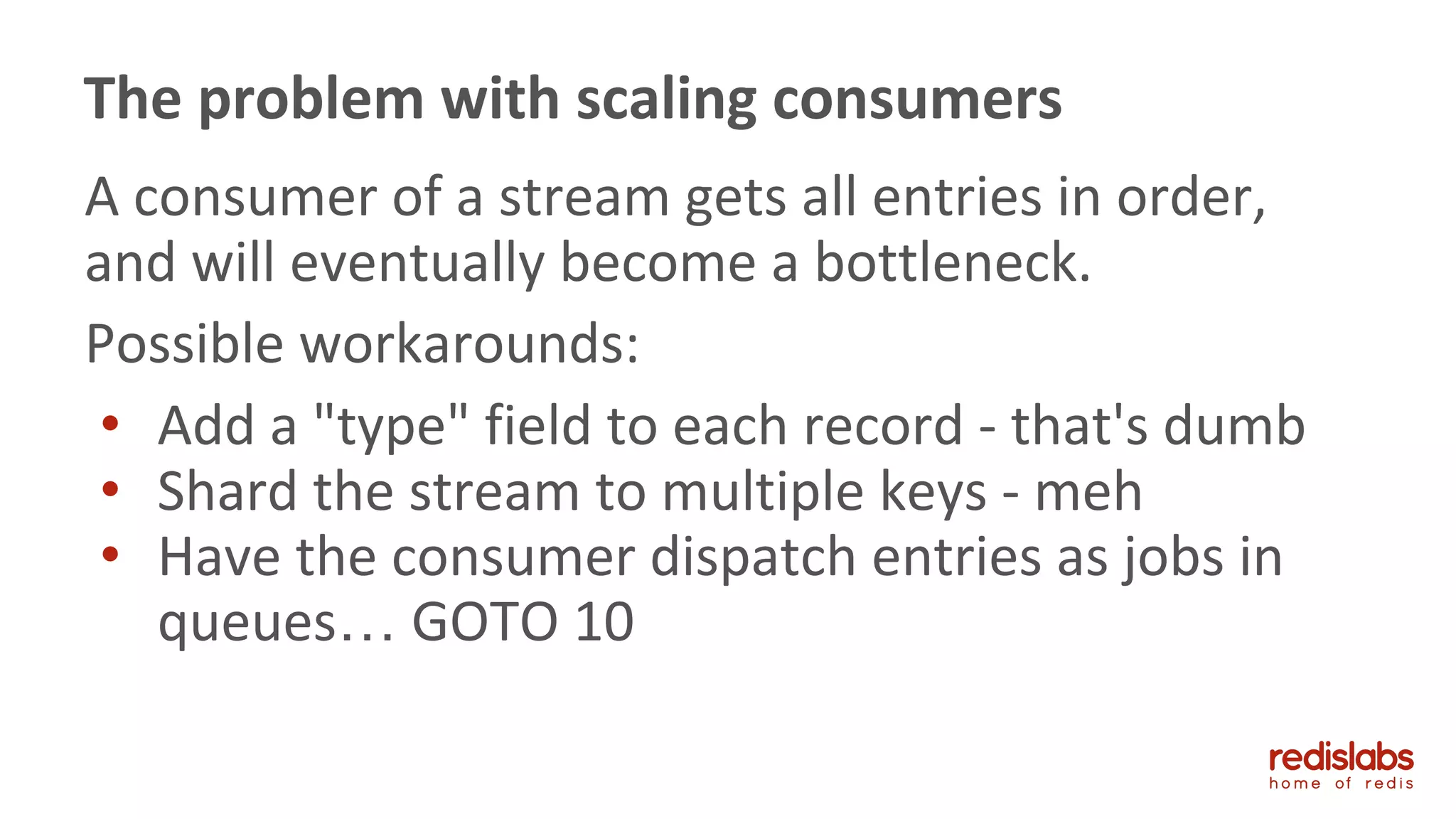

22. A consumer of a stream gets all entries in order,
and will eventually become a bottleneck.
Possible workarounds:
• Add a "type" field to each record - that's dumb
• Shard the stream to multiple keys - meh
• Have the consumer dispatch entries as jobs in
queues… GOTO 10
The problem with scaling consumers

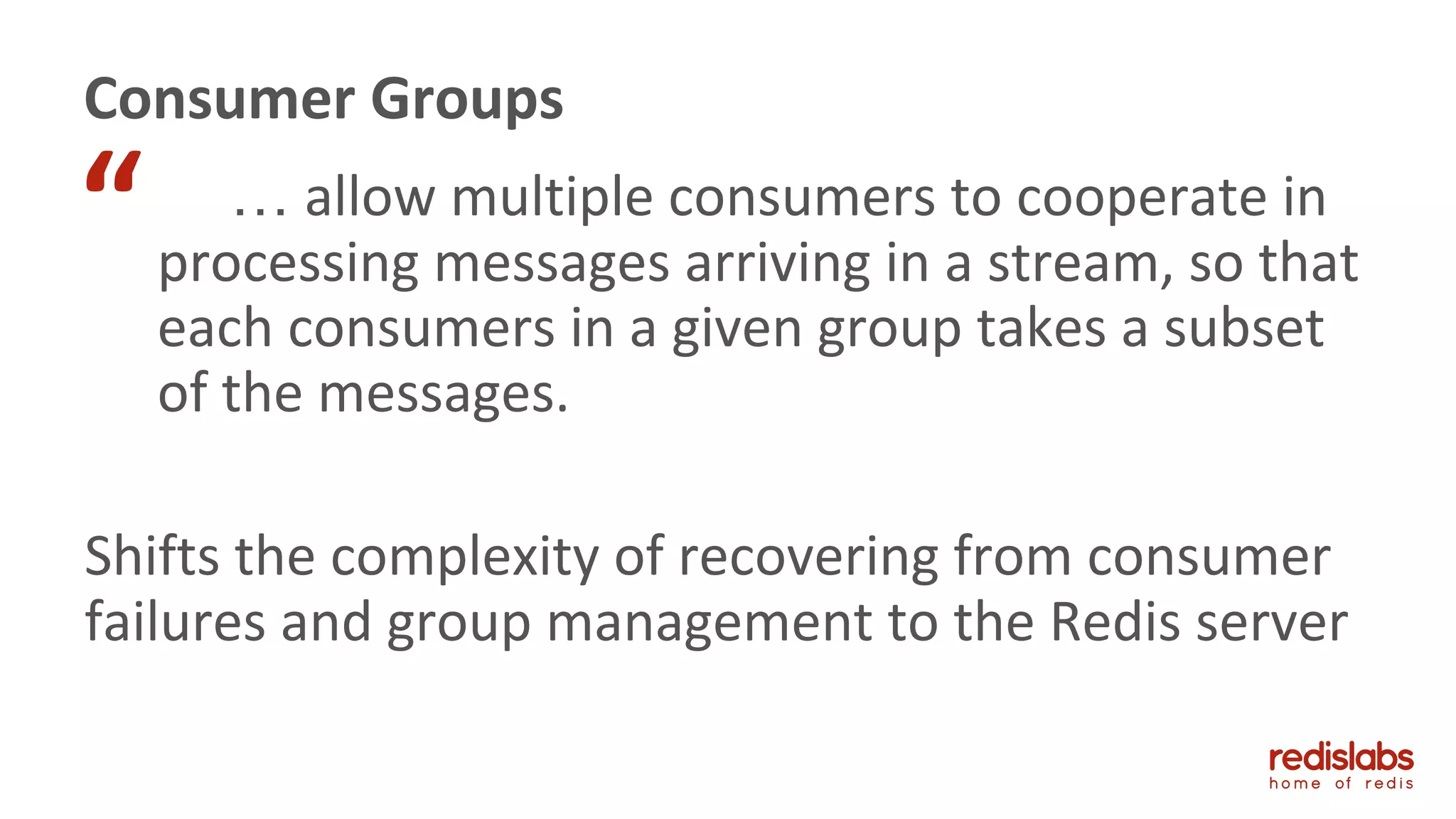

23. … allow multiple consumers to cooperate in
processing messages arriving in a stream, so that
each consumers in a given group takes a subset
of the messages.
Shifts the complexity of recovering from consumer
failures and group management to the Redis server
Consumer Groups
“

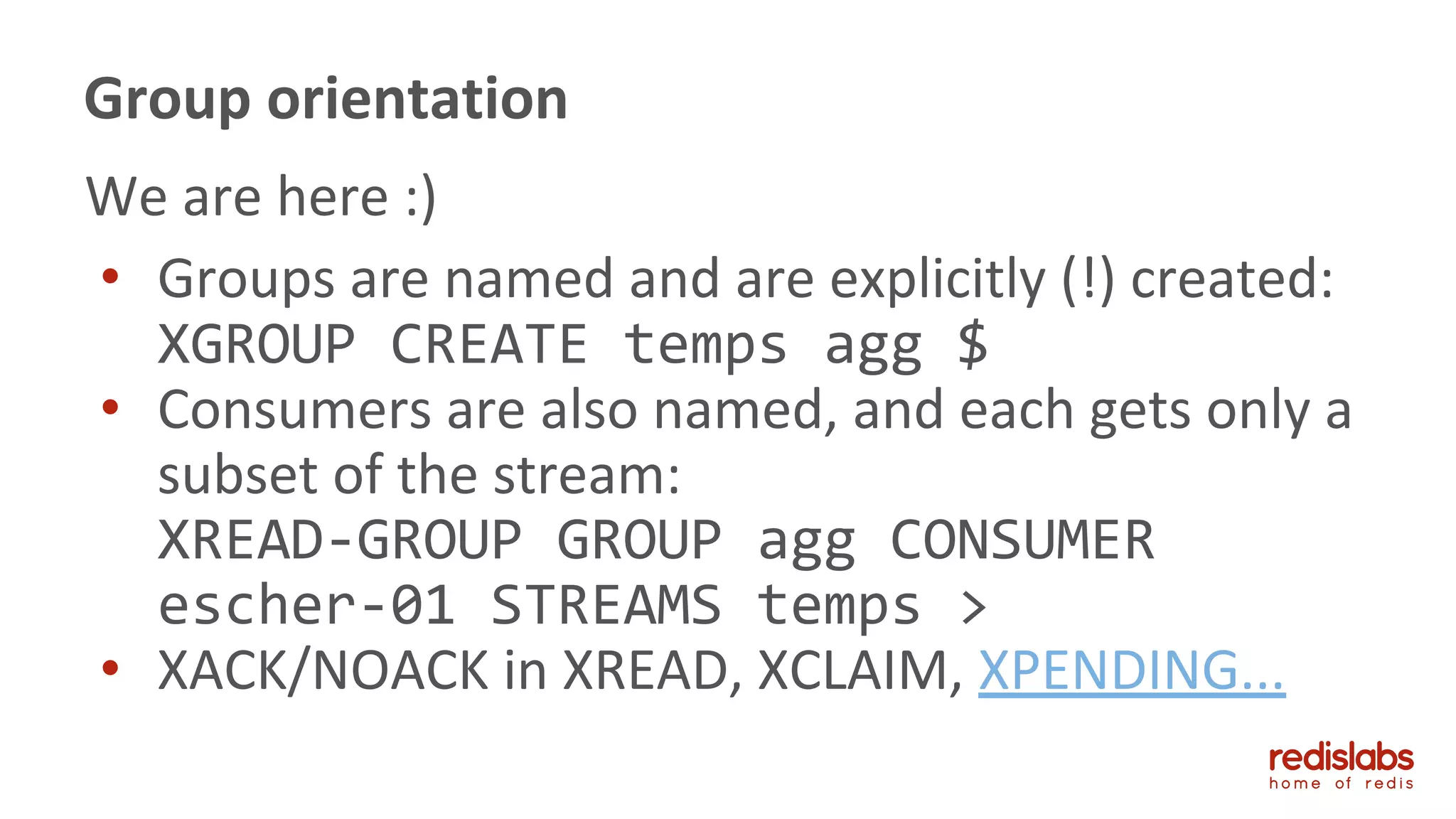

24. We are here :)
• Groups are named and are explicitly (!) created:
XGROUP CREATE temps agg $
• Consumers are also named, and each gets only a
subset of the stream:
XREAD-GROUP GROUP agg CONSUMER
escher-01 STREAMS temps >
• XACK/NOACK in XREAD, XCLAIM, XPENDING...
Group orientation

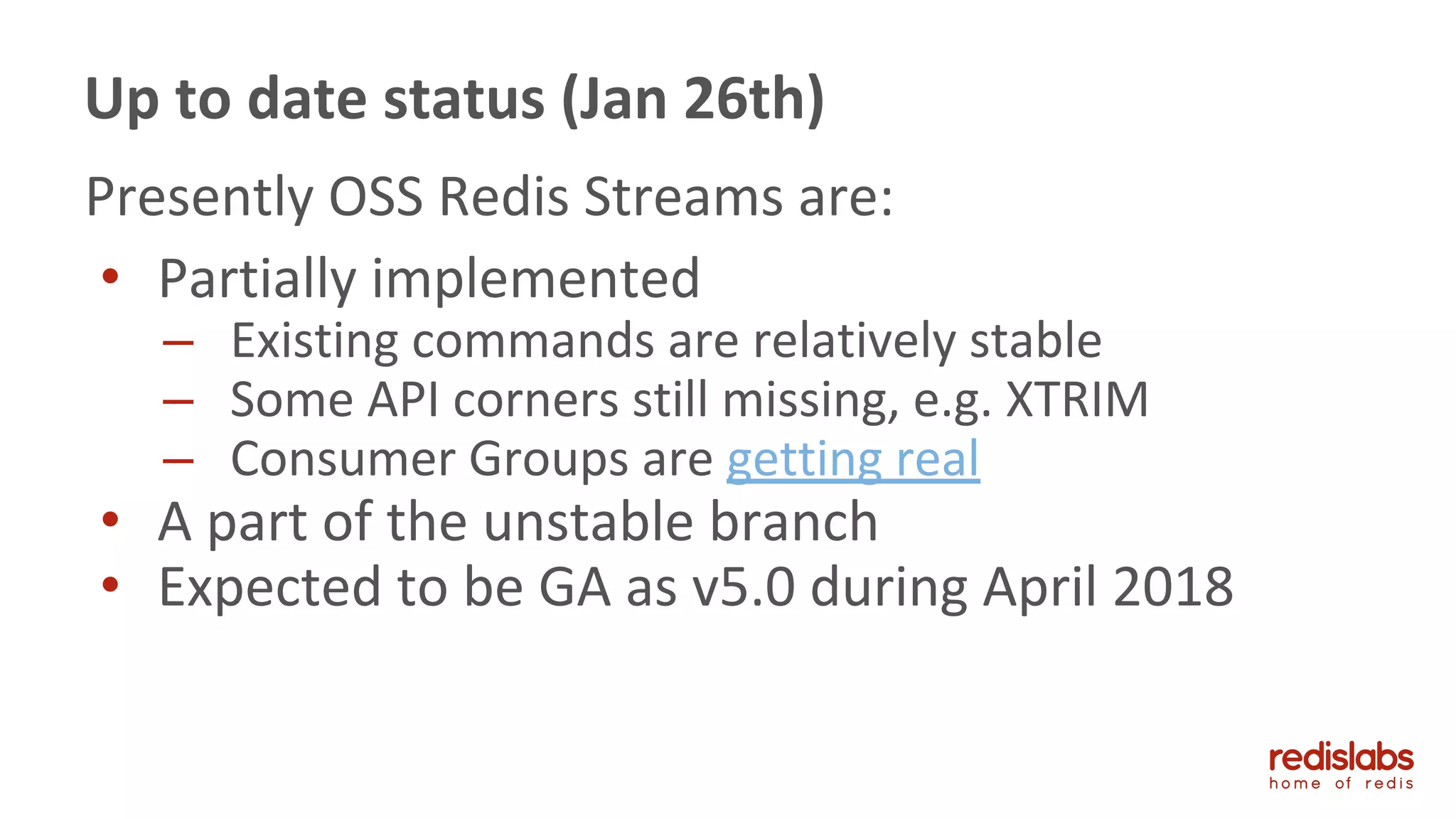

25. Presently OSS Redis Streams are:
• Partially implemented
– Existing commands are relatively stable
– Some API corners still missing, e.g. XTRIM
– Consumer Groups are getting real
• A part of the unstable branch
• Expected to be GA as v5.0 during April 2018
Up to date status (Jan 26th)

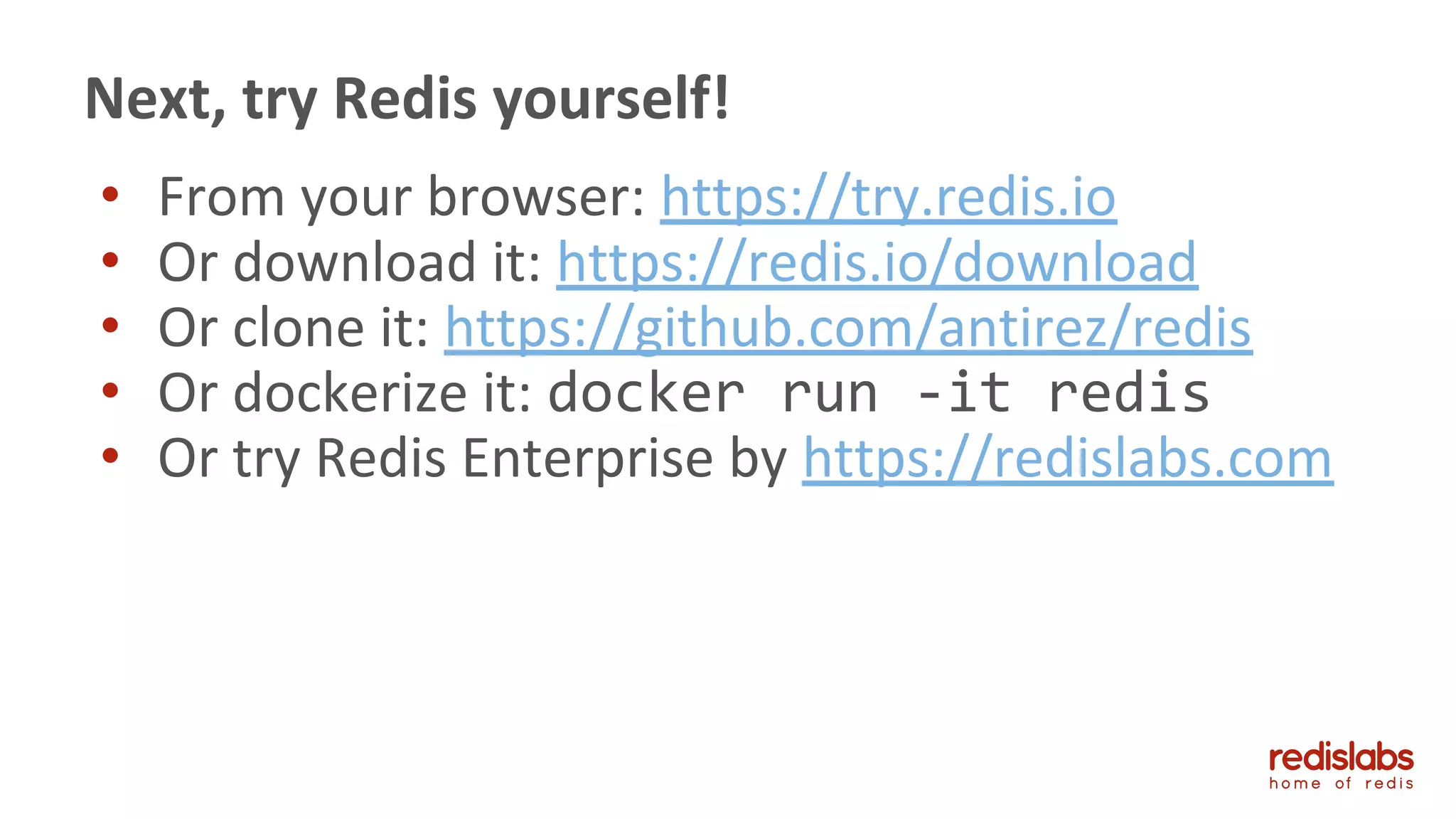

26. • From your browser: https://try.redis.io
• Or download it: https://redis.io/download
• Or clone it: https://github.com/antirez/redis
• Or dockerize it: docker run -it redis
• Or try Redis Enterprise by https://redislabs.com
Next, try Redis yourself!

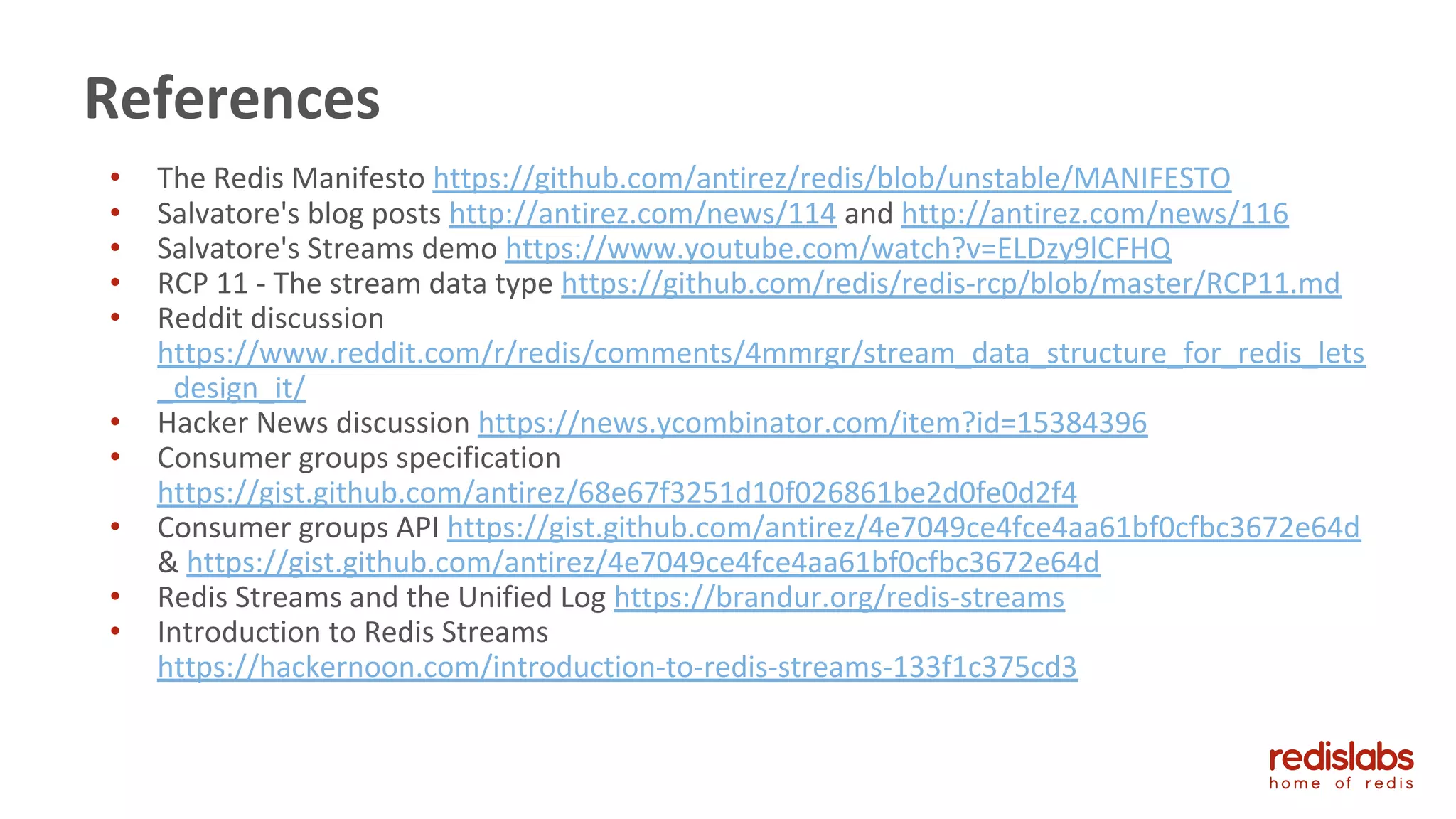

27. • The Redis Manifesto https://github.com/antirez/redis/blob/unstable/MANIFESTO
• Salvatore's blog posts http://antirez.com/news/114 and http://antirez.com/news/116
• Salvatore's Streams demo https://www.youtube.com/watch?v=ELDzy9lCFHQ
• RCP 11 - The stream data type https://github.com/redis/redis-rcp/blob/master/RCP11.md
• Reddit discussion
https://www.reddit.com/r/redis/comments/4mmrgr/stream_data_structure_for_redis_lets
_design_it/
• Hacker News discussion https://news.ycombinator.com/item?id=15384396
• Consumer groups specification
https://gist.github.com/antirez/68e67f3251d10f026861be2d0fe0d2f4
• Consumer groups API https://gist.github.com/antirez/4e7049ce4fce4aa61bf0cfbc3672e64d
& https://gist.github.com/antirez/4e7049ce4fce4aa61bf0cfbc3672e64d
• Redis Streams and the Unified Log https://brandur.org/redis-streams
• Introduction to Redis Streams
https://hackernoon.com/introduction-to-redis-streams-133f1c375cd3
References
