1. Extend Redis with Modules
Itamar Haber

2. 2
Who We Are
The open source home and commercial provider
of Redis
Open source. The leading in-memory database
platform, supporting any high performance
OLTP or OLAP use case.
Chief Developer Advocate at Redis Labs
http://bit.ly/RedisWatch &&(curat||edit||janit||)
itamar@redislabs.com
@itamarhaber

3. 3
“He who can, does;
He who cannot,
teaches.”
– Bernard Shaw

4. ~10 Things About Redis

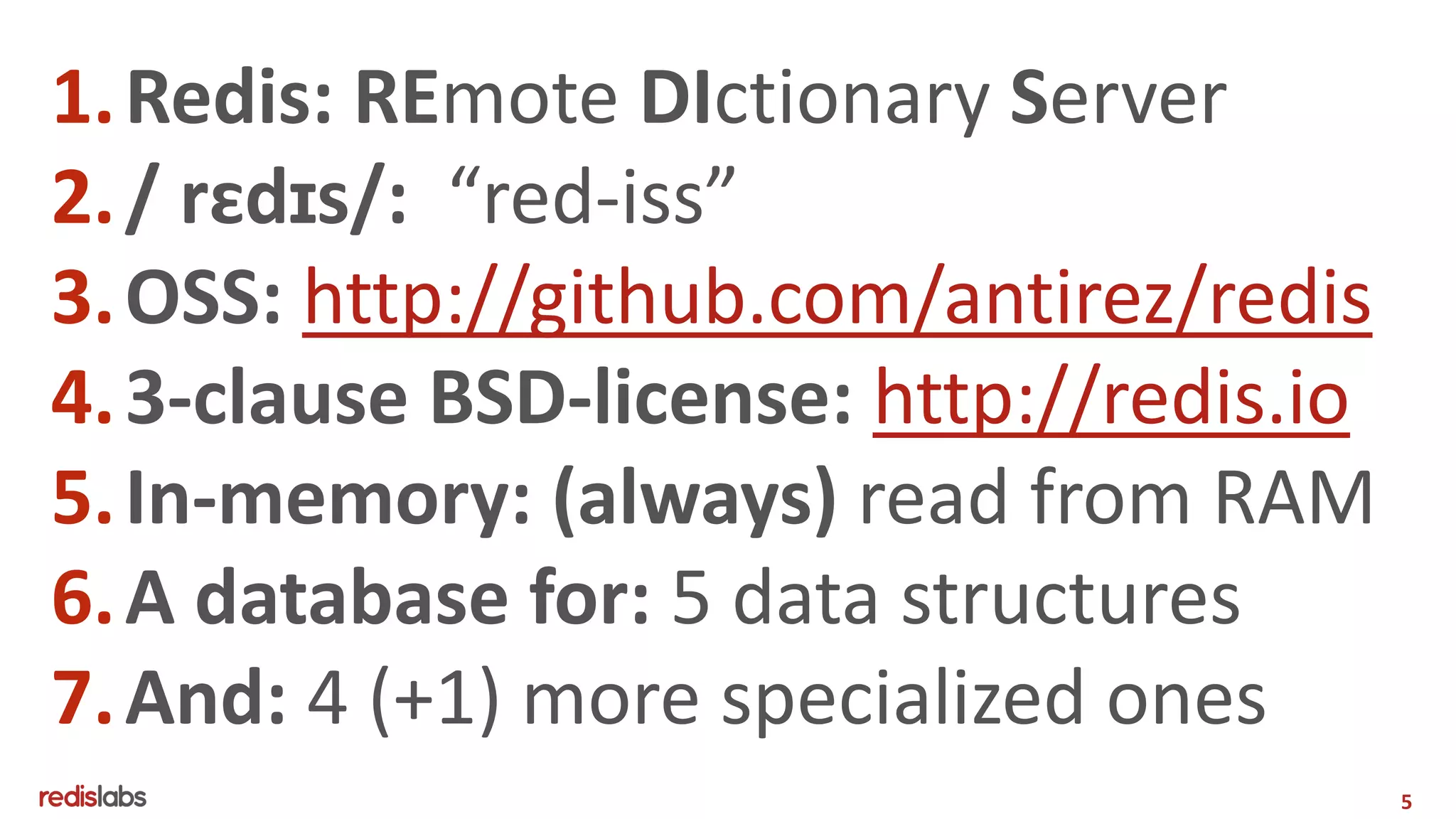

5. 5

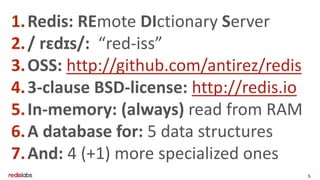

1.Redis: REmote DIctionary Server
2./ rɛdɪs/: “red-iss”
3.OSS: http://github.com/antirez/redis
4.3-clause BSD-license: http://redis.io
5.In-memory: (always) read from RAM
6.A database for: 5 data structures
7.And: 4 (+1) more specialized ones

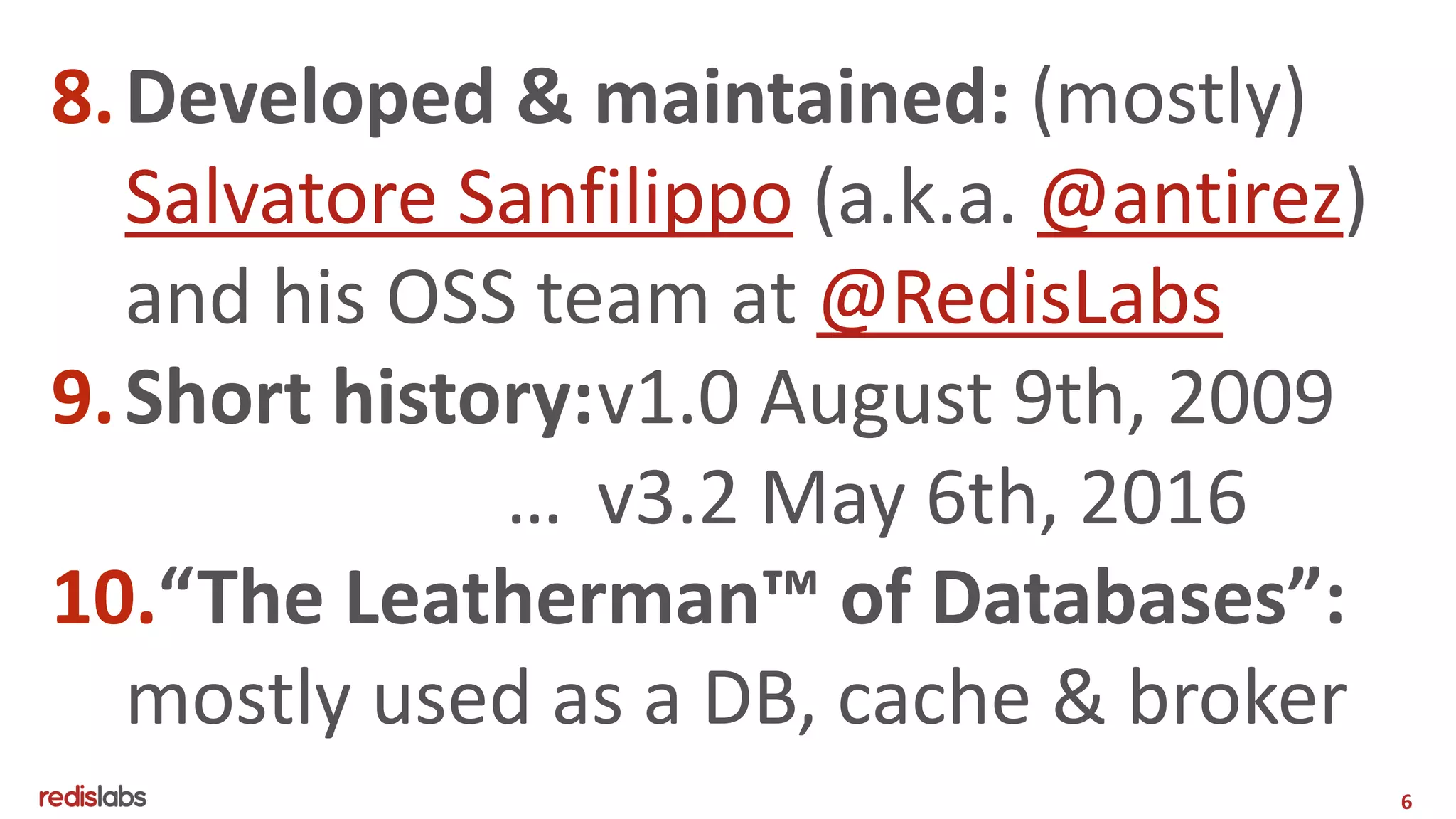

6. 6
8.Developed & maintained: (mostly)
Salvatore Sanfilippo (a.k.a. @antirez)
and his OSS team at @RedisLabs
9.Short history:v1.0 August 9th, 2009
… v3.2 May 6th, 2016
10.“The Leatherman™ of Databases”:
mostly used as a DB, cache & broker

7. 7

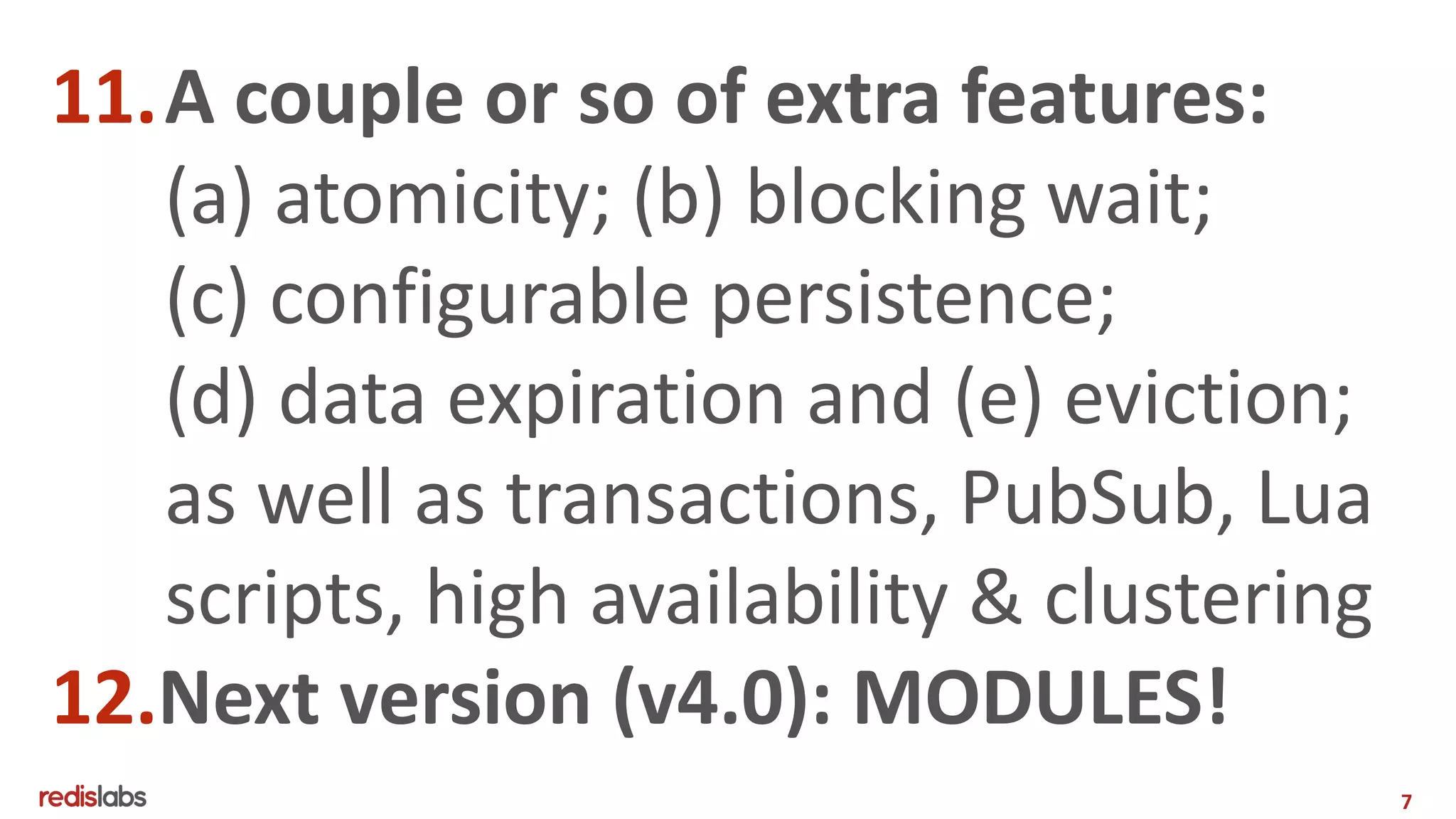

11.A couple or so of extra features:
(a) atomicity; (b) blocking wait;
(c) configurable persistence;
(d) data expiration and (e) eviction;
as well as transactions, PubSub, Lua
scripts, high availability & clustering
12.Next version (v4.0): MODULES!

8. 8

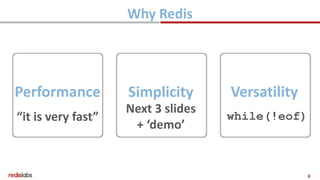

Why Redis
Simplicity VersatilityPerformance
“it is very fast”
Next 3 slides
+ ‘demo’
while(!eof)

9. 9

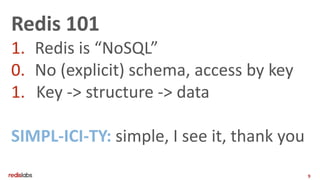

Redis 101
1. Redis is “NoSQL”
0. No (explicit) schema, access by key
1. Key -> structure -> data
SIMPL-ICI-TY: simple, I see it, thank you

10. 10
Redis data strata
v1.0 Strings
Lists
Sets
v1.2 Sorted Sets
v2.0 Hashes
v2.2 Bit arrays
v2.8.9 HyperLogLog
v3.2 Geo Sets
Bit fields
v4 Streams (?)
MODULES!

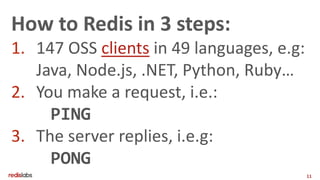

11. 11
How to Redis in 3 steps:
1. 147 OSS clients in 49 languages, e.g:
Java, Node.js, .NET, Python, Ruby…
2. You make a request, i.e.:
PING
3. The server replies, i.e.g:
PONG

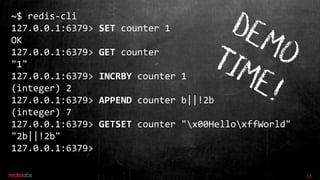

12. 12

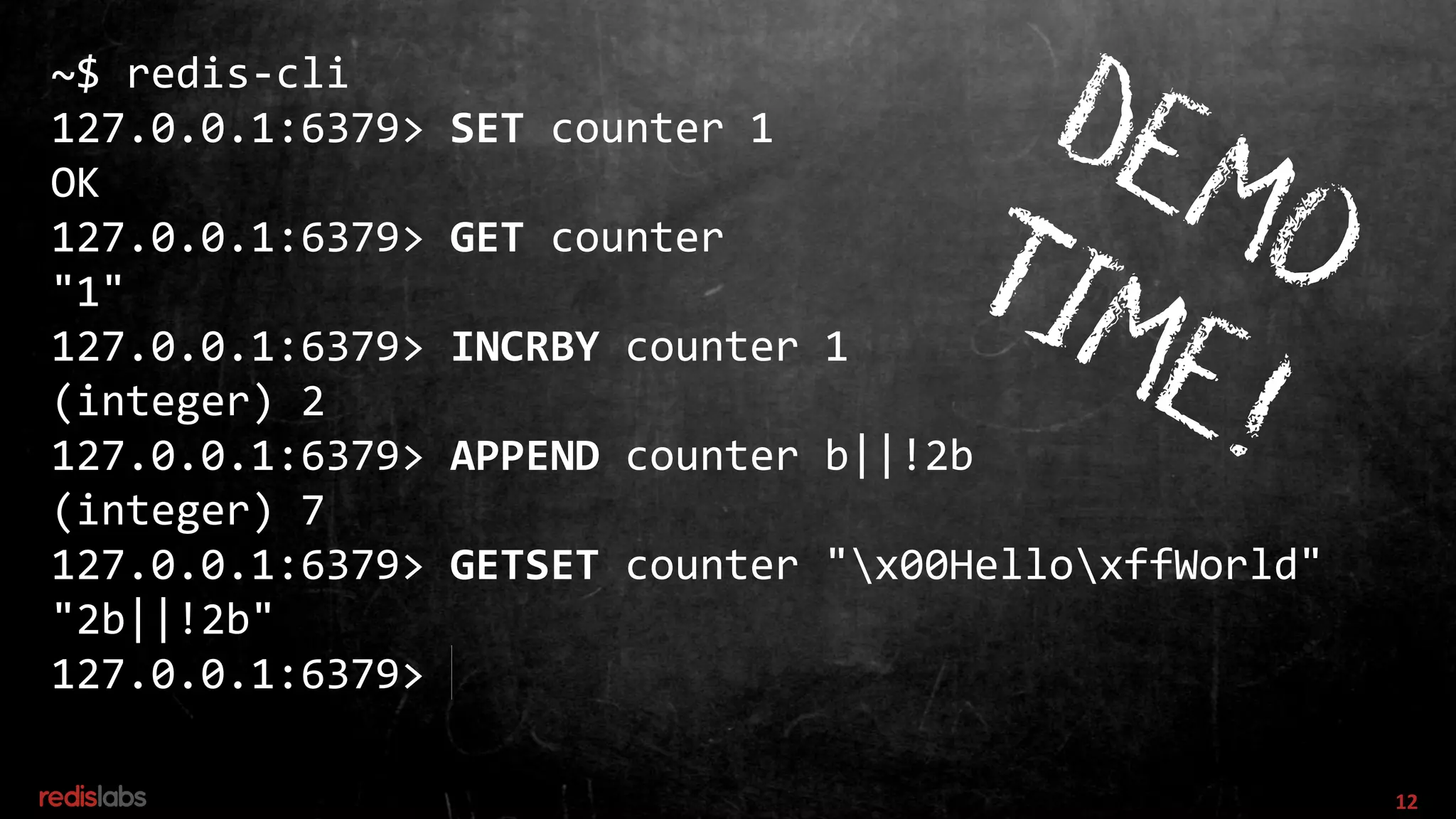

~$ redis-cli
127.0.0.1:6379> SET counter 1
OK
127.0.0.1:6379> GET counter
"1"
127.0.0.1:6379> INCRBY counter 1
(integer) 2
127.0.0.1:6379> APPEND counter b||!2b
(integer) 7
127.0.0.1:6379> GETSET counter "x00HelloxffWorld"
"2b||!2b"
127.0.0.1:6379>

13. The Evolution of Versatility

14. 14

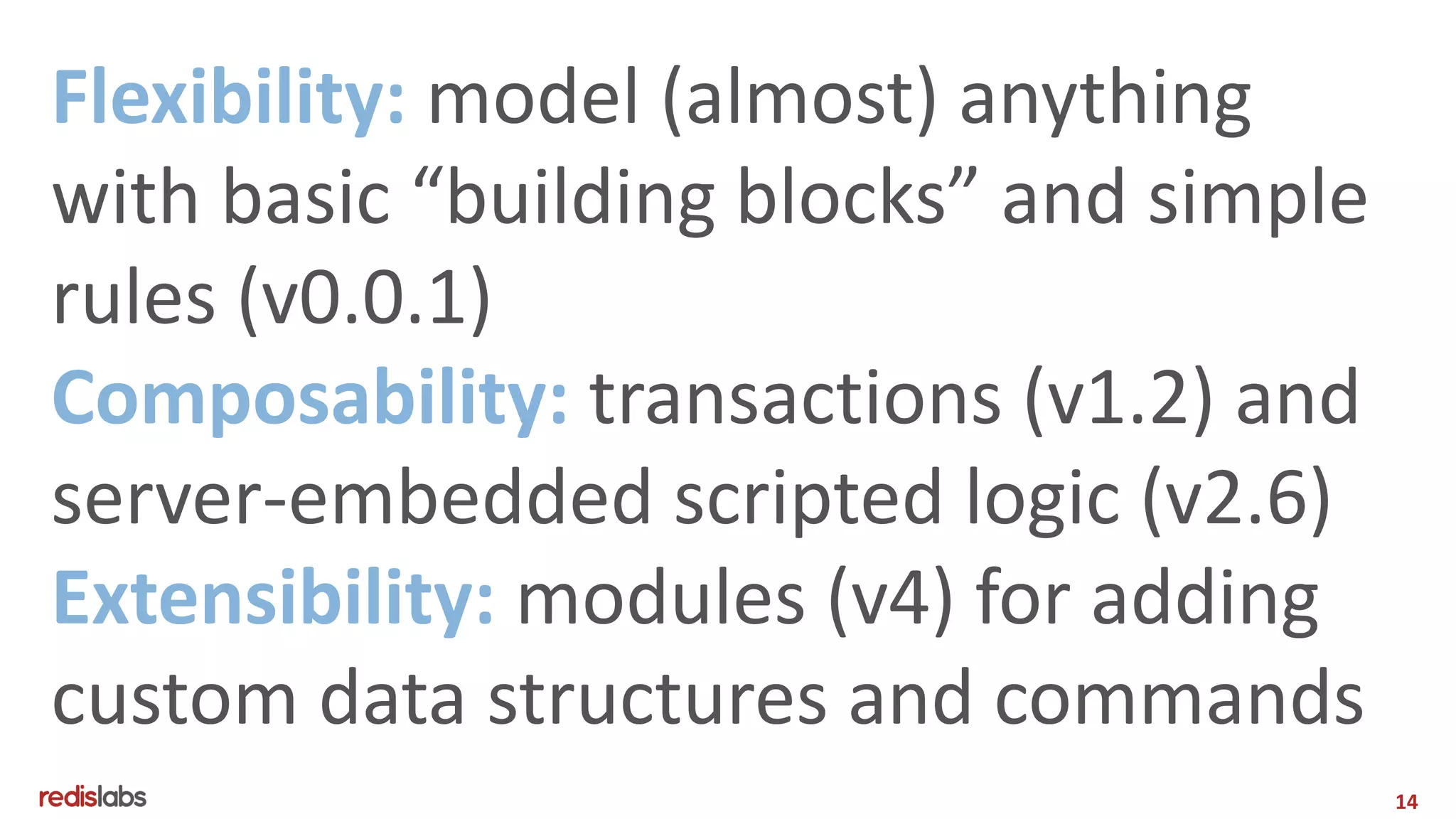

Flexibility: model (almost) anything
with basic “building blocks” and simple
rules (v0.0.1)
Composability: transactions (v1.2) and
server-embedded scripted logic (v2.6)
Extensibility: modules (v4) for adding
custom data structures and commands

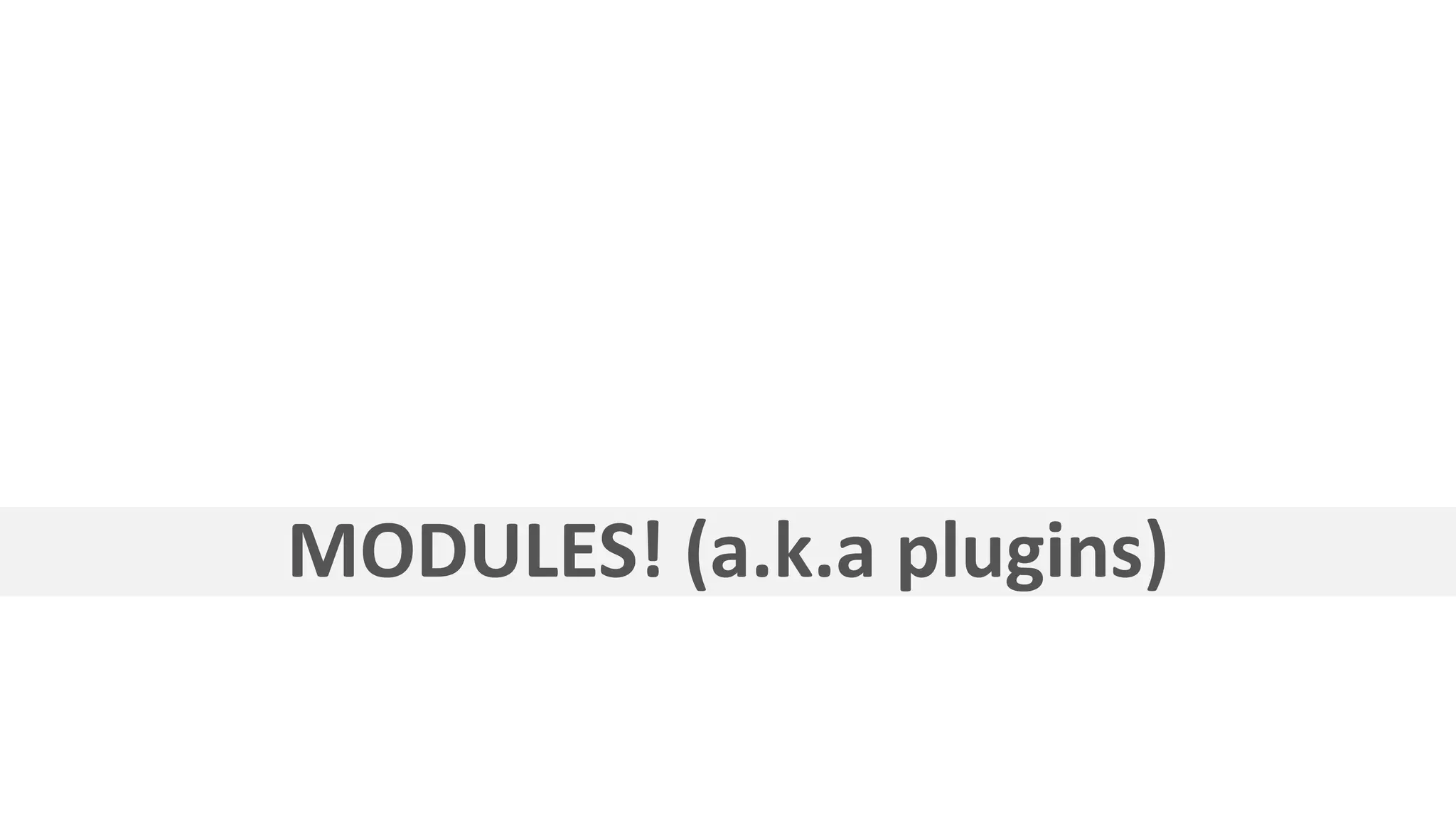

15. MODULES! (a.k.a plugins)

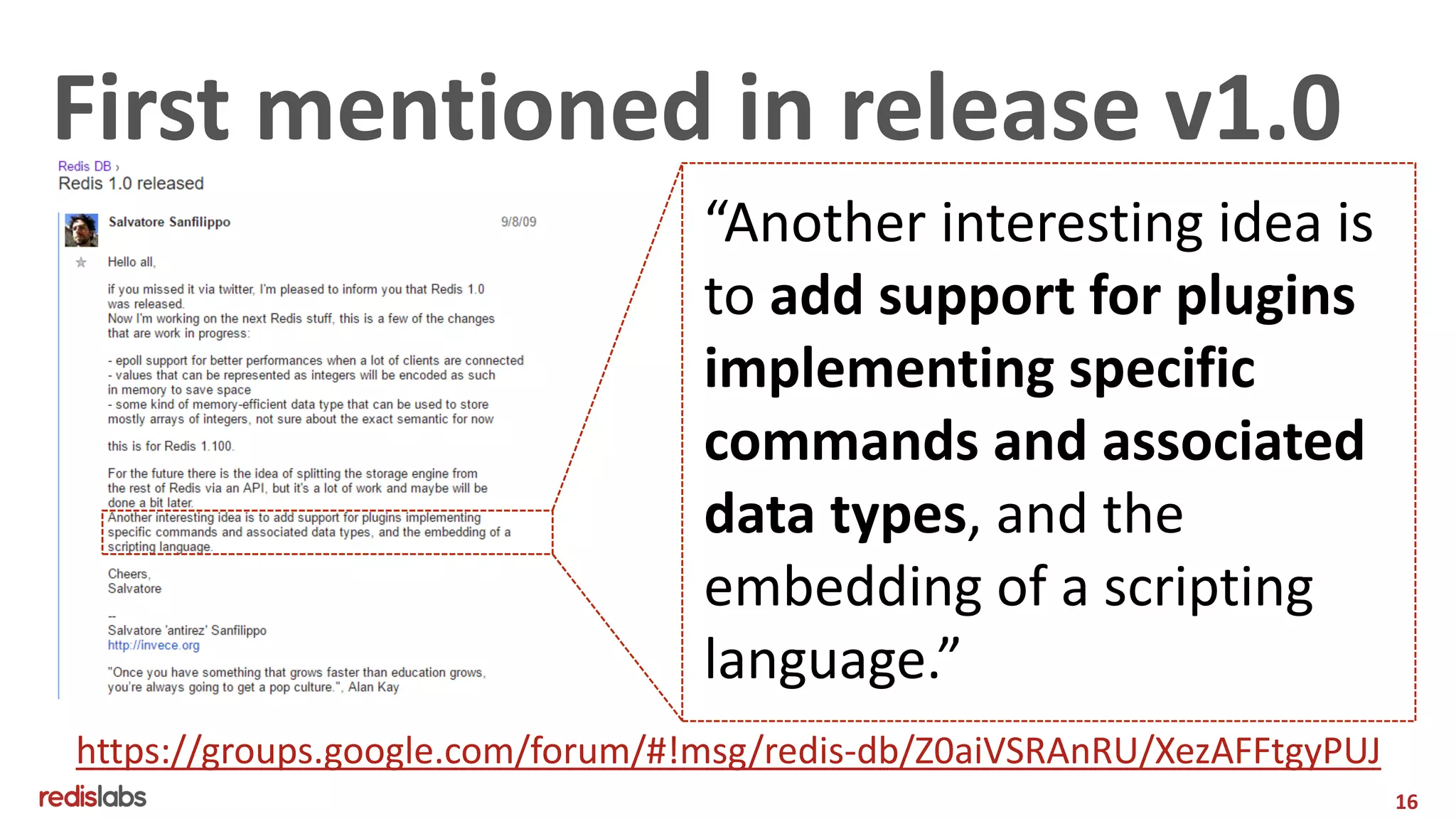

16. 16
First mentioned in release v1.0
https://groups.google.com/forum/#!msg/redis-db/Z0aiVSRAnRU/XezAFFtgyPUJ
“Another interesting idea is
to add support for plugins
implementing specific
commands and associated
data types, and the
embedding of a scripting
language.”

17. 17

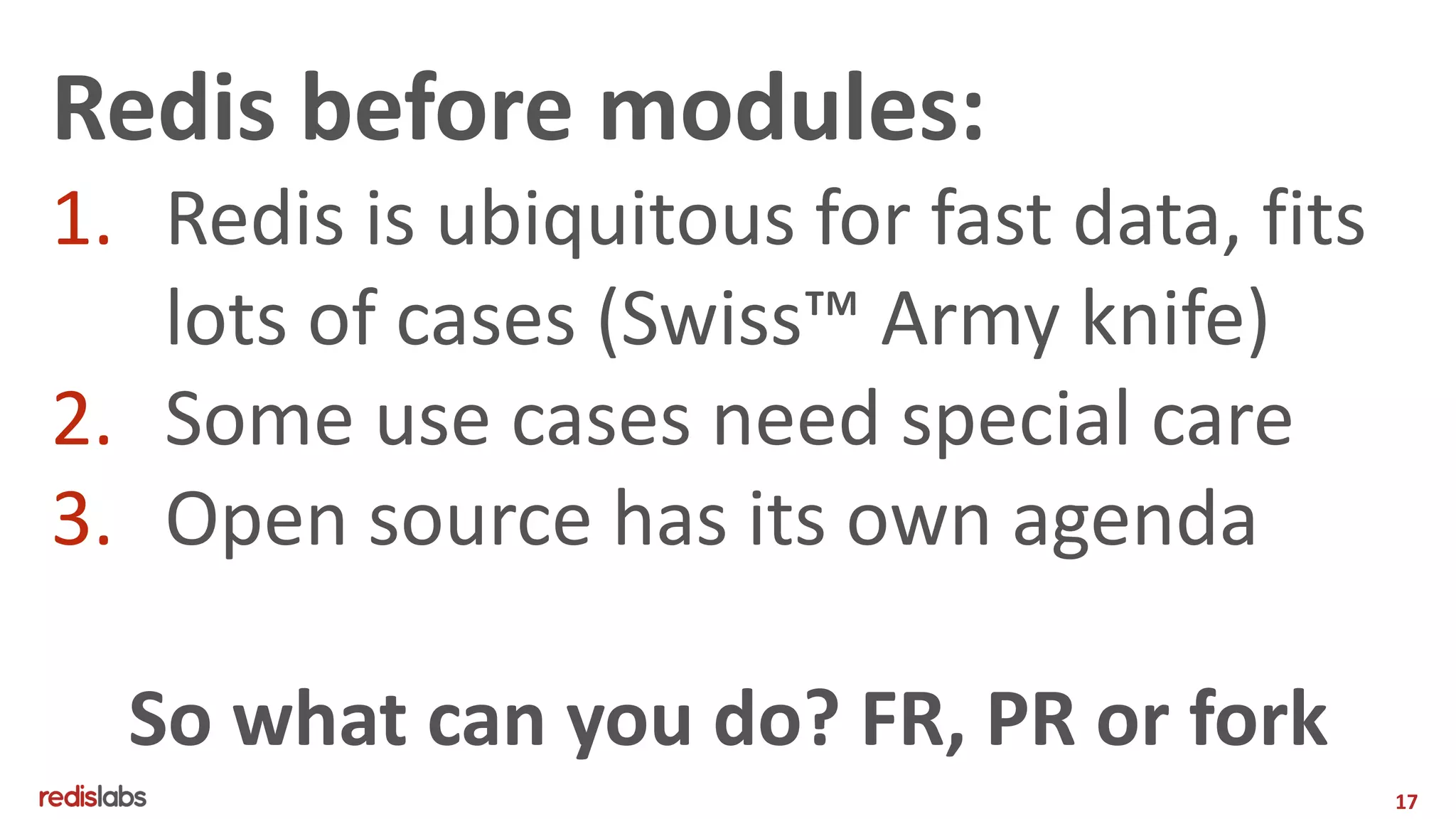

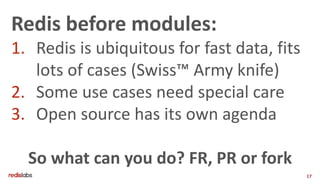

Redis before modules:
1. Redis is ubiquitous for fast data, fits
lots of cases (Swiss™ Army knife)
2. Some use cases need special care
3. Open source has its own agenda
So what can you do? FR, PR or fork

18. 18

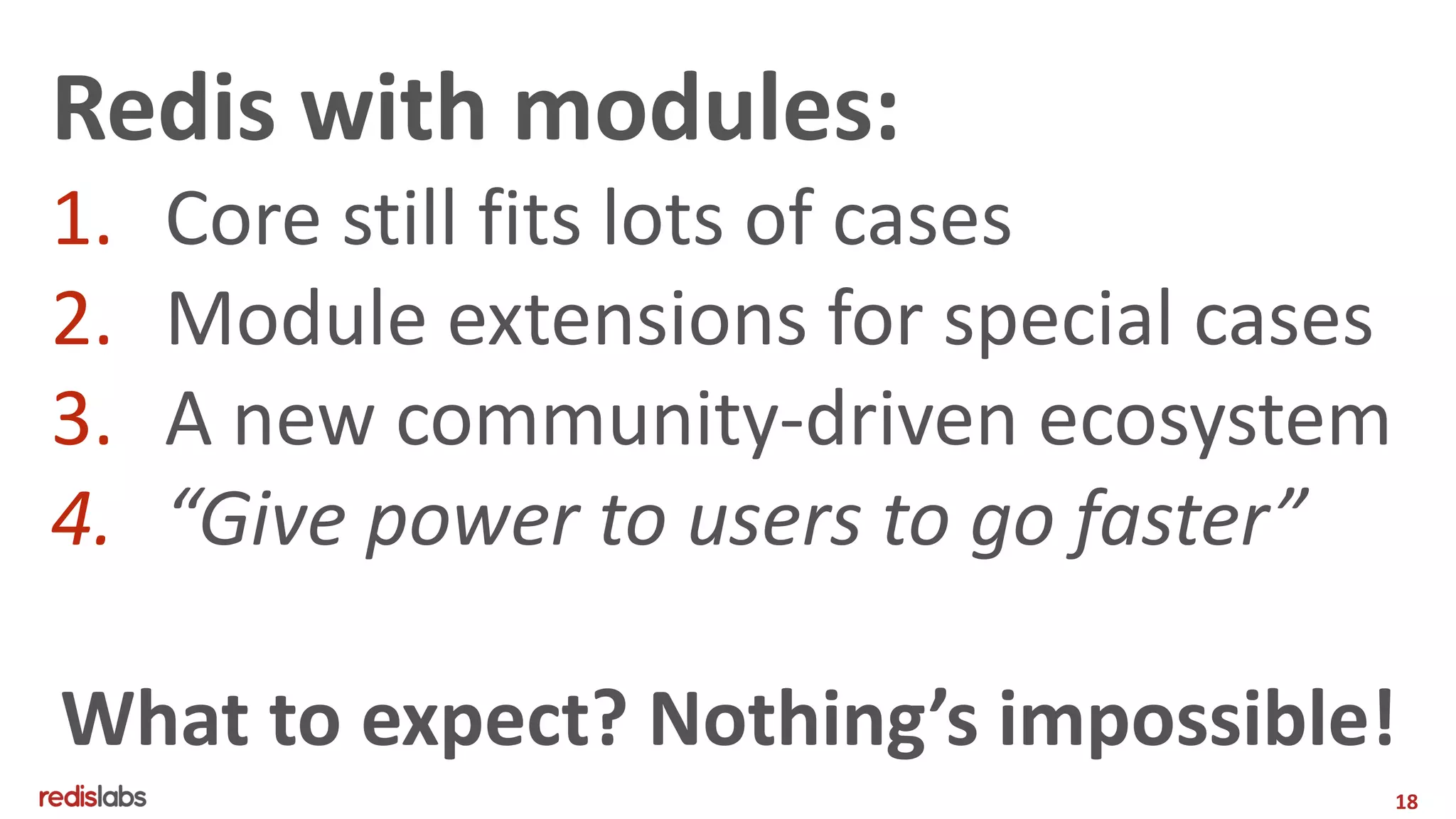

Redis with modules:
1. Core still fits lots of cases
2. Module extensions for special cases
3. A new community-driven ecosystem
4. “Give power to users to go faster”
What to expect? Nothing’s impossible!

19. 19

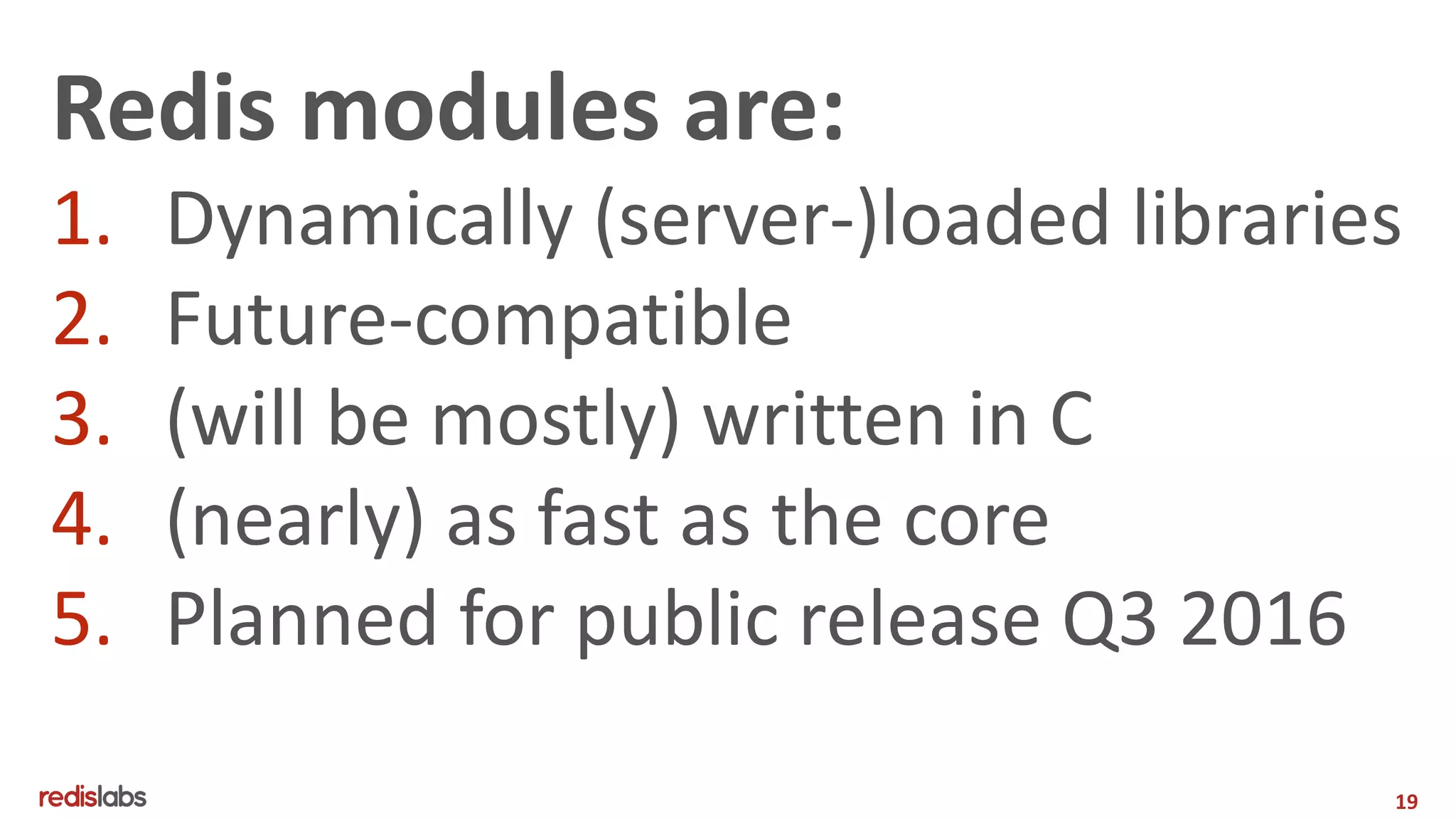

Redis modules are:
1. Dynamically (server-)loaded libraries
2. Future-compatible
3. (will be mostly) written in C
4. (nearly) as fast as the core
5. Planned for public release Q3 2016

20. 20

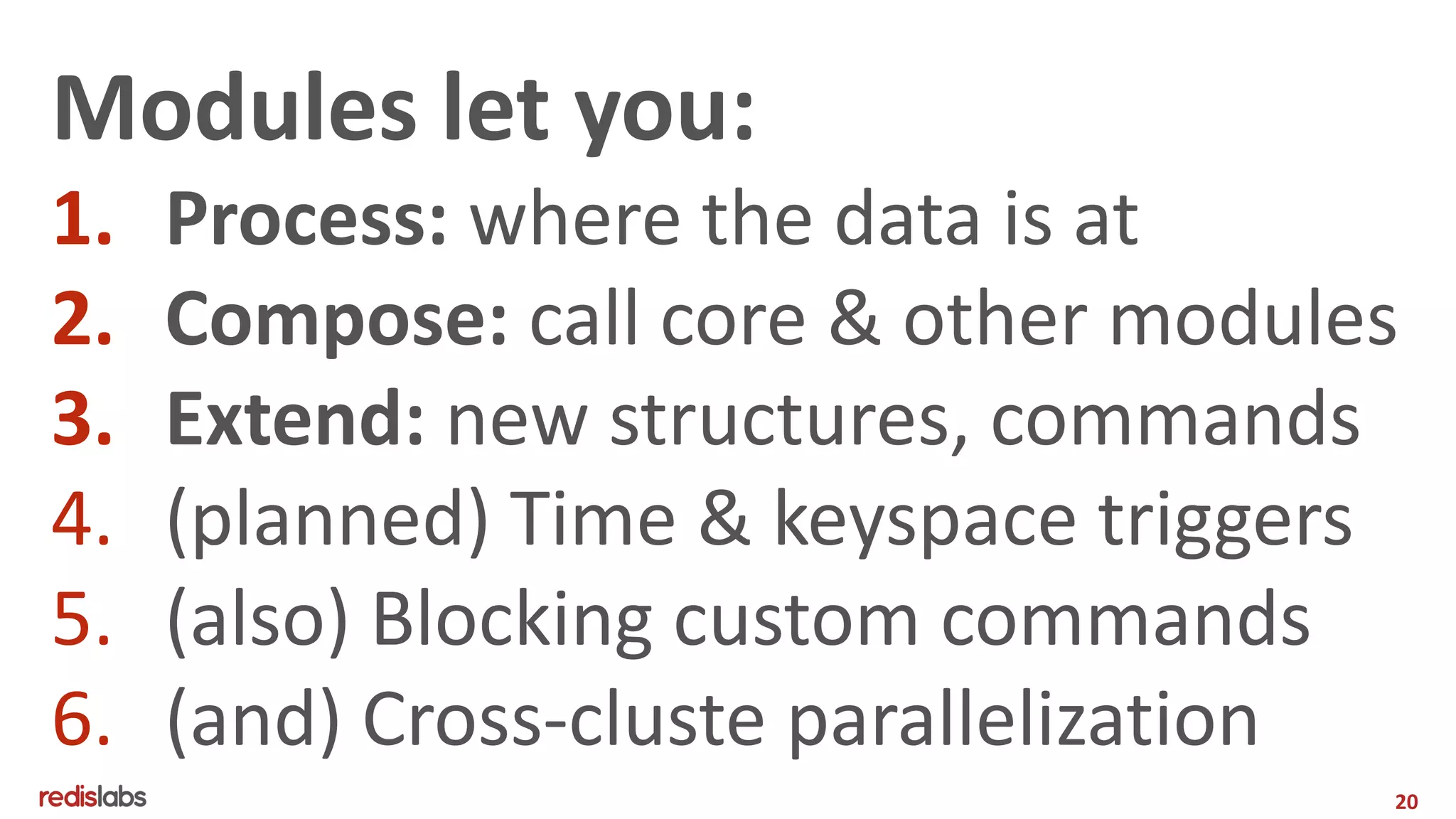

Modules let you:
1. Process: where the data is at
2. Compose: call core & other modules
3. Extend: new structures, commands
4. (planned) Time & keyspace triggers
5. (also) Blocking custom commands
6. (and) Cross-cluster parallelization

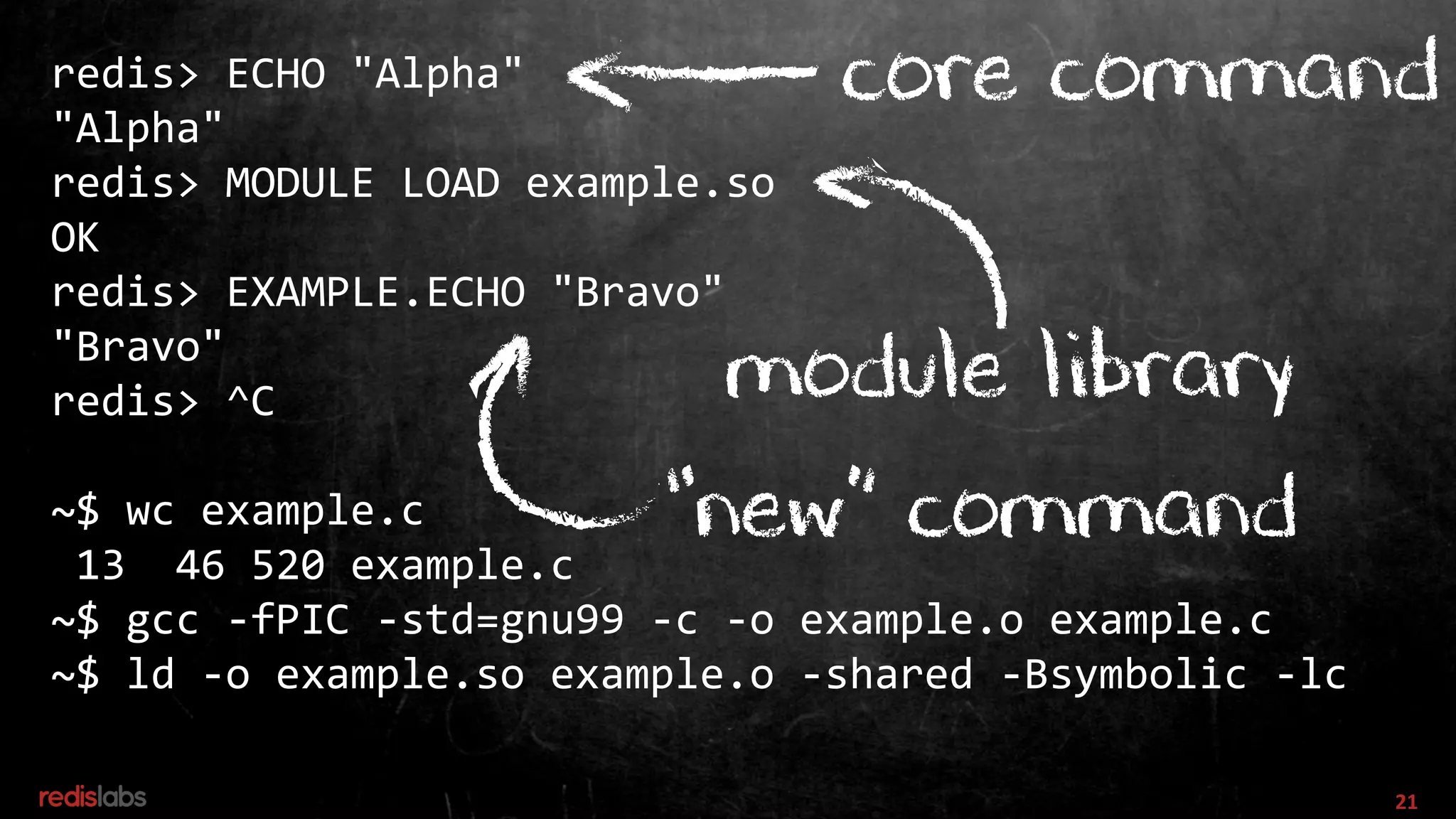

21. 21
redis> ECHO "Alpha"
"Alpha"
redis> MODULE LOAD example.so
OK
redis> EXAMPLE.ECHO "Bravo"
"Bravo"
redis> ^C
~$ wc example.c
13 46 520 example.c
~$ gcc -fPIC -std=gnu99 -c -o example.o example.c
~$ ld -o example.so example.o -shared -Bsymbolic -lc
core command
module library
“new” command

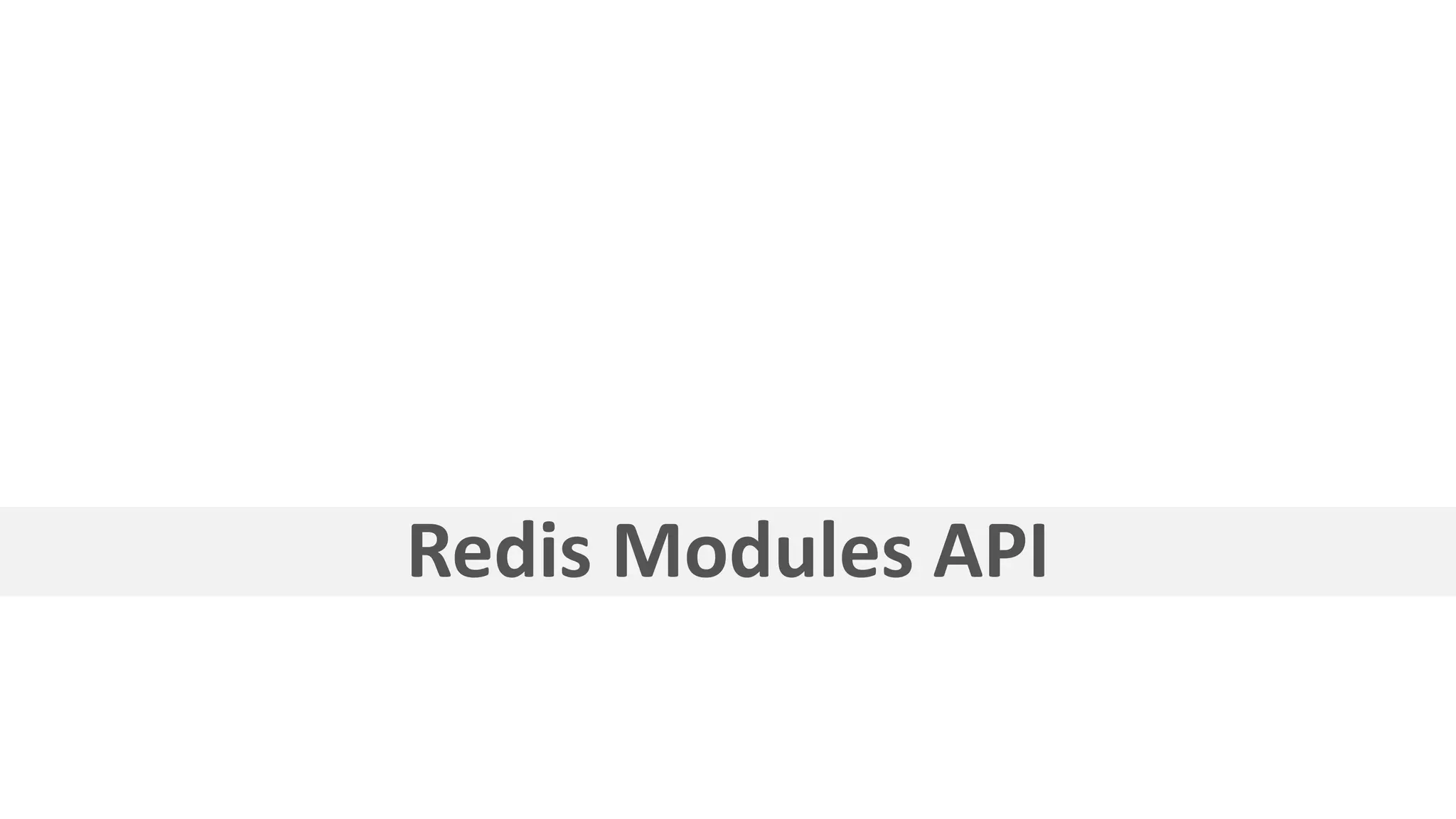

22. Redis Modules API

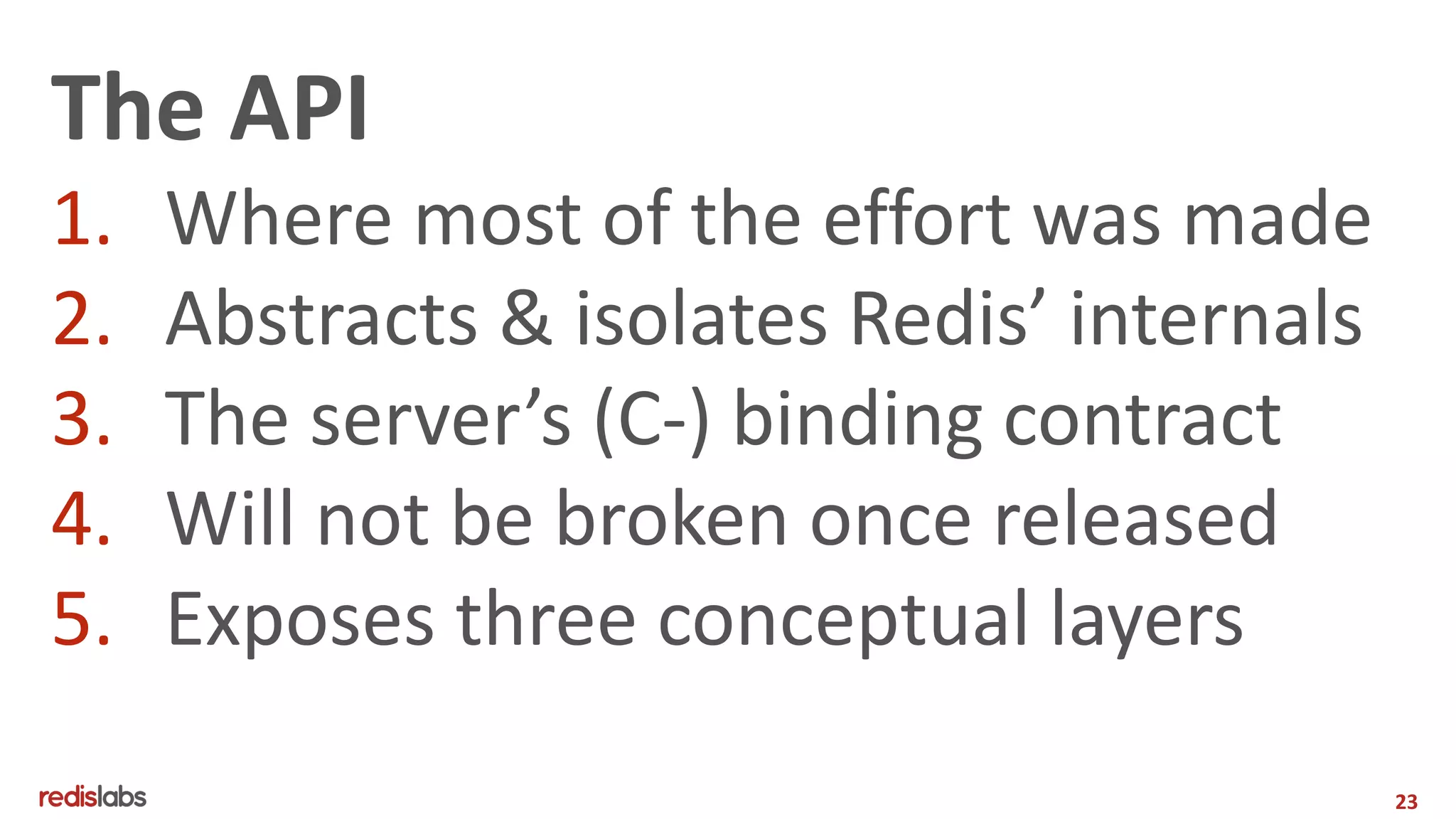

23. 23
The API
1. Where most of the effort was made
2. Abstracts & isolates Redis’ internals
3. The server’s (C-) binding contract
4. Will not be broken once released
5. Exposes three conceptual layers

24. 24

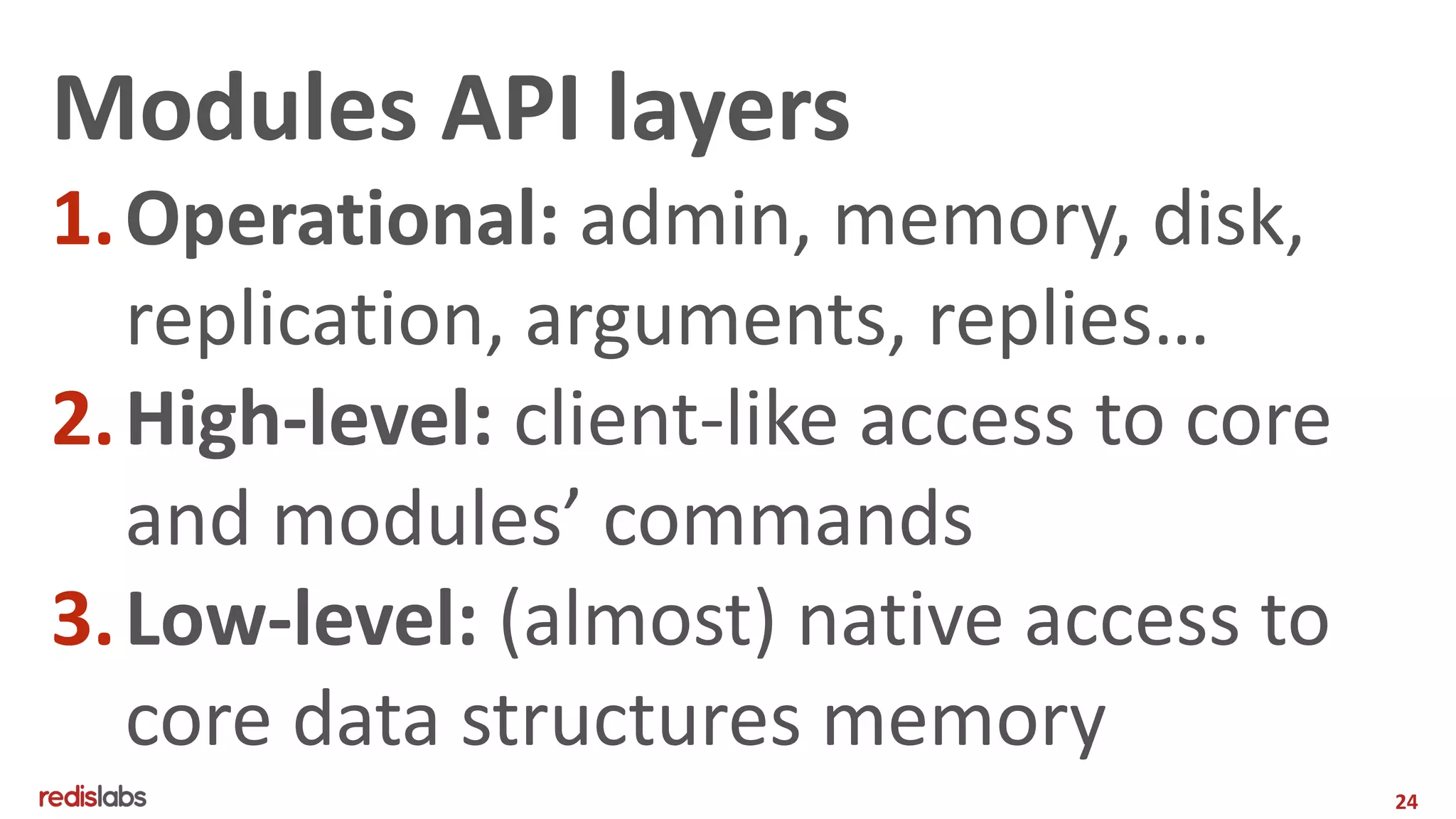

Modules API layers
1.Operational: admin, memory, disk,
replication, arguments, replies…
2.High-level: client-like access to core
and modules’ commands
3.Low-level: (almost) native access to
core data structures memory

25. ~$ cat example.c: operational-API-only example

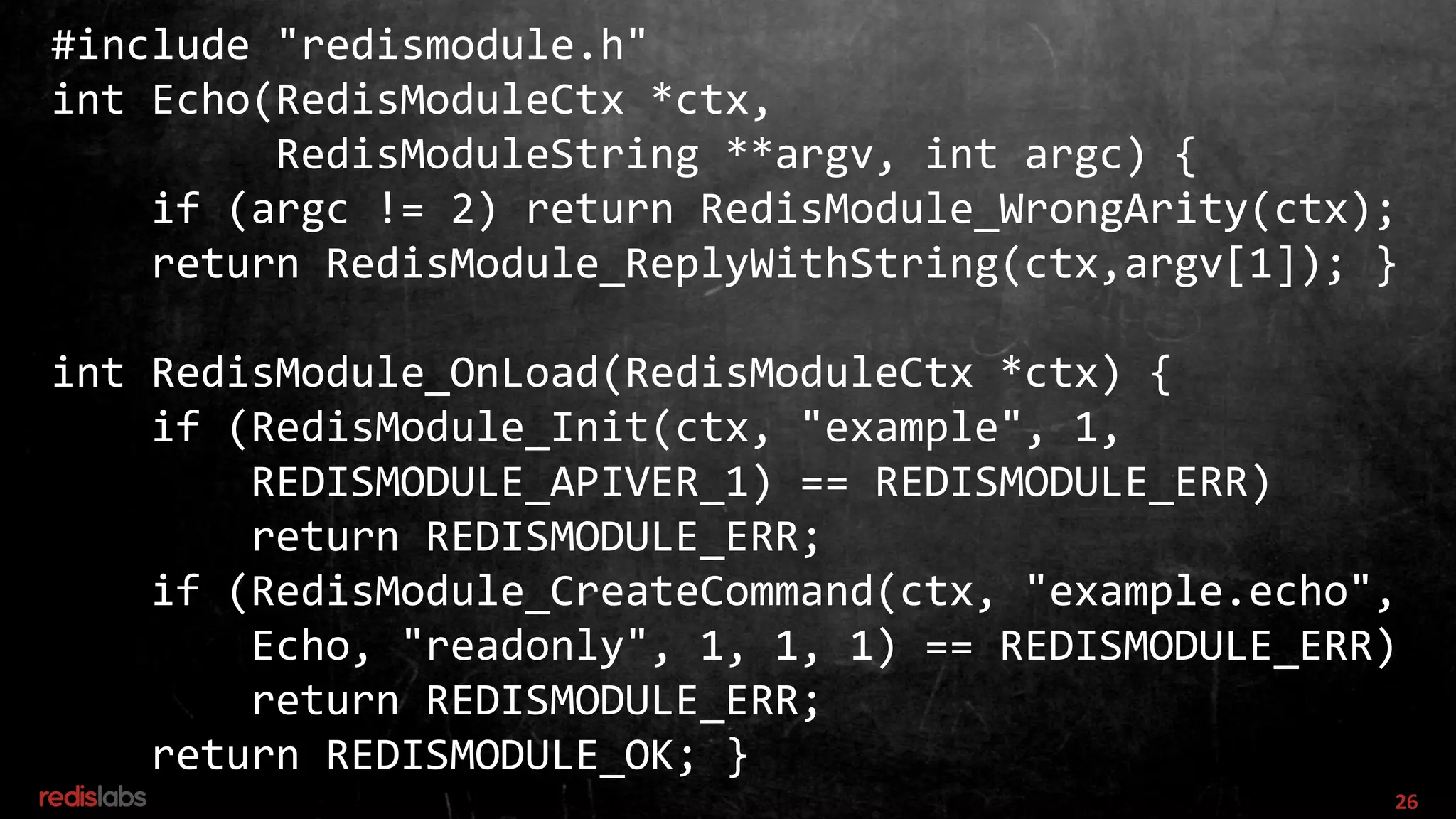

26. 26
#include "redismodule.h"
int Echo(RedisModuleCtx *ctx,
RedisModuleString **argv, int argc) {
if (argc != 2) return RedisModule_WrongArity(ctx);
return RedisModule_ReplyWithString(ctx,argv[1]); }
int RedisModule_OnLoad(RedisModuleCtx *ctx) {
if (RedisModule_Init(ctx, "example", 1,
REDISMODULE_APIVER_1) == REDISMODULE_ERR)
return REDISMODULE_ERR;
if (RedisModule_CreateCommand(ctx, "example.echo",
Echo, "readonly", 1, 1, 1) == REDISMODULE_ERR)
return REDISMODULE_ERR;
return REDISMODULE_OK; }

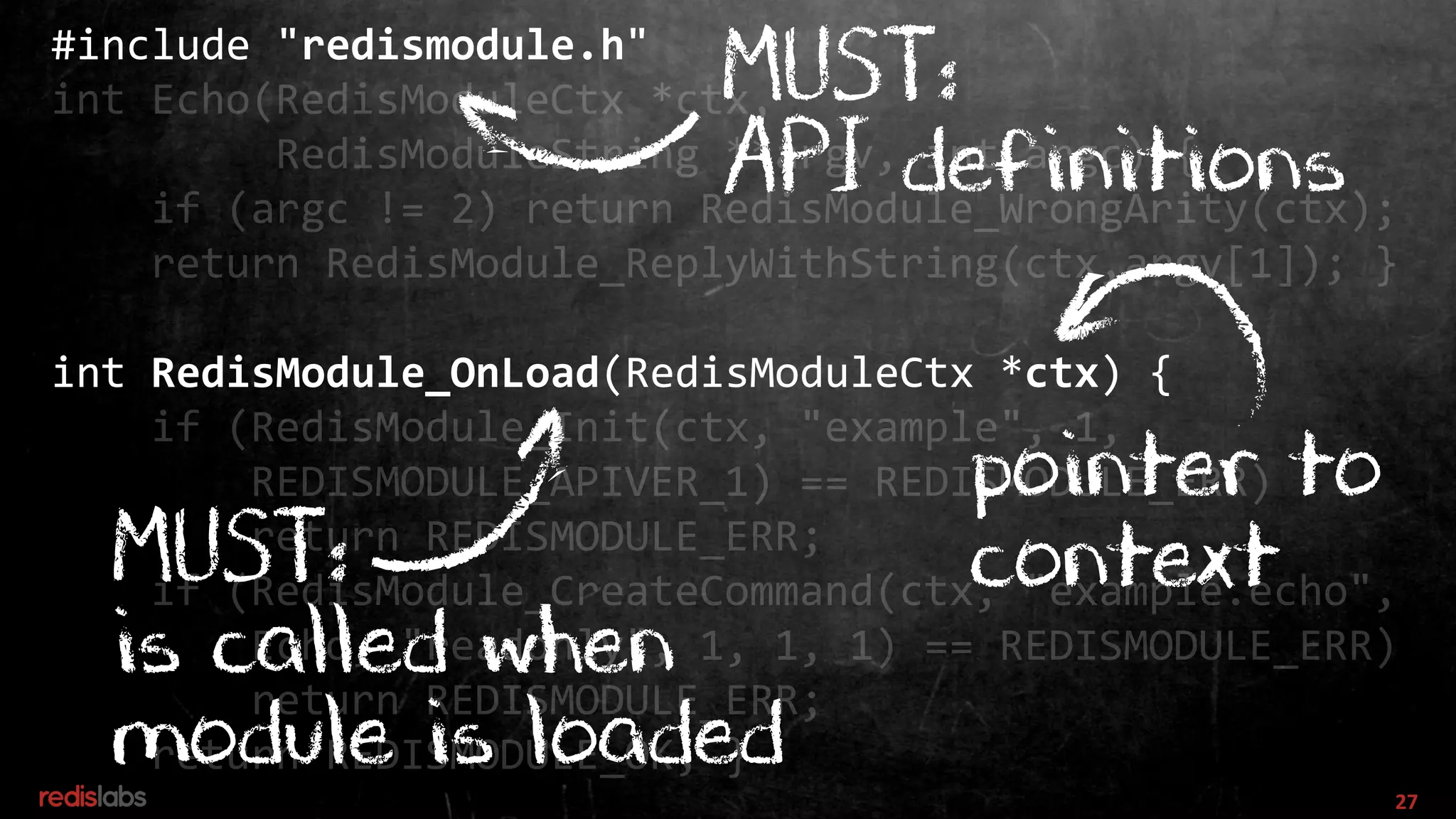

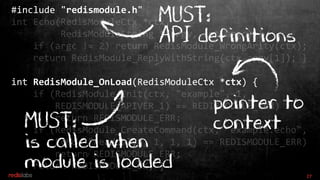

27. 27
#include "redismodule.h"
int RedisModule_OnLoad(RedisModuleCtx *ctx) {
MUST:
API definitions
MUST:
is called when
module is loaded
pointer to
context

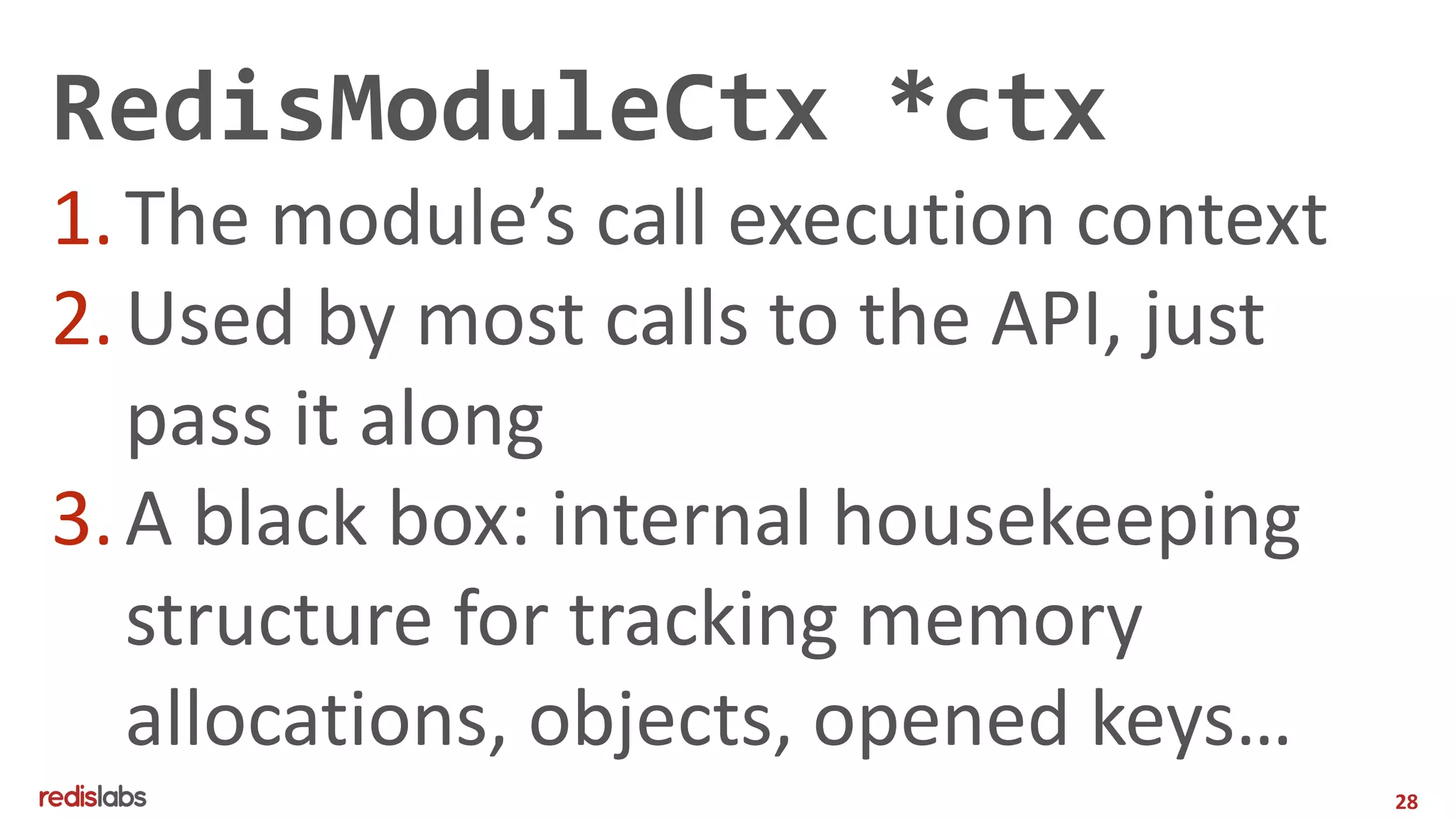

28. 28
RedisModuleCtx *ctx
1.The module’s call execution context
2.Used by most calls to the API, just
pass it along
3.A black box: internal housekeeping
structure for tracking memory
allocations, objects, opened keys…

29. 29
if (RedisModule_Init(ctx, "example", 1,
REDISMODULE_APIVER_1) == REDISMODULE_ERR)
return REDISMODULE_ERR;
if (RedisModule_CreateCommand(ctx, "example.echo",
Echo, "readonly", 1, 1, 1) == REDISMODULE_ERR)
return REDISMODULE_ERR;
register the
command
register the module
or die trying

30. 30

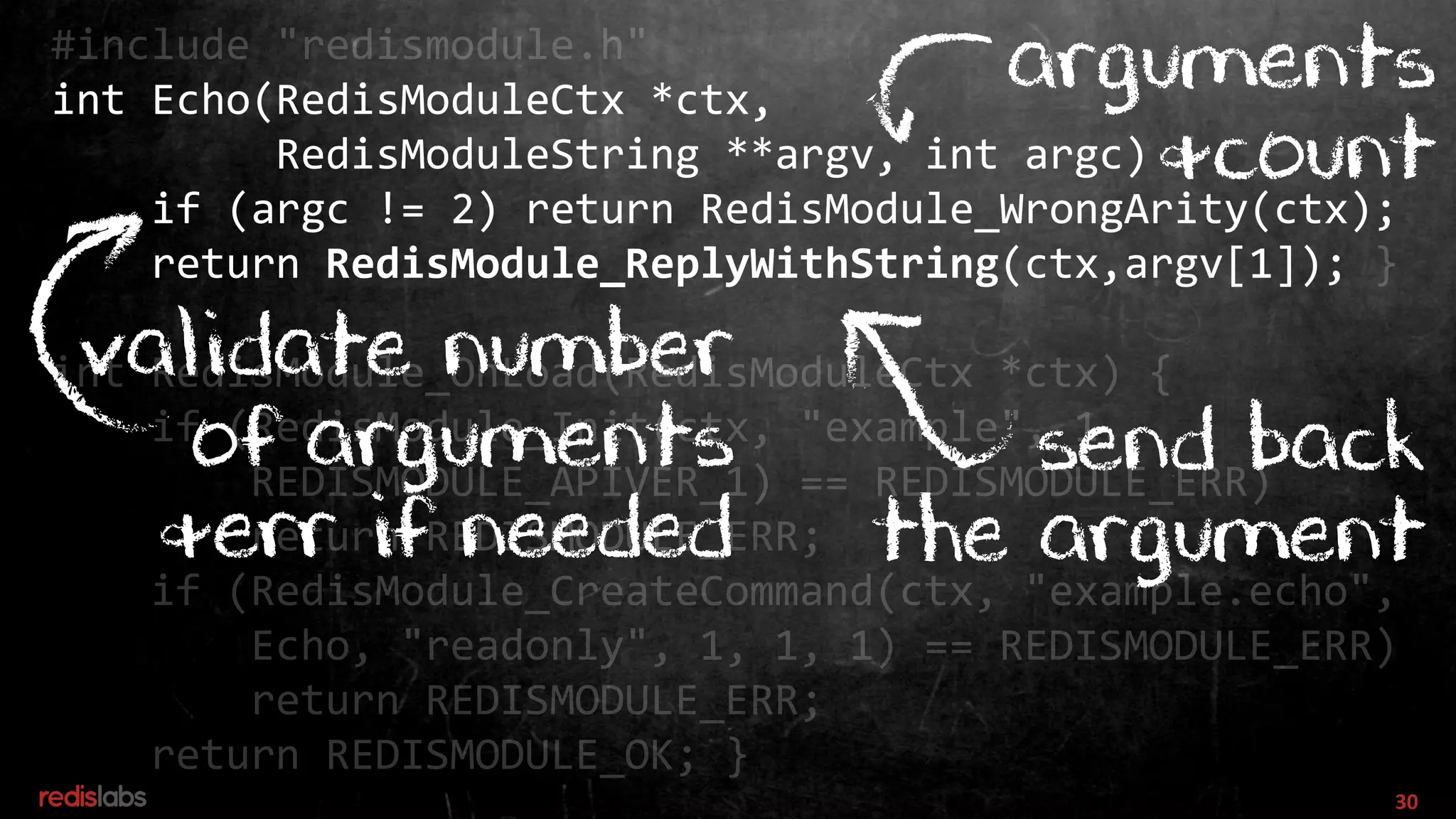

int Echo(RedisModuleCtx *ctx,
RedisModuleString **argv, int argc)
if (argc != 2) return RedisModule_WrongArity(ctx);
return RedisModule_ReplyWithString(ctx,argv[1]);
validate number
of arguments
&err if needed
arguments
&count
send back
the argument

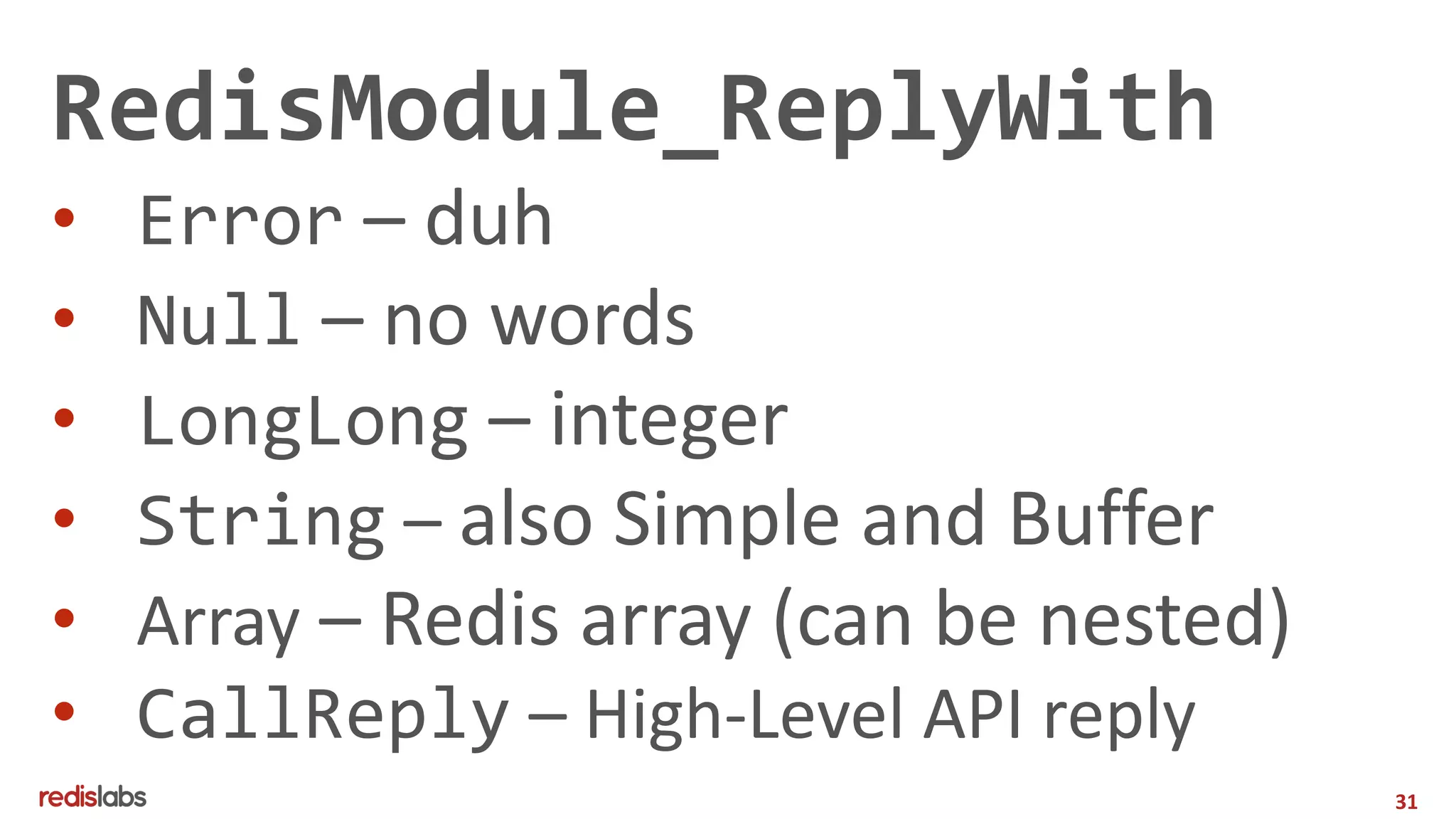

31. 31

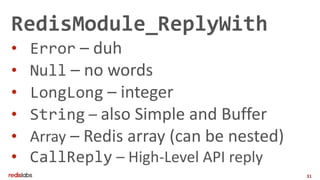

RedisModule_ReplyWith
• Error – duh
• Null – no words
• LongLong – integer
• String – also Simple and Buffer
• Array – Redis array (can be nested)
• CallReply – High-Level API reply

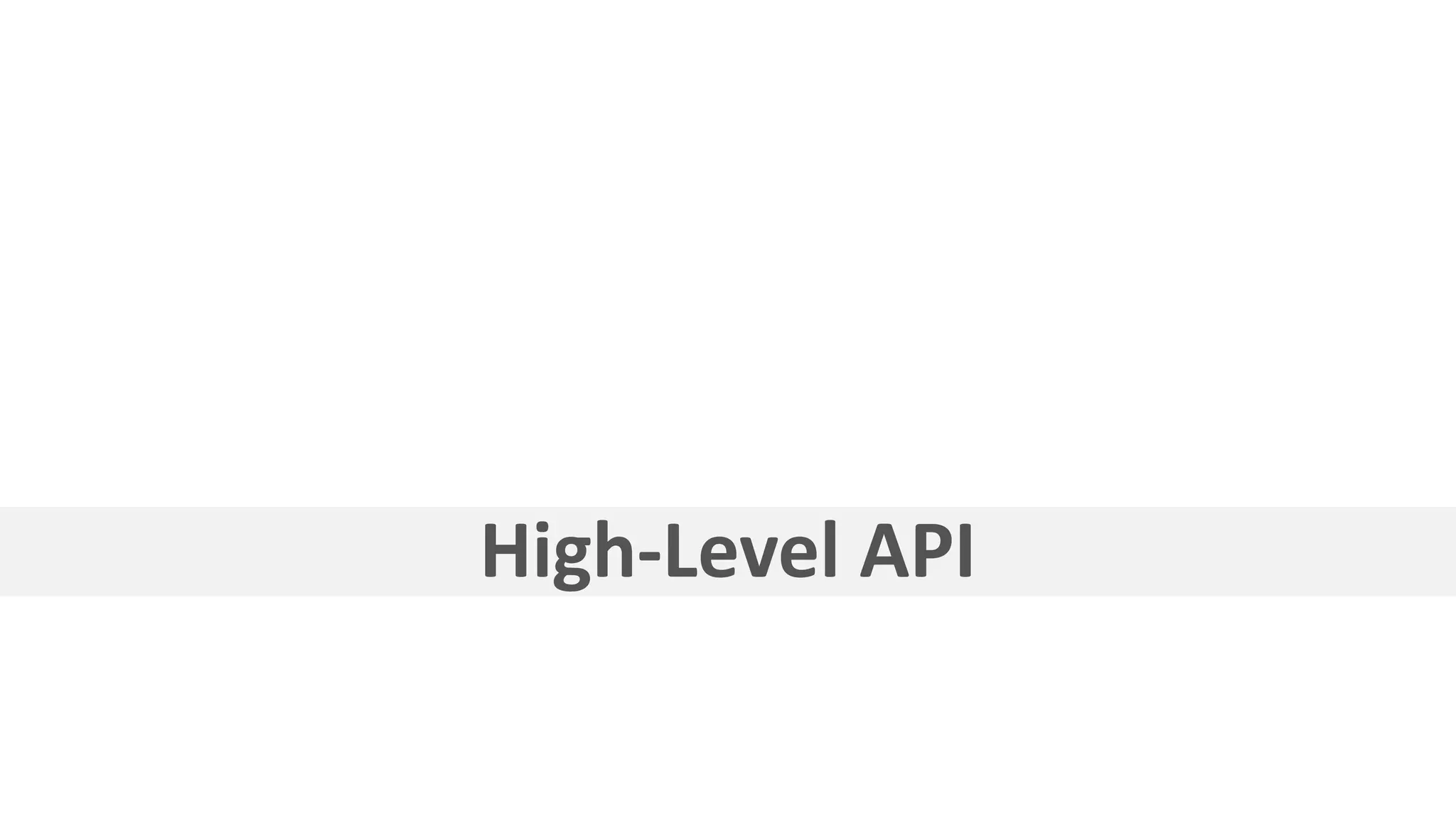

32. High-Level API

33. 33

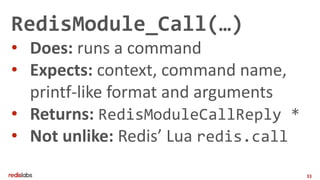

RedisModule_Call(…)
• Does: runs a command
• Expects: context, command name,
printf-like format and arguments
• Returns: RedisModuleCallReply *
• Not unlike: Redis’ Lua redis.call

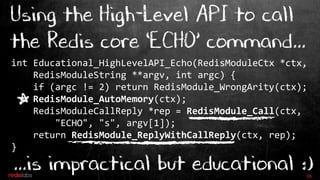

34. 35

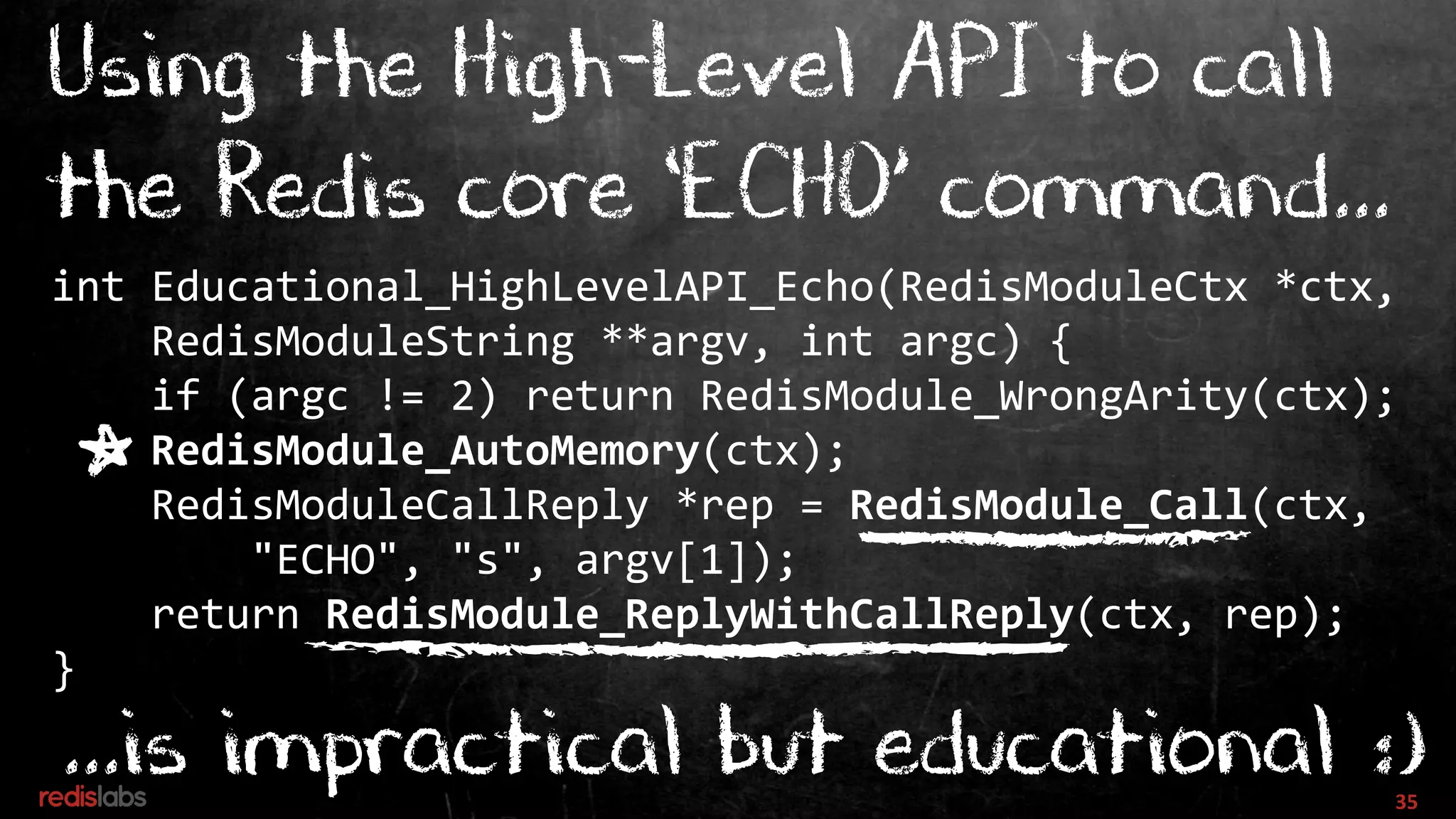

int Educational_HighLevelAPI_Echo(RedisModuleCtx *ctx,
RedisModuleString **argv, int argc) {
if (argc != 2) return RedisModule_WrongArity(ctx);
RedisModule_AutoMemory(ctx);
RedisModuleCallReply *rep = RedisModule_Call(ctx,
"ECHO", "s", argv[1]);
return RedisModule_ReplyWithCallReply(ctx, rep);
}
Using the High-Level API to call
the Redis core ‘ECHO’ command...
...is impractical but educational :)

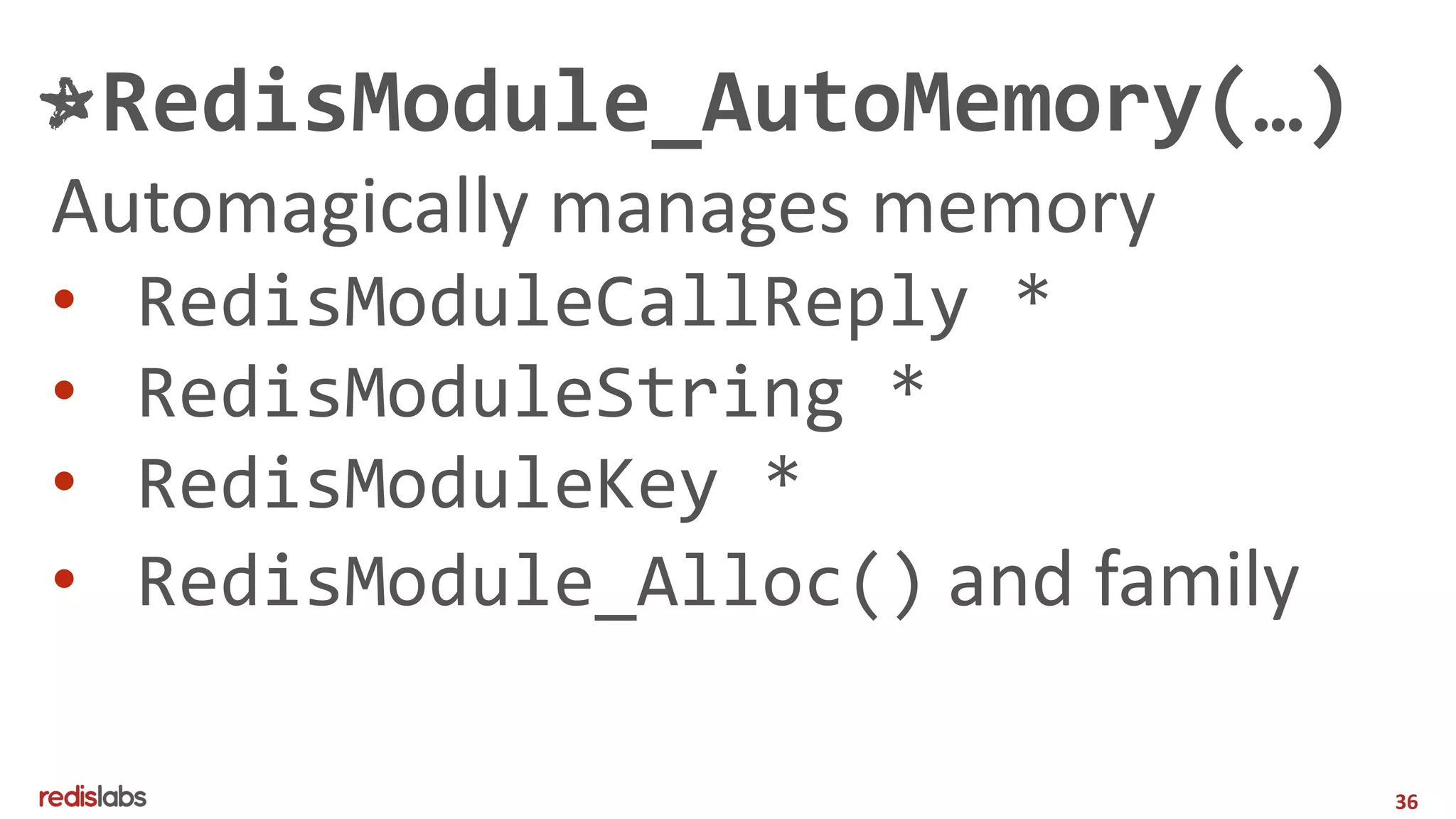

35. 36
RedisModule_AutoMemory(…)
Automagically manages memory
• RedisModuleCallReply *
• RedisModuleString *
• RedisModuleKey *
• RedisModule_Alloc() and family

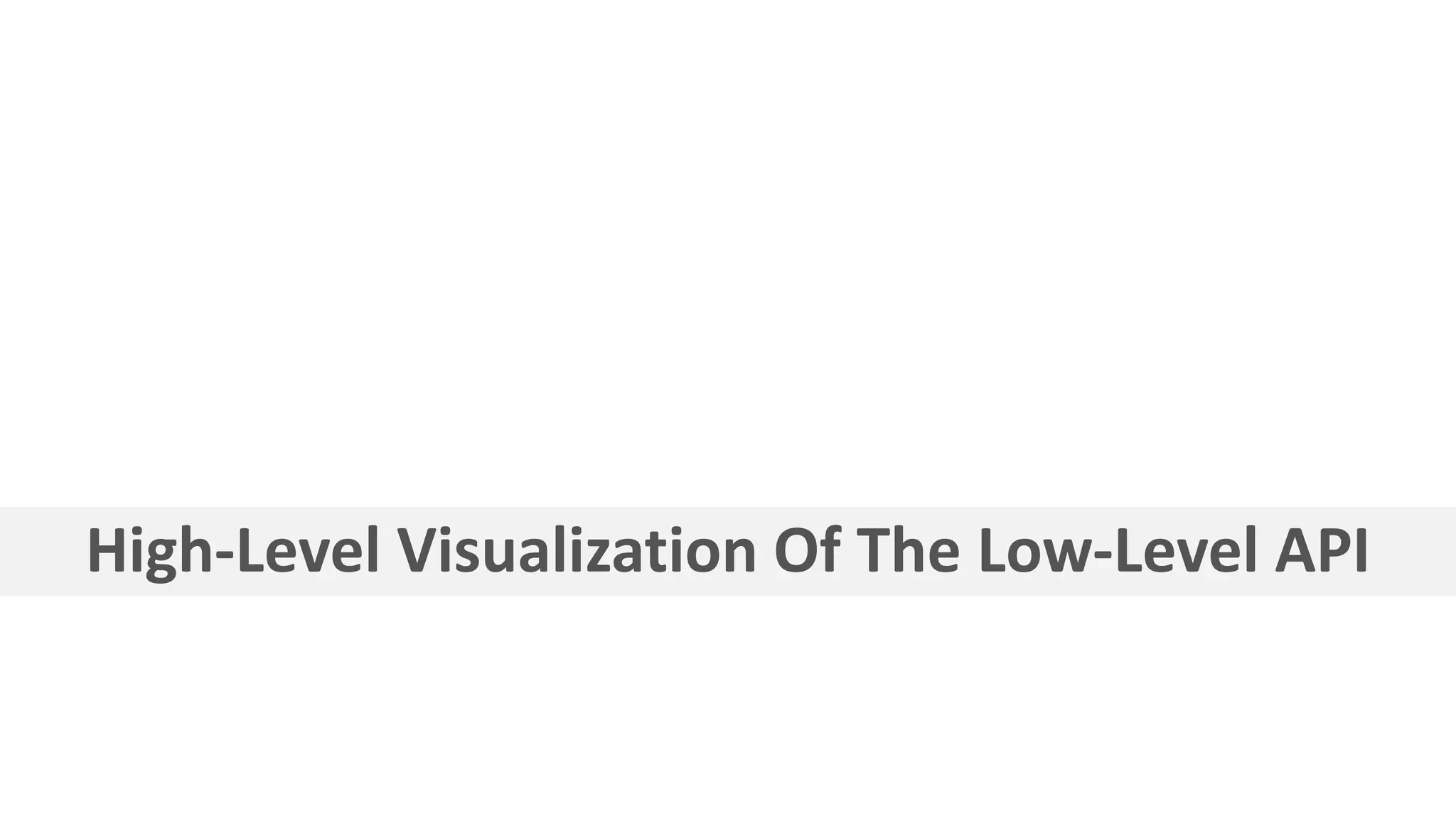

36. High-Level Visualization Of The Low-Level API

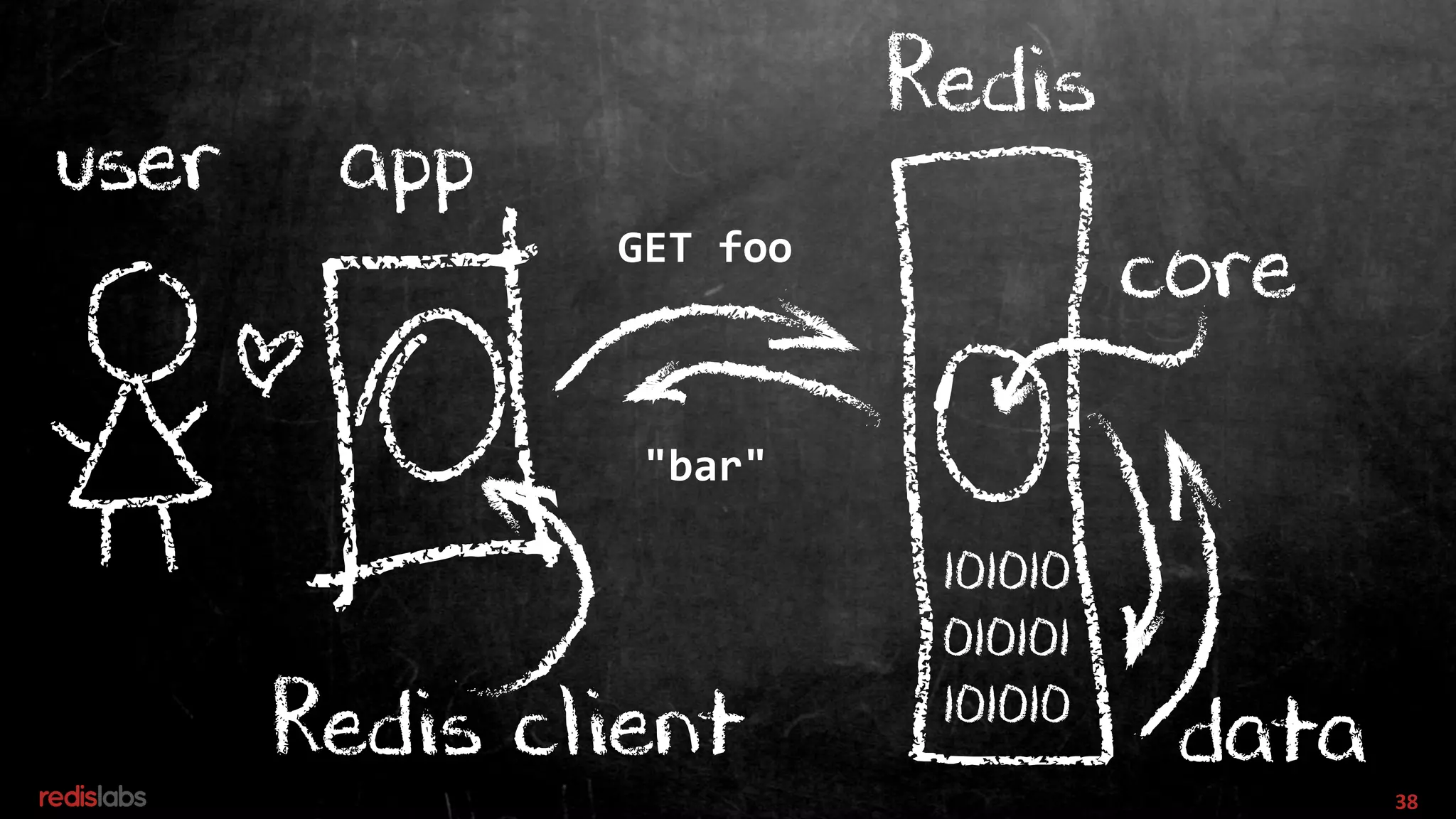

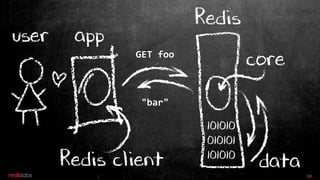

37. 38
user app
Redis client
Redis
core
data
GET foo
"bar"
101010
010101
101010

38. 39

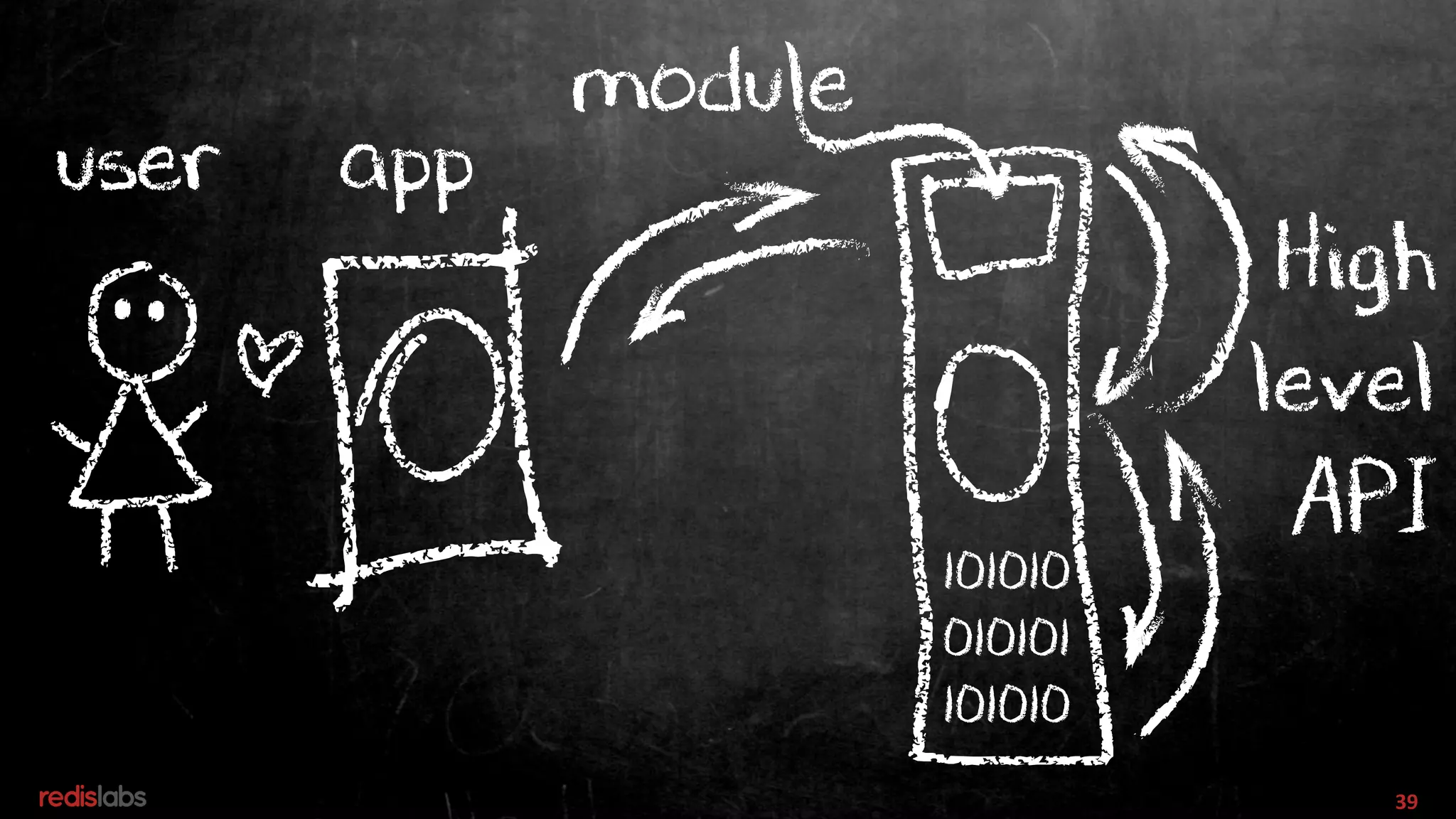

user
101010
010101
101010
High
level
API
app
module

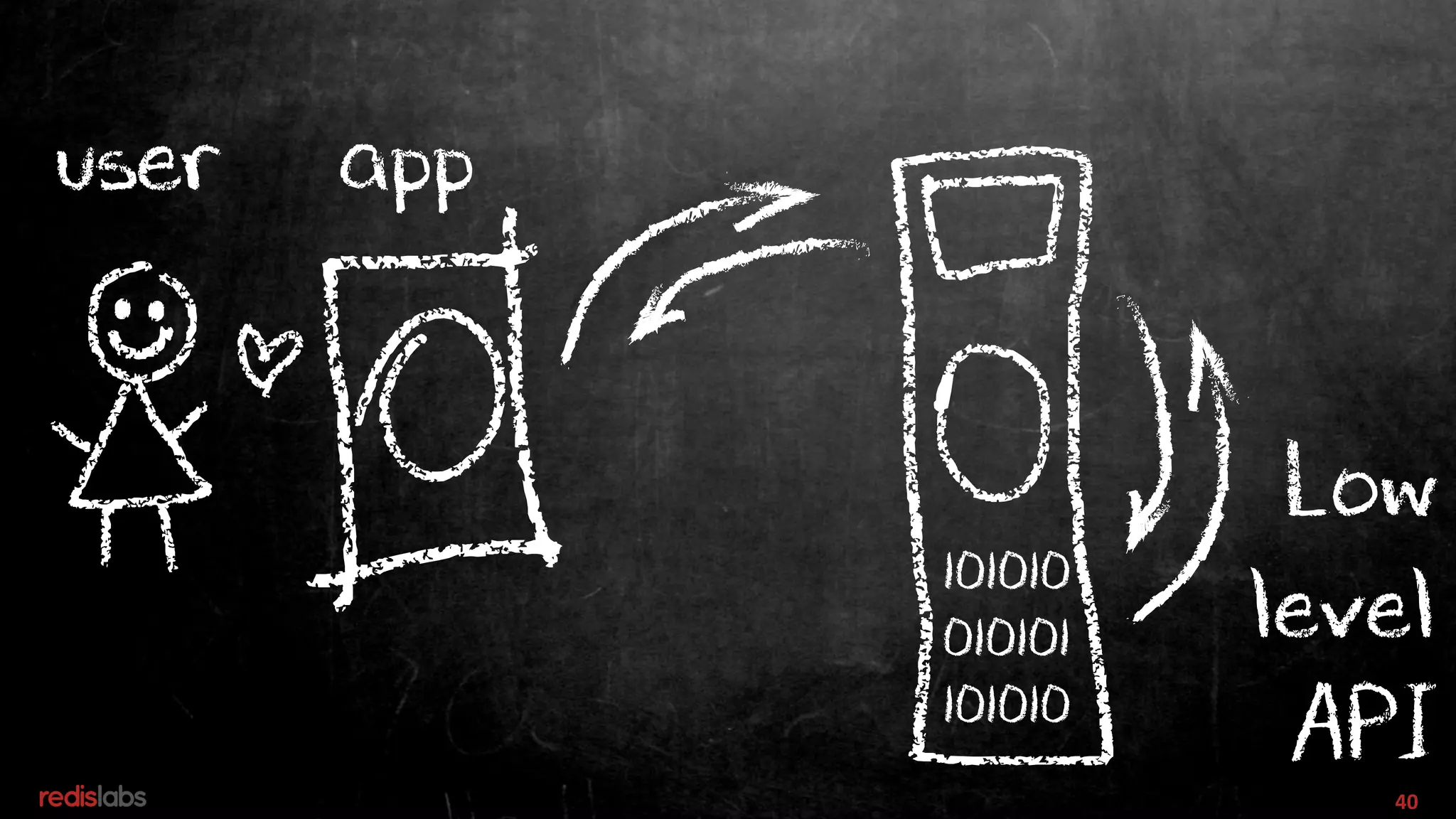

39. 40
user
101010
010101
101010
app
Low
level
API

40. 41

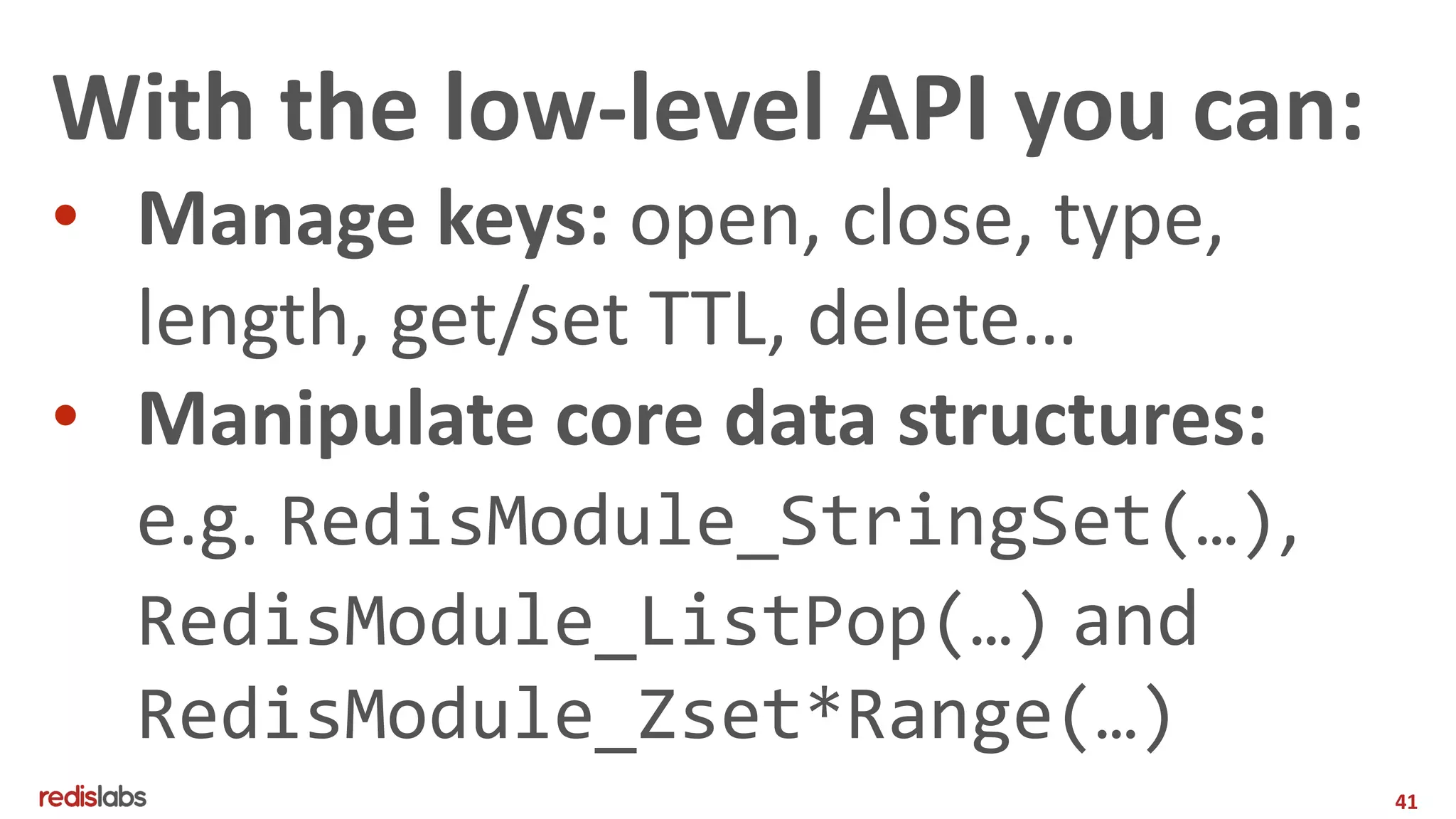

With the low-level API you can:
• Manage keys: open, close, type,
length, get/set TTL, delete…
• Manipulate core data structures:
e.g. RedisModule_StringSet(…),
RedisModule_ListPop(…) and
RedisModule_Zset*Range(…)

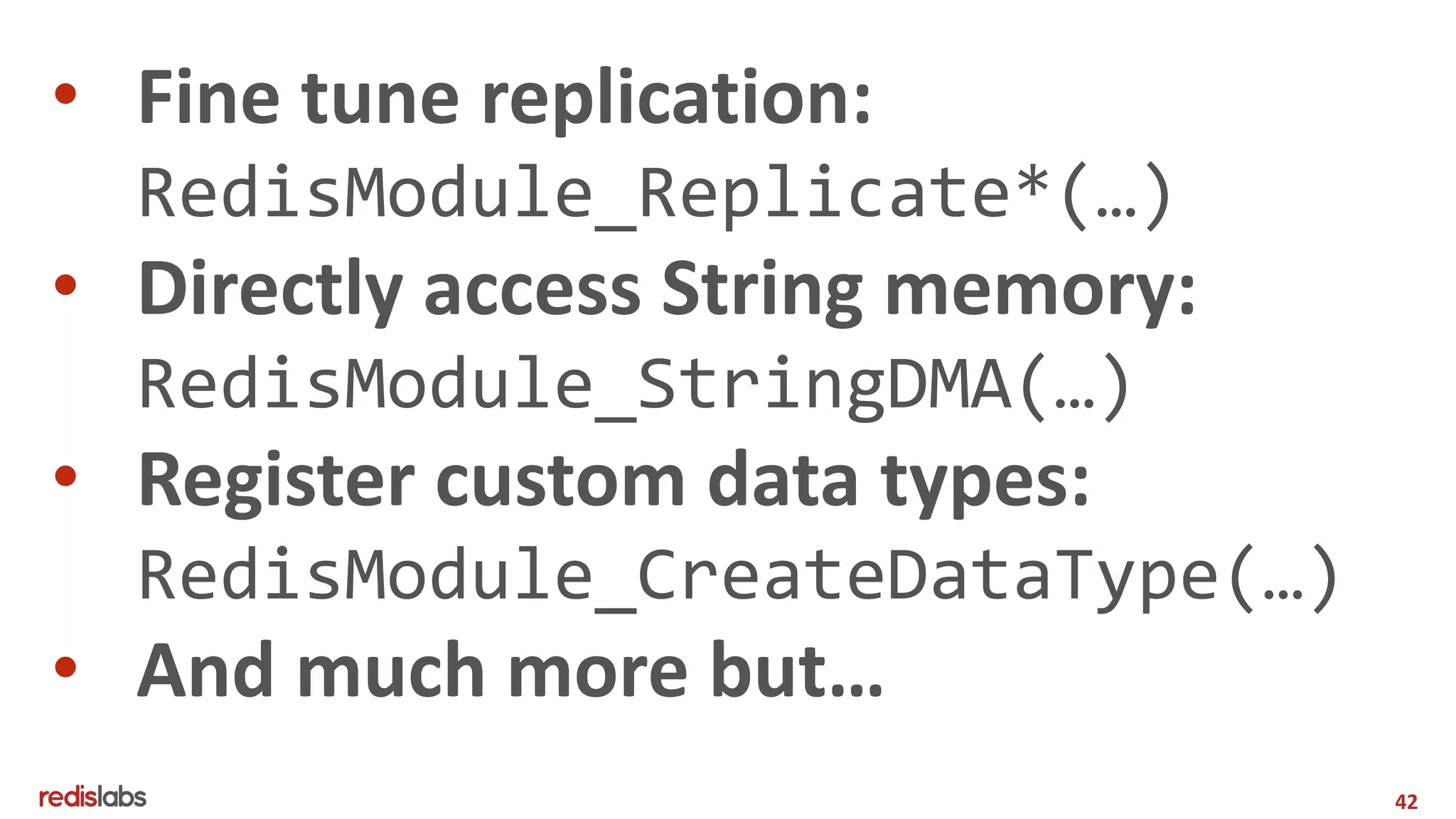

41. 42
• Fine tune replication:
RedisModule_Replicate*(…)
• Directly access String memory:
RedisModule_StringDMA(…)
• Register custom data types:
RedisModule_CreateDataType(…)
• And much more but…

42. 43

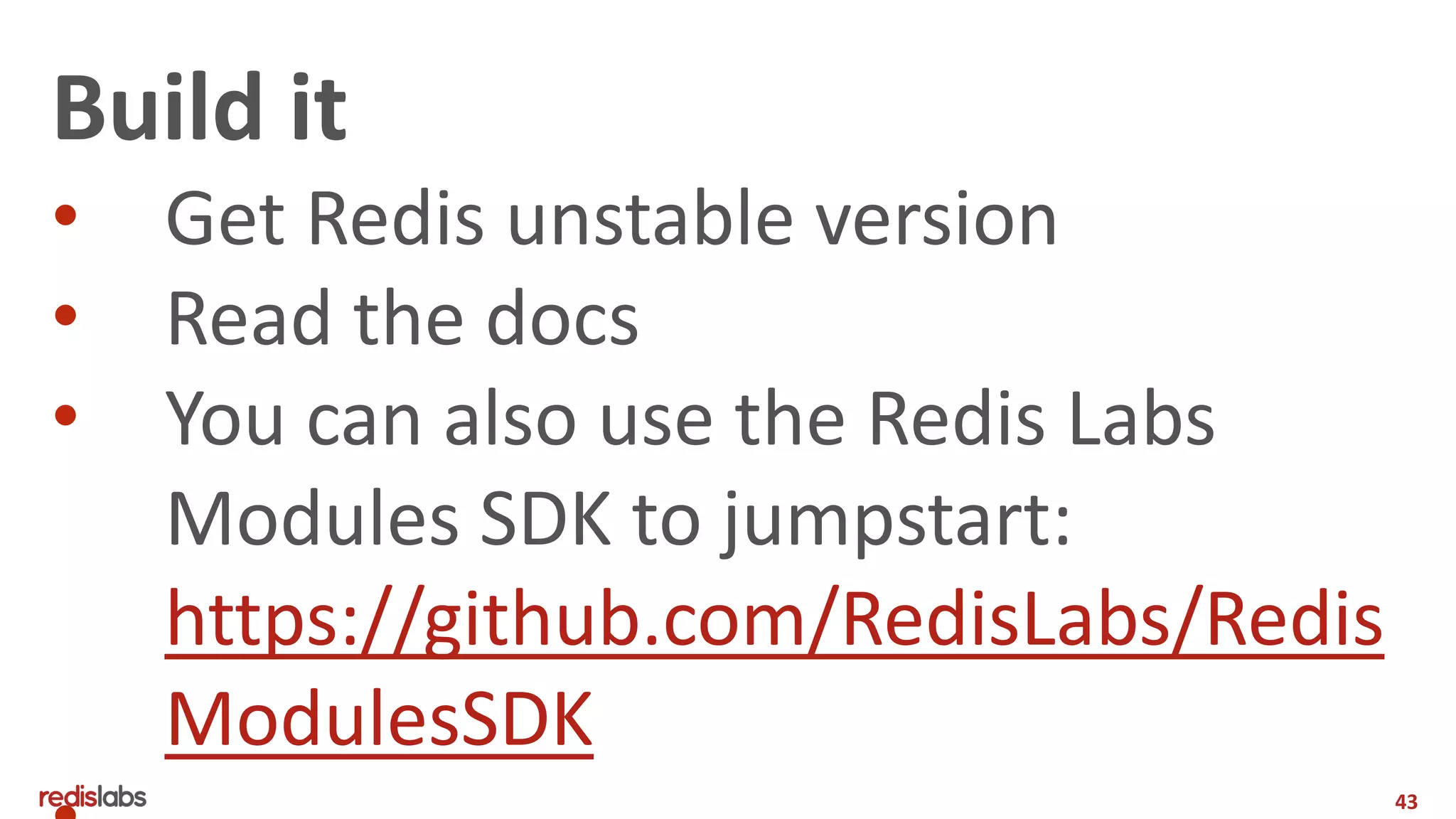

Build it
• Get Redis unstable version
• Read the docs
• You can also use the Redis Labs
Modules SDK to jumpstart:
https://github.com/RedisLabs/Redis
ModulesSDK

43. The Benchmark (Why Bother with Modules?)

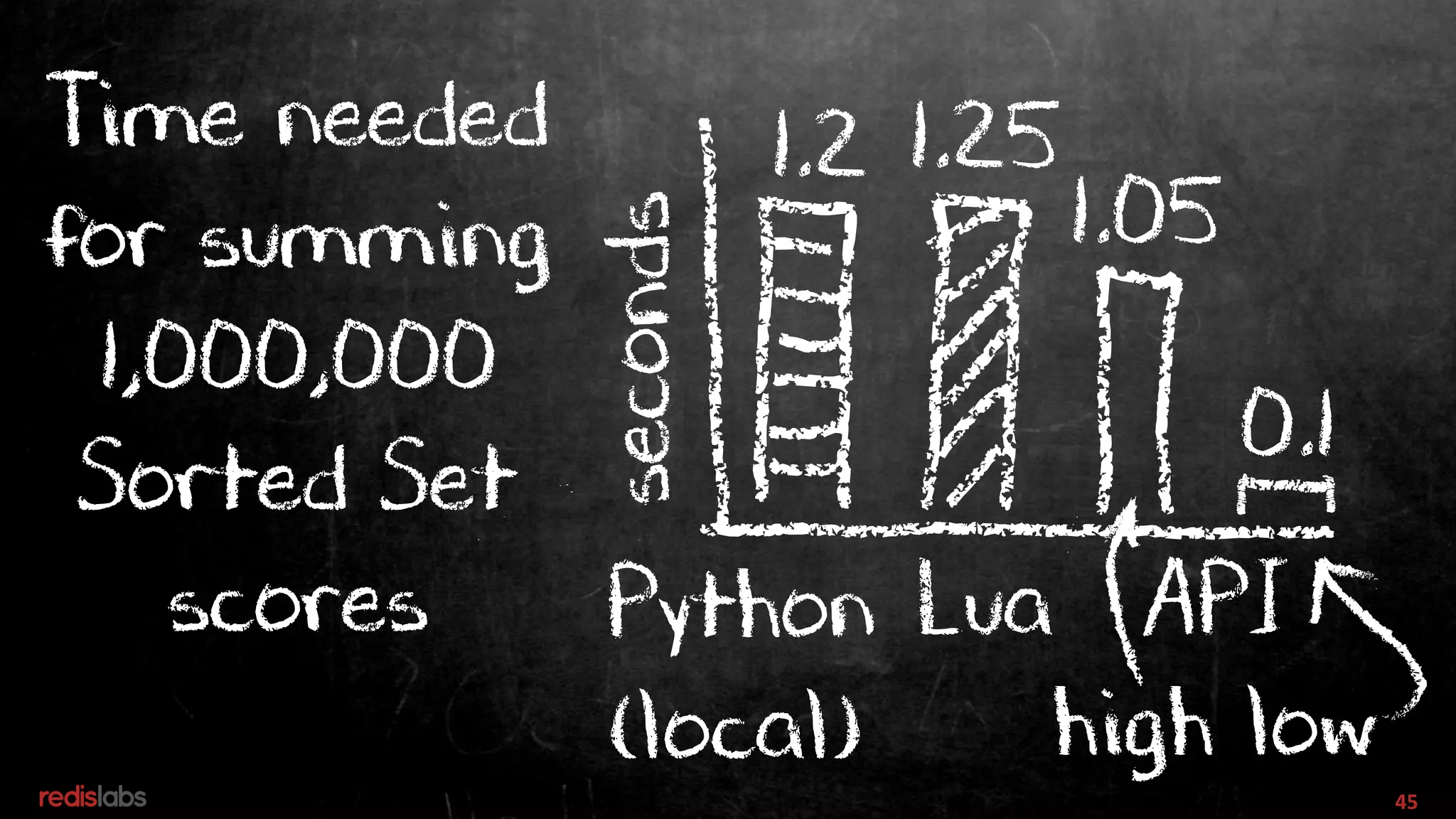

44. 45

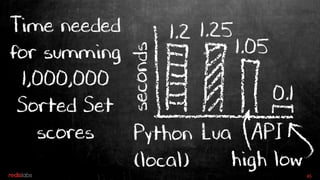

1.2 1.25
1.05
0.1
seconds
Time needed
for summing
1,000,000
Sorted Set
scores Python
(local)
Lua API
high low

45. 46
On average
about 63.79%
of all statistics
are made up

46. Probabilistic Data Structures (PDSs)

47. 48
There are three kinds
of people in the world;
those who can count
and those who can’t.

48. 49
There are three kinds
of data structures…
…and those who both
can count and can’t.

49. 50

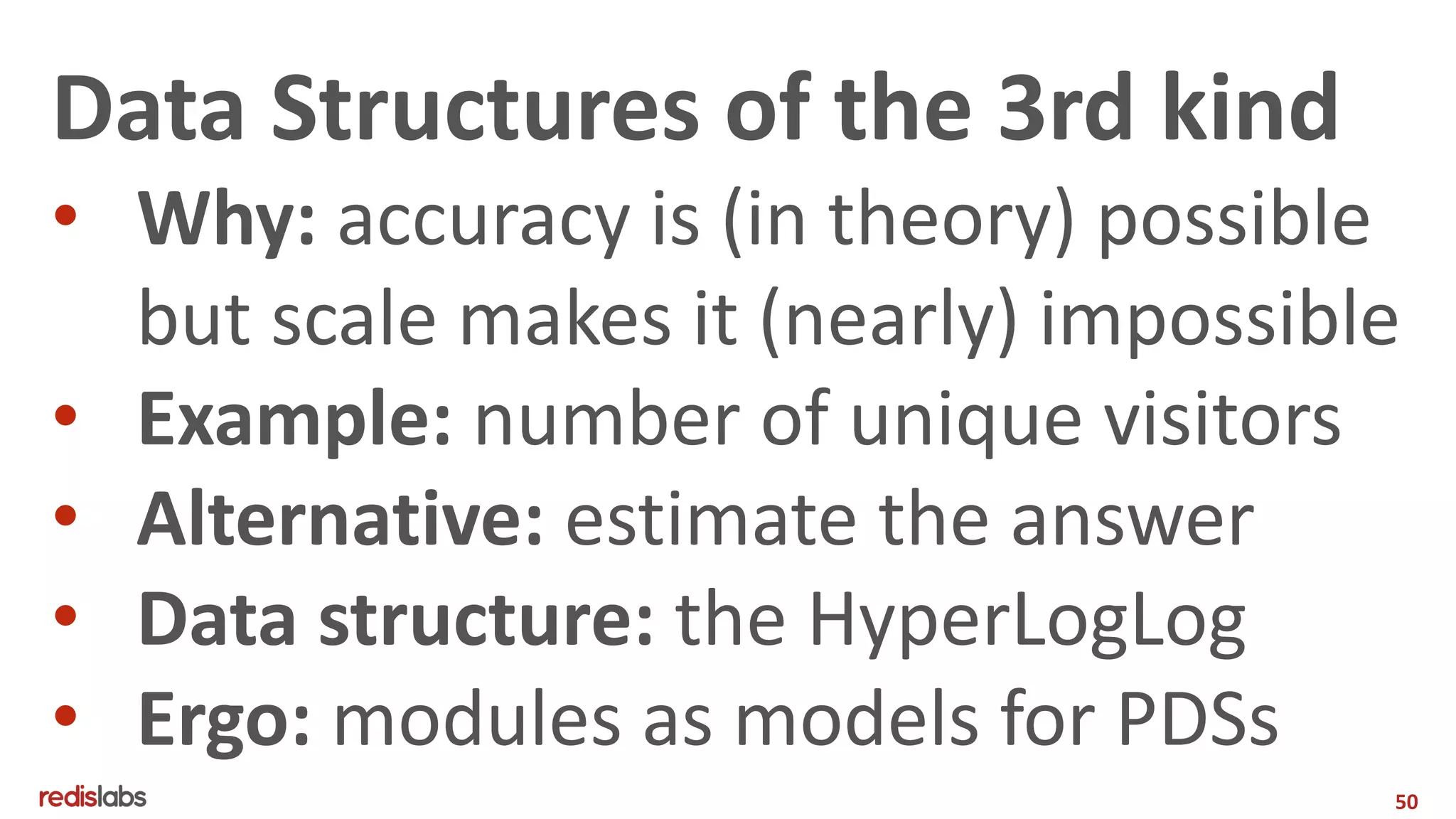

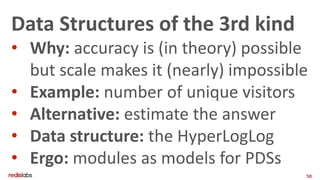

Data Structures of the 3rd kind
• Why: accuracy is (in theory) possible
but scale makes it (nearly) impossible
• Example: number of unique visitors
• Alternative: estimate the answer
• Data structure: the HyperLogLog
• Ergo: modules as models for PDSs

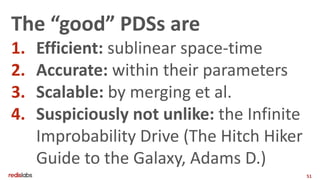

50. 51

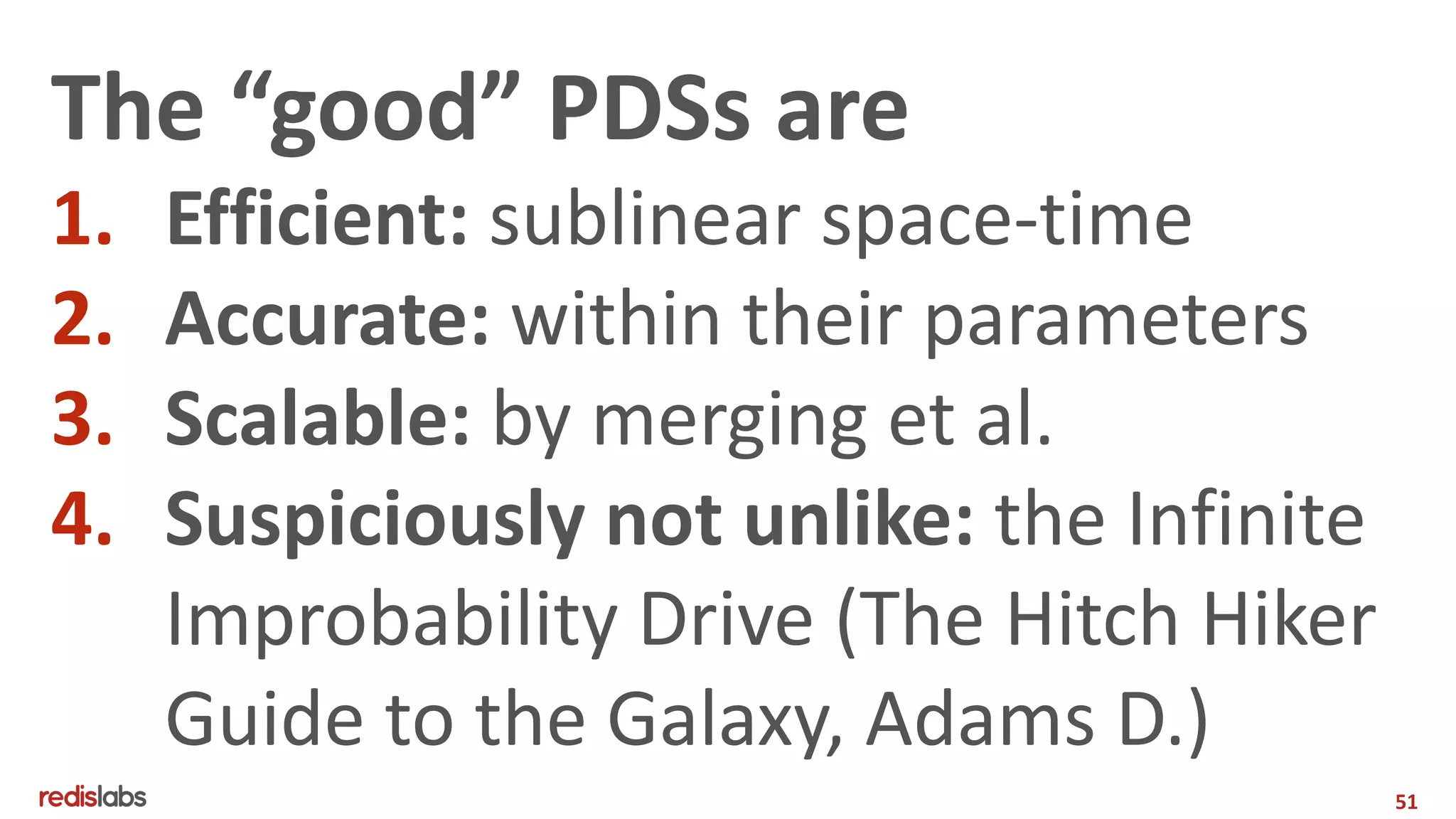

The “good” PDSs are
1. Efficient: sublinear space-time
2. Accurate: within their parameters
3. Scalable: by merging et al.
4. Suspiciously not unlike: the Infinite
Improbability Drive (The Hitch Hiker
Guide to the Galaxy, Adams D.)

51. 52

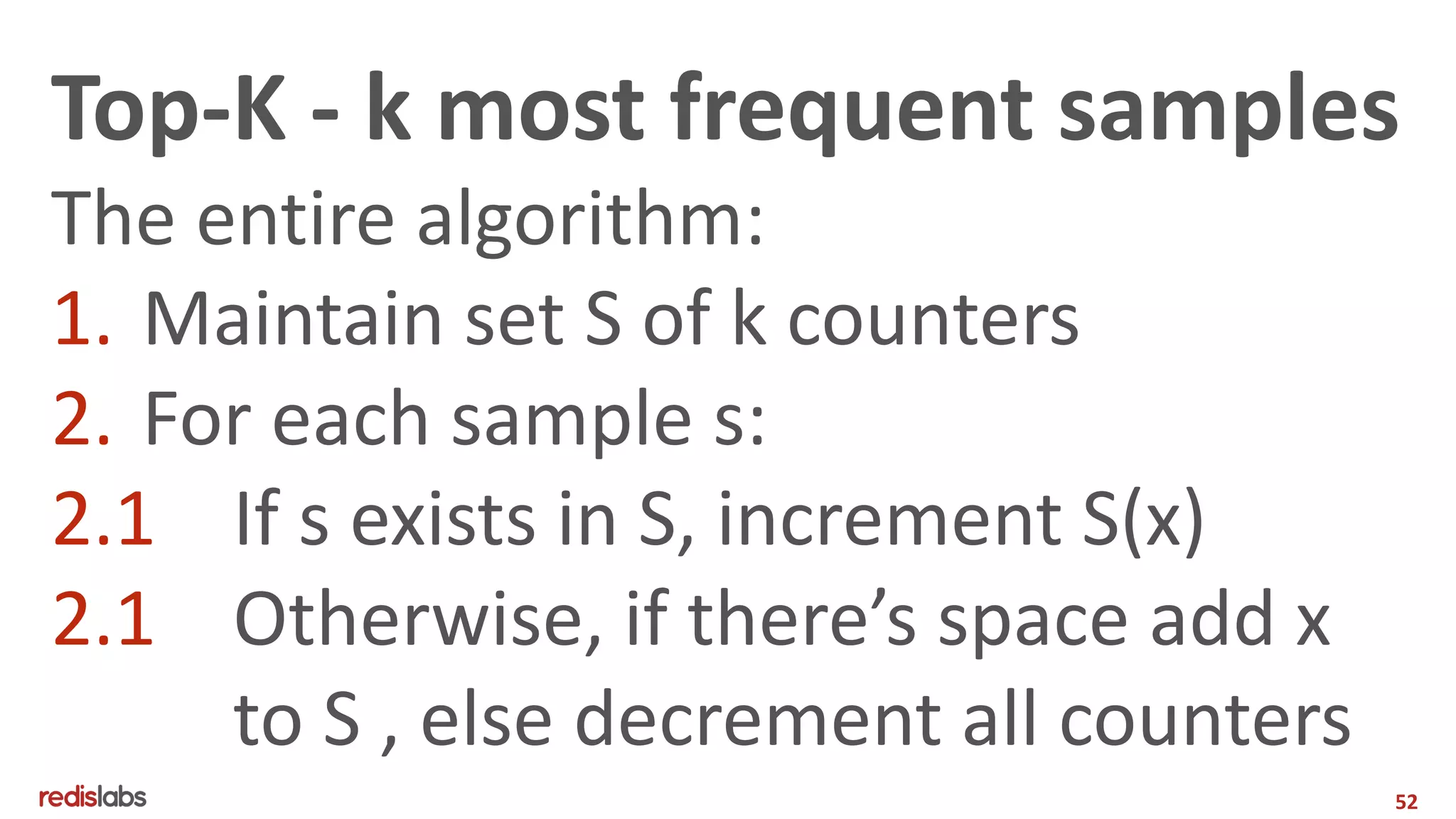

Top-K - k most frequent samples
The entire algorithm:
1. Maintain set S of k counters
2. For each sample s:
2.1 If s exists in S, increment S(x)
2.1 Otherwise, if there’s space add x
to S , else decrement all counters

52. 53

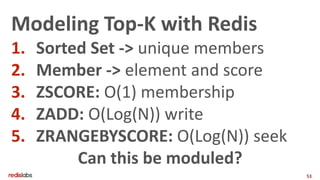

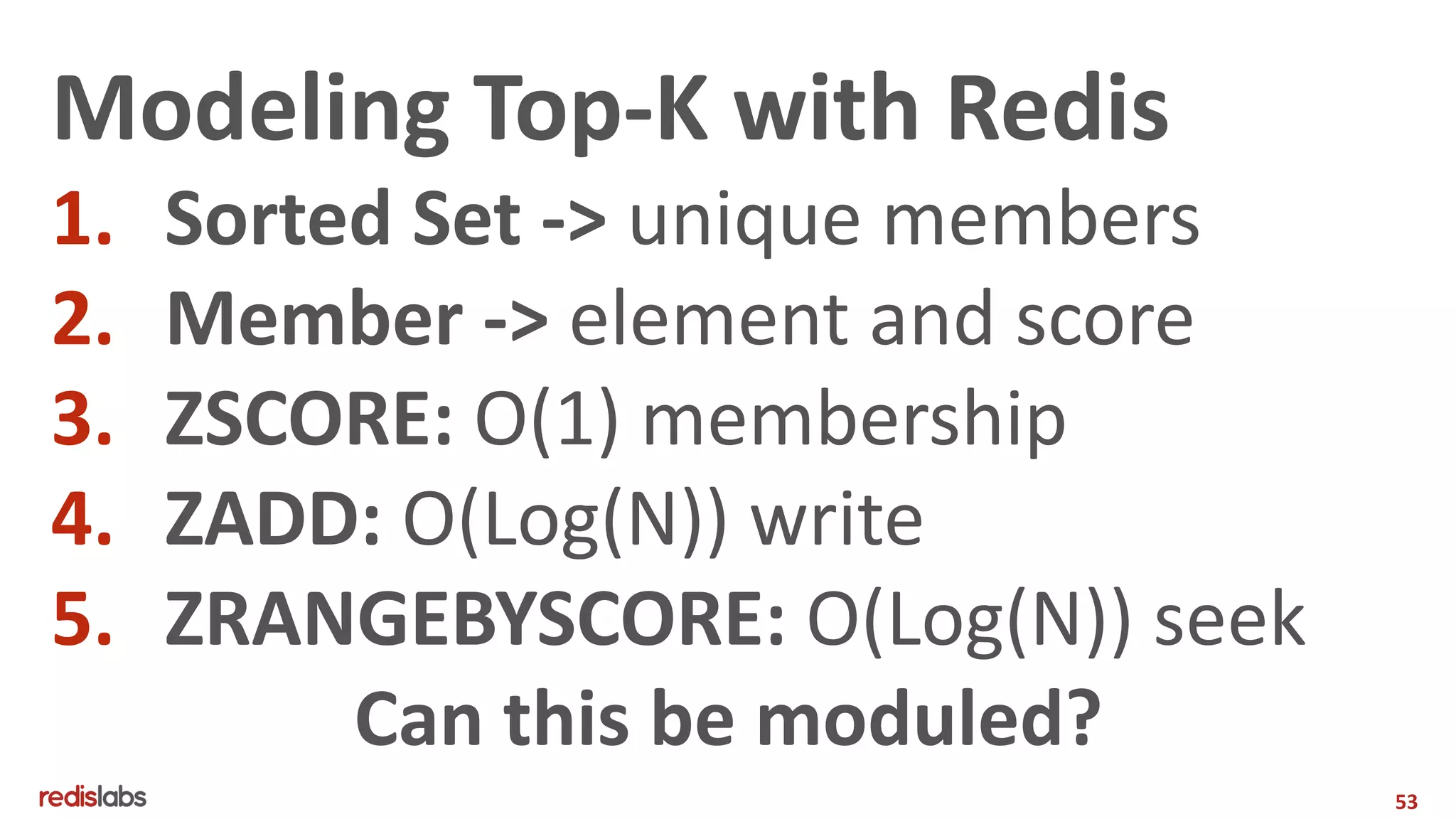

Modeling Top-K with Redis
1. Sorted Set -> unique members
2. Member -> element and score
3. ZSCORE: O(1) membership
4. ZADD: O(Log(N)) write
5. ZRANGEBYSCORE: O(Log(N)) seek
Can this be moduled?

53. 54

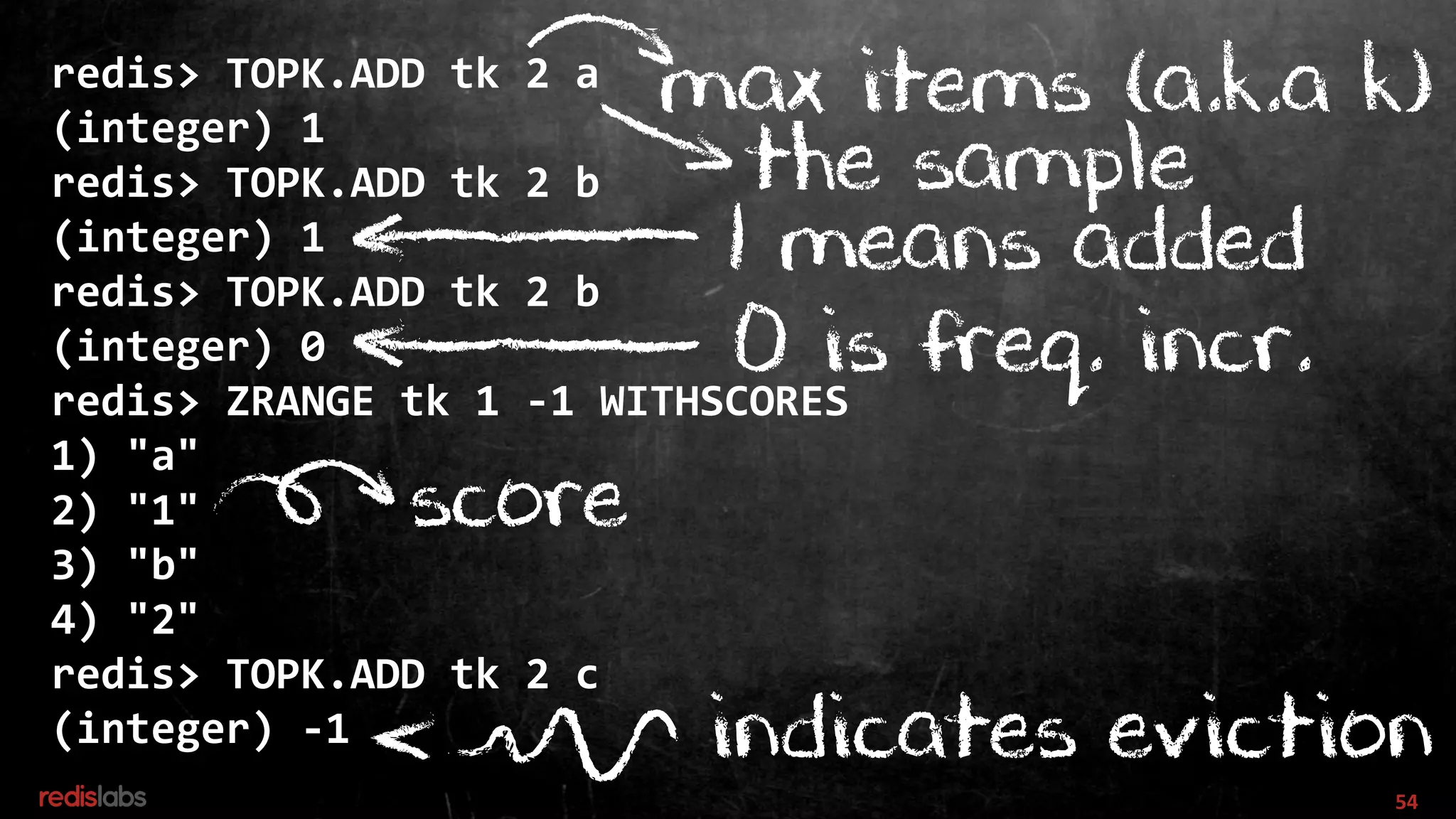

redis> TOPK.ADD tk 2 a
(integer) 1
redis> TOPK.ADD tk 2 b
(integer) 1
redis> TOPK.ADD tk 2 b
(integer) 0
redis> ZRANGE tk 1 -1 WITHSCORES
1) "a"
2) "1"
3) "b"
4) "2"
redis> TOPK.ADD tk 2 c
(integer) -1
max items (a.k.a k)
the sample
score
1 means added
0 is freq. incr.
indicates eviction

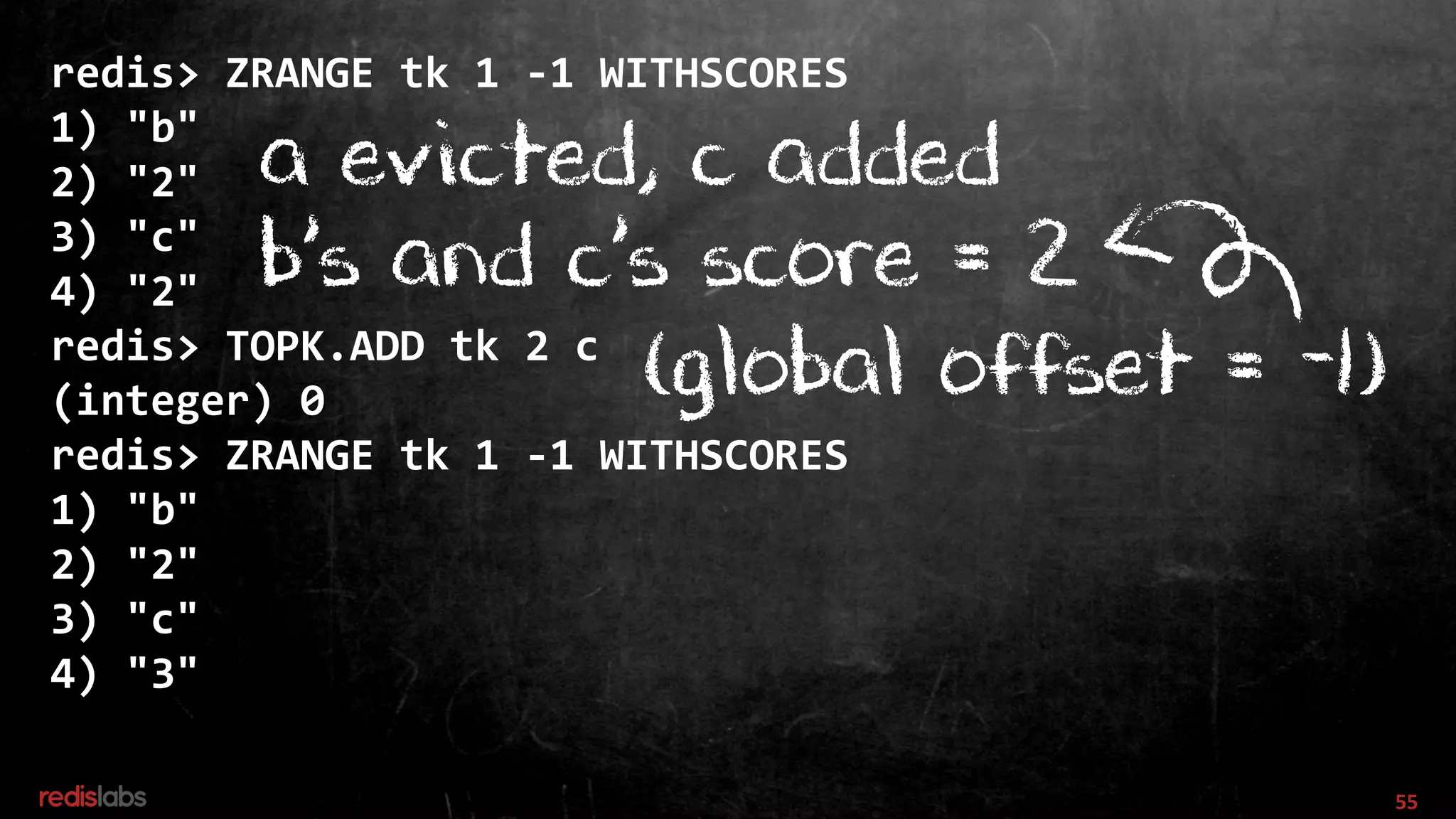

54. 55
redis> ZRANGE tk 1 -1 WITHSCORES
1) "b"
2) "2"
3) "c"
4) "2"
redis> TOPK.ADD tk 2 c
(integer) 0
redis> ZRANGE tk 1 -1 WITHSCORES
1) "b"
2) "2"
3) "c"
4) "3"
a evicted, c added
b’s and c’s score = 2
(global offset = -1)

55. 56

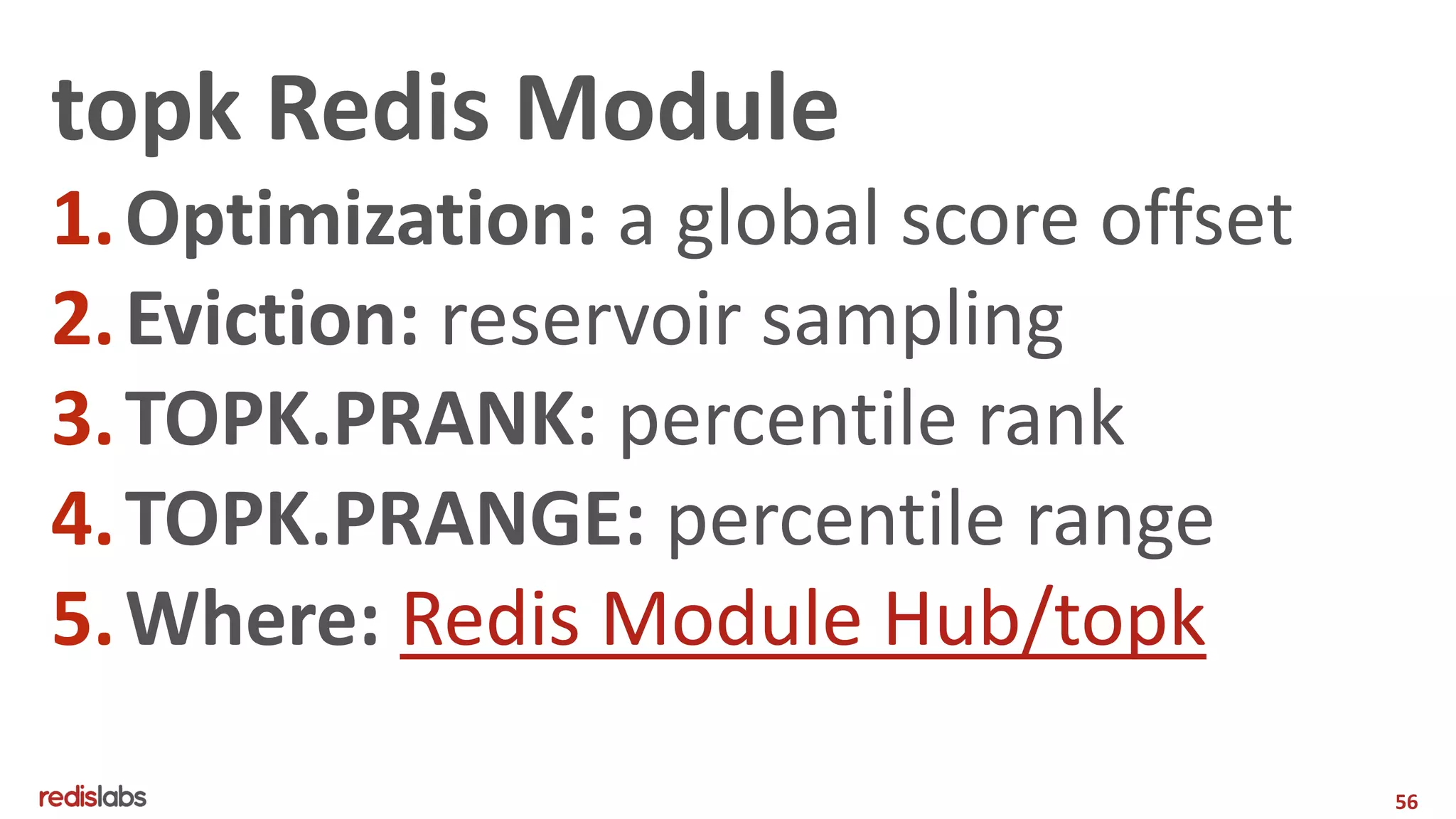

topk Redis Module
1.Optimization: a global score offset
2.Eviction: reservoir sampling
3.TOPK.PRANK: percentile rank
4.TOPK.PRANGE: percentile range

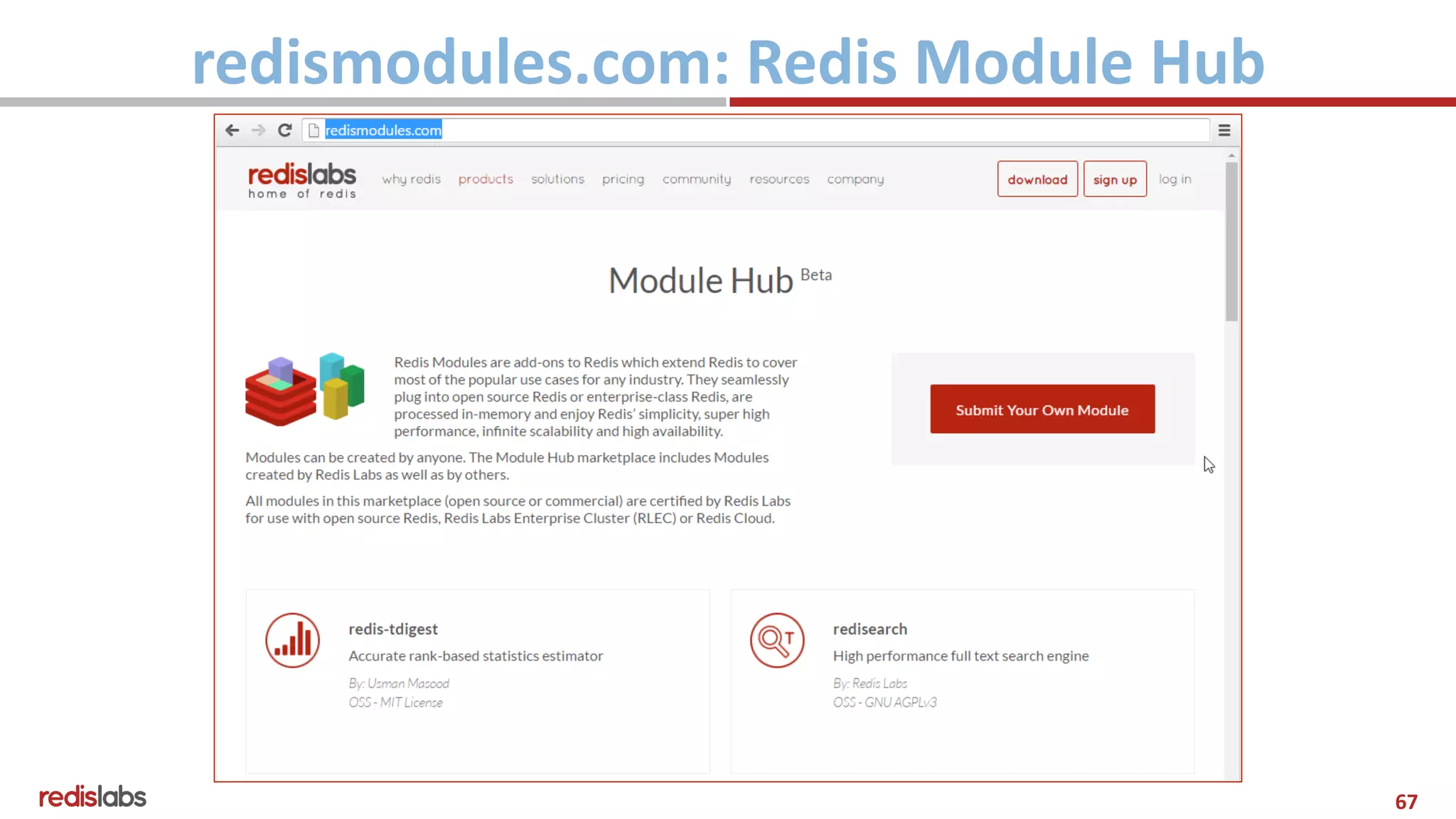

5.Where: Redis Module Hub/topk

56. 57

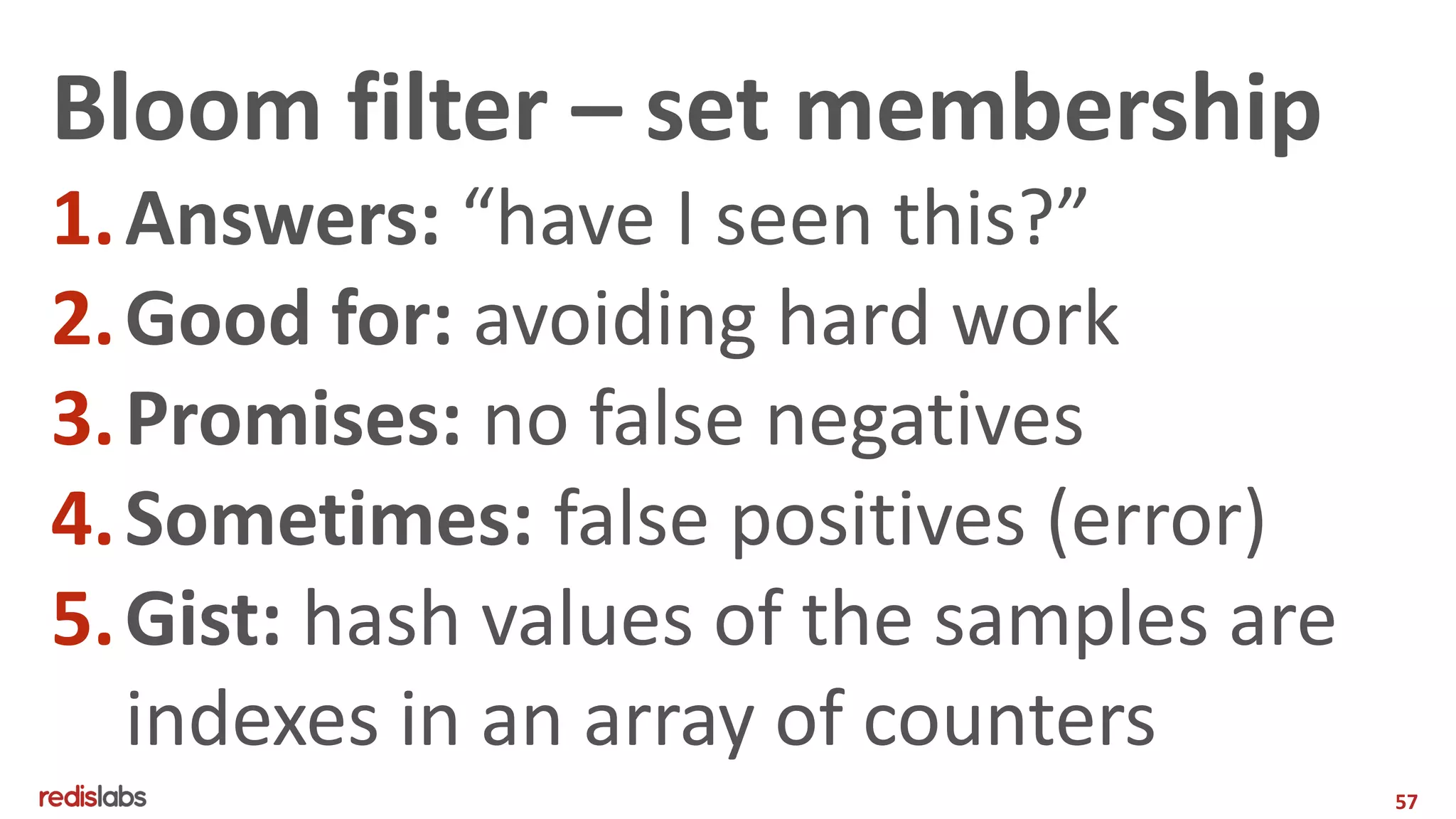

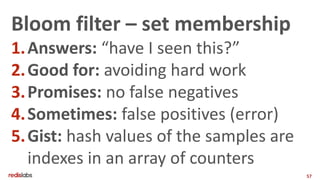

Bloom filter – set membership
1.Answers: “have I seen this?”
2.Good for: avoiding hard work
3.Promises: no false negatives
4.Sometimes: false positives (error)
5.Gist: hash values of the samples are
indexes in an array of counters

57. 58
redis> CBF.ADD bloom a
(integer) 1
redis> CBF.ADD bloom b
(integer) 2
redis> CBF.CHECK bloom a
(integer) 1
redis> CBF.CHECK bloom b
(integer) 1
redis> CBF.CHECK bloom c
(integer) 0
0 1 0 21 0
h1(a), h2(a)
h1(b), h2(b)h1(c), h2(c)

58. 59
“Good coders code,
great coders reuse.”
– Peteris Krumins

59. 60
“Good programmers know
what to write. Great ones
know what to rewrite (and
reuse)”– Eric S. Raymond

60. 61

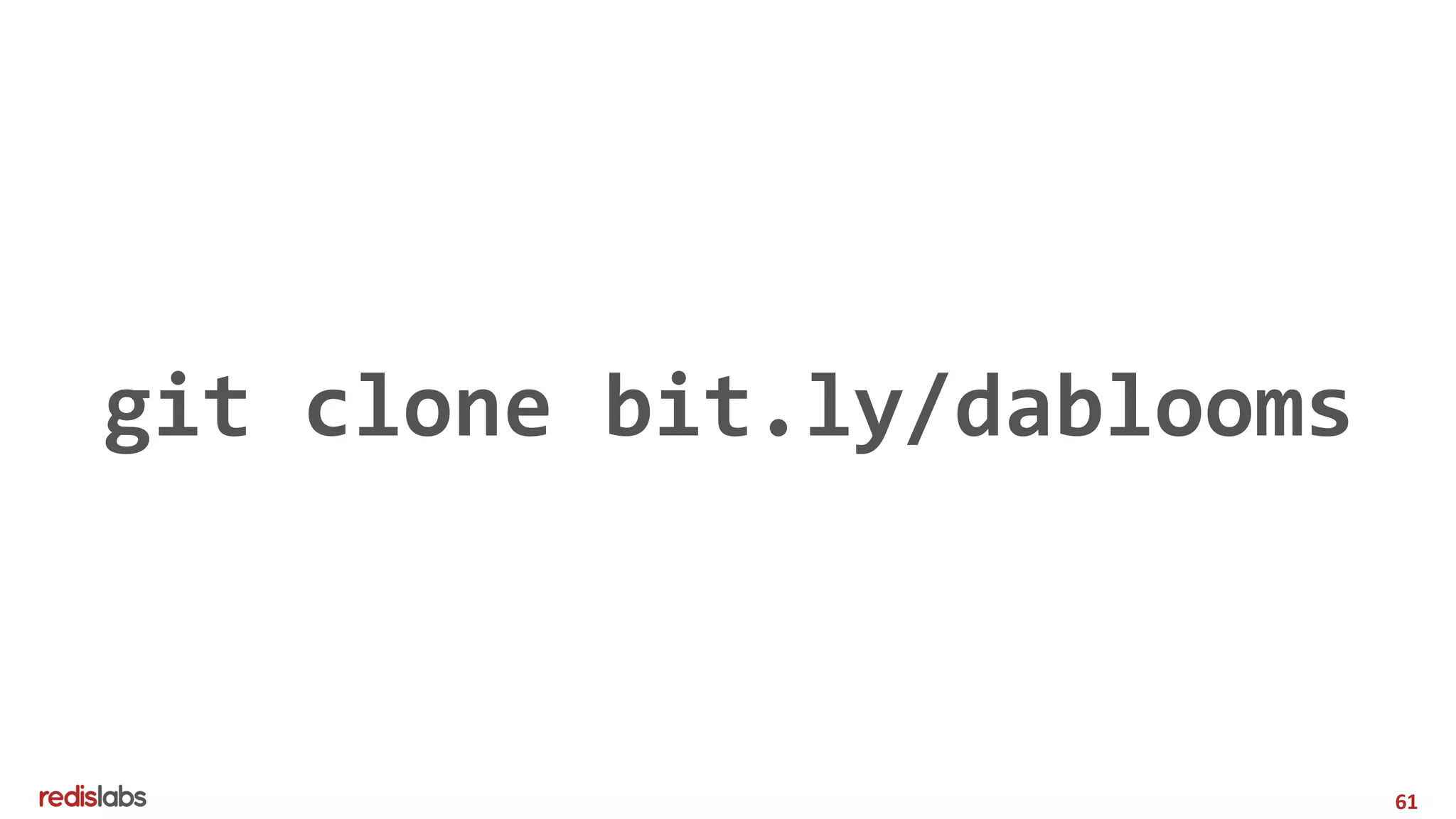

git clone bit.ly/dablooms

61. 62

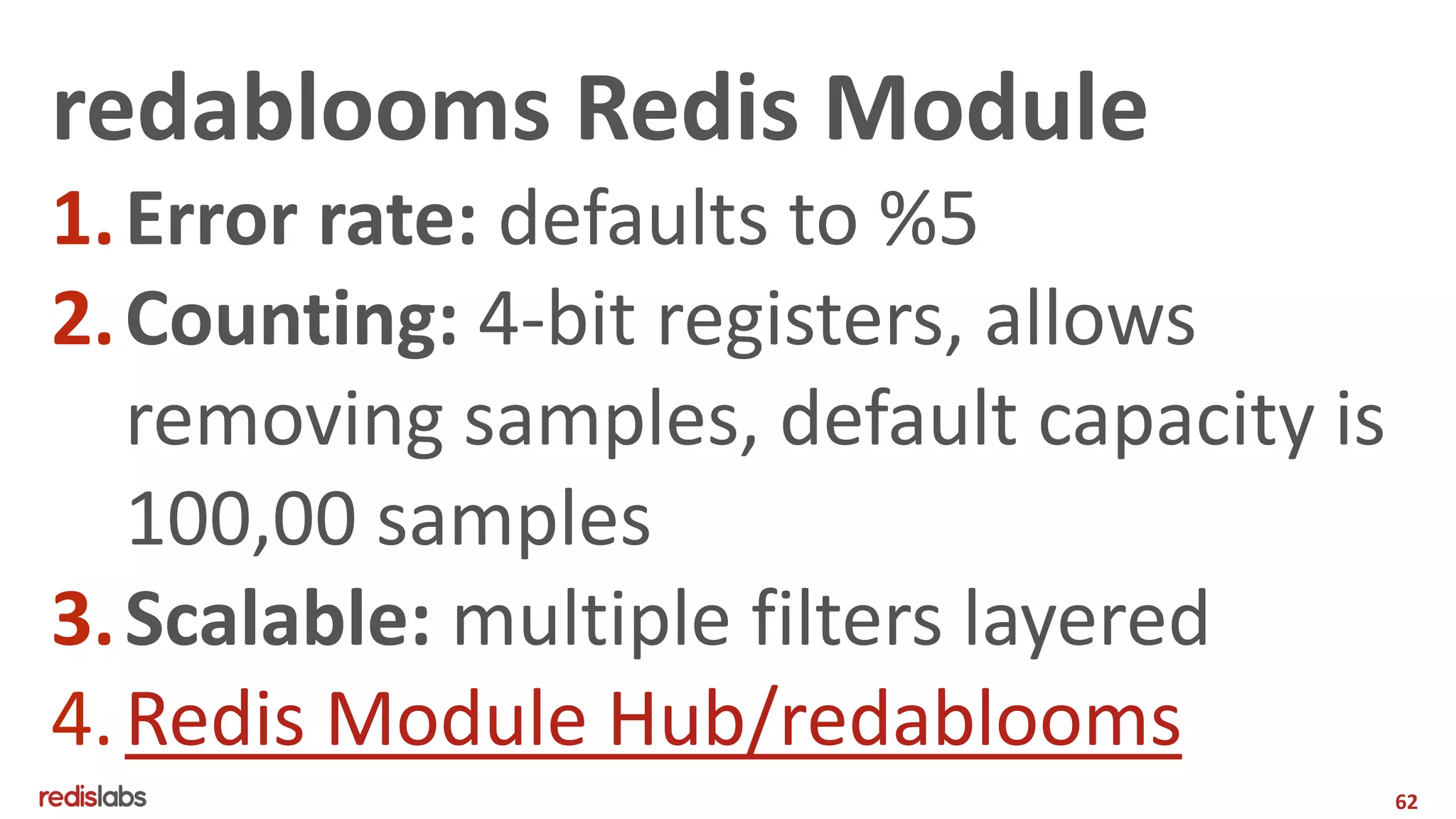

redablooms Redis Module
1.Error rate: defaults to %5
2.Counting: 4-bit registers, allows
removing samples, default capacity is
100,000 samples
3.Scalable: multiple filters layered
4.Redis Module Hub/redablooms

62. 63

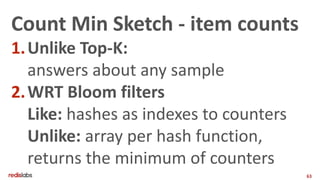

Count Min Sketch - item counts
1.Unlike Top-K:
answers about any sample
2.WRT Bloom filters
Like: hashes as indexes to counters
Unlike: array per hash function,
returns the minimum of counters

63. 64

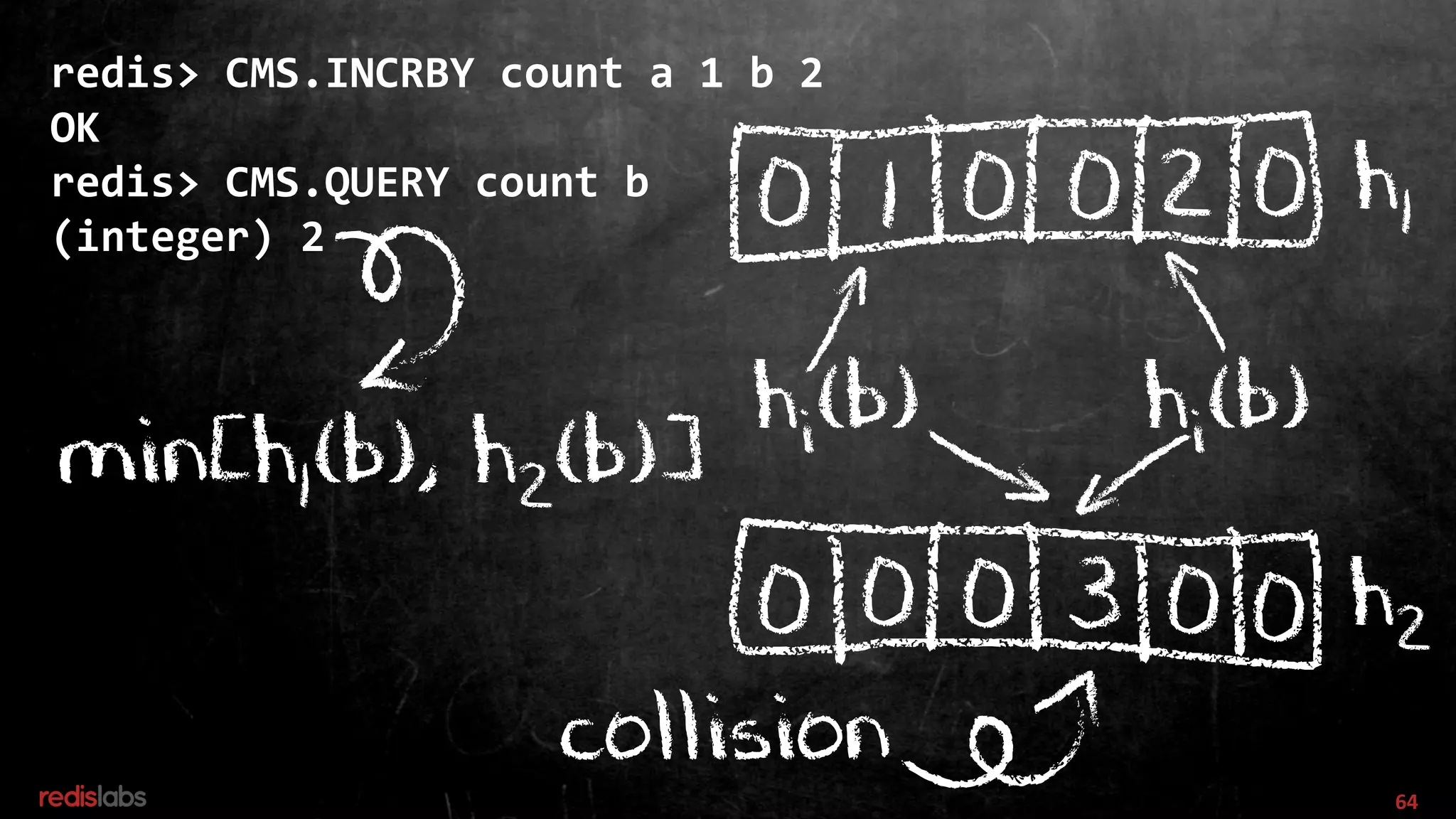

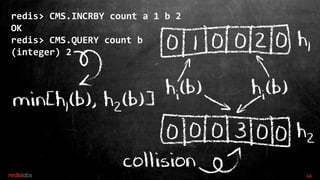

redis> CMS.INCRBY count a 1 b 2
OK
redis> CMS.QUERY count b
(integer) 2
0 1 0 00 2 h1
0 0 0 03 0 h2
collision
min[h1(b), h2(b)]
hi(b) hi(b)

64. 65

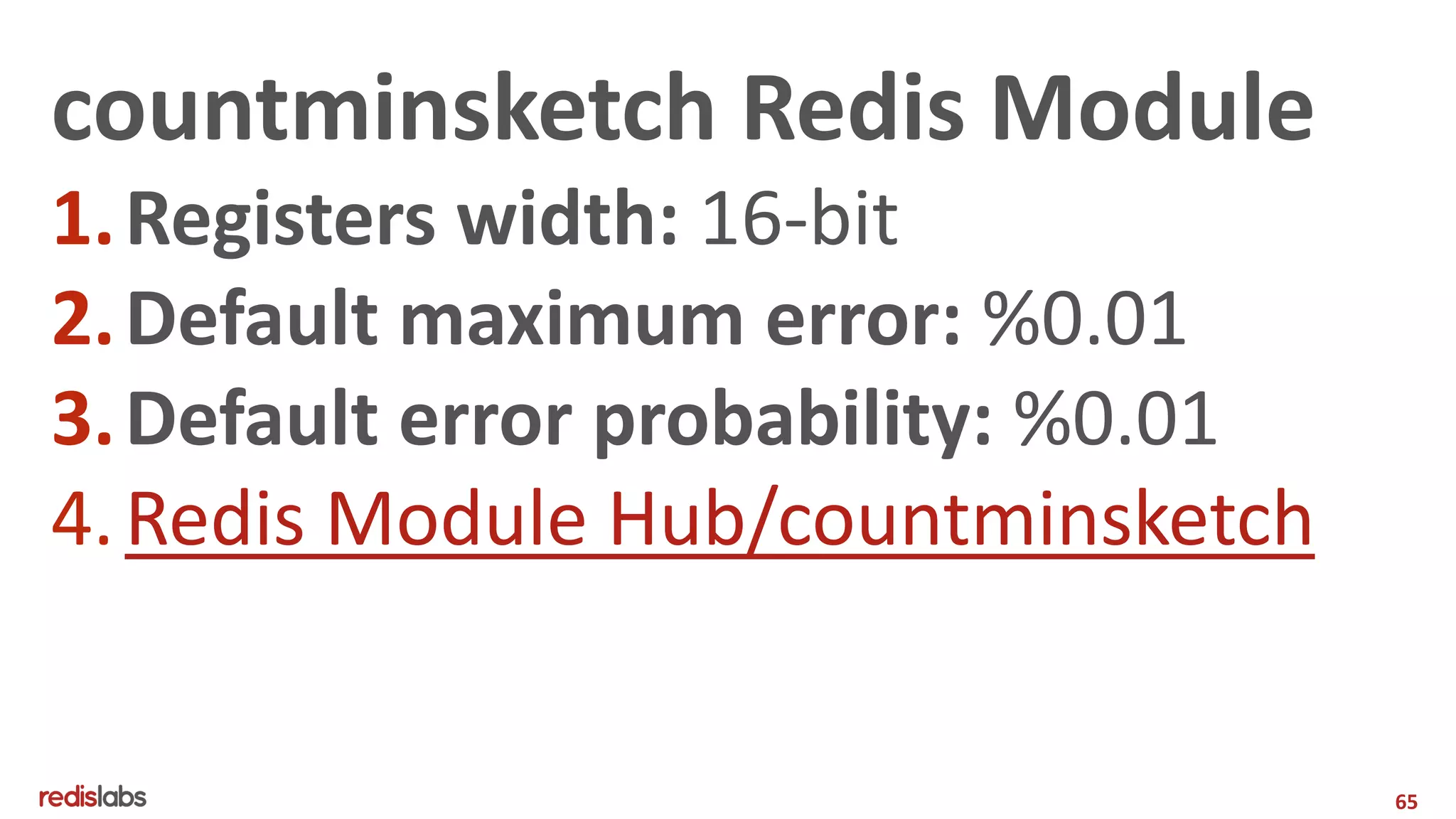

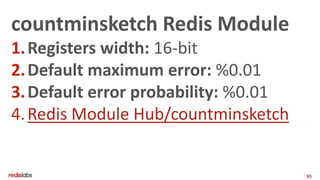

countminsketch Redis Module
1.Registers width: 16-bit
2.Default maximum error: %0.01
3.Default error probability: %0.01
4.Redis Module Hub/countminsketch

65. 66

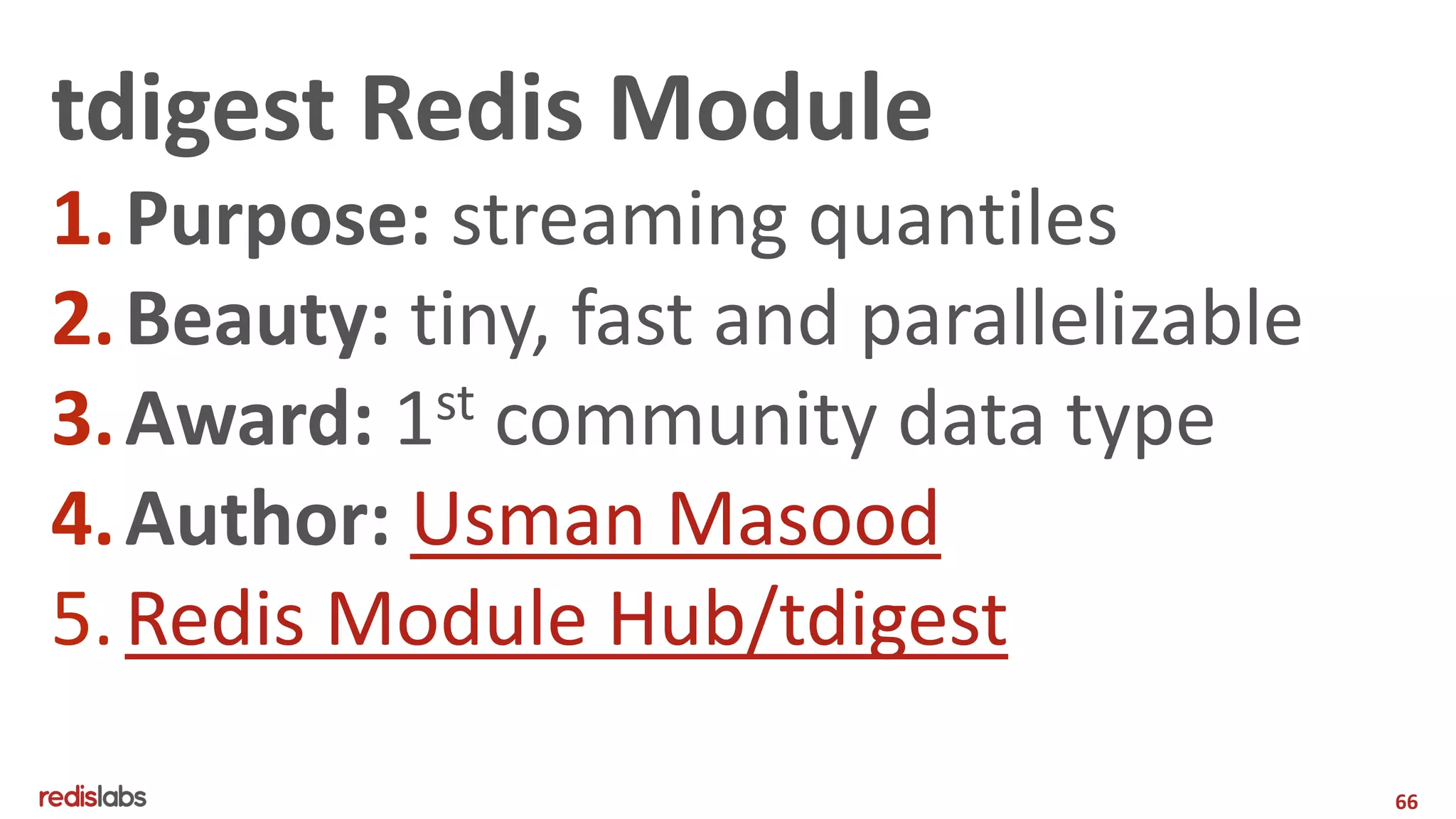

tdigest Redis Module
1.Purpose: streaming quantiles
2.Beauty: tiny, fast and parallelizable
3.Award: 1st community data type
4.Author: Usman Masood
5.Redis Module Hub/tdigest

66. 67
redismodules.com: Redis Module Hub

67. 68

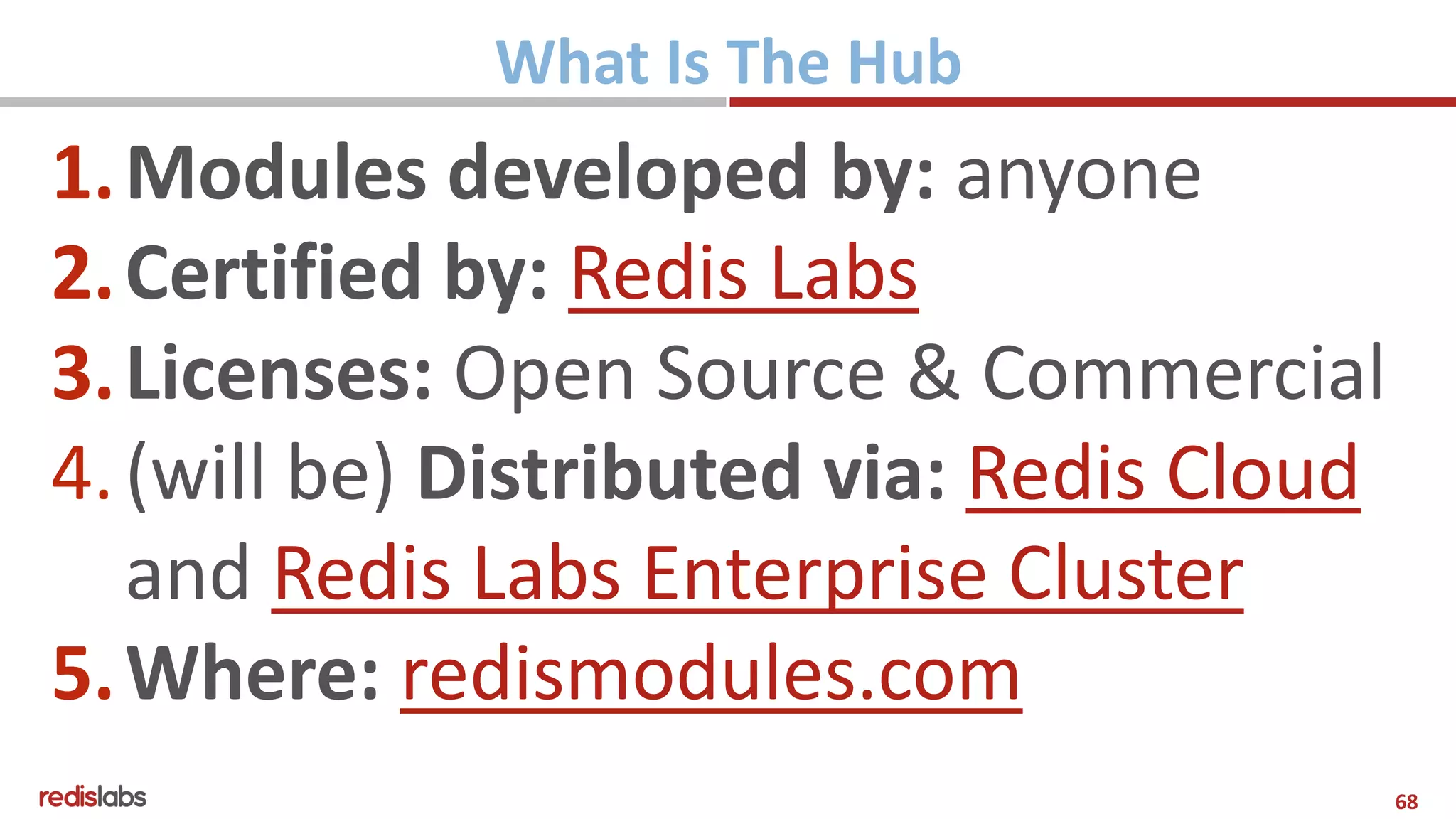

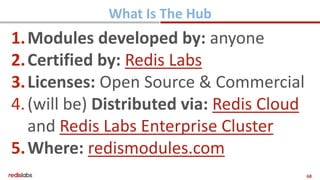

What Is The Hub
1.Modules developed by: anyone
2.Certified by: Redis Labs
3.Licenses: Open Source & Commercial
4.(will be) Distributed via: Redis Cloud
and Redis Labs Enterprise Cluster
5.Where: redismodules.com

68. Thank you

69. Further Reading

70. 71

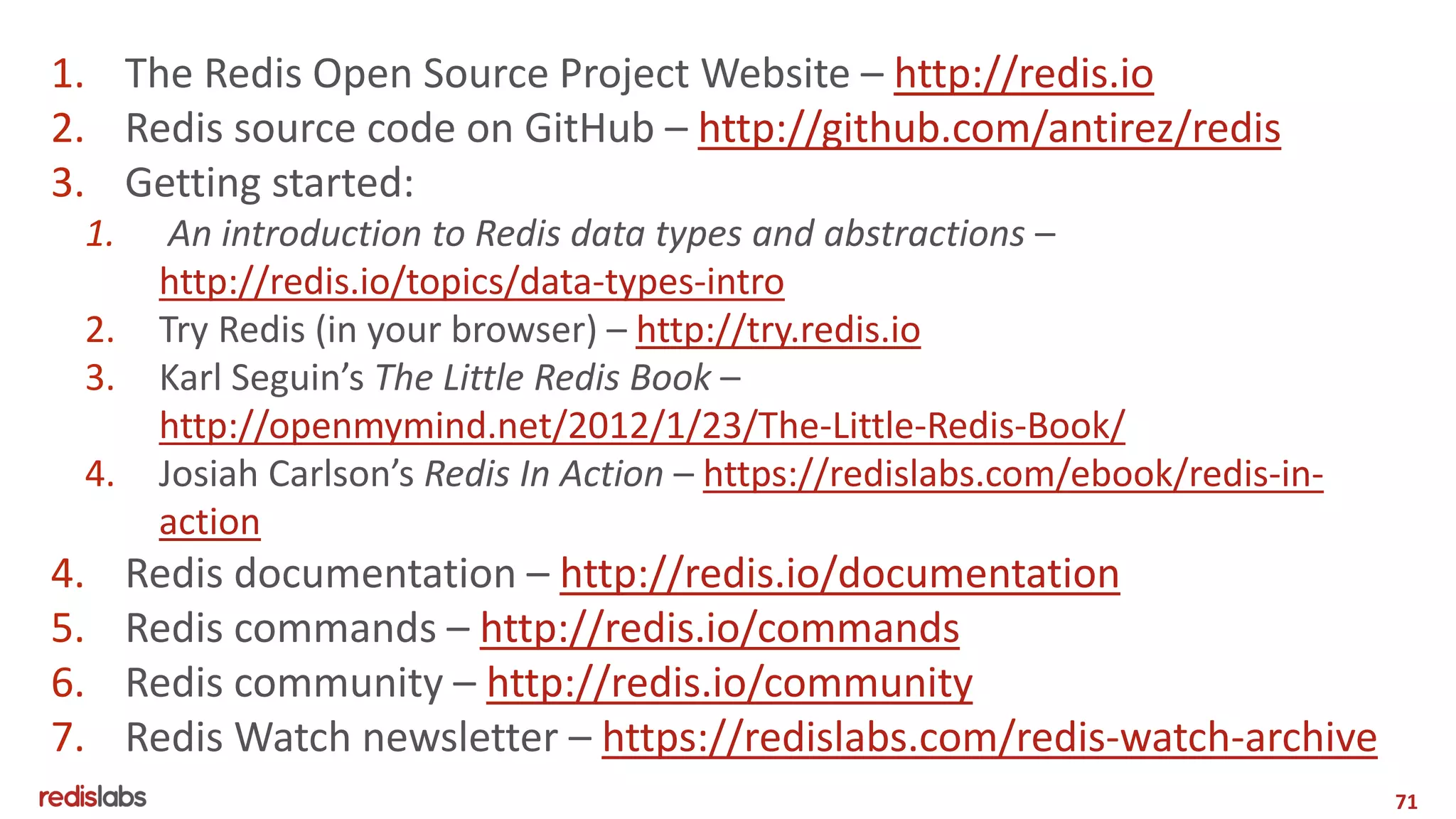

1. The Redis Open Source Project Website – http://redis.io
2. Redis source code on GitHub – http://github.com/antirez/redis
3. Getting started:
1. An introduction to Redis data types and abstractions –
http://redis.io/topics/data-types-intro
2. Try Redis (in your browser) – http://try.redis.io
3. Karl Seguin’s The Little Redis Book –
http://openmymind.net/2012/1/23/The-Little-Redis-Book/
4. Josiah Carlson’s Redis In Action – https://redislabs.com/ebook/redis-in-
action
4. Redis documentation – http://redis.io/documentation
5. Redis commands – http://redis.io/commands
6. Redis community – http://redis.io/community
7. Redis Watch newsletter – https://redislabs.com/redis-watch-archive

71. 72

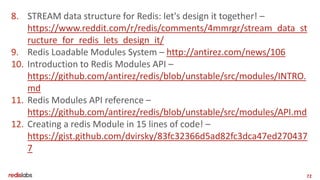

8. STREAM data structure for Redis: let's design it together! –
https://www.reddit.com/r/redis/comments/4mmrgr/stream_data_st
ructure_for_redis_lets_design_it/
9. Redis Loadable Modules System – http://antirez.com/news/106
10. Introduction to Redis Modules API –
https://github.com/antirez/redis/blob/unstable/src/modules/INTRO.
md
11. Redis Modules API reference –
https://github.com/antirez/redis/blob/unstable/src/modules/API.md
12. Creating a redis Module in 15 lines of code! –
https://gist.github.com/dvirsky/83fc32366d5ad82fc3dca47ed270437
7

72. 73

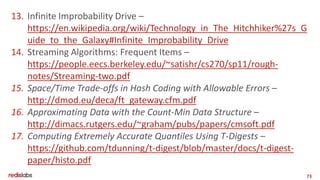

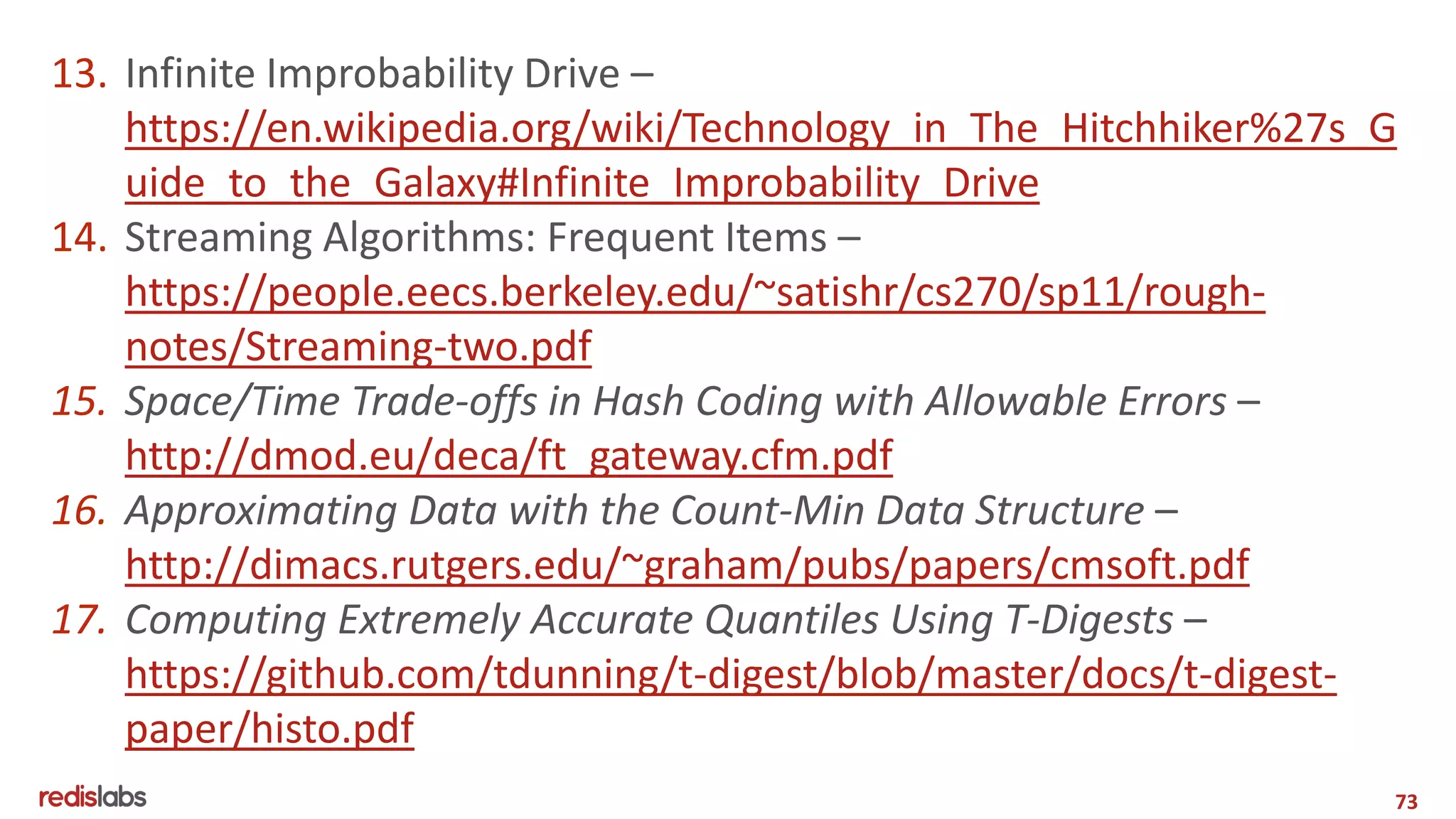

13. Infinite Improbability Drive –
https://en.wikipedia.org/wiki/Technology_in_The_Hitchhiker%27s_G
uide_to_the_Galaxy#Infinite_Improbability_Drive
14. Streaming Algorithms: Frequent Items –
https://people.eecs.berkeley.edu/~satishr/cs270/sp11/rough-
notes/Streaming-two.pdf
15. Space/Time Trade-offs in Hash Coding with Allowable Errors –
http://dmod.eu/deca/ft_gateway.cfm.pdf
16. Approximating Data with the Count-Min Data Structure –
http://dimacs.rutgers.edu/~graham/pubs/papers/cmsoft.pdf
17. Computing Extremely Accurate Quantiles Using T-Digests –
https://github.com/tdunning/t-digest/blob/master/docs/t-digest-
paper/histo.pdf
