Reactor Design 1
•
Download as PPT, PDF
•
34 likes
•
28,570 views
Muhammad Zafar Iqbal
Follow
Education
Report
Share
Report
Share
1 of 21
Download now
Recommended
Chemical Reactors
Chemical Reactors
Awais Chaudhary
Chemical reaction engineering
Chemical reaction engineering
1langshen
Chemical reaction engineering is that engineering activity which is concerned with the exploitation of chemical reactions on commercial scale. The areas of different fields of science like: Oil Refining Pharmaceuticals Biotechnology Chemical Industries Sustainable Development
Group 2
Group 2
Usman Shah
Types of reactor Chemical Reaction Engineering
Types of reactor
Types of reactor
Ihsan Wassan
Description of Plug Flow Reactor & Tubular Reactors, Chemical Reaction Engineering
Chemical reaction engineering
Chemical reaction engineering
Prem Baboo
reactors
chemical reaction engineering
chemical reaction engineering
H.M.Azam Azam
Description of Reactors, their types
Reactor types.ppt
Reactor types.ppt
www.thepetrosolutions.com
In this topic we have discussed working principle of a Batch Reactor. We've also discussed its kinetics like its Rate equation, Material and Energy balance. Its Design steps also have been discussed.
Batch Reactor
Batch Reactor
Awais Chaudhary
Recommended
Chemical Reactors
Chemical Reactors
Awais Chaudhary
Chemical reaction engineering
Chemical reaction engineering
1langshen
Chemical reaction engineering is that engineering activity which is concerned with the exploitation of chemical reactions on commercial scale. The areas of different fields of science like: Oil Refining Pharmaceuticals Biotechnology Chemical Industries Sustainable Development
Group 2
Group 2
Usman Shah
Types of reactor Chemical Reaction Engineering
Types of reactor
Types of reactor
Ihsan Wassan
Description of Plug Flow Reactor & Tubular Reactors, Chemical Reaction Engineering
Chemical reaction engineering
Chemical reaction engineering
Prem Baboo
reactors
chemical reaction engineering
chemical reaction engineering
H.M.Azam Azam
Description of Reactors, their types
Reactor types.ppt
Reactor types.ppt
www.thepetrosolutions.com
In this topic we have discussed working principle of a Batch Reactor. We've also discussed its kinetics like its Rate equation, Material and Energy balance. Its Design steps also have been discussed.
Batch Reactor
Batch Reactor
Awais Chaudhary
This slide completely describes you about the stuff include in it and also everything about chemical engineering. Fluid Mechanics. Thermodynamics. Mass Transfer Chemical Engineering. Energy Engineering, Mass Transfer 2, Heat Transfer,
Intro to reactor design
Intro to reactor design
Usman Shah
Design of stirred batch reactor
Design of stirred batch reactor
zahiduet43
Presentation reactors
Presentation reactors
ali alashiri
This is the powerpoint file of the reactor design that was assigned to me during my final year design project. I solved the rate equations in MATLAB to calculate the reactor volume.
Reactor Design
Reactor Design
Hashim Khan
Presentation on Chemical Reactor
Chemial Reactor by Manish
Chemial Reactor by Manish
Manish Chandramani
Chemical Engineering
FAQ on chemical Reaction Engineering
FAQ on chemical Reaction Engineering
VISHAL THAKRE
Lecture on Chemical Reaction Engineering
Chemical reaction engineering
Chemical reaction engineering
Pankaj Khandelwal
Chemical Reaction Engineering. Ideal Reactors for Single Reaction. Mehran University of Engineering & Technology Jamshoro, PK
Ideal Batch Reactor
Ideal Batch Reactor
Mujeeb UR Rahman
This PPT contains basics and design equations of Recycle Reactor. Also contains performance curve of it.
Recycle Reactor (Basics & Design Eqn)
Recycle Reactor (Basics & Design Eqn)
Jaydeep Vakil
Trickle bed reactors
Trickle bed reactors
Waleed Akbar
Gas - Liquid Reactors 0 INTRODUCTION/PURPOSE 1 SCOPE 2 FIELD OF APPLICATION 3 DEFINITIONS 4 PRELIMINARY CONSIDERATIONS 4.1 Preliminary Equipment Selection 4.2 Equipment for Low Viscosity Liquids 4.3 Equipment for High Viscosity Liquids 5 REACTOR DESIGN 6 ESSENTIAL THEORY 6.1 Rate and Yield Determining Steps 6.2 Chemical and Physical Rates 6.3 Modification for Exothermic and Complex Reactions 6.4 Preliminary Selection of Reactor Type 7 EXPERIMENTAL DETERMINATION OF REGIME 7.1 Direct Measurement of Reaction Kinetics 7.2 Laboratory Gas-Liquid Reactor Experiments 8 EQUILIBRIUM AND DIFFUSIVITY DATA SOURCES 9 OVERALL EFFECTS 9.1 Liquid Flow Patterns 9.2 Scale of Mixing 9.3 Gas Flow Pattern : Mean Driving Force for Mass Transfer 9.4 Gas-Liquid Reactor Modeling 9.5 Heat Transfer 9.6 Materials of Construction 9.7 Foaming 10 FINAL CHOICE OF REACTOR TYPE 11 SCALE-UP AND SPECIFICATION OF GAS-LIQUID REACTORS 11.1 Bubble Columns 11.2 Packed Columns 11.3 Trickle Beds 11.4 Plate or Tray Columns 11.5 Spray Columns 11.6 Wiped Film 11.7 Spinning Film Reactors 11.8 Stirred Vessels 11.9 Plunging Jet 11.10 Surface Aerator 11.11 Static Mixers 11.12 Ejectors, Venturis and Orifice Plates 11.13 3-Phase Fluidized Bed 12 BIBLIOGRAPHY TABLES 1 REGIMES OF GAS-LIQUID MASS TRANSFER WITH ISOTHERMAL CHEMICAL REACTION 2 REGIMES OF GAS-LIQUID MASS TRANSFER IGNORING LARGE EXOTHERMS OR OTHER COMPLICATIONS 3 COMPARATIVE MASS TRANSFER PERFORMANCE OF CONTACTING DEVICES 4 COMPARATIVE MASS TRANSFER DATA 5 CHOICE OF GAS-LIQUID REACTOR TYPE FIGURES 1 RATE AND YIELD DETERMINING STEPS 2 ENHANCEMENT FACTOR vs HATTA NUMBER 3 ENHANCEMENT FACTOR vs HATTA NUMBER : EFFECT OF THERMAL & OTHER FACTORS 4 REACTORS FOR LIQUID-PHASE KINETICS MEASUREMENT 5 EXPERIMENTS TO DETERMINE THE OPERATING REGIME 6 EXPERIMENTS DETERMINE THE OPERATING REGIME WHERE A SOLID CATALYST IS INVOLVED 7 THE MIXED ZONES IN LOOPS' MODEL FOR STIRRED REACTORS
Gas - Liquid Reactors
Gas - Liquid Reactors
Gerard B. Hawkins
Presentation1
Presentation1
Engr. Rabia ijaz
This slide completely describes you about the stuff include in it and also everything about chemical engineering. Fluid Mechanics. Thermodynamics. Mass Transfer Chemical Engineering. Energy Engineering, Mass Transfer 2, Heat Transfer,
Difference between batch,mixed flow & plug-flow reactor
Difference between batch,mixed flow & plug-flow reactor
Usman Shah
Chemical Reaction Engineering. Ideal Reactor for Single Reaction. Mehran University of Engineering and Technology Jamshoro,Pk.
Plug Flow Reactor
Plug Flow Reactor
Mujeeb UR Rahman
Presentation for CN2116 AY0809 Sem 2
Water Gas Shift Reactor Design
Water Gas Shift Reactor Design
l16cn
An overview of distillation column design concepts and major design considerations. Explains distillation column design concepts, what you would provide to a professional distillation column designer, and what you can expect back from a distillation system design firm. To speak with an engineer about your distillation column project, call EPIC at 314-207-4250.
Distillation Column Design
Distillation Column Design
EPIC Systems
These slides may be used for a part of Advanced level course in Chemical Reaction Engineering. I taught this course to Masters level students covering 1.5 credit hours.
Advanced Chemical Reaction Engineering-Part-1-10-Apr-2016
Advanced Chemical Reaction Engineering-Part-1-10-Apr-2016
Muhammad Rashid Usman
Types of agitators
Types of agitators
Types of agitators
Karnav Rana
fb.com/MalikAhmadRid @MalikAhmadRid MalikAhmadRid@gmail.com
Multiple reactors
Multiple reactors
NFC Institute Of Engineering & Technology Training Multan
Detail description of tower internal
Plate column & Pcked column description
Plate column & Pcked column description
Jitendra Patidar
good informative
Intro to Reactor Design.pptx
Intro to Reactor Design.pptx
zeeshanusman03
This slide completely describes you about the stuff include in it and also everything about chemical engineering. Fluid Mechanics. Thermodynamics. Mass Transfer Chemical Engineering. Energy Engineering, Mass Transfer 2, Heat Transfer,
Cre ppt
Cre ppt
Usman Shah
More Related Content
What's hot
This slide completely describes you about the stuff include in it and also everything about chemical engineering. Fluid Mechanics. Thermodynamics. Mass Transfer Chemical Engineering. Energy Engineering, Mass Transfer 2, Heat Transfer,
Intro to reactor design
Intro to reactor design
Usman Shah
Design of stirred batch reactor
Design of stirred batch reactor
zahiduet43
Presentation reactors
Presentation reactors
ali alashiri
This is the powerpoint file of the reactor design that was assigned to me during my final year design project. I solved the rate equations in MATLAB to calculate the reactor volume.
Reactor Design
Reactor Design
Hashim Khan
Presentation on Chemical Reactor
Chemial Reactor by Manish
Chemial Reactor by Manish
Manish Chandramani
Chemical Engineering
FAQ on chemical Reaction Engineering
FAQ on chemical Reaction Engineering
VISHAL THAKRE
Lecture on Chemical Reaction Engineering
Chemical reaction engineering
Chemical reaction engineering
Pankaj Khandelwal
Chemical Reaction Engineering. Ideal Reactors for Single Reaction. Mehran University of Engineering & Technology Jamshoro, PK
Ideal Batch Reactor
Ideal Batch Reactor
Mujeeb UR Rahman
This PPT contains basics and design equations of Recycle Reactor. Also contains performance curve of it.
Recycle Reactor (Basics & Design Eqn)
Recycle Reactor (Basics & Design Eqn)
Jaydeep Vakil
Trickle bed reactors
Trickle bed reactors
Waleed Akbar
Gas - Liquid Reactors 0 INTRODUCTION/PURPOSE 1 SCOPE 2 FIELD OF APPLICATION 3 DEFINITIONS 4 PRELIMINARY CONSIDERATIONS 4.1 Preliminary Equipment Selection 4.2 Equipment for Low Viscosity Liquids 4.3 Equipment for High Viscosity Liquids 5 REACTOR DESIGN 6 ESSENTIAL THEORY 6.1 Rate and Yield Determining Steps 6.2 Chemical and Physical Rates 6.3 Modification for Exothermic and Complex Reactions 6.4 Preliminary Selection of Reactor Type 7 EXPERIMENTAL DETERMINATION OF REGIME 7.1 Direct Measurement of Reaction Kinetics 7.2 Laboratory Gas-Liquid Reactor Experiments 8 EQUILIBRIUM AND DIFFUSIVITY DATA SOURCES 9 OVERALL EFFECTS 9.1 Liquid Flow Patterns 9.2 Scale of Mixing 9.3 Gas Flow Pattern : Mean Driving Force for Mass Transfer 9.4 Gas-Liquid Reactor Modeling 9.5 Heat Transfer 9.6 Materials of Construction 9.7 Foaming 10 FINAL CHOICE OF REACTOR TYPE 11 SCALE-UP AND SPECIFICATION OF GAS-LIQUID REACTORS 11.1 Bubble Columns 11.2 Packed Columns 11.3 Trickle Beds 11.4 Plate or Tray Columns 11.5 Spray Columns 11.6 Wiped Film 11.7 Spinning Film Reactors 11.8 Stirred Vessels 11.9 Plunging Jet 11.10 Surface Aerator 11.11 Static Mixers 11.12 Ejectors, Venturis and Orifice Plates 11.13 3-Phase Fluidized Bed 12 BIBLIOGRAPHY TABLES 1 REGIMES OF GAS-LIQUID MASS TRANSFER WITH ISOTHERMAL CHEMICAL REACTION 2 REGIMES OF GAS-LIQUID MASS TRANSFER IGNORING LARGE EXOTHERMS OR OTHER COMPLICATIONS 3 COMPARATIVE MASS TRANSFER PERFORMANCE OF CONTACTING DEVICES 4 COMPARATIVE MASS TRANSFER DATA 5 CHOICE OF GAS-LIQUID REACTOR TYPE FIGURES 1 RATE AND YIELD DETERMINING STEPS 2 ENHANCEMENT FACTOR vs HATTA NUMBER 3 ENHANCEMENT FACTOR vs HATTA NUMBER : EFFECT OF THERMAL & OTHER FACTORS 4 REACTORS FOR LIQUID-PHASE KINETICS MEASUREMENT 5 EXPERIMENTS TO DETERMINE THE OPERATING REGIME 6 EXPERIMENTS DETERMINE THE OPERATING REGIME WHERE A SOLID CATALYST IS INVOLVED 7 THE MIXED ZONES IN LOOPS' MODEL FOR STIRRED REACTORS
Gas - Liquid Reactors
Gas - Liquid Reactors
Gerard B. Hawkins
Presentation1
Presentation1
Engr. Rabia ijaz
This slide completely describes you about the stuff include in it and also everything about chemical engineering. Fluid Mechanics. Thermodynamics. Mass Transfer Chemical Engineering. Energy Engineering, Mass Transfer 2, Heat Transfer,
Difference between batch,mixed flow & plug-flow reactor
Difference between batch,mixed flow & plug-flow reactor
Usman Shah
Chemical Reaction Engineering. Ideal Reactor for Single Reaction. Mehran University of Engineering and Technology Jamshoro,Pk.
Plug Flow Reactor
Plug Flow Reactor
Mujeeb UR Rahman
Presentation for CN2116 AY0809 Sem 2
Water Gas Shift Reactor Design
Water Gas Shift Reactor Design
l16cn
An overview of distillation column design concepts and major design considerations. Explains distillation column design concepts, what you would provide to a professional distillation column designer, and what you can expect back from a distillation system design firm. To speak with an engineer about your distillation column project, call EPIC at 314-207-4250.
Distillation Column Design
Distillation Column Design
EPIC Systems
These slides may be used for a part of Advanced level course in Chemical Reaction Engineering. I taught this course to Masters level students covering 1.5 credit hours.
Advanced Chemical Reaction Engineering-Part-1-10-Apr-2016
Advanced Chemical Reaction Engineering-Part-1-10-Apr-2016
Muhammad Rashid Usman
Types of agitators
Types of agitators
Types of agitators
Karnav Rana
fb.com/MalikAhmadRid @MalikAhmadRid MalikAhmadRid@gmail.com
Multiple reactors
Multiple reactors
NFC Institute Of Engineering & Technology Training Multan
Detail description of tower internal
Plate column & Pcked column description
Plate column & Pcked column description
Jitendra Patidar
What's hot
(20)
Intro to reactor design
Intro to reactor design
Design of stirred batch reactor
Design of stirred batch reactor
Presentation reactors
Presentation reactors
Reactor Design
Reactor Design
Chemial Reactor by Manish
Chemial Reactor by Manish
FAQ on chemical Reaction Engineering
FAQ on chemical Reaction Engineering
Chemical reaction engineering
Chemical reaction engineering
Ideal Batch Reactor
Ideal Batch Reactor
Recycle Reactor (Basics & Design Eqn)
Recycle Reactor (Basics & Design Eqn)
Trickle bed reactors
Trickle bed reactors
Gas - Liquid Reactors
Gas - Liquid Reactors
Presentation1
Presentation1
Difference between batch,mixed flow & plug-flow reactor
Difference between batch,mixed flow & plug-flow reactor
Plug Flow Reactor
Plug Flow Reactor
Water Gas Shift Reactor Design
Water Gas Shift Reactor Design
Distillation Column Design
Distillation Column Design
Advanced Chemical Reaction Engineering-Part-1-10-Apr-2016
Advanced Chemical Reaction Engineering-Part-1-10-Apr-2016
Types of agitators
Types of agitators
Multiple reactors
Multiple reactors
Plate column & Pcked column description
Plate column & Pcked column description
Similar to Reactor Design 1
good informative
Intro to Reactor Design.pptx
Intro to Reactor Design.pptx
zeeshanusman03
This slide completely describes you about the stuff include in it and also everything about chemical engineering. Fluid Mechanics. Thermodynamics. Mass Transfer Chemical Engineering. Energy Engineering, Mass Transfer 2, Heat Transfer,
Cre ppt
Cre ppt
Usman Shah
Reactor Design 9
Reactor Design 9
Muhammad Zafar Iqbal
seleção de reatores
SelecaoReatores.ppt
SelecaoReatores.ppt
ThamirisMartiny1
eactores Discontinuos o Batch: Son recipientes con agitación en el cual se cargan los reactivos y se descargan una vez la reacción ha finalizado. Se caracterizan por no trabajar en condiciones estacionarias. Tanto la temperatura como las composiciones varían constantemente.
Reactores batch quimicos para la industria en campos de ingenieria.ppt
Reactores batch quimicos para la industria en campos de ingenieria.ppt
BastheanFranciscoPin
talha raees 6th semester uet peshawar
chemical reactors
chemical reactors
Talhashirazi
Khfpufoyfpu
KRISH NEW PPT 1.pptx
KRISH NEW PPT 1.pptx
JaynamGaliya
Aim: The aim of this experiment is to determine the conversion of our reactants by using conductivity meter in the reactor which the reaction takes place which is a CSTR reactor. Introduction: In our experiment a reaction takes place between two reactants in a CSTR reactor, first reactant is the strong base (NaOH) and second reactant is the weak Acid which is (CH3CO2CH2CH3) to produce (CH3COONa) and (CH3CH2OH) and water. But since one of reactant is weak (CH3CO2CH2CH3) this means our reactants won't fully react and convert into our product which means we don't have a 100% conversion like we have between two strong reactants. So, in order to find conversion, we have to divide the concentration of the reactants reacted by the concentration of the reactant in our reactor as the term of conversion suggests. In order to find concentration, we use conductivity meter which measures the amount of free ions in our reactor. This way can find conductivity to find concentration which gives us the key to find conversion. 4 Tools: o CSTR reactor: Our CSTR reactor is continuous and we add the reactants together continuously. Before the reactants run out, we read the (λ) ،And we read the (T) . Our reactor has a capacity of one liter ، and has a thermometer ، and has a vent valve. 5 o Conductivity meter: Is a tool to measure the amount of free ions in a liquid or solution which uses a small amount of electricity to use how much ions will carry the charge. 6 o service unit: Our service unit for this experience holds the both of the tanks of both reactants, and the pumps which is needed for each tank to the inlet of the reactor. 7 o Control unit: For this experiment the control unit provides power and electricity to our reactor But not the conductivity meter because it works on its own. o Tank: The tank provide store service to our reactant before being added to our reactor, which is located in unit service. 8 o Pumps: The pumps are our helpful tool which add our reactants to the reactor, which is located in unit service but is controlled in and turned on and off in control unit. 9 Procedure: 1.Temperature sensor Ts.4/on T=18: reaction Dane isothermally. 2. stirrer A A1 on 3. Flow rate: on both reactants should inter in The reactor at The same Flow rate Conversion is not Function of Flow rate in This experiment 4. vent valve: It is opened when the reactants. reach The level needs to be closed. 5. The level adjust into another tank over Flow draining it. 6. when continuously adjusting level occurred Conductivity is read when It becomes constant in The conductivity meter.
reactor lab single CSTR reactor.pdf
reactor lab single CSTR reactor.pdf
DimaJawhar
Aim: The aim of this experiment is to determine the conversion of our reactants by using conductivity meter in the reactor which the reaction takes place which is a CSTR reactor. Introduction: In our experiment a reaction takes place between two reactants in a CSTR reactor, first reactant is the strong base (NaOH) and second reactant is the weak Acid which is (CH3CO2CH2CH3) to produce (CH3COONa) and (CH3CH2OH) and water. But since one of reactant is weak (CH3CO2CH2CH3) this means our reactants won't fully react and convert into our product which means we don't have a 100% conversion like we have between two strong reactants. So, in order to find conversion, we have to divide the concentration of the reactants reacted by the concentration of the reactant in our reactor as the term of conversion suggests. In order to find concentration, we use conductivity meter which measures the amount of free ions in our reactor. This way can find conductivity to find concentration which gives us the key to find conversion. 4 Tools: o CSTR reactor: Our CSTR reactor is continuous and we add the reactants together continuously. Before the reactants run out, we read the (λ) ،And we read the (T) . Our reactor has a capacity of one liter ، and has a thermometer ، and has a vent valve. 5 o Conductivity meter: Is a tool to measure the amount of free ions in a liquid or solution which uses a small amount of electricity to use how much ions will carry the charge. 6 o service unit: Our service unit for this experience holds the both of the tanks of both reactants, and the pumps which is needed for each tank to the inlet of the reactor. 7 o Control unit: For this experiment the control unit provides power and electricity to our reactor But not the conductivity meter because it works on its own. o Tank: The tank provide store service to our reactant before being added to our reactor, which is located in unit service. 8 o Pumps: The pumps are our helpful tool which add our reactants to the reactor, which is located in unit service but is controlled in and turned on and off in control unit. 9 Procedure: 1.Temperature sensor Ts.4/on T=18: reaction Dane isothermally. 2. stirrer A A1 on 3. Flow rate: on both reactants should inter in The reactor at The same Flow rate Conversion is not Function of Flow rate in This experiment 4. vent valve: It is opened when the reactants. reach The level needs to be closed. 5. The level adjust into another tank over Flow draining it. 6. when continuously adjusting level occurred Conductivity is read when It becomes constant in The conductivity meter. 10 Calculation: 11 Discussion: Sntia louay Discussion: What is a continuous stirred tank reactor? (CSTR) is a type of chemical reactor that is widely used in industrial processes to produce chemicals, pharmaceuticals, and other products. Is concentration constant in a CSTR? The essential idea involved in the operation of a CSTR is that, after the passage of sufficient time, the concentrations of the
reactor design lab continuous stirred tank reactor
reactor design lab continuous stirred tank reactor
DimaJawhar
It is a pdf in chemical reaction engineering
ctre 3&4-1.pdf chemical reaction engineering batch reactor
ctre 3&4-1.pdf chemical reaction engineering batch reactor
AaronAnilP
Design of homogeneous reactots, Application, Equation
DESIGN OF Homogeneous reactors-1..pptx
DESIGN OF Homogeneous reactors-1..pptx
PositiveVro
Presentation1
Presentation1
Fady Punk
The presentation covers the following topics developing a conceptual approach to Chemical Reaction Engg. The rate equation Reactor Systems Types of reactors Reactor design parameter Fixed bed reactors Fluidized bed reactors Stirred tank reactors Slurry loop reactors Bubble columns Mole balances for multiple reactions
Introduction to Chemical Reactors and Chemical Reaction Engineering
Introduction to Chemical Reactors and Chemical Reaction Engineering
Muhammad Sajid Liaqat
Catalysis and catalyst
Catalysis and Catalyst.pptx
Catalysis and Catalyst.pptx
IyerVasundhara
Ideal reactor
Ideal reactor
Ideal reactor
Rahat Inayat Ali
guide
Catalysis III C presentation for measurement
Catalysis III C presentation for measurement
RONALDARTILLERO1
Tubular reactor
Tubular reactor
Tubular reactor
Said Al-Qurri
Classification & Selection of Reactors
Classification & Selection of Reactors
Gulfam Raza
continuous flow reactor, batch reactor, green chemistry, application , flow reactor, type of flow reactor , synthetic applications
CONTINUOUS FLOW REACTORS (1).pptx
CONTINUOUS FLOW REACTORS (1).pptx
upasanasharma66
catalysts and catalyst classification
Catalysts and catalysts classification based on physical state
Catalysts and catalysts classification based on physical state
nidacommunications
Similar to Reactor Design 1
(20)
Intro to Reactor Design.pptx
Intro to Reactor Design.pptx
Cre ppt
Cre ppt
Reactor Design 9
Reactor Design 9
SelecaoReatores.ppt
SelecaoReatores.ppt
Reactores batch quimicos para la industria en campos de ingenieria.ppt
Reactores batch quimicos para la industria en campos de ingenieria.ppt
chemical reactors
chemical reactors
KRISH NEW PPT 1.pptx
KRISH NEW PPT 1.pptx
reactor lab single CSTR reactor.pdf
reactor lab single CSTR reactor.pdf
reactor design lab continuous stirred tank reactor
reactor design lab continuous stirred tank reactor
ctre 3&4-1.pdf chemical reaction engineering batch reactor
ctre 3&4-1.pdf chemical reaction engineering batch reactor
DESIGN OF Homogeneous reactors-1..pptx
DESIGN OF Homogeneous reactors-1..pptx
Presentation1
Presentation1
Introduction to Chemical Reactors and Chemical Reaction Engineering
Introduction to Chemical Reactors and Chemical Reaction Engineering
Catalysis and Catalyst.pptx
Catalysis and Catalyst.pptx
Ideal reactor
Ideal reactor
Catalysis III C presentation for measurement
Catalysis III C presentation for measurement
Tubular reactor
Tubular reactor
Classification & Selection of Reactors
Classification & Selection of Reactors
CONTINUOUS FLOW REACTORS (1).pptx
CONTINUOUS FLOW REACTORS (1).pptx
Catalysts and catalysts classification based on physical state
Catalysts and catalysts classification based on physical state
More from Muhammad Zafar Iqbal
Polymer Reactor Design 1
Polymer Reactor Design 1
Muhammad Zafar Iqbal
Lecture 1 Introduction And Chapter 1 From Levenspiel
Lecture 1 Introduction And Chapter 1 From Levenspiel
Muhammad Zafar Iqbal
Control Of Polymerization Reactor
Control Of Polymerization Reactor
Muhammad Zafar Iqbal
Reactor Design 8
Reactor Design 8
Muhammad Zafar Iqbal
Reactor Design 7
Reactor Design 7
Muhammad Zafar Iqbal
Reactor Design 6
Reactor Design 6
Muhammad Zafar Iqbal
Reactor Design 5
Reactor Design 5
Muhammad Zafar Iqbal
Reactor Design 4
Reactor Design 4
Muhammad Zafar Iqbal
Reactor Design 3
Reactor Design 3
Muhammad Zafar Iqbal
Reactor Design 2
Reactor Design 2
Muhammad Zafar Iqbal
Polymer Reactor Design 2
Polymer Reactor Design 2
Muhammad Zafar Iqbal
More from Muhammad Zafar Iqbal
(11)
Polymer Reactor Design 1
Polymer Reactor Design 1
Lecture 1 Introduction And Chapter 1 From Levenspiel
Lecture 1 Introduction And Chapter 1 From Levenspiel
Control Of Polymerization Reactor
Control Of Polymerization Reactor
Reactor Design 8
Reactor Design 8
Reactor Design 7
Reactor Design 7
Reactor Design 6
Reactor Design 6
Reactor Design 5
Reactor Design 5
Reactor Design 4
Reactor Design 4
Reactor Design 3
Reactor Design 3
Reactor Design 2
Reactor Design 2
Polymer Reactor Design 2
Polymer Reactor Design 2
Recently uploaded
Wednesday 20 March 2024, 09:30-15:30
Wellbeing inclusion and digital dystopias.pptx
Wellbeing inclusion and digital dystopias.pptx
Jisc
This Presentation is about the Unit 5 Mathematical Reasoning of UGC NET Paper 1 General Studies where we have included Types of Reasoning, Mathematical reasoning like number series, letter series etc. and mathematical aptitude like Fraction, Time and Distance, Average etc. with their solved questions and answers.
UGC NET Paper 1 Mathematical Reasoning & Aptitude.pdf
UGC NET Paper 1 Mathematical Reasoning & Aptitude.pdf
Nirmal Dwivedi
Setting up a development environment for odoo using pycharm is highly preferred by odoo developers to develop and debug odoo modules and other related functionalities .
How to setup Pycharm environment for Odoo 17.pptx
How to setup Pycharm environment for Odoo 17.pptx
Celine George
NO1 Top Black Magic Specialist In Lahore Black magic In Pakistan Kala Ilam Expert Specialist In Canada Amil Baba In UK +92322-6382012
NO1 Top Black Magic Specialist In Lahore Black magic In Pakistan Kala Ilam Ex...
NO1 Top Black Magic Specialist In Lahore Black magic In Pakistan Kala Ilam Ex...
Amil baba
SOC 101 Final Powerpoint
SOC 101 Demonstration of Learning Presentation
SOC 101 Demonstration of Learning Presentation
camerronhm
Python notes for Unit 1 Avanthi PG College
Python Notes for mca i year students osmania university.docx
Python Notes for mca i year students osmania university.docx
Ramakrishna Reddy Bijjam
Brief pharmacology of Remifentanil
REMIFENTANIL: An Ultra short acting opioid.pptx
REMIFENTANIL: An Ultra short acting opioid.pptx
Dr. Ravikiran H M Gowda
Chinese philosophy
Philosophy of china and it's charactistics
Philosophy of china and it's charactistics
hameyhk98
Here is the slideshow presentation from the HMCS Vancouver Pre-Deployment Brief on May 9th, 2024.
HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx
HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx
marlenawright1
While single melodic lines are simpler and more straightforward, they still allow for creativity and emotional expression. Meanwhile, the simultaneous occurrence of multiple melodic lines can create a more intricate and complex musical structure that challenges the listener's ear and engages their attention.
Single or Multiple melodic lines structure
Single or Multiple melodic lines structure
dhanjurrannsibayan2
lola basyang presentation
Tatlong Kwento ni Lola basyang-1.pdf arts
Tatlong Kwento ni Lola basyang-1.pdf arts
Nbelano25
https://app.box.com/s/x7vf0j7xaxl2hlczxm3ny497y4yto33i
80 ĐỀ THI THỬ TUYỂN SINH TIẾNG ANH VÀO 10 SỞ GD – ĐT THÀNH PHỐ HỒ CHÍ MINH NĂ...
80 ĐỀ THI THỬ TUYỂN SINH TIẾNG ANH VÀO 10 SỞ GD – ĐT THÀNH PHỐ HỒ CHÍ MINH NĂ...
Nguyen Thanh Tu Collection
https://app.box.com/s/7hlvjxjalkrik7fb082xx3jk7xd7liz3
TỔNG ÔN TẬP THI VÀO LỚP 10 MÔN TIẾNG ANH NĂM HỌC 2023 - 2024 CÓ ĐÁP ÁN (NGỮ Â...
TỔNG ÔN TẬP THI VÀO LỚP 10 MÔN TIẾNG ANH NĂM HỌC 2023 - 2024 CÓ ĐÁP ÁN (NGỮ Â...
Nguyen Thanh Tu Collection
Basic Civil Engineering notes first year Notes Building notes Selection of site for Building Layout of a Building What is Burjis, Mutam Building Bye laws Basic Concept of sunlight ventilation in building National Building Code of India Set back or building line Types of Buildings Floor Space Index (F.S.I) Institutional Vs Educational Building Components & function Sills, Lintels, Cantilever Doors, Windows and Ventilators Types of Foundation AND THEIR USES Plinth Area Shallow and Deep Foundation Super Built-up & carpet area Floor Area Ratio (F.A.R) RCC Reinforced Cement Concrete RCC VS PCC
Basic Civil Engineering first year Notes- Chapter 4 Building.pptx
Basic Civil Engineering first year Notes- Chapter 4 Building.pptx
Denish Jangid
The Graduate Outcomes survey exists to improve the experience of future students.
Graduate Outcomes Presentation Slides - English
Graduate Outcomes Presentation Slides - English
neillewis46
ICT Role in 21st Century Education & its Challenges •This presentation gives an overall view of education in 21st century and how it is facilitated by the integration of ICT. •It also gives a detailed explanation of the challenges faced in ICT-based education and further elaborates the strategies that can help in overcoming the challenges.
ICT Role in 21st Century Education & its Challenges.pptx
ICT Role in 21st Century Education & its Challenges.pptx
AreebaZafar22
An introduction on the challenges that face food testing labs.
Food safety_Challenges food safety laboratories_.pdf
Food safety_Challenges food safety laboratories_.pdf
Sherif Taha
Wednesday 20 March 2024, 09:30-15:30.
Jamworks pilot and AI at Jisc (20/03/2024)
Jamworks pilot and AI at Jisc (20/03/2024)
Jisc
Klinik_ Apotek Onlin 085657271886 Solusi Menggugurkan Masalah Kehamilan Anda Jual Obat Aborsi Asli KLINIK ABORSI TERPEECAYA _ Jual Obat Aborsi Cytotec Misoprostol Asli 100% Ampuh Hanya 3 Jam Langsung Gugur || OBAT PENGGUGUR KANDUNGAN AMPUH MANJUR OBAT ABORSI OLINE" APOTIK Jual Obat Cytotec, Gastrul, Gynecoside Asli Ampuh. JUAL ” Obat Aborsi Tuntas | Obat Aborsi Manjur | Obat Aborsi Ampuh | Obat Penggugur Janin | Obat Pencegah Kehamilan | Obat Pelancar Haid | Obat terlambat Bulan | Ciri Obat Aborsi Asli | Obat Telat Bulan | Pil Aborsi Asli | Cara Menggugurkan Konten | Cara Aborsi Tuntas | Harga Obat Aborsi Asli | Pil Aborsi | Jual Obat Aborsi Cytotec | Cara Aborsi Sendiri | Cara Aborsi Usia 1 Bulan | Cara Aborsi Usia 2 Tahun | Cara Aborsi Usia 3 Bulan | Obat Aborsi Usia 4 Bulan | Cara Abrasi Usia 5 Bulan | Cara Menggugurkan Konten | Kandungan Obat Penggugur | Cara Menghitung Usia Konten | Cara Mengatasi Terlambat Bulan | Penjual Obat Aborsi Asli | Obat Aborsi Garansi | Kandungan Obat Peluntur | Obat Telat Datang Bulan | Obat Telat Haid | Obat Aborsi Paling Murah | Klinik Jual Obat Aborsi | Jual Pil Cytotec | Apotik Jual Obat Aborsi | Kandungan Dokter Abrasi | Cara Aborsi Cepat | Jual Obat Aborsi Bergaransi | Jual Obat Cytotec Asli | Obat Aborsi Aman Manjur | Obat Misoprostol Cytotec Asli. "APA ITU ABORSI" “Aborsi Adalah dengan membendung hormon yang di perlukan untuk mempertahankan kehamilan yaitu hormon progesteron, karena hormon ini dibendung, maka jalur kehamilan mulai membuka dan leher rahim menjadi melunak,sehingga mengeluarkan darah yang merupakan tanda bahwa obat telah bekerja || maksimal 1 jam obat diminum || PENJELASAN OBAT ABORSI USIA 1 _7 BULAN Pada usia kandungan ini, pasien akan merasakan sakit yang sedikit tidak berlebihan || sekitar 1 jam ||. namun hanya akan terjadi pada saatdarah keluar merupakan pertanda menstruasi. Hal ini dikarenakan pada usiakandungan 3 bulan,janin sudah terbentuk sebesar kepalan tangan orang dewasa. Cara kerja obat aborsi : JUAL OBAT ABORSI AMPUH dosis 3 bulan secara umum sama dengan cara kerja || DOSIS OBAT ABORSI 2 bulan”, hanya berbedanya selain mengisolasijanin juga menghancurkan janin dengan formula methotrexate dikandungdidalamnya. Formula methotrexate ini sangat ampuh untuk menghancurkan janinmenjadi serpihan-serpihan kecil akan sangat berguna pada saat dikeluarkan nanti. APA ALASAN WANITA MELAKUKAN ABORSI? Aborsi di lakukan wanita hamil baik yang sudah menikah maupun belum menikah dengan berbagai alasan , akan tetapi alasan yang utama adalah alasan-alasan non medis (termasuk aborsi sendiri / di sengaja/ buatan] MELAYANI PEMESANAN OBAT ABORSI SETIAP HARI, SIAP KIRIM KESELURUH KOTA BESAR DI INDONESIA DAN LUAR NEGERI. HUBUNGI PEMESANAN LEBIH NYAMAN VIA WA/: 085657271886
Jual Obat Aborsi Hongkong ( Asli No.1 ) 085657271886 Obat Penggugur Kandungan...
Jual Obat Aborsi Hongkong ( Asli No.1 ) 085657271886 Obat Penggugur Kandungan...
ZurliaSoop
The pricing and discounting feature is very essential for Odoo POS. Global discount is actually a discount that will apply to the entire order. And it indicates that the discount is applied to every item in the order, regardless of how much each item costs separately. This slide will show how to manage global discounts in odoo 17 POS.
How to Manage Global Discount in Odoo 17 POS
How to Manage Global Discount in Odoo 17 POS
Celine George
Recently uploaded
(20)
Wellbeing inclusion and digital dystopias.pptx
Wellbeing inclusion and digital dystopias.pptx
UGC NET Paper 1 Mathematical Reasoning & Aptitude.pdf
UGC NET Paper 1 Mathematical Reasoning & Aptitude.pdf
How to setup Pycharm environment for Odoo 17.pptx
How to setup Pycharm environment for Odoo 17.pptx
NO1 Top Black Magic Specialist In Lahore Black magic In Pakistan Kala Ilam Ex...
NO1 Top Black Magic Specialist In Lahore Black magic In Pakistan Kala Ilam Ex...
SOC 101 Demonstration of Learning Presentation
SOC 101 Demonstration of Learning Presentation
Python Notes for mca i year students osmania university.docx
Python Notes for mca i year students osmania university.docx
REMIFENTANIL: An Ultra short acting opioid.pptx
REMIFENTANIL: An Ultra short acting opioid.pptx
Philosophy of china and it's charactistics
Philosophy of china and it's charactistics
HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx
HMCS Vancouver Pre-Deployment Brief - May 2024 (Web Version).pptx
Single or Multiple melodic lines structure
Single or Multiple melodic lines structure
Tatlong Kwento ni Lola basyang-1.pdf arts
Tatlong Kwento ni Lola basyang-1.pdf arts
80 ĐỀ THI THỬ TUYỂN SINH TIẾNG ANH VÀO 10 SỞ GD – ĐT THÀNH PHỐ HỒ CHÍ MINH NĂ...
80 ĐỀ THI THỬ TUYỂN SINH TIẾNG ANH VÀO 10 SỞ GD – ĐT THÀNH PHỐ HỒ CHÍ MINH NĂ...
TỔNG ÔN TẬP THI VÀO LỚP 10 MÔN TIẾNG ANH NĂM HỌC 2023 - 2024 CÓ ĐÁP ÁN (NGỮ Â...
TỔNG ÔN TẬP THI VÀO LỚP 10 MÔN TIẾNG ANH NĂM HỌC 2023 - 2024 CÓ ĐÁP ÁN (NGỮ Â...
Basic Civil Engineering first year Notes- Chapter 4 Building.pptx
Basic Civil Engineering first year Notes- Chapter 4 Building.pptx
Graduate Outcomes Presentation Slides - English
Graduate Outcomes Presentation Slides - English
ICT Role in 21st Century Education & its Challenges.pptx
ICT Role in 21st Century Education & its Challenges.pptx
Food safety_Challenges food safety laboratories_.pdf
Food safety_Challenges food safety laboratories_.pdf
Jamworks pilot and AI at Jisc (20/03/2024)
Jamworks pilot and AI at Jisc (20/03/2024)
Jual Obat Aborsi Hongkong ( Asli No.1 ) 085657271886 Obat Penggugur Kandungan...
Jual Obat Aborsi Hongkong ( Asli No.1 ) 085657271886 Obat Penggugur Kandungan...
How to Manage Global Discount in Odoo 17 POS
How to Manage Global Discount in Odoo 17 POS
Reactor Design 1
1.
Chemical/Polymer Reactor Design
Muhammad Zafar Iqbal
2.

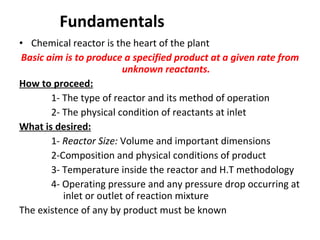

3.
4.
5.
6.
7.
8.
9.
10.
11.
12.

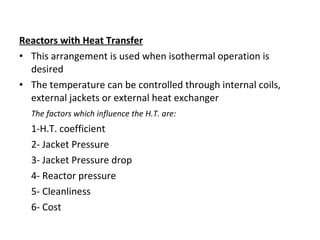

Reactor with Internal
Coils
13.
Jacketed Reactor and
its types
14.

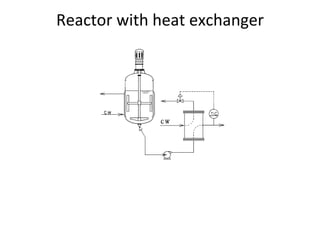

Reactor with heat
exchanger
15.

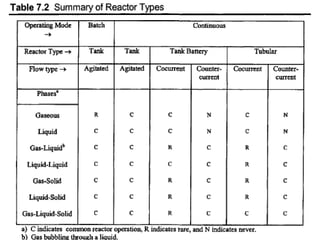

16.
17.
18.

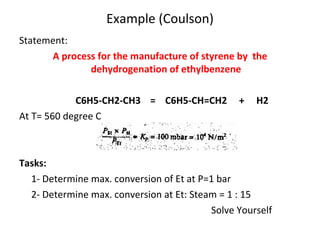

19.
20.
21.
For Constant Density
systems For gas-phase reactions
Download now
