RDF2Vec: RDF Graph Embeddings for Data Mining
- 1. 1 RDF2Vec: RDF Graph Embeddings for Data Mining Petar Ristoski and Heiko Paulheim

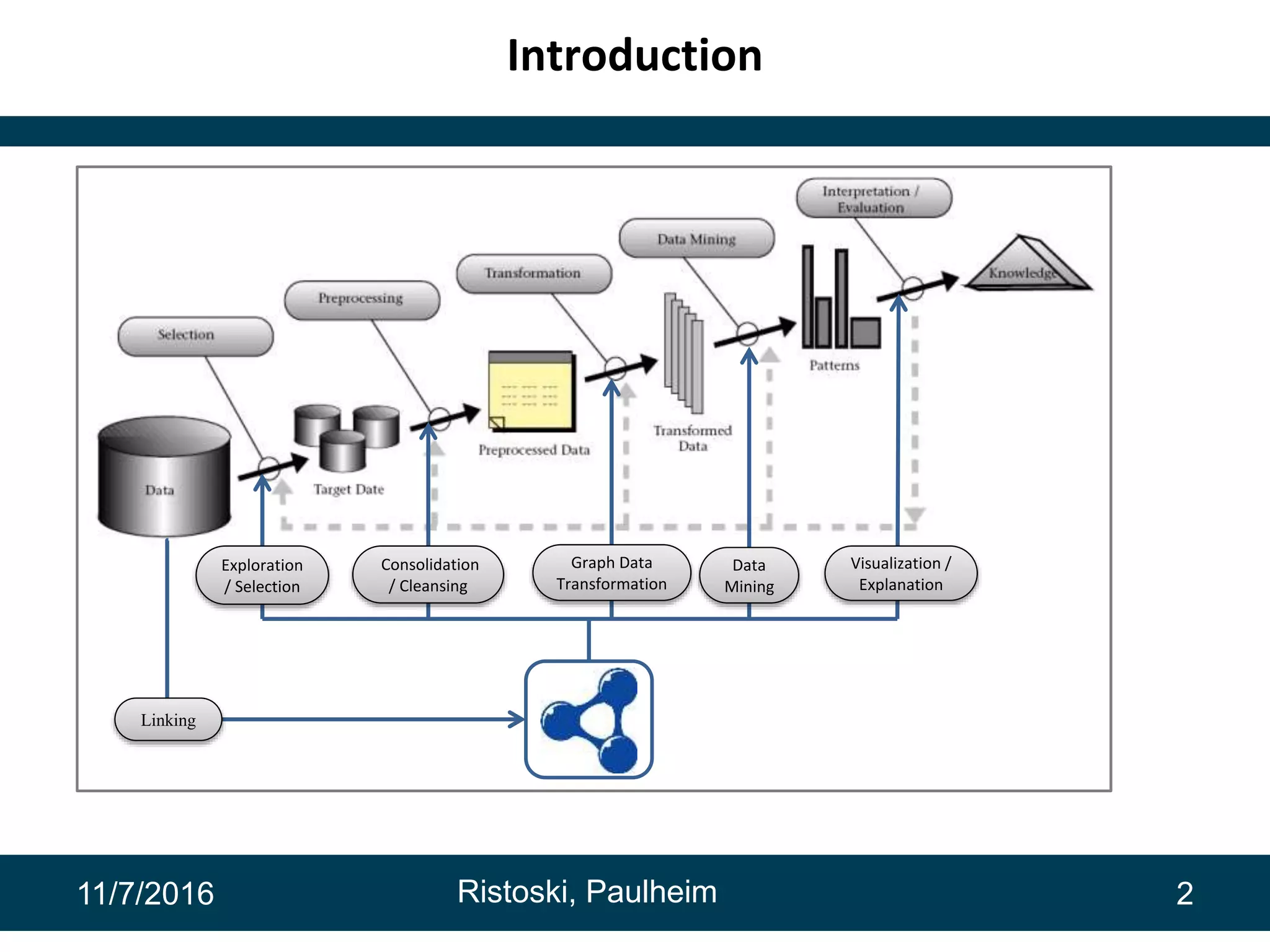

- 2. 11/7/2016 2 Introduction Linking Exploration / Selection Consolidation / Cleansing Graph Data Transformation Data Mining Visualization / Explanation Ristoski, Paulheim

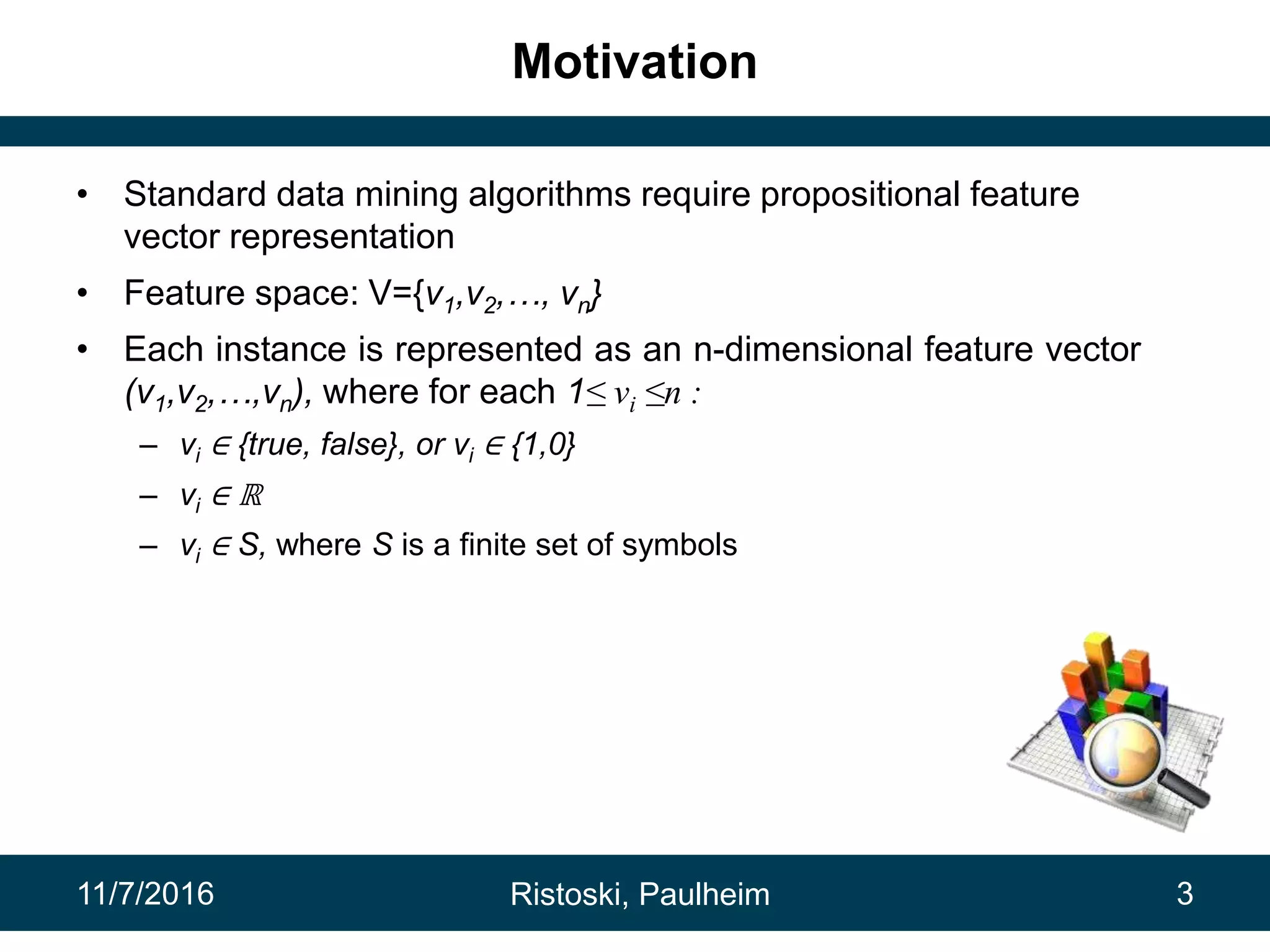

- 3. Motivation • Standard data mining algorithms require propositional feature vector representation • Feature space: V={v1,v2,…, vn} • Each instance is represented as an n-dimensional feature vector (v1,v2,…,vn), where for each 1≤ vi ≤n : – vi ∈ {true, false}, or vi ∈ {1,0} – vi ∈ ℝ – vi ∈ S, where S is a finite set of symbols 11/7/2016 Ristoski, Paulheim 3

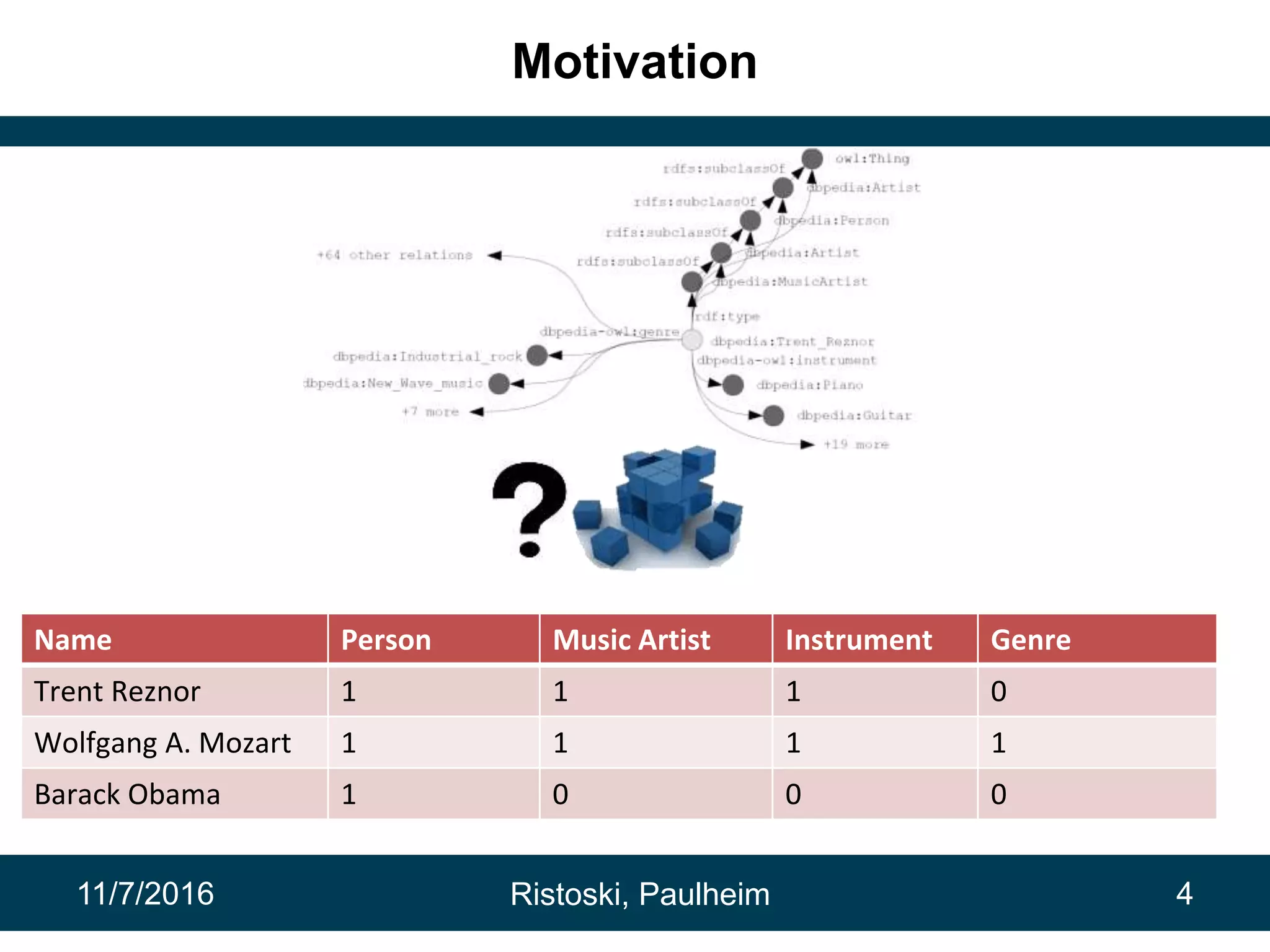

- 4. 11/7/2016 Ristoski, Paulheim 4 Name Person Music Artist Instrument Genre Trent Reznor 1 1 1 0 Wolfgang A. Mozart 1 1 1 1 Barack Obama 1 0 0 0 Motivation

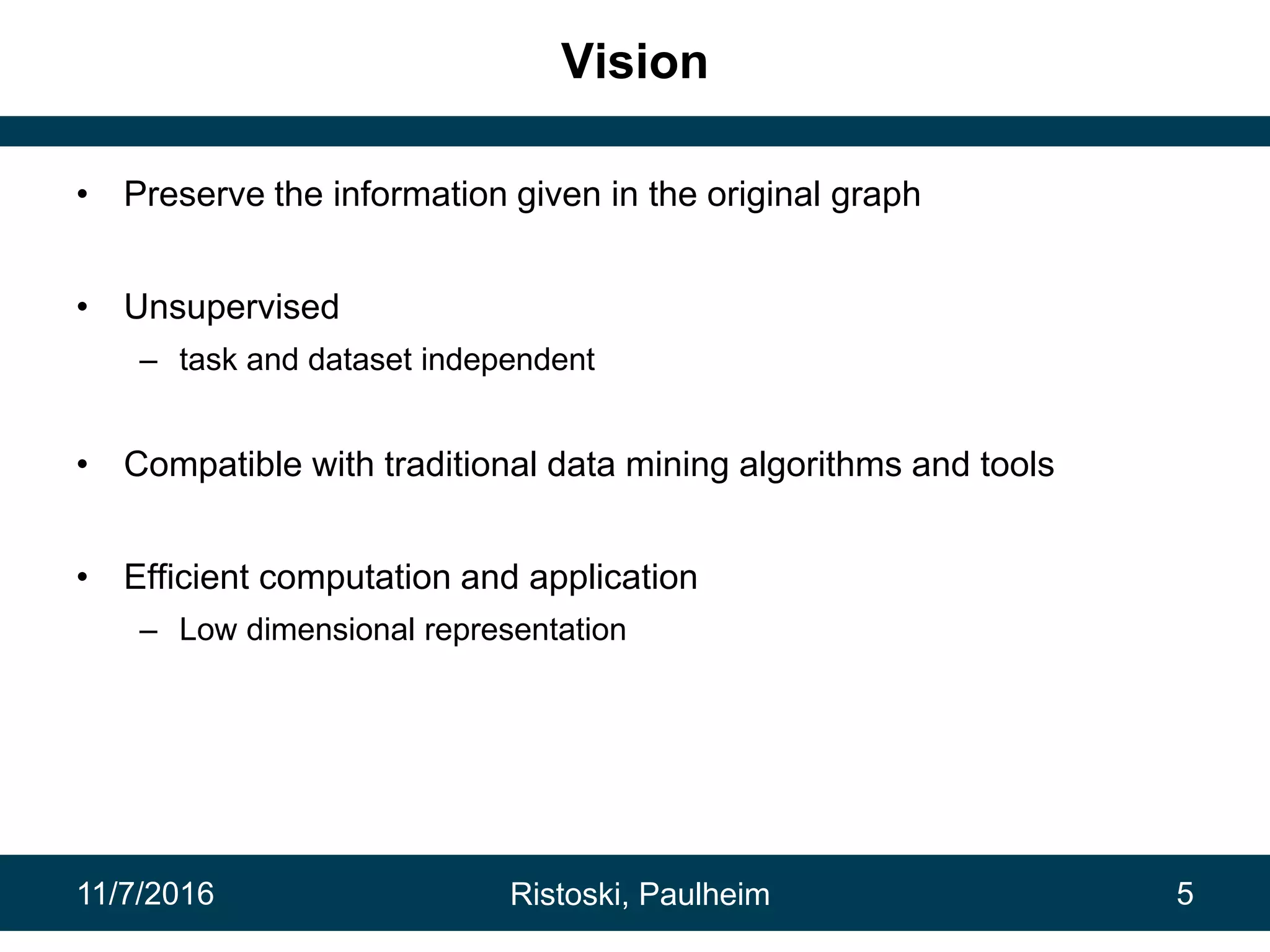

- 5. Vision • Preserve the information given in the original graph • Unsupervised – task and dataset independent • Compatible with traditional data mining algorithms and tools • Efficient computation and application – Low dimensional representation 11/7/2016 Ristoski, Paulheim 5

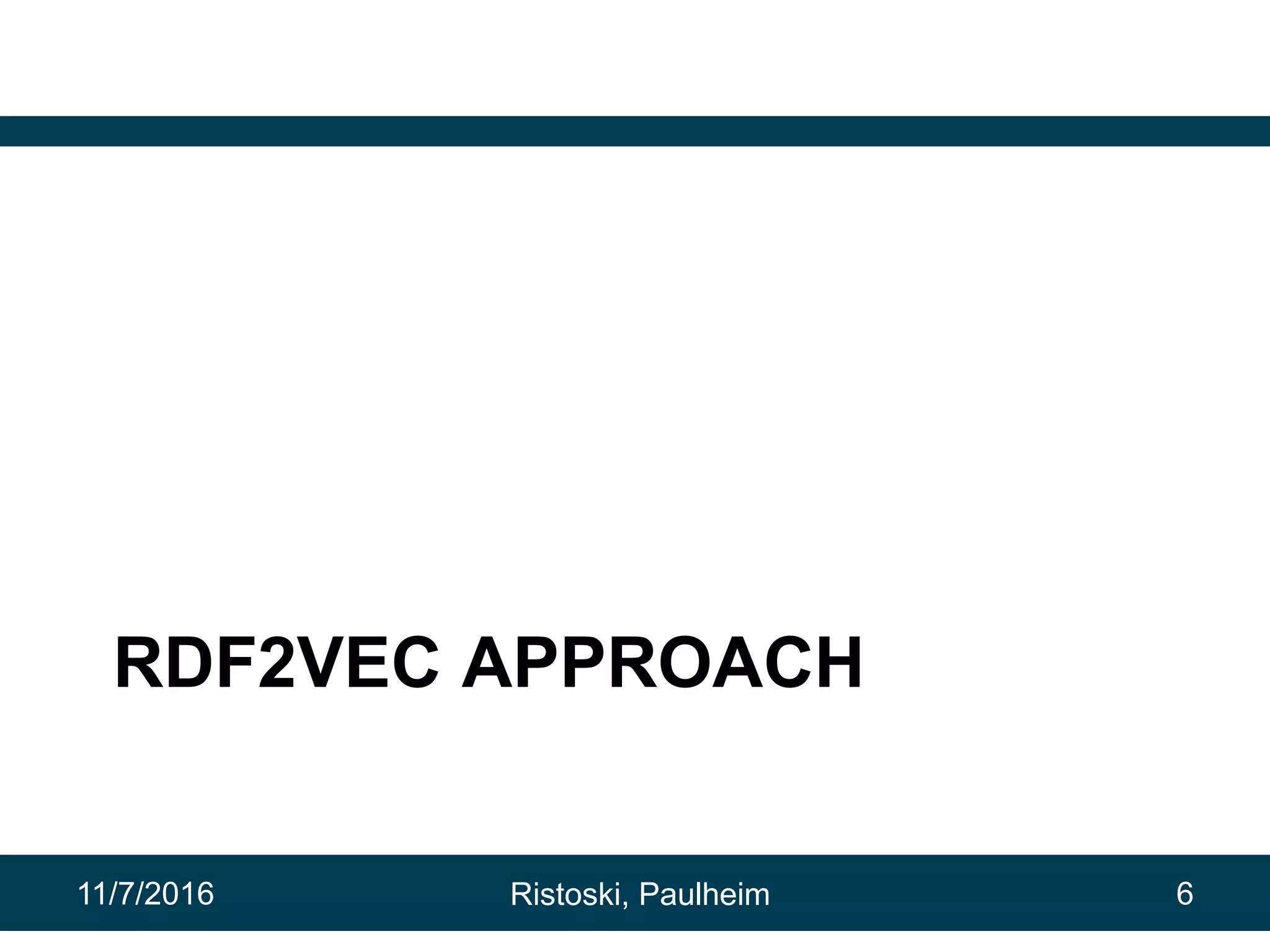

- 6. RDF2VEC APPROACH 11/7/2016 6Ristoski, Paulheim

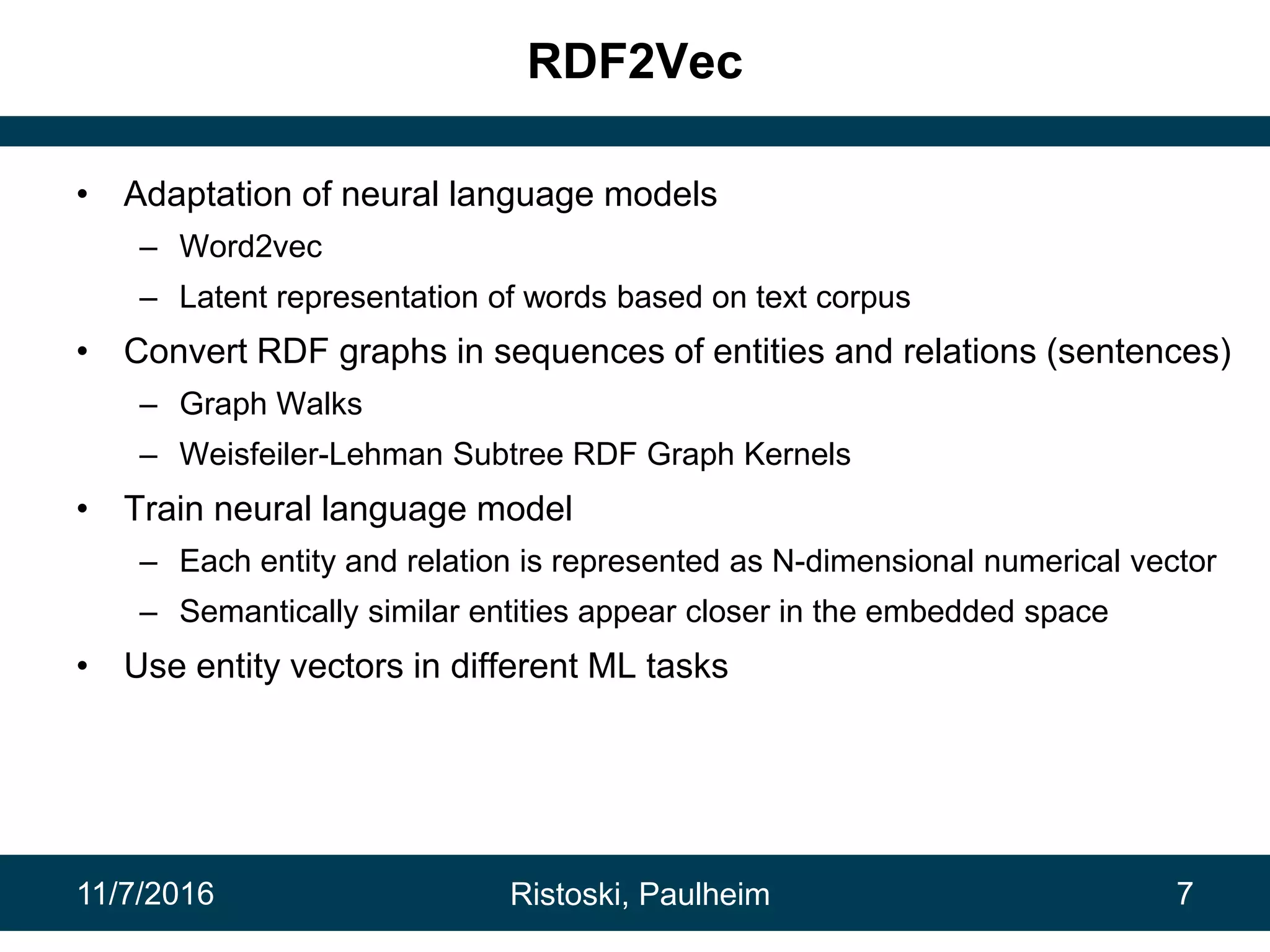

- 7. RDF2Vec • Adaptation of neural language models – Word2vec – Latent representation of words based on text corpus • Convert RDF graphs in sequences of entities and relations (sentences) – Graph Walks – Weisfeiler-Lehman Subtree RDF Graph Kernels • Train neural language model – Each entity and relation is represented as N-dimensional numerical vector – Semantically similar entities appear closer in the embedded space • Use entity vectors in different ML tasks 11/7/2016 Ristoski, Paulheim 7

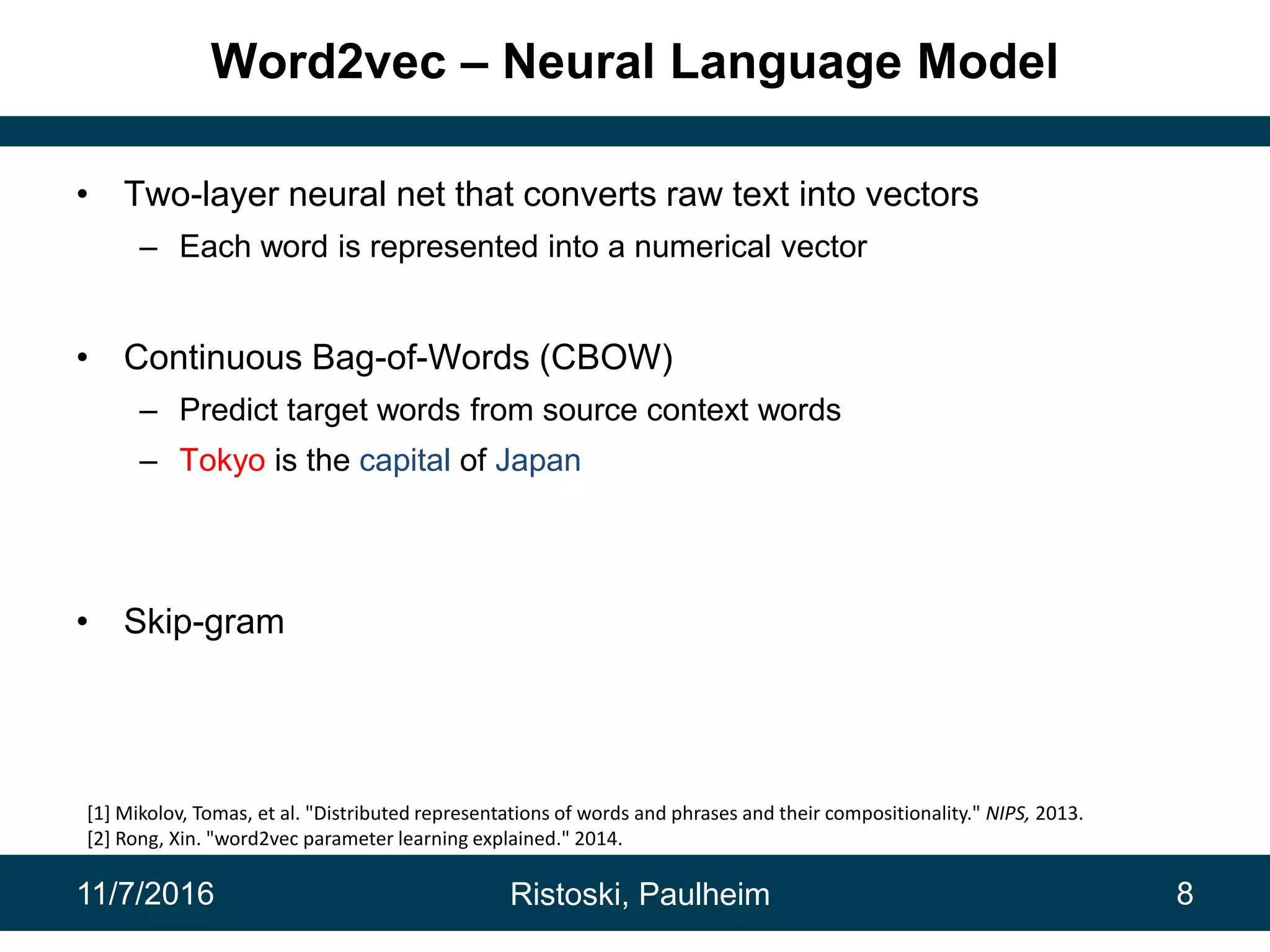

- 8. Word2vec – Neural Language Model • Two-layer neural net that converts raw text into vectors – Each word is represented into a numerical vector • Continuous Bag-of-Words (CBOW) – Predict target words from source context words – Tokyo is the capital of Japan • Skip-gram 11/7/2016 8 [1] Mikolov, Tomas, et al. "Distributed representations of words and phrases and their compositionality." NIPS, 2013. [2] Rong, Xin. "word2vec parameter learning explained." 2014. Ristoski, Paulheim

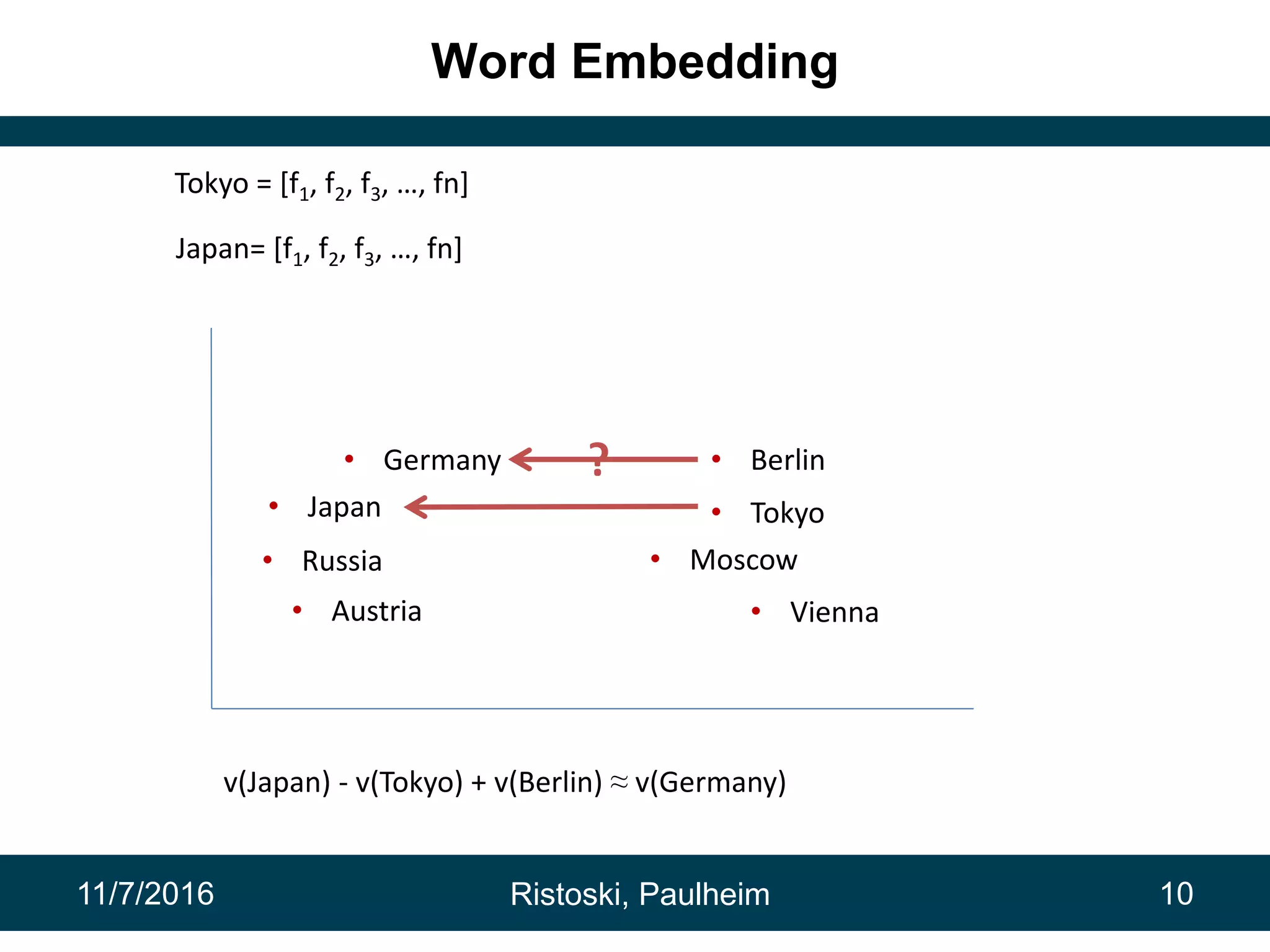

- 10. Word Embedding 11/7/2016 10 • Japan • Russia • Germany • Austria • Berlin • Tokyo • Moscow • Vienna Tokyo = [f1, f2, f3, …, fn] Japan= [f1, f2, f3, …, fn] Ristoski, Paulheim ? v(Japan) - v(Tokyo) + v(Berlin) ≈ v(Germany)

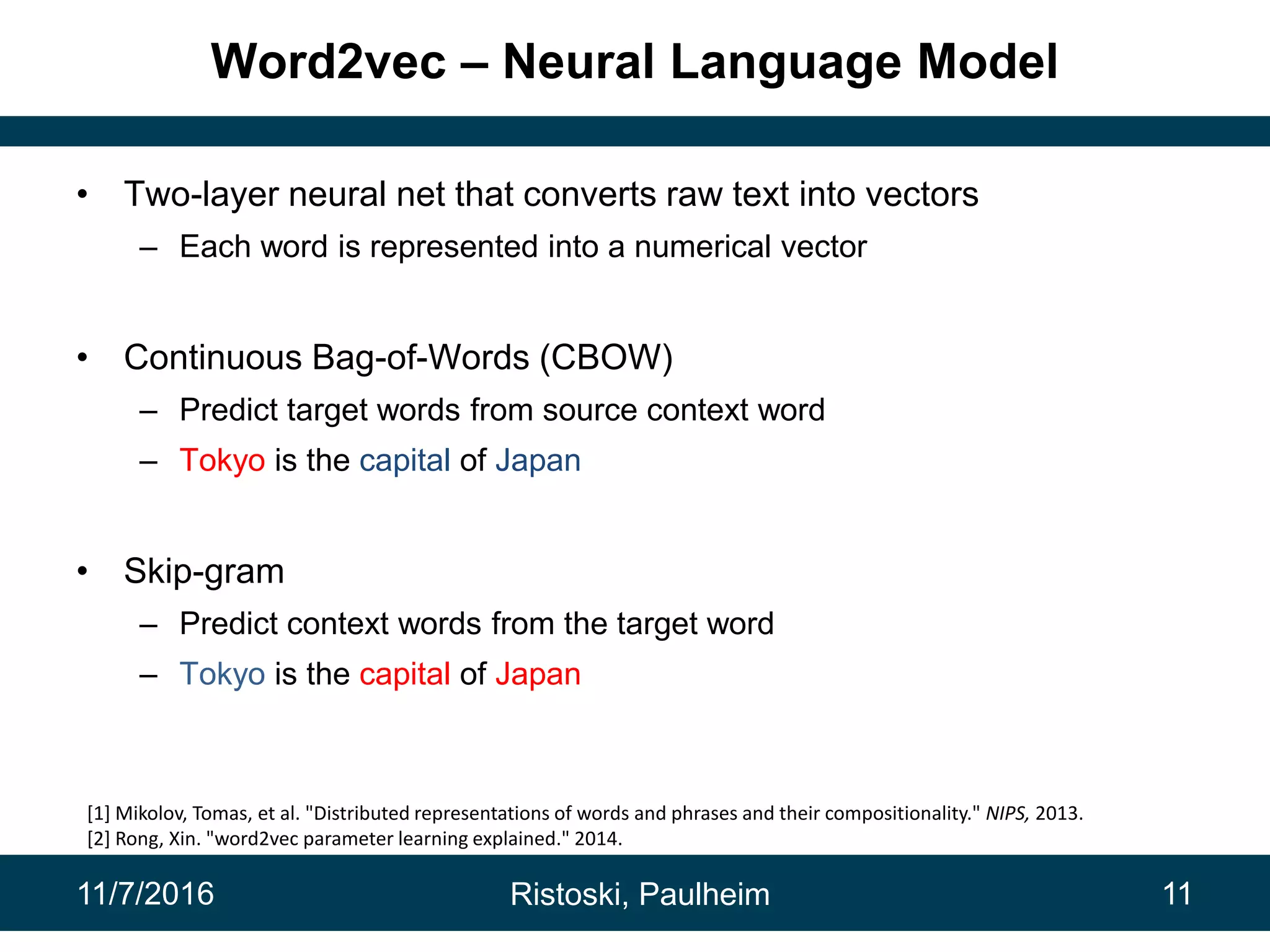

- 11. Word2vec – Neural Language Model • Two-layer neural net that converts raw text into vectors – Each word is represented into a numerical vector • Continuous Bag-of-Words (CBOW) – Predict target words from source context word – Tokyo is the capital of Japan • Skip-gram – Predict context words from the target word – Tokyo is the capital of Japan 11/7/2016 11 [1] Mikolov, Tomas, et al. "Distributed representations of words and phrases and their compositionality." NIPS, 2013. [2] Rong, Xin. "word2vec parameter learning explained." 2014. Ristoski, Paulheim

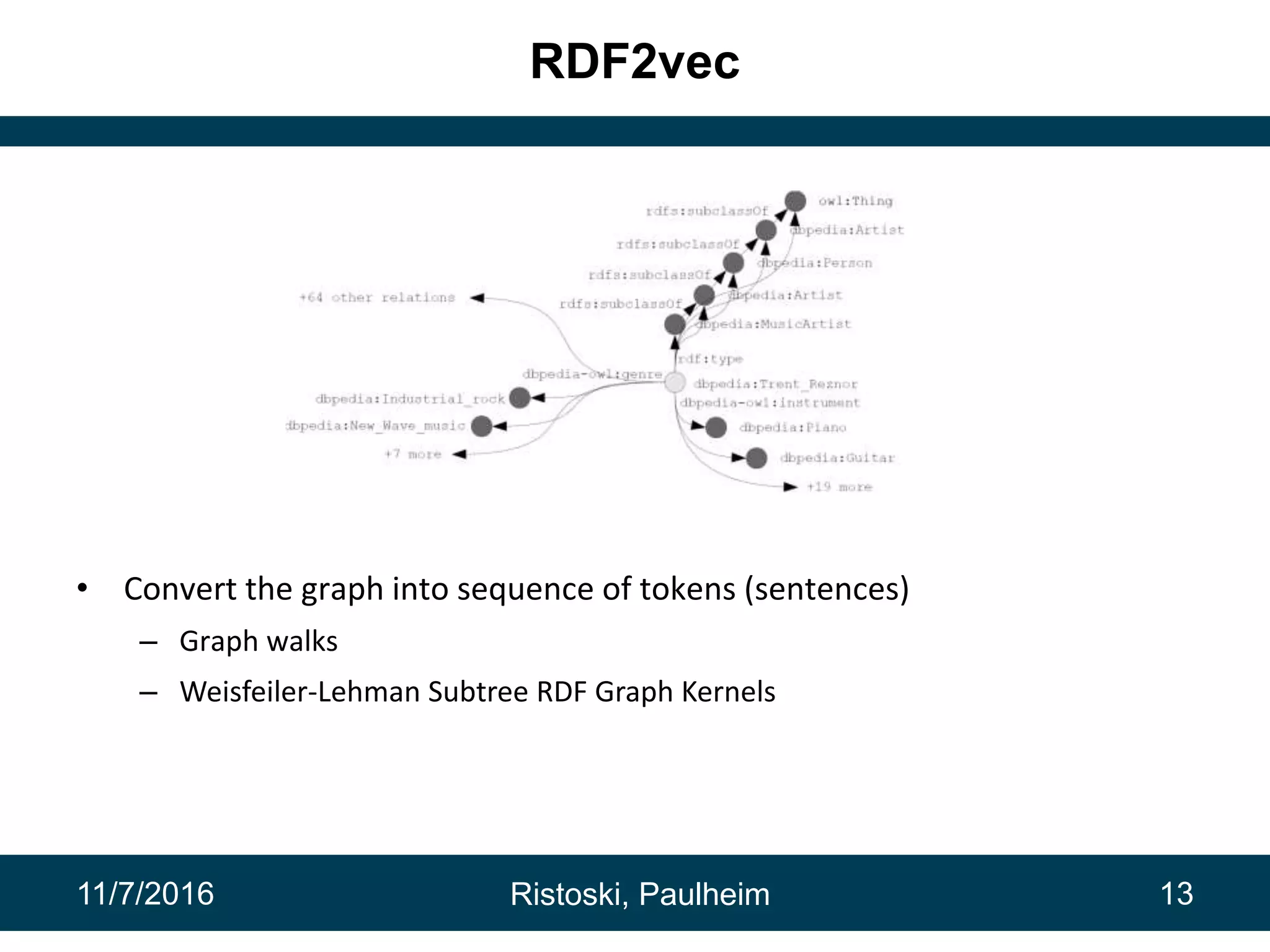

- 13. RDF2vec 11/7/2016 13 • Convert the graph into sequence of tokens (sentences) – Graph walks – Weisfeiler-Lehman Subtree RDF Graph Kernels Ristoski, Paulheim

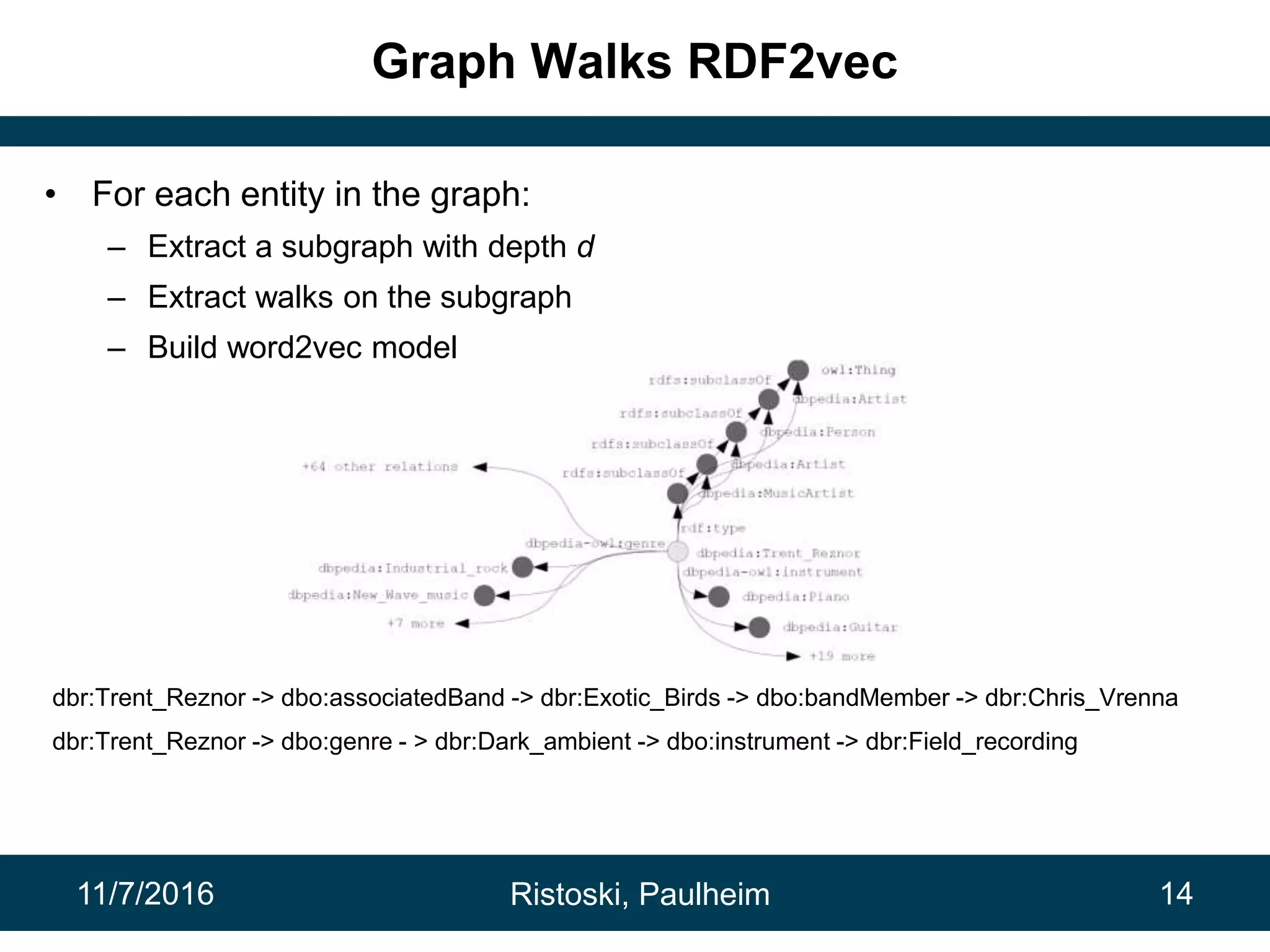

- 14. Graph Walks RDF2vec • For each entity in the graph: – Extract a subgraph with depth d – Extract walks on the subgraph – Build word2vec model dbr:Trent_Reznor -> dbo:associatedBand -> dbr:Exotic_Birds -> dbo:bandMember -> dbr:Chris_Vrenna dbr:Trent_Reznor -> dbo:genre - > dbr:Dark_ambient -> dbo:instrument -> dbr:Field_recording 11/7/2016 14Ristoski, Paulheim

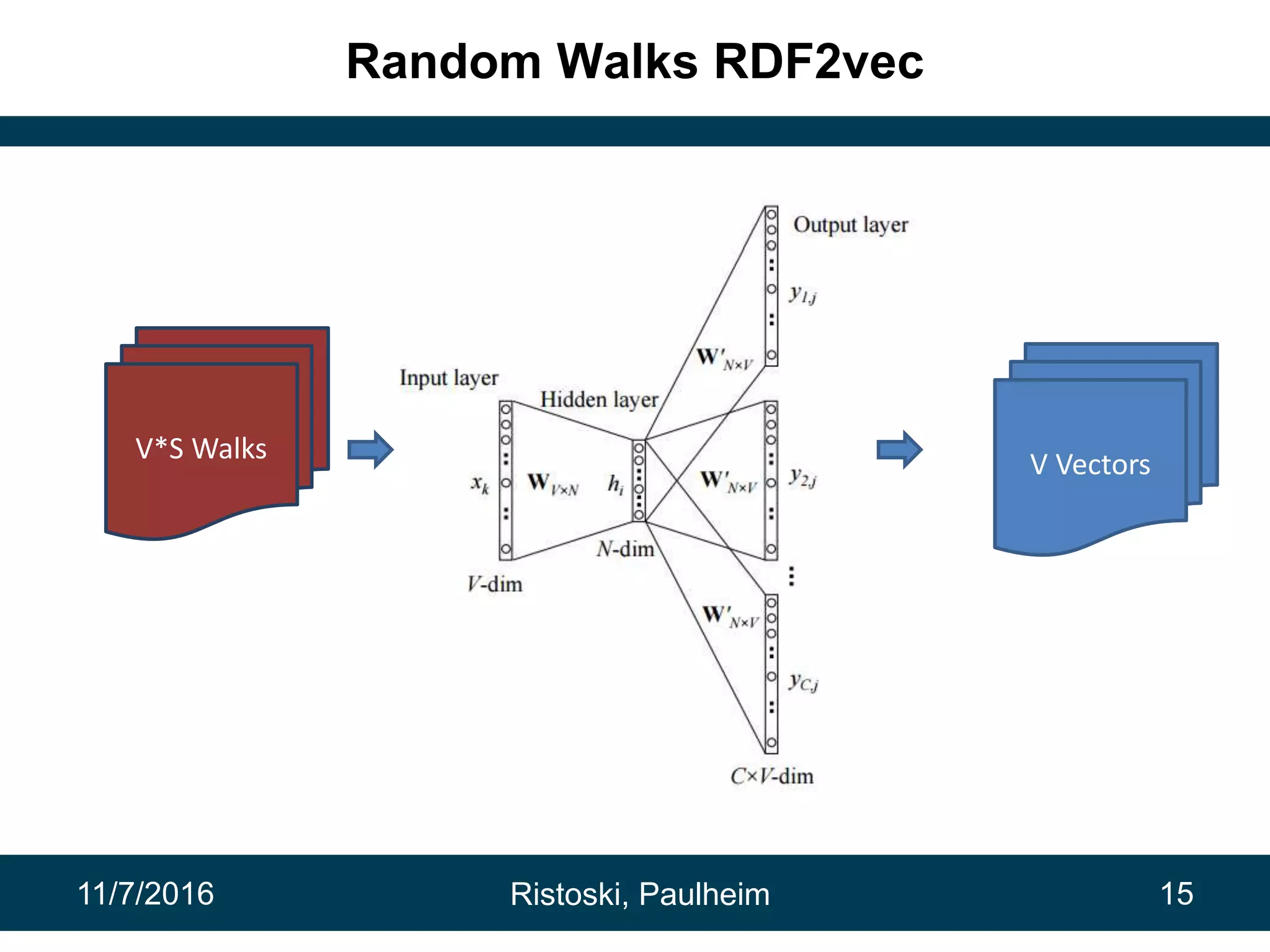

- 15. Random Walks RDF2vec 11/7/2016 15 V*S Walks V Vectors Ristoski, Paulheim

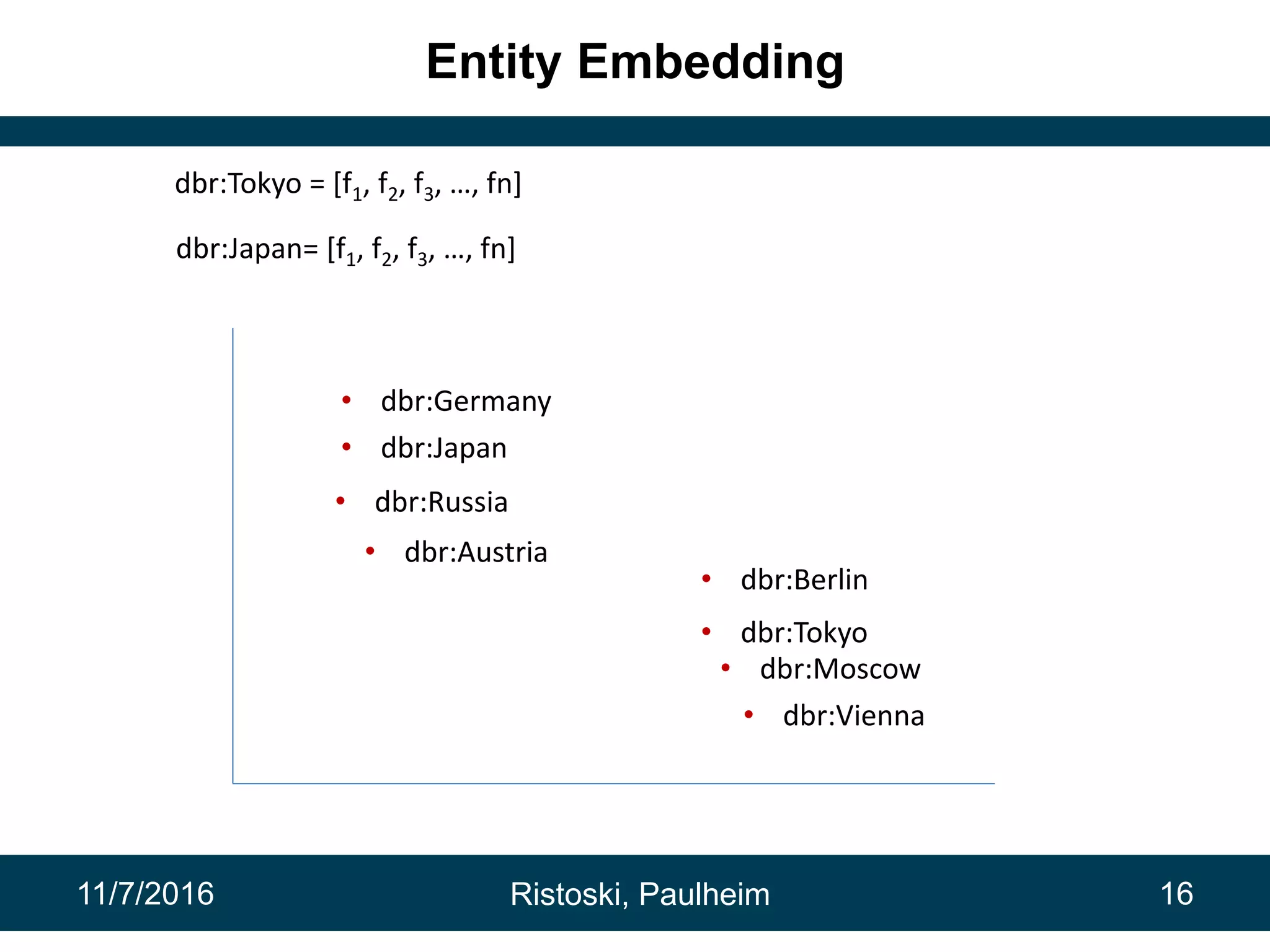

- 16. Entity Embedding 11/7/2016 16 • dbr:Berlin • dbr:Tokyo • dbr:Moscow • dbr:Vienna • dbr:Japan • dbr:Russia • dbr:Germany • dbr:Austria Ristoski, Paulheim dbr:Tokyo = [f1, f2, f3, …, fn] dbr:Japan= [f1, f2, f3, …, fn]

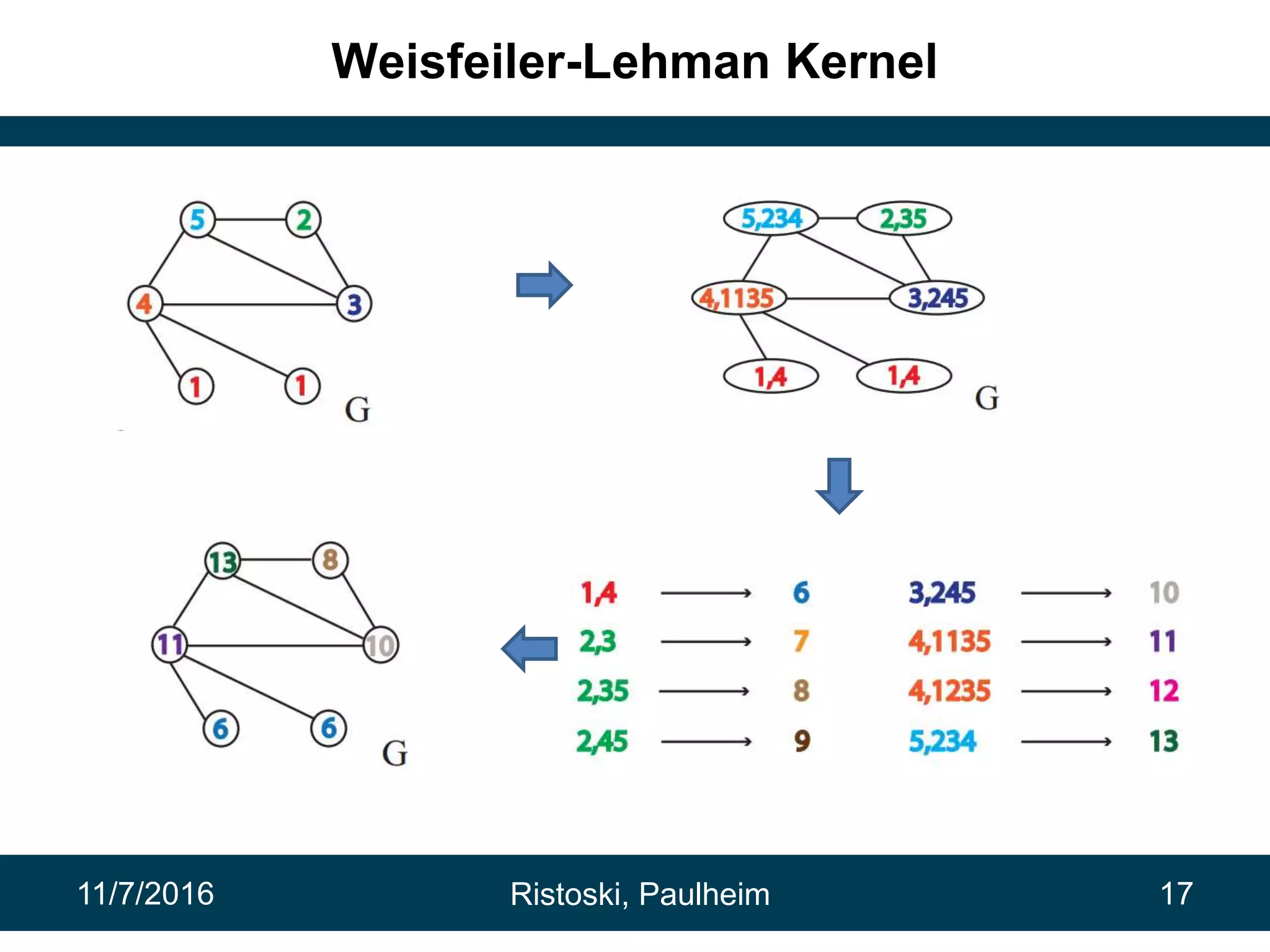

- 17. Weisfeiler-Lehman Kernel 11/7/2016 17Ristoski, Paulheim

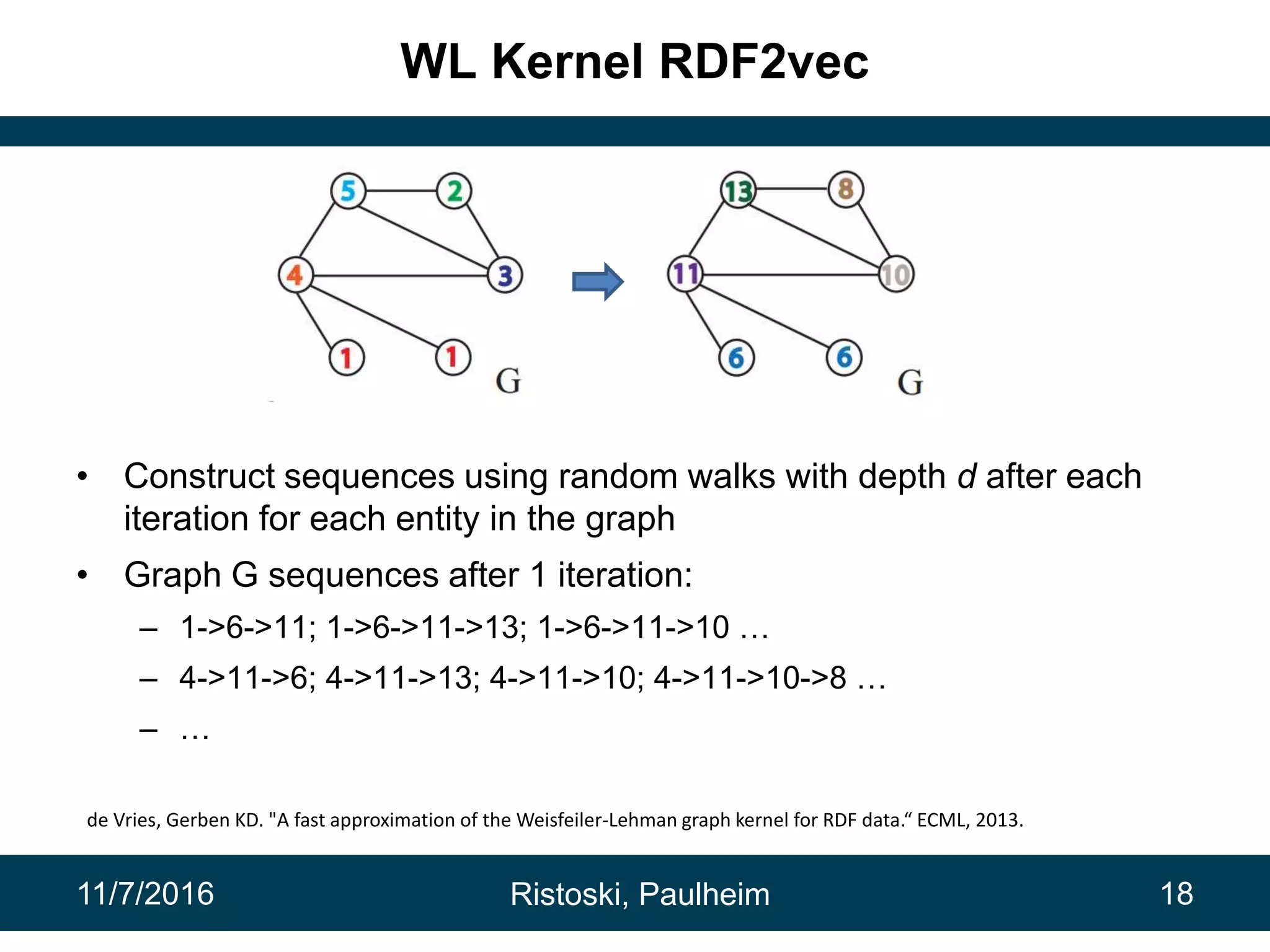

- 18. WL Kernel RDF2vec • Construct sequences using random walks with depth d after each iteration for each entity in the graph • Graph G sequences after 1 iteration: – 1->6->11; 1->6->11->13; 1->6->11->10 … – 4->11->6; 4->11->13; 4->11->10; 4->11->10->8 … – … 11/7/2016 18 de Vries, Gerben KD. "A fast approximation of the Weisfeiler-Lehman graph kernel for RDF data.“ ECML, 2013. Ristoski, Paulheim

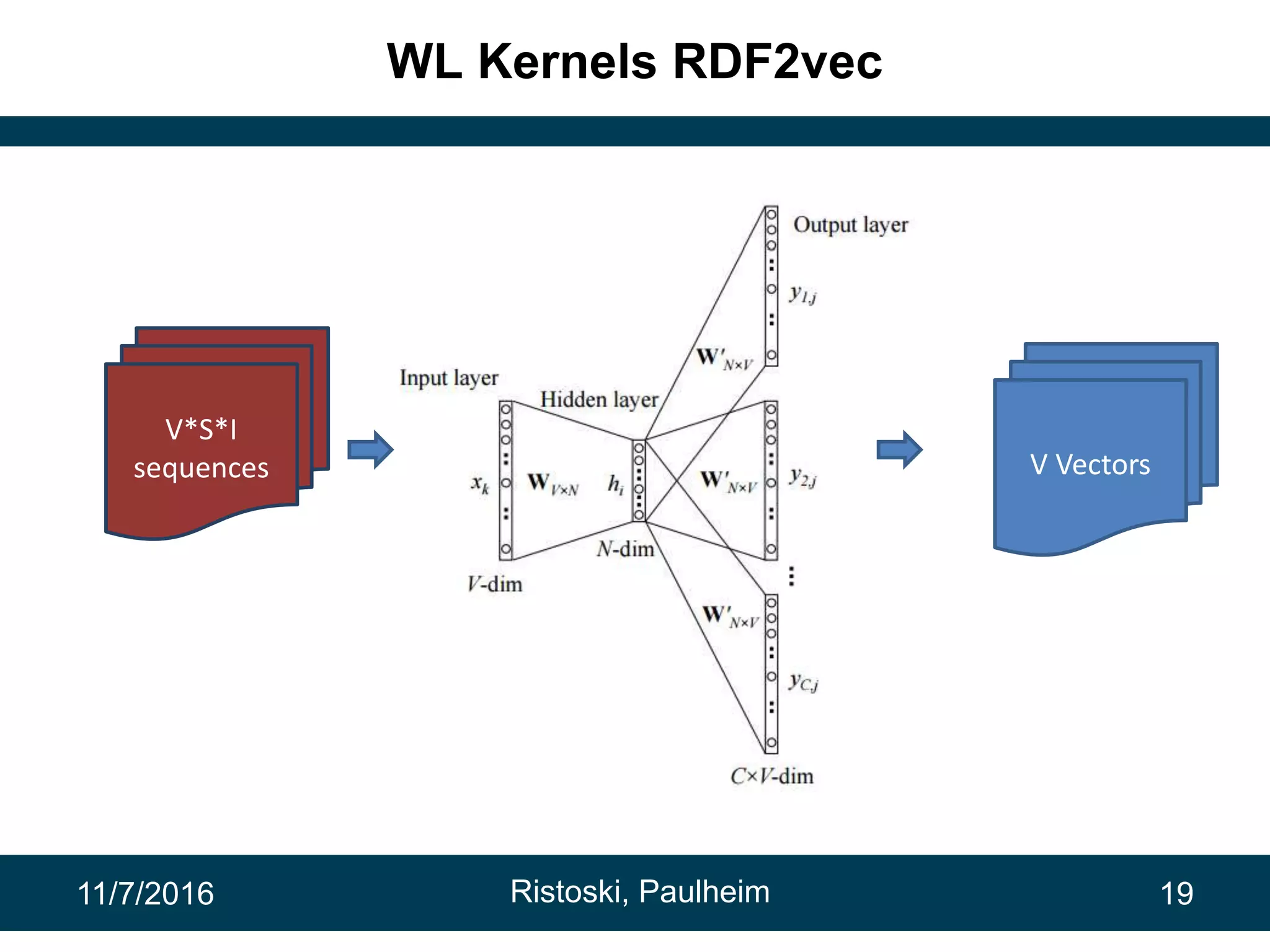

- 19. WL Kernels RDF2vec 11/7/2016 19 V*S*I sequences V Vectors Ristoski, Paulheim

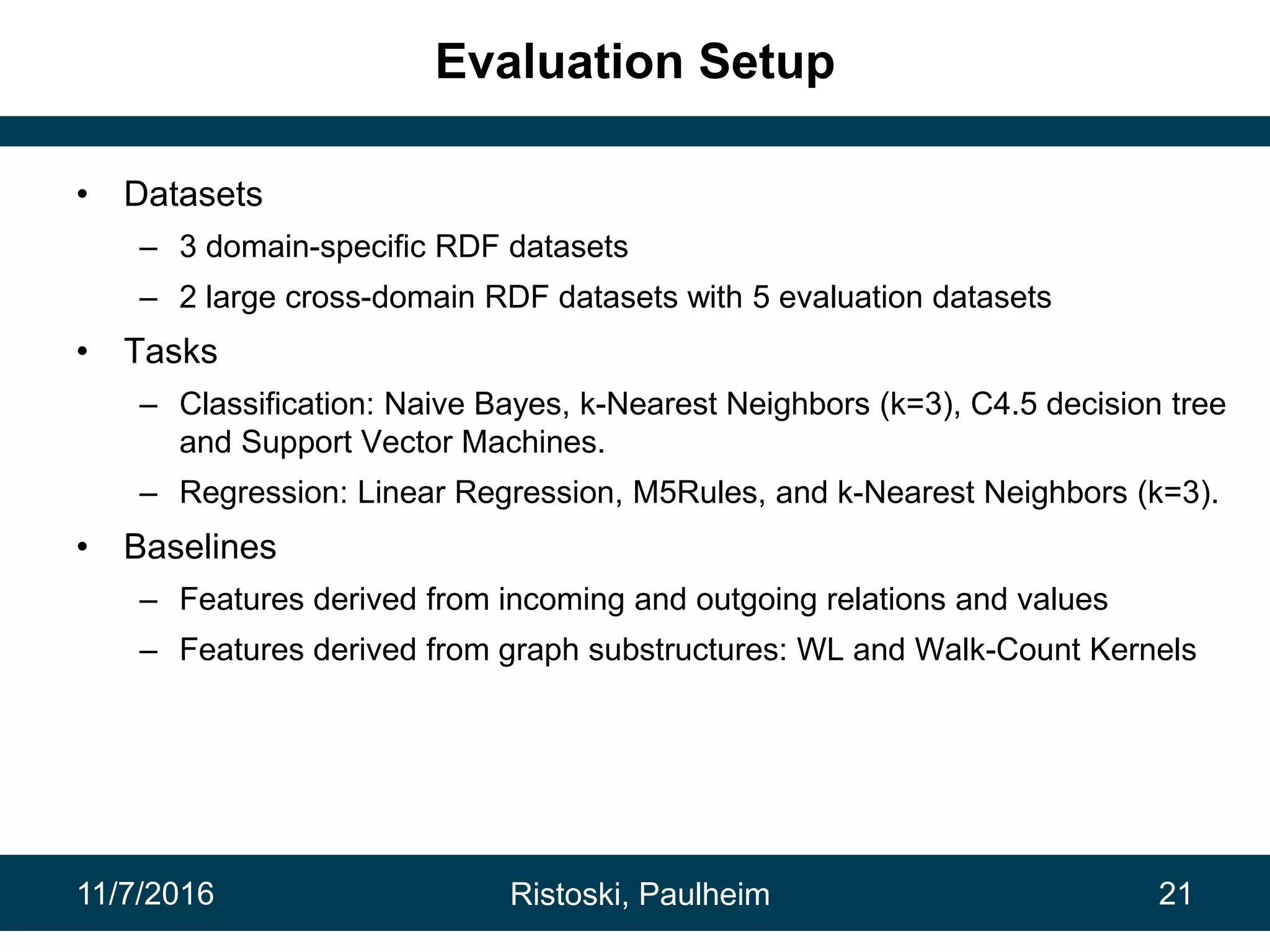

- 21. Evaluation Setup • Datasets – 3 domain-specific RDF datasets – 2 large cross-domain RDF datasets with 5 evaluation datasets • Tasks – Classification: Naive Bayes, k-Nearest Neighbors (k=3), C4.5 decision tree and Support Vector Machines. – Regression: Linear Regression, M5Rules, and k-Nearest Neighbors (k=3). • Baselines – Features derived from incoming and outgoing relations and values – Features derived from graph substructures: WL and Walk-Count Kernels 11/7/2016 Ristoski, Paulheim 21

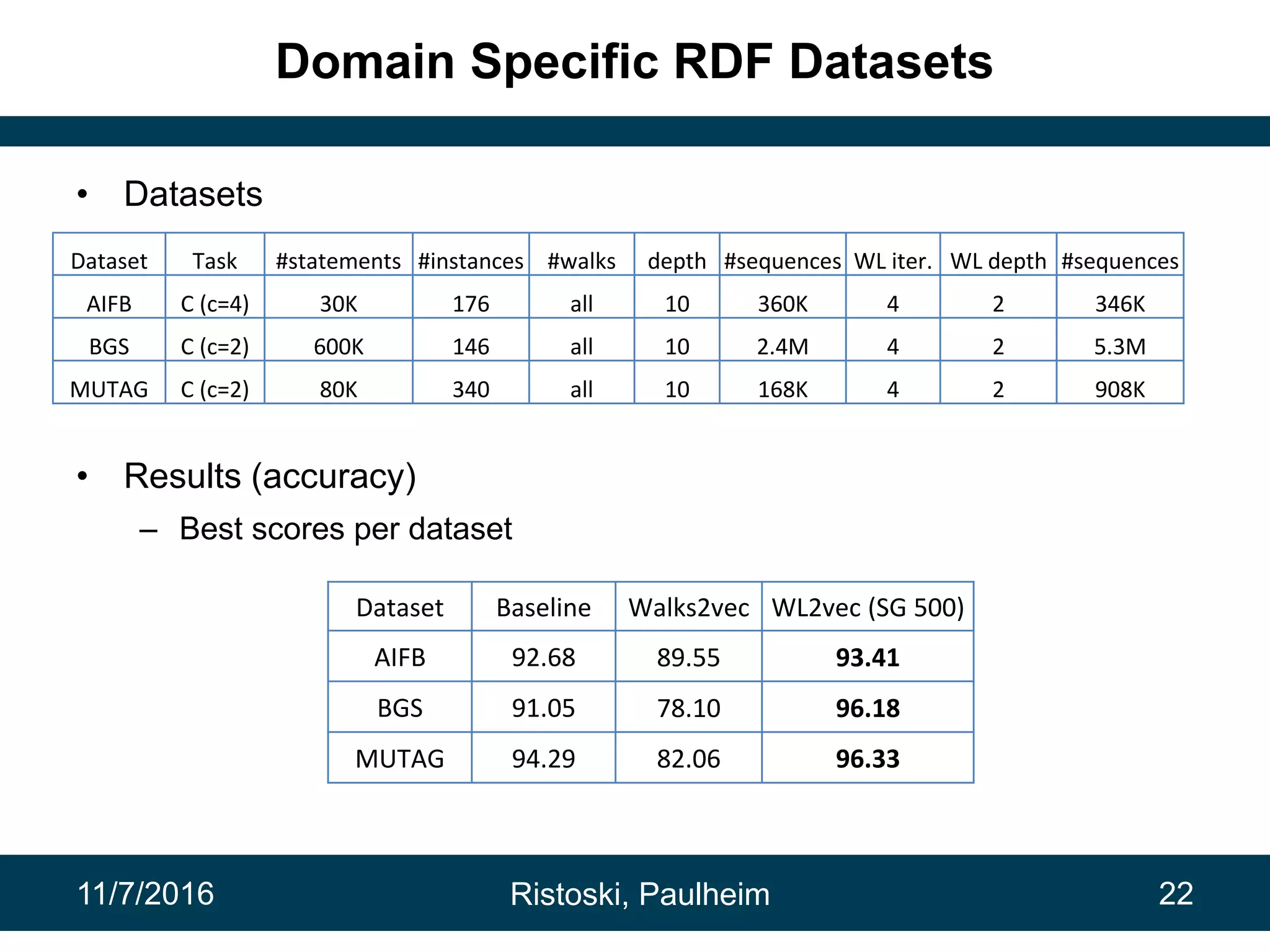

- 22. Domain Specific RDF Datasets • Datasets • Results (accuracy) – Best scores per dataset 11/7/2016 Ristoski, Paulheim 22 Dataset Task #statements #instances #walks depth #sequences WL iter. WL depth #sequences AIFB C (c=4) 30K 176 all 10 360K 4 2 346K BGS C (c=2) 600K 146 all 10 2.4M 4 2 5.3M MUTAG C (c=2) 80K 340 all 10 168K 4 2 908K Dataset Baseline Walks2vec WL2vec (SG 500) AIFB 92.68 89.55 93.41 BGS 91.05 78.10 96.18 MUTAG 94.29 82.06 96.33

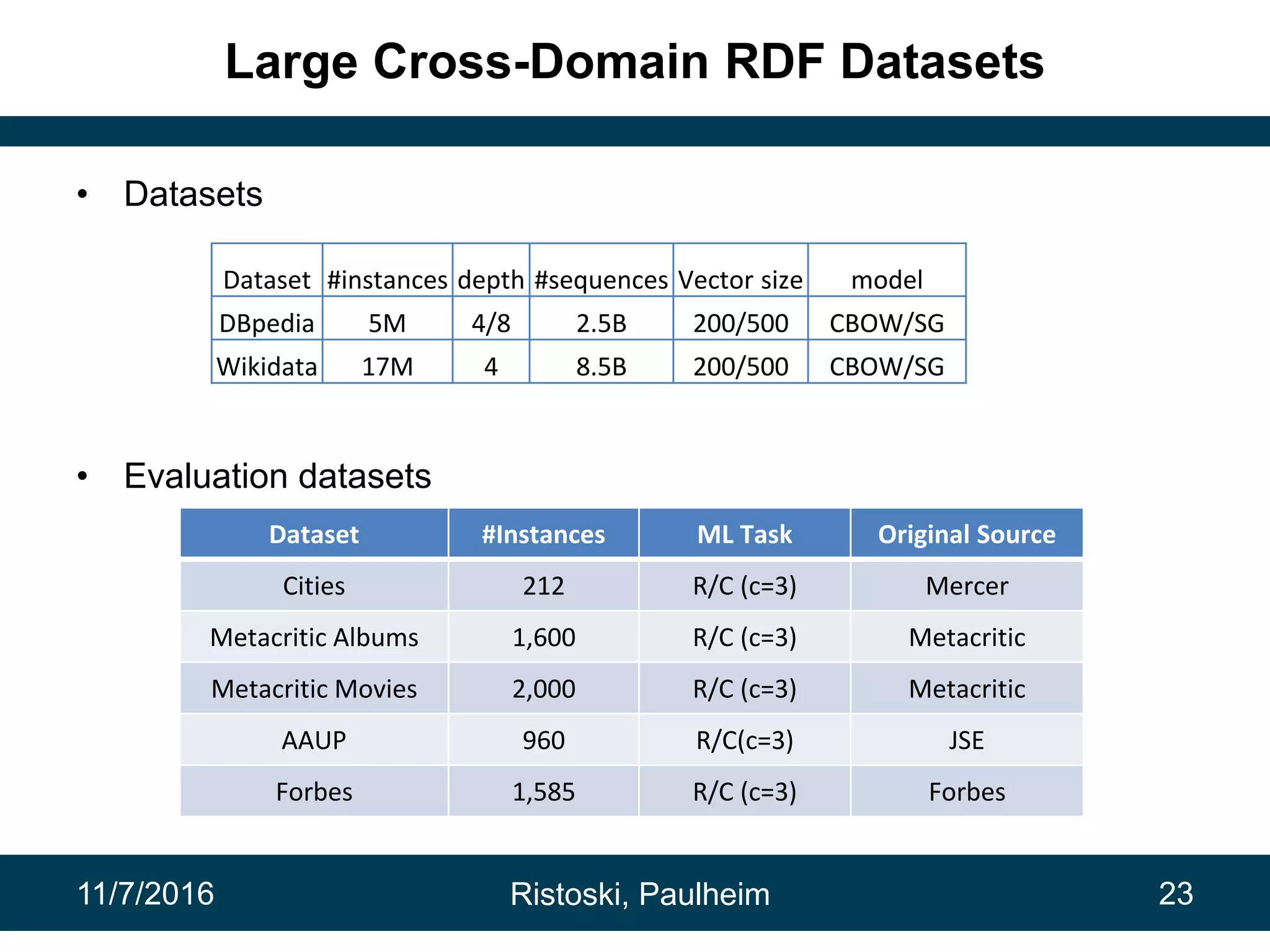

- 23. Large Cross-Domain RDF Datasets • Datasets • Evaluation datasets 11/7/2016 Ristoski, Paulheim 23 Dataset #instances depth #sequences Vector size model DBpedia 5M 4/8 2.5B 200/500 CBOW/SG Wikidata 17M 4 8.5B 200/500 CBOW/SG Dataset #Instances ML Task Original Source Cities 212 R/C (c=3) Mercer Metacritic Albums 1,600 R/C (c=3) Metacritic Metacritic Movies 2,000 R/C (c=3) Metacritic AAUP 960 R/C(c=3) JSE Forbes 1,585 R/C (c=3) Forbes

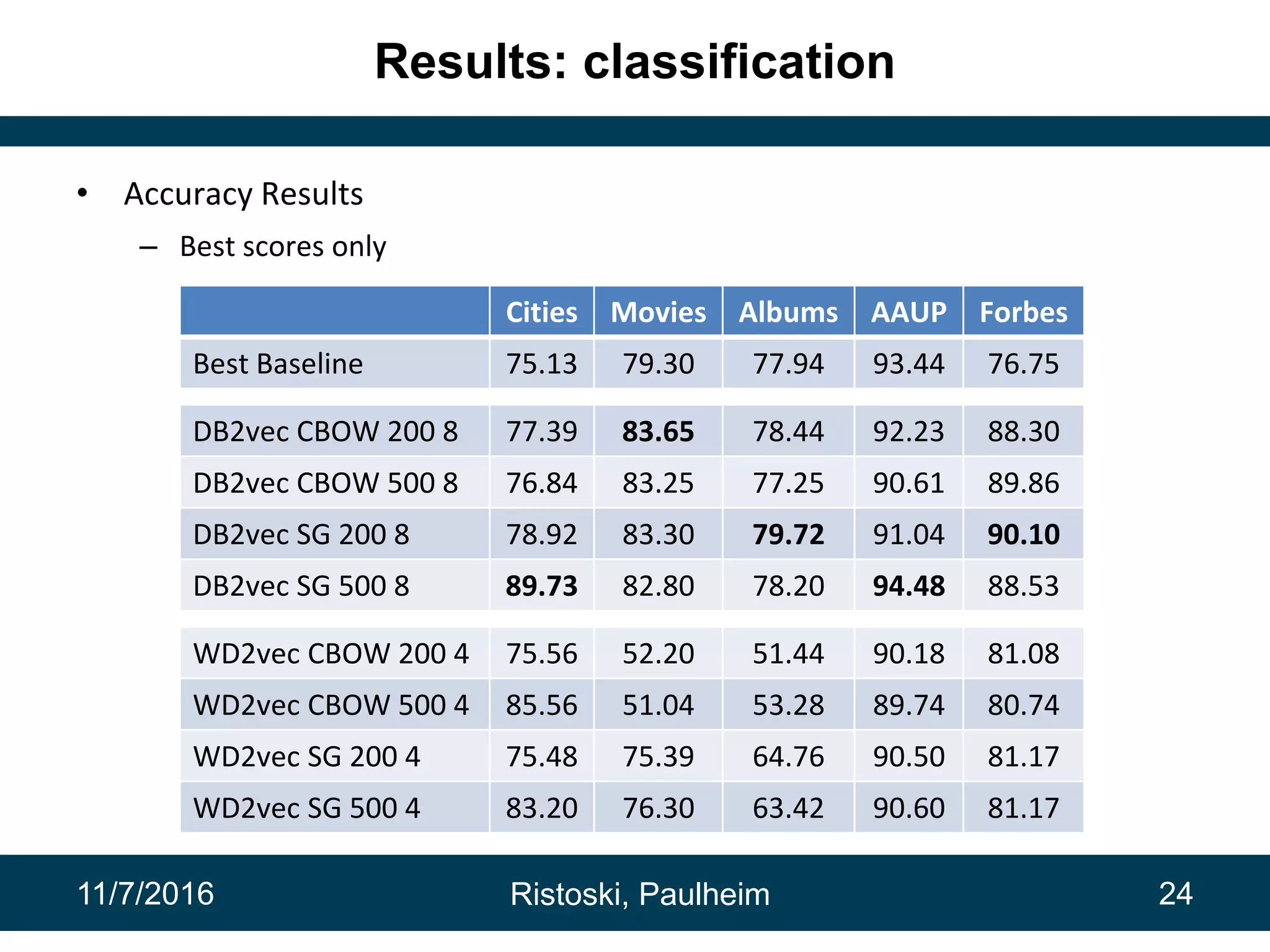

- 24. • Accuracy Results – Best scores only Results: classification Cities Movies Albums AAUP Forbes Best Baseline 75.13 79.30 77.94 93.44 76.75 DB2vec CBOW 200 8 77.39 83.65 78.44 92.23 88.30 DB2vec CBOW 500 8 76.84 83.25 77.25 90.61 89.86 DB2vec SG 200 8 78.92 83.30 79.72 91.04 90.10 DB2vec SG 500 8 89.73 82.80 78.20 94.48 88.53 WD2vec CBOW 200 4 75.56 52.20 51.44 90.18 81.08 WD2vec CBOW 500 4 85.56 51.04 53.28 89.74 80.74 WD2vec SG 200 4 75.48 75.39 64.76 90.50 81.17 WD2vec SG 500 4 83.20 76.30 63.42 90.60 81.17 11/7/2016 Ristoski, Paulheim 24

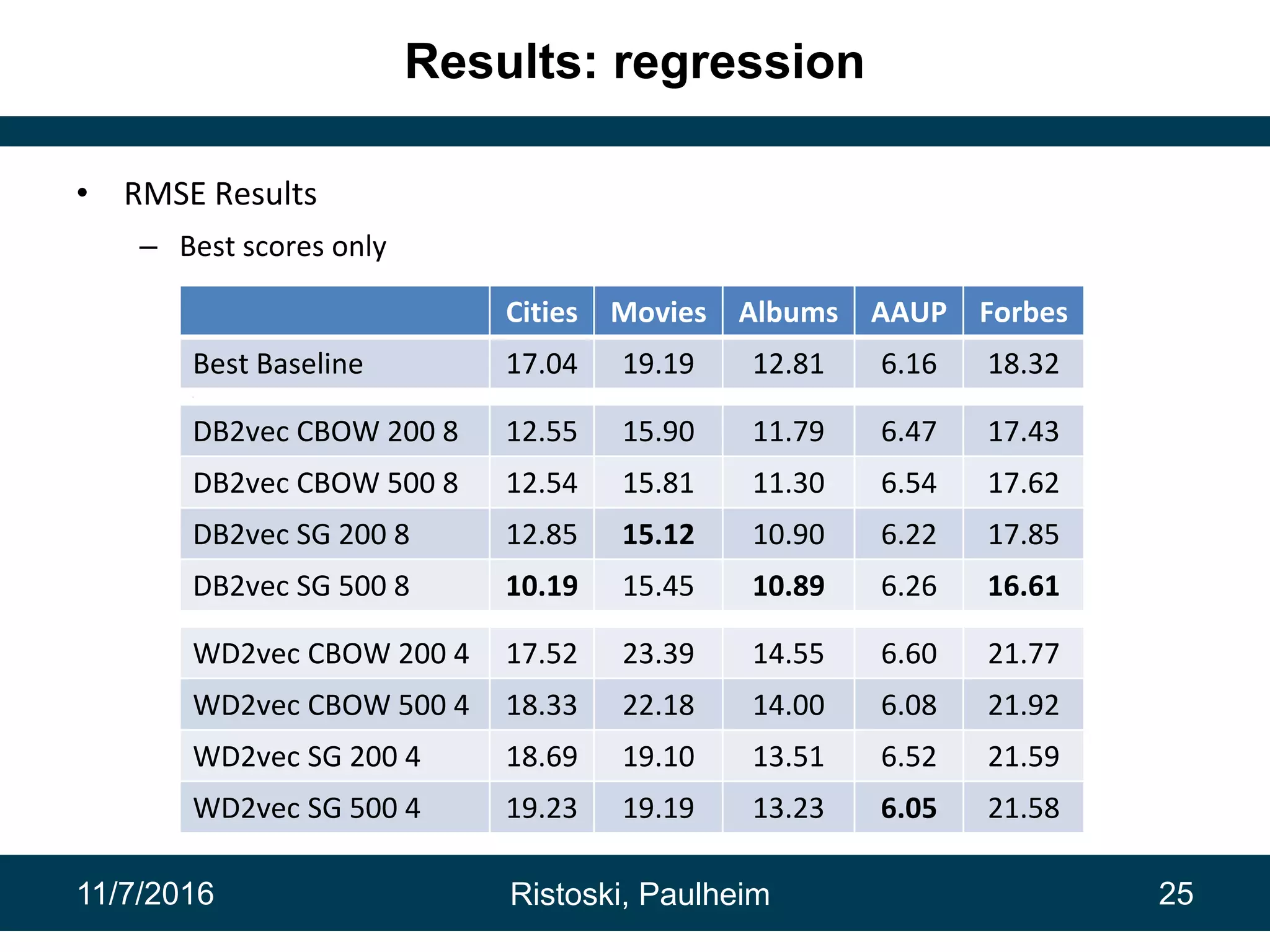

- 25. • RMSE Results – Best scores only Results: regression Cities Movies Albums AAUP Forbes Best Baseline 17.04 19.19 12.81 6.16 18.32 1 DB2vec CBOW 200 8 12.55 15.90 11.79 6.47 17.43 DB2vec CBOW 500 8 12.54 15.81 11.30 6.54 17.62 DB2vec SG 200 8 12.85 15.12 10.90 6.22 17.85 DB2vec SG 500 8 10.19 15.45 10.89 6.26 16.61 WD2vec CBOW 200 4 17.52 23.39 14.55 6.60 21.77 WD2vec CBOW 500 4 18.33 22.18 14.00 6.08 21.92 WD2vec SG 200 4 18.69 19.10 13.51 6.52 21.59 WD2vec SG 500 4 19.23 19.19 13.23 6.05 21.58 11/7/2016 Ristoski, Paulheim 25

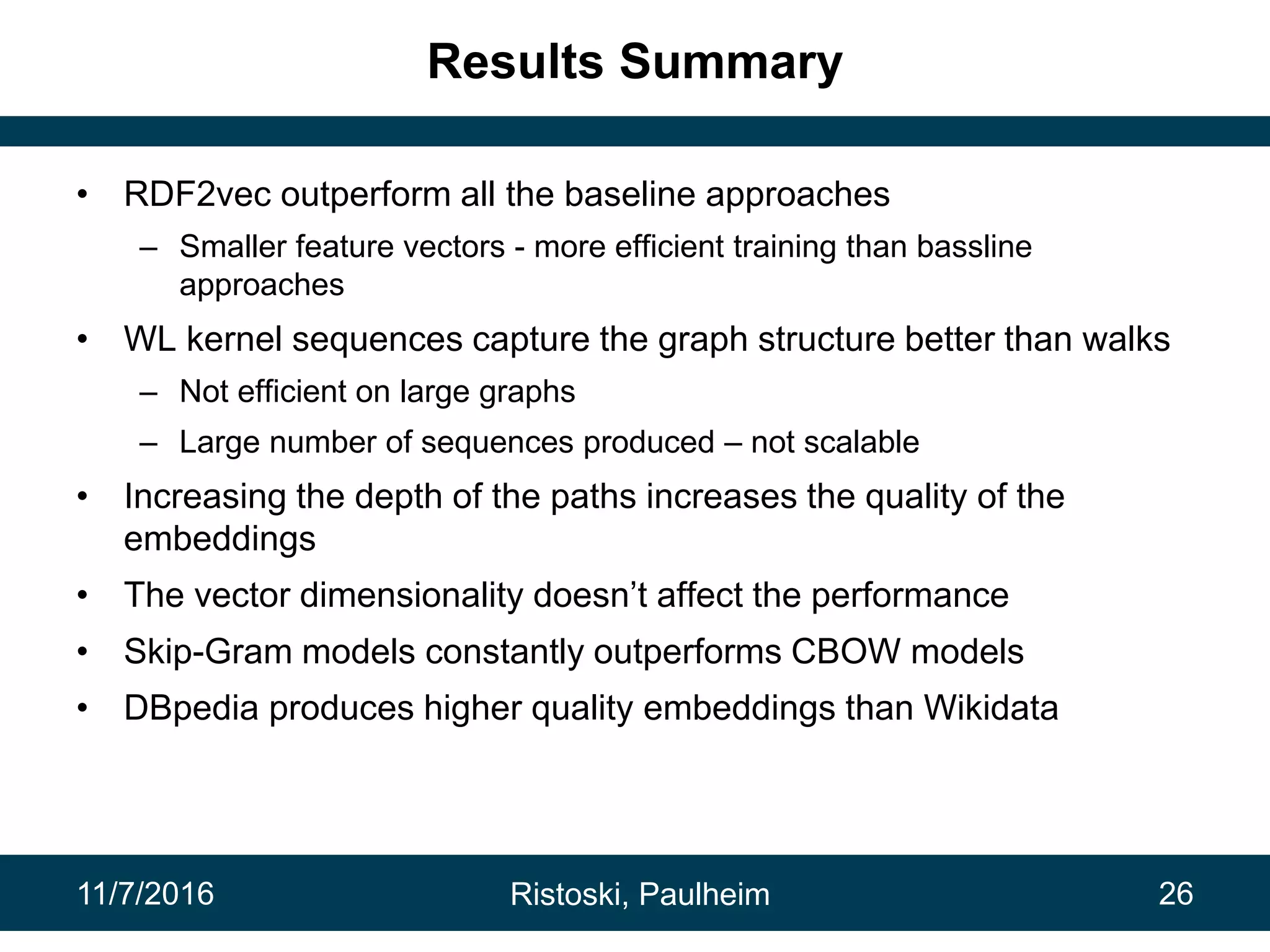

- 26. Results Summary • RDF2vec outperform all the baseline approaches – Smaller feature vectors - more efficient training than bassline approaches • WL kernel sequences capture the graph structure better than walks – Not efficient on large graphs – Large number of sequences produced – not scalable • Increasing the depth of the paths increases the quality of the embeddings • The vector dimensionality doesn’t affect the performance • Skip-Gram models constantly outperforms CBOW models • DBpedia produces higher quality embeddings than Wikidata 11/7/2016 Ristoski, Paulheim 26

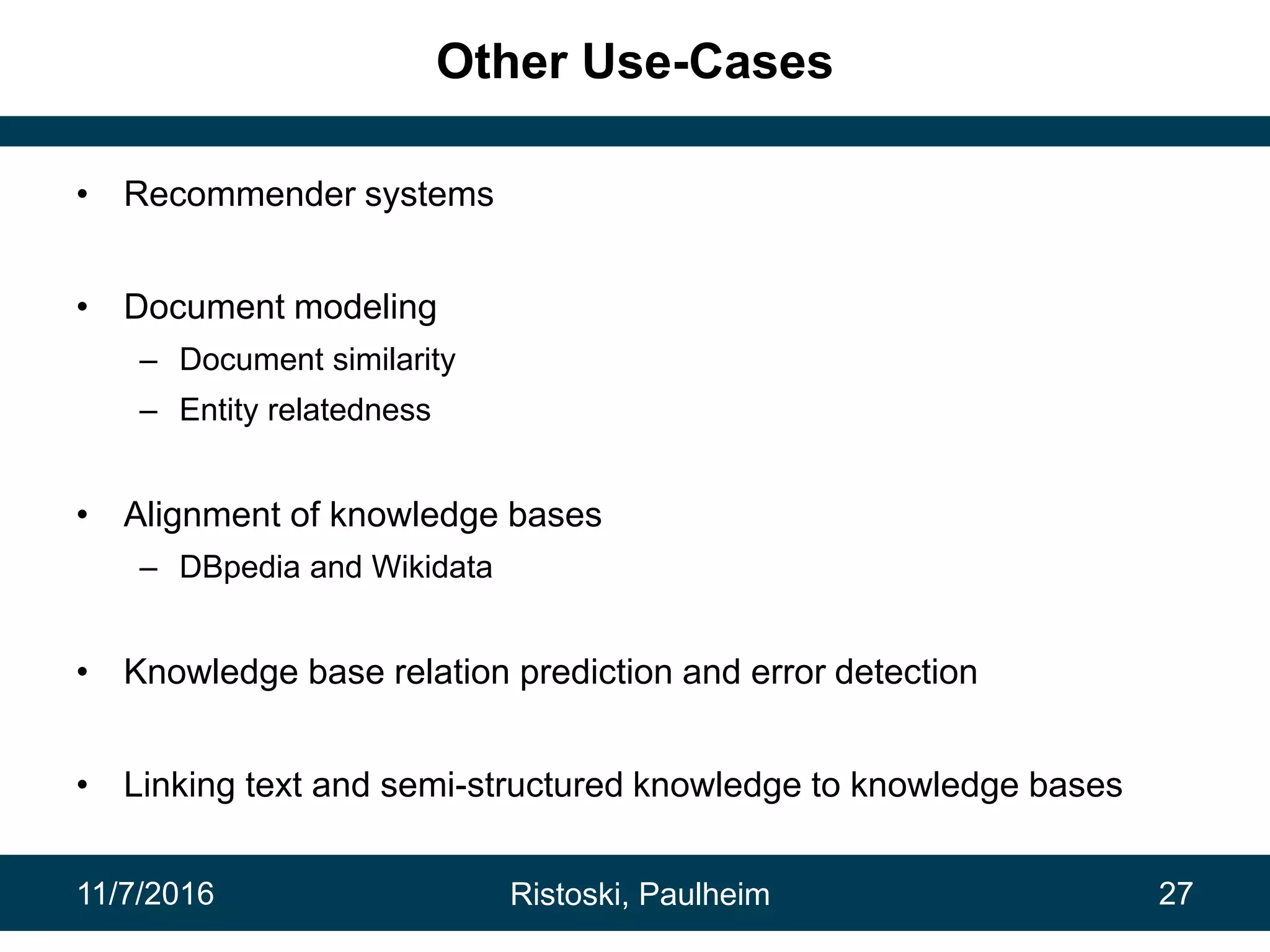

- 27. Other Use-Cases • Recommender systems • Document modeling – Document similarity – Entity relatedness • Alignment of knowledge bases – DBpedia and Wikidata • Knowledge base relation prediction and error detection • Linking text and semi-structured knowledge to knowledge bases 11/7/2016 Ristoski, Paulheim 27

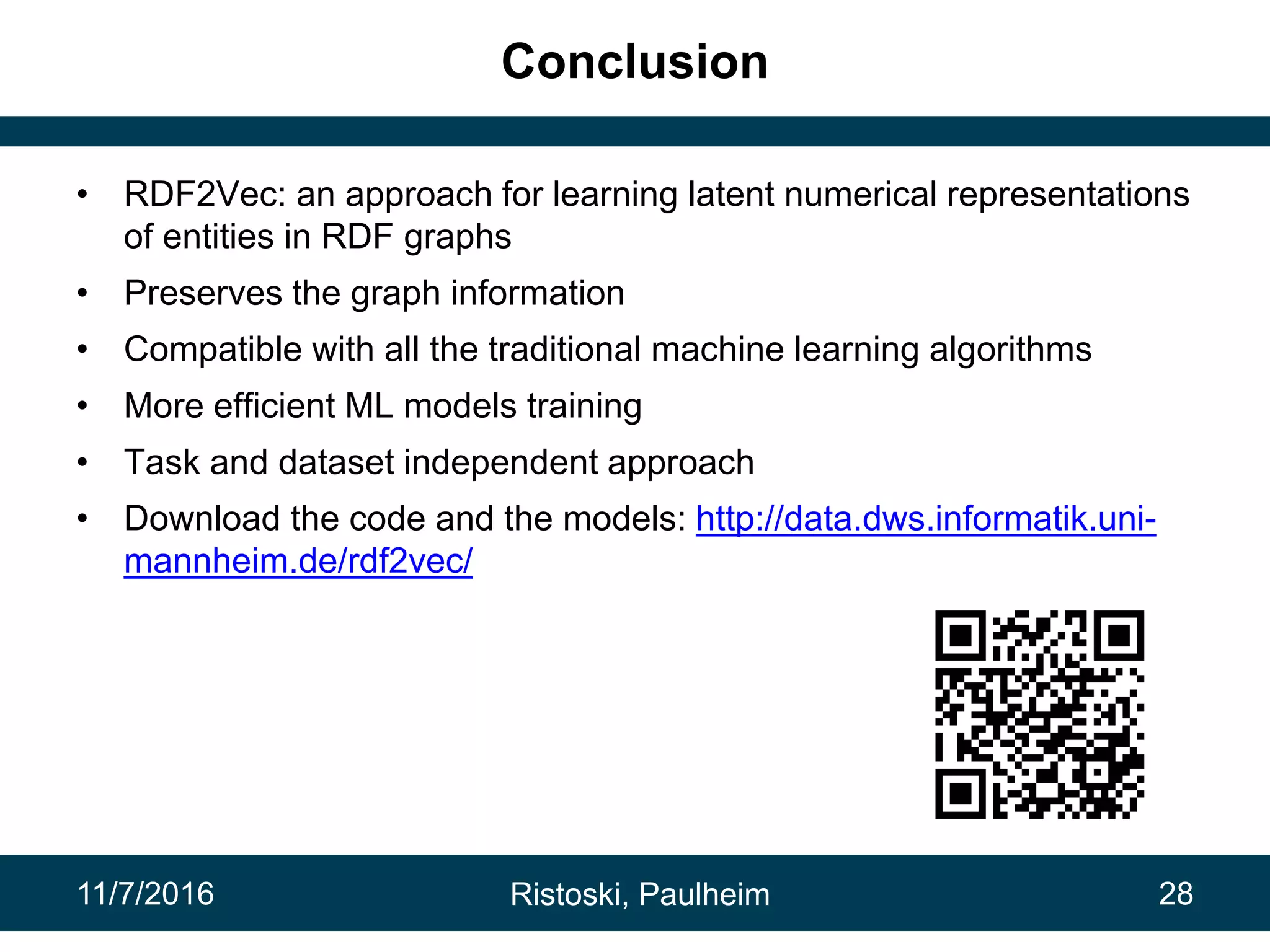

- 28. Conclusion • RDF2Vec: an approach for learning latent numerical representations of entities in RDF graphs • Preserves the graph information • Compatible with all the traditional machine learning algorithms • More efficient ML models training • Task and dataset independent approach • Download the code and the models: http://data.dws.informatik.uni- mannheim.de/rdf2vec/ 11/7/2016 Ristoski, Paulheim 28
Editor's Notes
- igure~\ref{fig:lodKDDpipeline} gives an overview of a general LOD-enabled knowledge discovery process. Given a set of local data (such as a relational database), the first step is to link the data to the corresponding LOD concepts from the chosen LOD dataset. After the links are set, outgoing links to external LOD datasets can be explored. In the next step, various techniques for data consolidation and cleansing are applied. Next, transformations on the collected data need to be performed in order to represent the data in a way that it can be processed with any arbitrary data analysis algorithms. After the data transformation is done, a suitable data mining algorithm is applied on the data. In the final step, the results of the data mining process are presented to the user.
- Skip gram softmax is actually logistic regression It is unsupervised method
- On the input layer we get the context words and in the output layer we are trying to calculate the target word. For each of the input words the vector is retrieved from the input->hiden matrix and averaged which is represented in the hidden layer. This implies that the link (activation) function of the hidden layer units is simply linear r (i.e., directly passing its weighted sum of inputs to the next layer). Using the weights from the hidden-output layer weights, we can compute a score uj for each word in the vocabulary. Then the objective of model is to maximize the average log probability. Where the posterior probability is defined using the softmax function. The averaged vector representation from the context is computed as. With the softmax function we calculate the probabilyt for the target given the context, and we use the value to calculate the error (true is 1 or 0) and then we calculate the loss function using gradient descent and backpropagate through the network We take the input vectors, but you can also take the output vectors, or use sum of both, or empiracal evaluation has shown that concatattion is better
- If we represent the words in a low dimensional feature space we expect words semanticly similar words to be close to each other.
- Skip gram softmax is actually logistic regression It is unsupervised method
- The target word is now at the input layer, and the context words are on the output layer. The input is a one-hot encoded vector. which means h is simply copying a row of the input→hidden weight matrix The objective of the Skip-gram model is to maximize the average log probability. where vw and v ′ w are the “input” and “output” vector representations of w, and W is the number of words in the vocabulary. This formulation is impractical because the cost of computing ∇ log p(wO|wI ) is proportional to W, which is often large (105–107 terms). There are hierarchilcal softmax and negative sampling This inversion might seem like an arbitrary choice, but statistically it has the effect that CBOW smoothes over a lot of the distributional information (by treating an entire context as one observation). For the most part, this turns out to be a useful thing for smaller datasets. However, skip-gram treats each context-target pair as a new observation, and this tends to do better when we have larger datasets. We take the input vectors, but you can also take the output vectors, or use sum of both, or empiracal evaluation has shown that concatattion is better
- If we represent the words in a low dimensional feature space we expect words semantically similar words to be close to each other.
