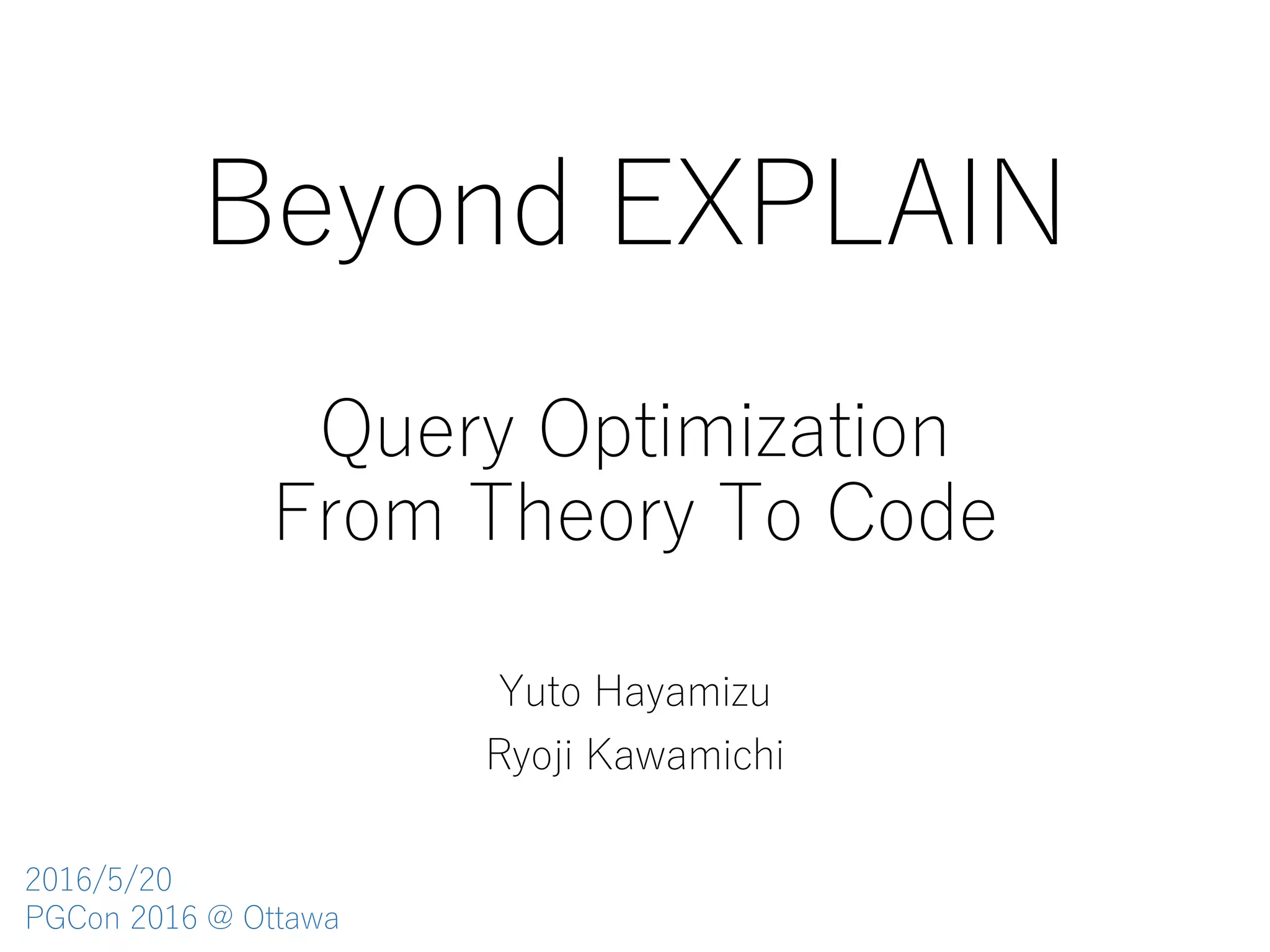

Beyond EXPLAIN
Yuto Hayamizu
Ryoji Kawamichi
Query Optimization
From Theory To Code
2016/5/20
PGCon 2016 @ Ottawa

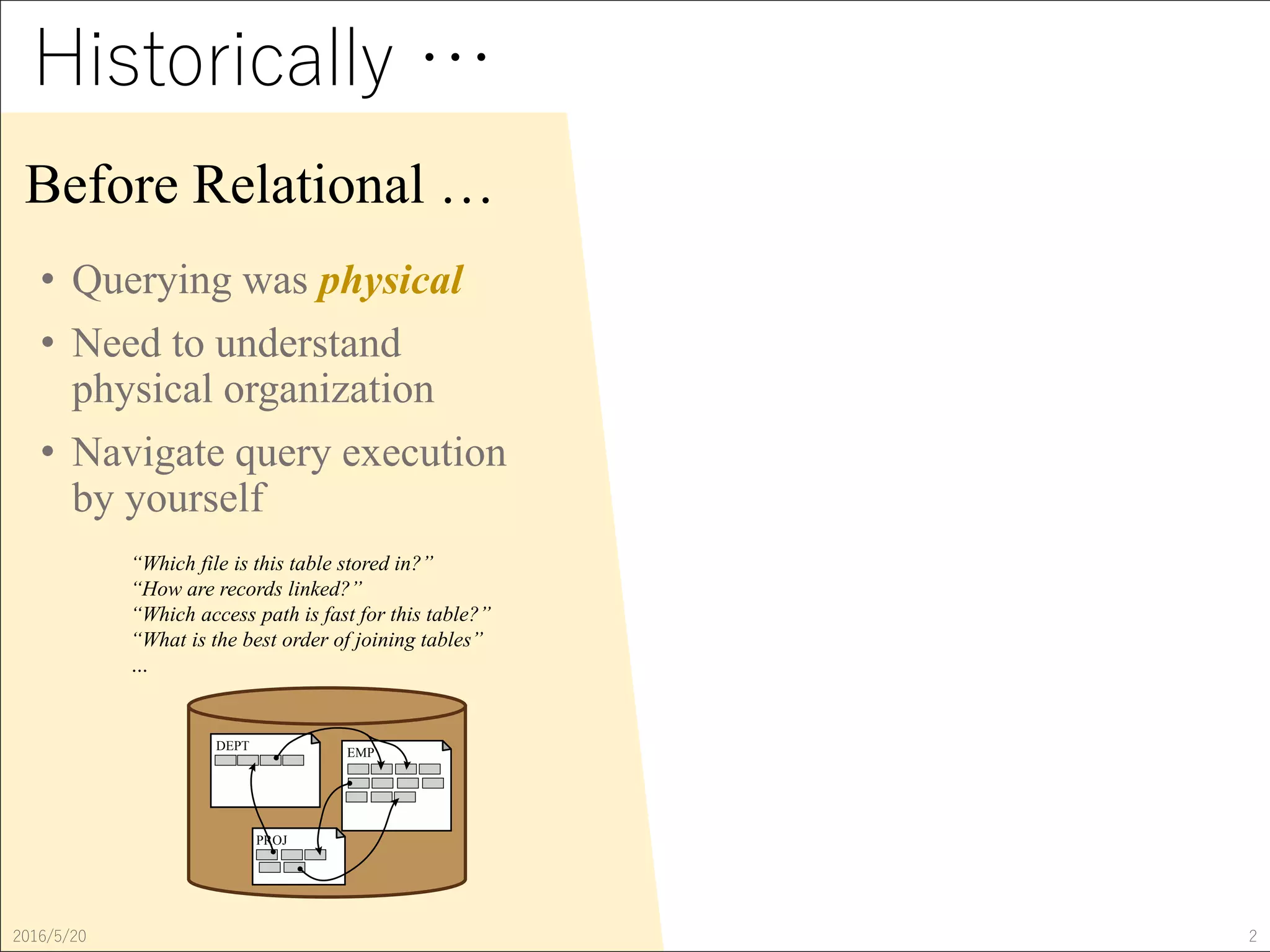

Before Relational …
• Querying was physical
• Need to understand
physical organization
• Navigate query execution
by yourself
2016/5/20 2
DEPT
EMP
PROJ
“Which file is this table stored in?”
“How are records linked?”
“Which access path is fast for this table?”
“What is the best order of joining tables”
…

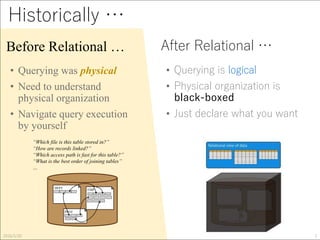

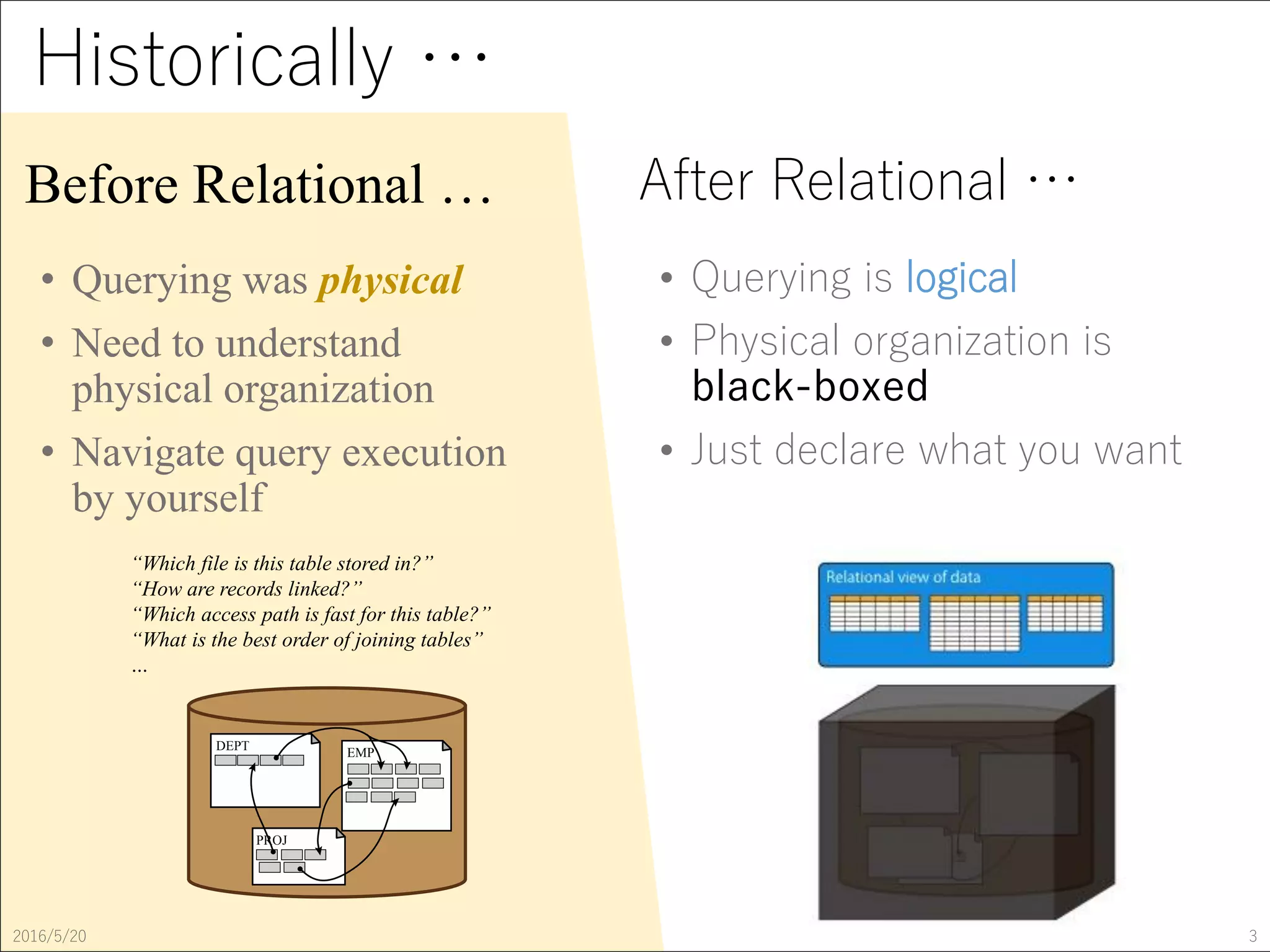

Historically …
Before Relational …
• Querying was physical
• Need to understand
physical organization
• Navigate query execution
by yourself
2016/5/20 3
After Relational …
DEPT
EMP
PROJ
“Which file is this table stored in?”
“How are records linked?”
“Which access path is fast for this table?”
“What is the best order of joining tables”
…
• Querying is logical
• Physical organization is
black-boxed
• Just declare what you want
Historically …

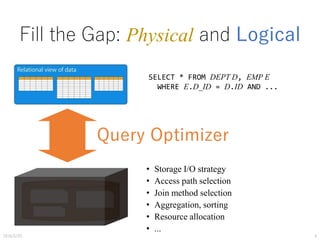

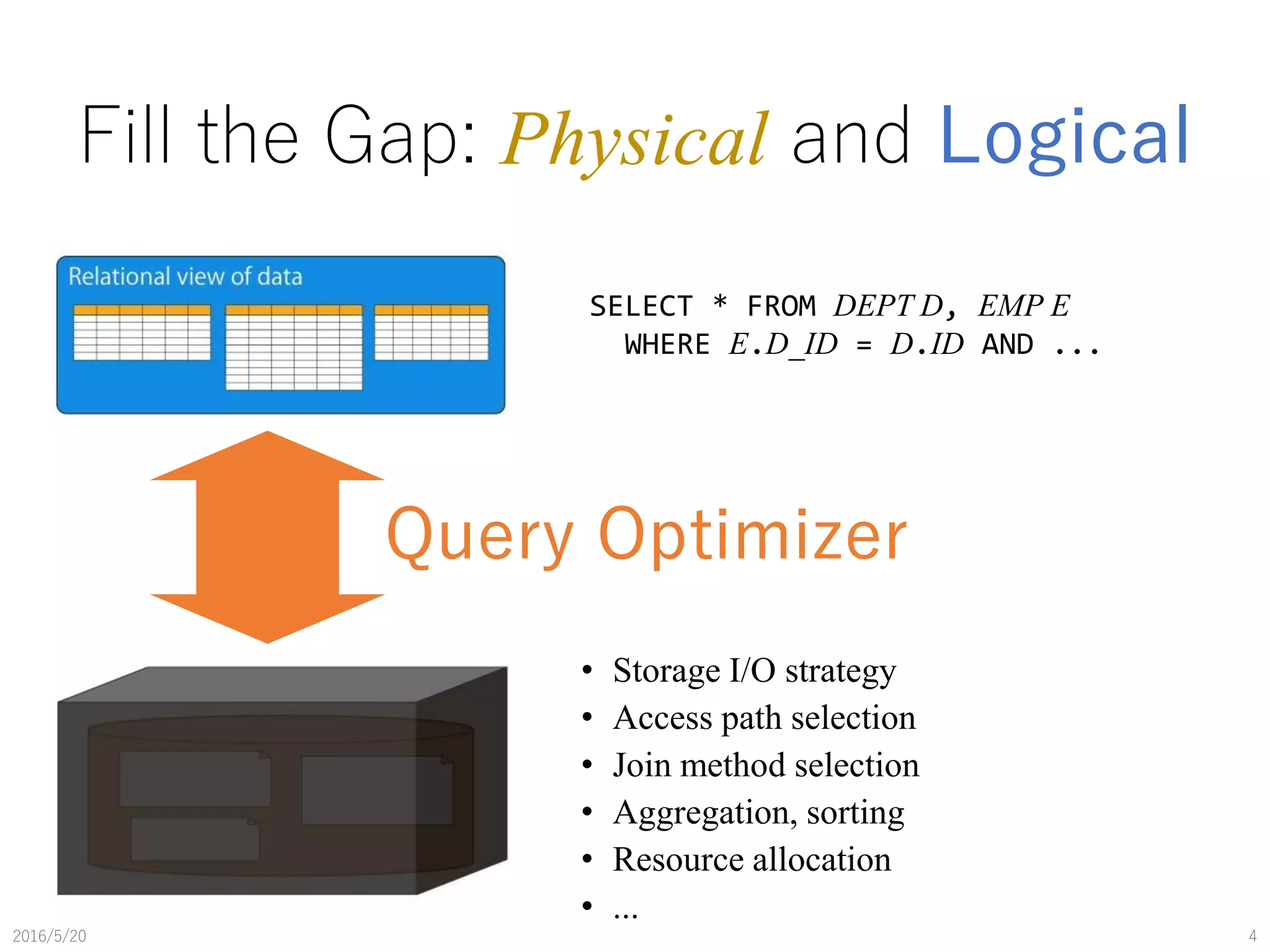

Fill the Gap: Physical and Logical
2016/5/20 4
SELECT * FROM DEPT D, EMP E
WHERE E.D_ID = D.ID AND ...
• Storage I/O strategy
• Access path selection
• Join method selection
• Aggregation, sorting
• Resource allocation
• ...
Query Optimizer

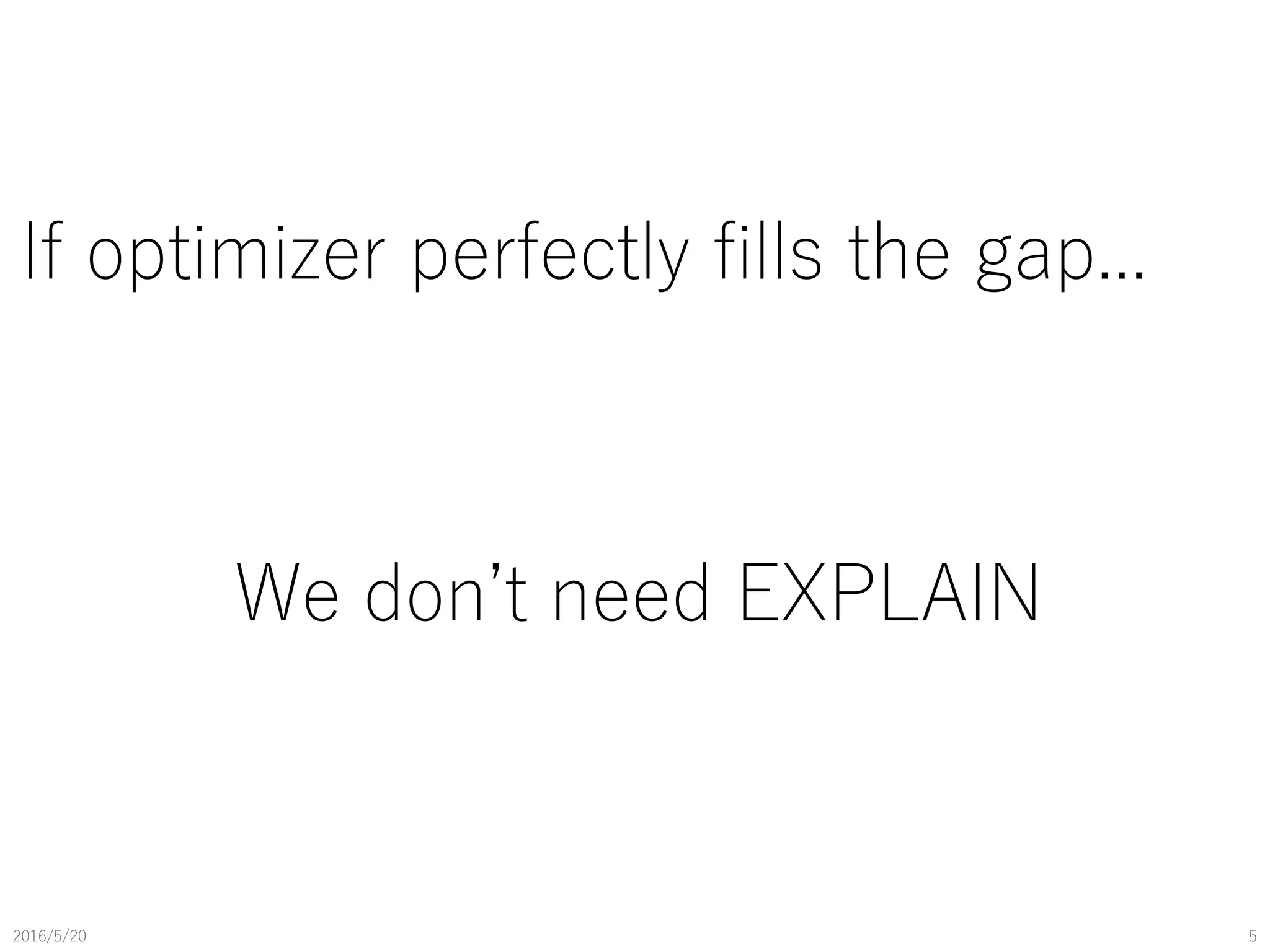

If optimizer perfectly fills the gap...
2016/5/20 5
We don’t need EXPLAIN

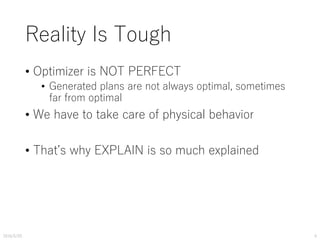

Reality Is Tough
• Optimizer is NOT PERFECT
• Generated plans are not always optimal, sometimes
far from optimal
• We have to take care of physical behavior
• That’s why EXPLAIN is so much explained
2016/5/20 6

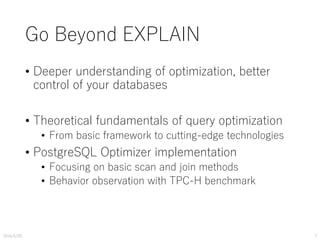

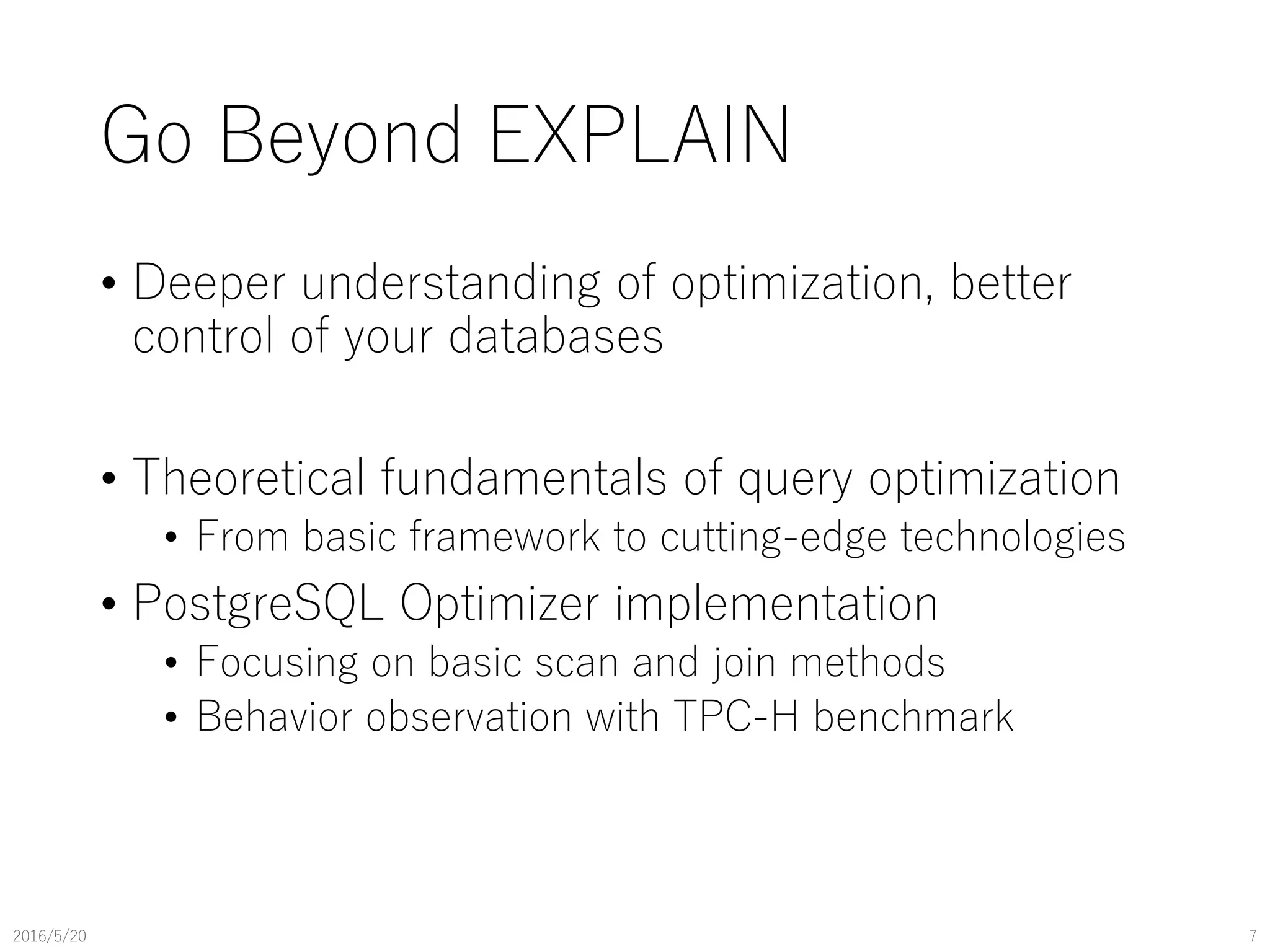

Go Beyond EXPLAIN
• Deeper understanding of optimization, better
control of your databases
• Theoretical fundamentals of query optimization
• From basic framework to cutting-edge technologies
• PostgreSQL Optimizer implementation
• Focusing on basic scan and join methods
• Behavior observation with TPC-H benchmark
2016/5/20 7

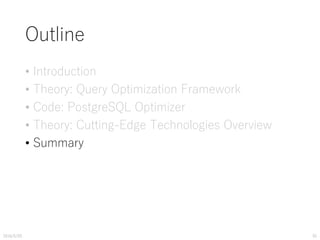

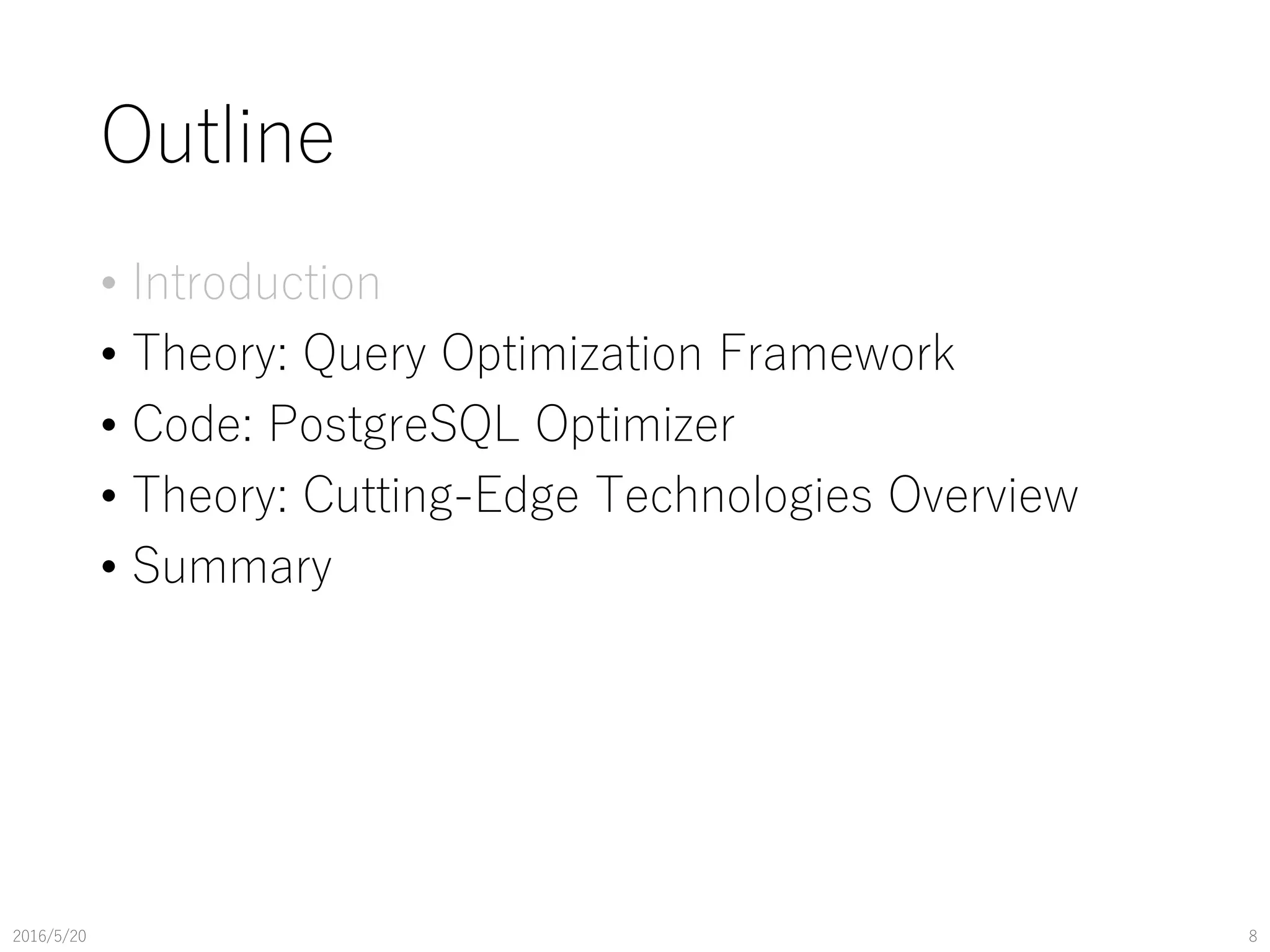

Outline
• Introduction
• Theory: Query Optimization Framework
• Code: PostgreSQL Optimizer
• Theory: Cutting-Edge Technologies Overview
• Summary
2016/5/20 8

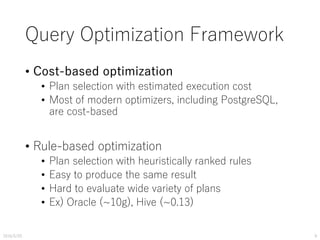

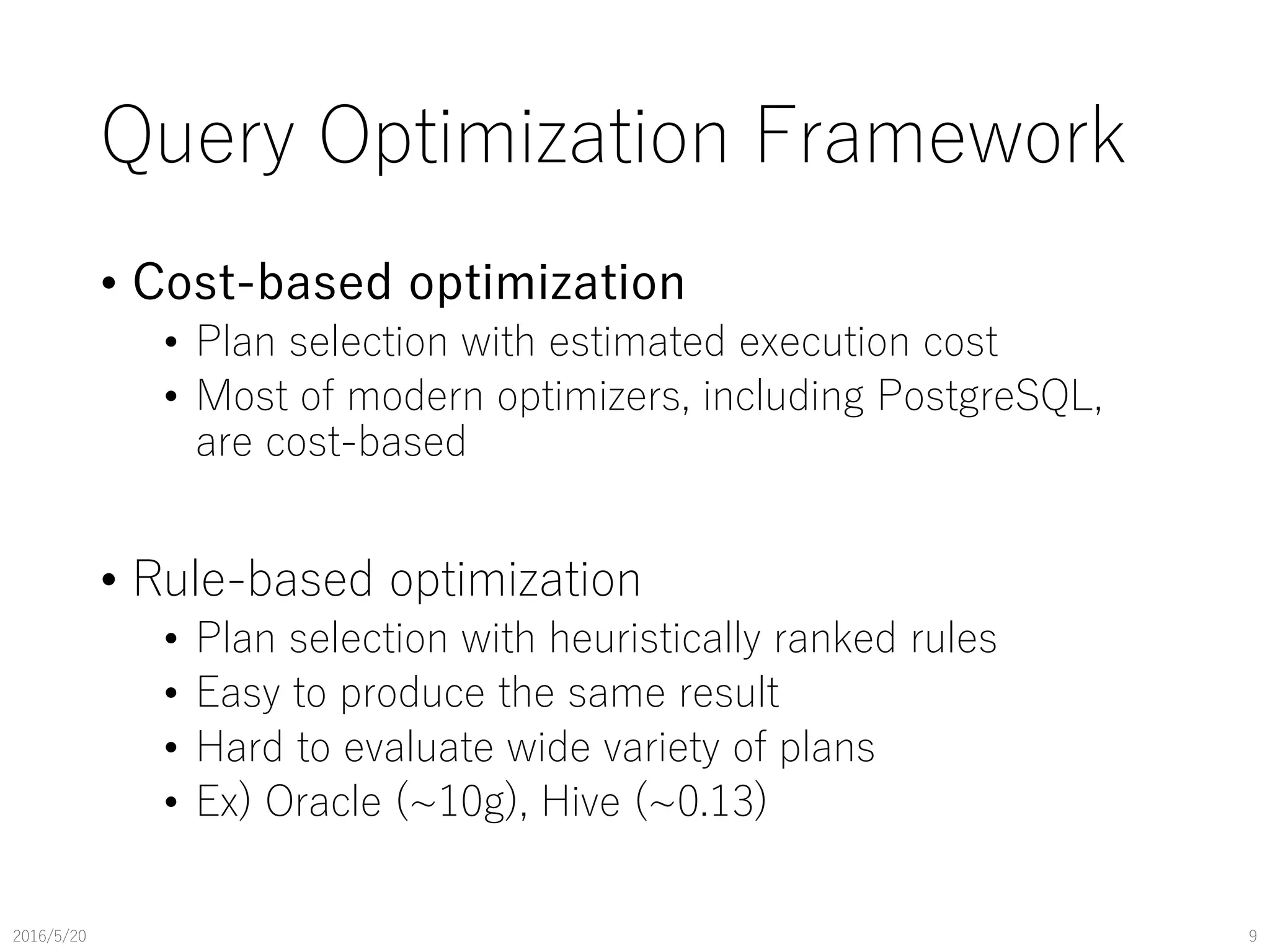

Query Optimization Framework
• Cost-based optimization
• Plan selection with estimated execution cost
• Most of modern optimizers, including PostgreSQL,
are cost-based
• Rule-based optimization
• Plan selection with heuristically ranked rules
• Easy to produce the same result
• Hard to evaluate wide variety of plans
• Ex) Oracle (~10g), Hive (~0.13)
2016/5/20 9

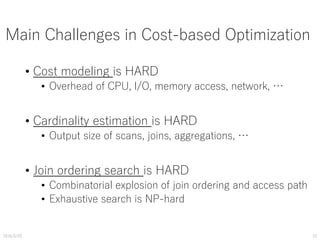

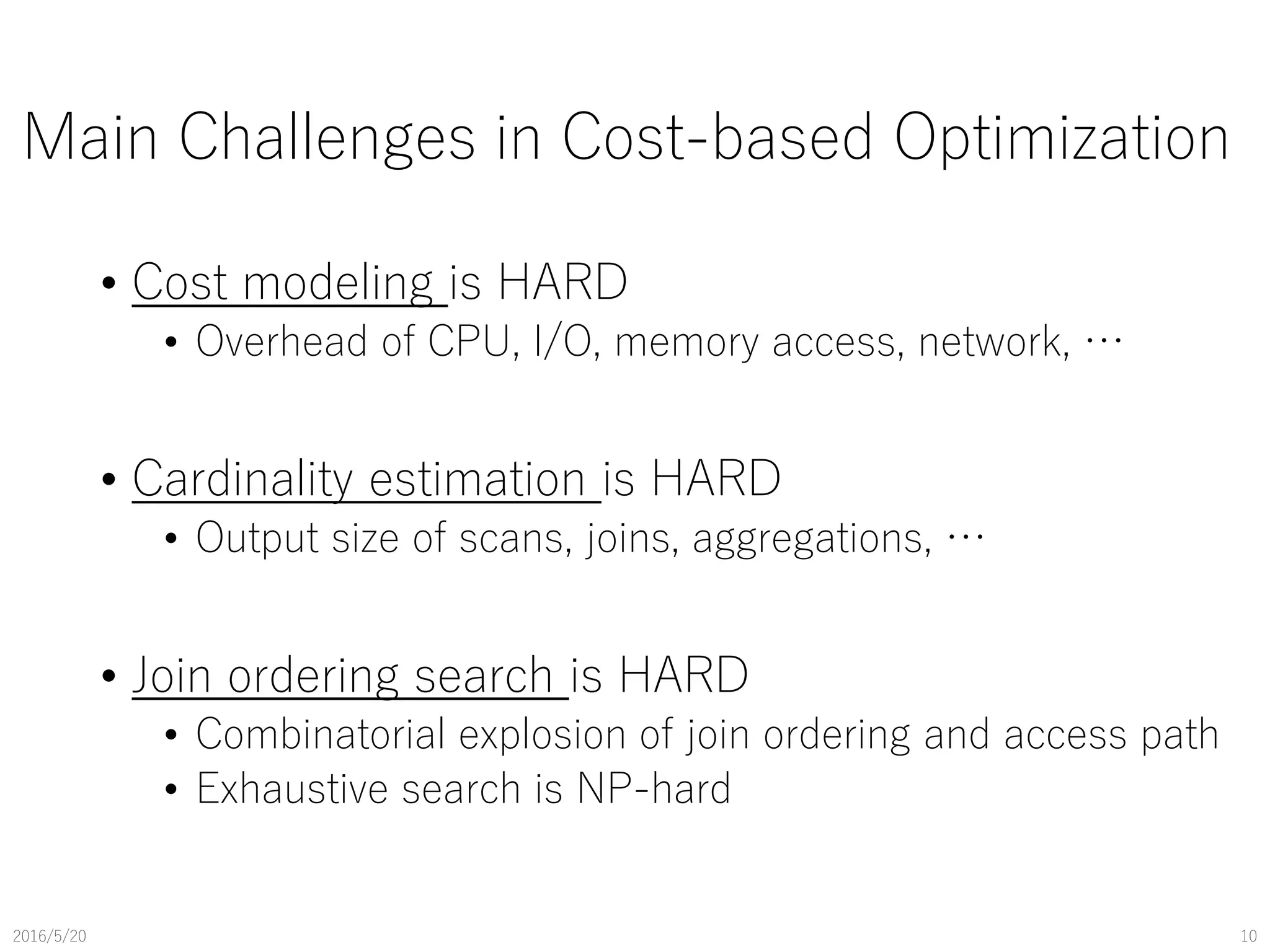

Main Challenges in Cost-based Optimization
• Cost modeling is HARD
• Overhead of CPU, I/O, memory access, network, …
• Cardinality estimation is HARD
• Output size of scans, joins, aggregations, …
• Join ordering search is HARD
• Combinatorial explosion of join ordering and access path
• Exhaustive search is NP-hard
2016/5/20 10

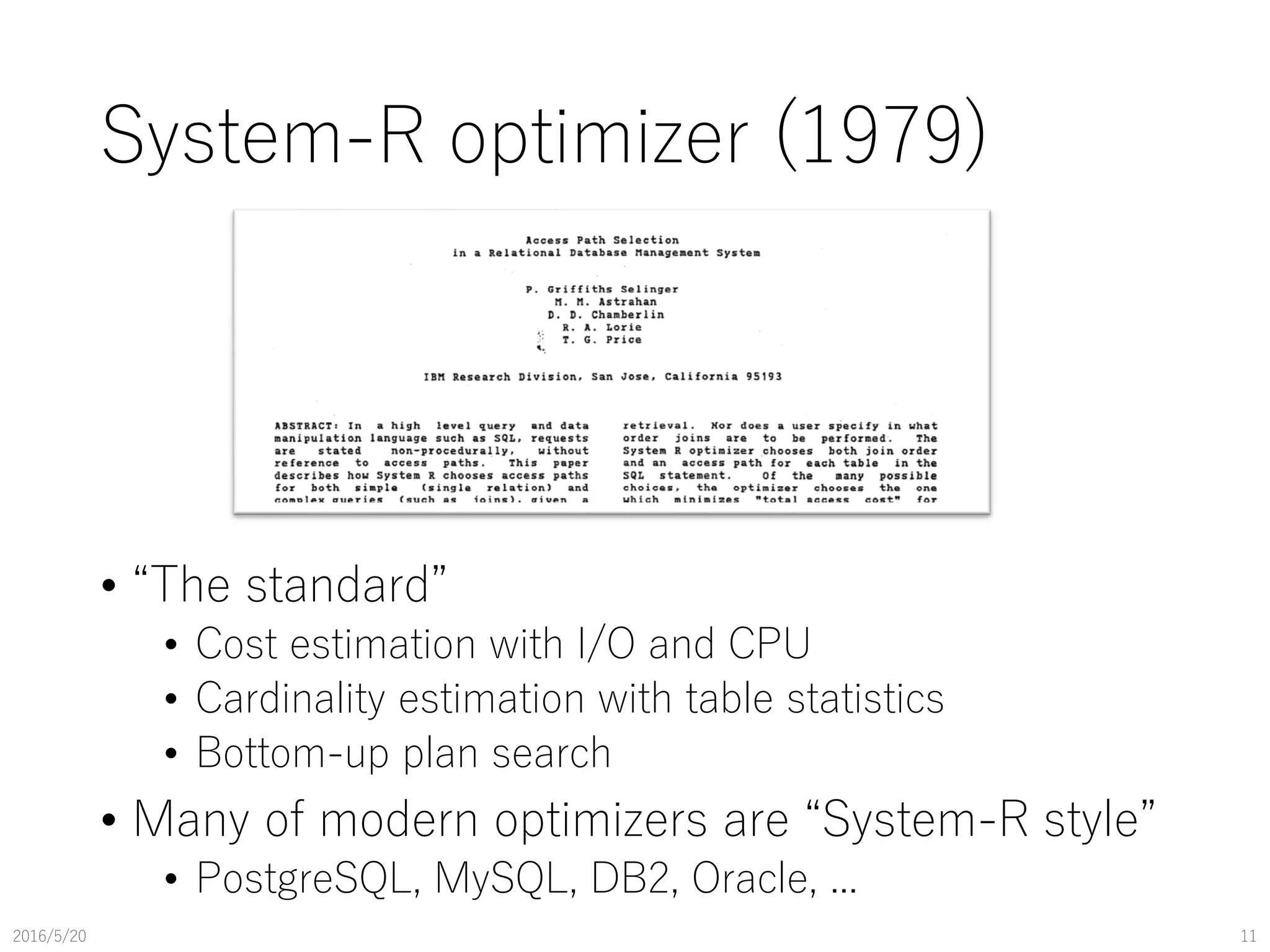

System-R optimizer (1979)
• “The standard”
• Cost estimation with I/O and CPU
• Cardinality estimation with table statistics
• Bottom-up plan search
• Many of modern optimizers are “System-R style”
• PostgreSQL, MySQL, DB2, Oracle, ...
2016/5/20 11

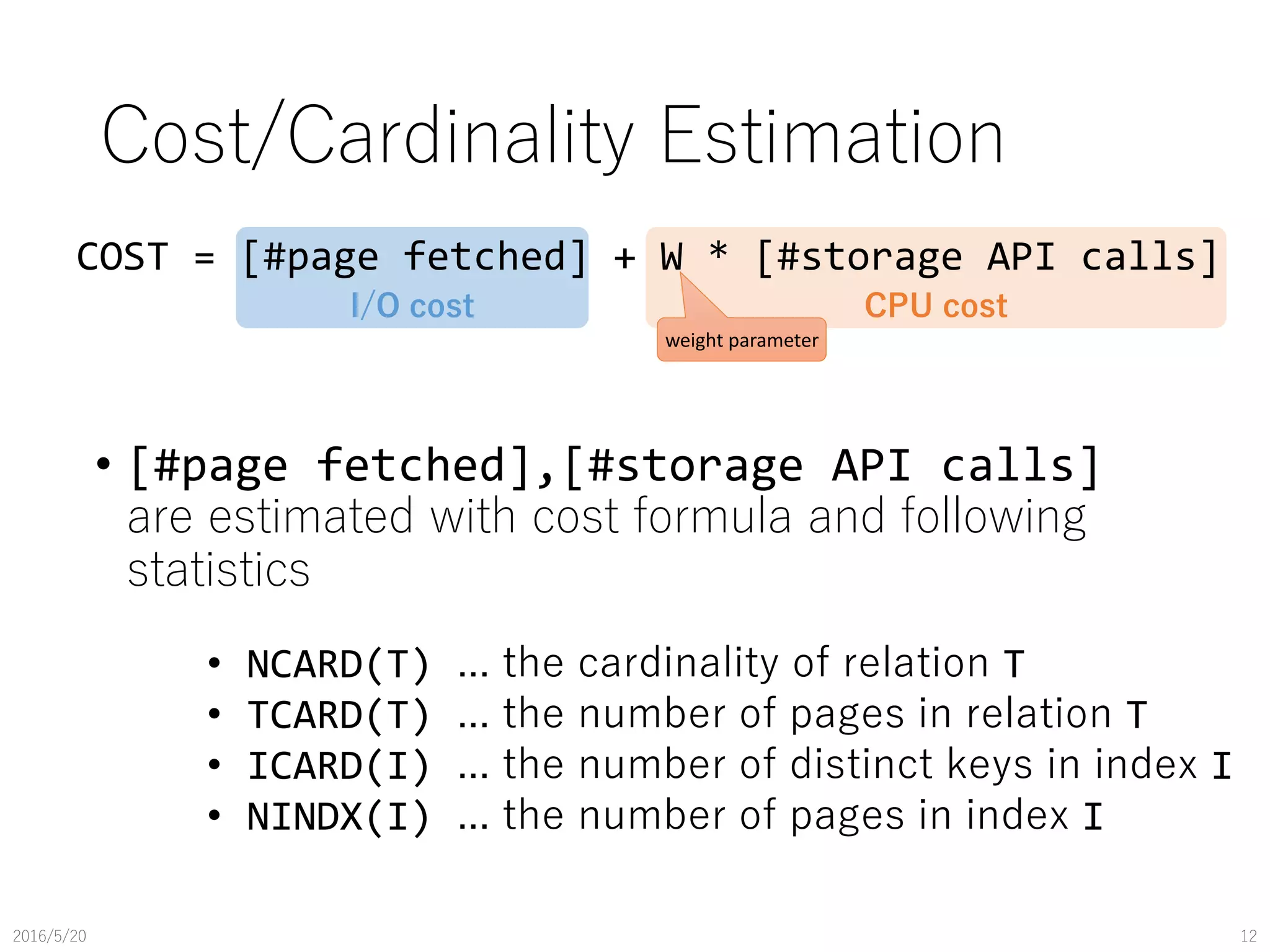

Cost/Cardinality Estimation
• [#page fetched],[#storage API calls]
are estimated with cost formula and following
statistics
2016/5/20 12
CPU costI/O cost
COST = [#page fetched] + W * [#storage API calls]
weight parameter
• NCARD(T) ... the cardinality of relation T
• TCARD(T) ... the number of pages in relation T
• ICARD(I) ... the number of distinct keys in index I
• NINDX(I) ... the number of pages in index I

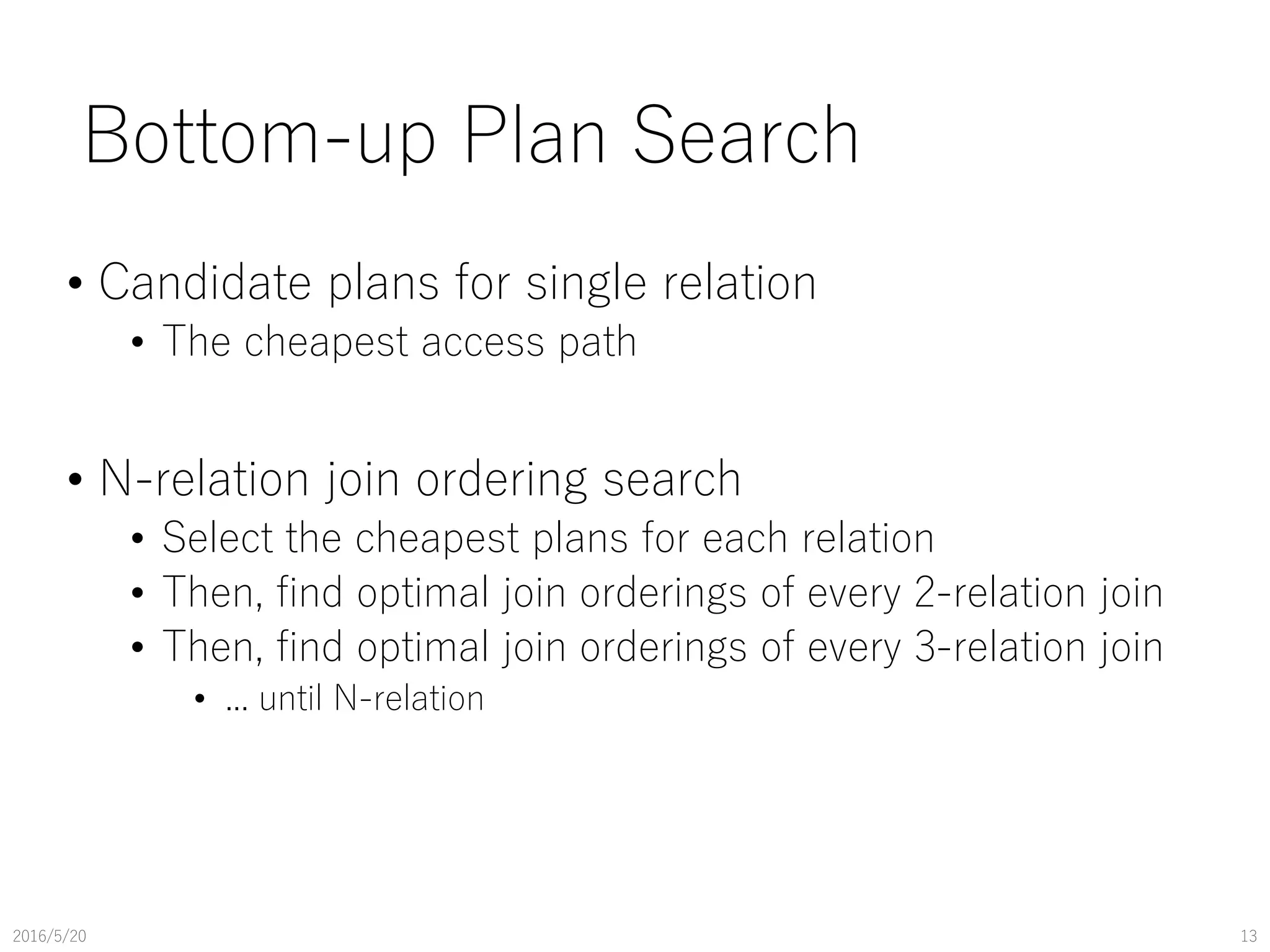

Bottom-up Plan Search
• Candidate plans for single relation
• The cheapest access path
• N-relation join ordering search
• Select the cheapest plans for each relation
• Then, find optimal join orderings of every 2-relation join
• Then, find optimal join orderings of every 3-relation join
• ... until N-relation
2016/5/20 13

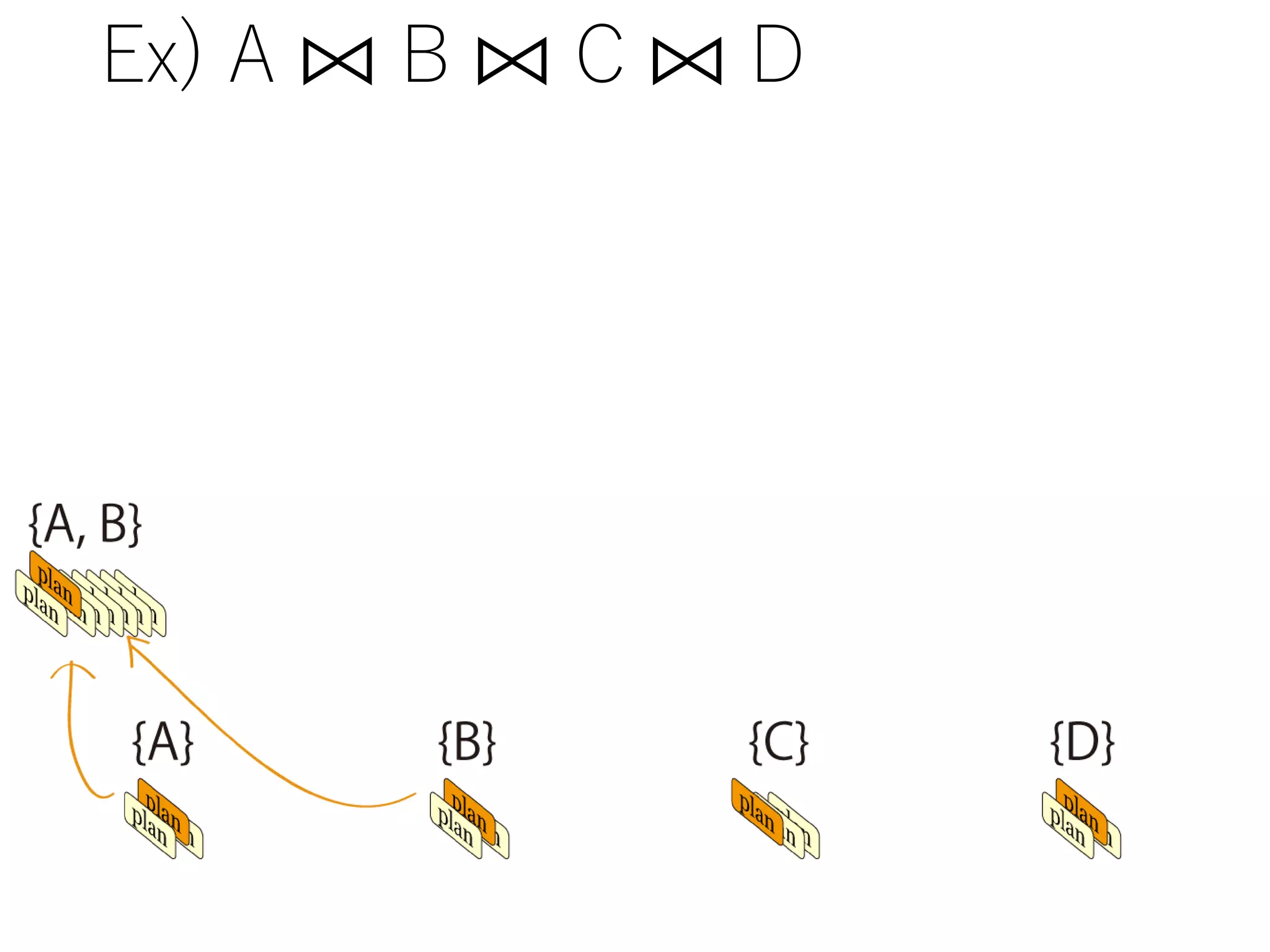

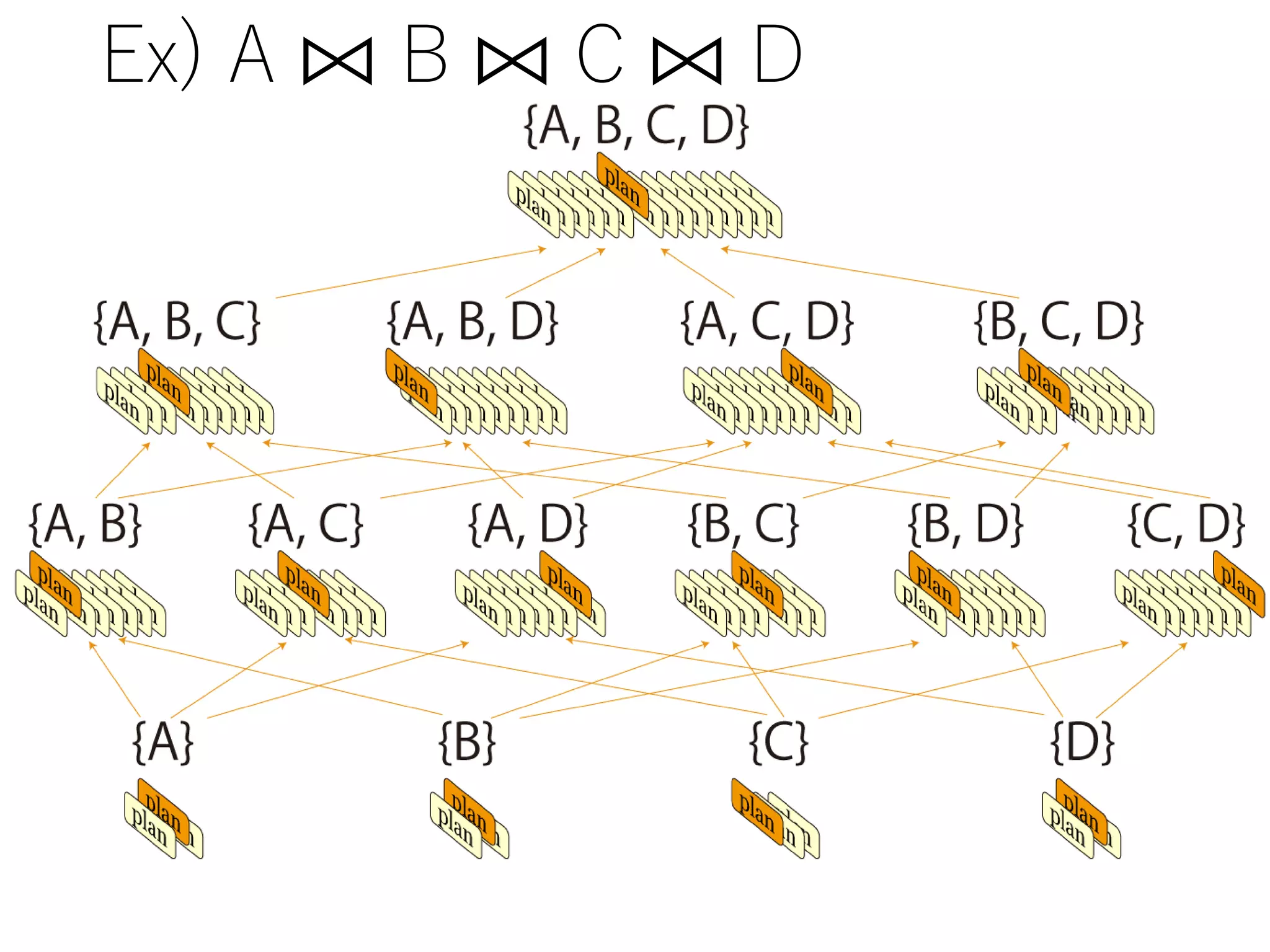

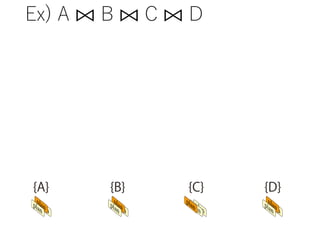

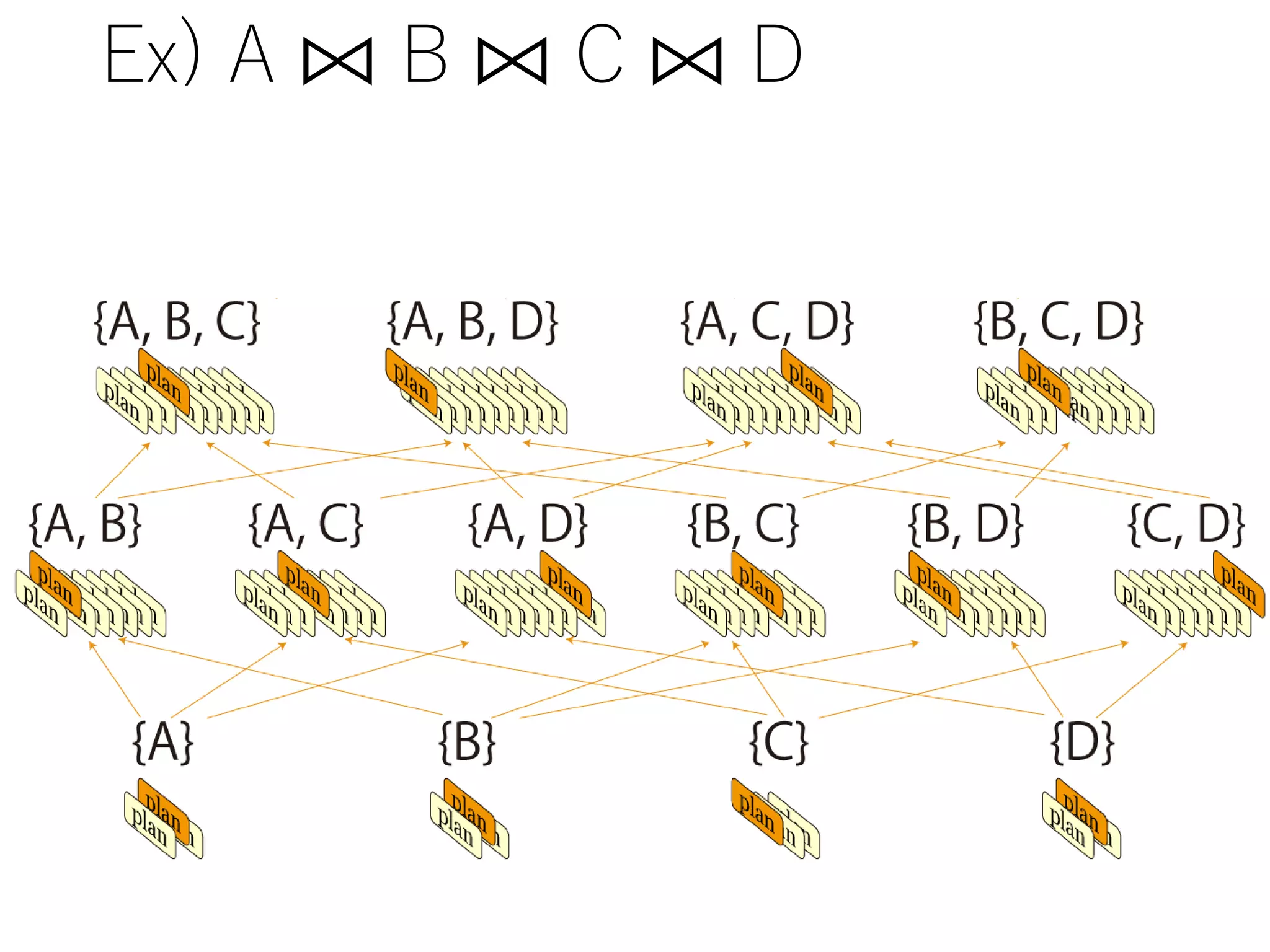

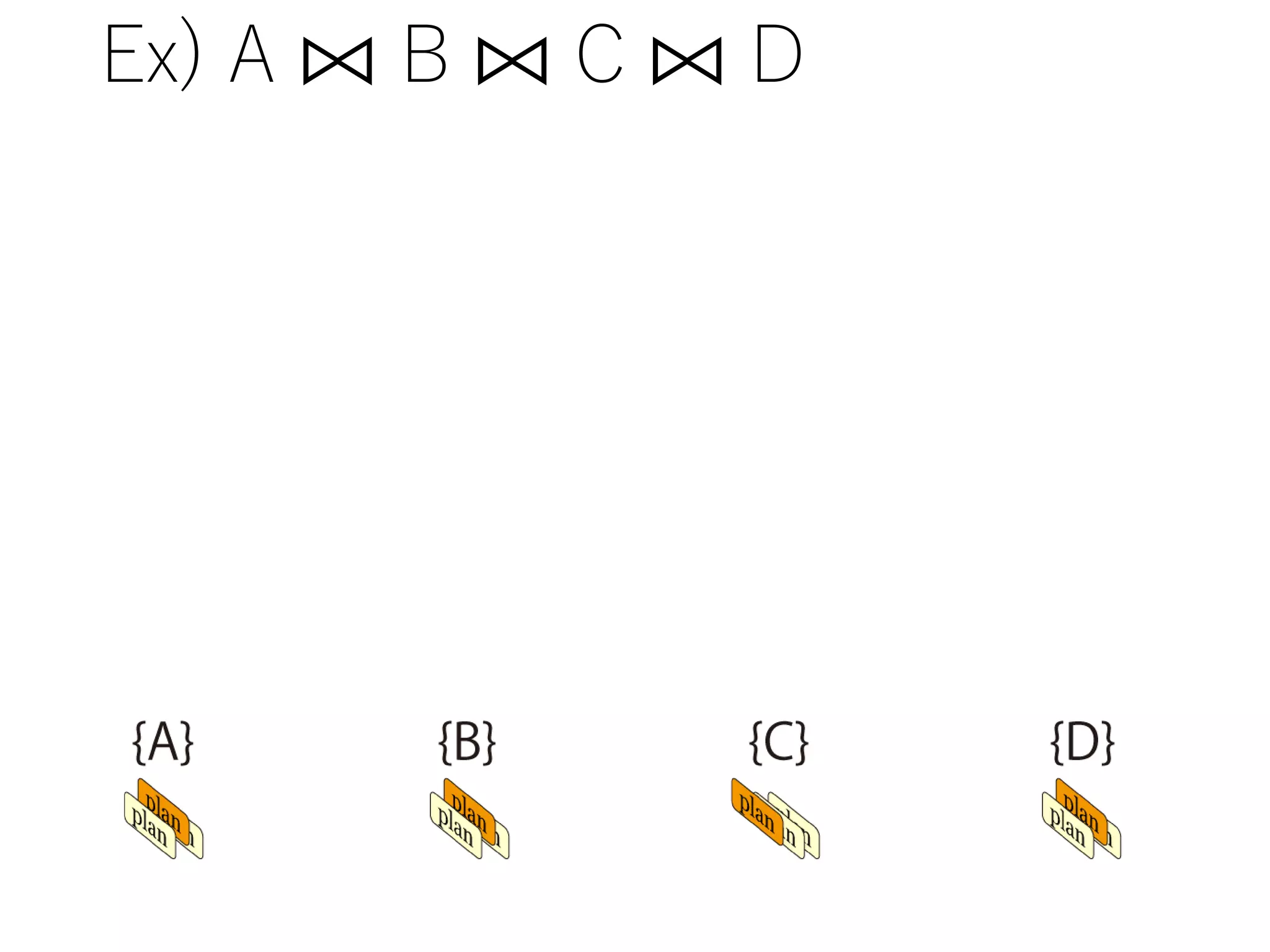

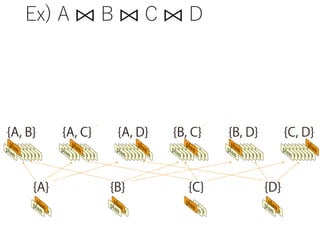

Ex) A ⨝ B ⨝ C ⨝ D
Ex) A ⨝ B ⨝ C ⨝ D
Ex) A ⨝ B ⨝ C ⨝ D
Ex) A ⨝ B ⨝ C ⨝ D
Ex) A ⨝ B ⨝ C ⨝ D

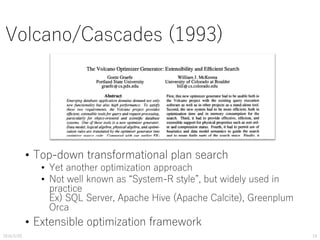

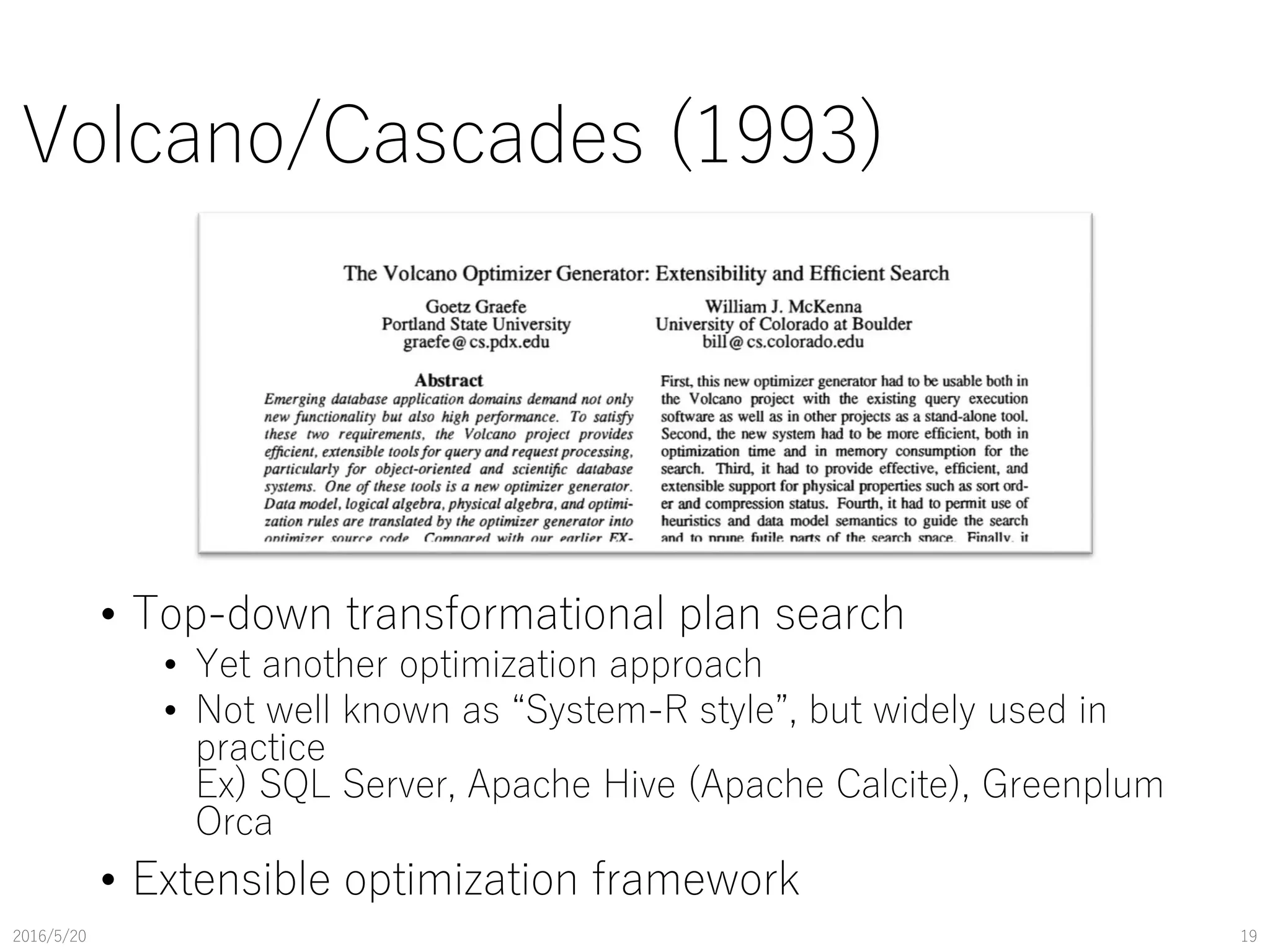

Volcano/Cascades (1993)
• Top-down transformational plan search
• Yet another optimization approach
• Not well known as “System-R style”, but widely used in
practice
Ex) SQL Server, Apache Hive (Apache Calcite), Greenplum
Orca
• Extensible optimization framework
2016/5/20 19

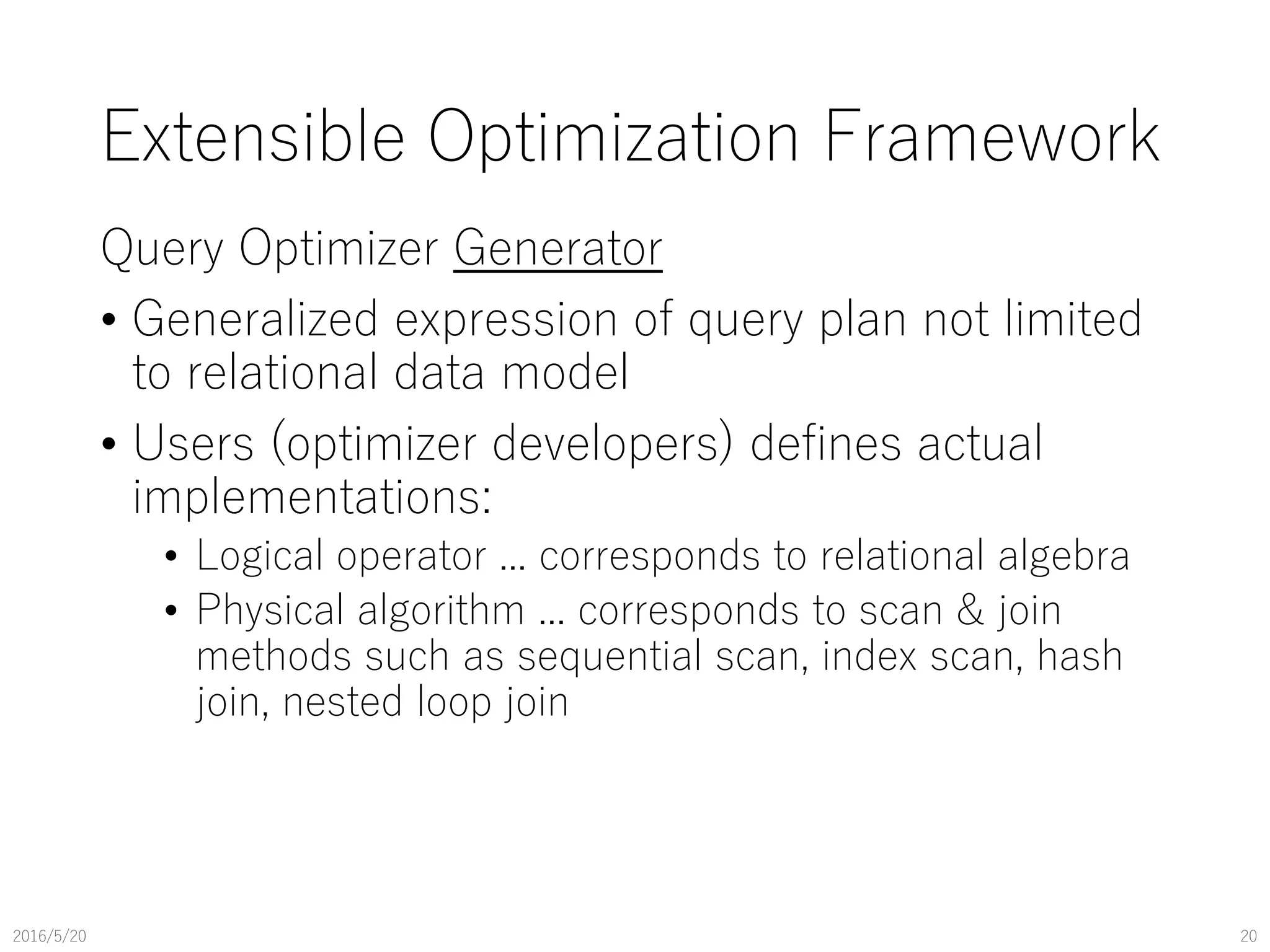

Extensible Optimization Framework
Query Optimizer Generator
• Generalized expression of query plan not limited
to relational data model
• Users (optimizer developers) defines actual
implementations:
• Logical operator ... corresponds to relational algebra
• Physical algorithm ... corresponds to scan & join
methods such as sequential scan, index scan, hash
join, nested loop join
2016/5/20 20

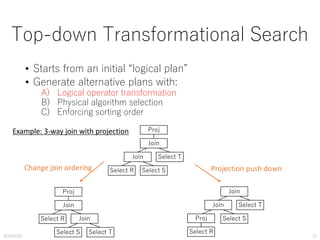

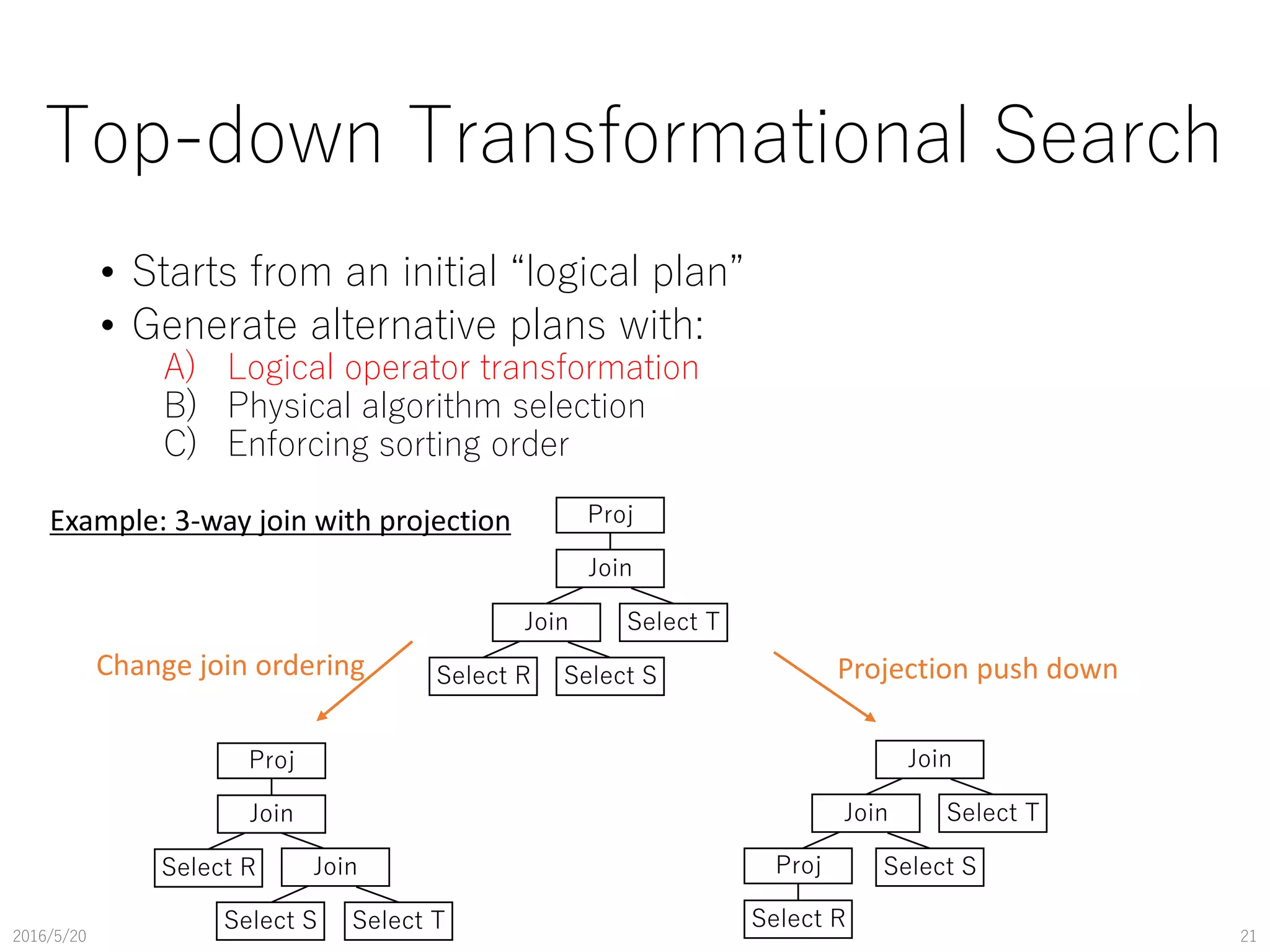

Top-down Transformational Search
• Starts from an initial “logical plan”
• Generate alternative plans with:
A) Logical operator transformation
B) Physical algorithm selection
C) Enforcing sorting order
2016/5/20 21
Join Select T
Join
Select R Select S
Proj
Join
Select T
JoinSelect R
Select S
Proj
Change join ordering
Join Select T
Join
Select R
Select SProj
Projection push down
Example: 3-way join with projection

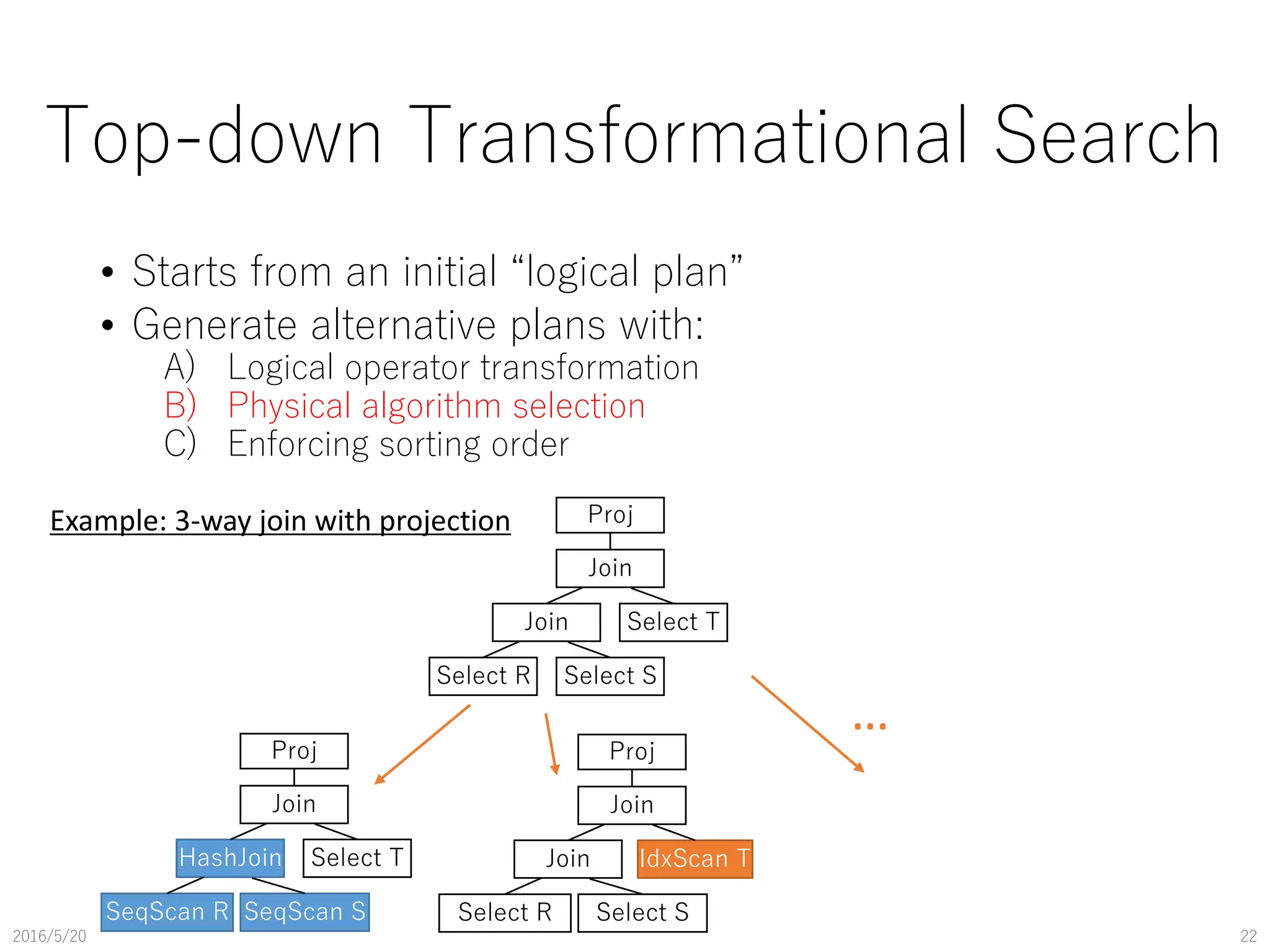

Top-down Transformational Search
• Starts from an initial “logical plan”
• Generate alternative plans with:
A) Logical operator transformation
B) Physical algorithm selection
C) Enforcing sorting order
2016/5/20 22
Join Select T
Join
Select R Select S
ProjExample: 3-way join with projection
HashJoin Select T
Join
SeqScan R SeqScan S
Proj
Join IdxScan T
Join
Select R Select S
Proj
…
Top-down Transformational Search
• Starts from an initial “logical plan”
• Generate alternative plans with:
A) Logical operator transformation
B) Physical algorithm selection
C) Enforcing sorting order
2016/5/20 23
Join Select T
Join
Select R Select S
Proj
Example: 3-way join with projection
Join Select T
Join
Sort Sort
Proj
Select R Select S
Enforce sorting order
merge join of R and S is possible now

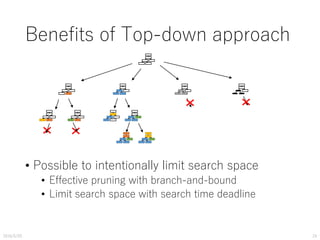

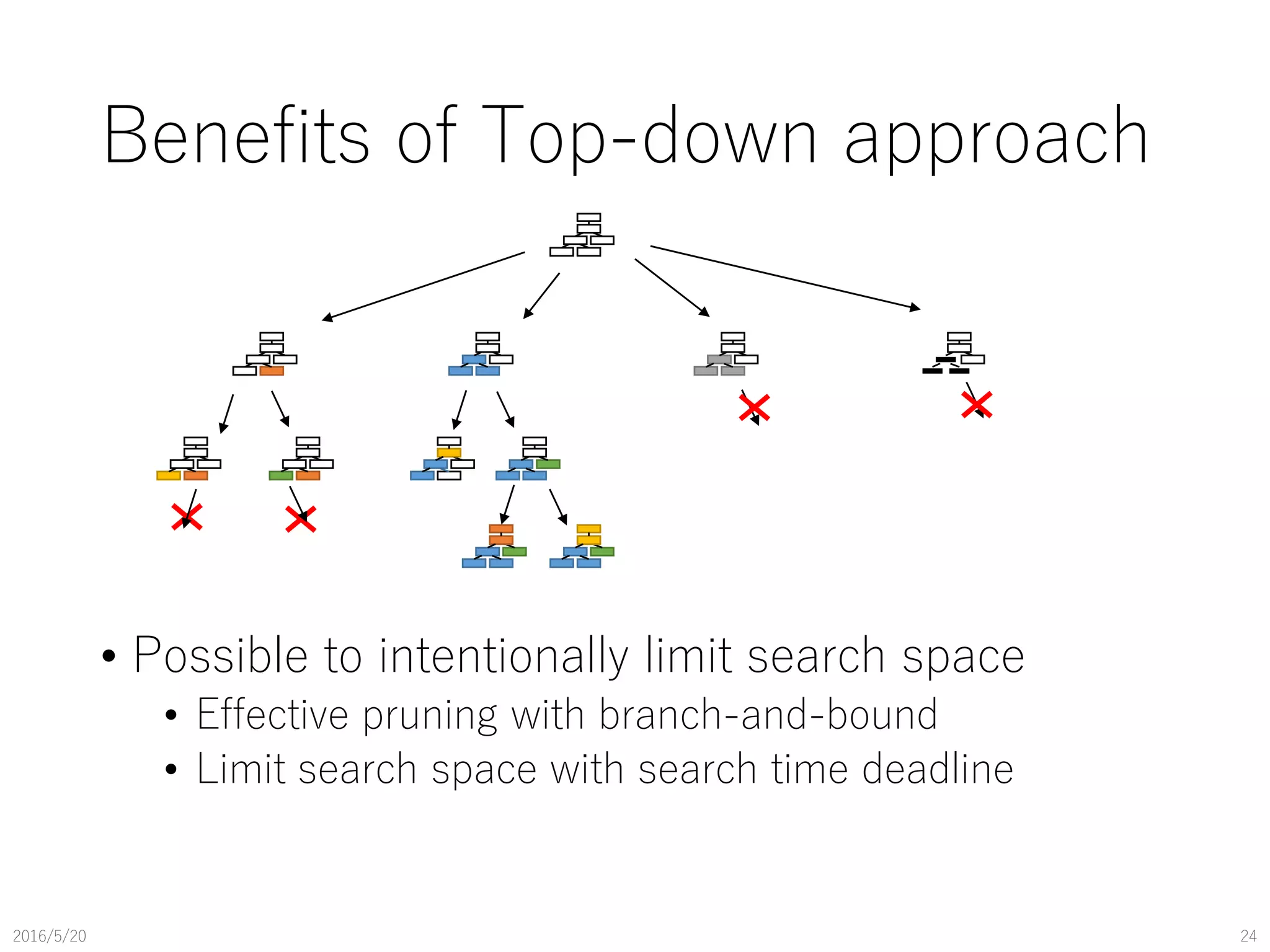

Benefits of Top-down approach
• Possible to intentionally limit search space
• Effective pruning with branch-and-bound
• Limit search space with search time deadline
2016/5/20 24

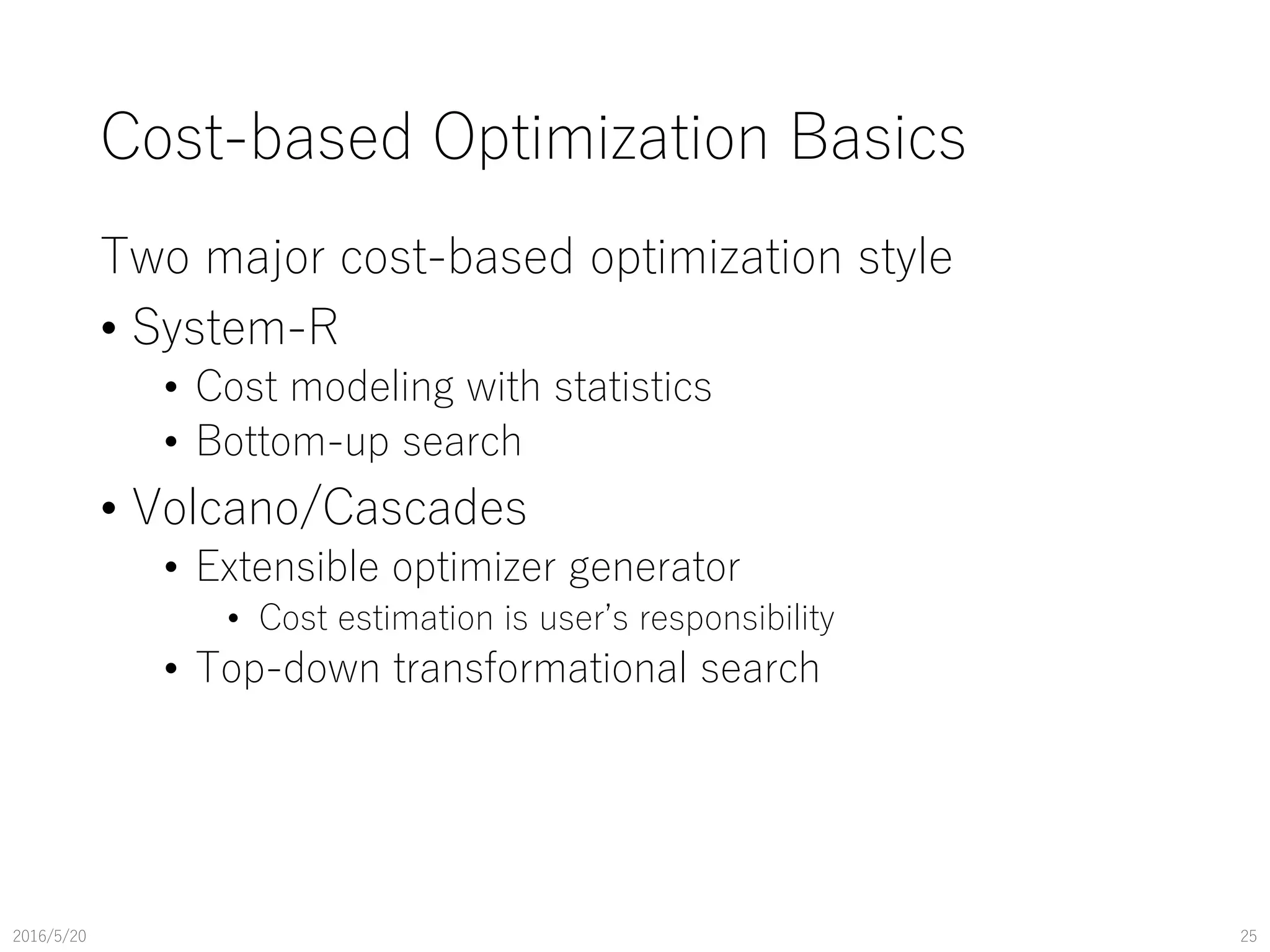

Cost-based Optimization Basics
Two major cost-based optimization style
• System-R
• Cost modeling with statistics
• Bottom-up search
• Volcano/Cascades
• Extensible optimizer generator
• Cost estimation is user’s responsibility
• Top-down transformational search
2016/5/20 25

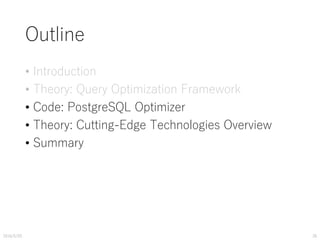

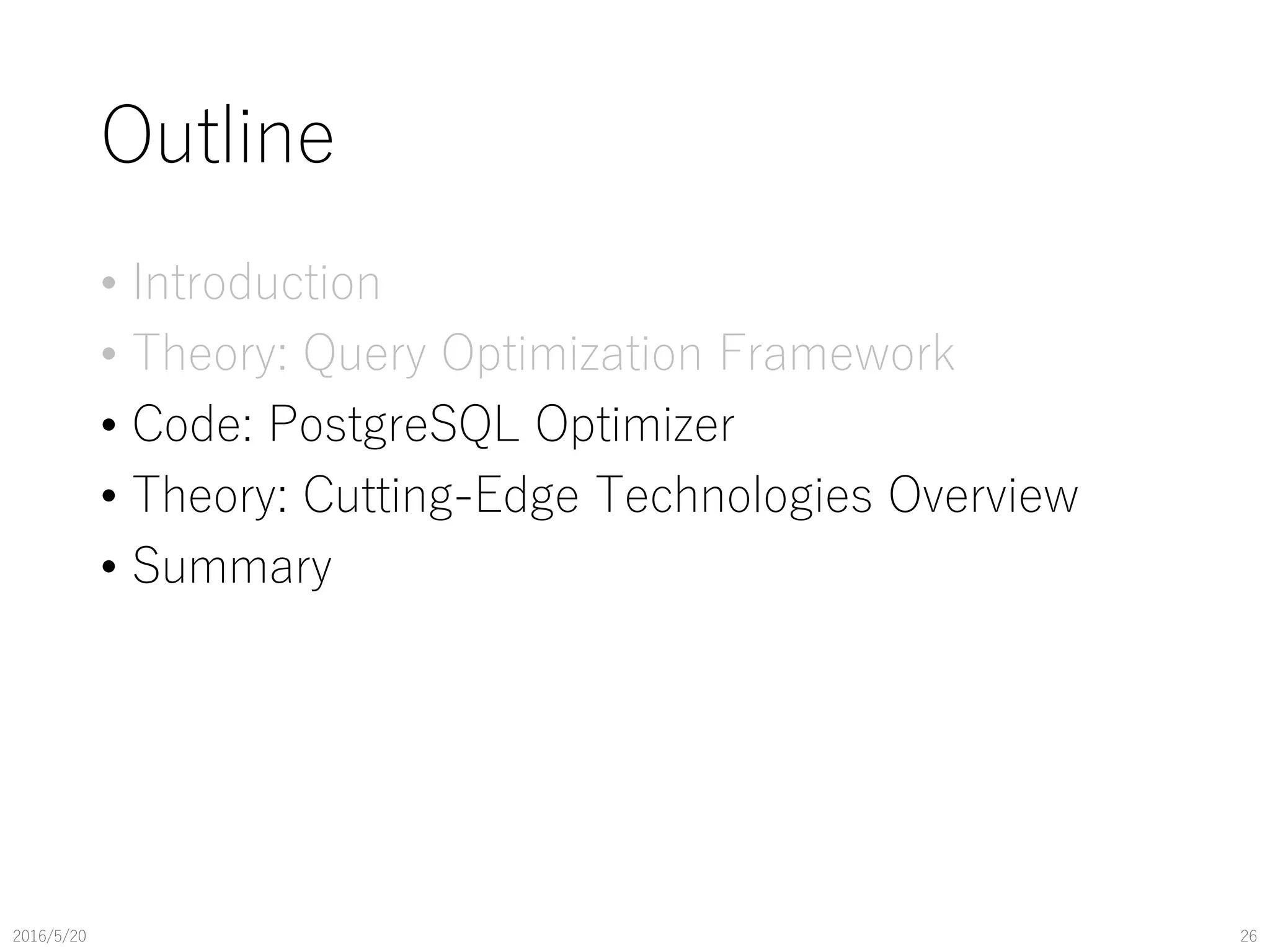

Outline
• Introduction
• Theory: Query Optimization Framework
• Code: PostgreSQL Optimizer
• Theory: Cutting-Edge Technologies Overview
• Summary
2016/5/20 26

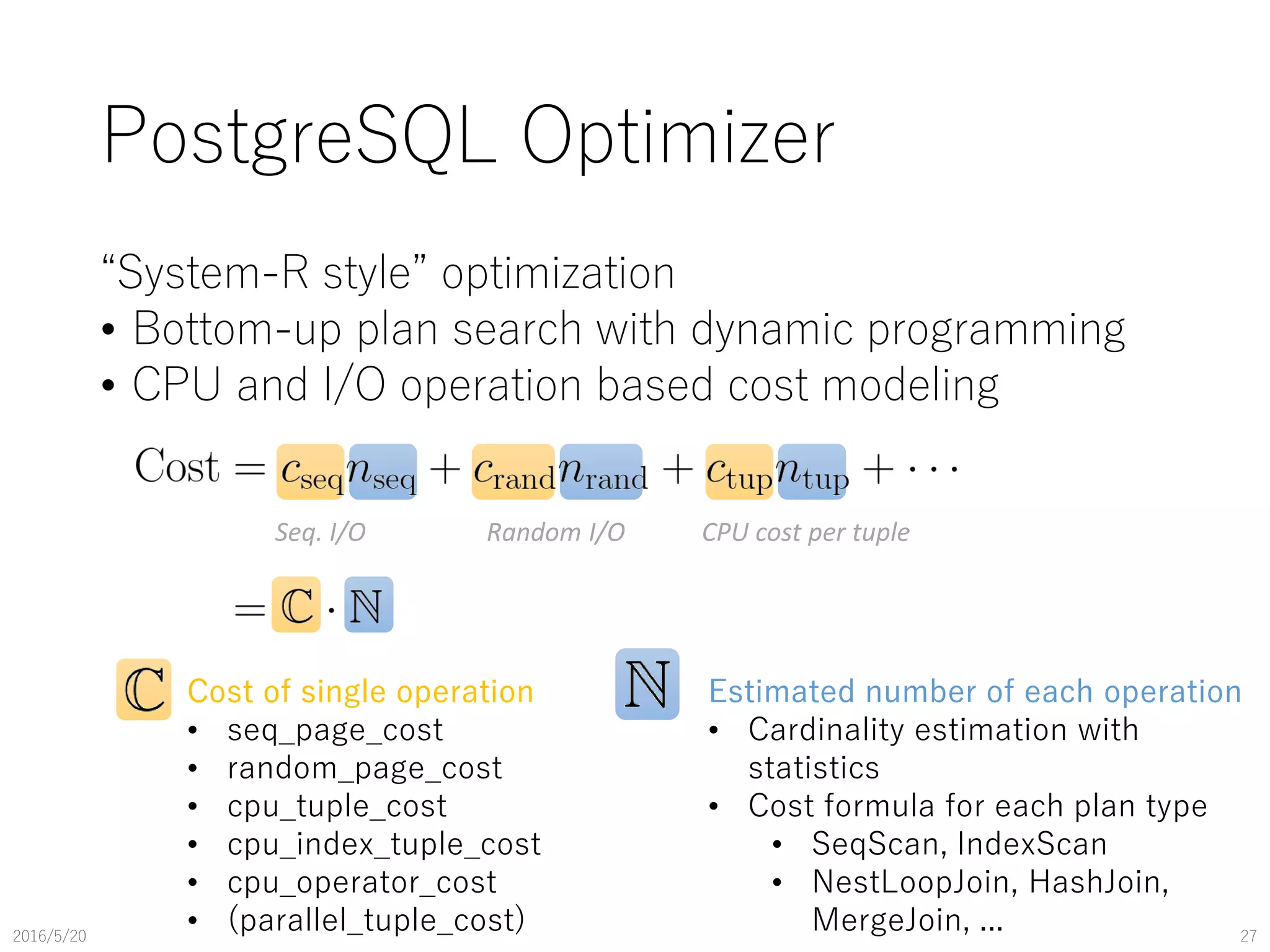

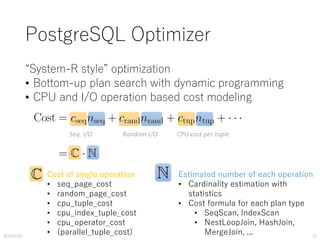

PostgreSQL Optimizer
“System-R style” optimization
• Bottom-up plan search with dynamic programming
• CPU and I/O operation based cost modeling
2016/5/20 27
Seq. I/O Random I/O CPU cost per tuple
Cost of single operation
• seq_page_cost
• random_page_cost
• cpu_tuple_cost
• cpu_index_tuple_cost
• cpu_operator_cost
• (parallel_tuple_cost)
Estimated number of each operation
• Cardinality estimation with
statistics
• Cost formula for each plan type
• SeqScan, IndexScan
• NestLoopJoin, HashJoin,
MergeJoin, ...

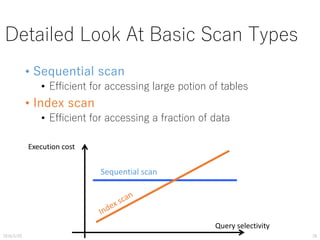

Detailed Look At Basic Scan Types
• Sequential scan
• Efficient for accessing large potion of tables
• Index scan
• Efficient for accessing a fraction of data
2016/5/20 28
Execution cost
Query selectivity

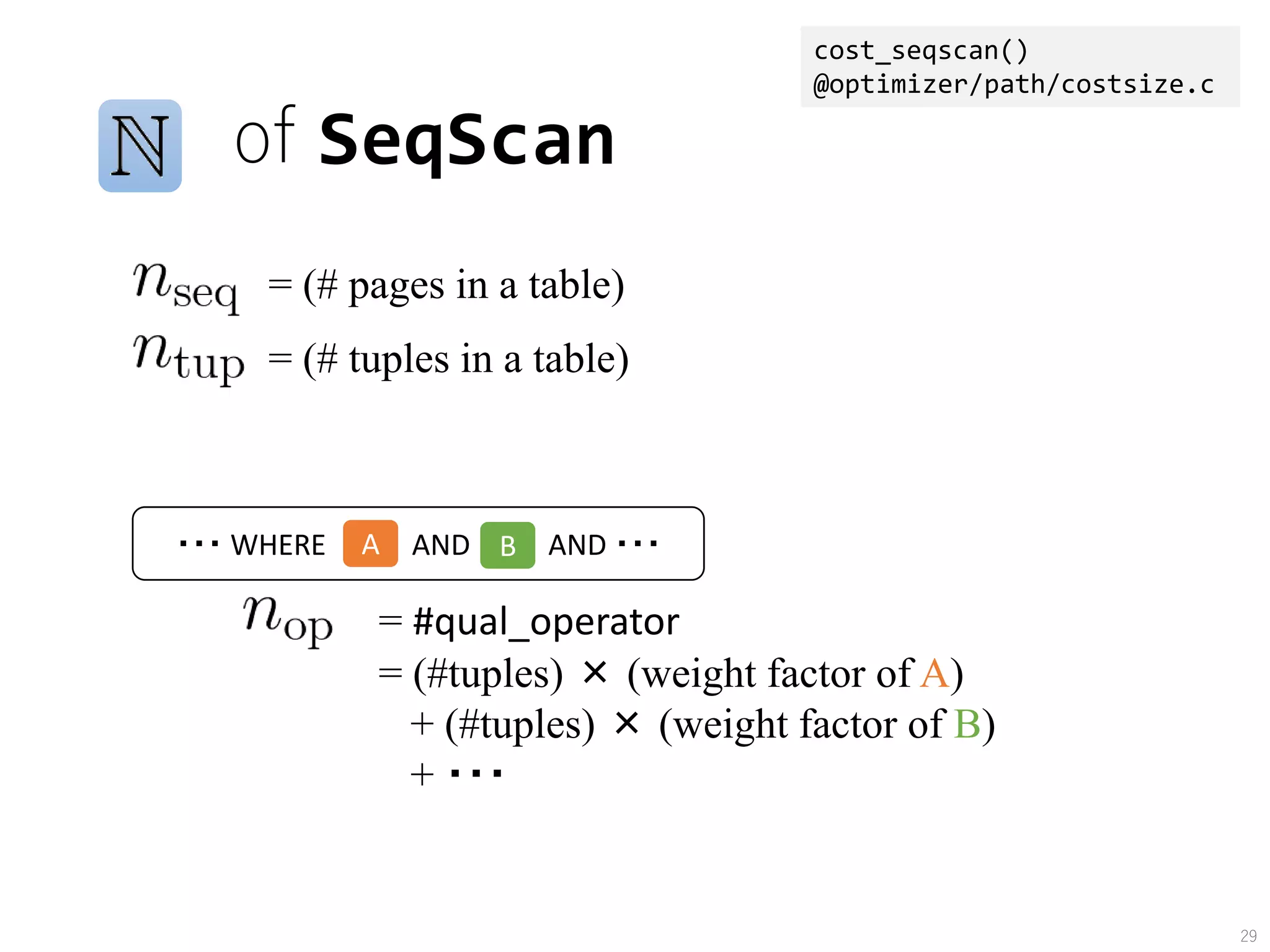

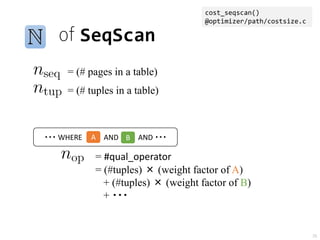

Sequential scan
of SeqScan
29
= (# pages in a table)
= (# tuples in a table)
= #qual_operator
= (#tuples) × (weight factor of A)
+ (#tuples) × (weight factor of B)
+ ・・・
・・・ WHERE AND AND ・・・A B
cost_seqscan()
@optimizer/path/costsize.c

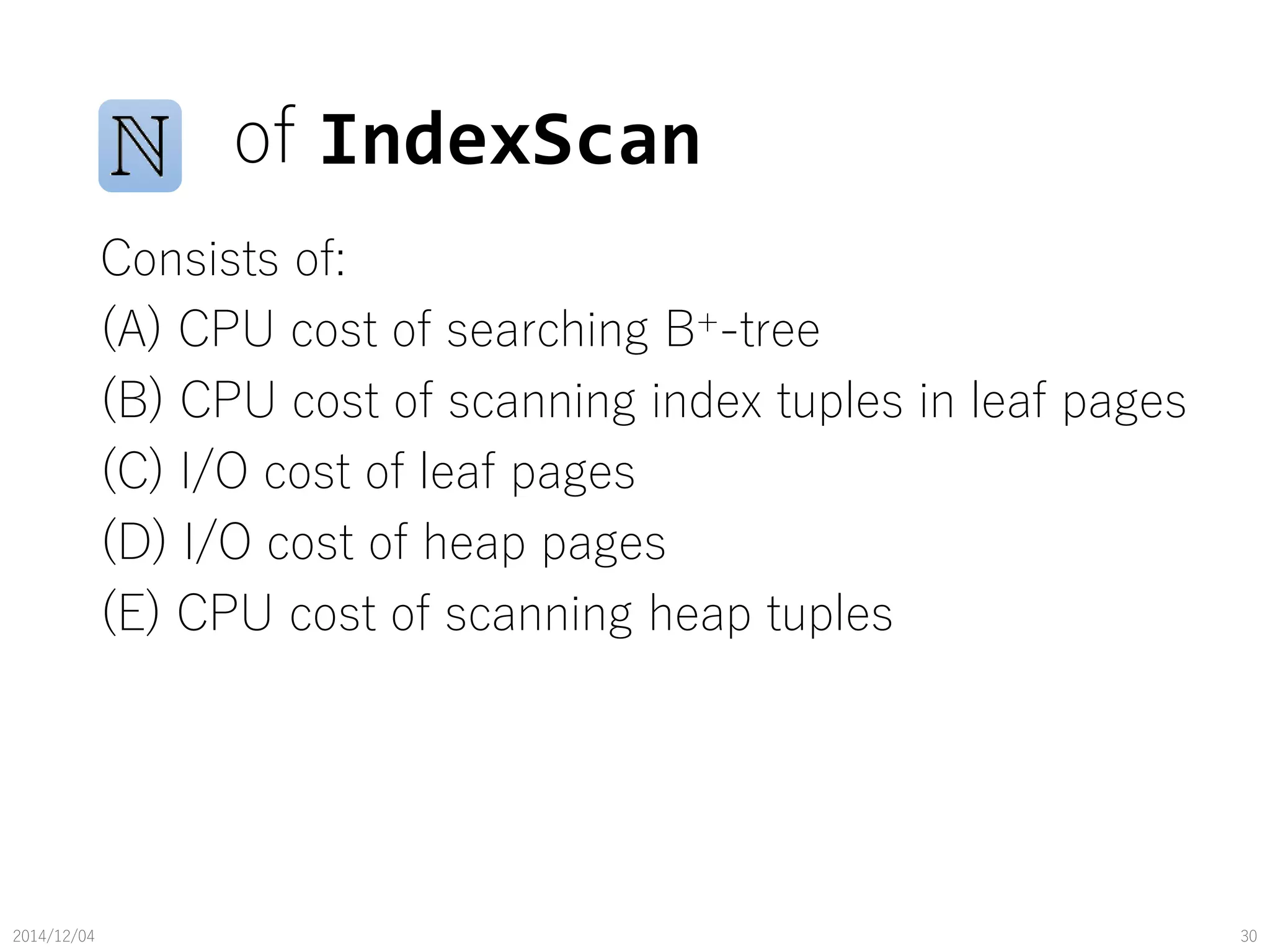

of IndexScan
Consists of:
(A) CPU cost of searching B+-tree
(B) CPU cost of scanning index tuples in leaf pages
(C) I/O cost of leaf pages
(D) I/O cost of heap pages
(E) CPU cost of scanning heap tuples
2014/12/04 30

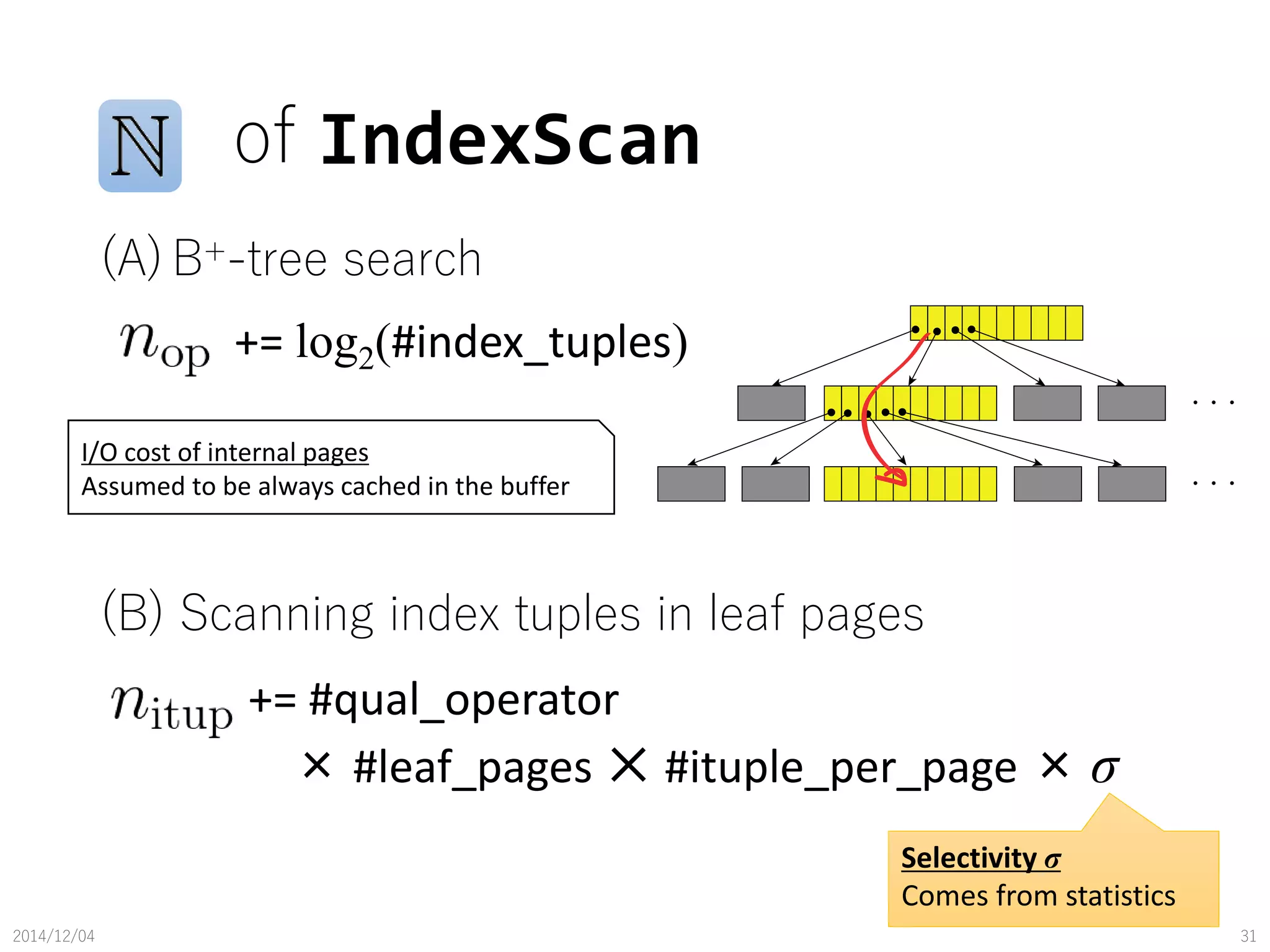

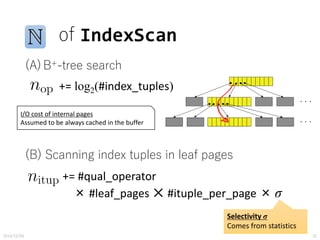

of IndexScan
(A) B+-tree search
(B) Scanning index tuples in leaf pages
2014/12/04 31
+= log2(#index_tuples)
I/O cost of internal pages
Assumed to be always cached in the buffer
+= #qual_operator
× #leaf_pages ✕ #ituple_per_page × σ
Selectivity σ
Comes from statistics
Mackert and Lohman function(Yao function)
I/O count estimation with consideration of buffer caching
of IndexScan

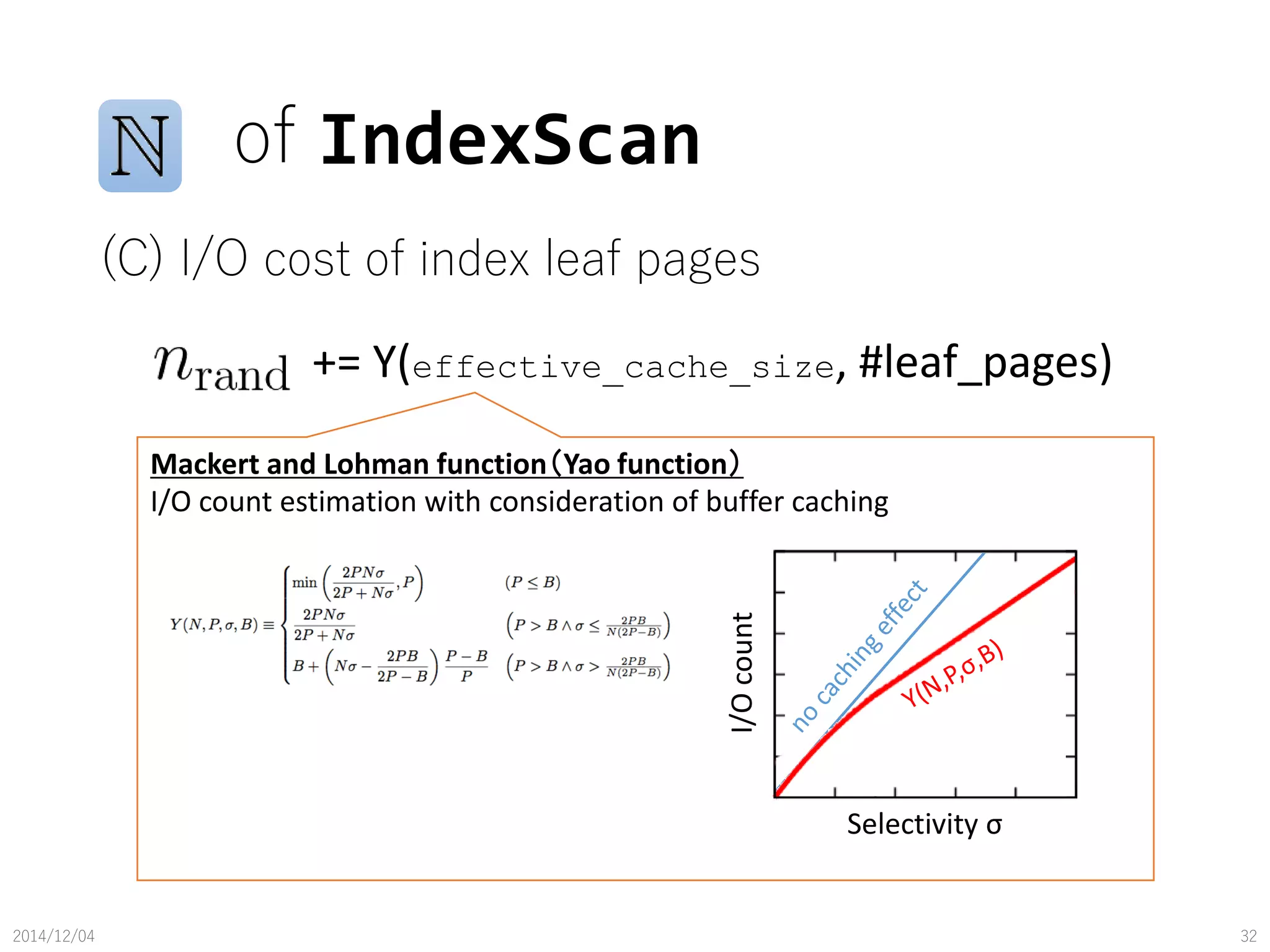

(C) I/O cost of index leaf pages
2014/12/04 32
+= Y(effective_cache_size, #leaf_pages)
Selectivity σ
I/Ocount
of IndexScan

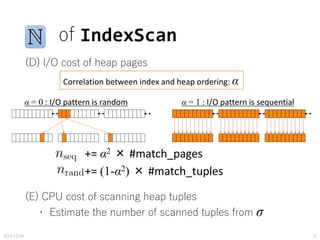

(D) I/O cost of heap pages
(E) CPU cost of scanning heap tuples
・ Estimate the number of scanned tuples from σ
2014/12/04 33
+= α2 × #match_pages
Correlation between index and heap ordering: α
α = 0 : I/O pattern is random α = 1 : I/O pattern is sequential
+= (1-α2) × #match_tuples

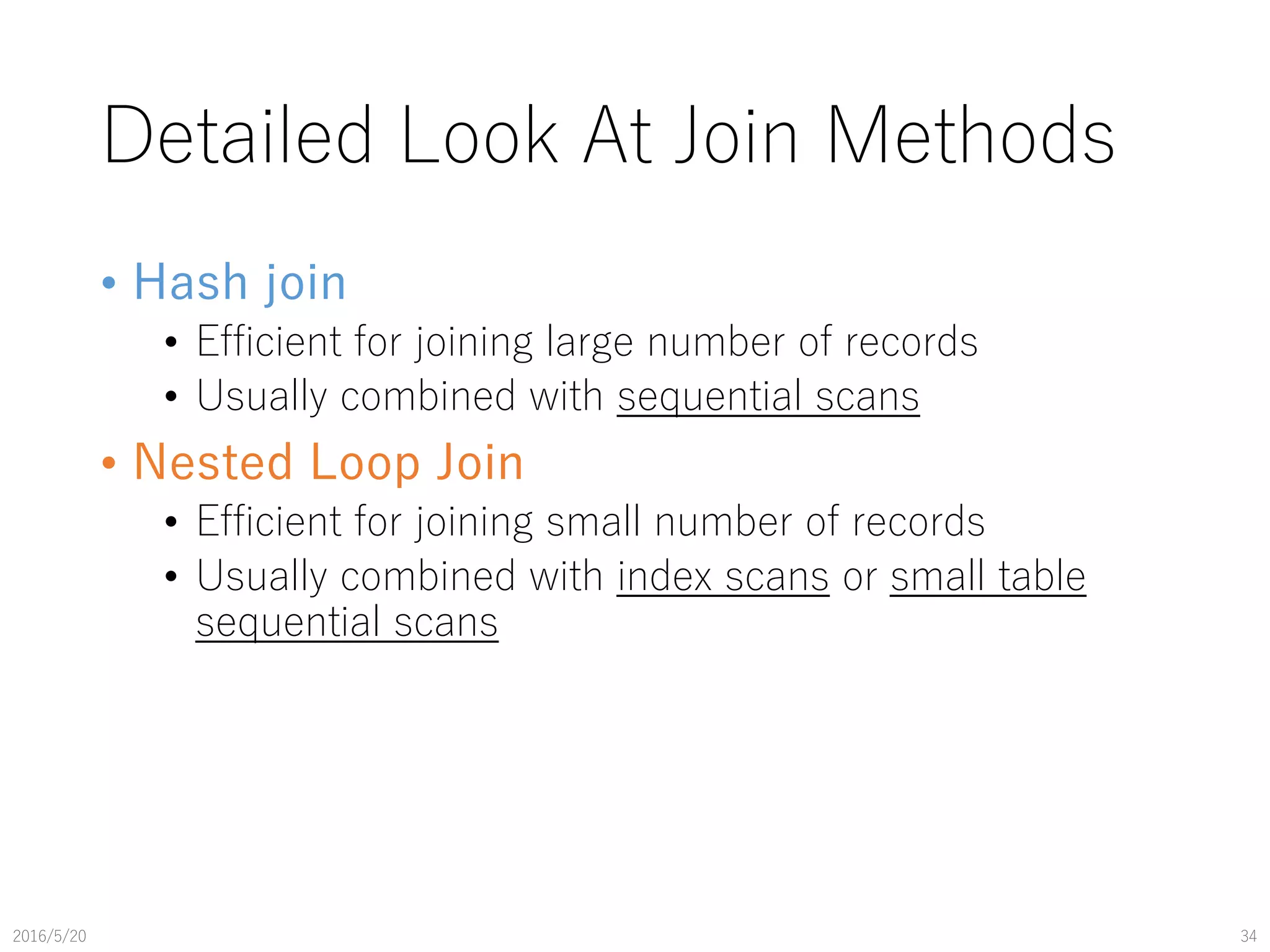

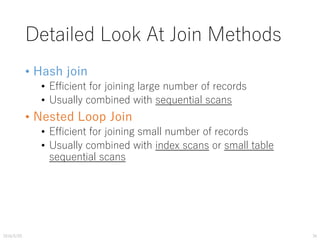

Detailed Look At Join Methods
• Hash join
• Efficient for joining large number of records
• Usually combined with sequential scans
• Nested Loop Join
• Efficient for joining small number of records
• Usually combined with index scans or small table
sequential scans
2016/5/20 34

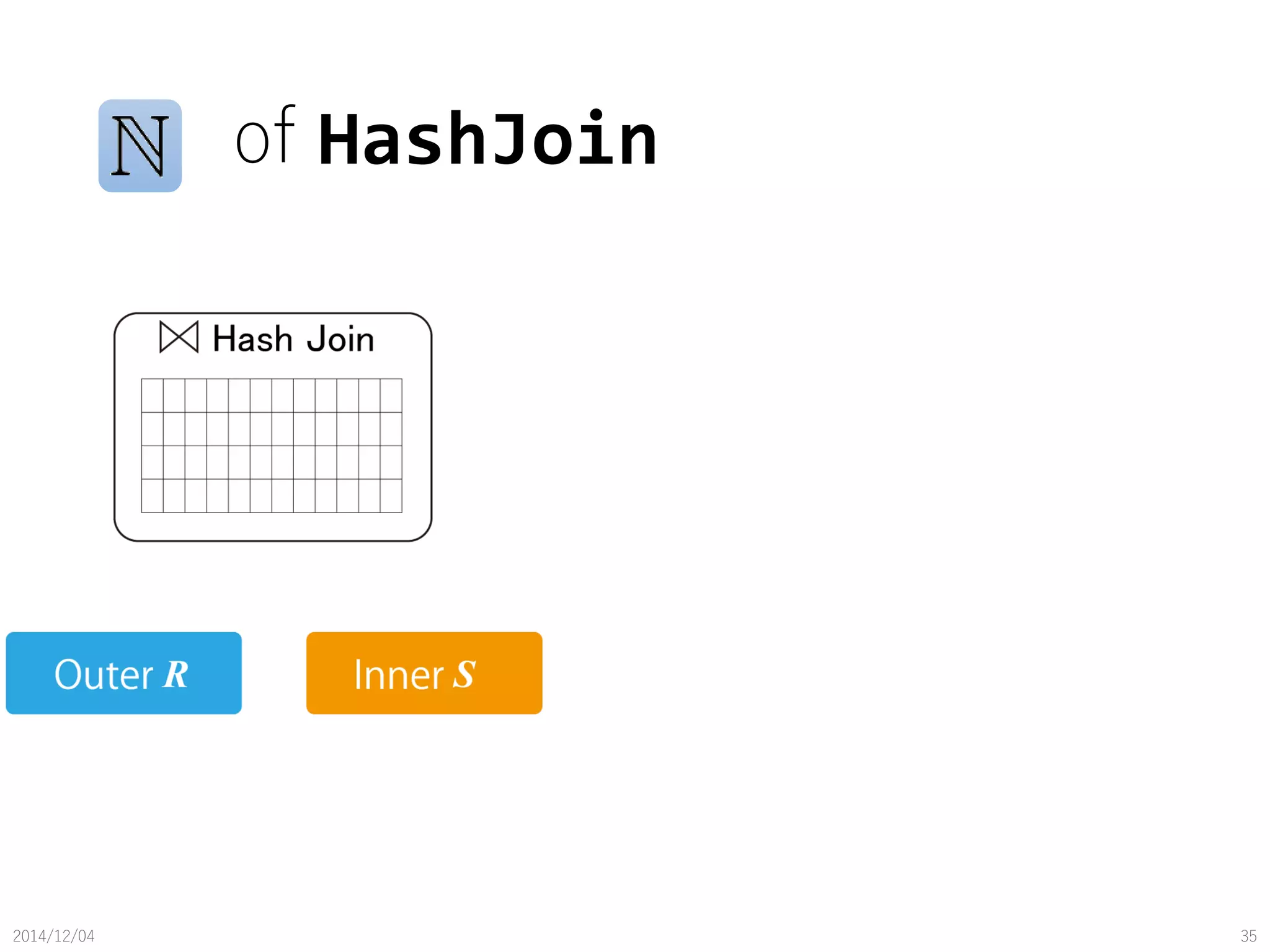

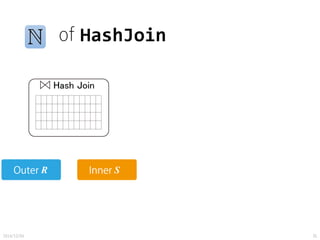

of HashJoin
2014/12/04 35
of HashJoin
Build phase
• Cost += Cost(inner)
2014/12/04 36
+= #qual_op × #inner_tuples
+= #inner_tuples
Hashing cost

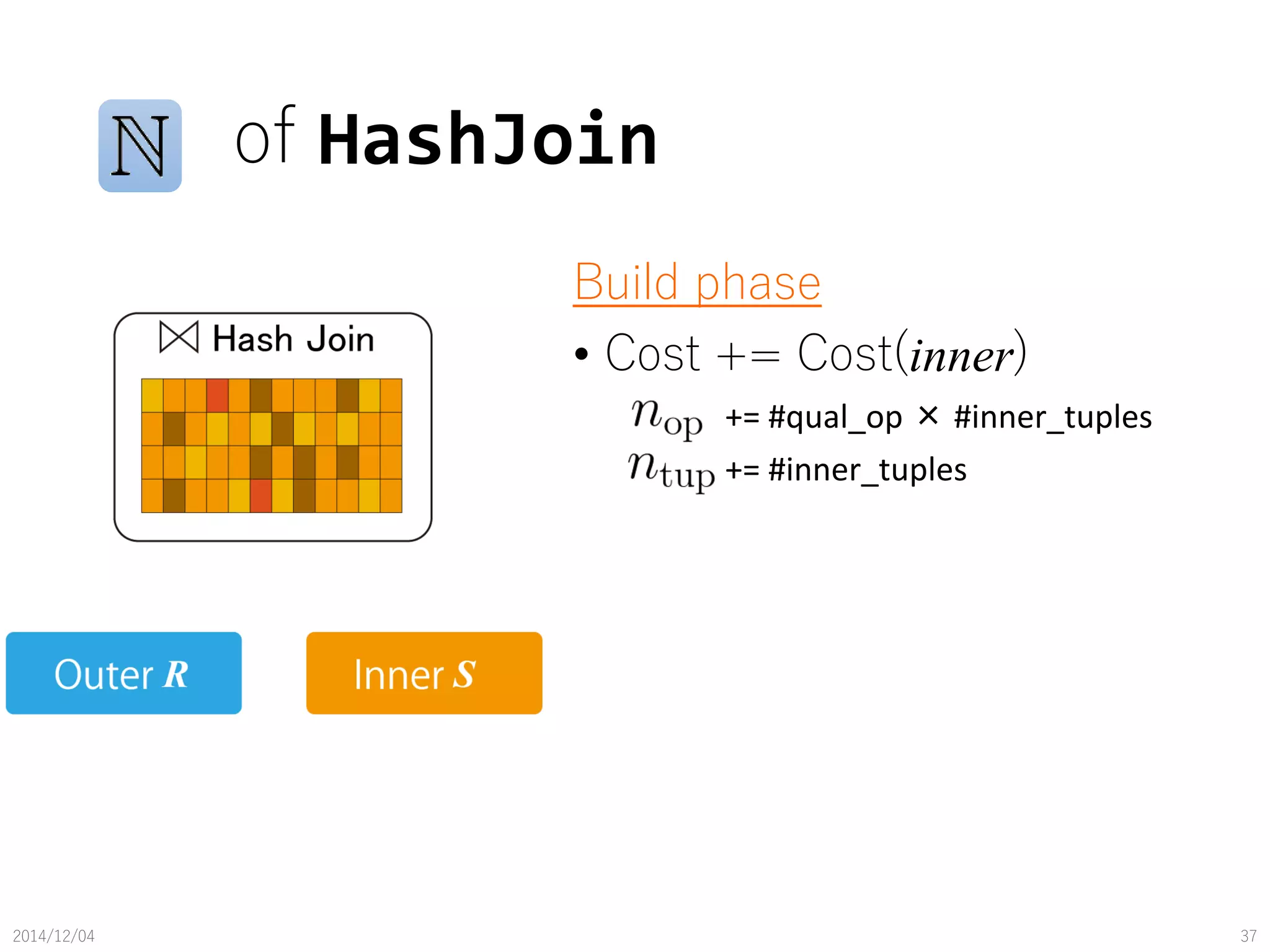

of HashJoin
2014/12/04 37
Build phase
• Cost += Cost(inner)
+= #qual_op × #inner_tuples
+= #inner_tuples

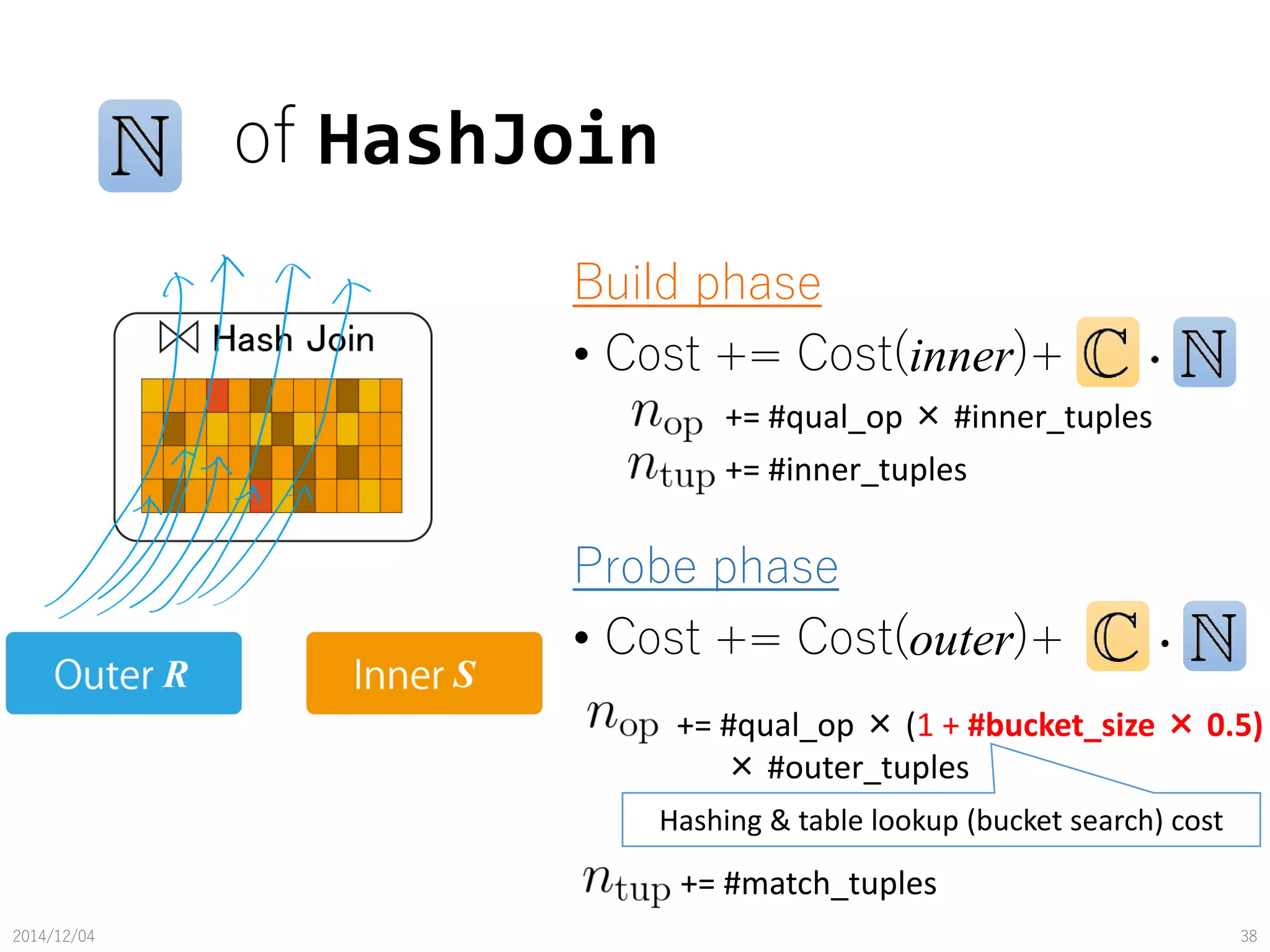

of HashJoin
2014/12/04 38
Build phase
• Cost += Cost(inner)+
Probe phase
• Cost += Cost(outer)+
+= #qual_op × #inner_tuples
+= #inner_tuples
+= #qual_op × (1 + #bucket_size × 0.5)
× #outer_tuples
+= #match_tuples
Hashing & table lookup (bucket search) cost
recordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordtuple

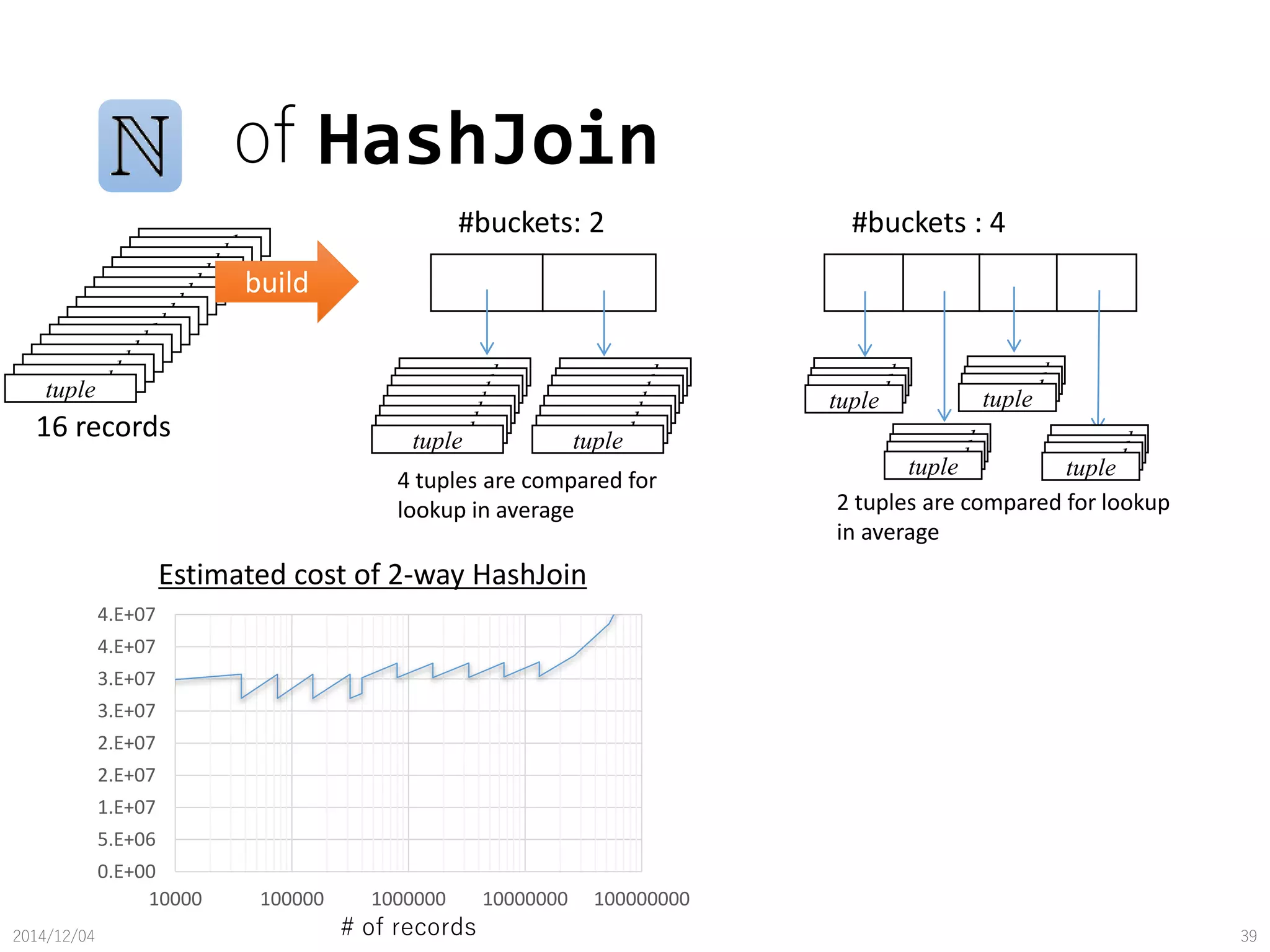

of HashJoin
2014/12/04 39
#buckets: 2 #buckets : 4
build
4 tuples are compared for
lookup in average 2 tuples are compared for lookup
in average
0.E+00
5.E+06
1.E+07
2.E+07
2.E+07
3.E+07
3.E+07
4.E+07
4.E+07
10000 100000 1000000 10000000 100000000
Estimated cost of 2-way HashJoin
# of records
16 records
recordrecordrecordrecordrecordrecordrecordtuple
recordrecordrecordrecordrecordrecordrecordtuple
recordrecordrecordtuple
recordrecordrecordtuple
recordrecordrecordtuple
recordrecordrecordtuple

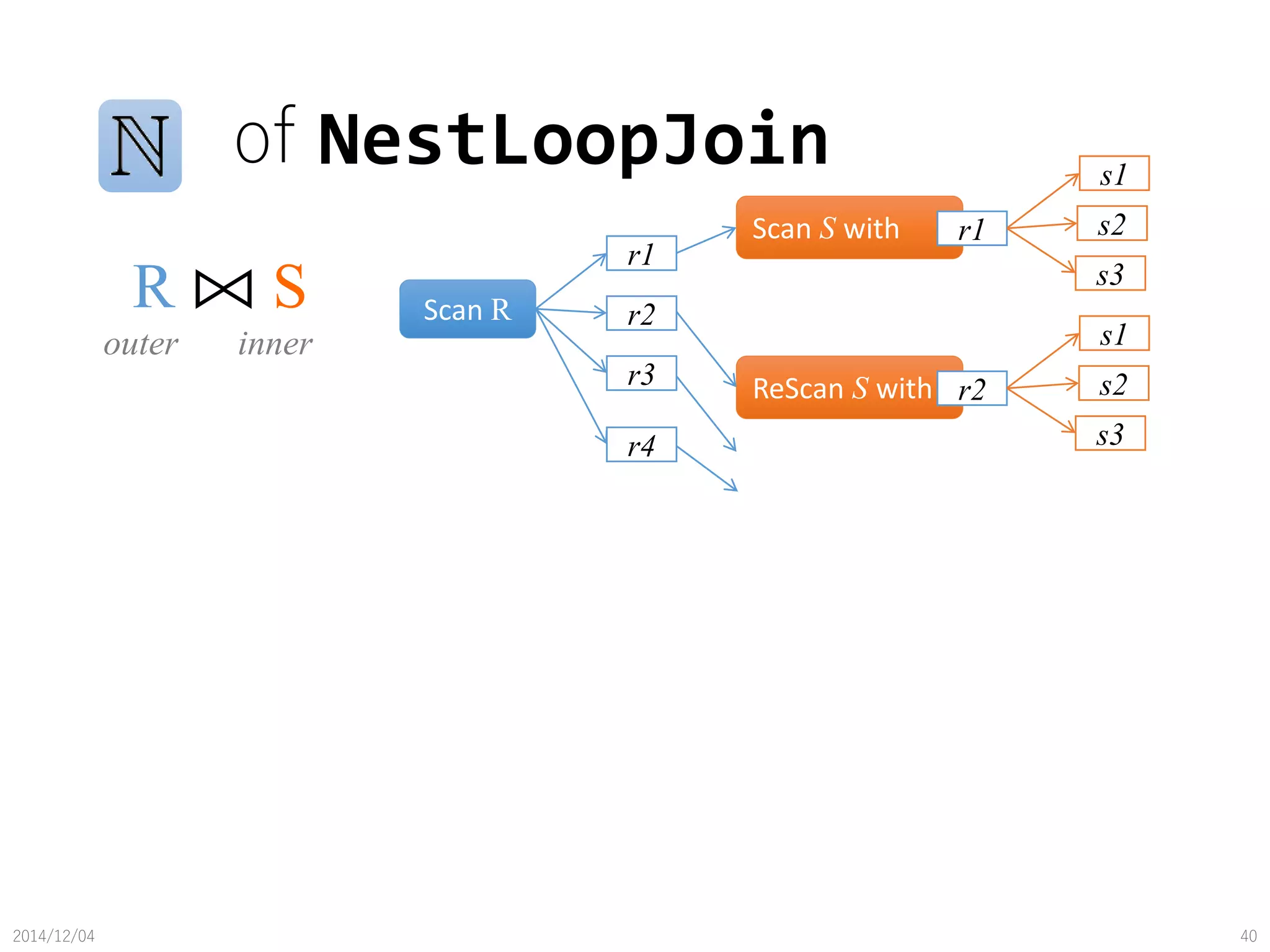

of NestLoopJoin
2014/12/04 40
R ⨝ S Scan R r2
r1
r3
r4
Scan S with r1
s1
s2
s3
ReScan S with r2
s1
s2
s3
outer inner

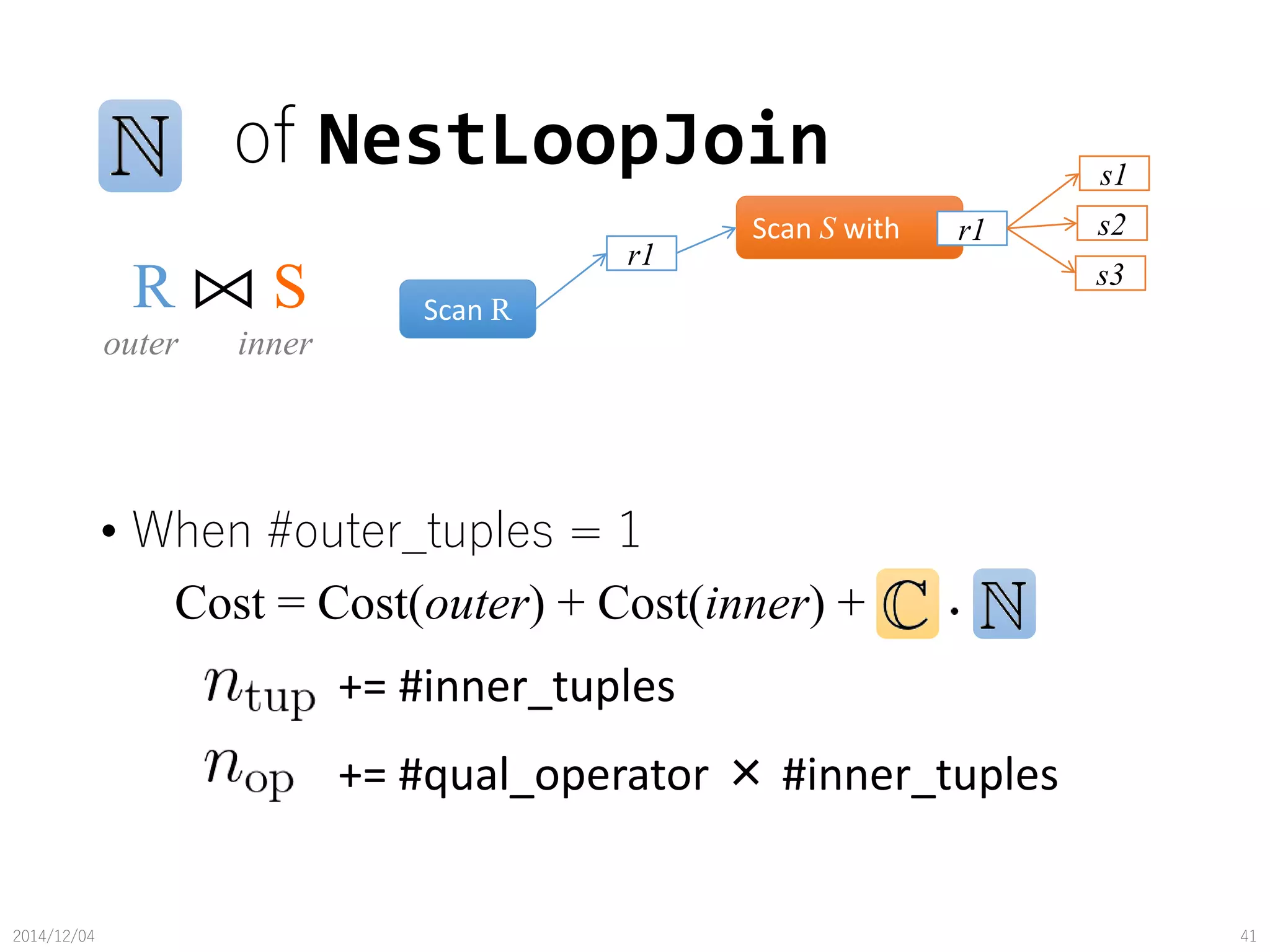

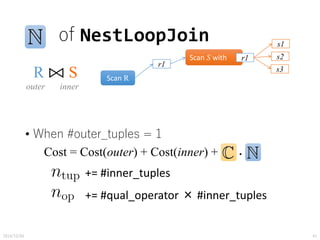

of NestLoopJoin
• When #outer_tuples = 1
2014/12/04 41
R ⨝ S Scan R
r1
Scan S with r1
s1
s2
s3
outer inner
Cost = Cost(outer) + Cost(inner) +
+= #inner_tuples
+= #qual_operator × #inner_tuples

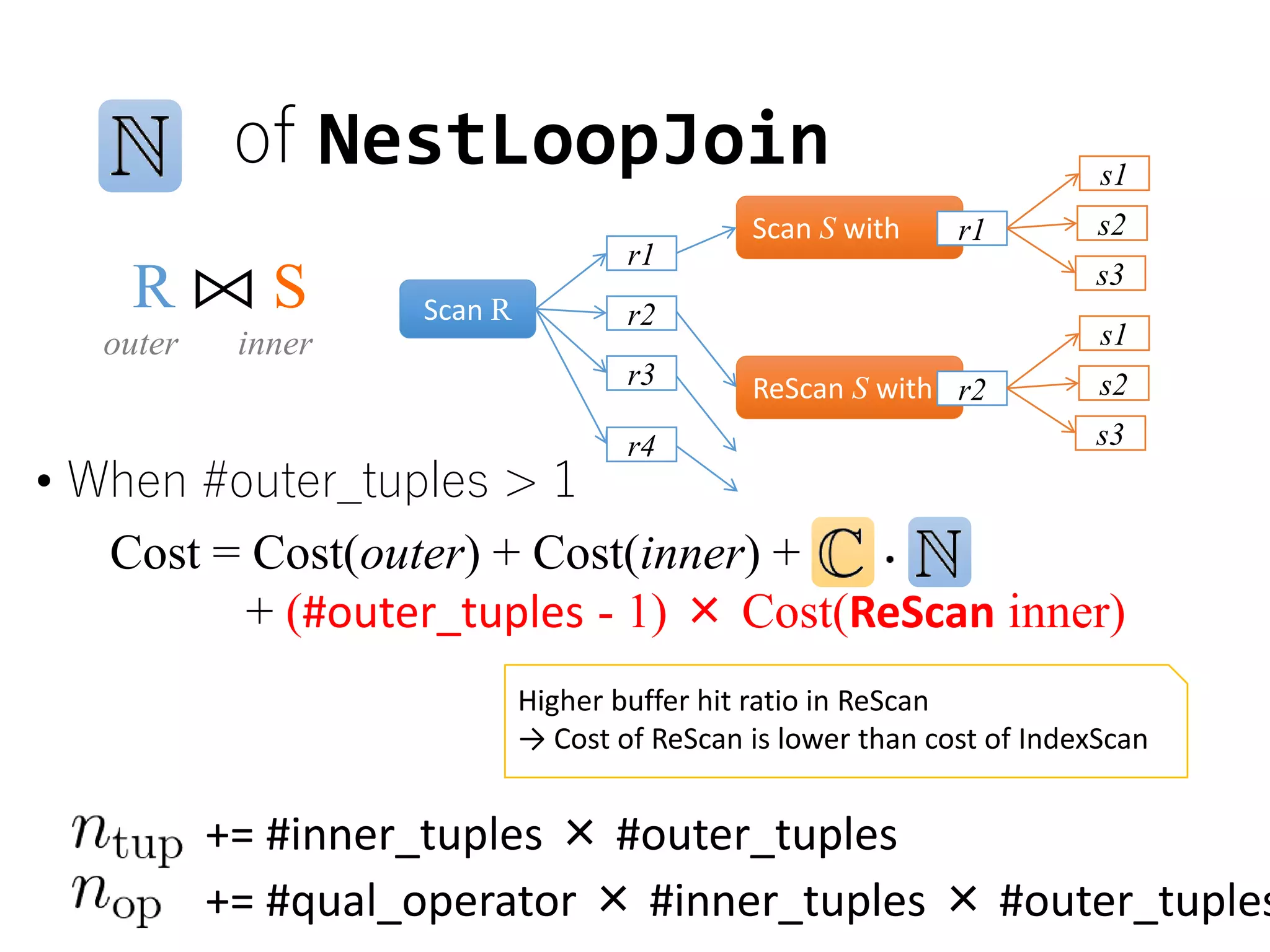

of NestLoopJoin
• When #outer_tuples > 1
R ⨝ S Scan R r2
r1
r3
r4
Scan S with r1
s1
s2
s3
ReScan S with r2
s1
s2
s3
outer inner
Cost = Cost(outer) + Cost(inner) +
+ (#outer_tuples - 1) × Cost(ReScan inner)
Higher buffer hit ratio in ReScan
→ Cost of ReScan is lower than cost of IndexScan
+= #inner_tuples × #outer_tuples
+= #qual_operator × #inner_tuples × #outer_tuples

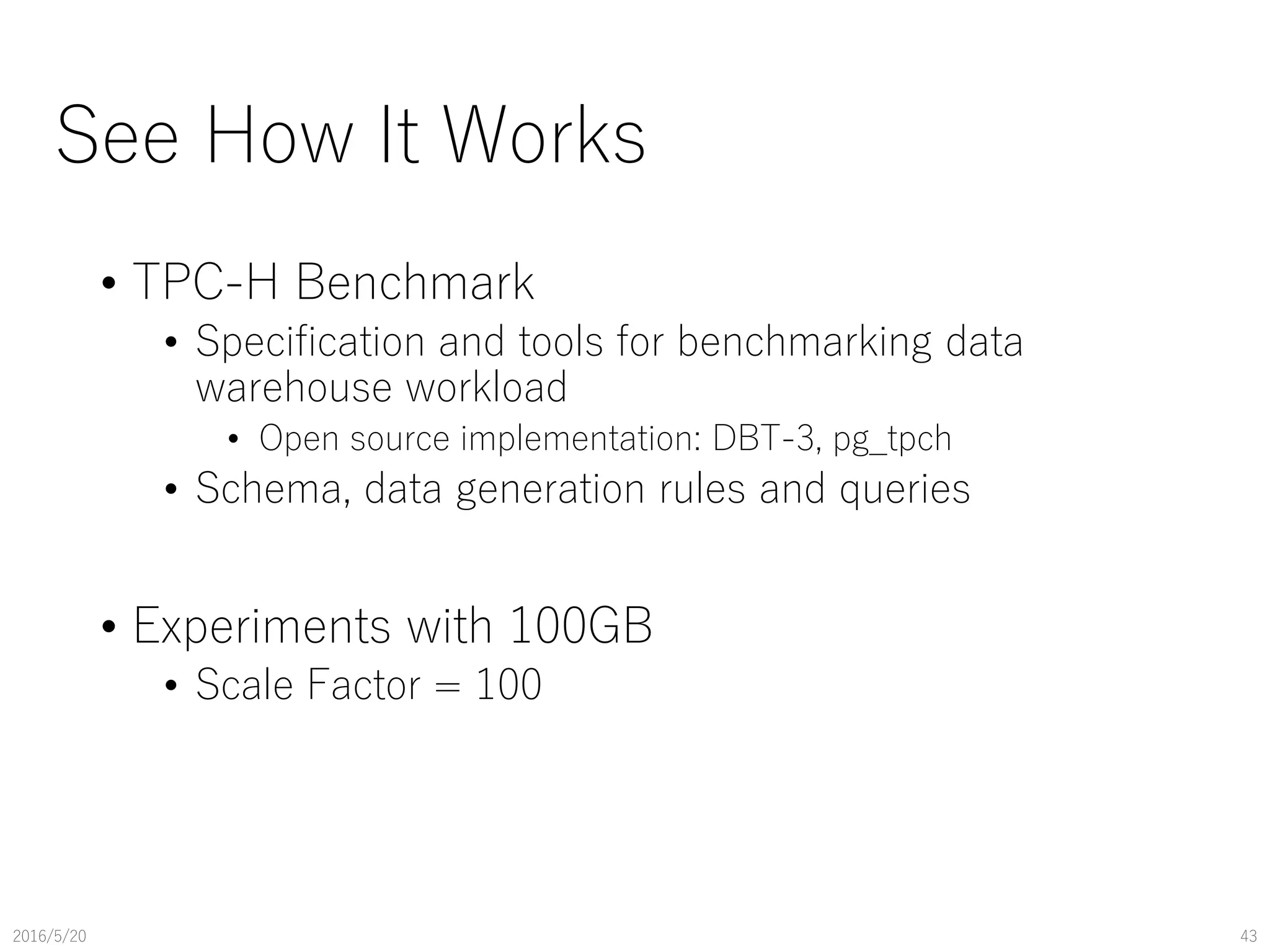

See How It Works
• TPC-H Benchmark
• Specification and tools for benchmarking data
warehouse workload
• Open source implementation: DBT-3, pg_tpch
• Schema, data generation rules and queries
• Experiments with 100GB
• Scale Factor = 100
2016/5/20 43

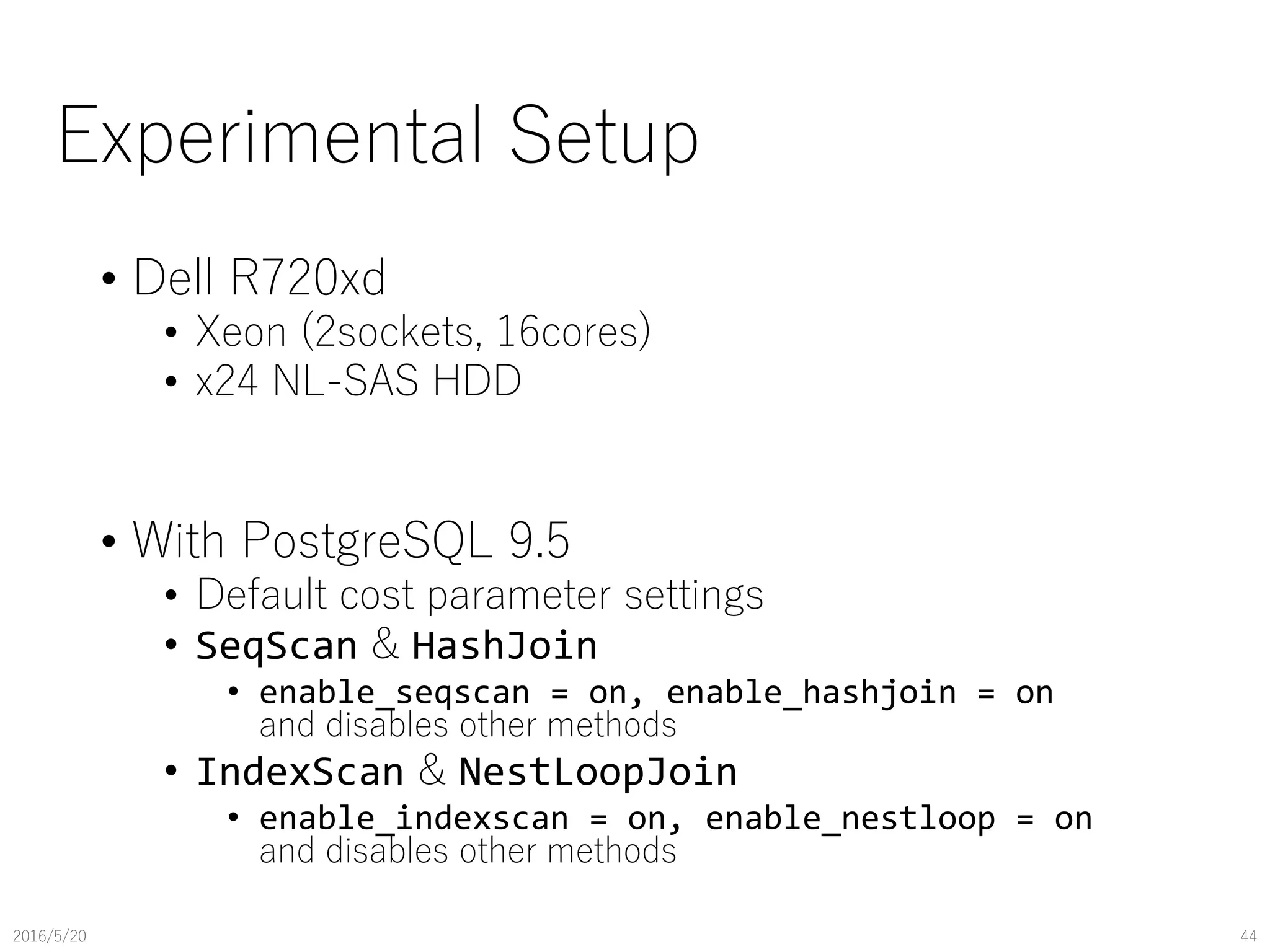

Experimental Setup
• Dell R720xd
• Xeon (2sockets, 16cores)
• x24 NL-SAS HDD
• With PostgreSQL 9.5
• Default cost parameter settings
• SeqScan & HashJoin
• enable_seqscan = on, enable_hashjoin = on
and disables other methods
• IndexScan & NestLoopJoin
• enable_indexscan = on, enable_nestloop = on
and disables other methods
2016/5/20 44
TPC-H Q.1: The Simplest Case
2016/5/20 45
5.E+05
5.E+06
5.E+07
5.E+08
1 10 100 1000
Estimated cost
Selectivity (l_shipdate)
IndexScan
SeqScan
10
100
1000
10000
1 10 100 1000
Execution time (sec)
Selectivity(l_shipdate)
IndexScan
SeqScan
• Good trend estimation for each
method
• Estimated break-event point is
errorneus
• IndexScan should be more
expensive (need parameter
calibration)
SELECT count(*), ... FROM lineitem
WHERE l_shipdate BETWEEN [X] AND [Y]

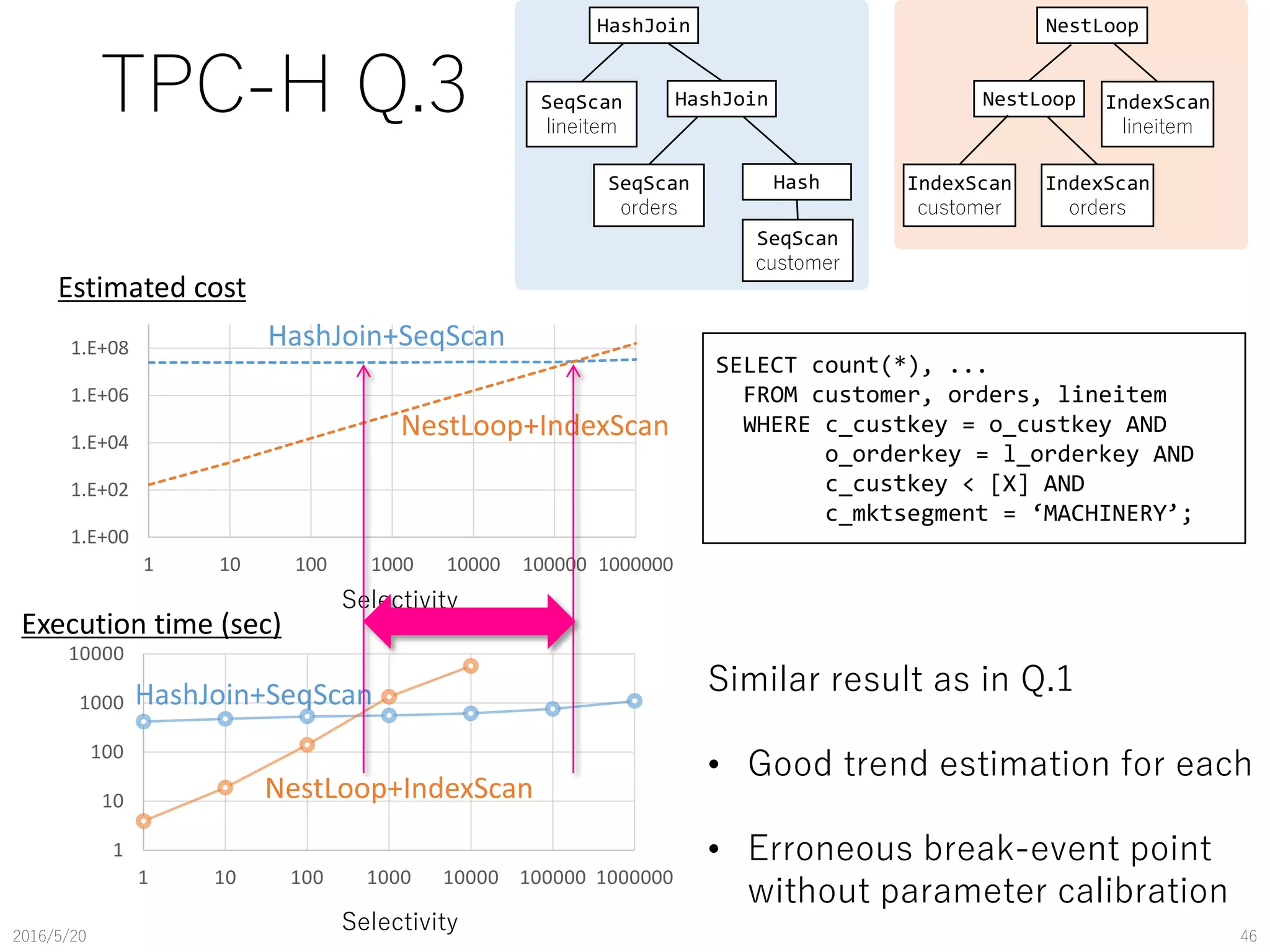

TPC-H Q.3
2016/5/20 46
Estimated cost
SeqScan
customer
SeqScan
orders
SeqScan
lineitem
Hash
HashJoin
HashJoin
IndexScan
orders
IndexScan
lineitem
NestLoop
NestLoop
IndexScan
customer
Execution time (sec)
Selectivity
1.E+00
1.E+02
1.E+04
1.E+06
1.E+08
1 10 100 1000 10000 100000 1000000
1
10
100
1000
10000
1 10 100 1000 10000 100000 1000000
Selectivity
NestLoop+IndexScan
HashJoin+SeqScan
NestLoop+IndexScan
HashJoin+SeqScan Similar result as in Q.1
• Good trend estimation for each
• Erroneous break-event point
without parameter calibration
SELECT count(*), ...
FROM customer, orders, lineitem
WHERE c_custkey = o_custkey AND
o_orderkey = l_orderkey AND
c_custkey < [X] AND
c_mktsegment = ‘MACHINERY’;
100
1000
10000
100000
1 10 100 1000 10000

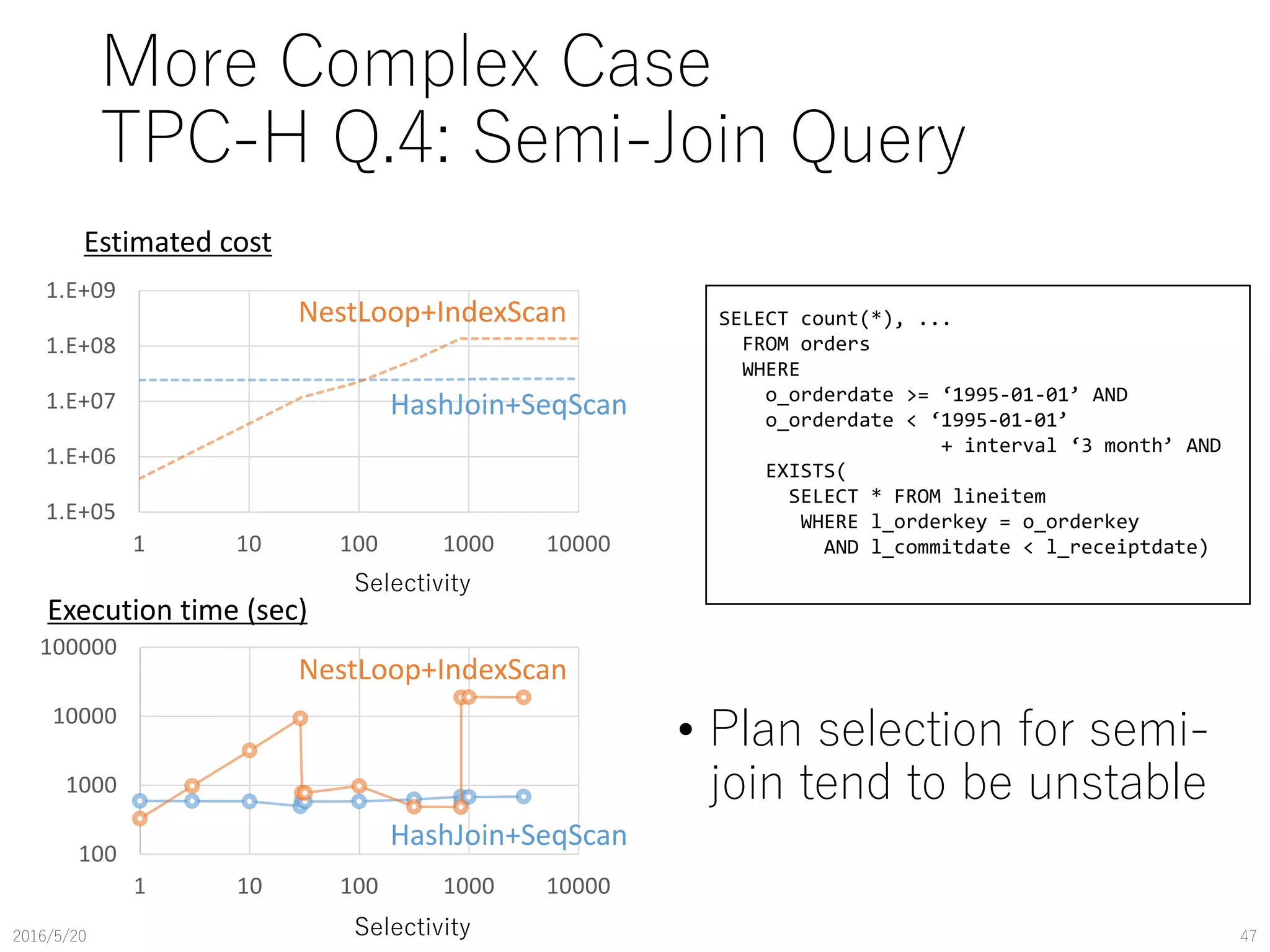

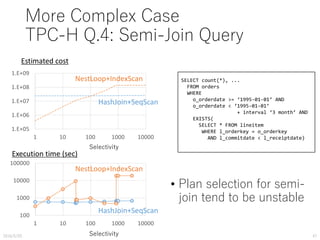

More Complex Case
TPC-H Q.4: Semi-Join Query
• Plan selection for semi-
join tend to be unstable
2016/5/20 47Selectivity
1.E+05
1.E+06
1.E+07
1.E+08
1.E+09
1 10 100 1000 10000
HashJoin+SeqScan
NestLoop+IndexScan
Estimated cost
Execution time (sec)
HashJoin+SeqScan
NestLoop+IndexScan SELECT count(*), ...
FROM orders
WHERE
o_orderdate >= ‘1995-01-01’ AND
o_orderdate < ‘1995-01-01’
+ interval ‘3 month’ AND
EXISTS(
SELECT * FROM lineitem
WHERE l_orderkey = o_orderkey
AND l_commitdate < l_receiptdate)
Selectivity
1.E+06
1.E+07
1.E+08
1.E+09
1.E+10
1.E+11
1.E+00 1.E+02 1.E+04 1.E+06 1.E+08

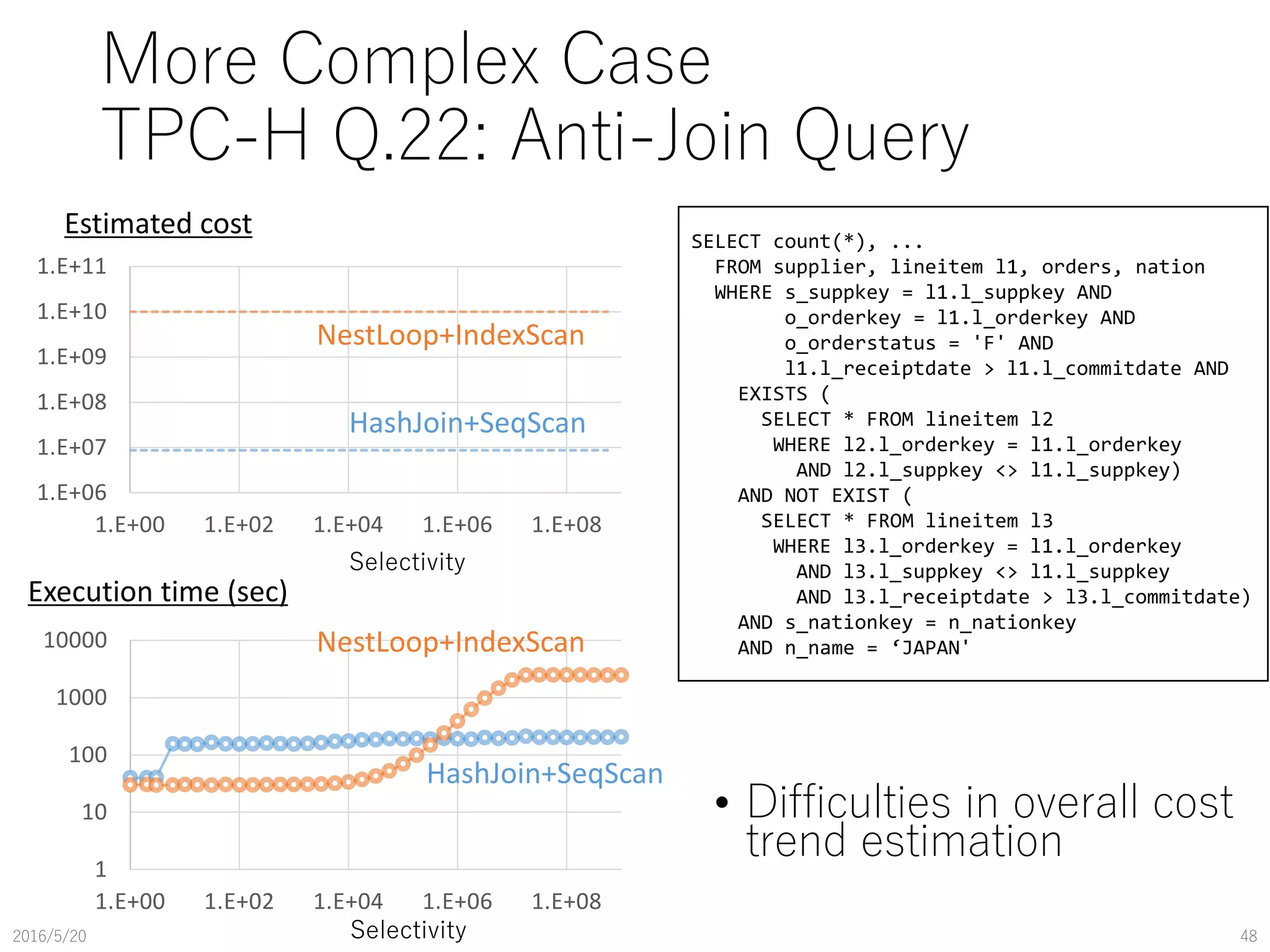

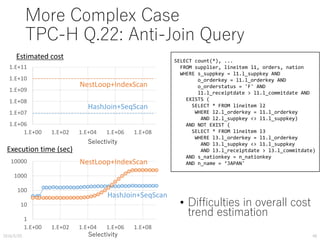

More Complex Case
TPC-H Q.22: Anti-Join Query
• Difficulties in overall cost
trend estimation
2016/5/20 48
Selectivity
1
10
100
1000
10000
1.E+00 1.E+02 1.E+04 1.E+06 1.E+08
Estimated cost
Execution time (sec)
Selectivity
HashJoin+SeqScan
NestLoop+IndexScan
HashJoin+SeqScan
NestLoop+IndexScan
SELECT count(*), ...
FROM supplier, lineitem l1, orders, nation
WHERE s_suppkey = l1.l_suppkey AND
o_orderkey = l1.l_orderkey AND
o_orderstatus = 'F' AND
l1.l_receiptdate > l1.l_commitdate AND
EXISTS (
SELECT * FROM lineitem l2
WHERE l2.l_orderkey = l1.l_orderkey
AND l2.l_suppkey <> l1.l_suppkey)
AND NOT EXIST (
SELECT * FROM lineitem l3
WHERE l3.l_orderkey = l1.l_orderkey
AND l3.l_suppkey <> l1.l_suppkey
AND l3.l_receiptdate > l3.l_commitdate)
AND s_nationkey = n_nationkey
AND n_name = ‘JAPAN'

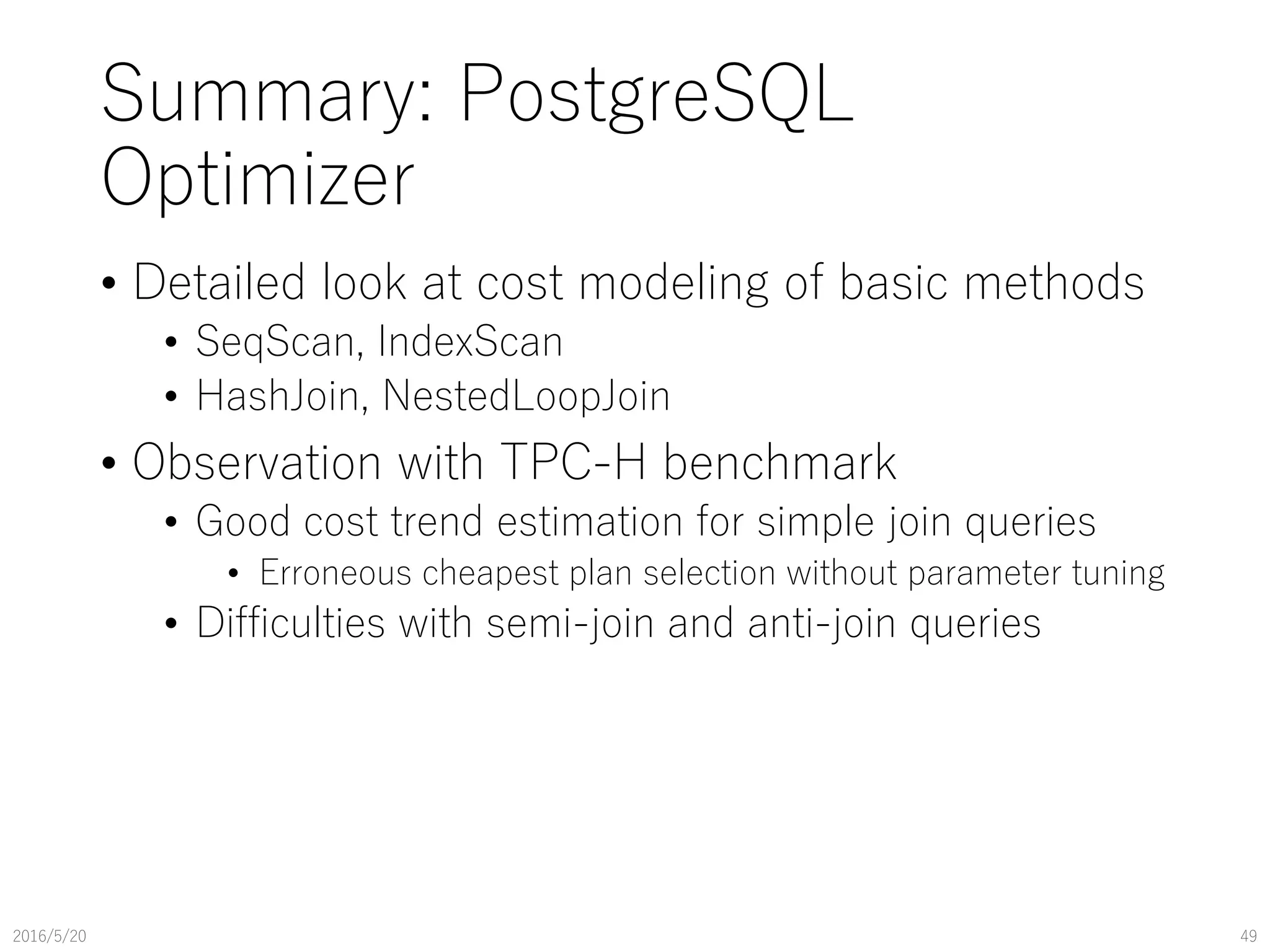

Summary: PostgreSQL
Optimizer
• Detailed look at cost modeling of basic methods
• SeqScan, IndexScan
• HashJoin, NestedLoopJoin
• Observation with TPC-H benchmark
• Good cost trend estimation for simple join queries
• Erroneous cheapest plan selection without parameter tuning
• Difficulties with semi-join and anti-join queries
2016/5/20 49

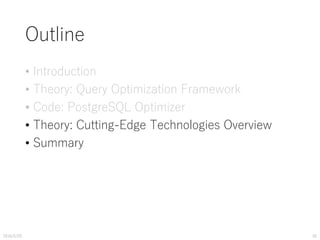

Outline
• Introduction
• Theory: Query Optimization Framework
• Code: PostgreSQL Optimizer
• Theory: Cutting-Edge Technologies Overview
• Summary
2016/5/20 50

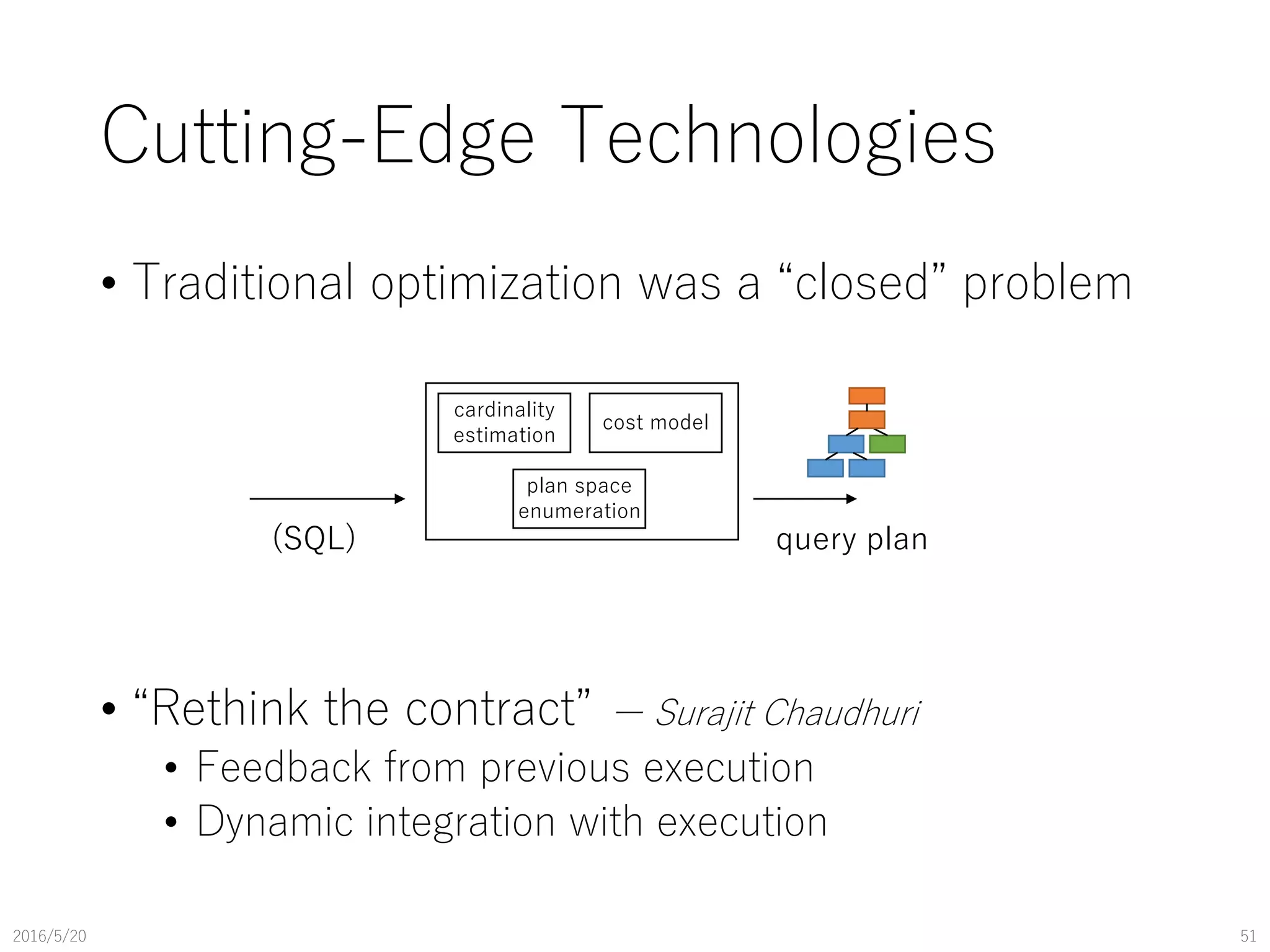

Cutting-Edge Technologies
• Traditional optimization was a “closed” problem
• “Rethink the contract” ー Surajit Chaudhuri
• Feedback from previous execution
• Dynamic integration with execution
2016/5/20 51
cardinality
estimation
cost model
plan space
enumeration
(SQL) query plan

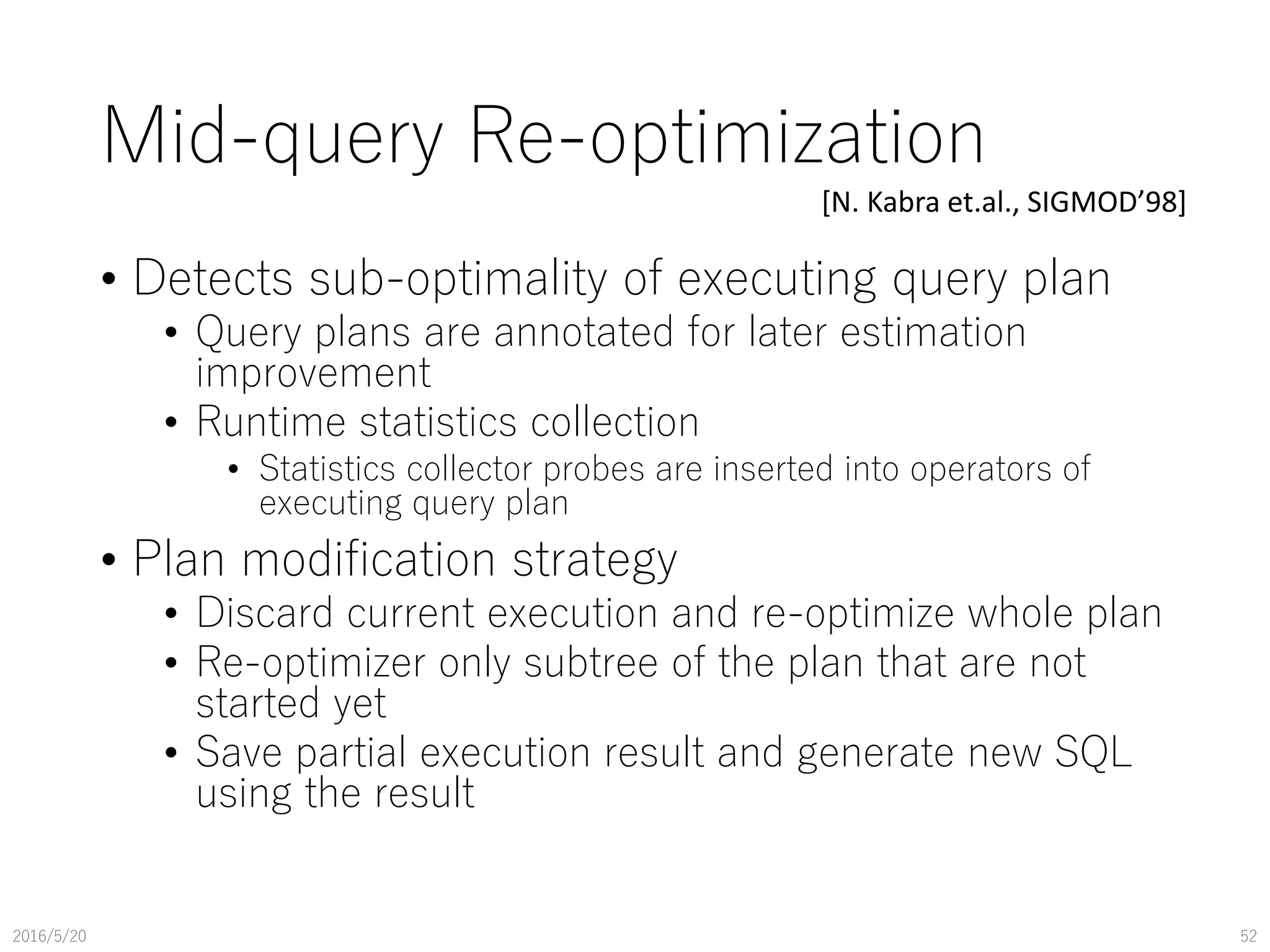

Mid-query Re-optimization
• Detects sub-optimality of executing query plan
• Query plans are annotated for later estimation
improvement
• Runtime statistics collection
• Statistics collector probes are inserted into operators of
executing query plan
• Plan modification strategy
• Discard current execution and re-optimize whole plan
• Re-optimizer only subtree of the plan that are not
started yet
• Save partial execution result and generate new SQL
using the result
2016/5/20 52
[N. Kabra et.al., SIGMOD’98]

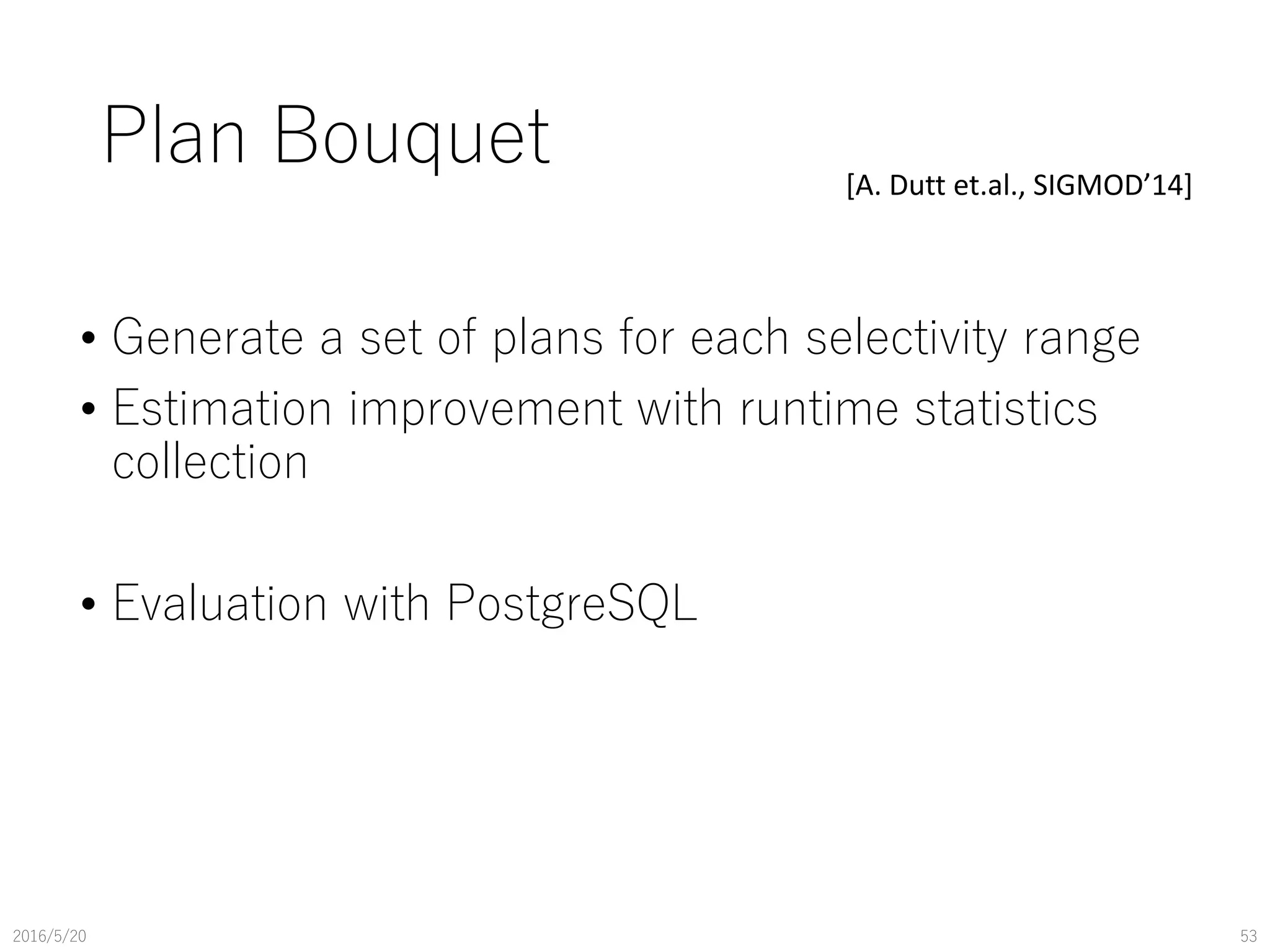

Plan Bouquet
• Generate a set of plans for each selectivity range
• Estimation improvement with runtime statistics
collection
• Evaluation with PostgreSQL
2016/5/20 53
[A. Dutt et.al., SIGMOD’14]

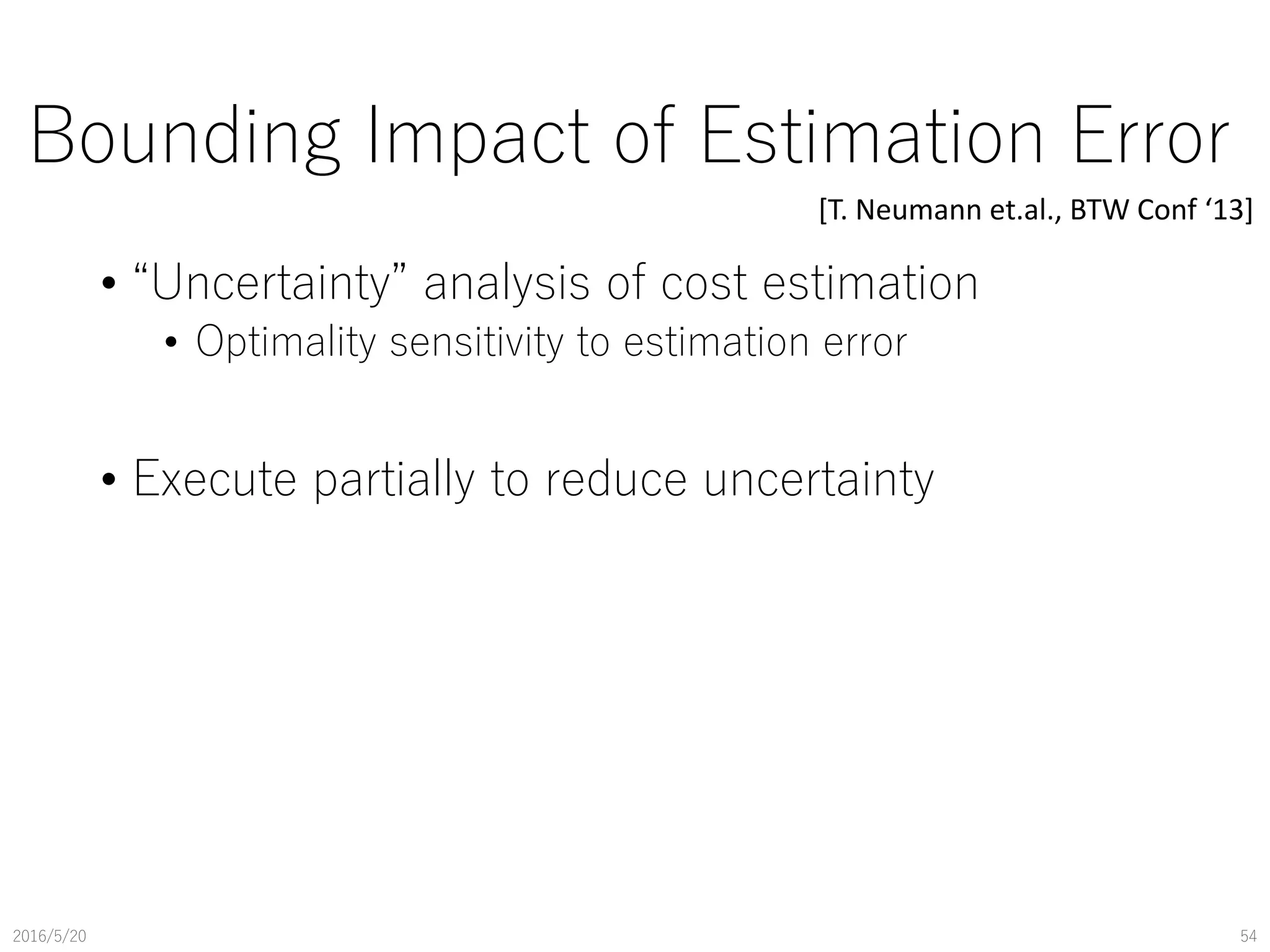

Bounding Impact of Estimation Error
• “Uncertainty” analysis of cost estimation
• Optimality sensitivity to estimation error
• Execute partially to reduce uncertainty
2016/5/20 54
[T. Neumann et.al., BTW Conf ‘13]

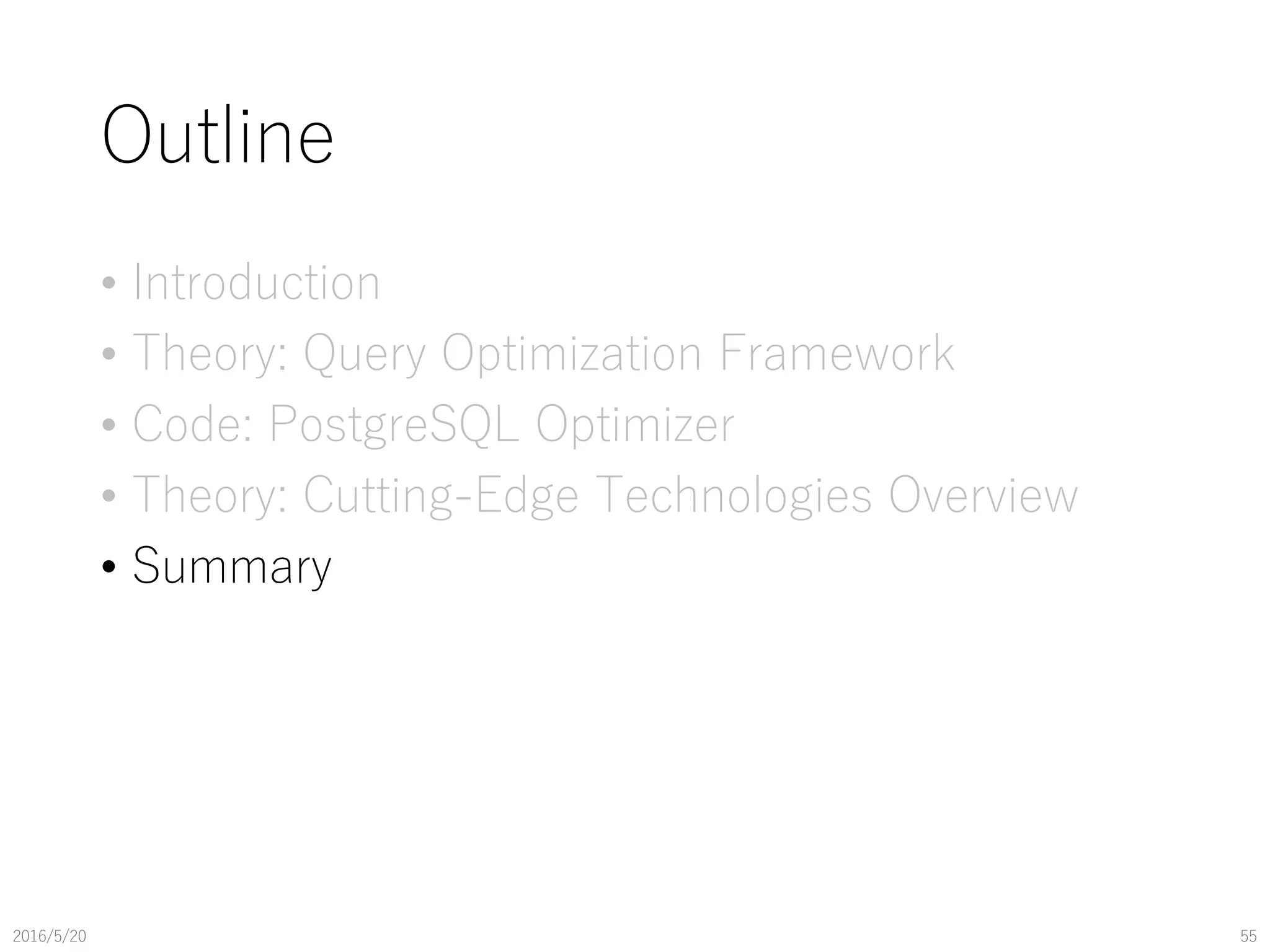

Outline
• Introduction
• Theory: Query Optimization Framework
• Code: PostgreSQL Optimizer
• Theory: Cutting-Edge Technologies Overview
• Summary
2016/5/20 55

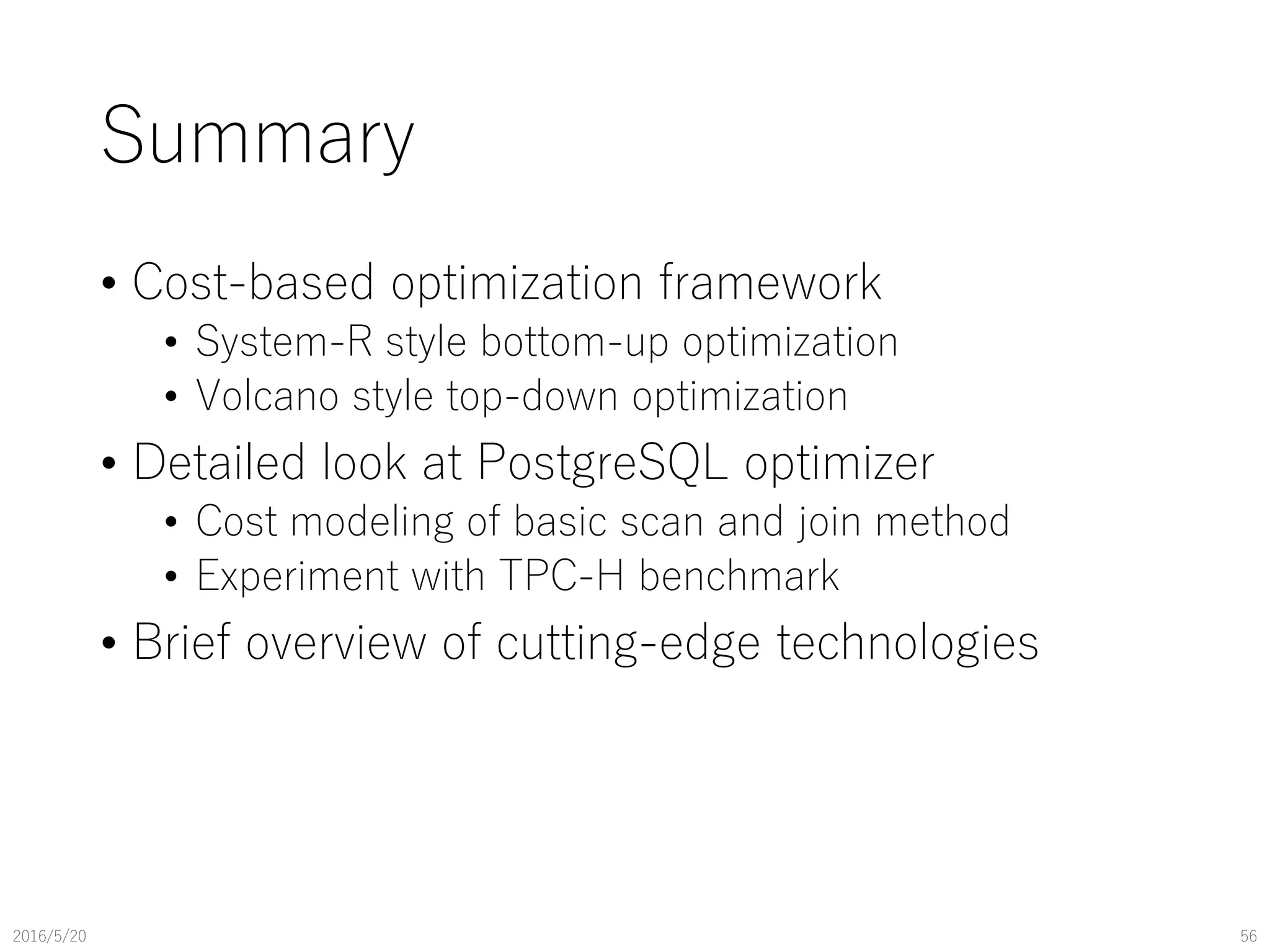

Summary
• Cost-based optimization framework
• System-R style bottom-up optimization
• Volcano style top-down optimization
• Detailed look at PostgreSQL optimizer
• Cost modeling of basic scan and join method
• Experiment with TPC-H benchmark
• Brief overview of cutting-edge technologies
2016/5/20 56

More Related Content

What's hot

20090107 Postgre Sqlチューニング(Sql編)
20090107 Postgre Sqlチューニング(Sql編)20090107 Postgre Sqlチューニング(Sql編)
20090107 Postgre Sqlチューニング(Sql編)Hiromu Shioya

PostgreSQL SQLチューニング入門 実践編(pgcon14j)
PostgreSQL SQLチューニング入門 実践編(pgcon14j)PostgreSQL SQLチューニング入門 実践編(pgcon14j)
PostgreSQL SQLチューニング入門 実践編(pgcon14j)
Satoshi Yamada

Mongo dbを知ろう
Mongo dbを知ろうMongo dbを知ろう
Mongo dbを知ろうCROOZ, inc.

Histograms in MariaDB, MySQL and PostgreSQL
Histograms in MariaDB, MySQL and PostgreSQLHistograms in MariaDB, MySQL and PostgreSQL
Histograms in MariaDB, MySQL and PostgreSQL
Sergey Petrunya

問合せ最適化インサイド
問合せ最適化インサイド問合せ最適化インサイド
問合せ最適化インサイド
Takahiro Itagaki

C* Summit 2013: The World's Next Top Data Model by Patrick McFadin
C* Summit 2013: The World's Next Top Data Model by Patrick McFadinC* Summit 2013: The World's Next Top Data Model by Patrick McFadin
C* Summit 2013: The World's Next Top Data Model by Patrick McFadin
DataStax Academy

FPGA-Based Acceleration Architecture for Spark SQL Qi Xie and Quanfu Wang
FPGA-Based Acceleration Architecture for Spark SQL Qi Xie and Quanfu Wang FPGA-Based Acceleration Architecture for Spark SQL Qi Xie and Quanfu Wang
FPGA-Based Acceleration Architecture for Spark SQL Qi Xie and Quanfu Wang
Spark Summit

MySQL5.7 GA の Multi-threaded slave
MySQL5.7 GA の Multi-threaded slaveMySQL5.7 GA の Multi-threaded slave
MySQL5.7 GA の Multi-threaded slave
Takanori Sejima

PostgreSQLアーキテクチャ入門
PostgreSQLアーキテクチャ入門PostgreSQLアーキテクチャ入門
PostgreSQLアーキテクチャ入門
Uptime Technologies LLC (JP)

A Deep Dive into Query Execution Engine of Spark SQL
A Deep Dive into Query Execution Engine of Spark SQLA Deep Dive into Query Execution Engine of Spark SQL
A Deep Dive into Query Execution Engine of Spark SQL
Databricks

PostgreSQL - C言語によるユーザ定義関数の作り方
PostgreSQL - C言語によるユーザ定義関数の作り方PostgreSQL - C言語によるユーザ定義関数の作り方
PostgreSQL - C言語によるユーザ定義関数の作り方Satoshi Nagayasu

ヤフー社内でやってるMySQLチューニングセミナー大公開
ヤフー社内でやってるMySQLチューニングセミナー大公開ヤフー社内でやってるMySQLチューニングセミナー大公開
ヤフー社内でやってるMySQLチューニングセミナー大公開
Yahoo!デベロッパーネットワーク

Efficient Pagination Using MySQL
Efficient Pagination Using MySQLEfficient Pagination Using MySQL
Efficient Pagination Using MySQL
Evan Weaver

Hadoop -NameNode HAの仕組み-
Hadoop -NameNode HAの仕組み-Hadoop -NameNode HAの仕組み-
Hadoop -NameNode HAの仕組み-
Yuki Gonda

5 Steps to PostgreSQL Performance
5 Steps to PostgreSQL Performance5 Steps to PostgreSQL Performance
5 Steps to PostgreSQL Performance
Command Prompt., Inc

Parquet performance tuning: the missing guide
Parquet performance tuning: the missing guideParquet performance tuning: the missing guide
Parquet performance tuning: the missing guide
Ryan Blue

雑なMySQLパフォーマンスチューニング
雑なMySQLパフォーマンスチューニング雑なMySQLパフォーマンスチューニング
雑なMySQLパフォーマンスチューニング
yoku0825

Improving SparkSQL Performance by 30%: How We Optimize Parquet Pushdown and P...
Improving SparkSQL Performance by 30%: How We Optimize Parquet Pushdown and P...Improving SparkSQL Performance by 30%: How We Optimize Parquet Pushdown and P...
Improving SparkSQL Performance by 30%: How We Optimize Parquet Pushdown and P...
Databricks

MySQLアーキテクチャ図解講座
MySQLアーキテクチャ図解講座MySQLアーキテクチャ図解講座
MySQLアーキテクチャ図解講座
Mikiya Okuno

PostgreSQL 12は ここがスゴイ! ~性能改善やpluggable storage engineなどの新機能を徹底解説~ (NTTデータ テクノ...
PostgreSQL 12は ここがスゴイ! ~性能改善やpluggable storage engineなどの新機能を徹底解説~ (NTTデータ テクノ...PostgreSQL 12は ここがスゴイ! ~性能改善やpluggable storage engineなどの新機能を徹底解説~ (NTTデータ テクノ...
PostgreSQL 12は ここがスゴイ! ~性能改善やpluggable storage engineなどの新機能を徹底解説~ (NTTデータ テクノ...
NTT DATA Technology & Innovation


What's hot (20)

20090107 Postgre Sqlチューニング(Sql編)
20090107 Postgre Sqlチューニング(Sql編)20090107 Postgre Sqlチューニング(Sql編)
20090107 Postgre Sqlチューニング(Sql編)

PostgreSQL SQLチューニング入門 実践編(pgcon14j)
PostgreSQL SQLチューニング入門 実践編(pgcon14j)PostgreSQL SQLチューニング入門 実践編(pgcon14j)
PostgreSQL SQLチューニング入門 実践編(pgcon14j)

Mongo dbを知ろう
Mongo dbを知ろうMongo dbを知ろう
Mongo dbを知ろう

Histograms in MariaDB, MySQL and PostgreSQL
Histograms in MariaDB, MySQL and PostgreSQLHistograms in MariaDB, MySQL and PostgreSQL
Histograms in MariaDB, MySQL and PostgreSQL

問合せ最適化インサイド
問合せ最適化インサイド問合せ最適化インサイド
問合せ最適化インサイド

C* Summit 2013: The World's Next Top Data Model by Patrick McFadin
C* Summit 2013: The World's Next Top Data Model by Patrick McFadinC* Summit 2013: The World's Next Top Data Model by Patrick McFadin
C* Summit 2013: The World's Next Top Data Model by Patrick McFadin

FPGA-Based Acceleration Architecture for Spark SQL Qi Xie and Quanfu Wang
FPGA-Based Acceleration Architecture for Spark SQL Qi Xie and Quanfu Wang FPGA-Based Acceleration Architecture for Spark SQL Qi Xie and Quanfu Wang
FPGA-Based Acceleration Architecture for Spark SQL Qi Xie and Quanfu Wang

MySQL5.7 GA の Multi-threaded slave
MySQL5.7 GA の Multi-threaded slaveMySQL5.7 GA の Multi-threaded slave
MySQL5.7 GA の Multi-threaded slave

PostgreSQLアーキテクチャ入門
PostgreSQLアーキテクチャ入門PostgreSQLアーキテクチャ入門
PostgreSQLアーキテクチャ入門

A Deep Dive into Query Execution Engine of Spark SQL
A Deep Dive into Query Execution Engine of Spark SQLA Deep Dive into Query Execution Engine of Spark SQL
A Deep Dive into Query Execution Engine of Spark SQL

PostgreSQL - C言語によるユーザ定義関数の作り方
PostgreSQL - C言語によるユーザ定義関数の作り方PostgreSQL - C言語によるユーザ定義関数の作り方
PostgreSQL - C言語によるユーザ定義関数の作り方

ヤフー社内でやってるMySQLチューニングセミナー大公開
ヤフー社内でやってるMySQLチューニングセミナー大公開ヤフー社内でやってるMySQLチューニングセミナー大公開
ヤフー社内でやってるMySQLチューニングセミナー大公開

Efficient Pagination Using MySQL
Efficient Pagination Using MySQLEfficient Pagination Using MySQL
Efficient Pagination Using MySQL

Hadoop -NameNode HAの仕組み-
Hadoop -NameNode HAの仕組み-Hadoop -NameNode HAの仕組み-
Hadoop -NameNode HAの仕組み-

5 Steps to PostgreSQL Performance
5 Steps to PostgreSQL Performance5 Steps to PostgreSQL Performance
5 Steps to PostgreSQL Performance

Parquet performance tuning: the missing guide
Parquet performance tuning: the missing guideParquet performance tuning: the missing guide
Parquet performance tuning: the missing guide

雑なMySQLパフォーマンスチューニング
雑なMySQLパフォーマンスチューニング雑なMySQLパフォーマンスチューニング
雑なMySQLパフォーマンスチューニング

Improving SparkSQL Performance by 30%: How We Optimize Parquet Pushdown and P...
Improving SparkSQL Performance by 30%: How We Optimize Parquet Pushdown and P...Improving SparkSQL Performance by 30%: How We Optimize Parquet Pushdown and P...
Improving SparkSQL Performance by 30%: How We Optimize Parquet Pushdown and P...

MySQLアーキテクチャ図解講座
MySQLアーキテクチャ図解講座MySQLアーキテクチャ図解講座
MySQLアーキテクチャ図解講座

PostgreSQL 12は ここがスゴイ! ~性能改善やpluggable storage engineなどの新機能を徹底解説~ (NTTデータ テクノ...
PostgreSQL 12は ここがスゴイ! ~性能改善やpluggable storage engineなどの新機能を徹底解説~ (NTTデータ テクノ...PostgreSQL 12は ここがスゴイ! ~性能改善やpluggable storage engineなどの新機能を徹底解説~ (NTTデータ テクノ...
PostgreSQL 12は ここがスゴイ! ~性能改善やpluggable storage engineなどの新機能を徹底解説~ (NTTデータ テクノ...


Similar to Beyond EXPLAIN: Query Optimization From Theory To Code

Cost-Based Optimizer in Apache Spark 2.2
Cost-Based Optimizer in Apache Spark 2.2 Cost-Based Optimizer in Apache Spark 2.2
Cost-Based Optimizer in Apache Spark 2.2
Databricks

Cost-Based Optimizer in Apache Spark 2.2 Ron Hu, Sameer Agarwal, Wenchen Fan ...
Cost-Based Optimizer in Apache Spark 2.2 Ron Hu, Sameer Agarwal, Wenchen Fan ...Cost-Based Optimizer in Apache Spark 2.2 Ron Hu, Sameer Agarwal, Wenchen Fan ...
Cost-Based Optimizer in Apache Spark 2.2 Ron Hu, Sameer Agarwal, Wenchen Fan ...
Databricks

MongoDB's New Aggregation framework
MongoDB's New Aggregation frameworkMongoDB's New Aggregation framework
MongoDB's New Aggregation framework
Chris Westin

Apache Tajo: Query Optimization Techniques and JIT-based Vectorized Engine
Apache Tajo: Query Optimization Techniques and JIT-based Vectorized EngineApache Tajo: Query Optimization Techniques and JIT-based Vectorized Engine
Apache Tajo: Query Optimization Techniques and JIT-based Vectorized Engine
DataWorks Summit

Hadoop Summit 2014: Query Optimization and JIT-based Vectorized Execution in ...
Hadoop Summit 2014: Query Optimization and JIT-based Vectorized Execution in ...Hadoop Summit 2014: Query Optimization and JIT-based Vectorized Execution in ...
Hadoop Summit 2014: Query Optimization and JIT-based Vectorized Execution in ...
Gruter

mongodb-aggregation-may-2012
mongodb-aggregation-may-2012mongodb-aggregation-may-2012
mongodb-aggregation-may-2012
Chris Westin

Cost-Based Optimizer Framework for Spark SQL: Spark Summit East talk by Ron H...
Cost-Based Optimizer Framework for Spark SQL: Spark Summit East talk by Ron H...Cost-Based Optimizer Framework for Spark SQL: Spark Summit East talk by Ron H...
Cost-Based Optimizer Framework for Spark SQL: Spark Summit East talk by Ron H...
Spark Summit

Scalable Automatic Machine Learning in H2O
Scalable Automatic Machine Learning in H2OScalable Automatic Machine Learning in H2O
Scalable Automatic Machine Learning in H2O
Sri Ambati

Accelerating SQL queries in NoSQL Databases using Apache Drill and Secondary ...
Accelerating SQL queries in NoSQL Databases using Apache Drill and Secondary ...Accelerating SQL queries in NoSQL Databases using Apache Drill and Secondary ...
Accelerating SQL queries in NoSQL Databases using Apache Drill and Secondary ...
Aman Sinha

DB
DBDB
Stacked Ensembles in H2O
Stacked Ensembles in H2OStacked Ensembles in H2O
Stacked Ensembles in H2O
Sri Ambati

Intro_2.ppt
Intro_2.pptIntro_2.ppt
Intro_2.ppt
MumitAhmed1

Intro.ppt
Intro.pptIntro.ppt
Intro.ppt
SharabiNaif

Intro.ppt
Intro.pptIntro.ppt
Intro.ppt
Anonymous9etQKwW

From Pipelines to Refineries: Scaling Big Data Applications
From Pipelines to Refineries: Scaling Big Data ApplicationsFrom Pipelines to Refineries: Scaling Big Data Applications
From Pipelines to Refineries: Scaling Big Data Applications
Databricks

The Analytics Frontier of the Hadoop Eco-System
The Analytics Frontier of the Hadoop Eco-SystemThe Analytics Frontier of the Hadoop Eco-System
The Analytics Frontier of the Hadoop Eco-System
inside-BigData.com

From flat files to deconstructed database
From flat files to deconstructed databaseFrom flat files to deconstructed database
From flat files to deconstructed database
Julien Le Dem

Apache Mahout 於電子商務的應用
Apache Mahout 於電子商務的應用Apache Mahout 於電子商務的應用
Apache Mahout 於電子商務的應用
James Chen

PostgreSQL 9.4 and Beyond @ FOSSASIA 2015 Singapore
PostgreSQL 9.4 and Beyond @ FOSSASIA 2015 SingaporePostgreSQL 9.4 and Beyond @ FOSSASIA 2015 Singapore
PostgreSQL 9.4 and Beyond @ FOSSASIA 2015 Singapore
Satoshi Nagayasu

From Pipelines to Refineries: scaling big data applications with Tim Hunter
From Pipelines to Refineries: scaling big data applications with Tim HunterFrom Pipelines to Refineries: scaling big data applications with Tim Hunter
From Pipelines to Refineries: scaling big data applications with Tim Hunter
Databricks


Similar to Beyond EXPLAIN: Query Optimization From Theory To Code (20)

Cost-Based Optimizer in Apache Spark 2.2
Cost-Based Optimizer in Apache Spark 2.2 Cost-Based Optimizer in Apache Spark 2.2
Cost-Based Optimizer in Apache Spark 2.2

Cost-Based Optimizer in Apache Spark 2.2 Ron Hu, Sameer Agarwal, Wenchen Fan ...
Cost-Based Optimizer in Apache Spark 2.2 Ron Hu, Sameer Agarwal, Wenchen Fan ...Cost-Based Optimizer in Apache Spark 2.2 Ron Hu, Sameer Agarwal, Wenchen Fan ...
Cost-Based Optimizer in Apache Spark 2.2 Ron Hu, Sameer Agarwal, Wenchen Fan ...

MongoDB's New Aggregation framework
MongoDB's New Aggregation frameworkMongoDB's New Aggregation framework
MongoDB's New Aggregation framework

Apache Tajo: Query Optimization Techniques and JIT-based Vectorized Engine
Apache Tajo: Query Optimization Techniques and JIT-based Vectorized EngineApache Tajo: Query Optimization Techniques and JIT-based Vectorized Engine
Apache Tajo: Query Optimization Techniques and JIT-based Vectorized Engine

Hadoop Summit 2014: Query Optimization and JIT-based Vectorized Execution in ...
Hadoop Summit 2014: Query Optimization and JIT-based Vectorized Execution in ...Hadoop Summit 2014: Query Optimization and JIT-based Vectorized Execution in ...
Hadoop Summit 2014: Query Optimization and JIT-based Vectorized Execution in ...

mongodb-aggregation-may-2012
mongodb-aggregation-may-2012mongodb-aggregation-may-2012
mongodb-aggregation-may-2012

Cost-Based Optimizer Framework for Spark SQL: Spark Summit East talk by Ron H...
Cost-Based Optimizer Framework for Spark SQL: Spark Summit East talk by Ron H...Cost-Based Optimizer Framework for Spark SQL: Spark Summit East talk by Ron H...
Cost-Based Optimizer Framework for Spark SQL: Spark Summit East talk by Ron H...

Scalable Automatic Machine Learning in H2O
Scalable Automatic Machine Learning in H2OScalable Automatic Machine Learning in H2O
Scalable Automatic Machine Learning in H2O

Accelerating SQL queries in NoSQL Databases using Apache Drill and Secondary ...
Accelerating SQL queries in NoSQL Databases using Apache Drill and Secondary ...Accelerating SQL queries in NoSQL Databases using Apache Drill and Secondary ...
Accelerating SQL queries in NoSQL Databases using Apache Drill and Secondary ...

DB
DBDB
DB

Stacked Ensembles in H2O
Stacked Ensembles in H2OStacked Ensembles in H2O
Stacked Ensembles in H2O

Intro_2.ppt
Intro_2.pptIntro_2.ppt
Intro_2.ppt

Intro.ppt
Intro.pptIntro.ppt
Intro.ppt

Intro.ppt
Intro.pptIntro.ppt
Intro.ppt

From Pipelines to Refineries: Scaling Big Data Applications
From Pipelines to Refineries: Scaling Big Data ApplicationsFrom Pipelines to Refineries: Scaling Big Data Applications
From Pipelines to Refineries: Scaling Big Data Applications

The Analytics Frontier of the Hadoop Eco-System
The Analytics Frontier of the Hadoop Eco-SystemThe Analytics Frontier of the Hadoop Eco-System
The Analytics Frontier of the Hadoop Eco-System

From flat files to deconstructed database
From flat files to deconstructed databaseFrom flat files to deconstructed database
From flat files to deconstructed database

Apache Mahout 於電子商務的應用
Apache Mahout 於電子商務的應用Apache Mahout 於電子商務的應用
Apache Mahout 於電子商務的應用

PostgreSQL 9.4 and Beyond @ FOSSASIA 2015 Singapore
PostgreSQL 9.4 and Beyond @ FOSSASIA 2015 SingaporePostgreSQL 9.4 and Beyond @ FOSSASIA 2015 Singapore
PostgreSQL 9.4 and Beyond @ FOSSASIA 2015 Singapore

From Pipelines to Refineries: scaling big data applications with Tim Hunter
From Pipelines to Refineries: scaling big data applications with Tim HunterFrom Pipelines to Refineries: scaling big data applications with Tim Hunter
From Pipelines to Refineries: scaling big data applications with Tim Hunter


More from Yuto Hayamizu

VLDB2015 会議報告
VLDB2015 会議報告VLDB2015 会議報告
VLDB2015 会議報告
Yuto Hayamizu

The Art of Performance Evaluation
The Art of Performance EvaluationThe Art of Performance Evaluation
The Art of Performance Evaluation
Yuto Hayamizu

Fine-grained Measurement of PostgreSQL
Fine-grained Measurement of PostgreSQLFine-grained Measurement of PostgreSQL
Fine-grained Measurement of PostgreSQL
Yuto Hayamizu

指の話
指の話指の話
指の話
Yuto Hayamizu

Emacs Lispのある生活
Emacs Lispのある生活Emacs Lispのある生活
Emacs Lispのある生活
Yuto Hayamizu

いいかげんな人のためのTransactional Memory Primer
いいかげんな人のためのTransactional Memory Primerいいかげんな人のためのTransactional Memory Primer
いいかげんな人のためのTransactional Memory PrimerYuto Hayamizu

C-x C-f のなかのひと
C-x C-f のなかのひとC-x C-f のなかのひと
C-x C-f のなかのひとYuto Hayamizu


More from Yuto Hayamizu (7)

VLDB2015 会議報告
VLDB2015 会議報告VLDB2015 会議報告
VLDB2015 会議報告

The Art of Performance Evaluation
The Art of Performance EvaluationThe Art of Performance Evaluation
The Art of Performance Evaluation

Fine-grained Measurement of PostgreSQL
Fine-grained Measurement of PostgreSQLFine-grained Measurement of PostgreSQL
Fine-grained Measurement of PostgreSQL

指の話
指の話指の話
指の話

Emacs Lispのある生活
Emacs Lispのある生活Emacs Lispのある生活
Emacs Lispのある生活

いいかげんな人のためのTransactional Memory Primer
いいかげんな人のためのTransactional Memory Primerいいかげんな人のためのTransactional Memory Primer
いいかげんな人のためのTransactional Memory Primer

C-x C-f のなかのひと
C-x C-f のなかのひとC-x C-f のなかのひと
C-x C-f のなかのひと


Recently uploaded

9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
saastr

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots
Pablo Gómez Abajo

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP
c5vrf27qcz

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday
Ivanti

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters
Safe Software

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards
Neo4j

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
Neo4j

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus
Zilliz

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
DianaGray10

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Precisely

Dandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity serverDandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity server
Antonios Katsarakis

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
Edge AI and Vision Alliance

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota
Fwdays

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024
Hiroshi SHIBATA

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
Edge AI and Vision Alliance


Recently uploaded (20)

9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...

Mutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented ChatbotsMutation Testing for Task-Oriented Chatbots
Mutation Testing for Task-Oriented Chatbots

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors

Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their MainframeDigital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe
Digital Banking in the Cloud: How Citizens Bank Unlocked Their Mainframe

Dandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity serverDandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity server

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...


Beyond EXPLAIN: Query Optimization From Theory To Code

  • 1. Beyond EXPLAIN Yuto Hayamizu Ryoji Kawamichi Query Optimization From Theory To Code 2016/5/20 PGCon 2016 @ Ottawa
  • 2. Before Relational … • Querying was physical • Need to understand physical organization • Navigate query execution by yourself 2016/5/20 2 DEPT EMP PROJ “Which file is this table stored in?” “How are records linked?” “Which access path is fast for this table?” “What is the best order of joining tables” … Historically …
  • 3. Before Relational … • Querying was physical • Need to understand physical organization • Navigate query execution by yourself 2016/5/20 3 After Relational … DEPT EMP PROJ “Which file is this table stored in?” “How are records linked?” “Which access path is fast for this table?” “What is the best order of joining tables” … • Querying is logical • Physical organization is black-boxed • Just declare what you want Historically …
  • 4. Fill the Gap: Physical and Logical 2016/5/20 4 SELECT * FROM DEPT D, EMP E WHERE E.D_ID = D.ID AND ... • Storage I/O strategy • Access path selection • Join method selection • Aggregation, sorting • Resource allocation • ... Query Optimizer
  • 5. If optimizer perfectly fills the gap... 2016/5/20 5 We don’t need EXPLAIN
  • 6. Reality Is Tough • Optimizer is NOT PERFECT • Generated plans are not always optimal, sometimes far from optimal • We have to take care of physical behavior • That’s why EXPLAIN is so much explained 2016/5/20 6
  • 7. Go Beyond EXPLAIN • Deeper understanding of optimization, better control of your databases • Theoretical fundamentals of query optimization • From basic framework to cutting-edge technologies • PostgreSQL Optimizer implementation • Focusing on basic scan and join methods • Behavior observation with TPC-H benchmark 2016/5/20 7
  • 8. Outline • Introduction • Theory: Query Optimization Framework • Code: PostgreSQL Optimizer • Theory: Cutting-Edge Technologies Overview • Summary 2016/5/20 8
  • 9. Query Optimization Framework • Cost-based optimization • Plan selection with estimated execution cost • Most of modern optimizers, including PostgreSQL, are cost-based • Rule-based optimization • Plan selection with heuristically ranked rules • Easy to produce the same result • Hard to evaluate wide variety of plans • Ex) Oracle (~10g), Hive (~0.13) 2016/5/20 9
  • 10. Main Challenges in Cost-based Optimization • Cost modeling is HARD • Overhead of CPU, I/O, memory access, network, … • Cardinality estimation is HARD • Output size of scans, joins, aggregations, … • Join ordering search is HARD • Combinatorial explosion of join ordering and access path • Exhaustive search is NP-hard 2016/5/20 10
  • 11. System-R optimizer (1979) • “The standard” • Cost estimation with I/O and CPU • Cardinality estimation with table statistics • Bottom-up plan search • Many of modern optimizers are “System-R style” • PostgreSQL, MySQL, DB2, Oracle, ... 2016/5/20 11
  • 12. Cost/Cardinality Estimation • [#page fetched],[#storage API calls] are estimated with cost formula and following statistics 2016/5/20 12 CPU costI/O cost COST = [#page fetched] + W * [#storage API calls] weight parameter • NCARD(T) ... the cardinality of relation T • TCARD(T) ... the number of pages in relation T • ICARD(I) ... the number of distinct keys in index I • NINDX(I) ... the number of pages in index I
  • 13. Bottom-up Plan Search • Candidate plans for single relation • The cheapest access path • N-relation join ordering search • Select the cheapest plans for each relation • Then, find optimal join orderings of every 2-relation join • Then, find optimal join orderings of every 3-relation join • ... until N-relation 2016/5/20 13
  • 14. Ex) A ⨝ B ⨝ C ⨝ D
  • 15. Ex) A ⨝ B ⨝ C ⨝ D
  • 16. Ex) A ⨝ B ⨝ C ⨝ D
  • 17. Ex) A ⨝ B ⨝ C ⨝ D
  • 18. Ex) A ⨝ B ⨝ C ⨝ D
  • 19. Volcano/Cascades (1993) • Top-down transformational plan search • Yet another optimization approach • Not well known as “System-R style”, but widely used in practice Ex) SQL Server, Apache Hive (Apache Calcite), Greenplum Orca • Extensible optimization framework 2016/5/20 19
  • 20. Extensible Optimization Framework Query Optimizer Generator • Generalized expression of query plan not limited to relational data model • Users (optimizer developers) defines actual implementations: • Logical operator ... corresponds to relational algebra • Physical algorithm ... corresponds to scan & join methods such as sequential scan, index scan, hash join, nested loop join 2016/5/20 20
  • 21. Top-down Transformational Search • Starts from an initial “logical plan” • Generate alternative plans with: A) Logical operator transformation B) Physical algorithm selection C) Enforcing sorting order 2016/5/20 21 Join Select T Join Select R Select S Proj Join Select T JoinSelect R Select S Proj Change join ordering Join Select T Join Select R Select SProj Projection push down Example: 3-way join with projection
  • 22. Top-down Transformational Search • Starts from an initial “logical plan” • Generate alternative plans with: A) Logical operator transformation B) Physical algorithm selection C) Enforcing sorting order 2016/5/20 22 Join Select T Join Select R Select S ProjExample: 3-way join with projection HashJoin Select T Join SeqScan R SeqScan S Proj Join IdxScan T Join Select R Select S Proj …
  • 23. Top-down Transformational Search • Starts from an initial “logical plan” • Generate alternative plans with: A) Logical operator transformation B) Physical algorithm selection C) Enforcing sorting order 2016/5/20 23 Join Select T Join Select R Select S Proj Example: 3-way join with projection Join Select T Join Sort Sort Proj Select R Select S Enforce sorting order merge join of R and S is possible now
  • 24. Benefits of Top-down approach • Possible to intentionally limit search space • Effective pruning with branch-and-bound • Limit search space with search time deadline 2016/5/20 24
  • 25. Cost-based Optimization Basics Two major cost-based optimization style • System-R • Cost modeling with statistics • Bottom-up search • Volcano/Cascades • Extensible optimizer generator • Cost estimation is user’s responsibility • Top-down transformational search 2016/5/20 25
  • 26. Outline • Introduction • Theory: Query Optimization Framework • Code: PostgreSQL Optimizer • Theory: Cutting-Edge Technologies Overview • Summary 2016/5/20 26
  • 27. PostgreSQL Optimizer “System-R style” optimization • Bottom-up plan search with dynamic programming • CPU and I/O operation based cost modeling 2016/5/20 27 Seq. I/O Random I/O CPU cost per tuple Cost of single operation • seq_page_cost • random_page_cost • cpu_tuple_cost • cpu_index_tuple_cost • cpu_operator_cost • (parallel_tuple_cost) Estimated number of each operation • Cardinality estimation with statistics • Cost formula for each plan type • SeqScan, IndexScan • NestLoopJoin, HashJoin, MergeJoin, ...
  • 28. Detailed Look At Basic Scan Types • Sequential scan • Efficient for accessing large potion of tables • Index scan • Efficient for accessing a fraction of data 2016/5/20 28 Execution cost Query selectivity Sequential scan
  • 29. of SeqScan 29 = (# pages in a table) = (# tuples in a table) = #qual_operator = (#tuples) × (weight factor of A) + (#tuples) × (weight factor of B) + ・・・ ・・・ WHERE AND AND ・・・A B cost_seqscan() @optimizer/path/costsize.c
  • 30. of IndexScan Consists of: (A) CPU cost of searching B+-tree (B) CPU cost of scanning index tuples in leaf pages (C) I/O cost of leaf pages (D) I/O cost of heap pages (E) CPU cost of scanning heap tuples 2014/12/04 30
  • 31. of IndexScan (A) B+-tree search (B) Scanning index tuples in leaf pages 2014/12/04 31 += log2(#index_tuples) I/O cost of internal pages Assumed to be always cached in the buffer += #qual_operator × #leaf_pages ✕ #ituple_per_page × σ Selectivity σ Comes from statistics
  • 32. Mackert and Lohman function(Yao function) I/O count estimation with consideration of buffer caching of IndexScan (C) I/O cost of index leaf pages 2014/12/04 32 += Y(effective_cache_size, #leaf_pages) Selectivity σ I/Ocount
  • 33. of IndexScan (D) I/O cost of heap pages (E) CPU cost of scanning heap tuples ・ Estimate the number of scanned tuples from σ 2014/12/04 33 += α2 × #match_pages Correlation between index and heap ordering: α α = 0 : I/O pattern is random α = 1 : I/O pattern is sequential += (1-α2) × #match_tuples
  • 34. Detailed Look At Join Methods • Hash join • Efficient for joining large number of records • Usually combined with sequential scans • Nested Loop Join • Efficient for joining small number of records • Usually combined with index scans or small table sequential scans 2016/5/20 34
  • 36. of HashJoin Build phase • Cost += Cost(inner) 2014/12/04 36 += #qual_op × #inner_tuples += #inner_tuples Hashing cost
  • 37. of HashJoin 2014/12/04 37 Build phase • Cost += Cost(inner) += #qual_op × #inner_tuples += #inner_tuples
  • 38. of HashJoin 2014/12/04 38 Build phase • Cost += Cost(inner)+ Probe phase • Cost += Cost(outer)+ += #qual_op × #inner_tuples += #inner_tuples += #qual_op × (1 + #bucket_size × 0.5) × #outer_tuples += #match_tuples Hashing & table lookup (bucket search) cost
  • 39. recordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordtuple of HashJoin 2014/12/04 39 #buckets: 2 #buckets : 4 build 4 tuples are compared for lookup in average 2 tuples are compared for lookup in average 0.E+00 5.E+06 1.E+07 2.E+07 2.E+07 3.E+07 3.E+07 4.E+07 4.E+07 10000 100000 1000000 10000000 100000000 Estimated cost of 2-way HashJoin # of records 16 records recordrecordrecordrecordrecordrecordrecordtuple recordrecordrecordrecordrecordrecordrecordtuple recordrecordrecordtuple recordrecordrecordtuple recordrecordrecordtuple recordrecordrecordtuple
  • 40. of NestLoopJoin 2014/12/04 40 R ⨝ S Scan R r2 r1 r3 r4 Scan S with r1 s1 s2 s3 ReScan S with r2 s1 s2 s3 outer inner
  • 41. of NestLoopJoin • When #outer_tuples = 1 2014/12/04 41 R ⨝ S Scan R r1 Scan S with r1 s1 s2 s3 outer inner Cost = Cost(outer) + Cost(inner) + += #inner_tuples += #qual_operator × #inner_tuples
  • 42. of NestLoopJoin • When #outer_tuples > 1 R ⨝ S Scan R r2 r1 r3 r4 Scan S with r1 s1 s2 s3 ReScan S with r2 s1 s2 s3 outer inner Cost = Cost(outer) + Cost(inner) + + (#outer_tuples - 1) × Cost(ReScan inner) Higher buffer hit ratio in ReScan → Cost of ReScan is lower than cost of IndexScan += #inner_tuples × #outer_tuples += #qual_operator × #inner_tuples × #outer_tuples
  • 43. See How It Works • TPC-H Benchmark • Specification and tools for benchmarking data warehouse workload • Open source implementation: DBT-3, pg_tpch • Schema, data generation rules and queries • Experiments with 100GB • Scale Factor = 100 2016/5/20 43
  • 44. Experimental Setup • Dell R720xd • Xeon (2sockets, 16cores) • x24 NL-SAS HDD • With PostgreSQL 9.5 • Default cost parameter settings • SeqScan & HashJoin • enable_seqscan = on, enable_hashjoin = on and disables other methods • IndexScan & NestLoopJoin • enable_indexscan = on, enable_nestloop = on and disables other methods 2016/5/20 44
  • 45. TPC-H Q.1: The Simplest Case 2016/5/20 45 5.E+05 5.E+06 5.E+07 5.E+08 1 10 100 1000 Estimated cost Selectivity (l_shipdate) IndexScan SeqScan 10 100 1000 10000 1 10 100 1000 Execution time (sec) Selectivity(l_shipdate) IndexScan SeqScan • Good trend estimation for each method • Estimated break-event point is errorneus • IndexScan should be more expensive (need parameter calibration) SELECT count(*), ... FROM lineitem WHERE l_shipdate BETWEEN [X] AND [Y]
  • 46. TPC-H Q.3 2016/5/20 46 Estimated cost SeqScan customer SeqScan orders SeqScan lineitem Hash HashJoin HashJoin IndexScan orders IndexScan lineitem NestLoop NestLoop IndexScan customer Execution time (sec) Selectivity 1.E+00 1.E+02 1.E+04 1.E+06 1.E+08 1 10 100 1000 10000 100000 1000000 1 10 100 1000 10000 1 10 100 1000 10000 100000 1000000 Selectivity NestLoop+IndexScan HashJoin+SeqScan NestLoop+IndexScan HashJoin+SeqScan Similar result as in Q.1 • Good trend estimation for each • Erroneous break-event point without parameter calibration SELECT count(*), ... FROM customer, orders, lineitem WHERE c_custkey = o_custkey AND o_orderkey = l_orderkey AND c_custkey < [X] AND c_mktsegment = ‘MACHINERY’;
  • 47. 100 1000 10000 100000 1 10 100 1000 10000 More Complex Case TPC-H Q.4: Semi-Join Query • Plan selection for semi- join tend to be unstable 2016/5/20 47Selectivity 1.E+05 1.E+06 1.E+07 1.E+08 1.E+09 1 10 100 1000 10000 HashJoin+SeqScan NestLoop+IndexScan Estimated cost Execution time (sec) HashJoin+SeqScan NestLoop+IndexScan SELECT count(*), ... FROM orders WHERE o_orderdate >= ‘1995-01-01’ AND o_orderdate < ‘1995-01-01’ + interval ‘3 month’ AND EXISTS( SELECT * FROM lineitem WHERE l_orderkey = o_orderkey AND l_commitdate < l_receiptdate) Selectivity
  • 48. 1.E+06 1.E+07 1.E+08 1.E+09 1.E+10 1.E+11 1.E+00 1.E+02 1.E+04 1.E+06 1.E+08 More Complex Case TPC-H Q.22: Anti-Join Query • Difficulties in overall cost trend estimation 2016/5/20 48 Selectivity 1 10 100 1000 10000 1.E+00 1.E+02 1.E+04 1.E+06 1.E+08 Estimated cost Execution time (sec) Selectivity HashJoin+SeqScan NestLoop+IndexScan HashJoin+SeqScan NestLoop+IndexScan SELECT count(*), ... FROM supplier, lineitem l1, orders, nation WHERE s_suppkey = l1.l_suppkey AND o_orderkey = l1.l_orderkey AND o_orderstatus = 'F' AND l1.l_receiptdate > l1.l_commitdate AND EXISTS ( SELECT * FROM lineitem l2 WHERE l2.l_orderkey = l1.l_orderkey AND l2.l_suppkey <> l1.l_suppkey) AND NOT EXIST ( SELECT * FROM lineitem l3 WHERE l3.l_orderkey = l1.l_orderkey AND l3.l_suppkey <> l1.l_suppkey AND l3.l_receiptdate > l3.l_commitdate) AND s_nationkey = n_nationkey AND n_name = ‘JAPAN'
  • 49. Summary: PostgreSQL Optimizer • Detailed look at cost modeling of basic methods • SeqScan, IndexScan • HashJoin, NestedLoopJoin • Observation with TPC-H benchmark • Good cost trend estimation for simple join queries • Erroneous cheapest plan selection without parameter tuning • Difficulties with semi-join and anti-join queries 2016/5/20 49
  • 50. Outline • Introduction • Theory: Query Optimization Framework • Code: PostgreSQL Optimizer • Theory: Cutting-Edge Technologies Overview • Summary 2016/5/20 50
  • 51. Cutting-Edge Technologies • Traditional optimization was a “closed” problem • “Rethink the contract” ー Surajit Chaudhuri • Feedback from previous execution • Dynamic integration with execution 2016/5/20 51 cardinality estimation cost model plan space enumeration (SQL) query plan
  • 52. Mid-query Re-optimization • Detects sub-optimality of executing query plan • Query plans are annotated for later estimation improvement • Runtime statistics collection • Statistics collector probes are inserted into operators of executing query plan • Plan modification strategy • Discard current execution and re-optimize whole plan • Re-optimizer only subtree of the plan that are not started yet • Save partial execution result and generate new SQL using the result 2016/5/20 52 [N. Kabra et.al., SIGMOD’98]
  • 53. Plan Bouquet • Generate a set of plans for each selectivity range • Estimation improvement with runtime statistics collection • Evaluation with PostgreSQL 2016/5/20 53 [A. Dutt et.al., SIGMOD’14]
  • 54. Bounding Impact of Estimation Error • “Uncertainty” analysis of cost estimation • Optimality sensitivity to estimation error • Execute partially to reduce uncertainty 2016/5/20 54 [T. Neumann et.al., BTW Conf ‘13]
  • 55. Outline • Introduction • Theory: Query Optimization Framework • Code: PostgreSQL Optimizer • Theory: Cutting-Edge Technologies Overview • Summary 2016/5/20 55
  • 56. Summary • Cost-based optimization framework • System-R style bottom-up optimization • Volcano style top-down optimization • Detailed look at PostgreSQL optimizer • Cost modeling of basic scan and join method • Experiment with TPC-H benchmark • Brief overview of cutting-edge technologies 2016/5/20 56
