1. Rancher 2.0
Technical Deep Dive
LINE Corporation
IT Service Center Verda 2
Yuki Nishiwaki

2. Who Are You: Yuki Nishiwaki
● Develop/Operate OpenStack based Private Cloud
● Plan/Develop/Operate Kubernetes as a Service
● Excitingly simple multi-path OpenStack Networking (May 2018, OpenStack Summit)
Recent Talk
Current Role

3. Brief introduction of ourselves(Verda)

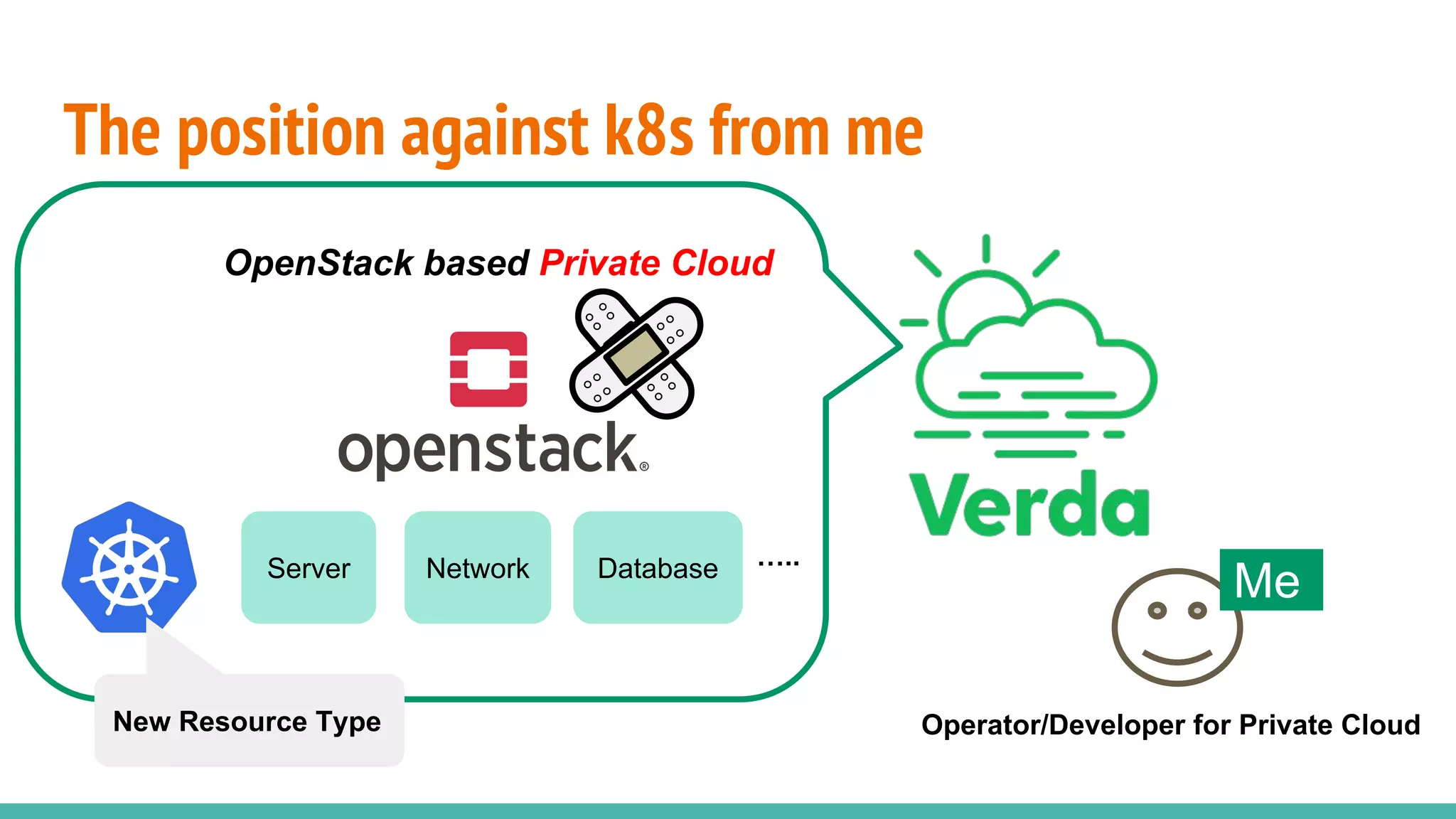

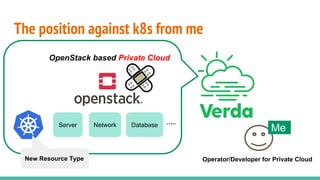

4. The position against k8s from me
。。。。
。。。。
。
。。
。
。
。。
。
OpenStack based Private Cloud
Operator/Developer for Private Cloud
Server Network Database …..
Me
New Resource Type

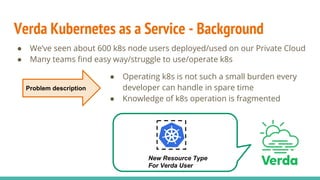

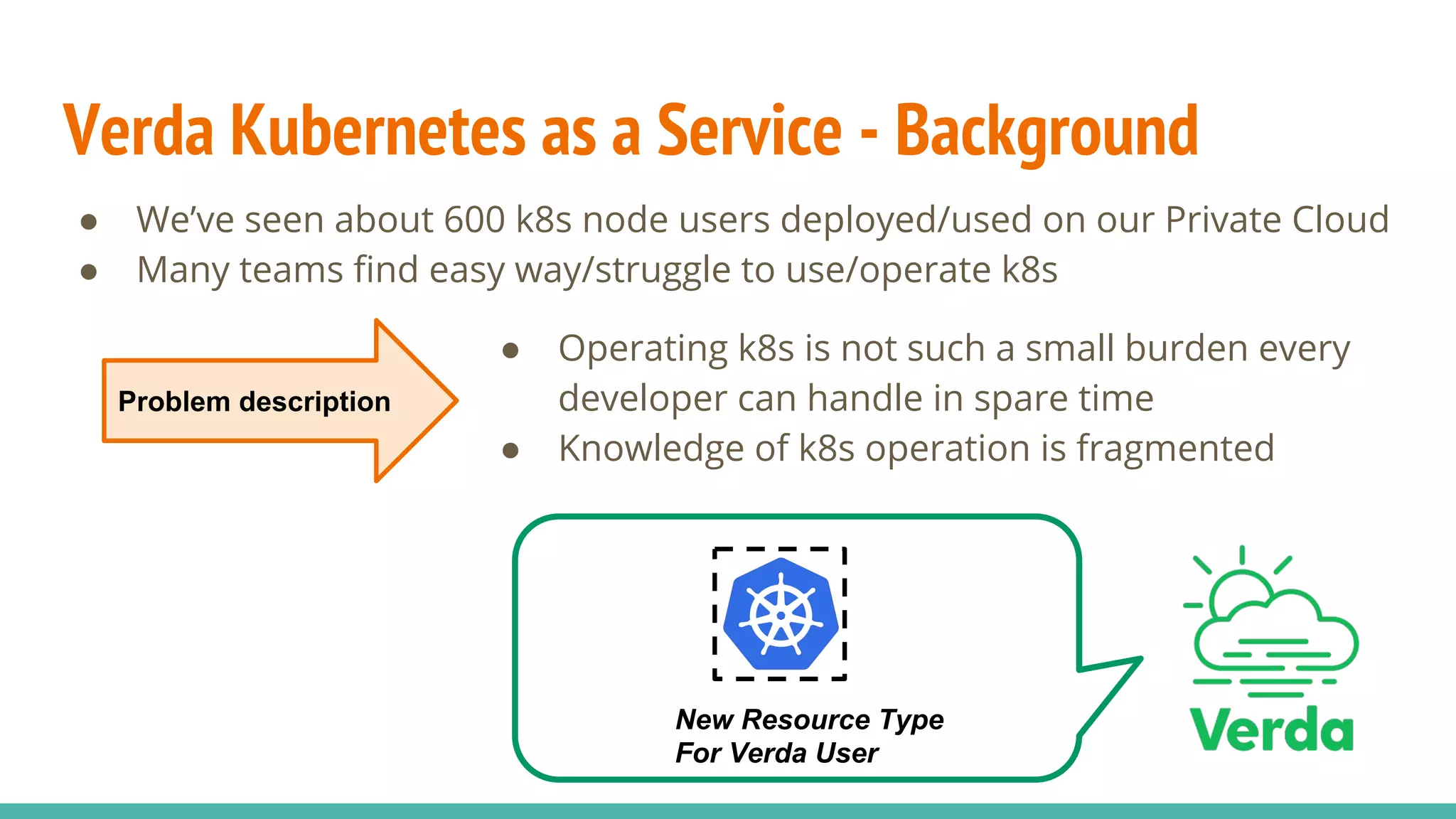

5. Verda Kubernetes as a Service - Background
● We’ve seen about 600 k8s node users deployed/used on our Private Cloud
● Many teams find easy way/struggle to use/operate k8s
Problem description
● Operating k8s is not such a small burden every
developer can handle in spare time
● Knowledge of k8s operation is fragmented
New Resource Type
For Verda User

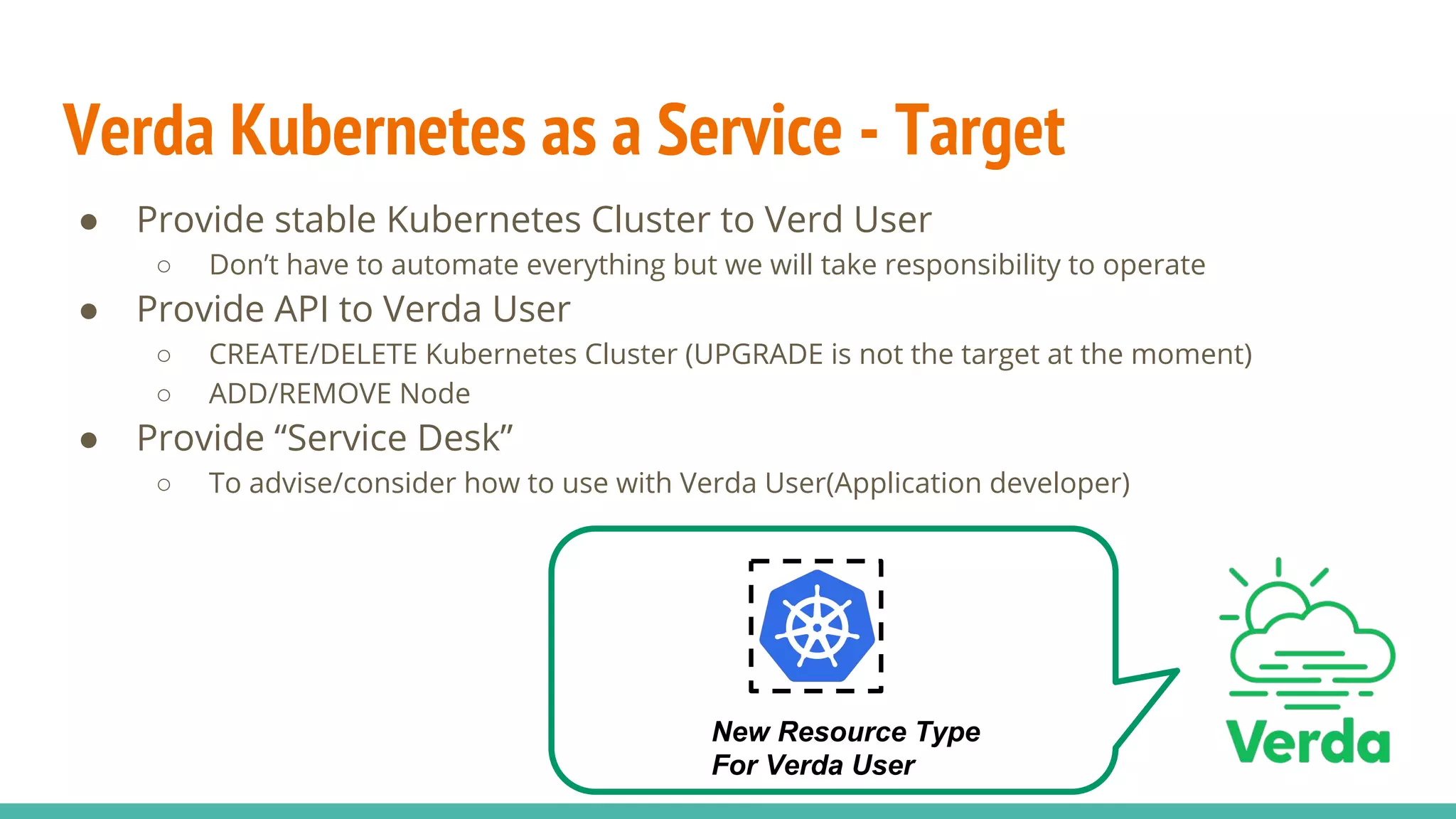

6. Verda Kubernetes as a Service - Target
● Provide stable Kubernetes Cluster to Verd User
○ Don’t have to automate everything but we will take responsibility to operate
● Provide API to Verda User
○ CREATE/DELETE Kubernetes Cluster (UPGRADE is not the target at the moment)
○ ADD/REMOVE Node
● Provide “Service Desk”
○ To advise/consider how to use with Verda User(Application developer)
New Resource Type
For Verda User

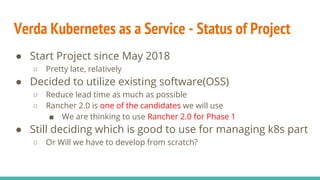

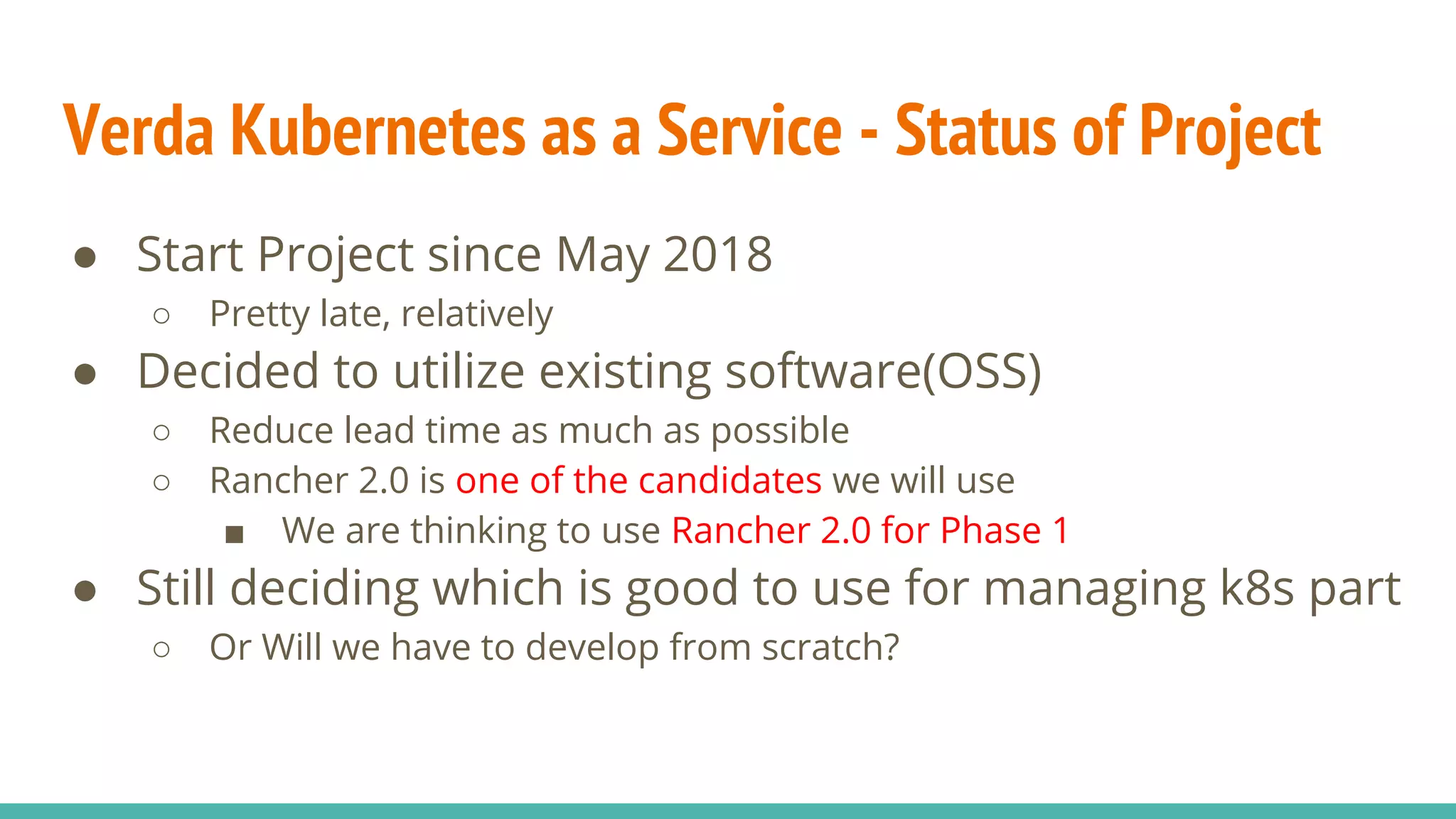

7. Verda Kubernetes as a Service - Status of Project
● Start Project since May 2018
○ Pretty late, relatively
● Decided to utilize existing software(OSS)
○ Reduce lead time as much as possible
○ Rancher 2.0 is one of the candidates we will use
■ We are thinking to use Rancher 2.0 for Phase 1
● Still deciding which is good to use for managing k8s part
○ Or Will we have to develop from scratch?

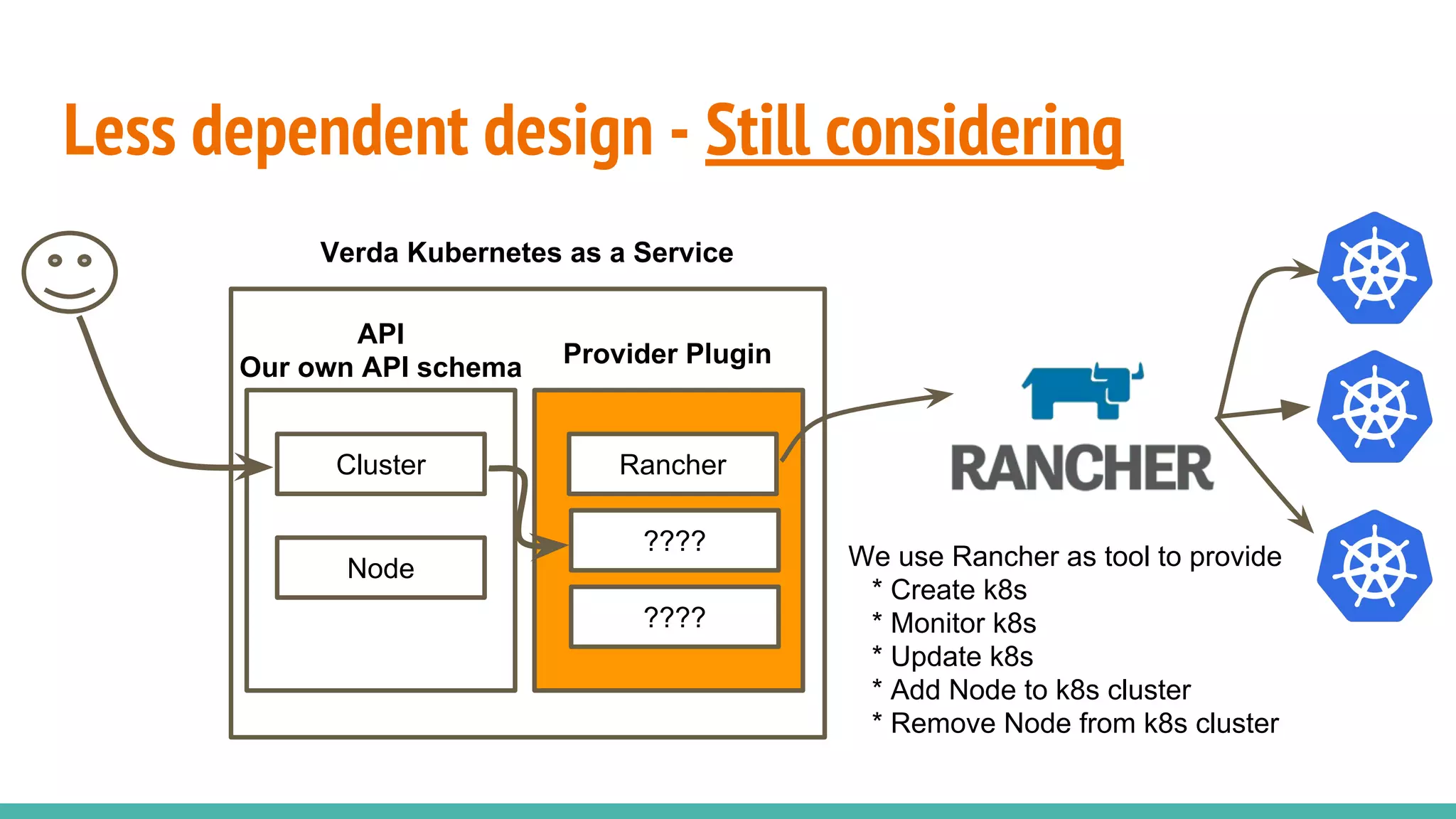

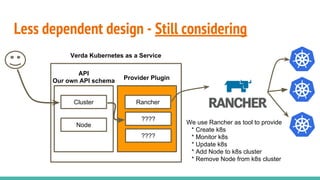

8. Less dependent design - Still considering
Verda Kubernetes as a Service
Provider Plugin
Rancher
API
Our own API schema
????
Cluster
Node We use Rancher as tool to provide
* Create k8s
* Monitor k8s
* Update k8s
* Add Node to k8s cluster
* Remove Node from k8s cluster
????

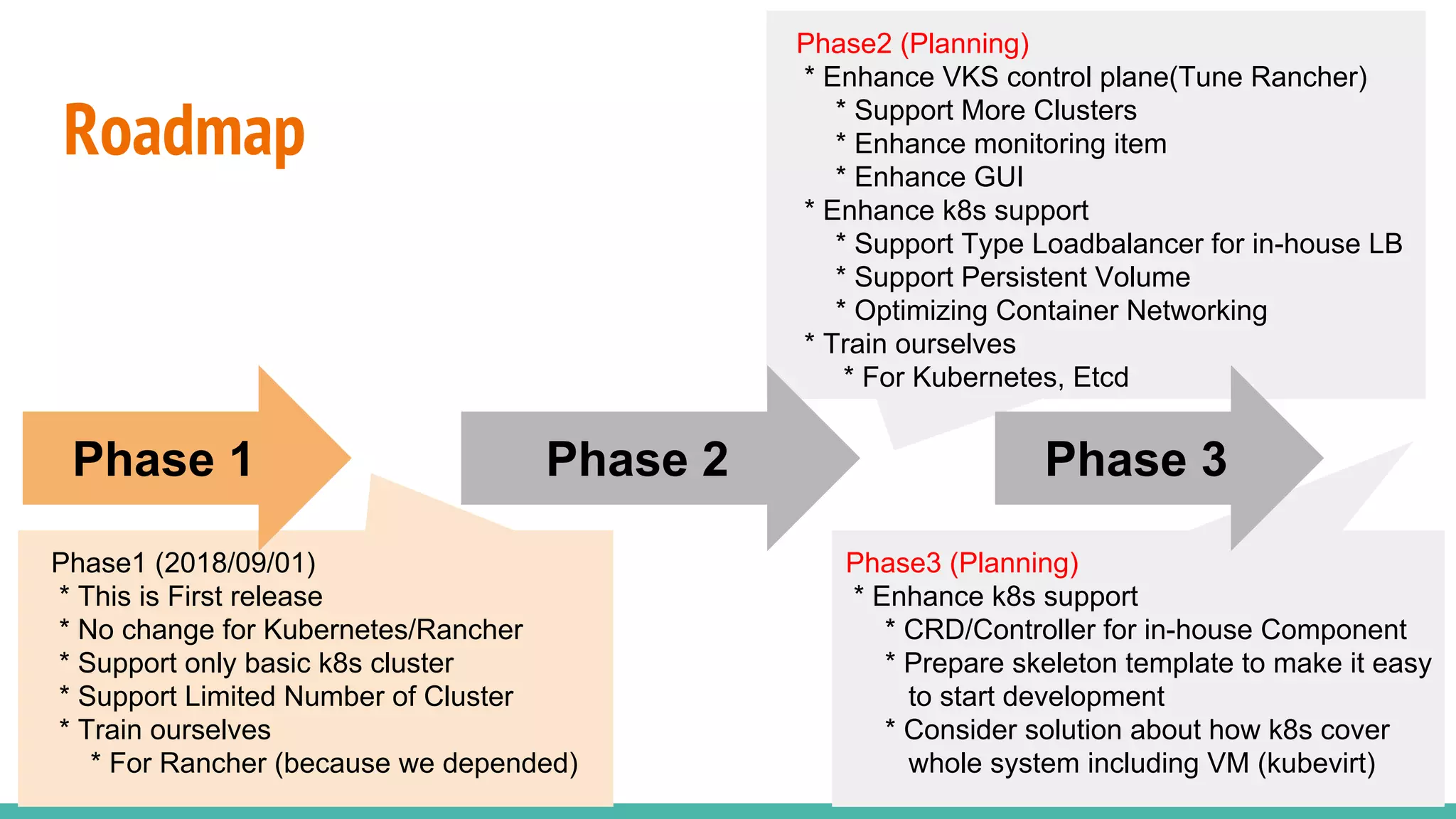

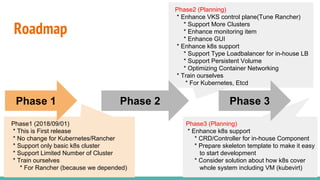

9. Roadmap
Phase1 (2018/09/01)
* This is First release
* No change for Kubernetes/Rancher
* Support only basic k8s cluster
* Support Limited Number of Cluster
* Train ourselves
* For Rancher (because we depended)
Phase3 (Planning)
* Enhance k8s support
* CRD/Controller for in-house Component
* Prepare skeleton template to make it easy
to start development
* Consider solution about how k8s cover
whole system including VM (kubevirt)
Phase 1
Phase2 (Planning)
* Enhance VKS control plane(Tune Rancher)
* Support More Clusters
* Enhance monitoring item
* Enhance GUI
* Enhance k8s support

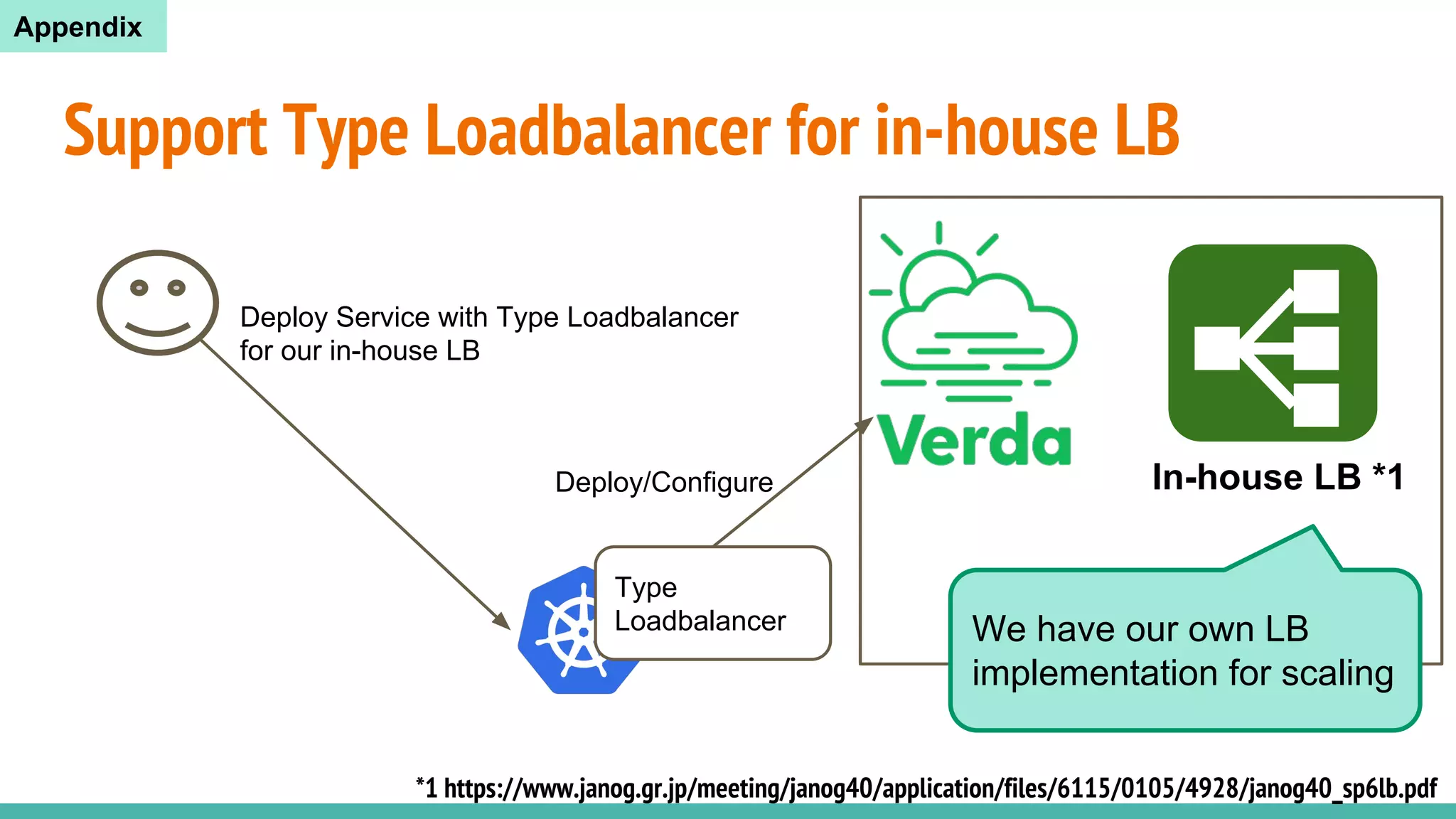

* Support Type Loadbalancer for in-house LB
* Support Persistent Volume
* Optimizing Container Networking
* Train ourselves
* For Kubernetes, Etcd
Phase 3Phase 2

10. About Rancher 2.0

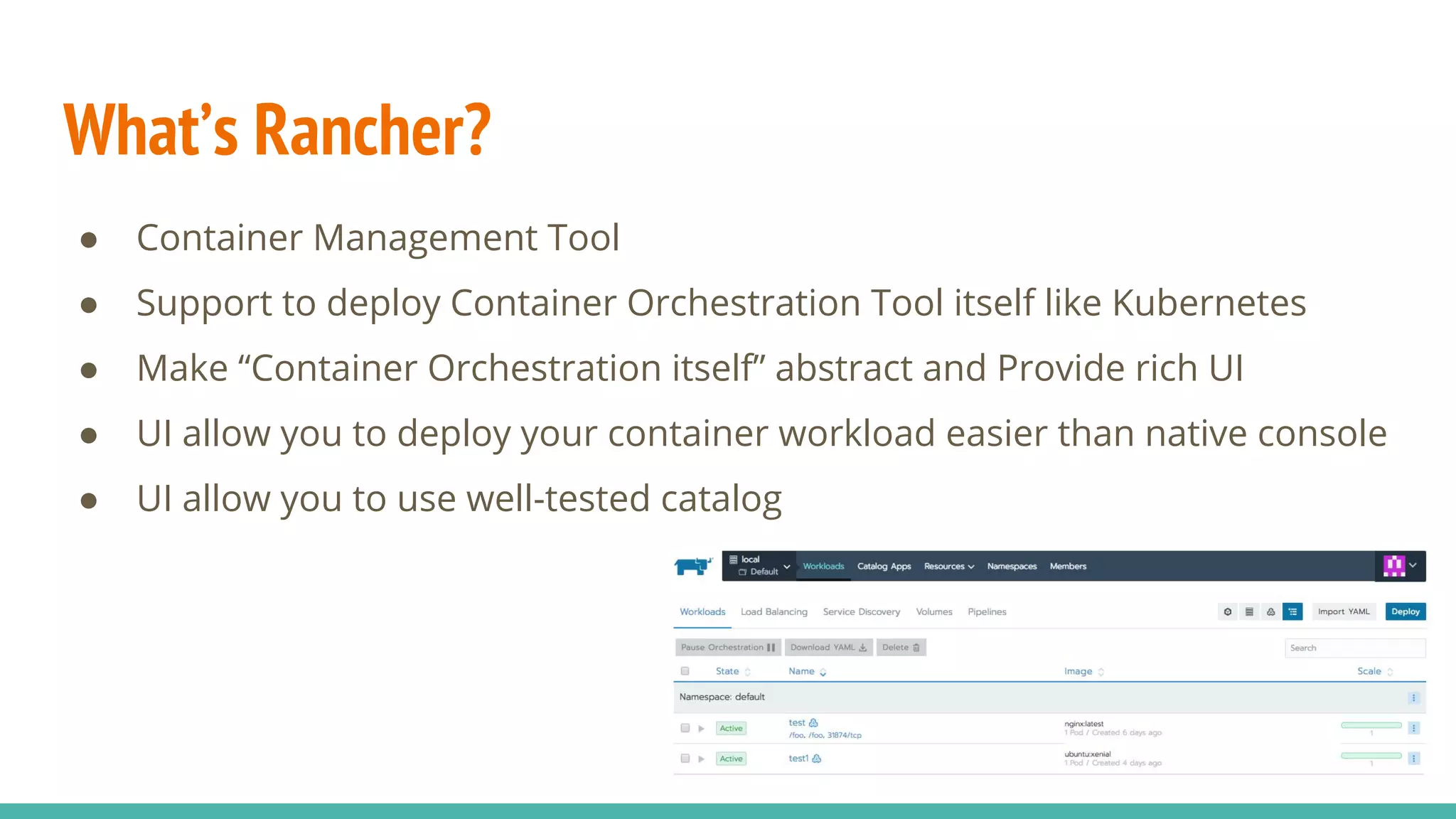

11. What’s Rancher?
● Container Management Tool
● Support to deploy Container Orchestration Tool itself like Kubernetes
● Make “Container Orchestration itself” abstract and Provide rich UI
● UI allow you to deploy your container workload easier than native console
● UI allow you to use well-tested catalog

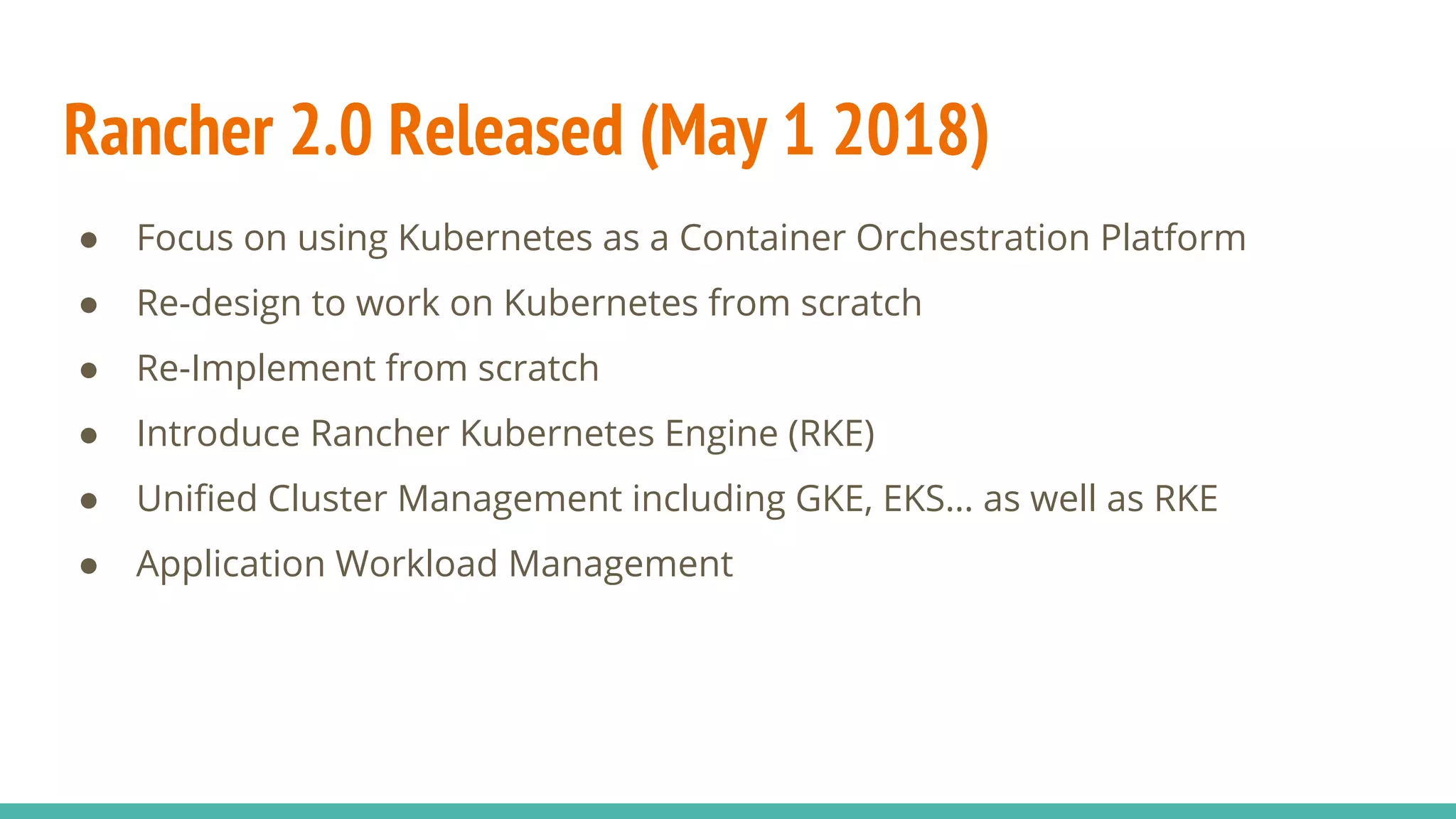

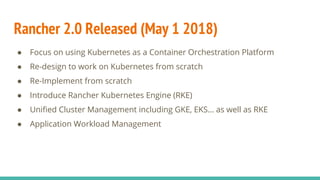

12. Rancher 2.0 Released (May 1 2018)
● Focus on using Kubernetes as a Container Orchestration Platform
● Re-design to work on Kubernetes from scratch
● Re-Implement from scratch
● Introduce Rancher Kubernetes Engine (RKE)
● Unified Cluster Management including GKE, EKS… as well as RKE
● Application Workload Management

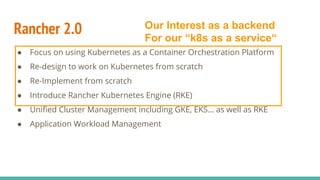

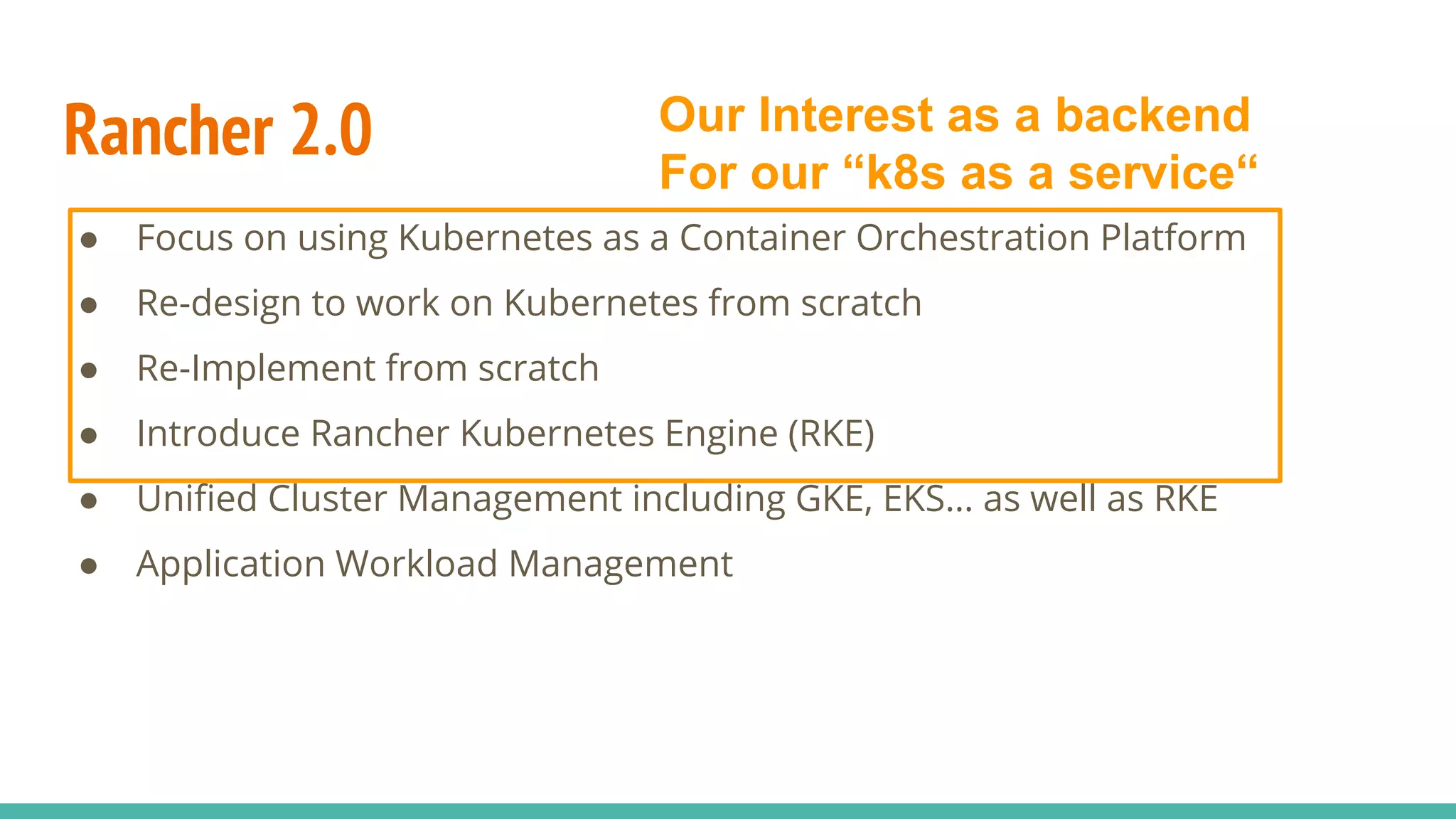

13. Rancher 2.0
● Focus on using Kubernetes as a Container Orchestration Platform
● Re-design to work on Kubernetes from scratch
● Re-Implement from scratch
● Introduce Rancher Kubernetes Engine (RKE)
● Unified Cluster Management including GKE, EKS… as well as RKE
● Application Workload Management
Our Interest as a backend
For our “k8s as a service“

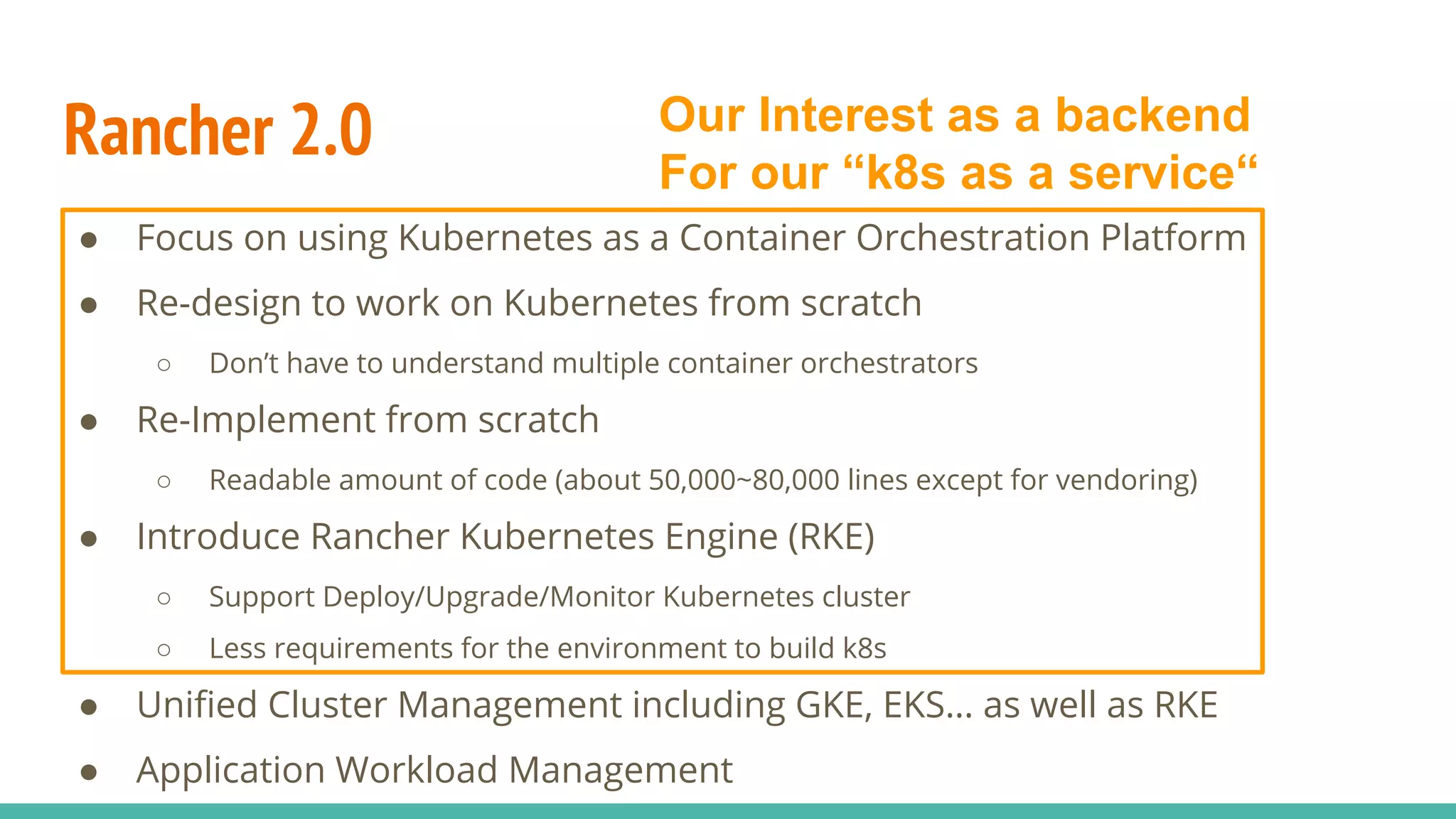

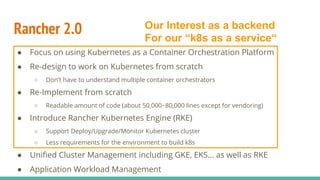

14. Rancher 2.0
● Focus on using Kubernetes as a Container Orchestration Platform
● Re-design to work on Kubernetes from scratch
○ Don’t have to understand multiple container orchestrators
● Re-Implement from scratch
○ Readable amount of code (about 50,000~80,000 lines except for vendoring)
● Introduce Rancher Kubernetes Engine (RKE)
○ Support Deploy/Upgrade/Monitor Kubernetes cluster
○ Less requirements for the environment to build k8s
● Unified Cluster Management including GKE, EKS… as well as RKE
● Application Workload Management
Our Interest as a backend
For our “k8s as a service“

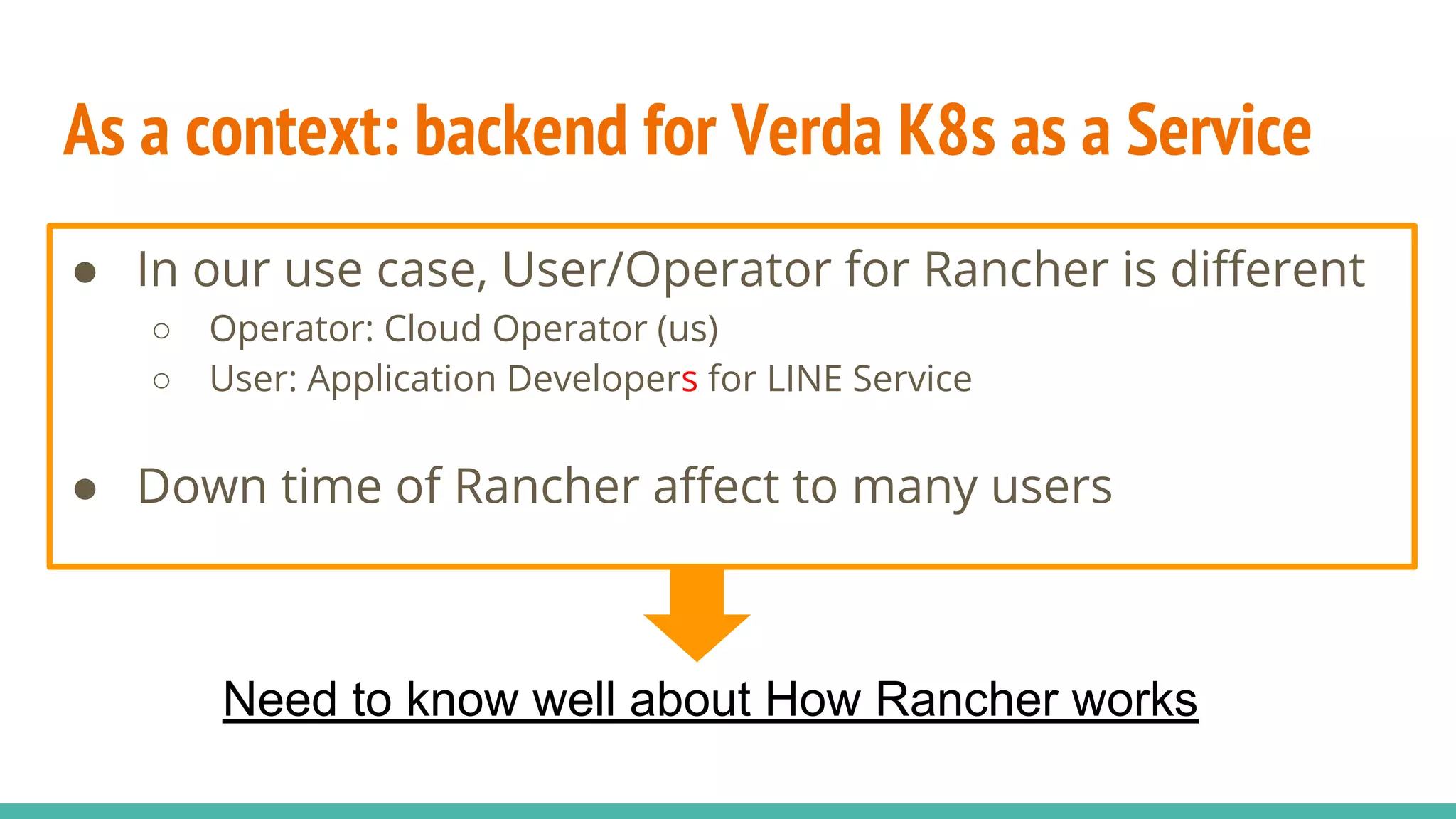

15. As a context: backend for Verda K8s as a Service
● In our use case, User/Operator for Rancher is different
○ Operator: Cloud Operator (us)
○ User: Application Developers for LINE Service
● Down time of Rancher affect to many users
Need to know well about How Rancher works

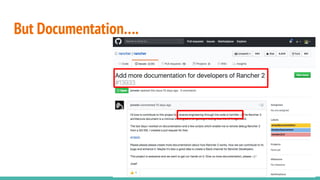

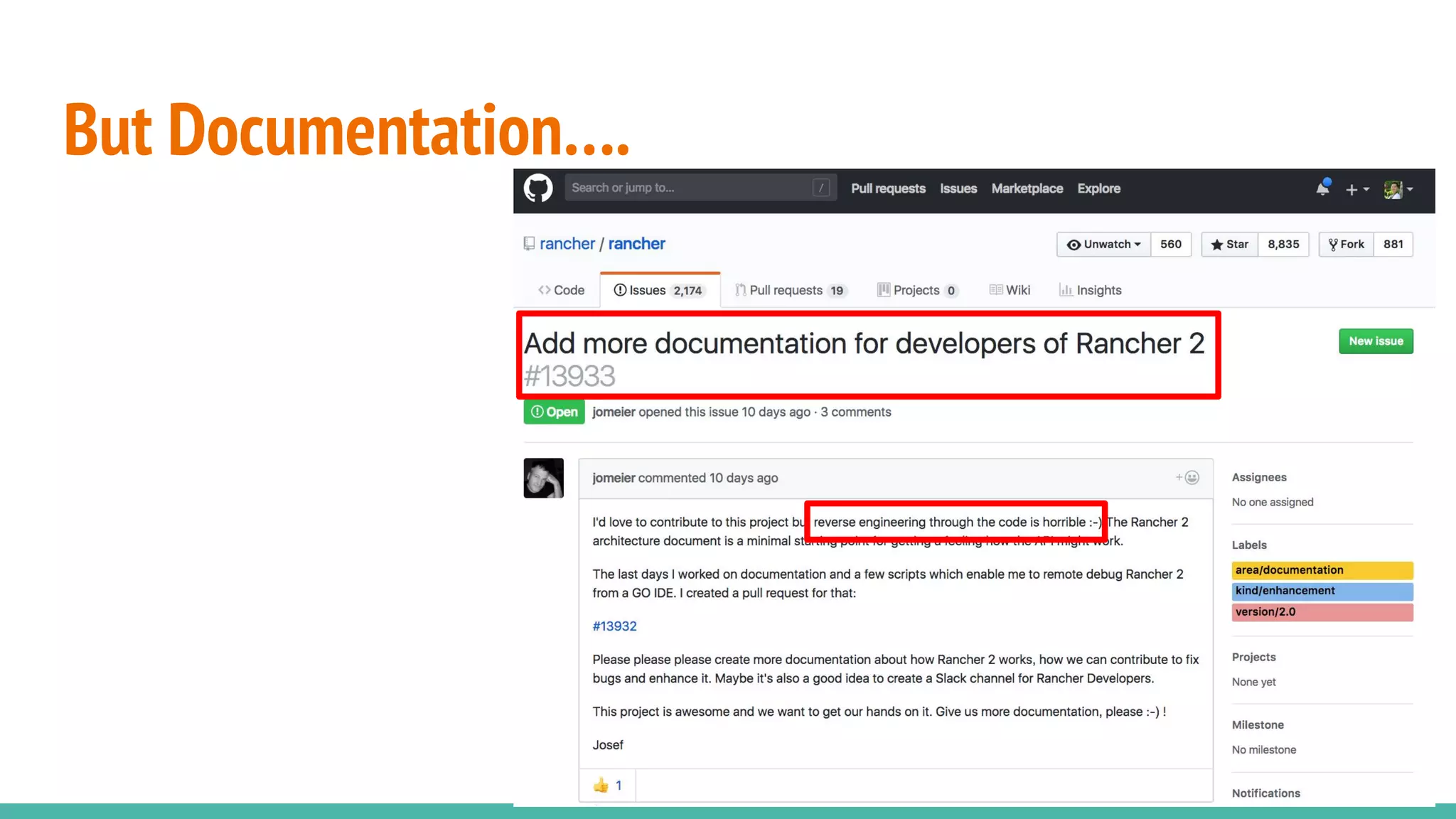

16. But Documentation….

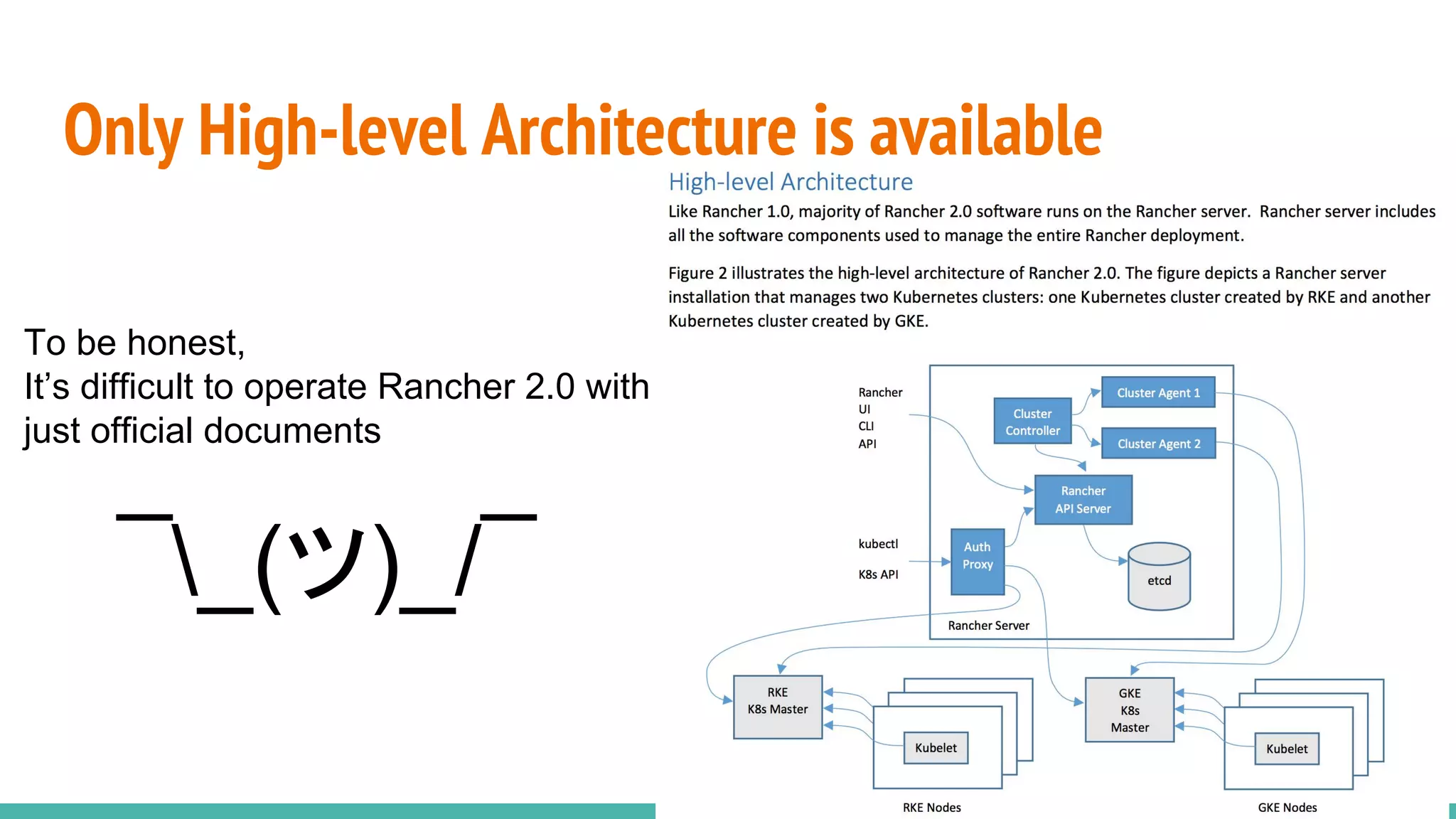

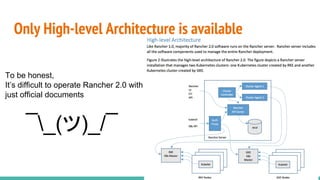

17. Only High-level Architecture is available
To be honest,
It’s difficult to operate Rancher 2.0 with
just official documents
¯_(ツ)_/¯

18. Let’s unbox Rancher 2.0
<v2.0.0>
本資料は、調査資料を一部抜粋して作成しています。
フルバージョンをご覧になりたい方は、後日slideshareでご確認をお願いします。

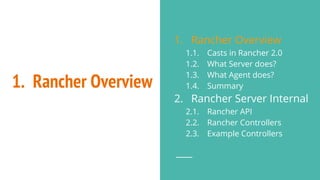

19. 1. Rancher Overview
1. Rancher Overview
1.1. Casts in Rancher 2.0
1.2. What Server does?
1.3. What Agent does?
1.4. Summary
2. Rancher Server Internal
2.1. Rancher API
2.2. Rancher Controllers

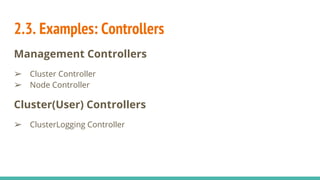

2.3. Example Controllers

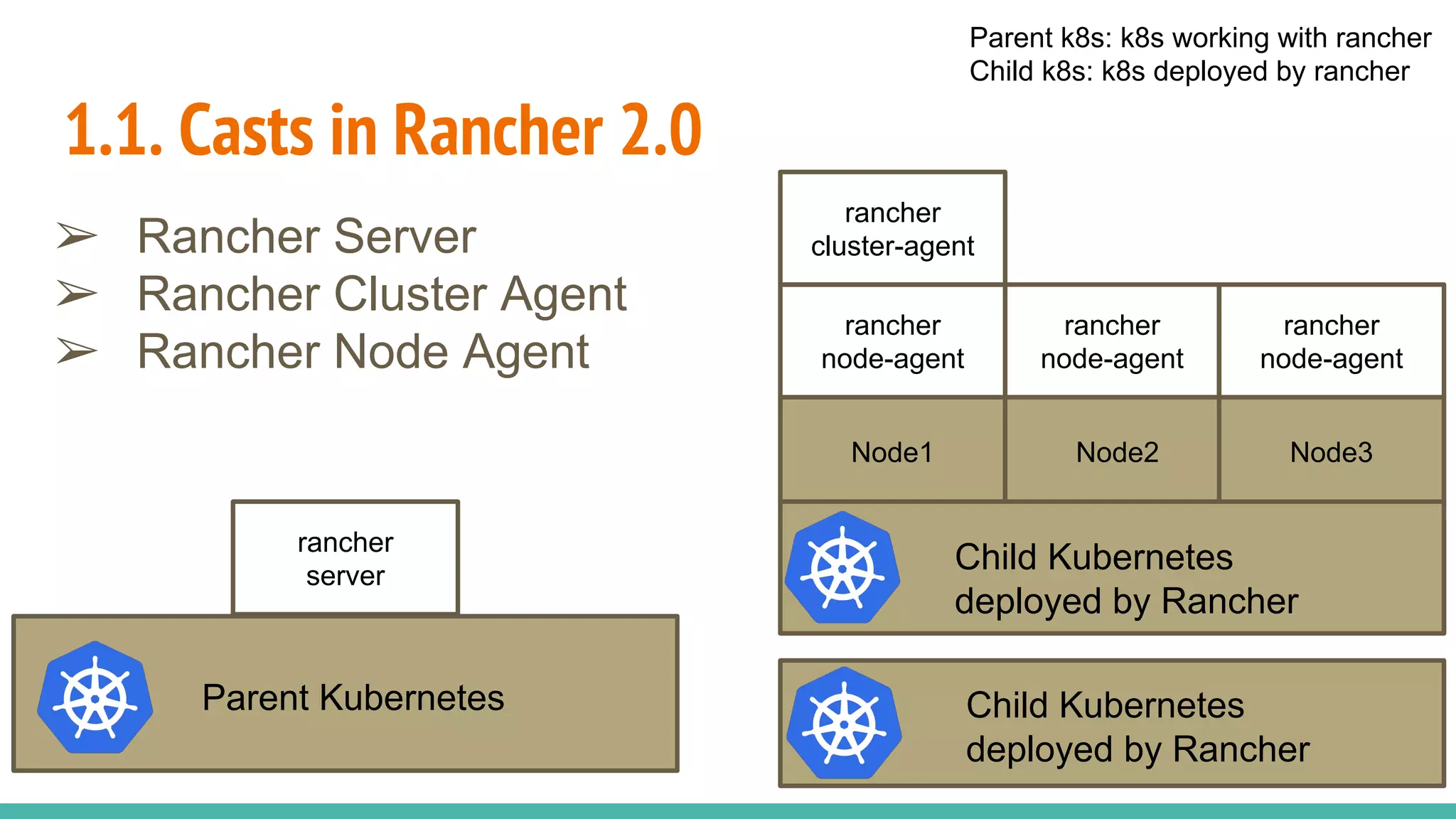

20. 1.1. Casts in Rancher 2.0
rancher
server
Node1 Node2 Node3
rancher
node-agent
rancher
node-agent
rancher
node-agent
rancher
cluster-agent➢ Rancher Server
➢ Rancher Cluster Agent
➢ Rancher Node Agent
Parent Kubernetes
Child Kubernetes
deployed by Rancher
Child Kubernetes
deployed by Rancher
Parent k8s: k8s working with rancher
Child k8s: k8s deployed by rancher

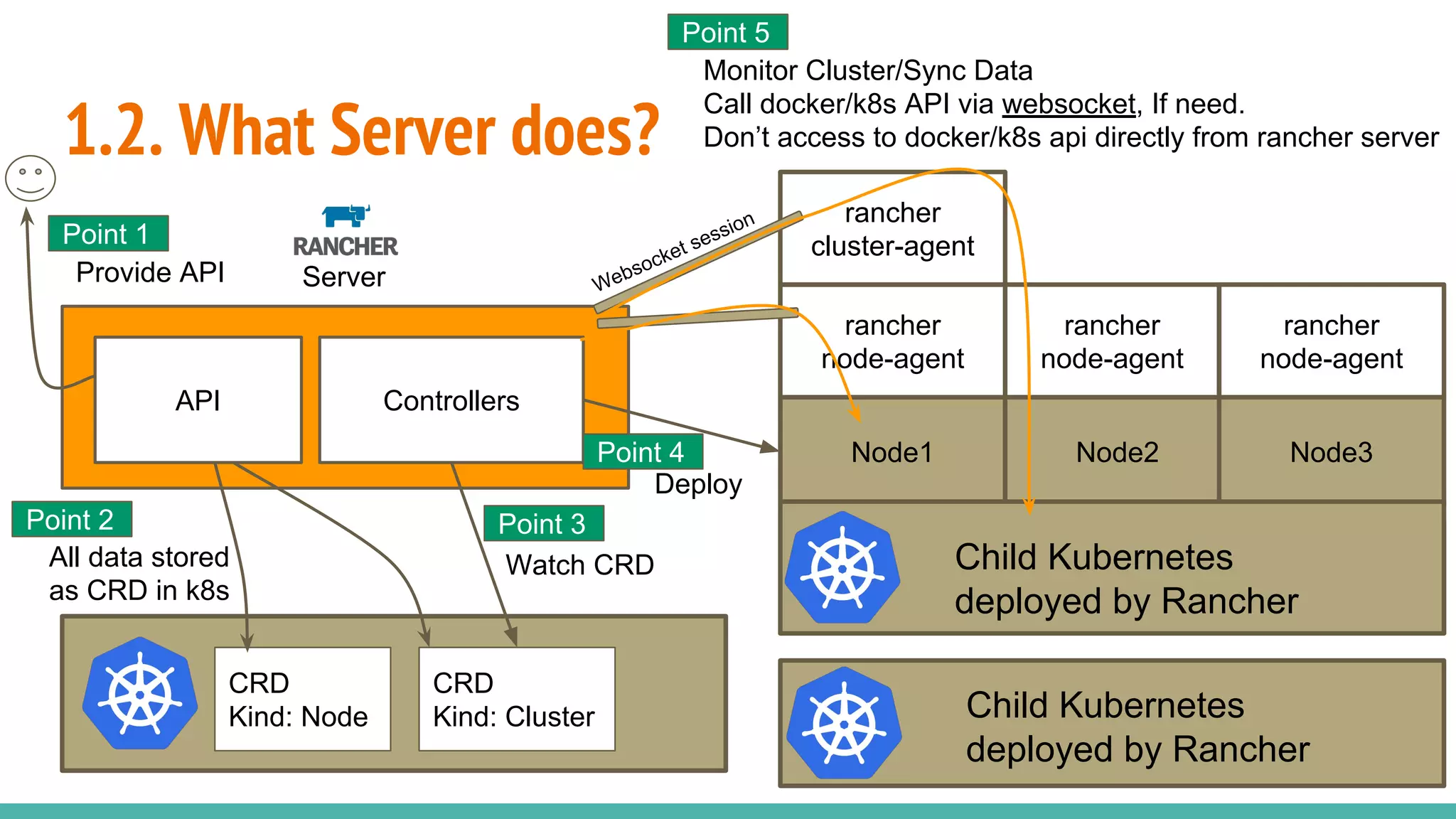

21. 1.2. What Server does?
Server
API Controllers
CRD
Kind: Cluster
Node1 Node2 Node3
rancher
node-agent
rancher
node-agent
rancher
node-agent
rancher
cluster-agent
Child Kubernetes
deployed by Rancher
Child Kubernetes
deployed by Rancher
CRD
Kind: Node
All data stored
as CRD in k8s
Watch CRD
Deploy
Monitor Cluster/Sync Data
Call docker/k8s API via websocket, If need.
Don’t access to docker/k8s api directly from rancher server
Websocket session
Point 2 Point 3
Point 4
Point 5
Point 1
Provide API

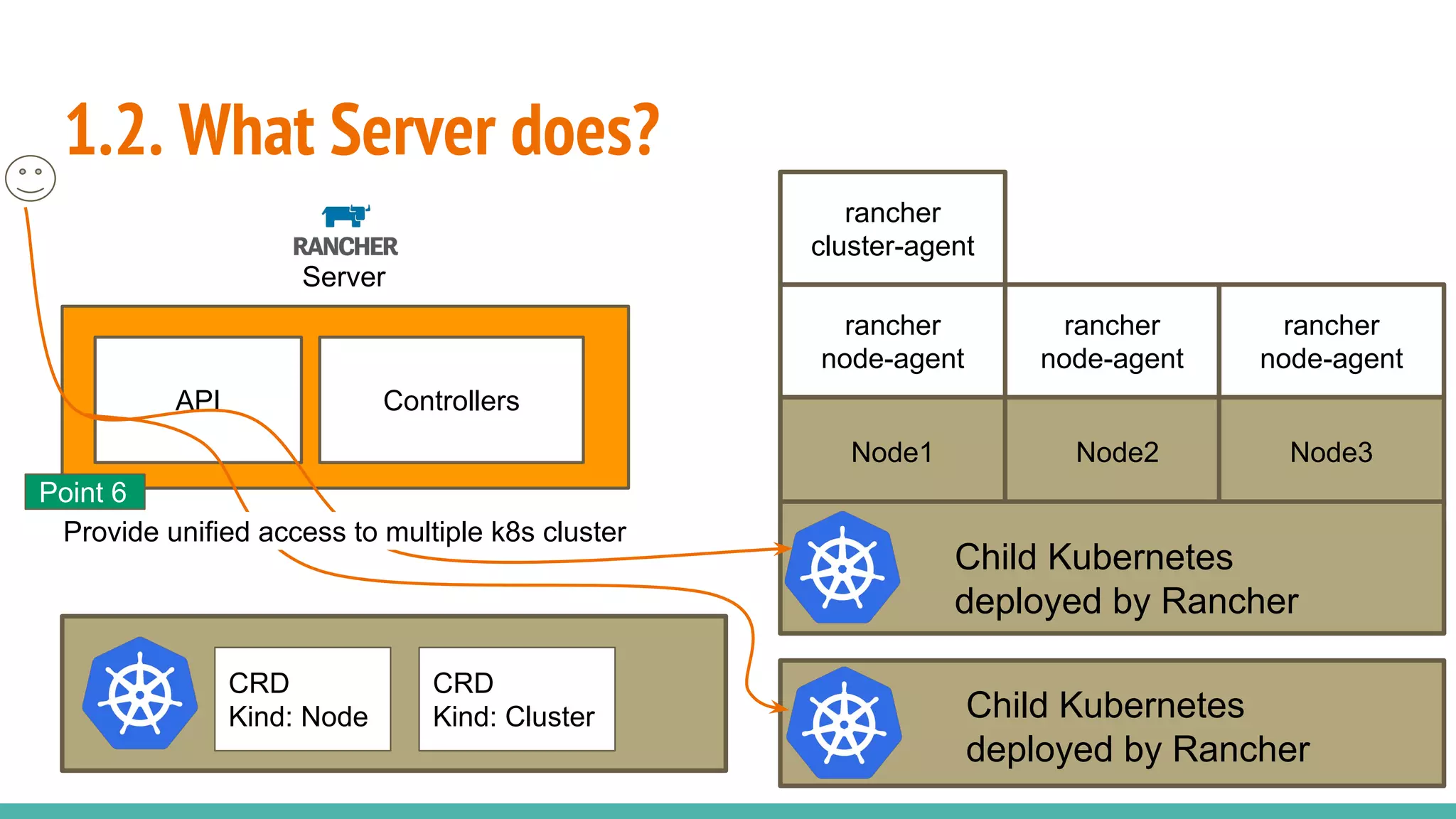

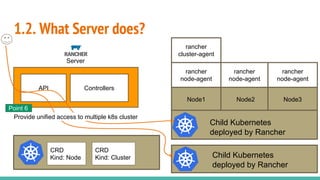

22. 1.2. What Server does?
Server
API Controllers
CRD
Kind: Cluster
Node1 Node2 Node3
rancher
node-agent
rancher
node-agent
rancher
node-agent
rancher
cluster-agent
Child Kubernetes
deployed by Rancher
Child Kubernetes
deployed by Rancher
CRD
Kind: Node
Provide unified access to multiple k8s cluster
Point 6

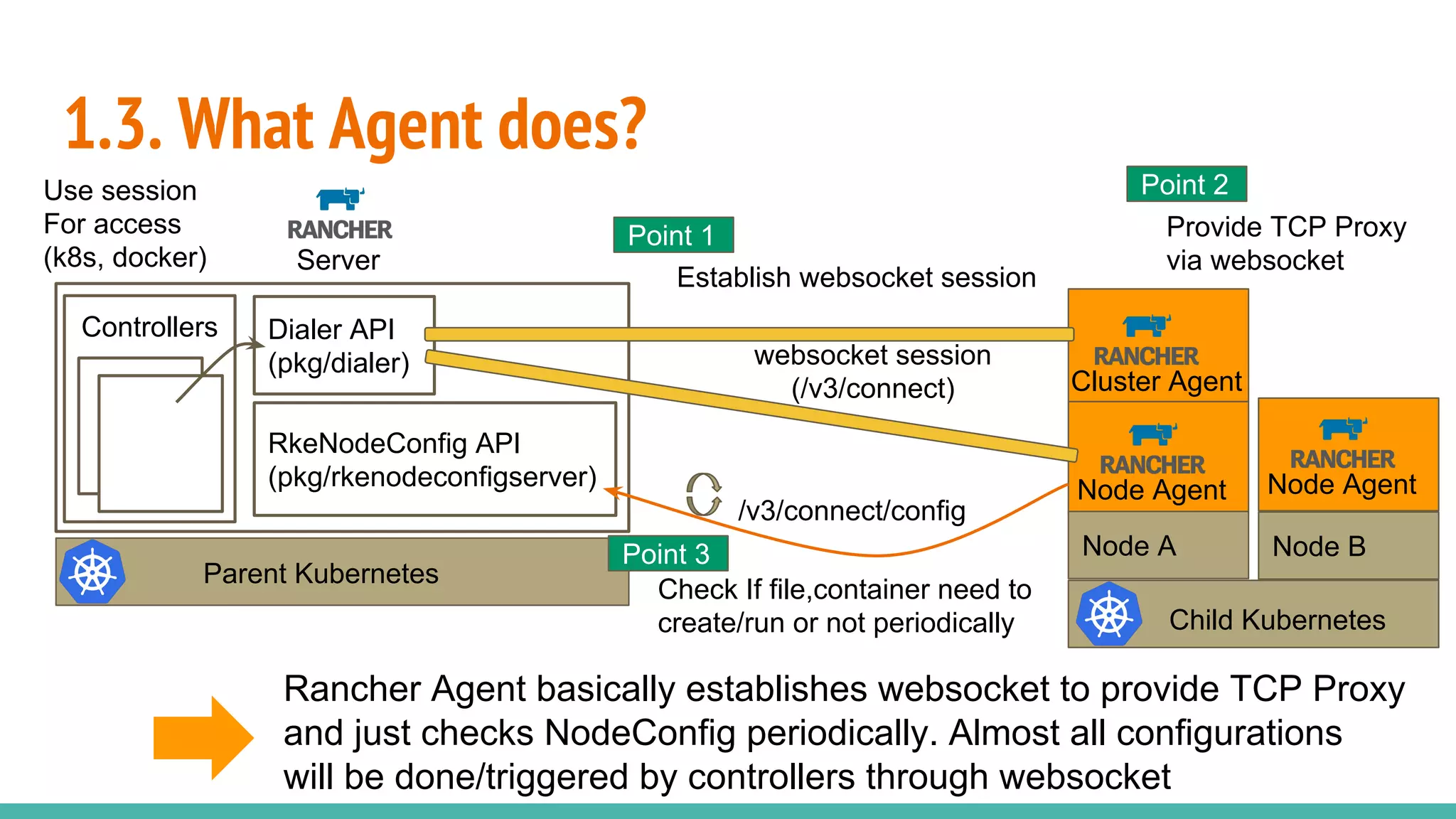

23. 1.3. What Agent does?
Node Agent
Node A
Cluster Agent
Child Kubernetes
Node Agent
Node B
Parent Kubernetes
Server
Dialer API
(pkg/dialer)
RkeNodeConfig API
(pkg/rkenodeconfigserver)
Controllers
websocket session
(/v3/connect)
/v3/connect/config
Use session
For access
(k8s, docker)
Rancher Agent basically establishes websocket to provide TCP Proxy
and just checks NodeConfig periodically. Almost all configurations
will be done/triggered by controllers through websocket
Point 3
Establish websocket session
Point 1 Provide TCP Proxy
via websocket
Point 2
Check If file,container need to
create/run or not periodically

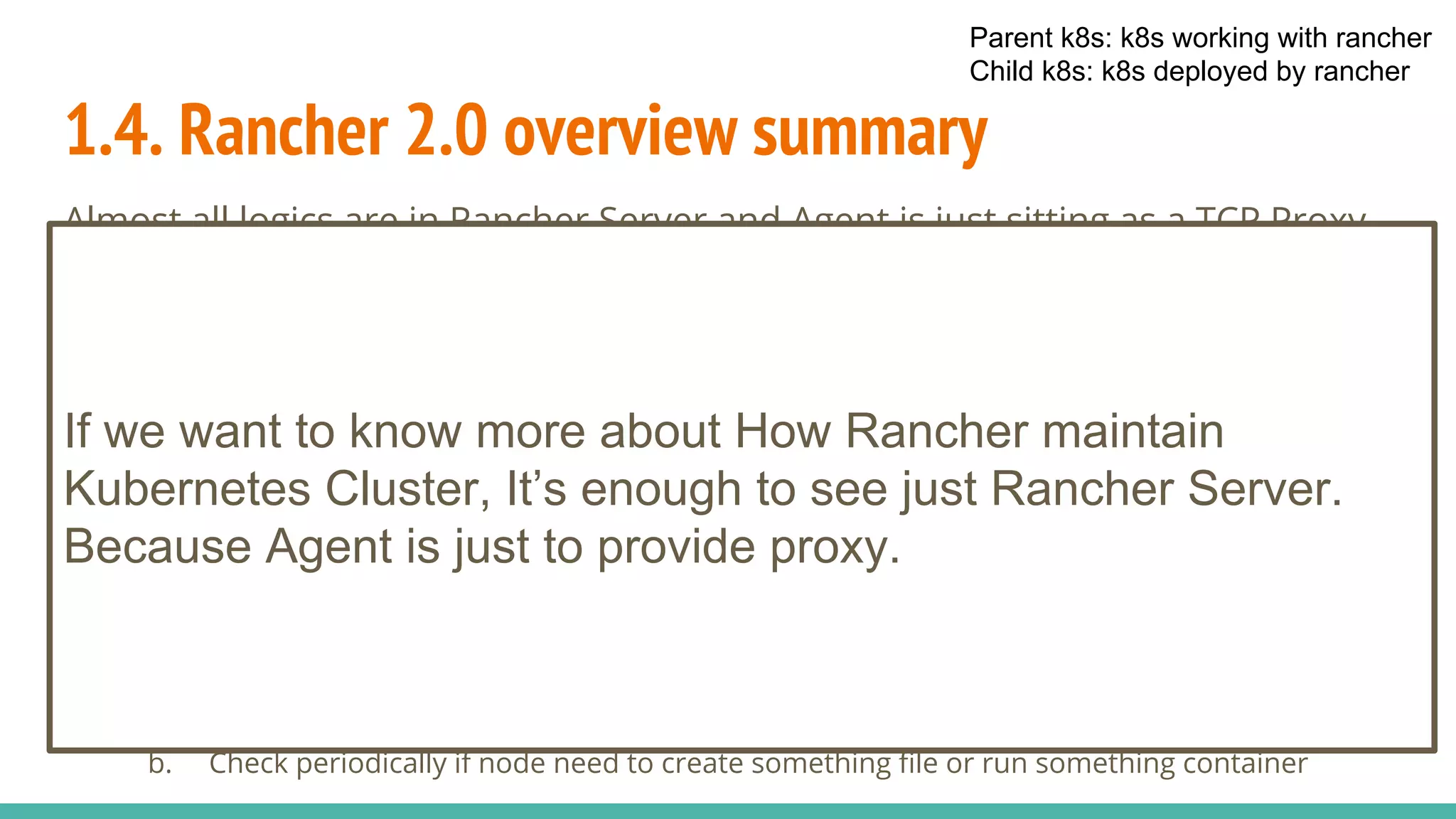

24. 1.4. Rancher 2.0 overview summary
Almost all logics are in Rancher Server and Agent is just sitting as a TCP Proxy
Server in k8s deployed for Rancher Server
● Rancher Server
a. All data for Rancher stored as CRD in Kubernetes (translating Rancher’s resource into CRD)
b. Rancher’s API is kind of proxy to Kubernetes API
c. Rancher have various controllers to watch CRD resources in parent k8s to deploy k8s
(Management Controllers)
d. Rancher have various controllers to watch CRD resources in parent k8s to inject some data
to k8s deployed (User Controllers)
e. Use websocket session to access deployed Node or K8s Cluster.
● Rancher Agent
a. Establish websocket to provide TCP Proxy
b. Check periodically if node need to create something file or run something container
Parent k8s: k8s working with rancher
Child k8s: k8s deployed by rancher
If we want to know more about How Rancher maintain
Kubernetes Cluster, It’s enough to see just Rancher Server.
Because Agent is just to provide proxy.

25. 2. Rancher Server
Internal
1. Rancher Overview
1.1. Casts in Rancher 2.0
1.2. What Server does?
1.3. What Agent does?
1.4. Summary
2. Rancher Server Internal
2.1. Rancher API

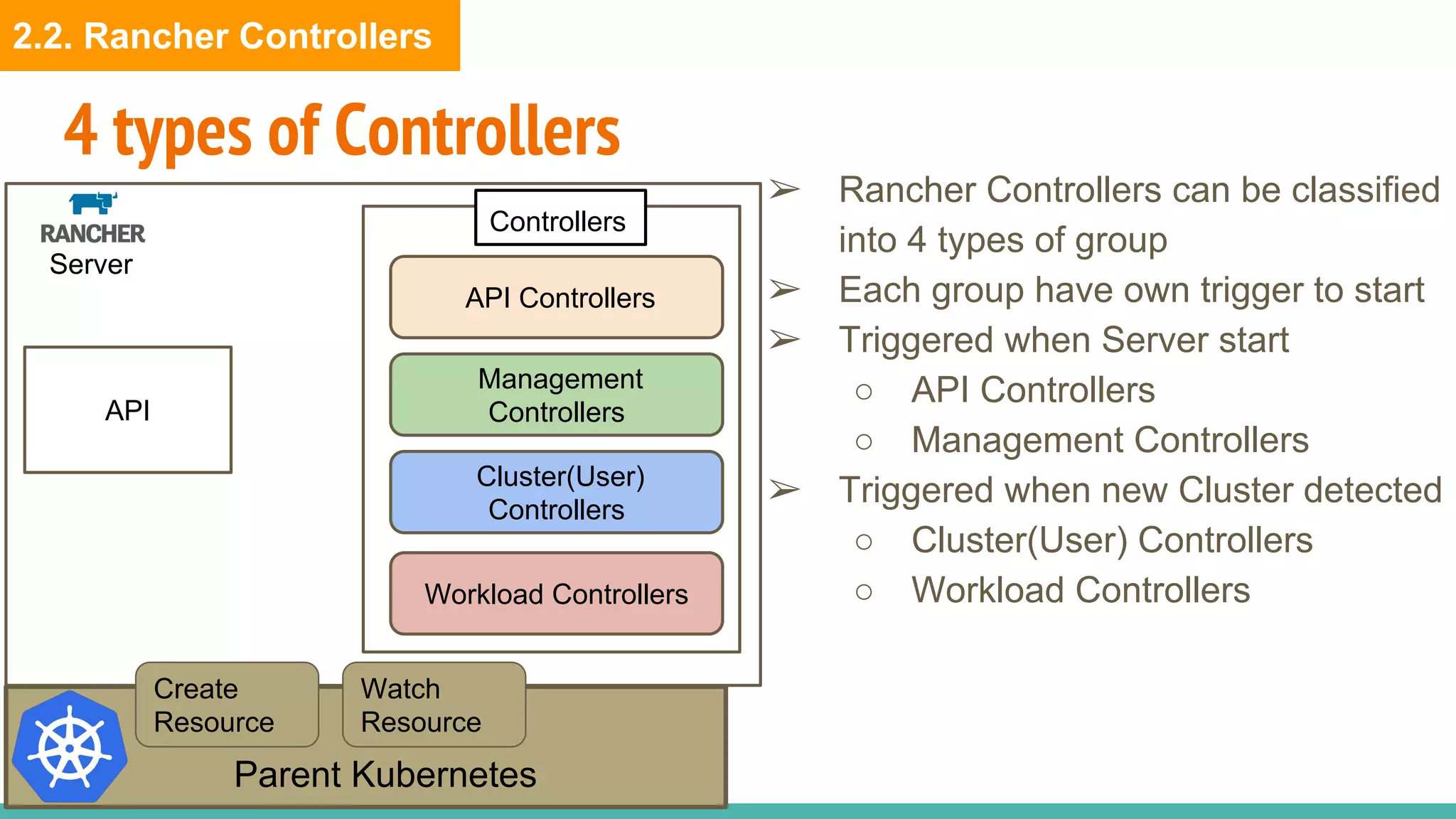

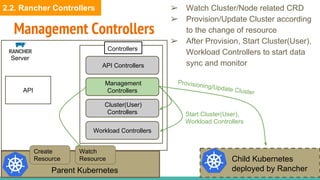

2.2. Rancher Controllers
2.3. Example Controllers

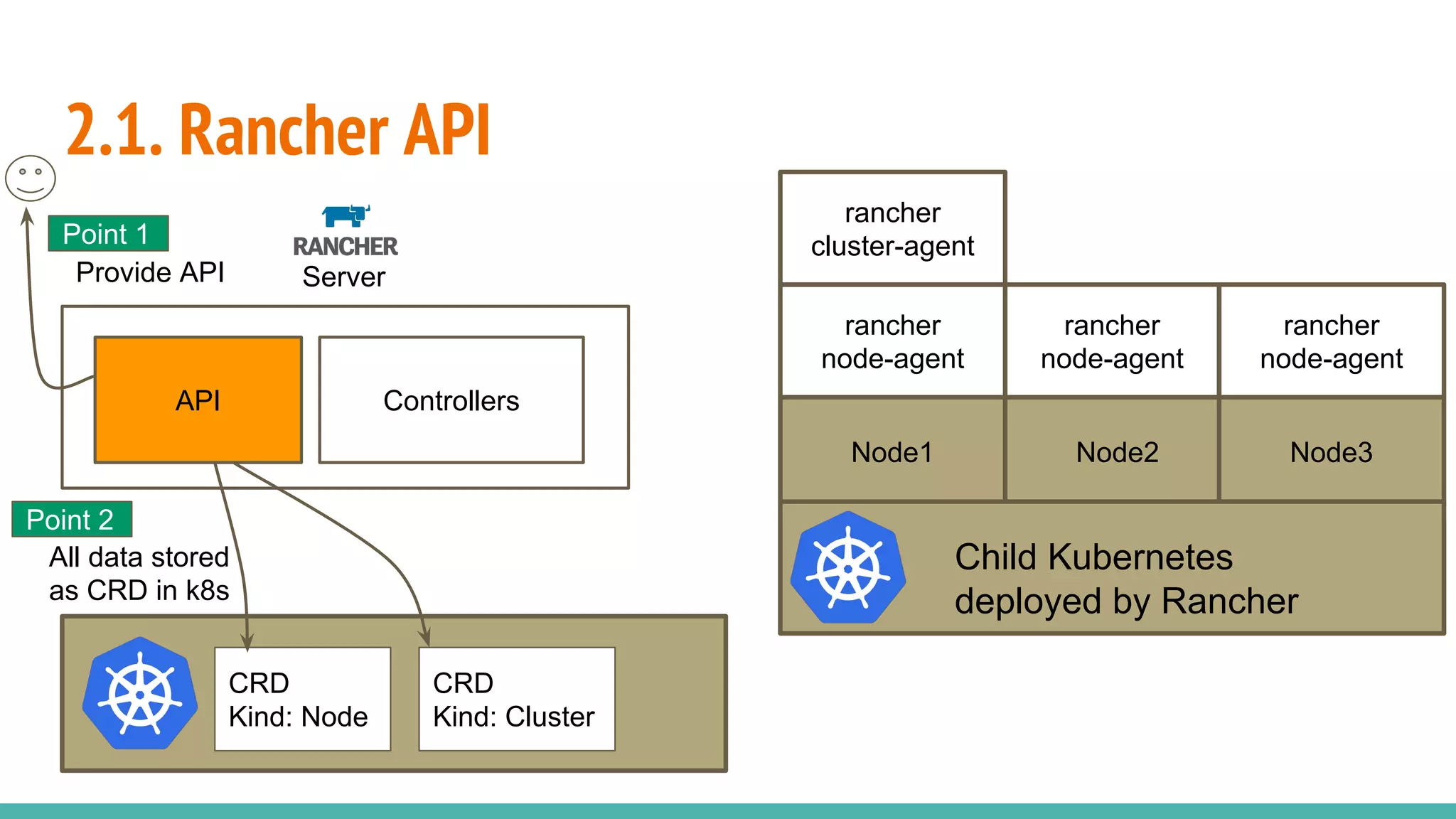

26. 2.1. Rancher API
Server
API Controllers
CRD
Kind: Cluster
CRD
Kind: Node
Node1 Node2 Node3
rancher
node-agent
rancher
node-agent
rancher
node-agent
rancher
cluster-agent
Child Kubernetes
deployed by Rancher
All data stored
as CRD in k8s
Point 2
Point 1
Provide API

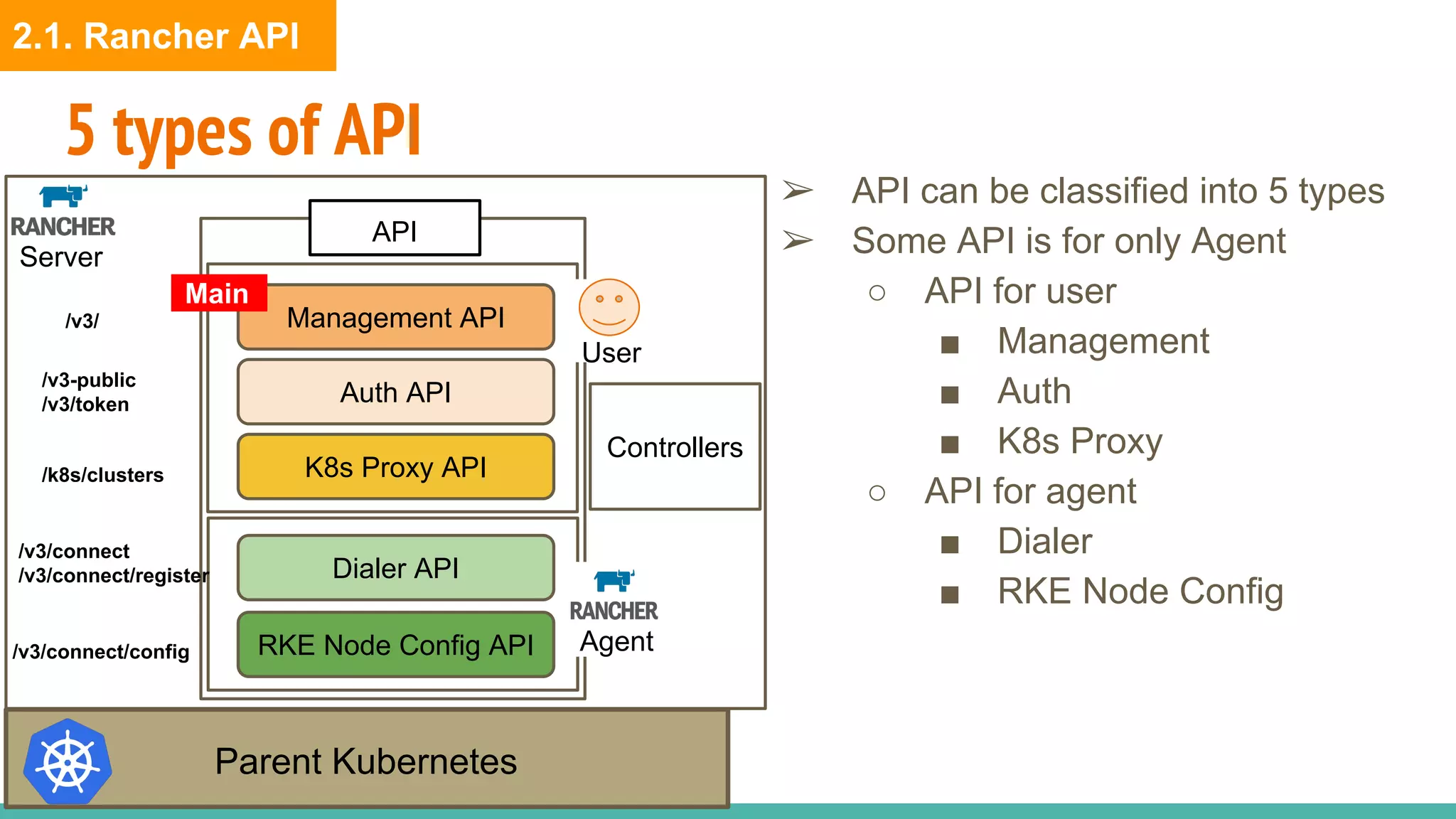

27. 5 types of API
Server
Controllers
API
Parent Kubernetes
➢ API can be classified into 5 types
➢ Some API is for only Agent
○ API for user
■ Management
■ Auth
■ K8s Proxy
○ API for agent
■ Dialer
■ RKE Node Config
Auth API
Management API
K8s Proxy API
Dialer API
RKE Node Config API
Main
/v3-public
/v3/token
/v3/
/k8s/clusters
/v3/connect
/v3/connect/register
/v3/connect/config Agent
User
2.1. Rancher API

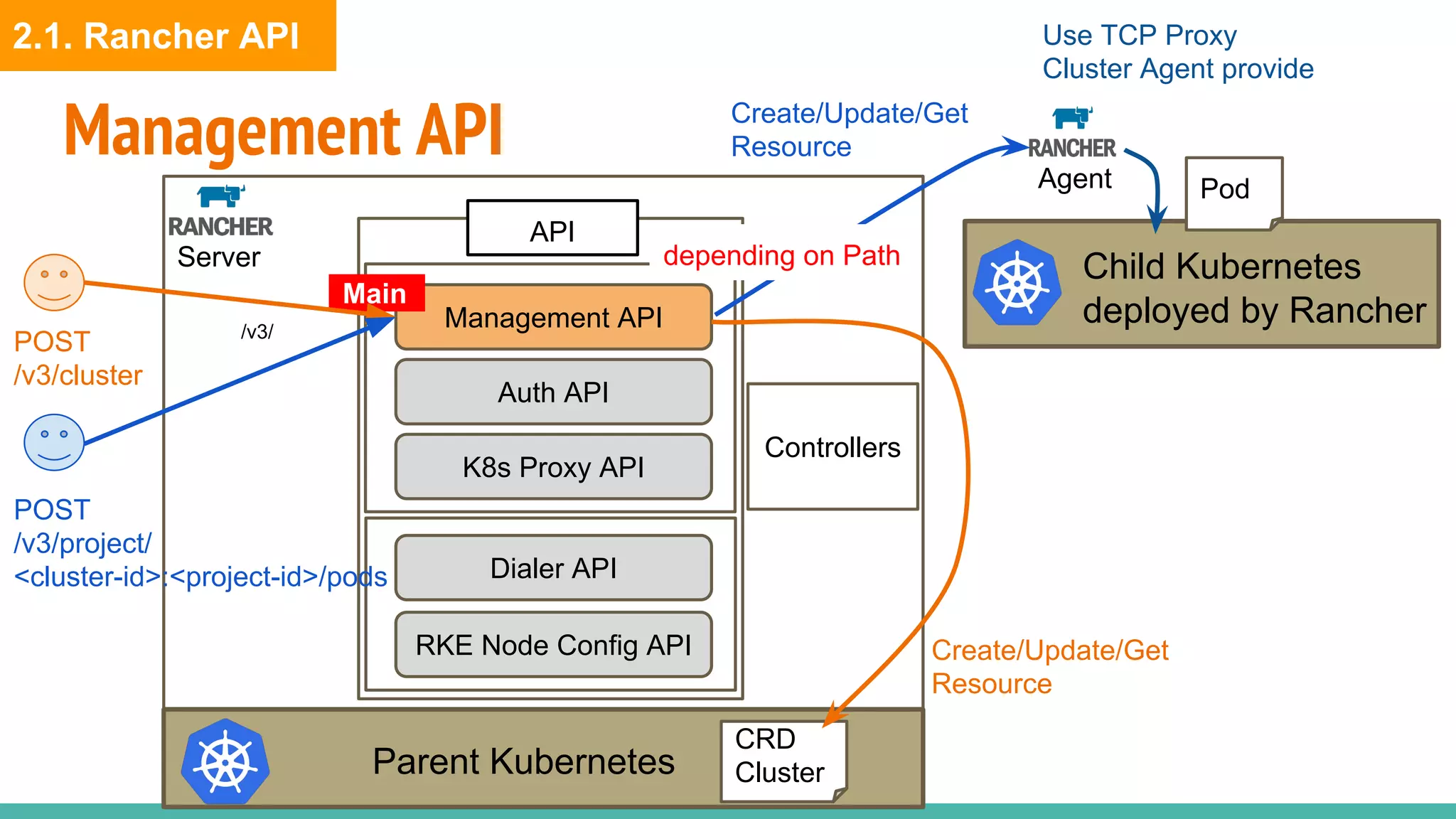

28. Management API
Server
Controllers
API
Parent Kubernetes
Auth API
Management API
K8s Proxy API
Dialer API
RKE Node Config API
Main
/v3/
Child Kubernetes
deployed by Rancher
Create/Update/Get
Resource
Create/Update/Get
Resource
POST
/v3/cluster
POST
/v3/project/
<cluster-id>:<project-id>/pods
CRD
Cluster
PodAgent
depending on Path
Use TCP Proxy
Cluster Agent provide
2.1. Rancher API

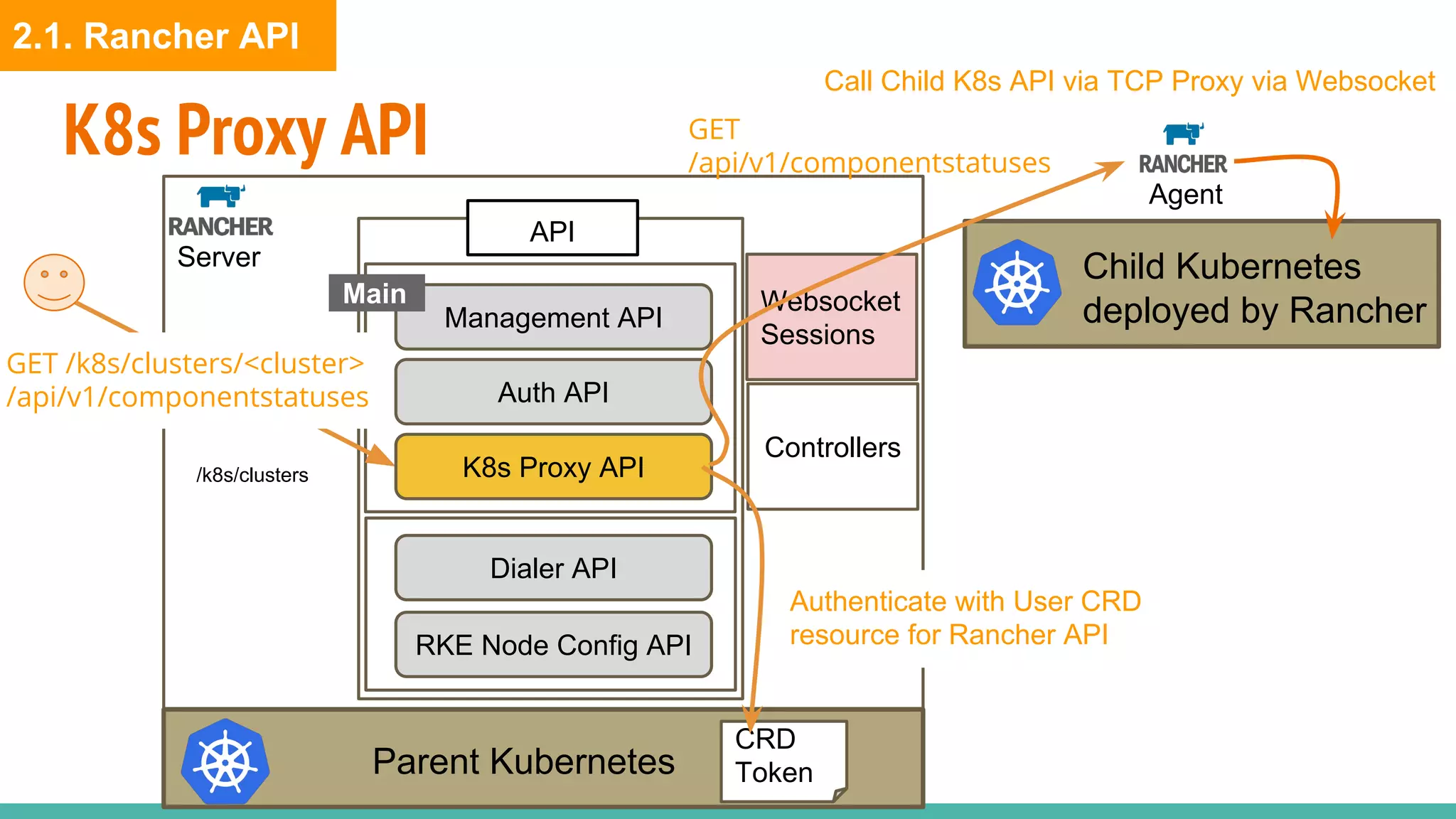

29. K8s Proxy API
Server
API
Parent Kubernetes
Management API
Dialer API
RKE Node Config API
Main
Child Kubernetes
deployed by Rancher
CRD
Token
Auth API
Authenticate with User CRD
resource for Rancher API
K8s Proxy API
Controllers
Websocket
Sessions
Agent
Call Child K8s API via TCP Proxy via Websocket
GET /k8s/clusters/<cluster>
/api/v1/componentstatuses
/k8s/clusters
GET
/api/v1/componentstatuses
2.1. Rancher API

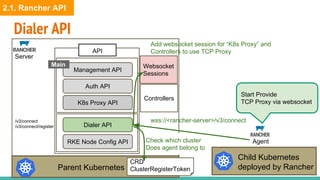

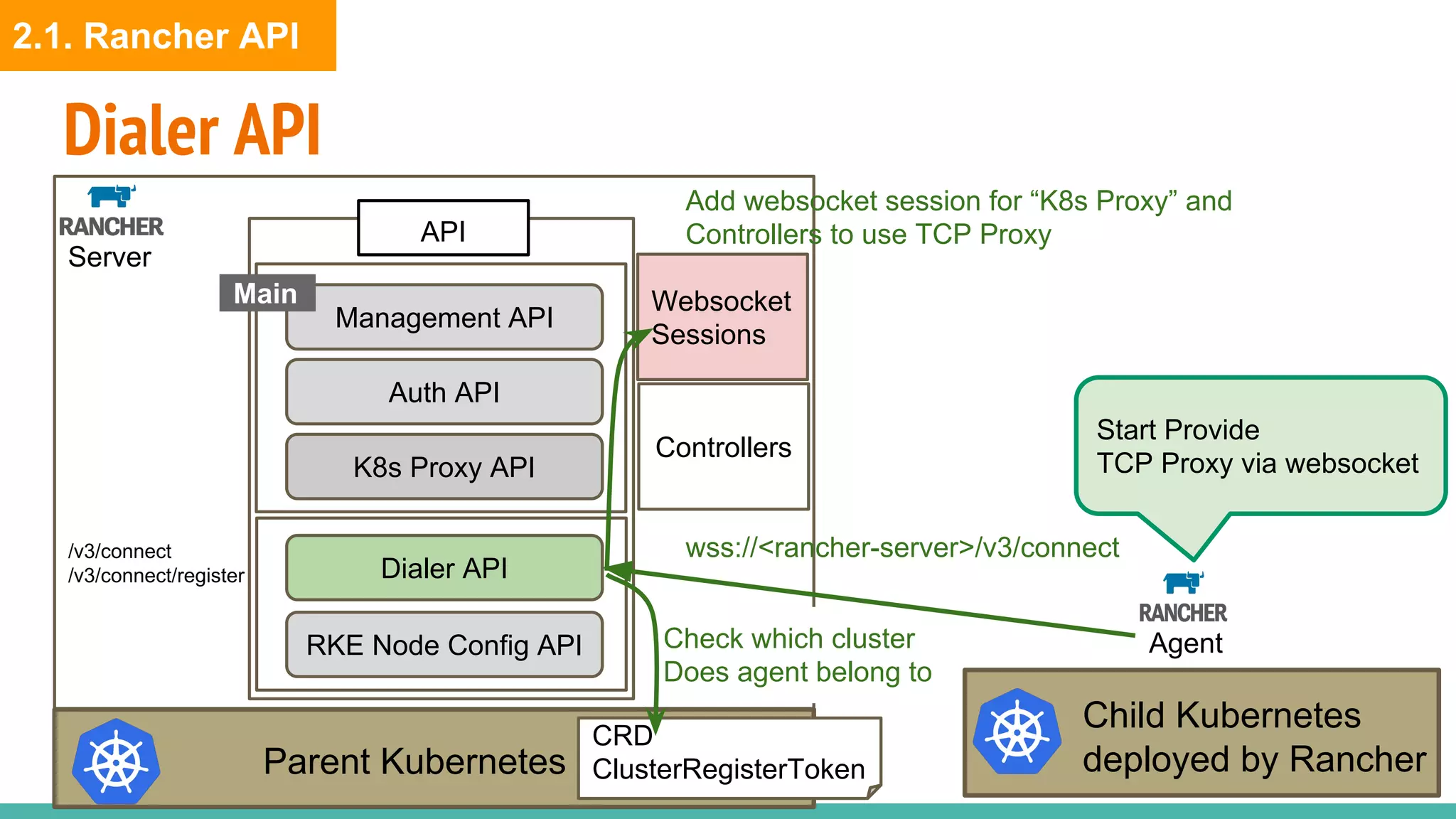

30. Dialer API
Server
API
Parent Kubernetes
Management API
RKE Node Config API
Main
Child Kubernetes
deployed by Rancher
Auth API
K8s Proxy API
Controllers
Websocket
Sessions
Agent
Dialer API
/v3/connect
/v3/connect/register
wss://<rancher-server>/v3/connect
CRD
ClusterRegisterToken
Start Provide
TCP Proxy via websocket
Check which cluster
Does agent belong to
Add websocket session for “K8s Proxy” and
Controllers to use TCP Proxy
2.1. Rancher API

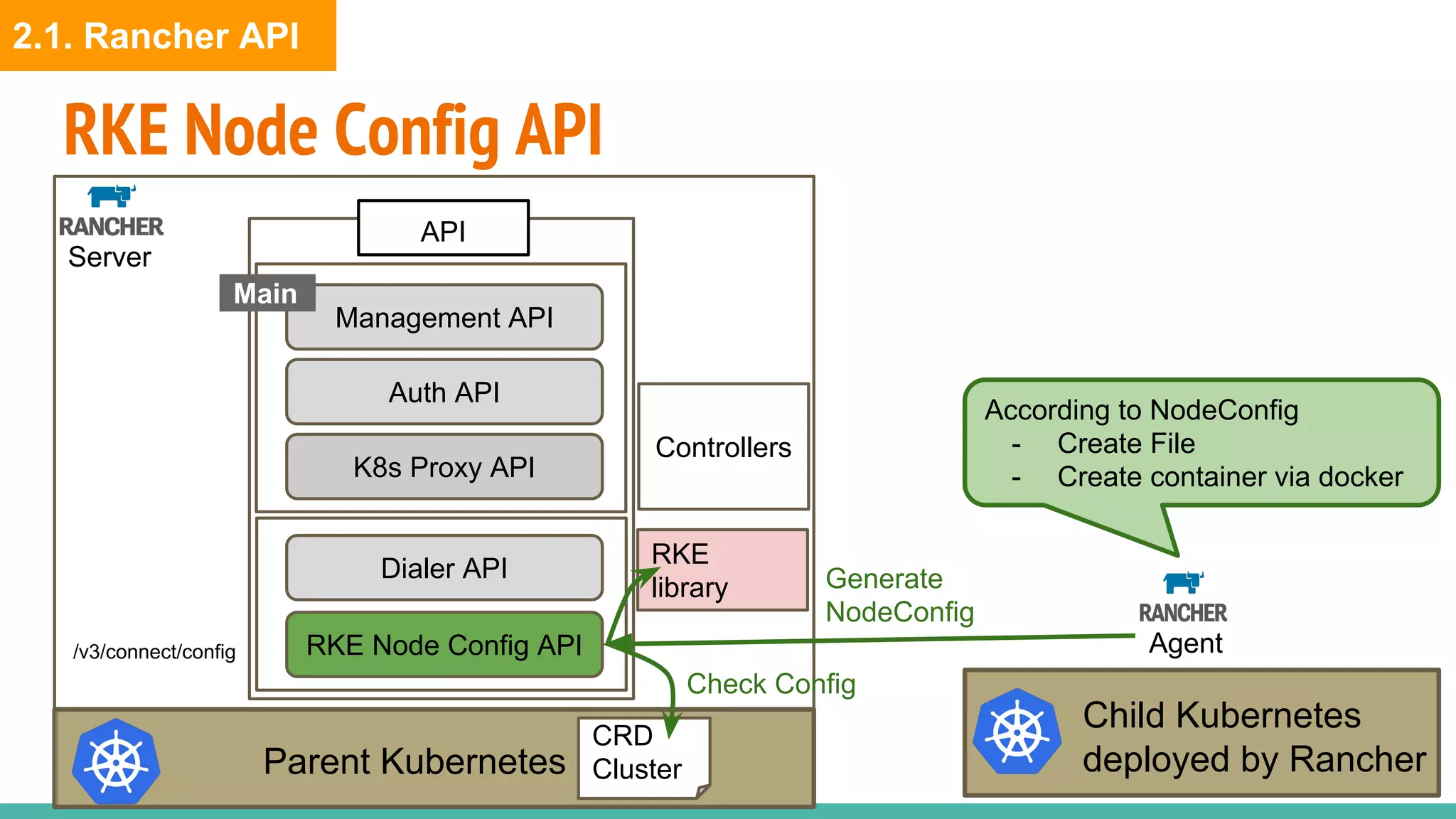

31. RKE Node Config API
Server
API
Parent Kubernetes
Management API
Main
Child Kubernetes
deployed by Rancher
Auth API
K8s Proxy API
Controllers
Agent
Dialer API
RKE Node Config API/v3/connect/config
CRD
Cluster
RKE
library
Check Config
Generate
NodeConfig
According to NodeConfig
- Create File
- Create container via docker
2.1. Rancher API

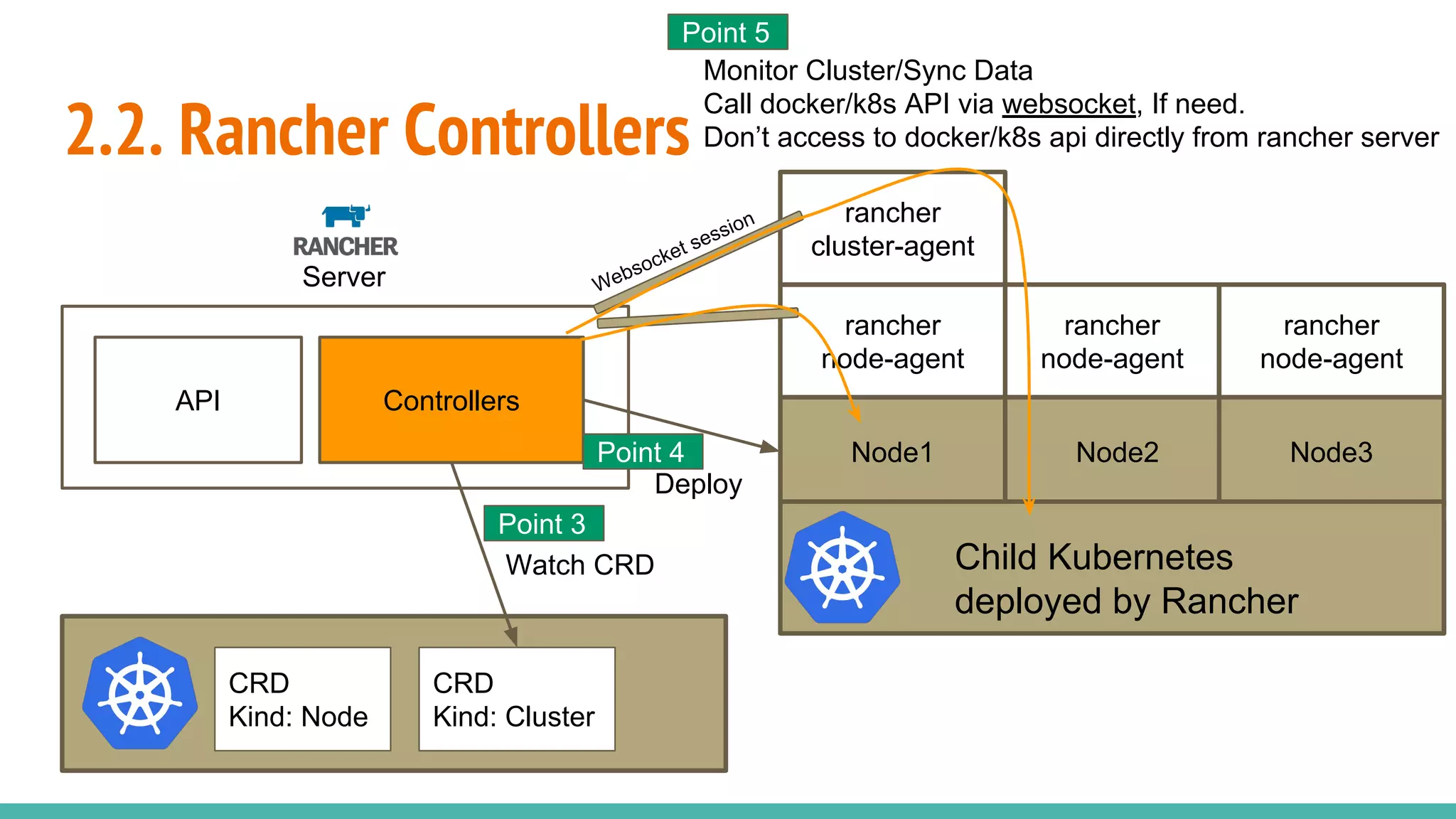

32. 2.2. Rancher Controllers
Server
API Controllers
CRD
Kind: Cluster
Node1 Node2 Node3
rancher
node-agent
rancher
node-agent
rancher
node-agent
rancher
cluster-agent
Child Kubernetes
deployed by Rancher
CRD
Kind: Node
Watch CRD
Deploy
Monitor Cluster/Sync Data
Call docker/k8s API via websocket, If need.
Don’t access to docker/k8s api directly from rancher server
Websocket session
Point 3
Point 4
Point 5

33. API Controllers
Management
Controllers
Cluster(User)
Controllers
Workload Controllers
4 types of Controllers
Server
API
Controllers
Parent Kubernetes
Create
Resource
Watch
Resource
➢ Rancher Controllers can be classified
into 4 types of group
➢ Each group have own trigger to start
➢ Triggered when Server start
○ API Controllers
○ Management Controllers
➢ Triggered when new Cluster detected
○ Cluster(User) Controllers
○ Workload Controllers
2.2. Rancher Controllers

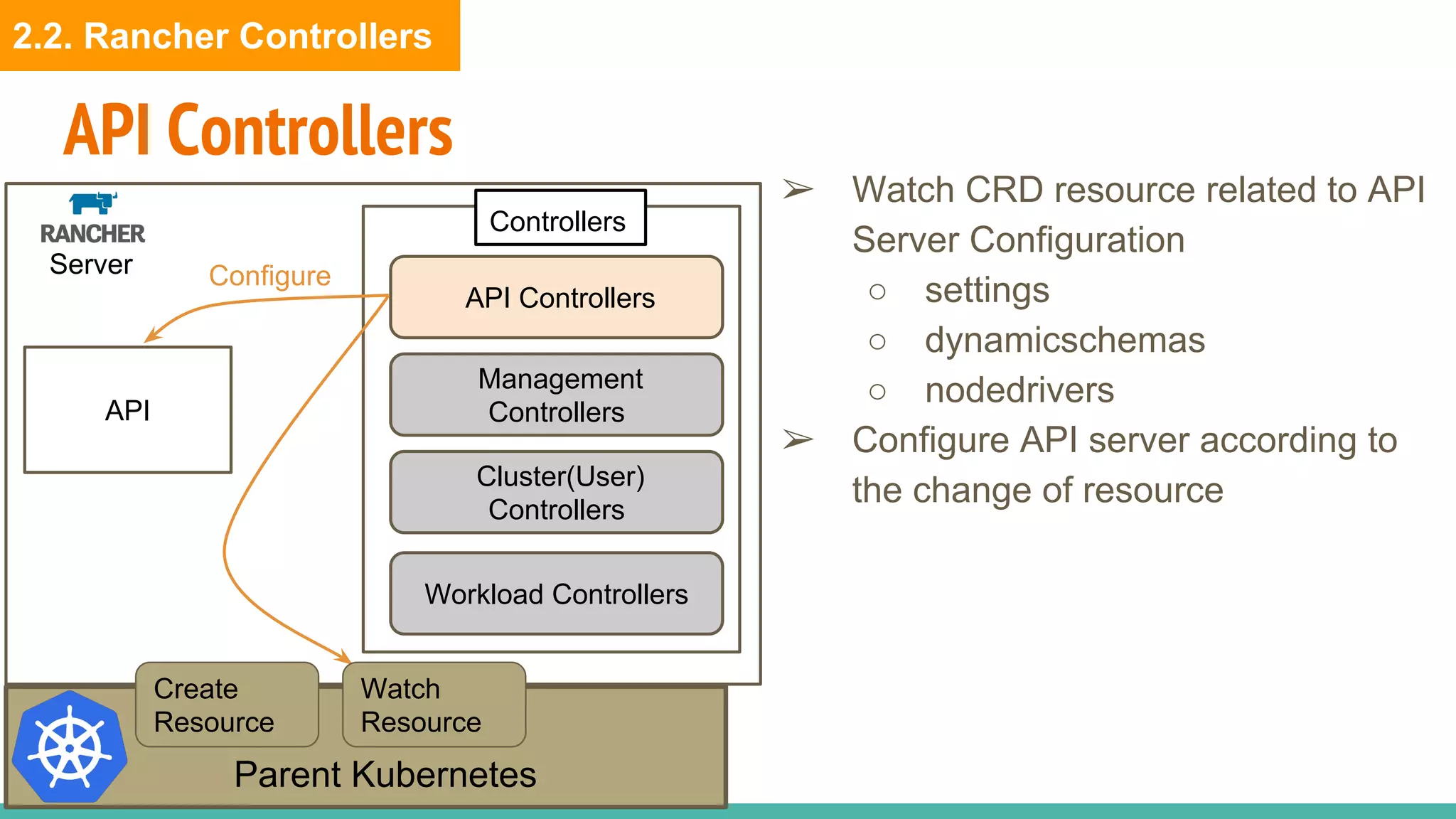

34. API Controllers
Management
Controllers
Cluster(User)
Controllers
Workload Controllers
API Controllers
Server
API
Controllers
Parent Kubernetes
Create
Resource
Watch
Resource
Configure
➢ Watch CRD resource related to API
Server Configuration
○ settings
○ dynamicschemas
○ nodedrivers
➢ Configure API server according to
the change of resource
2.2. Rancher Controllers

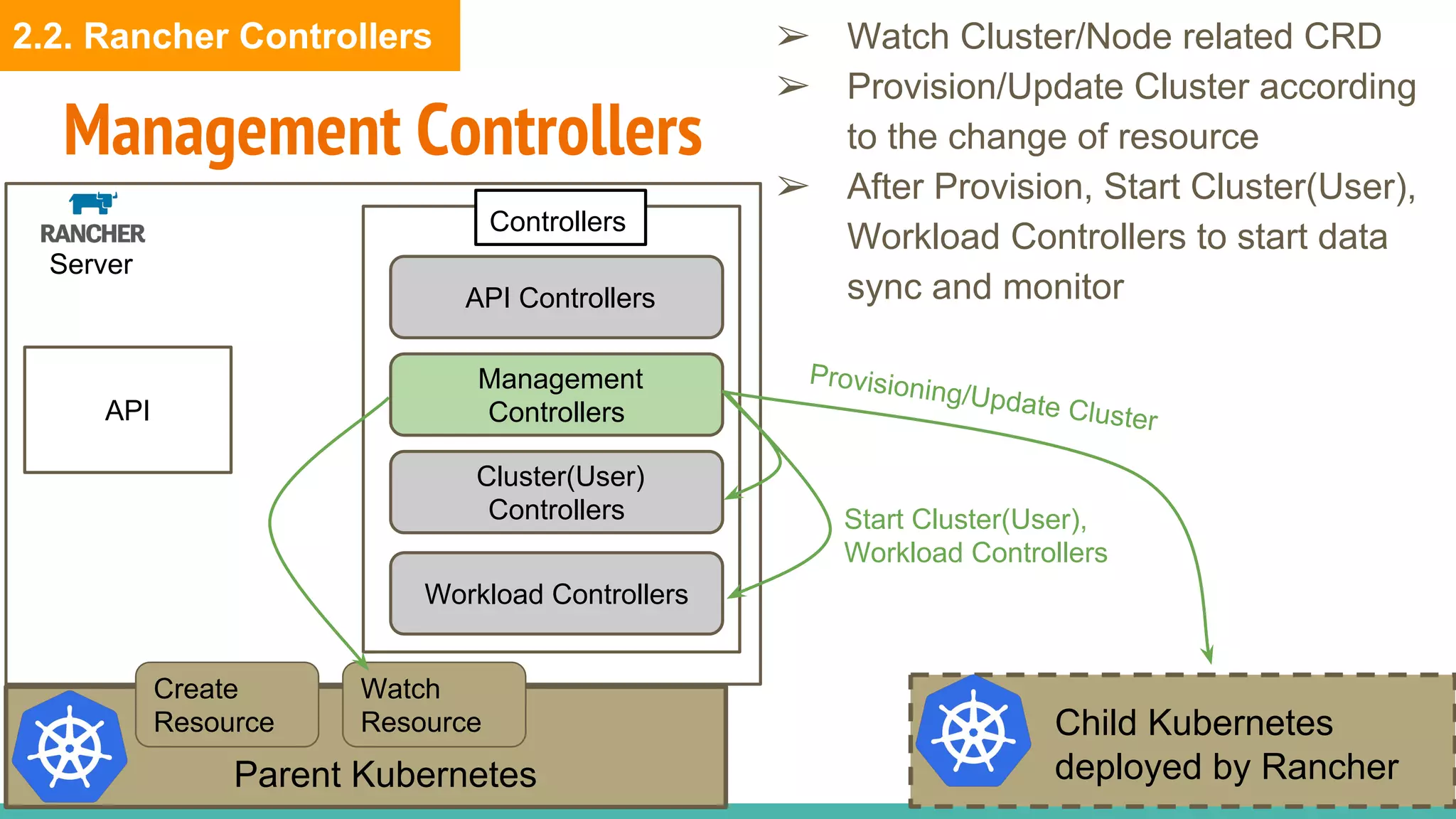

35. API Controllers
Management
Controllers
Cluster(User)
Controllers
Workload Controllers
Management Controllers
Server
API
Controllers
Parent Kubernetes
Create
Resource
Watch
Resource
Provisioning/Update Cluster
Start Cluster(User),
Workload Controllers
Child Kubernetes
deployed by Rancher
➢ Watch Cluster/Node related CRD
➢ Provision/Update Cluster according
to the change of resource
➢ After Provision, Start Cluster(User),
Workload Controllers to start data
sync and monitor
2.2. Rancher Controllers

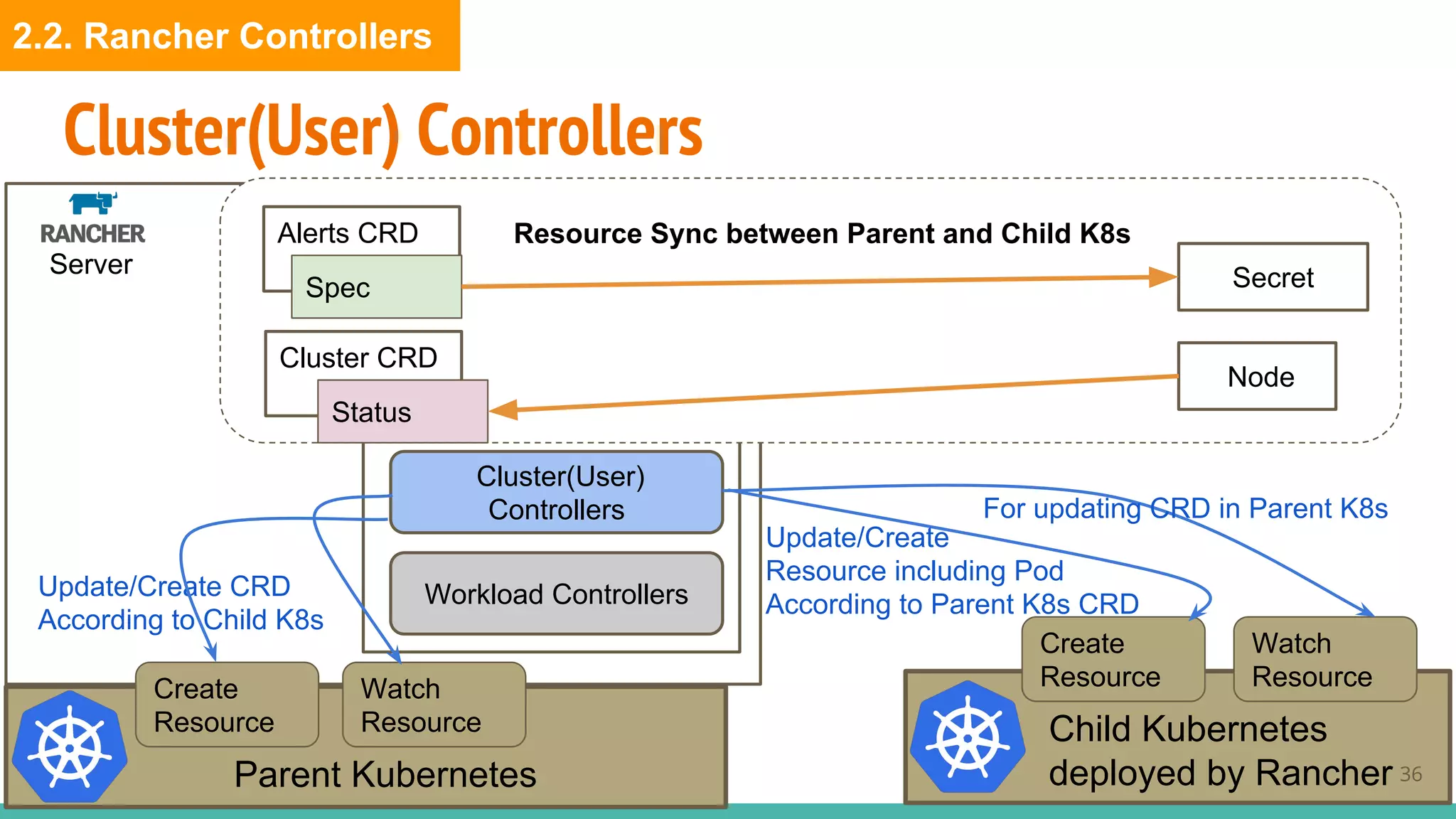

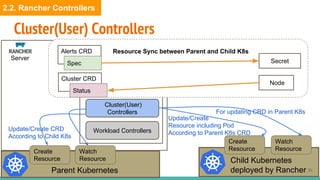

36. API Controllers
Management
Controllers
Cluster(User)
Controllers
Workload Controllers
Cluster(User) Controllers
Child Kubernetes
deployed by Rancher
Server
Controllers
Parent Kubernetes
Create
Resource
Watch
ResourceCreate
Resource
Watch
Resource
Update/Create CRD
According to Child K8s
Update/Create
Resource including Pod
According to Parent K8s CRD
36
Cluster CRD
Secret
Alerts CRD
Status
Spec
Node
For updating CRD in Parent K8s
Resource Sync between Parent and Child K8s
2.2. Rancher Controllers

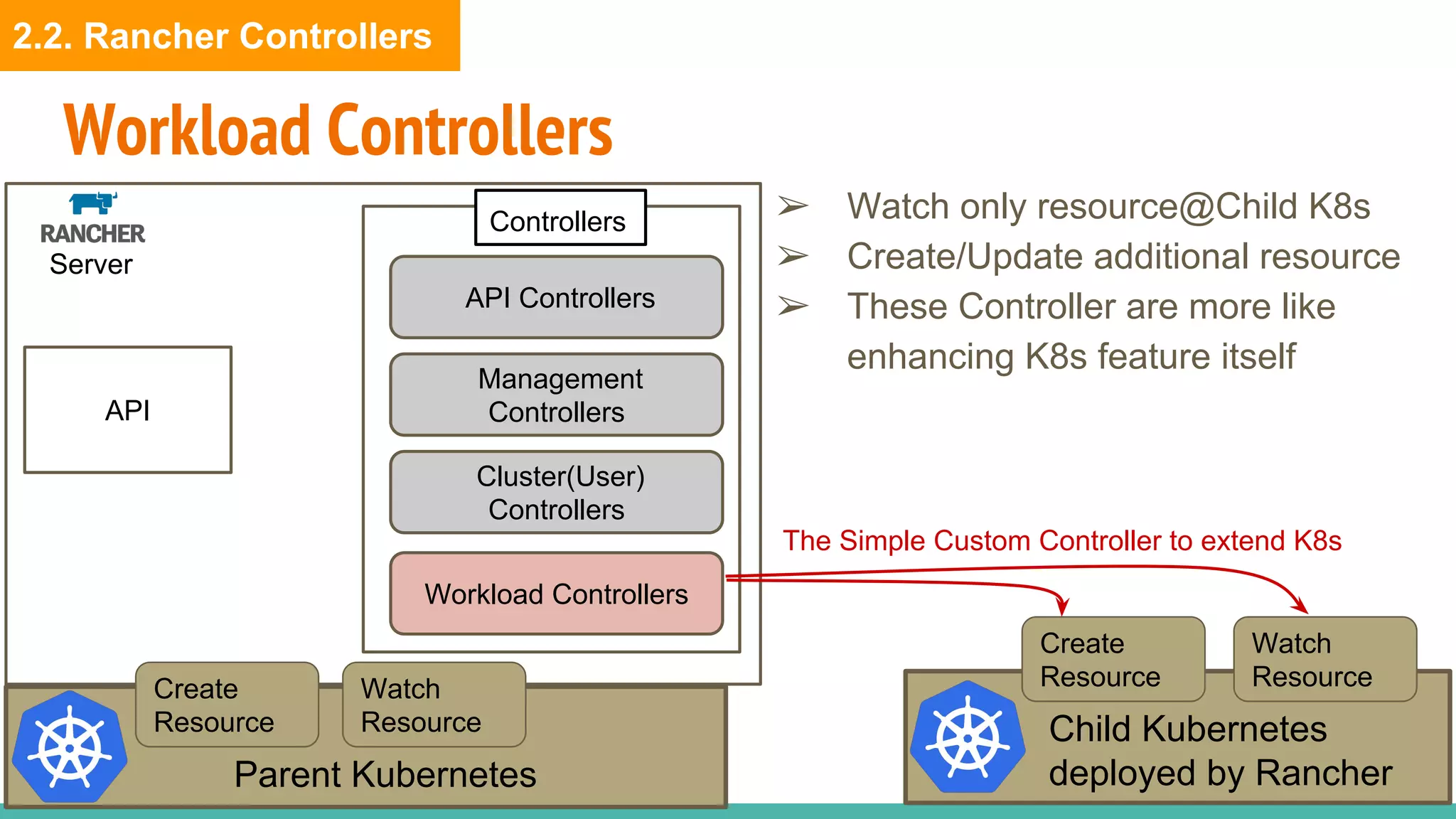

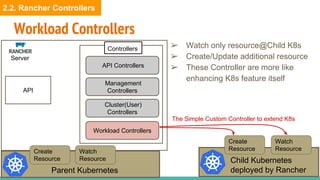

37. API Controllers
Management
Controllers
Cluster(User)
Controllers
Workload Controllers
Workload Controllers
Child Kubernetes
deployed by Rancher
Server
API
Controllers
Parent Kubernetes
Create
Resource
Watch
ResourceCreate
Resource
Watch
Resource
The Simple Custom Controller to extend K8s
➢ Watch only resource@Child K8s
➢ Create/Update additional resource
➢ These Controller are more like
enhancing K8s feature itself
2.2. Rancher Controllers

38. 2.3. Examples: Controllers
Management Controllers
➢ Cluster Controller
➢ Node Controller
Cluster(User) Controllers
➢ ClusterLogging Controller

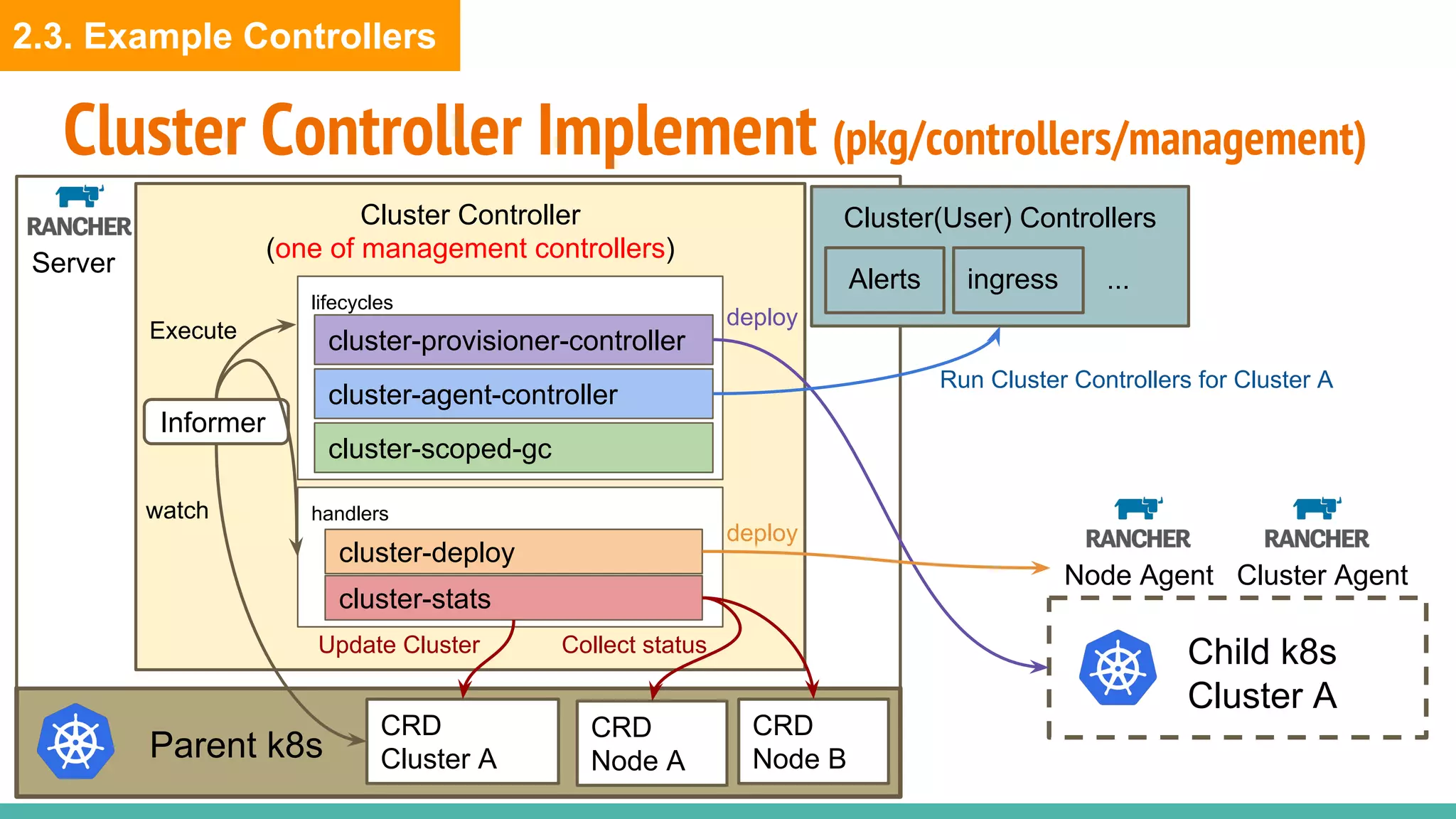

39. Cluster Controller Implement (pkg/controllers/management)
Parent k8s
Server
Cluster Controller
(one of management controllers)
handlers
lifecycles
cluster-provisioner-controller
cluster-agent-controller
cluster-scoped-gc
cluster-deploy
cluster-stats
CRD
Cluster A
Informer
Child k8s
Cluster A
watch
Execute
deploy
Node Agent Cluster Agent
deploy
Cluster(User) Controllers
Alerts ingress ...
Run Cluster Controllers for Cluster A
CRD
Node A
CRD
Node B
Update Cluster Collect status
2.3. Example Controllers

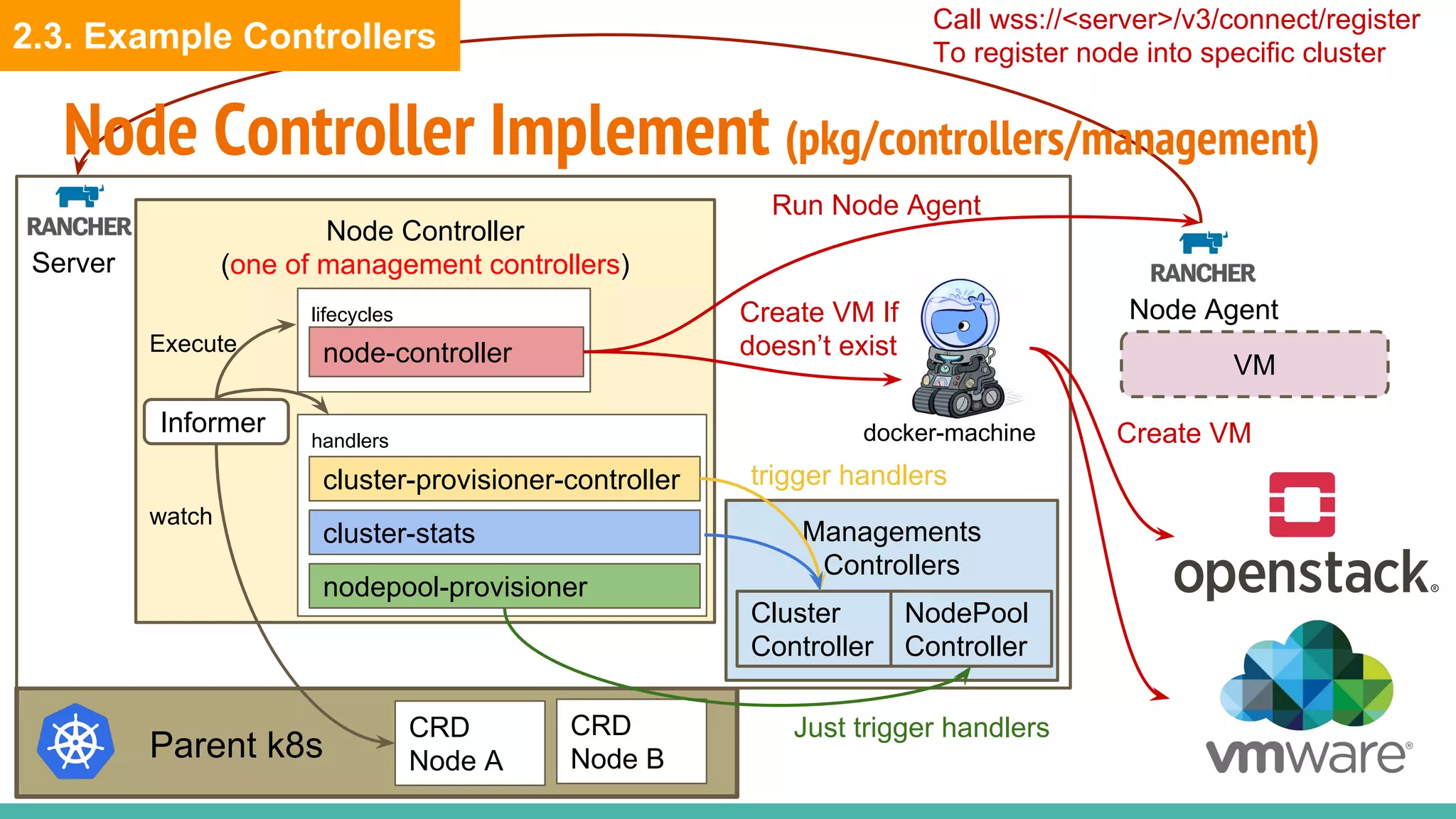

40. Node Controller Implement (pkg/controllers/management)
Parent k8s
CRD
Node A
CRD
Node B
Server
Node Controller
(one of management controllers)
handlers
lifecycles
node-controller
cluster-provisioner-controller
cluster-stats
nodepool-provisioner
Informer
watch
Execute
VM
Node Agent
Managements
Controllers
Cluster
Controller
NodePool
Controller
Just trigger handlers
Run Node Agent
Create VM If
doesn’t exist
Call wss://<server>/v3/connect/register
To register node into specific cluster
docker-machine
trigger handlers
Create VM
2.3. Example Controllers

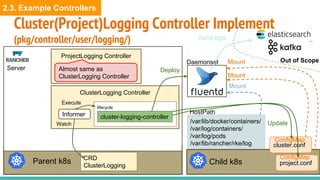

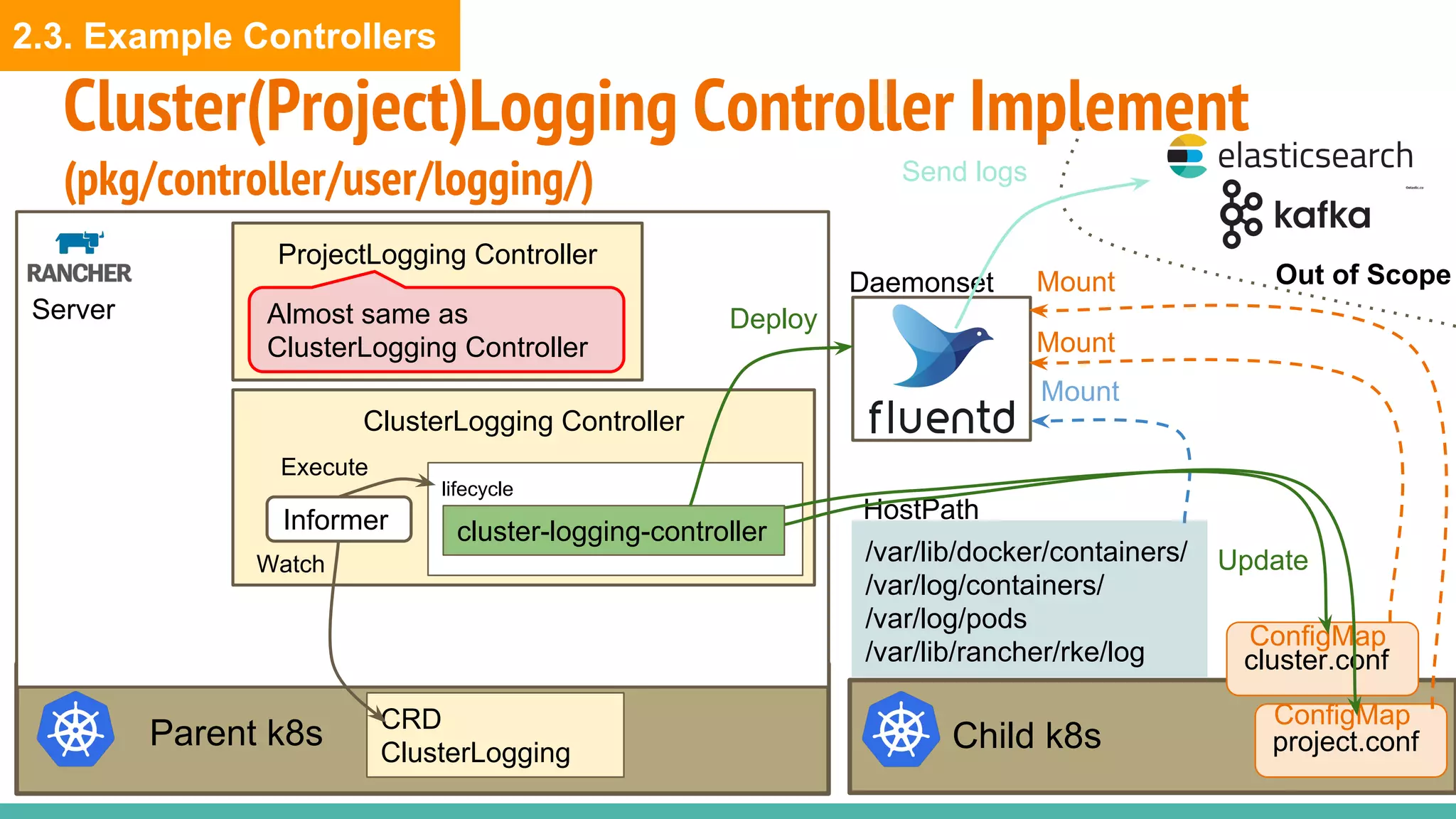

41. Cluster(Project)Logging Controller Implement
(pkg/controller/user/logging/)
Parent k8s CRD
ClusterLogging
Server
Child k8s
ClusterLogging Controller
lifecycle
cluster-logging-controllerInformer
Execute
ProjectLogging Controller
Almost same as
ClusterLogging Controller
Watch
Daemonset
cluster.conf
ConfigMap
project.conf
ConfigMap
/var/lib/docker/containers/
/var/log/containers/
/var/log/pods
/var/lib/rancher/rke/log
HostPath
Mount
Mount
Mount
Deploy
Update
Out of Scope
Send logs
2.3. Example Controllers

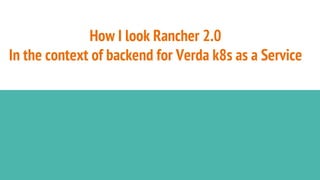

42. How I look Rancher 2.0
In the context of backend for Verda k8s as a Service

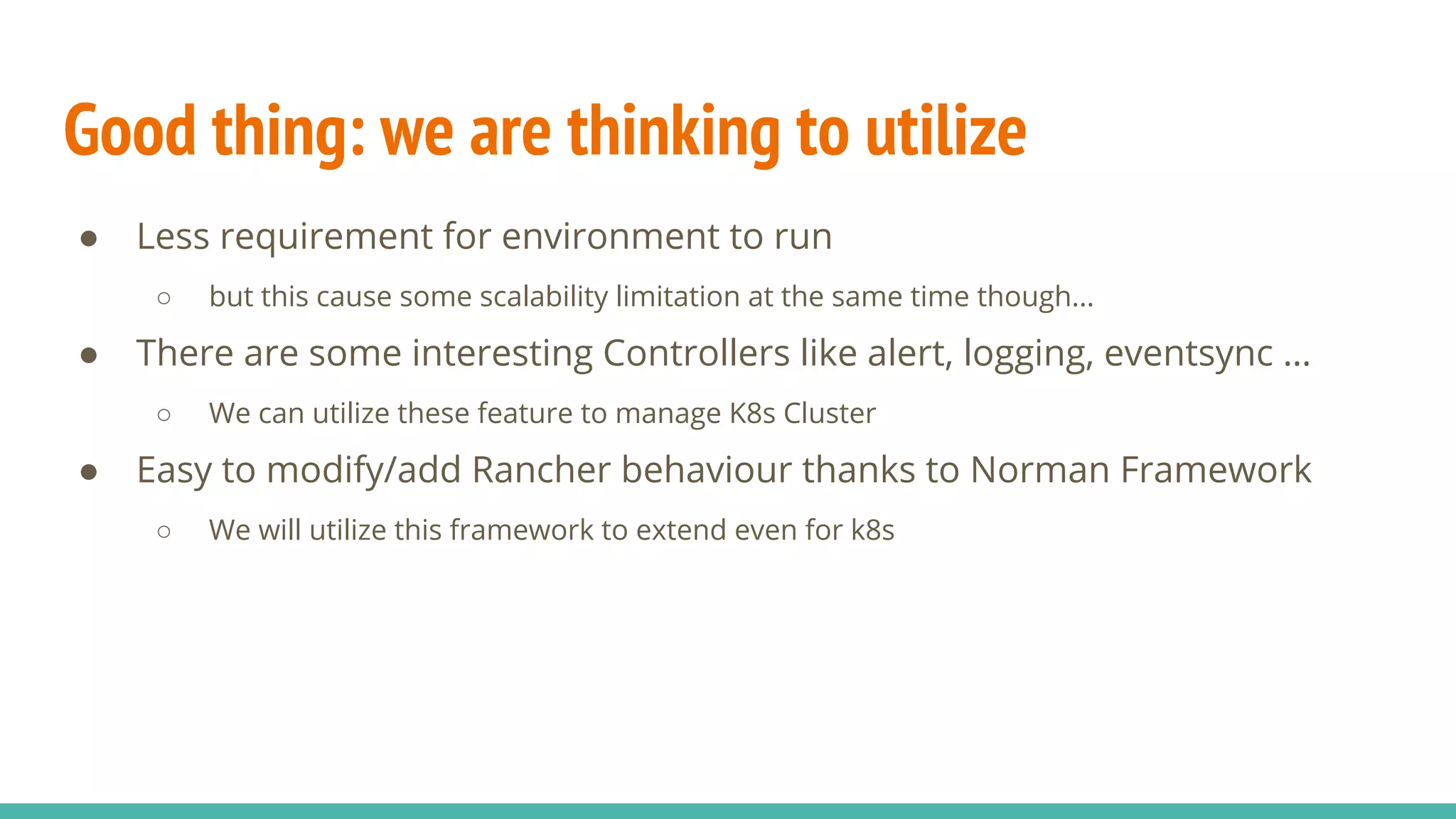

43. Good thing: we are thinking to utilize
● Less requirement for environment to run
○ but this cause some scalability limitation at the same time though...
● There are some interesting Controllers like alert, logging, eventsync …
○ We can utilize these feature to manage K8s Cluster
● Easy to modify/add Rancher behaviour thanks to Norman Framework
○ We will utilize this framework to extend even for k8s

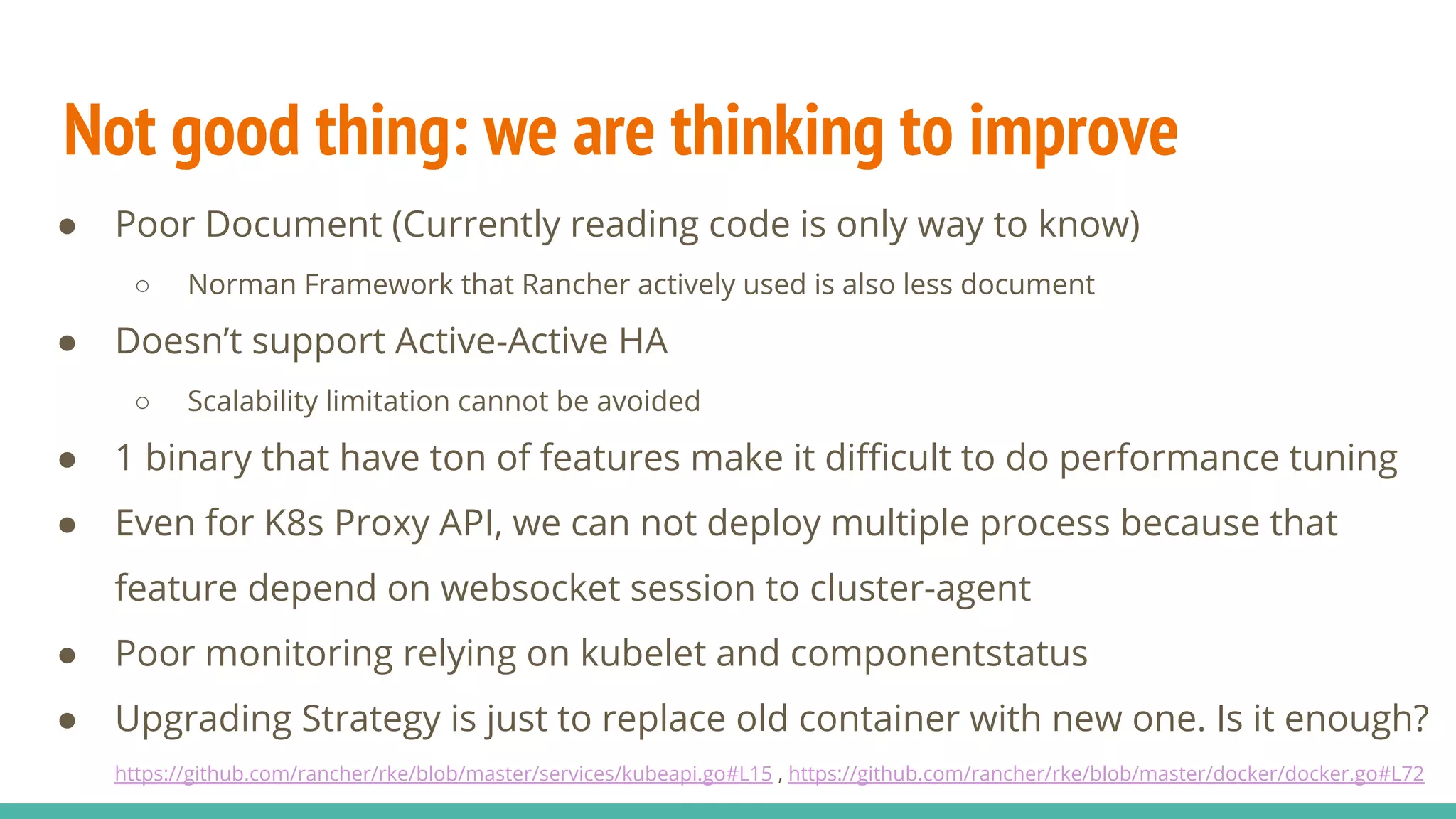

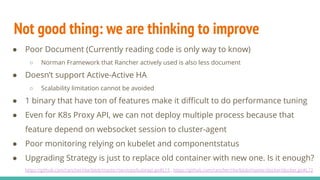

44. Not good thing: we are thinking to improve
● Poor Document (Currently reading code is only way to know)
○ Norman Framework that Rancher actively used is also less document
● Doesn’t support Active-Active HA
○ Scalability limitation cannot be avoided
● 1 binary that have ton of features make it difficult to do performance tuning
● Even for K8s Proxy API, we can not deploy multiple process because that
feature depend on websocket session to cluster-agent
● Poor monitoring relying on kubelet and componentstatus
● Upgrading Strategy is just to replace old container with new one. Is it enough?
https://github.com/rancher/rke/blob/master/services/kubeapi.go#L15 , https://github.com/rancher/rke/blob/master/docker/docker.go#L72

45. Future Work
Verda Kubernetes as a Service

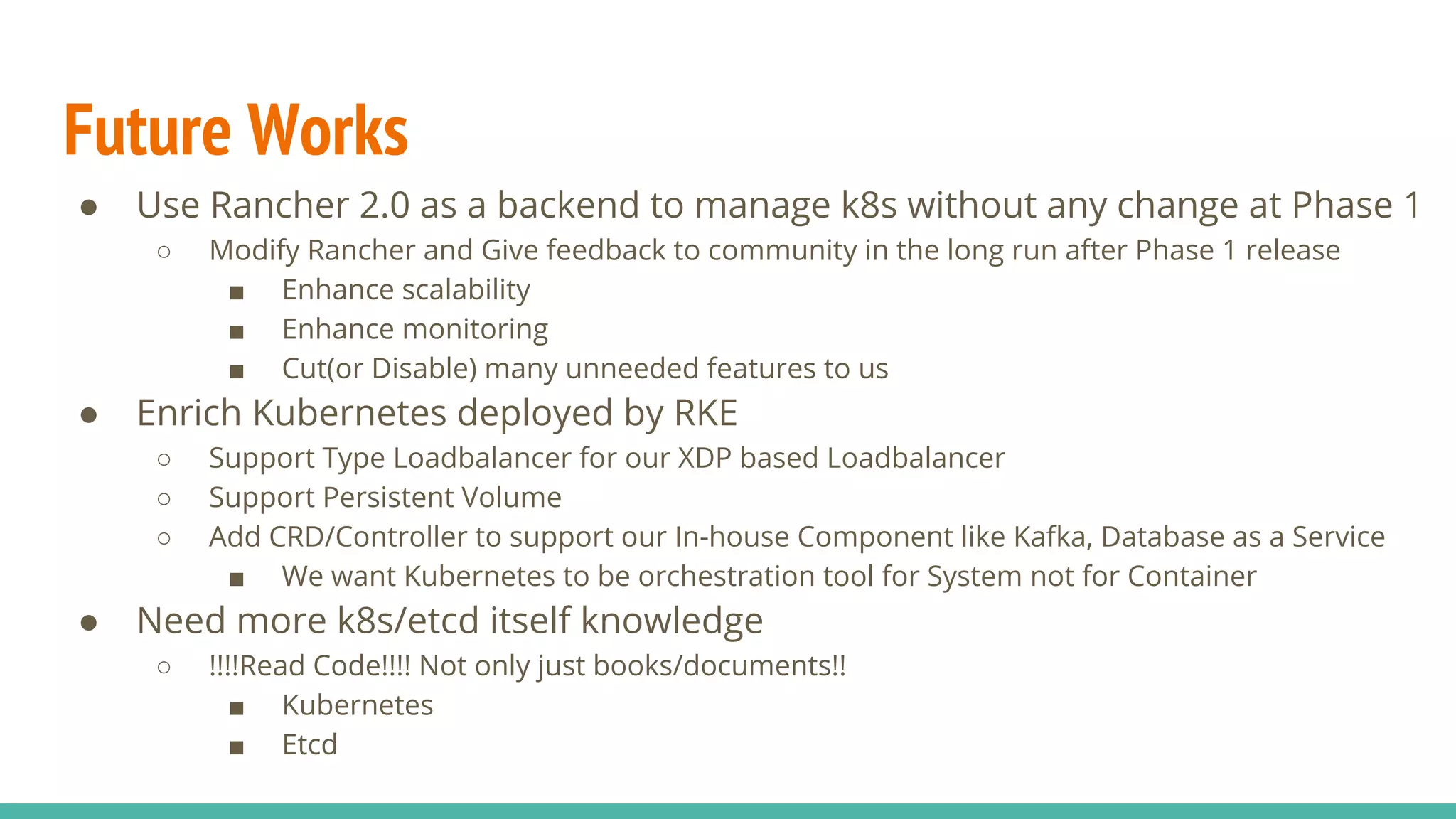

46. Future Works
● Use Rancher 2.0 as a backend to manage k8s without any change at Phase 1
○ Modify Rancher and Give feedback to community in the long run after Phase 1 release
■ Enhance scalability
■ Enhance monitoring
■ Cut(or Disable) many unneeded features to us
● Enrich Kubernetes deployed by RKE
○ Support Type Loadbalancer for our XDP based Loadbalancer
○ Support Persistent Volume
○ Add CRD/Controller to support our In-house Component like Kafka, Database as a Service
■ We want Kubernetes to be orchestration tool for System not for Container
● Need more k8s/etcd itself knowledge
○ !!!!Read Code!!!! Not only just books/documents!!
■ Kubernetes
■ Etcd

47. We are hiring people!!!
● Love to understand/customize OSS at source code level
○ Kubernetes
○ Etcd
○ OpenStack
○ Rancher
○ Ceph...
https://linecorp.com/ja/career/position/827
https://linecorp.com/ja/career/position/564

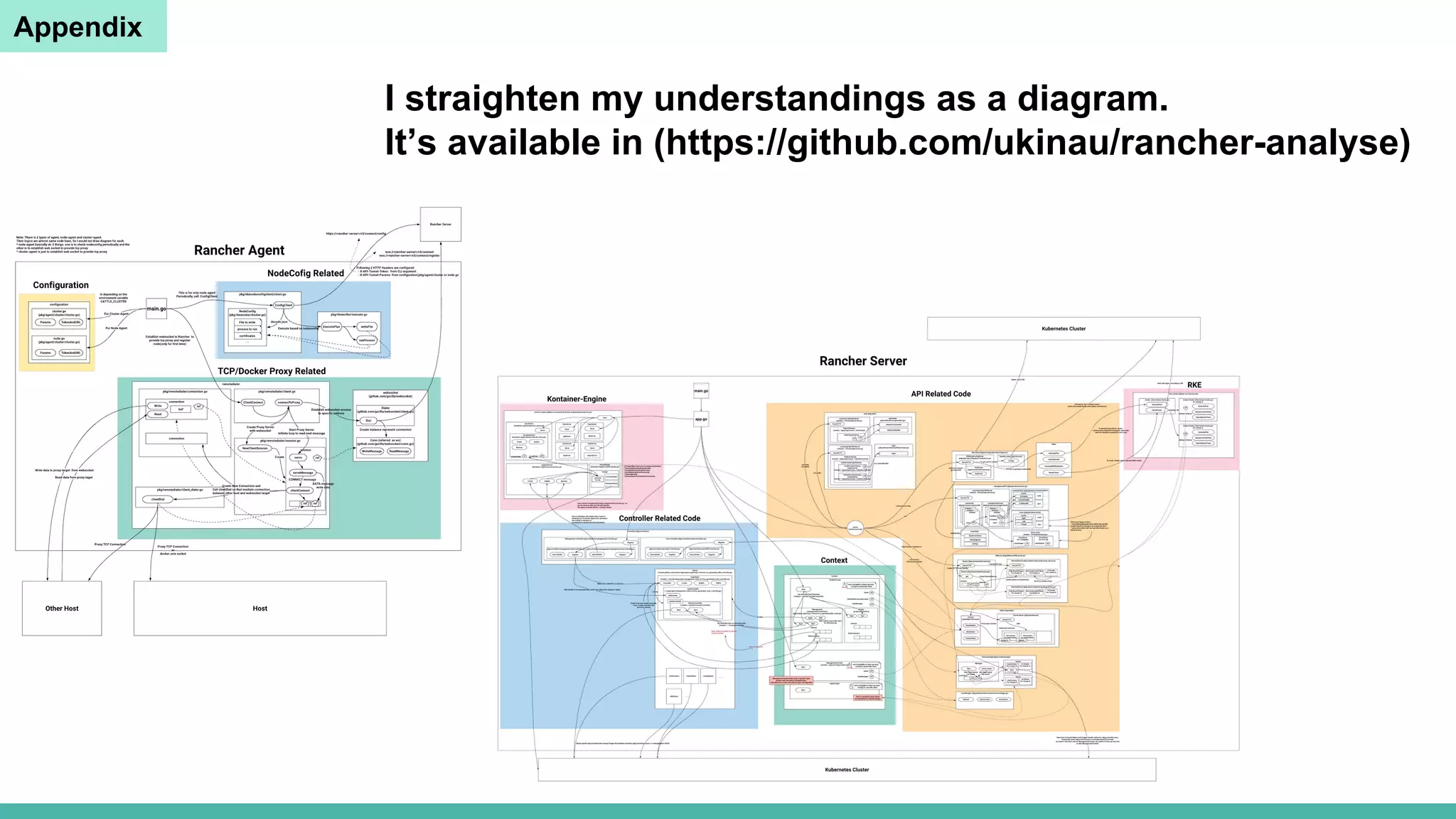

48. Appendix
I straighten my understandings as a diagram.
It’s available in (https://github.com/ukinau/rancher-analyse)

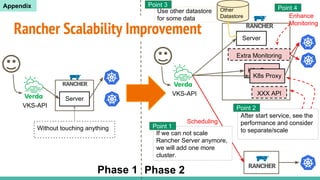

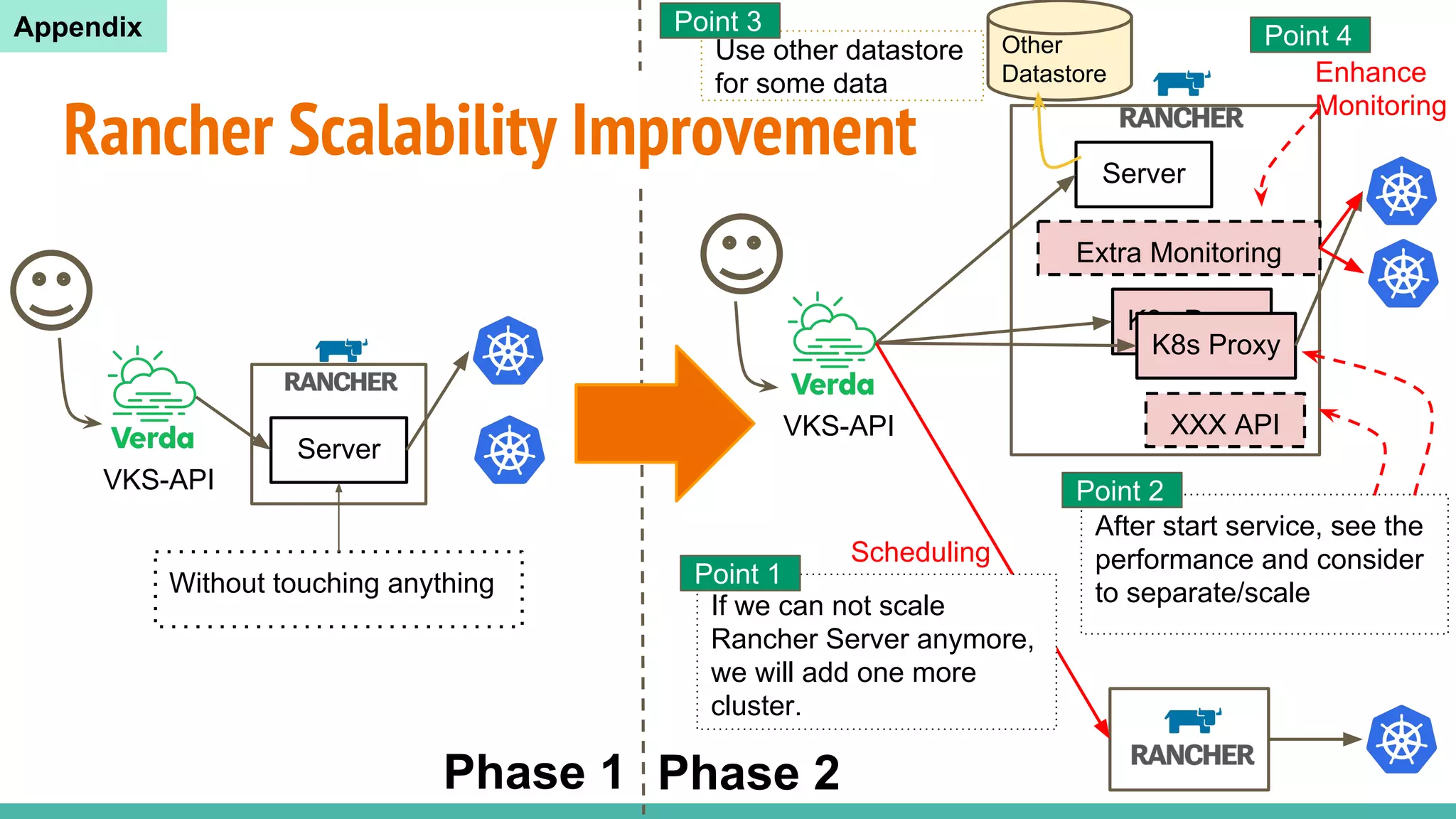

49. VKS-API
Server
VKS-API
Server
K8s Proxy
K8s Proxy
XXX API
After start service, see the
performance and consider
to separate/scaleWithout touching anything
If we can not scale
Rancher Server anymore,
we will add one more
cluster.
Phase 1 Phase 2
Rancher Scalability Improvement
Scheduling
Other
Datastore
Use other datastore
for some data
Extra Monitoring
Enhance
Monitoring
Point 2
Point 1
Point 3
Point 4Appendix

50. Support Type Loadbalancer for in-house LB
We have our own LB
implementation for scaling
Deploy/Configure
Deploy Service with Type Loadbalancer
for our in-house LB
Type
Loadbalancer
In-house LB *1
*1 https://www.janog.gr.jp/meeting/janog40/application/files/6115/0105/4928/janog40_sp6lb.pdf
Appendix

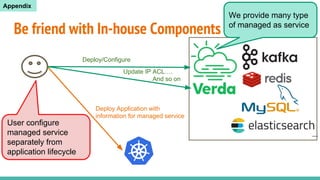

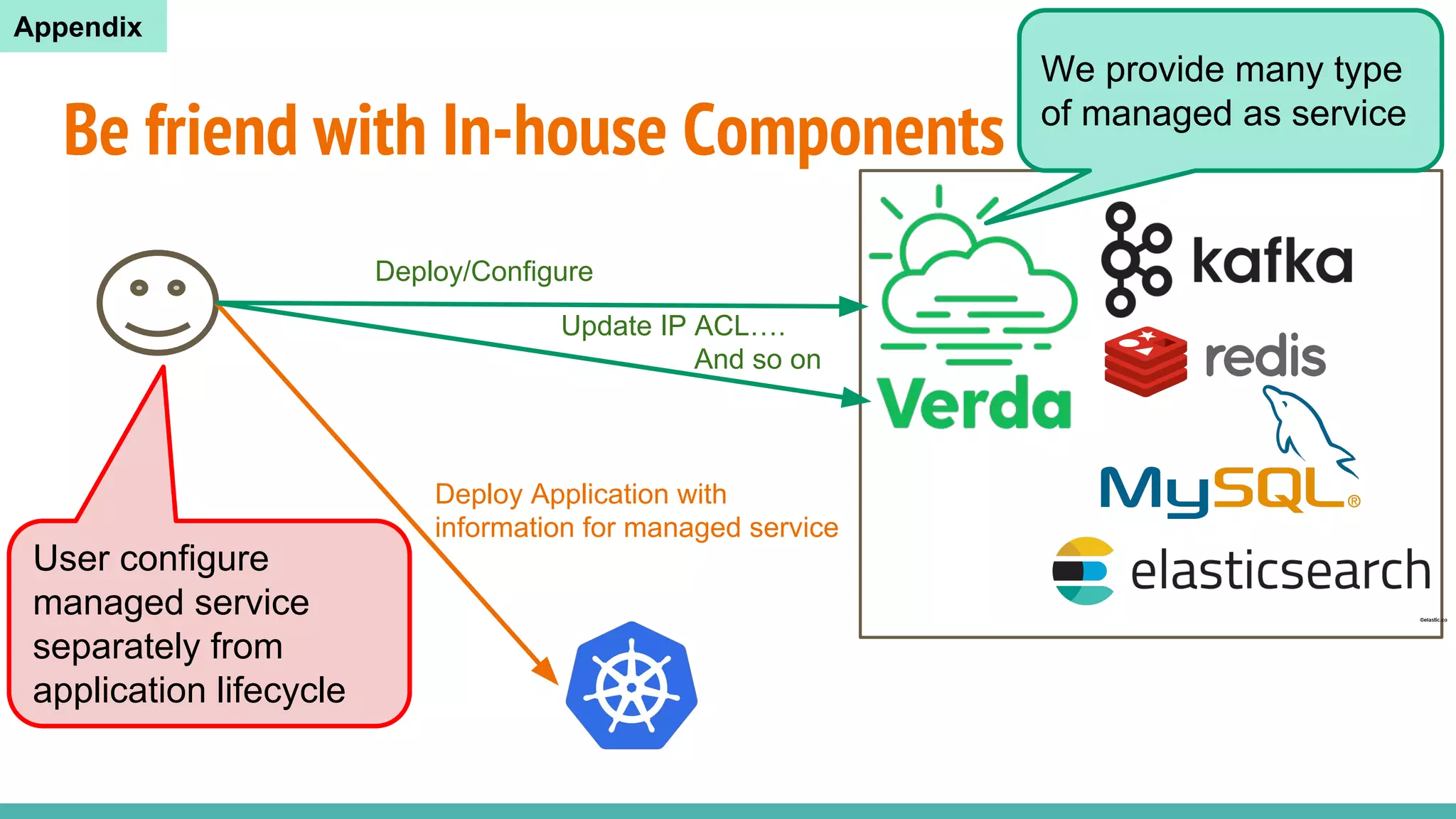

51. Be friend with In-house Components
We provide many type
of managed as service
Deploy/Configure
Deploy Application with
information for managed service
Update IP ACL….
And so on
User configure
managed service
separately from
application lifecycle
Appendix

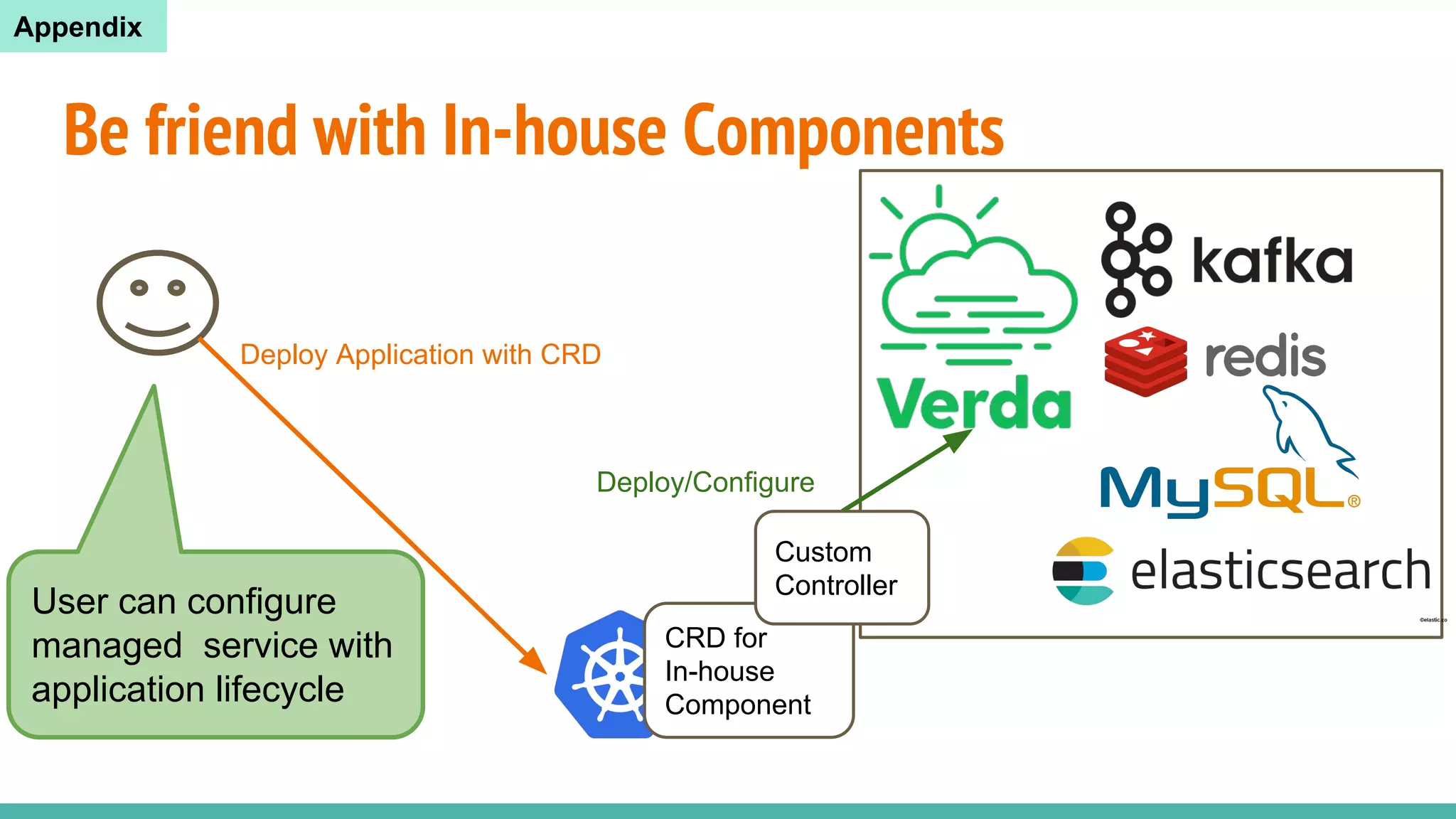

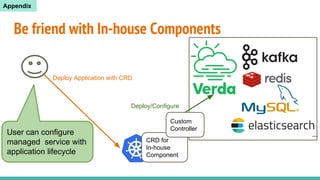

52. Be friend with In-house Components
Deploy/Configure
Deploy Application with CRD
CRD for
In-house
Component
Custom
Controller
User can configure
managed service with
application lifecycle
Appendix
