Uploaded byLINE Corporation
The Magic of LINE 購物 Testing
LINE Shopping provides an e-commerce platform in Taiwan. It has over 9 million monthly visitors, a 40% repurchase rate, and lists over 26 million products from over 1,300 brands. The document discusses how to test the LINE Shopping platform, including unit, API, and UI tests. It also describes tools like Just-API and Pyresttest that can be used to test GraphQL and REST APIs respectively using YAML configuration files.
More Related Content
Similar to The Magic of LINE 購物 Testing
The Magic of LINE 購物 Testing
- 1. The Magic ofLINE 購物 Testing Service QA Engineer winter.hung@linecorp.com cheng.guo@linecorp.com
- 2. What is LINE購物 上線時間：2018年1月18日 月均訪客數：900萬人 回購率：40% 轉換率：12% 平台電商夥伴：20家 品牌電商夥伴：370家 中小企業夥伴 : 1300 家 跨境電商夥伴: 1 家 可搜尋商品數：約2600萬件

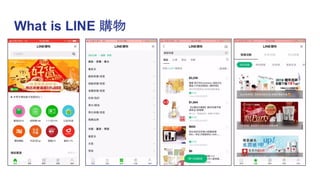

- 3.

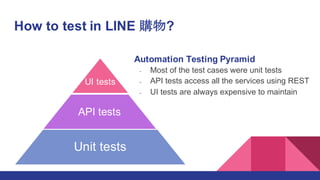

- 4. How to testin LINE 購物? UI tests API tests Unit tests Automation Testing Pyramid - Most of the test cases were unit tests - API tests access all the services using REST - UI tests are always expensive to maintain

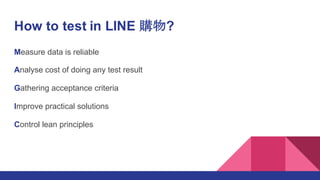

- 5. How to testin LINE 購物? Measure data is reliable Analyse cost of doing any test result Gathering acceptance criteria Improve practical solutions Control lean principles

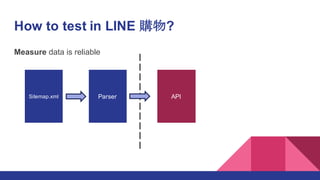

- 6. How to testin LINE 購物? Measure data is reliable Sitemap.xml APIParser

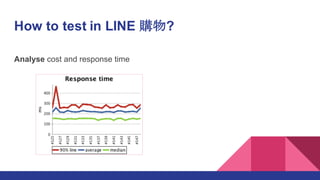

- 7. How to testin LINE 購物? Analyse cost and response time

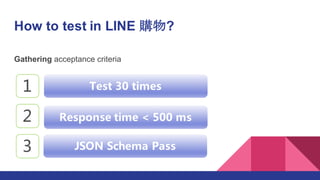

- 8. How to testin LINE 購物? Gathering acceptance criteria 1 Test 30 times 2 3 Response time < 500 ms JSON Schema Pass
- 9. How to testin LINE 購物? Improve practical solutions Continuous Testing (24HR) monitor (30min) LINE Notify Health Check (every minute)
- 10. How to testin LINE 購物? Control lean principles tools

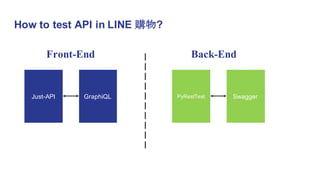

- 11. How to testAPI in LINE 購物? Front-End Just-API GraphiQL Back-End PyRestTest Swagger
- 12.

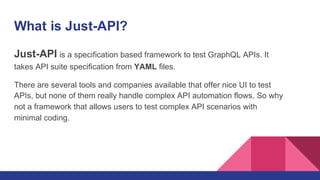

- 13. What is Just-API? Just-APIis a specification based framework to test GraphQL APIs. It takes API suite specification from YAML files. There are several tools and companies available that offer nice UI to test APIs, but none of them really handle complex API automation flows. So why not a framework that allows users to test complex API scenarios with minimal coding.

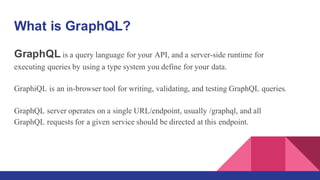

- 14. What is GraphQL? GraphQLis a query language for your API, and a server-side runtime for executing queries by using a type system you define for your data. GraphiQL is an in-browser tool for writing, validating, and testing GraphQL queries. GraphQL server operates on a single URL/endpoint, usually /graphql, and all GraphQL requests for a given service should be directed at this endpoint.
- 15. GraphQL Query Type getLocation(ip:String!){ Type country{ iso_code: String } } } { getLocation(ip: "8.8.8.8") { country{ iso_code } } } { "data": { "getLocation": { "country": { "iso_code": "US" } } } } Schema Query Server Response

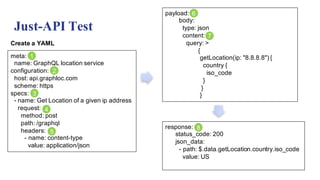

- 16. Just-API Test meta: name: GraphQLlocation service configuration: host: api.graphloc.com scheme: https specs: - name: Get Location of a given ip address request: method: post path: /graphql headers: - name: content-type value: application/json payload: body: type: json content: query: > { getLocation(ip: "8.8.8.8") { country { iso_code } } } Create a YAML response: status_code: 200 json_data: - path: $.data.getLocation.country.iso_code value: US 1 2 3 4 5 6 7 8

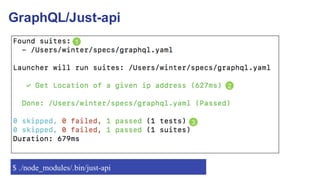

- 17.
- 18.

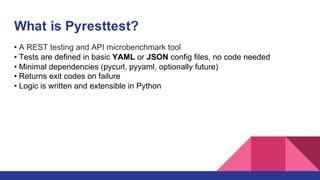

- 19. What is Pyresttest? •A REST testing and API microbenchmark tool • Tests are defined in basic YAML or JSON config files, no code needed • Minimal dependencies (pycurl, pyyaml, optionally future) • Returns exit codes on failure • Logic is written and extensible in Python

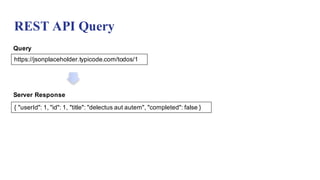

- 20. REST API Query https://jsonplaceholder.typicode.com/todos/1 {"userId": 1, "id": 1, "title": "delectus aut autem", "completed": false } Query Server Response

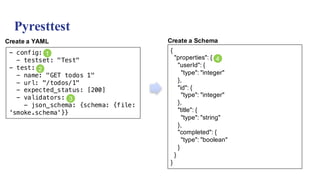

- 21. Pyresttest - config: - testset:"Test" - test: - name: "GET todos 1" - url: "/todos/1" - expected_status: [200] - validators: - json_schema: {schema: {file: 'smoke.schema'}} Create a YAML Create a Schema { "properties": { "userId": { "type": "integer" }, "id": { "type": "integer" }, "title": { "type": "string" }, "completed": { "type": "boolean" } } } 1 2 3 4

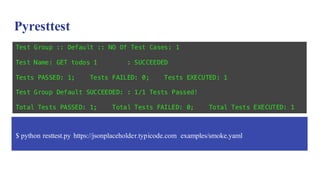

- 22. Pyresttest $ python resttest.pyhttps://jsonplaceholder.typicode.com examples/smoke.yaml Test Group :: Default :: NO Of Test Cases: 1 Test Name: GET todos 1 : SUCCEEDED Tests PASSED: 1; Tests FAILED: 0; Tests EXECUTED: 1 Test Group Default SUCCEEDED: : 1/1 Tests Passed! Total Tests PASSED: 1; Total Tests FAILED: 0; Total Tests EXECUTED: 1

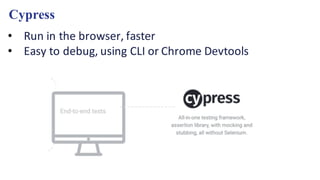

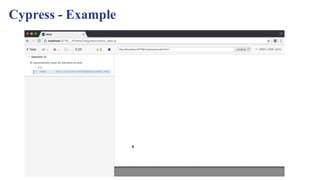

- 23. Magic Measure A GAIn Cypress
- 24.
- 25.
- 26. Fixture Load a fixedset of data located in a file.
- 27.

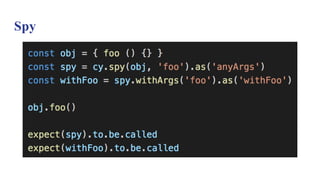

- 28.

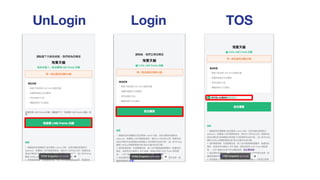

- 29.

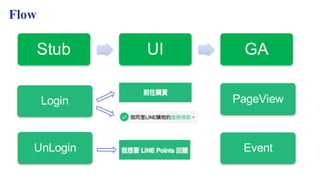

- 30.
- 31.

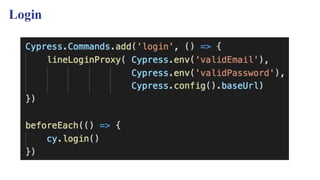

- 32.
- 33.
- 34.

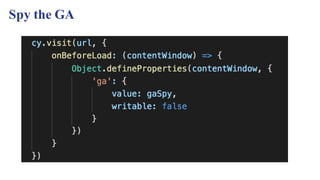

- 35.

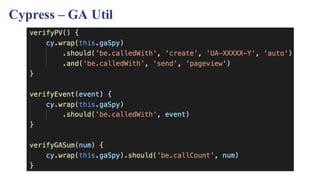

- 36. Cypress – GAUtil

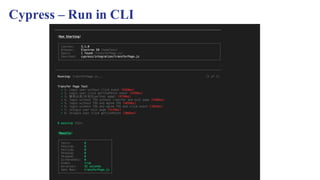

- 38. Cypress – Runin CLI
- 40. Thank you! Service QAEngineer winter.hung@linecorp.com cheng.guo@linecorp.com
