In this tutorial, we explore matrices in R. They are two dimensional arrays and homogeneous i.e. they can hold a single type of data.

1. www.r-squared.in/git-hub
R2
Academy R Programming: Matrix

2. R2

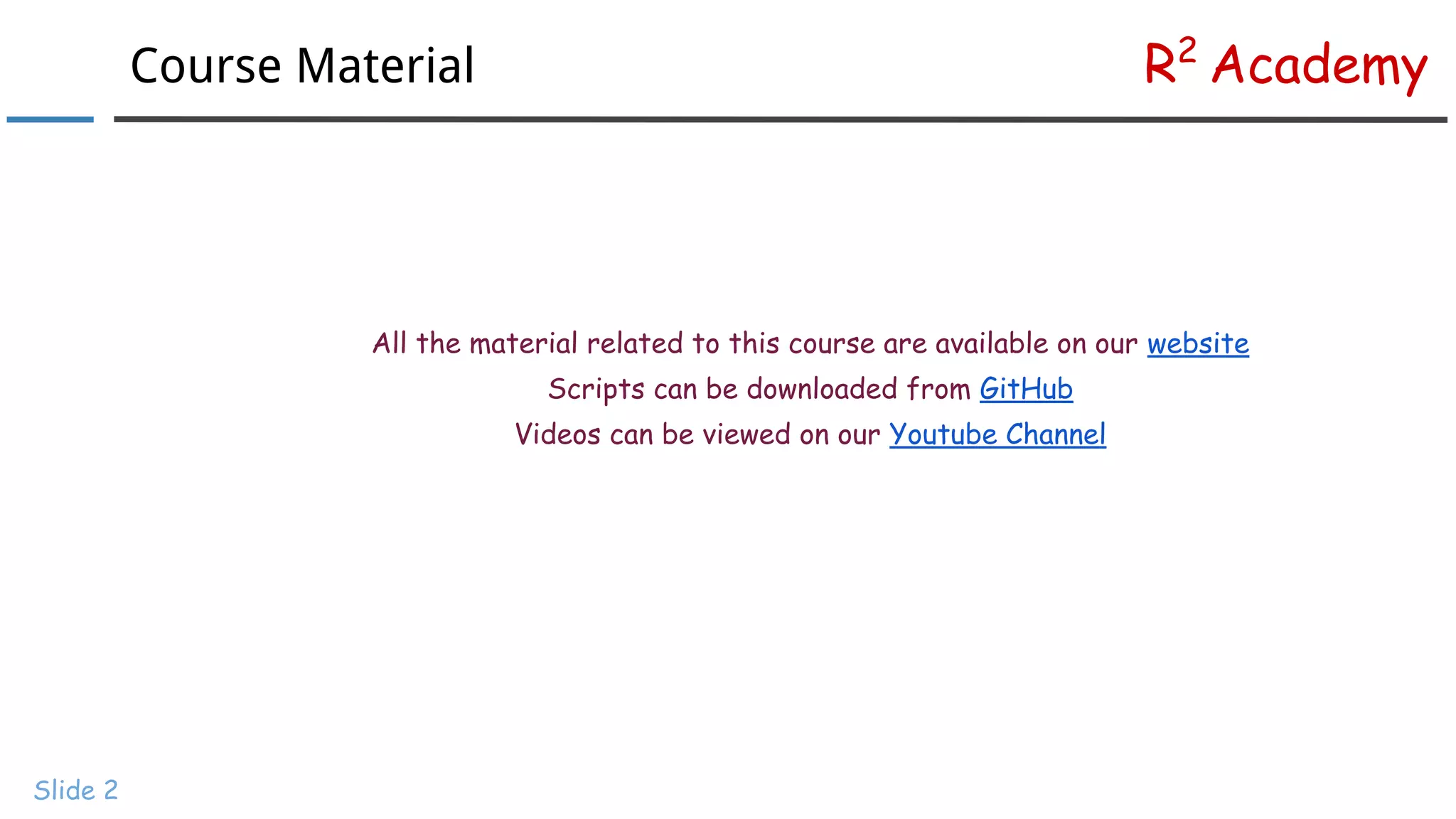

AcademyCourse Material

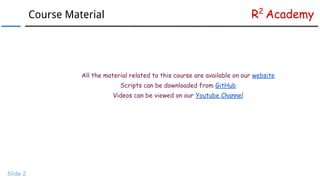

Slide 2
All the material related to this course are available on our website
Scripts can be downloaded from GitHub
Videos can be viewed on our Youtube Channel

3. R2

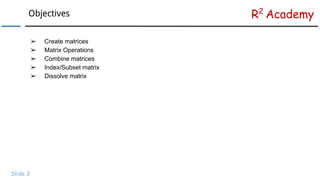

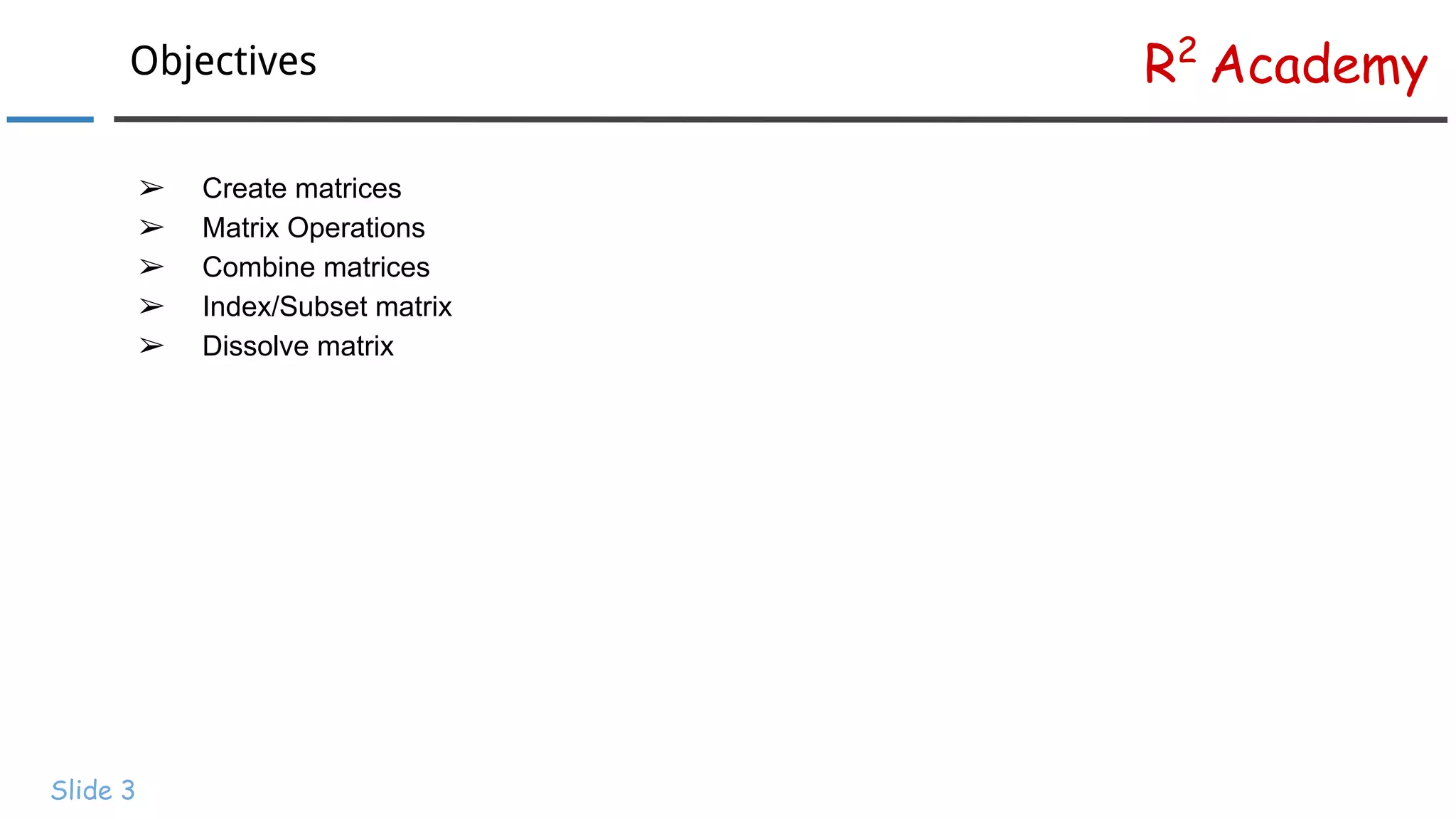

AcademyObjectives
Slide 3
➢ Create matrices
➢ Matrix Operations
➢ Combine matrices
➢ Index/Subset matrix
➢ Dissolve matrix

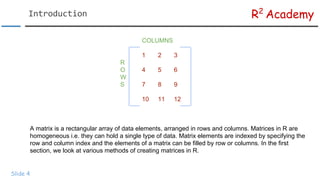

4. R2
Academy
Slide 4

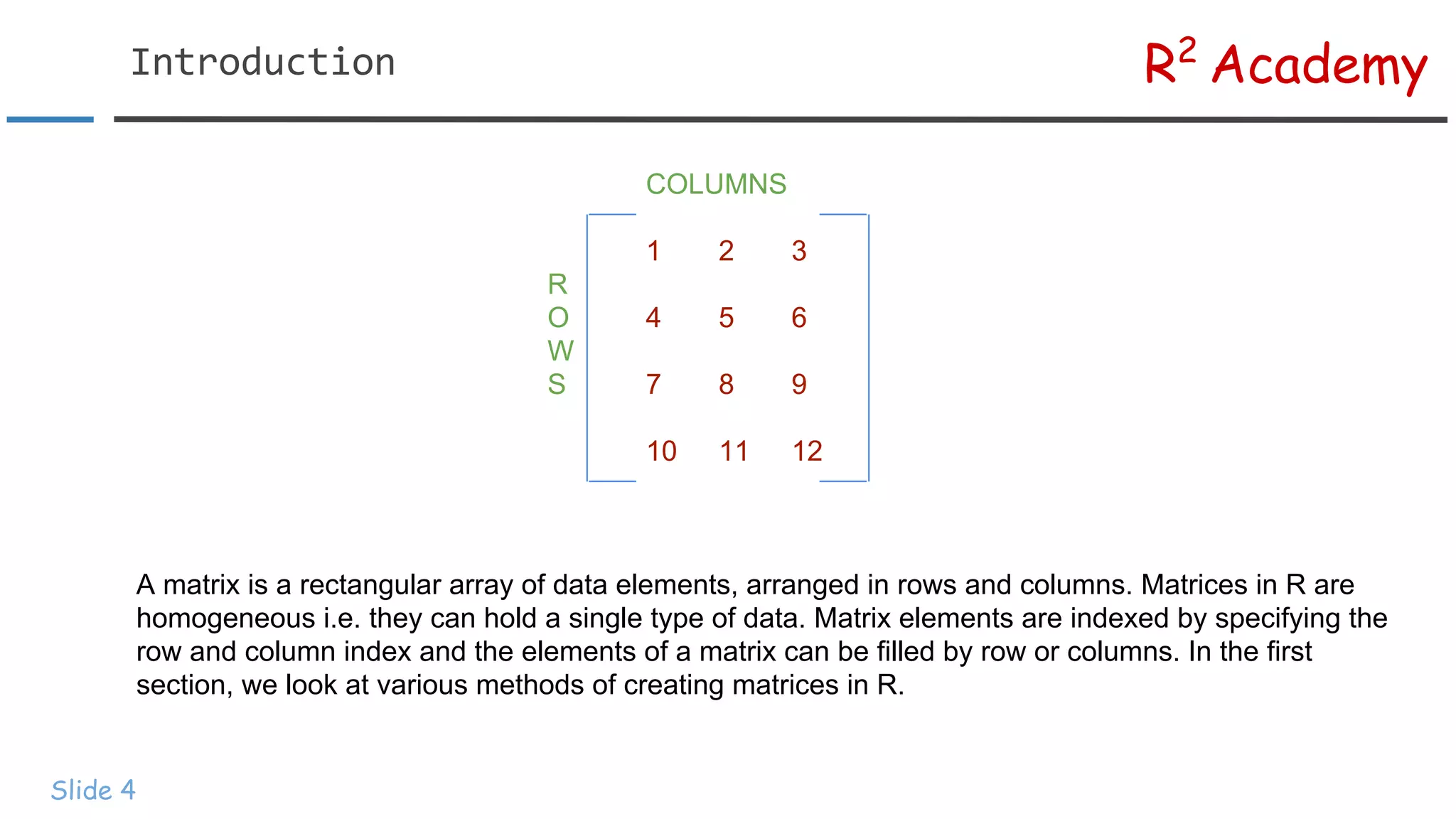

COLUMNS
1 2 3
R
O 4 5 6
W
S 7 8 9
10 11 12
A matrix is a rectangular array of data elements, arranged in rows and columns. Matrices in R are
homogeneous i.e. they can hold a single type of data. Matrix elements are indexed by specifying the
row and column index and the elements of a matrix can be filled by row or columns. In the first
section, we look at various methods of creating matrices in R.

5. R2
Academy
Slide 5

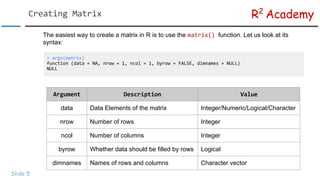

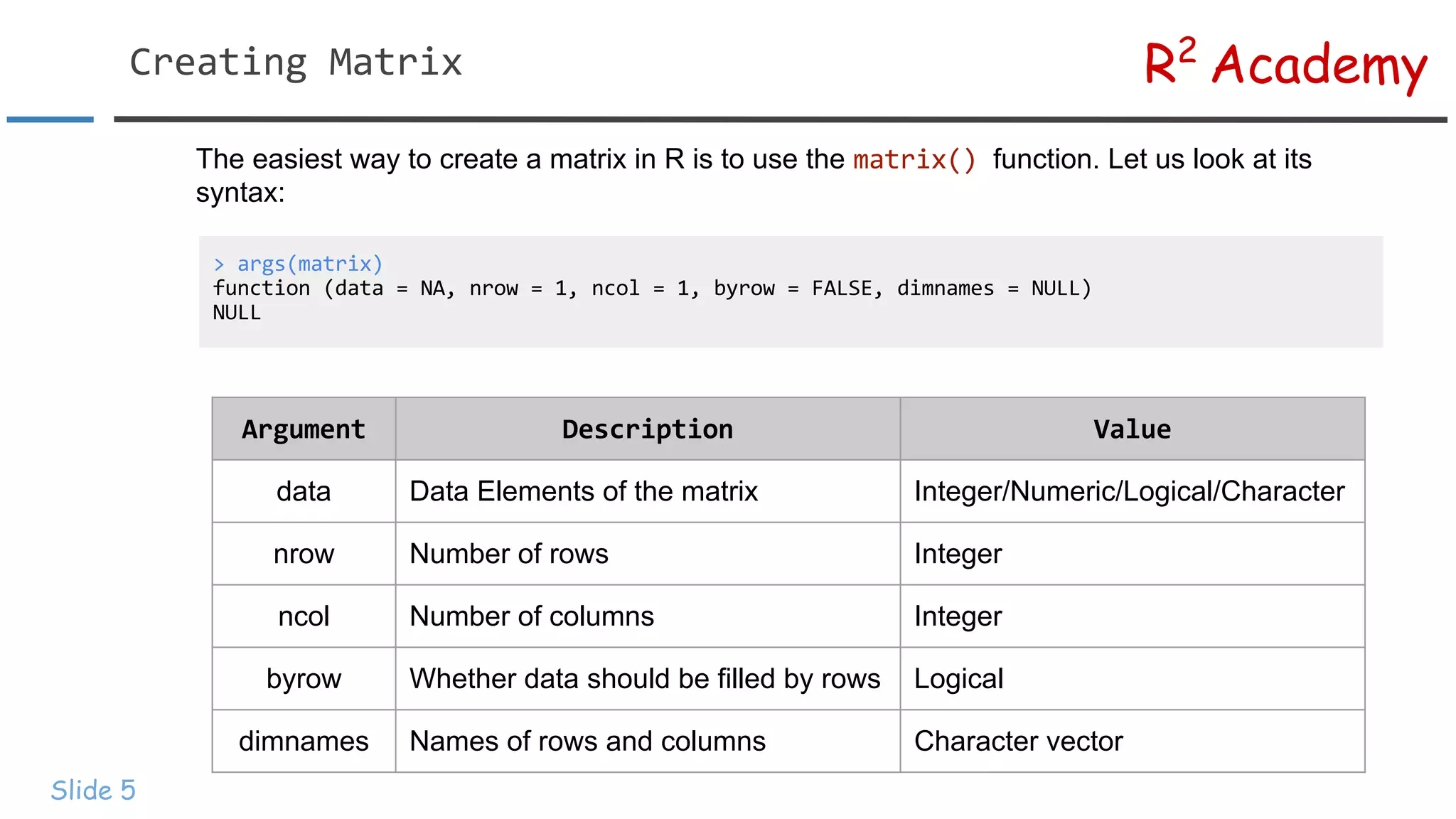

The easiest way to create a matrix in R is to use the function. Let us look at its
syntax:
data Data Elements of the matrix Integer/Numeric/Logical/Character
nrow Number of rows Integer
ncol Number of columns Integer
byrow Whether data should be filled by rows Logical
dimnames Names of rows and columns Character vector

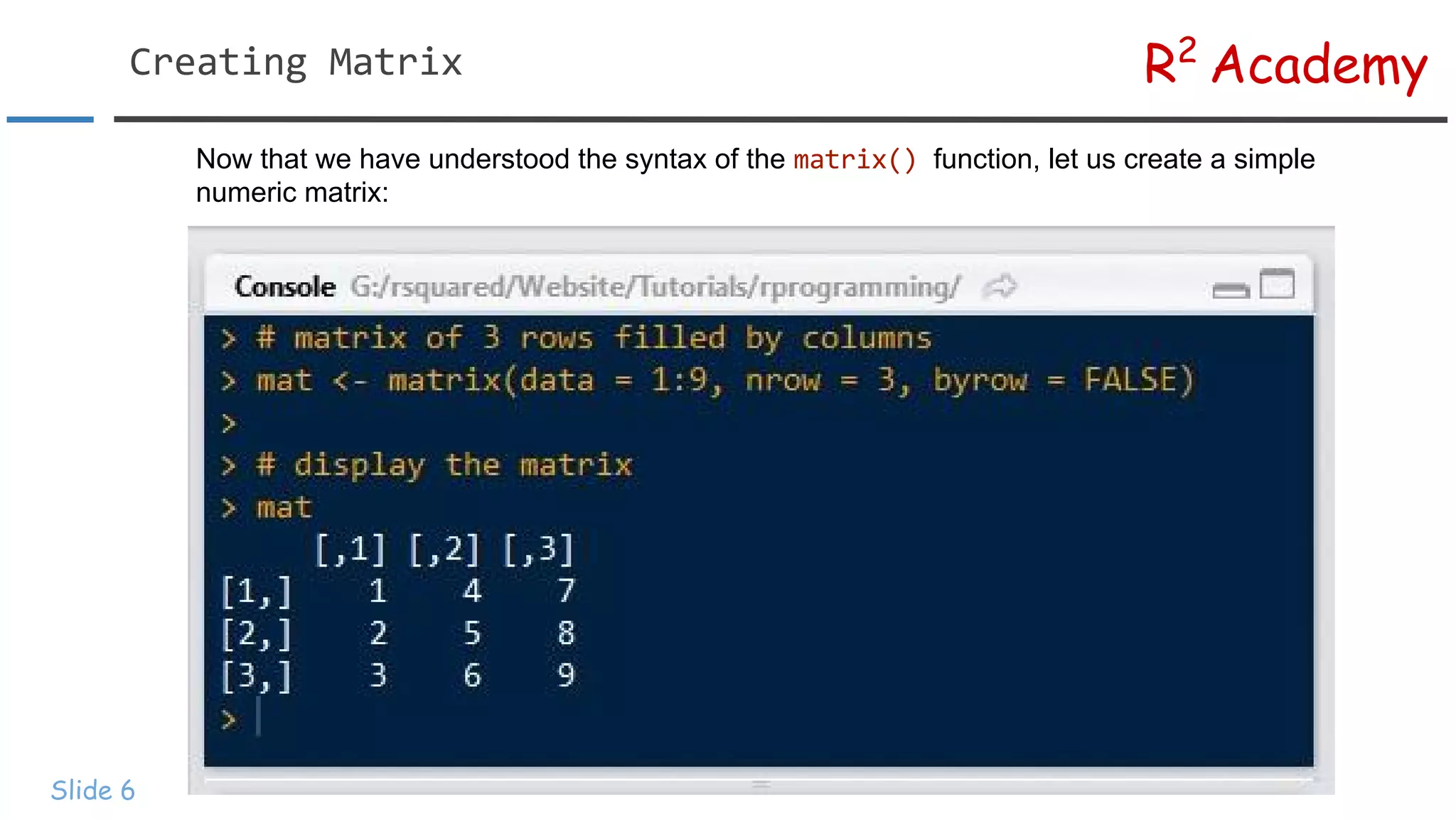

6. R2
Academy
Slide 6
Now that we have understood the syntax of the function, let us create a simple
numeric matrix:

7. R2
Academy
Slide 7

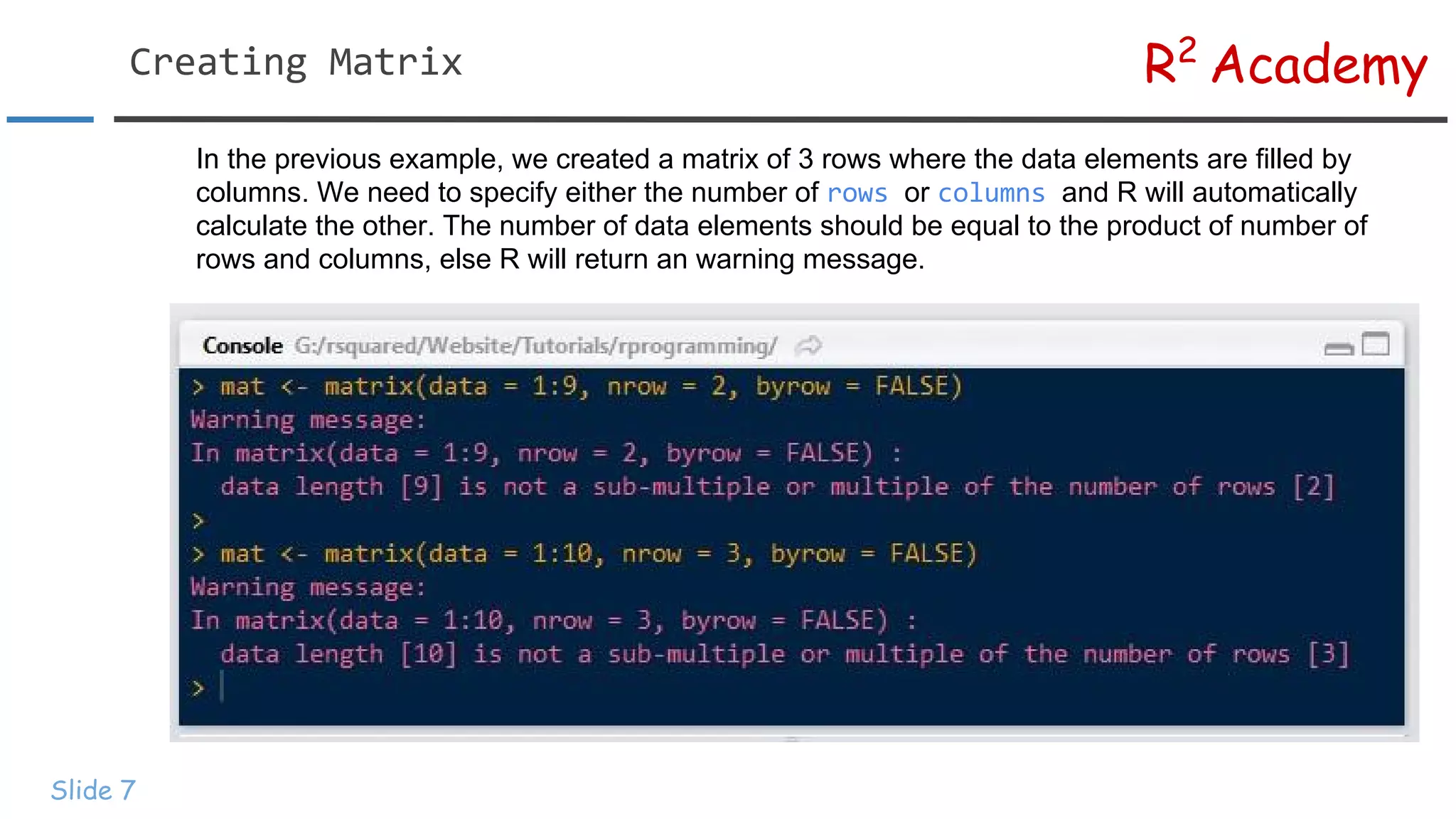

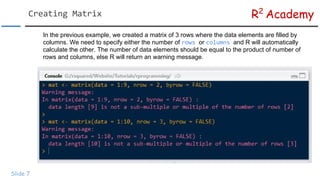

In the previous example, we created a matrix of 3 rows where the data elements are filled by
columns. We need to specify either the number of or and R will automatically
calculate the other. The number of data elements should be equal to the product of number of
rows and columns, else R will return an warning message.

8. R2
Academy
Slide 8

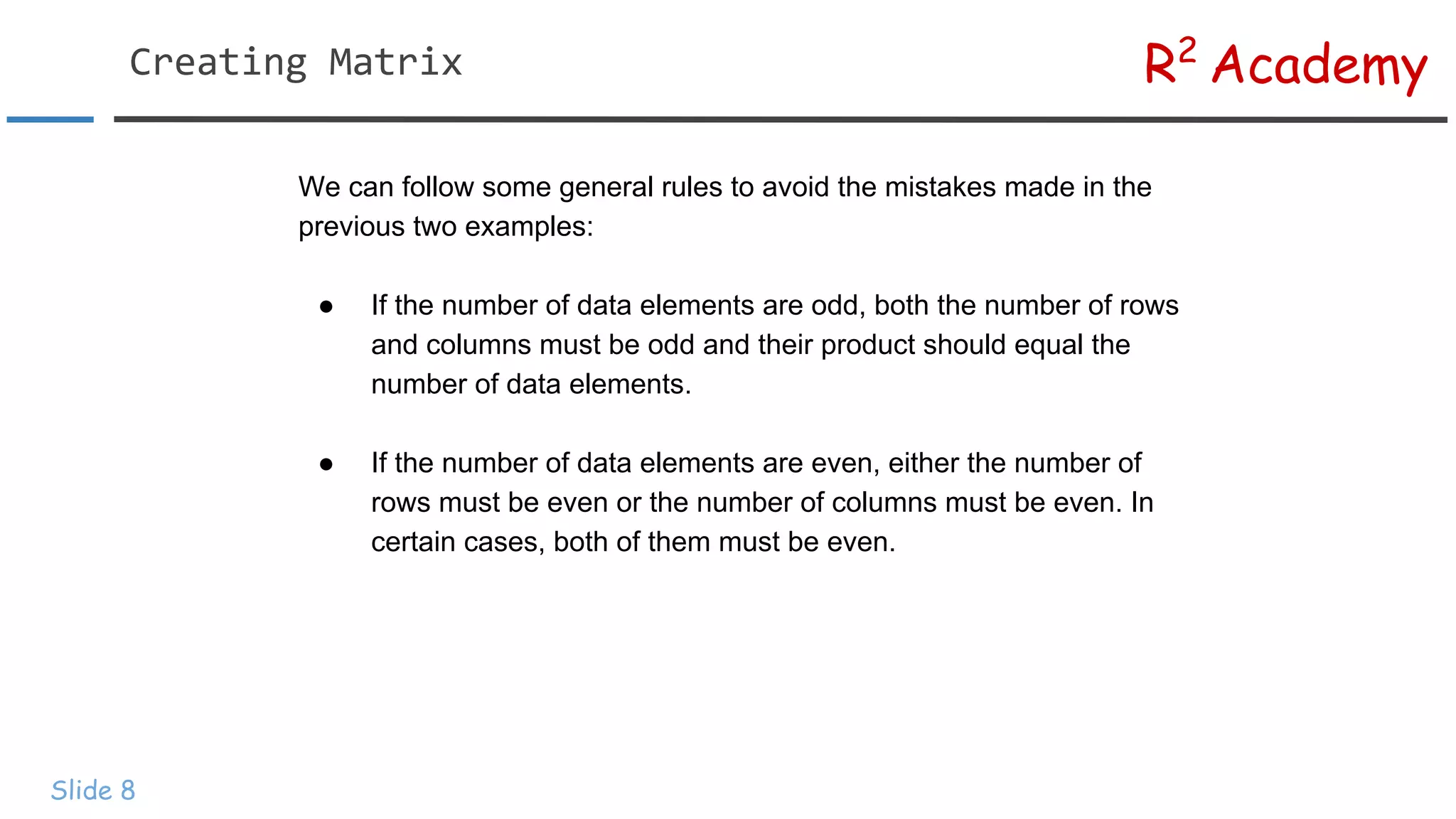

We can follow some general rules to avoid the mistakes made in the
previous two examples:
● If the number of data elements are odd, both the number of rows
and columns must be odd and their product should equal the
number of data elements.
● If the number of data elements are even, either the number of
rows must be even or the number of columns must be even. In
certain cases, both of them must be even.

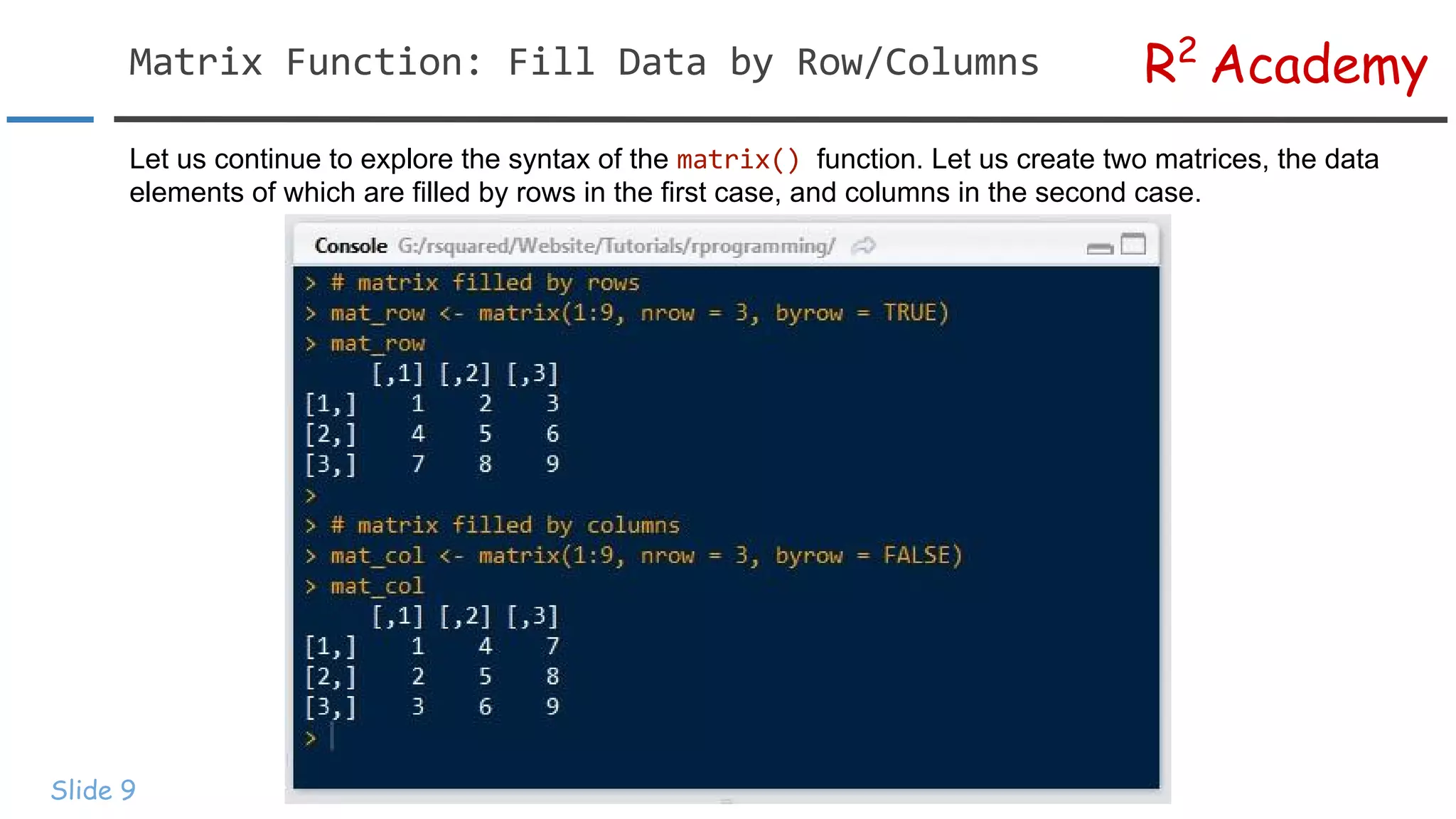

9. R2
Academy
Slide 9
Let us continue to explore the syntax of the function. Let us create two matrices, the data
elements of which are filled by rows in the first case, and columns in the second case.

10. R2
Academy
Slide 10

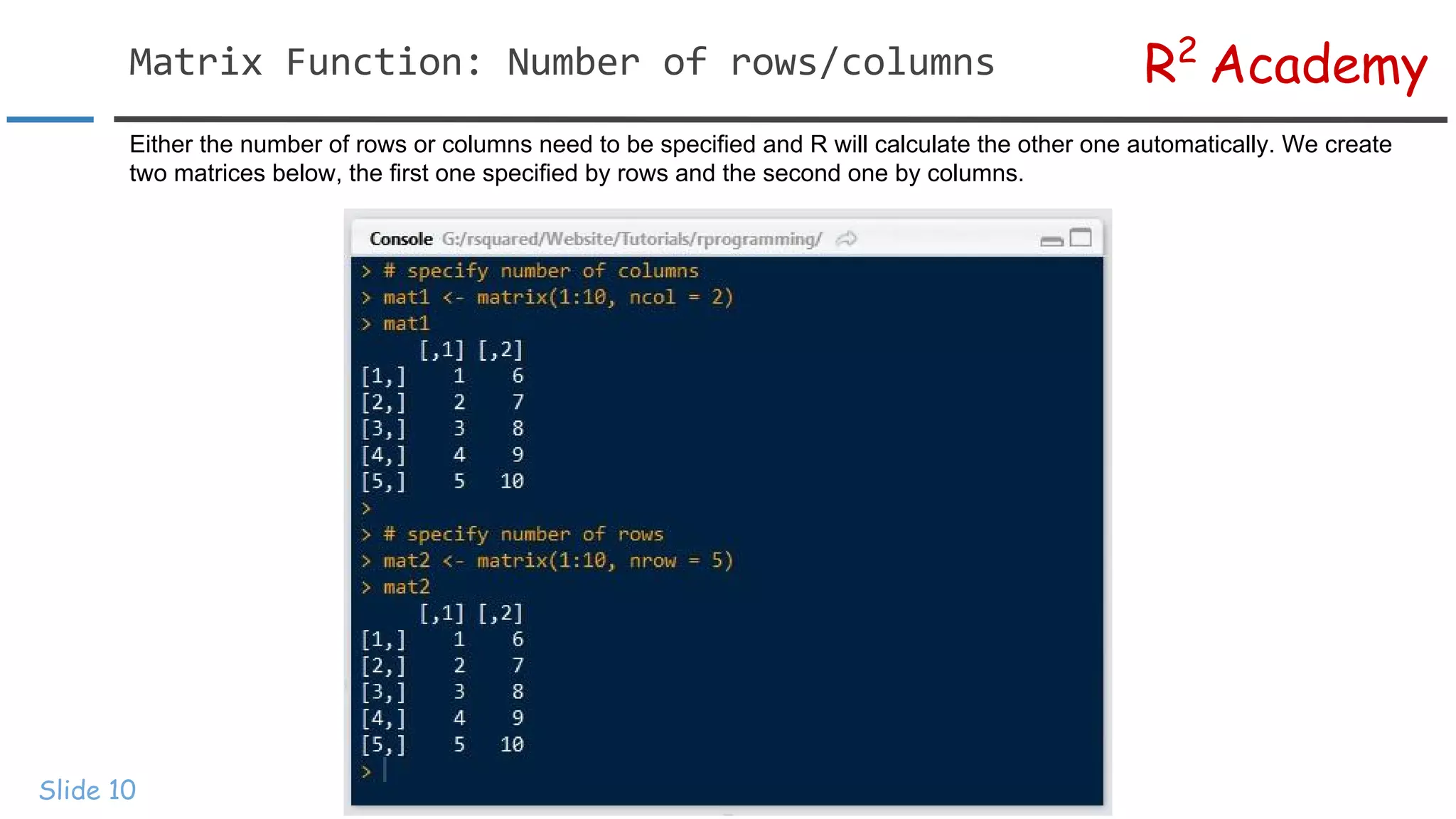

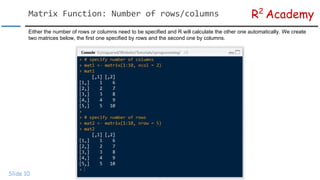

Either the number of rows or columns need to be specified and R will calculate the other one automatically. We create
two matrices below, the first one specified by rows and the second one by columns.

11. R2
Academy
Slide 11

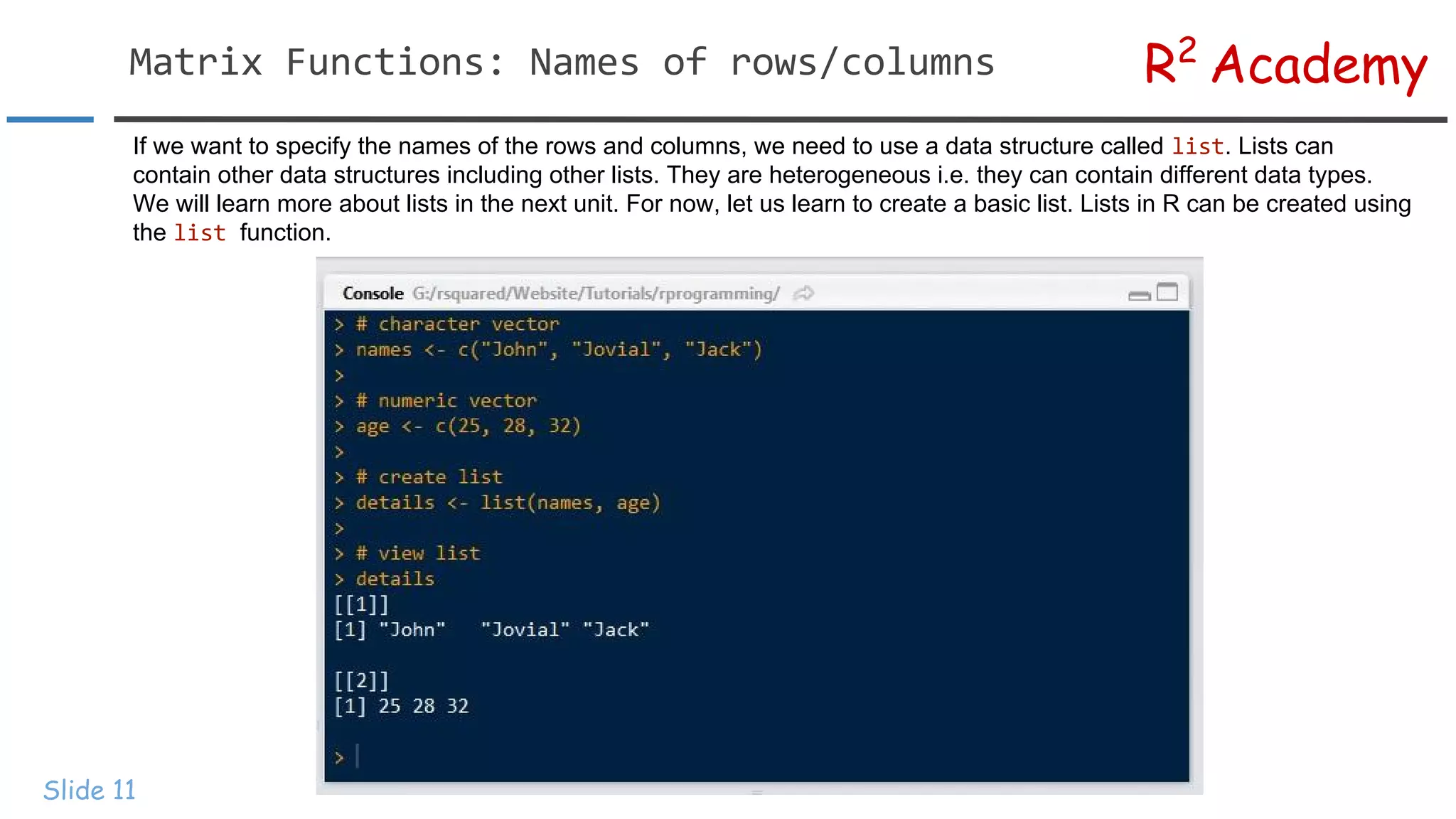

If we want to specify the names of the rows and columns, we need to use a data structure called . Lists can
contain other data structures including other lists. They are heterogeneous i.e. they can contain different data types.
We will learn more about lists in the next unit. For now, let us learn to create a basic list. Lists in R can be created using
the function.

12. R2
Academy
Slide 12

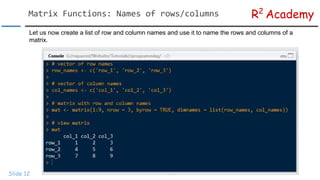

Let us now create a list of row and column names and use it to name the rows and columns of a
matrix.

13. R2
Academy
Slide 13

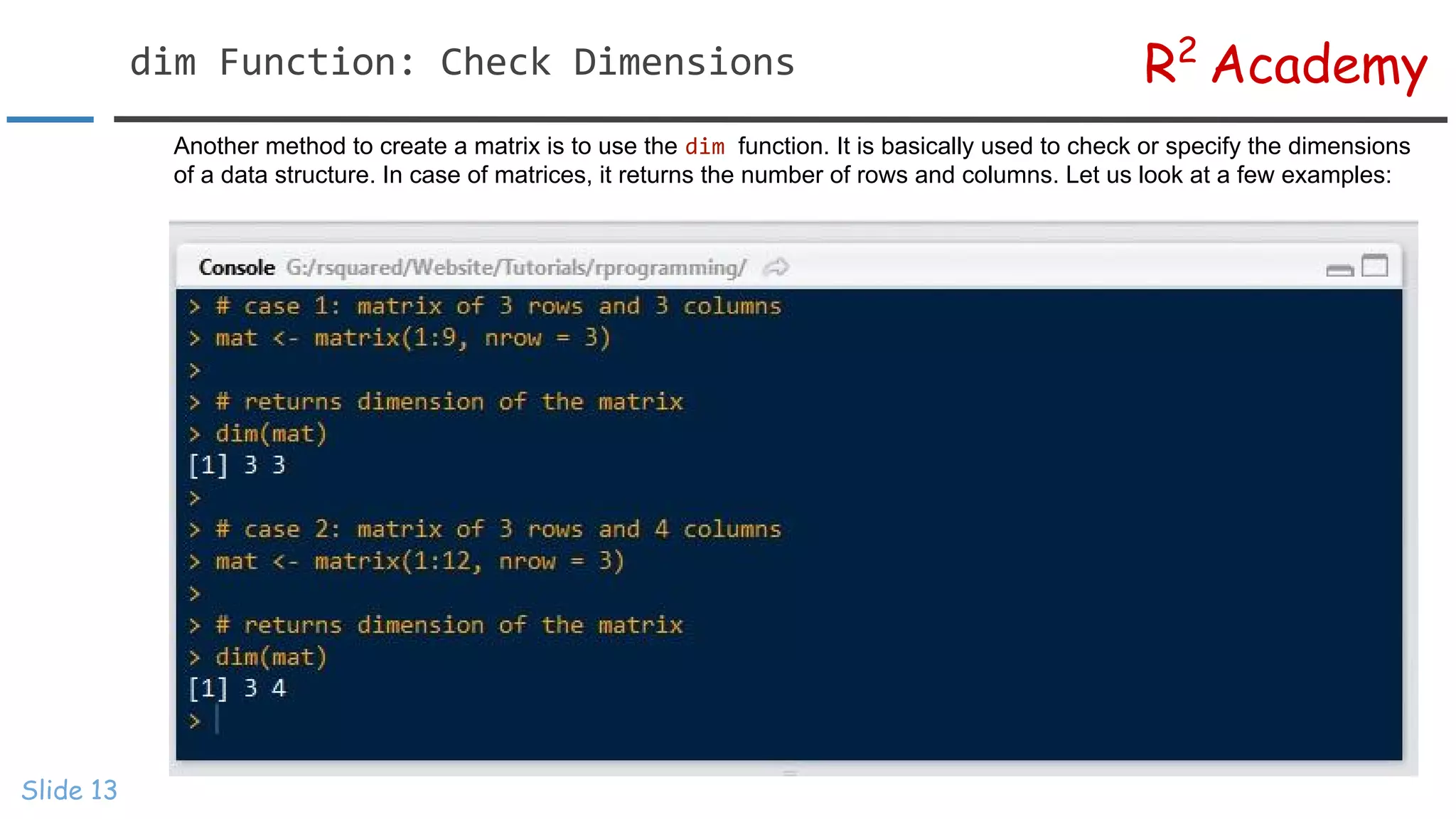

Another method to create a matrix is to use the function. It is basically used to check or specify the dimensions
of a data structure. In case of matrices, it returns the number of rows and columns. Let us look at a few examples:

14. R2
Academy
Slide 14

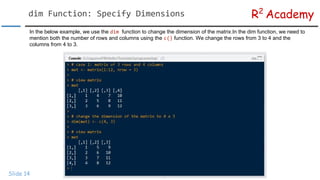

In the below example, we use the function to change the dimension of the matrix.In the dim function, we need to
mention both the number of rows and columns using the function. We change the rows from 3 to 4 and the
columns from 4 to 3.

15. R2
Academy
Slide 15

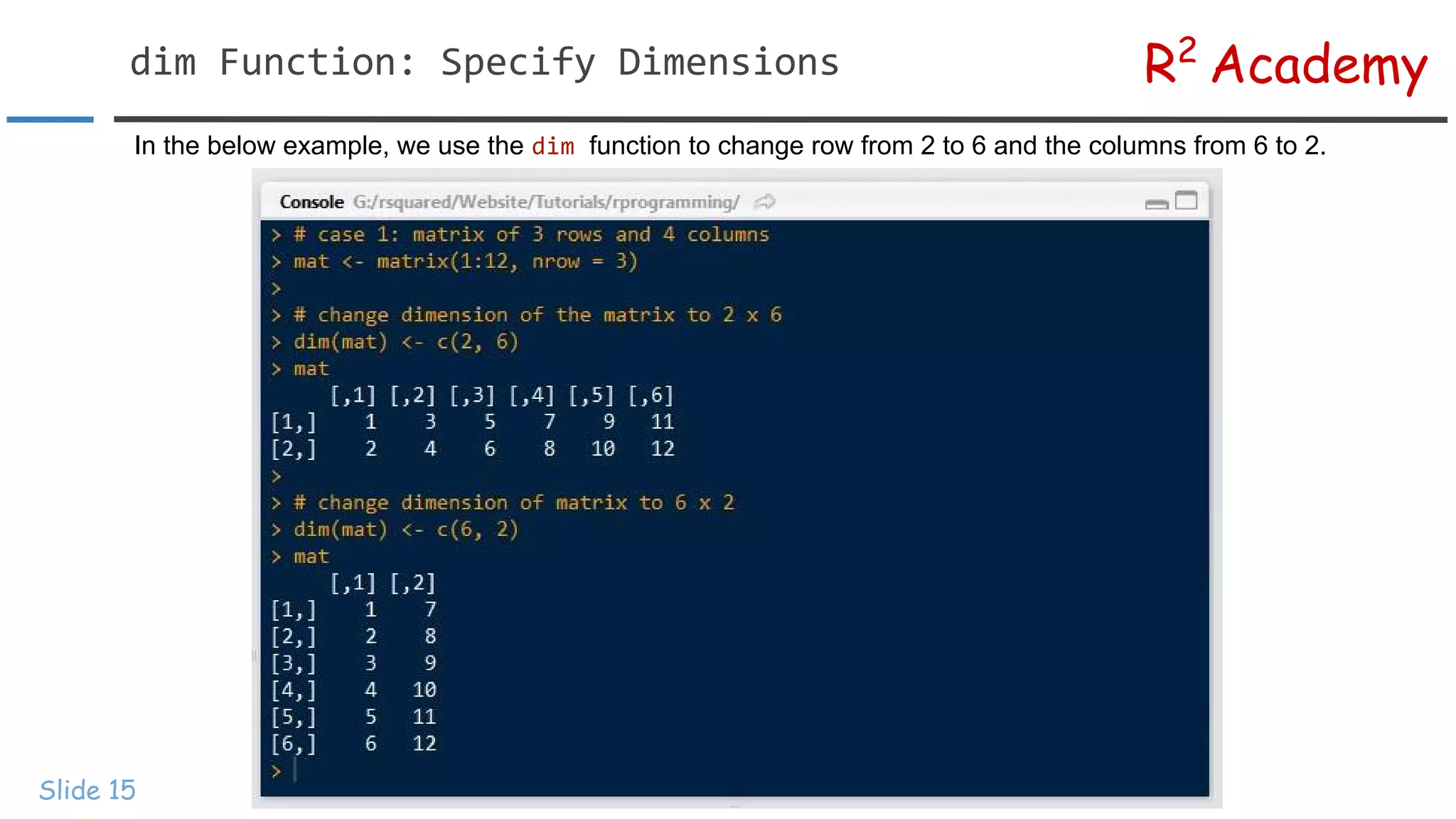

In the below example, we use the function to change row from 2 to 6 and the columns from 6 to 2.

16. R2
Academy
Slide 16

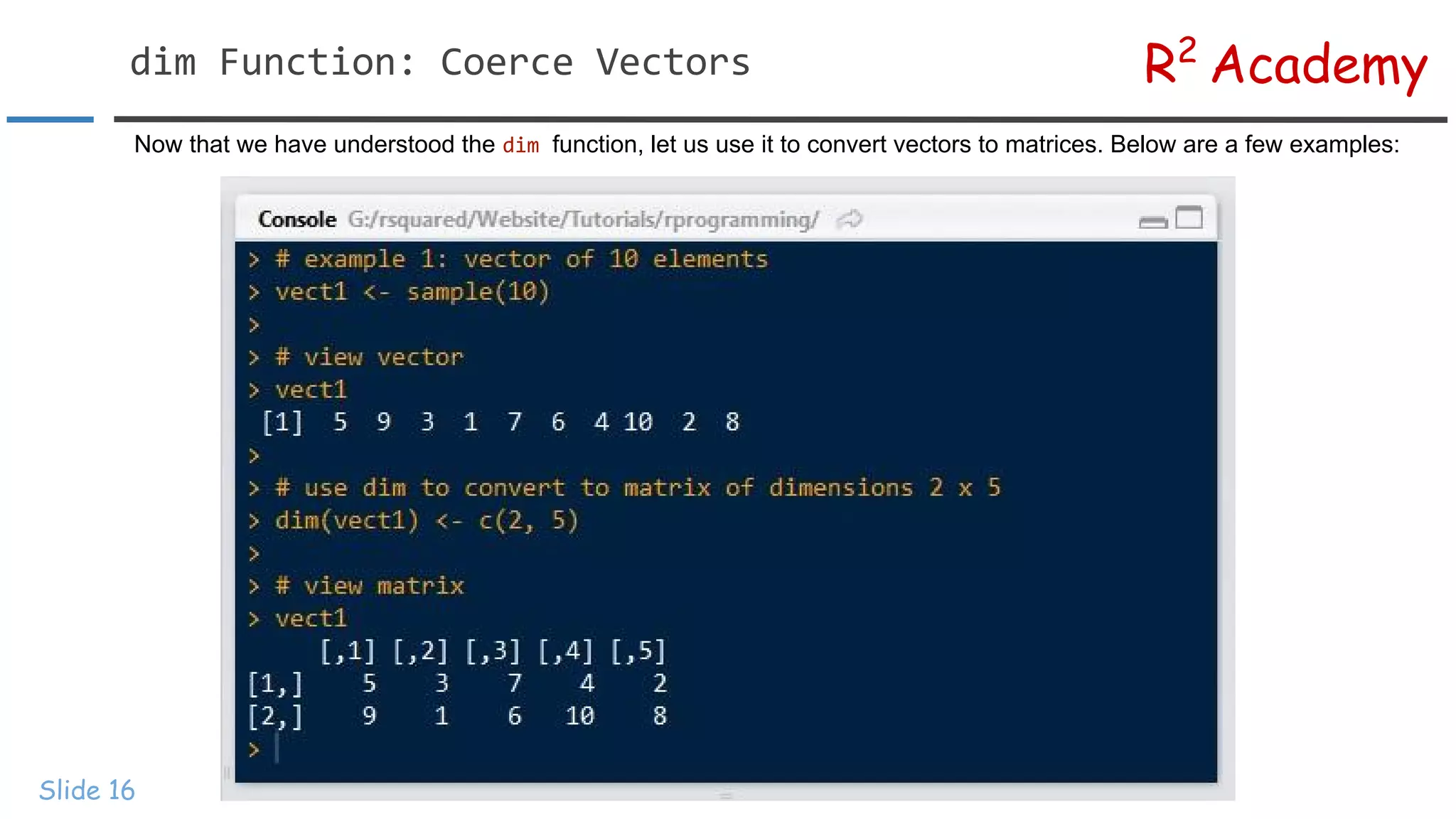

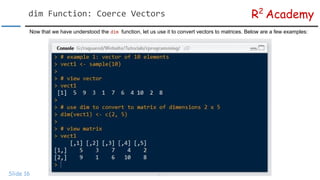

Now that we have understood the function, let us use it to convert vectors to matrices. Below are a few examples:

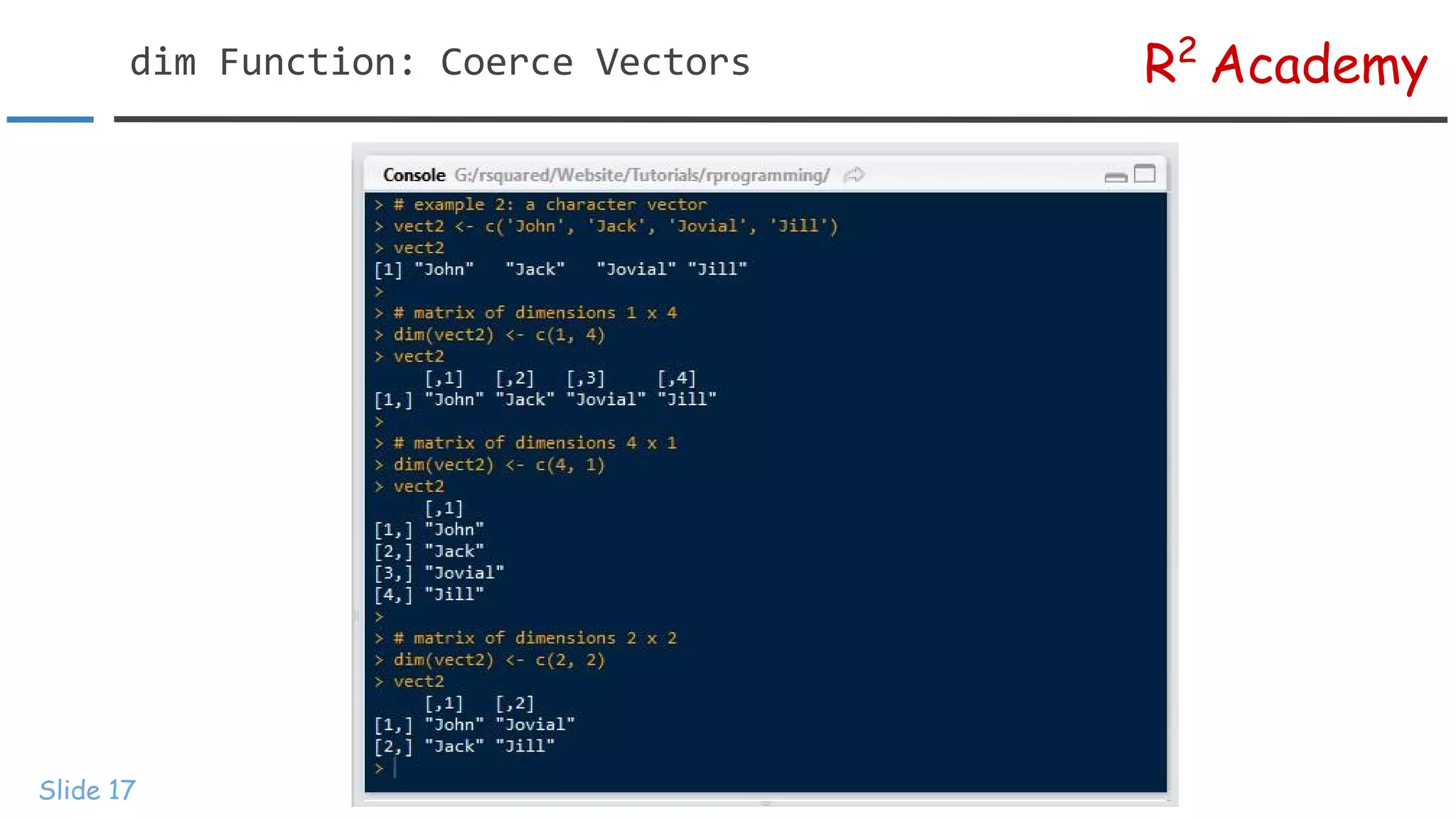

17. R2
Academy
Slide 17

18. R2
Academy
Slide 18

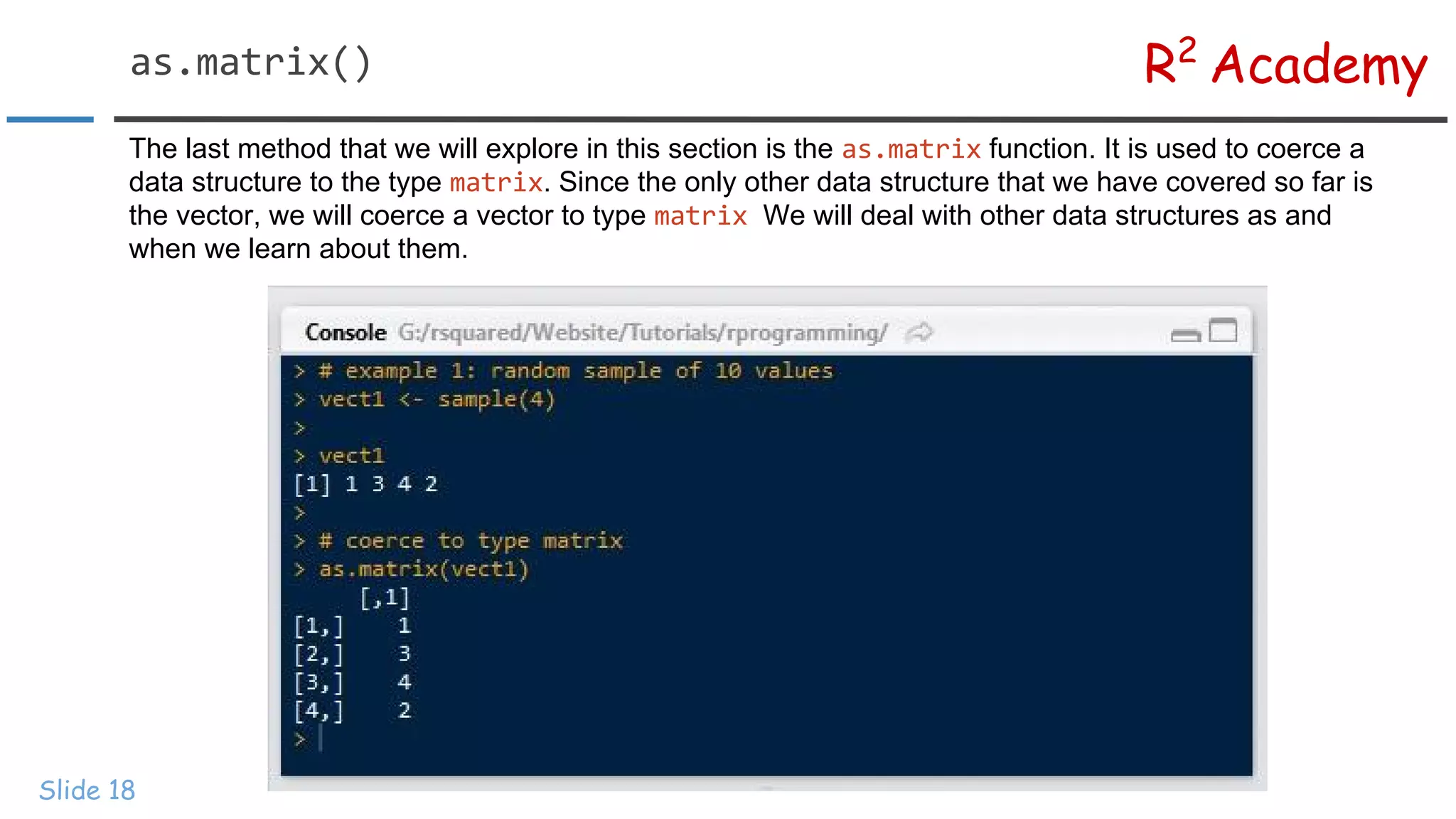

The last method that we will explore in this section is the function. It is used to coerce a
data structure to the type . Since the only other data structure that we have covered so far is
the vector, we will coerce a vector to type We will deal with other data structures as and
when we learn about them.

19. R2
Academy
Slide 19

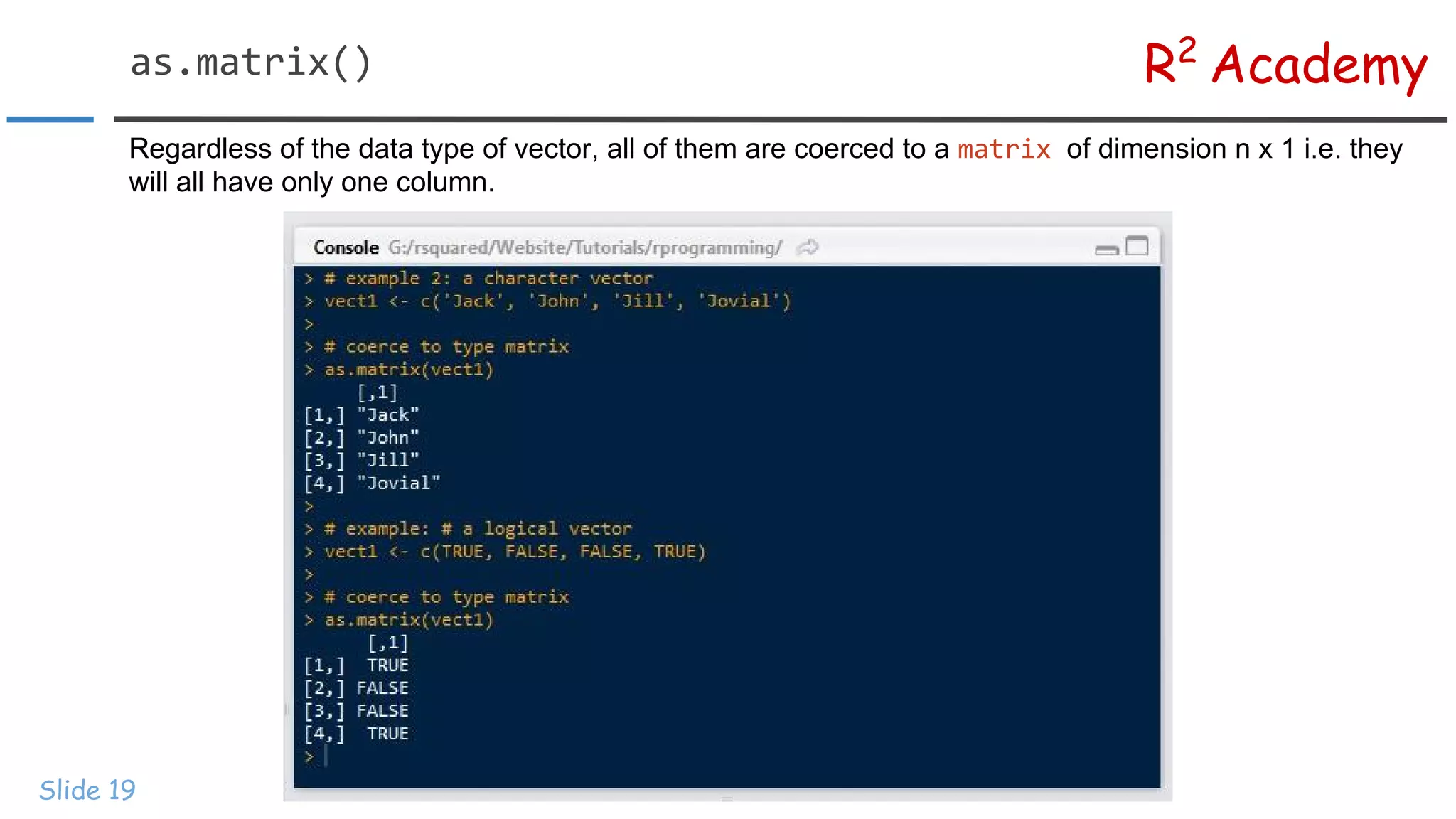

Regardless of the data type of vector, all of them are coerced to a of dimension n x 1 i.e. they
will all have only one column.

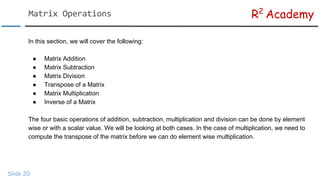

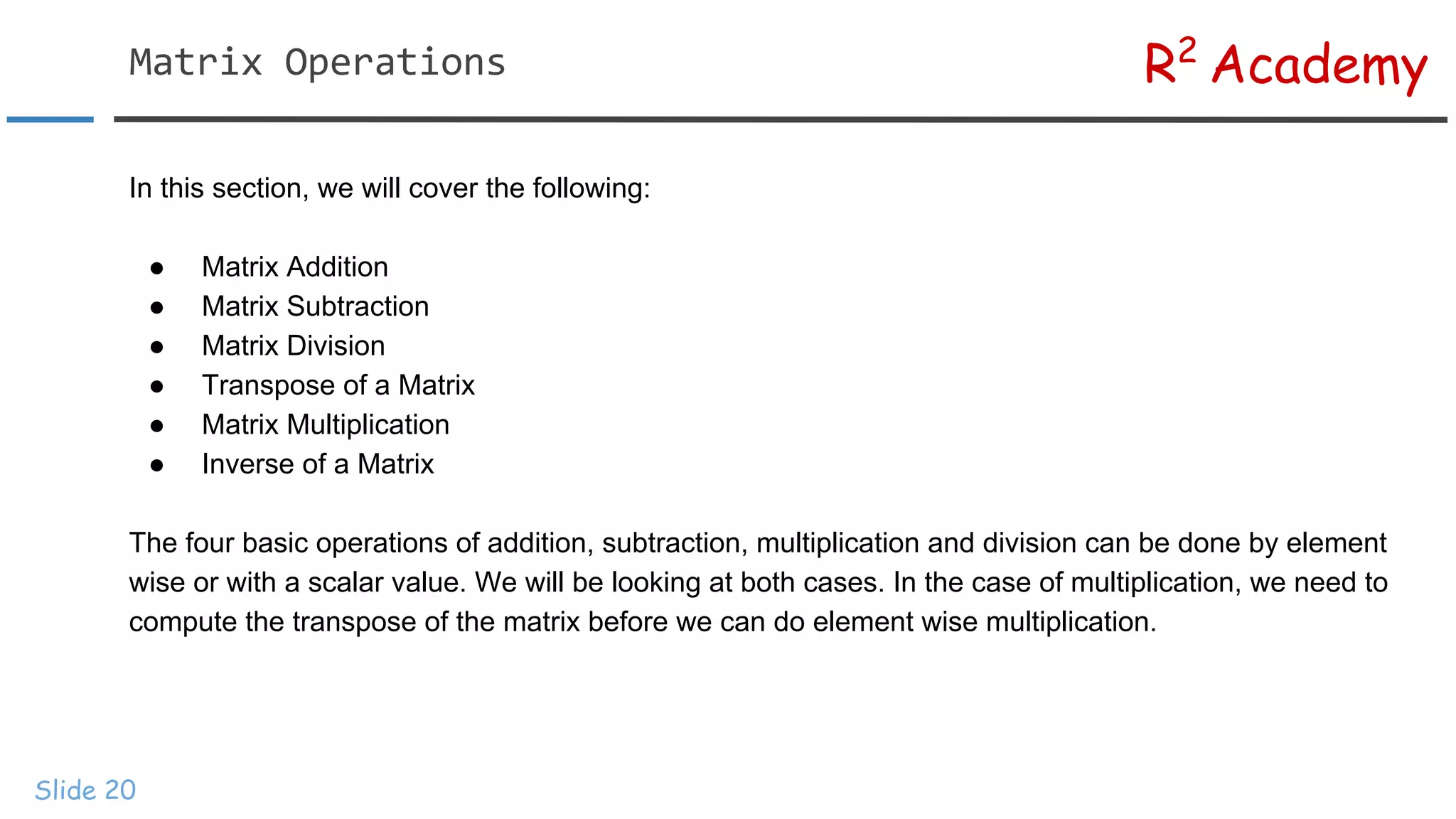

20. R2
Academy
Slide 20
In this section, we will cover the following:

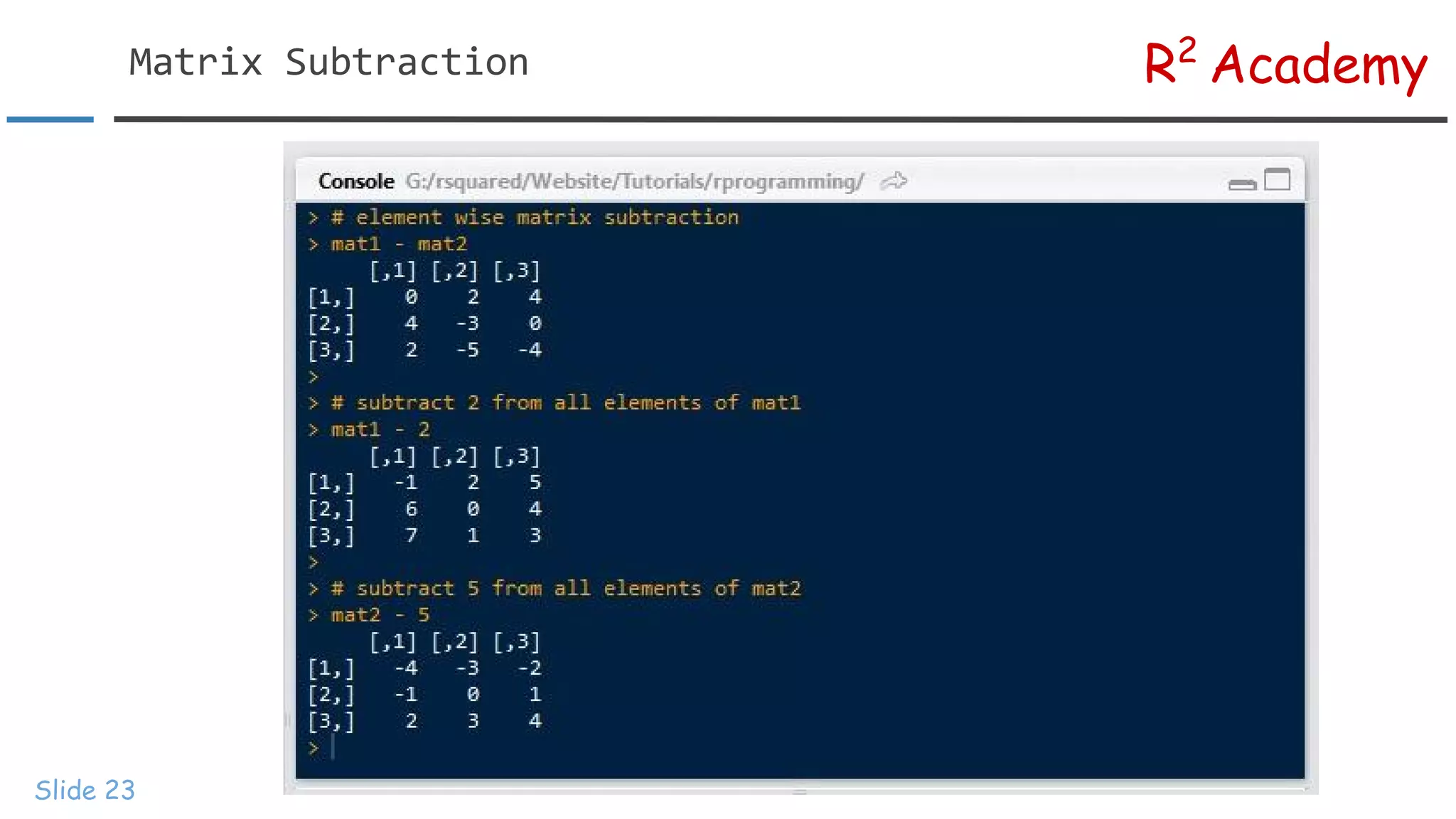

● Matrix Addition
● Matrix Subtraction
● Matrix Division
● Transpose of a Matrix
● Matrix Multiplication
● Inverse of a Matrix

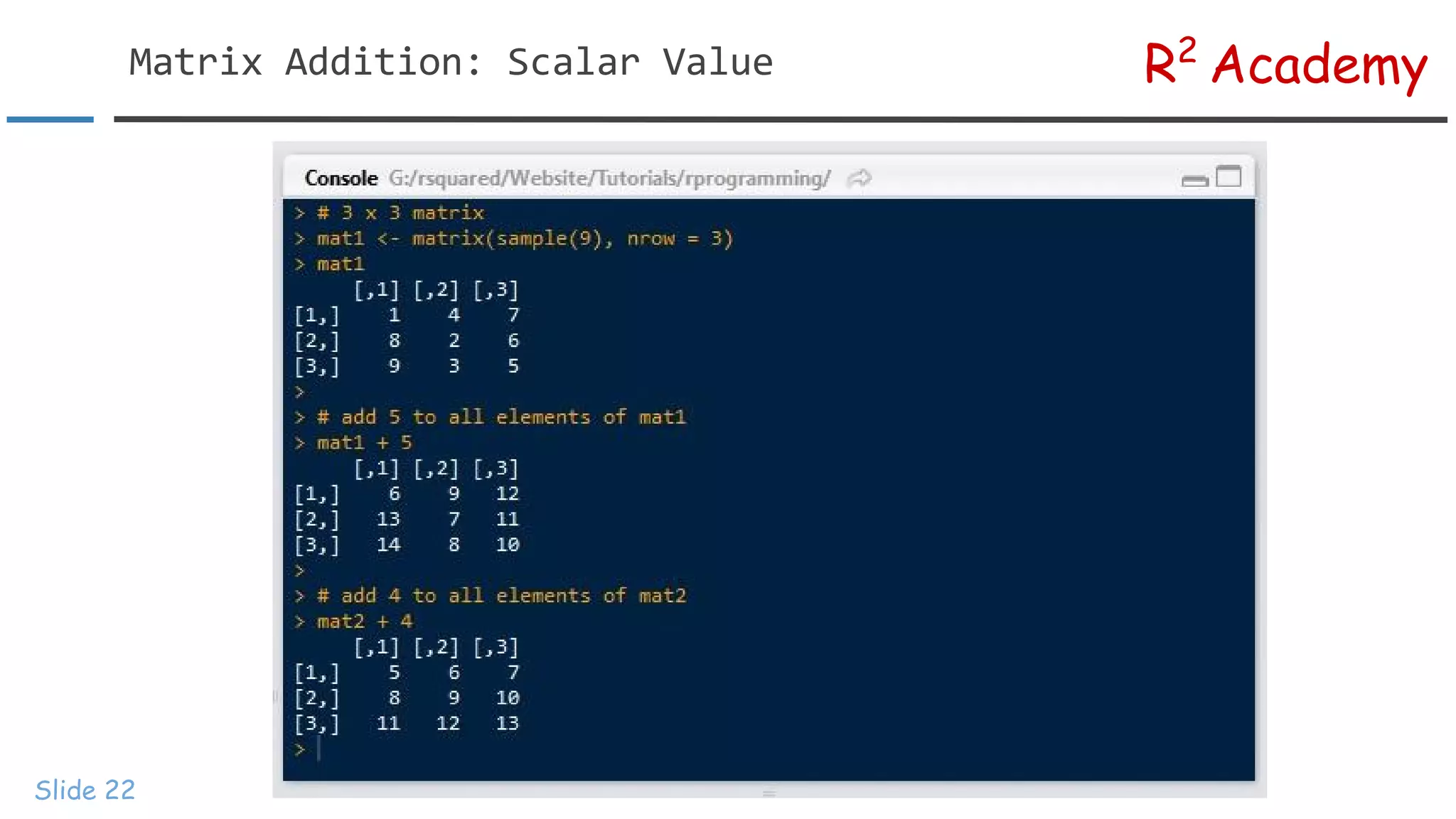

The four basic operations of addition, subtraction, multiplication and division can be done by element
wise or with a scalar value. We will be looking at both cases. In the case of multiplication, we need to
compute the transpose of the matrix before we can do element wise multiplication.

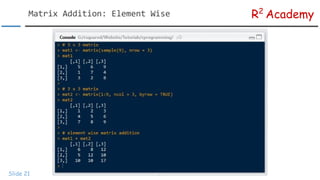

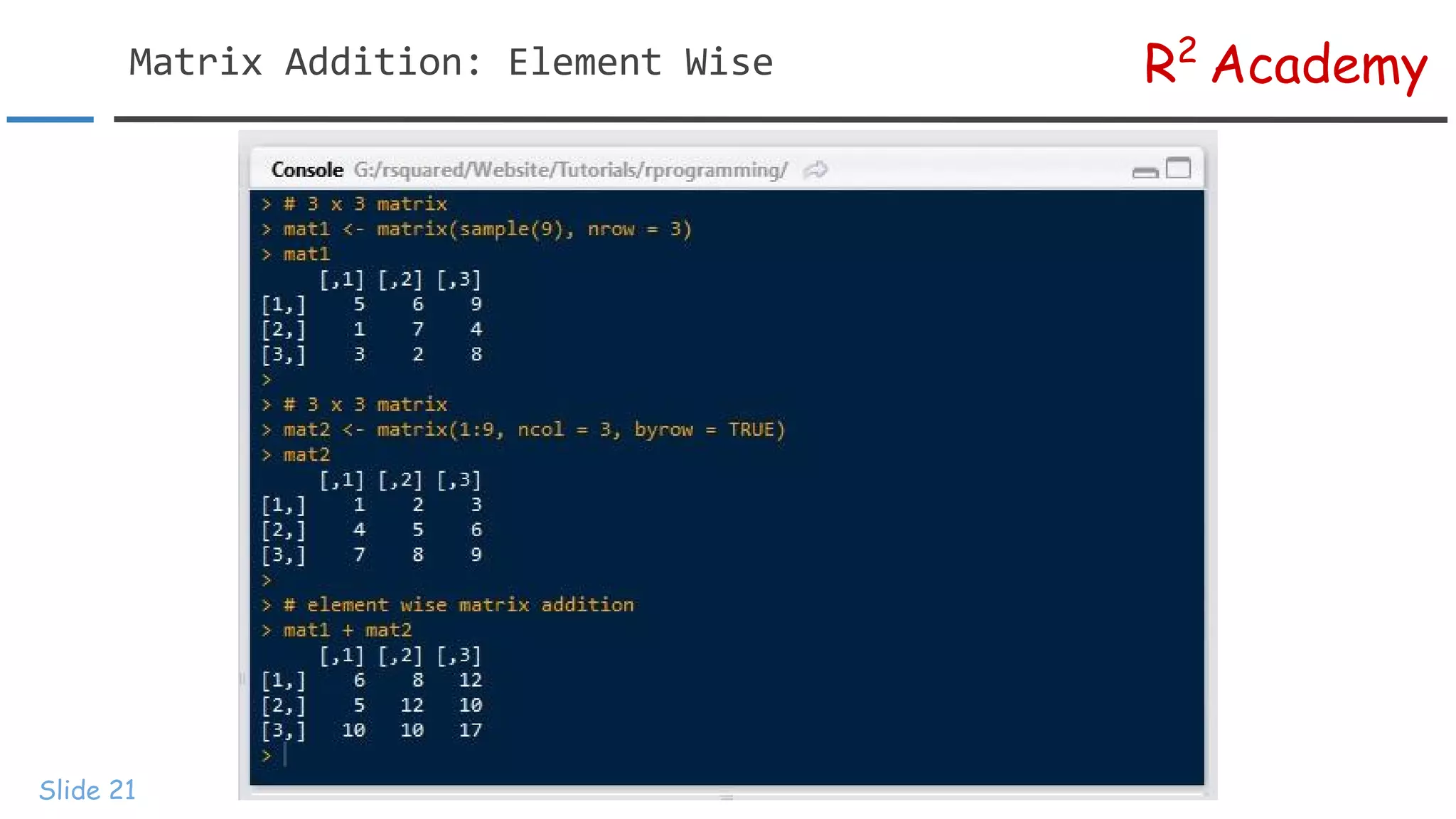

21. R2
Academy
Slide 21

22. R2
Academy
Slide 22

23. R2
Academy
Slide 23

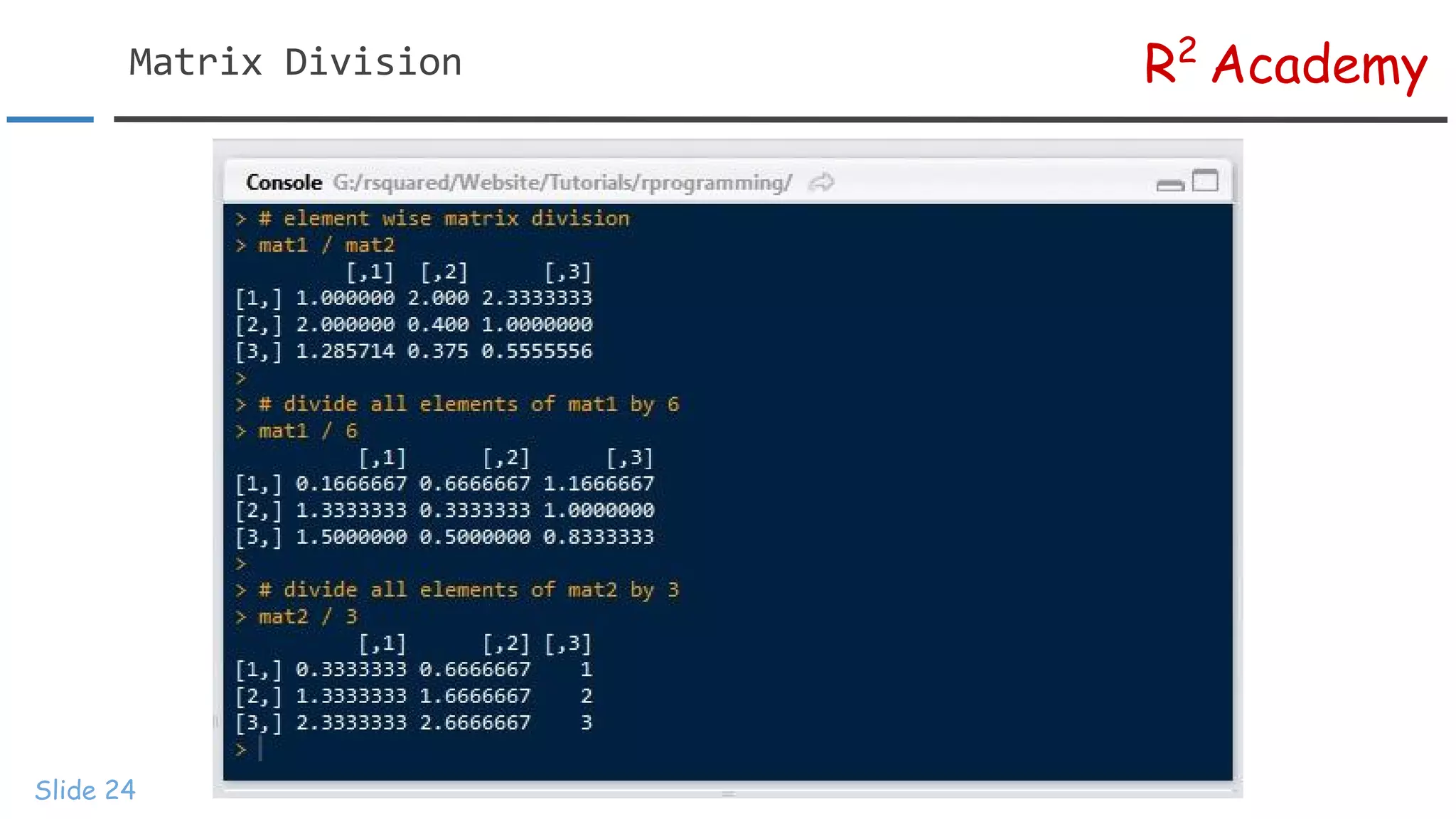

24. R2
Academy
Slide 24

25. R2
Academy
Slide 25

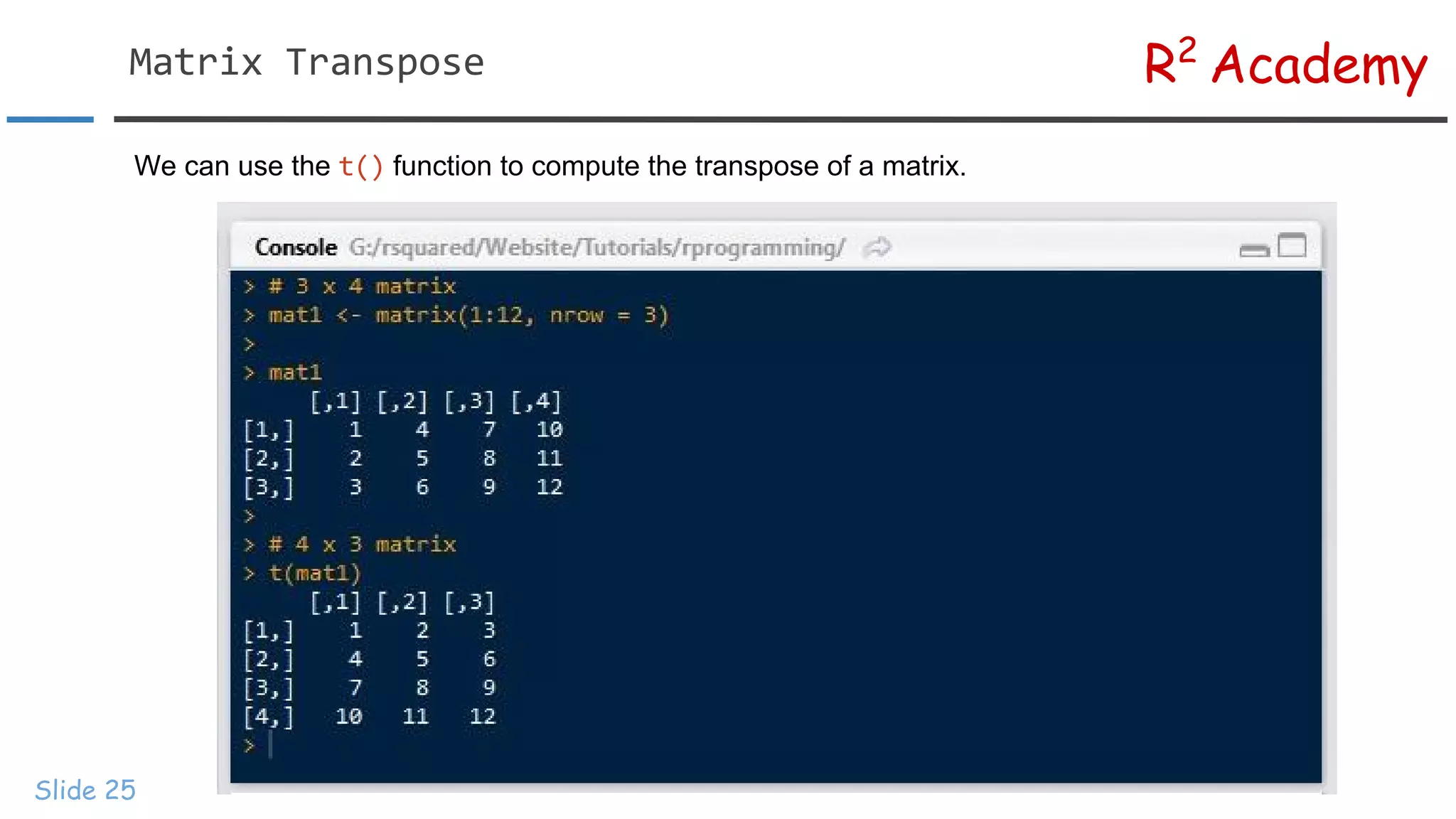

We can use the function to compute the transpose of a matrix.

26. R2
Academy
Slide 26

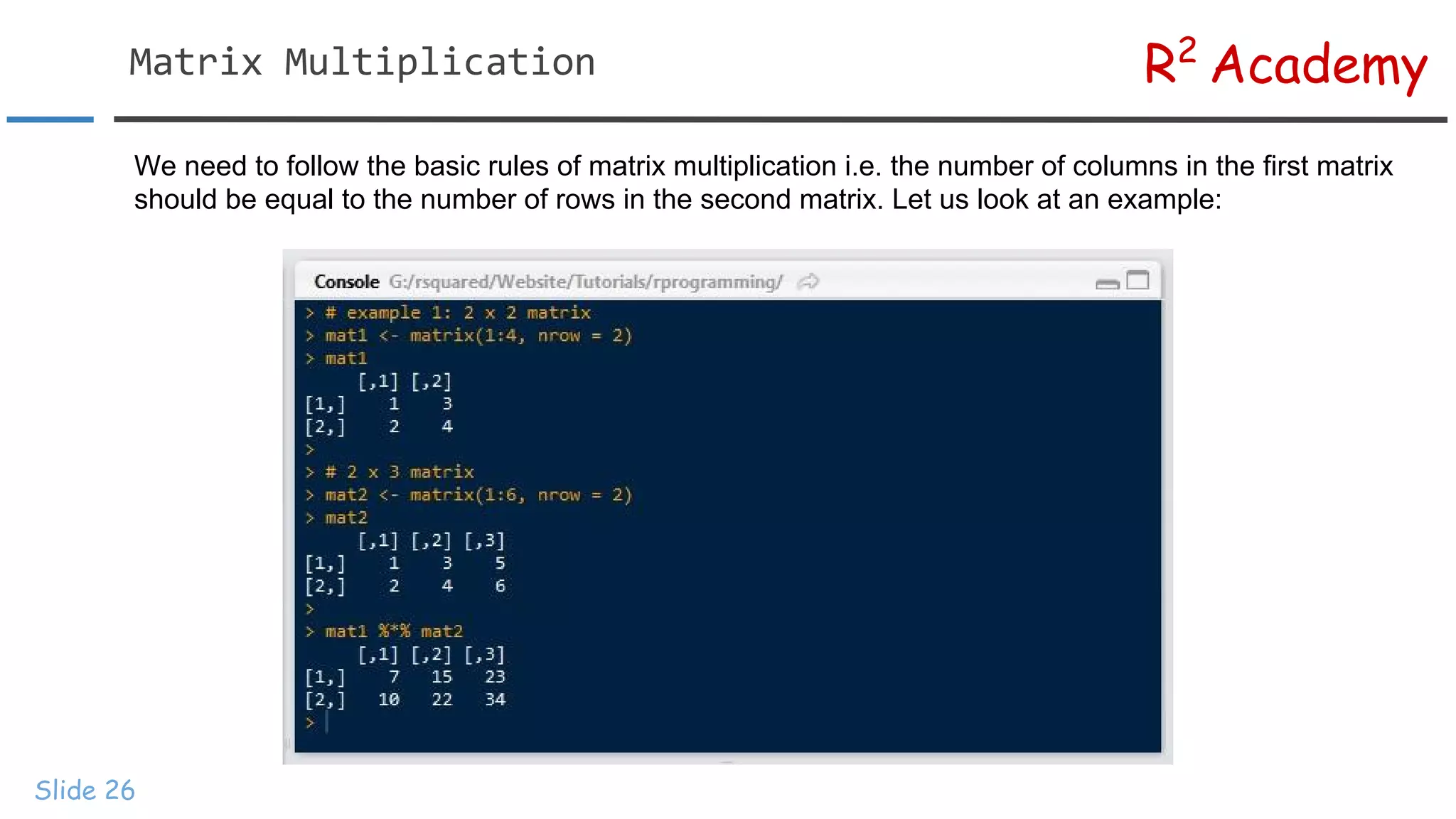

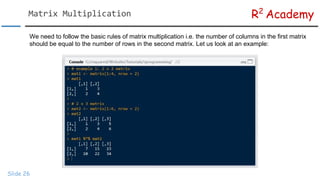

We need to follow the basic rules of matrix multiplication i.e. the number of columns in the first matrix
should be equal to the number of rows in the second matrix. Let us look at an example:

27. R2
Academy
Slide 27
The inverse of a matrix can be computed using the function.

28. R2
Academy
Slide 28

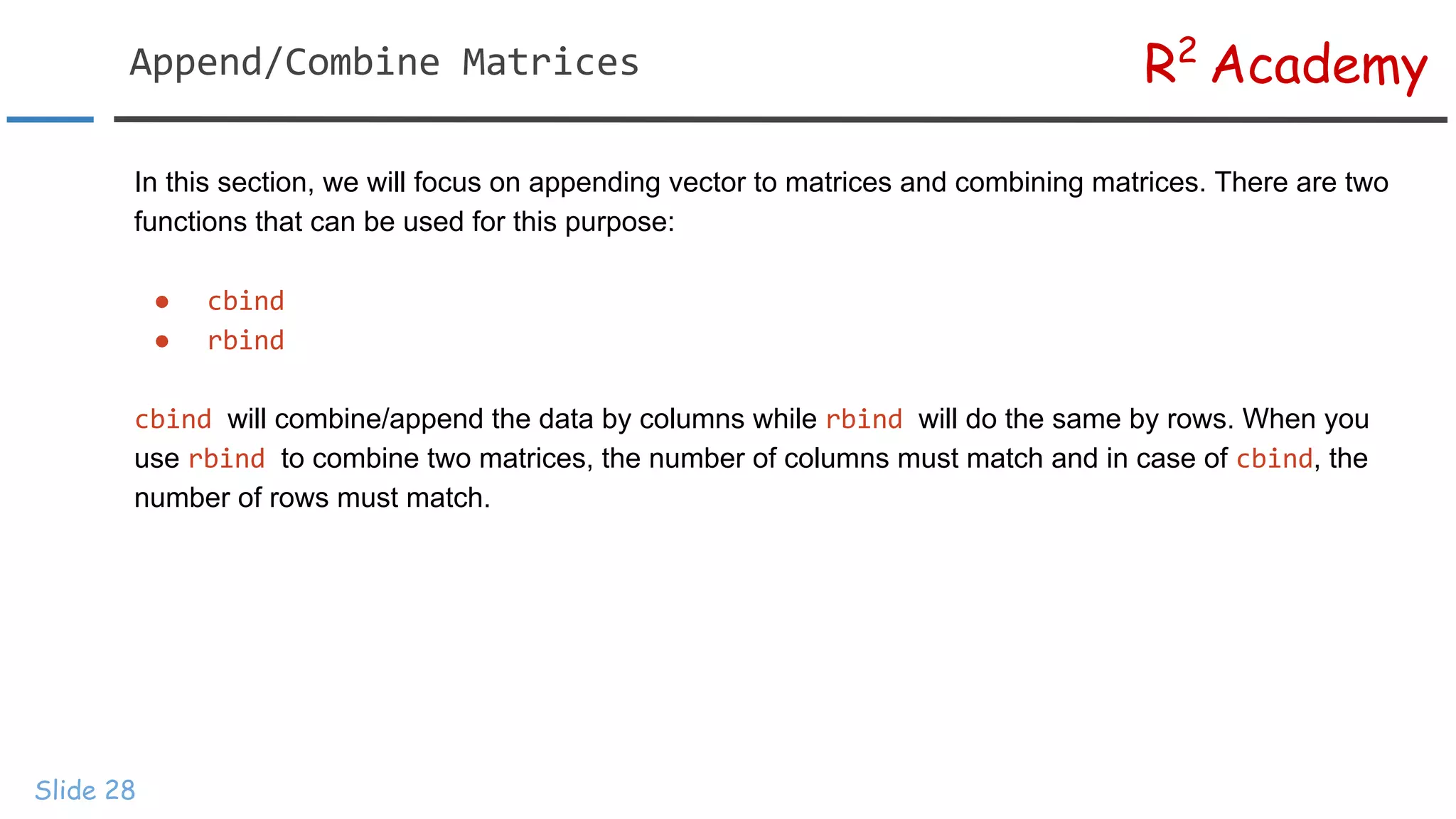

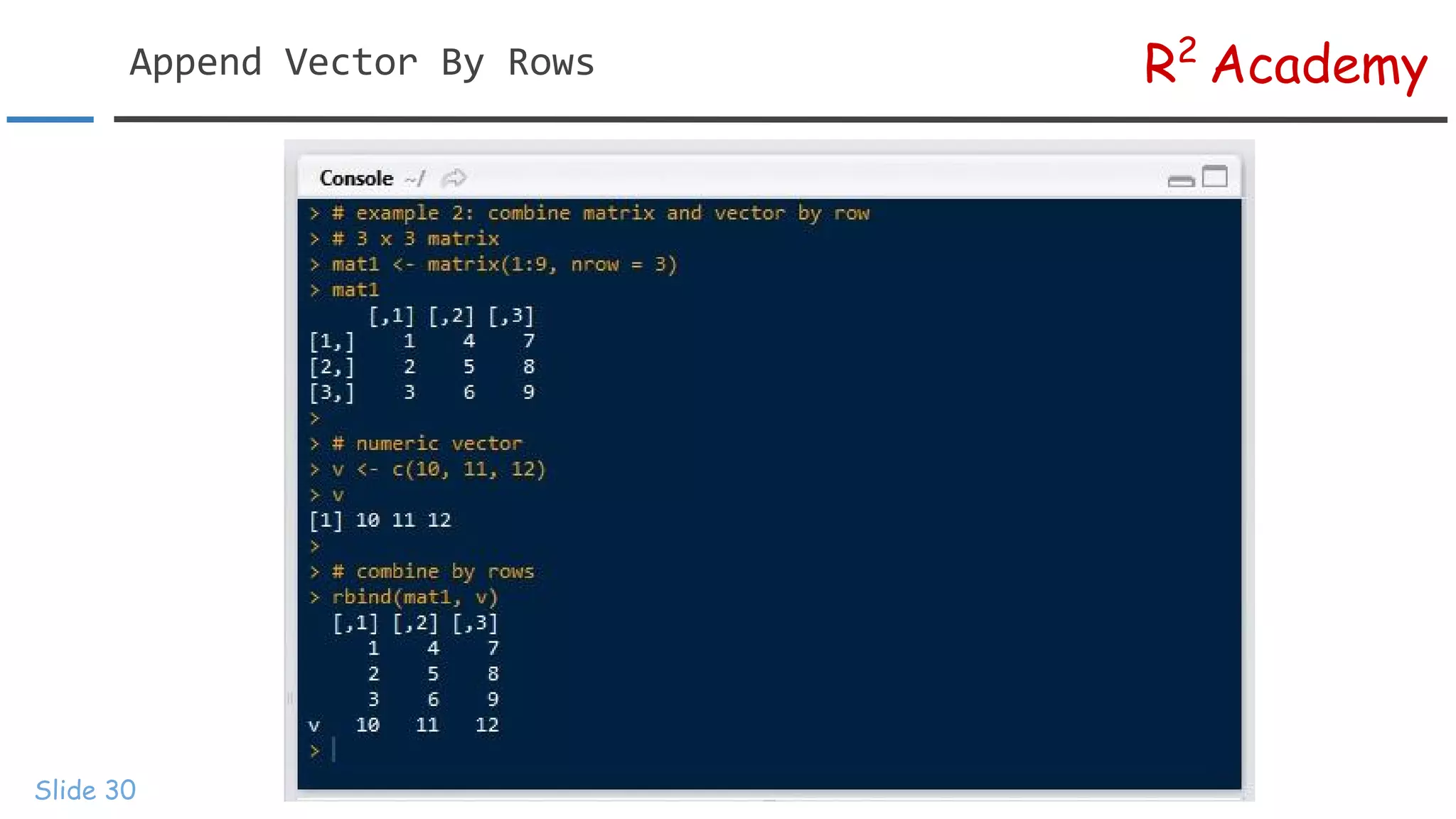

In this section, we will focus on appending vector to matrices and combining matrices. There are two
functions that can be used for this purpose:
●
●
will combine/append the data by columns while will do the same by rows. When you
use to combine two matrices, the number of columns must match and in case of , the
number of rows must match.

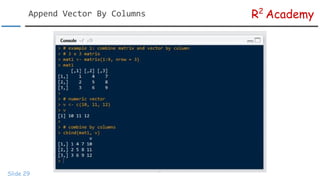

29. R2

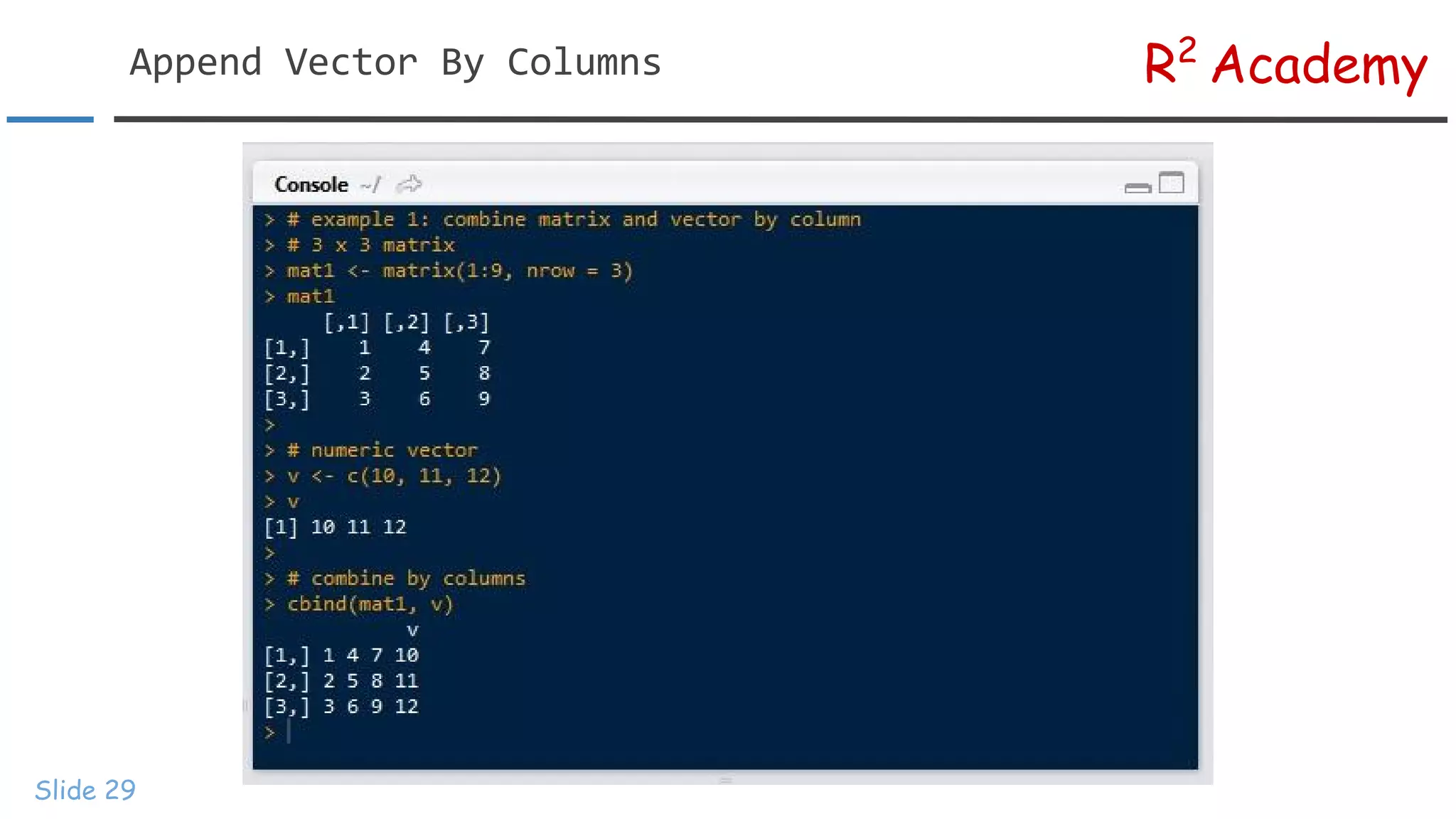

Academy
Slide 29

30. R2
Academy
Slide 30

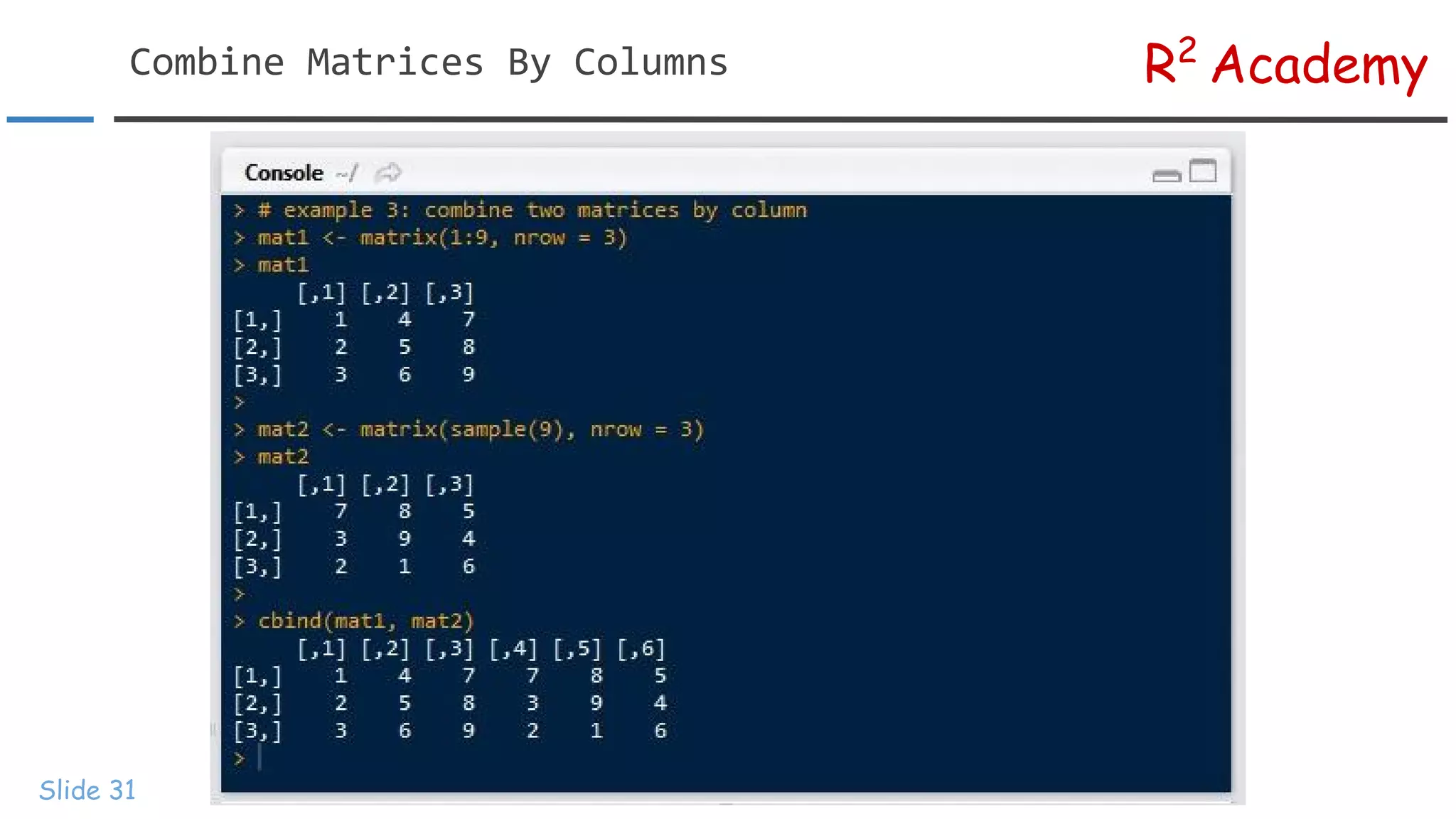

31. R2
Academy
Slide 31

32. R2
Academy
Slide 32

33. R2
Academy
Slide 33

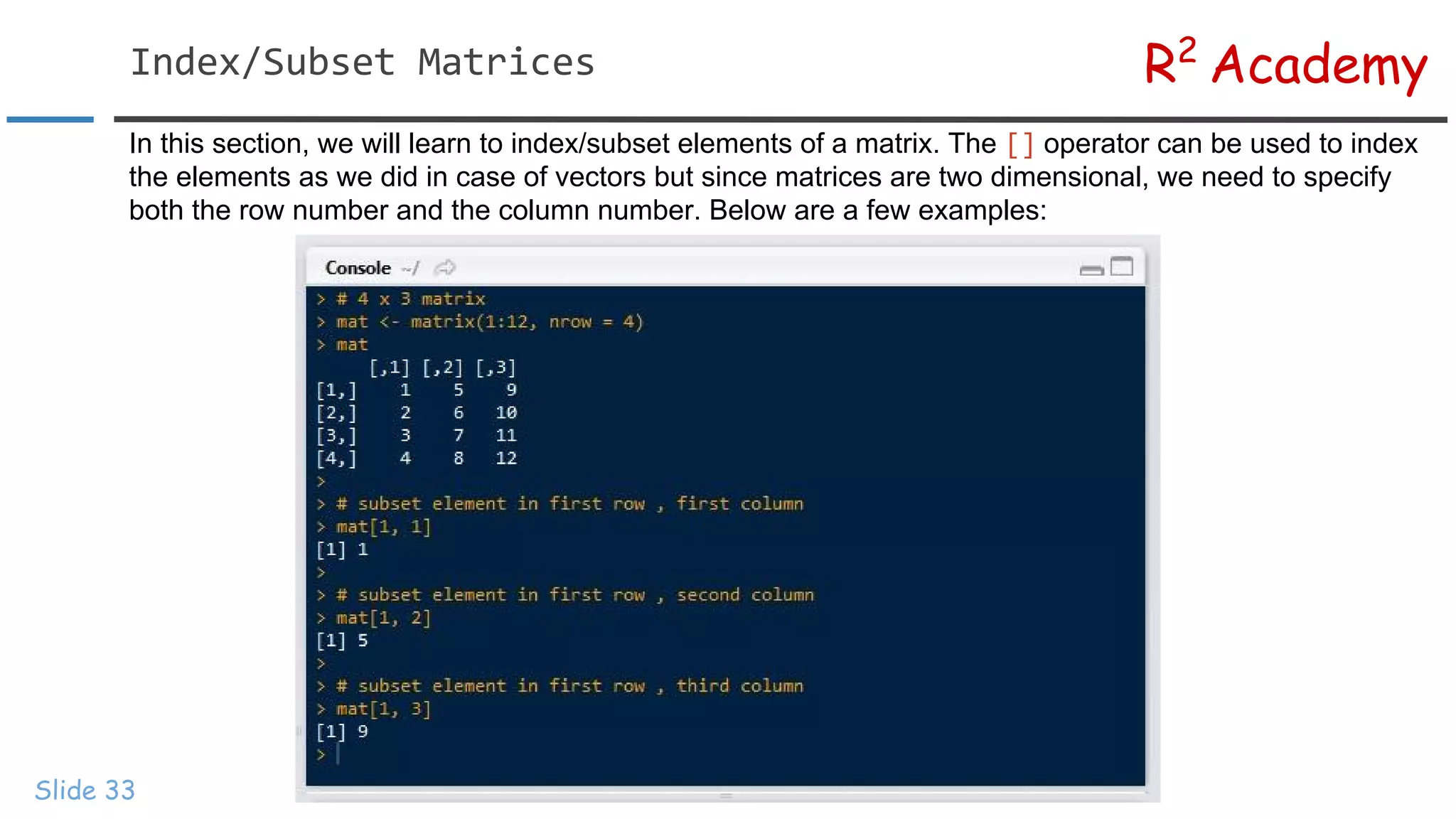

In this section, we will learn to index/subset elements of a matrix. The operator can be used to index
the elements as we did in case of vectors but since matrices are two dimensional, we need to specify
both the row number and the column number. Below are a few examples:

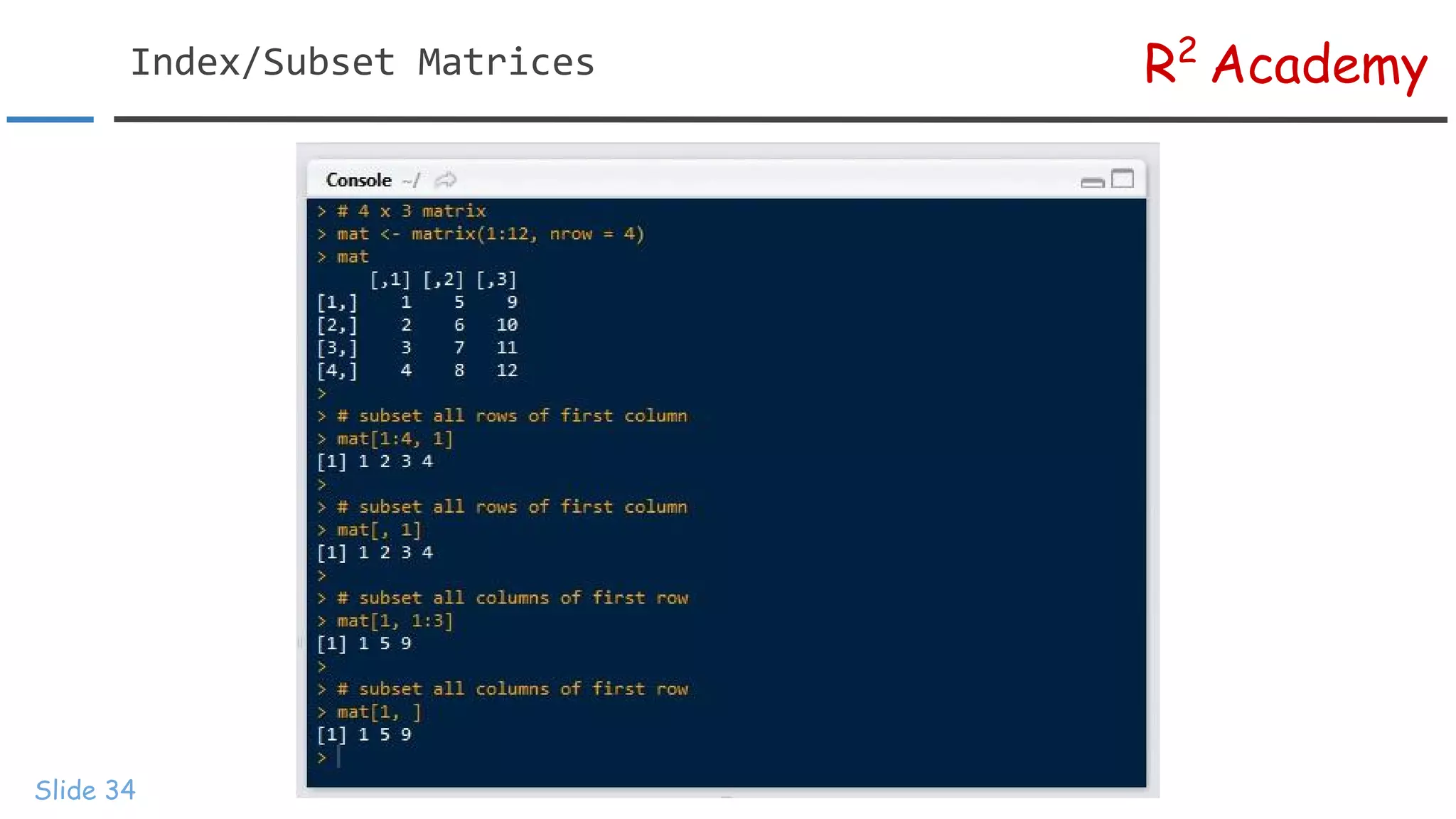

34. R2
Academy
Slide 34

35. R2
Academy
Slide 35

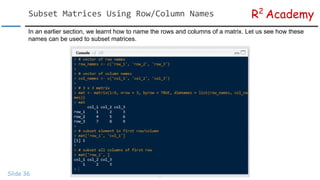

36. R2
Academy
Slide 36
In an earlier section, we learnt how to name the rows and columns of a matrix. Let us see how these
names can be used to subset matrices.

37. R2
Academy
Slide 37

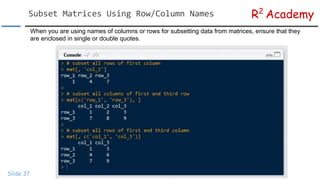

When you are using names of columns or rows for subsetting data from matrices, ensure that they
are enclosed in single or double quotes.

38. R2
Academy
Slide 38

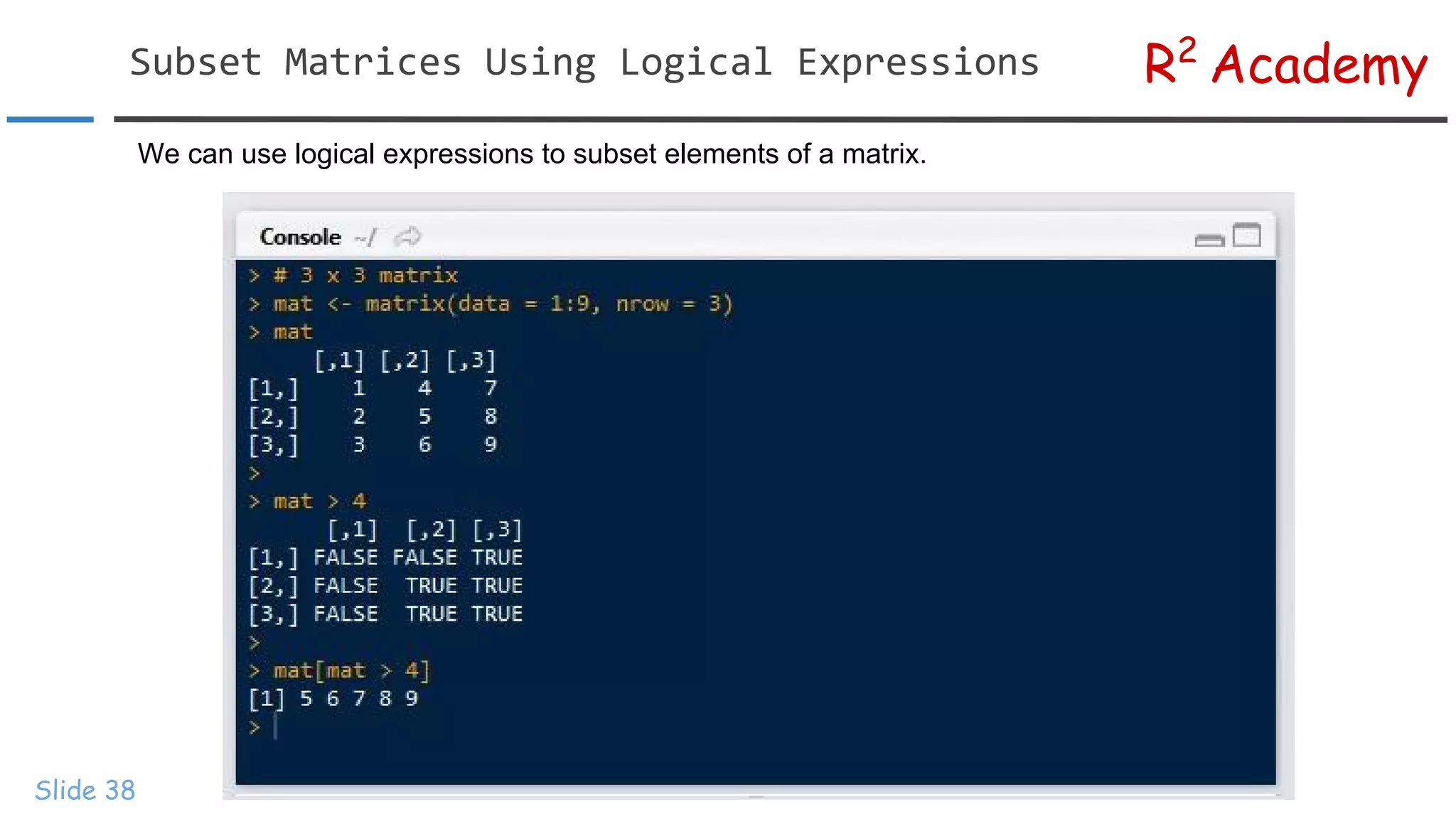

We can use logical expressions to subset elements of a matrix.

39. R2
Academy
Slide 39

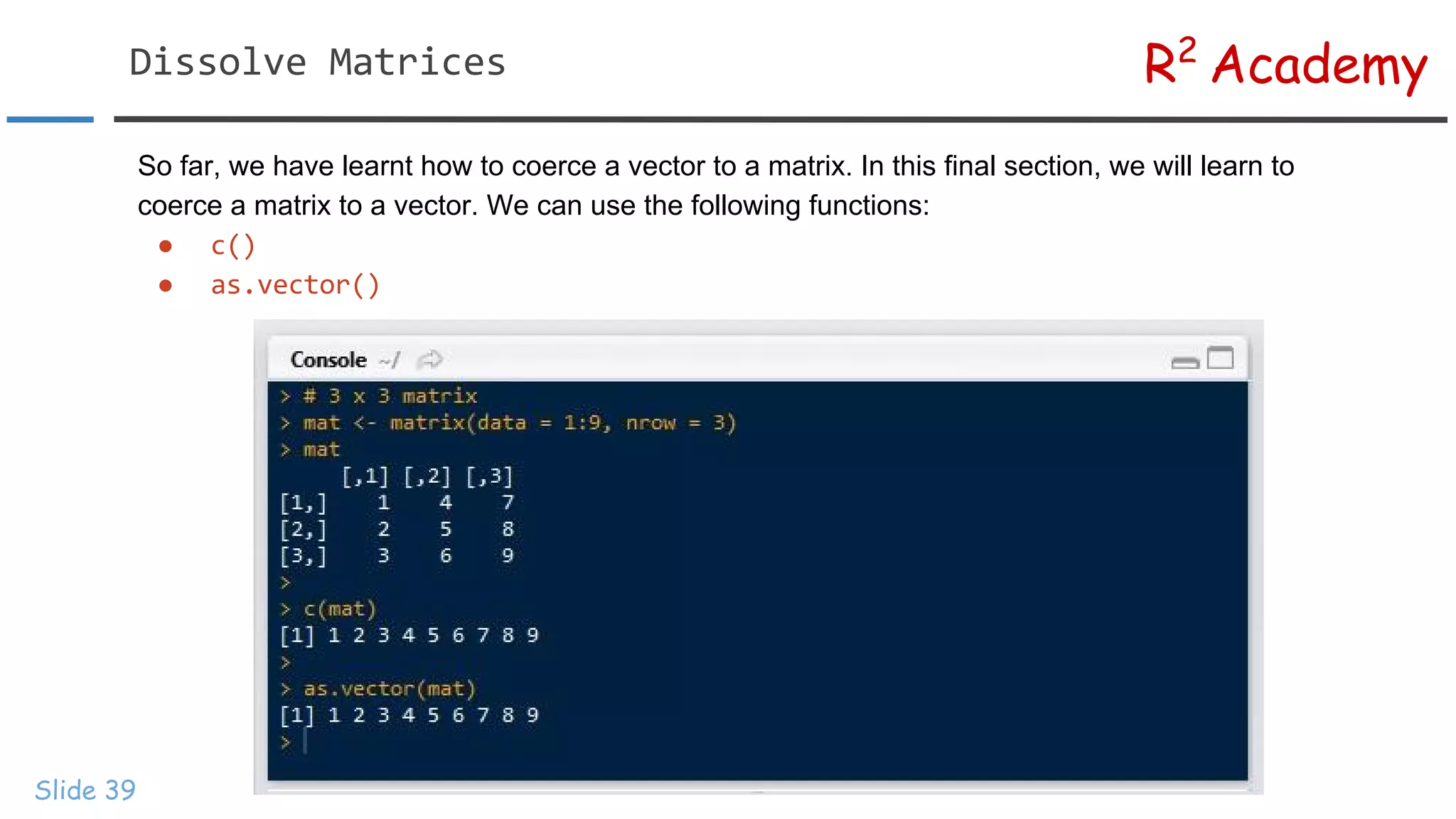

So far, we have learnt how to coerce a vector to a matrix. In this final section, we will learn to
coerce a matrix to a vector. We can use the following functions:
●
●

40. R2
Academy
Slide 40

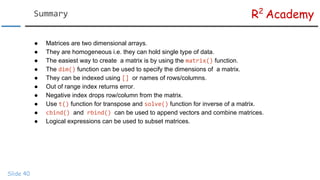

● Matrices are two dimensional arrays.
● They are homogeneous i.e. they can hold single type of data.
● The easiest way to create a matrix is by using the function.
● The function can be used to specify the dimensions of a matrix.
● They can be indexed using or names of rows/columns.
● Out of range index returns error.
● Negative index drops row/column from the matrix.
● Use function for transpose and function for inverse of a matrix.
● and can be used to append vectors and combine matrices.
● Logical expressions can be used to subset matrices.

41. R2
AcademyNext Steps...
Slide 41
In the next module:
✓ Construct Lists
✓ Describe Lists
✓ Index/Subset List Elements
✓ Convert Lists

42. R2
Academy
Slide 42
Visit Rsquared Academy
for tutorials on:
→ R Programming
→ Business Analytics
→ Data Visualization
→ Web Applications
→ Package Development
→ Git & GitHub
