QuickBooks Connect 2016 - Using WebHooks to handle data changes in your app
The document discusses the use of webhooks in application data management, highlighting their advantages such as real-time data synchronization and reduced integration costs. It covers key enablers, payload details, supported entities, and best practices for implementation and reliability. The session concludes with suggestions for future improvements and encourages feedback from attendees.
More Related Content
Similar to QuickBooks Connect 2016 - Using WebHooks to handle data changes in your app
QuickBooks Connect 2016 - Using WebHooks to handle data changes in your app
- 1. Vishal Aggarwal, JoeBumbaca Using webhooks to handle data changes in your app WiFi: QBConnect Password: not required#QBConnect
- 2. 2 Today’s speakers Vishal Aggarwal SeniorProduct Manager @vishala Joe Bumbaca Senior Software Engineer #QBConnect | @IntuitDev | @vishala

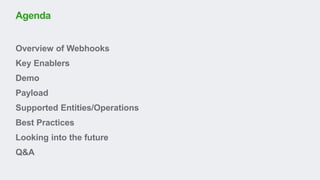

- 3. Overview of Webhooks KeyEnablers Demo Payload Supported Entities/Operations Best Practices Looking into the future Q&A Agenda

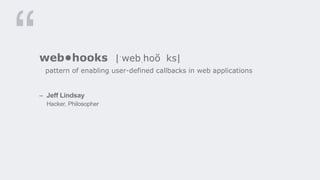

- 4. web•hooks |ˈwebˌhoŏ ks| patternof enabling user-defined callbacks in web applications – Jeff Lindsay Hacker, Philosopher
- 5. 5 Advantages • Push Modelcompared to Poll Model • Simplifies integration for developers • Improves user experience with near real-time data. • Enables newer use cases / pushes limits of current integration. • Load reduction on QBO Limitations • Complicate and Increases integration cost for developers • Sub-optimal experience for SMBs due to delay in data sync • Continuous polling adds load on developers and QBO servers Overview of Webhooks #QBConnect | @IntuitDev | @vishala Developer App QBO CDCAPI Did something change? No Did something change? No Did something change? Yes User Developer App QBO Web·hooks Hey, Let me know if something changes OK Thank you Something Changed User

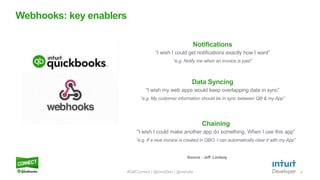

- 6. 6 Source : JeffLindsay Webhooks: key enablers #QBConnect | @IntuitDev | @vishala Notifications “I wish I could get notifications exactly how I want” “e.g. Notify me when an invoice is paid” Data Syncing “I wish my web apps would keep overlapping data in sync” “e.g. My customer information should be in sync between QB & my App” Chaining “I wish I could make another app do something, When I use this app” “e.g. If a new invoice is created in QBO, I can automatically clear it with my App”
- 7.

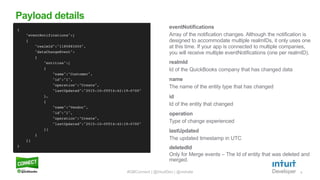

- 8. 8 eventNotifications Array of thenotification changes. Although the notification is designed to accommodate multiple realmIDs, it only uses one at this time. If your app is connected to multiple companies, you will receive multiple eventNotifications (one per realmID). Payload details #QBConnect | @IntuitDev | @vishala realmId Id of the QuickBooks company that has changed data name The name of the entity type that has changed id Id of the entity that changed operation Type of change experienced lastUpdated The updated timestamp in UTC deletedId Only for Merge events – The Id of entity that was deleted and merged.

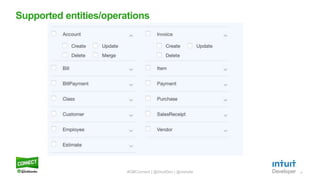

- 9. 9 Supported entities/operations #QBConnect |@IntuitDev | @vishala

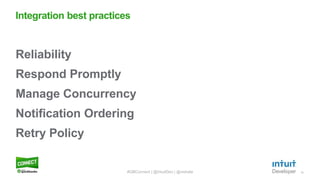

- 10. 10 Reliability Respond Promptly Manage Concurrency NotificationOrdering Retry Policy Integration best practices #QBConnect | @IntuitDev | @vishala

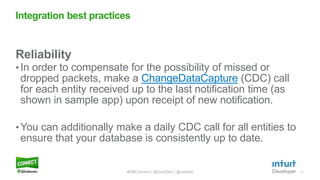

- 11. 11 Reliability • In orderto compensate for the possibility of missed or dropped packets, make a ChangeDataCapture (CDC) call for each entity received up to the last notification time (as shown in sample app) upon receipt of new notification. • You can additionally make a daily CDC call for all entities to ensure that your database is consistently up to date. Integration best practices #QBConnect | @IntuitDev | @vishala

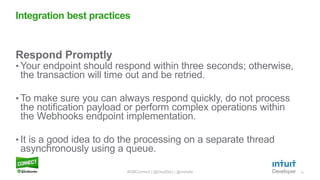

- 12. 12 Respond Promptly • Yourendpoint should respond within three seconds; otherwise, the transaction will time out and be retried. • To make sure you can always respond quickly, do not process the notification payload or perform complex operations within the Webhooks endpoint implementation. • It is a good idea to do the processing on a separate thread asynchronously using a queue. Integration best practices #QBConnect | @IntuitDev | @vishala

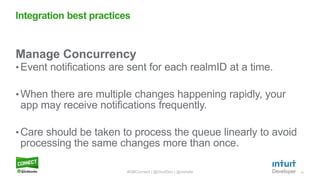

- 13. 13 Manage Concurrency • Eventnotifications are sent for each realmID at a time. •When there are multiple changes happening rapidly, your app may receive notifications frequently. •Care should be taken to process the queue linearly to avoid processing the same changes more than once. Integration best practices #QBConnect | @IntuitDev | @vishala

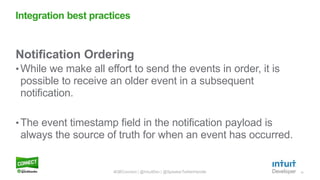

- 14. 14 Notification Ordering • Whilewe make all effort to send the events in order, it is possible to receive an older event in a subsequent notification. • The event timestamp field in the notification payload is always the source of truth for when an event has occurred. Integration best practices #QBConnect | @IntuitDev | @SpeakerTwitterHandle

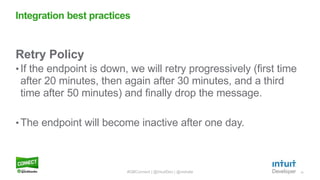

- 15. 15 Retry Policy • Ifthe endpoint is down, we will retry progressively (first time after 20 minutes, then again after 30 minutes, and a third time after 50 minutes) and finally drop the message. • The endpoint will become inactive after one day. Integration best practices #QBConnect | @IntuitDev | @vishala
- 16. 16 • API basedsubscription per company • Configure aggregation period • Event Log Viewer • Capability to replay events Looking into the future #QBConnect | @IntuitDev | @vishala
- 17.

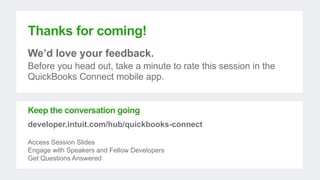

- 18. Thanks for coming! We’dlove your feedback. Before you head out, take a minute to rate this session in the QuickBooks Connect mobile app. Keep the conversation going developer.intuit.com/hub/quickbooks-connect Access Session Slides Engage with Speakers and Fellow Developers Get Questions Answered
