1. Quick 3GPP RRC ASN.1
Seokseong Jeon

2. DISCLAIMER
• This is a simplified introduction to encoding rule used by 3GPP RRC protocol.
The most practical examples are captured and not every single rule is treated.

3. Encoding Rule
• 3GPP uses Unaligned variant of Packed Encoding Rule (PER)
• In unaligned variant, each field is not aligned at octet boundary
• Therefore, zero-pad is used only at the end of message
• PER is insensitive to field name
• Both are considered to be same
• Reference: ITU-T X.691
sequenceType SEQUENCE{
apple APPLE
}
sequenceType SEQUENCE{
fruit APPLE
}

4. NULL, BOOLEAN and INTEGER
• NULL is zero-length type
• BOOLEAN is 1-bit type
• 0 for FALSE
• 1 for TRUE
• Constrained INTEGER
• Value range (v.r): 33 – (-30) + 1 = 64
• Field size: ⌈log2(v.r)⌉ = 8 bits
• Offset (lower bound): -30
intergerField INTEGER(-30..33)
00000011 = -27

5. BIT STRING and OCTET STRING
• Length is indicated, if required
apple BIT STRING 00000100 AAAA = 4-bit long and content follows
apple BIT STRING (SIZE(4..11)) 00000000 AAAA = 4-bit long and content follows
apple BIT STRING (SIZE(4)) AAAA
apple OCTET STRING 00000001 AAAAAAAA = 1-octet long and content follows
apple OCTET STRING (SIZE(1..8)) 00000000 AAAAAAAA = 1-octet long and content follows
apple OCTET STRING (SIZE(1)) AAAAAAAA

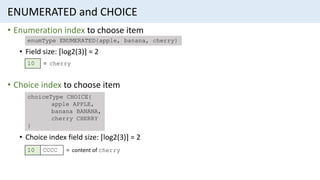

6. ENUMERATED and CHOICE
• Enumeration index to choose item
• Field size: ⌈log2(3)⌉ = 2
• Choice index to choose item
• Choice index field size: ⌈log2(3)⌉ = 2
enumType ENUMERATED{apple, banana, cherry}
choiceType CHOICE{
apple APPLE,
banana BANANA,
cherry CHERRY
}
10 = cherry
10 CCCC = content of cherry

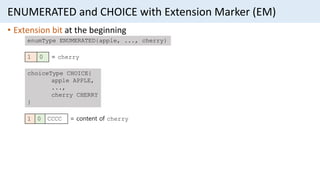

7. ENUMERATED and CHOICE with Extension Marker (EM)
• Extension bit at the beginning
enumType ENUMERATED{apple, ..., cherry}
choiceType CHOICE{
apple APPLE,
...,
cherry CHERRY
}
1 0 = cherry
1 0 CCCC = content of cherry

8. SEQUENCE
• No OPTIONAL/DEFAULT fields is in definition
• Just list all content in order
• One or more OPTIONAL/DEFAULT fields in definition
• Optional bitmap indicates each OPTIONAL/DEFAULT field
• Optional bitmap size: # of OPTIONAL/DEFAULT fields = 2
sequenceType SEQUENCE{
apple APPLE OPTIONAL,
banana BANANA,
cherry CHERRY OPTIONAL
}
10 AAAA BBBB = content of apple and banana

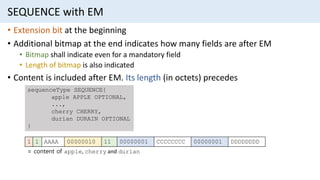

9. SEQUENCE with EM
• Extension bit at the beginning
• Additional bitmap at the end indicates how many fields are after EM
• Bitmap shall indicate even for a mandatory field
• Length of bitmap is also indicated
• Content is included after EM. Its length (in octets) precedes
sequenceType SEQUENCE{
apple APPLE OPTIONAL,
...,
cherry CHERRY,
durian DURAIN OPTIONAL
}
1 1 AAAA 00000010 11 00000001 CCCCCCCC 00000001 DDDDDDDD
= content of apple, cherry and durian

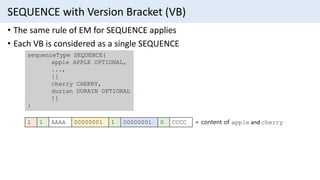

10. SEQUENCE with Version Bracket (VB)
• The same rule of EM for SEQUENCE applies
• Each VB is considered as a single SEQUENCE
sequenceType SEQUENCE{
apple APPLE OPTIONAL,
...,
[[
cherry CHERRY,
durian DURAIN OPTIONAL
]]
}
1 1 AAAA 00000001 1 00000001 0 CCCC = content of apple and cherry

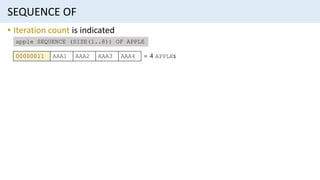

11. SEQUENCE OF
• Iteration count is indicated
apple SEQUENCE (SIZE(1..8)) OF APPLE
00000011 AAA1 AAA2 AAA3 AAA4 = 4 APPLEs

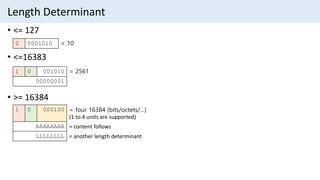

12. Length Determinant
• <= 127
• <=16383
• >= 16384
0 0001010 = 10
1 0 001010 = 2561
00000001
1 0 000100 = four 16384 (bits/octets/…)
(1 to 4 units are supported)
AAAAAAAA = content follows
LLLLLLLL = another length determinant
