The document is a presentation by Ynon Perek introducing Qt and QtRuby, focusing on GUI programming and the advantages of using the Qt framework, such as its cross-platform capabilities and ease of use. It includes code examples, terminology related to Qt widgets and layouts, and information about stock dialogs. The presentation concludes by inviting attendees to a Qt developers meetup and provides additional resources for learning more about Qt and Ruby.
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Qtruby
- 1. Introducing QtRuby Ynon Perek http://qtcollege.co.il Friday, August 3, 12
- 2.

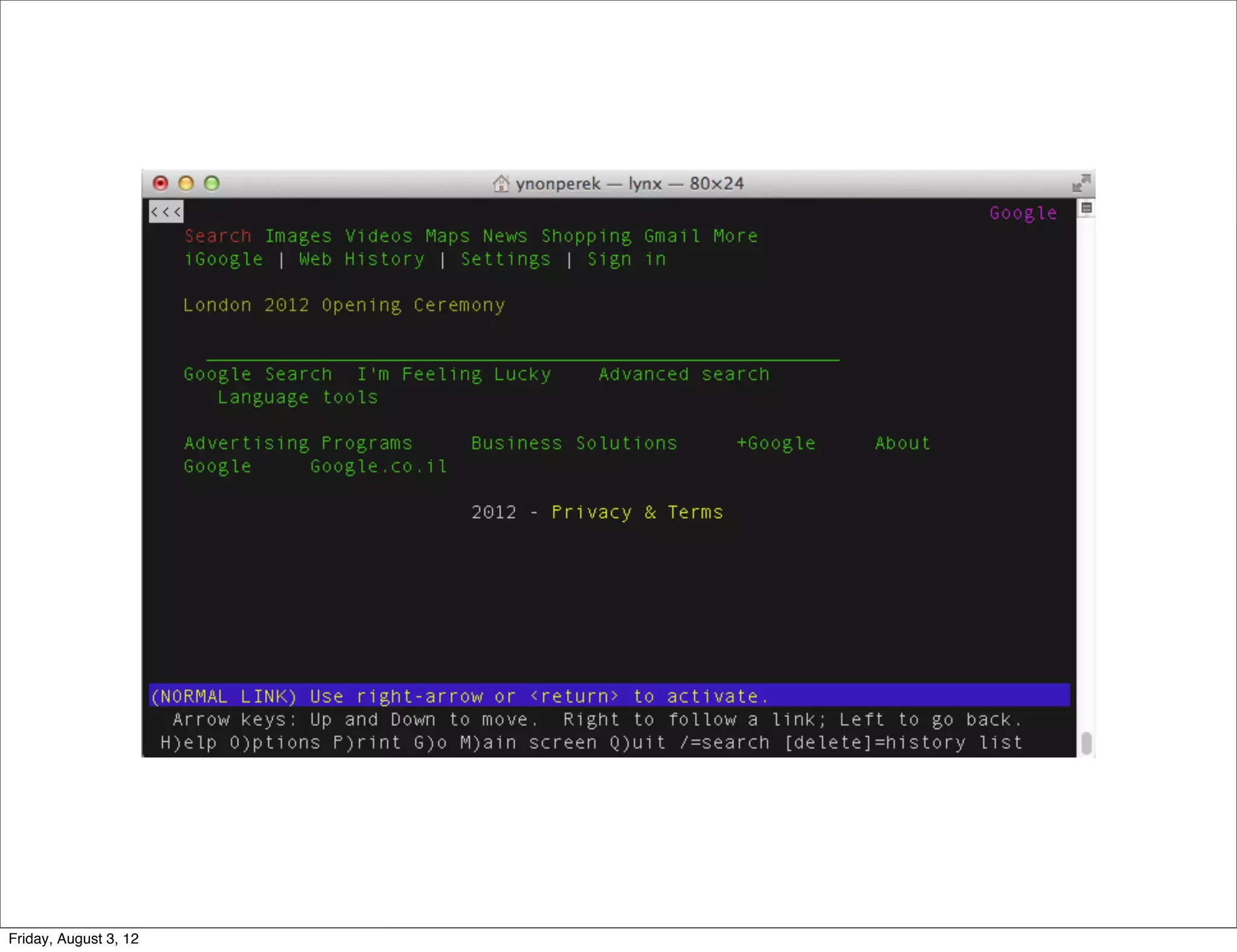

- 3.

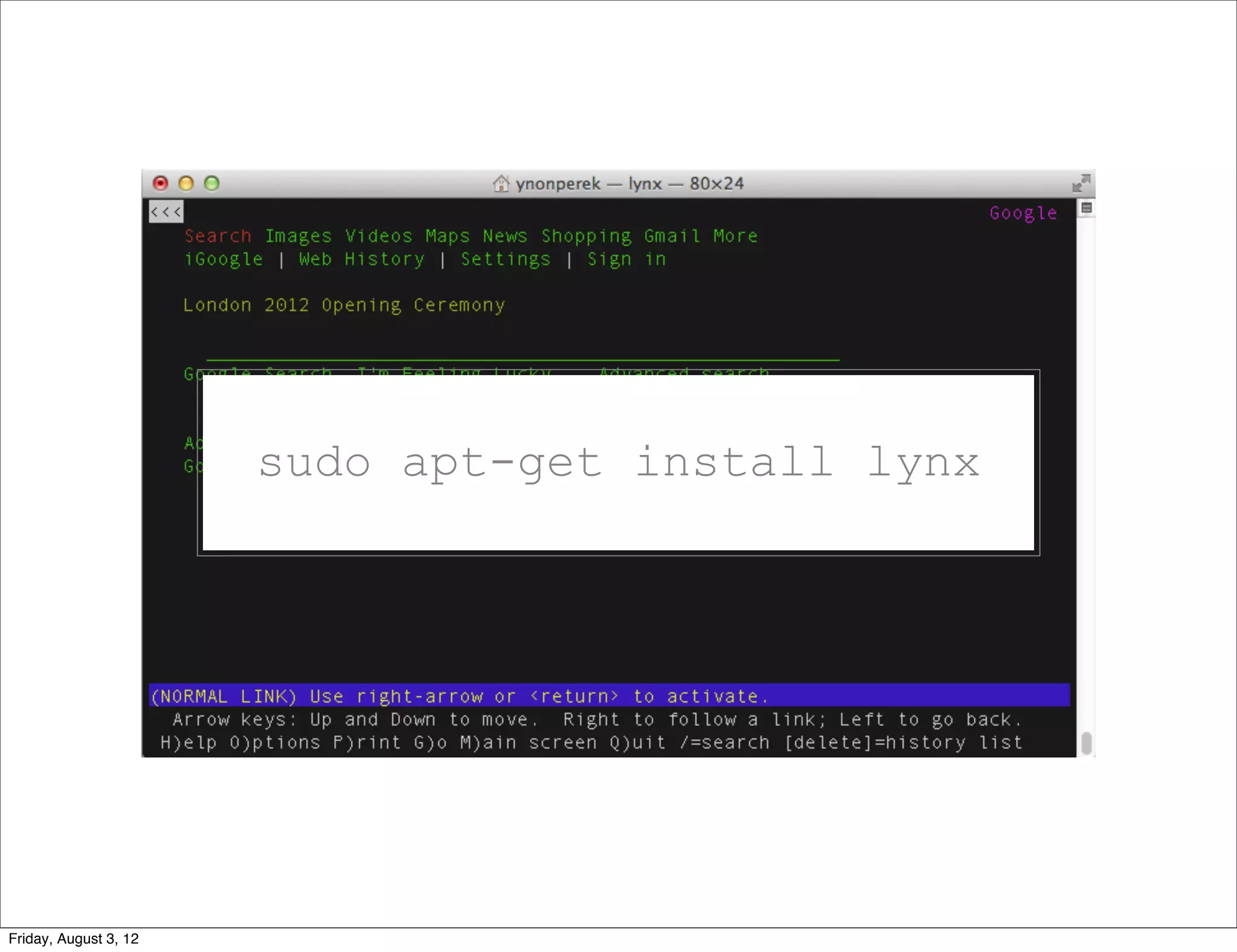

- 4. sudo apt-get installlynx Friday, August 3, 12

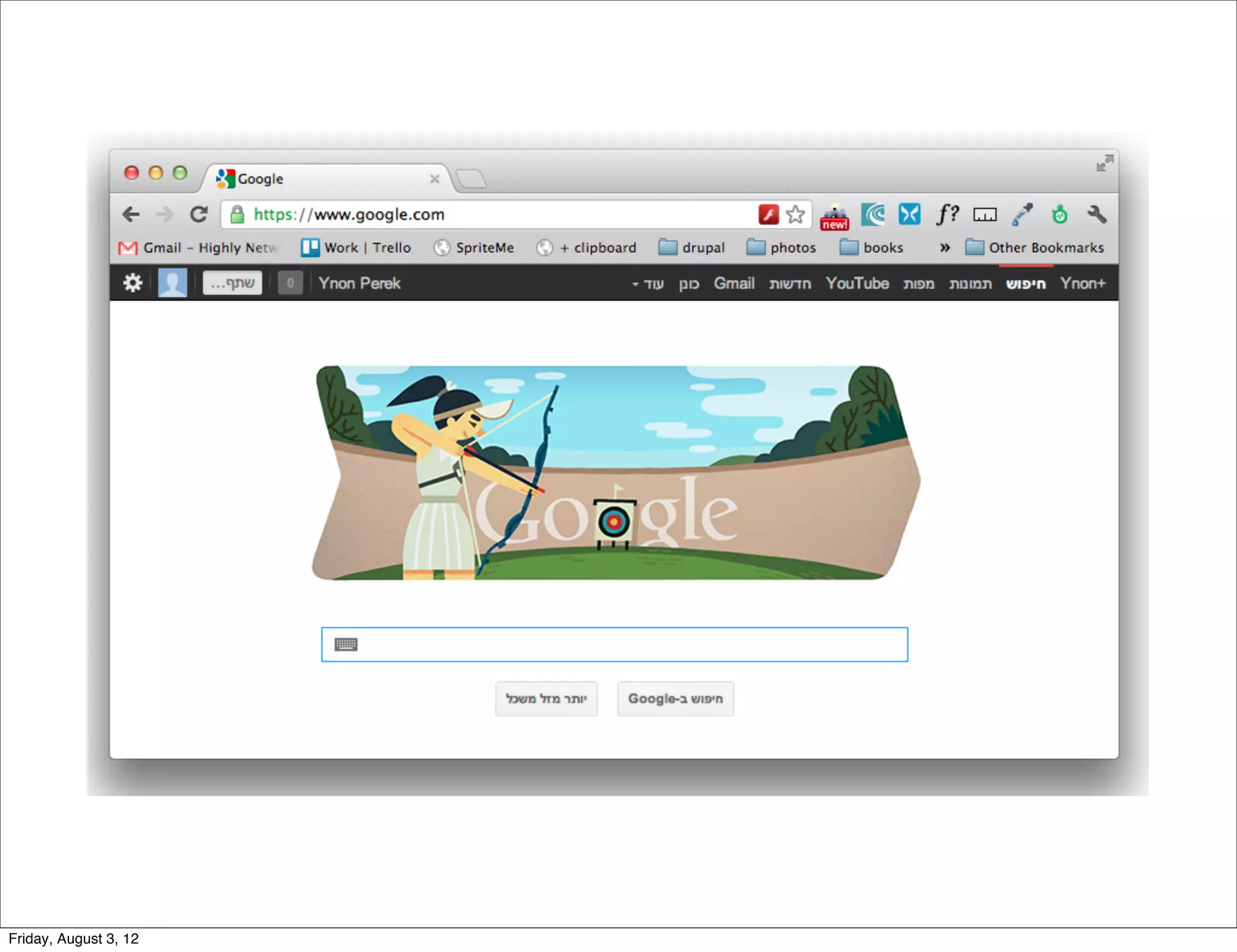

- 5.

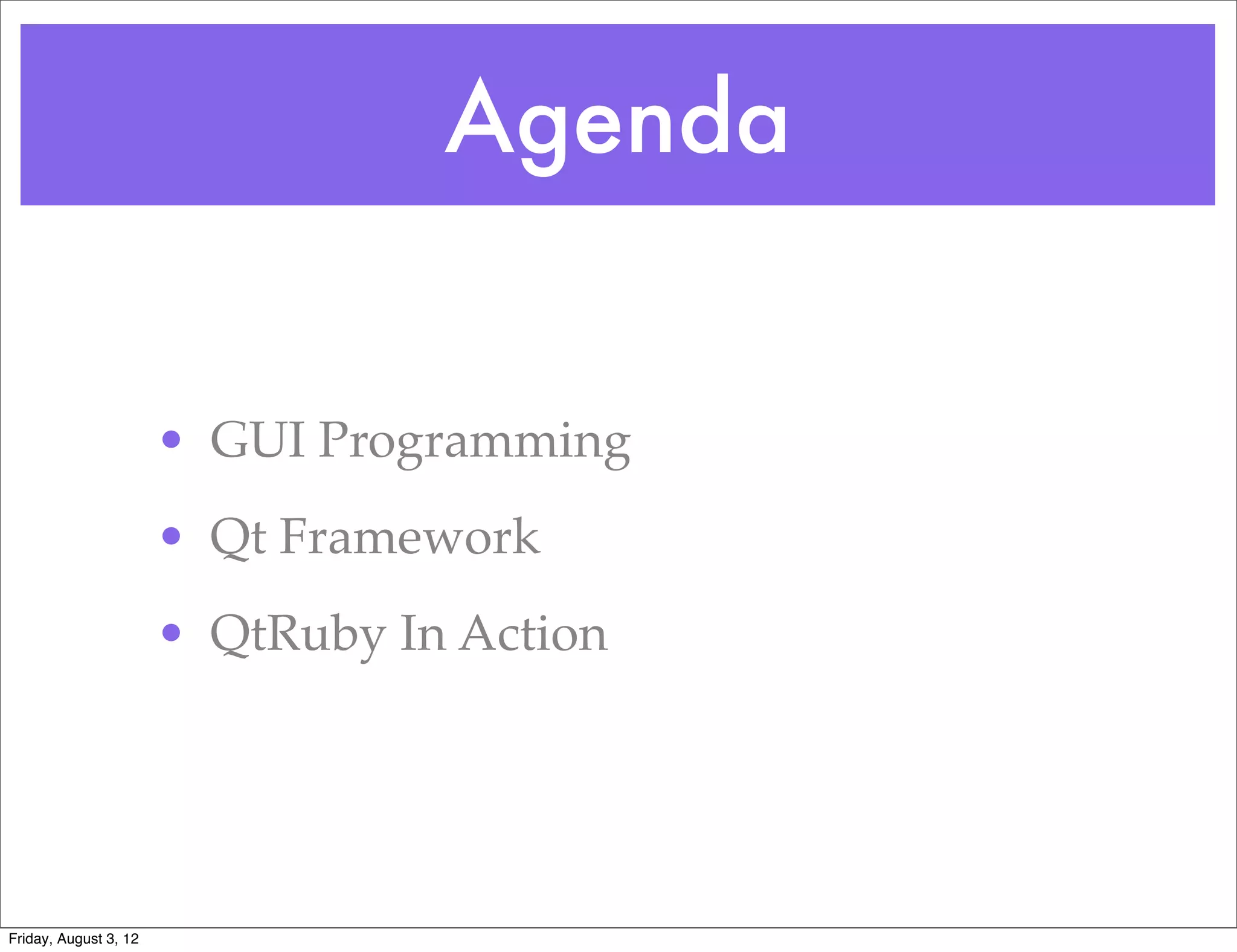

- 6. Agenda • GUI Programming • Qt Framework • QtRuby In Action Friday, August 3, 12
- 7. About Me • Ynon Perek • ynonperek@yahoo.com • http://qtcollege.co.il Friday, August 3, 12
- 8.

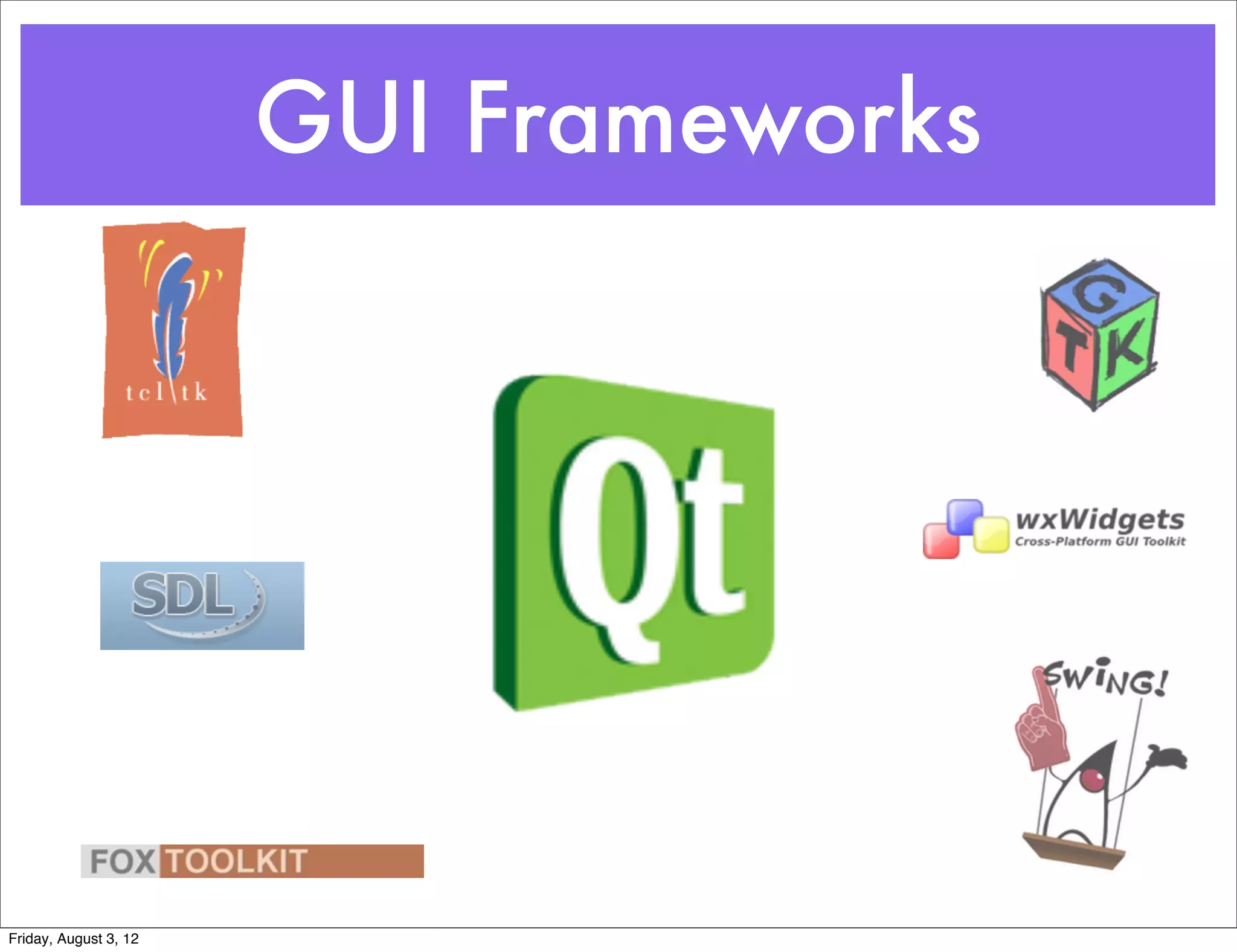

- 9.

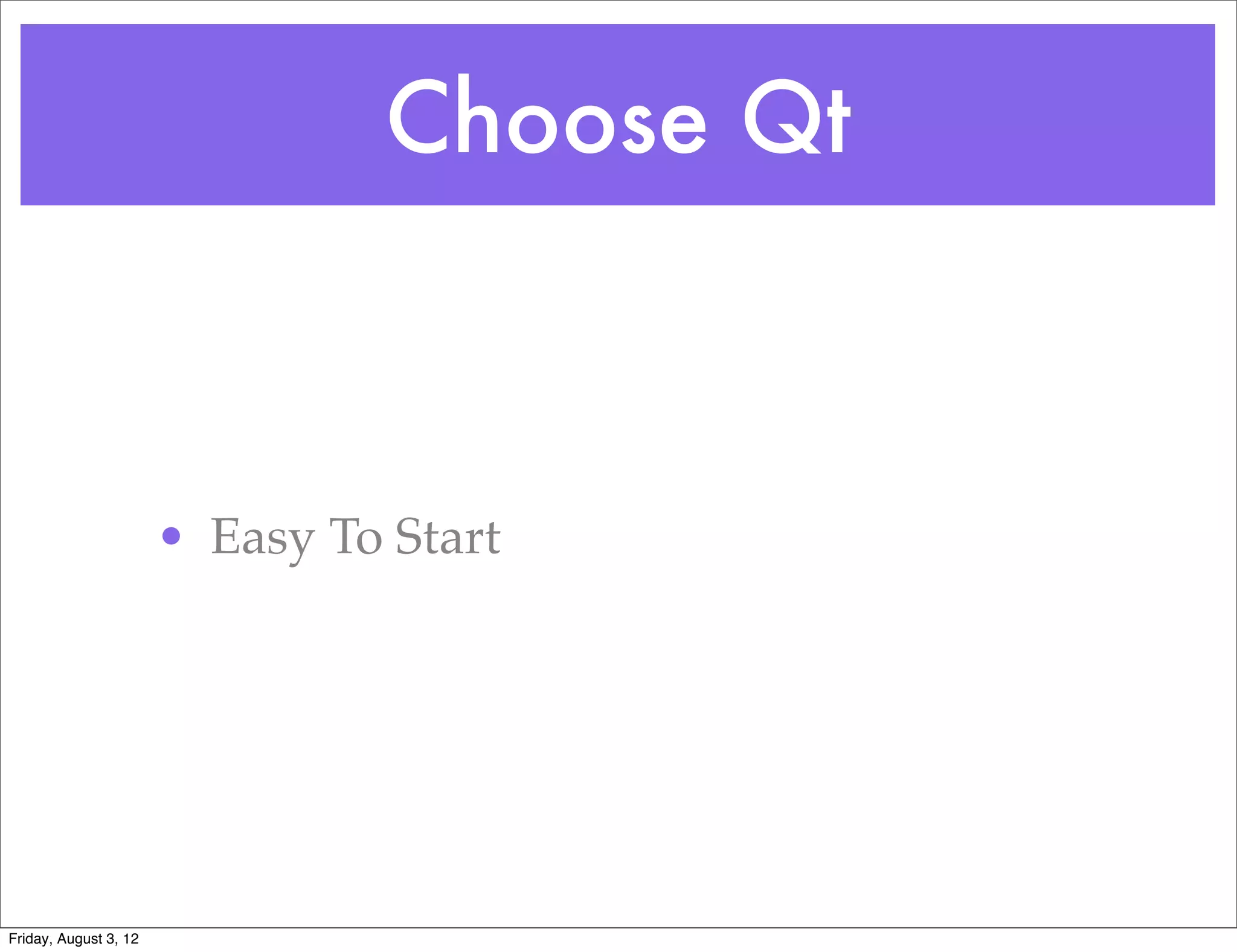

- 10. Choose Qt • Easy To Start Friday, August 3, 12

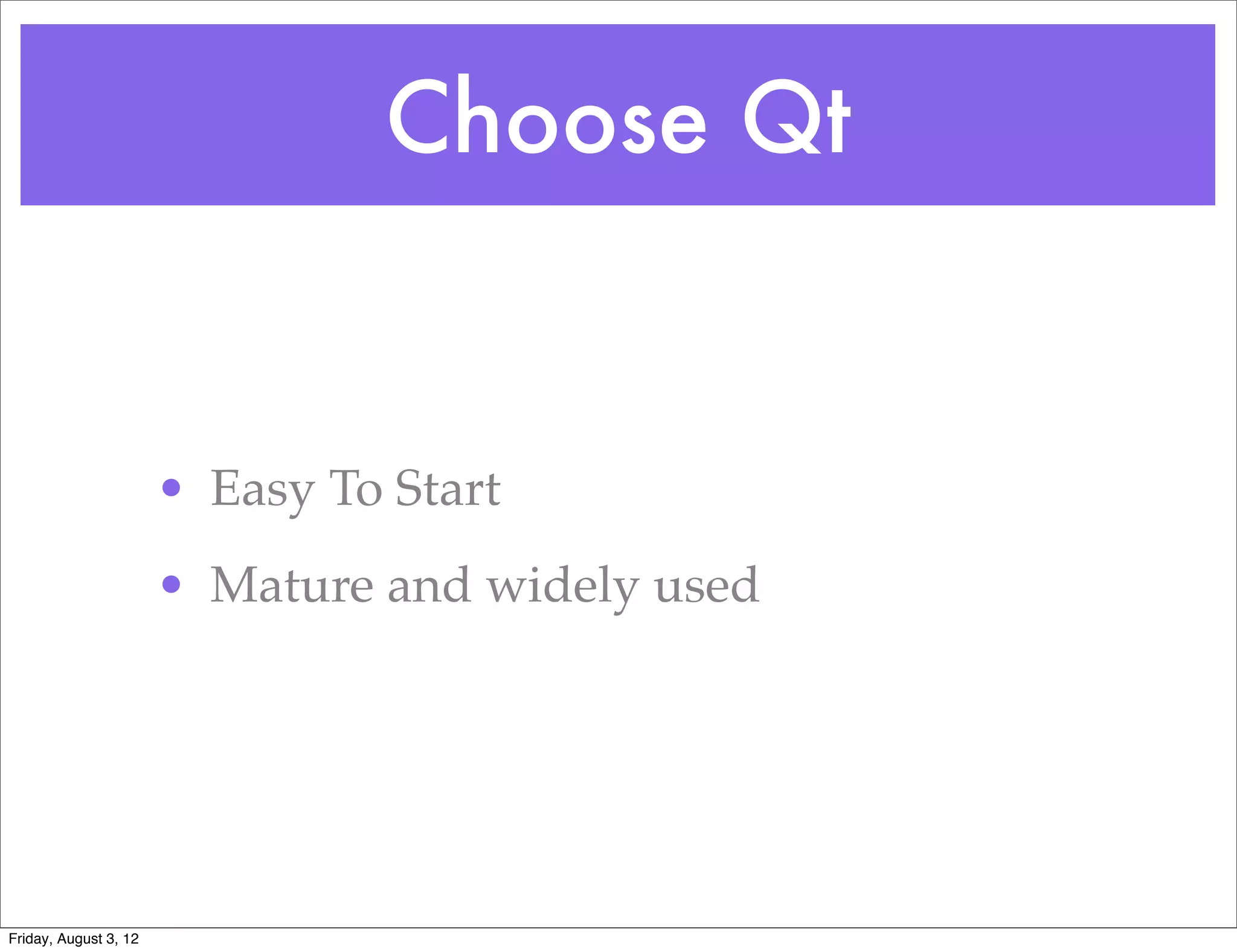

- 11. Choose Qt • Easy To Start • Mature and widely used Friday, August 3, 12

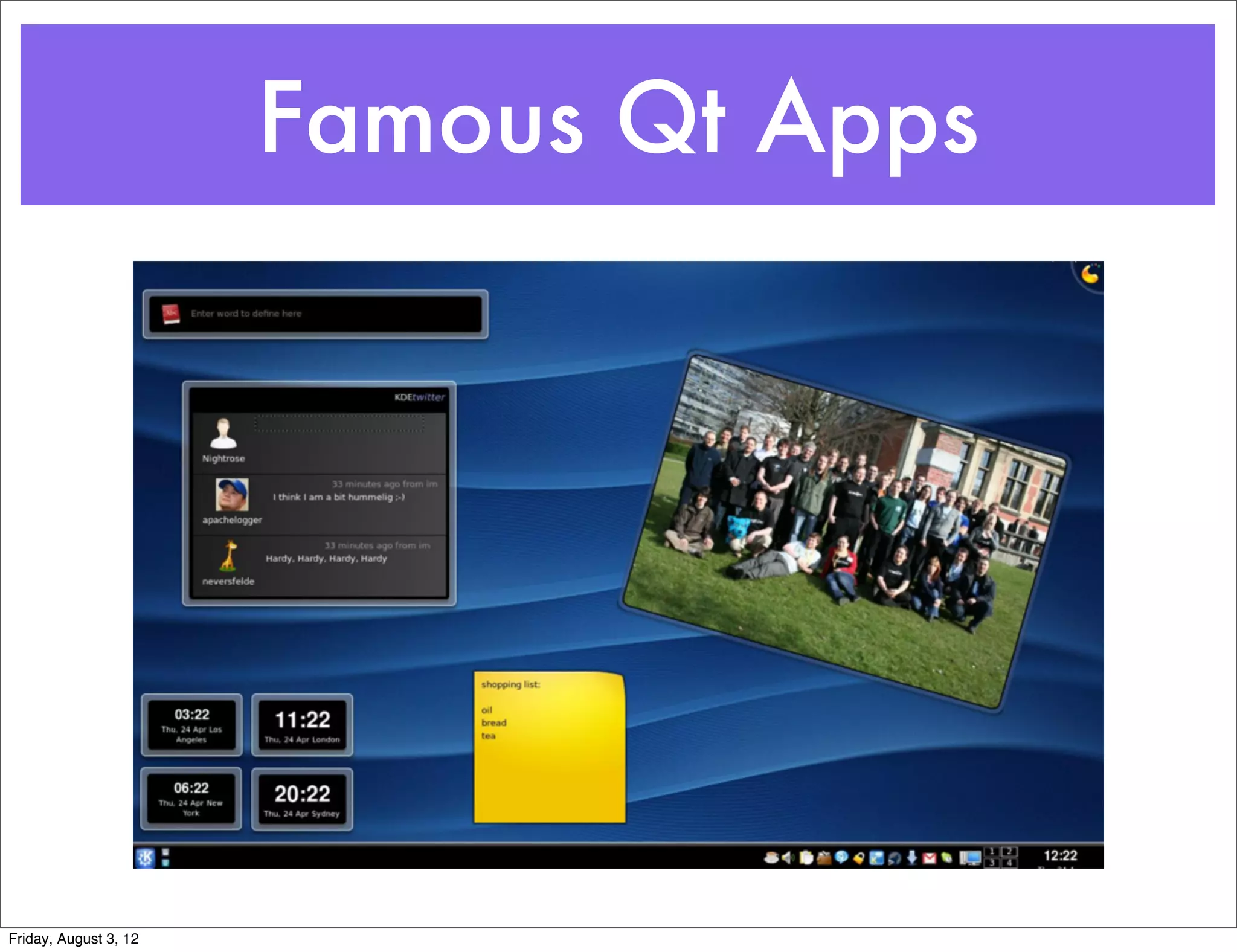

- 12. Famous Qt Apps Friday,August 3, 12
- 13. Famous Qt Apps Friday,August 3, 12

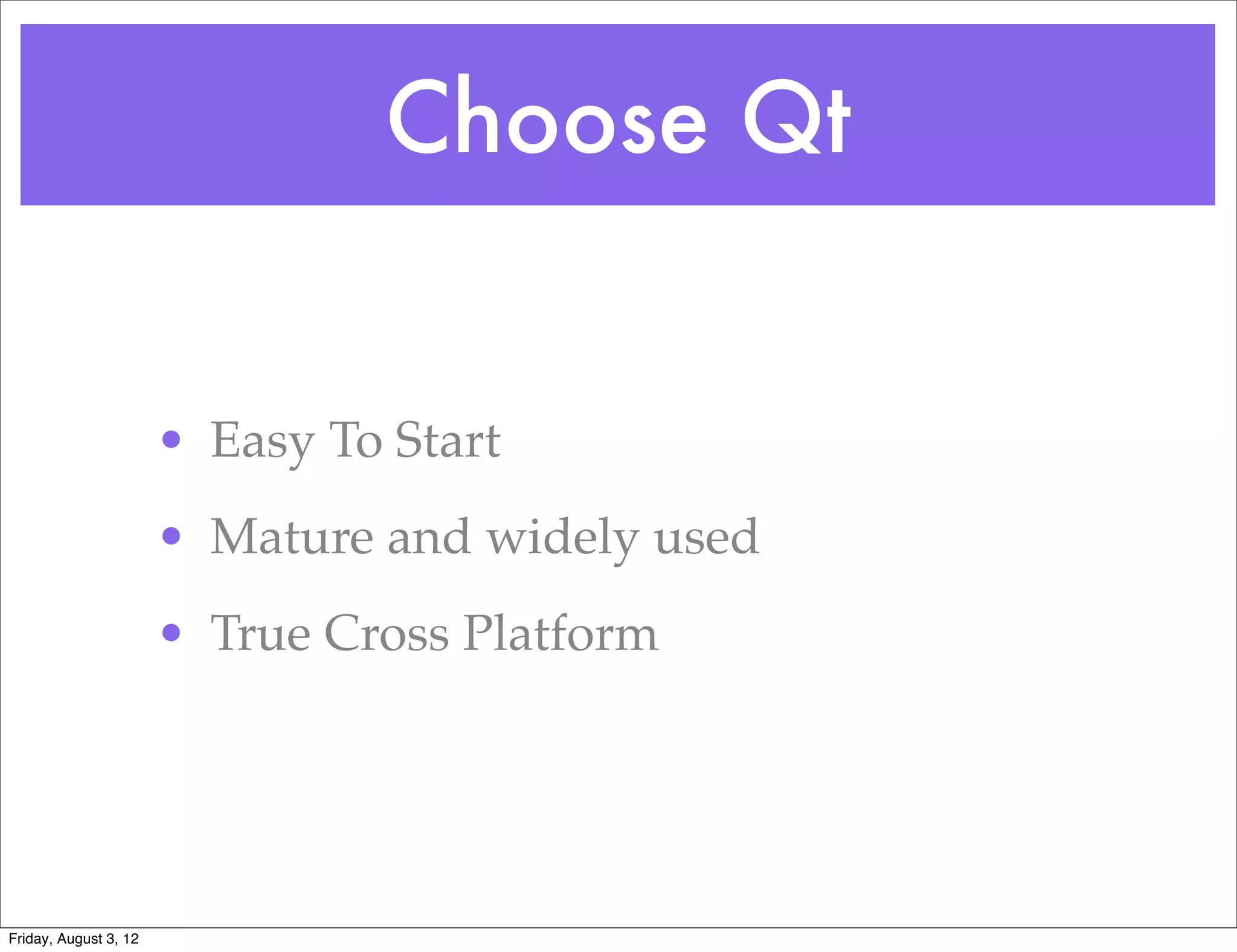

- 14. Choose Qt • Easy To Start • Mature and widely used • True Cross Platform Friday, August 3, 12

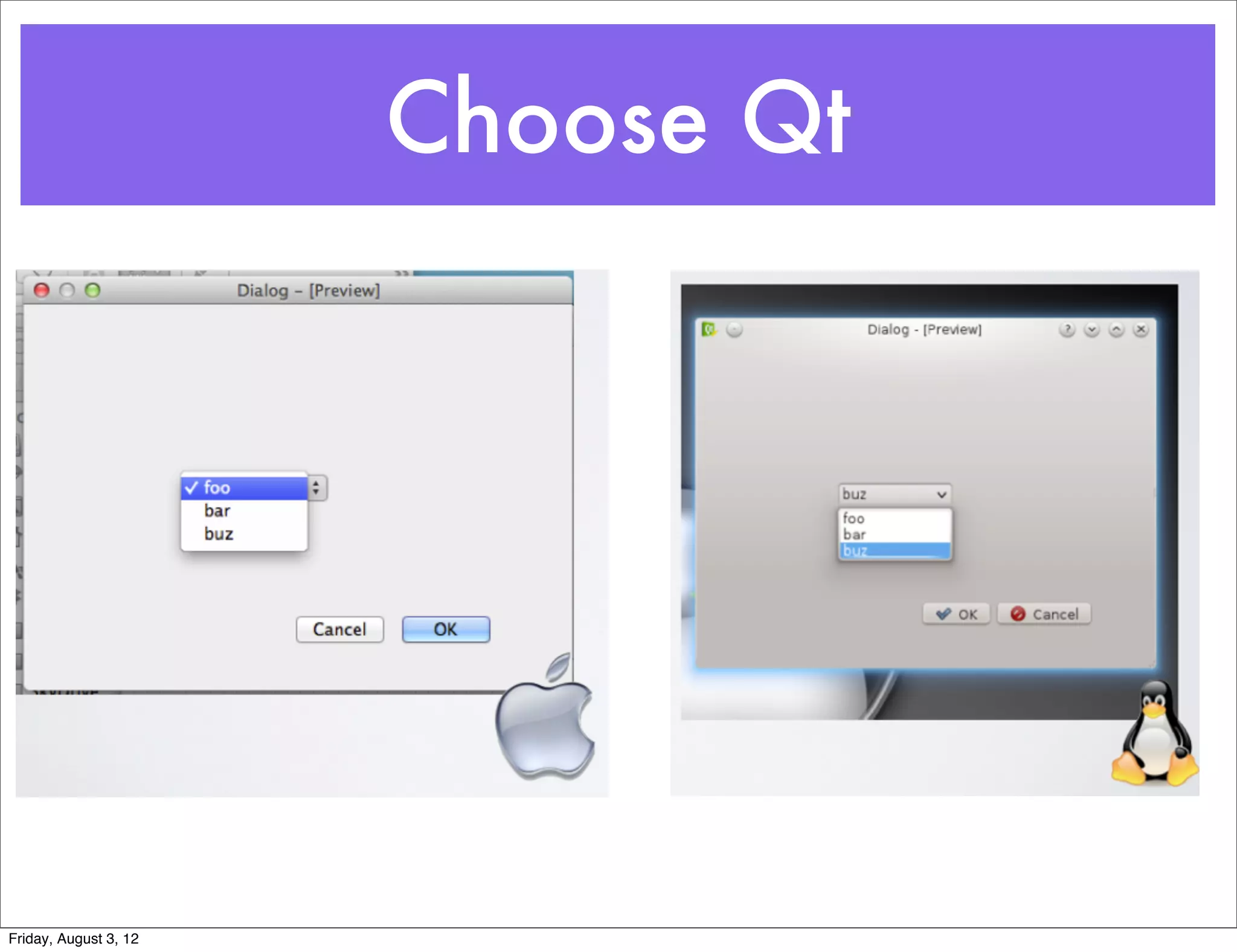

- 15.

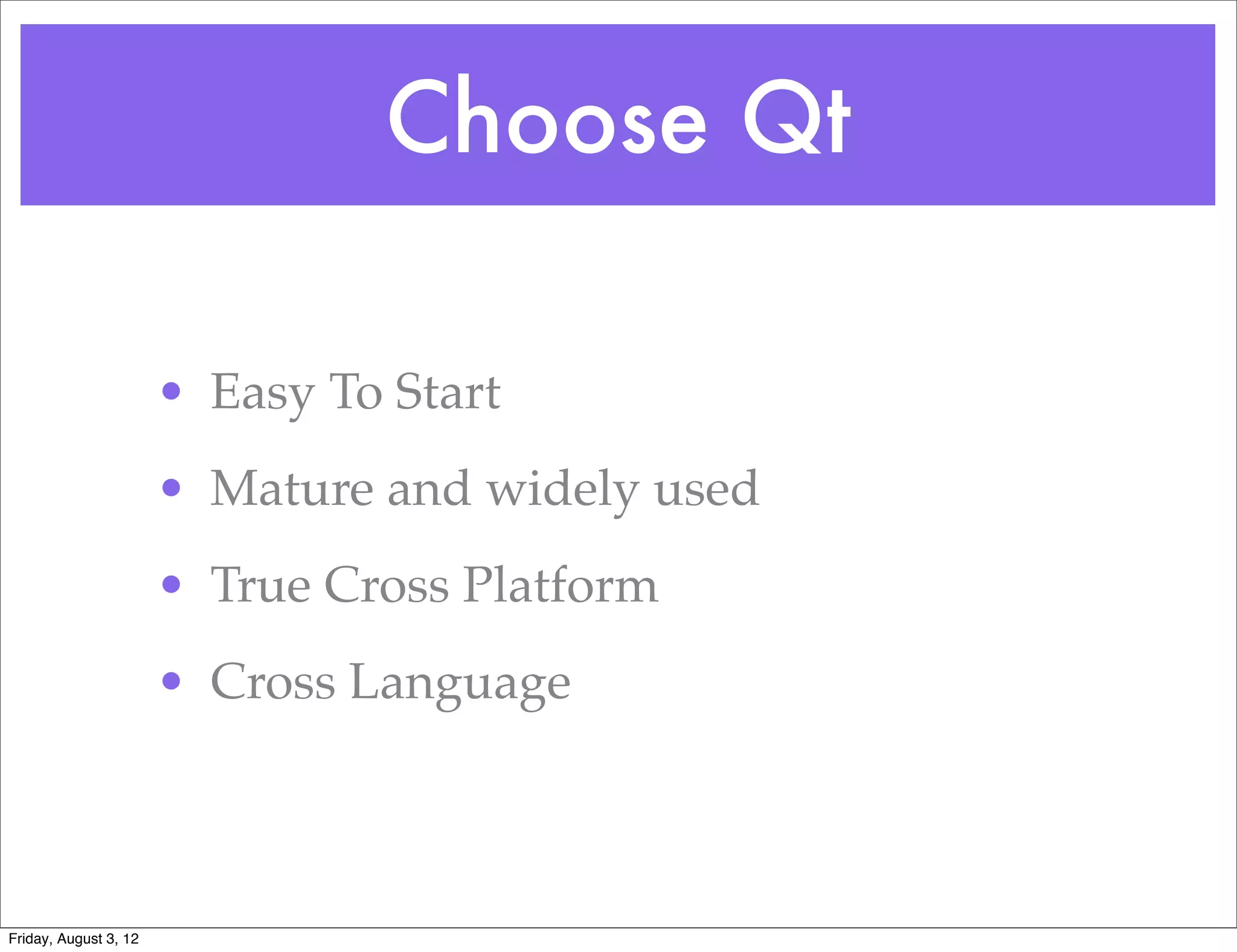

- 16. Choose Qt • Easy To Start • Mature and widely used • True Cross Platform • Cross Language Friday, August 3, 12

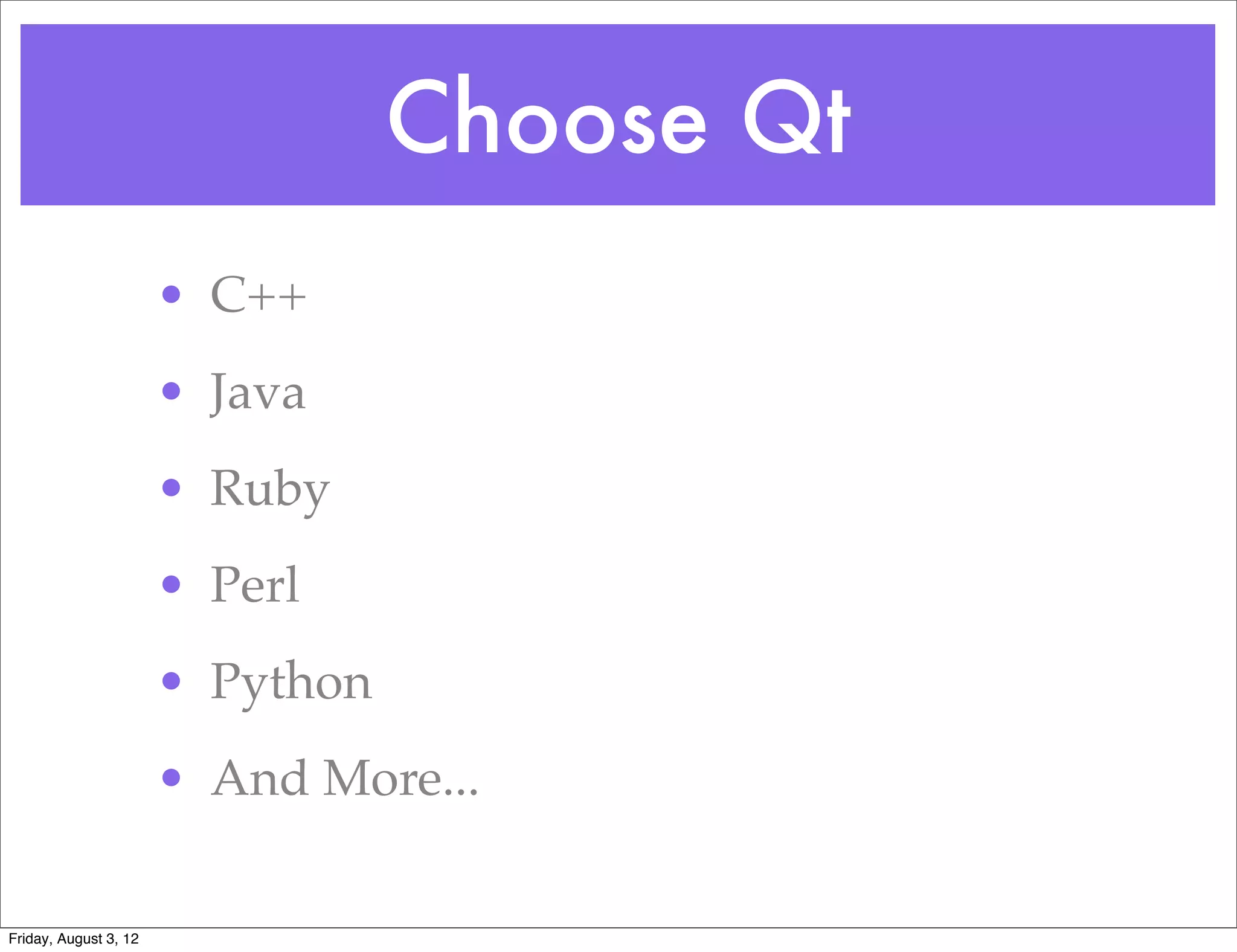

- 17. Choose Qt • C++ • Java • Ruby • Perl • Python • And More... Friday, August 3, 12
- 18.

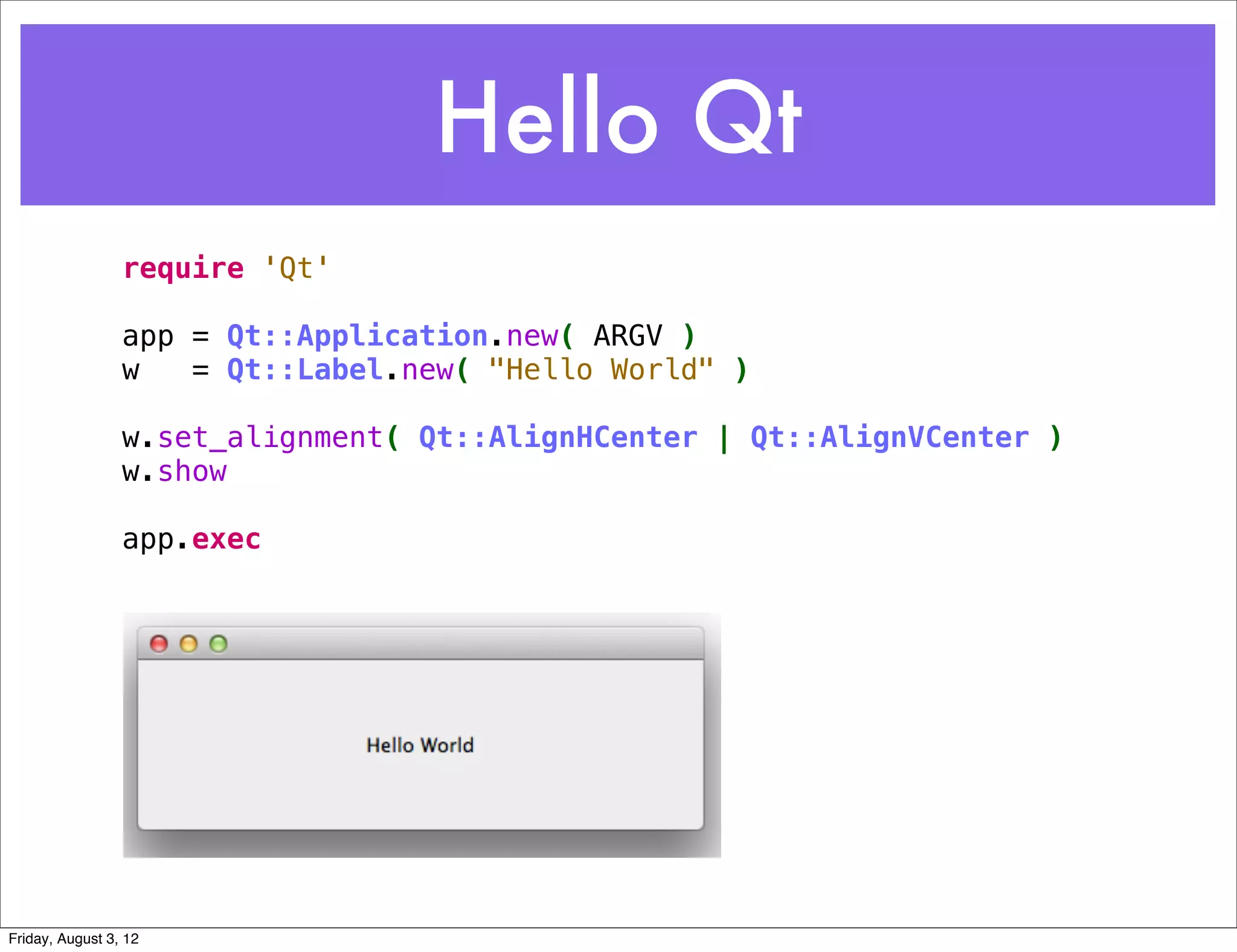

- 19. Hello Qt require 'Qt' app = Qt::Application.new( ARGV ) w = Qt::Label.new( "Hello World" ) w.set_alignment( Qt::AlignHCenter | Qt::AlignVCenter ) w.show app.exec Friday, August 3, 12

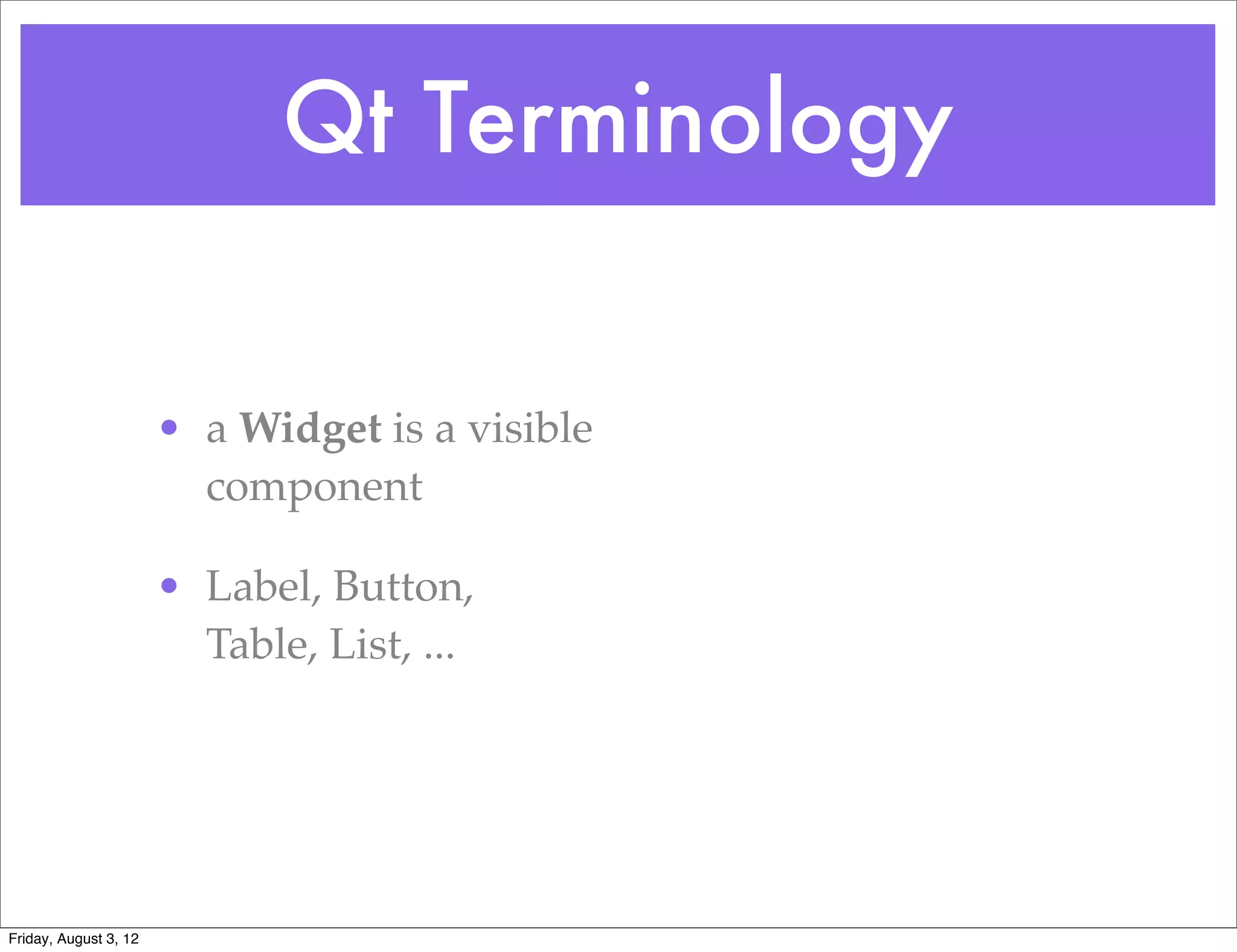

- 20. Qt Terminology • a Widget is a visible component • Label, Button, Table, List, ... Friday, August 3, 12

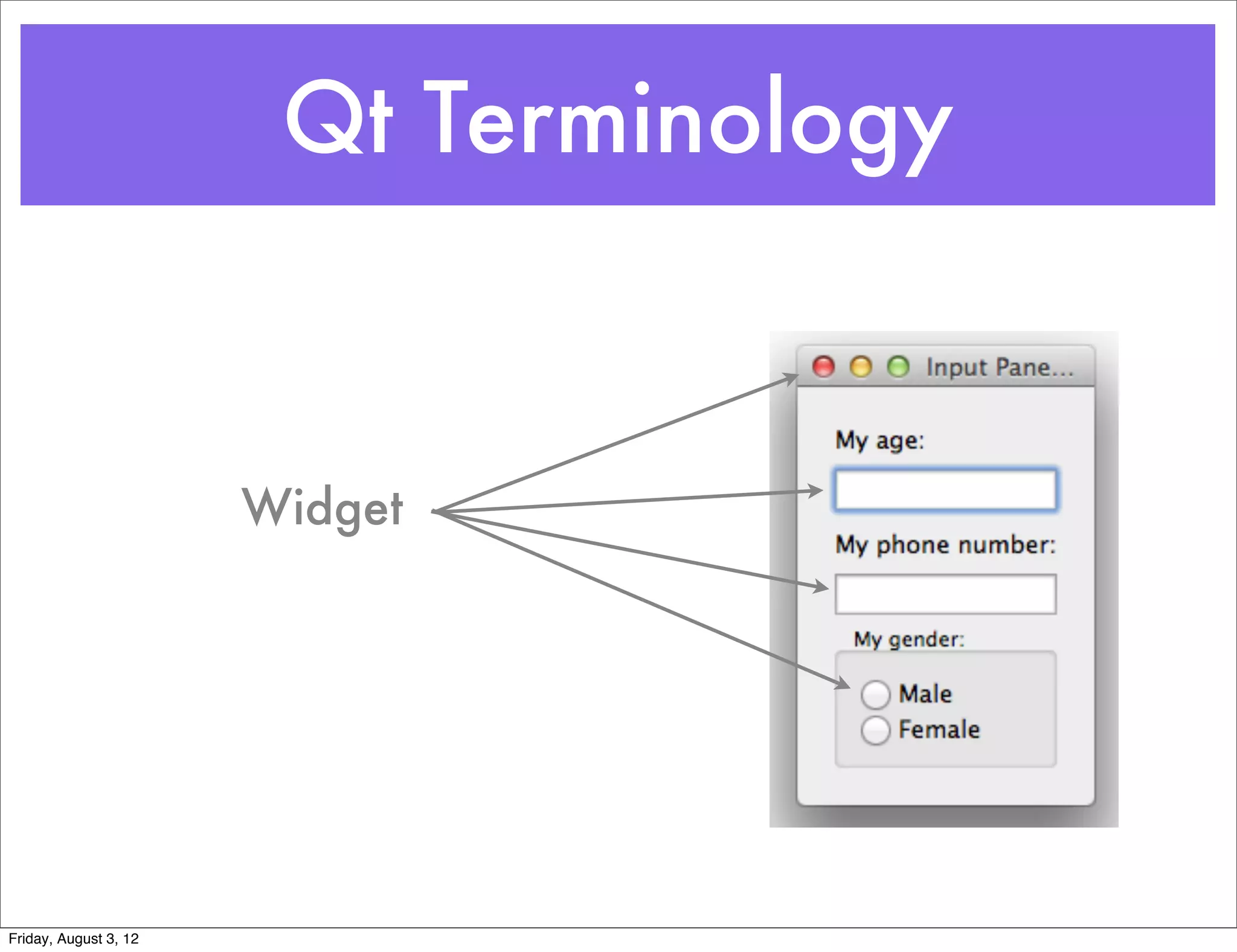

- 21. Qt Terminology Widget Friday, August 3, 12

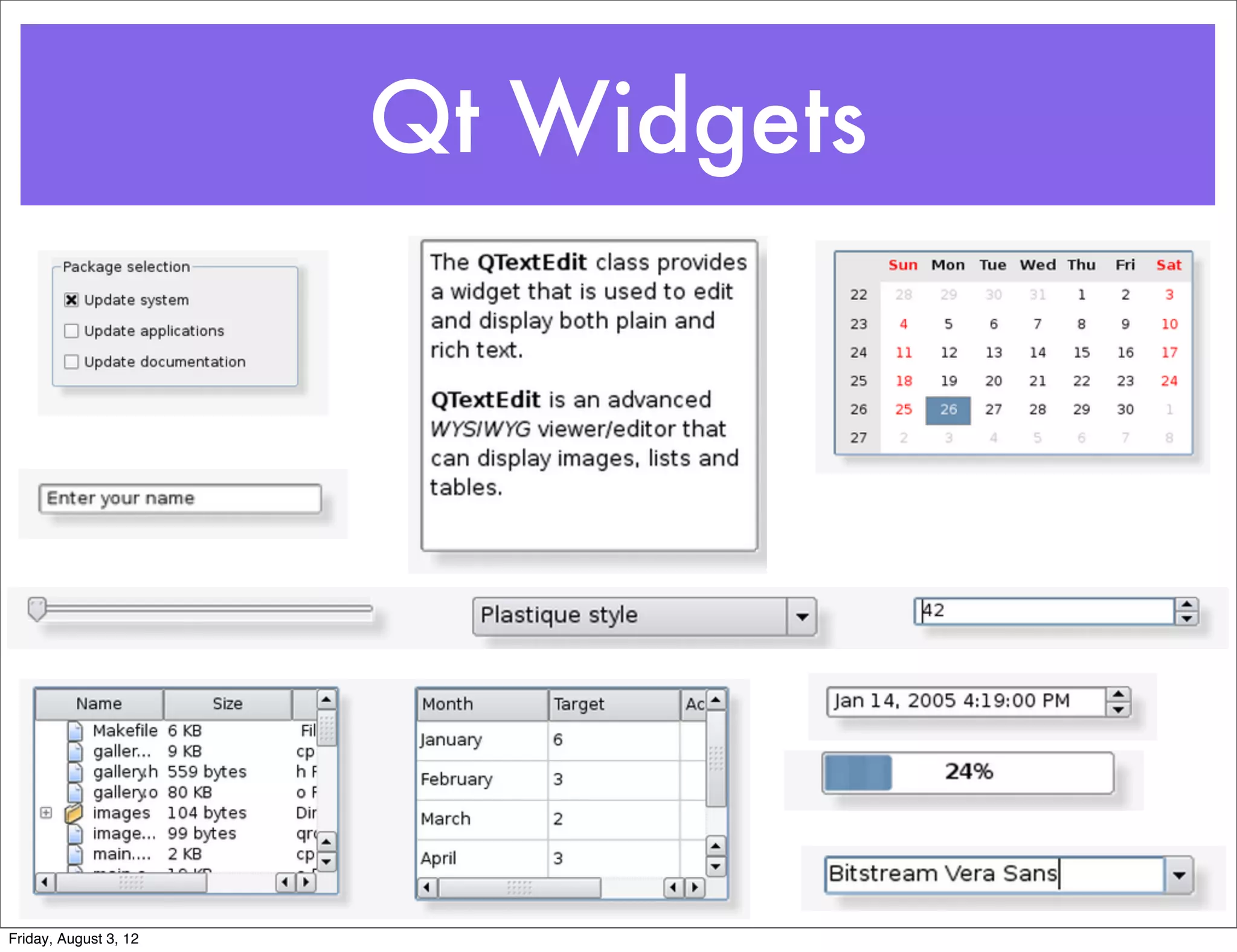

- 22.

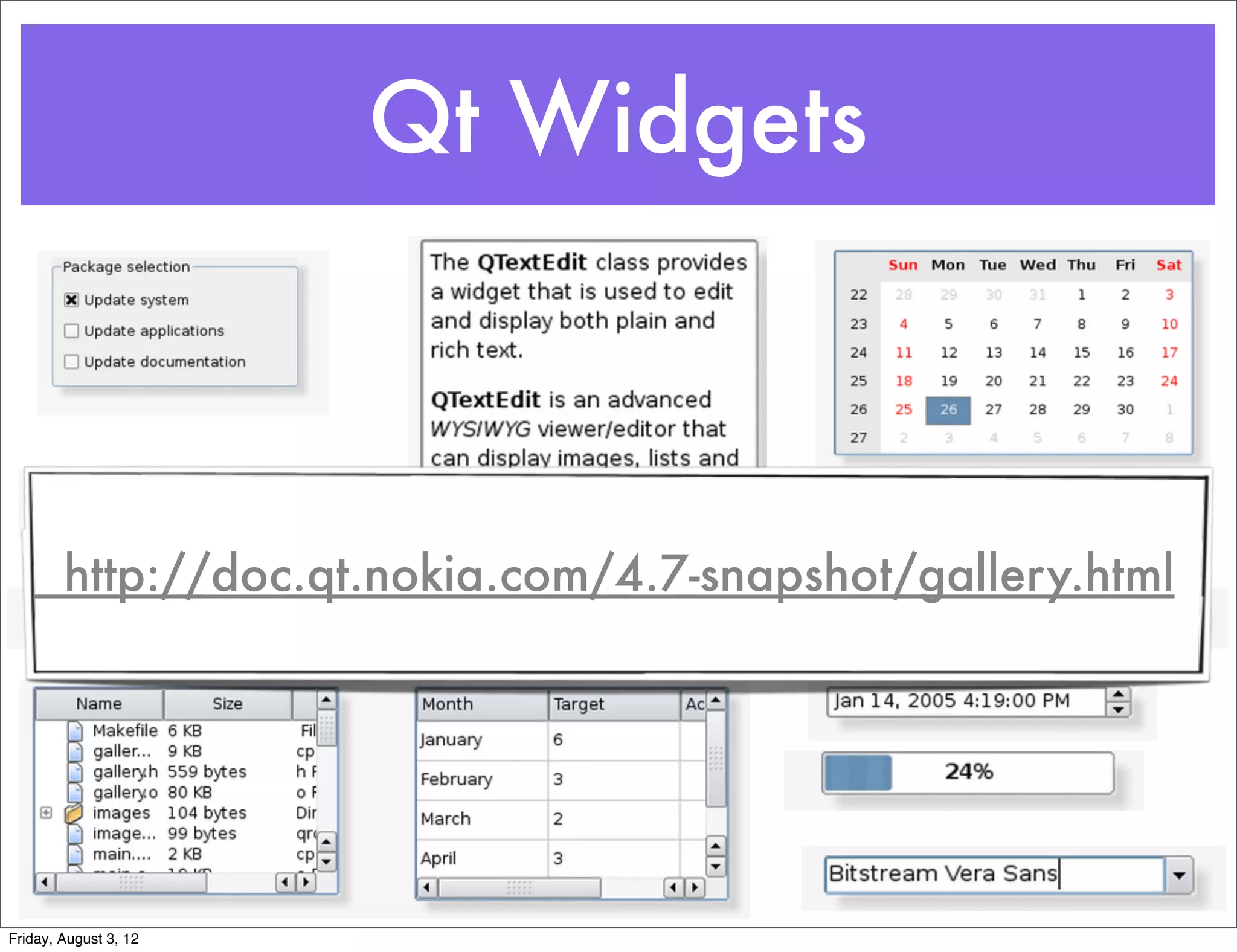

- 23. Qt Widgets http://doc.qt.nokia.com/4.7-snapshot/gallery.html Friday, August 3, 12

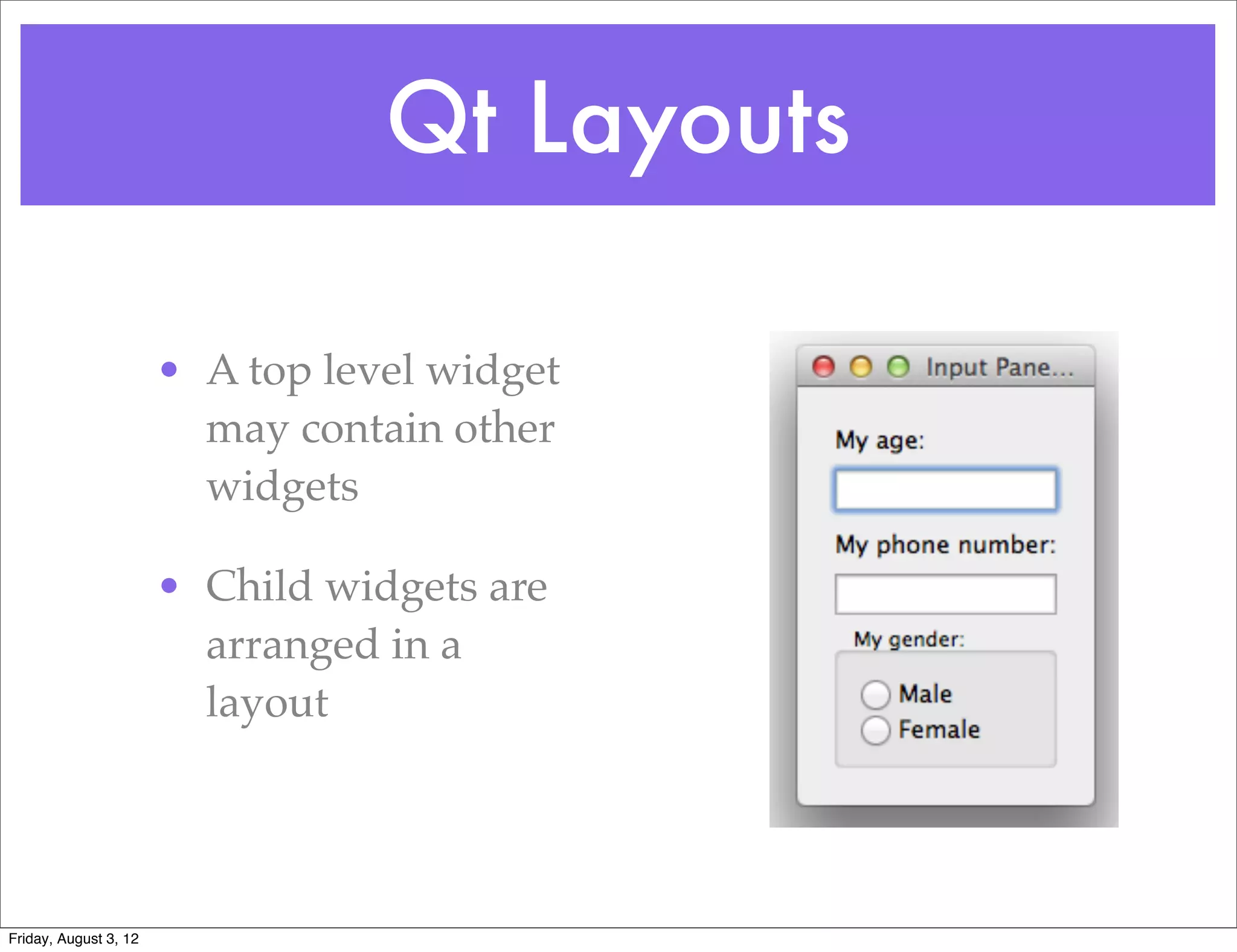

- 24. Qt Layouts • A top level widget may contain other widgets • Child widgets are arranged in a layout Friday, August 3, 12

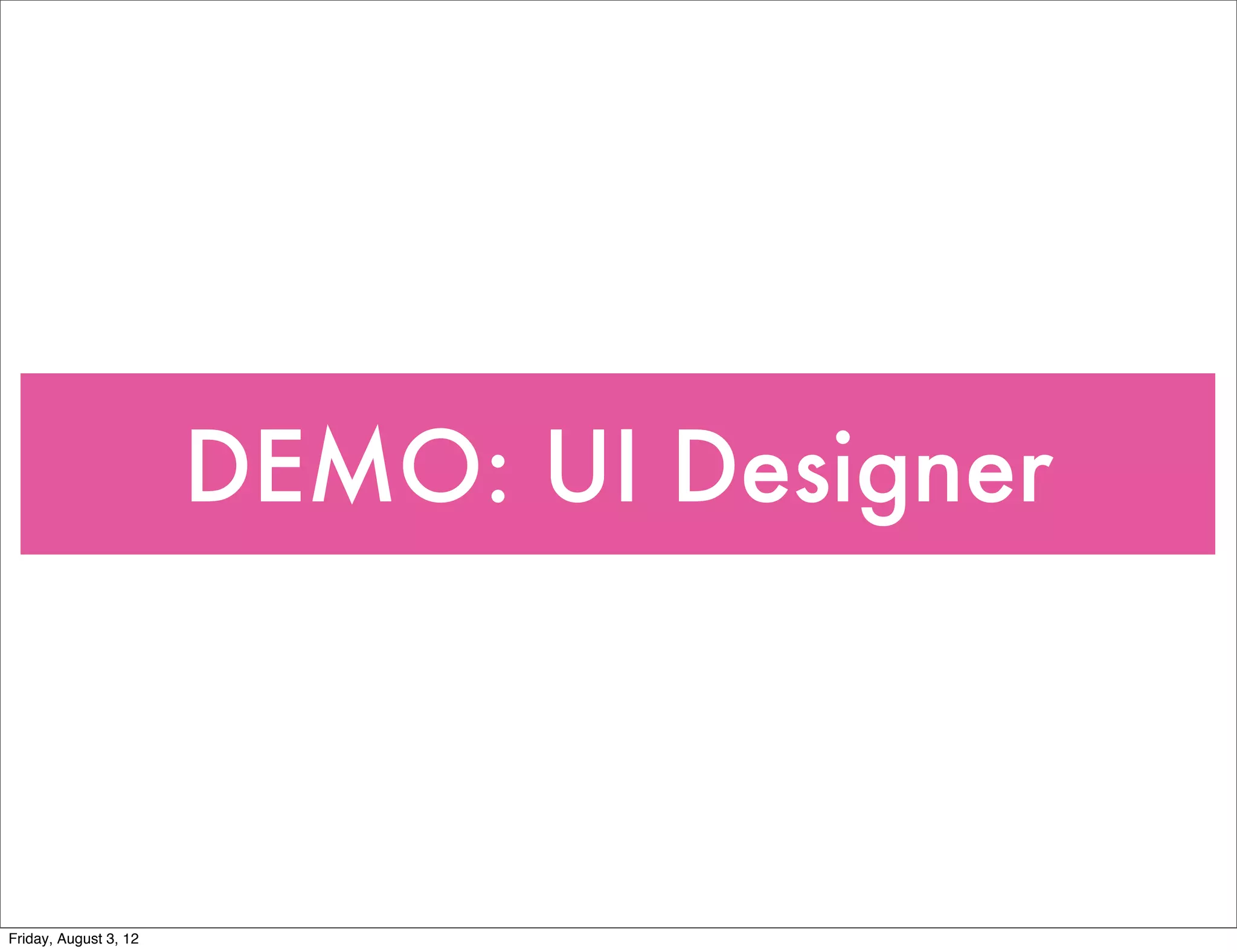

- 25. DEMO: UI Designer Friday,August 3, 12
- 26. Qt Terminology • Signal specifies a semantic event Friday, August 3, 12

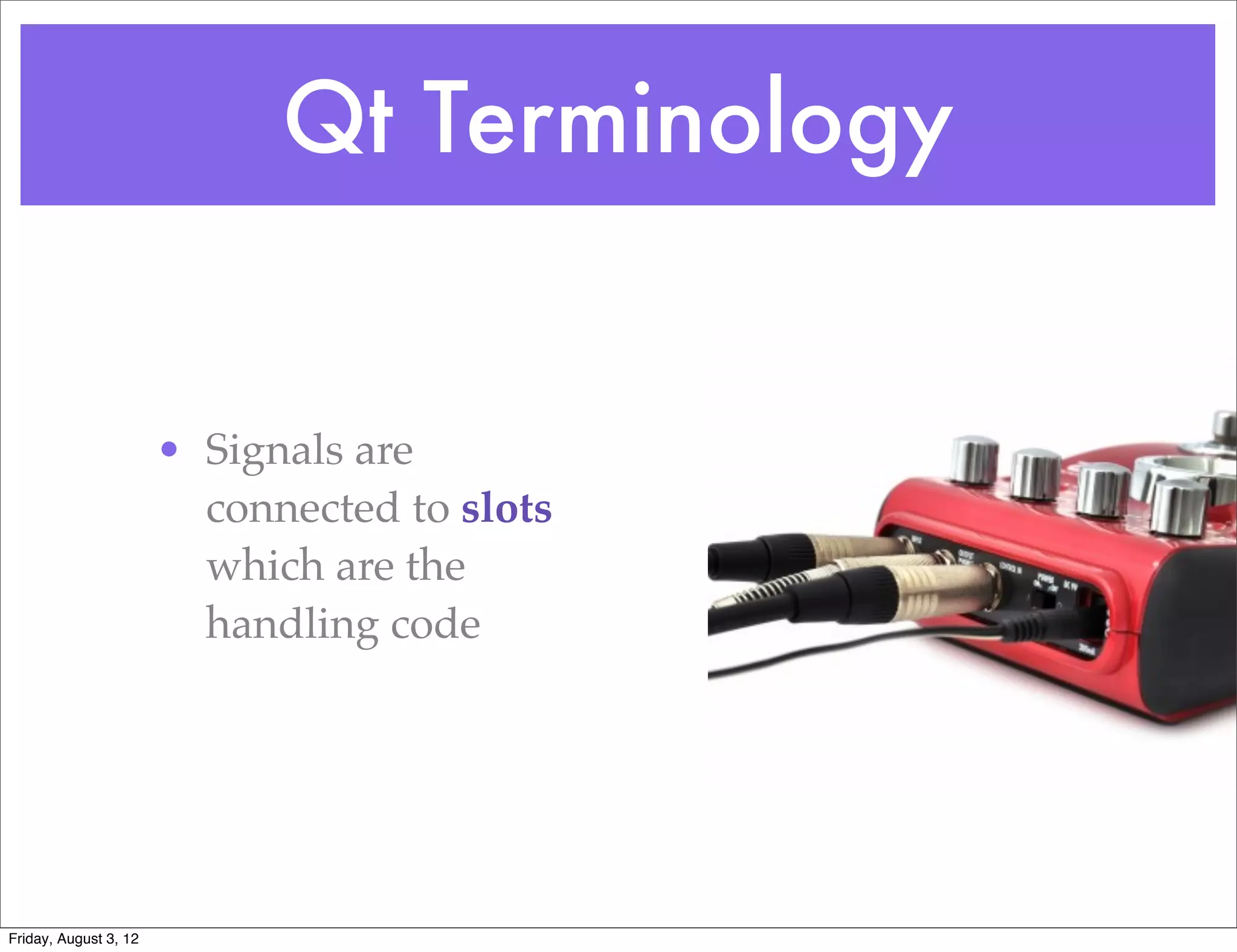

- 27. Qt Terminology • Signals are connected to slots which are the handling code Friday, August 3, 12

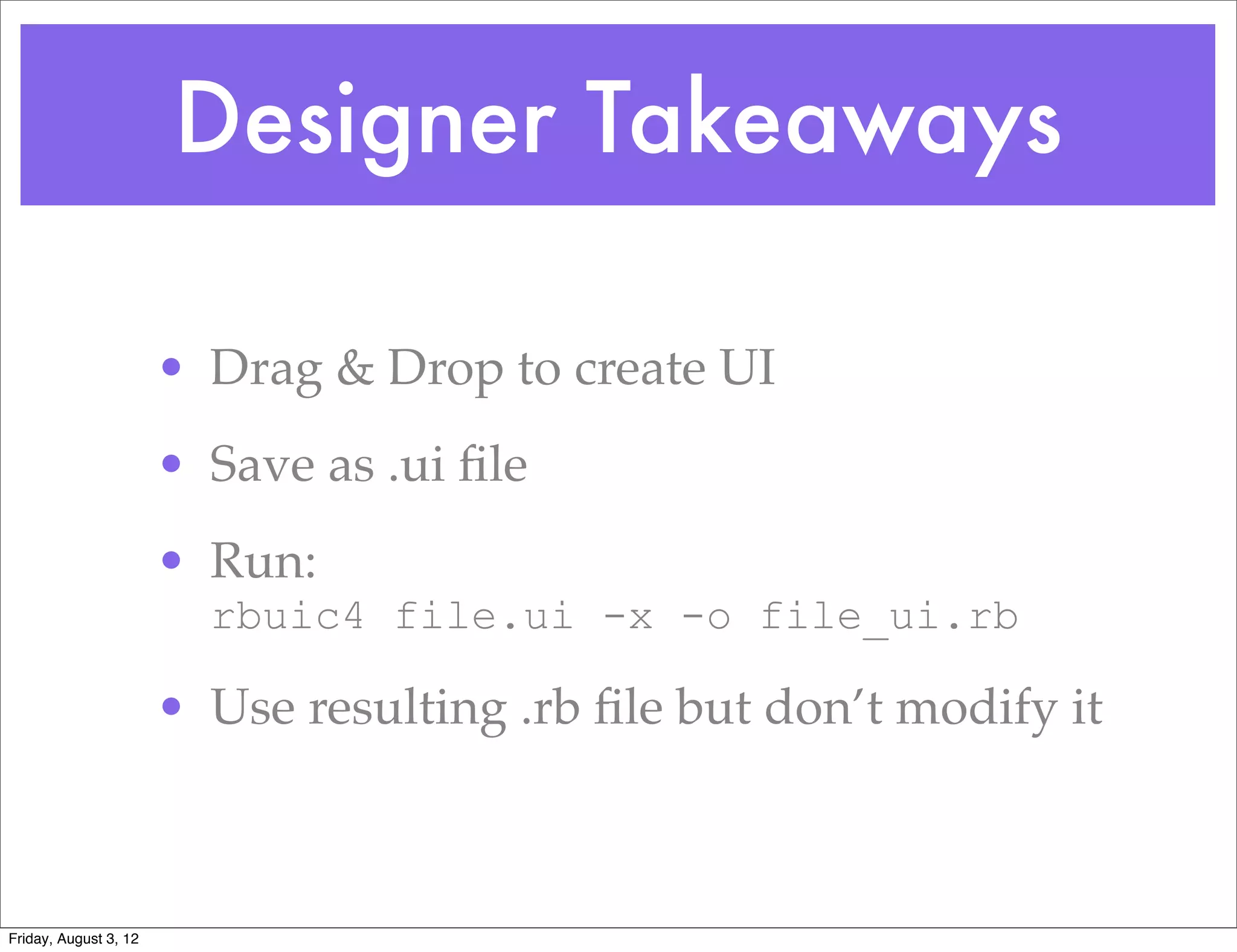

- 28. Designer Takeaways • Drag & Drop to create UI • Save as .ui file • Run: rbuic4 file.ui -x -o file_ui.rb • Use resulting .rb file but don’t modify it Friday, August 3, 12

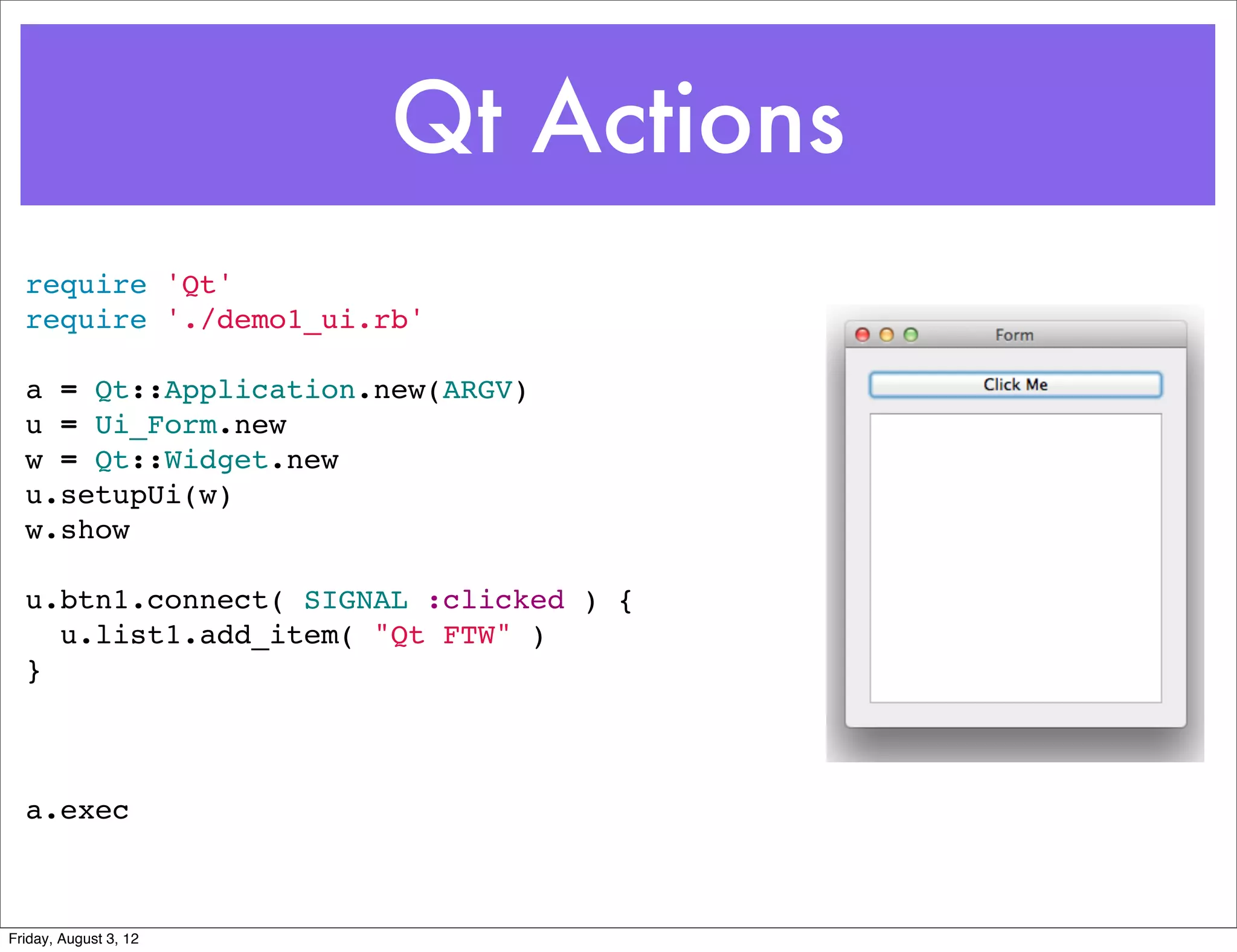

- 29. Qt Actions require 'Qt' require './demo1_ui.rb' a = Qt::Application.new(ARGV) u = Ui_Form.new w = Qt::Widget.new u.setupUi(w) w.show u.btn1.connect( SIGNAL :clicked ) { u.list1.add_item( "Qt FTW" ) } a.exec Friday, August 3, 12

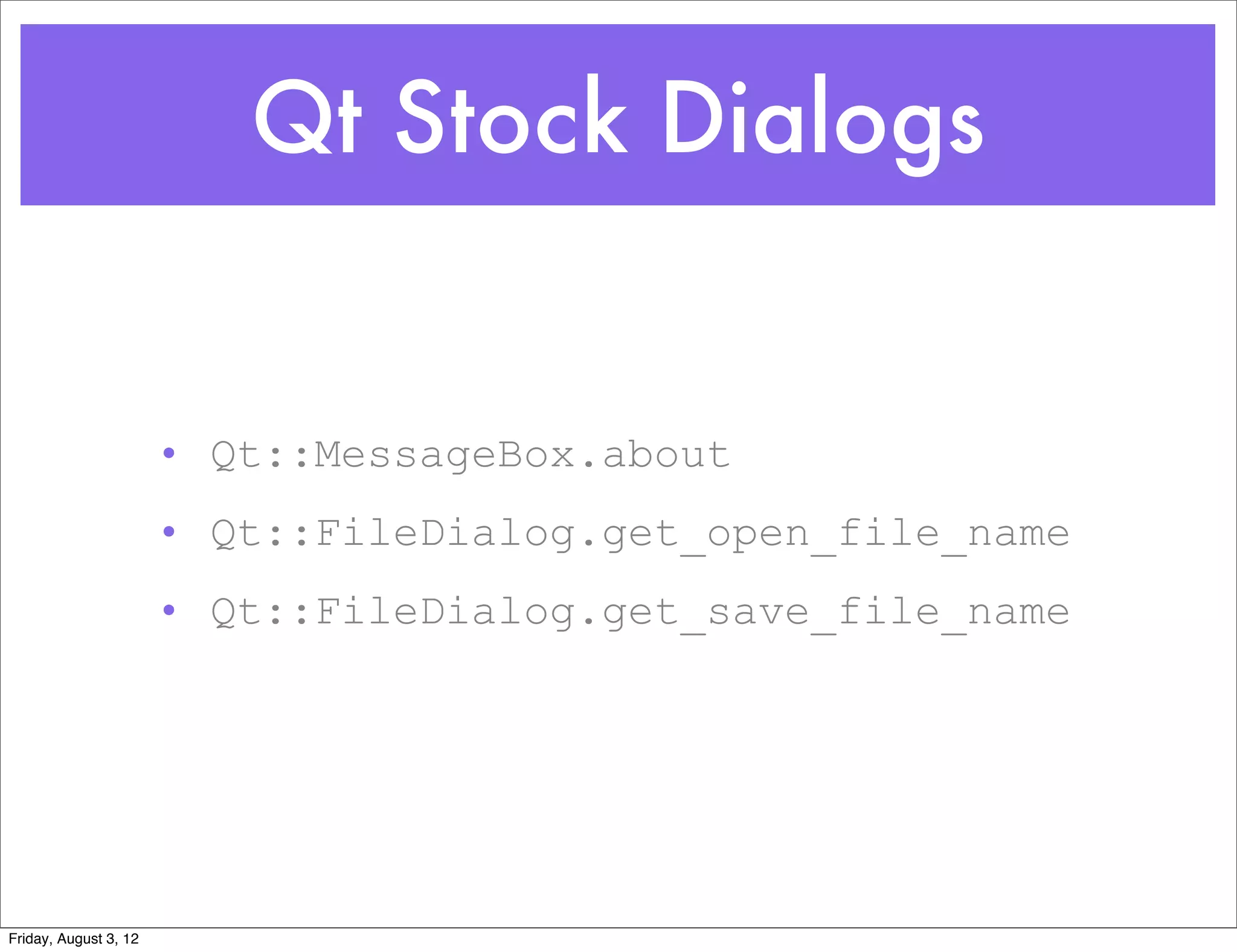

- 30. Qt Stock Dialogs • Qt::MessageBox.about • Qt::FileDialog.get_open_file_name • Qt::FileDialog.get_save_file_name Friday, August 3, 12

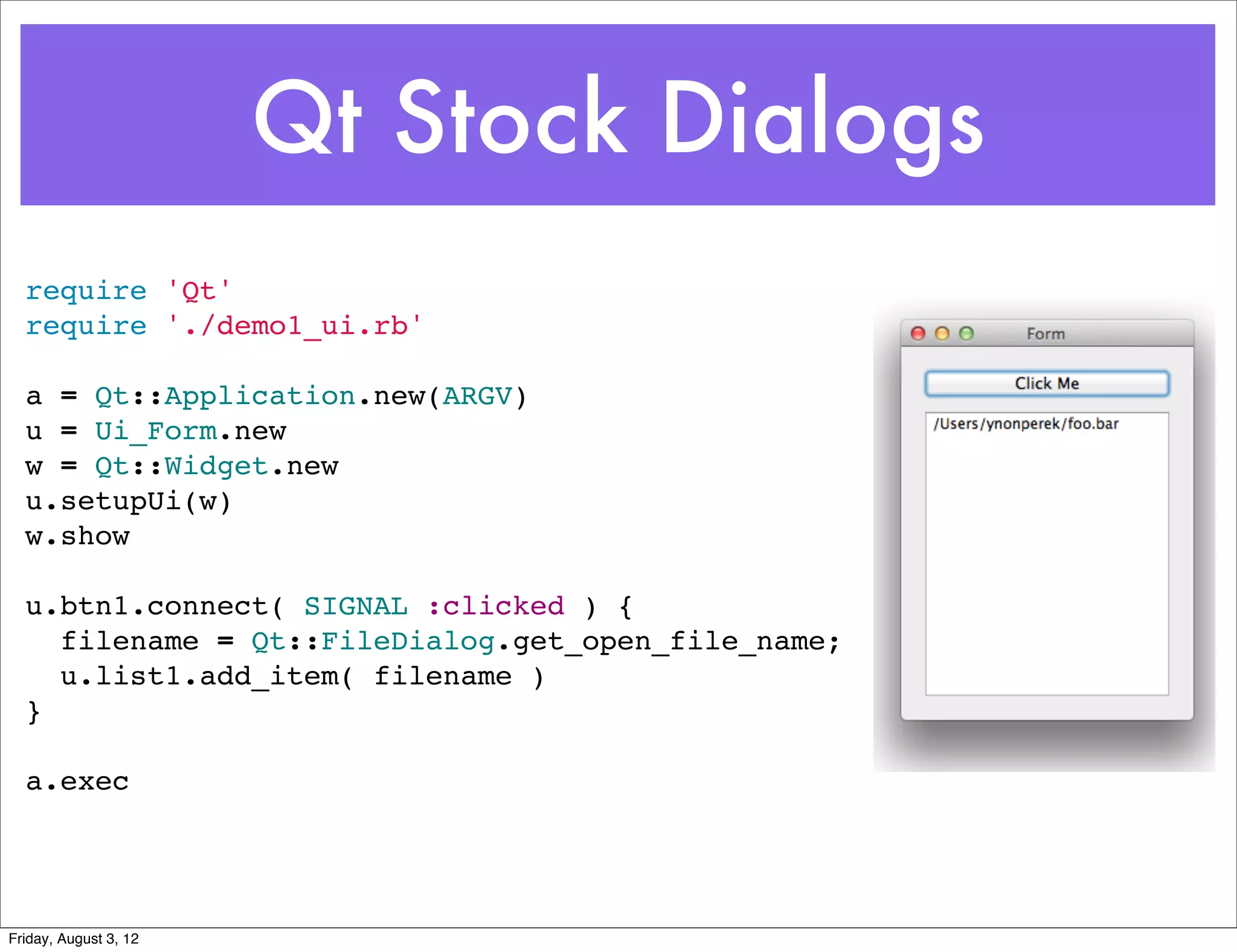

- 31. Qt Stock Dialogs require 'Qt' require './demo1_ui.rb' a = Qt::Application.new(ARGV) u = Ui_Form.new w = Qt::Widget.new u.setupUi(w) w.show u.btn1.connect( SIGNAL :clicked ) { filename = Qt::FileDialog.get_open_file_name; u.list1.add_item( filename ) } a.exec Friday, August 3, 12
- 32.

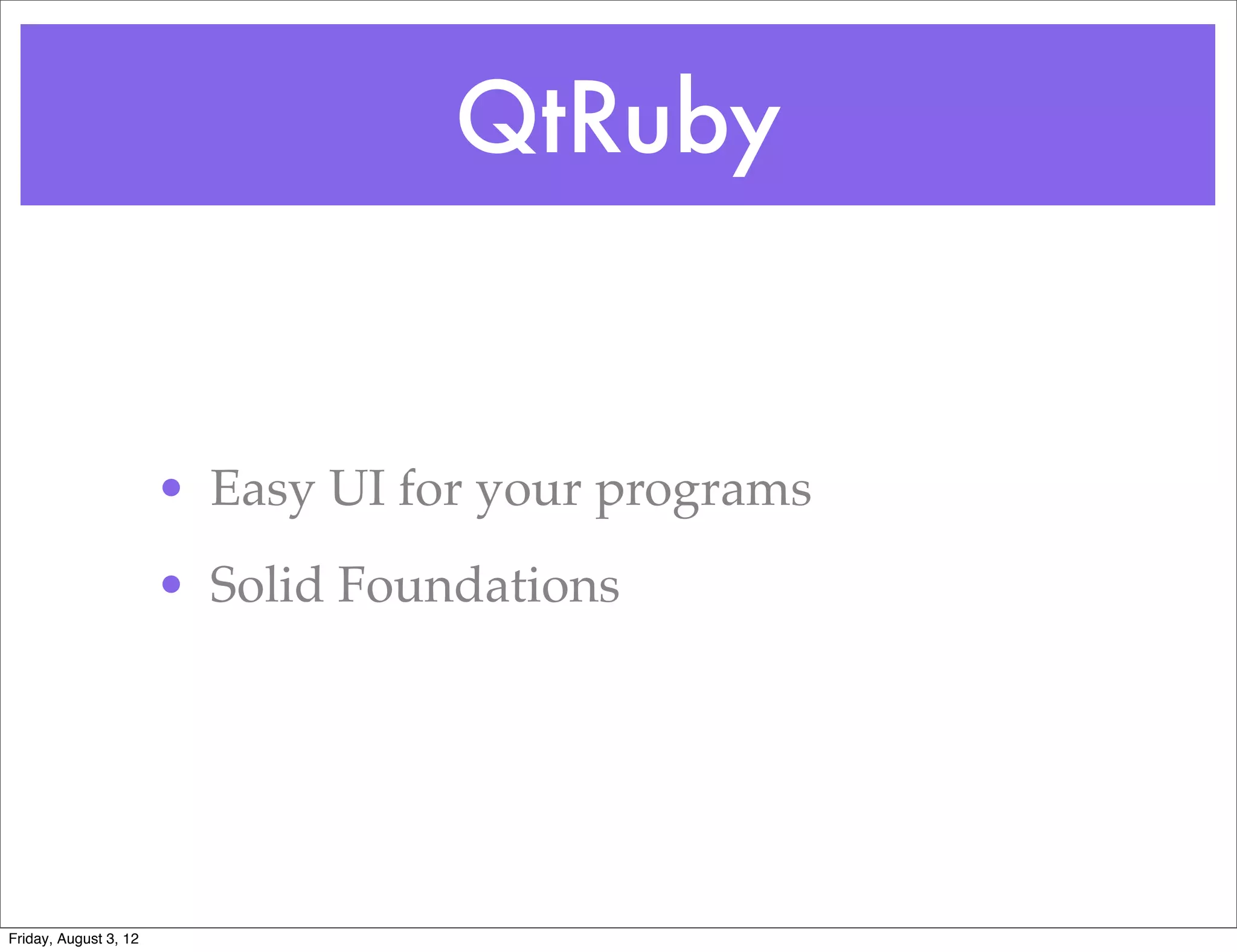

- 33. QtRuby • Easy UI for your programs • Solid Foundations Friday, August 3, 12

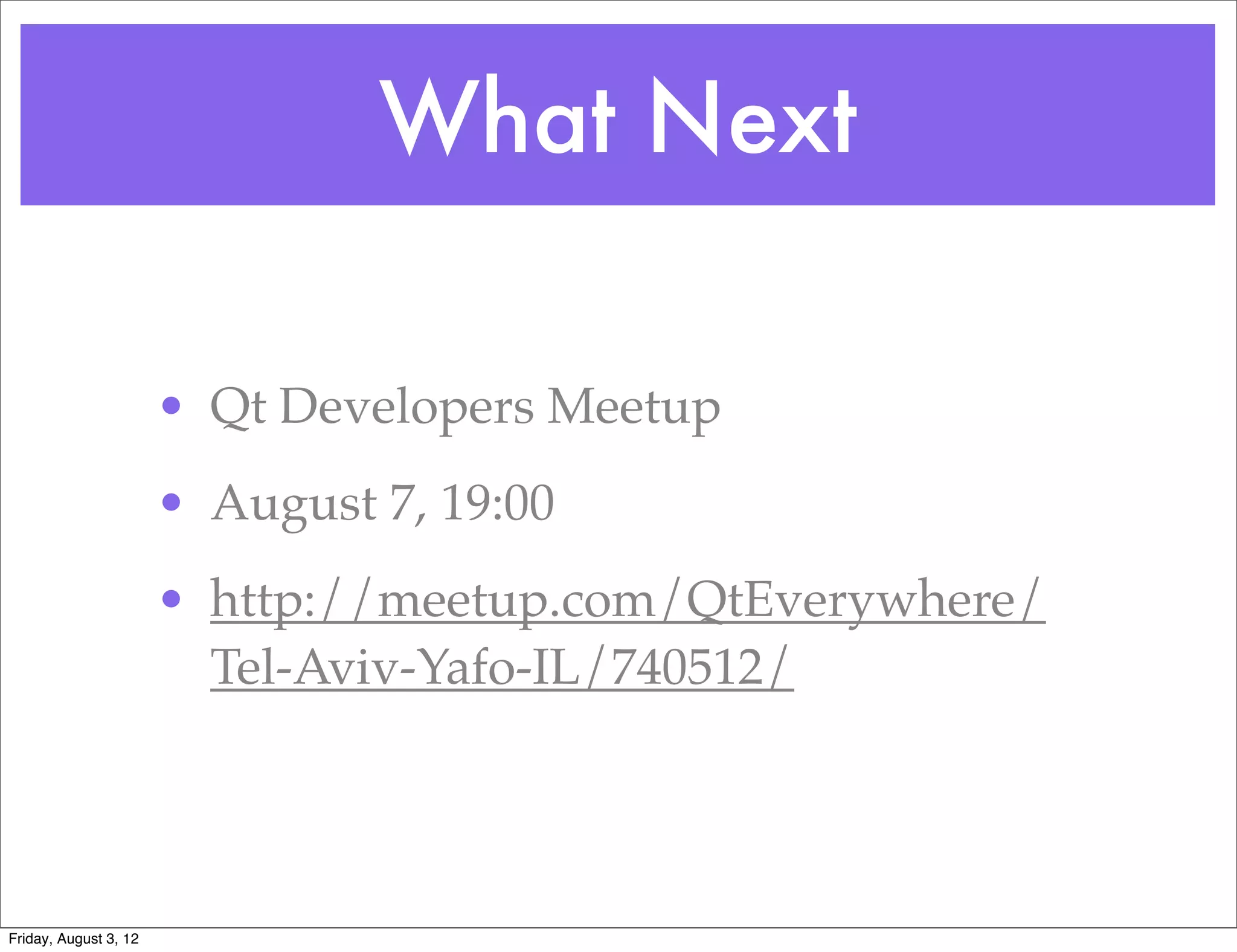

- 34. What Next • Qt Developers Meetup • August 7, 19:00 • http://meetup.com/QtEverywhere/ Tel-Aviv-Yafo-IL/740512/ Friday, August 3, 12

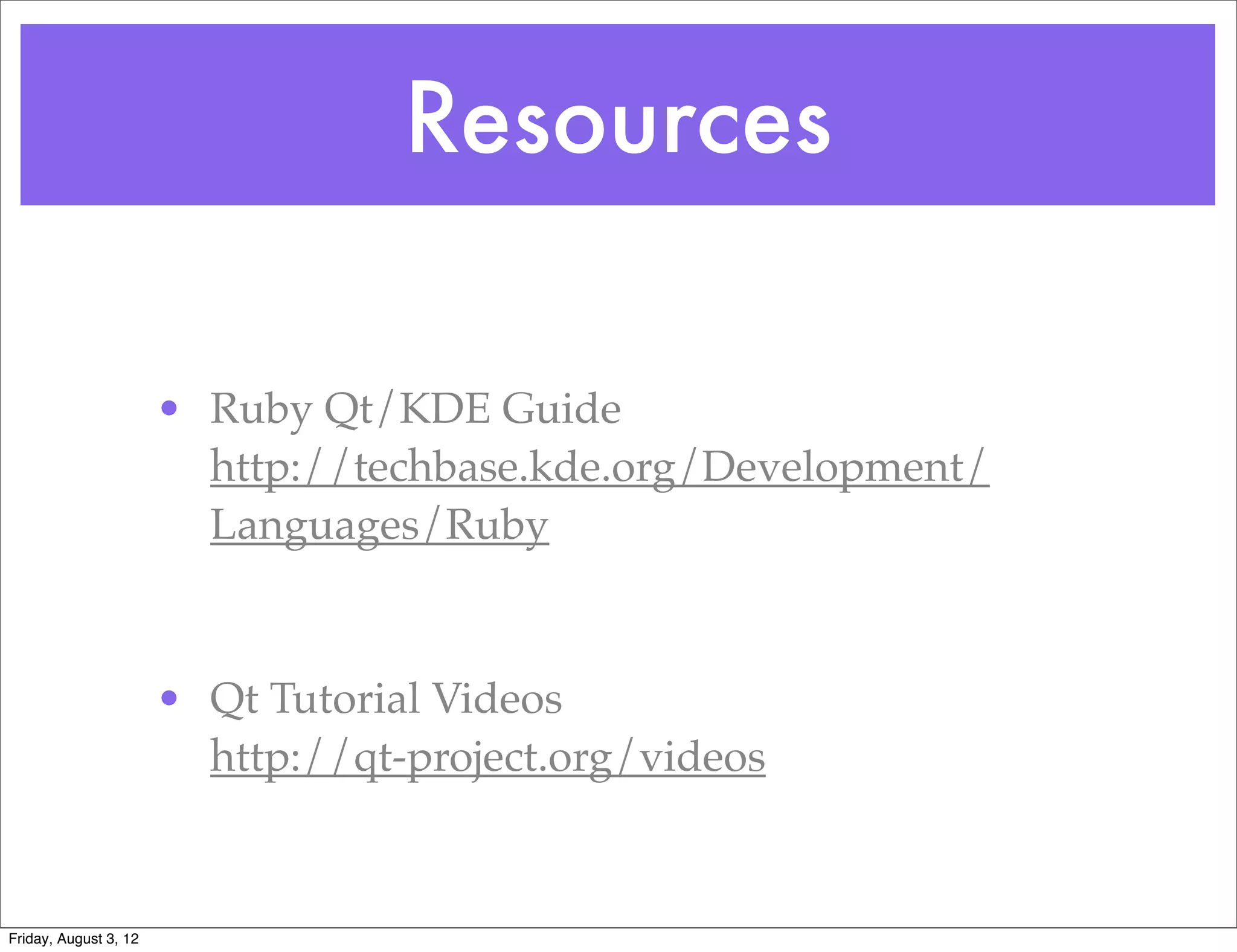

- 35. Resources • Ruby Qt/KDE Guide http://techbase.kde.org/Development/ Languages/Ruby • Qt Tutorial Videos http://qt-project.org/videos Friday, August 3, 12

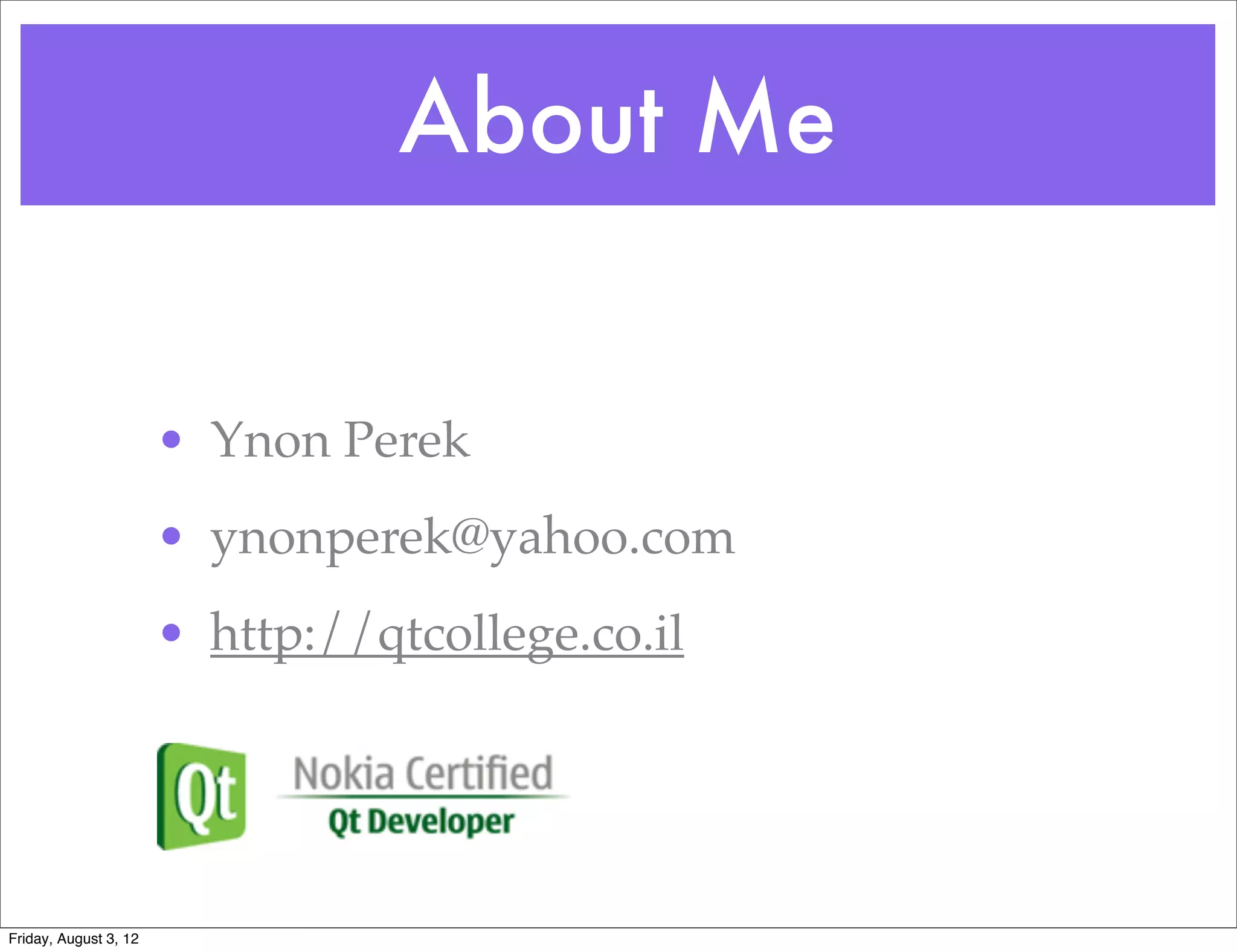

- 36. About Me • Ynon Perek • ynonperek@yahoo.com • http://qtcollege.co.il Friday, August 3, 12
