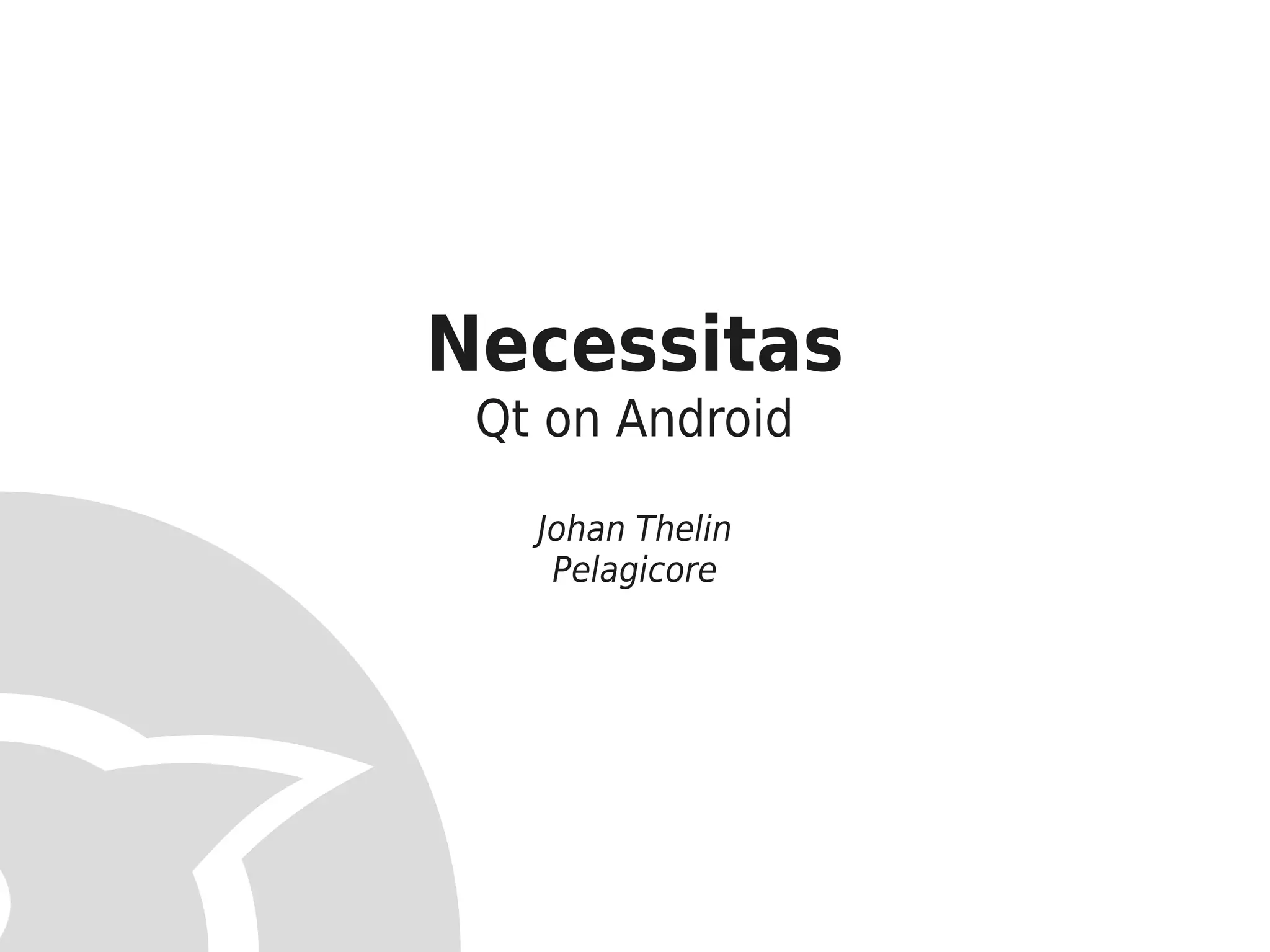

1. Necessitas
Qt on Android
Johan Thelin
Pelagicore

2. Biography
● Johan Thelin
● Worked with Qt for 10+ years
● Foundations in Qt Development
● Also worked embedded, embedded Linux, enterprise software, web
● Today – senior developer at Pelagicore

3. Pelagicore

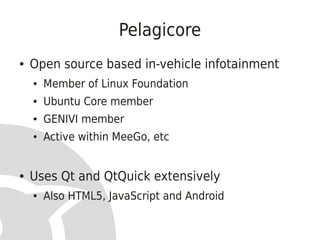

● Open source based in-vehicle infotainment
● Member of Linux Foundation
● Ubuntu Core member
● GENIVI member
● Active within MeeGo, etc
● Uses Qt and QtQuick extensively
● Also HTML5, JavaScript and Android

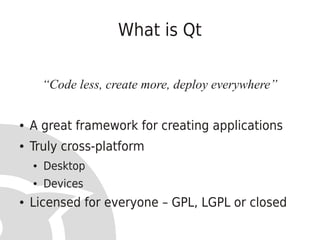

4. What is Qt
“Code less, create more, deploy everywhere”
● A great framework for creating applications
● Truly cross-platform
● Desktop
● Devices
● Licensed for everyone – GPL, LGPL or closed

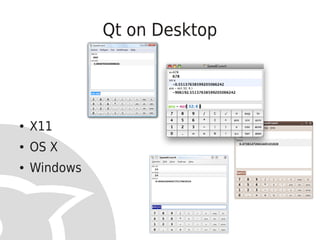

5. Qt on Desktop
● X11
● OS X
● Windows

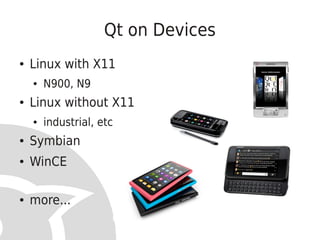

6. Qt on Devices
● Linux with X11
● N900, N9
● Linux without X11
● industrial, etc
● Symbian
● WinCE
● more...

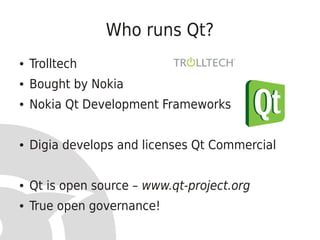

7. Who runs Qt?
● Trolltech
● Bought by Nokia
● Nokia Qt Development Frameworks
● Digia develops and licenses Qt Commercial
● Qt is open source – www.qt-project.org
● True open governance!

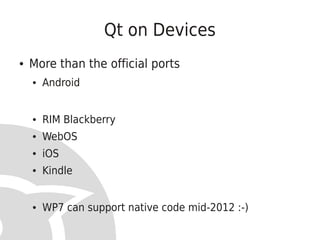

8. Qt on Devices
● More than the official ports
● Android
● RIM Blackberry
● WebOS
● iOS
● Kindle
● WP7 can support native code mid-2012 :-)

9. Qt on Devices

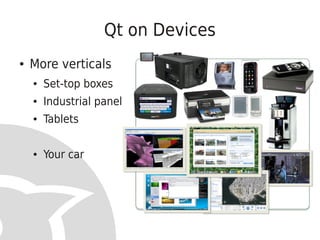

● More verticals
● Set-top boxes
● Industrial panels
● Tablets
● Your car

10. Finding the Roots of Qt
Backends

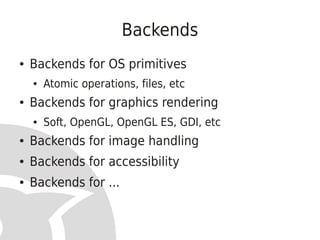

11. Backends
● Backends for OS primitives
● Atomic operations, files, etc
● Backends for graphics rendering
● Soft, OpenGL, OpenGL ES, GDI, etc
● Backends for image handling
● Backends for accessibility
● Backends for ...

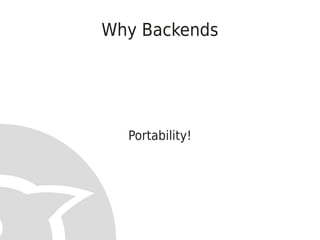

12. Why Backends
Portability!

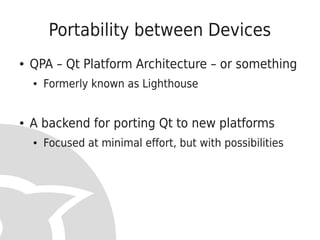

13. Portability between Devices
● QPA – Qt Platform Architecture – or something
● Formerly known as Lighthouse
● A backend for porting Qt to new platforms
● Focused at minimal effort, but with possibilities

14. Qt on Android

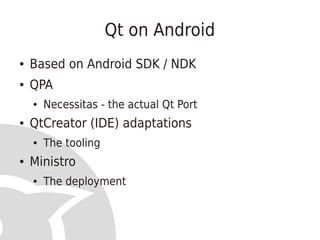

● Based on Android SDK / NDK
● QPA
● Necessitas - the actual Qt Port
● QtCreator (IDE) adaptations
● The tooling
● Ministro
● The deployment

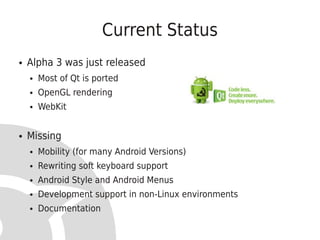

15. Current Status
● Alpha 3 was just released
● Most of Qt is ported
● OpenGL rendering
● WebKit
● Missing
● Mobility (for many Android Versions)
● Rewriting soft keyboard support
● Android Style and Android Menus
● Development support in non-Linux environments
● Documentation

16. The Near Future
● Planning to release First Beta soon
● Will give a stable API/ABI
“...meaning that an application which uses that version will
run without *any* change, on any further releases! It also
means you can target a billion devices using Qt, much sooner
than you expected :)”

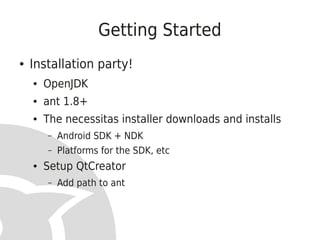

17. Getting Started
● Installation party!
● OpenJDK
● ant 1.8+
● The necessitas installer downloads and installs
– Android SDK + NDK
– Platforms for the SDK, etc
● Setup QtCreator
– Add path to ant

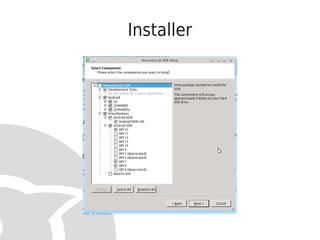

18. Installer

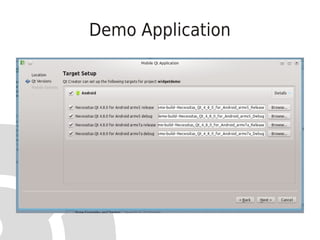

19. Demo Application

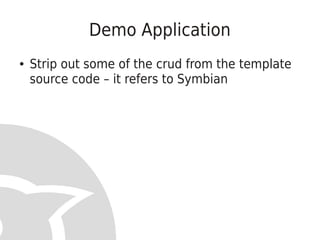

20. Demo Application
● Strip out some of the crud from the template
source code – it refers to Symbian

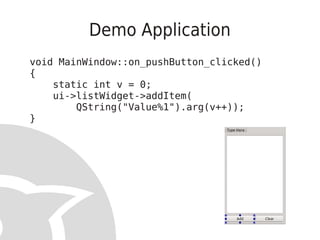

21. Demo Application
void MainWindow::on_pushButton_clicked()
{
static int v = 0;
ui->listWidget->addItem(
QString("Value%1").arg(v++));
}

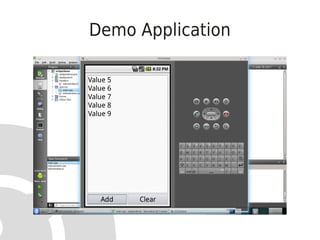

22. Demo Application

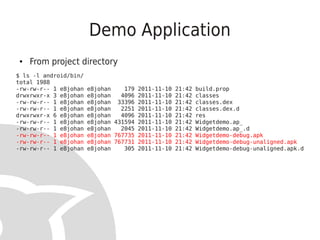

23. Demo Application
● From project directory
$ ls -l android/bin/
total 1988
-rw-rw-r-- 1 e8johan e8johan 179 2011-11-10 21:42 build.prop
drwxrwxr-x 3 e8johan e8johan 4096 2011-11-10 21:42 classes
-rw-rw-r-- 1 e8johan e8johan 33396 2011-11-10 21:42 classes.dex
-rw-rw-r-- 1 e8johan e8johan 2251 2011-11-10 21:42 classes.dex.d
drwxrwxr-x 6 e8johan e8johan 4096 2011-11-10 21:42 res
-rw-rw-r-- 1 e8johan e8johan 431594 2011-11-10 21:42 Widgetdemo.ap_
-rw-rw-r-- 1 e8johan e8johan 2045 2011-11-10 21:42 Widgetdemo.ap_.d
-rw-rw-r-- 1 e8johan e8johan 767735 2011-11-10 21:42 Widgetdemo-debug.apk
-rw-rw-r-- 1 e8johan e8johan 767731 2011-11-10 21:42 Widgetdemo-debug-unaligned.apk
-rw-rw-r-- 1 e8johan e8johan 305 2011-11-10 21:42 Widgetdemo-debug-unaligned.apk.d

24. First Run on Phone
● Installs Ministro – Installs Qt – Resumes
https://market.android.com/details?id=eu.licentia.necessitas.ministro

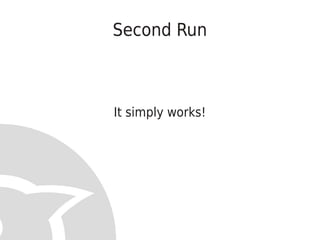

25. Second Run
It simply works!

26. More on Ministro
● Qt libraries are shared among all Qt apps on
the device
● From the beta release, the ABI is stable, i.e. Qt
can be upgraded separately from apps

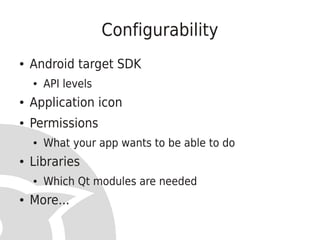

27. Configurability
● Android target SDK
● API levels
● Application icon
● Permissions
● What your app wants to be able to do
● Libraries
● Which Qt modules are needed
● More...

28. Debugging

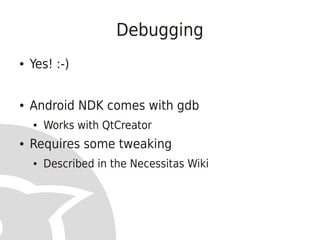

● Yes! :-)
● Android NDK comes with gdb
● Works with QtCreator
● Requires some tweaking
● Described in the Necessitas Wiki

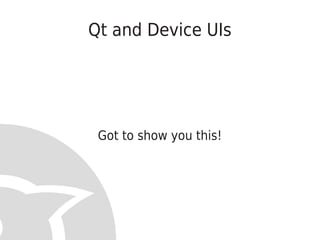

29. Qt and Device UIs
Got to show you this!

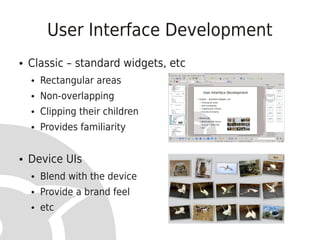

30. User Interface Development
● Classic – standard widgets, etc
● Rectangular areas
● Non-overlapping
● Clipping their children
● Provides familiarity
● Device UIs
● Blend with the device
● Provide a brand feel
● etc

31. Building Modern UIs
● No more widgets!
● Canvas / scene
● Timers everywhere
● Multiple simultaneous transitions
● Complex, interconnected state machines
● Pain! :-)

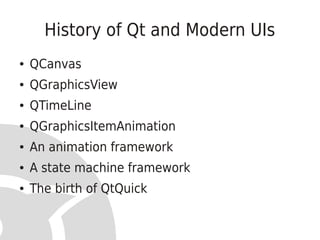

32. History of Qt and Modern UIs
● QCanvas
● QGraphicsView
● QTimeLine
● QGraphicsItemAnimation
● An animation framework
● A state machine framework
● The birth of QtQuick

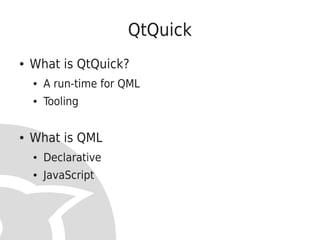

33. QtQuick
● What is QtQuick?
● A run-time for QML
● Tooling
● What is QML
● Declarative
● JavaScript

34. QML
import QtQuick 1.0
Rectangle {
Rectangle {
MouseArea {
}
}
}

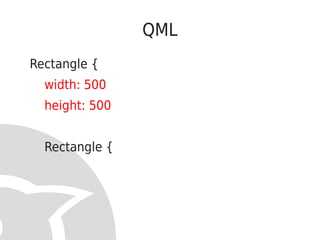

35. QML
Rectangle {
width: 500
height: 500
Rectangle {

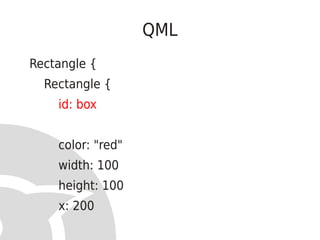

36. QML
Rectangle {
Rectangle {
id: box
color: "red"
width: 100
height: 100
x: 200

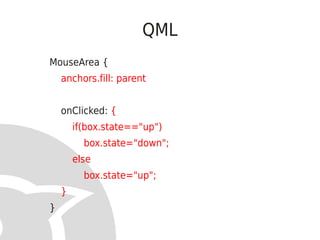

37. QML
MouseArea {
anchors.fill: parent
onClicked: {
if(box.state=="up")
box.state="down";
else
box.state="up";
}
}

38. QML
Rectangle {
state: "up"
states: [
State {
name: "up"
PropertyChanges { target: box; y: 50 }
},
State {
name: "down"
PropertyChanges { target: box; y: 350 }
}
]

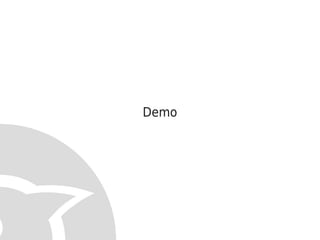

39. Demo

40. QML

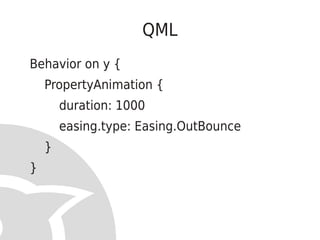

Behavior on y {
PropertyAnimation {
duration: 1000
easing.type: Easing.OutBounce
}
}

41. Demo

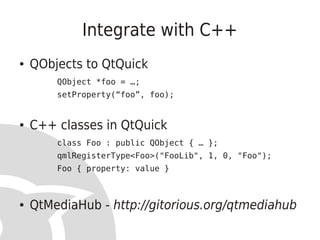

42. Integrate with C++
● QObjects to QtQuick
QObject *foo = …;
setProperty(“foo”, foo);
● C++ classes in QtQuick
class Foo : public QObject { … };
qmlRegisterType<Foo>("FooLib", 1, 0, "Foo");
Foo { property: value }
● QtMediaHub - http://gitorious.org/qtmediahub

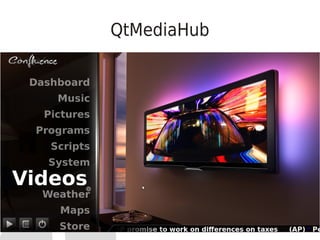

43. QtMediaHub

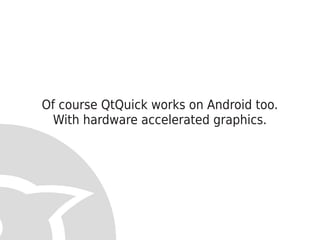

44. Of course QtQuick works on Android too.
With hardware accelerated graphics.

45. Qt 5

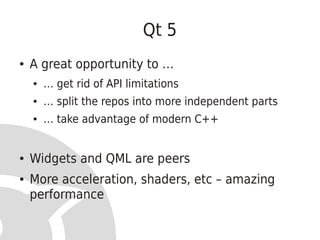

● A great opportunity to …
● … get rid of API limitations
● … split the repos into more independent parts
● … take advantage of modern C++
● Widgets and QML are peers
● More acceleration, shaders, etc – amazing
performance

46. A new Dawn

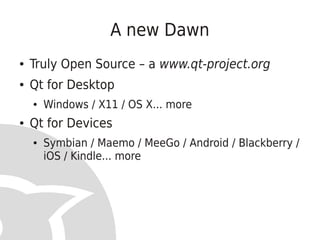

● Truly Open Source – a www.qt-project.org
● Qt for Desktop
● Windows / X11 / OS X... more
● Qt for Devices
● Symbian / Maemo / MeeGo / Android / Blackberry /
iOS / Kindle... more

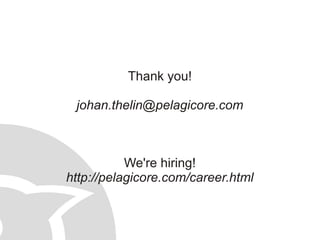

47. Thank you!
