This document provides an introduction to using Puppet for system configuration management. It includes a quick primer on Puppet terminology and concepts. It then demonstrates configuring sudoers permissions on nodes using Puppet and shows how to use operating system conditions, class inheritance, and facts to dynamically configure nodes. References for additional Puppet documentation and best practices are also included.

1. First Moves
with Puppet
New Delhi Puppet HackDay/
BarCamp March 13, 2010
Presented by
Slideshare Operations Engineering/Julie Tsai

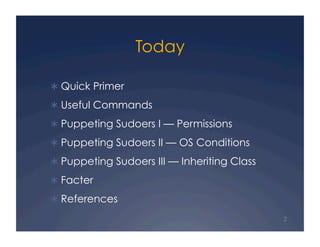

2. Today
 Quick Primer
 Useful Commands
 Puppeting Sudoers I — Permissions
 Puppeting Sudoers II — OS Conditions
 Puppeting Sudoers III — Inheriting Class
 Facter
 References
2

3. Quick Primer: How It Flows
Ref. http://www.linuxforu.com/wp-content/uploads/2009/06/puppet_diagram.png 3

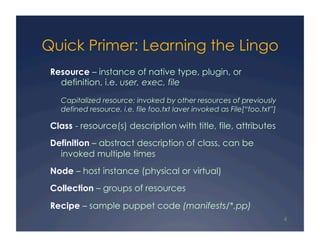

4. Quick Primer: Learning the Lingo
Resource – instance of native type, plugin, or
definition, i.e. user, exec, file
Capitalized resource: invoked by other resources of previously
defined resource, i.e. file foo.txt laver invoked as File[“foo.txt”]
Class - resource(s) description with title, file, attributes
Definition – abstract description of class, can be
invoked multiple times
Node – host instance (physical or virtual)
Collection – groups of resources
Recipe – sample puppet code (manifests/*.pp)
4

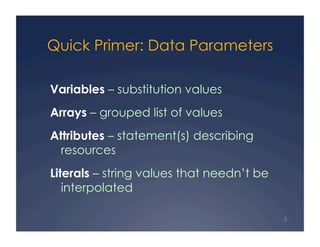

5. Quick Primer: Data Parameters
Variables – substitution values
Arrays – grouped list of values
Attributes – statement(s) describing
resources
Literals – string values that needn’t be
interpolated
5

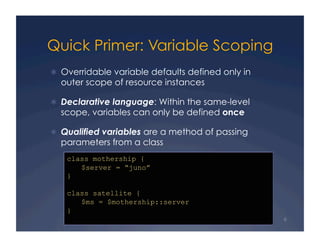

6. Quick Primer: Variable Scoping
 Overridable variable defaults defined only in
outer scope of resource instances
 Declarative language: Within the same-level
scope, variables can only be defined once
 Qualified variables are a method of passing
parameters from a class
class mothership {
$server = “juno”
}
class satellite {
$ms = $mothership::server
}
6

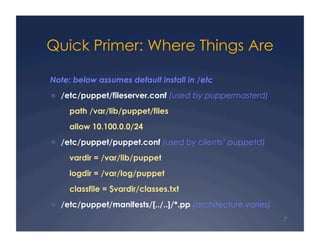

7. Quick Primer: Where Things Are
Note: below assumes default install in /etc
 /etc/puppet/fileserver.conf (used by puppermasterd)
path /var/lib/puppet/files
allow 10.100.0.0/24
 /etc/puppet/puppet.conf (used by clients’ puppetd)
vardir = /var/lib/puppet
logdir = /var/log/puppet
classfile = $vardir/classes.txt
 /etc/puppet/manifests/[../..]/*.pp (architecture varies)
7

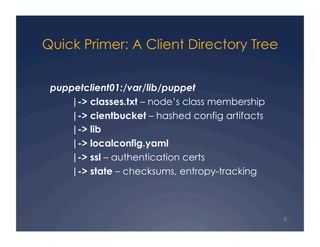

8. Quick Primer: A Client Directory Tree
puppetclient01:/var/lib/puppet
|-> classes.txt – node’s class membership
|-> cientbucket – hashed config artifacts
|-> lib
|-> localconfig.yaml
|-> ssl – authentication certs
|-> state – checksums, entropy-tracking
8

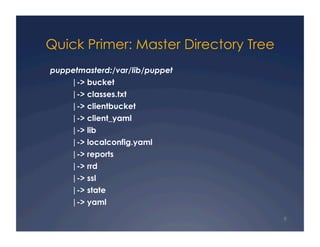

9. Quick Primer: Master Directory Tree
puppetmasterd:/var/lib/puppet
|-> bucket
|-> classes.txt
|-> clientbucket
|-> client_yaml
|-> lib
|-> localconfig.yaml
|-> reports
|-> rrd
|-> ssl
|-> state
|-> yaml
9

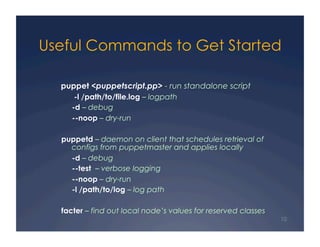

10. Useful Commands to Get Started
puppet <puppetscript.pp> - run standalone script
-l /path/to/file.log – logpath
-d – debug
--noop – dry-run
puppetd – daemon on client that schedules retrieval of
configs from puppetmaster and applies locally
-d – debug
--test – verbose logging
--noop – dry-run
-l /path/to/log – log path
facter – find out local node’s values for reserved classes
10

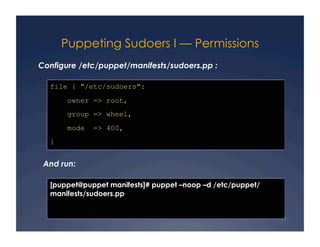

11. Puppeting Sudoers I — Permissions
Configure /etc/puppet/manifests/sudoers.pp :
file { "/etc/sudoers":
owner => root,
group => wheel,
mode => 400,
}
And run:
[puppet@puppet manifests]# puppet –noop –d /etc/puppet/
manifests/sudoers.pp
11

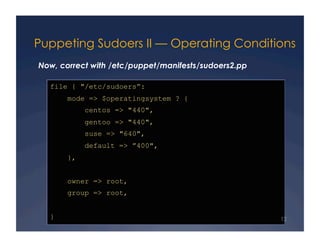

12. Puppeting Sudoers II — Operating Conditions
Now, correct with /etc/puppet/manifests/sudoers2.pp
file { "/etc/sudoers”:
mode => $operatingsystem ? {
centos => "440",
gentoo => "440",
suse => "640",
default => ”400",
},
owner => root,
group => root,
} 12

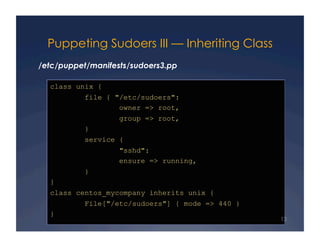

13. Puppeting Sudoers III — Inheriting Class
/etc/puppet/manifests/sudoers3.pp
class unix {
file { "/etc/sudoers":
owner => root,
group => root,
}
service {
"sshd":
ensure => running,
}
}
class centos_mycompany inherits unix {
File["/etc/sudoers"] { mode => 440 }
}
13

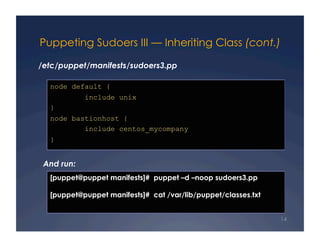

14. Puppeting Sudoers III — Inheriting Class (cont.)
/etc/puppet/manifests/sudoers3.pp
node default {
include unix
}
node bastionhost {
include centos_mycompany
}
And run:
[puppet@puppet manifests]# puppet –d –noop sudoers3.pp
[puppet@puppet manifests]# cat /var/lib/puppet/classes.txt
14

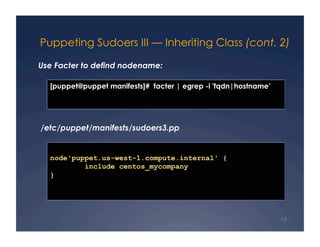

15. Puppeting Sudoers III — Inheriting Class (cont. 2)
Use Facter to defind nodename:
[puppet@puppet manifests]# facter | egrep -i 'fqdn|hostname’
/etc/puppet/manifests/sudoers3.pp
node'puppet.us-west-1.compute.internal' {
include centos_mycompany
}
15

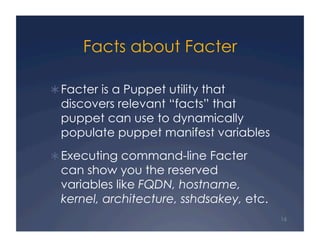

16. Facts about Facter
 Facter is a Puppet utility that
discovers relevant “facts” that
puppet can use to dynamically
populate puppet manifest variables
 Executing command-line Facter
can show you the reserved
variables like FQDN, hostname,
kernel, architecture, sshdsakey, etc.
16

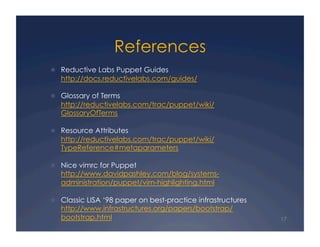

17. References
 Reductive Labs Puppet Guides
http://docs.reductivelabs.com/guides/
 Glossary of Terms
http://reductivelabs.com/trac/puppet/wiki/
GlossaryOfTerms
 Resource Attributes
http://reductivelabs.com/trac/puppet/wiki/
TypeReference#metaparameters
 Nice vimrc for Puppet
http://www.davidpashley.com/blog/systems-
administration/puppet/vim-highlighting.html
 Classic LISA ‘98 paper on best-practice infrastructures
http://www.infrastructures.org/papers/bootstrap/
bootstrap.html 17
