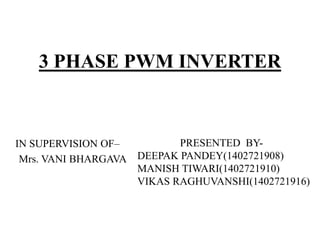

1. 3 PHASE PWM INVERTER
IN SUPERVISION OF–
Mrs. VANI BHARGAVA
PRESENTED BY-
DEEPAK PANDEY(1402721908)
MANISH TIWARI(1402721910)
VIKAS RAGHUVANSHI(1402721916)

2. INVERTER
• A inverter or power Inverter is an electronic
device or circuitry that changes direct
current (DC) to alternating current (AC).

3. Pulse Width Modulation Tech.
• The AC voltage output depend on the width of
the switching pulse.
• The inverters based on PWM technology are
superior in many factors compared to other
inverters designed using conventional
technologies.

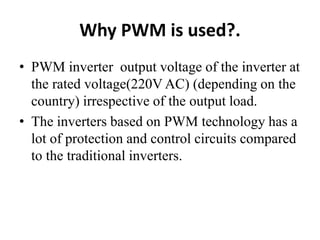

4. Why PWM is used?.
• PWM inverter output voltage of the inverter at
the rated voltage(220V AC) (depending on the
country) irrespective of the output load.
• The inverters based on PWM technology has a
lot of protection and control circuits compared
to the traditional inverters.

5. BLOCK DIAGRAM OF 3-PHASE
PWM INVERTER

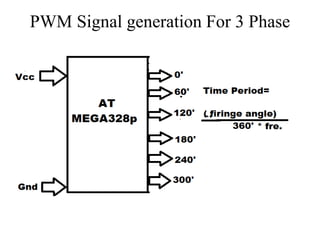

6. PWM Signal generation For 3 Phase

7. 1-Phase Inverter

8. 3 Phase Inverter

9. Application
• Use in solar panels.
• Electric motor speed control
• HVDC power transmission
