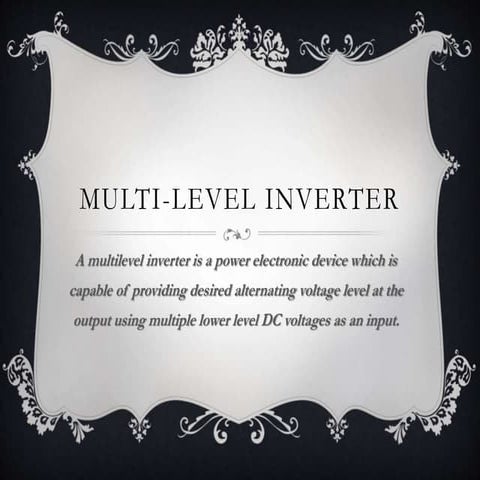

- 1. Multi-Level inverter A multilevelinverter is a power electronic device which is capable of providing desired alternating voltage level at the output using multiple lower level DC voltages as an input.

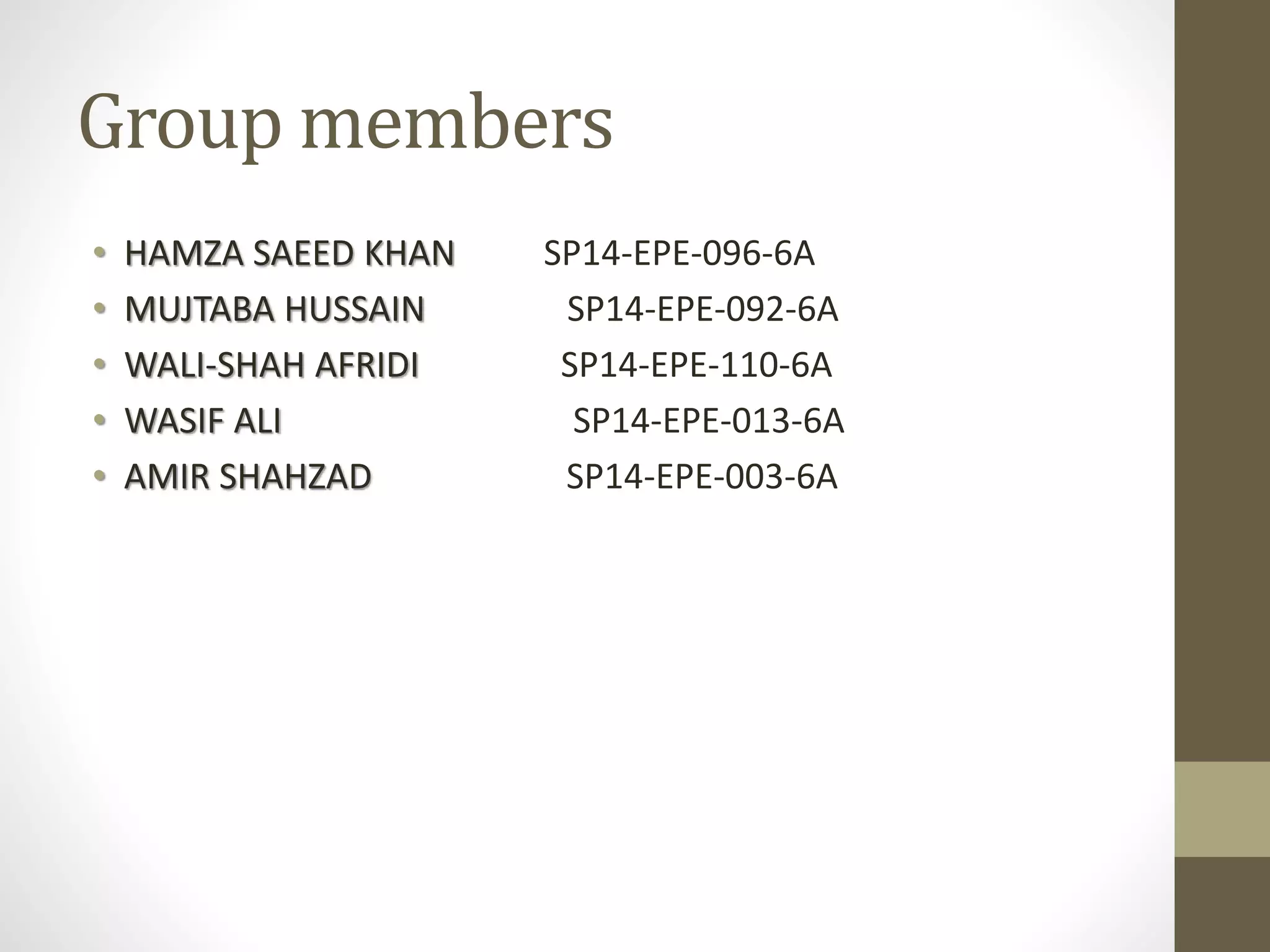

- 2. Group members • HAMZASAEED KHAN SP14-EPE-096-6A • MUJTABA HUSSAIN SP14-EPE-092-6A • WALI-SHAH AFRIDI SP14-EPE-110-6A • WASIF ALI SP14-EPE-013-6A • AMIR SHAHZAD SP14-EPE-003-6A
- 3. dc to acinverter block diagram Power supplies DC Power AC Power
- 4. What is inverter •Direct current/voltage (DC) converted to alternating current/voltage (AC).
- 5. abstracts • This projectgenerates AC sinusoids up to multilevel. • It compares existing 2-level inverter with that of our multilevel inverter. • ( VSI means Voltage level Inverter ) • We study their effects on voltages • Existing topologies are same but we get good output from DC i/p
- 6.
- 7. Goal… • To getsinusoidal voltage • Up to some extent for appliances. • Because smoothness for every system is very important • Abrupt change dose not accepted by inductors and capacitors • So Square wave is not required for us only sinusoidal smooth wave.
- 8. What is multilevel inverter
- 9. Multi level inverters •Preferred to conventional inverters we have • Capable of producing stepped stair case form as shown next slide; • Gives us wave nearer to pure sinusoidal wave we require for our appliances • We achieve such a desired output as shown after calculations. • fast switching of DC signal giving us multiple levels.

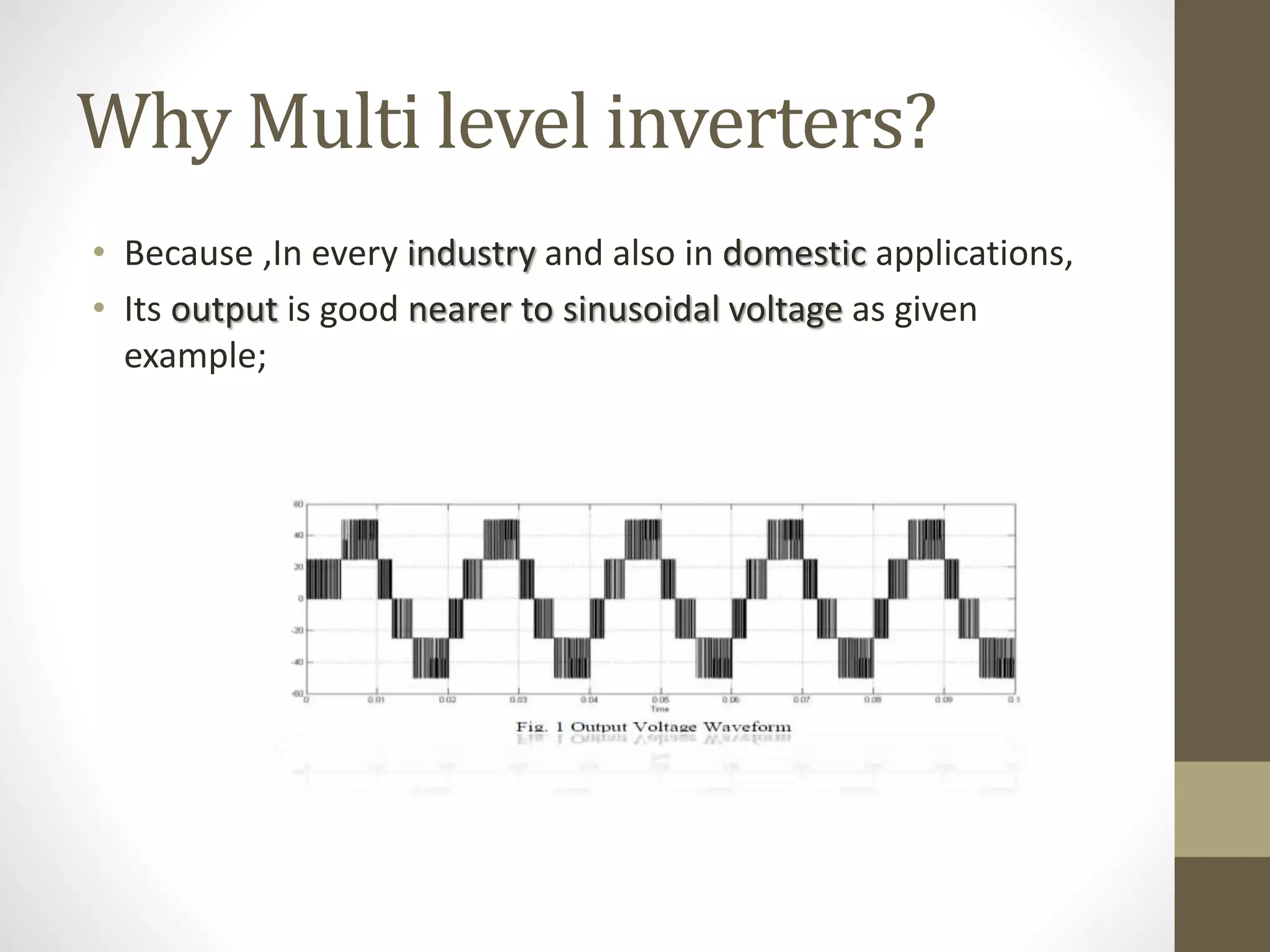

- 10. Why Multi levelinverters? • Because ,In every industry and also in domestic applications, • Its output is good nearer to sinusoidal voltage as given example;

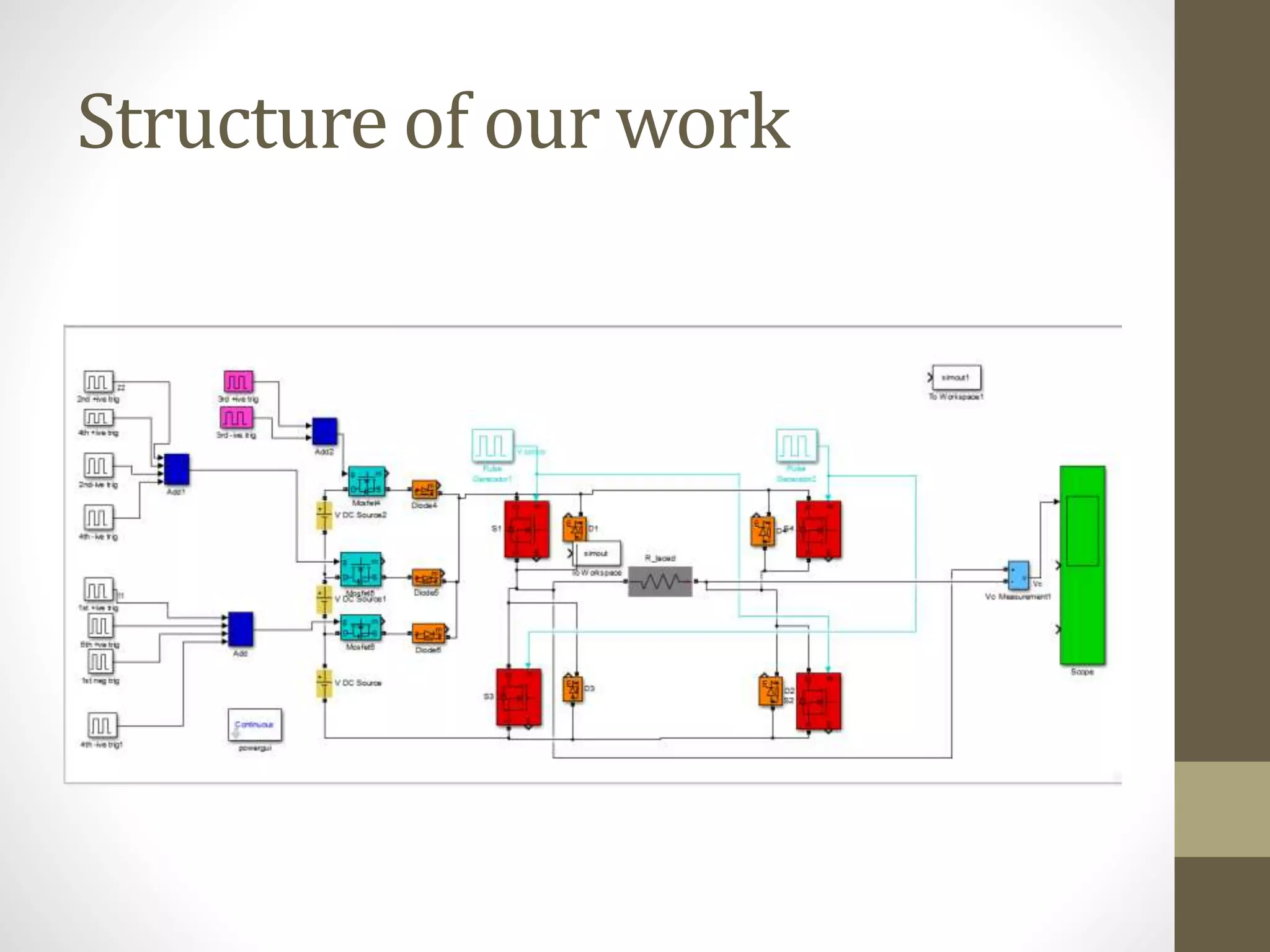

- 11. Structure of ourwork
- 12.

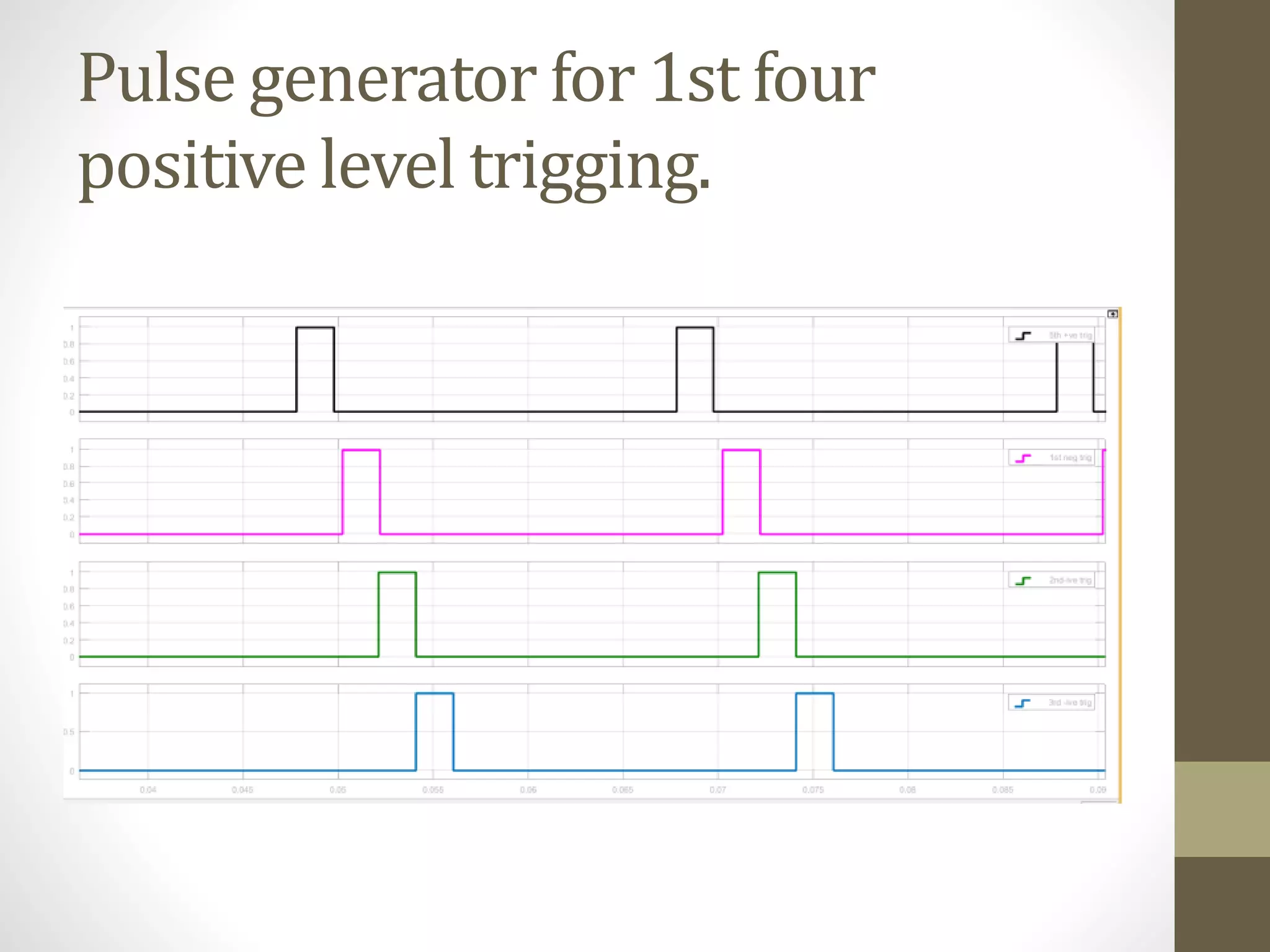

- 13. Pulse generator for1st four positive level trigging.

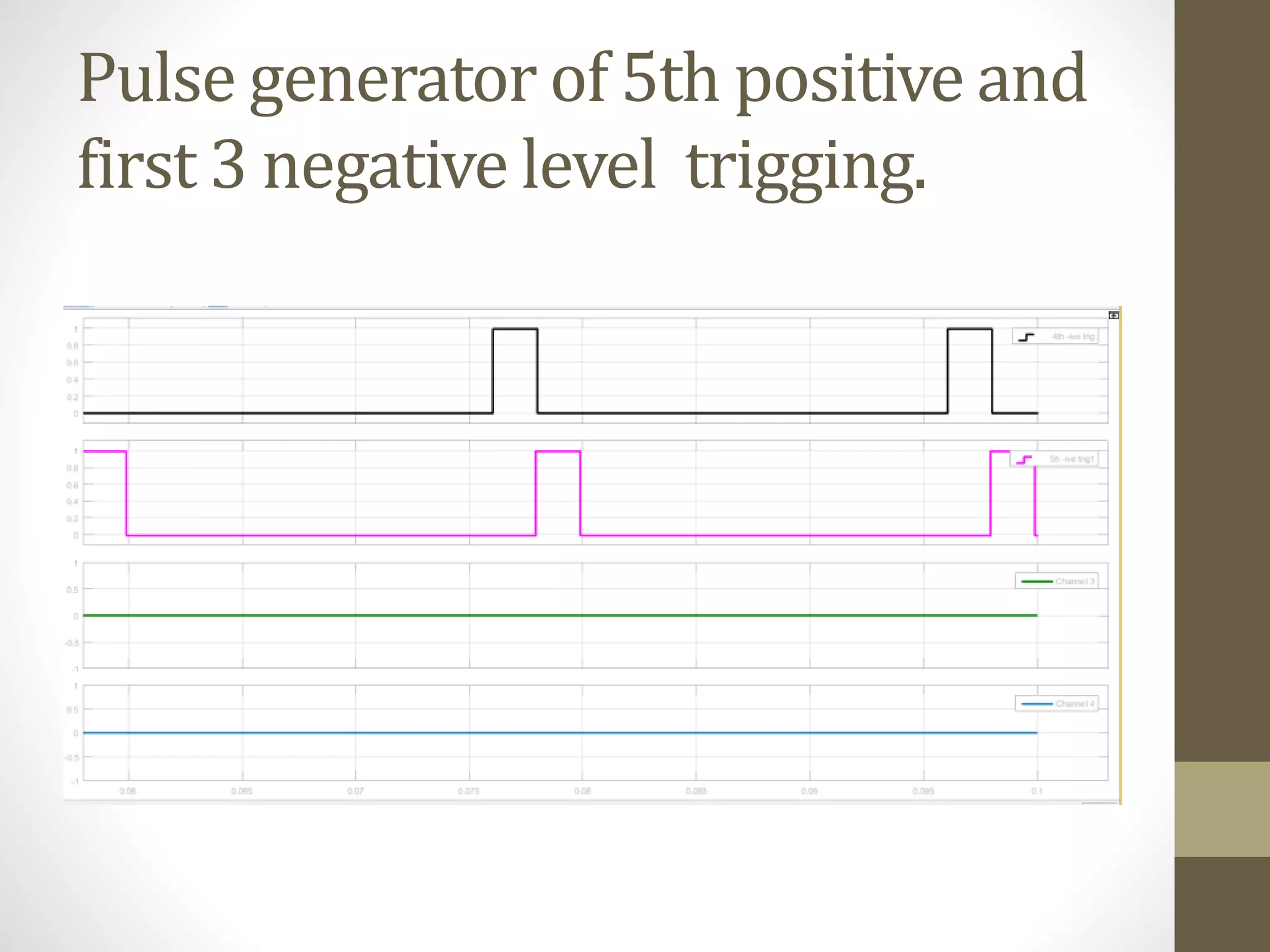

- 14. Pulse generator of5th positive and first 3 negative level trigging.
- 15. Pulse generator for4th and 5th negative level trigging.
- 16. load current andvoltage.

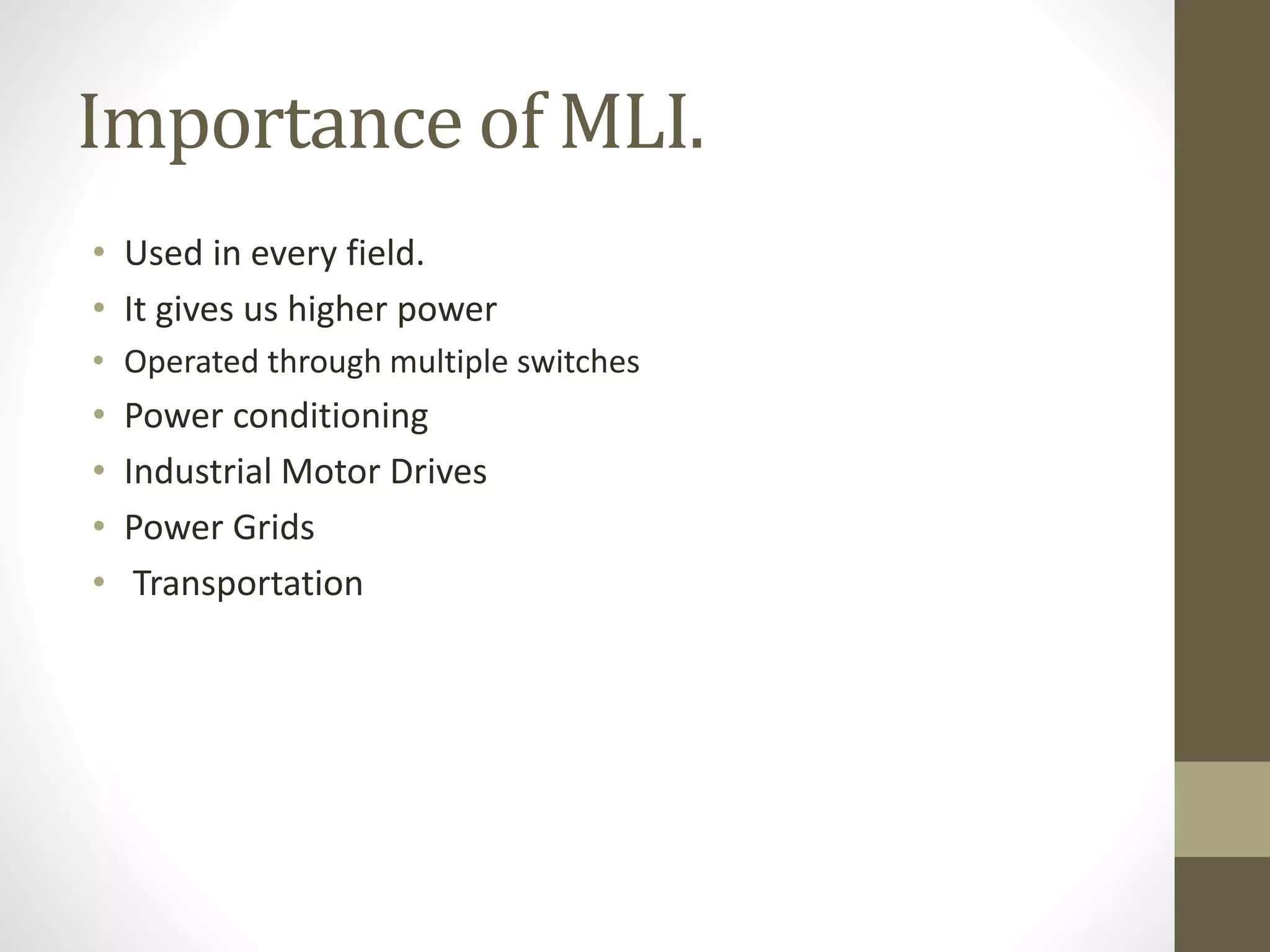

- 17. Importance of MLI. •Used in every field. • It gives us higher power • Operated through multiple switches • Power conditioning • Industrial Motor Drives • Power Grids • Transportation

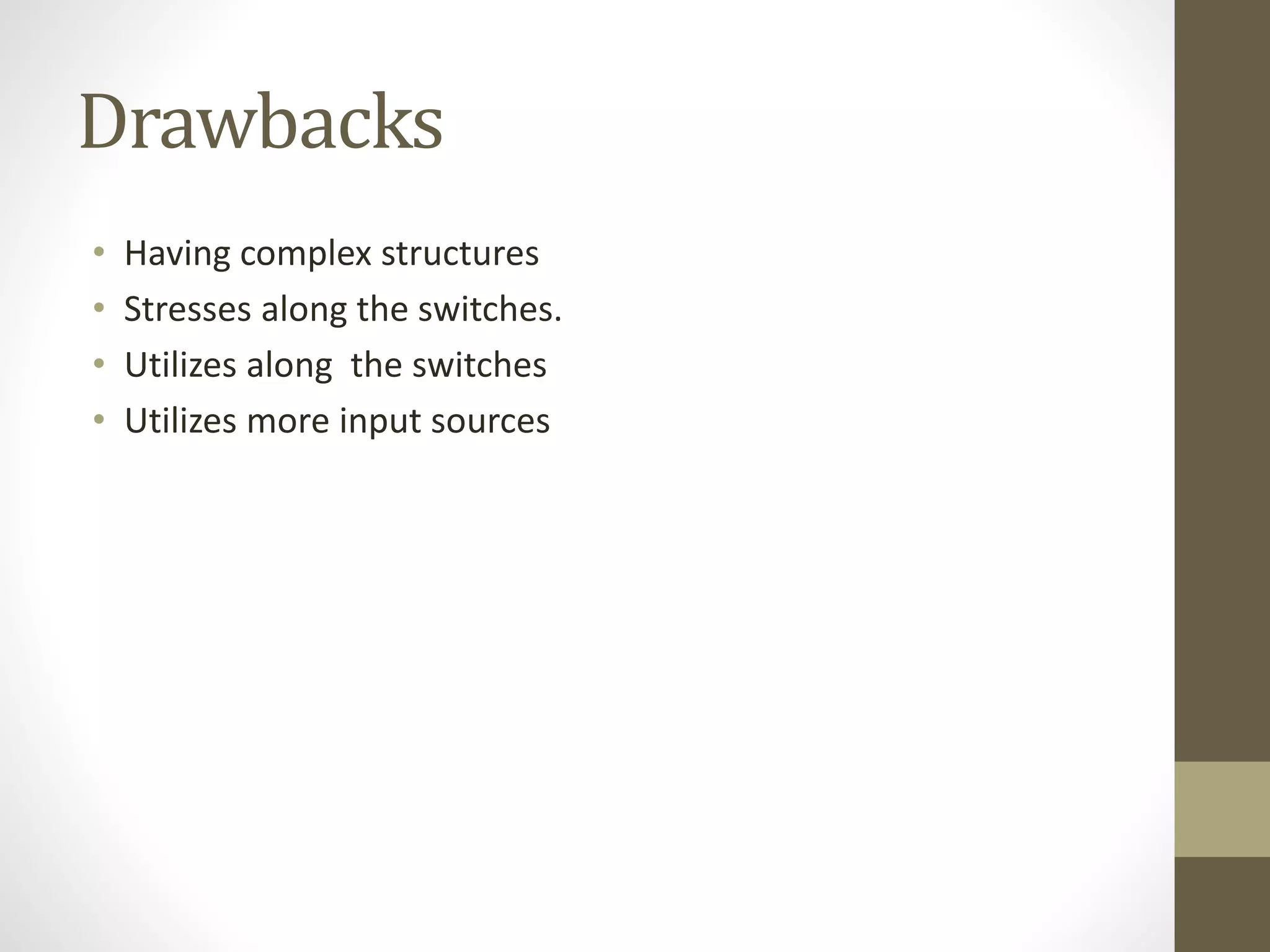

- 18. Drawbacks • Having complexstructures • Stresses along the switches. • Utilizes along the switches • Utilizes more input sources
- 19.
- 20.

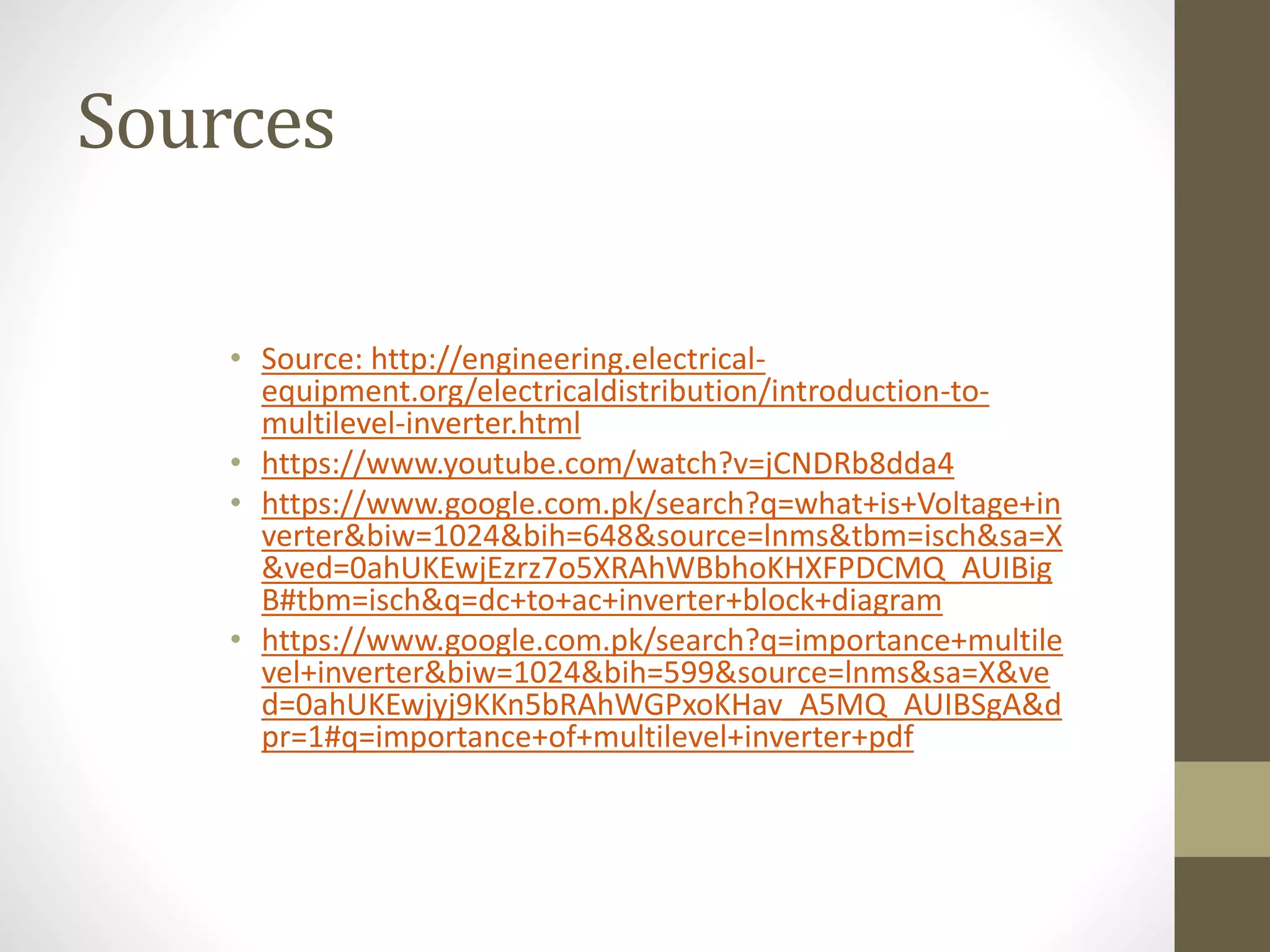

- 21. Sources • Source: http://engineering.electrical- equipment.org/electricaldistribution/introduction-to- multilevel-inverter.html •https://www.youtube.com/watch?v=jCNDRb8dda4 • https://www.google.com.pk/search?q=what+is+Voltage+in verter&biw=1024&bih=648&source=lnms&tbm=isch&sa=X &ved=0ahUKEwjEzrz7o5XRAhWBbhoKHXFPDCMQ_AUIBig B#tbm=isch&q=dc+to+ac+inverter+block+diagram • https://www.google.com.pk/search?q=importance+multile vel+inverter&biw=1024&bih=599&source=lnms&sa=X&ve d=0ahUKEwjyj9KKn5bRAhWGPxoKHav_A5MQ_AUIBSgA&d pr=1#q=importance+of+multilevel+inverter+pdf
