1. 1Prototyping in the design processAn introduction to Summerschool 201006.09.2010Ronald BastiaensCoördinator Ba.IPD

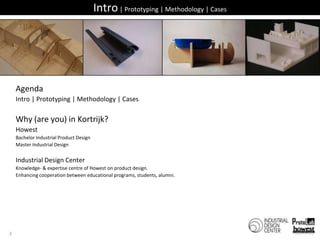

2. Intro | Prototyping | Methodology | CasesAgendaIntro | Prototyping | Methodology | CasesWhy (are you) in Kortrijk?HowestBachelor Industrial Product DesignMaster Industrial DesignIndustrial Design CenterKnowledge- & expertise centre of Howeston product design.Enhancingcooperationbetweeneducational programs, students, alumni.2

3. Intro | Prototyping | Methodology | Cases3PresentationProtoLab | ActivitiesService: prototypes, maquettes, ontwerp,…Research (FIS, PWO, IWT,…)Events, seminars, workshops, summerschools

4. Intro | Prototyping | Methodology | Cases4PresentationProtoLab | InfrastructureVersaLaserlasercutting& engravingDimension 3D printer (FDM) VacuumcastingSchuëchl3D optical laserscanner MetrisISEL 3axis CNC millingThermoforming 600x500Traditional workshop metal, wood, plastics, composites

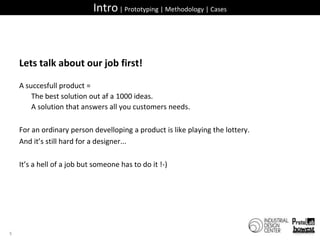

5. Intro | Prototyping | Methodology | CasesLets talk about our job first!A succesfull product = The best solution out af a 1000 ideas. A solution that answers all you customers needs.For an ordinary person develloping a product is like playing the lottery.And it’s still hard for a designer...It’s a hell of a job but someone has to do it !-)5

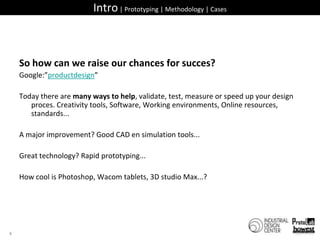

6. Intro | Prototyping | Methodology | CasesSo how can we raise our chances for succes?Google:”productdesign”Today there are many ways to help, validate, test, measure or speed up your design proces. Creativity tools, Software, Working environments, Online resources, standards...A major improvement? Good CAD en simulation tools...Great technology? Rapid prototyping...How cool is Photoshop, Wacom tablets, 3D studio Max...?6

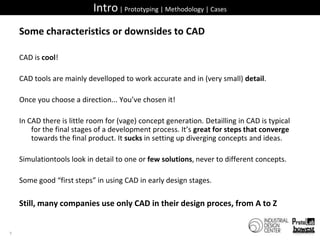

7. Intro | Prototyping | Methodology | CasesSome characteristics or downsides to CADCAD is cool!CAD tools are mainly develloped to work accurate and in (very small) detail.Once you choose a direction... You’ve chosen it!In CAD there is little room for (vage) concept generation. Detailling in CAD is typical for the final stages of a development process. It’s great for steps that converge towards the final product. It sucks in setting up diverging concepts and ideas.Simulationtools look in detail to one or few solutions, never to different concepts.Some good “first steps” in using CAD in early design stages.Still, many companies use only CAD in their design proces, from A to Z7

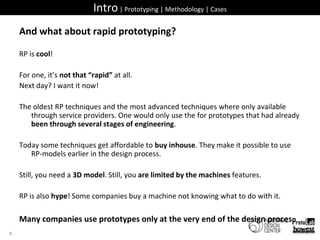

8. Intro | Prototyping | Methodology | CasesAnd what about rapid prototyping?RP is cool!For one, it’s not that “rapid” at all.Next day? I want it now!The oldest RP techniques and the most advanced techniques where only available through service providers. One would only use the for prototypes that had already been through several stages of engineering.Today some techniques get affordable to buy inhouse. They make it possible to use RP-models earlier in the design process.Still, you need a 3D model. Still, you are limited by the machines features.RP is also hype! Some companies buy a machine not knowing what to do with it.Many companies use prototypes only at the very end of the design proces.8

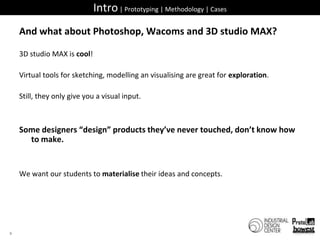

9. Intro | Prototyping | Methodology | CasesAnd what about Photoshop, Wacoms and 3D studio MAX?3D studio MAX is cool!Virtual tools for sketching, modelling an visualising are great for exploration.Still, they only give you a visual input.Some designers “design” products they’ve never touched, don’t know how to make.We want our students to materialise their ideas and concepts.9

10. Intro | Prototyping | Methodology | CasesSo how can we raise our chances for succes?The lack of tools to be used in the early stages of design is painfull.All key decisions are made early in the design proces.We feel that CAD, simulation, RP and visualisation can help you raise “technical” and “commercial” chances for succes. They can not raise the chance for better design decisions, since they don’t influence early stages of design, since the don’t help you diverse.If you want to raise you chances on making good design decisions, you need:A good design methodology and tools. (take a look at innowiz.be) Use prototyping (in every meaning of the word) in every stage of your proces.10

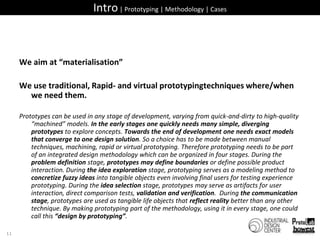

11. Intro | Prototyping | Methodology | CasesWe aim at “materialisation”We use traditional, Rapid- and virtual prototypingtechniques where/when we need them.Prototypes can be used in any stage of development, varying from quick-and-dirty to high-quality “machined” models. In the early stages one quickly needs many simple, diverging prototypes to explore concepts. Towards the end of development one needs exact models that converge to one design solution. So a choice has to be made between manual techniques, machining, rapid or virtual prototyping. Therefore prototyping needs to be part of an integrated design methodology which can be organized in four stages. During the problem definition stage, prototypes may define boundaries or define possible product interaction. During the idea exploration stage, prototyping serves as a modeling method to concretize fuzzy ideas into tangible objects even involving final users for testing experience prototyping. During the idea selection stage, prototypes may serve as artifacts for user interaction, direct comparison tests, validation and verification. During the communication stage, prototypes are used as tangible life objects that reflect reality better than any other technique. By making prototyping part of the methodology, using it in every stage, one could call this “design by prototyping”.11

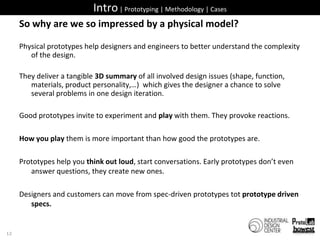

12. Intro | Prototyping | Methodology | CasesSo why are we so impressed by a physical model?Physical prototypes help designers and engineers to better understand the complexity of the design. They deliver a tangible 3D summary of all involved design issues (shape, function, materials, product personality,…) which gives the designer a chance to solve several problems in one design iteration. Good prototypes invite to experiment and play with them. They provoke reactions.How you play them is more important than how good the prototypes are.Prototypes help you think out loud, start conversations. Early prototypes don’t even answer questions, they create new ones.Designers and customers can move from spec-driven prototypes tot prototype driven specs.12

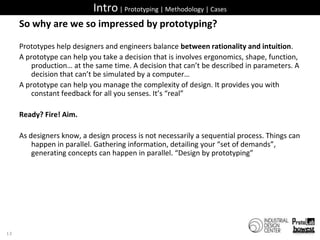

13. Intro | Prototyping | Methodology | CasesSo why are we so impressed by prototyping?Prototypes help designers and engineers balance between rationality and intuition. A prototype can help you take a decision that is involves ergonomics, shape, function, production… at the same time. A decision that can’t be described in parameters. A decision that can’t be simulated by a computer…A prototype can help you manage the complexity of design. It provides you with constant feedback for all you senses. It’s “real”Ready? Fire! Aim.As designers know, a design process is not necessarily a sequential process. Things can happen in parallel. Gathering information, detailing your “set of demands”, generating concepts can happen in parallel. “Design by prototyping”13

14. Intro | Prototyping | Methodology | CasesWhy do most design colleges move towards the virtual?Because it’s easy?Because it’s sexy?Because it’s efficient?Because that’s what everyone else does?companies use prototyping more and more every day to validate their designs. They are driven by the need for innovation, the “hype” of rapid prototyping, the need to shorten ‘time to market’,… Therefore companies need designers who can bring their concepts to production.Does a designer need to know every prototyping techniques?Does he need to know where to look for the right techniques?or…Does he need the attitude to use prototypes in his proces?14

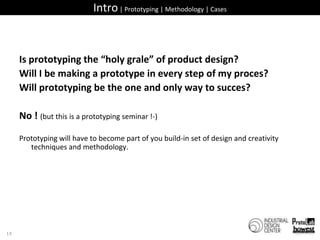

15. Intro | Prototyping | Methodology | CasesIs prototyping the “holy grale” of product design?Will I be making a prototype in every step of my proces?Will prototyping be the one and only way to succes?No ! (but this is a prototyping seminar !-)Prototyping will have to become part of you build-in set of design and creativity techniques and methodology.15

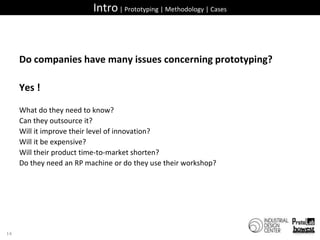

16. Intro | Prototyping | Methodology | CasesDo companies have many issues concerning prototyping?Yes ! What do they need to know?Can they outsource it?Will it improve their level of innovation?Will it be expensive?Will their product time-to-market shorten?Do they need an RP machine or do they use their workshop?16

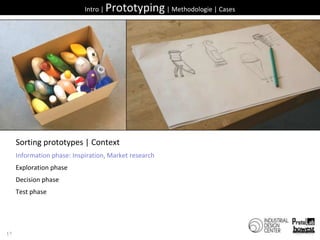

17. 17Intro | Prototyping | Methodologie | CasesSortingprototypes | ContextInformationphase: Inspiration, Market researchExplorationphaseDecisionphaseTest phase

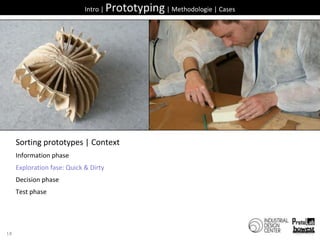

18. 18Intro | Prototyping | Methodologie | CasesSortingprototypes | ContextInformationphaseExploration fase: Quick & DirtyDecisionphaseTest phase

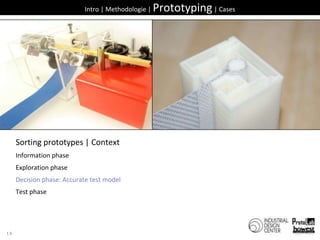

19. 19Intro | Methodologie | Prototyping | CasesSorting prototypes | ContextInformationphaseExplorationphaseDecisionphase: Accurate test modelTest phase

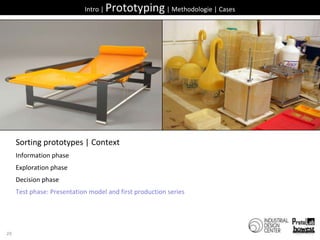

20. 20Intro | Prototyping | Methodologie | CasesSorting prototypes | ContextInformationphaseExplorationphaseDecisionphaseTest phase: Presentation model and firstproduction series

21. 21Intro | Prototyping | Methodologie | CasesSorting prototypes | SubjectProduct Personality: Exploringshape, Communication, PresentationUseFunctionMaterialShapeManufacturingProcess

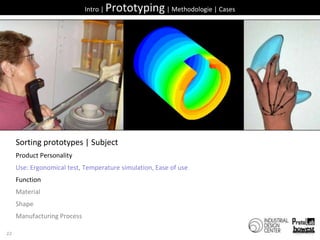

22. 22Intro | Prototyping | Methodologie | CasesSorting prototypes | SubjectProduct PersonalityUse: Ergonomical test, Temperaturesimulation, Ease of useFunctionMaterialShapeManufacturingProcess

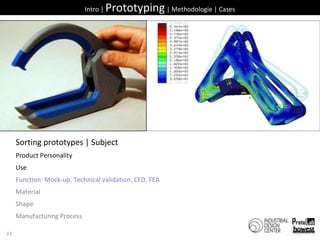

23. 23Intro | Prototyping | Methodologie | CasesSorting prototypes | SubjectProduct PersonalityUseFunction: Mock-up, Technicalvalidation, CFD, FEAMaterialShapeManufacturingProcess

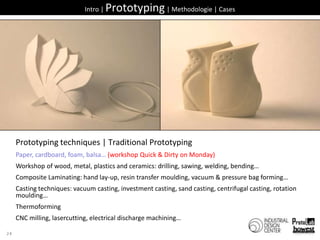

24. 24Intro | Prototyping | Methodologie | CasesPrototyping techniques| Traditional PrototypingPaper, cardboard, foam, balsa… (workshop Quick & Dirty on Monday)Workshop of wood, metal, plastics and ceramics: drilling, sawing, welding, bending…Composite Laminating: hand lay-up, resin transfer moulding, vacuum & pressure bag forming…Casting techniques: vacuum casting, investment casting, sand casting, centrifugal casting, rotation moulding…ThermoformingCNC milling, lasercutting, electrical discharge machining…

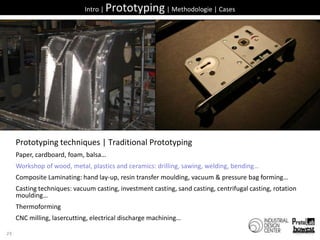

25. 25Intro | Prototyping | Methodologie | CasesPrototyping techniques | Traditional PrototypingPaper, cardboard, foam, balsa…Workshop of wood, metal, plastics and ceramics: drilling, sawing, welding, bending…Composite Laminating: hand lay-up, resin transfer moulding, vacuum & pressure bag forming…Casting techniques: vacuum casting, investment casting, sand casting, centrifugal casting, rotation moulding…ThermoformingCNC milling, lasercutting, electrical discharge machining…

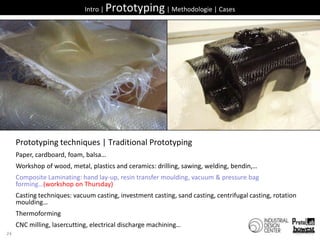

26. 26Intro | Prototyping | Methodologie | CasesPrototyping techniques | Traditional PrototypingPaper, cardboard, foam, balsa…Workshop of wood, metal, plastics and ceramics: drilling, sawing, welding, bendin,…Composite Laminating: hand lay-up, resin transfer moulding, vacuum & pressure bag forming…(workshop on Thursday)Casting techniques: vacuum casting, investment casting, sand casting, centrifugal casting, rotation moulding…ThermoformingCNC milling, lasercutting, electrical discharge machining…

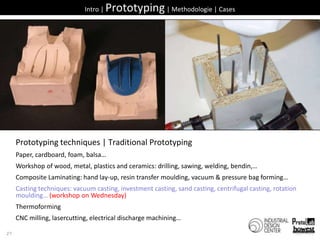

27. 27Intro | Prototyping | Methodologie | CasesPrototyping techniques | Traditional PrototypingPaper, cardboard, foam, balsa…Workshop of wood, metal, plastics and ceramics: drilling, sawing, welding, bendin,…Composite Laminating: hand lay-up, resin transfer moulding, vacuum & pressure bag forming…Casting techniques: vacuum casting, investment casting, sand casting, centrifugal casting, rotation moulding… (workshop on Wednesday)ThermoformingCNC milling, lasercutting, electrical discharge machining…

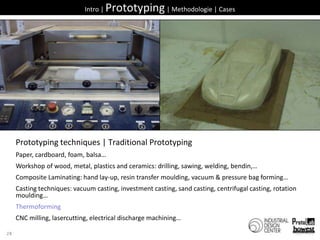

28. 28Intro | Prototyping | Methodologie | CasesPrototyping techniques | Traditional PrototypingPaper, cardboard, foam, balsa…Workshop of wood, metal, plastics and ceramics: drilling, sawing, welding, bendin,…Composite Laminating: hand lay-up, resin transfer moulding, vacuum & pressure bag forming…Casting techniques: vacuum casting, investment casting, sand casting, centrifugal casting, rotation moulding…ThermoformingCNC milling, lasercutting, electrical discharge machining…

29. 29Prototyping techniques | Traditional PrototypingPaper, cardboard, foam, balsa…Workshop of wood, metal, plastics and ceramics: drilling, sawing, welding, bendin,…Composite Laminating: hand lay-up, resin transfer moulding, vacuum & pressure bag forming…Casting techniques: vacuum casting, investment casting, sand casting, centrifugal casting, rotation moulding…ThermoformingCNC milling, lasercutting, electrical discharge machining…(workshop 3D printing & lasercutting on Tuesday)Intro | Prototyping | Methodologie | Cases

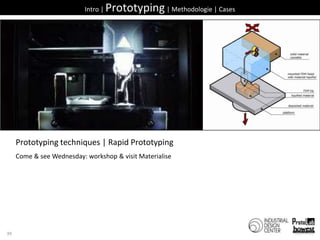

30. 30Intro | Prototyping | Methodologie | CasesPrototyping techniques | Rapid PrototypingCome & seeWednesday: workshop & visit Materialise

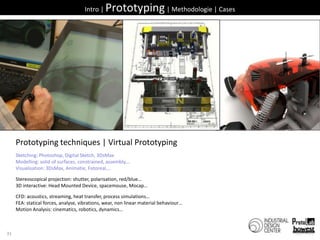

31. 31Intro | Prototyping | Methodologie | CasesPrototyping techniques| Virtual PrototypingSketching: Photoshop, Digital Sketch, 3DsMaxModelling: solid of surfaces, constrained, assembly,…Visualisation: 3DsMax, Animatie, Fotoreal,…Stereoscopical projection: shutter, polarisation, red/blue…3D interactive: Head Mounted Device, spacemouse, Mocap…CFD: acoustics, streaming, heat transfer, process simulations…FEA: statical forces, analyse, vibrations, wear, non linear material behaviour…Motion Analysis: cinematics, robotics, dynamics…

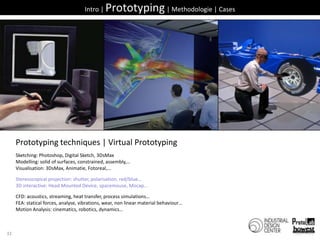

32. 32Intro | Prototyping | Methodologie | CasesPrototyping techniques| Virtual PrototypingSketching: Photoshop, Digital Sketch, 3DsMaxModelling: solid of surfaces, constrained, assembly,…Visualisation: 3DsMax, Animatie, Fotoreal,…Stereoscopical projection: shutter, polarisation, red/blue…3D interactive: Head Mounted Device, spacemouse, Mocap…CFD: acoustics, streaming, heat transfer, process simulations…FEA: statical forces, analyse, vibrations, wear, non linear material behaviour…Motion Analysis: cinematics, robotics, dynamics…

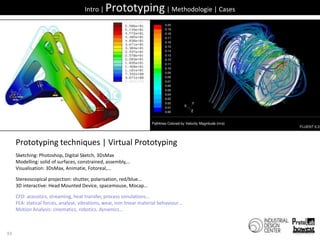

33. 33Intro | Prototyping | Methodologie | CasesPrototyping techniques| Virtual PrototypingSketching: Photoshop, Digital Sketch, 3DsMaxModelling: solid of surfaces, constrained, assembly,…Visualisation: 3DsMax, Animatie, Fotoreal,…Stereoscopical projection: shutter, polarisation, red/blue…3D interactive: Head Mounted Device, spacemouse, Mocap…CFD: acoustics, streaming, heat transfer, process simulations…FEA: statical forces, analyse, vibrations, wear, non linear material behaviour…Motion Analysis: cinematics, robotics, dynamics…

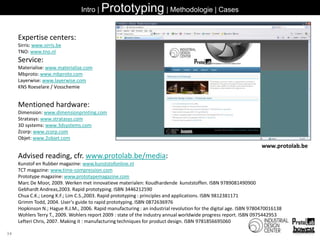

34. 34Intro | Prototyping | Methodologie | CasesExpertise centers:Sirris: www.sirris.beTNO: www.tno.nlService:Materialise: www.materialise.comMbproto: www.mbproto.comLayerwise: www.layerwise.comKNS Roeselare / VosschemieMentioned hardware:Dimension: www.dimensionprinting.comStratasys: www.stratasys.com3D systems: www.3dsystems.comZcorp: www.zcorp.comObjet: www.2objet.comAdvised reading, cfr. www.protolab.be/media:Kunstof en Rubber magazine: www.kunststofonline.nlTCT magazine: www.time-compression.comPrototype magazine: www.prototypemagazine.comMarc De Moor, 2009. Werken met innovatievematerialen: Koudhardendekunststoffen. ISBN 9789081490900Gebhardt Andreas,2003. Rapid prototyping. ISBN 3446212590 Chua C.K.; Leong K.F.; Lim C.S.,2003. Rapid prototyping : principles and applications. ISBN 9812381171 Grimm Todd, 2004. User's guide to rapid prototyping. ISBN 0872636976 Hopkinson N.; Hague R.J.M., 2006. Rapid manufacturing : an industrial revolution for the digital age. ISBN 9780470016138 Wohlers Terry T., 2009. Wohlers report 2009 : state of the industry annual worldwide progress report. ISBN 0975442953LefteriChris, 2007. Making it : manufacturing techniques for product design. ISBN 9781856695060 www.protolab.be

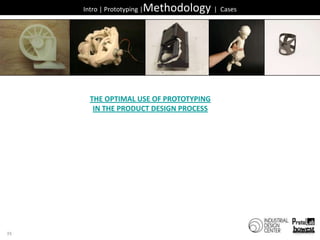

35. 35Intro | Prototyping |Methodology | CasesTHE OPTIMAL USE OF PROTOTYPING IN THE PRODUCT DESIGN PROCESS

36. 36Intro | Methodology | Prototyping | CasesVentilation systemIntensive Program 2009Description: quick & dirty, fast & approximatingPurpose: proof of concept, internal communicationMaterials: cardboard, foam, glue, wood, axles,…

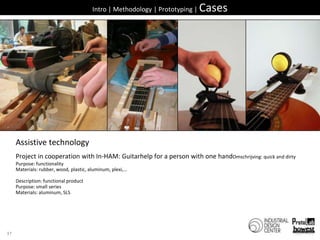

37. 37Intro | Methodology | Prototyping | CasesAssistivetechnologyProject in cooperationwithIn-HAM: Guitarhelpfor a personwithone handOmschrijving: quick and dirtyPurpose: functionalityMaterials: rubber, wood, plastic, aluminum, plexi,…Description: functional productPurpose: small seriesMaterials: aluminum, SLS

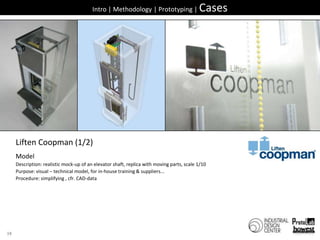

38. 38Intro | Methodology | Prototyping | CasesLiften Coopman (1/2)ModelDescription: realisticmock-up of an elevator shaft, replica withmovingparts, scale 1/10Purpose: visual– technical model, forin-house training & suppliers...Procedure: simplifying , cfr. CAD-data

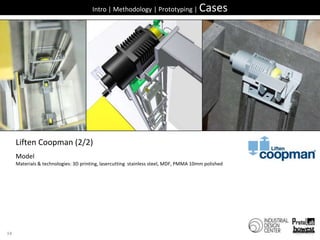

39. 39Intro | Methodology | Prototyping | CasesLiften Coopman (2/2)ModelMaterials & technologies: 3D printing, lasercuttingstainless steel, MDF, PMMA 10mm polished

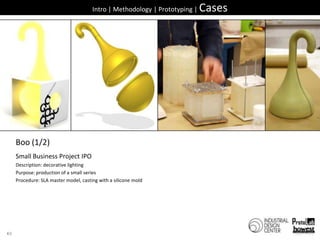

40. 40Intro | Methodology | Prototyping | CasesBoo (1/2)Small Business Project IPODescription: decorativelightingPurpose: production of a small series Procedure: SLA master model, casting with a silicone mold

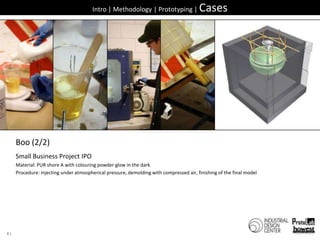

41. 41Intro | Methodology | Prototyping | CasesBoo (2/2)Small Business Project IPOMaterial: PUR shore A withcolouringpowderglow in the darkProcedure: injectingunderatmosphericalpressure, demoldingwithcompressed air, finishing of the final model

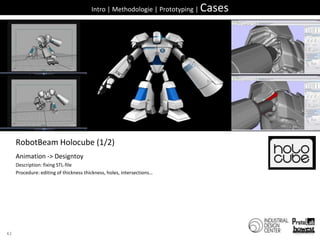

42. 42Intro | Methodologie | Prototyping | CasesRobotBeamHolocube (1/2)Animation -> DesigntoyDescription: fixingSTL-fileProcedure: editing of thicknessthickness, holes, intersections…

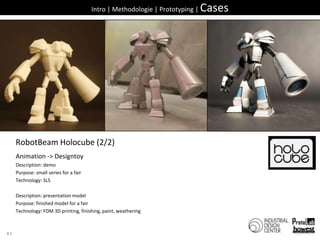

43. 43Intro | Methodologie | Prototyping | CasesRobotBeamHolocube (2/2)Animation -> DesigntoyDescription: demoPurpose: small series for a fairTechnology: SLSDescription: presentation modelPurpose: finished model for a fairTechnology: FDM 3D printing, finishing, paint, weathering

44. 44Intro | Methodologie | Prototyping | CasesAnti Whiplash System (1/2)De Bedenkers 2009Description: mold for a functional PUR modelProcedure: foam model (CAD/manual), polyester/glass fibre

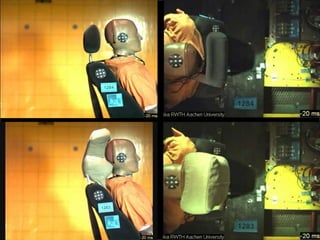

45. 45Intro | Methodology | Prototyping | CasesAnti Whiplash System (2/2)De Bedenkers 2009Description: first series for functional testsProcedure: prototype made in a production environmentCrashtest: improvement of 30% !

46. 46

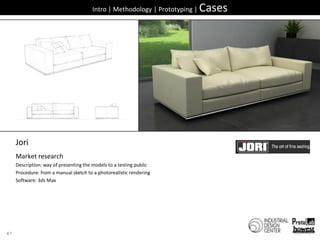

47. 47Intro | Methodology | Prototyping | CasesJoriMarket researchDescription: way of presenting the models to a testing publicProcedure: from a manual sketch to a photorealistic renderingSoftware: 3ds Max

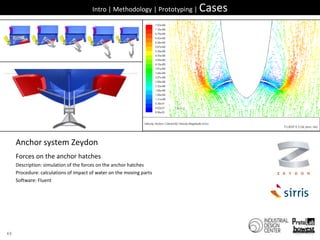

48. 48Intro | Methodology | Prototyping | CasesAnchor system ZeydonForceson the anchor hatchesDescription: simulation of the forces on the anchor hatchesProcedure: calculations of impact of water on the moving partsSoftware: Fluent

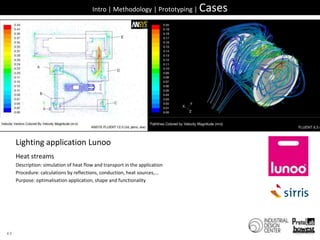

49. 49Intro | Methodology | Prototyping | CasesLightingapplication LunooHeat streamsDescription: simulation of heat flow and transport in the applicationProcedure: calculations by reflections, conduction, heat sources,…Purpose: optimalisation application, shape and functionality

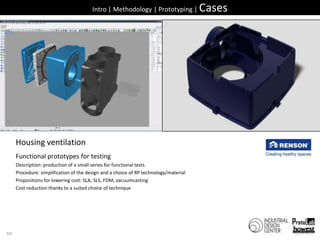

50. 50Intro | Methodology | Prototyping | CasesHousingventilationFunctional prototypes fortestingDescription: production of a small series for functional testsProcedure: simplification of the design and a choice of RP technology/materialPropositions for lowering cost: SLA, SLS, FDM, vacuumcastingCost reduction thanks to a suited choice of technique

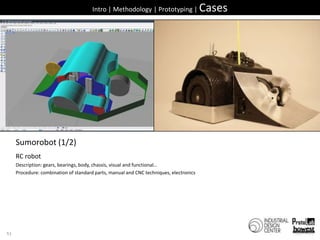

51. 51Intro | Methodology | Prototyping | CasesSumorobot (1/2)RC robotDescription: gears, bearings, body, chassis, visual and functional…Procedure: combination of standard parts, manual and CNC techniques, electronics

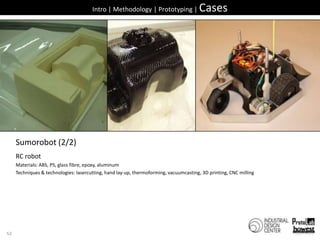

52. 52Intro | Methodology | Prototyping | CasesSumorobot (2/2)RC robotMaterials: ABS, PS, glass fibre, epoxy, aluminumTechniques & technologies: lasercutting, hand lay-up, thermoforming, vacuumcasting, 3D printing, CNC milling

53. Vragen?53Ronald BastiaensHowestIndustrial Design Center | ProtoLabMarksesteenweg 58 8500 Kortrijk056 24 12 11ronald.bastiaens@howest.be Have an inspiring Summerschool
