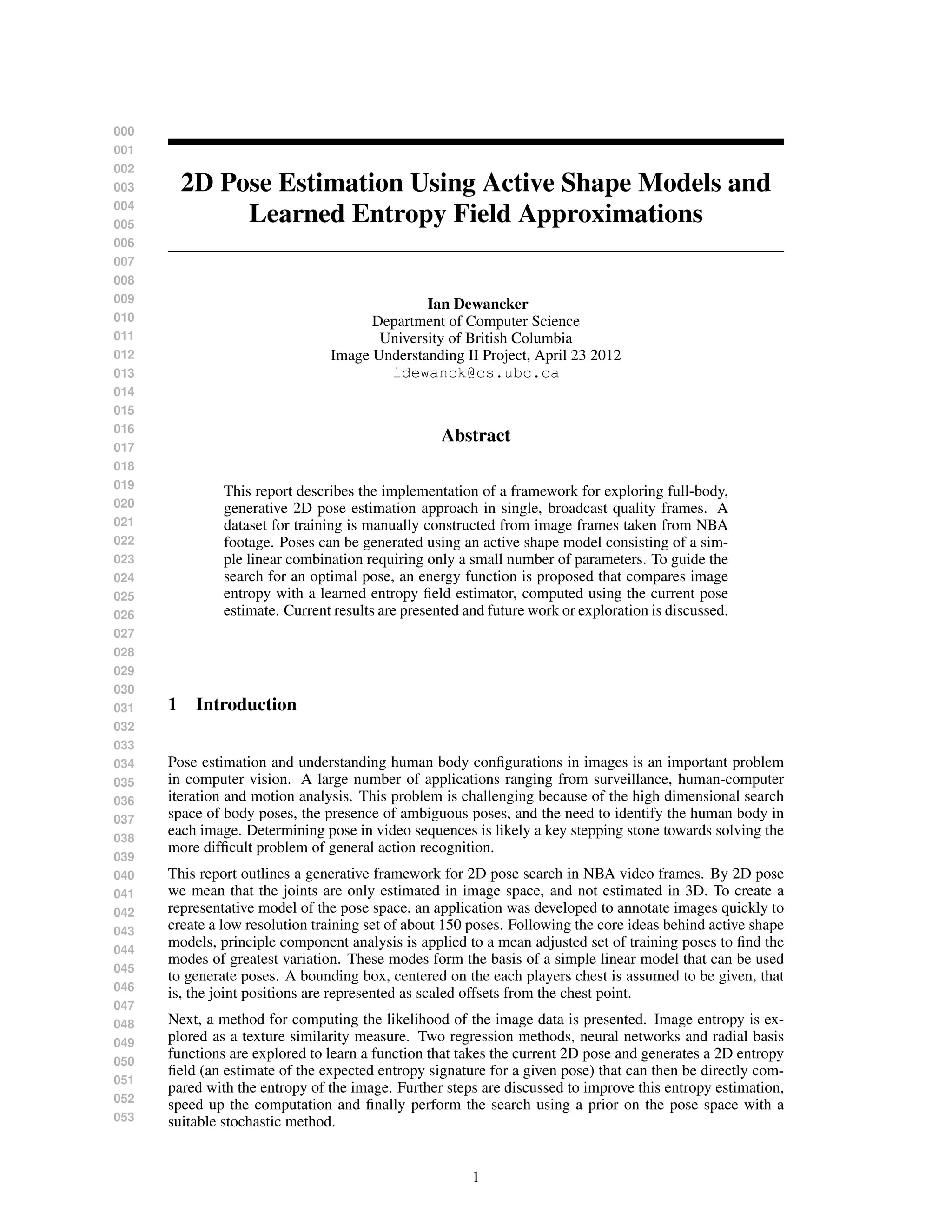

2D Pose Estimation Using Active Shape Models and
Learned Entropy Field Approximations
Ian Dewancker
Department of Computer Science
University of British Columbia
Image Understanding II Project, April 23 2012
idewanck@cs.ubc.ca
Abstract
This report describes the implementation of a framework for exploring full-body,
generative 2D pose estimation approach in single, broadcast quality frames. A
dataset for training is manually constructed from image frames taken from NBA
footage. Poses can be generated using an active shape model consisting of a sim-
ple linear combination requiring only a small number of parameters. To guide the
search for an optimal pose, an energy function is proposed that compares image
entropy with a learned entropy field estimator, computed using the current pose
estimate. Current results are presented and future work or exploration is discussed.
1 Introduction
Pose estimation and understanding human body configurations in images is an important problem
in computer vision. A large number of applications ranging from surveillance, human-computer
iteration and motion analysis. This problem is challenging because of the high dimensional search
space of body poses, the presence of ambiguous poses, and the need to identify the human body in
each image. Determining pose in video sequences is likely a key stepping stone towards solving the
more difficult problem of general action recognition.
This report outlines a generative framework for 2D pose search in NBA video frames. By 2D pose
we mean that the joints are only estimated in image space, and not estimated in 3D. To create a
representative model of the pose space, an application was developed to annotate images quickly to
create a low resolution training set of about 150 poses. Following the core ideas behind active shape
models, principle component analysis is applied to a mean adjusted set of training poses to find the
modes of greatest variation. These modes form the basis of a simple linear model that can be used
to generate poses. A bounding box, centered on the each players chest is assumed to be given, that
is, the joint positions are represented as scaled offsets from the chest point.
Next, a method for computing the likelihood of the image data is presented. Image entropy is ex-
plored as a texture similarity measure. Two regression methods, neural networks and radial basis
functions are explored to learn a function that takes the current 2D pose and generates a 2D entropy
field (an estimate of the expected entropy signature for a given pose) that can then be directly com-
pared with the entropy of the image. Further steps are discussed to improve this entropy estimation,
speed up the computation and finally perform the search using a prior on the pose space with a
suitable stochastic method.
1

2. 054
055
056
057
058
059
060
061
062
063
064
065
066
067
068
069
070
071
072
073
074
075
076
077
078
079
080
081
082
083
084
085
086
087
088
089
090
091
092
093
094
095
096
097
098
099
100
101
102
103
104
105
106
107

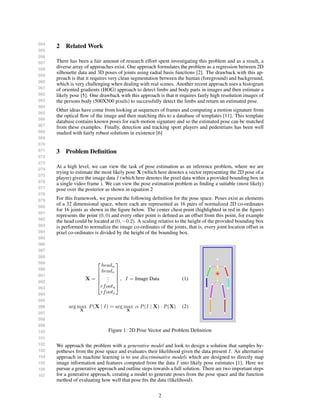

2 Related Work
There has been a fair amount of research effort spent investigating this problem and as a result, a
diverse array of approaches exist. One approach formulates the problem as a regression between 2D
silhouette data and 3D poses of joints using radial basis functions [2]. The drawback with this ap-
proach is that it requires very clean segmentation between the human (foreground) and background,
which is very challenging when dealing with real scenes. Another recent approach uses a histogram
of oriented gradients (HOG) approach to detect limbs and body parts in images and then estimate a
likely pose [5]. One drawback with this approach is that it requires fairly high resolution images of
the persons body (500X500 pixels) to successfully detect the limbs and return an estimated pose.
Other ideas have come from looking at sequences of frames and computing a motion signature from
the optical flow of the image and then matching this to a database of templates [11]. This template
database contains known poses for each motion signature and so the estimated pose can be matched
from these examples. Finally, detection and tracking sport players and pedestrians has been well
studied with fairly robust solutions in existence [6]
3 Problem Definition
At a high level, we can view the task of pose estimation as an inference problem, where we are
trying to estimate the most likely pose X (which here denotes a vector representing the 2D pose of a
player) given the image data I (which here denotes the pixel data within a provided bounding box in
a single video frame ). We can view the pose estimation problem as finding a suitable (most likely)
pose over the posterior as shown in equation 2
For this framework, we present the following definition for the pose space. Poses exist as elements
of a 32 dimensional space, where each are represented as 16 pairs of normalized 2D co-ordinates
for 16 joints as shown in the figure below. The center chest point (highlighted in red in the figure)
represents the point (0, 0) and every other point is defined as an offset from this point, for example
the head could be located at (0, −0.2). A scaling relative to the height of the provided bounding box
is performed to normalize the image co-ordinates of the joints, that is, every joint location offset in
pixel co-ordinates is divided by the height of the bounding box.
X =






headu
headv
...
rfootu
rfootv






, I = Image Data (1)
arg max
X
P(X | I ) = arg max
X
α P(I | X) · P(X) (2)
Figure 1: 2D Pose Vector and Problem Definition
We approach the problem with a generative model and look to design a solution that samples hy-
potheses from the pose space and evaluates their likelihood given the data present I. An alternative
approach in machine learning is to use discriminative models which are designed to directly map
image information and features computed from the data I into likely pose estimates [1]. Here we
pursue a generative approach and outline steps towards a full solution. There are two important steps
for a generative approach, creating a model to generate poses from the pose space and the function
method of evaluating how well that pose fits the data (likelihood).
2

3. 108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161

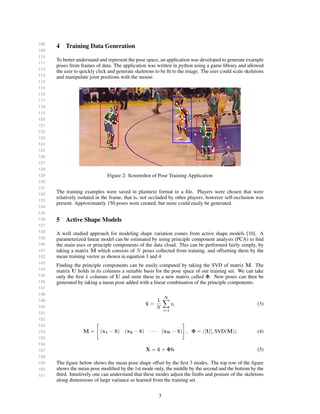

4 Training Data Generation
To better understand and represent the pose space, an application was developed to generate example
poses from frames of data. The application was written in python using a game library and allowed
the user to quickly click and generate skeletons to be fit to the image. The user could scale skeletons
and manipulate joint positions with the mouse.
Figure 2: Screenshot of Pose Training Application
The training examples were saved in plaintext format to a file. Players were chosen that were
relatively isolated in the frame, that is, not occluded by other players, however self-occlusion was
present. Approximately 150 poses were created, but more could easily be generated.
5 Active Shape Models
A well studied approach for modeling shape variation comes from active shape models [10]. A
parameterized linear model can be estimated by using principle component analysis (PCA) to find
the main axes or principle components of the data cloud. This can be performed fairly simply, by
taking a matrix M which consists of N poses collected from training, and offsetting them by the
mean training vector as shown in equation 3 and 4
Finding the principle components can be easily computed by taking the SVD of matrix M. The
matrix U holds in its columns a suitable basis for the pose space of our training set. We can take
only the first k columns of U and store these in a new matrix called Φ. New poses can then be
generated by taking a mean pose added with a linear combination of the principle components.
¯x =
1
N
N
i=1
xi (3)
M = (x1 − ¯x) (x2 − ¯x) · · · (xN − ¯x) , Φ = ([U], SVD(M)) (4)
X = ¯x + Φb (5)
The figure below shows the mean pose shape offset by the first 3 modes. The top row of the figure
shows the mean pose modified by the 1st mode only, the middle by the second and the bottom by the
third. Intuitively one can understand that these modes adjust the limbs and posture of the skeletons
along dimensions of large variance as learned from the training set.
3

4. 162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215

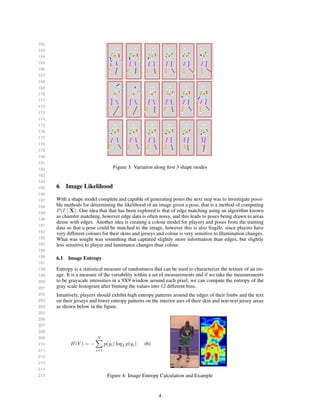

Figure 3: Variation along first 3 shape modes
6 Image Likelihood
With a shape model complete and capable of generating poses the next step was to investigate possi-
ble methods for determining the likelihood of an image given a pose, that is a method of computing
P(I | X). One idea that that has been explored is that of edge matching using an algorithm known
as chamfer matching, however edge data is often noisy, and this leads to poses being drawn to areas
dense with edges. Another idea is creating a colour model for players and poses from the training
data so that a pose could be matched to the image, however this is also fragile, since players have
very different colours for their skins and jerseys and colour is very sensitive to illumination changes.
What was sought was something that captured slightly more information than edges, but slightly
less sensitive to player and luminance changes than colour.
6.1 Image Entropy
Entropy is a statistical measure of randomness that can be used to characterize the texture of an im-
age. It is a measure of the variability within a set of measurements and if we take the measurements
to be grayscale intensities in a 9X9 window around each pixel, we can compute the entropy of the
gray scale histogram after binning the values into 12 different bins.
Intuitively, players should exhibit high entropy patterns around the edges of their limbs and the text
on their jerseys and lower entropy patterns on the interior ares of their skin and non-text jersey areas
as shown below in the figure.
H(Y ) = −
N
i=1
p(yi) log2 p(yi) (6)
Figure 4: Image Entropy Calculation and Example
4

5. 216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
6.2 Learning the Entropy Field Approximation
What was required now was a method to generate an entropy field, which we will define to be a
2D scalar field given a pose vector, that could be compared to against the entropy of the actual
image. In other words, what should the entropy image look like for a given skeleton pose? Two
common regression methods were experimented with having varying degrees of success to estimate
the entropy field Hu,v(X), note we have augmented the 32 dimensional vector X with 2 more
dimensions for to capture the dimensions of the 2D entropy field.
The first regression model was a single layered neural network consisting of 10000 internal nodes.
A neural network is a parametric regression approach that learns a set of weights to combine inputs
into internal nodes and internal nodes into outputs using activation functions as shown in equation
7 [9]. Several parameters were modified and experimented with including the number of internal
nodes and type of activation function. The best results for the example are shown below in the figure:
Hu,v(X) = σ


10000
j=0
w
(2)
kj h
34
i=0
w
(1)
ji xi

 (7)
Radial basis functions, or RBFs are also universal function approximators, however they use a non-
parametric approach, storing centers taken from the training data to and use them to interpolate new
values [8] [7]. We used Gaussian basis functions and took 5000 centers to produce the results shown
in the figure below. As you can see, it does a better job than the neural net, but it is still not great.
Hu,v(X) =
5000
i=1
wiφ( X − ci ) (8)
Figure 5: From left to right: Skeleton Pose, Ground Truth Entropy, ANN Entropy, RBF Entropy
While some good initial experimentation took place, the problem with the framework was that the
function was complicated and computation time to train these systems grew increasingly large. With
the RBF estimate, structure is clearly present, however for the method to work well, it should begin
to very closely estimate the ground truth so that a simple comparison method could be run on the
estimate and the actual image.
Alternatively, what could have been more computationally effective would have been to use an array
of neural nets, at representative co-ordinates in the entropy field and train them to produce expected
values and then interpolate other values in the field given these grid nodes as reference values,
instead of trying to regress for the entire field. Unfortunately time ran out to implement and test this
idea.
5

6. 270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323

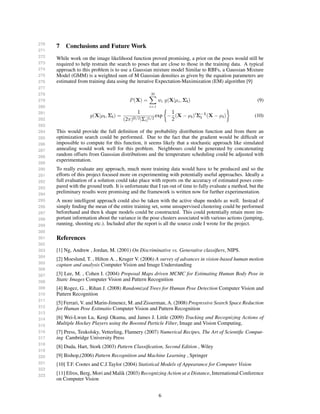

7 Conclusions and Future Work
While work on the image likelihood function proved promising, a prior on the poses would still be
required to help restrain the search to poses that are close to those in the training data. A typical
approach to this problem is to use a Gaussian mixture model Similar to RBFs, a Gaussian Mixture
Model (GMM) is a weighted sum of M Gaussian densities as given by the equation parameters are
estimated from training data using the iterative Expectation-Maximization (EM) algorithm [9]
P(X) =
M
i=1
wi g(X|µi , Σi) (9)
g(X|µi, Σi) =
1
(2π)D/2|Σi|1/2
exp −
1
2
(X − µi) Σ−1
i (X − µi) (10)
This would provide the full definition of the probability distribution function and from there an
optimization search could be performed. Due to the fact that the gradient would be difficult or
impossible to compute for this function, it seems likely that a stochastic approach like simulated
annealing would work well for this problem. Neighbours could be generated by concatenating
random offsets from Gaussian distributions and the temperature scheduling could be adjusted with
experimentation.
To really evaluate any approach, much more training data would have to be produced and so the
efforts of this project focused more on experimenting with potentially useful approaches. Ideally a
full evaluation of a solution could take place with reports on the accuracy of estimated poses com-
pared with the ground truth. It is unfortunate that I ran out of time to fully evaluate a method, but the
preliminary results were promising and the framework is written now for further experimentation.
A more intelligent approach could also be taken with the active shape models as well. Instead of
simply finding the mean of the entire training set, some unsupervised clustering could be performed
beforehand and then k shape models could be constructed. This could potentially retain more im-
portant information about the variance in the pose clusters associated with various actions (jumping,
running, shooting etc.). Included after the report is all the source code I wrote for the project.
References
[1] Ng, Andrew , Jordan, M. (2001) On Discriminative vs. Generative classifiers, NIPS.
[2] Moeslund, T. , Hilton A. , Kruger V. (2006) A survey of advances in vision-based human motion
capture and analysis Computer Vision and Image Understanding
[3] Lee, M. , Cohen I. (2004) Proposal Maps driven MCMC for Estimating Human Body Pose in
Static Images Computer Vision and Pattern Recognition
[4] Rogez, G. , Rihan J. (2008) Randomized Trees for Human Pose Detection Computer Vision and
Pattern Recognition
[5] Ferrari, V. and Marin-Jimenez, M. and Zisserman, A. (2008) Progressive Search Space Reduction
for Human Pose Estimatio Computer Vision and Pattern Recognition
[6] Wei-Lwun Lu, Kenji Okuma, and James J. Little (2009) Tracking and Recognizing Actions of
Multiple Hockey Players using the Boosted Particle Filter, Image and Vision Computing,
[7] Press, Teukolsky, Vetterling, Flannery (2007) Numerical Recipes, The Art of Scientific Comput-
ing Cambridge University Press
[8] Duda, Hart, Stork (2003) Pattern Classification, Second Edition , Wiley
[9] Bishop,(2006) Pattern Recognition and Machine Learning , Springer
[10] T.F. Cootes and C.J.Taylor (2004) Statistical Models of Appearance for Computer Vision
[11] Efros, Berg, Mori and Malik (2003) Recognizing Action at a Distance, International Conference
on Computer Vision
6
