Process Scheduling in OS

Process And Process Scheduling
By Ms. Rashmi Bhat

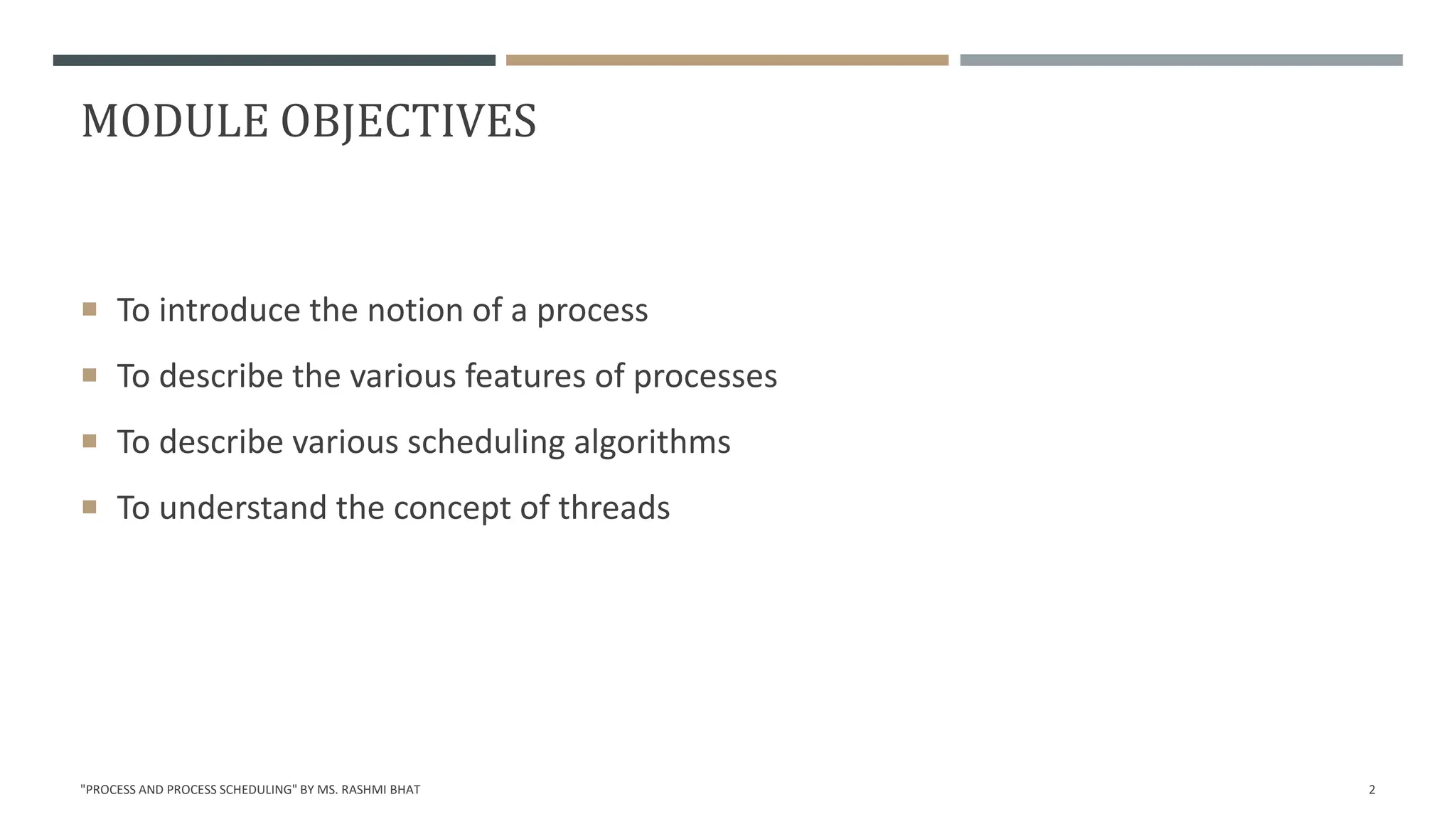

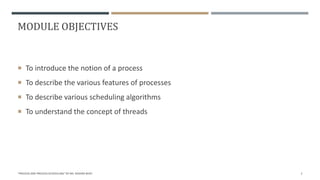

MODULE OBJECTIVES
 To introduce the notion of a process
 To describe the various features of processes
 To describe various scheduling algorithms
 To understand the concept of threads
"PROCESS AND PROCESS SCHEDULING" BY MS. RASHMI BHAT 2

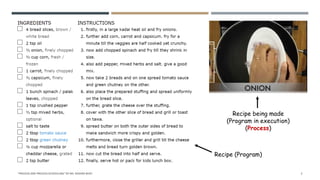

Recipe (Program)
Recipe being made
(Program in execution)
(Process)

What Is A Process?
 Process is a program in execution
 Process contains
 Program code
 Program counter and registers
 Stack
 Data section
 Heap
 Program is a passive entity while process is an active entity.
 Two or more processes of same program might run at the same time but
each of them is a separate process.
Text
Data
Heap
Stack
Fig. Process in memory
Program
Main Memory
Program Process

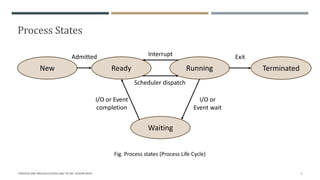

Process States
New Ready Running
Waiting
Terminated
Admitted Interrupt
Scheduler dispatch
I/O or
Event wait
I/O or Event
completion
Exit
Fig. Process states (Process Life Cycle)

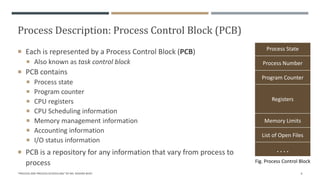

Process Description: Process Control Block (PCB)
 Each is represented by a Process Control Block (PCB)
 Also known as task control block
 PCB contains
 Process state
 Program counter
 CPU registers
 CPU Scheduling information
 Memory management information
 Accounting information
 I/O status information
 PCB is a repository for any information that vary from process to
process
Process State
Process Number
Program Counter
Registers
Memory Limits
List of Open Files
. . . .
Fig. Process Control Block

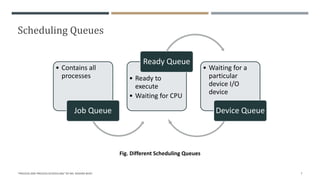

Scheduling Queues
• Contains all
processes
Job Queue
• Ready to
execute
• Waiting for CPU
Ready Queue
• Waiting for a
particular
device I/O
device
Device Queue
Fig. Different Scheduling Queues

How A Process Is Scheduled?
ready queue CPU
I/O I/O queue I/O request
Time slice
expired
fork a child
Wait for an
interrupt
Child
executes
Interrupt
occurs
Newly
admitted
process
Dispatched
Fig. Queueing diagram of process scheduling

Who Schedules The Process?
 Scheduler
 Selects processes from different queues for scheduling purpose
 Types of schedulers
 Long-term Scheduler (Job Scheduler)
 Selects processes from job pool (job queue) and loads them into main memory for execution
 Less frequently executed
 Controls the degree of multiprogramming (no. of processes in main memory)
 Short-term Scheduler (CPU Scheduler)
 Selects processes from ready queue and allocates CPU to one of them.
 Most frequently executed

Context Switch
 When interrupt occurs, the system saves the current context of a process running on
the CPU
 The context is represented in the PCB
 We perform
 State save of the current state of the process
 State restore to resume operations
 Context switch
 Switching the CPU to another process requires performing a state save of the current
process and a state restore of a different process
 Context-switch time is pure overhead
 Highly dependent on hardware support

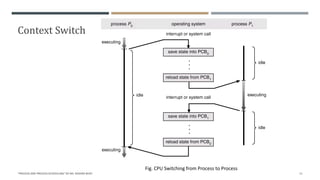

Context Switch
Fig. CPU Switching from Process to Process

Process Scheduling

Basic Concept of Scheduling
 Multiprogramming concept
 Properties of a process/program
 CPU-bound program
 I/O-bound program
 CPU Scheduler selects process to execute
 Scheduling
 Non-preemptive or cooperative
 Preemptive
 Incurs a cost associated with access to shared data
 Affects the design of the operating-system kernel
When CPU Scheduling is to be done?
When a process moves from
1. Running state  waiting state
2. Running state  ready state
3. Waiting state  ready state
4. Terminates

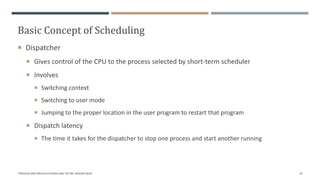

Basic Concept of Scheduling
 Dispatcher
 Gives control of the CPU to the process selected by short-term scheduler
 Involves
 Switching context
 Switching to user mode
 Jumping to the proper location in the user program to restart that program
 Dispatch latency
 The time it takes for the dispatcher to stop one process and start another running

Scheduling Criteria

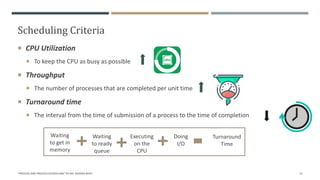

 CPU Utilization
 To keep the CPU as busy as possible
 Throughput
 The number of processes that are completed per unit time
 Turnaround time
 The interval from the time of submission of a process to the time of completion
Waiting
to get in
memory
Waiting
to ready
queue
Executing
on the
CPU
Doing
I/O
Turnaround
Time

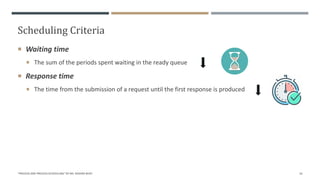

Scheduling Criteria
 Waiting time
 The sum of the periods spent waiting in the ready queue
 Response time
 The time from the submission of a request until the first response is produced

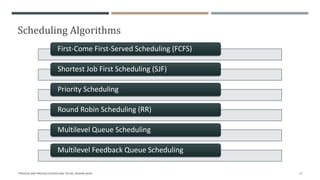

Scheduling Algorithms
First-Come First-Served Scheduling (FCFS)
Shortest Job First Scheduling (SJF)

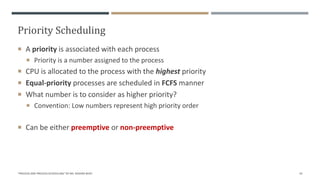

Priority Scheduling
Round Robin Scheduling (RR)
Multilevel Queue Scheduling
Multilevel Feedback Queue Scheduling

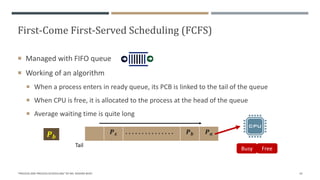

Scenario 1
 How movie tickets are issued?

 Managed with FIFO queue
 Working of an algorithm
 When a process enters in ready queue, its PCB is linked to the tail of the queue
 When CPU is free, it is allocated to the process at the head of the queue
 Average waiting time is quite long
𝑷𝒙 . . . . . . . . . . . . . . . 𝑷𝒃 𝑷𝒂
𝑷𝒃
Busy Free
Tail

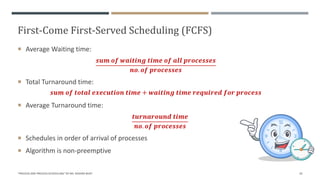

 Average Waiting time:
𝒔𝒖𝒎 𝒐𝒇 𝒘𝒂𝒊𝒕𝒊𝒏𝒈 𝒕𝒊𝒎𝒆 𝒐𝒇 𝒂𝒍𝒍 𝒑𝒓𝒐𝒄𝒆𝒔𝒔𝒆𝒔
𝒏𝒐. 𝒐𝒇 𝒑𝒓𝒐𝒄𝒆𝒔𝒔𝒆𝒔
 Total Turnaround time:
𝒔𝒖𝒎 𝒐𝒇 𝒕𝒐𝒕𝒂𝒍 𝒆𝒙𝒆𝒄𝒖𝒕𝒊𝒐𝒏 𝒕𝒊𝒎𝒆 + 𝒘𝒂𝒊𝒕𝒊𝒏𝒈 𝒕𝒊𝒎𝒆 𝒓𝒆𝒒𝒖𝒊𝒓𝒆𝒅 𝒇𝒐𝒓 𝒑𝒓𝒐𝒄𝒆𝒔𝒔
 Average Turnaround time:
𝒕𝒖𝒓𝒏𝒂𝒓𝒐𝒖𝒏𝒅 𝒕𝒊𝒎𝒆
 Schedules in order of arrival of processes
 Algorithm is non-preemptive

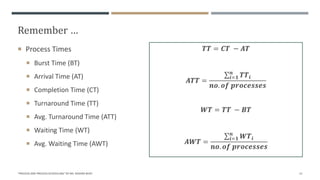

Remember …
 Process Times
 Burst Time (BT)
 Arrival Time (AT)
 Completion Time (CT)
 Turnaround Time (TT)
 Avg. Turnaround Time (ATT)
 Waiting Time (WT)
 Avg. Waiting Time (AWT)
𝑻𝑻 = 𝑪𝑻 − 𝑨𝑻
𝑨𝑻𝑻 =
σ𝒊=𝟏
𝒏
𝑻𝑻𝒊
𝑾𝑻 = 𝑻𝑻 − 𝑩𝑻
𝑨𝑾𝑻 =
σ𝒊=𝟏
𝒏
𝑾𝑻𝒊

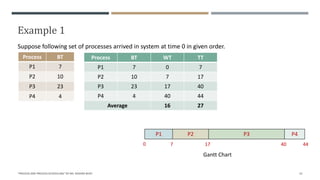

Example 1
P1 P2 P3 P4
0 7 17 40 44
Suppose following set of processes arrived in system at time 0 in given order.
Process BT WT TT
P1
P2
P3
P4
Average
Process BT
P1 7
P2 10
P3 23
P4 4
Process BT WT TT
P1 7 0 7
P2 10 7 17
P3 23 17 40
P4 4 40 44
Average 16 27
Gantt Chart

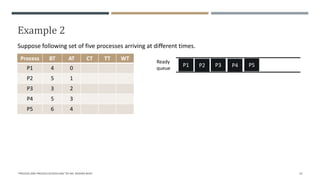

Example 2
Suppose following set of five processes arriving at different times.
Process BT AT
P1 4 0
P2 5 1
P3 3 2
P4 5 3
P5 6 4
CT TT WT
P1 P2 P3 P4 P5
Ready
queue

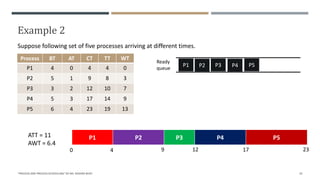

Example 2
Suppose following set of five processes arriving at different times.
Process BT AT
P1 4 0
P2 5 1
P3 3 2
P4 5 3
P5 6 4
CT TT WT
CT TT WT
4 4 0
9 8 3
12 10 7
17 14 9
23 19 13
P1 P2 P3 P4 P5
Ready
queue
ATT = 11
AWT = 6.4
P1 P2 P3 P4 P5
0 4 9 12 17 23

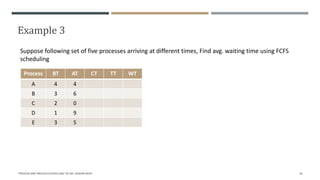

Example 3
Suppose following set of five processes arriving at different times, Find avg. waiting time using FCFS
scheduling
Process BT AT CT TT WT
A 4 4
B 3 6
C 2 0
D 1 9
E 3 5

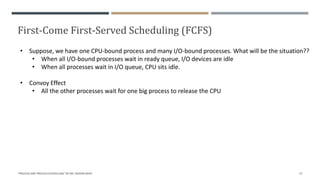

• Suppose, we have one CPU-bound process and many I/O-bound processes. What will be the situation??
• When all I/O-bound processes wait in ready queue, I/O devices are idle
• When all processes wait in I/O queue, CPU sits idle.
• Convoy Effect
• All the other processes wait for one big process to release the CPU

Scenario 2
I just want
to book a
flight ticket
I want to
place an
order for
grocery
I want to play
Counter Strike.
My friends are
waiting
I want to
see cartoon

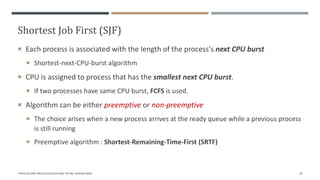

Shortest Job First (SJF)
 Each process is associated with the length of the process's next CPU burst
 Shortest-next-CPU-burst algorithm
 CPU is assigned to process that has the smallest next CPU burst.
 If two processes have same CPU burst, FCFS is used.
 Algorithm can be either preemptive or non-preemptive
 The choice arises when a new process arrives at the ready queue while a previous process
is still running
 Preemptive algorithm : Shortest-Remaining-Time-First (SRTF)

Example 4

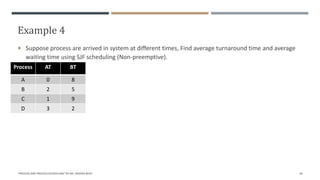

 Suppose process are arrived in system at different times, Find average turnaround time and average
waiting time using SJF scheduling (Non-preemptive).
Process AT BT
A 0 8
B 2 5
C 1 9
D 3 2

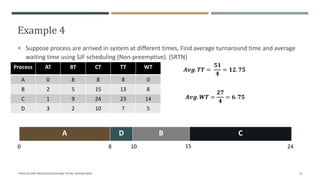

Example 4
waiting time using SJF scheduling (Non-preemptive). (SRTN)
Process AT BT
A 0 8
B 2 5
C 1 9
D 3 2
A D B C
0 8 10 15 24
CT TT WT
CT TT WT
8 8 0
15 13 8
24 23 14
10 7 5
𝑨𝒗𝒈. 𝑻𝑻 =
𝟓𝟏
𝟒
= 𝟏𝟐. 𝟕𝟓
𝑨𝒗𝒈. 𝑾𝑻 =
𝟐𝟕
𝟒
= 𝟔. 𝟕𝟓

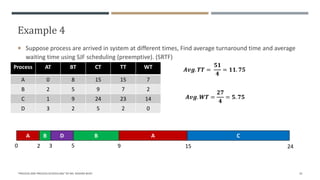

Example 4
waiting time using SJF scheduling (preemptive). (SRTF)
Process AT BT
A 0 8
B 2 5
C 1 9
D 3 2
0 9 15 24
CT TT WT
CT TT WT
15 15 7
9 7 2
24 23 14
5 2 0
𝑨𝒗𝒈. 𝑻𝑻 =
𝟓𝟏
𝟒
= 𝟏𝟏. 𝟕𝟓
𝑨𝒗𝒈. 𝑾𝑻 =
𝟐𝟕
𝟒
= 𝟓. 𝟕𝟓
A B D B A C
2 3 5

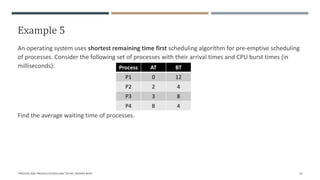

Example 5

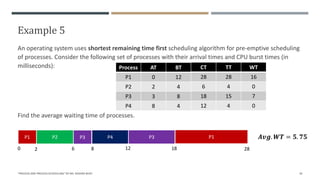

An operating system uses shortest remaining time first scheduling algorithm for pre-emptive scheduling
of processes. Consider the following set of processes with their arrival times and CPU burst times (in
milliseconds):
Find the average waiting time of processes.
Process AT BT
P1 0 12
P2 2 4
P3 3 8
P4 8 4

Example 5
An operating system uses shortest remaining time first scheduling algorithm for pre-emptive scheduling
of processes. Consider the following set of processes with their arrival times and CPU burst times (in
milliseconds):
Find the average waiting time of processes.
Process AT BT
P1 0 12
P2 2 4
P3 3 8
P4 8 4
P1 P2 P3 P4 P3 P1
0 2 6 8 12 18 28
CT TT WT
𝑨𝒗𝒈. 𝑾𝑻 = 𝟓. 𝟕𝟓
CT TT WT
28 28 16
6 4 0
18 15 7
12 4 0

Scenario 3
How to share the bicycle among all four friends?

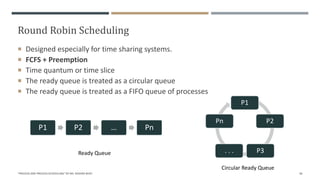

Round Robin Scheduling
 Designed especially for time sharing systems.
 FCFS + Preemption
 Time quantum or time slice
 The ready queue is treated as a circular queue
 The ready queue is treated as a FIFO queue of processes
P1
P2
P3
. . .
Pn
P1 P2 … Pn
Ready Queue
Circular Ready Queue

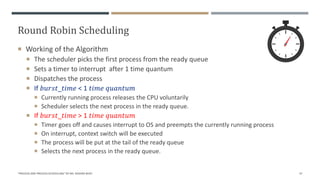

 Working of the Algorithm
 The scheduler picks the first process from the ready queue
 Sets a timer to interrupt after 1 time quantum
 Dispatches the process
 If 𝑏𝑢𝑟𝑠𝑡_𝑡𝑖𝑚𝑒 < 1 𝑡𝑖𝑚𝑒 𝑞𝑢𝑎𝑛𝑡𝑢𝑚
 Currently running process releases the CPU voluntarily
 Scheduler selects the next process in the ready queue.
 If 𝑏𝑢𝑟𝑠𝑡_𝑡𝑖𝑚𝑒 > 1 𝑡𝑖𝑚𝑒 𝑞𝑢𝑎𝑛𝑡𝑢𝑚
 Timer goes off and causes interrupt to OS and preempts the currently running process
 On interrupt, context switch will be executed
 The process will be put at the tail of the ready queue
 Selects the next process in the ready queue.

P3=4
P2=1
P1=8
P4=10
CPU

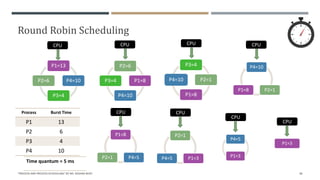

Process Burst Time
P1 13
P2 6
P3 4
P4 10
Time quantum = 5 ms
P4=10
P2=1
P1=8
CPU
P4=5
P1=3
CPU
P2=1
P1=3
P4=5
CPU
P2=6
P1=8
P4=10
P3=4
CPU
P1=8
P4=5
P2=1
CPU
P1=13
P4=10
P3=4
P2=6
CPU
P1=3
CPU

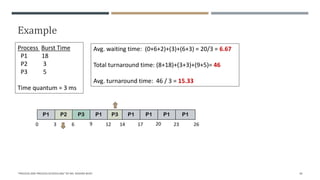

Example
Process Burst Time
P1 18
P2 3
P3 5
Time quantum = 3 ms
P1 P2 P3 P1 P3 P1 P1 P1 P1
0 3 6 9 12 14 17 20 23 26
Avg. waiting time: (0+6+2)+(3)+(6+3) = 20/3 = 6.67
Total turnaround time: (8+18)+(3+3)+(9+5)= 46
Avg. turnaround time: 46 / 3 = 15.33

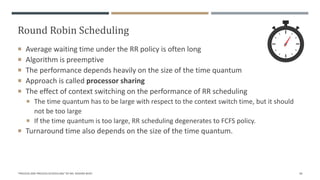

 Average waiting time under the RR policy is often long
 Algorithm is preemptive
 The performance depends heavily on the size of the time quantum
 Approach is called processor sharing
 The effect of context switching on the performance of RR scheduling
 The time quantum has to be large with respect to the context switch time, but it should
not be too large
 If the time quantum is too large, RR scheduling degenerates to FCFS policy.
 Turnaround time also depends on the size of the time quantum.

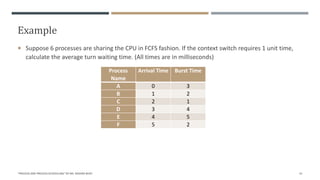

Example
 Suppose 6 processes are sharing the CPU in FCFS fashion. If the context switch requires 1 unit time,
calculate the average turn waiting time. (All times are in milliseconds)
Process
Name
Arrival Time Burst Time
A 0 3
B 1 2
C 2 1
D 3 4
E 4 5
F 5 2

Scenario 3
What will Andy do first??

Priority Scheduling
 A priority is associated with each process
 Priority is a number assigned to the process
 CPU is allocated to the process with the highest priority
 Equal-priority processes are scheduled in FCFS manner
 What number is to consider as higher priority?
 Convention: Low numbers represent high priority order
 Can be either preemptive or non-preemptive

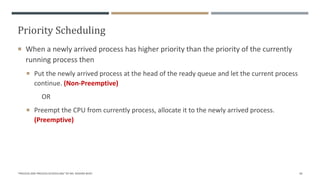

Priority Scheduling
 When a newly arrived process has higher priority than the priority of the currently
running process then
 Put the newly arrived process at the head of the ready queue and let the current process
continue. (Non-Preemptive)
OR
 Preempt the CPU from currently process, allocate it to the newly arrived process.
(Preemptive)

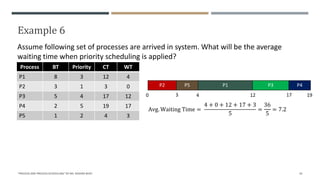

Example 6
P2 P5 P1 P3 P4
0 3 4 12 17 19
Process BT Priority
P1 8 3
P2 3 1
P3 5 4
P4 2 5
P5 1 2
Assume following set of processes are arrived in system. What will be the average
waiting time when priority scheduling is applied?
CT WT
12 4
3 0
17 12
19 17
4 3
Avg. Waiting Time =
4 + 0 + 12 + 17 + 3
5
=
36
5
= 7.2

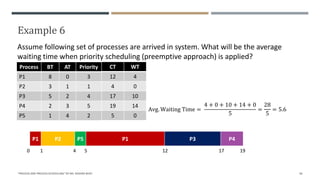

Example 6
0
Process BT AT Priority
P1 8 0 3
P2 3 1 1
P3 5 2 4
P4 2 3 5
P5 1 4 2
Assume following set of processes are arrived in system. What will be the average
waiting time when priority scheduling (preemptive approach) is applied?
CT WT
12 4
4 0
17 10
19 14
5 0
Avg. Waiting Time =
4 + 0 + 10 + 14 + 0
5
=
28
5
= 5.6
P1 P2 P5 P1 P3 P4
1 4 5 12 17 19

Priority Scheduling
 Indefinite blocking or starvation
 Keeps a low priority processes waiting indefinitely
 Solution : aging
 Gradually increasing the priority of processes that wait in the system for a long time

Threads

Threads

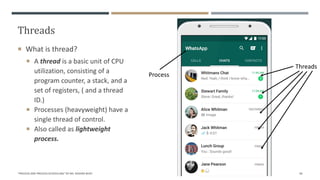

 What is thread?
 A thread is a basic unit of CPU
utilization, consisting of a
program counter, a stack, and a
set of registers, ( and a thread
ID.)
 Processes (heavyweight) have a
single thread of control.
 Also called as lightweight
process.
Process
Threads

Threads

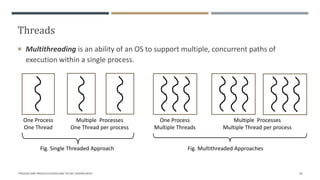

 Multithreading is an ability of an OS to support multiple, concurrent paths of
execution within a single process.
One Process
One Thread
Multiple Processes
One Thread per process
One Process
Multiple Threads
Multiple Processes
Multiple Thread per process
Fig. Single Threaded Approach Fig. Multithreaded Approaches

Threads

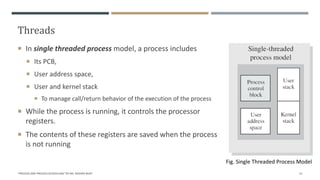

 In single threaded process model, a process includes
 Its PCB,
 User address space,
 User and kernel stack
 To manage call/return behavior of the execution of the process
 While the process is running, it controls the processor
registers.
 The contents of these registers are saved when the process
is not running
Fig. Single Threaded Process Model

Threads

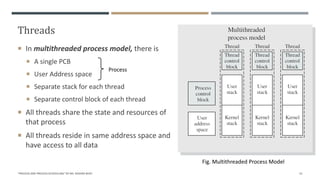

 In multithreaded process model, there is
 A single PCB
 User Address space
 Separate stack for each thread
 Separate control block of each thread
 All threads share the state and resources of
that process
 All threads reside in same address space and
have access to all data
Process
Fig. Multithreaded Process Model

Threads

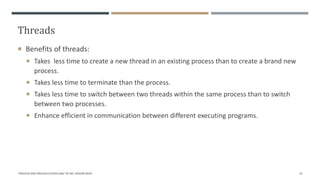

 Benefits of threads:
 Takes less time to create a new thread in an existing process than to create a brand new
process.
 Takes less time to terminate than the process.
 Takes less time to switch between two threads within the same process than to switch
between two processes.
 Enhance efficient in communication between different executing programs.

Types of Threads

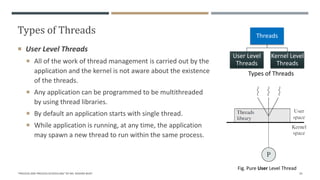

 User Level Threads
 All of the work of thread management is carried out by the
application and the kernel is not aware about the existence
of the threads.
 Any application can be programmed to be multithreaded
by using thread libraries.
 By default an application starts with single thread.
 While application is running, at any time, the application
may spawn a new thread to run within the same process.
Threads
User Level
Threads
Kernel Level
Threads
Types of Threads
Fig. Pure User Level Thread

Types of Threads

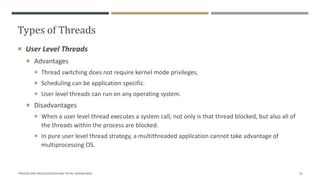

 User Level Threads
 Advantages
 Thread switching does not require kernel mode privileges.
 Scheduling can be application specific.
 User level threads can run on any operating system.
 Disadvantages
 When a user level thread executes a system call, not only is that thread blocked, but also all of
the threads within the process are blocked.
 In pure user level thread strategy, a multithreaded application cannot take advantage of
multiprocessing OS.

Types of Threads

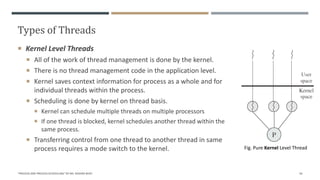

 Kernel Level Threads
 All of the work of thread management is done by the kernel.
 There is no thread management code in the application level.
 Kernel saves context information for process as a whole and for
individual threads within the process.
 Scheduling is done by kernel on thread basis.
 Kernel can schedule multiple threads on multiple processors
 If one thread is blocked, kernel schedules another thread within the
same process.
 Transferring control from one thread to another thread in same
process requires a mode switch to the kernel. Fig. Pure Kernel Level Thread

Types of Threads

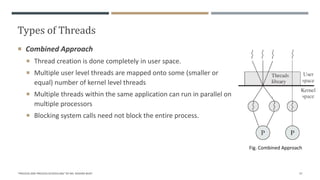

 Combined Approach
 Thread creation is done completely in user space.
 Multiple user level threads are mapped onto some (smaller or
equal) number of kernel level threads
 Multiple threads within the same application can run in parallel on
multiple processors
 Blocking system calls need not block the entire process.
Fig. Combined Approach

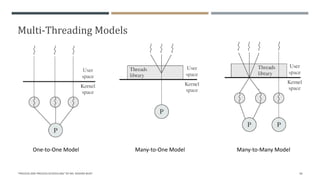

Multi-Threading Models
One-to-One Model Many-to-One Model Many-to-Many Model

Thank You…

Process Scheduling in OS

More Related Content

What's hot

Similar to Process Scheduling in OS

More from Rashmi Bhat

Recently uploaded

Process Scheduling in OS
