Main Memory Management
Module 5
What is Memory?
 Memory:
 A large array of words / bytes, each having its own address
 Instruction Execution Cycle
 Basic Hardware
 Main memory and registers
 Must provide protection to the user processes
 The Base register: holds the smallest legal physical memory
address
 The Limit register: specifies the size of the range
 The base and limit registers can be loaded only by the operating
system with a special privileged instruction
CPU Disk
Cache
CPU Disk

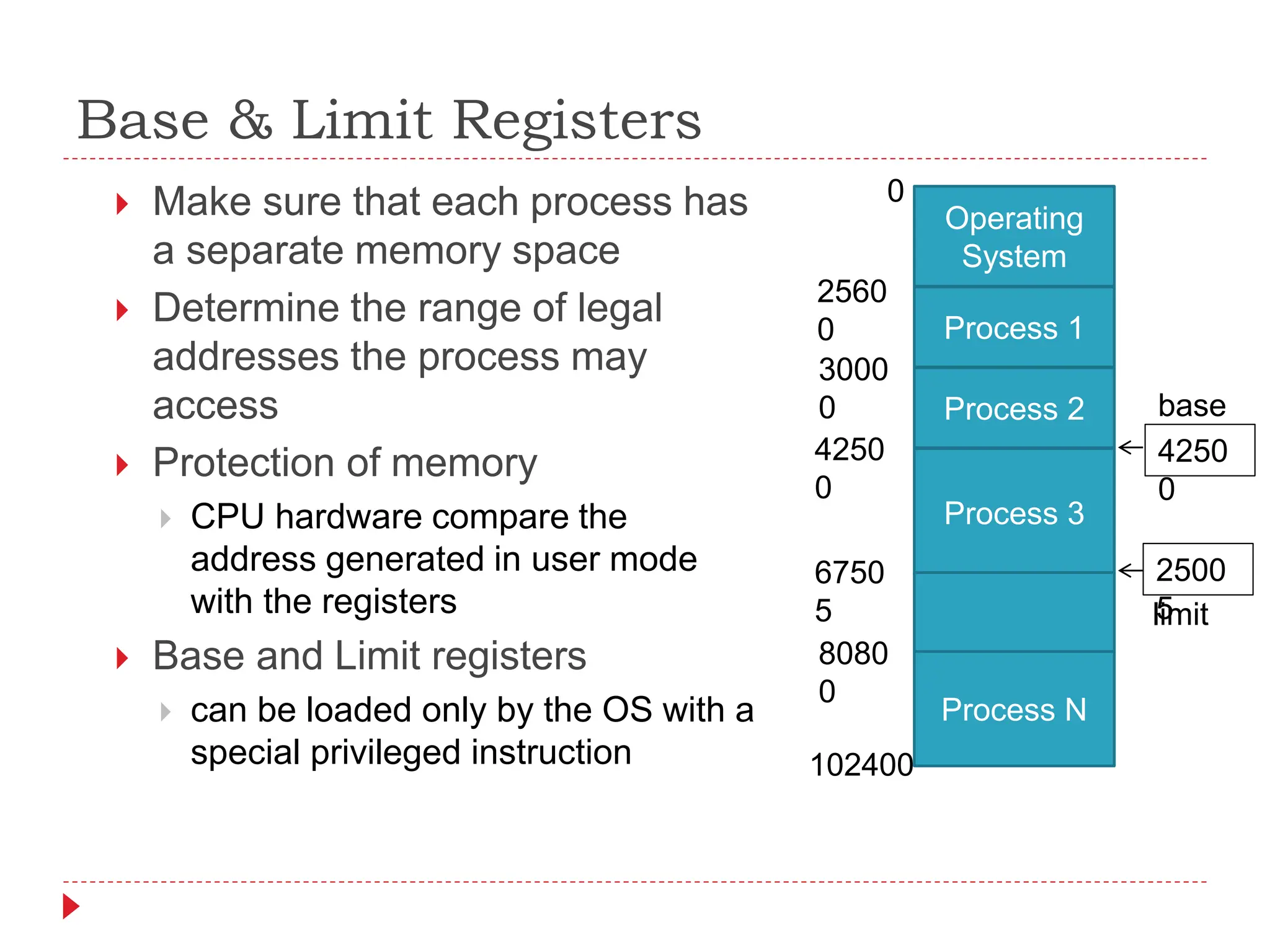

Base & Limit Registers
 Make sure that each process has
a separate memory space
 Determine the range of legal
addresses the process may
access
 Protection of memory
 CPU hardware compare the
address generated in user mode
with the registers
 Base and Limit registers
 can be loaded only by the OS with a
special privileged instruction
Operating
System
Process 1
Process 2
Process 3
Process N
0
2560
0
3000
0
4250
0
6750
5
8080
0
102400
4250
0
2500
5
base
limit

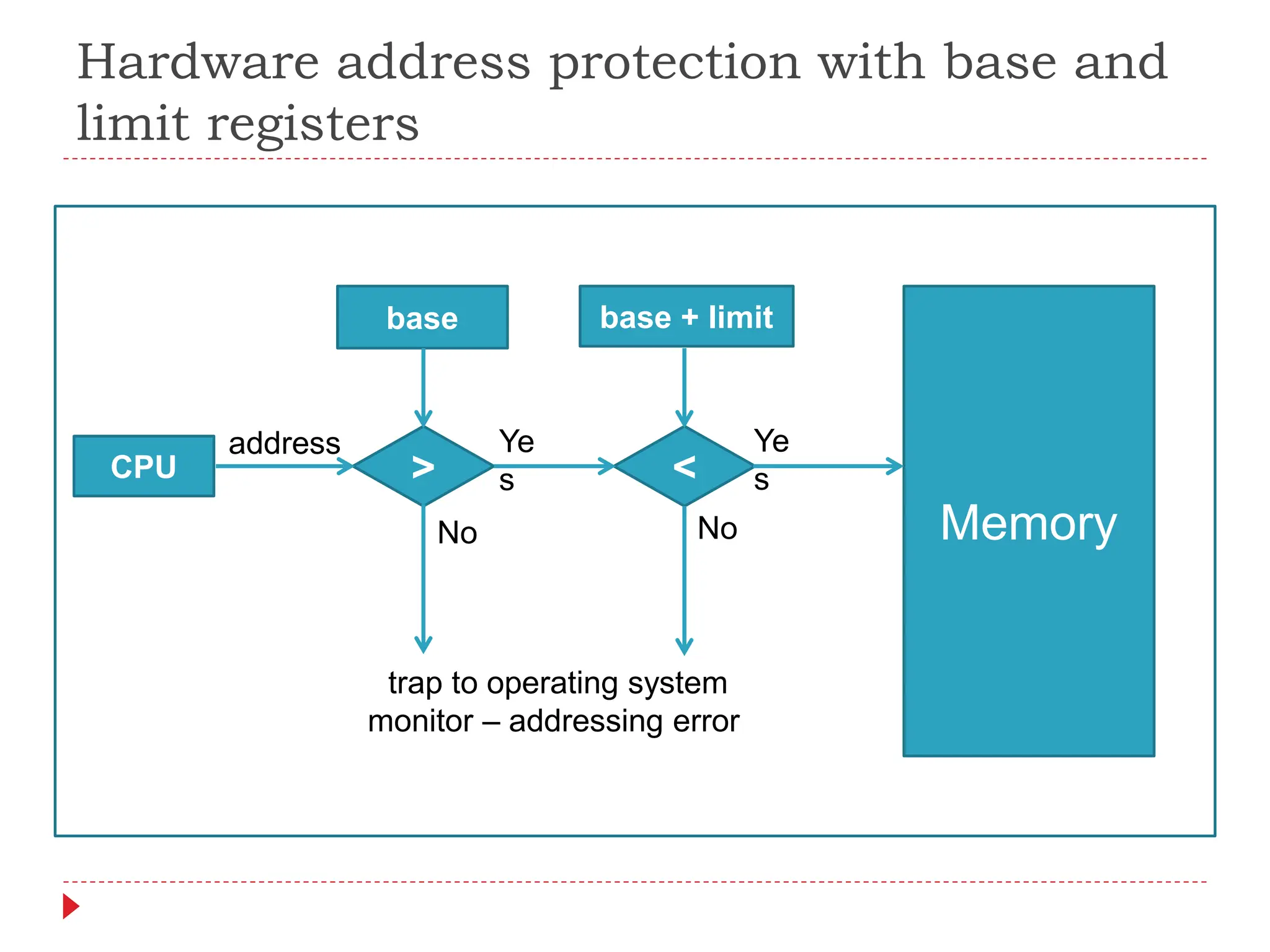

Hardware address protection with base and
limit registers
CPU > <
base base + limit
Memory
address Ye
s
Ye
s
No No
trap to operating system
monitor – addressing error

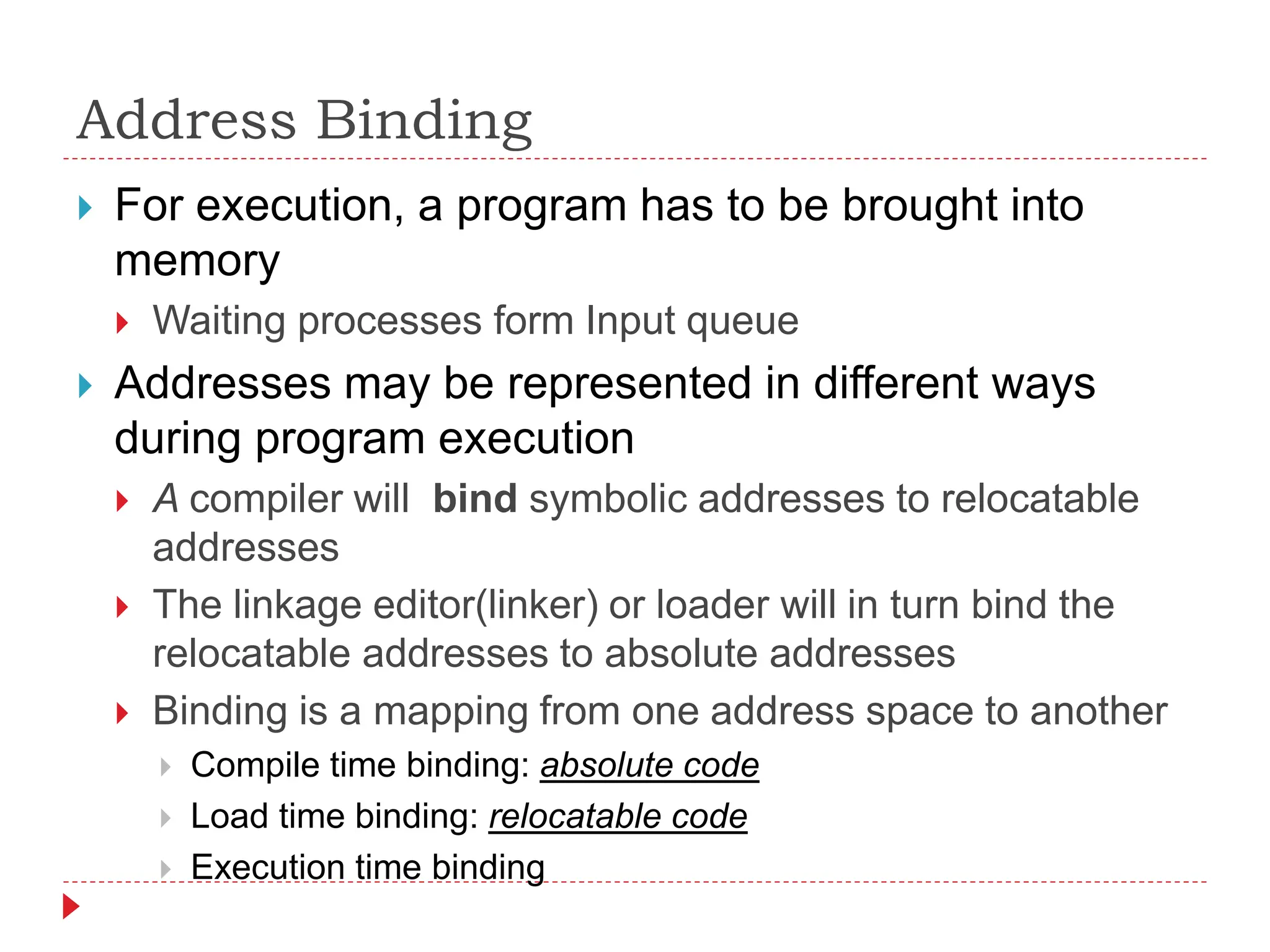

Address Binding
 For execution, a program has to be brought into
memory
 Waiting processes form Input queue
 Addresses may be represented in different ways
during program execution
 A compiler will bind symbolic addresses to relocatable
addresses
 The linkage editor(linker) or loader will in turn bind the
relocatable addresses to absolute addresses
 Binding is a mapping from one address space to another
 Compile time binding: absolute code
 Load time binding: relocatable code
 Execution time binding

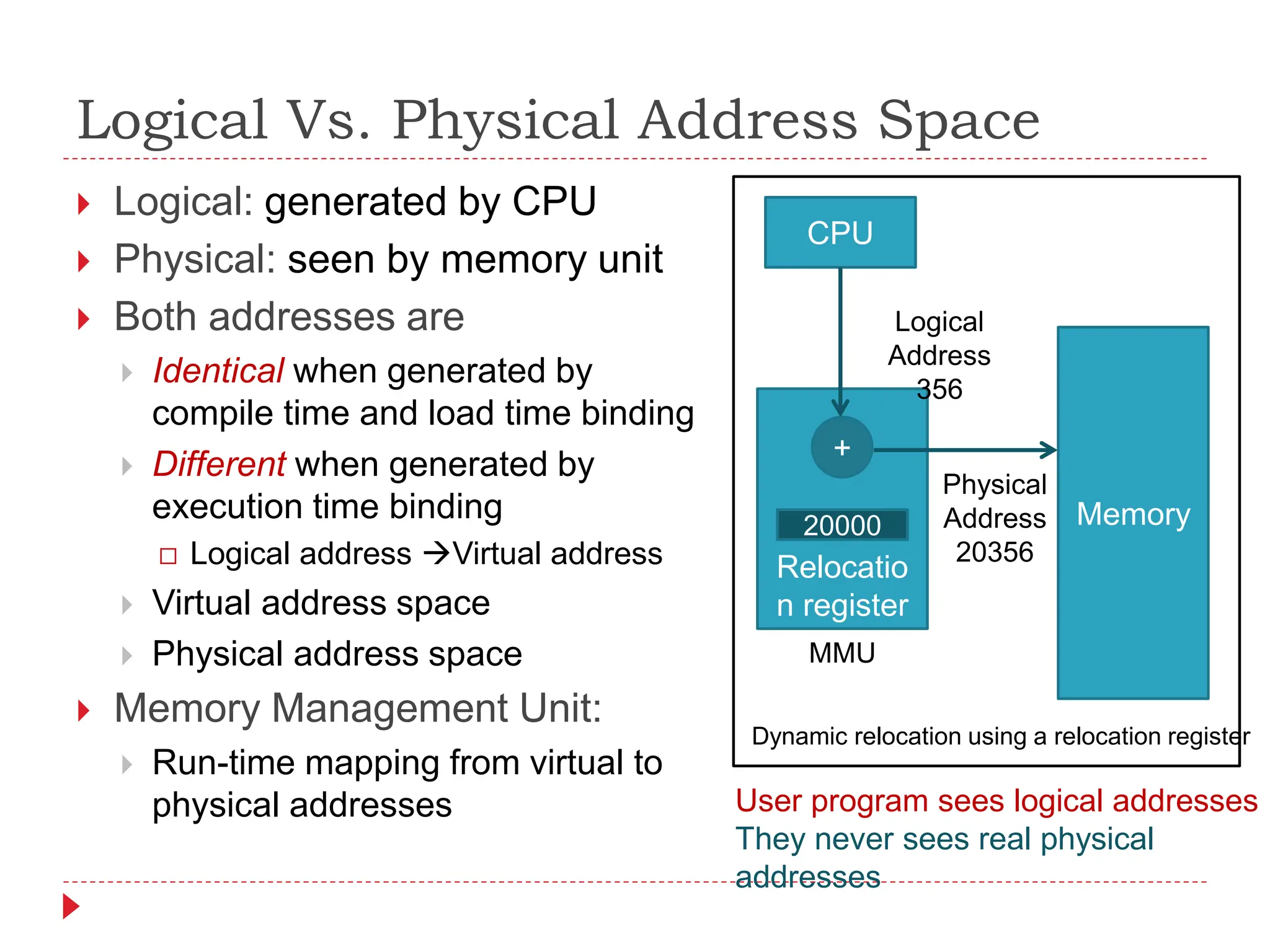

Logical Vs. Physical Address Space
 Logical: generated by CPU
 Physical: seen by memory unit
 Both addresses are
 Identical when generated by
compile time and load time binding
 Different when generated by
execution time binding
 Logical address Virtual address
 Virtual address space
 Physical address space
 Memory Management Unit:
 Run-time mapping from virtual to
physical addresses
Memory
Relocatio
n register
20000
+
CPU
Logical
Address
356
Physical
Address
20356
MMU
User program sees logical addresses
They never sees real physical
addresses
Dynamic relocation using a relocation register

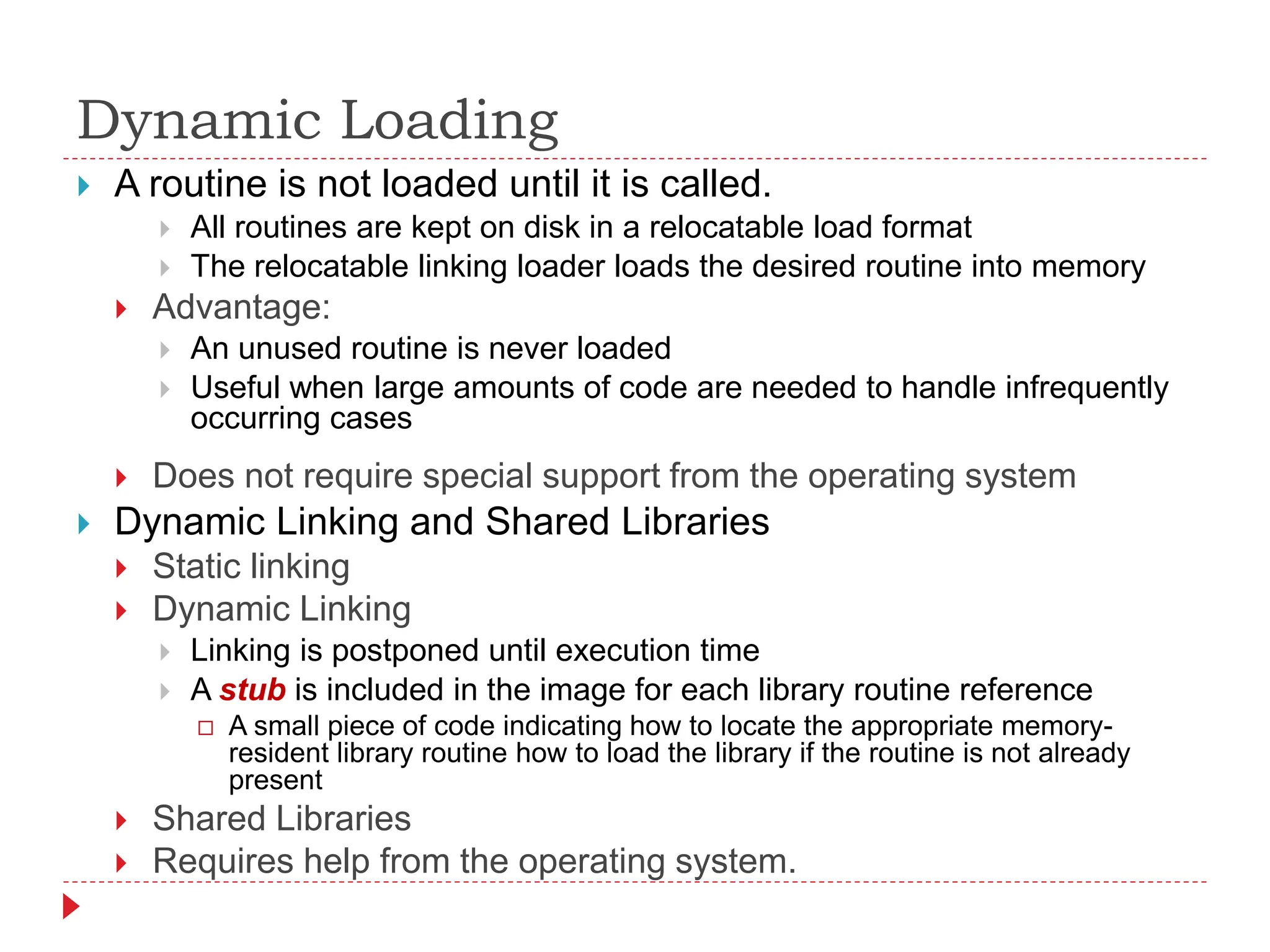

Dynamic Loading
 A routine is not loaded until it is called.
 All routines are kept on disk in a relocatable load format
 The relocatable linking loader loads the desired routine into memory
 Advantage:
 An unused routine is never loaded
 Useful when large amounts of code are needed to handle infrequently
occurring cases
 Does not require special support from the operating system
 Dynamic Linking and Shared Libraries
 Static linking
 Dynamic Linking
 Linking is postponed until execution time
 A stub is included in the image for each library routine reference
 A small piece of code indicating how to locate the appropriate memory-
resident library routine how to load the library if the routine is not already
present
 Shared Libraries
 Requires help from the operating system.

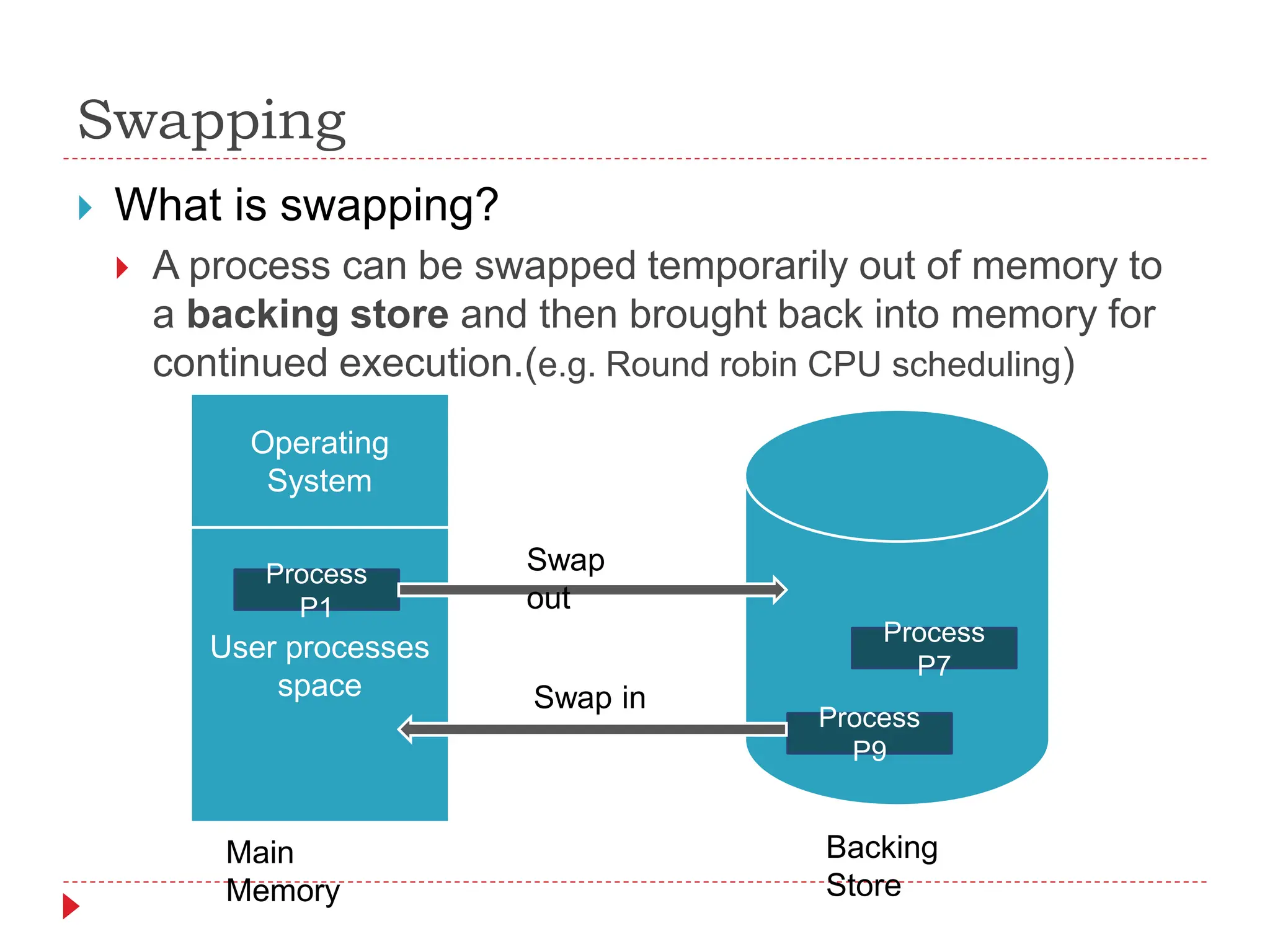

Swapping
 What is swapping?
 A process can be swapped temporarily out of memory to
a backing store and then brought back into memory for
continued execution.(e.g. Round robin CPU scheduling)
User processes
space
Operating
System
Process
P1
Process
P9
Process
P7
Swap
out
Swap in
Backing
Store
Main
Memory

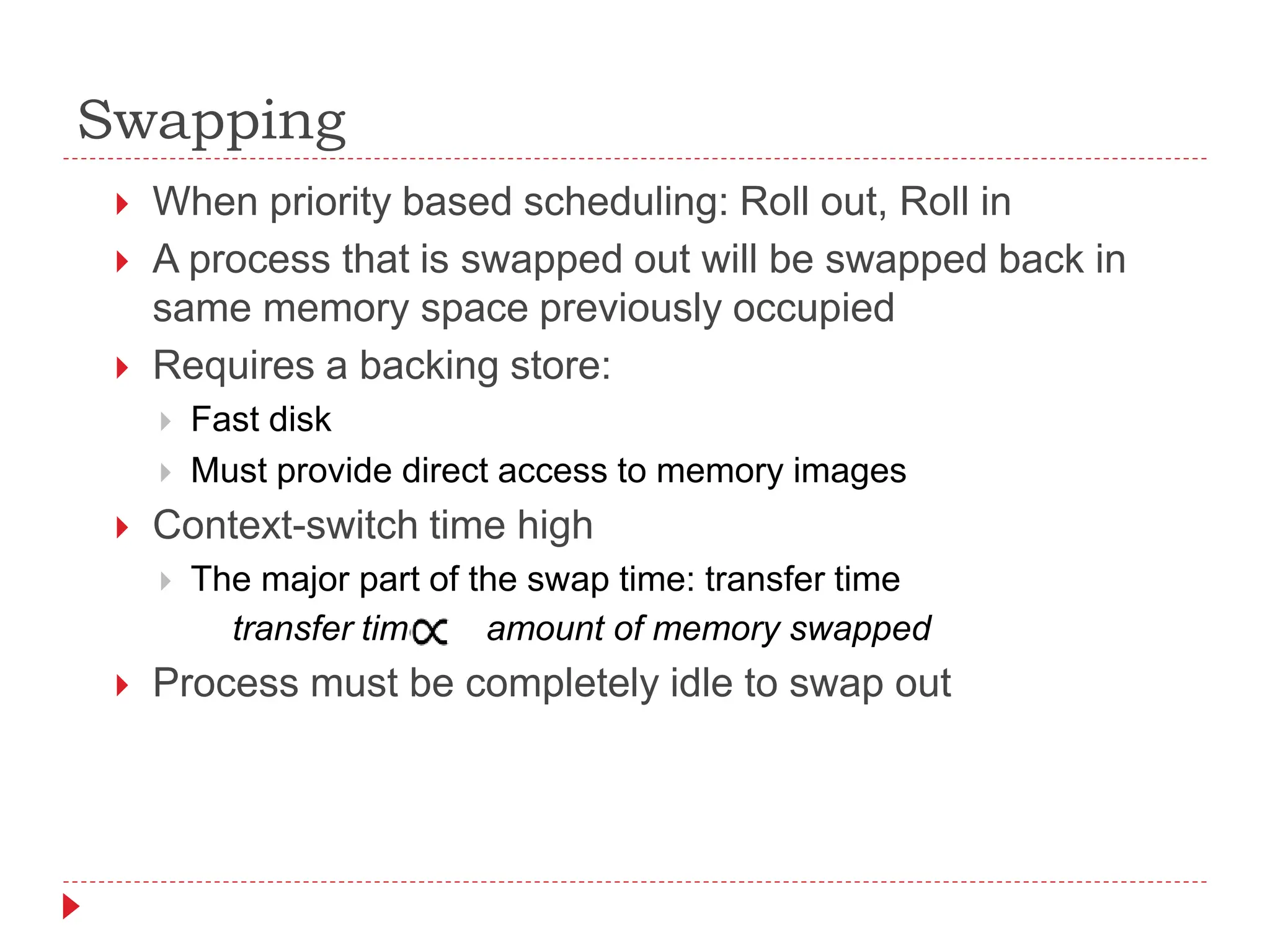

Swapping
 When priority based scheduling: Roll out, Roll in
 A process that is swapped out will be swapped back in
same memory space previously occupied
 Requires a backing store:
 Fast disk
 Must provide direct access to memory images
 Context-switch time high
 The major part of the swap time: transfer time
transfer time amount of memory swapped
 Process must be completely idle to swap out

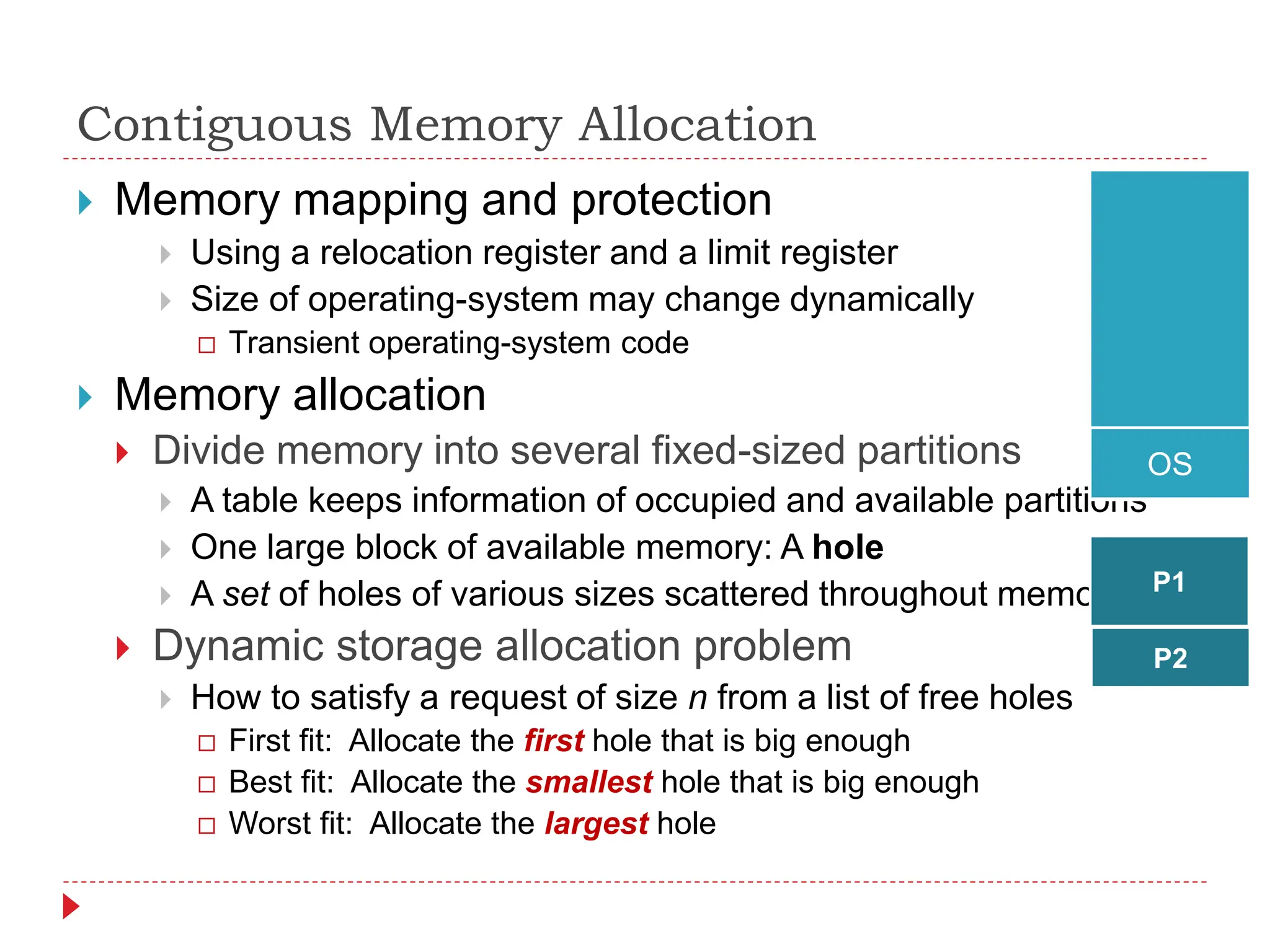

Contiguous Memory Allocation
 Memory mapping and protection
 Using a relocation register and a limit register
 Size of operating-system may change dynamically
 Transient operating-system code
 Memory allocation
 Divide memory into several fixed-sized partitions
 A table keeps information of occupied and available partitions
 One large block of available memory: A hole
 A set of holes of various sizes scattered throughout memory
 Dynamic storage allocation problem
 How to satisfy a request of size n from a list of free holes
 First fit: Allocate the first hole that is big enough
 Best fit: Allocate the smallest hole that is big enough
 Worst fit: Allocate the largest hole
OS
P1
P2

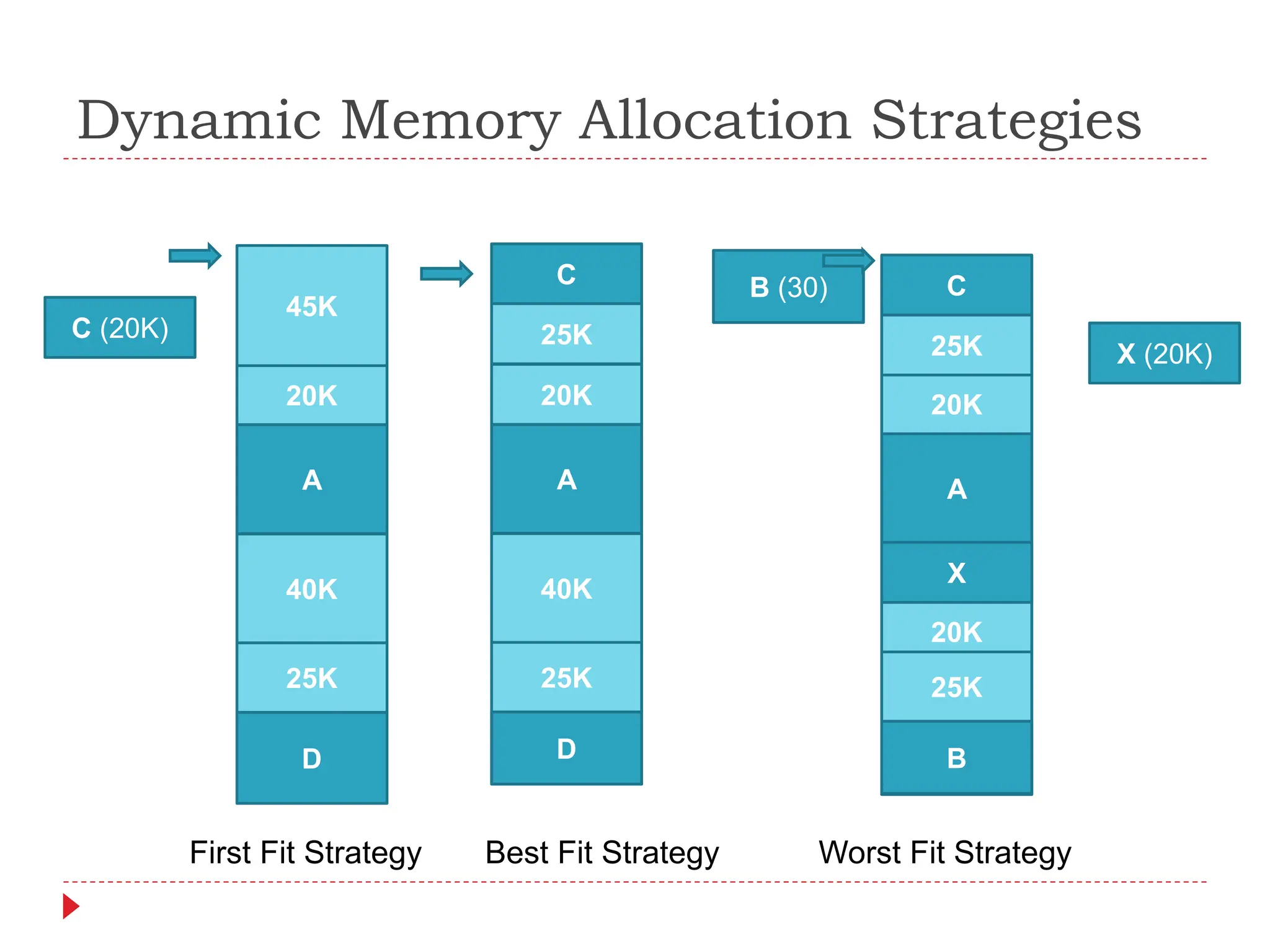

Dynamic Memory Allocation Strategies
20K
45K
A
25K
40K
D
C (20K)
20K
A
25K
40K
30K
C
25K
D
B (30)
20K
A
25K
40K
30K
C
25K
B
X (20K)
20K
A
25K
20K
30K
C
25K
B
X
First Fit Strategy Best Fit Strategy Worst Fit Strategy

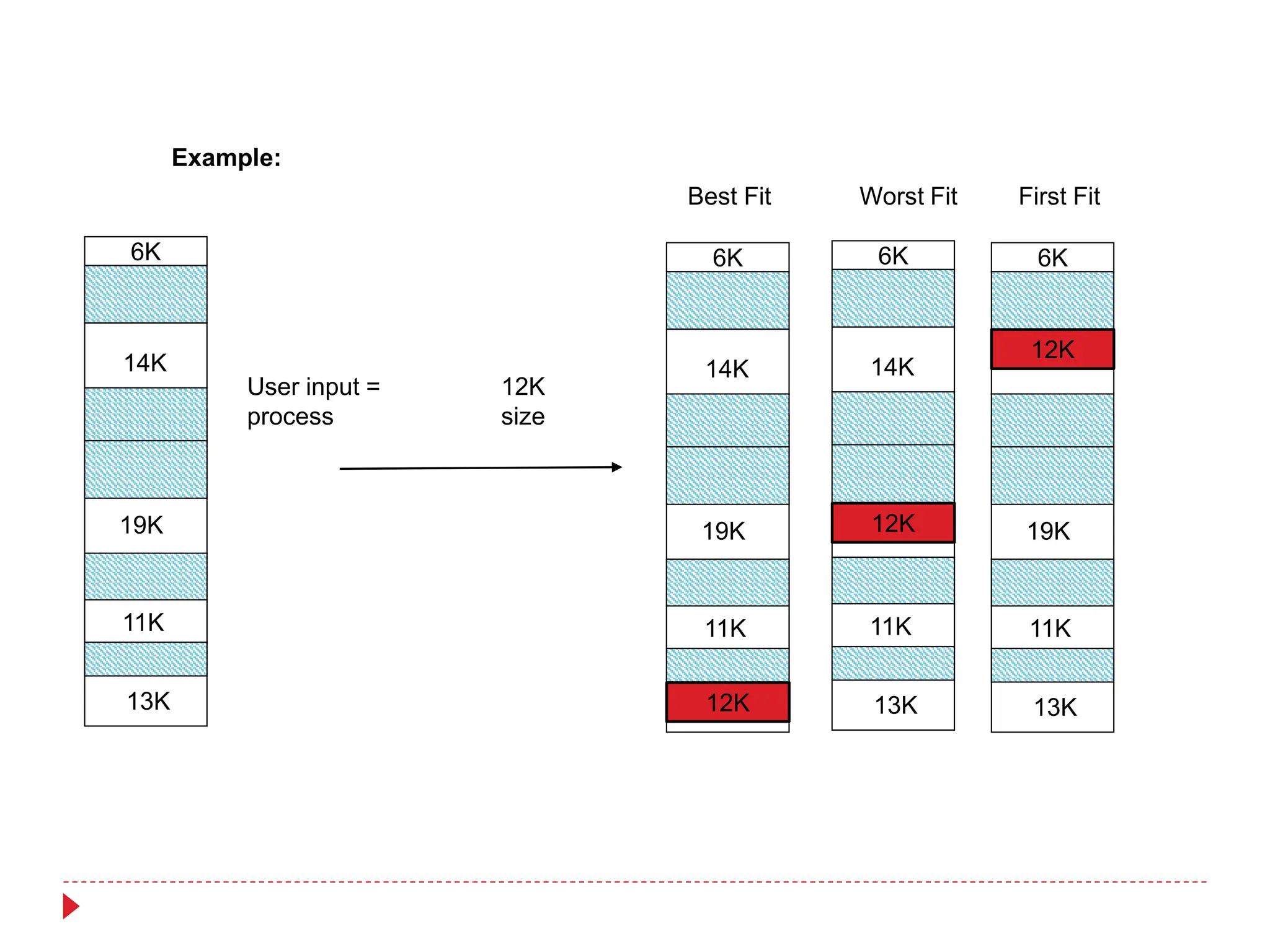

Example:
User input = 12K
process size
Best Fit
6K
14K
19K
11K
13K
Worst Fit First Fit
6K
14K
19K
11K
6K
14K
11K
13K
6K
19K
11K
13K
12K
12K
12K

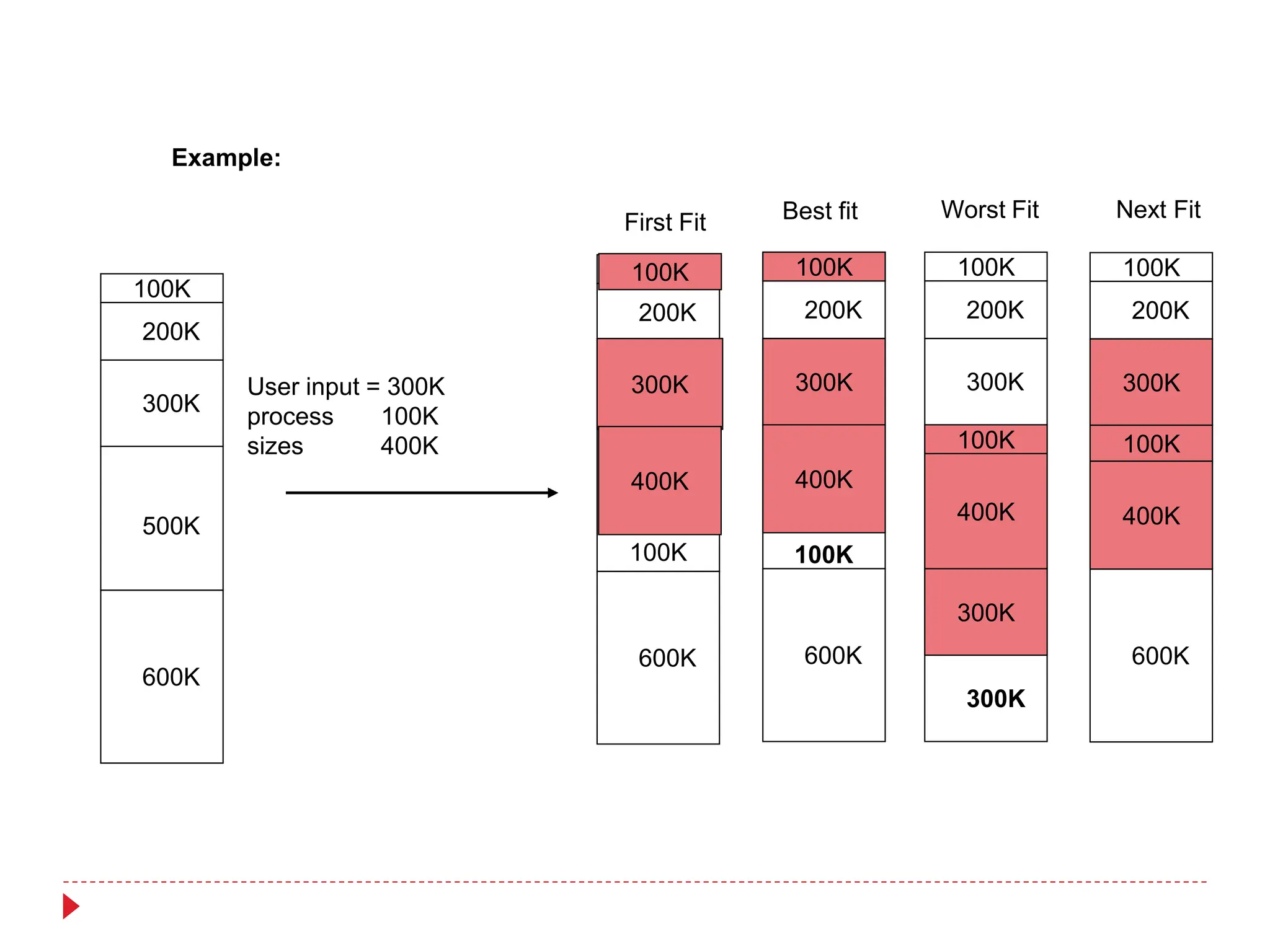

Example:
User input = 300K
process 100K
sizes 400K
100K
200K
300K
500K
600K
Worst Fit
100K
200K
300K
50
0K
300K
100K
400K
300K
100K
200K
300K
500K
600K
300K
100K
400K
100K
Best fit
100K
200K
300K
50
0K
600K
300K
100K
400K
Next Fit
100K
200K
300K
500K
600K
First Fit
300K
100K
400K
100K

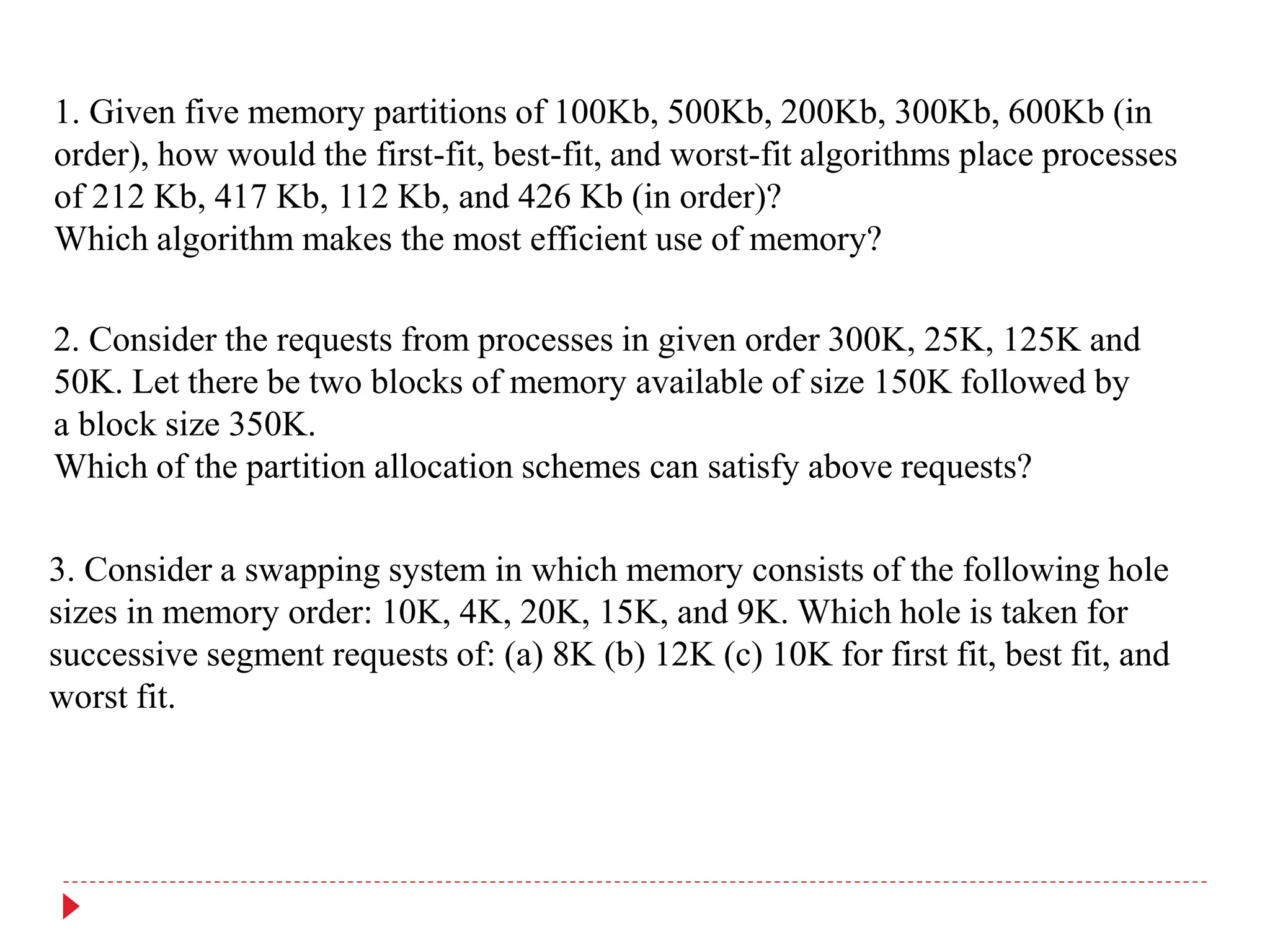

1. Given five memory partitions of 100Kb, 500Kb, 200Kb, 300Kb, 600Kb (in
order), how would the first-fit, best-fit, and worst-fit algorithms place processes
of 212 Kb, 417 Kb, 112 Kb, and 426 Kb (in order)?
Which algorithm makes the most efficient use of memory?
2. Consider the requests from processes in given order 300K, 25K, 125K and
50K. Let there be two blocks of memory available of size 150K followed by
a block size 350K.
Which of the partition allocation schemes can satisfy above requests?
3. Consider a swapping system in which memory consists of the following hole
sizes in memory order: 10K, 4K, 20K, 15K, and 9K. Which hole is taken for
successive segment requests of: (a) 8K (b) 12K (c) 10K for first fit, best fit, and
worst fit.

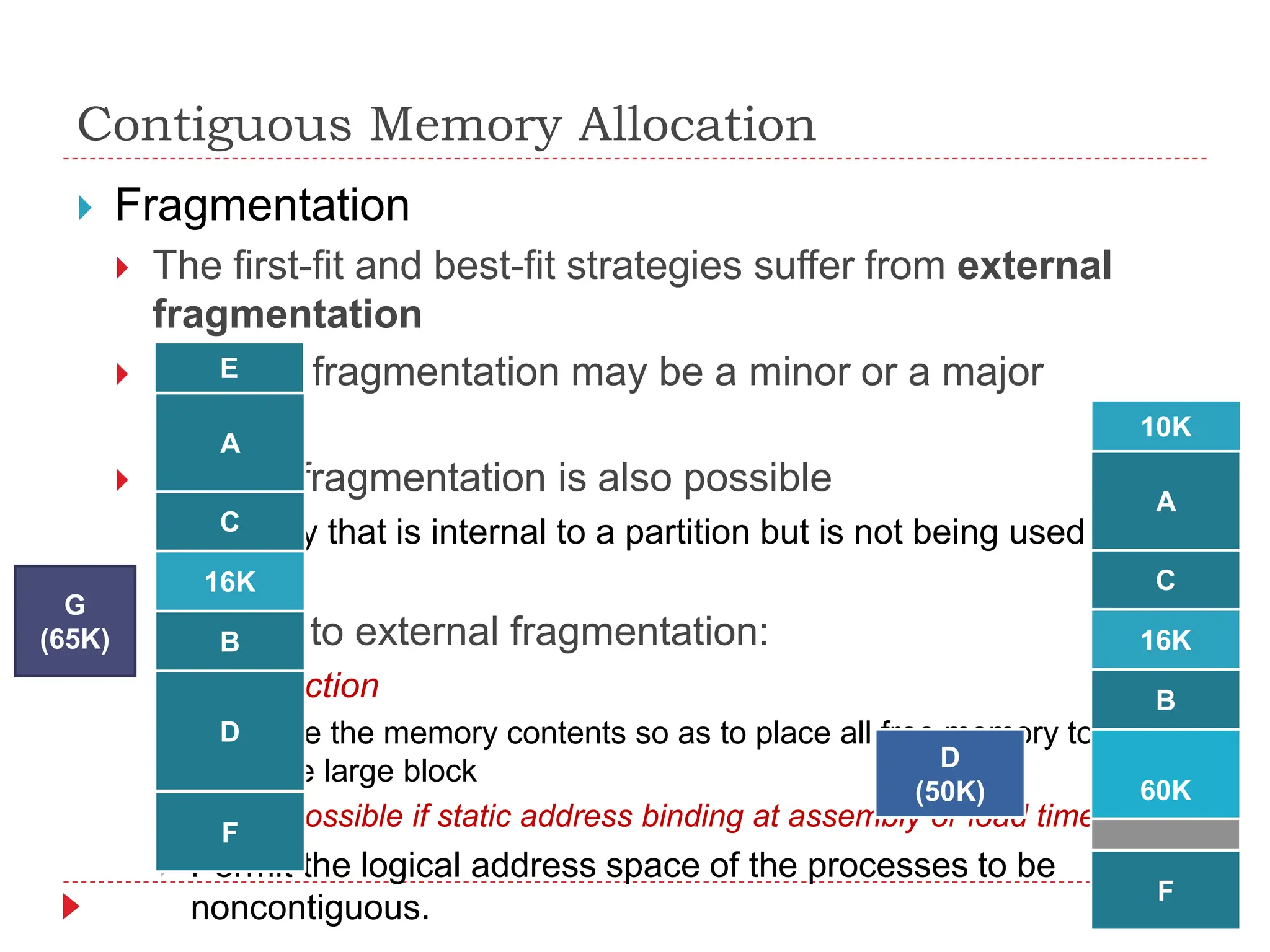

Contiguous Memory Allocation
 Fragmentation
 The first-fit and best-fit strategies suffer from external
fragmentation
 External fragmentation may be a minor or a major
problem
 Internal fragmentation is also possible
 memory that is internal to a partition but is not being used
 Solution to external fragmentation:
 Compaction
 shuffle the memory contents so as to place all free memory together
in one large block
 Not possible if static address binding at assembly or load time
 Permit the logical address space of the processes to be
noncontiguous.
44K
D
B
16K
C
A
G
(65K)
F
10K
E
44K
60K
B
16K
C
A
F
10K
D
(50K)

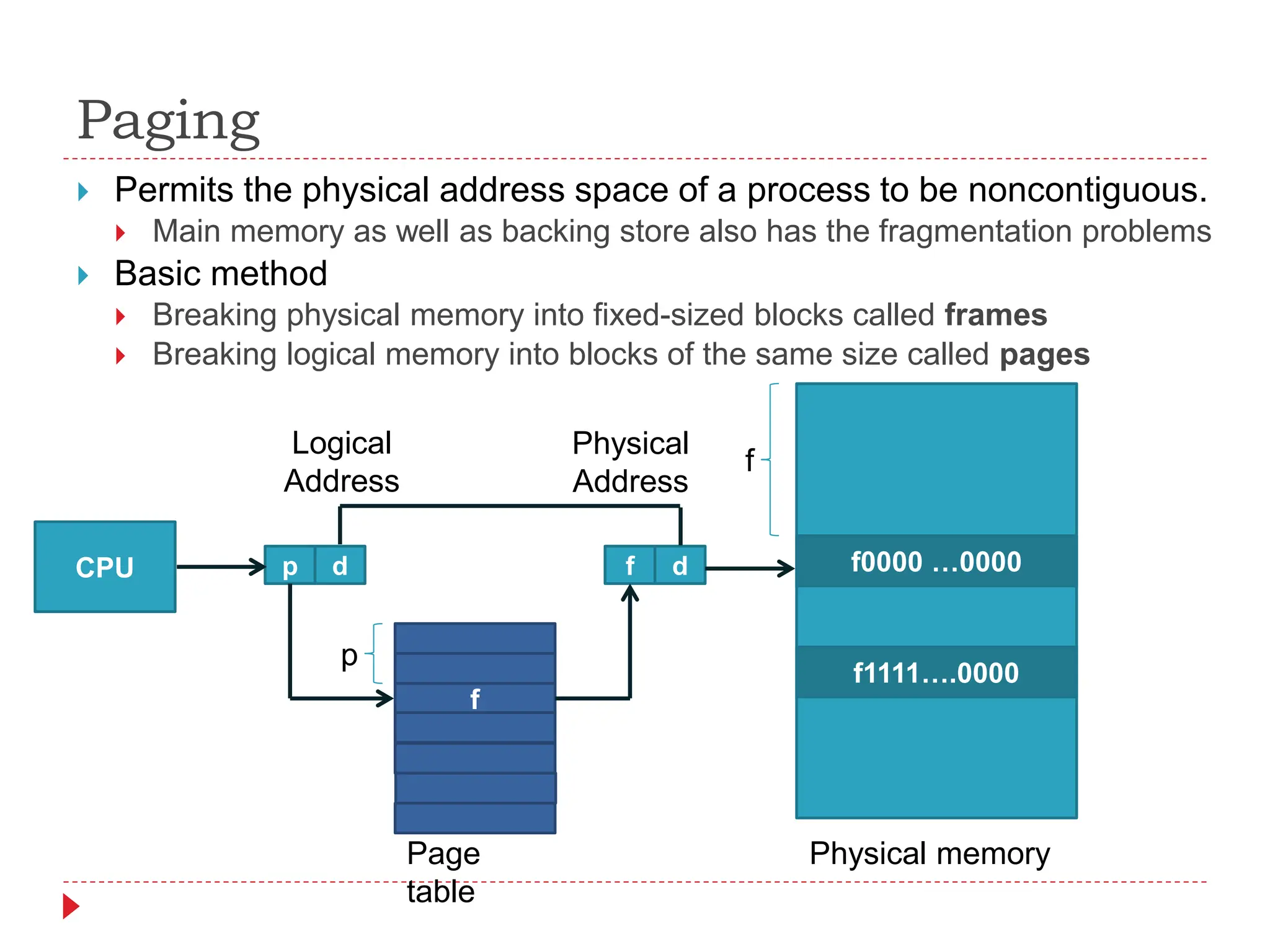

Paging
 Permits the physical address space of a process to be noncontiguous.
 Main memory as well as backing store also has the fragmentation problems
 Basic method
 Breaking physical memory into fixed-sized blocks called frames
 Breaking logical memory into blocks of the same size called pages
CPU p d
f
f d f0000 …0000
f1111….0000
p
f
Page
table
Physical memory
Logical
Address
Physical
Address

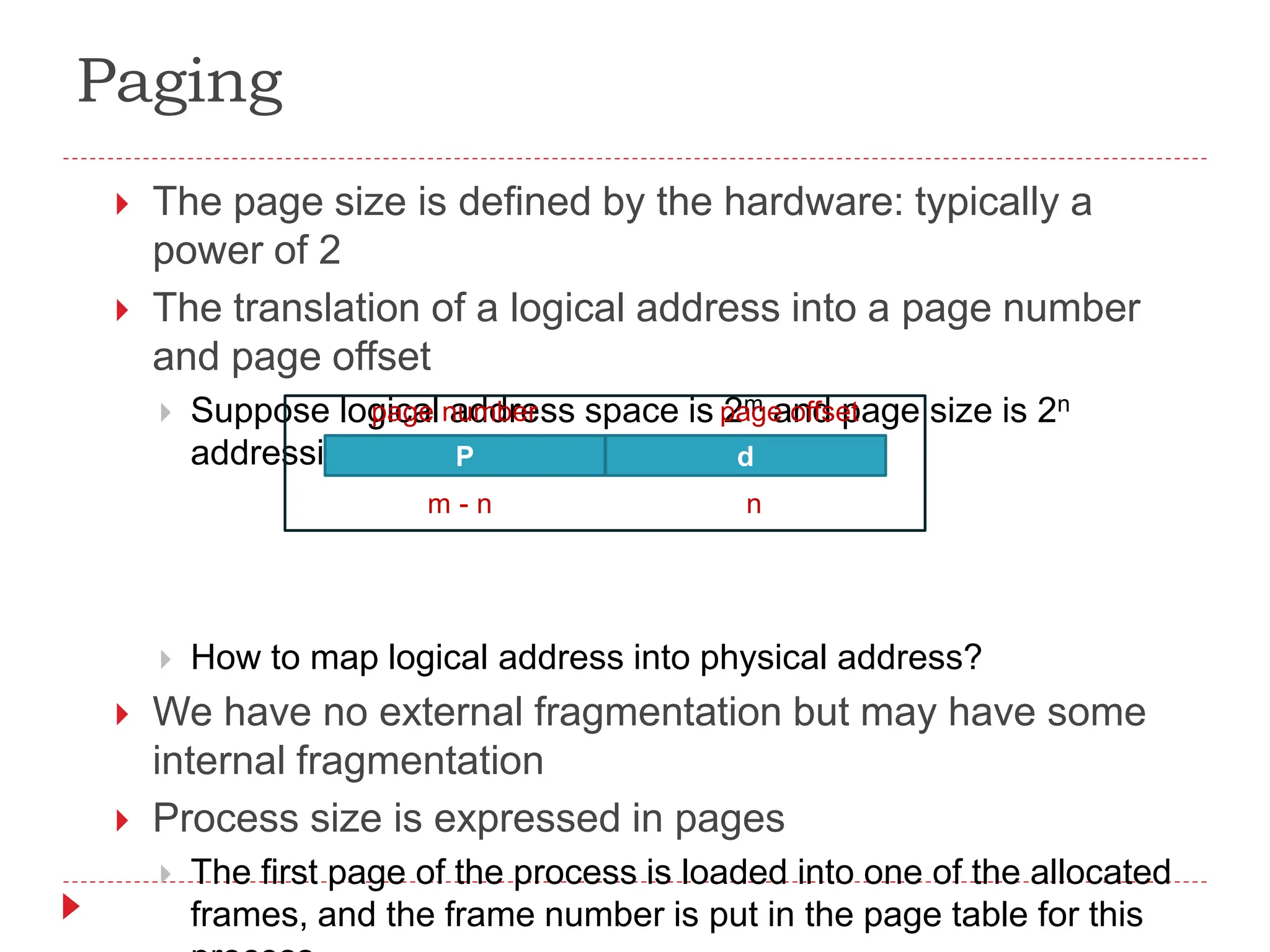

Paging
 The page size is defined by the hardware: typically a
power of 2
 The translation of a logical address into a page number
and page offset
 Suppose logical address space is 2m and page size is 2n
addressing units
 How to map logical address into physical address?
 We have no external fragmentation but may have some
internal fragmentation
 Process size is expressed in pages
 The first page of the process is loaded into one of the allocated
frames, and the frame number is put in the page table for this
P d
page number page offset
m - n n

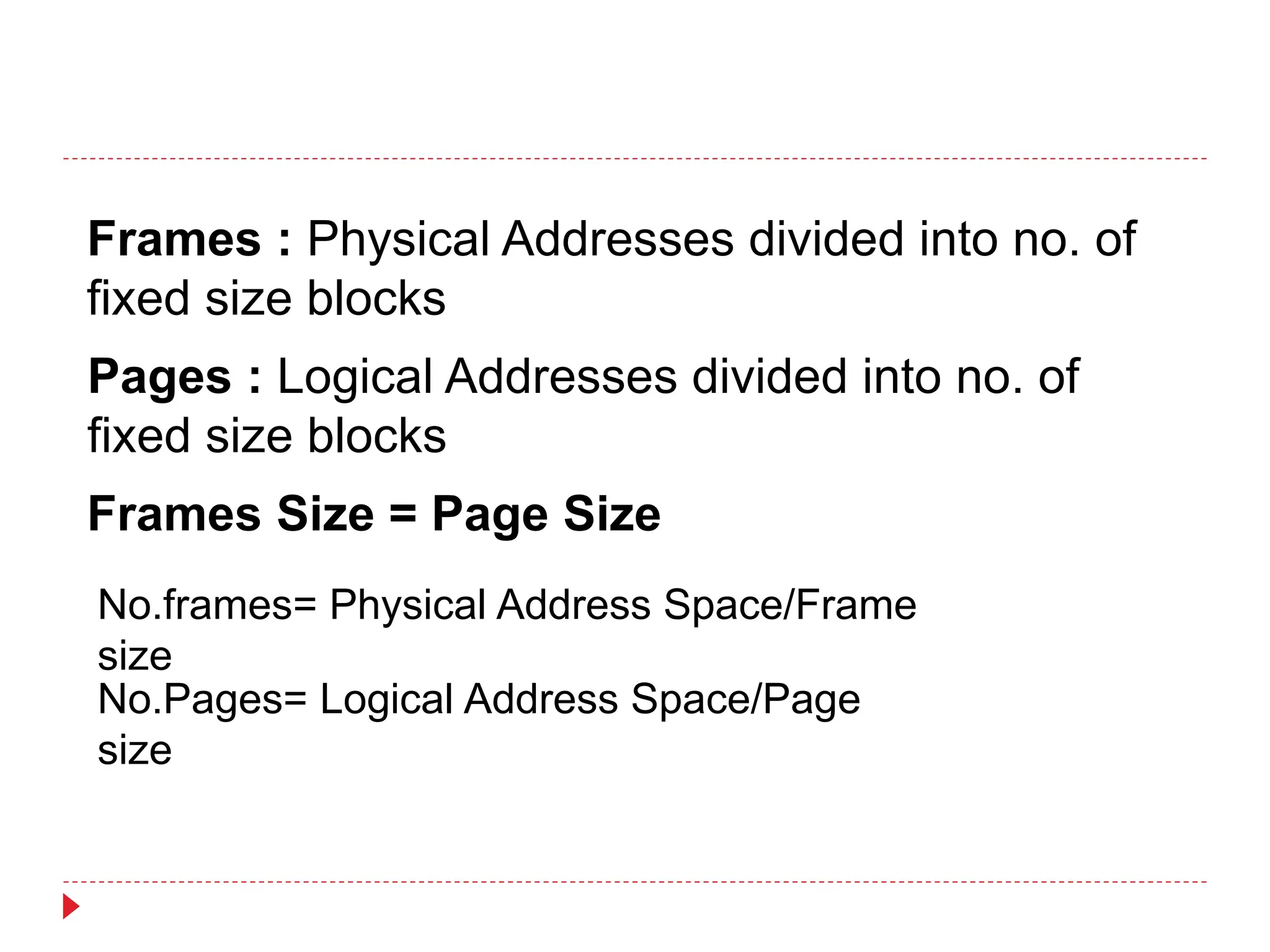

Frames : Physical Addresses divided into no. of
fixed size blocks
Pages : Logical Addresses divided into no. of
fixed size blocks
Frames Size = Page Size
No.frames= Physical Address Space/Frame
size
No.Pages= Logical Address Space/Page
size

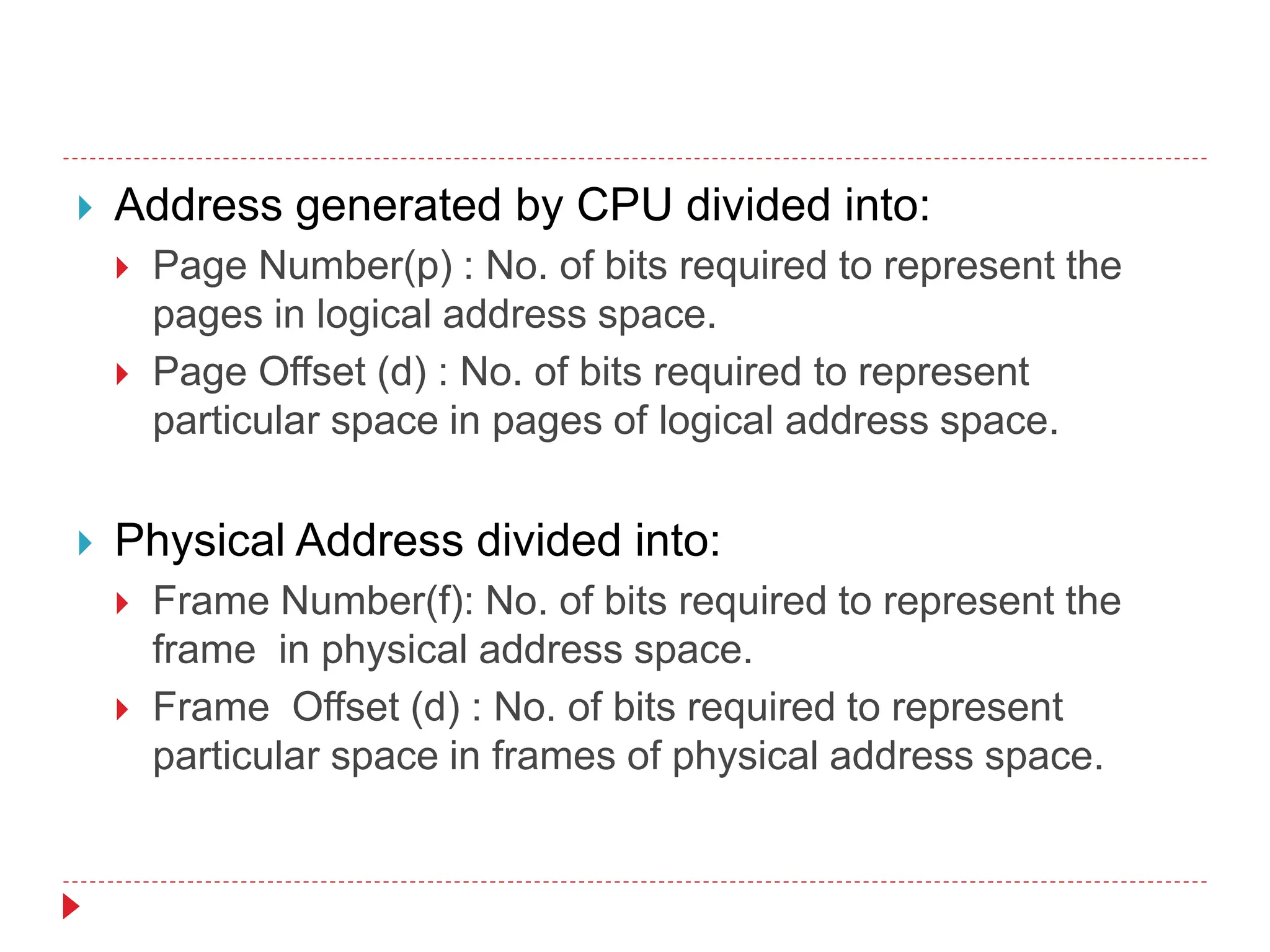

 Address generated by CPU divided into:
 Page Number(p) : No. of bits required to represent the
pages in logical address space.
 Page Offset (d) : No. of bits required to represent
particular space in pages of logical address space.
 Physical Address divided into:
 Frame Number(f): No. of bits required to represent the
frame in physical address space.
 Frame Offset (d) : No. of bits required to represent
particular space in frames of physical address space.

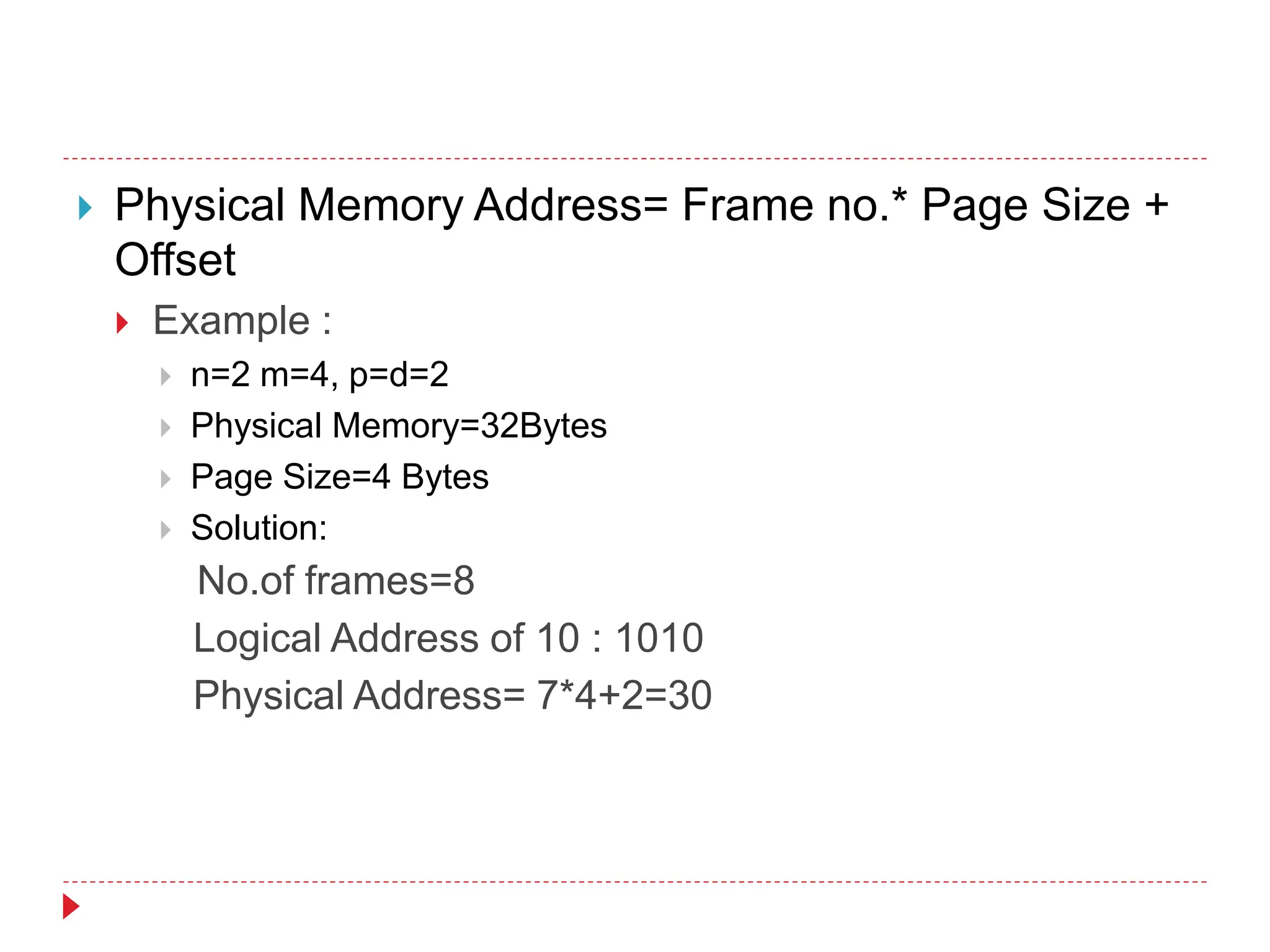

 Physical Memory Address= Frame no.* Page Size +
Offset

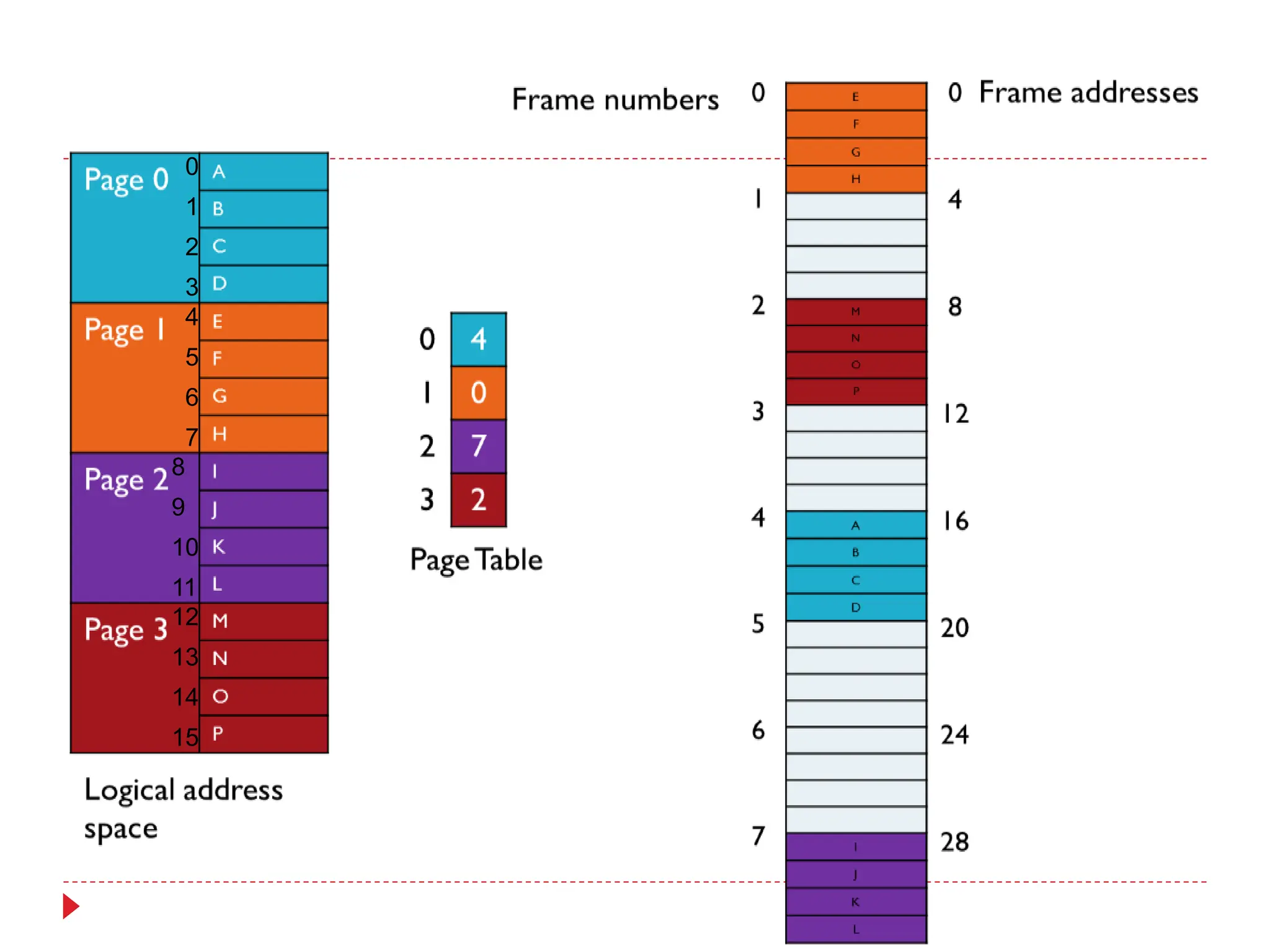

 Example :
 n=2 m=4, p=d=2
 Physical Memory=32Bytes
 Page Size=4 Bytes
 Solution:
No.of frames=8
Logical Address of 10 : 1010
Physical Address= 7*4+2=30
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

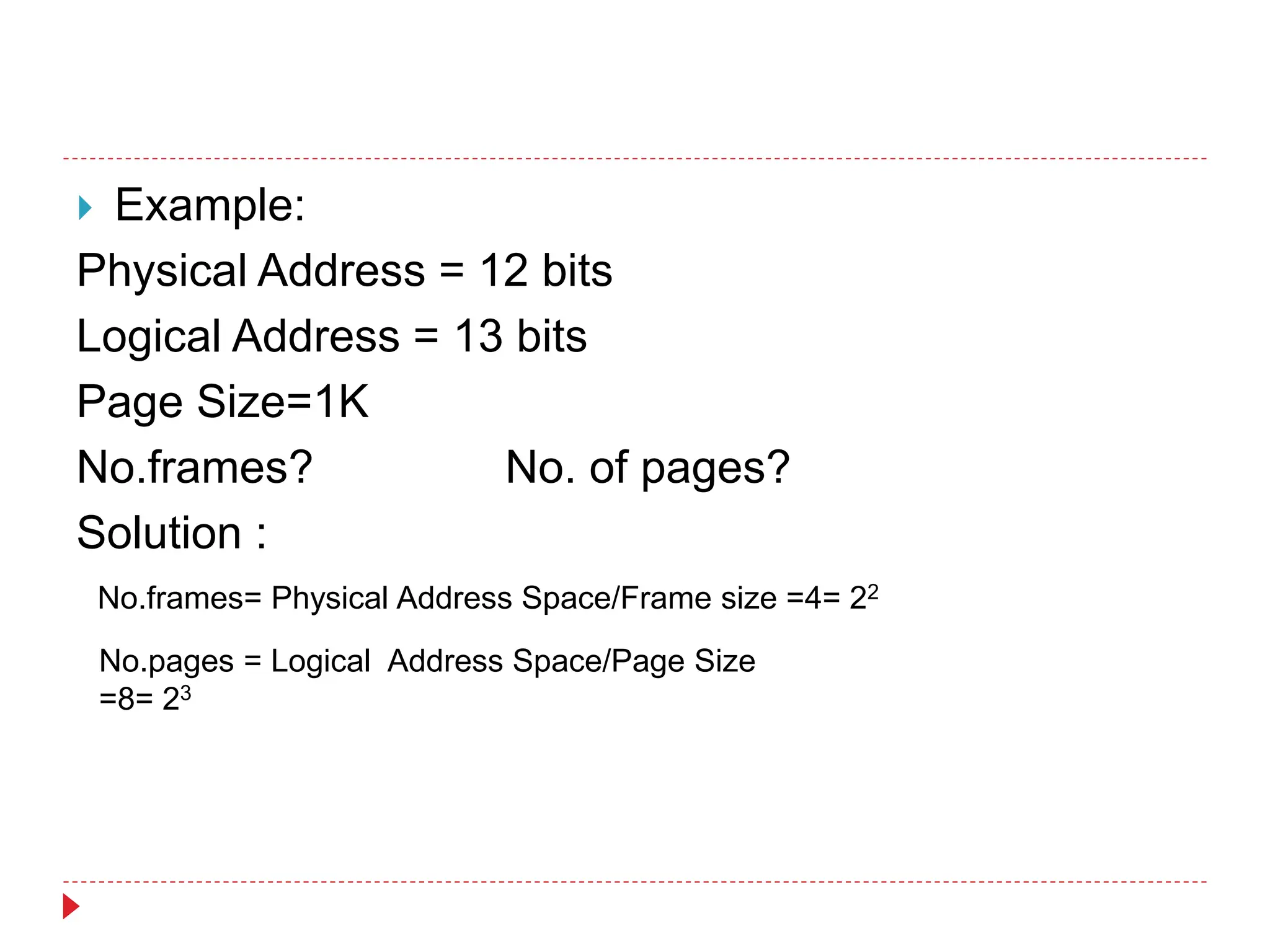

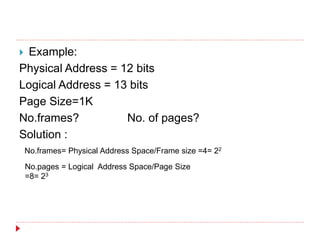

 Example:
Physical Address = 12 bits
Logical Address = 13 bits
Page Size=1K
No.frames? No. of pages?
Solution :
No.frames= Physical Address Space/Frame size =4= 22
No.pages = Logical Address Space/Page Size
=8= 23

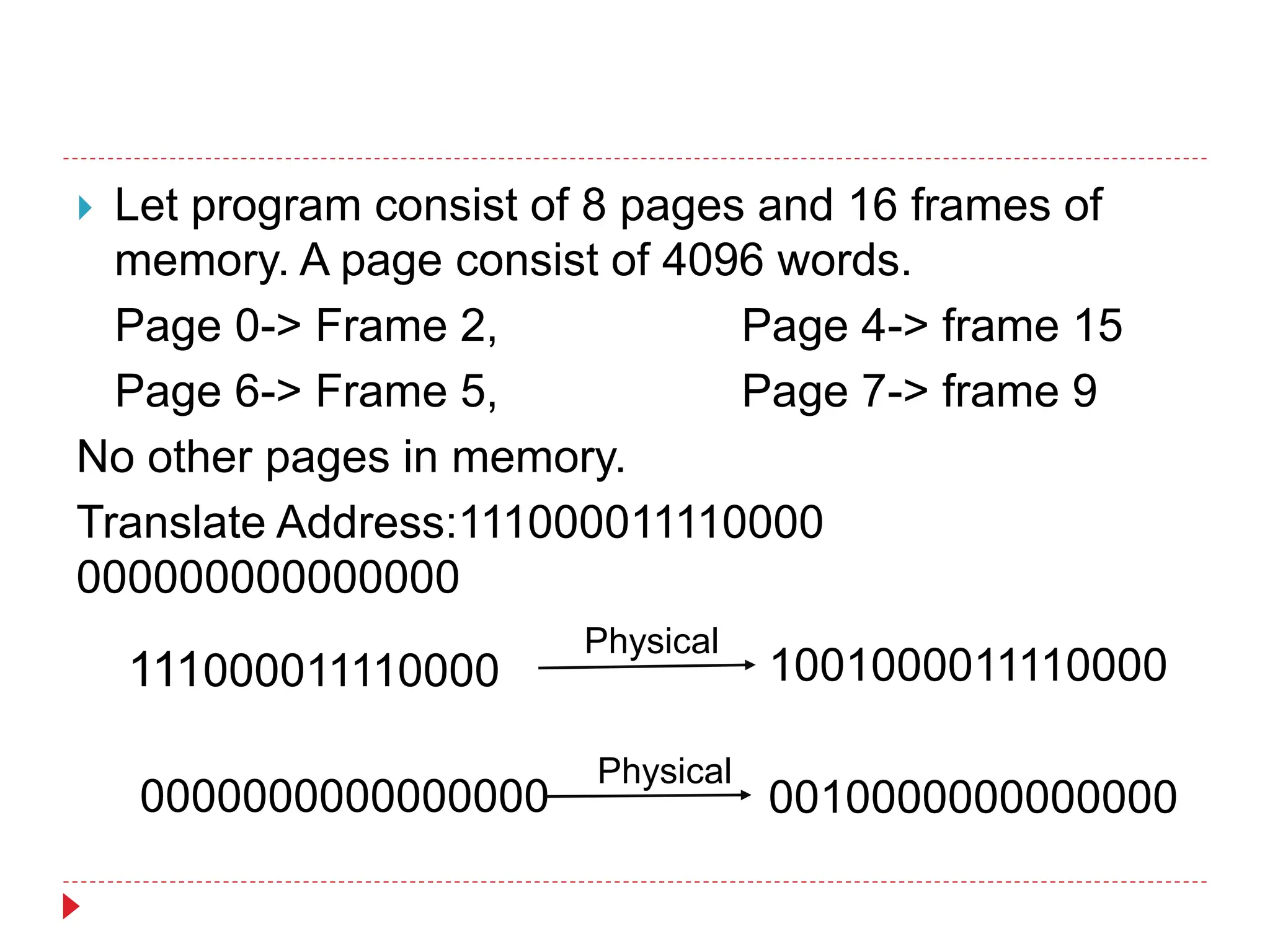

 Let program consist of 8 pages and 16 frames of
memory. A page consist of 4096 words.
Page 0-> Frame 2, Page 4-> frame 15
Page 6-> Frame 5, Page 7-> frame 9
No other pages in memory.
Translate Address:111000011110000
000000000000000
111000011110000 1001000011110000
Physical
0010000000000000
0000000000000000
Physical

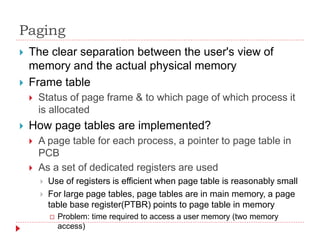

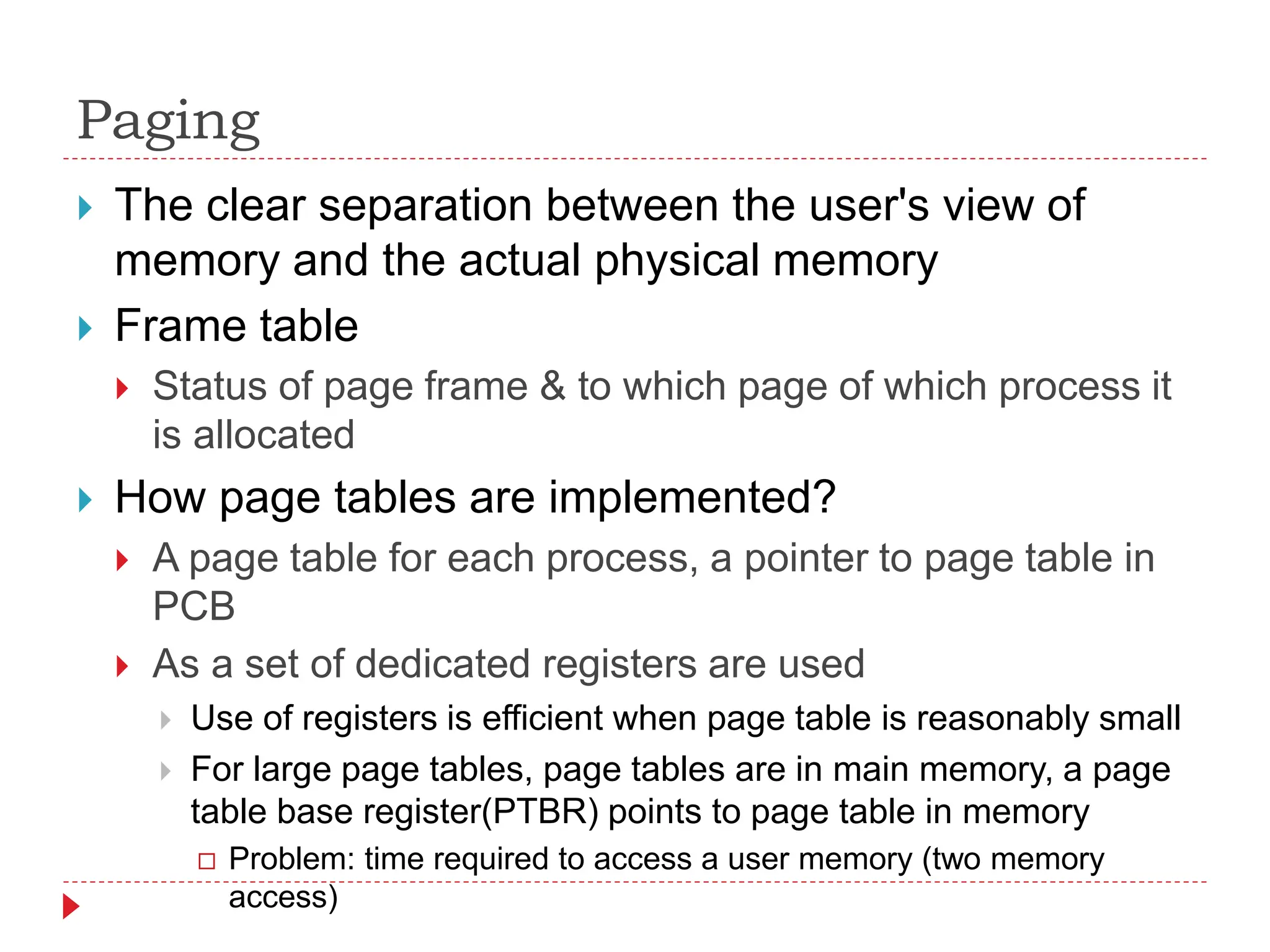

Paging
 The clear separation between the user's view of
memory and the actual physical memory
 Frame table
 Status of page frame & to which page of which process it
is allocated
 How page tables are implemented?
 A page table for each process, a pointer to page table in
PCB
 As a set of dedicated registers are used
 Use of registers is efficient when page table is reasonably small
 For large page tables, page tables are in main memory, a page
table base register(PTBR) points to page table in memory
 Problem: time required to access a user memory (two memory
access)

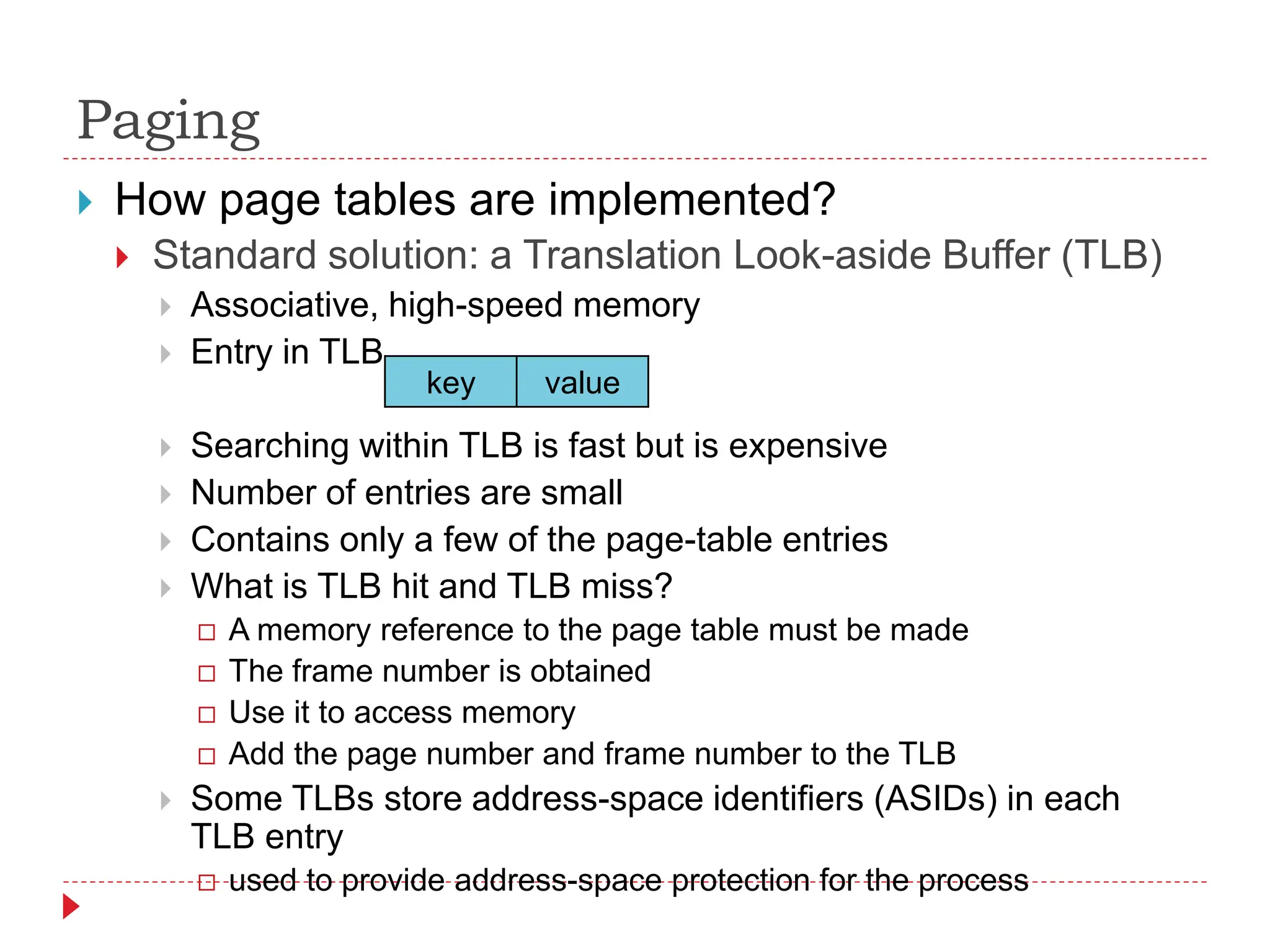

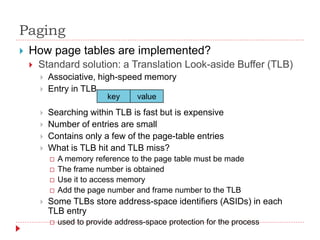

Paging
 How page tables are implemented?

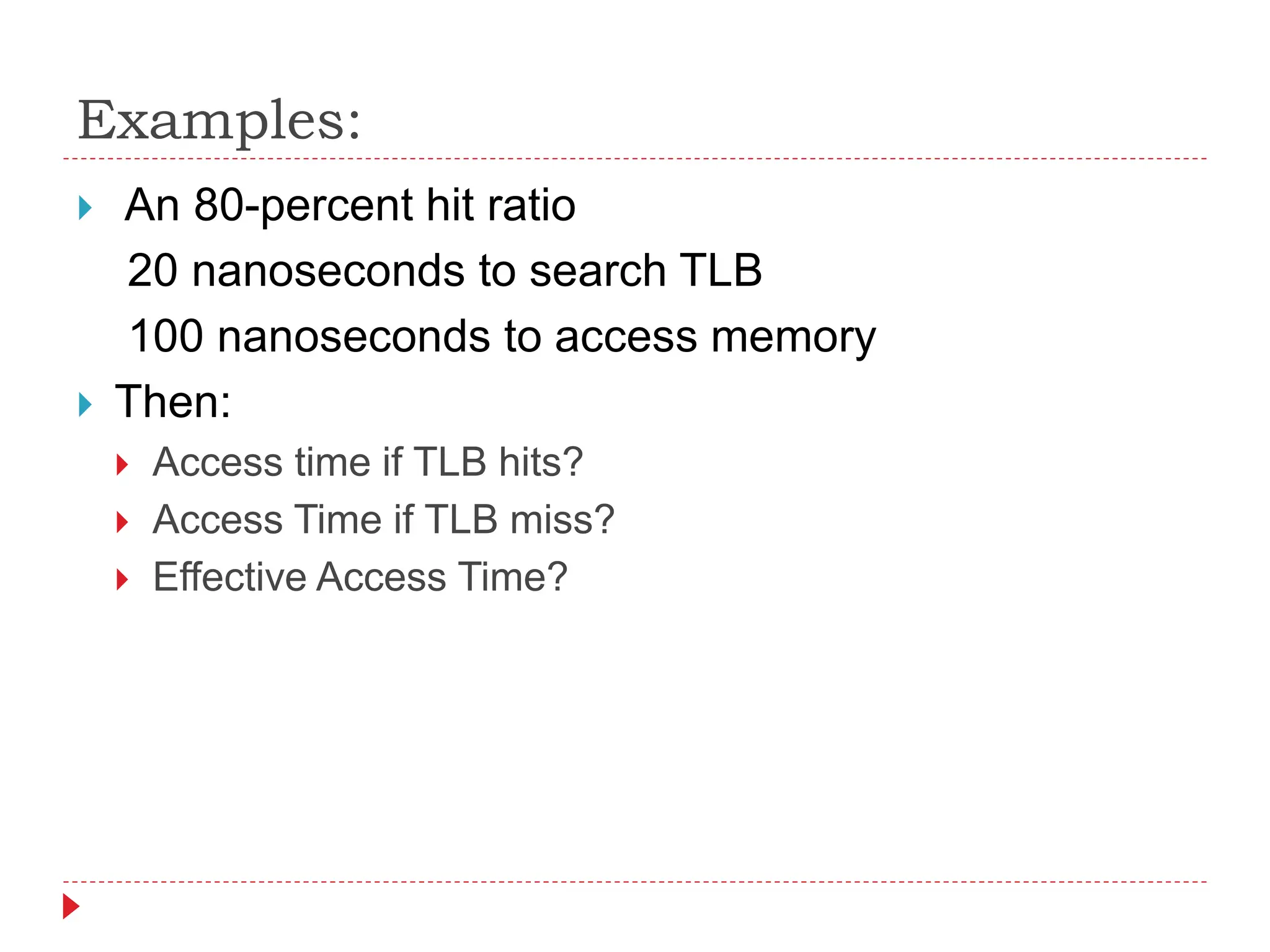

 Standard solution: a Translation Look-aside Buffer (TLB)
 Associative, high-speed memory
 Entry in TLB
 Searching within TLB is fast but is expensive
 Number of entries are small
 Contains only a few of the page-table entries
 What is TLB hit and TLB miss?
 A memory reference to the page table must be made
 The frame number is obtained
 Use it to access memory
 Add the page number and frame number to the TLB
 Some TLBs store address-space identifiers (ASIDs) in each
TLB entry
 used to provide address-space protection for the process
key value

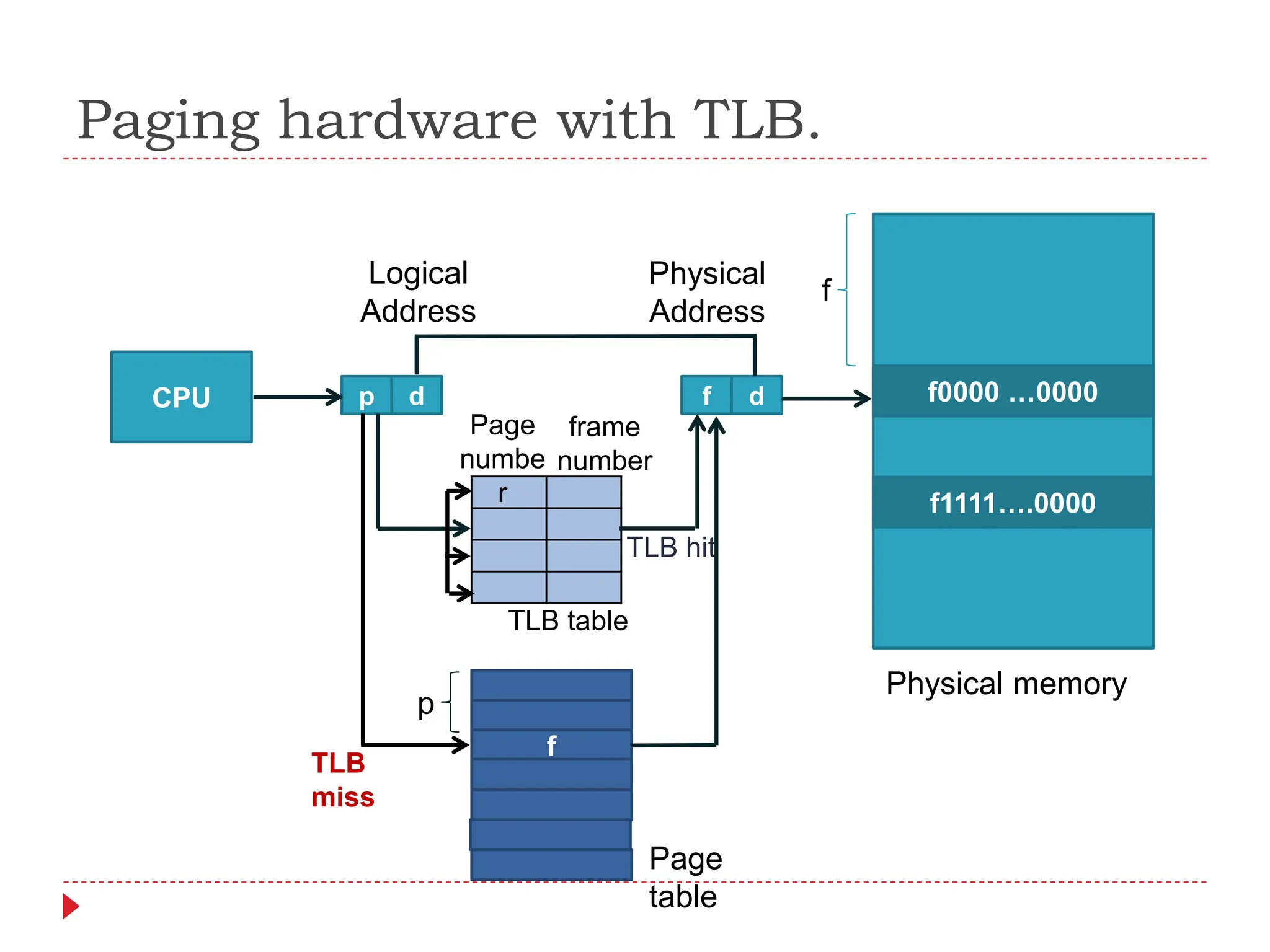

Paging hardware with TLB.
CPU p d
f
f d f0000 …0000
f1111….0000
p
f
Page
table
Physical memory
Logical
Address
Physical
Address
Page
numbe
r
frame
number
TLB hit
TLB
miss
TLB table

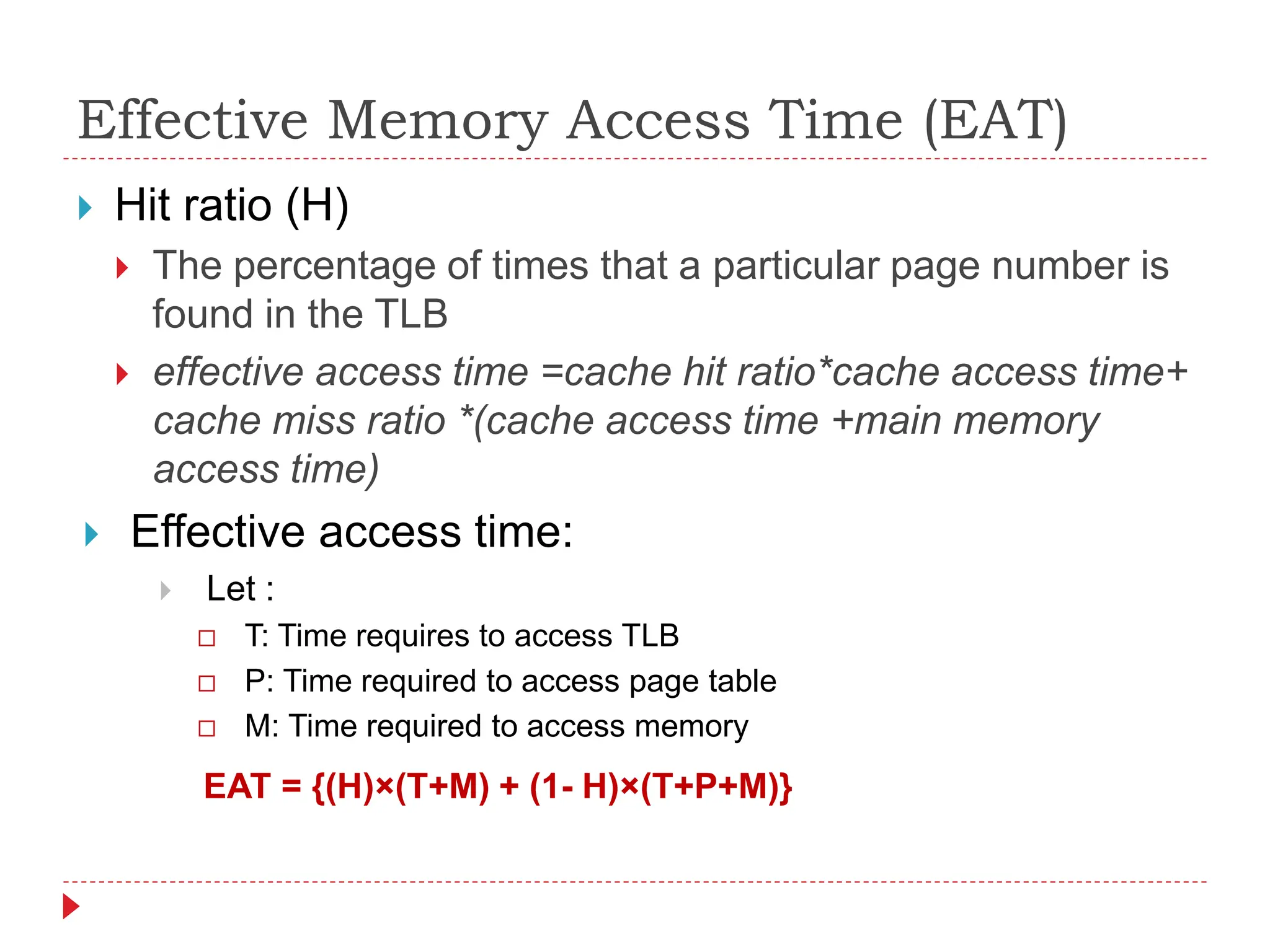

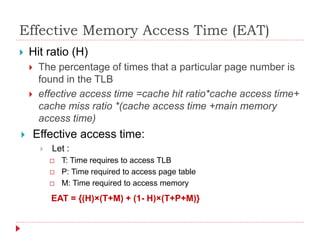

Effective Memory Access Time (EAT)
 Hit ratio (H)
 The percentage of times that a particular page number is
found in the TLB
 effective access time =cache hit ratio*cache access time+
cache miss ratio *(cache access time +main memory
access time)
 Effective access time:
 Let :
 T: Time requires to access TLB
 P: Time required to access page table
 M: Time required to access memory
EAT = {(H)×(T+M) + (1- H)×(T+P+M)}
Examples:
 An 80-percent hit ratio
20 nanoseconds to search TLB
100 nanoseconds to access memory
 Then:
 Access time if TLB hits?
 Access Time if TLB miss?
 Effective Access Time?

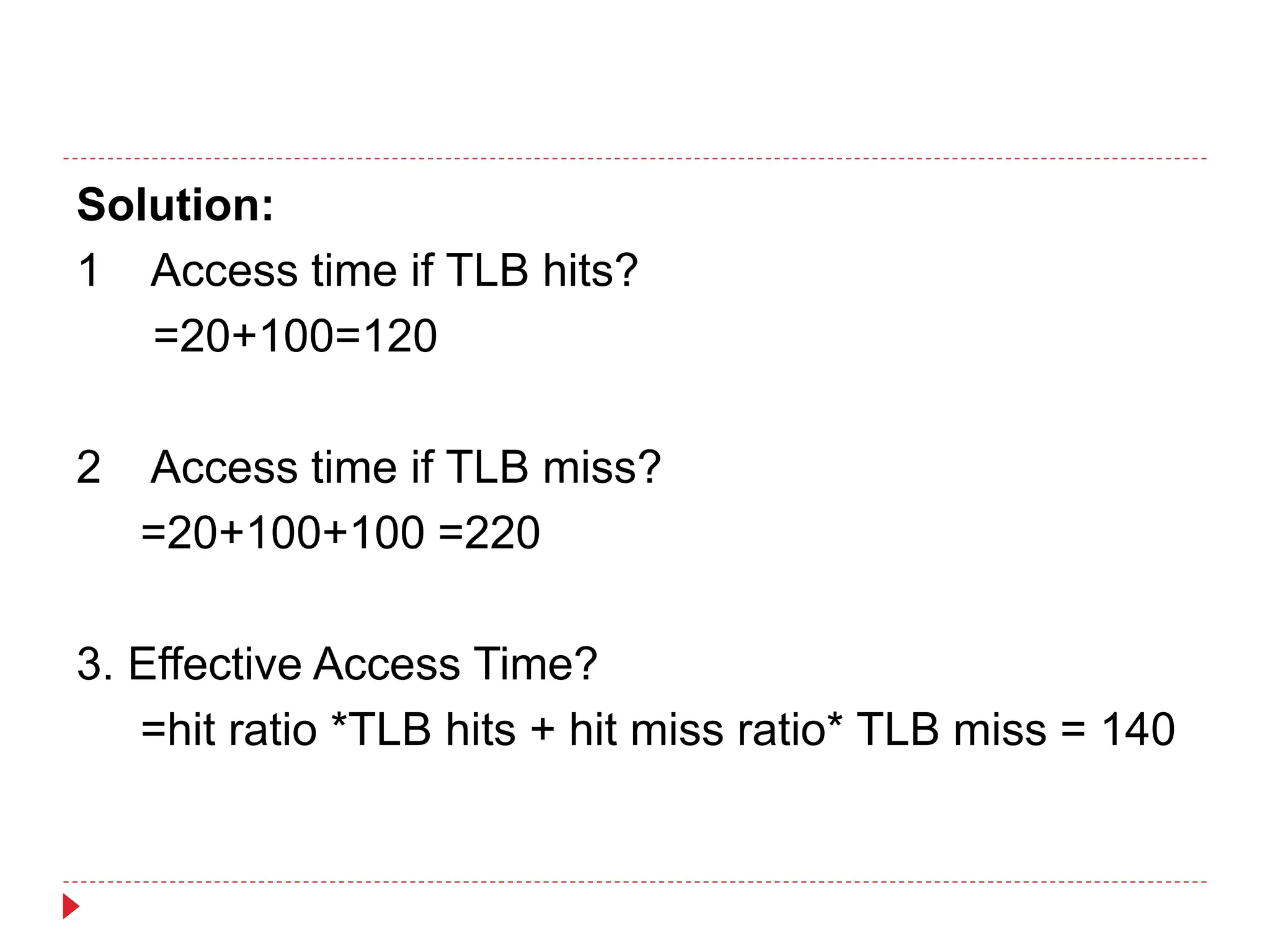

Solution:
1 Access time if TLB hits?
=20+100=120
2 Access time if TLB miss?
=20+100+100 =220
3. Effective Access Time?
=hit ratio *TLB hits + hit miss ratio* TLB miss = 140

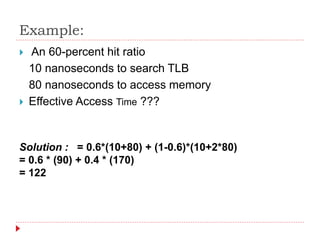

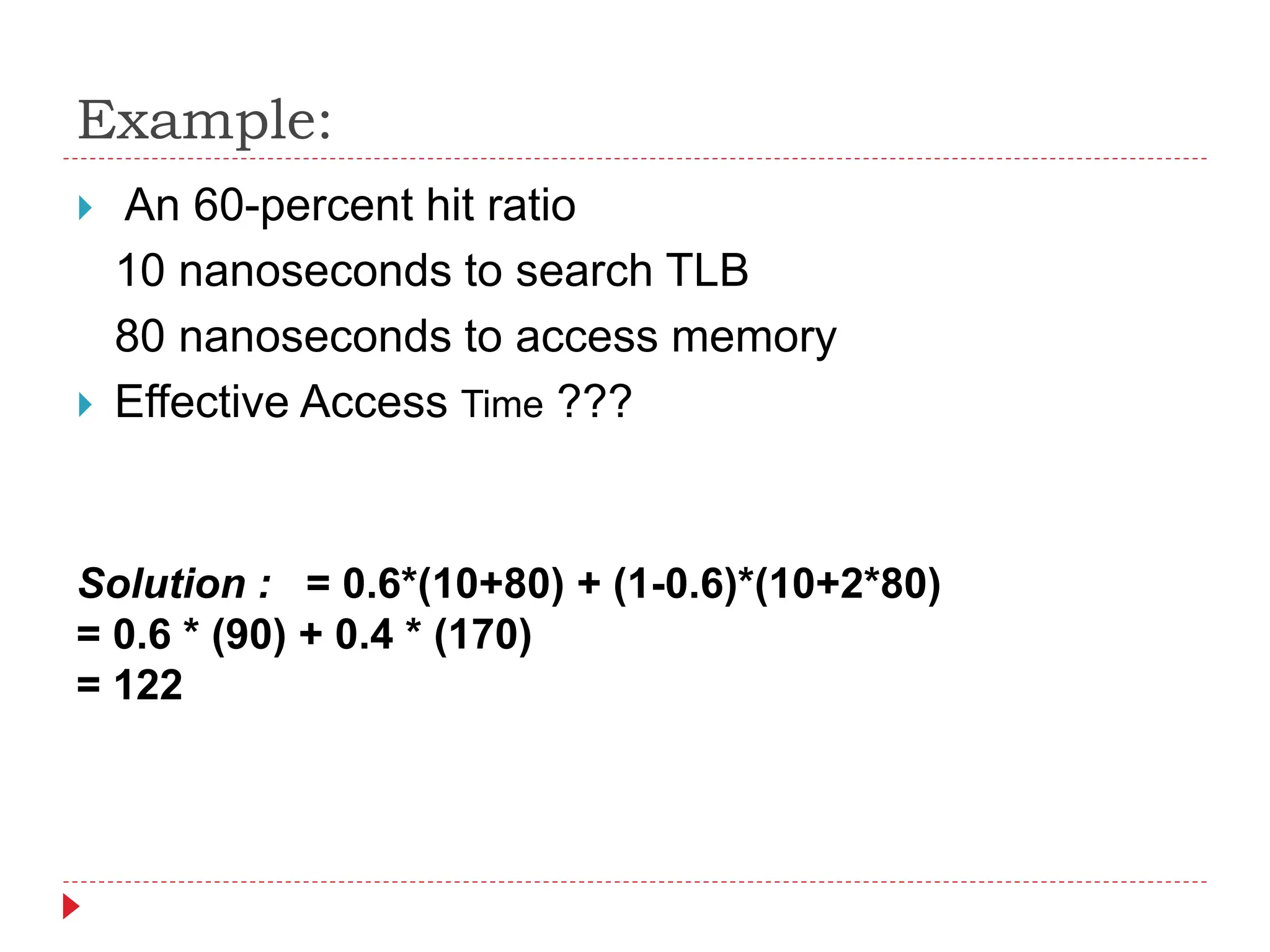

Example:
 An 60-percent hit ratio
10 nanoseconds to search TLB
80 nanoseconds to access memory
 Effective Access Time ???
Solution : = 0.6*(10+80) + (1-0.6)*(10+2*80)
= 0.6 * (90) + 0.4 * (170)
= 122

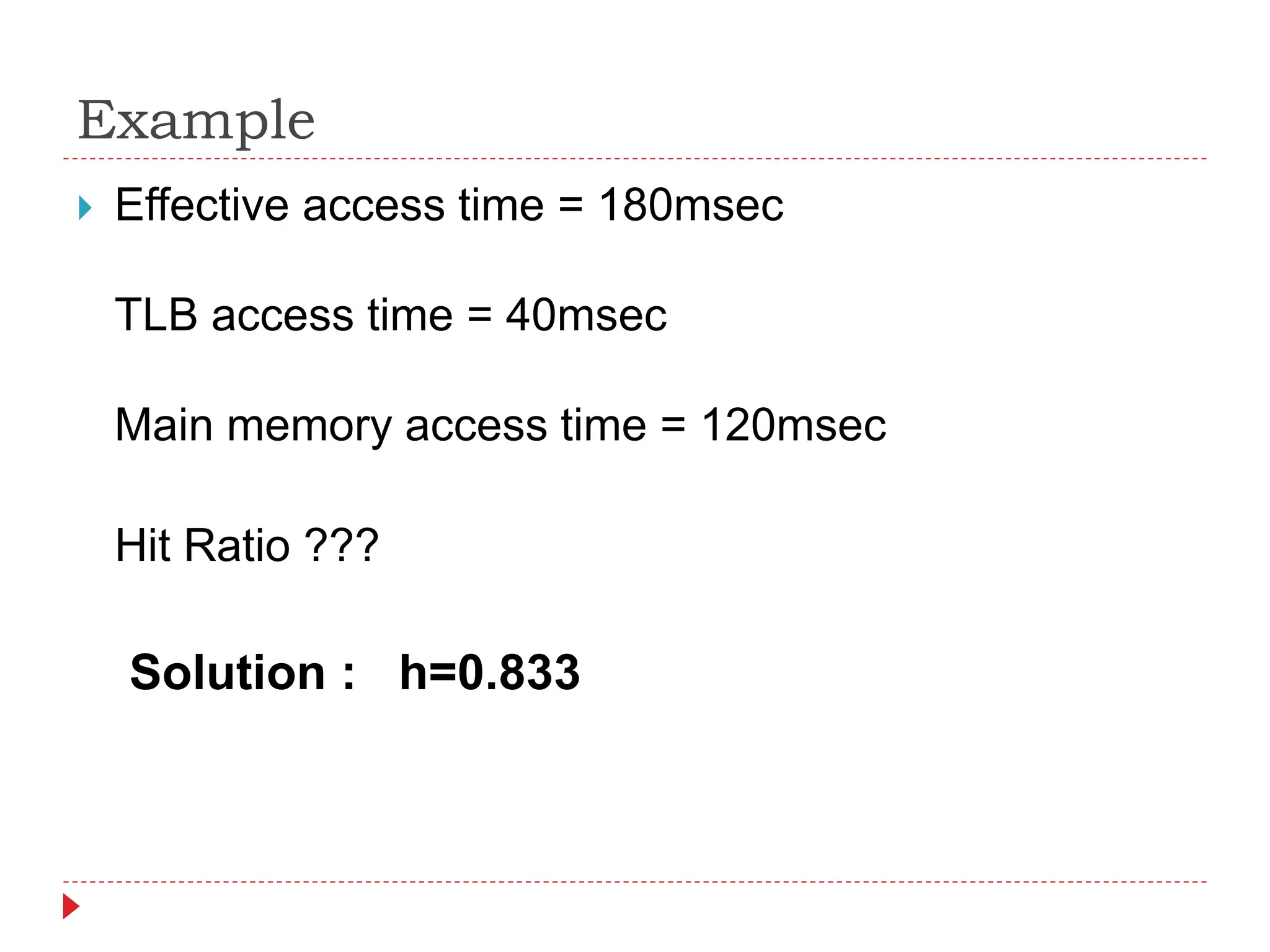

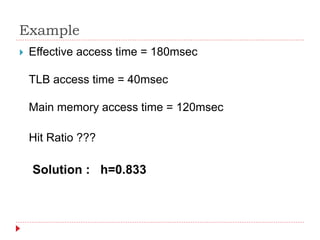

Example
 Effective access time = 180msec
TLB access time = 40msec
Main memory access time = 120msec
Hit Ratio ???
Solution : h=0.833

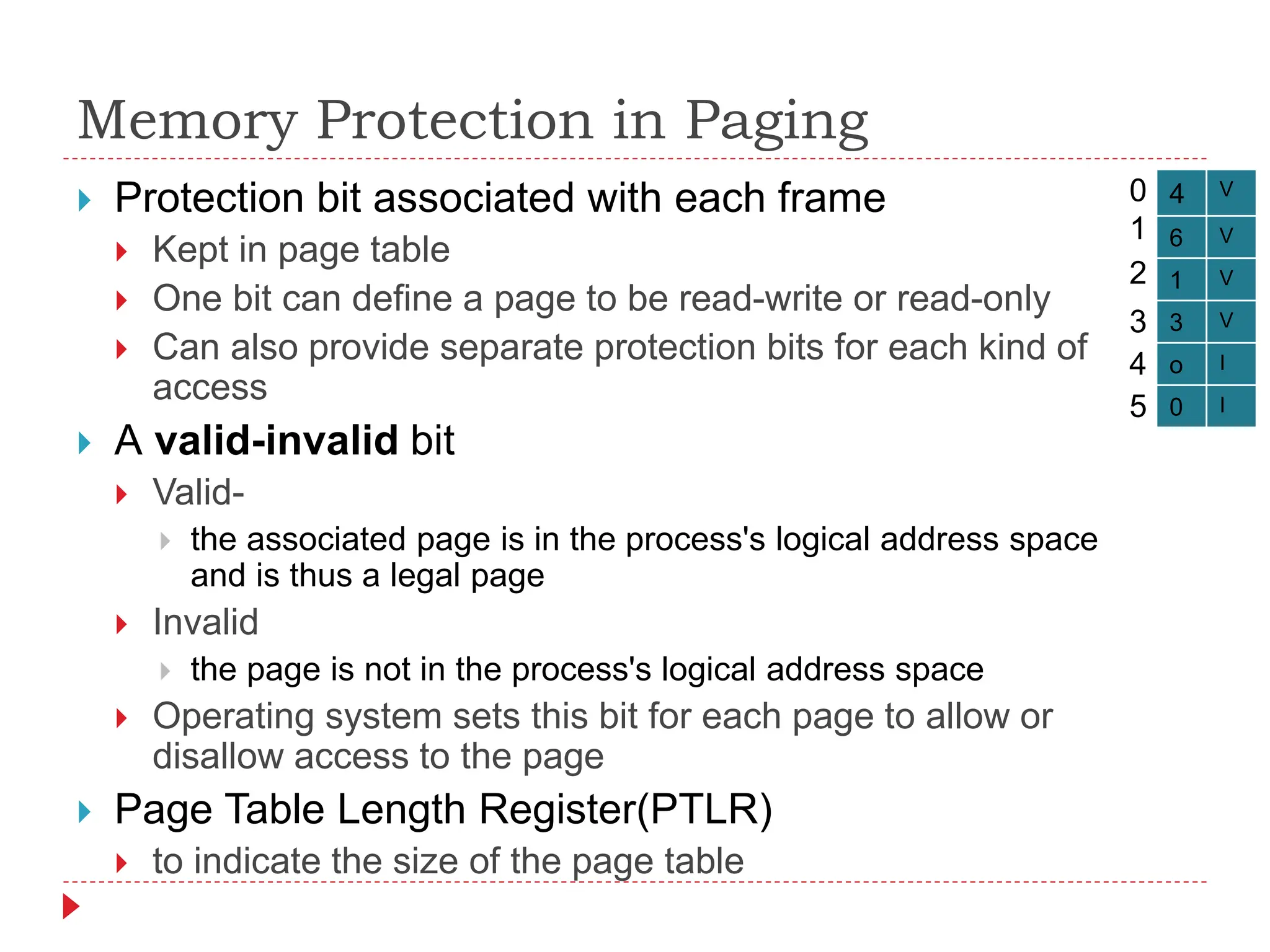

Memory Protection in Paging
 Protection bit associated with each frame
 Kept in page table
 One bit can define a page to be read-write or read-only
 Can also provide separate protection bits for each kind of
access
 A valid-invalid bit
 Valid-
 the associated page is in the process's logical address space
and is thus a legal page
 Invalid
 the page is not in the process's logical address space
 Operating system sets this bit for each page to allow or
disallow access to the page
 Page Table Length Register(PTLR)
 to indicate the size of the page table
4 V
6 V
1 V
3 V
o I
0 I
0
1
2
3
4
5

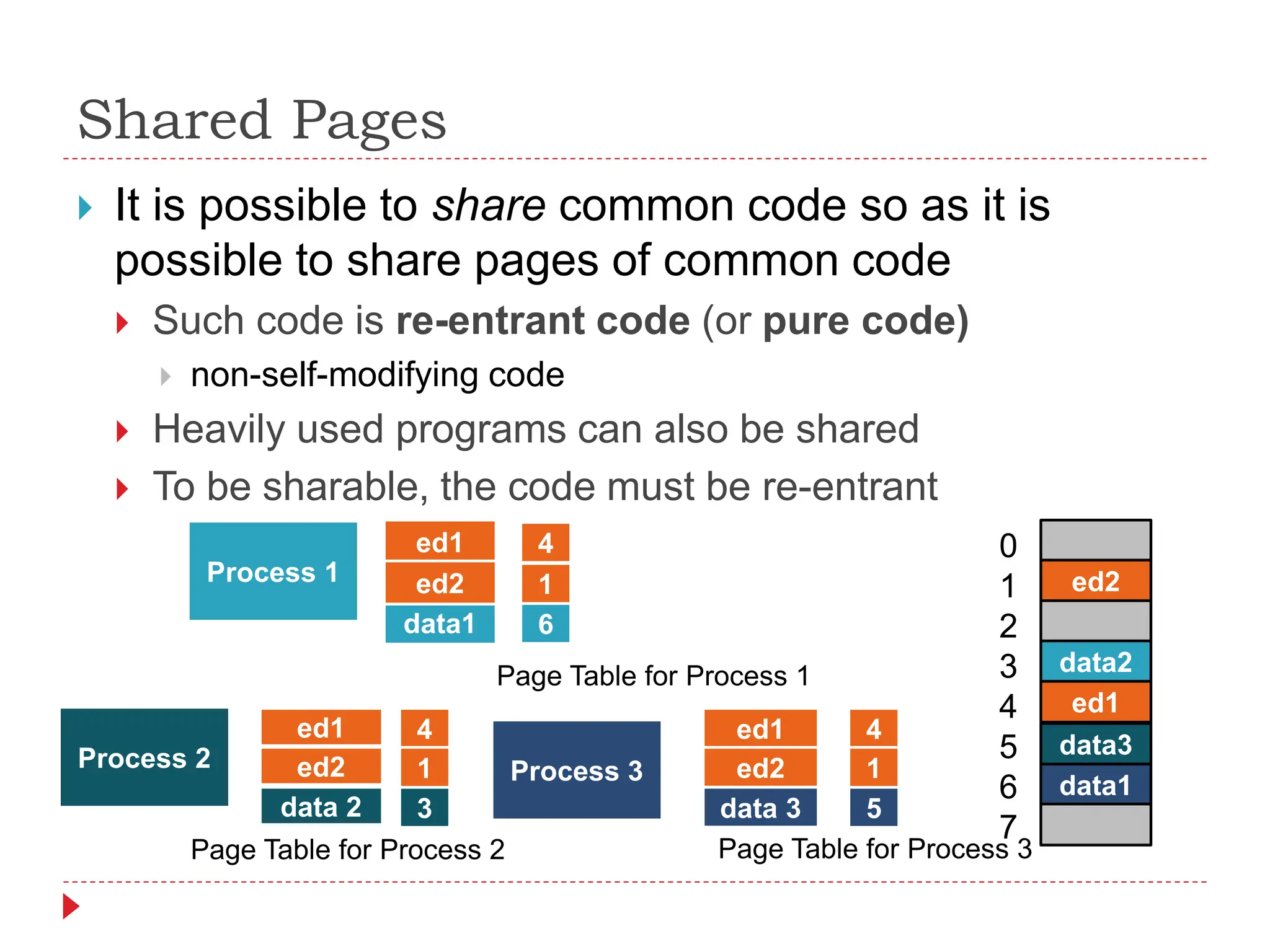

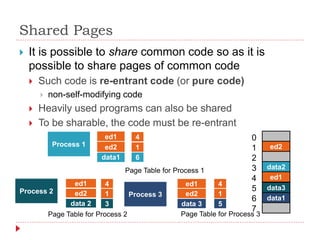

Shared Pages
 It is possible to share common code so as it is
possible to share pages of common code
 Such code is re-entrant code (or pure code)
 non-self-modifying code
 Heavily used programs can also be shared
 To be sharable, the code must be re-entrant
Process 1
4
6
1
Process 2
4
3
1 Process 3
4
5
1
ed2
data2
ed1
data3
data1
0
1
2
3
4
5
6
7
Page Table for Process 1
Page Table for Process 2 Page Table for Process 3
ed1
data1
ed2
ed1
data 3
ed2
ed1
data 2
ed2

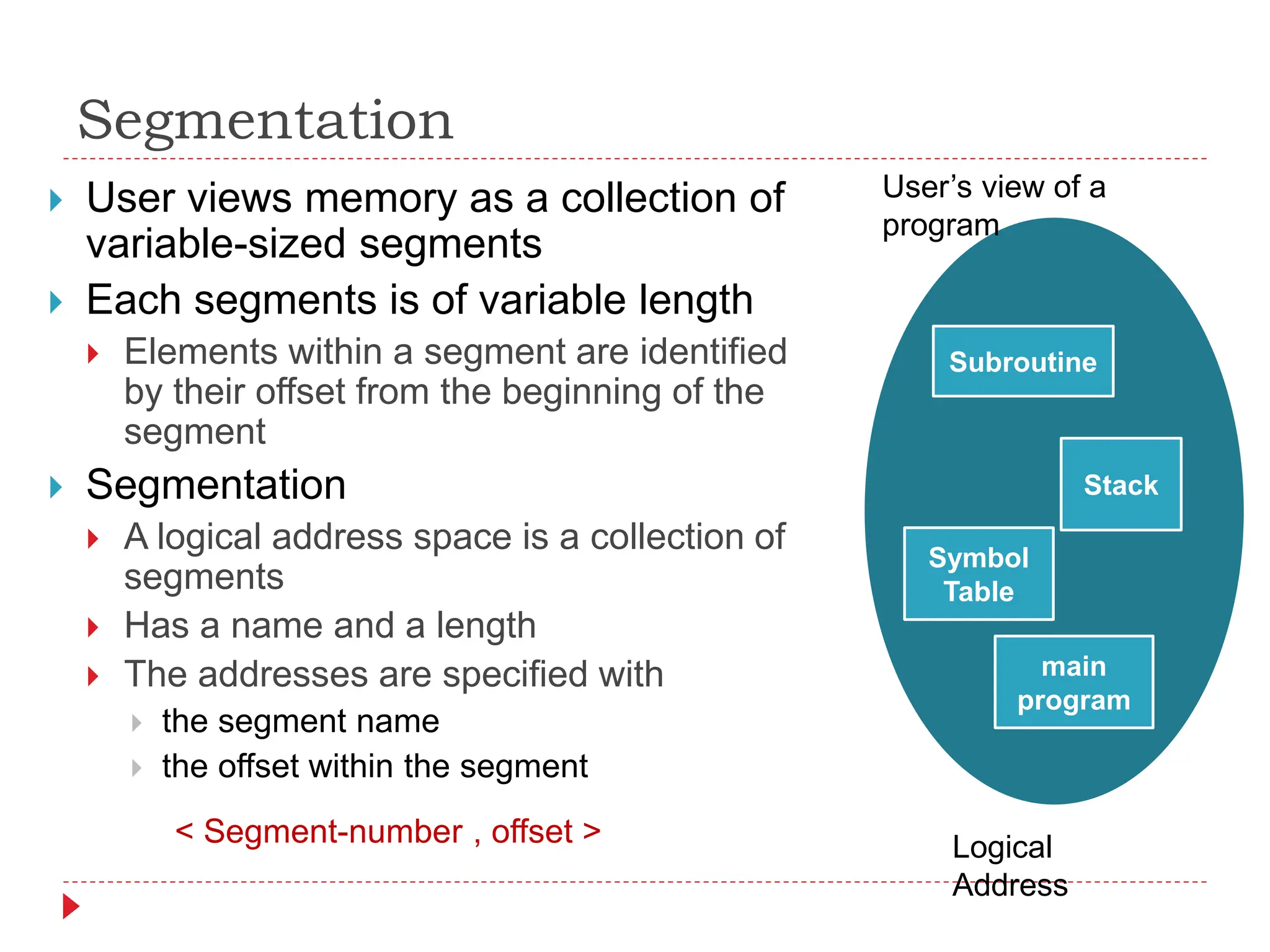

Segmentation
 User views memory as a collection of
variable-sized segments
 Each segments is of variable length
 Elements within a segment are identified
by their offset from the beginning of the
segment
 Segmentation
 A logical address space is a collection of
segments
 Has a name and a length
 The addresses are specified with
 the segment name
 the offset within the segment
< Segment-number , offset >
Subroutine
Stack
Symbol
Table
main
program
Logical
Address
User’s view of a
program

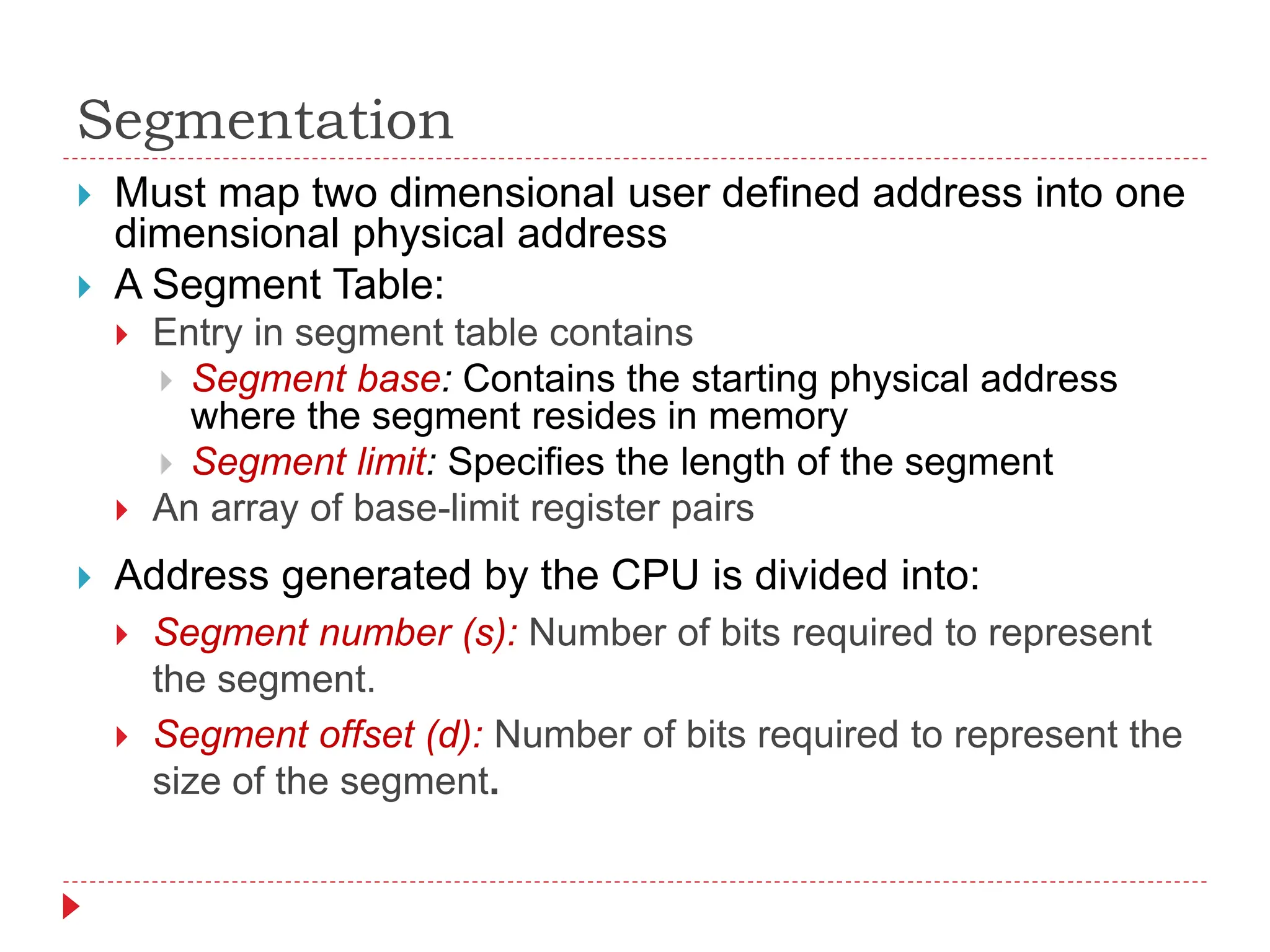

Segmentation
 Address generated by the CPU is divided into:
 Segment number (s): Number of bits required to represent
the segment.
 Segment offset (d): Number of bits required to represent the
size of the segment.
 Must map two dimensional user defined address into one
dimensional physical address
 A Segment Table:
 Entry in segment table contains
 Segment base: Contains the starting physical address
where the segment resides in memory
 Segment limit: Specifies the length of the segment
 An array of base-limit register pairs

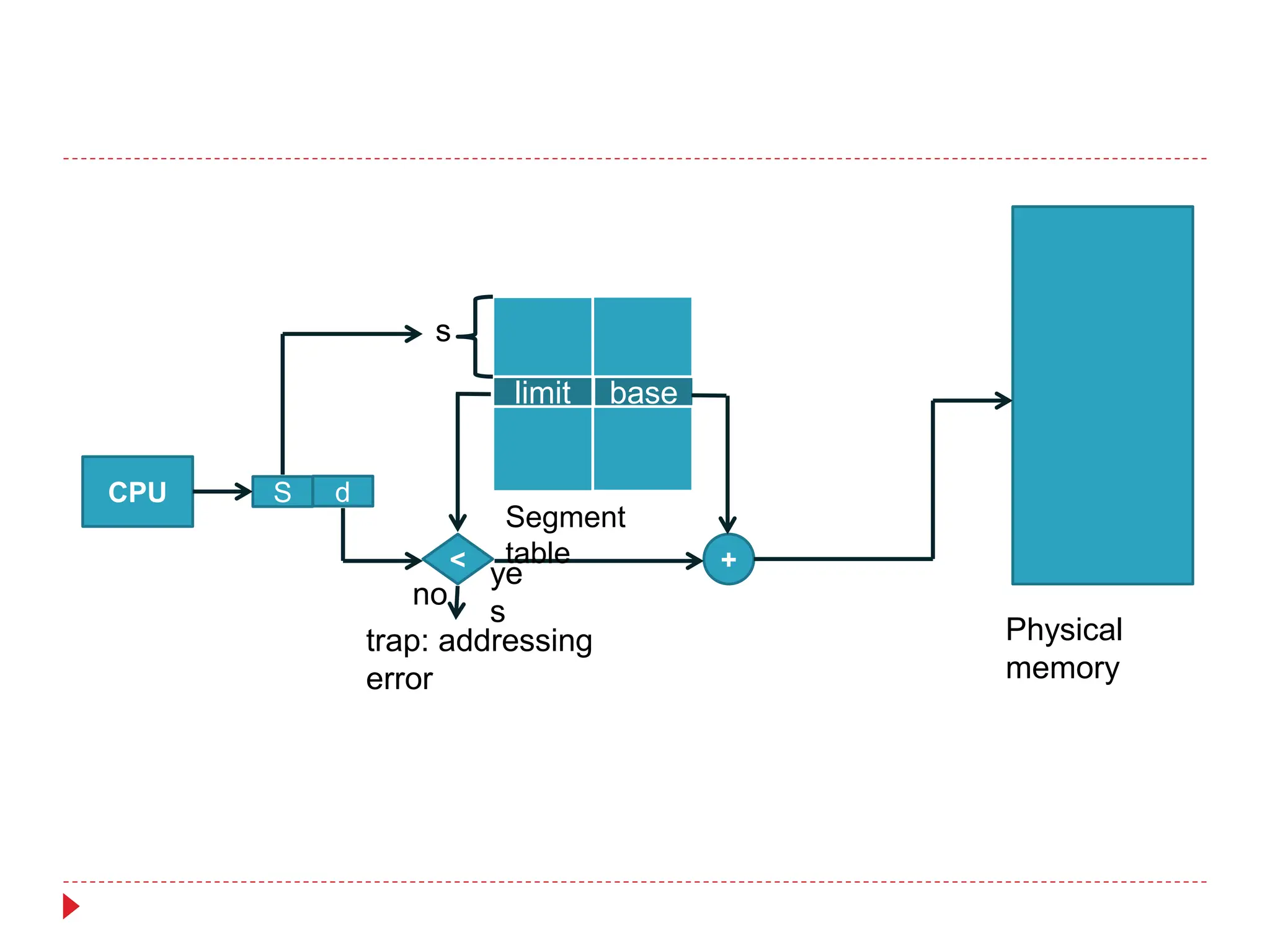

CPU S d
limit base
< +
s
ye
s
no
Segment
table
trap: addressing
error
Physical
memory

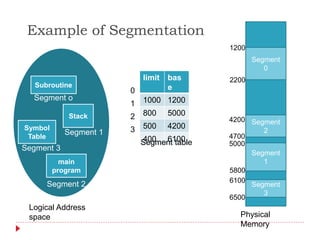

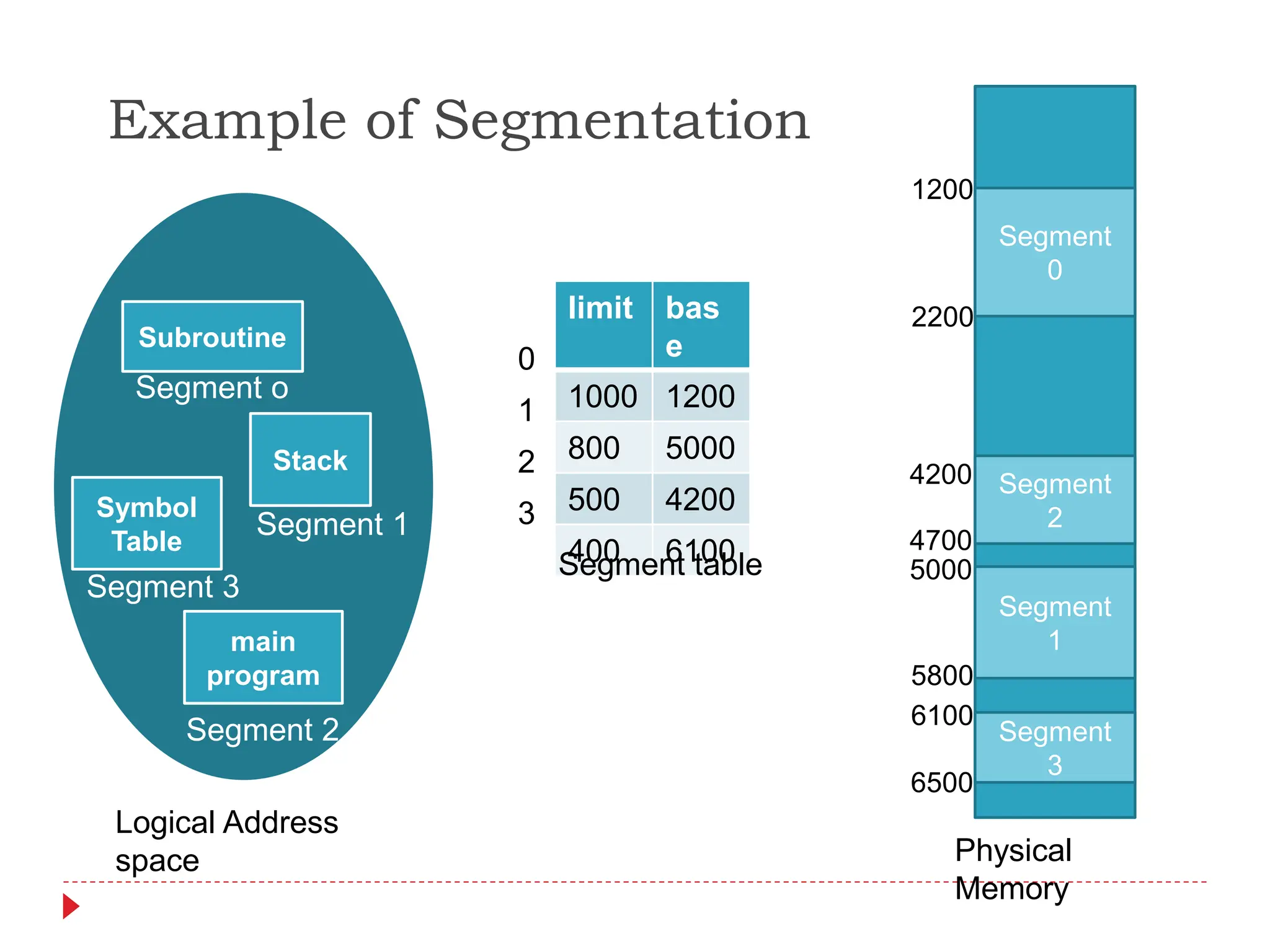

Example of Segmentation
Subroutine
Stack
Symbol
Table
main
program
Logical Address
space
limit bas
e
1000 1200
800 5000
500 4200
400 6100
Segment o
Segment 1
Segment 3
Segment 2
0
1
2
3
Segment
0
1200
2200
Segment
1
5000
5800
Segment
2
4200
4700
Segment
3
6100
6500
Physical
Memory
Segment table

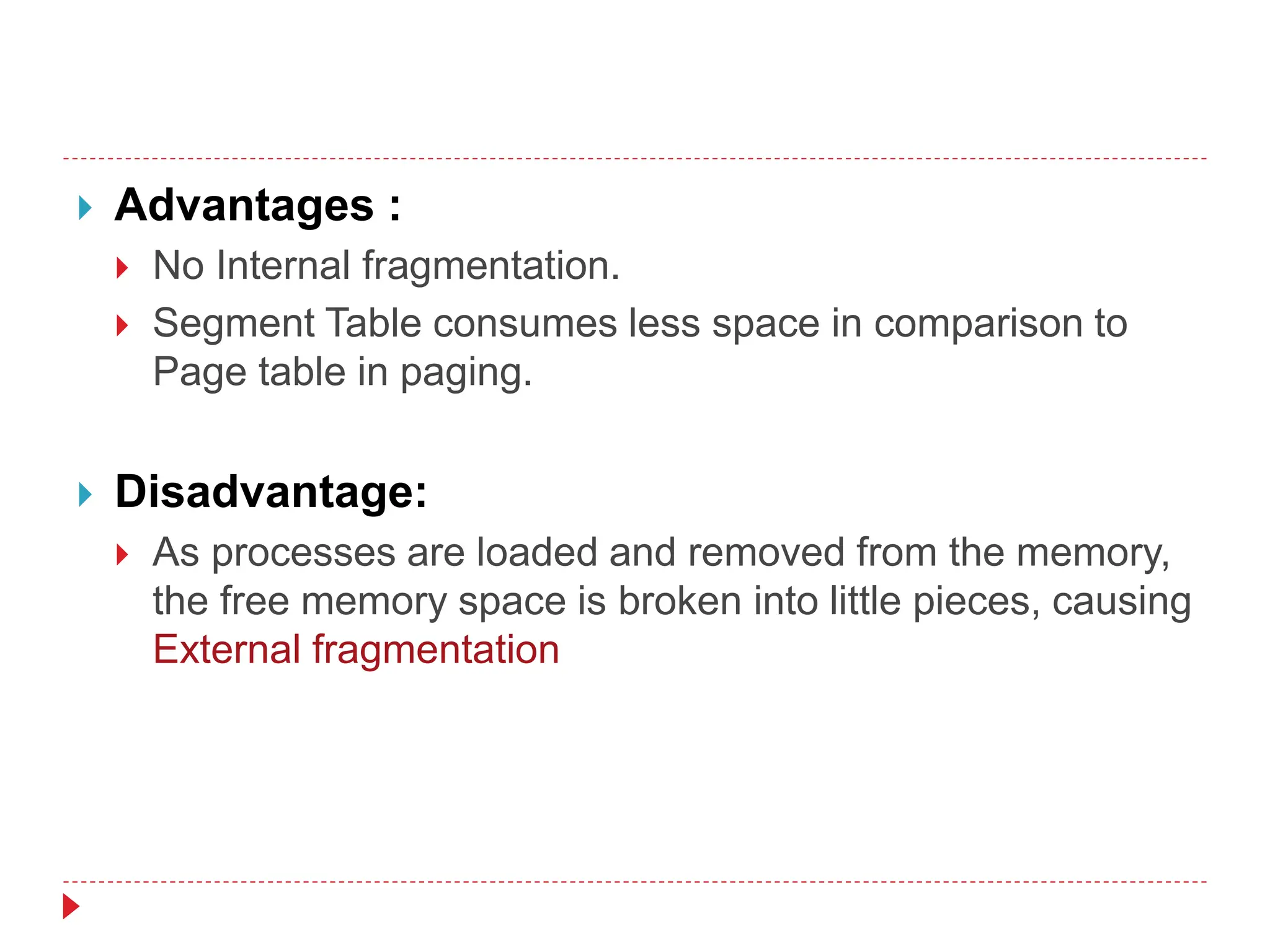

 Advantages :
 No Internal fragmentation.
 Segment Table consumes less space in comparison to
Page table in paging.
 Disadvantage:
 As processes are loaded and removed from the memory,
the free memory space is broken into little pieces, causing
External fragmentation

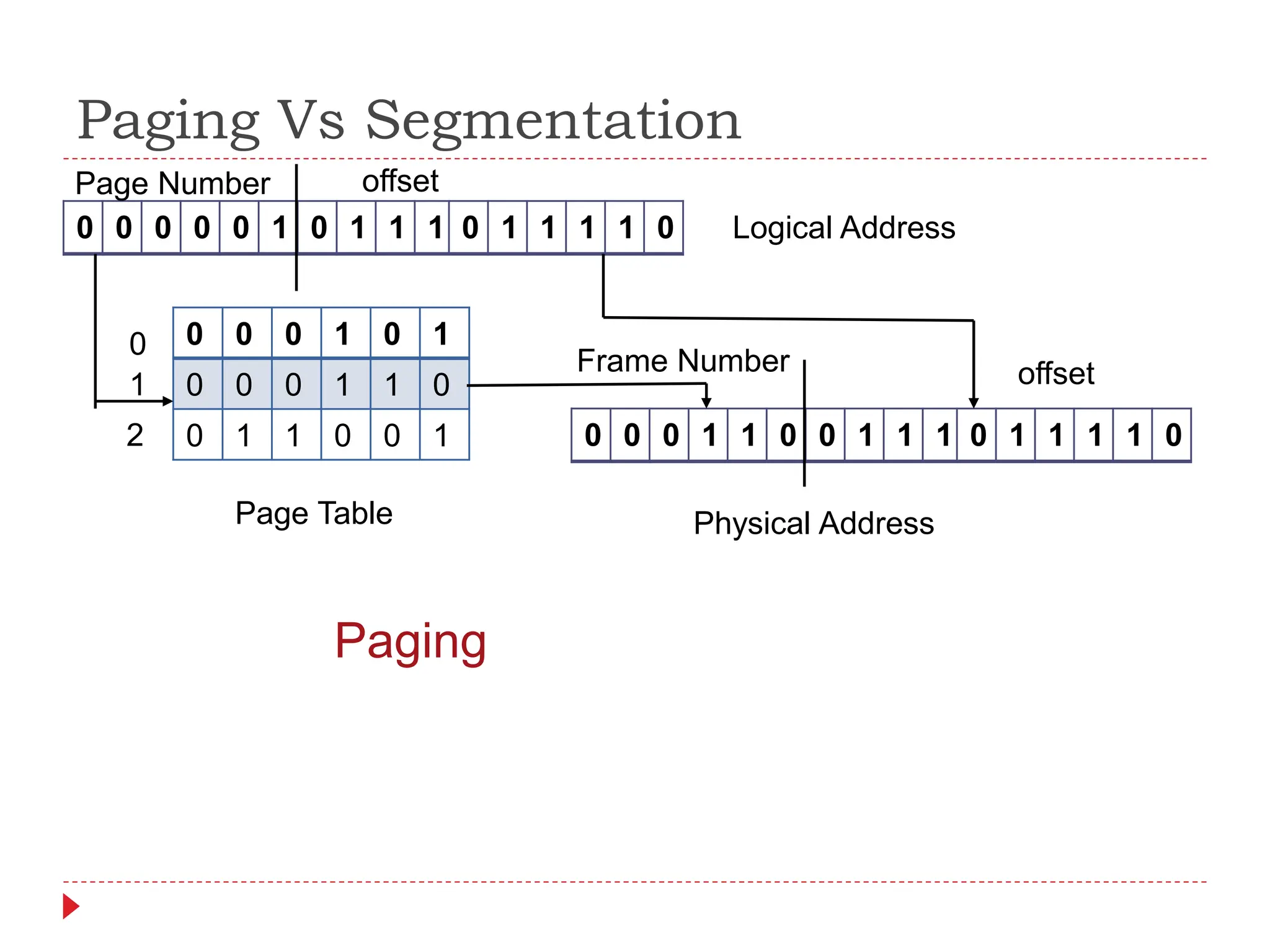

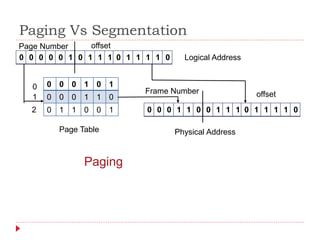

Paging Vs Segmentation
0 0 0 0 0 1 0 1 1 1 0 1 1 1 1 0
Page Number offset
0 0 0 1 0 1
0 0 0 1 1 0
0 1 1 0 0 1
Page Table
0
1
2 0 0 0 1 1 0 0 1 1 1 0 1 1 1 1 0
Logical Address
Physical Address
Paging
Frame Number offset

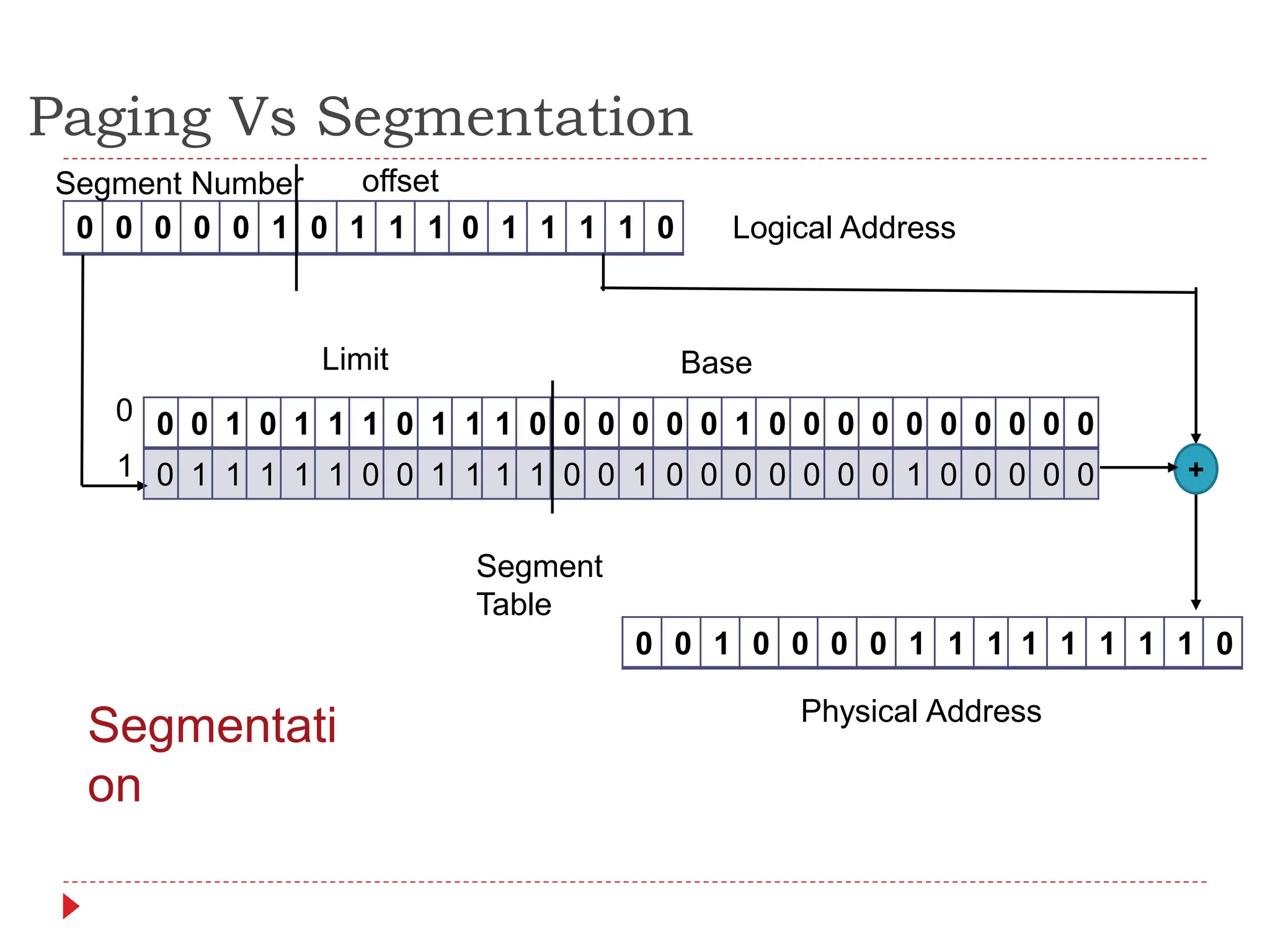

Paging Vs Segmentation
0 0 0 0 0 1 0 1 1 1 0 1 1 1 1 0
Segment Number offset
Segment
Table
0
1
0 0 1 0 0 0 0 1 1 1 1 1 1 1 1 0
Logical Address
Physical Address
Segmentati
on
0 0 1 0 1 1 1 0 1 1 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
0 1 1 1 1 1 0 0 1 1 1 1 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 +
Base
Limit

More Related Content

Similar to Main Memory Management in Operating System

Similar to Main Memory Management in Operating System (20)

OSCh9
OSCh9OSCh9
OSCh9

Ch9 OS
Ch9 OSCh9 OS
Ch9 OS

Memory comp
Memory compMemory comp
Memory comp

Memory+management
Memory+managementMemory+management
Memory+management

Memory management
Memory managementMemory management
Memory management

Memory management
Memory managementMemory management
Memory management

Cache memory
Cache memoryCache memory
Cache memory

Operating Systems Part III-Memory Management
Operating Systems Part III-Memory ManagementOperating Systems Part III-Memory Management
Operating Systems Part III-Memory Management

Operating System
Operating SystemOperating System
Operating System

Chapter 8 : Memory
Chapter 8 : MemoryChapter 8 : Memory
Chapter 8 : Memory

Os4
Os4Os4
Os4

Os4
Os4Os4
Os4

04 Cache Memory
04  Cache  Memory04  Cache  Memory
04 Cache Memory

CH08.pdf
CH08.pdfCH08.pdf
CH08.pdf

main memory
main memorymain memory
main memory

amer-memory1.ppt
amer-memory1.pptamer-memory1.ppt
amer-memory1.ppt

Memory Management
Memory ManagementMemory Management
Memory Management

Memory Management
Memory ManagementMemory Management
Memory Management

Chapter 9 OS
Chapter 9 OSChapter 9 OS
Chapter 9 OS

Main Memory
Main MemoryMain Memory
Main Memory


More from Rashmi Bhat

Input Output Management in Operating System
Input Output Management in Operating SystemInput Output Management in Operating System
Input Output Management in Operating SystemRashmi Bhat

Virtual memory management in Operating System
Virtual memory management in Operating SystemVirtual memory management in Operating System
Virtual memory management in Operating SystemRashmi Bhat

Process Scheduling in OS
Process Scheduling in OSProcess Scheduling in OS
Process Scheduling in OSRashmi Bhat

Introduction to Operating System
Introduction to Operating SystemIntroduction to Operating System
Introduction to Operating SystemRashmi Bhat

The Geometry of Virtual Worlds.pdf
The Geometry of Virtual Worlds.pdfThe Geometry of Virtual Worlds.pdf
The Geometry of Virtual Worlds.pdfRashmi Bhat

Spatial Data Mining
Spatial Data MiningSpatial Data Mining
Spatial Data MiningRashmi Bhat

Mining Frequent Patterns And Association Rules
Mining Frequent Patterns And Association RulesMining Frequent Patterns And Association Rules
Mining Frequent Patterns And Association RulesRashmi Bhat

Classification in Data Mining
Classification in Data MiningClassification in Data Mining
Classification in Data MiningRashmi Bhat

Data Warehouse Fundamentals
Data Warehouse FundamentalsData Warehouse Fundamentals
Data Warehouse FundamentalsRashmi Bhat

Virtual Reality
Virtual Reality Virtual Reality
Virtual Reality Rashmi Bhat

Introduction To Virtual Reality
Introduction To Virtual RealityIntroduction To Virtual Reality
Introduction To Virtual RealityRashmi Bhat


More from Rashmi Bhat (17)

Input Output Management in Operating System
Input Output Management in Operating SystemInput Output Management in Operating System
Input Output Management in Operating System

Virtual memory management in Operating System
Virtual memory management in Operating SystemVirtual memory management in Operating System
Virtual memory management in Operating System

Process Scheduling in OS
Process Scheduling in OSProcess Scheduling in OS
Process Scheduling in OS

Introduction to Operating System
Introduction to Operating SystemIntroduction to Operating System
Introduction to Operating System

The Geometry of Virtual Worlds.pdf
The Geometry of Virtual Worlds.pdfThe Geometry of Virtual Worlds.pdf
The Geometry of Virtual Worlds.pdf

Module 1 VR.pdf
Module 1 VR.pdfModule 1 VR.pdf
Module 1 VR.pdf

OLAP
OLAPOLAP
OLAP

Spatial Data Mining
Spatial Data MiningSpatial Data Mining
Spatial Data Mining

Web mining
Web miningWeb mining
Web mining

Mining Frequent Patterns And Association Rules
Mining Frequent Patterns And Association RulesMining Frequent Patterns And Association Rules
Mining Frequent Patterns And Association Rules

Clustering
ClusteringClustering
Clustering

Classification in Data Mining
Classification in Data MiningClassification in Data Mining
Classification in Data Mining

ETL Process
ETL ProcessETL Process
ETL Process

Data Warehouse Fundamentals
Data Warehouse FundamentalsData Warehouse Fundamentals
Data Warehouse Fundamentals

Virtual Reality
Virtual Reality Virtual Reality
Virtual Reality

Introduction To Virtual Reality
Introduction To Virtual RealityIntroduction To Virtual Reality
Introduction To Virtual Reality

Graph Theory
Graph TheoryGraph Theory
Graph Theory


Recently uploaded

handbook on reinforce concrete and detailing
handbook on reinforce concrete and detailinghandbook on reinforce concrete and detailing
handbook on reinforce concrete and detailingAshishSingh1301

litvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdflitvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdfAlexander Litvinenko

Artificial intelligence presentation2-171219131633.pdf
Artificial intelligence presentation2-171219131633.pdfArtificial intelligence presentation2-171219131633.pdf
Artificial intelligence presentation2-171219131633.pdfKira Dess

UNIT 4 PTRP final Convergence in probability.pptx
UNIT 4 PTRP final Convergence in probability.pptxUNIT 4 PTRP final Convergence in probability.pptx
UNIT 4 PTRP final Convergence in probability.pptxkalpana413121

UNIT-2 image enhancement.pdf Image Processing Unit 2 AKTU
UNIT-2 image enhancement.pdf Image Processing Unit 2 AKTUUNIT-2 image enhancement.pdf Image Processing Unit 2 AKTU
UNIT-2 image enhancement.pdf Image Processing Unit 2 AKTUankushspencer015

Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas SachpazisSeismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas SachpazisDr.Costas Sachpazis

Theory of Time 2024 (Universal Theory for Everything)
Theory of Time 2024 (Universal Theory for Everything)Theory of Time 2024 (Universal Theory for Everything)
Theory of Time 2024 (Universal Theory for Everything)Ramkumar k

21scheme vtu syllabus of visveraya technological university
21scheme vtu syllabus of visveraya technological university21scheme vtu syllabus of visveraya technological university
21scheme vtu syllabus of visveraya technological universityMohd Saifudeen

Interfacing Analog to Digital Data Converters ee3404.pdf
Interfacing Analog to Digital Data Converters ee3404.pdfInterfacing Analog to Digital Data Converters ee3404.pdf
Interfacing Analog to Digital Data Converters ee3404.pdfragupathi90

Maher Othman Interior Design Portfolio..
Maher Othman Interior Design Portfolio..Maher Othman Interior Design Portfolio..
Maher Othman Interior Design Portfolio..MaherOthman7

SLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptxSLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptxCHAIRMAN M

Fuzzy logic method-based stress detector with blood pressure and body tempera...
Fuzzy logic method-based stress detector with blood pressure and body tempera...Fuzzy logic method-based stress detector with blood pressure and body tempera...
Fuzzy logic method-based stress detector with blood pressure and body tempera...IJECEIAES

Passive Air Cooling System and Solar Water Heater.ppt
Passive Air Cooling System and Solar Water Heater.pptPassive Air Cooling System and Solar Water Heater.ppt
Passive Air Cooling System and Solar Water Heater.pptamrabdallah9

Autodesk Construction Cloud (Autodesk Build).pptx
Autodesk Construction Cloud (Autodesk Build).pptxAutodesk Construction Cloud (Autodesk Build).pptx
Autodesk Construction Cloud (Autodesk Build).pptxMustafa Ahmed

Insurance management system project report.pdf
Insurance management system project report.pdfInsurance management system project report.pdf
Insurance management system project report.pdfKamal Acharya

Worksharing and 3D Modeling with Revit.pptx
Worksharing and 3D Modeling with Revit.pptxWorksharing and 3D Modeling with Revit.pptx
Worksharing and 3D Modeling with Revit.pptxMustafa Ahmed

Software Engineering Practical File Front Pages.pdf
Software Engineering Practical File Front Pages.pdfSoftware Engineering Practical File Front Pages.pdf
Software Engineering Practical File Front Pages.pdfssuser5c9d4b1

8th International Conference on Soft Computing, Mathematics and Control (SMC ...
8th International Conference on Soft Computing, Mathematics and Control (SMC ...8th International Conference on Soft Computing, Mathematics and Control (SMC ...
8th International Conference on Soft Computing, Mathematics and Control (SMC ...josephjonse

NO1 Best Powerful Vashikaran Specialist Baba Vashikaran Specialist For Love V...
NO1 Best Powerful Vashikaran Specialist Baba Vashikaran Specialist For Love V...NO1 Best Powerful Vashikaran Specialist Baba Vashikaran Specialist For Love V...
NO1 Best Powerful Vashikaran Specialist Baba Vashikaran Specialist For Love V...Amil baba

History of Indian Railways - the story of Growth & Modernization
History of Indian Railways - the story of Growth & ModernizationHistory of Indian Railways - the story of Growth & Modernization
History of Indian Railways - the story of Growth & ModernizationEmaan Sharma


Recently uploaded (20)

handbook on reinforce concrete and detailing
handbook on reinforce concrete and detailinghandbook on reinforce concrete and detailing
handbook on reinforce concrete and detailing

litvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdflitvinenko_Henry_Intrusion_Hong-Kong_2024.pdf
litvinenko_Henry_Intrusion_Hong-Kong_2024.pdf

Artificial intelligence presentation2-171219131633.pdf
Artificial intelligence presentation2-171219131633.pdfArtificial intelligence presentation2-171219131633.pdf
Artificial intelligence presentation2-171219131633.pdf

UNIT 4 PTRP final Convergence in probability.pptx
UNIT 4 PTRP final Convergence in probability.pptxUNIT 4 PTRP final Convergence in probability.pptx
UNIT 4 PTRP final Convergence in probability.pptx

UNIT-2 image enhancement.pdf Image Processing Unit 2 AKTU
UNIT-2 image enhancement.pdf Image Processing Unit 2 AKTUUNIT-2 image enhancement.pdf Image Processing Unit 2 AKTU
UNIT-2 image enhancement.pdf Image Processing Unit 2 AKTU

Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas SachpazisSeismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis
Seismic Hazard Assessment Software in Python by Prof. Dr. Costas Sachpazis

Theory of Time 2024 (Universal Theory for Everything)
Theory of Time 2024 (Universal Theory for Everything)Theory of Time 2024 (Universal Theory for Everything)
Theory of Time 2024 (Universal Theory for Everything)

21scheme vtu syllabus of visveraya technological university
21scheme vtu syllabus of visveraya technological university21scheme vtu syllabus of visveraya technological university
21scheme vtu syllabus of visveraya technological university

Interfacing Analog to Digital Data Converters ee3404.pdf
Interfacing Analog to Digital Data Converters ee3404.pdfInterfacing Analog to Digital Data Converters ee3404.pdf
Interfacing Analog to Digital Data Converters ee3404.pdf

Maher Othman Interior Design Portfolio..
Maher Othman Interior Design Portfolio..Maher Othman Interior Design Portfolio..
Maher Othman Interior Design Portfolio..

SLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptxSLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptx

Fuzzy logic method-based stress detector with blood pressure and body tempera...
Fuzzy logic method-based stress detector with blood pressure and body tempera...Fuzzy logic method-based stress detector with blood pressure and body tempera...
Fuzzy logic method-based stress detector with blood pressure and body tempera...

Passive Air Cooling System and Solar Water Heater.ppt
Passive Air Cooling System and Solar Water Heater.pptPassive Air Cooling System and Solar Water Heater.ppt
Passive Air Cooling System and Solar Water Heater.ppt

Autodesk Construction Cloud (Autodesk Build).pptx
Autodesk Construction Cloud (Autodesk Build).pptxAutodesk Construction Cloud (Autodesk Build).pptx
Autodesk Construction Cloud (Autodesk Build).pptx

Insurance management system project report.pdf
Insurance management system project report.pdfInsurance management system project report.pdf
Insurance management system project report.pdf

Worksharing and 3D Modeling with Revit.pptx
Worksharing and 3D Modeling with Revit.pptxWorksharing and 3D Modeling with Revit.pptx
Worksharing and 3D Modeling with Revit.pptx

Software Engineering Practical File Front Pages.pdf
Software Engineering Practical File Front Pages.pdfSoftware Engineering Practical File Front Pages.pdf
Software Engineering Practical File Front Pages.pdf

8th International Conference on Soft Computing, Mathematics and Control (SMC ...
8th International Conference on Soft Computing, Mathematics and Control (SMC ...8th International Conference on Soft Computing, Mathematics and Control (SMC ...
8th International Conference on Soft Computing, Mathematics and Control (SMC ...

NO1 Best Powerful Vashikaran Specialist Baba Vashikaran Specialist For Love V...
NO1 Best Powerful Vashikaran Specialist Baba Vashikaran Specialist For Love V...NO1 Best Powerful Vashikaran Specialist Baba Vashikaran Specialist For Love V...
NO1 Best Powerful Vashikaran Specialist Baba Vashikaran Specialist For Love V...

History of Indian Railways - the story of Growth & Modernization
History of Indian Railways - the story of Growth & ModernizationHistory of Indian Railways - the story of Growth & Modernization
History of Indian Railways - the story of Growth & Modernization


Main Memory Management in Operating System

  • 2. What is Memory?  Memory:  A large array of words / bytes, each having its own address  Instruction Execution Cycle  Basic Hardware  Main memory and registers  Must provide protection to the user processes  The Base register: holds the smallest legal physical memory address  The Limit register: specifies the size of the range  The base and limit registers can be loaded only by the operating system with a special privileged instruction CPU Disk Cache CPU Disk
  • 3. Base & Limit Registers  Make sure that each process has a separate memory space  Determine the range of legal addresses the process may access  Protection of memory  CPU hardware compare the address generated in user mode with the registers  Base and Limit registers  can be loaded only by the OS with a special privileged instruction Operating System Process 1 Process 2 Process 3 Process N 0 2560 0 3000 0 4250 0 6750 5 8080 0 102400 4250 0 2500 5 base limit
  • 4. Hardware address protection with base and limit registers CPU > < base base + limit Memory address Ye s Ye s No No trap to operating system monitor – addressing error
  • 5. Address Binding  For execution, a program has to be brought into memory  Waiting processes form Input queue  Addresses may be represented in different ways during program execution  A compiler will bind symbolic addresses to relocatable addresses  The linkage editor(linker) or loader will in turn bind the relocatable addresses to absolute addresses  Binding is a mapping from one address space to another  Compile time binding: absolute code  Load time binding: relocatable code  Execution time binding
  • 6. Logical Vs. Physical Address Space  Logical: generated by CPU  Physical: seen by memory unit  Both addresses are  Identical when generated by compile time and load time binding  Different when generated by execution time binding  Logical address Virtual address  Virtual address space  Physical address space  Memory Management Unit:  Run-time mapping from virtual to physical addresses Memory Relocatio n register 20000 + CPU Logical Address 356 Physical Address 20356 MMU User program sees logical addresses They never sees real physical addresses Dynamic relocation using a relocation register
  • 7. Dynamic Loading  A routine is not loaded until it is called.  All routines are kept on disk in a relocatable load format  The relocatable linking loader loads the desired routine into memory  Advantage:  An unused routine is never loaded  Useful when large amounts of code are needed to handle infrequently occurring cases  Does not require special support from the operating system  Dynamic Linking and Shared Libraries  Static linking  Dynamic Linking  Linking is postponed until execution time  A stub is included in the image for each library routine reference  A small piece of code indicating how to locate the appropriate memory- resident library routine how to load the library if the routine is not already present  Shared Libraries  Requires help from the operating system.
  • 8. Swapping  What is swapping?  A process can be swapped temporarily out of memory to a backing store and then brought back into memory for continued execution.(e.g. Round robin CPU scheduling) User processes space Operating System Process P1 Process P9 Process P7 Swap out Swap in Backing Store Main Memory
  • 9. Swapping  When priority based scheduling: Roll out, Roll in  A process that is swapped out will be swapped back in same memory space previously occupied  Requires a backing store:  Fast disk  Must provide direct access to memory images  Context-switch time high  The major part of the swap time: transfer time transfer time amount of memory swapped  Process must be completely idle to swap out
  • 10. Contiguous Memory Allocation  Memory mapping and protection  Using a relocation register and a limit register  Size of operating-system may change dynamically  Transient operating-system code  Memory allocation  Divide memory into several fixed-sized partitions  A table keeps information of occupied and available partitions  One large block of available memory: A hole  A set of holes of various sizes scattered throughout memory  Dynamic storage allocation problem  How to satisfy a request of size n from a list of free holes  First fit: Allocate the first hole that is big enough  Best fit: Allocate the smallest hole that is big enough  Worst fit: Allocate the largest hole OS P1 P2
  • 11. Dynamic Memory Allocation Strategies 20K 45K A 25K 40K D C (20K) 20K A 25K 40K 30K C 25K D B (30) 20K A 25K 40K 30K C 25K B X (20K) 20K A 25K 20K 30K C 25K B X First Fit Strategy Best Fit Strategy Worst Fit Strategy
  • 12. Example: User input = 12K process size Best Fit 6K 14K 19K 11K 13K Worst Fit First Fit 6K 14K 19K 11K 6K 14K 11K 13K 6K 19K 11K 13K 12K 12K 12K
  • 13. Example: User input = 300K process 100K sizes 400K 100K 200K 300K 500K 600K Worst Fit 100K 200K 300K 50 0K 300K 100K 400K 300K 100K 200K 300K 500K 600K 300K 100K 400K 100K Best fit 100K 200K 300K 50 0K 600K 300K 100K 400K Next Fit 100K 200K 300K 500K 600K First Fit 300K 100K 400K 100K
  • 14. 1. Given five memory partitions of 100Kb, 500Kb, 200Kb, 300Kb, 600Kb (in order), how would the first-fit, best-fit, and worst-fit algorithms place processes of 212 Kb, 417 Kb, 112 Kb, and 426 Kb (in order)? Which algorithm makes the most efficient use of memory? 2. Consider the requests from processes in given order 300K, 25K, 125K and 50K. Let there be two blocks of memory available of size 150K followed by a block size 350K. Which of the partition allocation schemes can satisfy above requests? 3. Consider a swapping system in which memory consists of the following hole sizes in memory order: 10K, 4K, 20K, 15K, and 9K. Which hole is taken for successive segment requests of: (a) 8K (b) 12K (c) 10K for first fit, best fit, and worst fit.
  • 15. Contiguous Memory Allocation  Fragmentation  The first-fit and best-fit strategies suffer from external fragmentation  External fragmentation may be a minor or a major problem  Internal fragmentation is also possible  memory that is internal to a partition but is not being used  Solution to external fragmentation:  Compaction  shuffle the memory contents so as to place all free memory together in one large block  Not possible if static address binding at assembly or load time  Permit the logical address space of the processes to be noncontiguous. 44K D B 16K C A G (65K) F 10K E 44K 60K B 16K C A F 10K D (50K)
  • 16. Paging  Permits the physical address space of a process to be noncontiguous.  Main memory as well as backing store also has the fragmentation problems  Basic method  Breaking physical memory into fixed-sized blocks called frames  Breaking logical memory into blocks of the same size called pages CPU p d f f d f0000 …0000 f1111….0000 p f Page table Physical memory Logical Address Physical Address
  • 17. Paging  The page size is defined by the hardware: typically a power of 2  The translation of a logical address into a page number and page offset  Suppose logical address space is 2m and page size is 2n addressing units  How to map logical address into physical address?  We have no external fragmentation but may have some internal fragmentation  Process size is expressed in pages  The first page of the process is loaded into one of the allocated frames, and the frame number is put in the page table for this P d page number page offset m - n n
  • 18. Frames : Physical Addresses divided into no. of fixed size blocks Pages : Logical Addresses divided into no. of fixed size blocks Frames Size = Page Size No.frames= Physical Address Space/Frame size No.Pages= Logical Address Space/Page size
  • 19.  Address generated by CPU divided into:  Page Number(p) : No. of bits required to represent the pages in logical address space.  Page Offset (d) : No. of bits required to represent particular space in pages of logical address space.  Physical Address divided into:  Frame Number(f): No. of bits required to represent the frame in physical address space.  Frame Offset (d) : No. of bits required to represent particular space in frames of physical address space.
  • 20.  Physical Memory Address= Frame no.* Page Size + Offset  Example :  n=2 m=4, p=d=2  Physical Memory=32Bytes  Page Size=4 Bytes  Solution: No.of frames=8 Logical Address of 10 : 1010 Physical Address= 7*4+2=30
  • 22.  Example: Physical Address = 12 bits Logical Address = 13 bits Page Size=1K No.frames? No. of pages? Solution : No.frames= Physical Address Space/Frame size =4= 22 No.pages = Logical Address Space/Page Size =8= 23
  • 23.  Let program consist of 8 pages and 16 frames of memory. A page consist of 4096 words. Page 0-> Frame 2, Page 4-> frame 15 Page 6-> Frame 5, Page 7-> frame 9 No other pages in memory. Translate Address:111000011110000 000000000000000 111000011110000 1001000011110000 Physical 0010000000000000 0000000000000000 Physical
  • 24. Paging  The clear separation between the user's view of memory and the actual physical memory  Frame table  Status of page frame & to which page of which process it is allocated  How page tables are implemented?  A page table for each process, a pointer to page table in PCB  As a set of dedicated registers are used  Use of registers is efficient when page table is reasonably small  For large page tables, page tables are in main memory, a page table base register(PTBR) points to page table in memory  Problem: time required to access a user memory (two memory access)
  • 25. Paging  How page tables are implemented?  Standard solution: a Translation Look-aside Buffer (TLB)  Associative, high-speed memory  Entry in TLB  Searching within TLB is fast but is expensive  Number of entries are small  Contains only a few of the page-table entries  What is TLB hit and TLB miss?  A memory reference to the page table must be made  The frame number is obtained  Use it to access memory  Add the page number and frame number to the TLB  Some TLBs store address-space identifiers (ASIDs) in each TLB entry  used to provide address-space protection for the process key value
  • 26. Paging hardware with TLB. CPU p d f f d f0000 …0000 f1111….0000 p f Page table Physical memory Logical Address Physical Address Page numbe r frame number TLB hit TLB miss TLB table
  • 27. Effective Memory Access Time (EAT)  Hit ratio (H)  The percentage of times that a particular page number is found in the TLB  effective access time =cache hit ratio*cache access time+ cache miss ratio *(cache access time +main memory access time)  Effective access time:  Let :  T: Time requires to access TLB  P: Time required to access page table  M: Time required to access memory EAT = {(H)×(T+M) + (1- H)×(T+P+M)}
  • 28. Examples:  An 80-percent hit ratio 20 nanoseconds to search TLB 100 nanoseconds to access memory  Then:  Access time if TLB hits?  Access Time if TLB miss?  Effective Access Time?
  • 29. Solution: 1 Access time if TLB hits? =20+100=120 2 Access time if TLB miss? =20+100+100 =220 3. Effective Access Time? =hit ratio *TLB hits + hit miss ratio* TLB miss = 140
  • 30. Example:  An 60-percent hit ratio 10 nanoseconds to search TLB 80 nanoseconds to access memory  Effective Access Time ??? Solution : = 0.6*(10+80) + (1-0.6)*(10+2*80) = 0.6 * (90) + 0.4 * (170) = 122
  • 31. Example  Effective access time = 180msec TLB access time = 40msec Main memory access time = 120msec Hit Ratio ??? Solution : h=0.833
  • 32. Memory Protection in Paging  Protection bit associated with each frame  Kept in page table  One bit can define a page to be read-write or read-only  Can also provide separate protection bits for each kind of access  A valid-invalid bit  Valid-  the associated page is in the process's logical address space and is thus a legal page  Invalid  the page is not in the process's logical address space  Operating system sets this bit for each page to allow or disallow access to the page  Page Table Length Register(PTLR)  to indicate the size of the page table 4 V 6 V 1 V 3 V o I 0 I 0 1 2 3 4 5
  • 33. Shared Pages  It is possible to share common code so as it is possible to share pages of common code  Such code is re-entrant code (or pure code)  non-self-modifying code  Heavily used programs can also be shared  To be sharable, the code must be re-entrant Process 1 4 6 1 Process 2 4 3 1 Process 3 4 5 1 ed2 data2 ed1 data3 data1 0 1 2 3 4 5 6 7 Page Table for Process 1 Page Table for Process 2 Page Table for Process 3 ed1 data1 ed2 ed1 data 3 ed2 ed1 data 2 ed2
  • 34. Segmentation  User views memory as a collection of variable-sized segments  Each segments is of variable length  Elements within a segment are identified by their offset from the beginning of the segment  Segmentation  A logical address space is a collection of segments  Has a name and a length  The addresses are specified with  the segment name  the offset within the segment < Segment-number , offset > Subroutine Stack Symbol Table main program Logical Address User’s view of a program
  • 35. Segmentation  Address generated by the CPU is divided into:  Segment number (s): Number of bits required to represent the segment.  Segment offset (d): Number of bits required to represent the size of the segment.  Must map two dimensional user defined address into one dimensional physical address  A Segment Table:  Entry in segment table contains  Segment base: Contains the starting physical address where the segment resides in memory  Segment limit: Specifies the length of the segment  An array of base-limit register pairs
  • 36. CPU S d limit base < + s ye s no Segment table trap: addressing error Physical memory
  • 37. Example of Segmentation Subroutine Stack Symbol Table main program Logical Address space limit bas e 1000 1200 800 5000 500 4200 400 6100 Segment o Segment 1 Segment 3 Segment 2 0 1 2 3 Segment 0 1200 2200 Segment 1 5000 5800 Segment 2 4200 4700 Segment 3 6100 6500 Physical Memory Segment table
  • 38.  Advantages :  No Internal fragmentation.  Segment Table consumes less space in comparison to Page table in paging.  Disadvantage:  As processes are loaded and removed from the memory, the free memory space is broken into little pieces, causing External fragmentation
  • 39. Paging Vs Segmentation 0 0 0 0 0 1 0 1 1 1 0 1 1 1 1 0 Page Number offset 0 0 0 1 0 1 0 0 0 1 1 0 0 1 1 0 0 1 Page Table 0 1 2 0 0 0 1 1 0 0 1 1 1 0 1 1 1 1 0 Logical Address Physical Address Paging Frame Number offset
  • 40. Paging Vs Segmentation 0 0 0 0 0 1 0 1 1 1 0 1 1 1 1 0 Segment Number offset Segment Table 0 1 0 0 1 0 0 0 0 1 1 1 1 1 1 1 1 0 Logical Address Physical Address Segmentati on 0 0 1 0 1 1 1 0 1 1 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 1 1 1 1 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 + Base Limit
