This document describes an automatic railway gate control system with high-speed alerting. The system uses IR sensors to detect approaching and passing trains. When a train is detected approaching, the system activates an alarm to warn people and closes the railway gate. It then opens the gate once the train has passed through the 500m IR sensor. The system aims to provide unmanned and safer control of railway gates to prevent accidents at level crossings. It is built using IR sensors, motors, an alarm, LCD display, and a microcontroller for automated operation without human error.

1. Khammam Institute Of Technology
& Sciences

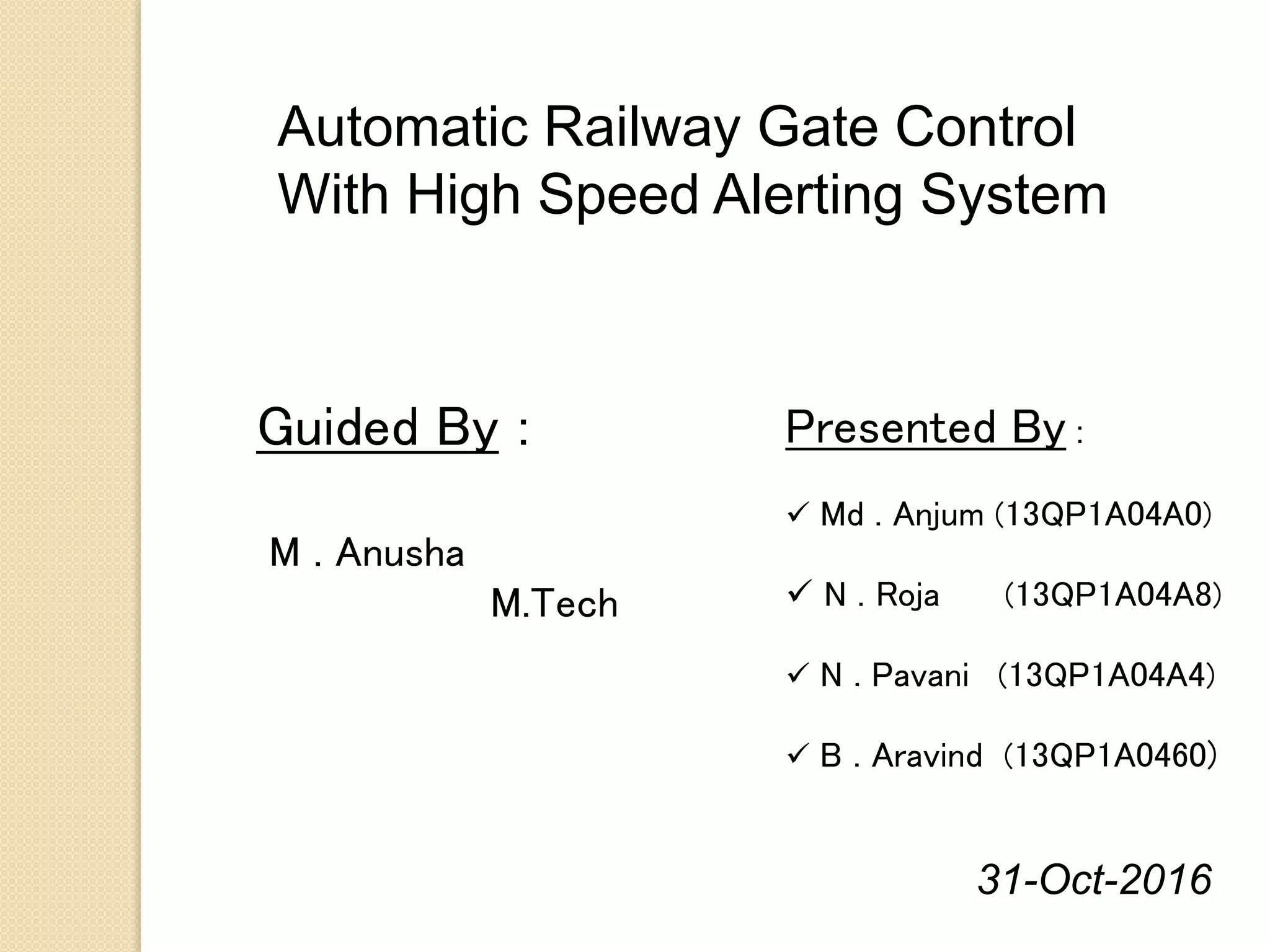

2. Automatic Railway Gate Control
With High Speed Alerting System
Guided By :
M . Anusha
M.Tech
Presented By :
 Md . Anjum (13QP1A04A0)
 N . Roja (13QP1A04A8)
 N . Pavani (13QP1A04A4)
 B . Aravind (13QP1A0460)
31-Oct-2016

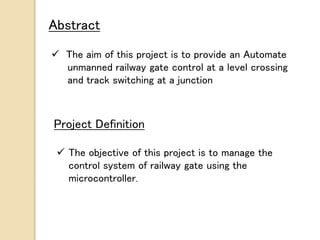

3. Abstract
 The aim of this project is to provide an Automate
unmanned railway gate control at a level crossing
and track switching at a junction
Project Definition
 The objective of this project is to manage the
control system of railway gate using the
microcontroller.

4. Introduction
 Now a days, India is the country which having
world’s largest railway network.
 It is definitely impossible to stop the running train in
critical situation.
 Railway safety is a crucial aspect of rail operation
over the world.
 Railways being the cheapest mode of transportation
are preferred over all the other means.
 Many railway accidents occurring at unmanned
railway crossings due to the carelessness.

5. Block Diagram

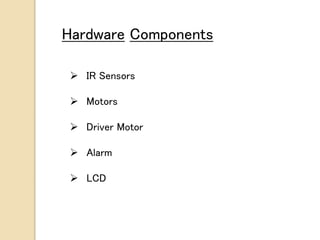

6. Hardware Components
 IR Sensors
 Motors
 Driver Motor
 Alarm
 LCD

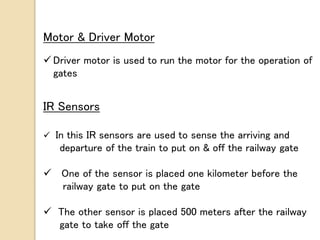

7. Motor & Driver Motor
 Driver motor is used to run the motor for the operation of
gates
IR Sensors
 In this IR sensors are used to sense the arriving and
departure of the train to put on & off the railway gate
 One of the sensor is placed one kilometer before the
railway gate to put on the gate
 The other sensor is placed 500 meters after the railway
gate to take off the gate

8. Alarm
 When the trail is arriving near the railway gate alarm
will be on to alert public
LCD
 Here LCD is used to display the arriving message of
train in order to alert the public

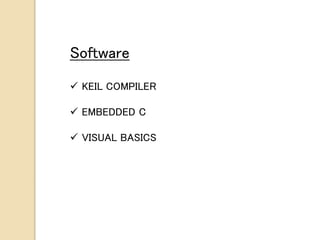

9. Software
 KEIL COMPILER
 EMBEDDED C
 VISUAL BASICS

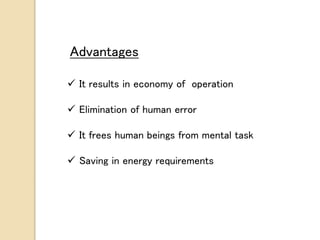

10. Advantages
 It results in economy of operation
 Elimination of human error
 It frees human beings from mental task
 Saving in energy requirements

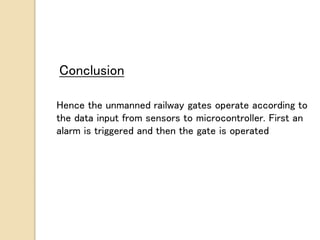

11. Conclusion
Hence the unmanned railway gates operate according to
the data input from sensors to microcontroller. First an
alarm is triggered and then the gate is operated
