This document discusses optimizing MPI communication on GPUs. It introduces GPUs and their advantages over CPUs for parallel tasks. MPI is commonly used for communication between GPUs on multiple nodes. The document examines integrating MPI and CUDA for GPU communication and provides an example of matrix multiplication. It evaluates the performance of MPI on higher and lower order matrices and concludes GPUs are becoming core to high performance computing while MPI can provide more acceleration when combined with technologies like GPUDirect RDMA.

1. 1Optimizing MPI-Communication On GPU

2.  Introduction To GPU
 GPU vs CPU
 More About GPU
 Introduction to CUDA
 Introduction to MPI
 Integration of MPI & CUDA
 Examples(Matrix Multiplication)
 Performance Results
 Conclusion and Future Enhancements
 Bibliography
2Optimizing MPI-On GPU Communicaion

3. • What is GPU?
• Uses SIMD architecture
• Earlier used exclusively for graphics processing
• Extremely efficient for many types of parallel tasks
• Single chip now capable of peak single
• Precision floating point performance of more than 4Tflops
3Optimizing MPI-On GPU Communicaion

4. • The CPU –BRAIN of Computer ,While
GPU is SOUL.
• CPU-Small no of Cores,
• CPU can do any task, But not vice versa
4Optimizing MPI-On GPU Communicaion

5. •GPU consists of – SM, SP(ALU), Global
memory(DRAM),local memory , shared memory,
5Optimizing MPI-On GPU Communicaion

6. • CUDA-(Compute Unified Device
Architecture)NVIDIA introduced CUDA in june 2007.
• OpenCL-(Open Computing Language),by Apple
Inc. introduced in august 2009.
•OpenACC-(for Open Accelerators),by CRAY,CAPS
and NVIDIA
 CUDA PROGRAMMING MODEL-
• CUDA Kernel- (__global__)
• Methods to handle memory
• CUDA IPC
6Optimizing MPI-On GPU Communicaion

7. • CUDA IPC can Work efficiently for multi-GPU
communication on same system.
•What For multiple node GPU communication?
Answer is MPI
7Optimizing MPI-On GPU Communicaion

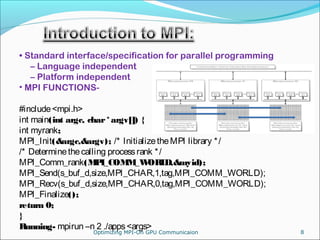

8. • Standard interface/specification for parallel programming
– Language independent
– Platform independent
• MPI FUNCTIONS-
#include<mpi.h>
int main(int argc, char*argv[]) {
int myrank;
MPI_Init(&argc,&argv); /* InitializetheMPI library */
/* Determinethecalling processrank */
MPI_Comm_rank(MPI_COMM_WORLD,&myid);
MPI_Send(s_buf_d,size,MPI_CHAR,1,tag,MPI_COMM_WORLD);
MPI_Recv(s_buf_d,size,MPI_CHAR,0,tag,MPI_COMM_WORLD);
MPI_Finalize();
return 0;
}
Running- mpirun –n 2 ./apps<args>
8Optimizing MPI-On GPU Communicaion

9. 9Optimizing MPI-On GPU Communicaion

10. double *dev_buf, *host_buf;
cudaMalloc(&dev_buf, size);
cudaMallocHost(&host_buf, size);
if (my_rank == sender) { /* sender*/
computation_on_GPU(dev_buf);
cudaMemcpy(host_buf, dev_buf,
size,...);
MPI_Send(host_buf, size, ...);
}
else { /* receiver*/
MPI_Recv(host_buf, size, ...);
cudaMemcpy(dev_buf, host_buf,
size, ...);
computation_on_GPU(dev_buf);}
10Optimizing MPI-On GPU Communicaion

11. 11Optimizing MPI-On GPU Communicaion
 How to Optimize this…???

12. Optimizing MPI-On GPU Communicaion 12
•One address space for all CPU and GPU memory
-Determine physical memory location from a pointer
value
-Enable libraries to simplify their interfaces (e.g. MPI and
cudaMemcpy)

13. //MPI rank 0
MPI_Send(s_buf_d,size,…);
//MPI rank n-1
MPI_Recv(r_buf_d,size,…);
With UVA and CUDA-aware
MPI
//MPI rank 0
cudaMemcpy(s_buf_h,s_buf_
d,size,…);
MPI_Send(s_buf_h,size,…);
//MPI rank n-1
MPI_Recv(r_buf_h,size,…);
cudaMemcpy(r_buf_d,r_buf_
h,size,…);
No UVA and regular MPI
 By using UVA we need not Have to copy the data from
Device to host(CPU), and we can directly pass a buffer to
the another Device(GPU)
 But it can optimize the communication on a same none
with multiple GPU
Optimizing MPI-On GPU Communicaion 13

14. __global__ void MatMulKernel(Matrix A, Matrix B,
Matrix C)
{
// Each thread computesoneelement of C
// by accumulating results into Cvalue
float Cvalue= 0;
int row = blockIdx.y * blockDim.y + threadIdx.y;
int col = blockIdx.x * blockDim.x + threadIdx.x;
if(row > A.height || col > B.width) return;
for (int e= 0; e< A.width; ++e)
Cvalue+= A.elements[row * A.width + e] *
B.elements[e* B.width + col];
C.elements[row * C.width + col] = Cvalue;
}
Optimizing MPI-On GPU Communicaion 14
void assignDeviceToProcess()
{
MPI_Get_processor_name(host_name,&namelen);
MPI_Bcast(&(host_names[n]),MPI_MAX_PROCESS
OR_NAME, MPI_CHAR, n,
MPI_COMM_WORLD);
bytes= nprocs*
sizeof(char[MPI_MAX_PROCESSOR_NAME]);
mat_mul(host_names, nprocs,
sizeof(char[MPI_MAX_PROCESSOR_NAME]));
MPI_Comm_rank(nodeComm, &myrank);
cudaSetDevice(myrank);
}

15. Optimizing MPI-On GPU Communicaion 15
PERFORMANCE OF MPI FOR HIGHER AND SMALL ORDER
MITRICES
Fig. Performance of mpi for higher order matrices
Fig. Perforance of mpi for smaller order matrices.

16. Optimizing MPI-On GPU Communicaion 16
• GPU are become the core of HPC
•NVIDIA GPUS are most popular with their CUDA
programming model
• MPI can be used to have more acceleration and
parallelization
•MPICH2 is recent MPI implementation which we used
•NVIDIA is developing MVAPICH2
•GPUDirect can be used
-RDMA
