1. Sumbitted by, Guided by,
R.Hanan Raj , Mrs.Tamilselvi,M.E,
M.E(CSE), Assitant Professer,
ARJ CET. Dept of CSE,
ARJ CET.
STUDY OF LINUX KERNEL
AND KERNEL MODULES
module.

2. AIM:
To study of linux kernel and kernel modules.
OBJECTIVE:
Linux kernel:
The Linux kernel is a Unix-like computer
operating system kernel. TheLinux kernel is a
widely used operating system kernel world-wide .
Kernel module:
A loadable kernel module (or LKM) is
object file that contains code to extend the running
kernel, or so-called base kernel,of an operating
system.

3. Continue…
LKMs are typically used to add support for new
hardware and/or filesystems, or for adding system
calls.
Study of linux kernel and kernel modules
divided into 4 parts:
1. Development of a reasonably size dynamically
loadable kernel module for Linux kernel.
2. Passing command line arguments to a module.
3. Building modules for a precompiled kernel.
4. Implementing module for linux kernel

4. History
Linux is a modern, free operating system based
on UNIX standards.
First developed as a small but self-contained
kernel in 1991 by Linus Torvalds.
run efficiently and reliably on common PC
hardware, but also runs on a variety of other
platforms.
 Linux system has many, varying Linux distributions
including the kernel,applications, and
management tools.

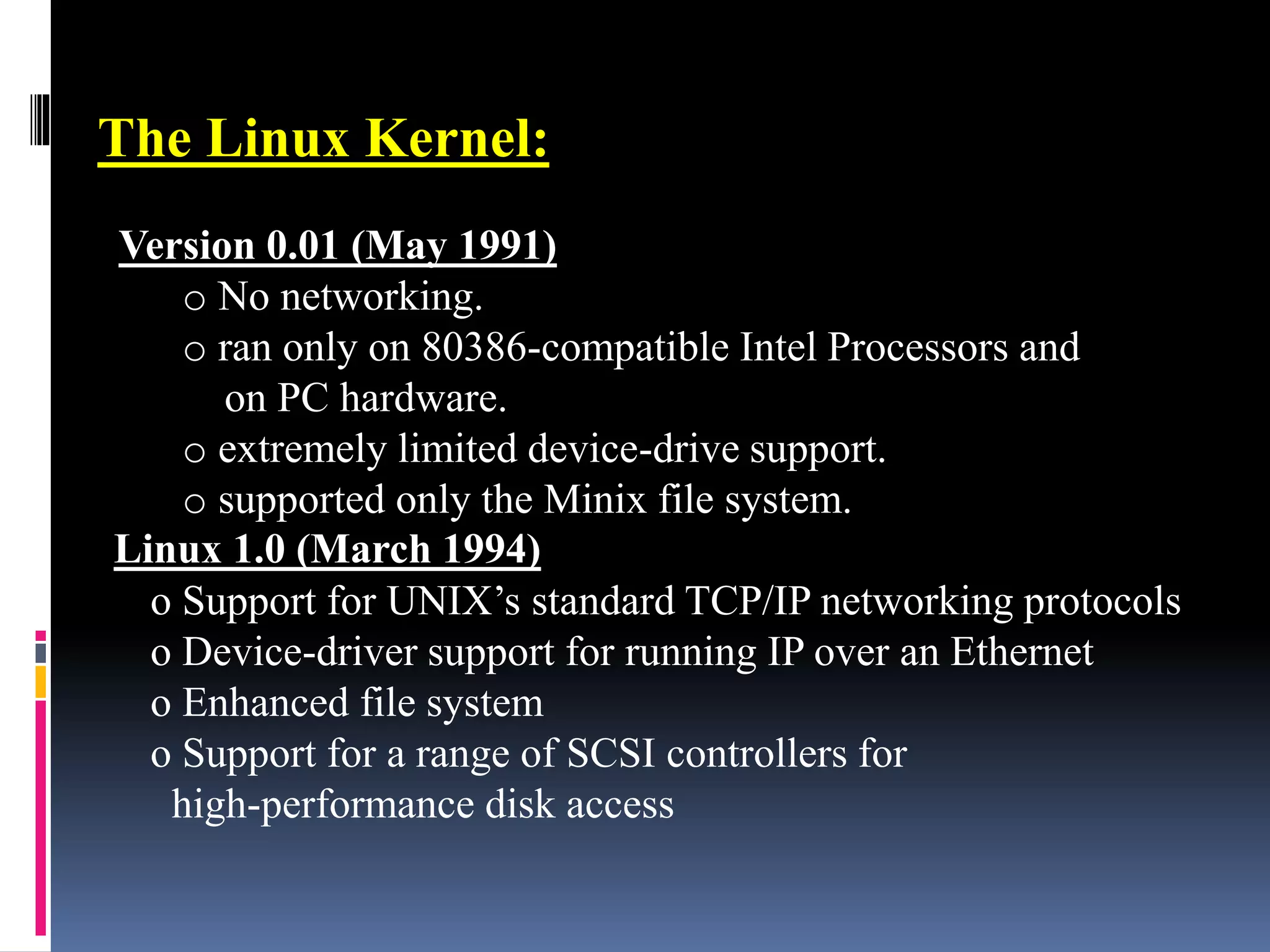

5. The Linux Kernel:
Version 0.01 (May 1991)
o No networking.
o ran only on 80386-compatible Intel Processors and
on PC hardware.
o extremely limited device-drive support.
o supported only the Minix file system.
Linux 1.0 (March 1994)
o Support for UNIX’s standard TCP/IP networking protocols
o Device-driver support for running IP over an Ethernet
o Enhanced file system
o Support for a range of SCSI controllers for
high-performance disk access

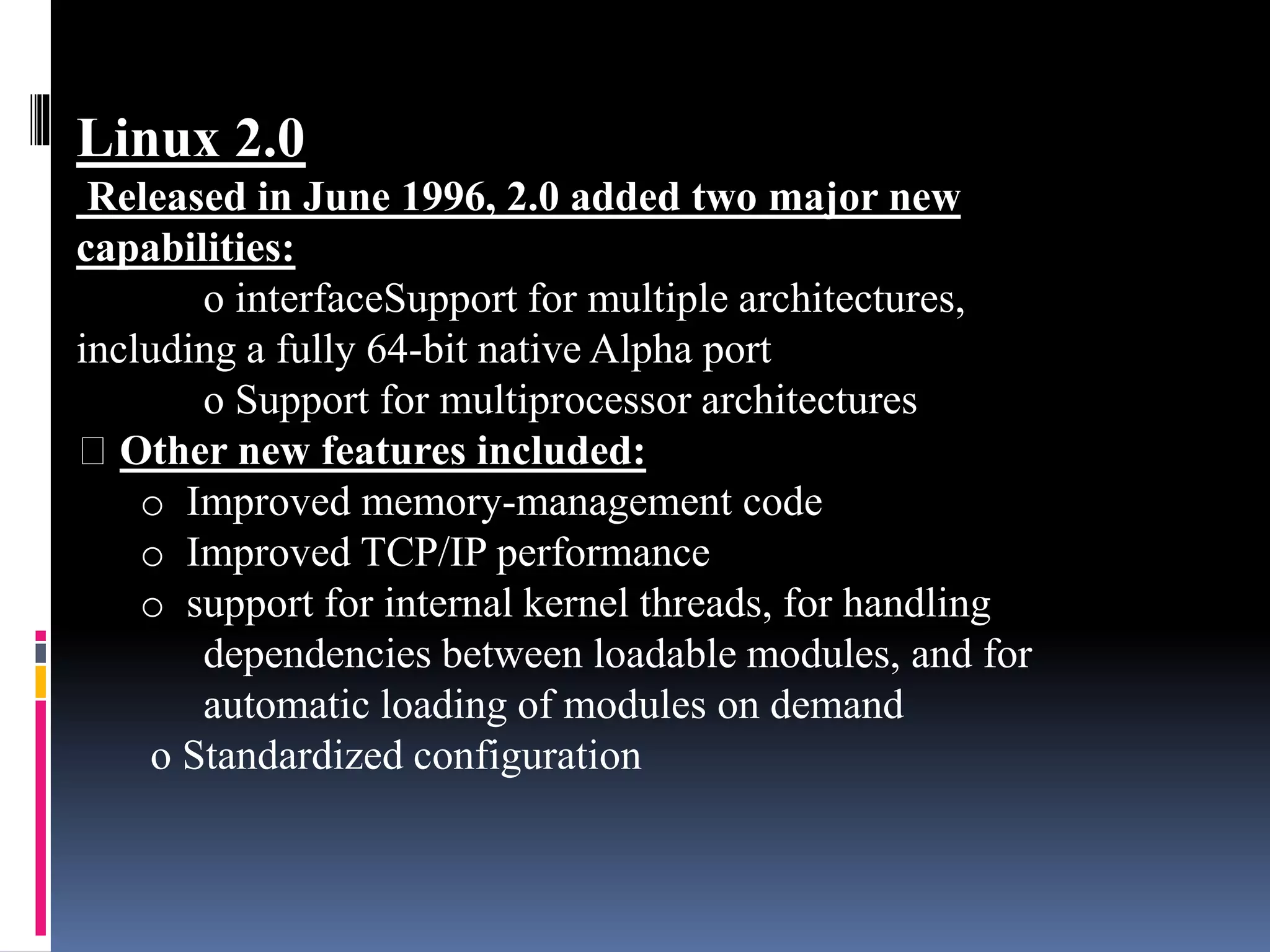

6. Linux 2.0
Released in June 1996, 2.0 added two major new
capabilities:
o interfaceSupport for multiple architectures,
including a fully 64-bit native Alpha port
o Support for multiprocessor architectures
Other new features included:
o Improved memory-management code
o Improved TCP/IP performance
o support for internal kernel threads, for handling
dependencies between loadable modules, and for
automatic loading of modules on demand
o Standardized configuration

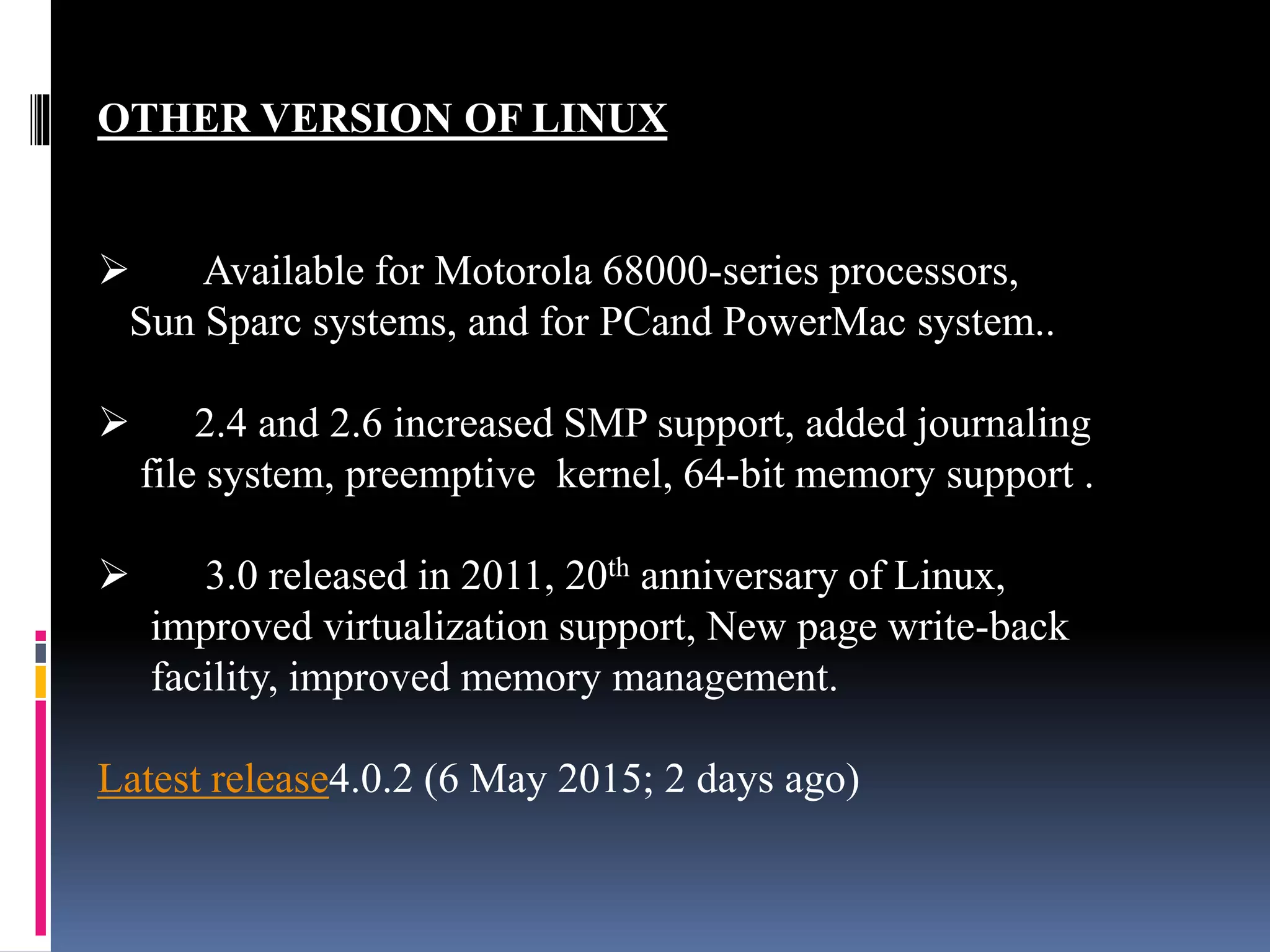

7. OTHER VERSION OF LINUX
 Available for Motorola 68000-series processors,
Sun Sparc systems, and for PCand PowerMac system..
 2.4 and 2.6 increased SMP support, added journaling
file system, preemptive kernel, 64-bit memory support .
 3.0 released in 2011, 20th anniversary of Linux,
improved virtualization support, New page write-back
facility, improved memory management.
Latest release4.0.2 (6 May 2015; 2 days ago)

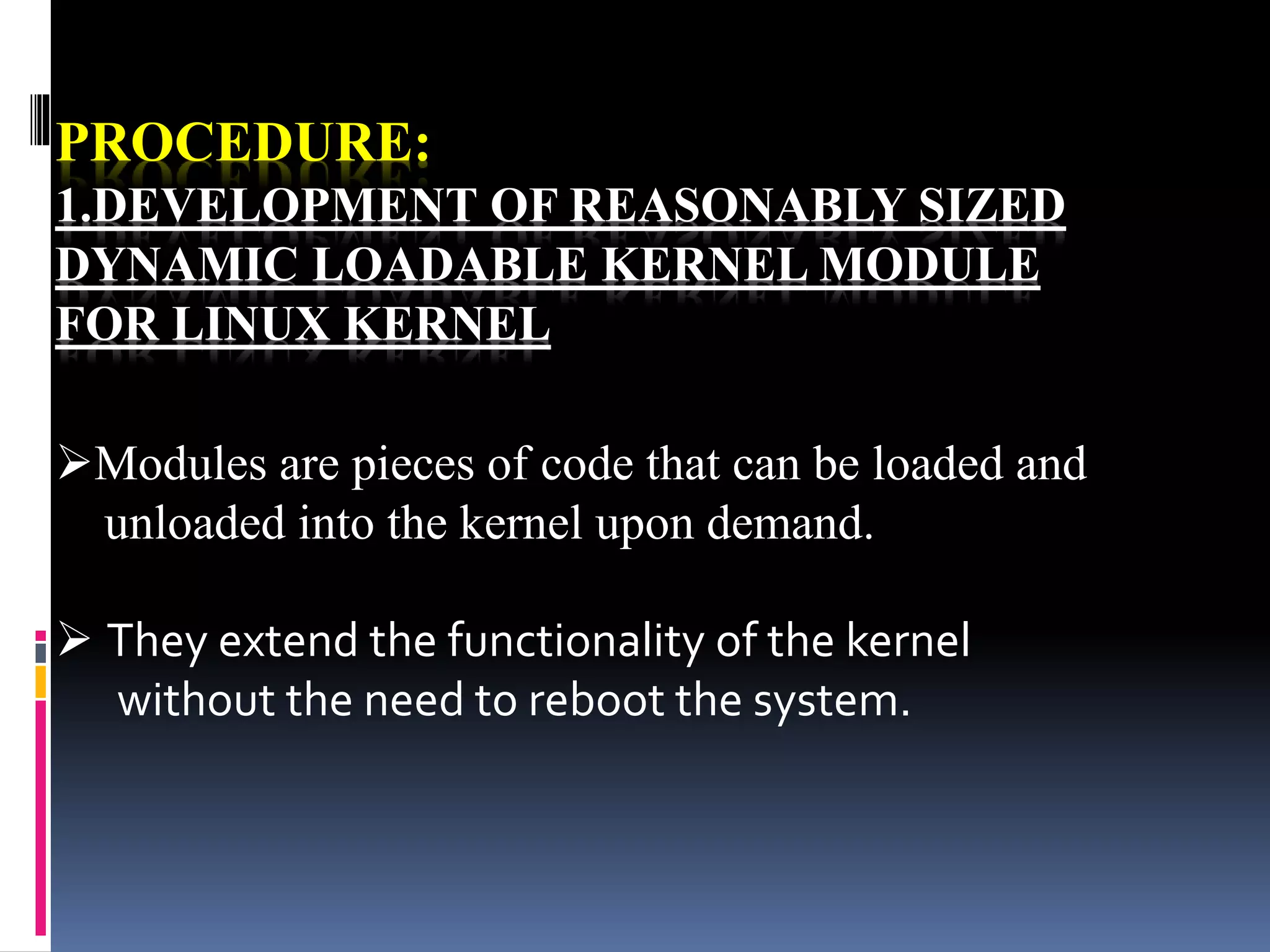

8. PROCEDURE:
1.DEVELOPMENT OF REASONABLY SIZED
DYNAMIC LOADABLE KERNEL MODULE
FOR LINUX KERNEL
Modules are pieces of code that can be loaded and
unloaded into the kernel upon demand.
 They extend the functionality of the kernel
without the need to reboot the system.

9. Continue….
 For example, one type of module is the device
driver, which allows the kernel to access hardware
connected to the system.
 Without modules, we would have to build
monolithic kernels and add new functionality directly
into the kernel image.

10. Coding:
#include <linux/module.h> /* Needed by all modules */
#include <linux/kernel.h> /* Needed for KERN_INFO */
int init_module(void)
{
printk(KERN_INFO "Hello world 1.n");
/*
* A non 0 return means init_module failed; module
can't be loaded.
*/
return 0;
}
void cleanup_module(void)
{
printk(KERN_INFO "Goodbye world 1.n");

11. Kernel modules must have at least two
functions:
 a "start" (initialization) function called
init_module() which is called when the
module is insmoded into the kernel
 and an "end" (cleanup) function called
cleanup_module() which is called just before
it is rmmoded.

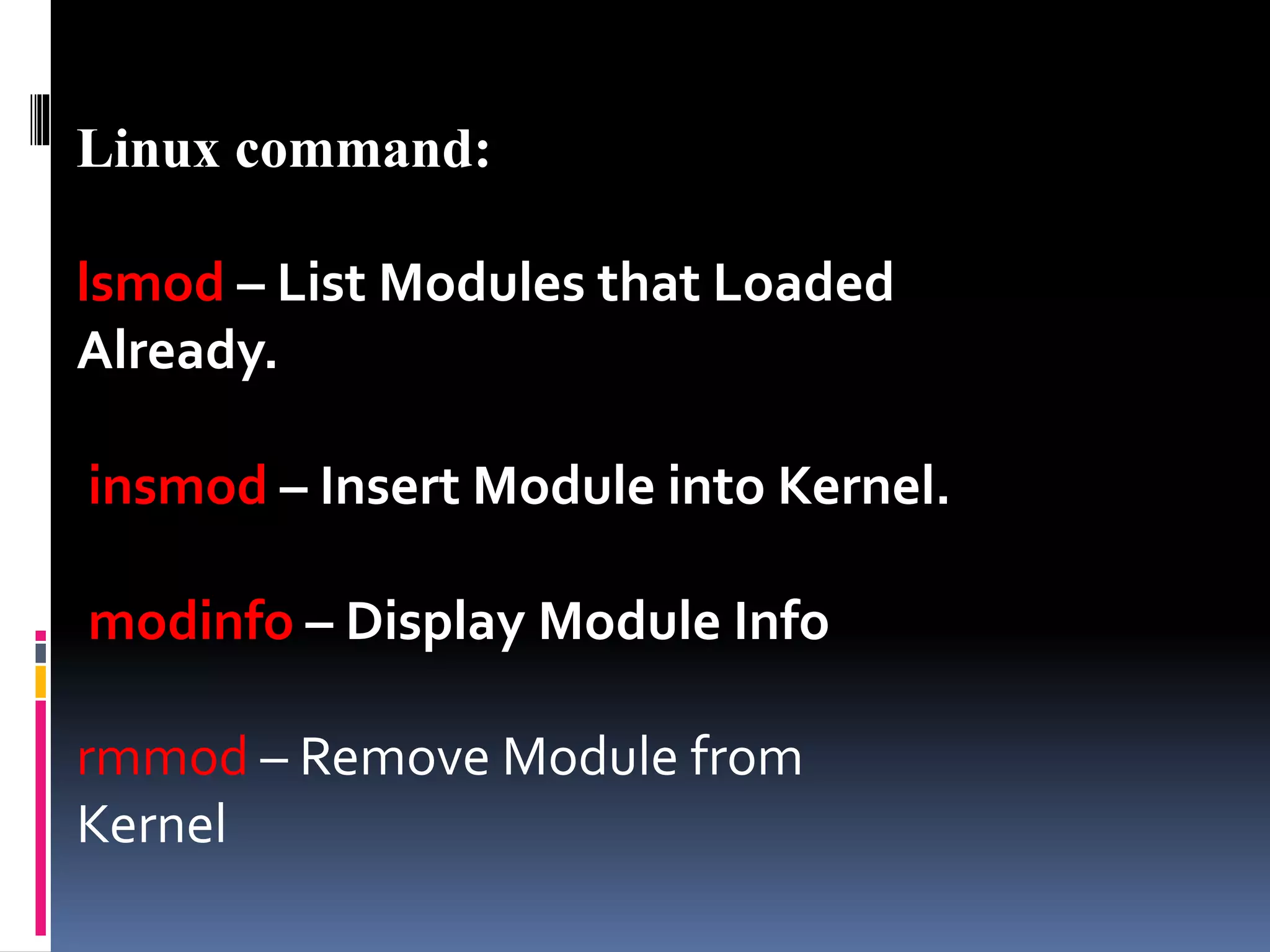

12. Linux command:
lsmod – List Modules that Loaded
Already.
insmod – Insert Module into Kernel.
modinfo – Display Module Info
rmmod – Remove Module from
Kernel

13. 2.PASSING COMMAND LINE
ARGUMENTS TO A MODULE:
 Modules can take command line arguments.
 To allow arguments to be passed to your module,
declare the variables that will take the values of the
command line arguments as global and then use the
module_param()to setup.
 The variable declarations and macros should be placed
at the beginning of the module.

14. Advantage of linux
Cost – The most obvious advantage of using Linux is the
fact that it is free to obtain, whileMicrosoft products are
available for a hefty and sometimes recurring fee .
Security – In line with the costs, the security aspect
of Linux is much stronger than that ofWindows.
Choice (Freedom) –The power of choice is a
great Linux advantage.

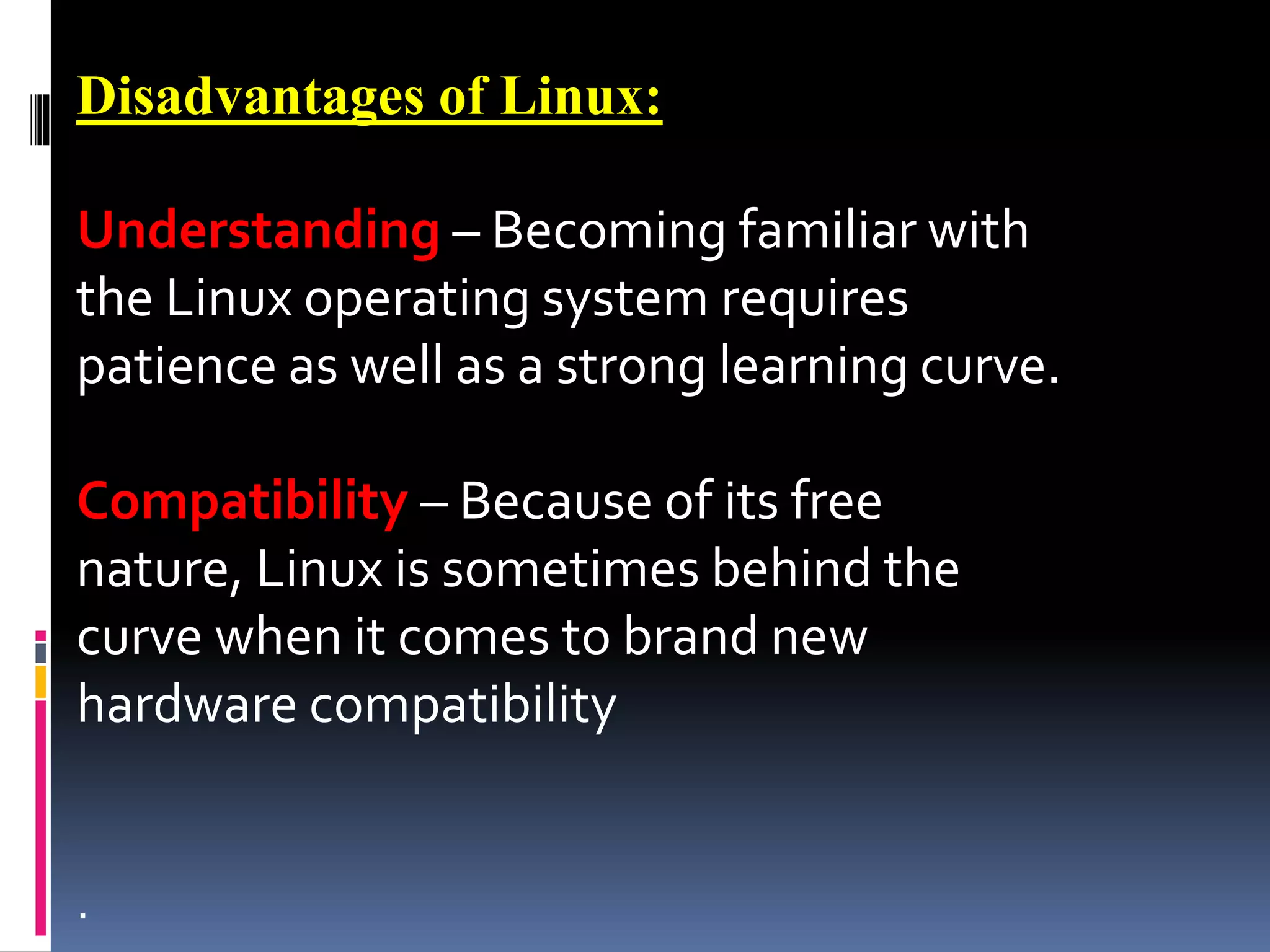

15. Disadvantages of Linux:
Understanding – Becoming familiar with
the Linux operating system requires
patience as well as a strong learning curve.
Compatibility – Because of its free
nature, Linux is sometimes behind the
curve when it comes to brand new
hardware compatibility
.

16. Conclusions
Linux is a flexible, robust node operating system for
Beowulf computational clusters.
Stability and adaptability set it apart from the legacy
operating systems that dominate desktop
environments.
It has spread quickly from its humble beginnings as a
student’s hobby project to a full-featured server operating
system with advanced features and legendary stability .
