2.  After completing this chapter, the student
should be able to:
◦ Identify and describe the hand tools the plumber
commonly uses.
◦ Use hand tools in a safe and appropriate manner.
2

3.  Plumbing tools fall under one of two
categories:
◦ Hand tools
◦ Power tools
3

4.  Manually operated.
 Not as expensive as power tools.
 Equally important in completing a task or
project.
 Most employers expect a plumber to have
basic hand tools when being considered for
employment.
4

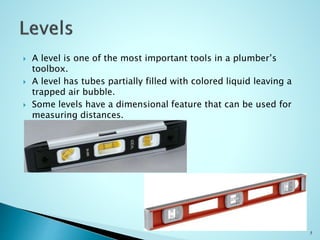

5.  A level is one of the most important tools in a plumber’s
toolbox.
 A level has tubes partially filled with colored liquid leaving a
trapped air bubble.
 Some levels have a dimensional feature that can be used for
measuring distances.
5

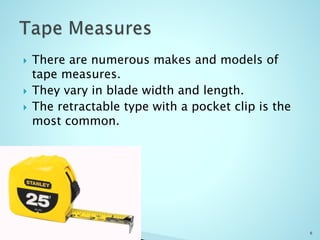

6.  There are numerous makes and models of
tape measures.
 They vary in blade width and length.
 The retractable type with a pocket clip is the
most common.
6

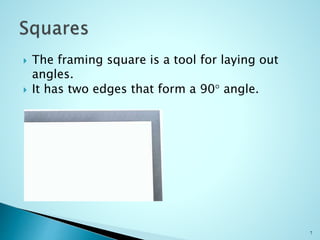

7.  The framing square is a tool for laying out
angles.
 It has two edges that form a 90 angle.
7

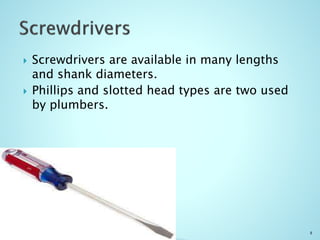

8.  Screwdrivers are available in many lengths
and shank diameters.
 Phillips and slotted head types are two used
by plumbers.
8

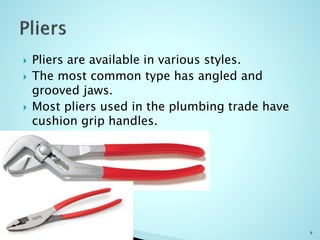

9.  Pliers are available in various styles.
 The most common type has angled and
grooved jaws.
 Most pliers used in the plumbing trade have
cushion grip handles.
9

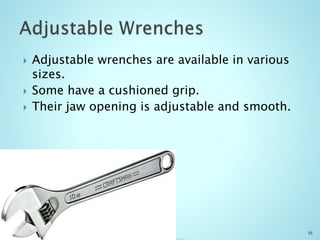

10.  Adjustable wrenches are available in various
sizes.
 Some have a cushioned grip.
 Their jaw opening is adjustable and smooth.
10

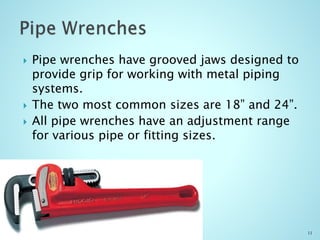

11.  Pipe wrenches have grooved jaws designed to
provide grip for working with metal piping
systems.
 The two most common sizes are 18” and 24”.
 All pipe wrenches have an adjustment range
for various pipe or fitting sizes.
11

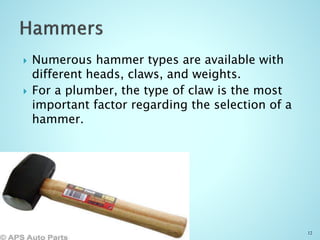

12.  Numerous hammer types are available with
different heads, claws, and weights.
 For a plumber, the type of claw is the most
important factor regarding the selection of a
hammer.
12

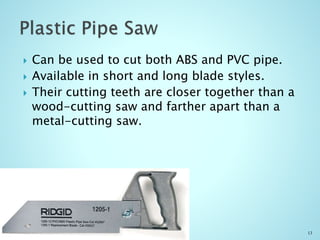

13.  Can be used to cut both ABS and PVC pipe.
 Available in short and long blade styles.
 Their cutting teeth are closer together than a
wood-cutting saw and farther apart than a
metal-cutting saw.
13

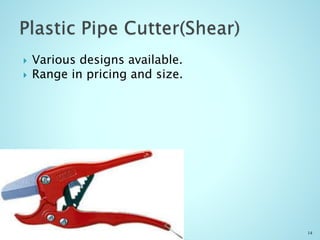

14.  Various designs available.
 Range in pricing and size.
14

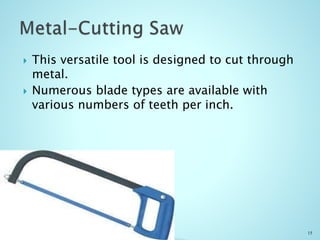

15.  This versatile tool is designed to cut through
metal.
 Numerous blade types are available with
various numbers of teeth per inch.
15

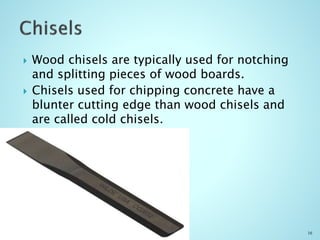

16.  Wood chisels are typically used for notching
and splitting pieces of wood boards.
 Chisels used for chipping concrete have a
blunter cutting edge than wood chisels and
are called cold chisels.
16

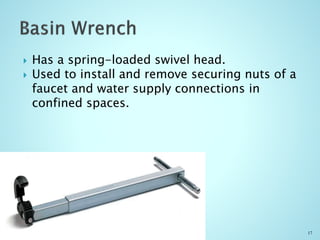

17.  Has a spring-loaded swivel head.
 Used to install and remove securing nuts of a
faucet and water supply connections in
confined spaces.
17

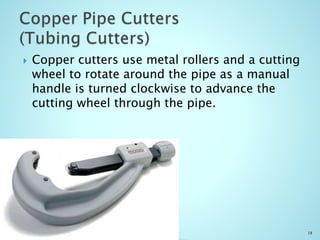

18.  Copper cutters use metal rollers and a cutting
wheel to rotate around the pipe as a manual
handle is turned clockwise to advance the
cutting wheel through the pipe.
18

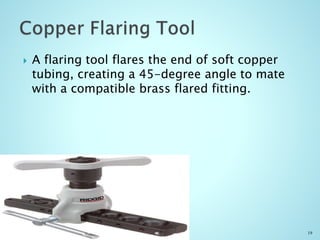

19.  A flaring tool flares the end of soft copper
tubing, creating a 45-degree angle to mate
with a compatible brass flared fitting.
19

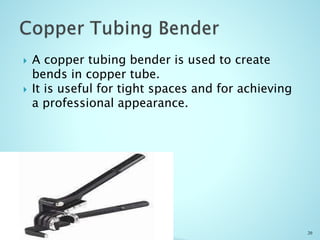

20.  A copper tubing bender is used to create
bends in copper tube.
 It is useful for tight spaces and for achieving
a professional appearance.
20

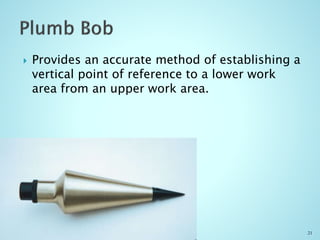

21.  Provides an accurate method of establishing a
vertical point of reference to a lower work
area from an upper work area.
21

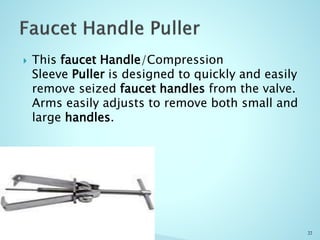

22.  This faucet Handle/Compression
Sleeve Puller is designed to quickly and easily
remove seized faucet handles from the valve.
Arms easily adjusts to remove both small and
large handles.
22

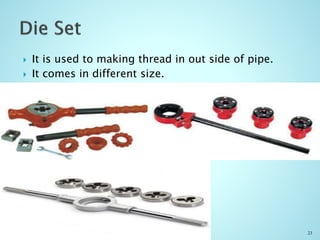

23.  It is used to making thread in out side of pipe.
 It comes in different size.
23

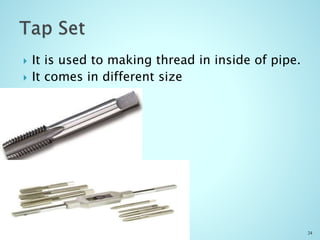

24.  It is used to making thread in inside of pipe.
 It comes in different size
24

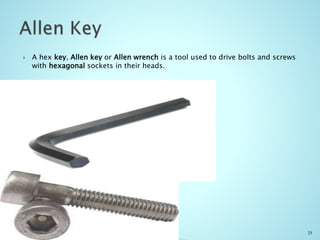

25.  A hex key, Allen key or Allen wrench is a tool used to drive bolts and screws
with hexagonal sockets in their heads.
25

26.  It is used for breaking up earth, digging
small holes, especially for planting and
weeding, mixing in fertilizer or other
additives, and transferring plants to pots.
26

27.  Mechanically operated.
 expensive than power tools
 Equally important in completing a task or
project.
 Most employers expect a plumber to have
basic machine tools when being considered
for employment.
27

28.  A drilling machine, called a drill press, is used to
cut holes into or through metal, wood, or other
materials. Drilling machines use a drilling tool that
has cutting edges at its point.
28

29.  Grinding machines are cutting tools, shearing small pieces of
material from the stock.
 Grinders and grinding machines use an abrasive that is
bonded to a wheel, belt or disc to remove material and
improve surface finish.
29

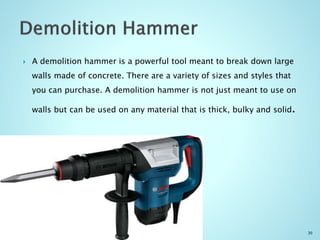

30.  A demolition hammer is a powerful tool meant to break down large
walls made of concrete. There are a variety of sizes and styles that
you can purchase. A demolition hammer is not just meant to use on
walls but can be used on any material that is thick, bulky and solid.
30

31.  Recommended personal protection
equipment:
◦ Eye protection
◦ Face protection
◦ Hand protection
◦ Knee protection
◦ Foot protection
◦ Inhalation protection
◦ First aid kit
◦ Head protection
31

32.  Hand tools are required to install various
aspects of a plumbing system.
 A plumber may be responsible for purchasing
hand tools.
 Specialty hand tools are required more for
repair than for new installation work.
 Everyone on a job site is responsible for
safety.
32
