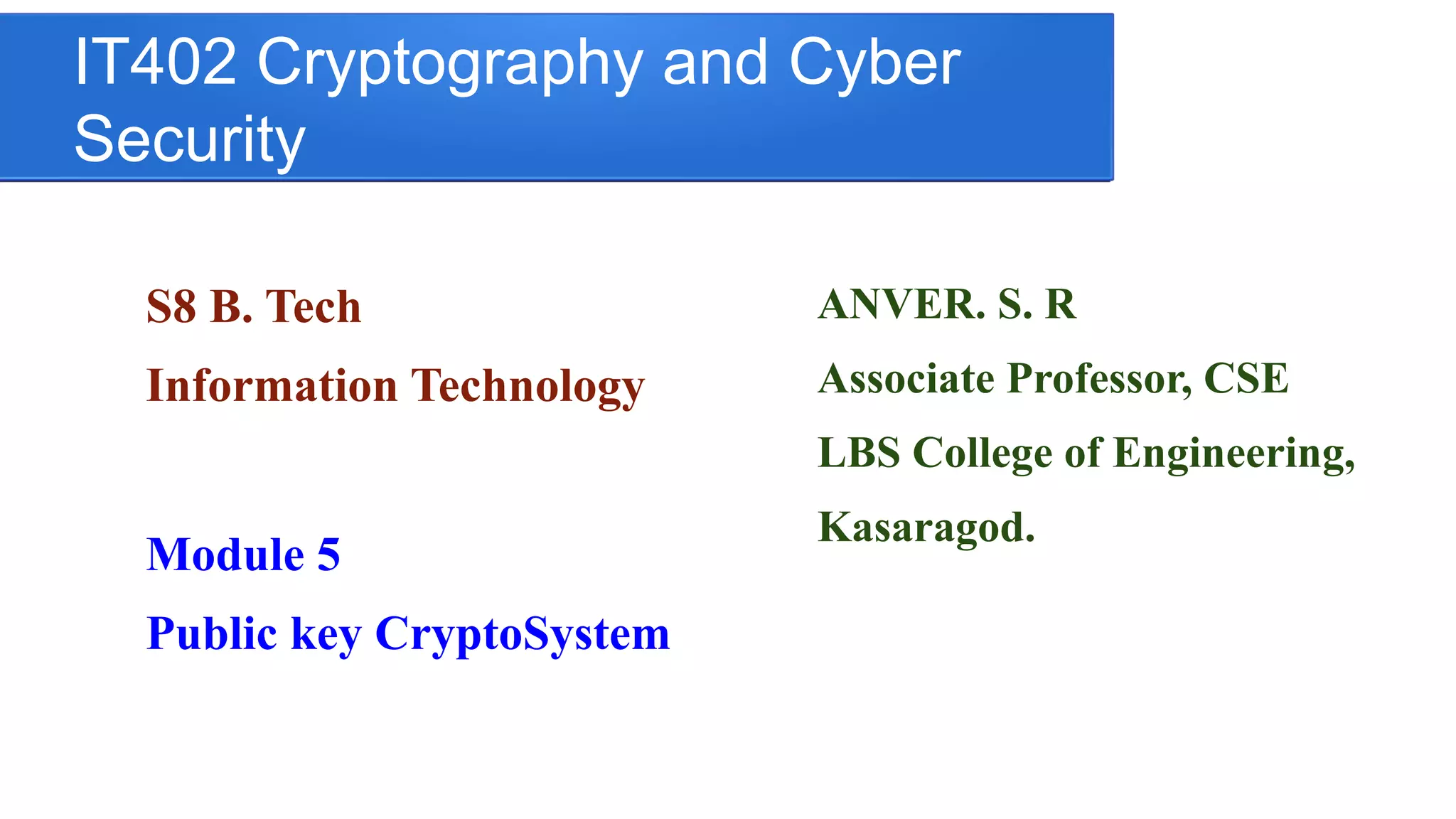

1. IT402 Cryptography and Cyber
Security
S8 B. Tech
Information Technology
ANVER. S. R
Associate Professor, CSE
LBS College of Engineering,
Kasaragod.
Module 5
Public key CryptoSystem
2. TYPES OF CRYPTOGRAPHY
● SYMMETRIC CRYPTOSYSTEM
− There is a secret(key), which is shared between
two persons.
− Encryption and Decryption are done using the
same key.
− If there are n participating entities, the number
of keys will be ??
− n(n-1)/2
− Based on substitution and permutation of
symbols.
− Made secure by providing confusion and
diffusion.
3. TYPES OF CRYPTOGRAPHY
● ASYMMETRIC CRYPTOSYSTEM
− There is a personal secret(private key),
which is not shared.
− Encryption and Decryption are done
using the different keys.
− For every private key, there is a
corresponding public key belonging to
each person.
− If there are n participating entities, the
number of keys will be ??
− 2n, n private keys and n public keys
4. Asymmetric Cryptosystem
● Based on applying
mathematical functions to
numbers.
● Its made secure by providing
mathematically hard problems.
● More secure from cryptanalysis
than symmetric cryptosystem.
● computationally infeasible to
find private key knowing only
algorithm & public key
● computationally easy to
en/decrypt messages when the
relevant (private/public) key
is known.
5. Public Key
Cryptosystem-Components
● Asymetric Keys
− Two related keys,
− a public key and a private key,
− used to perform complementary
operations,
− encryption and decryption or
− signature generation and
signature verification
● Public Key Certificate
− A digital document issued and
digitally signed by the private key of
a Certification authority that binds
the name of a subscriber to a public
key.
− The certificate indicates that the
subscriber identified in the
certificate has sole control and
− access to the corresponding private
key.
6. Public key Cryptography –
components.
● Public key cryptographic
algorithm:
− A cryptographic algorithm
that uses two related keys,
− a public key and a private
key
● Public key infrastructure (PKI)
− A set of policies, processes,
server platform, software and
workstations used for the
purpose of administrating
certificates and public-private
key pairs, including the ability to
issue, maintain, and revoke
public certificate.
7. Public key cryptosystem –
Ingrediants.
● Plaintext
− This is a readable message or
data that is fed into the
algorithm as the input
● Encryption algorithm
− The encryption algorithm
performs various
transformations on the plaintext
● Public and private keys
− this is a pair of keys that have been
selected so that if one is used for
encryption, the other is used for
decryption.
− The exact transformations
performed by the algorithm
depend on the public key and the
private key that is provided as
input.
8. PKC - Ingredients
● Cipher text
− this is the scrambled
message produced as
output.
● Decryption algorithm
− The algorithm that accepts the
cipher text and matching key
and produces the original plain
text.
9. PKC-The essential steps.
● Each user generates a pair of keys to be used for the encryption and decryption of
messages
● Each user places one of the two keys in public register or other accessible file. This is
public key. The other key is kept private. Each user maintains a collection of public keys
obtained from others
● If Bob wishes to send a confidential message to Alice, Bob encrypts the message using
Alice’s public key.
● When Alice receives the message, she decrypts it using her private key
● No other recipient can decrypt the message because only Alice knows her private key
10. Public key cryptography
● Public key cryptography –
authentication.
●
●
●
● Public key cryptography –
secrecy
12. PKC-Applications
● Applications are divided in three broad categories:
− Encryption/decryption – The sender encrypts the message with the
recipient’s public key.
− Digital Signature – The sender “signs” a message with its private key
− Key exchange – two sides cooperate toexchange a session key
13. Mathematics for public key
cryptosystem
● Euler’s Phi(Totient) function:
− Euler's totient function counts the
positive integers up to a given integer n
that are relatively prime to n. It is
denoted as ϕ(n)
− Zn* denoted the reduced residue mod n
system.
− ϕ(n) is the cardinality of Zn*
− Example n = 9
− Φ(1)=0, ϕ(p)=p-1.
● Fermat’s little Theorem.
− if p is a prime number, then for
any integer a,which is not
divisible by p,
● ap − 1
≡ 1 ( mod p )
● ap
≡ a ( mod p )
− Example:
● a = 2
● p = 7
14. Mathematics for Public key
cryptosystem.
● Euler’s Theorem
− Generalization of fermat’s
little theorem.
− In Fermat’s theorem, modulus
p, a prime number
− Here, n is an integer.
− aφ ( n )
≡ 1 ( mod n )
− ak*φ ( n )+1
≡ a ( mod n )
15. Asymmetric Cryptosystem – hard
problems
● Discrete logarithm problem
− Defined with regard to multiplicative
cyclic groups.
− h=gx
in G, then x is the discrete log of
h to the base g.
− Not always hard, hardness depends
on the groups.
− Zp
*
, p should be a safe prime, a
prime number which equals 2q+1
where q is a large prime number.
● Prime factorization problem
− Prime factorization is a way of
writing a composite number as
a product of prime numbers.
− Is easy if n is the product of
small primes.
− Is hard, if n is the product of
very large primes.
16. Asymmetric crypto system
● Function:
− A rule that associates (maps)
one element in set A to one
element in set B.
● Invertible function:
− A function that associates each
element in the range with
exactly one element in the
domain.
● One way function(OWF)
− Is a function that satisfies
● f is easy to compute,ie.If x is given, can
compute y = f(x)
● f-1
is difficult to compute, if y is given,
computationally infeasible to calculate
x.
− Example:
● Given p, q, n = p * q
● If given n, very difficult to compute p
and q
17. Asymmetric Cryprosystem
● Trapdoor function:
− Is a one way function with an
additional property.
− Given y and a trapdoor
(secret), x can be computed
easily.
● Example:
− Given x, k and n
− Easy to calculate
● y = xk
(mod n)
− Given y, k and n, difficult
− Given y, n and k’ such that
k*k’=1 (mod ϕ(n)), then
● x = yk’
(mod n)
18. RSA Algorithm
● Asymmetric key cryptographic algorithm
● The name RSA is given by taking the firstname of its inventors
Rivest-Shamir-Adleman.
● It uses prime numbers
− This algorithm is based on the fact that it is easy to find and multiply large prime numbers
together, but it is extremely difficult to factor their product
− The private and public keys in RSA are based on very large prime numbers
● The real challenge in RSA is the selection and generation of the public key and
private key
19. RSA Algorithm
1) Choose two prime numbers p and q
2) Calculate n = p * q
3) Calculate ϕ(n) as (p-1) * (q-1)
4) Select the public key e (i.e. Encryption key) such that it is relatively prime to ϕ(n)
5) Calculate the private key d (i.e. Decryption key) such that d is the multiplicative
inverse of e (mod ϕ(n))
6) Publish (n, e) as public key
7) Keep (p, q, d) as private key
20. RSA algorithm
● RSA Encryption(Sender Side)
● Alice
− Sender chooses the Plaintext P
− Public Key of recipient = (n, e)
− Ciphertext C = Pe
(mod n)
● RSA Decryption (Receiver
Side)
● Bob
− Receiver reciever the ciphertext
C encrypted using the public key
of recipient.
− Private key = d
− Plaintext P = Cd
(mod n)
21. RSA algorithm - Example
1) Choose two large prime numbers p and q,
1) let p = 7 and q = 17
2) Calculate n = p * q, n = 7 * 17 = 119
3) Calculate ϕ(n) as (p-1) * (q-1), ϕ(n) = 6 * 16 = 96.
4) Select the public key e (i.e. Encryption key) such that it is relatively prime to ϕ(n)=96
1) The factors of 96 are 2,2,2,2,2 and 3 ( because 96 = 2*2*2*2*2*3)
2) Thus we have to choose E such that none of the factors of E is 2 and 3
3) Lets choose E as 5
22. RSA Algorithm - Example
1. Calculate the private key d (i.e. Decryption key) such that d is the
multiplicative inverse of e (mod ϕ(n))
ie, (d * e) mod ϕ(n) = 1 We have (D * 5) mod (7-1) * (17-1) = 1
i.e. (d * 5) mod 96 = 1
We can use Extended Euclid algorithm to find the multiplicative inverse of 5 mod 96.
d=77, So that (77 * 5) mod (96) = 385 mod 96 = 1
2. Public key = ( 119, 5)
3. Private key is 77
23. RSA Algorithm - Example
● Encryption – Sender Side -
Alice
− P = 10
− Public key = (119, 5)
− C = 105
mod 119
− = 100000 mod 119
− = 40.
− Send C=40 to the receiver.
● Decryption – Receiver Side
− Cipher Text Received = 40
− Private key d = 77
− Plaintext P is calculated as
● P = 4077
mod 119
● = 10.
24. Proof of RSA
● The private key d is unique and d must be co-prime to ɸ (n)
● Proof :
− We have taken e such that e and ɸ (n) are co-prime.
− Therefore, there exists only one unique integer d, such that ed mod ɸ (n) = 1 .
− We have to prove d is unique
● Assume that d is not co-prime so t is the greatest common divisor of d and ɸ (n)
● Let d = c1* t and ɸ (n) = c2* t.
● From ed mod ɸ(n) = 1. We know ed = c3 * ɸ (n) + 1 for some integer c3 .
● Hence: e * c1* t = c3 *c2 * t + 1
● t(e * c1- c3 * c2)=1
− Therefore t=1.
● Hence it is proved that the private key d is unique and co-prime with ɸ (n) .
25. Proof of RSA
● Let C be the ciphertext recieved by Bob.
● Bob Computes the plaintext as P1.
● We have to prove that P1 = P
− Bob Computes P1 as P1 = Cd
(mod n)
− i.e. P1 = (Pe
)d
(mod n)
− = Ped
(mod n)
− ed = k * ɸ(n) + 1 (Since, ed (mod ɸ(n) = 1)
− P1 = Pk * ɸ(n) + 1
(mod n)
− = P mod n = P
− Hence Proved.
26. Attacking RSA
● Brute force attacks: try all possible private keys
− As in the other cases defend using large keys: nowadays integers between 1024 and
2048 bits
● Mathematical attacks
− Factor n into its two primes p,q: this is a hard problem for large n
− Determine φ(n) directly without first determining p,q: this math problem is
equivalent to factoring
− Determine d directly, without first determining φ(n): this is believed to be at least as
difficult as factoring
27. Attacking RSA
● Timing attacks:
− determine a private key by keeping track of how long a computer
takes to decipher a message (ciphertext-only attack) –this is
essentially an attack on the fast exponentiation algorithm but can be
adapted for any other algorithm
− Whenever a bit is 1 the algorithm has more computations to do and
takes more time
28. Timing Attack - Countermeasures
● Countermeasures:
− Ensure that all exponentiations take the same time before returning a result: degrade
performance of the algorithm
− Add some random delay: if there is not enough noise the attack succeeds
− Blinding: multiply the ciphertext by a randomnumber before performing exponentiation
–in this way the attacker does not know the input to the exponentiation algorithm.
● Choose r between 1 to n-1.
● C1 = C * re
mod n
● P1 = C1d
mod n
● P = P1 * r-1
mod n
