1. Pimp My App Shane Morris User Experience Evangelist Microsoft Australia For slides for this presentation: blogs.msdn.com/shanemo

2. Why am I here?

3. Developers own the user experience

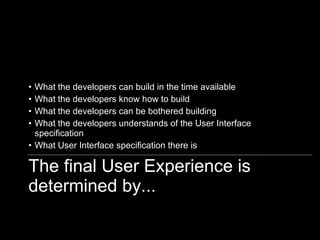

4. The final User Experience is determined by... What the developers can build in the time available What the developers know how to build What the developers can be bothered building What the developers understands of the User Interface specification What User Interface specification there is

5. So what I want to talk about is... What developers can do about UX

6. “ Pimp my App”? Changing the surface appearance and behaviour, without changing the underlying structure

7. User-Centred Design (Methodology) Contextual Inquiry Affinity Diagramming Usability Testing Personas Paper Prototyping Collaborative Design Heuristic Evaluation Wireframing Cognitive Walkthrough Activity Scenarios Focus Groups Card Sorting Cultural Probes Analytics

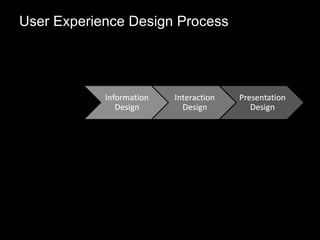

8. User Experience Design Process

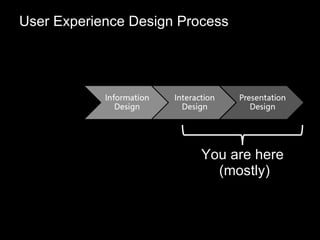

9. User Experience Design Process You are here (mostly)

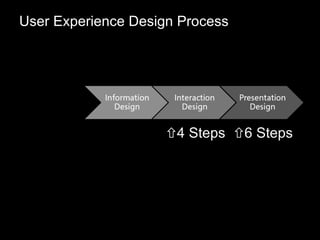

10. User Experience Design Process  4 Steps  6 Steps

11. Interaction Design for Developers http://jcooney.net/archive/2006/10/30/36235.aspx

12. Interaction Design for Developers

13. The Blank Canvas

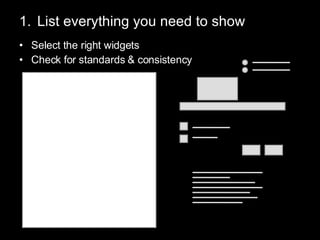

14. List everything you need to show Select the right widgets Check for standards & consistency

15. 1. List everything you need to show

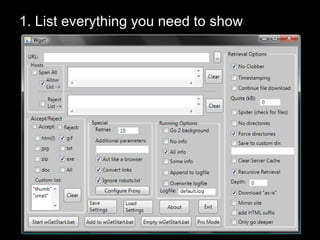

16. 1. List everything you need to show

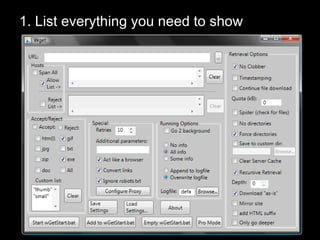

17. 1. List everything you need to show

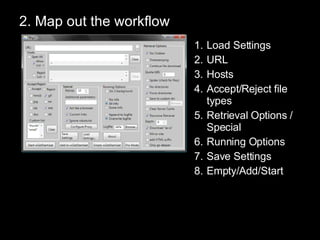

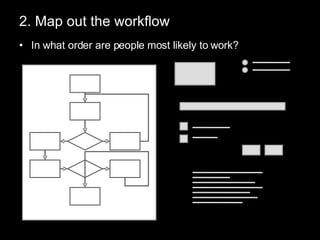

18. 2. Map out the workflow In what order are people most likely to work?

19. 2. Map out the workflow Load Settings URL Hosts Accept/Reject file types Retrieval Options / Special Running Options Save Settings Empty/Add/Start

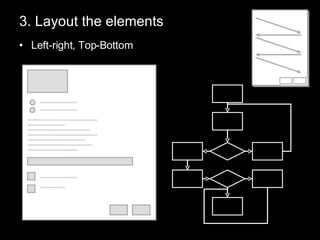

20. 3. Layout the elements Left-right, Top-Bottom

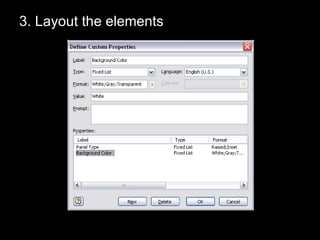

21. 3. Layout the elements

22. 3. Layout the elements 1 2 3 4 5 Last 2 nd last

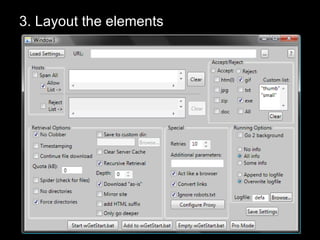

23. 3. Layout the elements

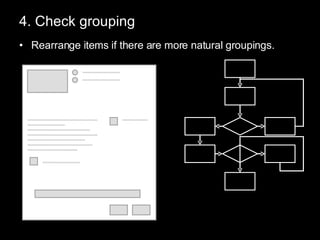

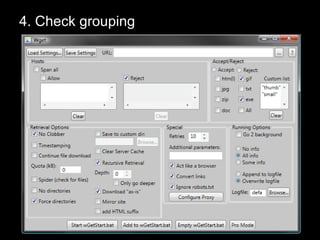

24. 4. Check grouping Rearrange items if there are more natural groupings.

25. 4. Check grouping

26. 4. Check grouping

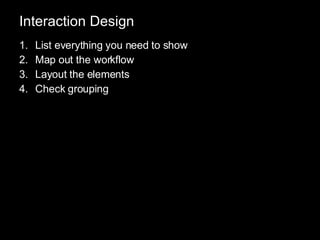

27. Interaction Design List everything you need to show Map out the workflow Layout the elements Check grouping

28. Presentation Design for Developers http://elephant-photos.com/images/elephant-painting-2.jpg

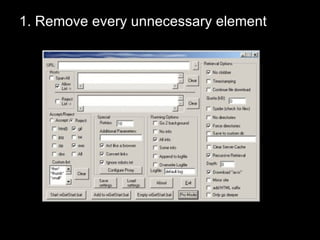

29. 1. Remove every unnecessary element

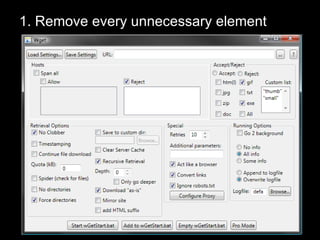

30. 1. Remove every unnecessary element

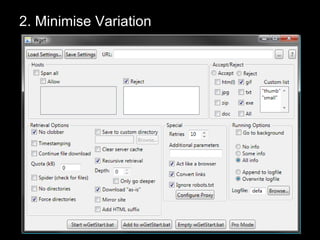

31. 2. Minimise Variation

32. 2. Minimise Variation

33. A little bit about colours and fonts Use as few different typefaces and sizes as possible How many different colours should I use?

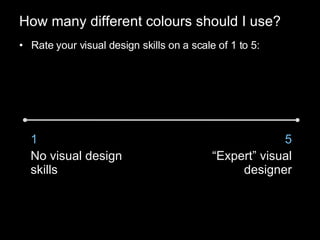

34. How many different colours should I use? Rate your visual design skills on a scale of 1 to 5: 1 No visual design skills 5 “ Expert” visual designer

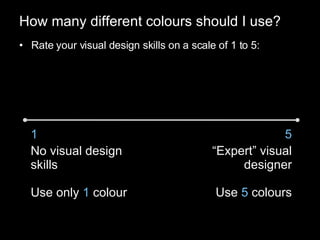

35. How many different colours should I use? Rate your visual design skills on a scale of 1 to 5: 1 No visual design skills Use only 1 colour 5 “ Expert” visual designer Use 5 colours

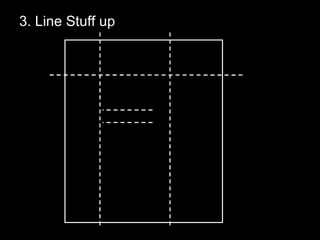

36. 3. Line Stuff up

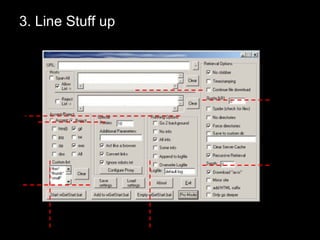

37. 3. Line Stuff up

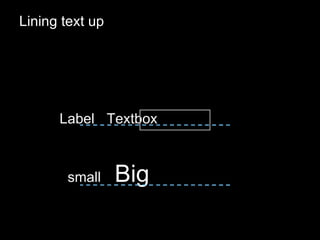

38. Lining text up Label Textbox small Big

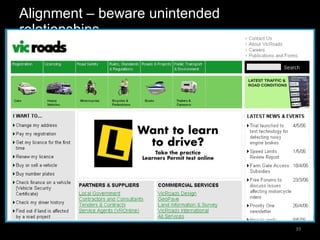

39. Alignment – beware unintended relationships

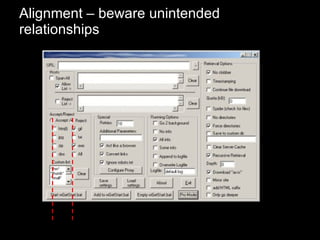

40. Alignment – beware unintended relationships

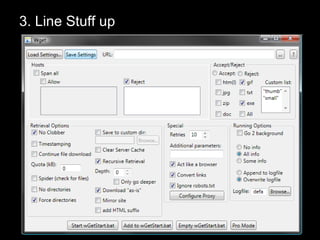

41. 3. Line Stuff up

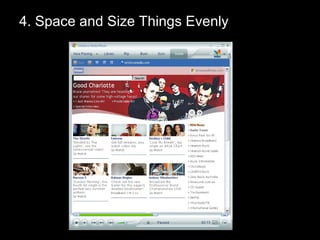

42. 4. Space and Size Things Evenly

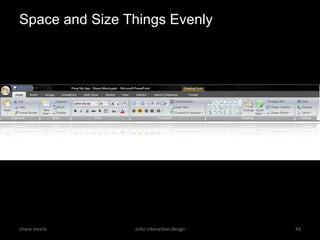

43. Space and Size Things Evenly shane morris echo interaction design

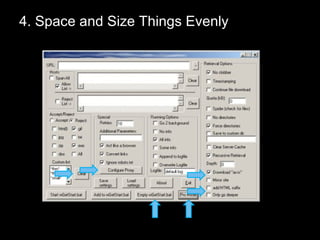

44. 4. Space and Size Things Evenly

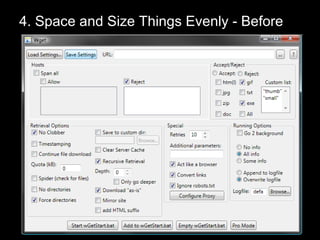

45. 4. Space and Size Things Evenly - Before

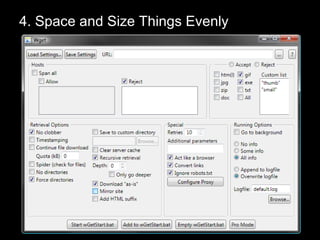

46. 4. Space and Size Things Evenly

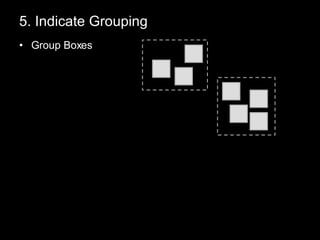

47. 5. Indicate Grouping Group Boxes

48. 5. Indicate Grouping Group Boxes Similarity

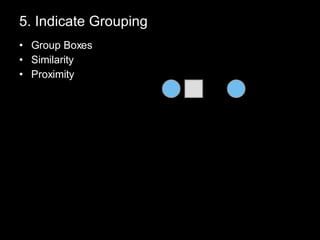

49. 5. Indicate Grouping Group Boxes Similarity Proximity

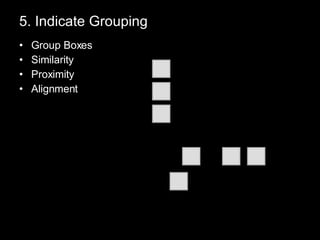

50. 5. Indicate Grouping Group Boxes Similarity Proximity Alignment

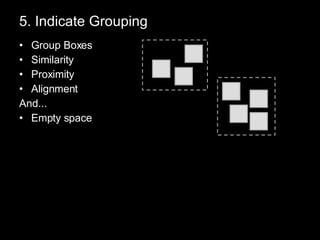

51. 5. Indicate Grouping Group Boxes Similarity Proximity Alignment And... Empty space

52. 5. Indicate Grouping

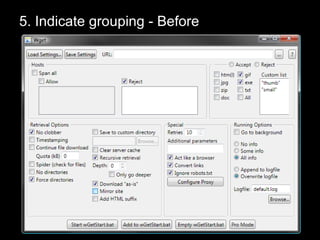

53. 5. Indicate grouping - Before

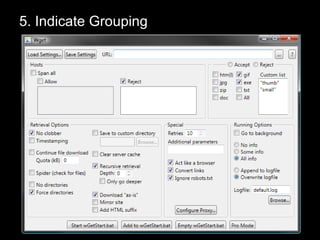

54. 5. Indicate Grouping

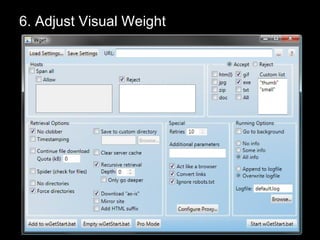

55. 6. Adjust Visual Weight

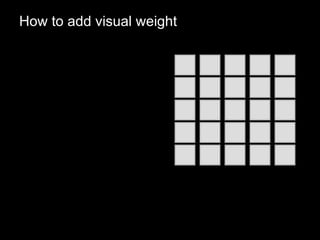

56. How to add visual weight

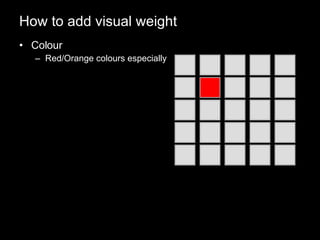

57. How to add visual weight Colour Red/Orange colours especially

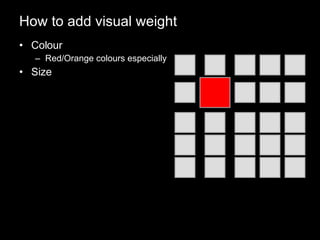

58. How to add visual weight Colour Red/Orange colours especially Size

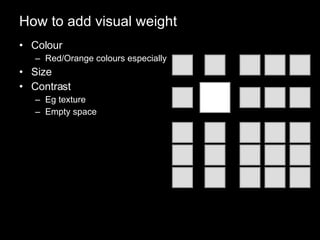

59. How to add visual weight Colour Red/Orange colours especially Size Contrast Eg texture Empty space

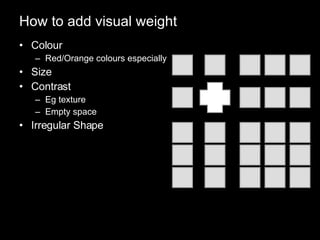

60. How to add visual weight Colour Red/Orange colours especially Size Contrast Eg texture Empty space Irregular Shape

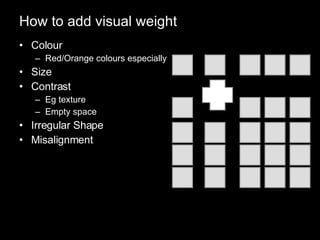

61. How to add visual weight Colour Red/Orange colours especially Size Contrast Eg texture Empty space Irregular Shape Misalignment

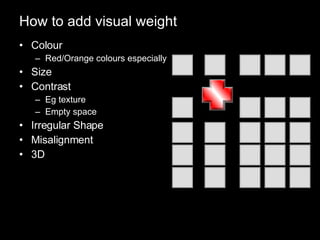

62. How to add visual weight Colour Red/Orange colours especially Size Contrast Eg texture Empty space Irregular Shape Misalignment 3D

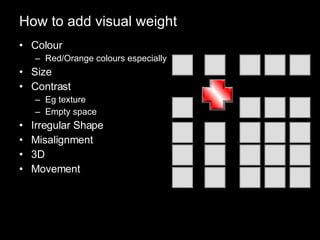

63. How to add visual weight Colour Red/Orange colours especially Size Contrast Eg texture Empty space Irregular Shape Misalignment 3D Movement

64. 6. Adjust Visual Weight

65. 6. Adjust Visual Weight

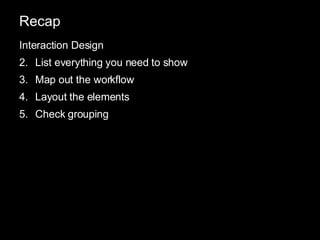

66. Recap Interaction Design List everything you need to show Map out the workflow Layout the elements Check grouping

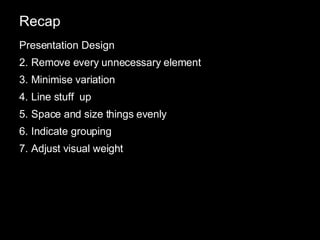

67. Recap Presentation Design Remove every unnecessary element Minimise variation Line stuff up Space and size things evenly Indicate grouping Adjust visual weight

68. Thank You Shane Morris [email_address] blogs.msdn.com/shanemo
