1. Permanent Anchorage Life Line Systems ( Horizontal / Vertical ) A Safe and Effective Solution……. For Problems of Anchorage

2. Safe Fall Protection can be achieved with following …. Full Body Harness Intermediary Connecting Element And very importantly…. Anchorage Device

3. Anchor Devices

4. Different Classes of Anchor Devices as per EN 795 EN 795 class A – Fixed Anchor Points EN 795 class B – Transportable Devices EN 795 class C – Flexible Horizontal Life Line EN 795 class D – Rigid Horizontal Life Line EN 795 class E – Dead Weight Roof Anchor

5. Components of PN 4000 Horizontal Life Line System Horizon PN 4000 Anchorage Line Block running over the Anchorage Line Block running over the Anchorage Line

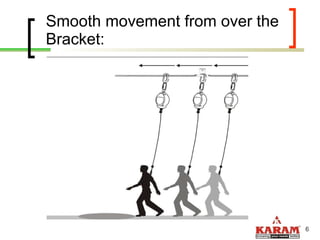

6. Smooth movement from over the Bracket:

7. While Choosing a Horizontal Anchorage Line…. The Challenges ahead Should be installed as a Permanent Anchorage Should be suitable for use in harsh conditions Should provide adequate coverage Act as anchorage for more than 1 personnel at a time Should have Trained and experienced Installers

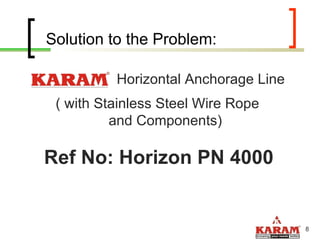

8. Solution to the Problem: Horizontal Anchorage Line ( with Stainless Steel Wire Rope and Components) Ref No: Horizon PN 4000

9. PN 4000- Conformity to Standards: It is tested and passes all the Clauses laid in European Norm EN 795, Class C Anchorage Systems standard.

10. Allows a maximum of 4 persons to work on the line simultaneously. PN 4000

11. Components:

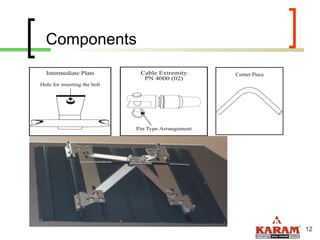

12. Components

14. KARAM has a team of Trained Technically sound personnel to Install the System at Site. Trainers to educate proper use of the system Service Team to inspect and Validate the system at required intervals PN 4000 After Sales Services

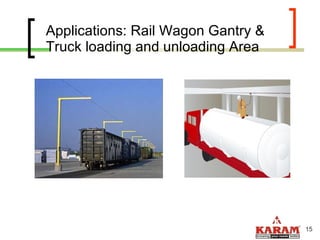

15. Applications: Rail Wagon Gantry & Truck loading and unloading Area

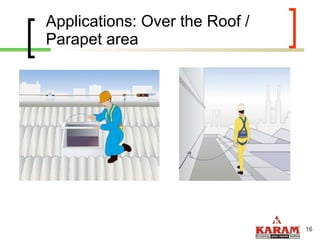

16. Applications: Over the Roof / Parapet area

17. Applications: Over the Roof

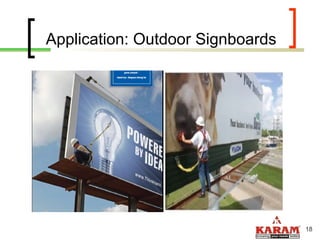

18. Application: Outdoor Signboards

19. Applications: EOT Cranes

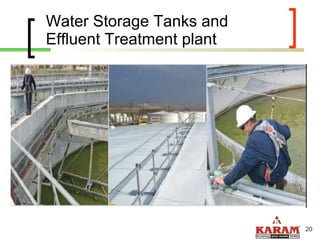

20. Water Storage Tanks and Effluent Treatment plant

21. Amusement Parks

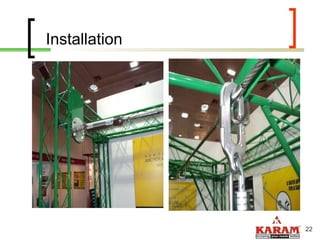

22. Installation

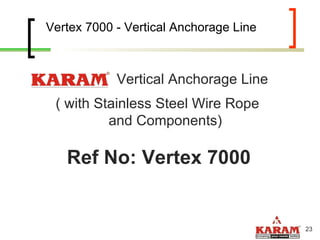

23. Vertical Anchorage Line Vertex 7000 - Vertical Anchorage Line ( with Stainless Steel Wire Rope and Components) Ref No: Vertex 7000

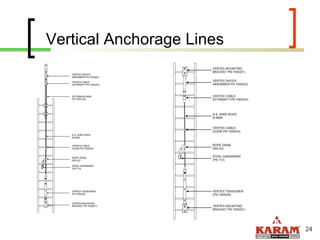

24. Vertical Anchorage Lines

25. Components of Vertex 7000 Rope Grab The Rope Grab RG 02 is the fall arrest device that slides through the cable while the user is ascending or descending and it locks automatically in case of a fall

26. Components Shock Absorber Shock Absorber absorbs the forces in the event of a fall. It is equipped with a fall indicator.

27. Components Mounting Brackets SS bracket for fixing the system on the top and bottom of ladder. It is made to fit all type of ladders. It can be fixed at the center, sides and also outside of the ladder .

28. Components Tensioner The Vertex Tensioner is installed at the lower point of the Vertical Life Line between the end of the wire rope cable and the lower mounting plate

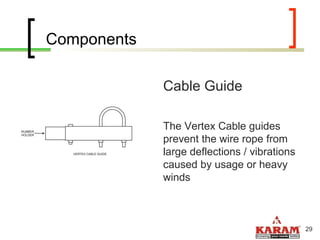

29. Components Cable Guide The Vertex Cable guides prevent the wire rope from large deflections / vibrations caused by usage or heavy winds

30. Components Cable Extremity Vertex Cable extremities provide strong end connections to the wire rope & completely eliminate the danger of any loose wire ropes which may cause injury to the user working on the line

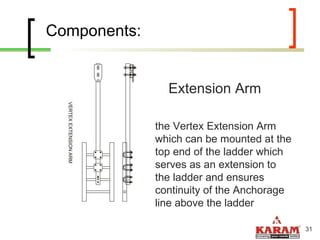

31. Components: Extension Arm the Vertex Extension Arm which can be mounted at the top end of the ladder which serves as an extension to the ladder and ensures continuity of the Anchorage line above the ladder

32. Thank you! Wish you a Safe Working….
