Performance Management of IT Service Processes Using a Mashup-based Approach

This thesis investigates the performance management of IT service processes through a mashup-based approach, aiming to enhance the efficiency and reliability of human-centered IT service management (ITSM) processes. It examines the causes of poor performance in ITSM, evaluates the effectiveness of mashups in addressing these issues, and introduces mashup patterns to mitigate inefficiencies and human errors. The study also includes a productivity and reliability assessment to quantify the improvements achieved through the implementation of mashup technologies.

Science◦
Related topics:
Performance Management•

Embed presentation

Downloaded 10 times
PERFORMANCE MANAGEMENT OF IT SERVICE PROCESSES USING A MASHUP-BASED APPROACH Carlos Raniery Paula dos Santos Supervisor: Lisandro Zambenedetti Granville Thesis defense – June13rd, 2013

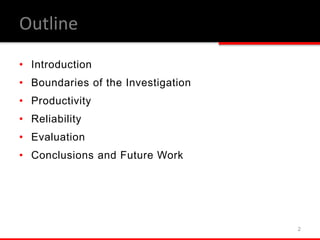

Outline • Introduction • Boundaries of the Investigation • Productivity • Reliability • Evaluation • Conclusions and Future Work 2
INTRODUCTION
• The increasing complexity and importance of IT environments have been leading researchers to pay more attention to the ITSM area • Several management frameworks have then been conceived to help IT service providers towards a coherent service management experience 1 4 INTRODUCTION CONTEXTUALIZATION

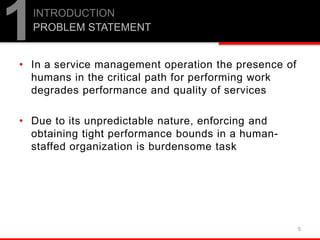

• In a service management operation the presence of humans in the critical path for performing work degrades performance and quality of services • Due to its unpredictable nature, enforcing and obtaining tight performance bounds in a human- staffed organization is burdensome task 5 1INTRODUCTION PROBLEM STATEMENT
• Automation of IT operations has been of attention for the last two decades – Ideally, a system should be self-managed without any human intervention • May not be feasible in some cases because of additional effort to deploy and maintain the automation infrastructure – Specially when processes are constantly changing, are too complex to be automated, or have a limited lifetime 6 1INTRODUCTION CURRENT SOLUTIONS
• Mashups are Web applications composed from pre- existing Web resources (e.g., interactive maps, Web services, traditional HTML pages) • Mashups can be composed by users with limited or no programming skills, to create their own Web applications – Basic operators are employed to hide, from mashup end- users, technical details from the composition 7 1INTRODUCTION MASHUPS

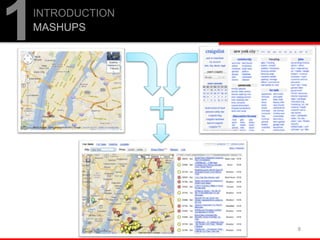

8 1INTRODUCTION MASHUPS

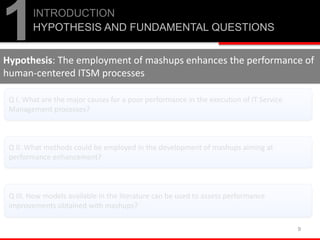

9 Q I. What are the major causes for a poor performance in the execution of IT Service Management processes? Hypothesis: The employment of mashups enhances the performance of human-centered ITSM processes 1INTRODUCTION HYPOTHESIS AND FUNDAMENTAL QUESTIONS Q II. What methods could be employed in the development of mashups aiming at performance enhancement? Q III. How models available in the literature can be used to assess performance improvements obtained with mashups?

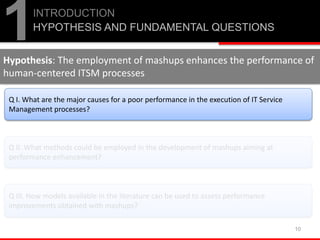

10 Q I. What are the major causes for a poor performance in the execution of IT Service Management processes? Hypothesis: The employment of mashups enhances the performance of human-centered ITSM processes 1INTRODUCTION HYPOTHESIS AND FUNDAMENTAL QUESTIONS Q II. What methods could be employed in the development of mashups aiming at performance enhancement? Q III. How models available in the literature can be used to assess performance improvements obtained with mashups?

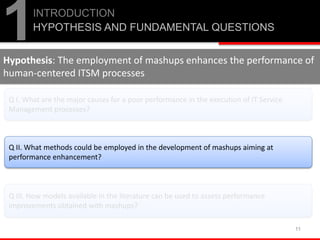

11 Hypothesis: The employment of mashups enhances the performance of human-centered ITSM processes 1INTRODUCTION HYPOTHESIS AND FUNDAMENTAL QUESTIONS Q I. What are the major causes for a poor performance in the execution of IT Service Management processes? Q II. What methods could be employed in the development of mashups aiming at performance enhancement? Q III. How models available in the literature can be used to assess performance improvements obtained with mashups?
12 Hypothesis: The employment of mashups enhances the performance of human-centered ITSM processes 1INTRODUCTION HYPOTHESIS AND FUNDAMENTAL QUESTIONS Q III. How models available in the literature can be used to assess performance improvements obtained with mashups? Q II. What methods could be employed in the development of mashups aiming at performance enhancement? Q I. What are the major causes for a poor performance in the execution of IT Service Management processes?
13 BOUNDARIES OF THE INVESTIGATION

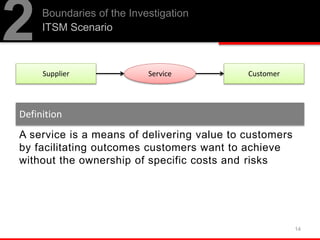

A service is a means of delivering value to customers by facilitating outcomes customers want to achieve without the ownership of specific costs and risks Boundaries of the Investigation ITSM Scenario 2 14 Supplier CustomerService Definition

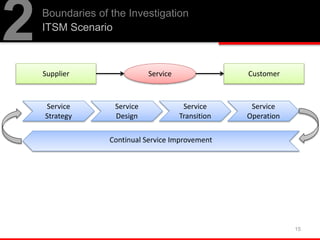

Boundaries of the Investigation ITSM Scenario 2 15 Supplier CustomerService Service Strategy Service Design Service Transition Service Operation

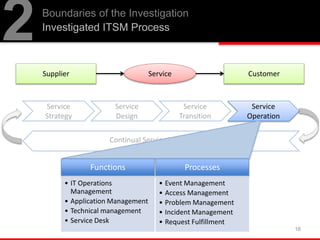

Boundaries of the Investigation Investigated ITSM Process 2 16 Supplier CustomerService Service Strategy Service Design Service Transition Service Operation Functions • IT Operations Management • Application Management • Technical management • Service Desk Processes • Event Management • Access Management • Problem Management • Incident Management • Request Fulfillment

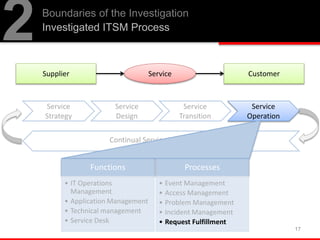

Boundaries of the Investigation Investigated ITSM Process 2 17 Supplier CustomerService Service Strategy Service Design Service Transition Service Operation Functions • IT Operations Management • Application Management • Technical management • Service Desk Processes • Event Management • Access Management • Problem Management • Incident Management • Request Fulfillment
Boundaries of the Investigation Investigated ITSM Process 2 18 Supplier CustomerService Service Strategy Service Design Service Transition Service Operation Request Fulfillment Dispatcher System Administrators Requests

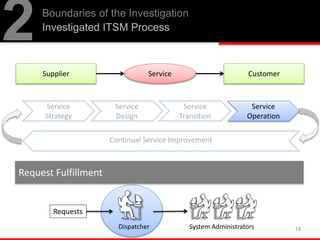

Boundaries of the Investigation Investigated ITSM Process 2 19 Supplier CustomerService Service Strategy Service Design Service Transition Service Operation Request Fulfillment Dispatcher System Administrators Requests
• Human behavior and performance are difficult to model, and consequently, to optimize • Even if the nature of work is exactly the same, a human may execute it in a different way each time – Interrupted by external factors – Usually employ different systems – Execute multiple and complex tasks – May be overloaded Boundaries of the Investigation Performance 2 20

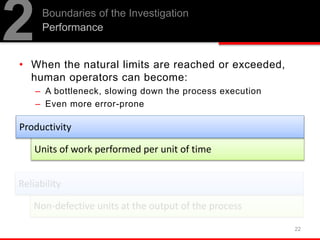

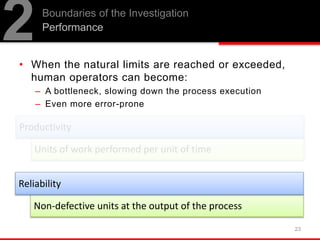

• When the natural limits are reached or exceeded, human operators can become: – A bottleneck, slowing down the process execution – Even more error-prone Boundaries of the Investigation Performance 2 21 Units of work performed per unit of time Productivity Non-defective units at the output of the process Reliability
• When the natural limits are reached or exceeded, human operators can become: – A bottleneck, slowing down the process execution – Even more error-prone Boundaries of the Investigation Performance 2 22 Units of work performed per unit of time Productivity Non-defective units at the output of the process Reliability
• When the natural limits are reached or exceeded, human operators can become: – A bottleneck, slowing down the process execution – Even more error-prone Boundaries of the Investigation Performance 2 23 Units of work performed per unit of time Productivity Non-defective units at the output of the process Reliability

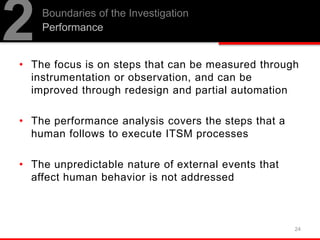

• The focus is on steps that can be measured through instrumentation or observation, and can be improved through redesign and partial automation • The performance analysis covers the steps that a human follows to execute ITSM processes • The unpredictable nature of external events that affect human behavior is not addressed Boundaries of the Investigation Performance 2 24

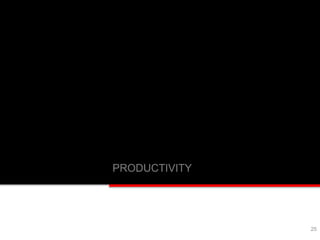

25 PRODUCTIVITY

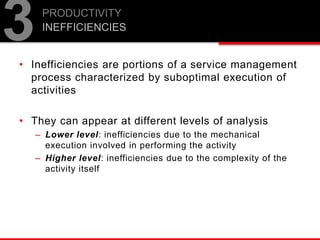

• Inefficiencies are portions of a service management process characterized by suboptimal execution of activities • They can appear at different levels of analysis – Lower level: inefficiencies due to the mechanical execution involved in performing the activity – Higher level: inefficiencies due to the complexity of the activity itself PRODUCTIVITY INEFFICIENCIES 3

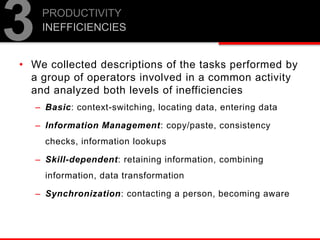

• We collected descriptions of the tasks performed by a group of operators involved in a common activity and analyzed both levels of inefficiencies – Basic: context-switching, locating data, entering data – Information Management: copy/paste, consistency checks, information lookups – Skill-dependent: retaining information, combining information, data transformation – Synchronization: contacting a person, becoming aware PRODUCTIVITY INEFFICIENCIES 3
• These inefficiencies can be tackled by the adoption of mashups and, more specifically, by using Mashup Patterns • Mashup Patterns are general reusable solutions to a commonly occurring problem, which: – Provide tested and proven development improvements – Allow mashups to be developed quickly PRODUCTIVITY MASHUPS 3

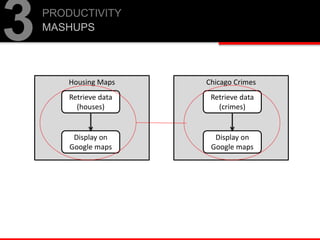

PRODUCTIVITY MASHUPS 3 Housing Maps Chicago Crimes Retrieve data (houses) Retrieve data (crimes) Display on Google maps Display on Google maps

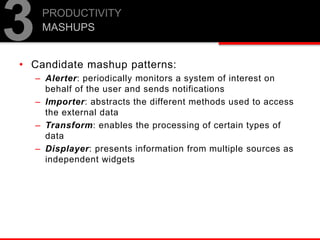

PRODUCTIVITY MASHUPS 3• Candidate mashup patterns: – Alerter: periodically monitors a system of interest on behalf of the user and sends notifications – Importer: abstracts the different methods used to access the external data – Transform: enables the processing of certain types of data – Displayer: presents information from multiple sources as independent widgets

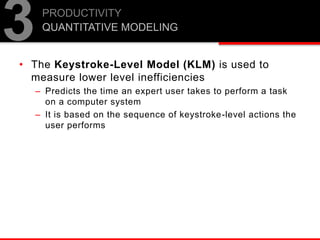

• The Keystroke-Level Model (KLM) is used to measure lower level inefficiencies – Predicts the time an expert user takes to perform a task on a computer system – It is based on the sequence of keystroke-level actions the user performs PRODUCTIVITY QUANTITATIVE MODELING 3

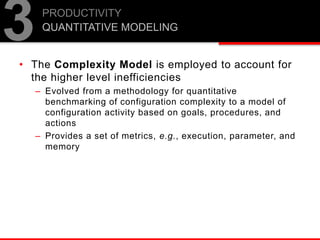

• The Complexity Model is employed to account for the higher level inefficiencies – Evolved from a methodology for quantitative benchmarking of configuration complexity to a model of configuration activity based on goals, procedures, and actions – Provides a set of metrics, e.g., execution, parameter, and memory PRODUCTIVITY QUANTITATIVE MODELING 3

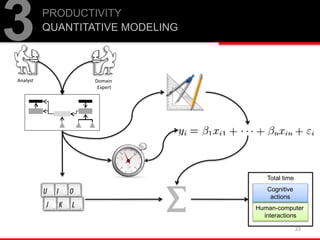

33 PRODUCTIVITY QUANTITATIVE MODELING 3 Total time Human-computer interactions Cognitive actions Analyst Domain Expert
34 RELIABILITY

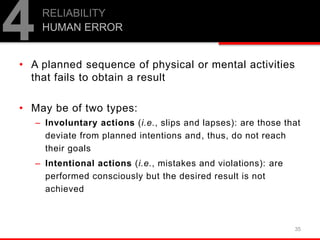

• A planned sequence of physical or mental activities that fails to obtain a result • May be of two types: – Involuntary actions (i.e., slips and lapses): are those that deviate from planned intentions and, thus, do not reach their goals – Intentional actions (i.e., mistakes and violations): are performed consciously but the desired result is not achieved 35 RELIABILITY HUMAN ERROR 4

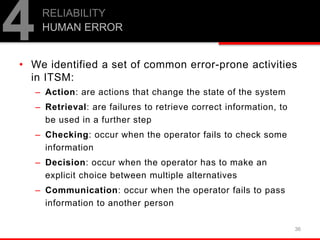

• We identified a set of common error-prone activities in ITSM: – Action: are actions that change the state of the system – Retrieval: are failures to retrieve correct information, to be used in a further step – Checking: occur when the operator fails to check some information – Decision: occur when the operator has to make an explicit choice between multiple alternatives – Communication: occur when the operator fails to pass information to another person 36 RELIABILITY HUMAN ERROR 4

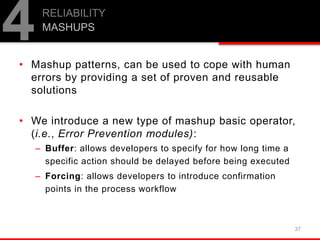

• Mashup patterns, can be used to cope with human errors by providing a set of proven and reusable solutions • We introduce a new type of mashup basic operator, (i.e., Error Prevention modules): – Buffer: allows developers to specify for how long time a specific action should be delayed before being executed – Forcing: allows developers to introduce confirmation points in the process workflow 37 RELIABILITY MASHUPS 4
• HEART is a technique used to quantify human reliability of specific tasks – It is considered the most comprehensive method in the field of Human Reliability Assessment – Specifies the factors that can affect human performance, thus making it less reliable (e.g., distractions, overload) – We employed Linguistic Variables to represent the Assessed Proportion of Affect • Event Tree Analysis is used to determine the probability of failure in a sequence of events 38 RELIABILITY QUANTITATIVE MODELING 4

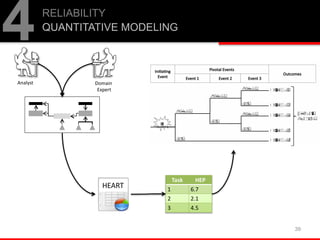

39 RELIABILITY QUANTITATIVE MODELING 4 Analyst Domain Expert Task HEP 1 6.7 2 2.1 3 4.5 !"##$%%& !"##$%%& ' "(#)*$&+& ' "(#)*$&,& ' "(#)*$&-& ' "(#)*$&.&/012& /012& /012& /012& !"##$%%& !"##$%%& ' "(#)*$&3& 4##15 $6 (& !#$6 071)%& HEART
40 EVALUATION

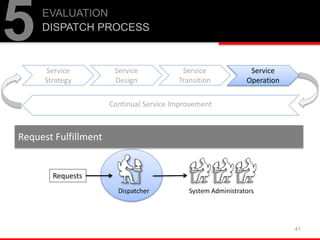

41 EVALUATION DISPATCH PROCESS 5 Service Strategy Service Design Service Transition Service Operation Request Fulfillment Dispatcher System Administrators Requests

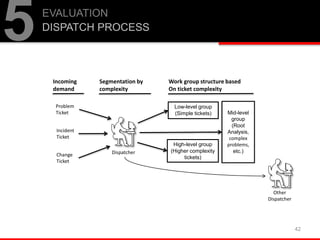

42 Problem Ticket Incident Ticket Change Ticket Low-level group (Simple tickets) High-level group (Higher complexity tickets) Mid-level group (Root Analysis, complex problems, etc.) Incoming demand Segmentation by complexity Work group structure based On ticket complexity Dispatcher Other Dispatcher EVALUATION DISPATCH PROCESS 5

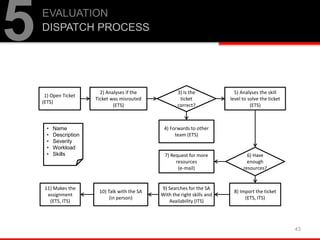

43 EVALUATION DISPATCH PROCESS 5 1) Open Ticket (ETS) 2) Analyses if the Ticket was misrouted (ETS) 4) Forwards to other team (ETS) 5) Analyses the skill level to solve the ticket (ETS) 7) Request for more resources (e-mail) 8) Import the ticket (ETS, ITS) 9) Searches for the SA With the right skills and Availability (ITS) 10) Talk with the SA (in person) 11) Makes the assignment (ETS, ITS) 3) Is the ticket correct? 6) Have enough resources? • Name • Description • Severity • Workload • Skills

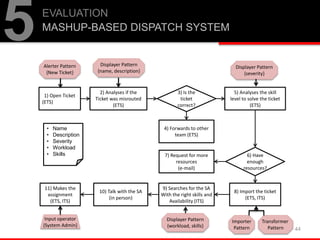

44 EVALUATION MASHUP-BASED DISPATCH SYSTEM 5 1) Open Ticket (ETS) 2) Analyses if the Ticket was misrouted (ETS) 4) Forwards to other team (ETS) 5) Analyses the skill level to solve the ticket (ETS) 7) Request for more resources (e-mail) 8) Import the ticket (ETS, ITS) 9) Searches for the SA With the right skills and Availability (ITS) 10) Talk with the SA (in person) 11) Makes the assignment (ETS, ITS) 3) Is the ticket correct? 6) Have enough resources? • Name • Description • Severity • Workload • Skills Alerter Pattern {New Ticket} Displayer Pattern {name, description} Displayer Pattern {severity} Displayer Pattern {workload, skills} Importer Pattern Transformer Pattern Input operator {System Admin}

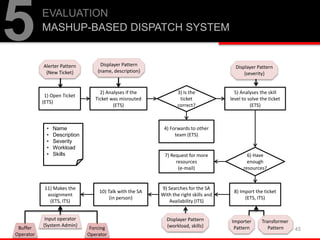

45 EVALUATION MASHUP-BASED DISPATCH SYSTEM 5 1) Open Ticket (ETS) 2) Analyses if the Ticket was misrouted (ETS) 4) Forwards to other team (ETS) 5) Analyses the skill level to solve the ticket (ETS) 7) Request for more resources (e-mail) 8) Import the ticket (ETS, ITS) 9) Searches for the SA With the right skills and Availability (ITS) 10) Talk with the SA (in person) 11) Makes the assignment (ETS, ITS) 3) Is the ticket correct? 6) Have enough resources? • Name • Description • Severity • Workload • Skills Alerter Pattern {New Ticket} Displayer Pattern {name, description} Displayer Pattern {severity} Input operator {System Admin} Displayer Pattern {workload, skills} Importer Pattern Transformer PatternBuffer Operator Forcing Operator

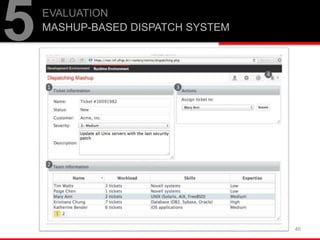

46 EVALUATION MASHUP-BASED DISPATCH SYSTEM 5

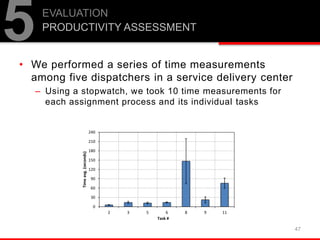

• We performed a series of time measurements among five dispatchers in a service delivery center – Using a stopwatch, we took 10 time measurements for each assignment process and its individual tasks 47 EVALUATION PRODUCTIVITY ASSESSMENT 5 0 30 60 90 120 150 180 210 240 2 3 5 6 8 9 11 Timeavg.(seconds) Task #

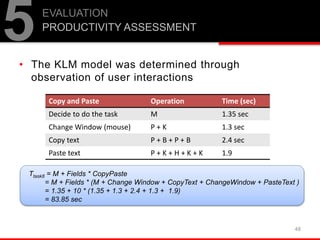

• The KLM model was determined through observation of user interactions 48 5EVALUATION PRODUCTIVITY ASSESSMENT Copy and Paste Operation Time (sec) Decide to do the task M 1.35 sec Change Window (mouse) P + K 1.3 sec Copy text P + B + P + B 2.4 sec Paste text P + K + H + K + K 1.9 Ttask8 = M + Fields * CopyPaste = M + Fields * (M + Change Window + CopyText + ChangeWindow + PasteText ) = 1.35 + 10 * (1.35 + 1.3 + 2.4 + 1.3 + 1.9) = 83.85 sec

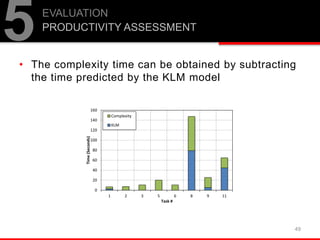

49 5EVALUATION PRODUCTIVITY ASSESSMENT • The complexity time can be obtained by subtracting the time predicted by the KLM model 0 20 40 60 80 100 120 140 160 1 2 3 5 6 8 9 11 Time(Seconds) Task # Complexity KLM
• By interviewing dispatchers, it was possible to determine values for all the memory and decision metrics 50 EVALUATION PRODUCTIVITY ASSESSMENT 5 0 2 4 6 8 10 12 1 2 3 5 6 8 9 11 Complexuty Task # Decision Memory Size Memory Latency Memory Depth

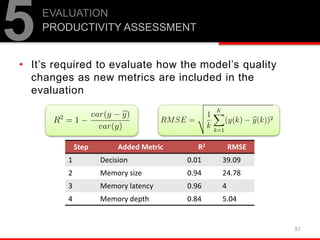

51 5EVALUATION PRODUCTIVITY ASSESSMENT • It’s required to evaluate how the model’s quality changes as new metrics are included in the evaluation Step Added Metric R2 RMSE 1 Decision 0.01 39.09 2 Memory size 0.94 24.78 3 Memory latency 0.96 4 4 Memory depth 0.84 5.04

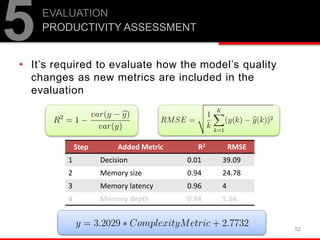

52 5EVALUATION PRODUCTIVITY ASSESSMENT Step Added Metric R2 RMSE 1 Decision 0.01 39.09 2 Memory size 0.94 24.78 3 Memory latency 0.96 4 4 Memory depth 0.84 5.04 • It’s required to evaluate how the model’s quality changes as new metrics are included in the evaluation

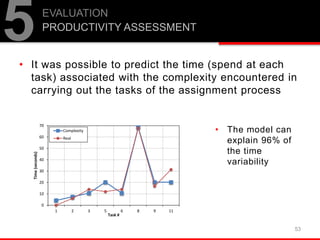

53 5EVALUATION PRODUCTIVITY ASSESSMENT • It was possible to predict the time (spend at each task) associated with the complexity encountered in carrying out the tasks of the assignment process • The model can explain 96% of the time variability 0 10 20 30 40 50 60 70 1 2 3 5 6 8 9 11 Time(seconds) Task # Complexity Real

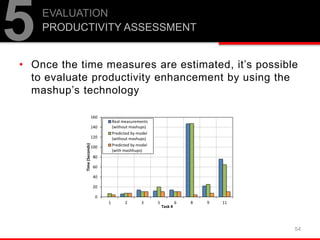

54 • Once the time measures are estimated, it’s possible to evaluate productivity enhancement by using the mashup’s technology 5EVALUATION PRODUCTIVITY ASSESSMENT 0 20 40 60 80 100 120 140 160 1 2 3 5 6 8 9 11 Time(Seconds) Task # Real measurements (without mashups) Predicted by model (without mashups) Predicted by model (with mashhups)

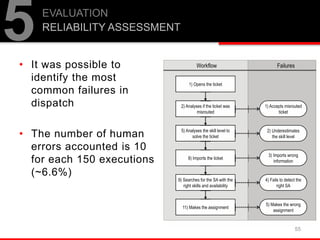

55 • It was possible to identify the most common failures in dispatch • The number of human errors accounted is 10 for each 150 executions (~6.6%) 5EVALUATION RELIABILITY ASSESSMENT

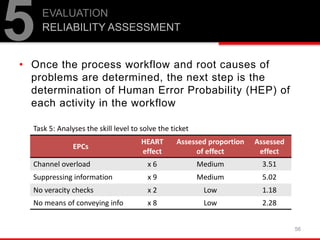

56 5EVALUATION RELIABILITY ASSESSMENT EPCs HEART effect Assessed proportion of effect Assessed effect Channel overload x 6 Medium 3.51 Suppressing information x 9 Medium 5.02 No veracity checks x 2 Low 1.18 No means of conveying info x 8 Low 2.28 • Once the process workflow and root causes of problems are determined, the next step is the determination of Human Error Probability (HEP) of each activity in the workflow Task 5: Analyses the skill level to solve the ticket

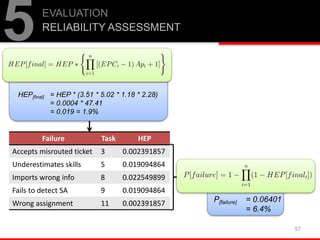

5EVALUATION RELIABILITY ASSESSMENT HEP[final] = HEP * (3.51 * 5.02 * 1.18 * 2.28) = 0.0004 * 47.41 = 0.019 = 1.9% Failure Task HEP Accepts misrouted ticket 3 0.002391857 Underestimates skills 5 0.019094864 Imports wrong info 8 0.022549899 Fails to detect SA 9 0.019094864 Wrong assignment 11 0.002391857 P[failure] = 0.06401 = 6.4% 57

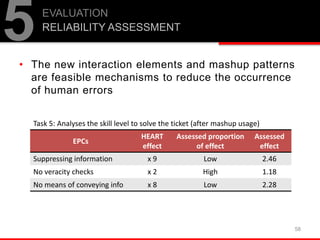

58 • The new interaction elements and mashup patterns are feasible mechanisms to reduce the occurrence of human errors 5EVALUATION RELIABILITY ASSESSMENT EPCs HEART effect Assessed proportion of effect Assessed effect Suppressing information x 9 Low 2.46 No veracity checks x 2 High 1.18 No means of conveying info x 8 Low 2.28 Task 5: Analyses the skill level to solve the ticket (after mashup usage)

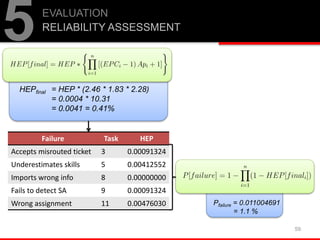

59 5EVALUATION RELIABILITY ASSESSMENT Failure Task HEP Accepts misrouted ticket 3 0.00091324 Underestimates skills 5 0.00412552 Imports wrong info 8 0.00000000 Fails to detect SA 9 0.00091324 Wrong assignment 11 0.00476030 HEPfinal = HEP * (2.46 * 1.83 * 2.28) = 0.0004 * 10.31 = 0.0041 = 0.41% Pfailure = 0.011004691 = 1.1 %

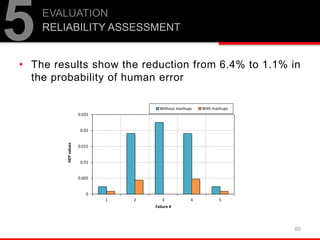

60 • The results show the reduction from 6.4% to 1.1% in the probability of human error 5EVALUATION RELIABILITY ASSESSMENT 0 0.005 0.01 0.015 0.02 0.025 1 2 3 4 5 HEPvalues Failure # Without mashups With mashups

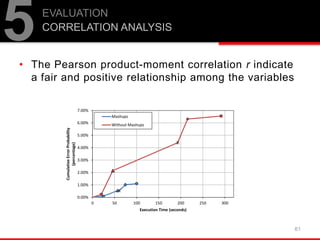

• The Pearson product-moment correlation r indicate a fair and positive relationship among the variables 61 5EVALUATION CORRELATION ANALYSIS 0.00% 1.00% 2.00% 3.00% 4.00% 5.00% 6.00% 7.00% 0 50 100 150 200 250 300 CumulativeErrorProbability (percentage) Execution Time (seconds) Mashups Without Mashups
62 CONCLUSIONS AND FUTURE WORK

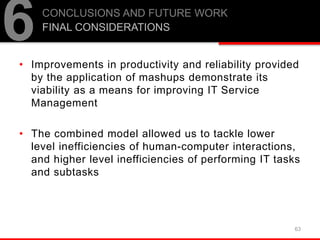

• Improvements in productivity and reliability provided by the application of mashups demonstrate its viability as a means for improving IT Service Management • The combined model allowed us to tackle lower level inefficiencies of human-computer interactions, and higher level inefficiencies of performing IT tasks and subtasks 63 6CONCLUSIONS AND FUTURE WORK FINAL CONSIDERATIONS

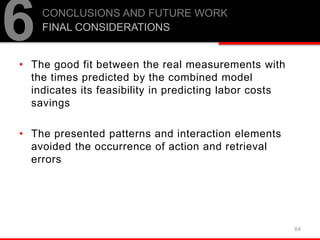

• The good fit between the real measurements with the times predicted by the combined model indicates its feasibility in predicting labor costs savings • The presented patterns and interaction elements avoided the occurrence of action and retrieval errors 64 6CONCLUSIONS AND FUTURE WORK FINAL CONSIDERATIONS

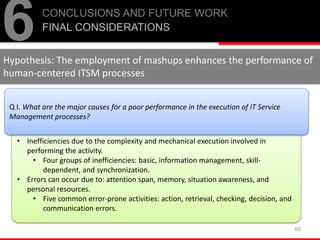

• Inefficiencies due to the complexity and mechanical execution involved in performing the activity. • Four groups of inefficiencies: basic, information management, skill- dependent, and synchronization. • Errors can occur due to: attention span, memory, situation awareness, and personal resources. • Five common error-prone activities: action, retrieval, checking, decision, and communication errors. 65 6CONCLUSIONS AND FUTURE WORK FINAL CONSIDERATIONS Q I. What are the major causes for a poor performance in the execution of IT Service Management processes? Hypothesis: The employment of mashups enhances the performance of human-centered ITSM processes

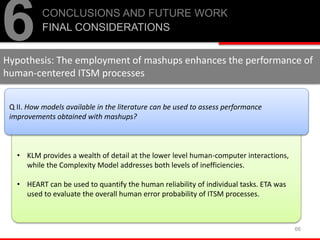

• KLM provides a wealth of detail at the lower level human-computer interactions, while the Complexity Model addresses both levels of inefficiencies. • HEART can be used to quantify the human reliability of individual tasks. ETA was used to evaluate the overall human error probability of ITSM processes. 66 6CONCLUSIONS AND FUTURE WORK FINAL CONSIDERATIONS Q II. How models available in the literature can be used to assess performance improvements obtained with mashups? Hypothesis: The employment of mashups enhances the performance of human-centered ITSM processes

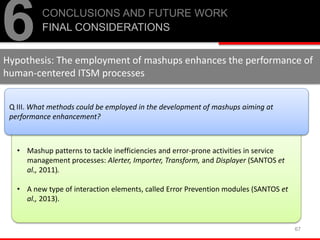

• Mashup patterns to tackle inefficiencies and error-prone activities in service management processes: Alerter, Importer, Transform, and Displayer (SANTOS et al., 2011). • A new type of interaction elements, called Error Prevention modules (SANTOS et al., 2013). 67 6CONCLUSIONS AND FUTURE WORK FINAL CONSIDERATIONS Q III. What methods could be employed in the development of mashups aiming at performance enhancement? Hypothesis: The employment of mashups enhances the performance of human-centered ITSM processes

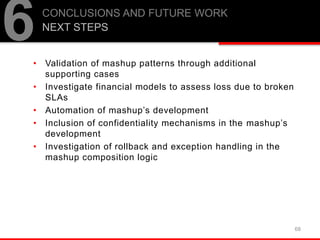

• Validation of mashup patterns through additional supporting cases • Investigate financial models to assess loss due to broken SLAs • Automation of mashup’s development • Inclusion of confidentiality mechanisms in the mashup’s development • Investigation of rollback and exception handling in the mashup composition logic 68 6CONCLUSIONS AND FUTURE WORK NEXT STEPS

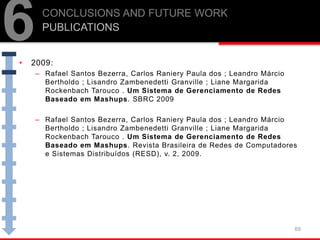

• 2009: – Rafael Santos Bezerra, Carlos Raniery Paula dos ; Leandro Márcio Bertholdo ; Lisandro Zambenedetti Granville ; Liane Margarida Rockenbach Tarouco . Um Sistema de Gerenciamento de Redes Baseado em Mashups. SBRC 2009 – Rafael Santos Bezerra, Carlos Raniery Paula dos ; Leandro Márcio Bertholdo ; Lisandro Zambenedetti Granville ; Liane Margarida Rockenbach Tarouco . Um Sistema de Gerenciamento de Redes Baseado em Mashups. Revista Brasileira de Redes de Computadores e Sistemas Distribuídos (RESD), v. 2, 2009. 69 6CONCLUSIONS AND FUTURE WORK PUBLICATIONS
• 2010: – Rafael Santos Bezerra, Carlos Raniery Paula dos ; Lisandro Zambenedetti Granville ; Liane Margarida Rockenbach Tarouco . On the Feasibility of Web 2.0 Technologies for Network Management: A Mashup-Based Approach. 12th Network Operations & Management Symposium (NOMS), 2010, Osaka, Japan – Carlos Raniery Paula dos Santos, Rafael Santos Bezerra, João Marcelo Ceron, Lisandro Zambenedetti Granville, Liane Margarida Rockenbach Tarouco. On Using Mashups for Composing Network Management Applications. IEEE Communications Magazine, Vol. 48, Issue 12, December 2010 – Carlos Raniery Paula dos Santos, Rafael Santos Bezerra, João Marcelo Ceron, Lisandro Zambenedetti Granville, Liane Margarida Rockenbach Tarouco. Botnet Master Detection Using a Mashup- based Approach. 6th IEEE International Conference on Network and Service Management (CNSM), 2010, Niagara Falls, Canada 70 6CONCLUSIONS AND FUTURE WORK PUBLICATIONS
• 2011: – Carlos Raniery Paula dos Santos, Rafael Santos Bezerra, João Marcelo Ceron, Lisandro Zambenedetti Granville, Liane Margarida Rockenbach Tarouco. Identifying Botnet Communications Using a Mashup-based Approach. LANOMS, 2011, Quito, Equador – Carlos Raniery Paula dos Santos, Winnie Cheng, Rafael Santos Bezerra, Lisandro Zambenedetti Granville, Nikos Anerousis. A Data Confidentiality Architecture for Developing Management Mashups. 12th IFIP/IEEE International Symposium on Integrated Network Management, 2011, Dublin, Ireland – Carlos Raniery P. dos Santos, Lisandro Zambenedetti Granville, Winnie Cheng, David Loewenstern, Larisa Shwartz, Nikos Anerousis. Performance Management and Quantitative Modeling of IT Service Processes Using Mashup Patterns. 7th International Conference on Network and Services Management (CNSM 2011), 2011, Paris, France 71 6CONCLUSIONS AND FUTURE WORK PUBLICATIONS

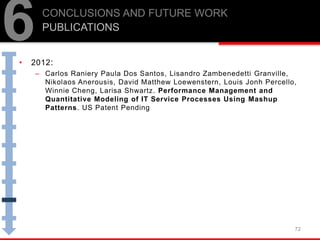

• 2012: – Carlos Raniery Paula Dos Santos, Lisandro Zambenedetti Granville, Nikolaos Anerousis, David Matthew Loewenstern, Louis Jonh Percello, Winnie Cheng, Larisa Shwartz. Performance Management and Quantitative Modeling of IT Service Processes Using Mashup Patterns. US Patent Pending 72 6CONCLUSIONS AND FUTURE WORK PUBLICATIONS

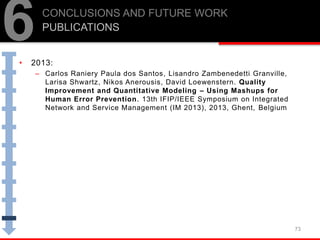

• 2013: – Carlos Raniery Paula dos Santos, Lisandro Zambenedetti Granville, Larisa Shwartz, Nikos Anerousis, David Loewenstern. Quality Improvement and Quantitative Modeling – Using Mashups for Human Error Prevention. 13th IFIP/IEEE Symposium on Integrated Network and Service Management (IM 2013), 2013, Ghent, Belgium 73 6CONCLUSIONS AND FUTURE WORK PUBLICATIONS

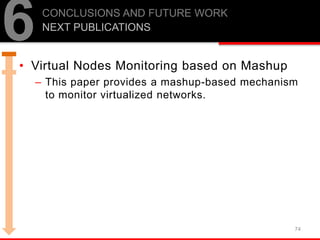

• Virtual Nodes Monitoring based on Mashup – This paper provides a mashup-based mechanism to monitor virtualized networks. 74 6CONCLUSIONS AND FUTURE WORK NEXT PUBLICATIONS

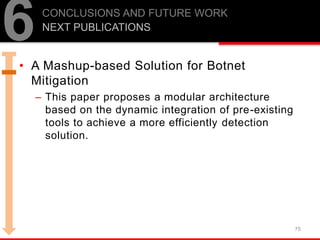

• A Mashup-based Solution for Botnet Mitigation – This paper proposes a modular architecture based on the dynamic integration of pre-existing tools to achieve a more efficiently detection solution. 75 6CONCLUSIONS AND FUTURE WORK NEXT PUBLICATIONS

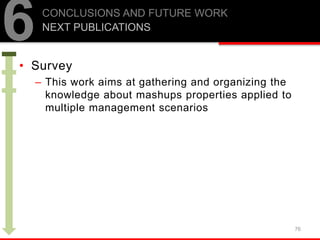

• Survey – This work aims at gathering and organizing the knowledge about mashups properties applied to multiple management scenarios 76 6CONCLUSIONS AND FUTURE WORK NEXT PUBLICATIONS
• Automation of mashups’ development – Considering that the ITSM operators have a strong knowledge of the process they use to perform, but may not have expertise in mashups development, the use of an automated development system may ultimately provide a significantly improved orchestration of the process 77 6CONCLUSIONS AND FUTURE WORK NEXT PUBLICATIONS
• Overview of the Thesis – This paper will present all the performance metrics analyzed and show the key concepts of this thesis 78 6CONCLUSIONS AND FUTURE WORK NEXT PUBLICATIONS
Carlos Raniery Paula dos Santos Orientador: Lisandro Zambenedetti Granville Instituto de Informática – UFRGS Inf.ufrgs.br/~crpsantos Some questions…. 79 Computer Networks Group Thank you for your attention!

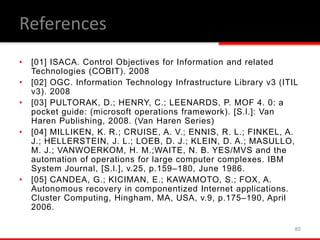

• [01] ISACA. Control Objectives for Information and related Technologies (COBIT). 2008 • [02] OGC. Information Technology Infrastructure Library v3 (ITIL v3). 2008 • [03] PULTORAK, D.; HENRY, C.; LEENARDS, P. MOF 4. 0: a pocket guide: (microsoft operations framework). [S.l.]: Van Haren Publishing, 2008. (Van Haren Series) • [04] MILLIKEN, K. R.; CRUISE, A. V.; ENNIS, R. L.; FINKEL, A. J.; HELLERSTEIN, J. L.; LOEB, D. J.; KLEIN, D. A.; MASULLO, M. J.; VANWOERKOM, H. M.;WAITE, N. B. YES/MVS and the automation of operations for large computer complexes. IBM System Journal, [S.l.], v.25, p.159–180, June 1986. • [05] CANDEA, G.; KICIMAN, E.; KAWAMOTO, S.; FOX, A. Autonomous recovery in componentized Internet applications. Cluster Computing, Hingham, MA, USA, v.9, p.175–190, April 2006. 80 References

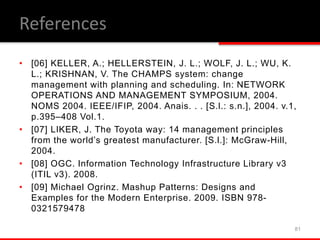

• [06] KELLER, A.; HELLERSTEIN, J. L.; WOLF, J. L.; WU, K. L.; KRISHNAN, V. The CHAMPS system: change management with planning and scheduling. In: NETWORK OPERATIONS AND MANAGEMENT SYMPOSIUM, 2004. NOMS 2004. IEEE/IFIP, 2004. Anais. . . [S.l.: s.n.], 2004. v.1, p.395–408 Vol.1. • [07] LIKER, J. The Toyota way: 14 management principles from the world’s greatest manufacturer. [S.l.]: McGraw-Hill, 2004. • [08] OGC. Information Technology Infrastructure Library v3 (ITIL v3). 2008. • [09] Michael Ogrinz. Mashup Patterns: Designs and Examples for the Modern Enterprise. 2009. ISBN 978- 0321579478 81 References

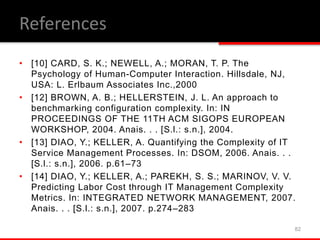

• [10] CARD, S. K.; NEWELL, A.; MORAN, T. P. The Psychology of Human-Computer Interaction. Hillsdale, NJ, USA: L. Erlbaum Associates Inc.,2000 • [12] BROWN, A. B.; HELLERSTEIN, J. L. An approach to benchmarking configuration complexity. In: IN PROCEEDINGS OF THE 11TH ACM SIGOPS EUROPEAN WORKSHOP, 2004. Anais. . . [S.l.: s.n.], 2004. • [13] DIAO, Y.; KELLER, A. Quantifying the Complexity of IT Service Management Processes. In: DSOM, 2006. Anais. . . [S.l.: s.n.], 2006. p.61–73 • [14] DIAO, Y.; KELLER, A.; PAREKH, S. S.; MARINOV, V. V. Predicting Labor Cost through IT Management Complexity Metrics. In: INTEGRATED NETWORK MANAGEMENT, 2007. Anais. . . [S.l.: s.n.], 2007. p.274–283 82 References

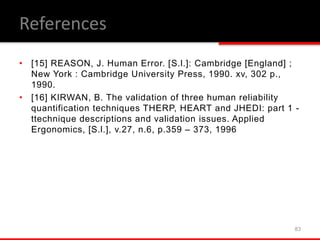

• [15] REASON, J. Human Error. [S.l.]: Cambridge [England] ; New York : Cambridge University Press, 1990. xv, 302 p., 1990. • [16] KIRWAN, B. The validation of three human reliability quantification techniques THERP, HEART and JHEDI: part 1 - ttechnique descriptions and validation issues. Applied Ergonomics, [S.l.], v.27, n.6, p.359 – 373, 1996 83 References

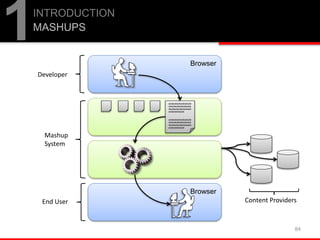

84 Browser Browser asdasdasdasdasdasda sdasdasdasdasdasdas dasdasdasdasdasdads asdasdadsasda asdasdasdasdasdasda sdasdasdasdasdasdas dasdasdasdasdasdads asdasdadsasda Mashup System Developer End User Content Providers 1INTRODUCTION MASHUPS
85 RELIABILITY MASHUPS 4 Adaptation Adaptation Operation (merge) Forcing Buffer Adaptation External System Mashup System

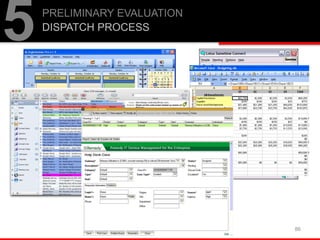

86 PRELIMINARY EVALUATION DISPATCH PROCESS 5

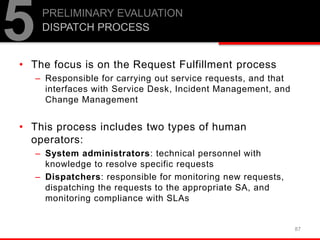

• The focus is on the Request Fulfillment process – Responsible for carrying out service requests, and that interfaces with Service Desk, Incident Management, and Change Management • This process includes two types of human operators: – System administrators: technical personnel with knowledge to resolve specific requests – Dispatchers: responsible for monitoring new requests, dispatching the requests to the appropriate SA, and monitoring compliance with SLAs 87 PRELIMINARY EVALUATION DISPATCH PROCESS 5

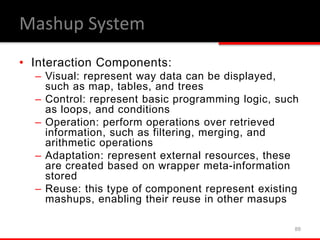

• Interaction Components: – Visual: represent way data can be displayed, such as map, tables, and trees – Control: represent basic programming logic, such as loops, and conditions – Operation: perform operations over retrieved information, such as filtering, merging, and arithmetic operations – Adaptation: represent external resources, these are created based on wrapper meta-information stored – Reuse: this type of component represent existing mashups, enabling their reuse in other masups 88 Mashup System

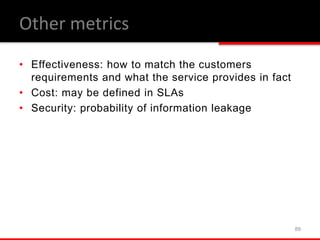

• Effectiveness: how to match the customers requirements and what the service provides in fact • Cost: may be defined in SLAs • Security: probability of information leakage 89 Other metrics

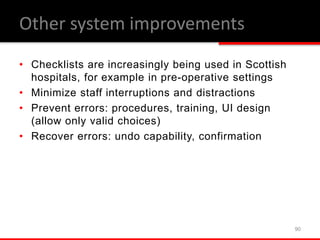

• Checklists are increasingly being used in Scottish hospitals, for example in pre-operative settings • Minimize staff interruptions and distractions • Prevent errors: procedures, training, UI design (allow only valid choices) • Recover errors: undo capability, confirmation 90 Other system improvements
91 Mashup Patterns

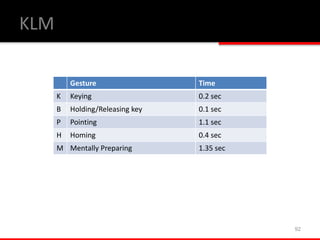

92 Gesture Time K Keying 0.2 sec B Holding/Releasing key 0.1 sec P Pointing 1.1 sec H Homing 0.4 sec M Mentally Preparing 1.35 sec KLM

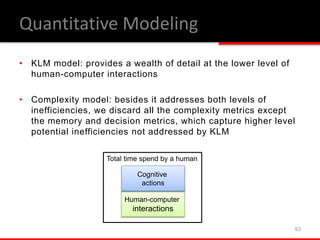

• KLM model: provides a wealth of detail at the lower level of human-computer interactions • Complexity model: besides it addresses both levels of inefficiencies, we discard all the complexity metrics except the memory and decision metrics, which capture higher level potential inefficiencies not addressed by KLM 93 Total time spend by a human Human-computer interactions Cognitive actions Quantitative Modeling

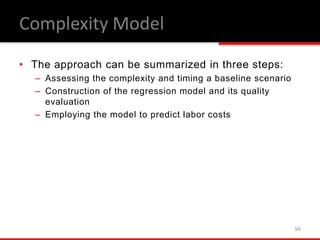

• The approach can be summarized in three steps: – Assessing the complexity and timing a baseline scenario – Construction of the regression model and its quality evaluation – Employing the model to predict labor costs 94 Complexity Model
