Pattern mining is an unsupervised machine learning technique used to discover frequent patterns and relationships in log data. It involves finding the top frequent sets of items that occur together in the data at least a minimum number of times. There are two main approaches - candidate generation which generates and filters candidate patterns in multiple passes over the data, and pattern growth which constructs conditional databases to avoid multiple full scans. Pattern mining can be used to find commonly purchased itemsets, extract features from log data, and derive rules for recommendations.

1. Pattern Mining: Getting the
most out of your log data.
Krishna Sridhar
Staff Data Scientist, Dato Inc.
krishna_srd

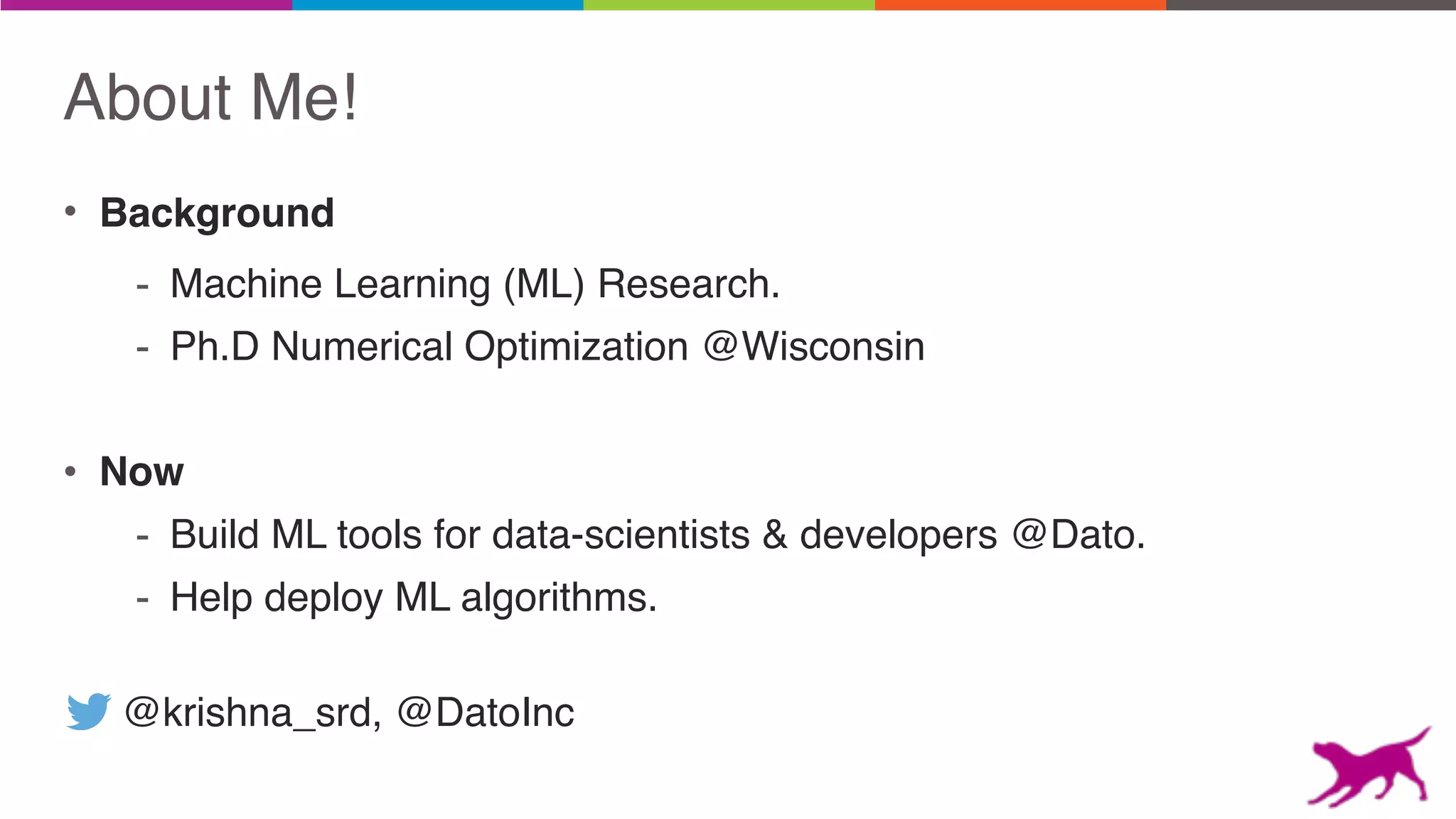

2. • Background
- Machine Learning (ML) Research.
- Ph.D Numerical Optimization @Wisconsin
• Now
- Build ML tools for data-scientists & developers @Dato.
- Help deploy ML algorithms.
@krishna_srd, @DatoInc
About Me!

3. 45+$and$growing$fast!
About Us!

4. + =
Questions?
• (Now) We are monitoring the chat window.
• (Later) Email me srikris@dato.com.
Webinars

5. About you?

6. Creating a model pipeline
Ingest Transform Model Deploy
Unstructured Data
exploration
data
modeling
Data Science Workflow
Ingest Transform Model Deploy

7. GraphLab(Create(
Train
Model
Pipeline
Deploy
Models
Serve
Requests
(REST API)
Monitor
Services
Get Live
Feedback
Update
Pipelines
Prototype &
Develop
Model
Pipelines
Update Live
Experiment
Deploy New Pipeline
Dato(Predic2ve(Services(
Dato’s
Products Dato(Distributed(
We can help!

8. Log Journey
Lots of data
Insights Profits

9. Log Mining: Pattern Mining

10. Logs are everywhere!

11. Machine Learning in Logs
Source: Mining Your Logs - Gaining Insight Through Visualization

12. Coffee shop
Coffee Shops Menu

13. Receipts
Coffee Shops Menu

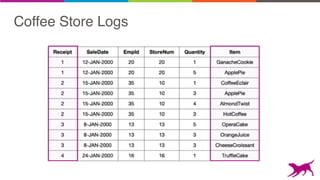

14. Coffee Store Logs

15. Frequent Pattern Mining
What sets of items were bought together?

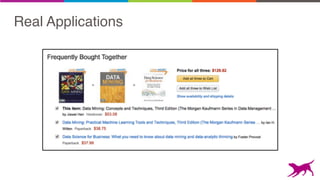

16. Real Applications

17. Real Applications

18. Real Applications

19. Log Mining: Rule Mining

20. Can we recommend items?
Rule Mining

21. Real Applications

22. Log Mining: Feature Extraction

23. Feature Extraction
0 1 0 0 0 0 1 1 0
1 1 0 0 1 0 0 0 0
0 0 1 1 1 0
Receipt Space Features in
Menu Space
ML

24. 3 Useful Data Mining Tasks
Rule MiningPattern Mining Feature Extraction

25. Demo

26. ML is not a black-box.
Transparency
Learning is also about understanding.
Interpretability
Whatever can go wrong, will go wrong.
Diagnosis
Moving on

27. Pattern Mining Explained

28. Formulating Pattern Mining

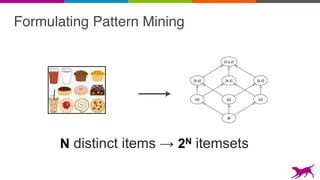

N distinct items → 2N itemsets

29. Formulating Pattern Mining
Find the top K most frequent sets of length at least L
that occur at least M times.

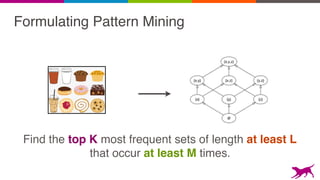

30. Formulating Pattern Mining
Find the top K most frequent sets of length at least L
that occur at least M times.
- max_patterns
- min_length
- min_support

31. Pattern Mining
N distinct items → 2N itemsets

32. Pattern Mining: Principles

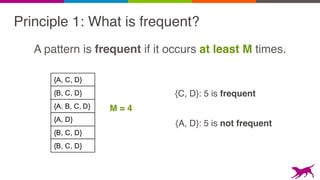

33. Principle 1: What is frequent?
A pattern is frequent if it occurs at least M times.
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}
{C, D}: 5 is frequent
M = 4
{A, D}: 5 is not frequent

34. Principle 1: What is frequent?
A pattern is frequent if it occurs at least M times.
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}
{C, D}: 5 is frequent
M = 4
{A, D}: 5 is not frequent
min_support

35. Principle 2: Apriori principle
A pattern is frequent only if a subset is frequent
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}
{B, C, D} : 5 is frequent therefore
{C, D} : 5 is frequent
{A} : 3 is not frequent therefore
{A, D} : 3 is not frequent
M = 4

36. Two Main Algorithms
• Candidate Generation
- Apriori
- Eclat
• Pattern Growth
- FP-Growth
- TopK FP-Growth [GLC 1.6]

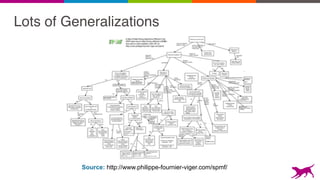

37. Lots of Generalizations
Source: http://www.philippe-fournier-viger.com/spmf/

38. Candidate Generation
Two phases
1. Candidate generation.
2. Candidate filtering.
Exploit Apriori Principle!

39. Candidate Generation
{AB} : ? {AC} : ? {AD} : ? {BC} : ? {BD} : ? {CD} : ?
{A} : ? {B} : ? {C} : ? {D} : ?
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}

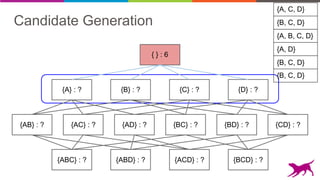

40. Candidate Generation
{AB} : ? {AC} : ? {AD} : ? {BC} : ? {BD} : ? {CD} : ?
{A} : ? {B} : ? {C} : ? {D} : ?
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}

41. Candidate Generation
{AB} : ? {AC} : ? {AD} : ? {BC} : ? {BD} : ? {CD} : ?
{A} : 3 {B} : 4 {C} : 5 {D} : 6
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}

42. Candidate Generation
{AB} : ? {AC} : ? {AD} : ? {BC} : ? {BD} : ? {CD} : ?
{A} : 3 {B} : 4 {C} : 5 {D} : 6
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}

43. Candidate Generation
{AB} : ? {AC} : ? {AD} : ? {BC} : ? {BD} : ? {CD} : ?
{A} : 3 {B} : 4 {C} : 5 {D} : 6
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}

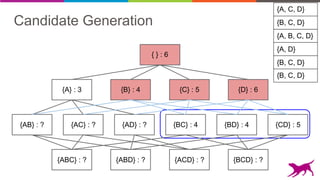

44. Candidate Generation
{AB} : ? {AC} : ? {AD} : ? {BC} : 4 {BD} : 4 {CD} : 5
{A} : 3 {B} : 4 {C} : 5 {D} : 6
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}

45. Candidate Generation
{AB} : ? {AC} : ? {AD} : ? {BC} : 4 {BD} : 4 {CD} : 5
{A} : 3 {B} : 4 {C} : 5 {D} : 6
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{B, C, D}
{A, C, D}
{A, B, C, D}
{A, D}
{B, C, D}
{B, C, D}

46. Pattern Growth
Two phases
1. Candidate filtering
2. Conditional database constructions.
Avoid full scans over the data & large
candidate sets!

47. Pattern Growth - Depth First {B, C, D}
{A, C, D}
{B, D}
{A, C, D}
{B, C, D}
{A, B, D}
{AB} : 1 {AC} : 2 {AD} : 3 {BD} : 4 {CD} : 4
{A} : 3 {B} : 4 {C} : 4 {D} : 6
{ } : 6
{ABC} : 0 {ABD} : 1 {ACD} : 2 {BCD} : 2
{BC} : 2

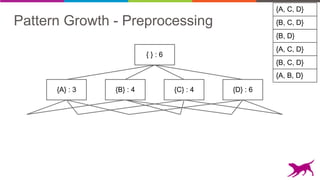

48. Pattern Growth - Preprocessing {B, C, D}
{A, C, D}
{B, D}
{A, C, D}
{B, C, D}
{A, B, D}
{A} : 3 {B} : 4 {C} : 4 {D} : 6
{ } : 6

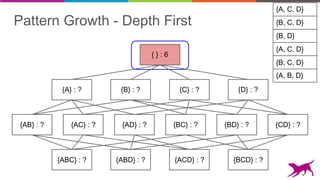

49. Pattern Growth - Depth First {B, C, D}
{A, C, D}
{B, D}
{A, C, D}
{B, C, D}
{A, B, D}
{AB} : ? {AC} : ? {AD} : ? {BD} : ? {CD} : ?
{A} : ? {B} : ? {C} : ? {D} : ?
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{BC} : ?

50. Pattern Growth - Depth First {B, C, D}
{A, C, D}
{B, D}
{A, C, D}
{B, C, D}
{A, B, D}
{AB} : ? {AC} : ? {AD} : ? {BD} : ? {CD} : ?
{A} : 3 {B} : 4 {C} : 4 {D} : 6
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{BC} : ?

51. Pattern Growth - Depth First {B, C, D}
{A, C, D}
{B, D}
{A, C, D}
{B, C, D}
{A, B, D}
{AB} : ? {AC} : ? {AD} : ? {BD} : ? {CD} : ?
{A} : 3 {B} : 4 {C} : 4 {D} : 6
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{BC} : ?

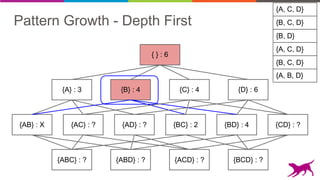

52. Pattern Growth - Depth First {B, C, D}
{A, C, D}
{B, D}
{A, C, D}
{B, C, D}
{A, B, D}
{AB} : X {AC} : ? {AD} : ? {BD} : 4 {CD} : ?
{A} : 3 {B} : 4 {C} : 4 {D} : 6
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{BC} : 2

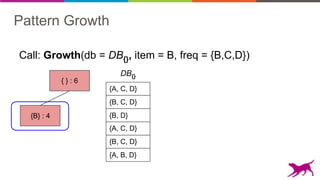

53. Pattern Growth
{B} : 4
{ } : 6
Call: Growth(db = DB{}, item = B, freq = {B,C,D})
DB{}
{B, C, D}
{A, C, D}
{B, D}
{A, C, D}
{B, C, D}
{A, B, D}

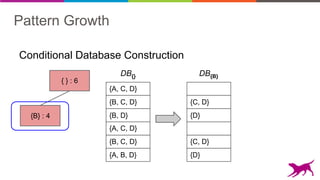

54. Pattern Growth
{B} : 4
{ } : 6
Conditional Database Construction
DB{} DB{B}
{B, C, D}
{A, C, D}
{B, D}
{A, C, D}
{B, C, D}
{A, B, D}
{C, D}
{D}
{C, D}
{D}

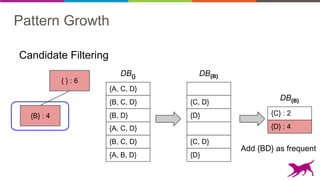

55. Pattern Growth
{B} : 4
{ } : 6
Candidate Filtering
DB{B}
{C, D}
{D}
{C, D}
{D}
{D} : 4
{C} : 2
DB{}
{B, C, D}
{A, C, D}
{B, D}
{A, C, D}
{B, C, D}
{A, B, D}
DB{B}
Add {BD} as frequent

56. Pattern Growth - Depth First {C, D}
{D}
{C, D}
{D}
{AB} : X {AC} : ? {AD} : ? {BD} : 4 {CD} : ?
{A} : 3 {B} : 4 {C} : 4 {D} : 6
{ } : 6
{ABC} : ? {ABD} : ? {ACD} : ? {BCD} : ?
{BC} : 2

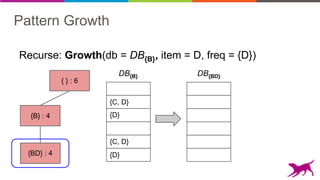

57. Pattern Growth
Recurse: Growth(db = DB{B}, item = D, freq = {D})
DB{B}
{C, D}
{D}
{C, D}
{D}
{B} : 4
{ } : 6
{BD} : 4
DB{BD}

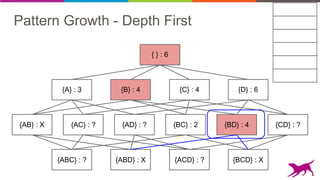

58. Pattern Growth - Depth First
{AB} : X {AC} : ? {AD} : ? {BD} : 4 {CD} : ?
{A} : 3 {B} : 4 {C} : 4 {D} : 6
{ } : 6
{ABC} : ? {ABD} : X {ACD} : ? {BCD} : X
{BC} : 2

59. Compare & Constrast
• Candidate Generation
+ Better than brute force
+ Filters candidate sets
- Multiple passes over the data
• Pattern Growth
+ Fewer passes over the data
+ Space efficient.

60. Compare & Constrast
• Candidate Generation
+ Better than brute force
+ Filters candidate sets
- Multiple passes over the data
• Pattern Growth
+ Fewer passes over the data
+ Space efficient.
Better choice

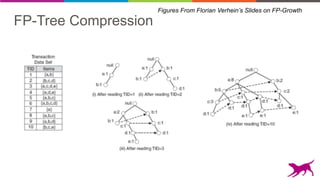

61. FP-Tree Compression
Figures From Florian Verhein’s Slides on FP-Growth

62. FP-Growth Algorithm
Figures From Florian Verhein’s Slides on FP-Growth
Two phases
1. Candidate filtering.
2. Conditional database constructions.

63. TopK FP-Growth Algorithm
Similar to FP-Growth
1. Dynamically raise min_support.
2. Estimates of min_support greatly help.

64. Performance on Website Logs
• 1.5m events
• 84k sessions
• 3k unique ids

65. Future Work

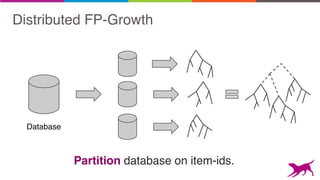

66. Distributed FP-Growth
Partition database on item-ids.
Database

67. Bags + Sequences
× 2
Itemset: {Item}
Bags: {Item: quantity}
Sequences : (item)

68. Model built, now what?

69. Creating a model pipeline
Ingest Transform Model Deploy
Unstructured Data
exploration
data
modeling
Data Science Workflow
Ingest Transform Model Deploy

70. Demo

71. Summary
Log Data Mining
≠
Rocket Science
• FP-Growth for finding frequent patterns.
• Find rules from patterns to make predictions.
• Extract features for useful ML in pattern space.

72. SELECT questions FROM audience
WHERE difficulty == “Easy”
Thanks!
