From PALS guideline 2005, 2006, 2009 AHA :
Emergency Medicine Conference : Future of Pre-hospital and Emergency Care
                 Illustrated by Chodchanok Vijarnsorn MD.
        Division of Pediatric Cardiology, Department of Pediatrics,
                     Faculty of Medicine, Siriraj Hospital
                                 21/6/2010                             1

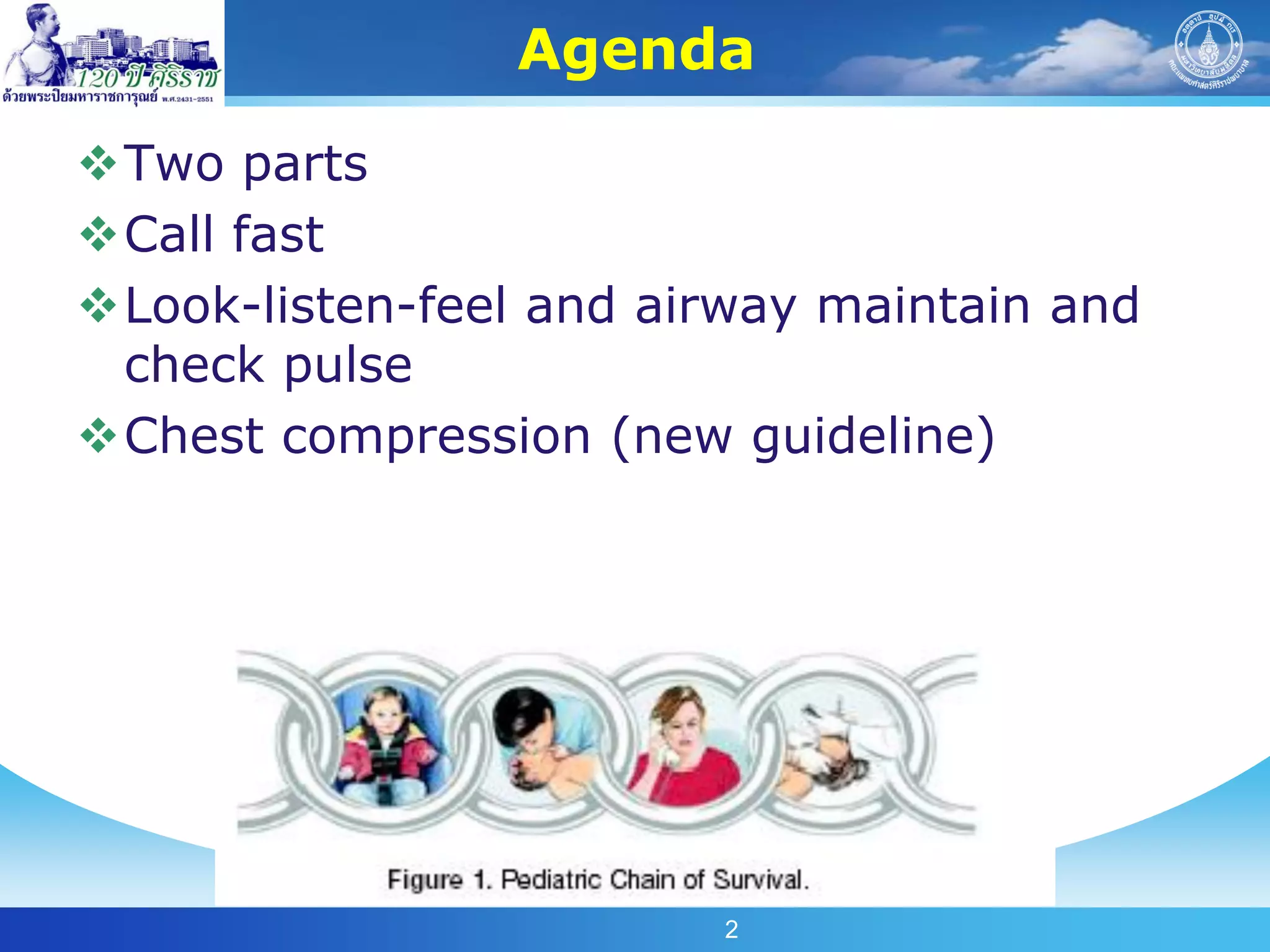

Agenda
Two parts
Call fast
Look-listen-feel and airway maintain and
 check pulse
Chest compression (new guideline)




                        2

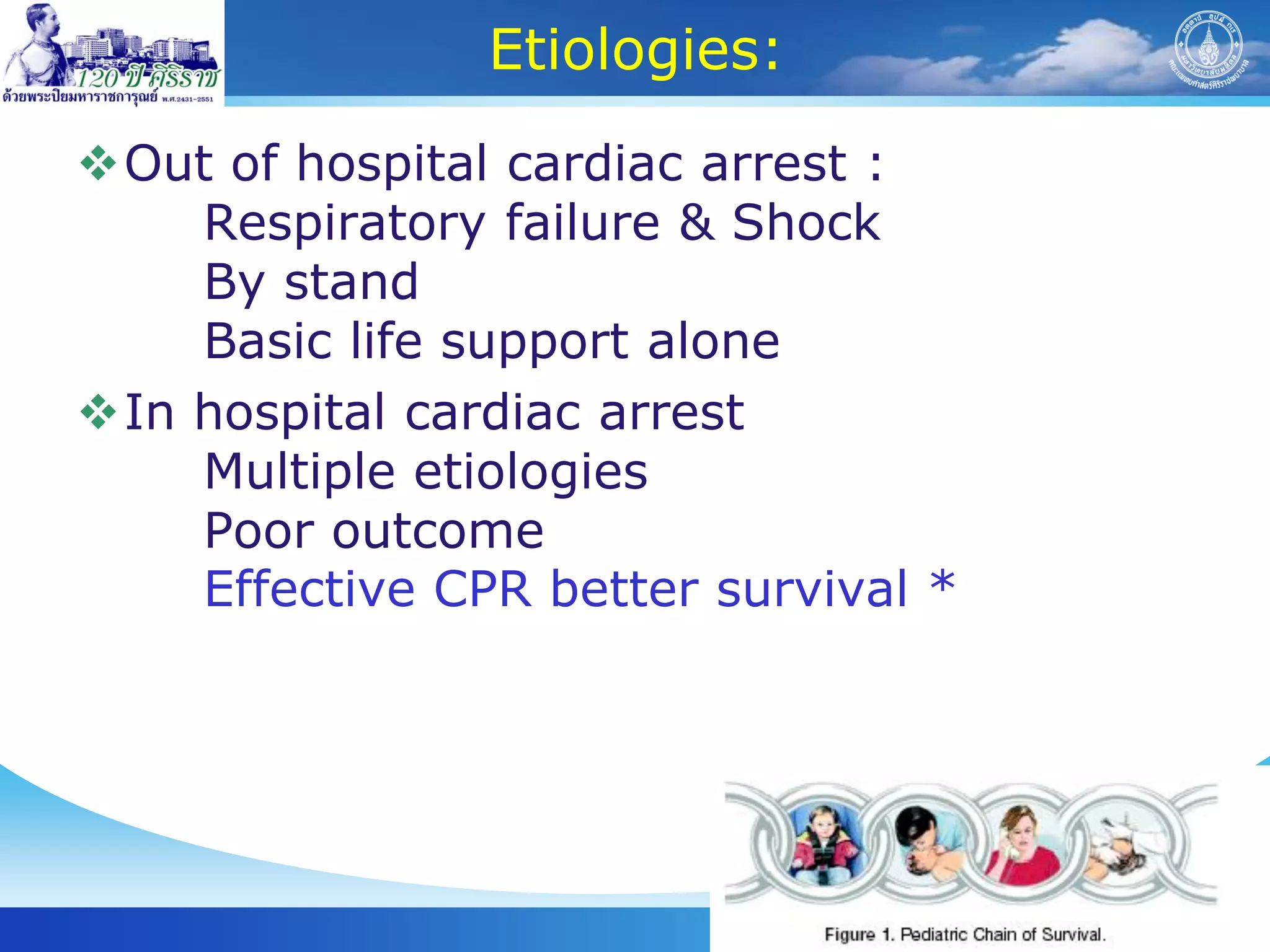

Etiologies:
Out of hospital cardiac arrest :
    Respiratory failure & Shock
    By stand
    Basic life support alone
In hospital cardiac arrest
    Multiple etiologies
    Poor outcome
    Effective CPR better survival *




                         3

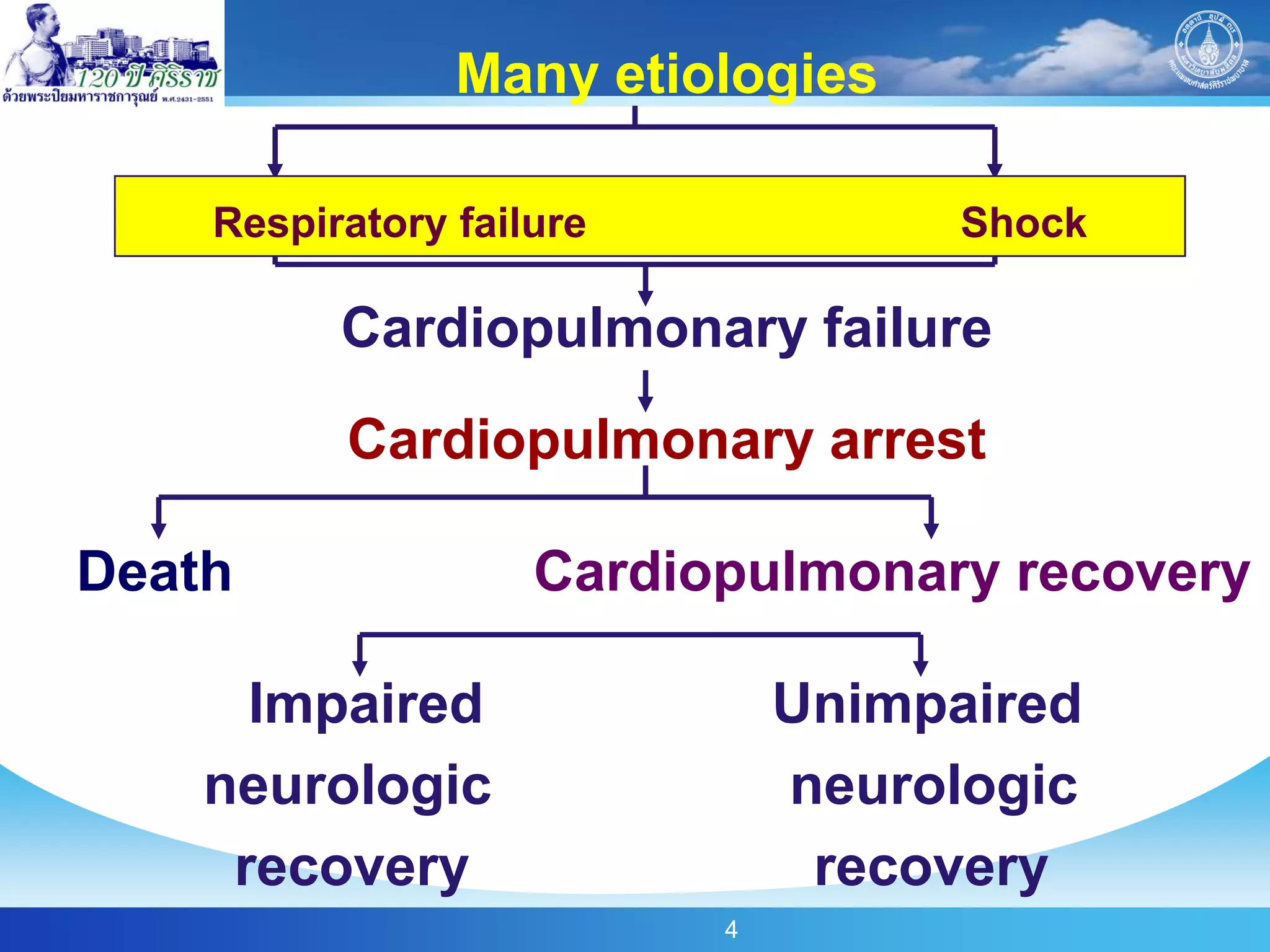

Many etiologies

    Respiratory failure             Shock

          Cardiopulmonary failure
          Cardiopulmonary arrest

Death               Cardiopulmonary recovery

      Impaired                Unimpaired
    neurologic                neurologic
     recovery                  recovery
                          4

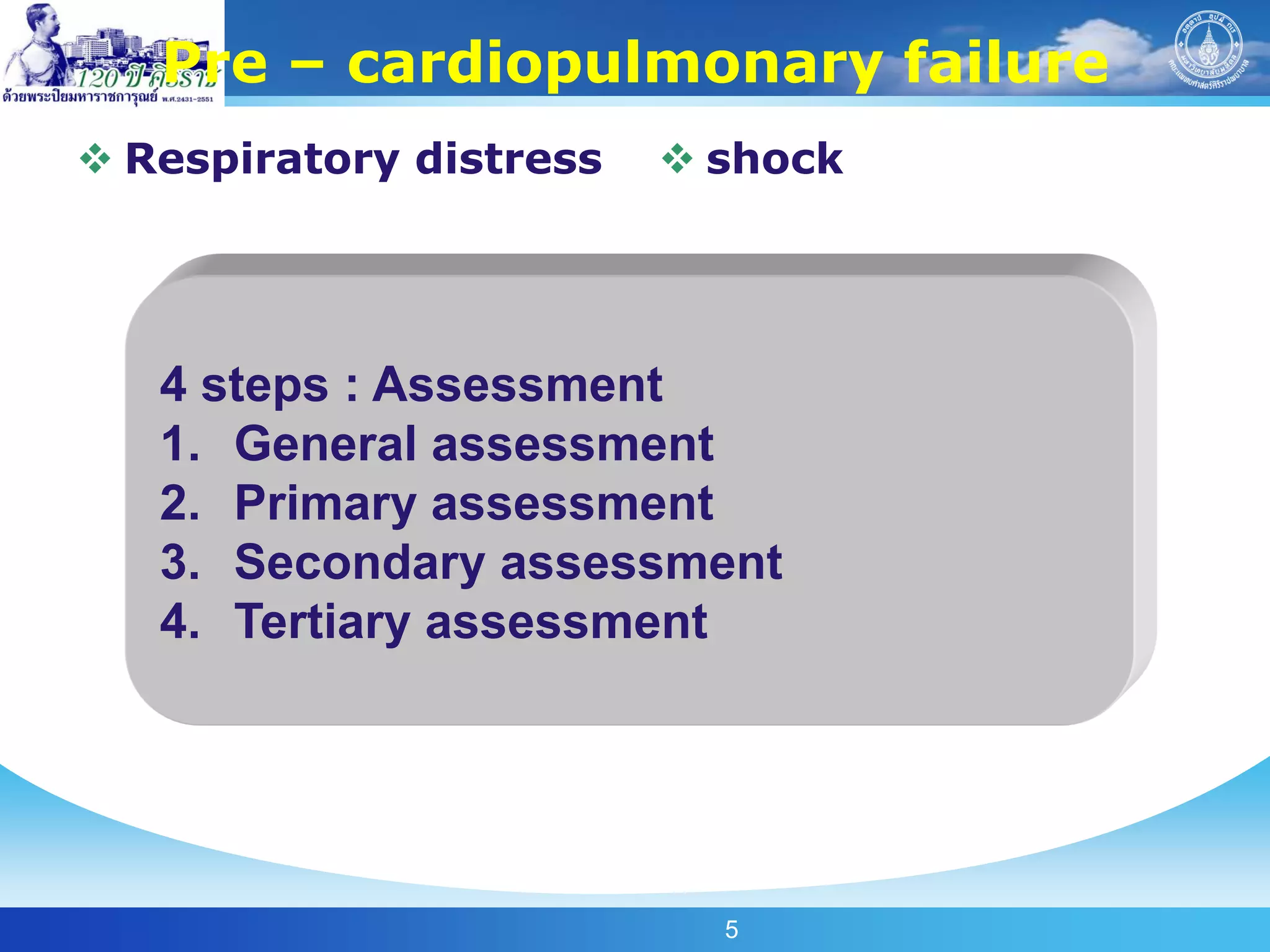

Pre – cardiopulmonary failure
 Respiratory distress    shock




   4 steps : Assessment
   1. General assessment
   2. Primary assessment
   3. Secondary assessment
   4. Tertiary assessment




                           5
6

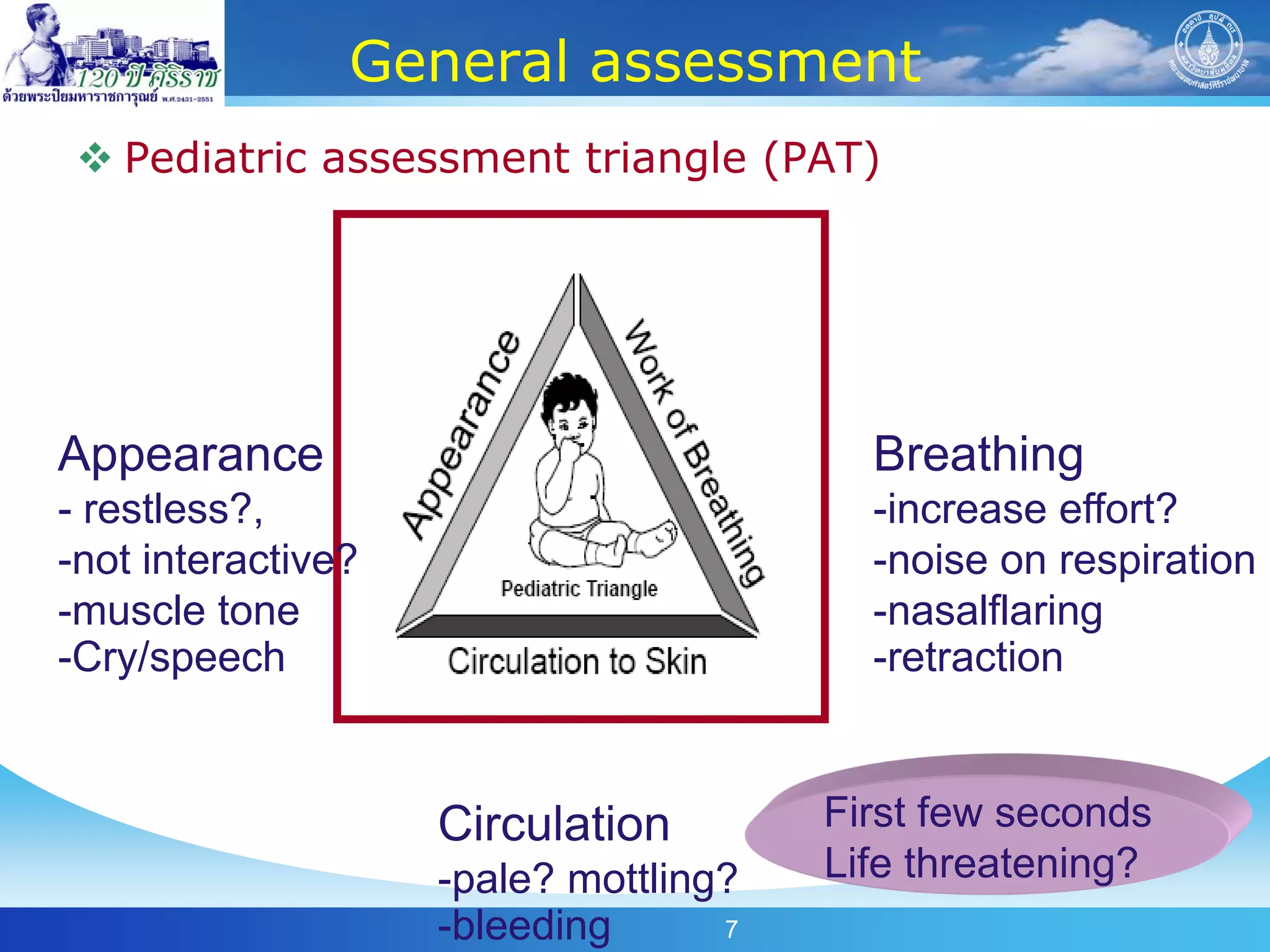

General assessment
  Pediatric assessment triangle (PAT)




Appearance                               Breathing
- restless?,                             -increase effort?
-not interactive?                        -noise on respiration
-muscle tone                             -nasalflaring
-Cry/speech                              -retraction


                    Circulation        First few seconds
                    -pale? mottling?   Life threatening?
                    -bleeding      7

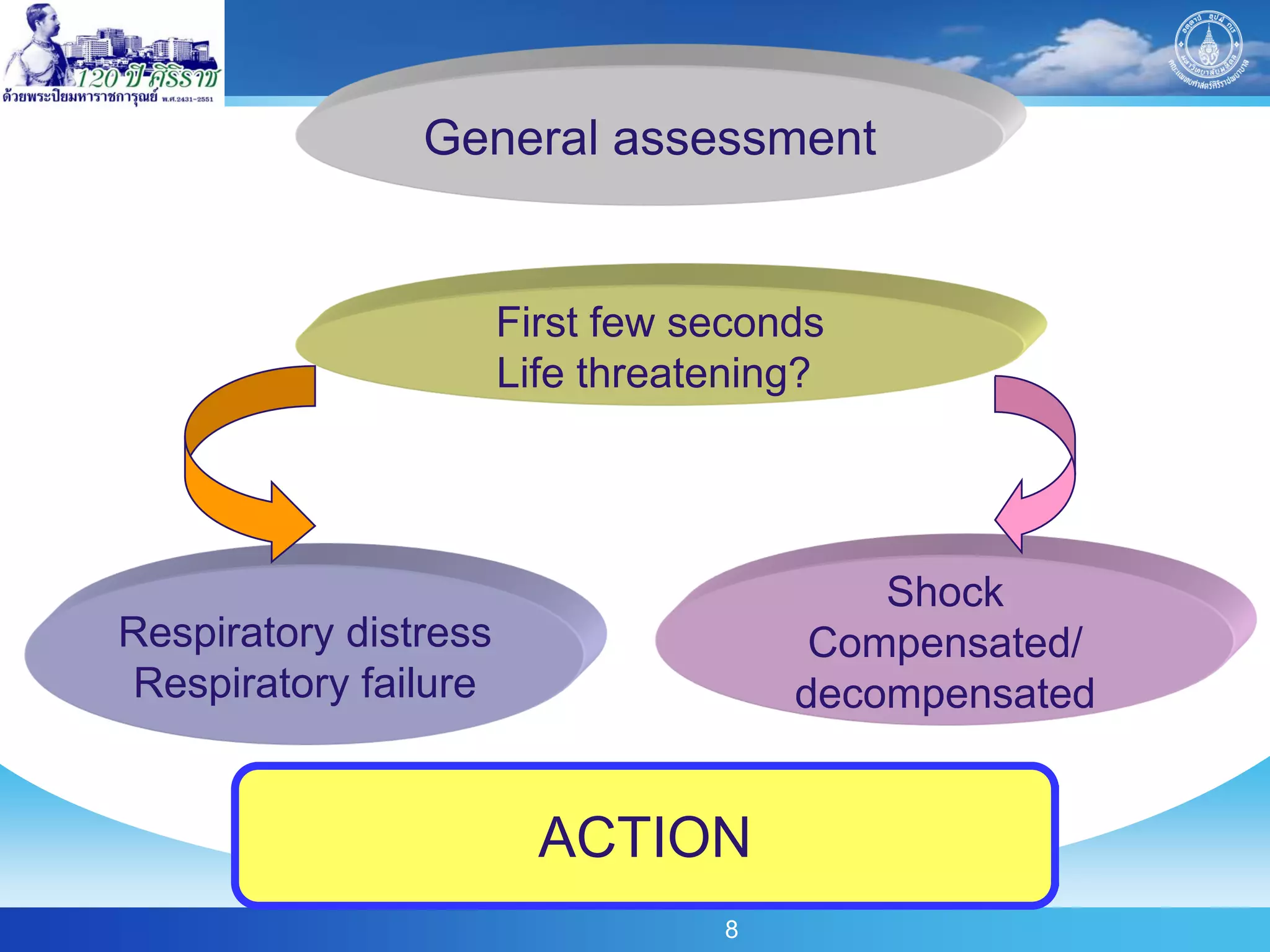

General assessment


                       First few seconds
                       Life threatening?




                                          Shock
Respiratory distress                   Compensated/
Respiratory failure                   decompensated


                         ACTION
                                  8

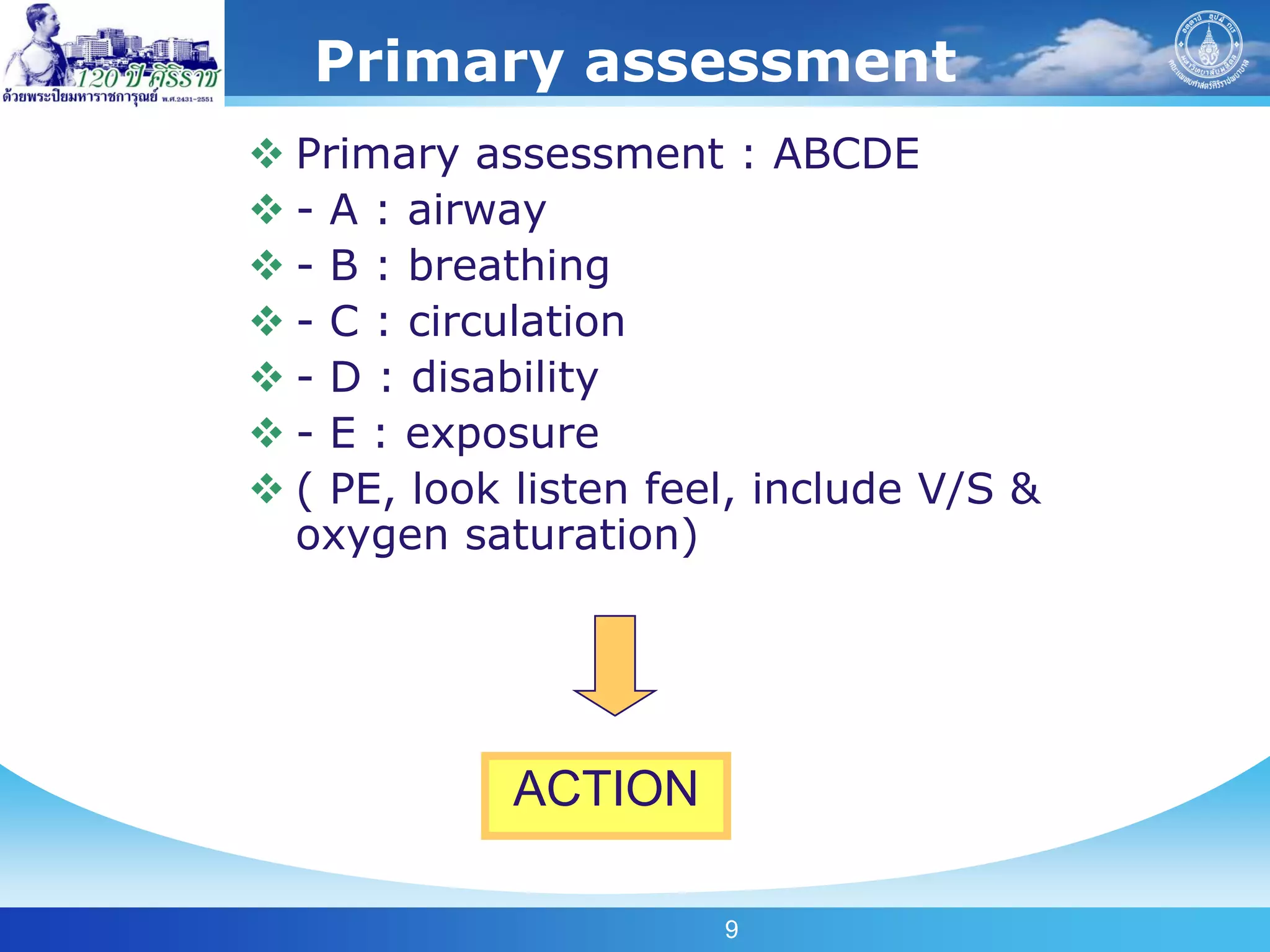

Primary assessment
 Primary assessment : ABCDE
 - A : airway
 - B : breathing
 - C : circulation
 - D : disability
 - E : exposure
 ( PE, look listen feel, include V/S &
  oxygen saturation)




             ACTION

                       9

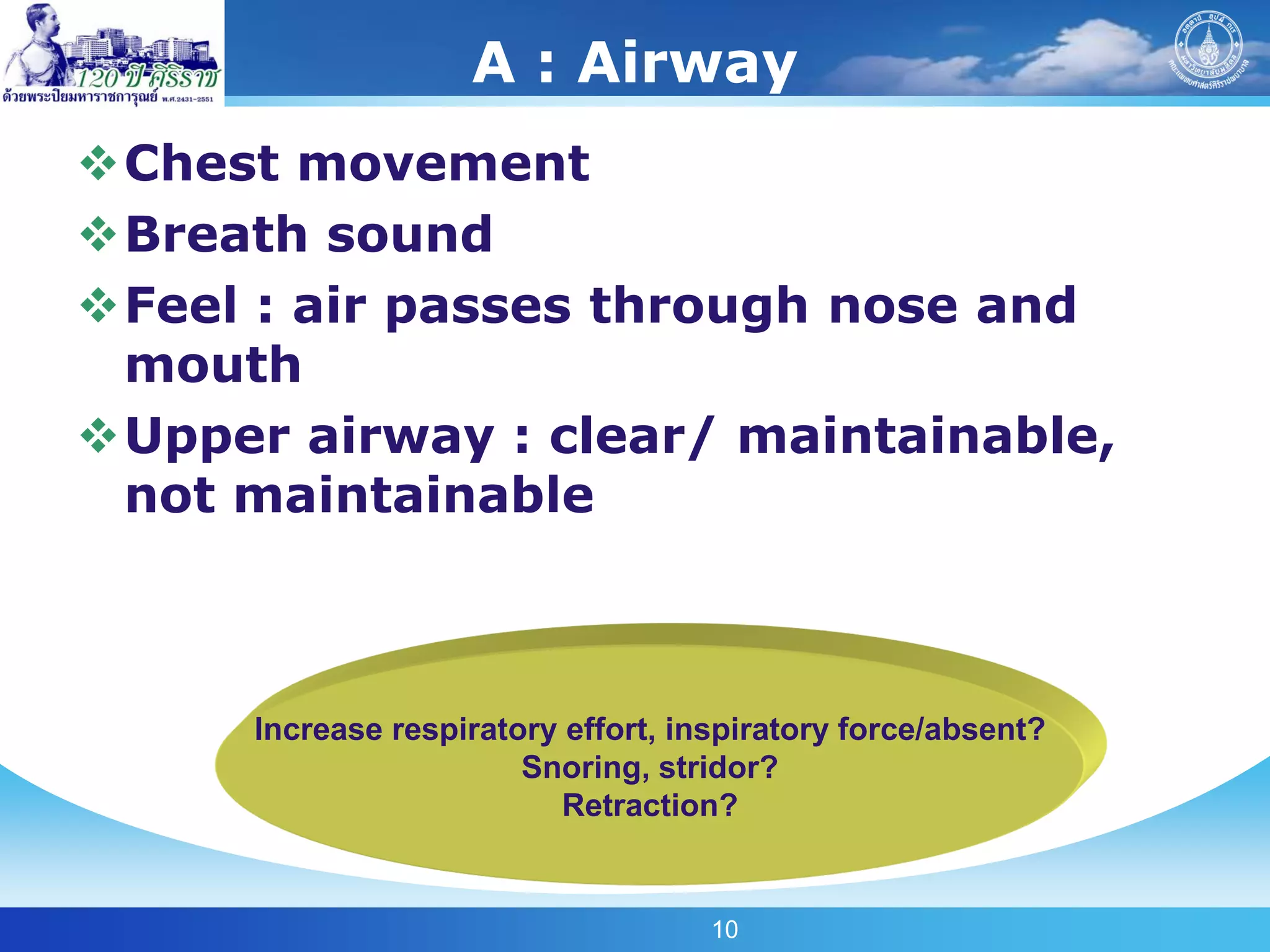

A : Airway
Chest movement
Breath sound
Feel : air passes through nose and
 mouth
Upper airway : clear/ maintainable,
 not maintainable



      Increase respiratory effort, inspiratory force/absent?
                        Snoring, stridor?
                           Retraction?


                                     10

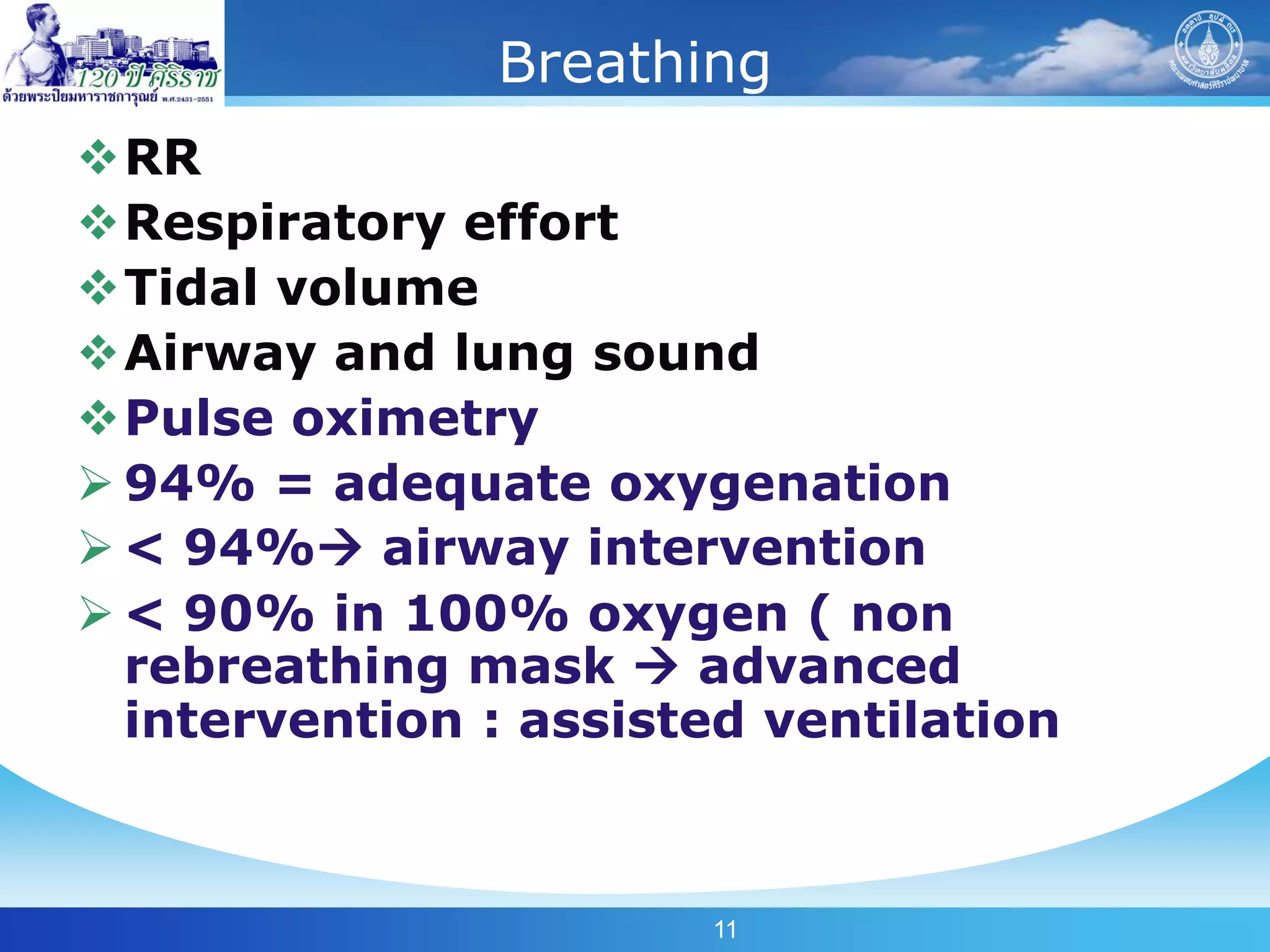

Breathing
RR
Respiratory effort
Tidal volume
Airway and lung sound
Pulse oximetry
 94% = adequate oxygenation
 < 94% airway intervention
 < 90% in 100% oxygen ( non
  rebreathing mask  advanced
  intervention : assisted ventilation



                       11
12

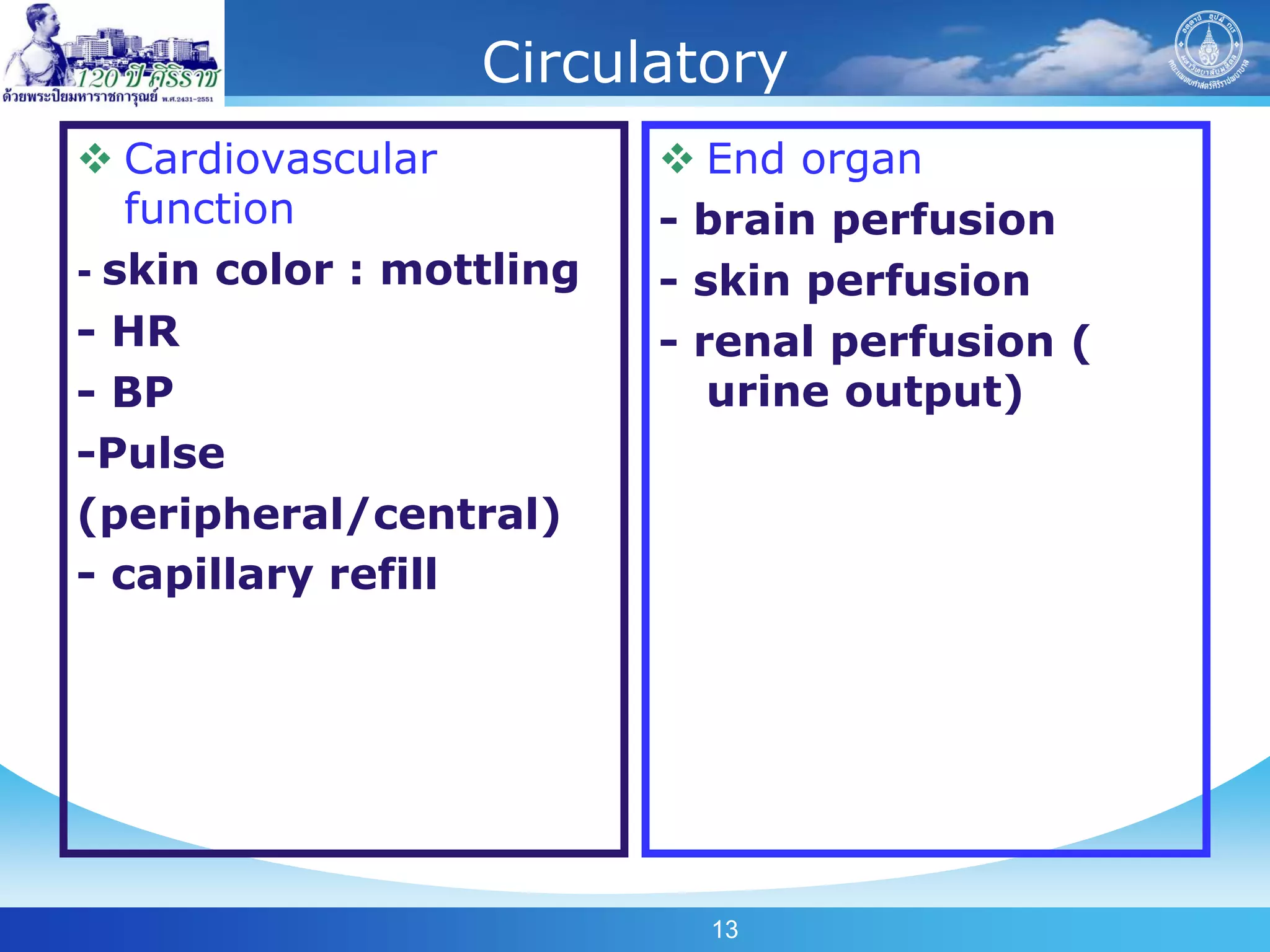

Circulatory
 Cardiovascular           End organ
   function               - brain perfusion
- skin color : mottling   - skin perfusion
- HR                      - renal perfusion (
- BP                         urine output)
-Pulse
(peripheral/central)
- capillary refill




                            13

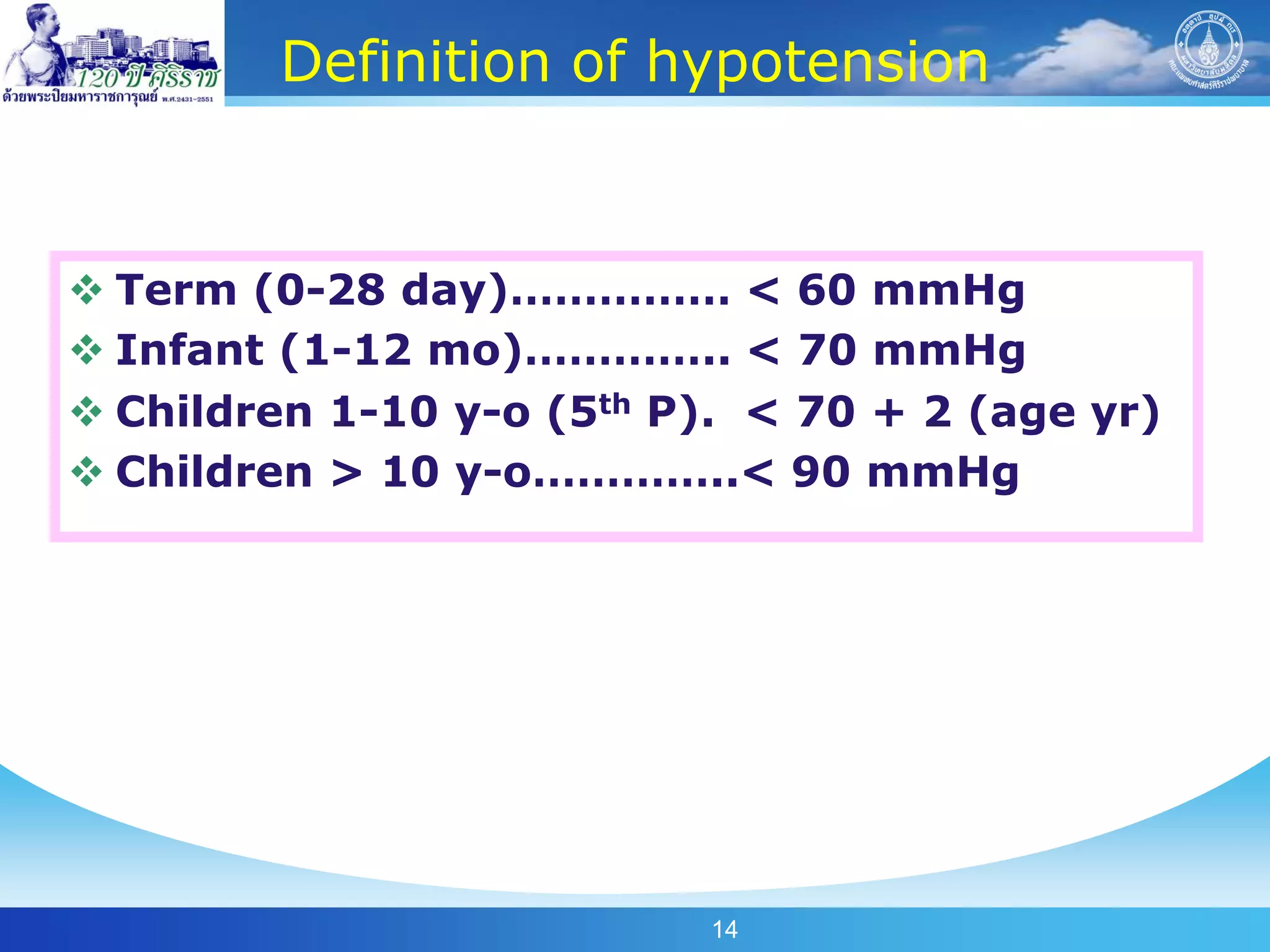

Definition of hypotension


 Term (0-28 day)…………… < 60 mmHg
 Infant (1-12 mo)………….. < 70 mmHg
 Children 1-10 y-o (5th P). < 70 + 2 (age yr)
 Children > 10 y-o…………..< 90 mmHg




                           14

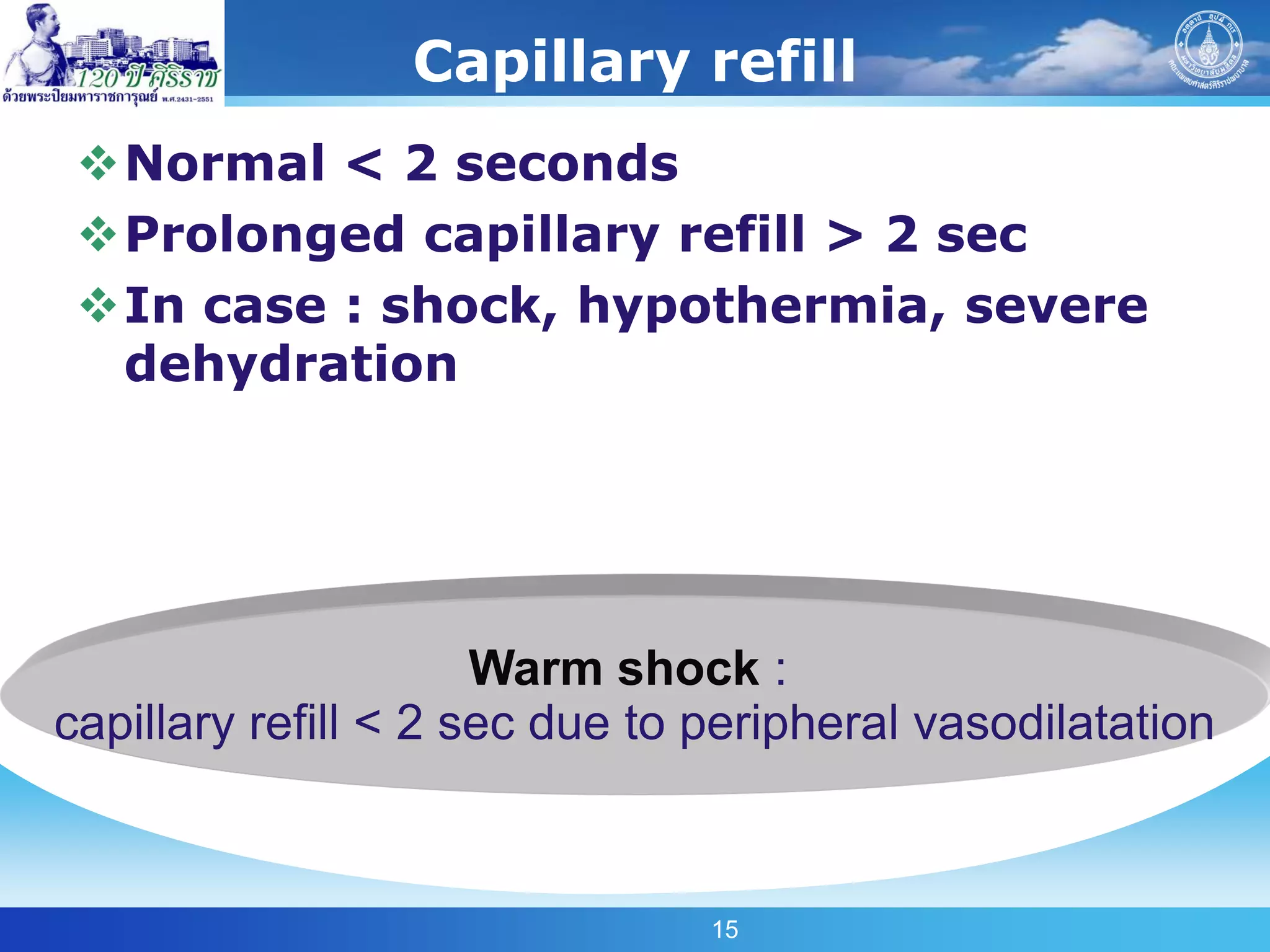

Capillary refill
 Normal < 2 seconds
 Prolonged capillary refill > 2 sec
 In case : shock, hypothermia, severe
  dehydration




                      Warm shock :
capillary refill < 2 sec due to peripheral vasodilatation



                                15

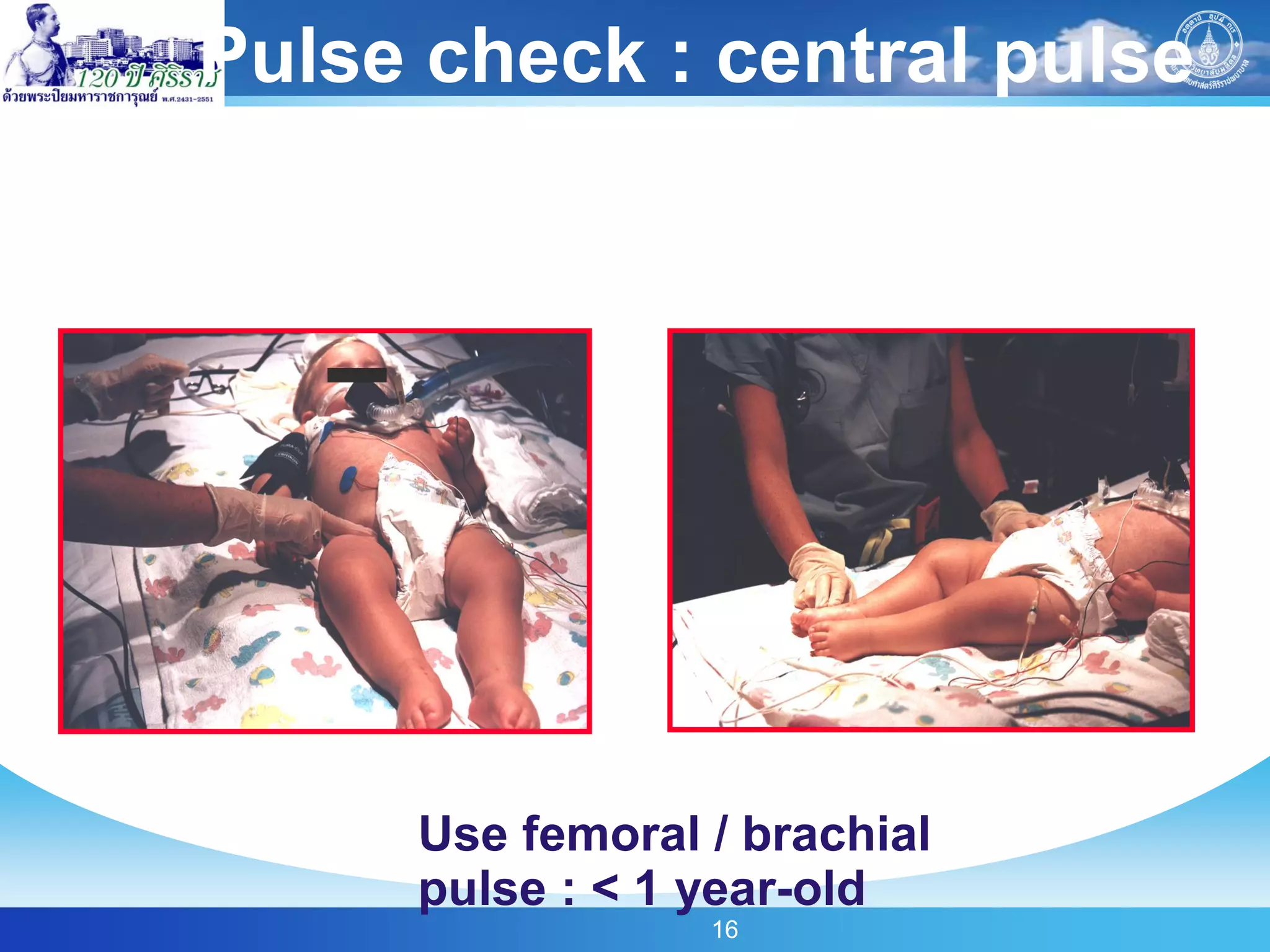

Pulse check : central pulse




     Use femoral / brachial
     pulse : < 1 year-old
                 16

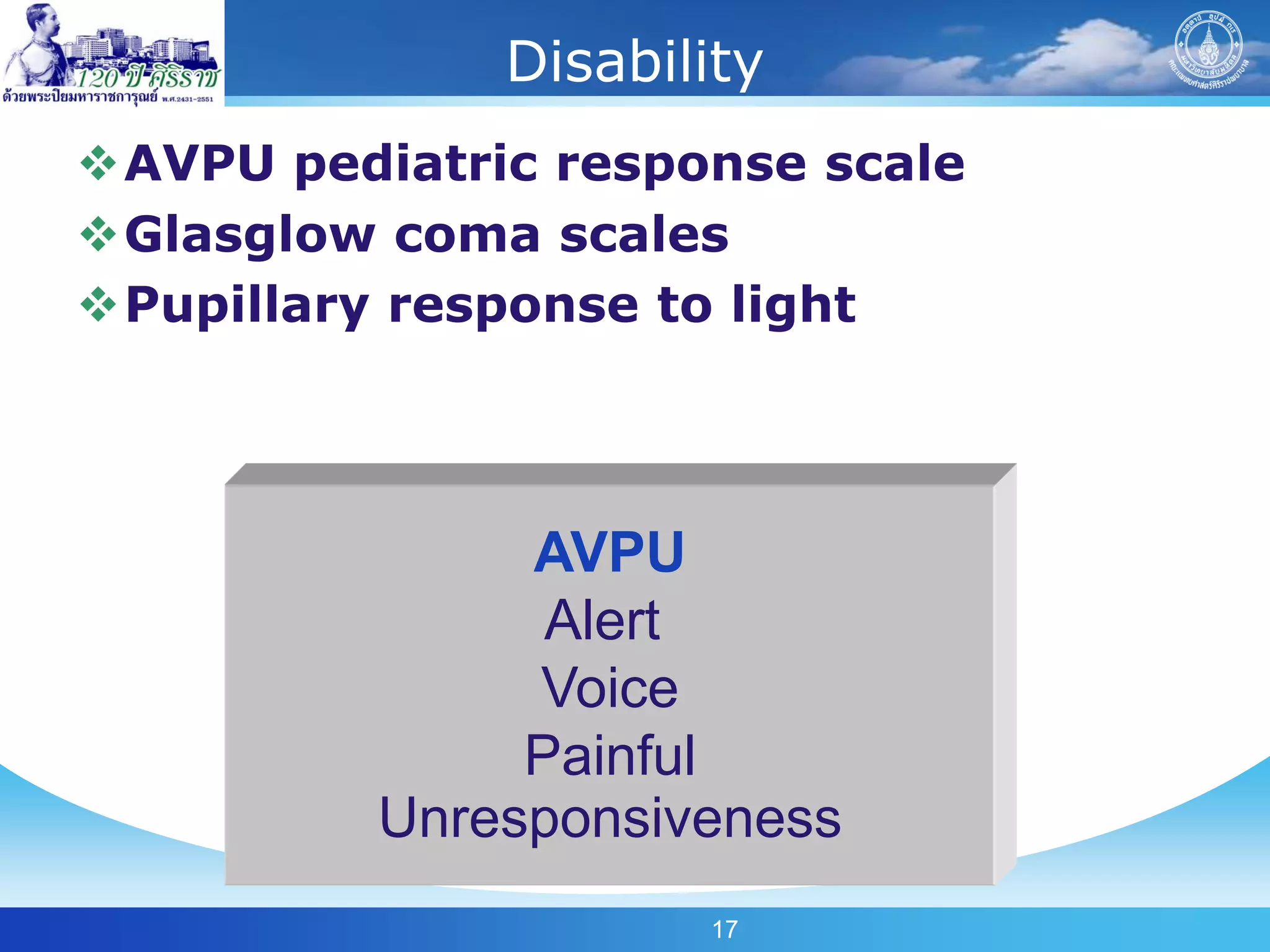

Disability
AVPU pediatric response scale
Glasglow coma scales
Pupillary response to light




               AVPU
                Alert
               Voice
               Painful
          Unresponsiveness
                     17

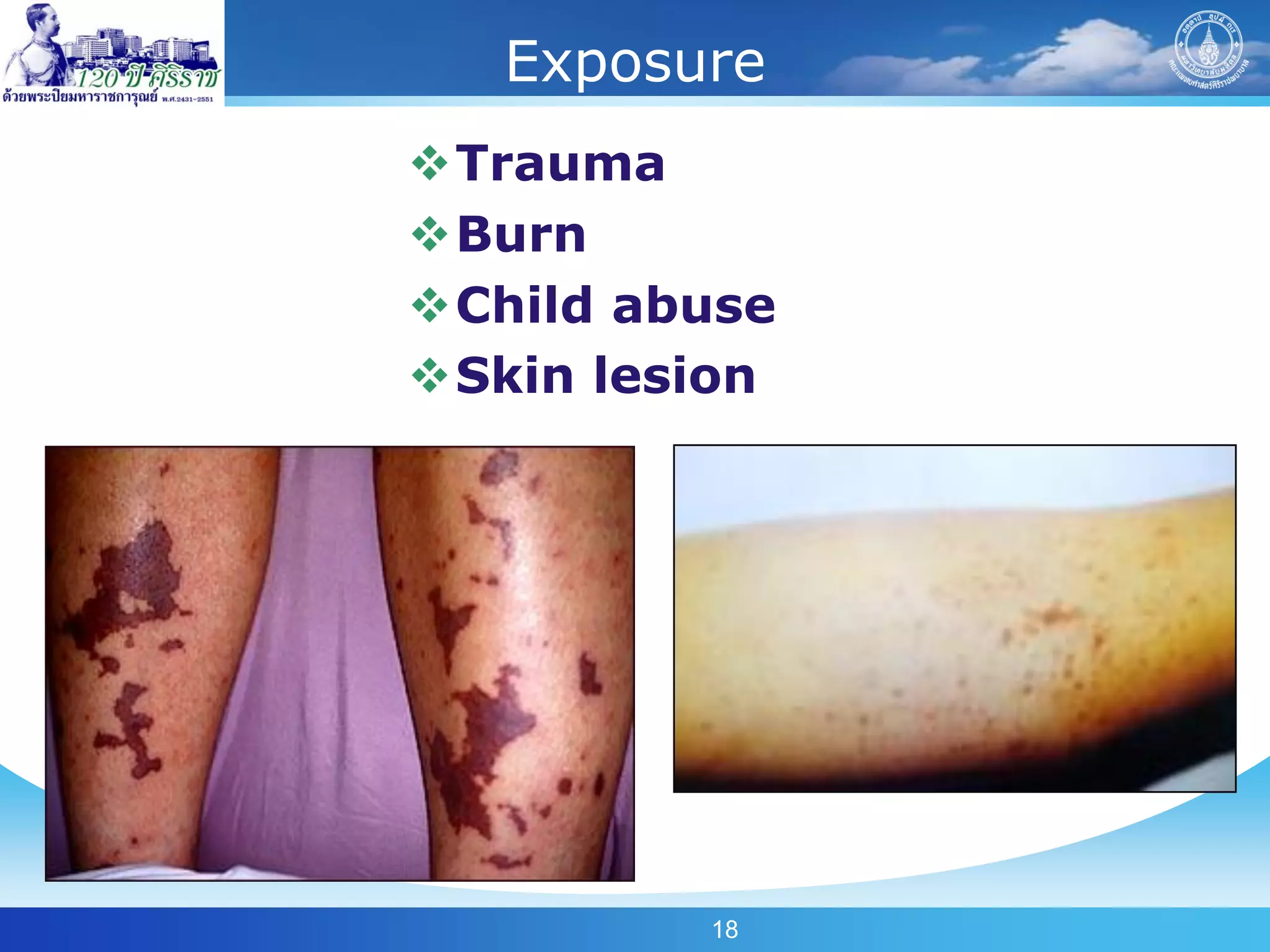

Exposure
Trauma
Burn
Child abuse
Skin lesion




         18

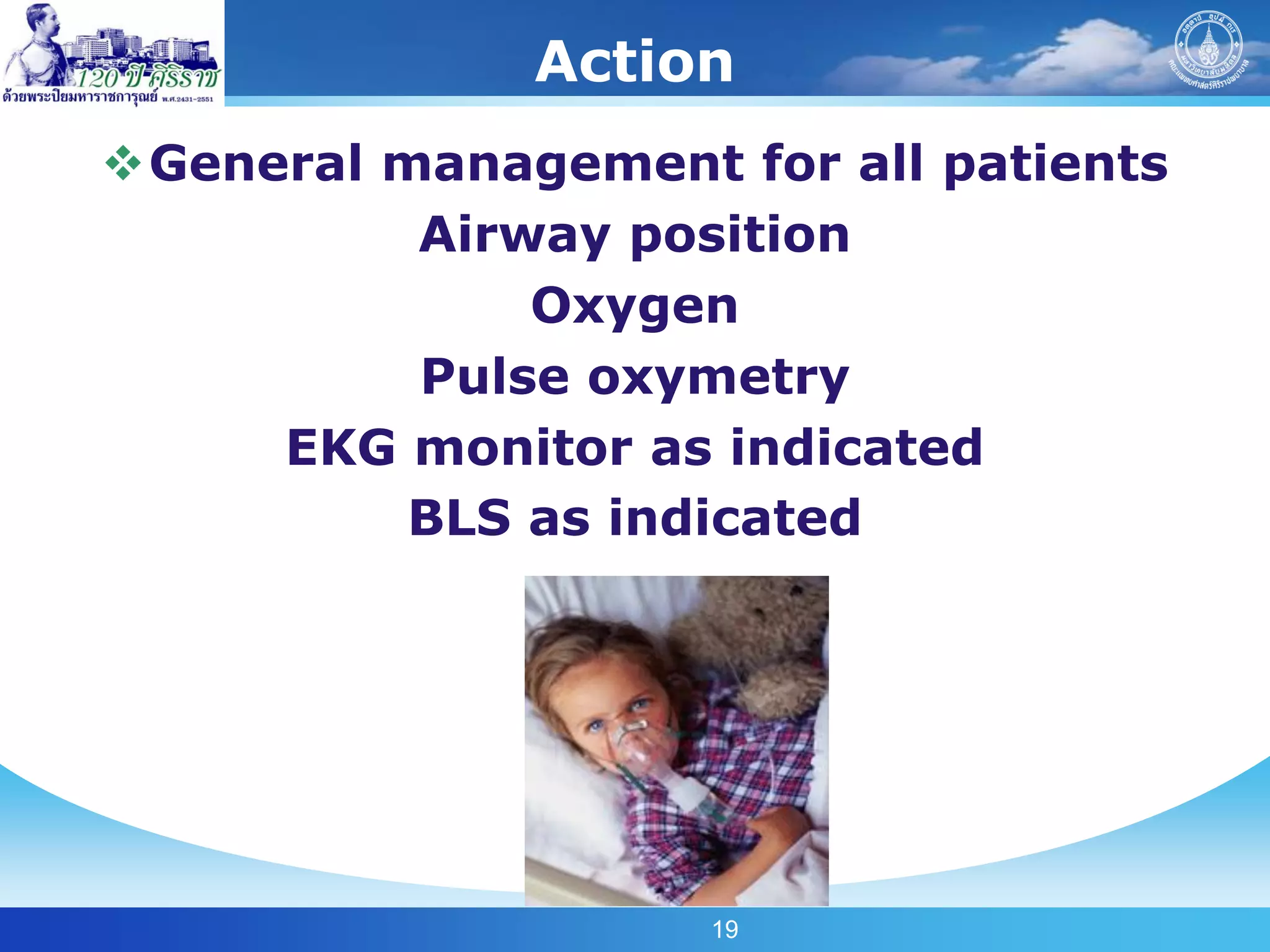

Action
General management for all patients
          Airway position
              Oxygen
          Pulse oxymetry
     EKG monitor as indicated
          BLS as indicated




                    19

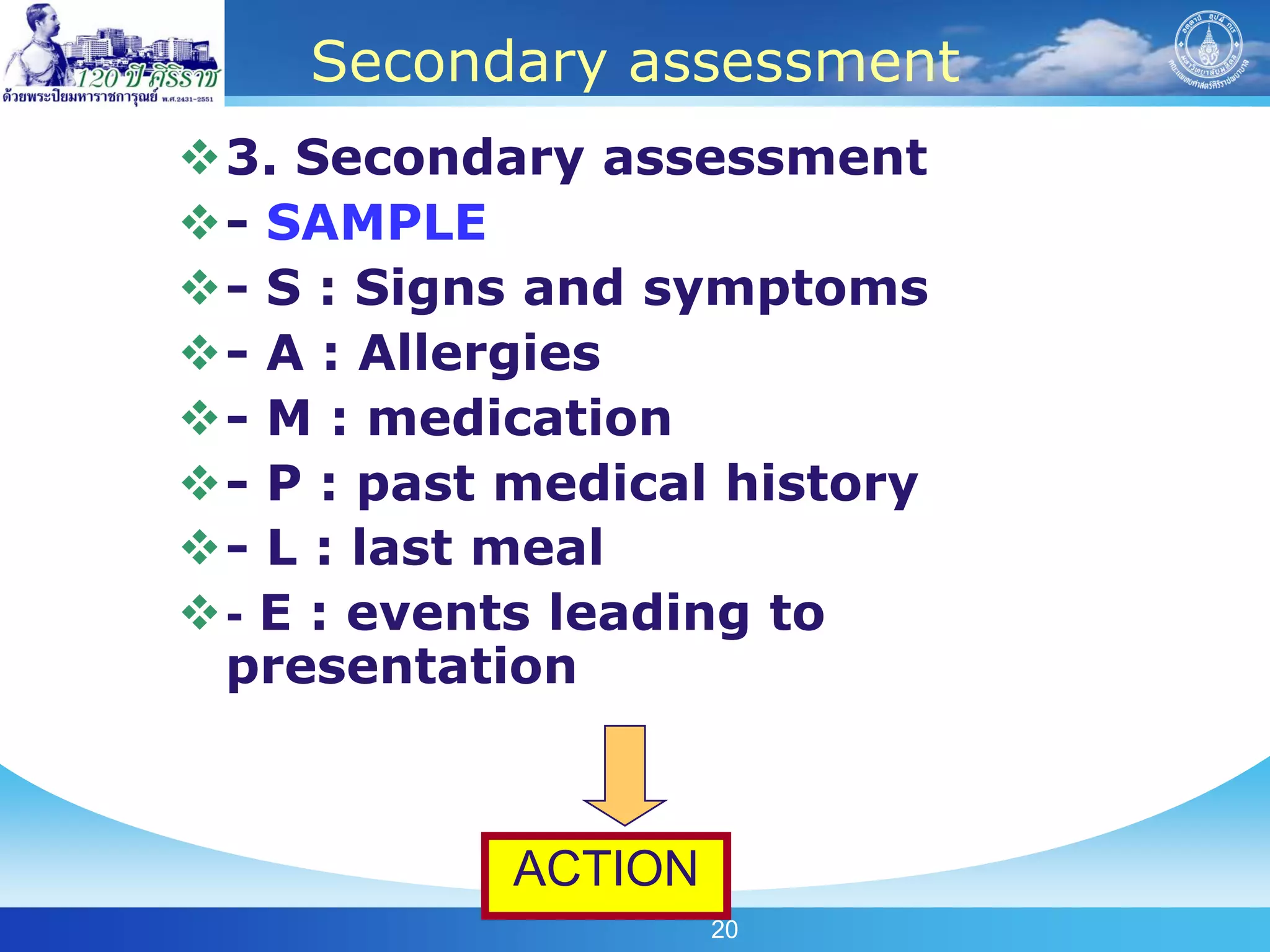

Secondary assessment
3. Secondary assessment
- SAMPLE
- S : Signs and symptoms
- A : Allergies
- M : medication
- P : past medical history
- L : last meal
- E : events leading to
 presentation



            ACTION
                     20

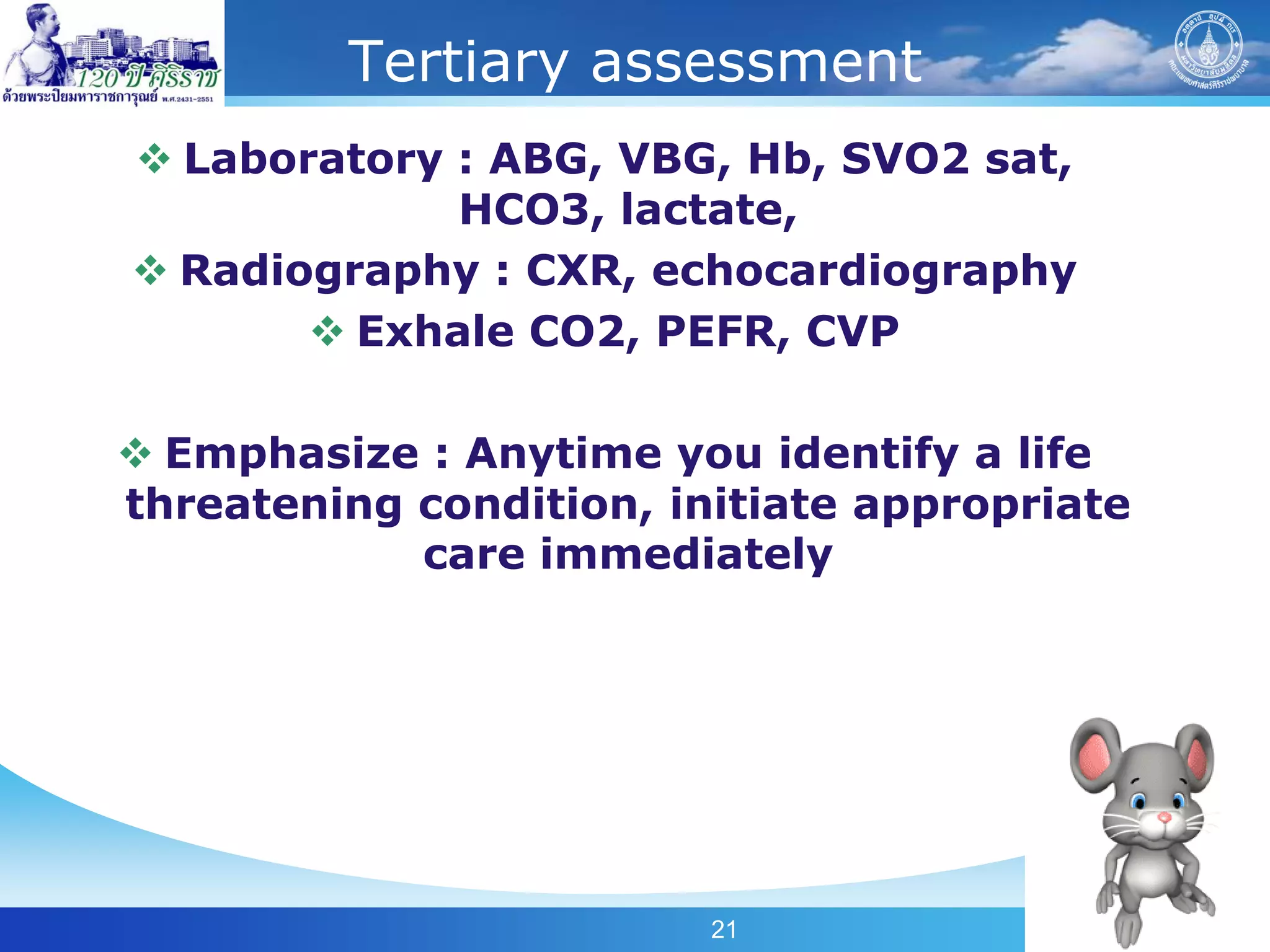

Tertiary assessment
 Laboratory : ABG, VBG, Hb, SVO2 sat,
             HCO3, lactate,
 Radiography : CXR, echocardiography
        Exhale CO2, PEFR, CVP

 Emphasize : Anytime you identify a life
threatening condition, initiate appropriate
            care immediately




                         21

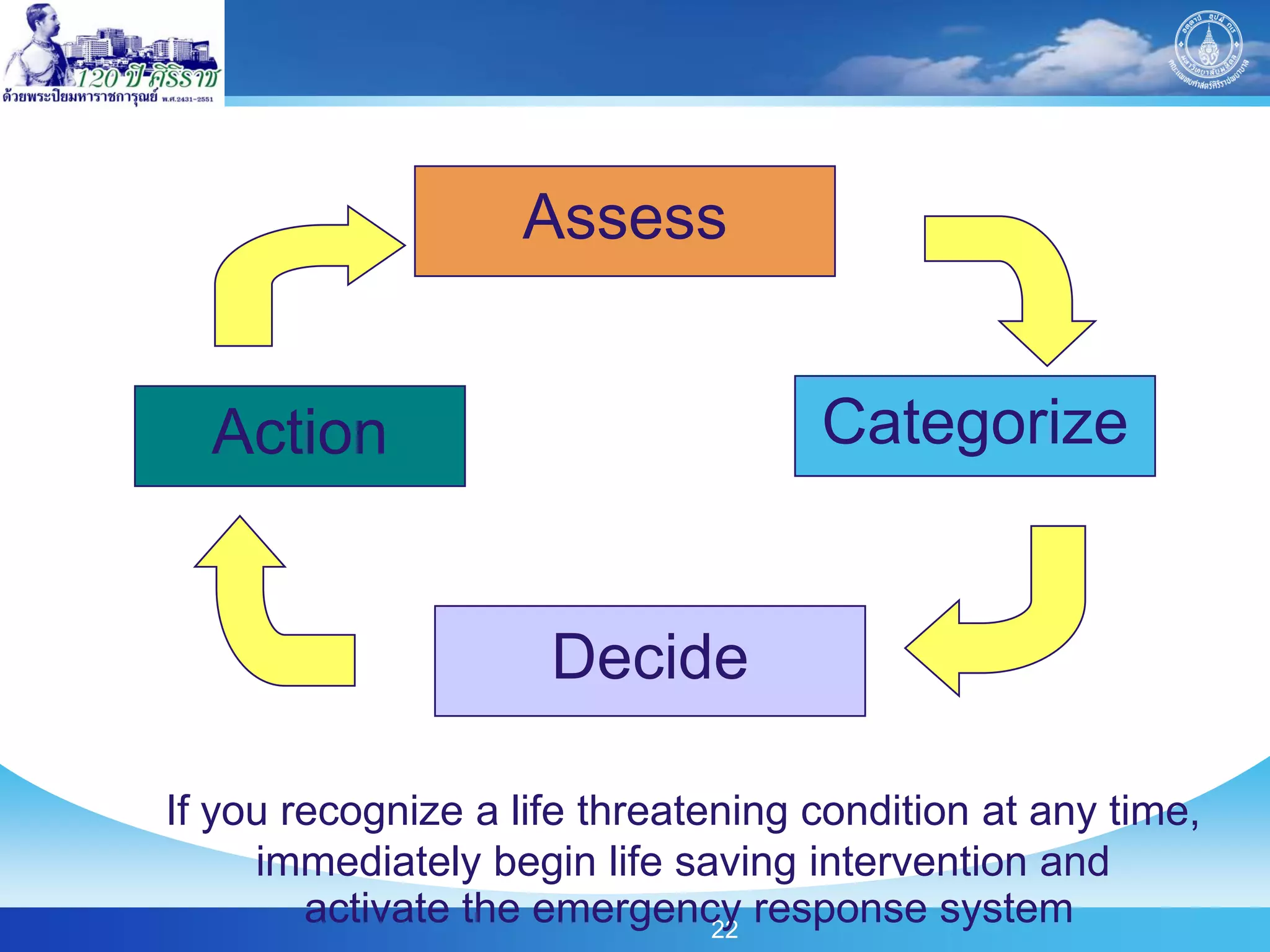

Assess


  Action                            Categorize


                     Decide

If you recognize a life threatening condition at any time,
     immediately begin life saving intervention and
        activate the emergency response system
                               22

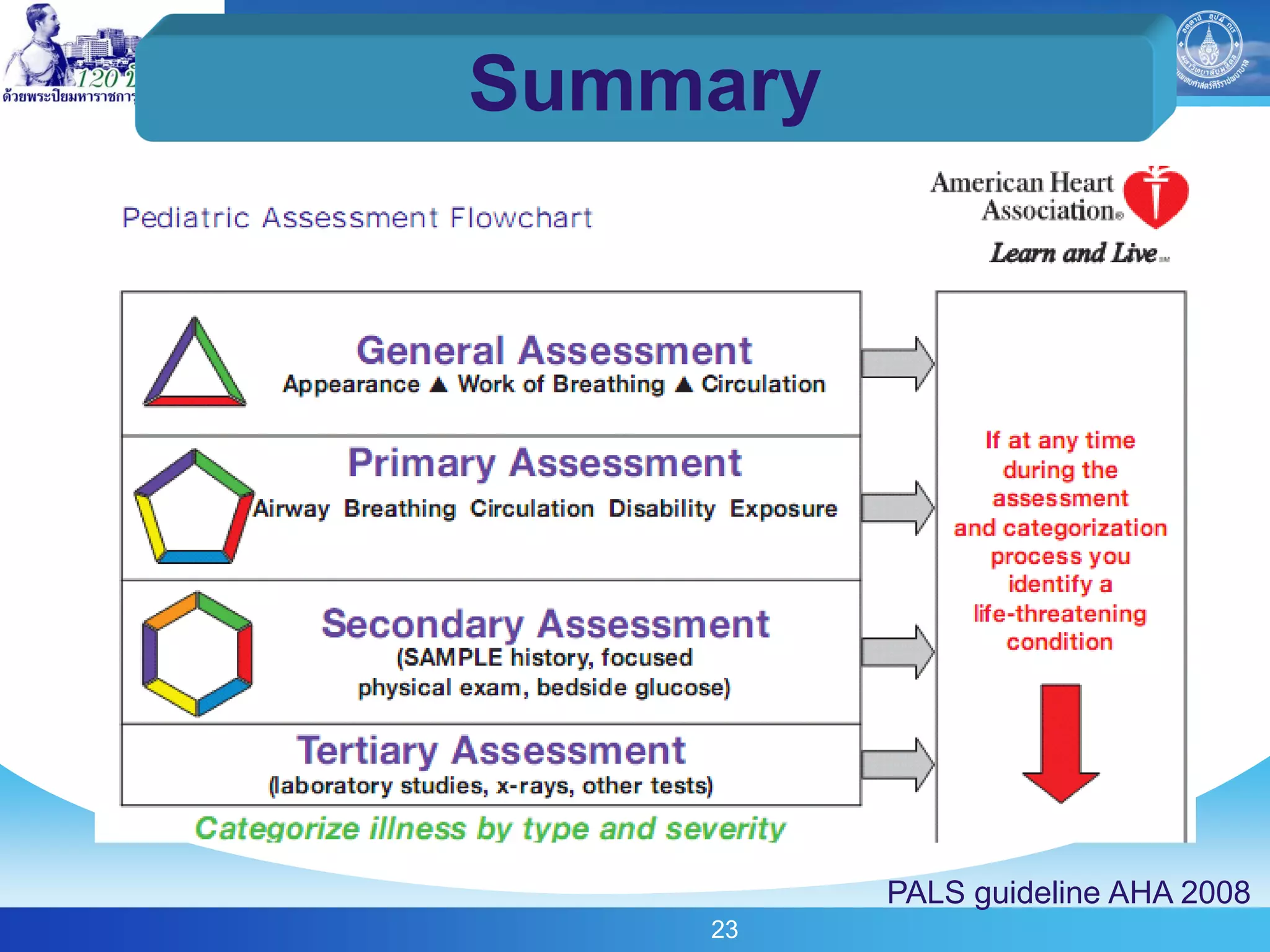

Summary




          PALS guideline AHA 2008
    23

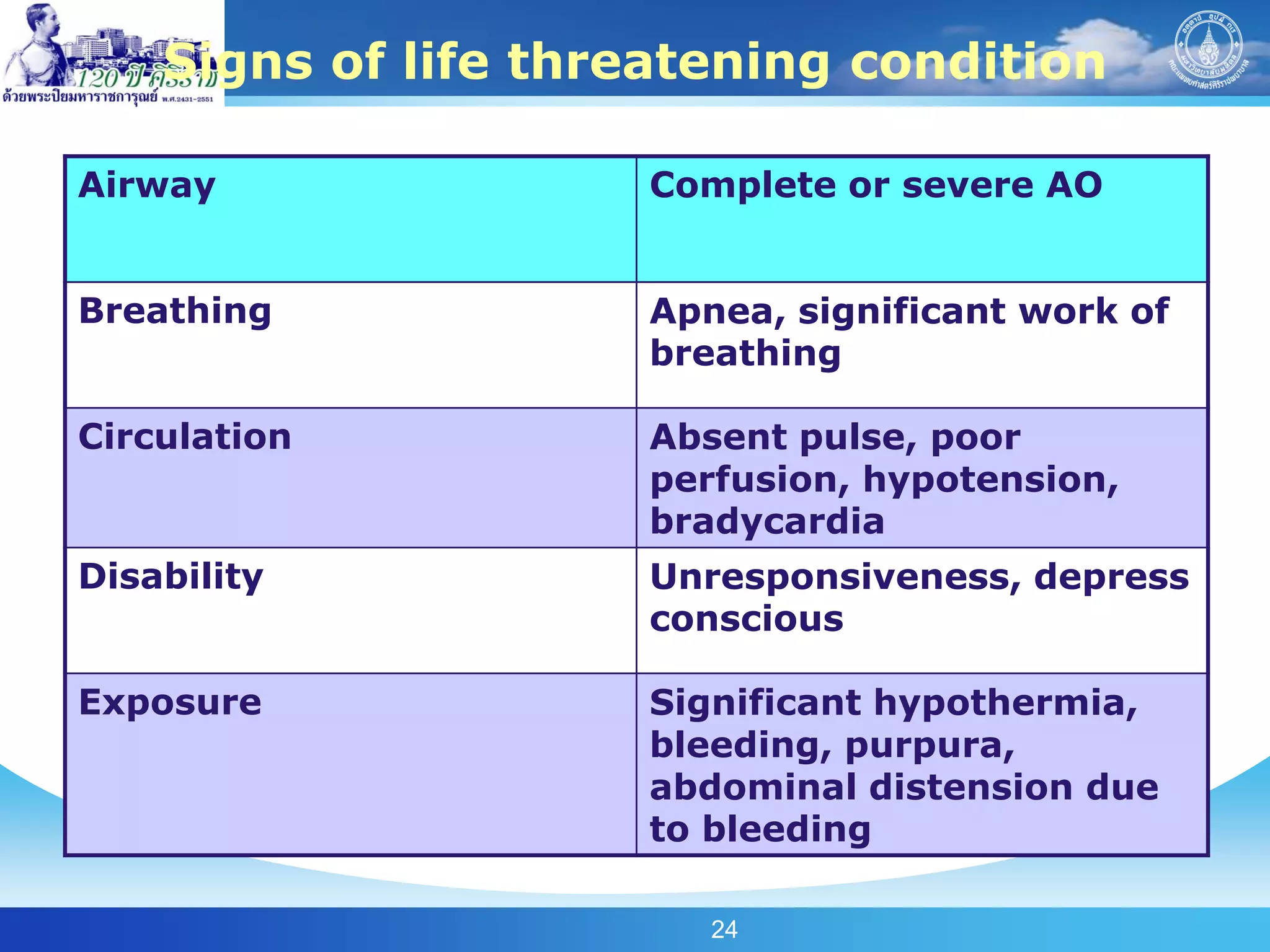

Signs of life threatening condition

Airway                Complete or severe AO


Breathing             Apnea, significant work of
                      breathing

Circulation           Absent pulse, poor
                      perfusion, hypotension,
                      bradycardia
Disability            Unresponsiveness, depress
                      conscious

Exposure              Significant hypothermia,
                      bleeding, purpura,
                      abdominal distension due
                      to bleeding

                         24

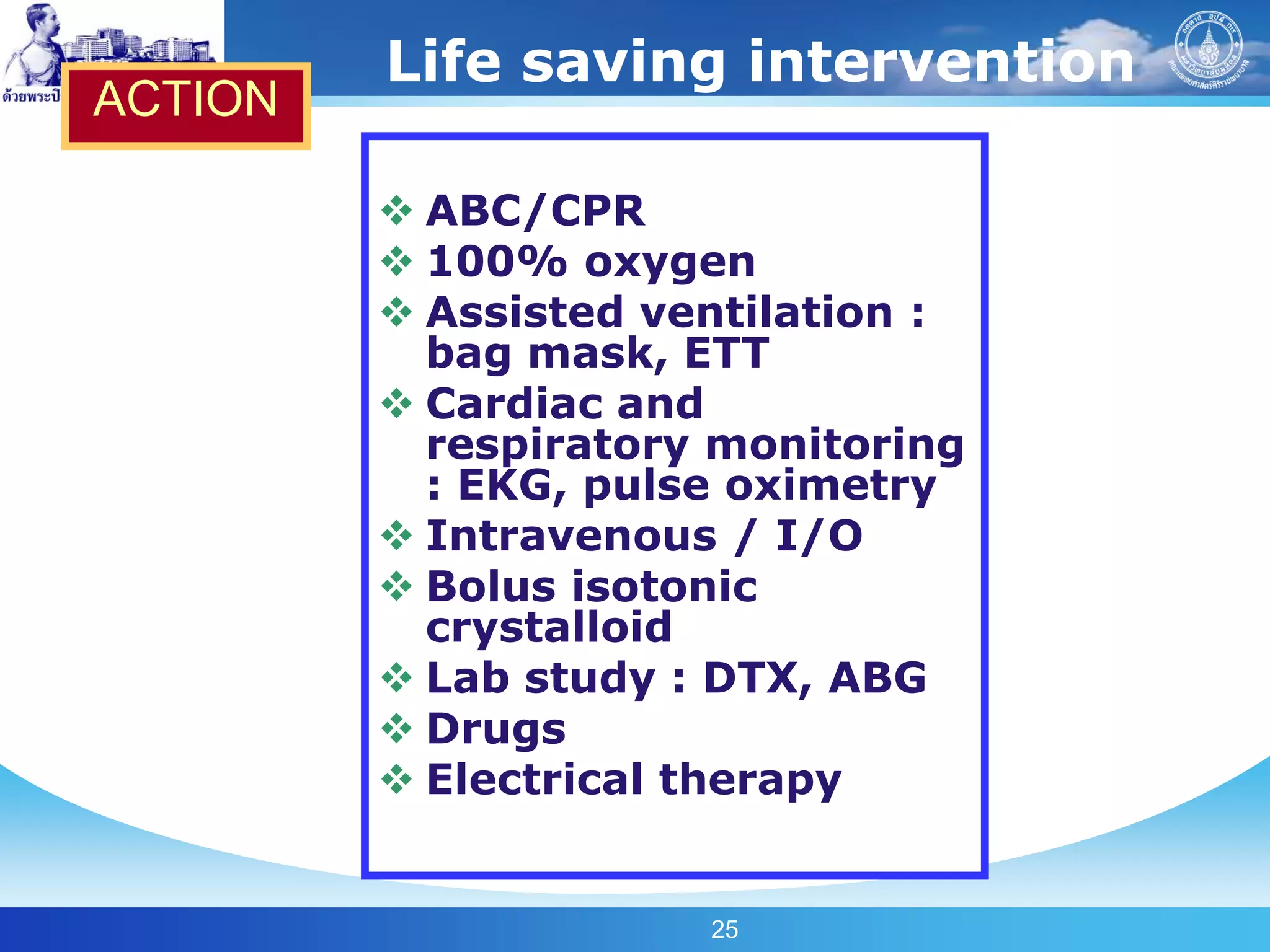

Life saving intervention
ACTION

          ABC/CPR
          100% oxygen
          Assisted ventilation :
           bag mask, ETT
          Cardiac and
           respiratory monitoring
           : EKG, pulse oximetry
          Intravenous / I/O
          Bolus isotonic
           crystalloid
          Lab study : DTX, ABG
          Drugs
          Electrical therapy


                      25

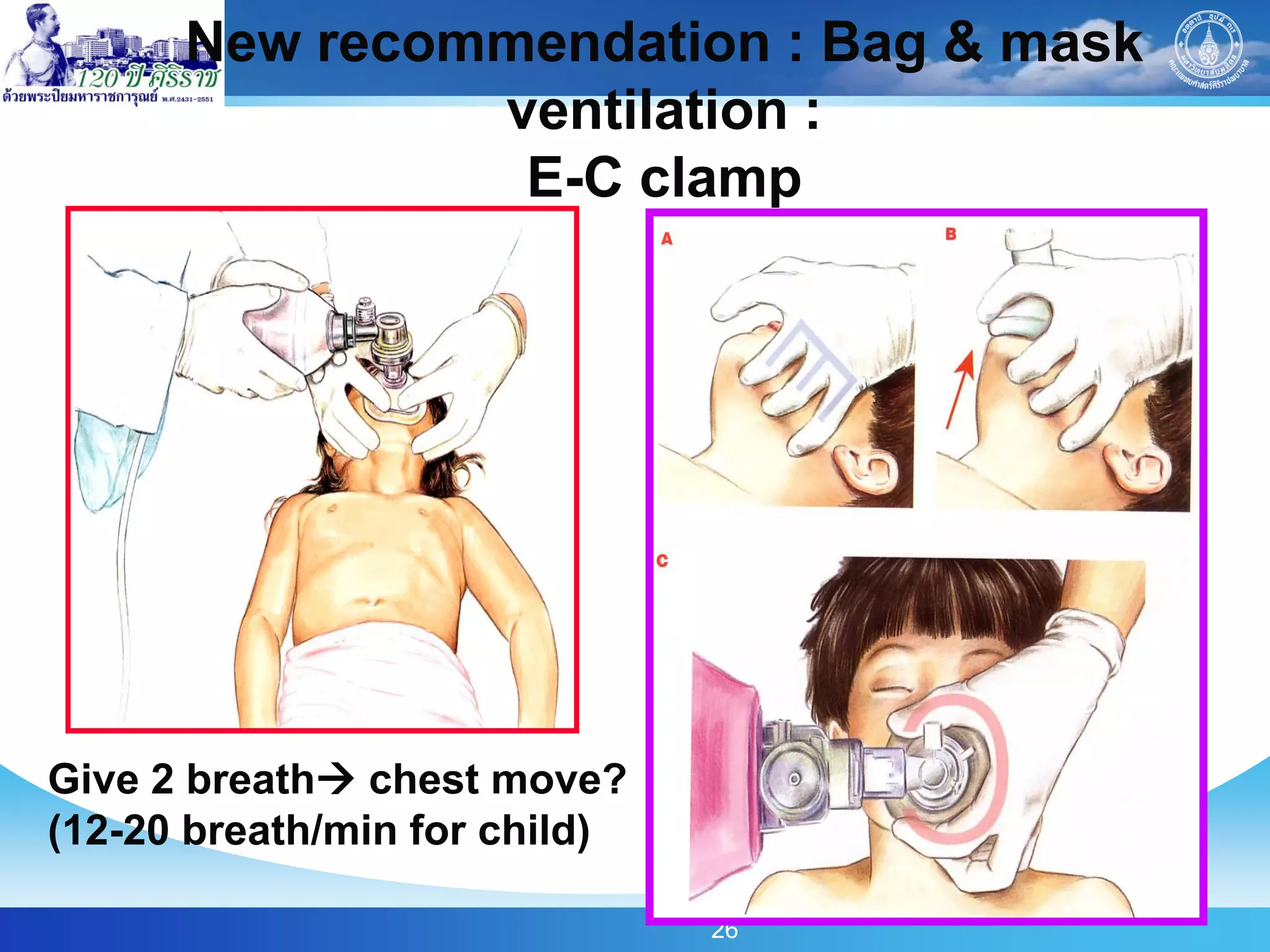

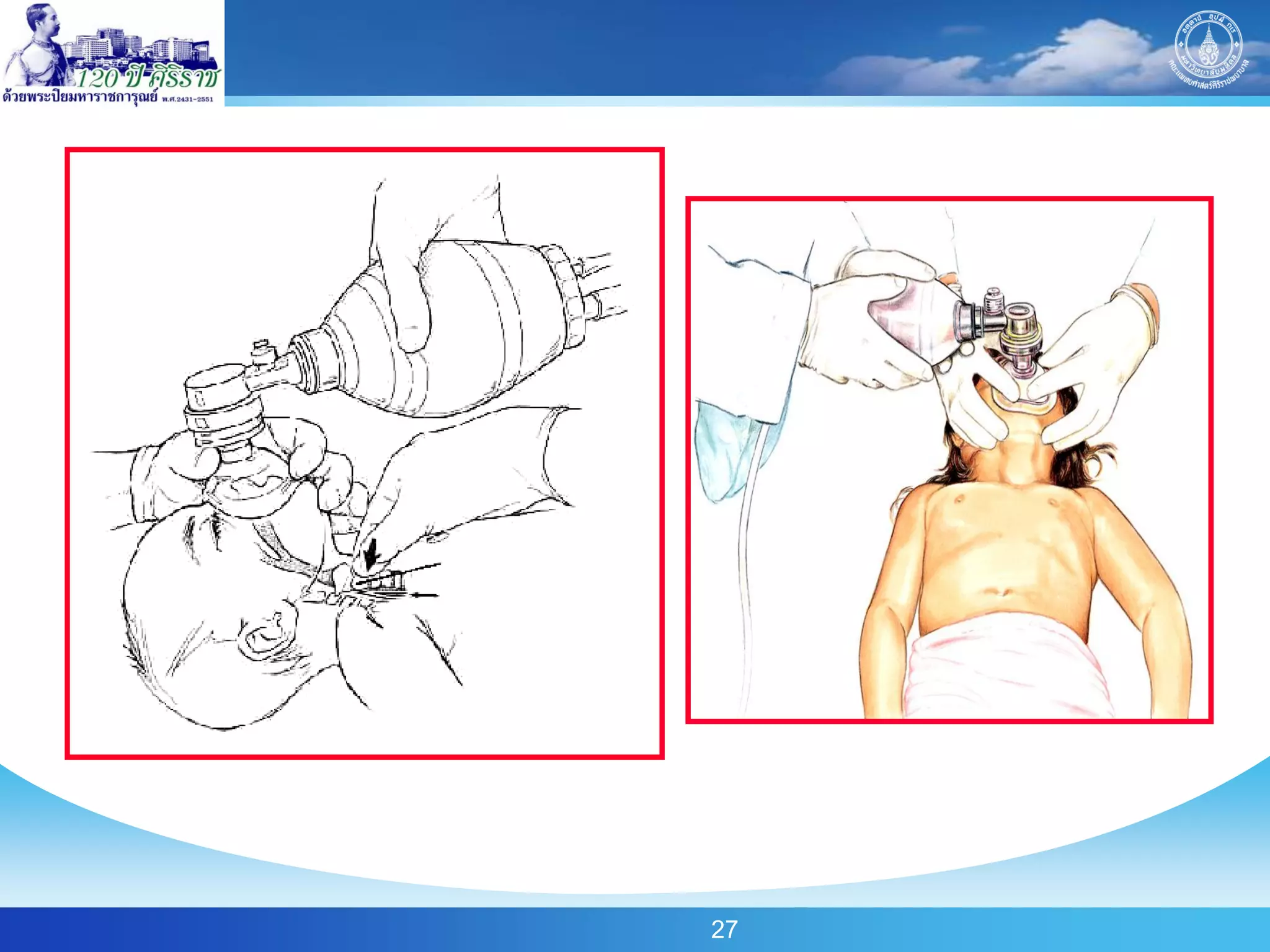

New recommendation : Bag & mask
               ventilation :
                E-C clamp




Give 2 breath chest move?
(12-20 breath/min for child)

                               26
27

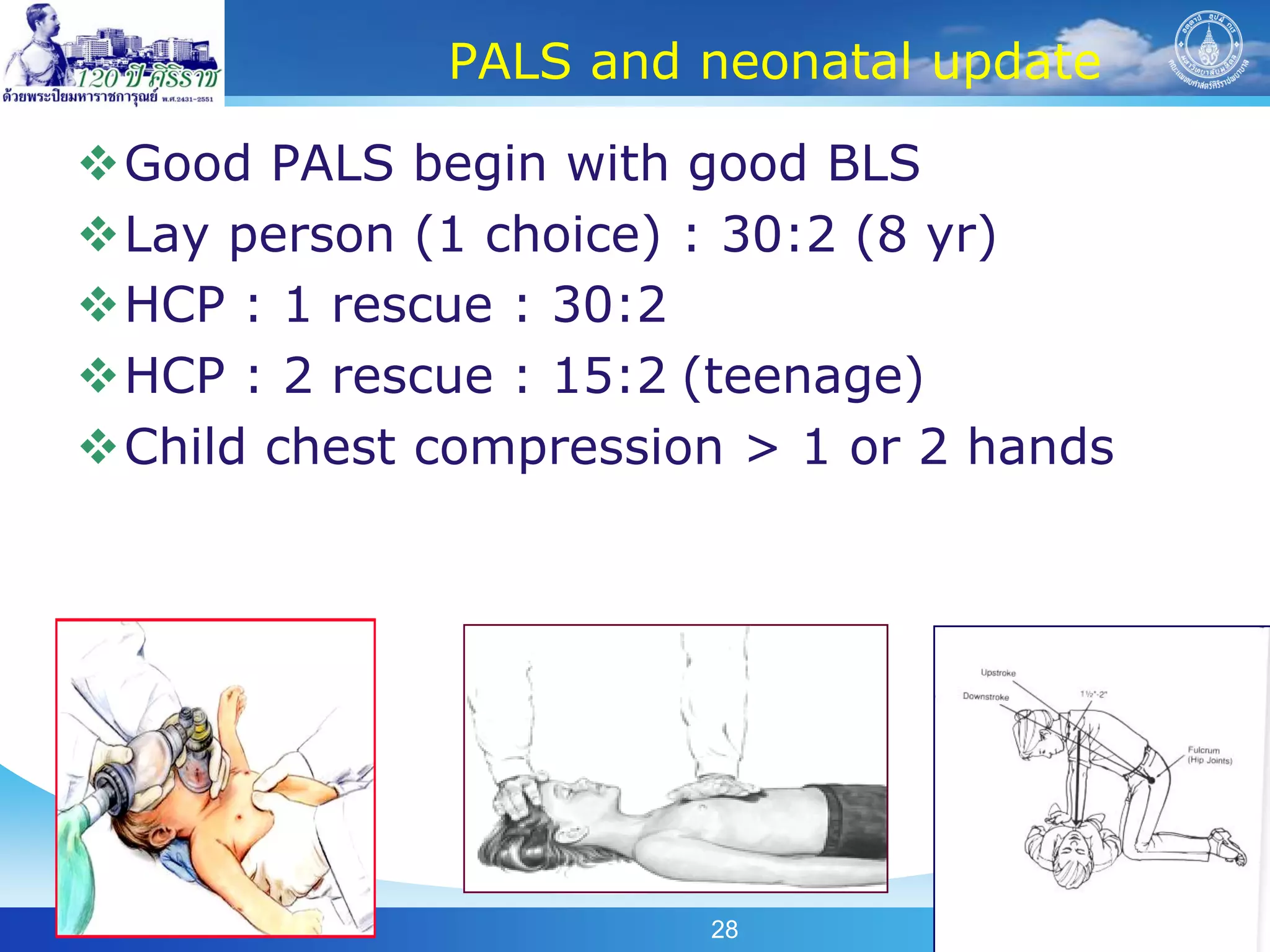

PALS and neonatal update

Good PALS begin with good BLS
Lay person (1 choice) : 30:2 (8 yr)
HCP : 1 rescue : 30:2
HCP : 2 rescue : 15:2 (teenage)
Child chest compression > 1 or 2 hands




                       28

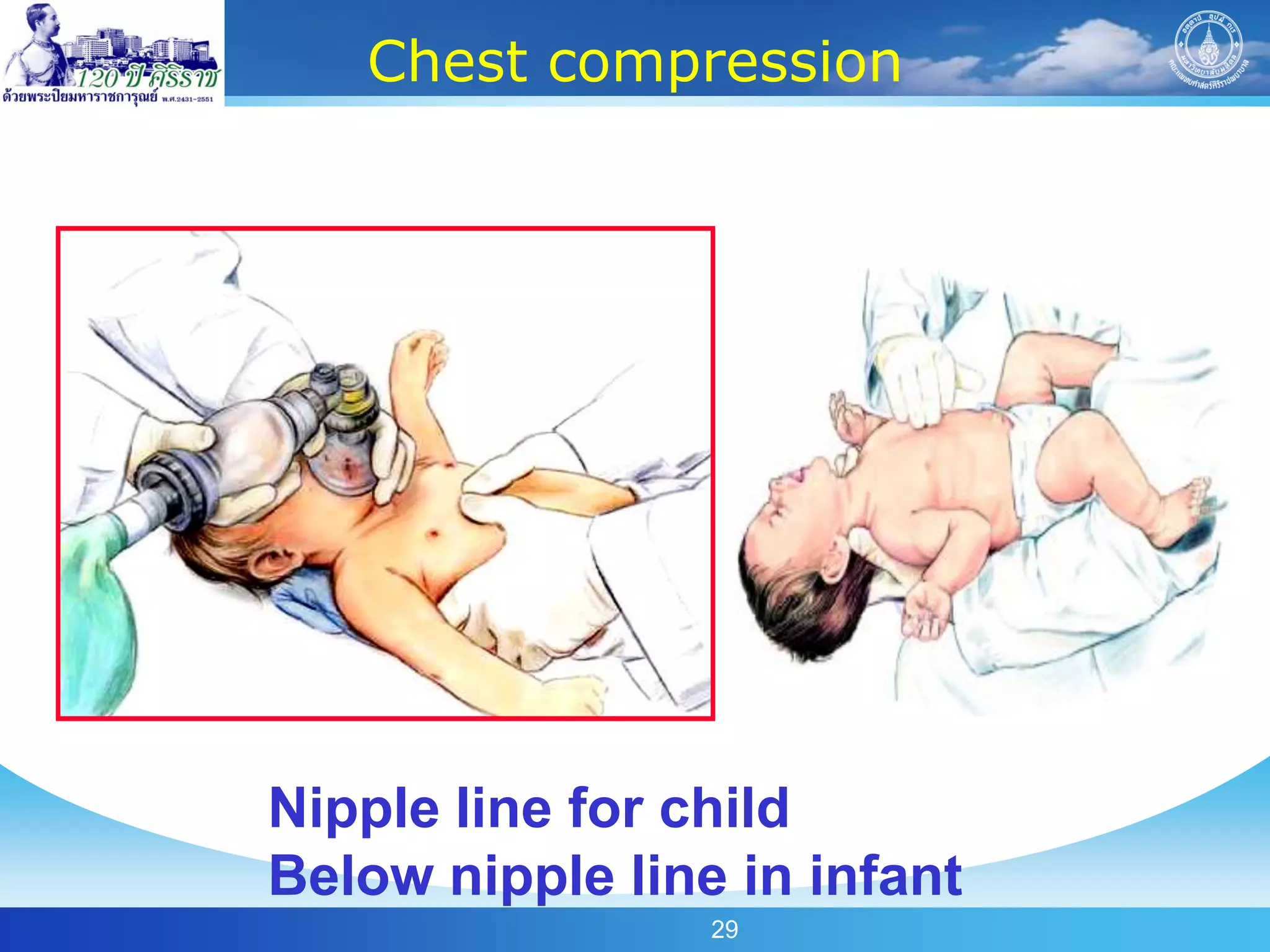

Chest compression




Nipple line for child
Below nipple line in infant
                 29

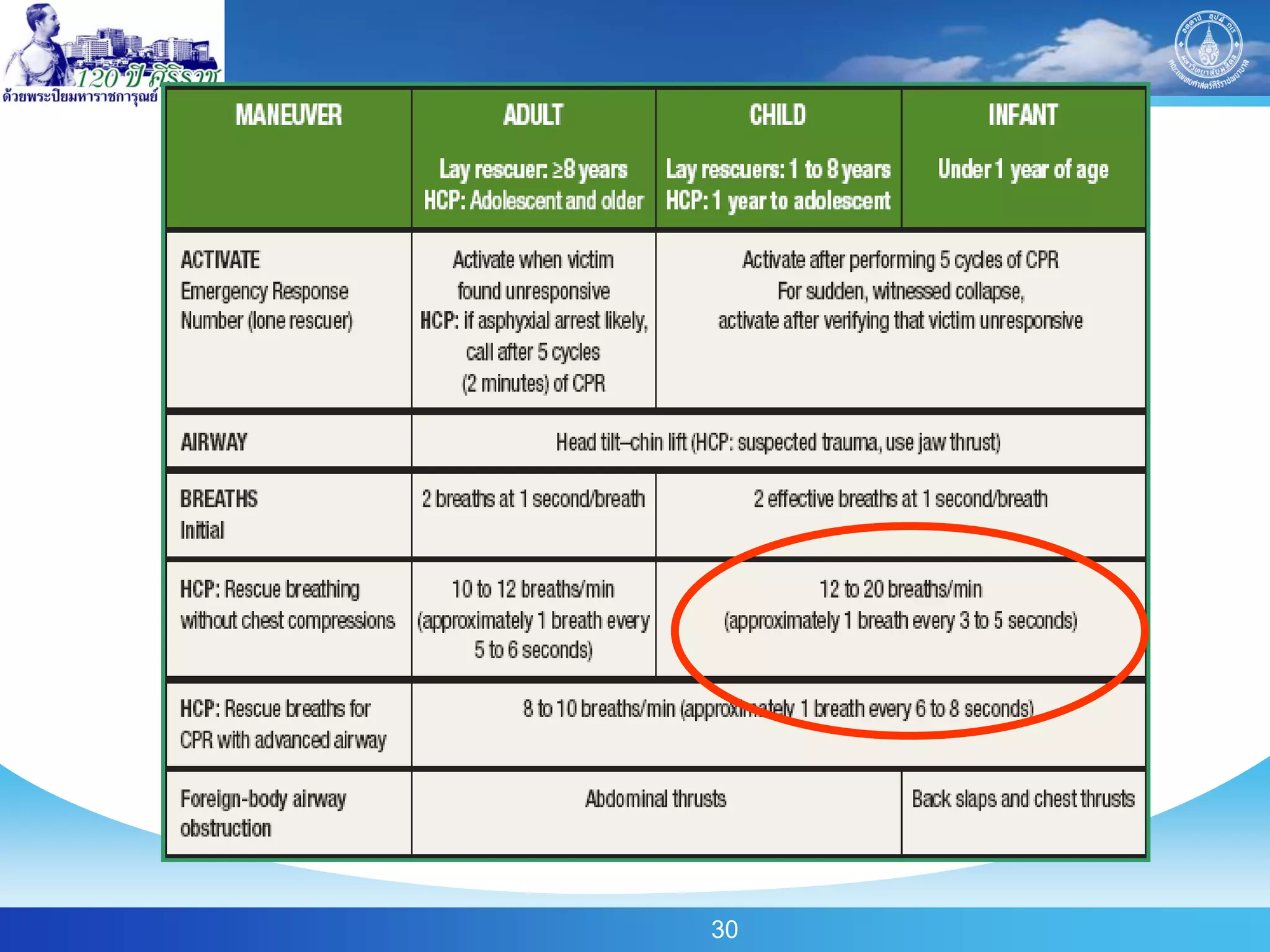

30
31

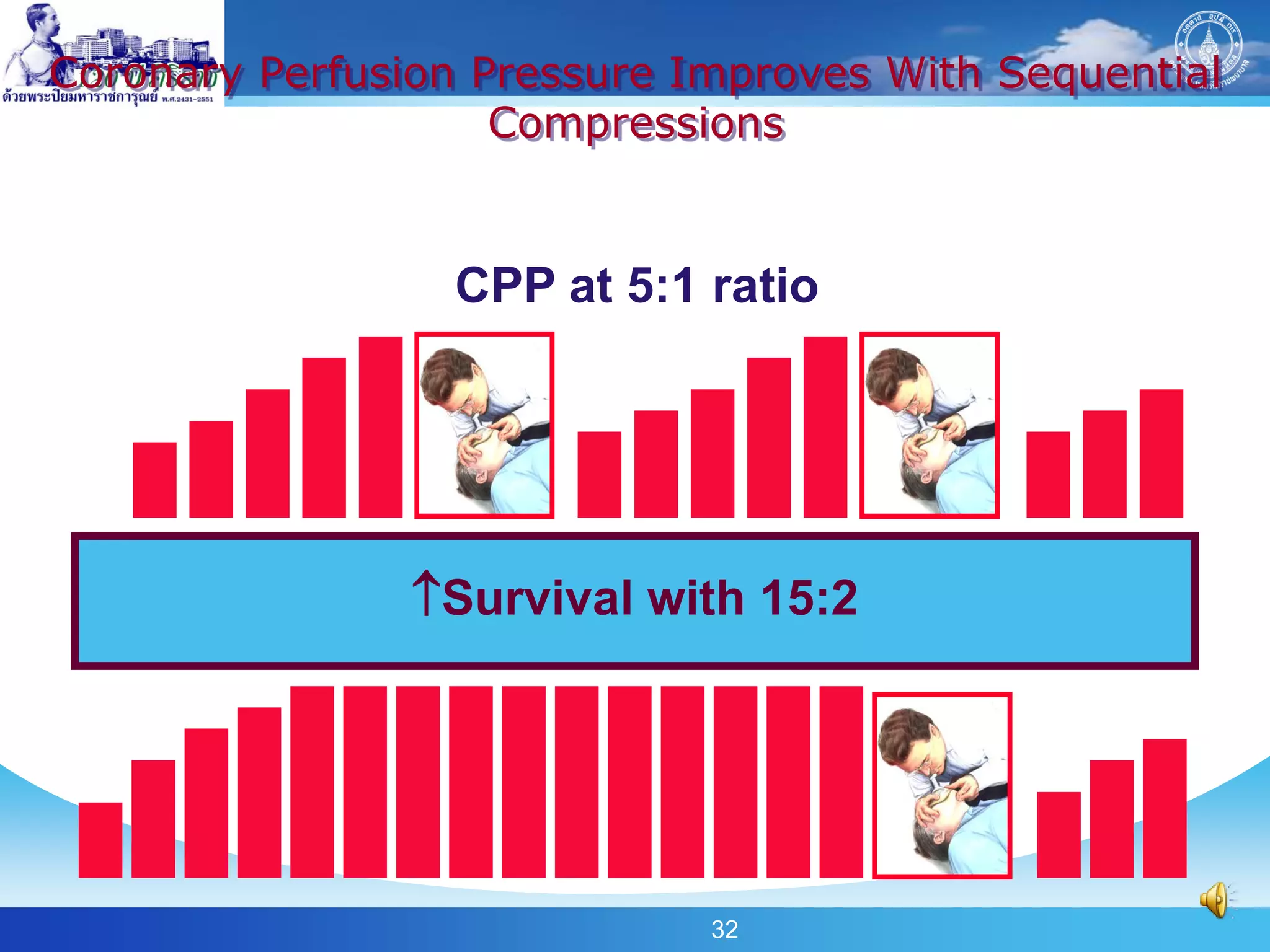

Coronary Perfusion Pressure Improves With Sequential
                    Compressions


                 CPP at 5:1 ratio




                Survival with 15:2
                 CPP at 15:2 ratio




                             32

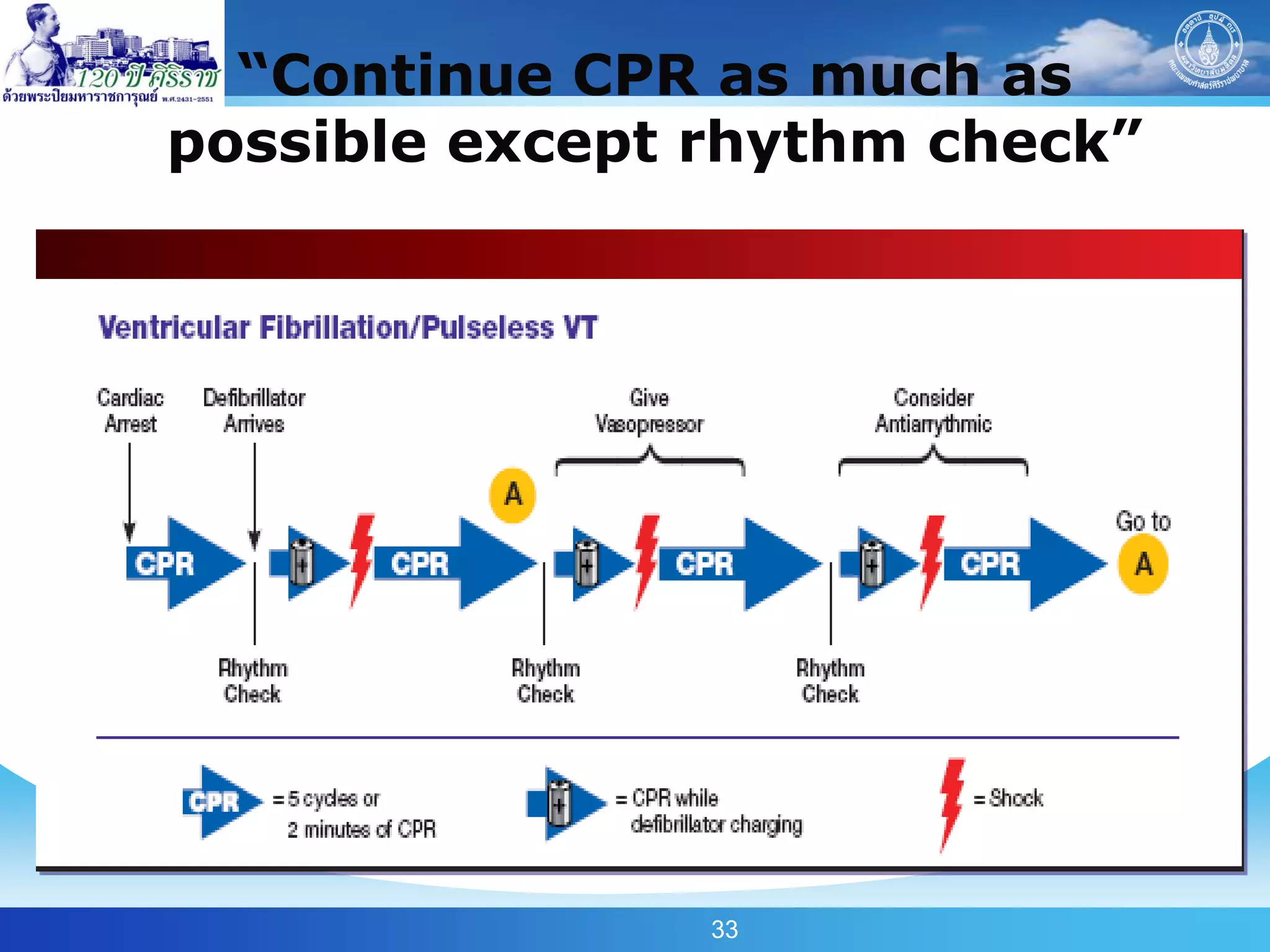

“Continue CPR as much as
possible except rhythm check”




                33

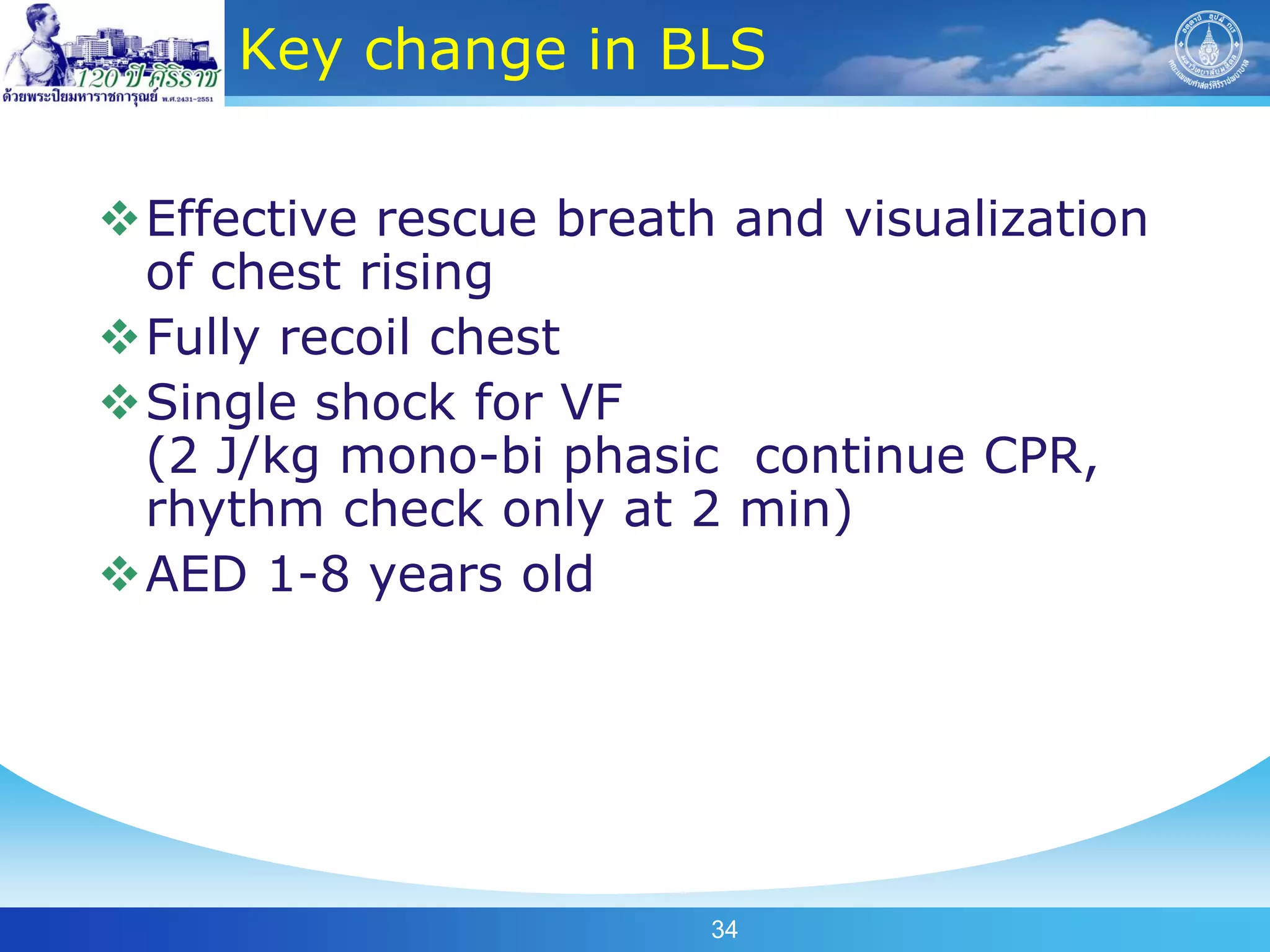

Key change in BLS

Effective rescue breath and visualization
 of chest rising
Fully recoil chest
Single shock for VF
 (2 J/kg mono-bi phasic continue CPR,
 rhythm check only at 2 min)
AED 1-8 years old




                        34
Categorize
 Determine the type and severity


                           Type                       Severity

Respiratory   - Upper airway obstruction        -Respiratory
              - Lower airway obstruction        distress
              - lung parenchymal disease        -Respiratory failure
              - Disorder control of breathing


Circulatory   - Hypovolemic shock               -Compensated
              - Obstructive shock               shock
              - Distributive shock              -Hypotensive shock
              - Cardiogenic shock



                                     35

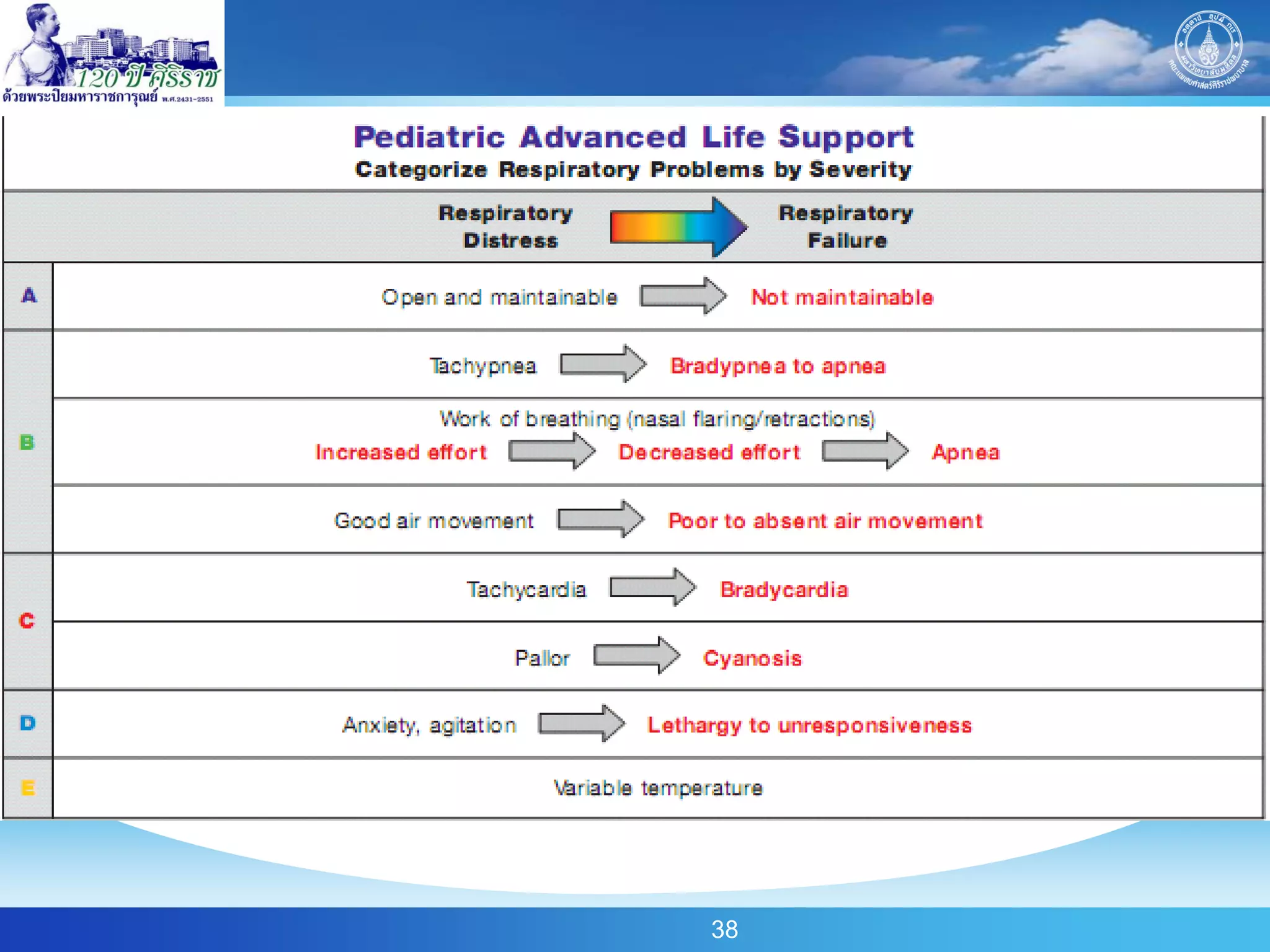

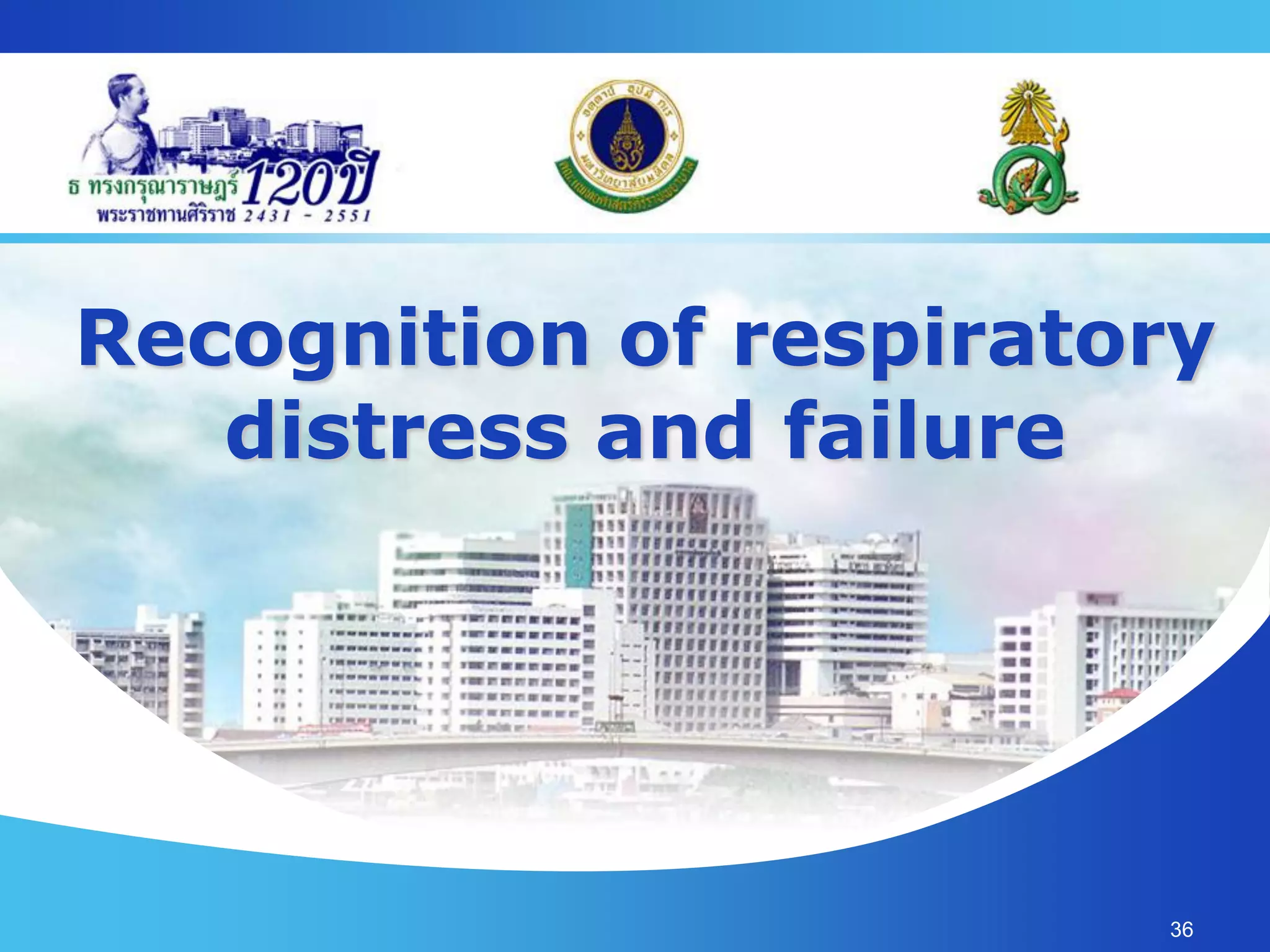

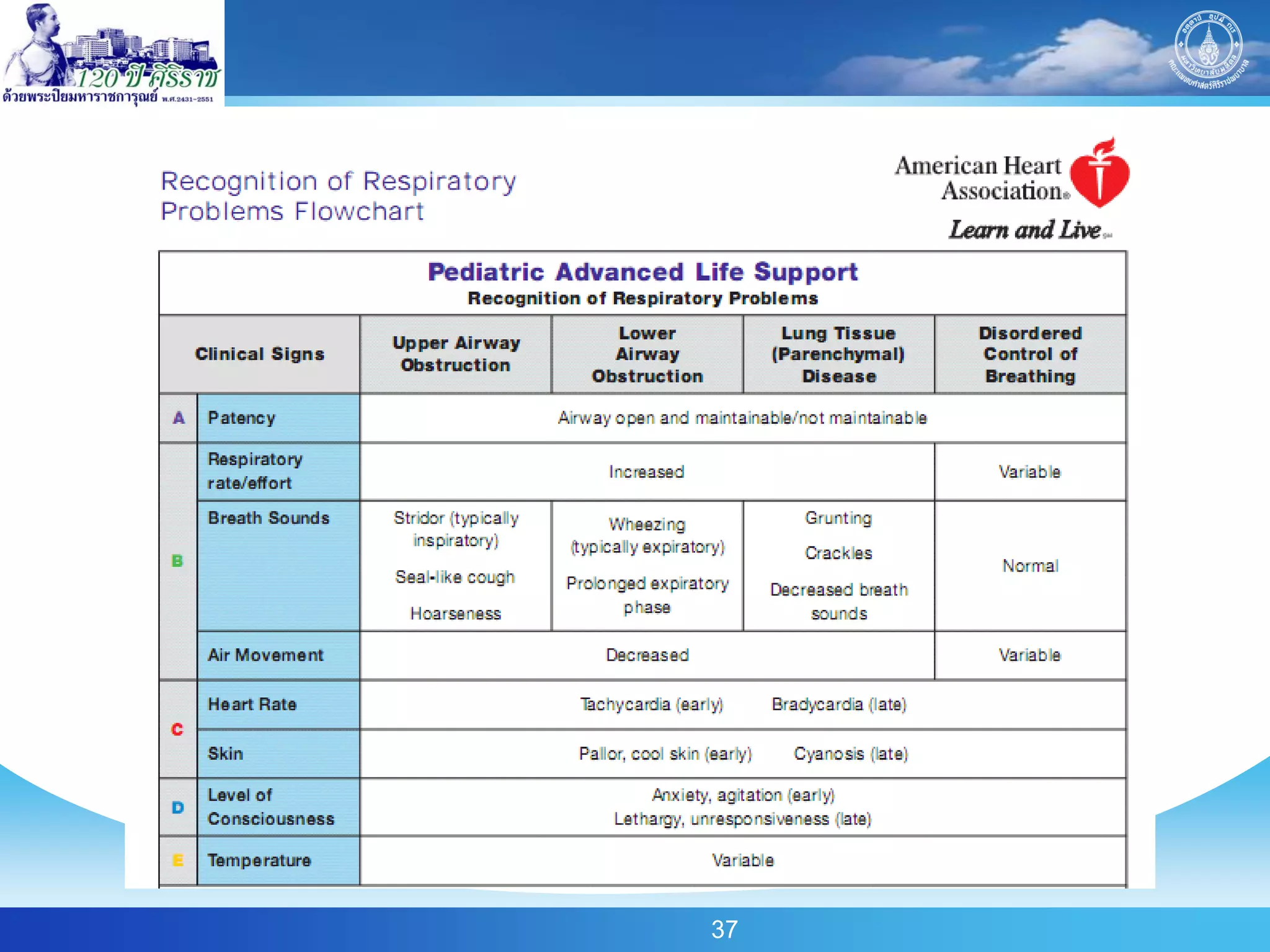

Recognition of respiratory
   distress and failure




                        36
37
38
39
40
41
42
Prehospital Tracheal Intubation vs Bag-Mask
                 Ventilation
Bag-mask
 ventilation : as
 effective as
 intubation if
 transport time is
 short
Need training and
 experience
Must confirmation of
 tube position
Monitoring


                         43

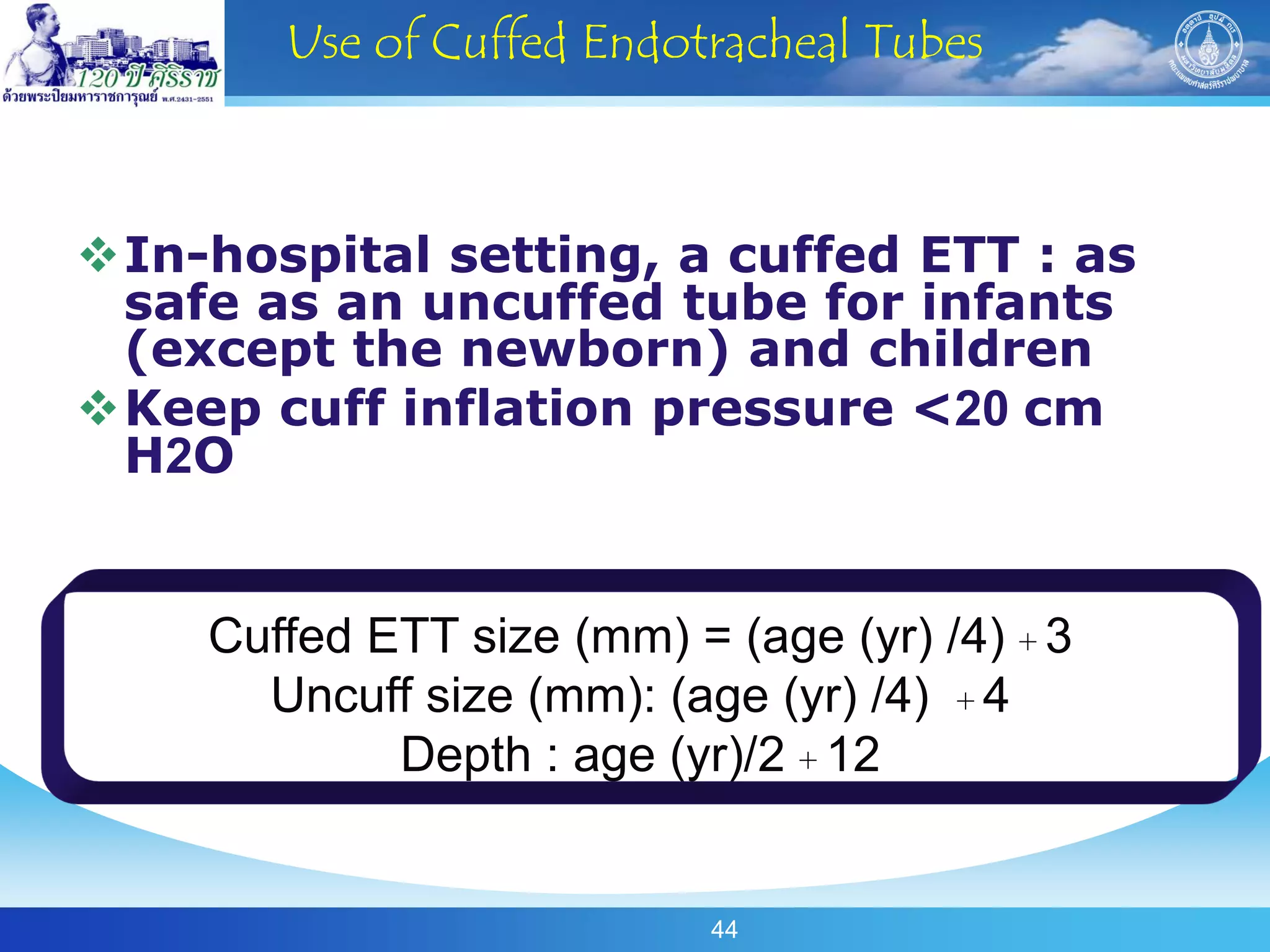

Use of Cuffed Endotracheal Tubes



In-hospital setting, a cuffed ETT : as
 safe as an uncuffed tube for infants
 (except the newborn) and children
Keep cuff inflation pressure <20 cm
 H2O


    Cuffed ETT size (mm) = (age (yr) /4) + 3
      Uncuff size (mm): (age (yr) /4) + 4
            Depth : age (yr)/2 + 12


                           44

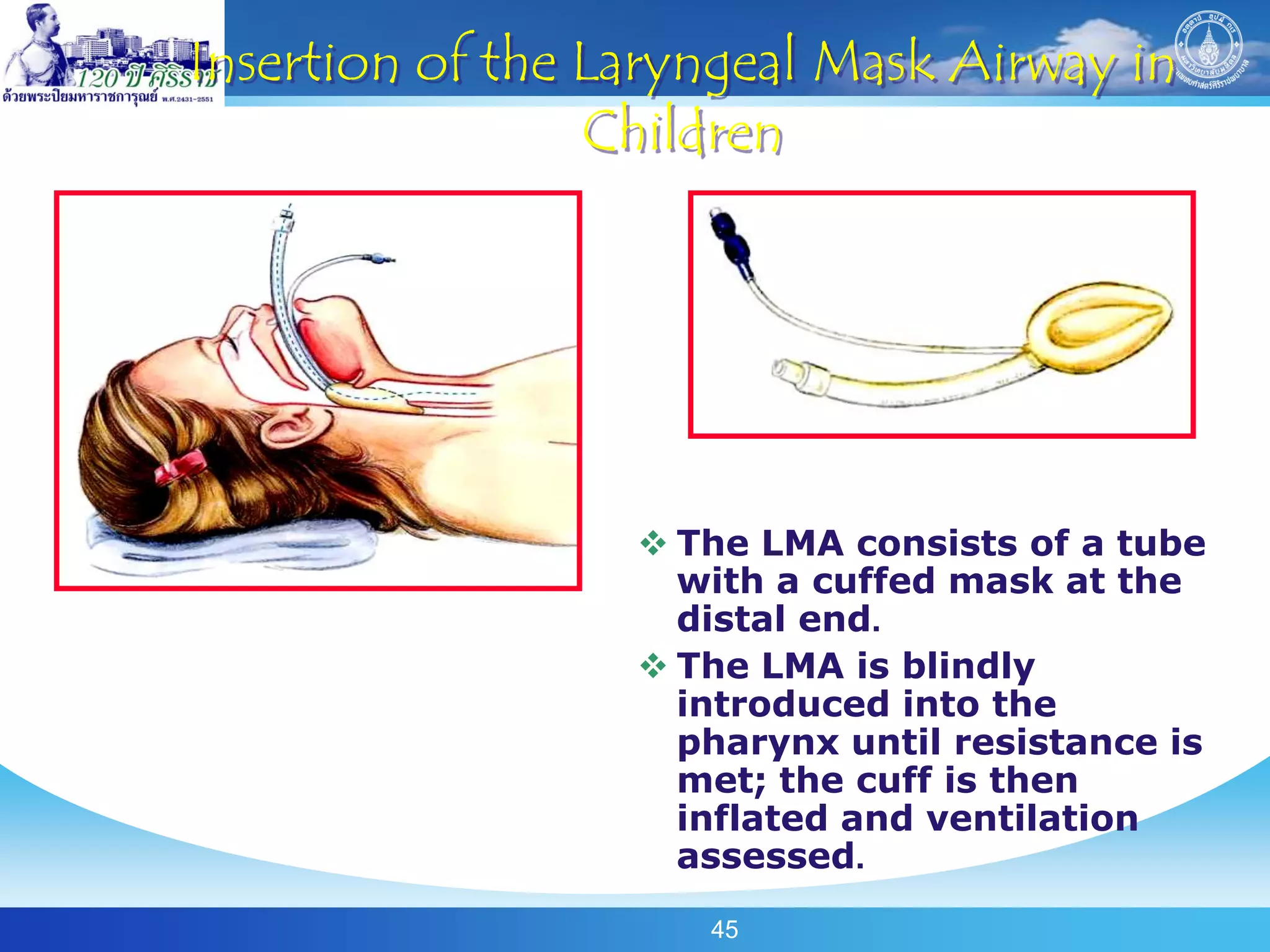

Insertion of the Laryngeal Mask Airway in
                 Children




                   The LMA consists of a tube
                    with a cuffed mask at the
                    distal end.
                   The LMA is blindly
                    introduced into the
                    pharynx until resistance is
                    met; the cuff is then
                    inflated and ventilation
                    assessed.
                     45

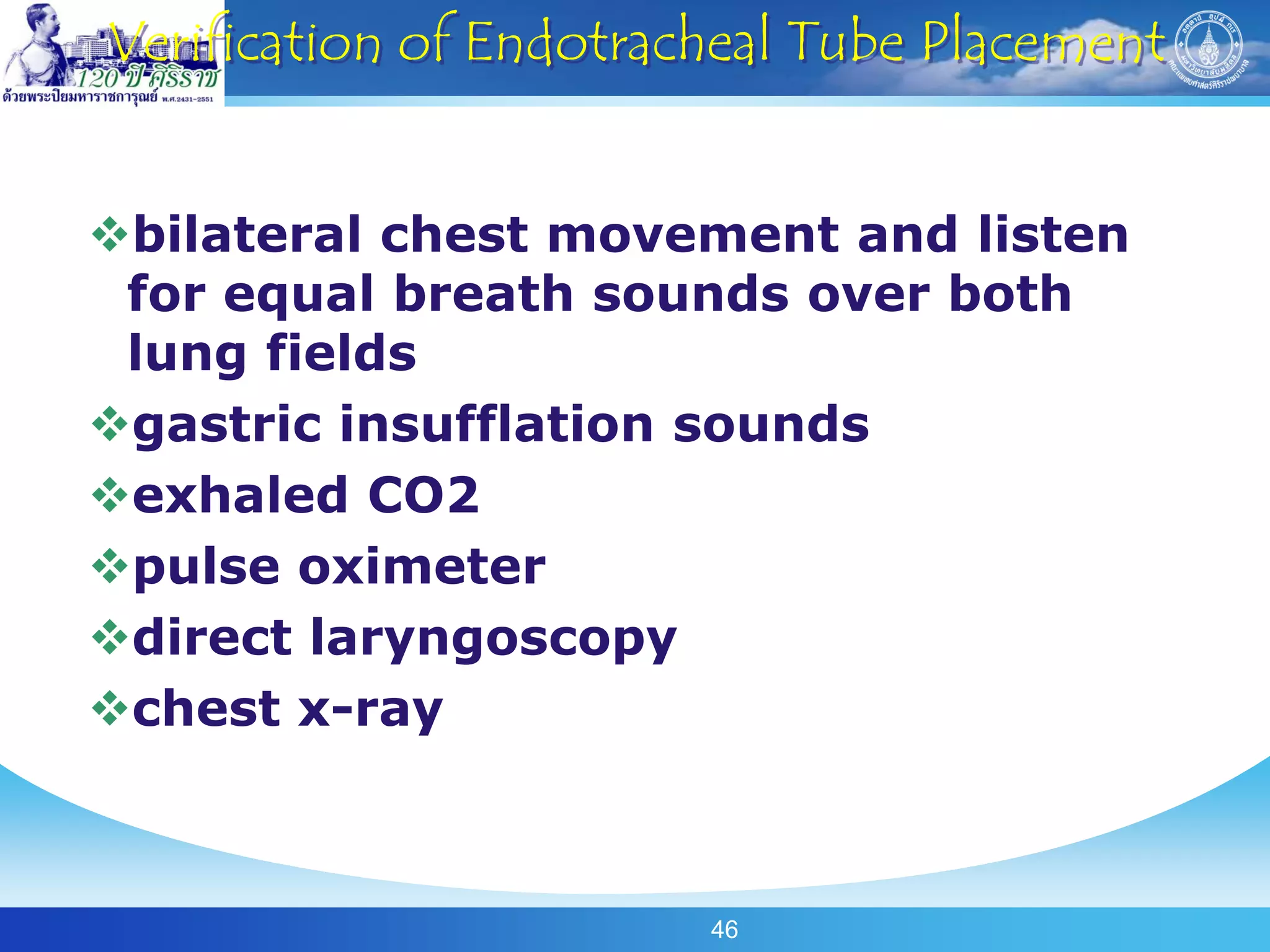

Verification of Endotracheal Tube Placement


bilateral chest movement and listen
 for equal breath sounds over both
 lung fields
gastric insufflation sounds
exhaled CO2
pulse oximeter
direct laryngoscopy
chest x-ray



                        46

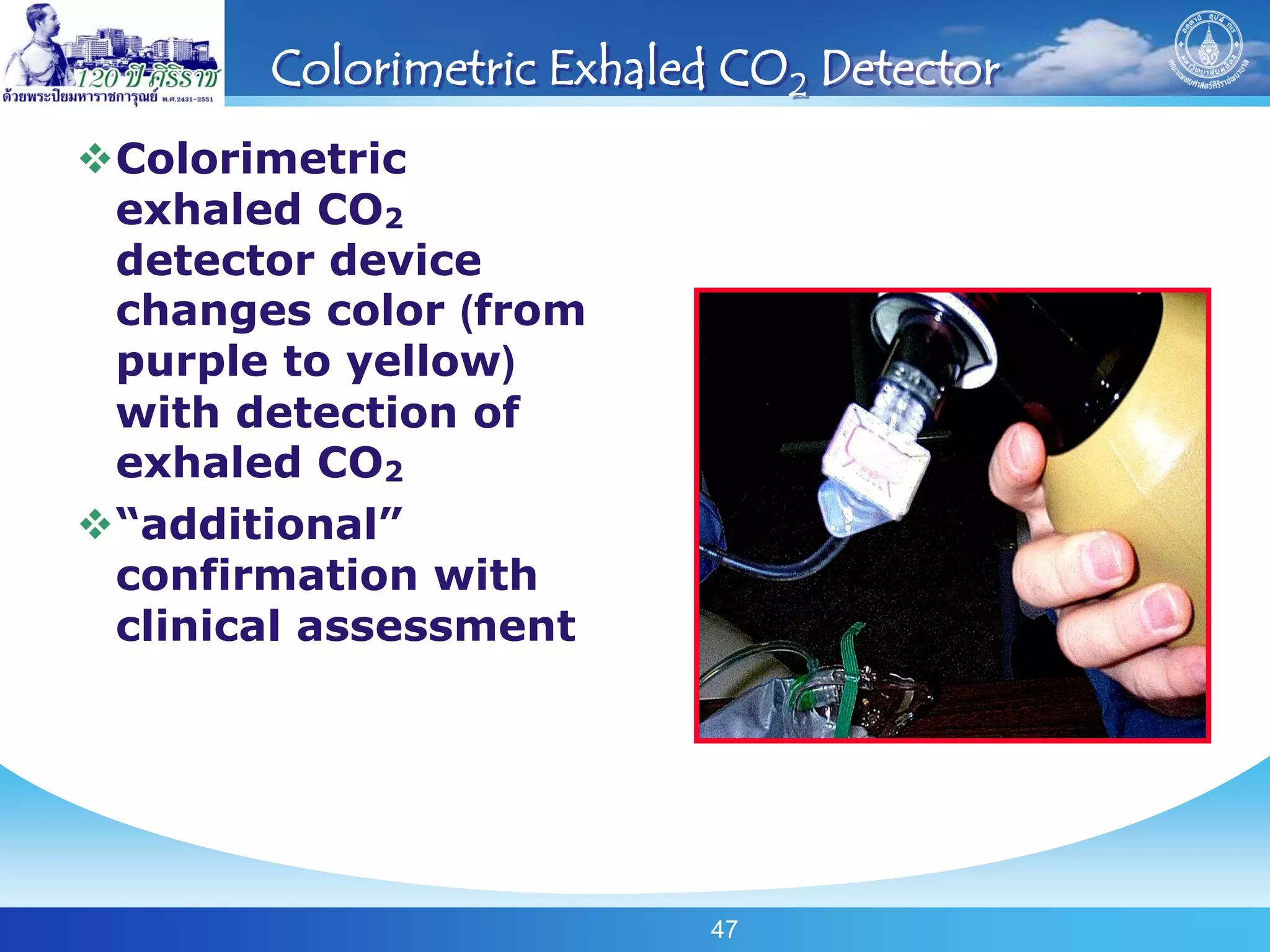

Colorimetric Exhaled CO2 Detector
Colorimetric
 exhaled CO2
 detector device
 changes color (from
 purple to yellow)
 with detection of
 exhaled CO2
“additional”
 confirmation with
 clinical assessment




                          47
Recognition of shock
 in pediatric patient



     PALS update 2008-2009




                             48

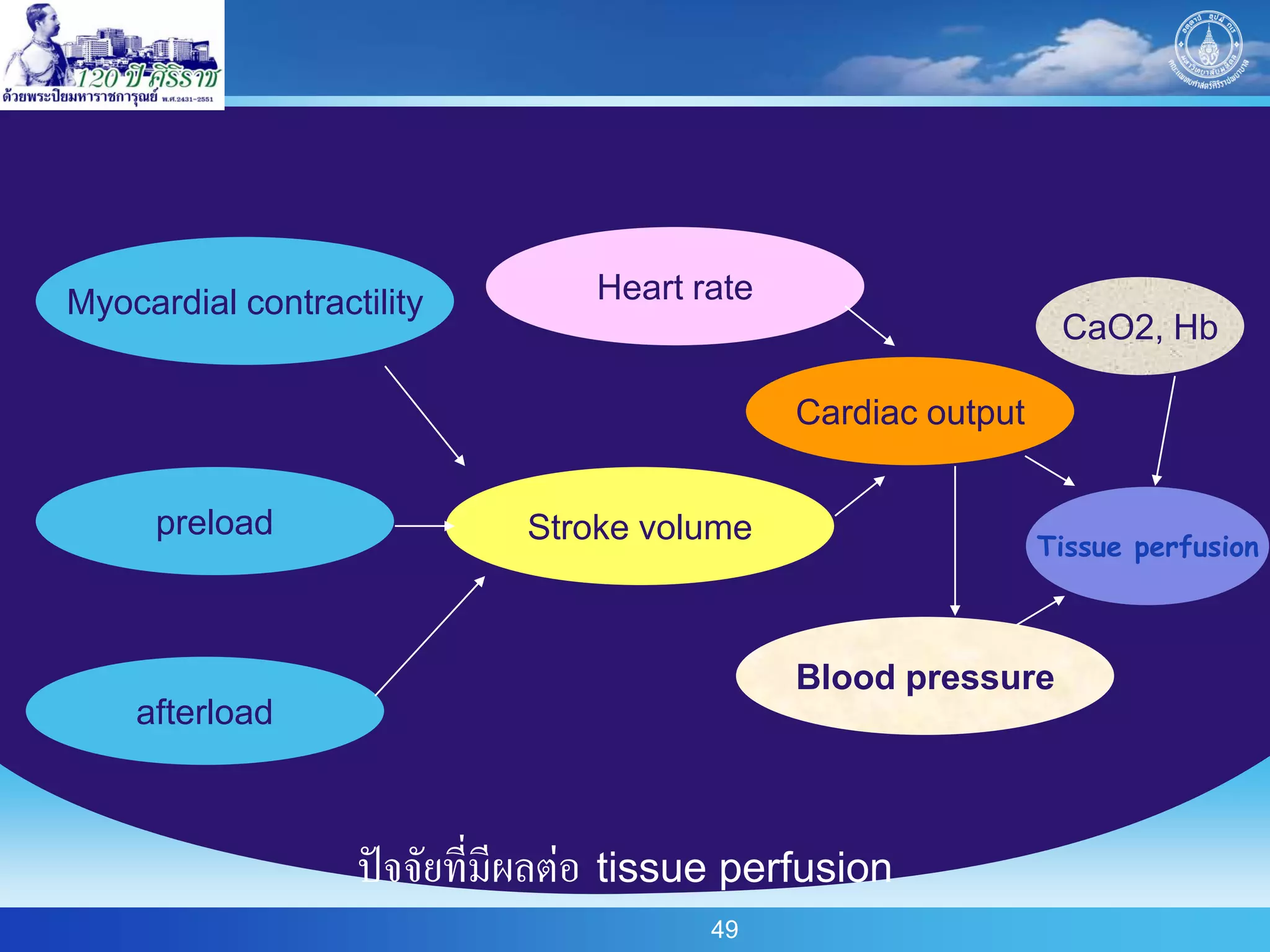

Myocardial contractility         Heart rate
                                                                CaO2, Hb

                                              Cardiac output


     preload                 Stroke volume                     Tissue perfusion



                                              Blood pressure
    afterload



                   ปัจจัยที่มีผลต่อ tissue perfusion
                                        49

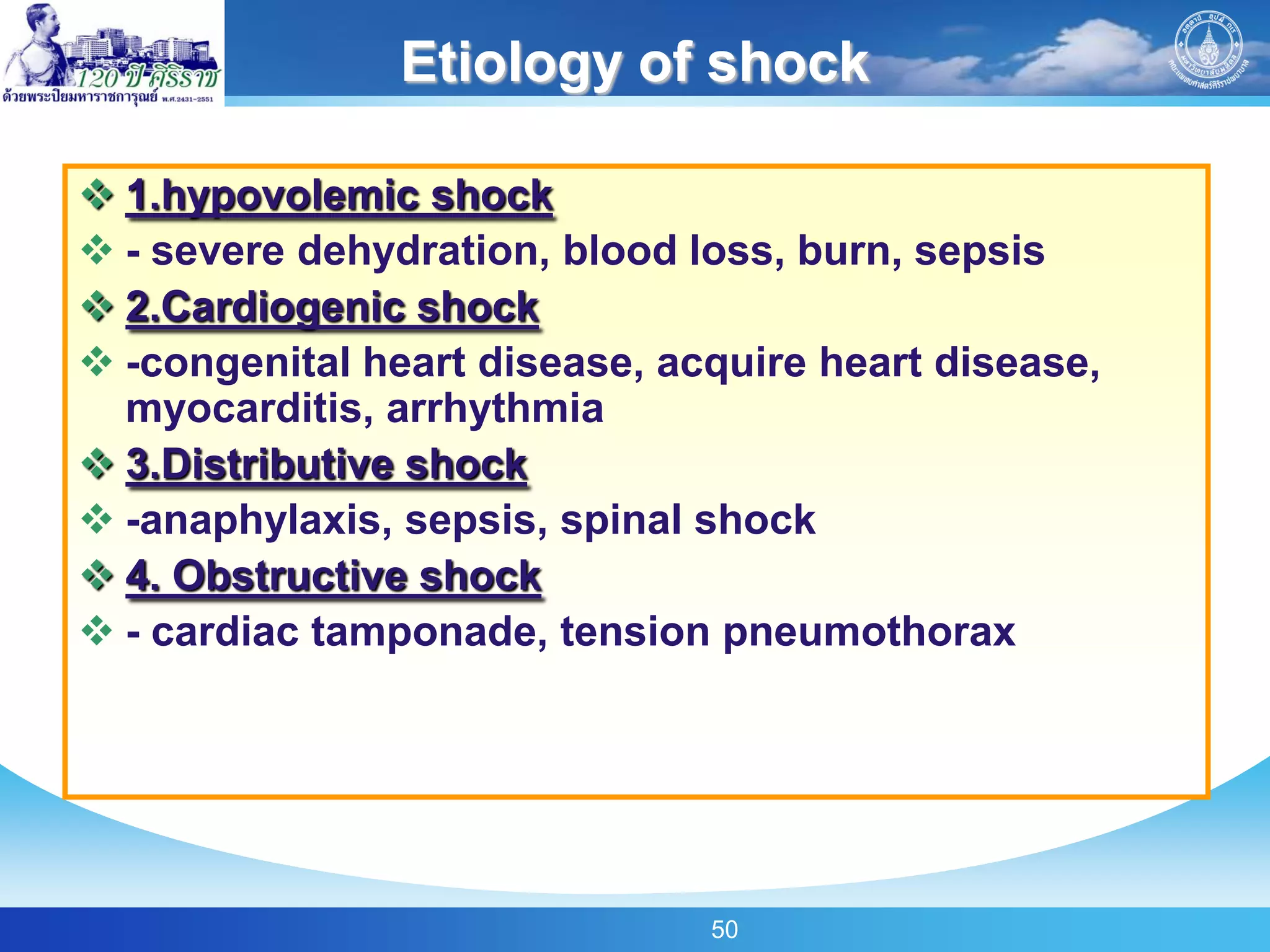

Etiology of shock

 1.hypovolemic shock
 - severe dehydration, blood loss, burn, sepsis
 2.Cardiogenic shock
 -congenital heart disease, acquire heart disease,
  myocarditis, arrhythmia
 3.Distributive shock
 -anaphylaxis, sepsis, spinal shock
 4. Obstructive shock
 - cardiac tamponade, tension pneumothorax




                               50
51

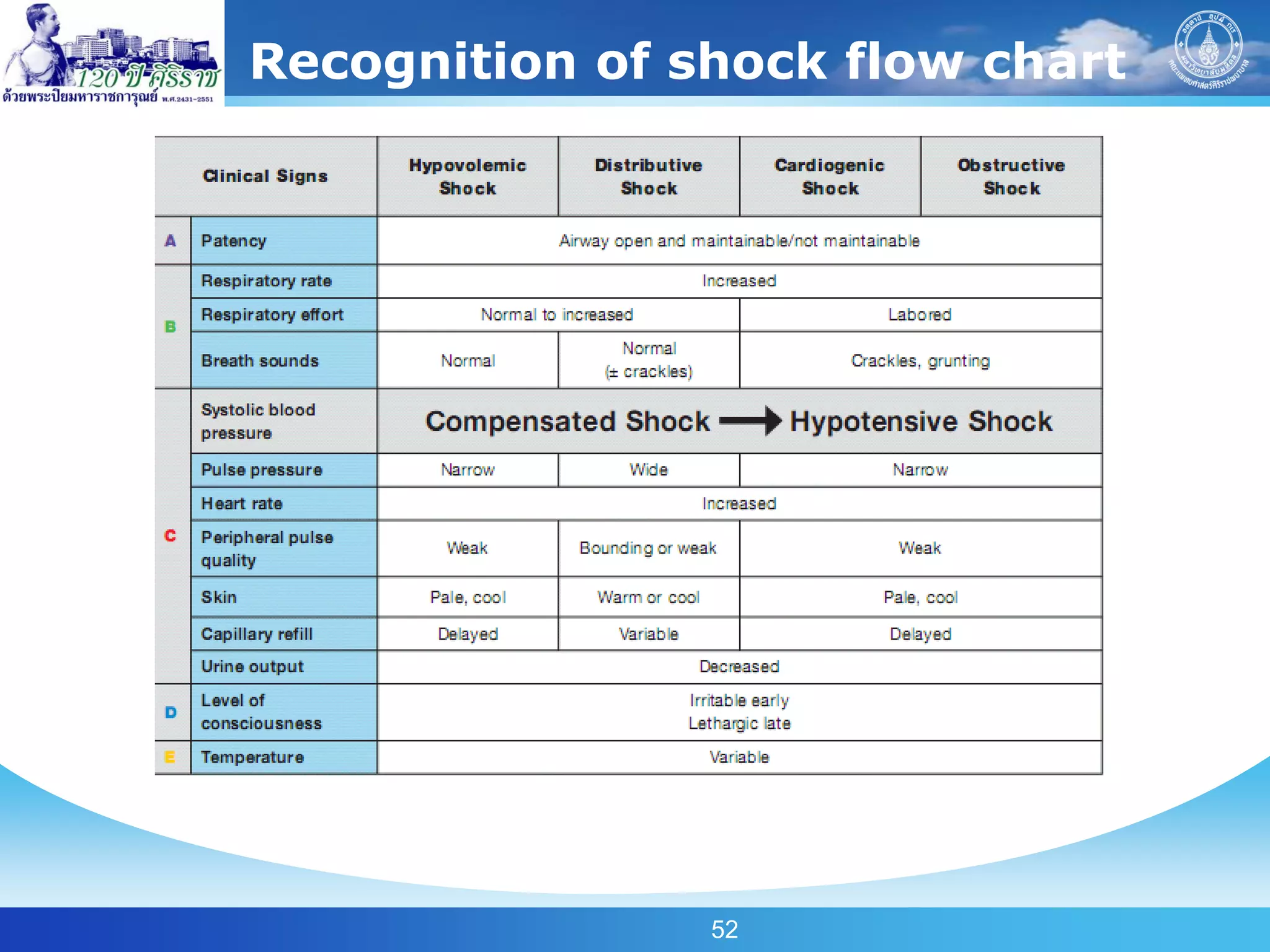

Recognition of shock flow chart




                52

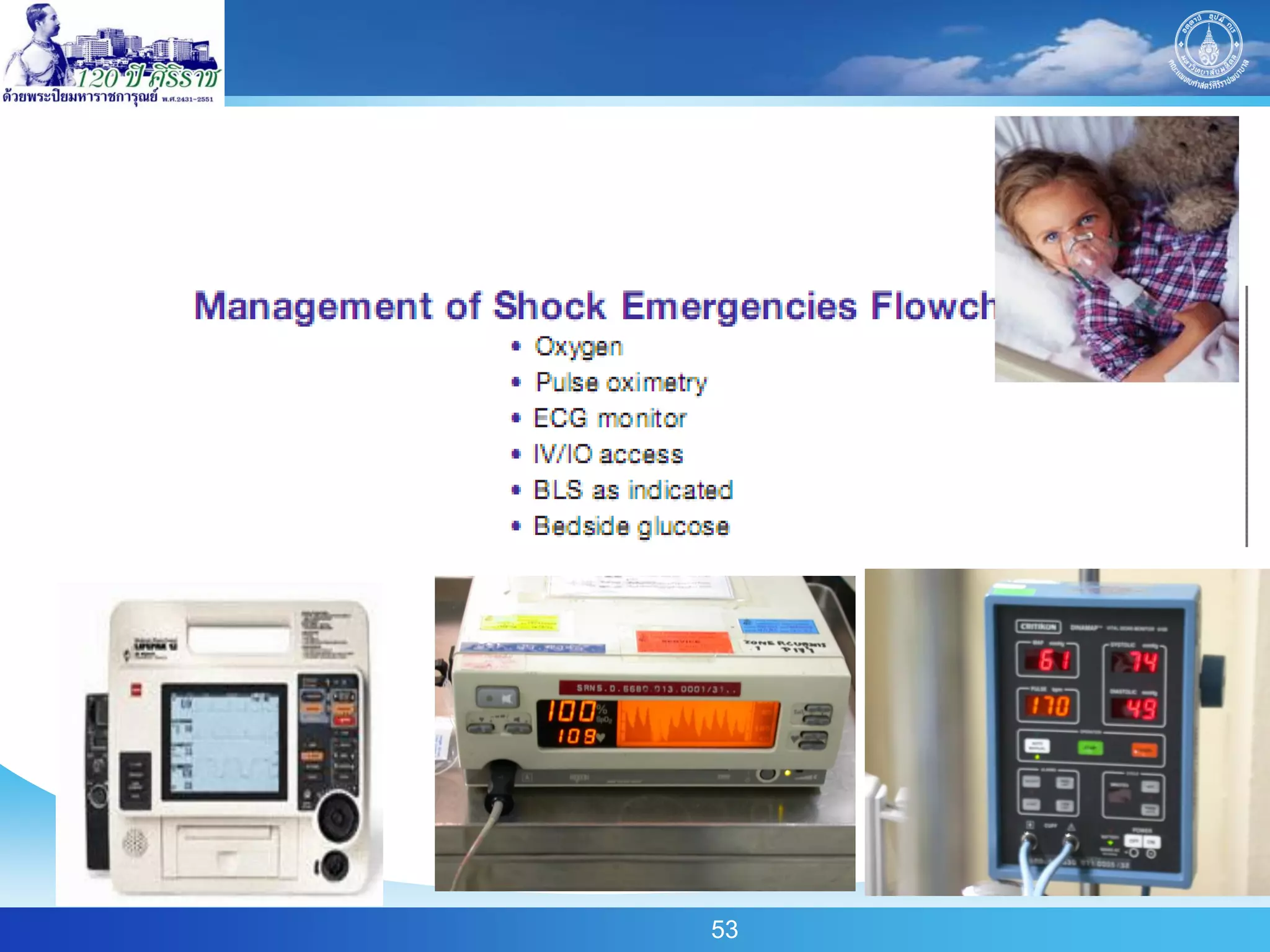

53
54

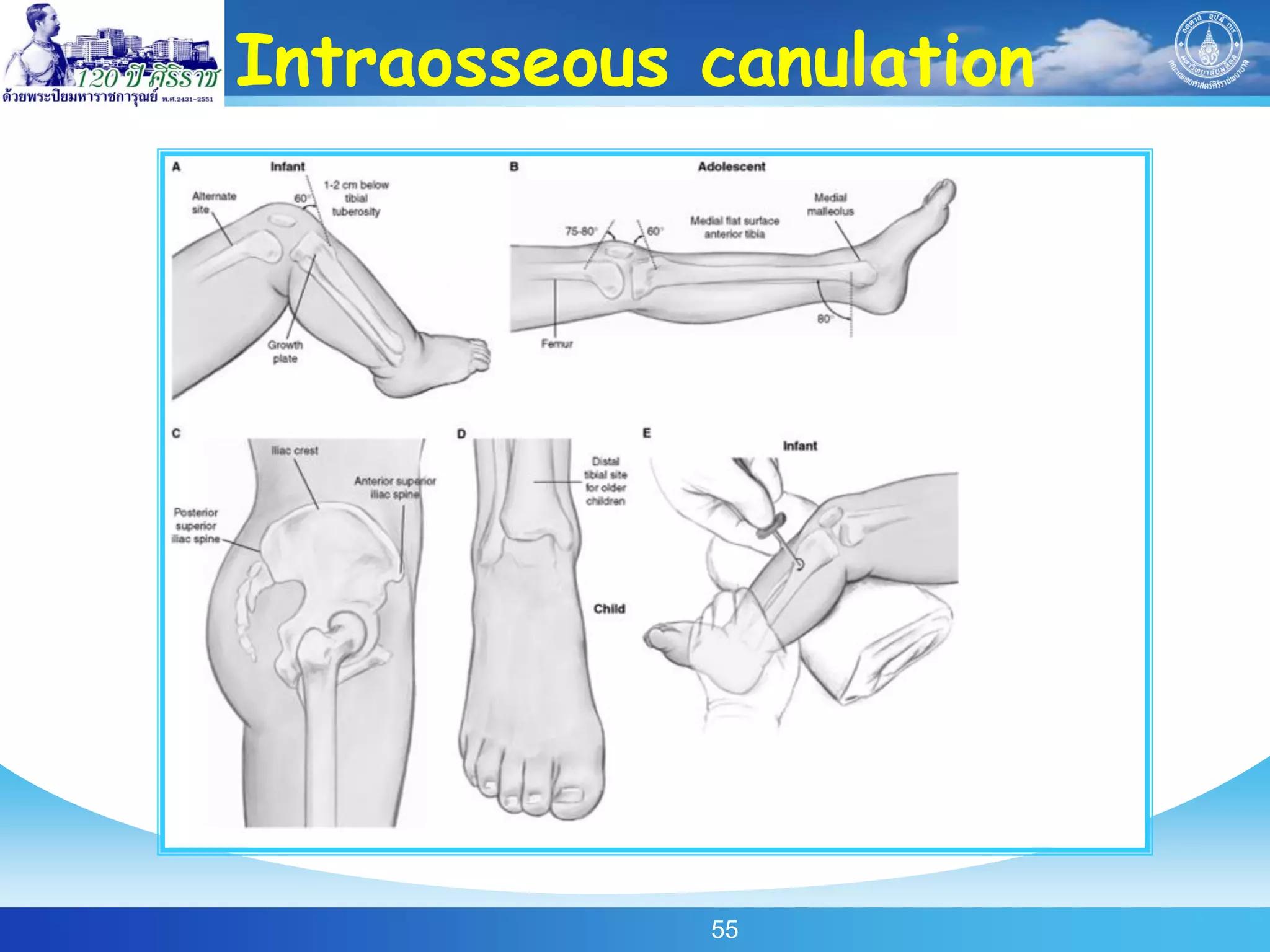

Intraosseous canulation

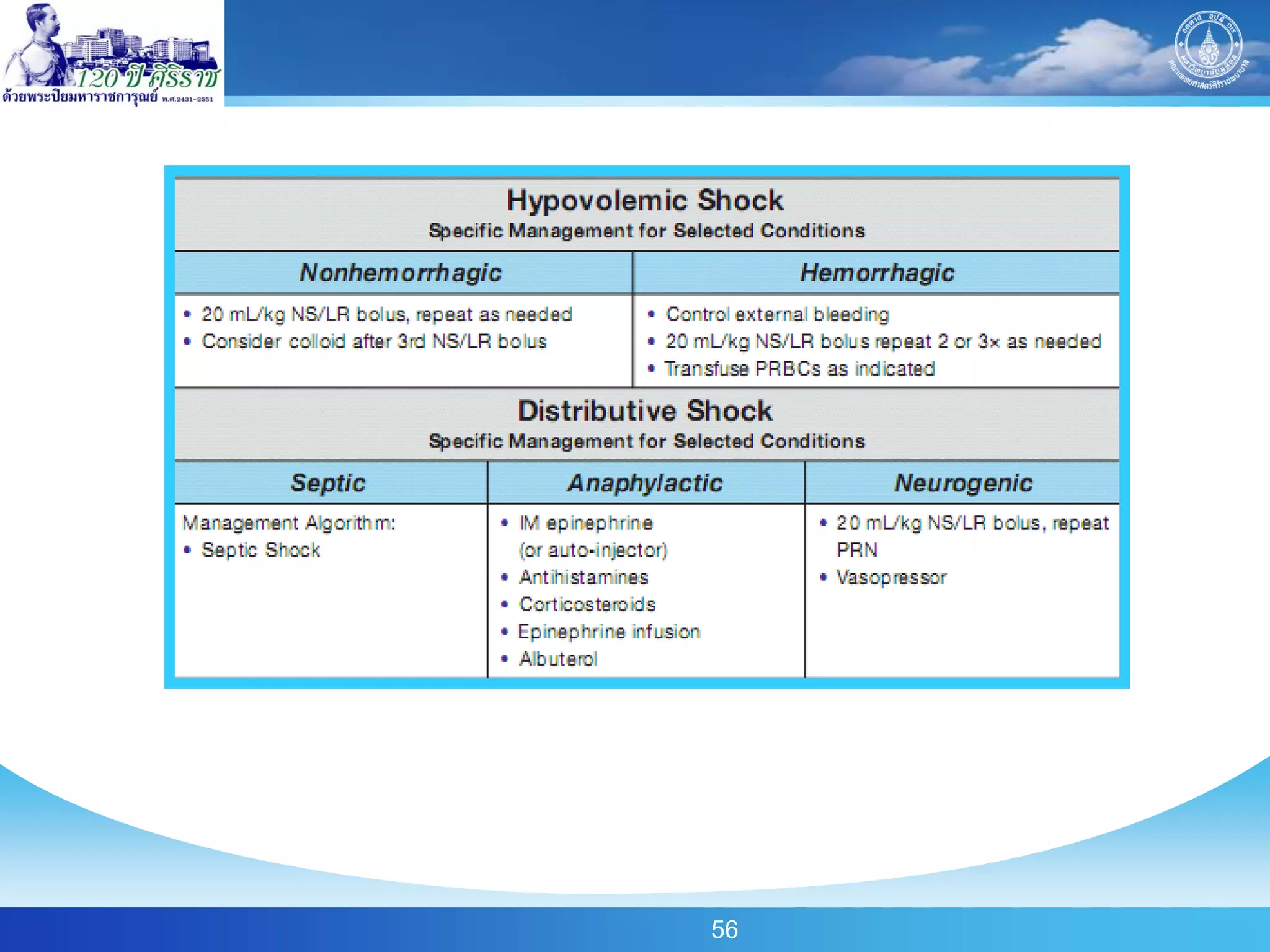

             55
56

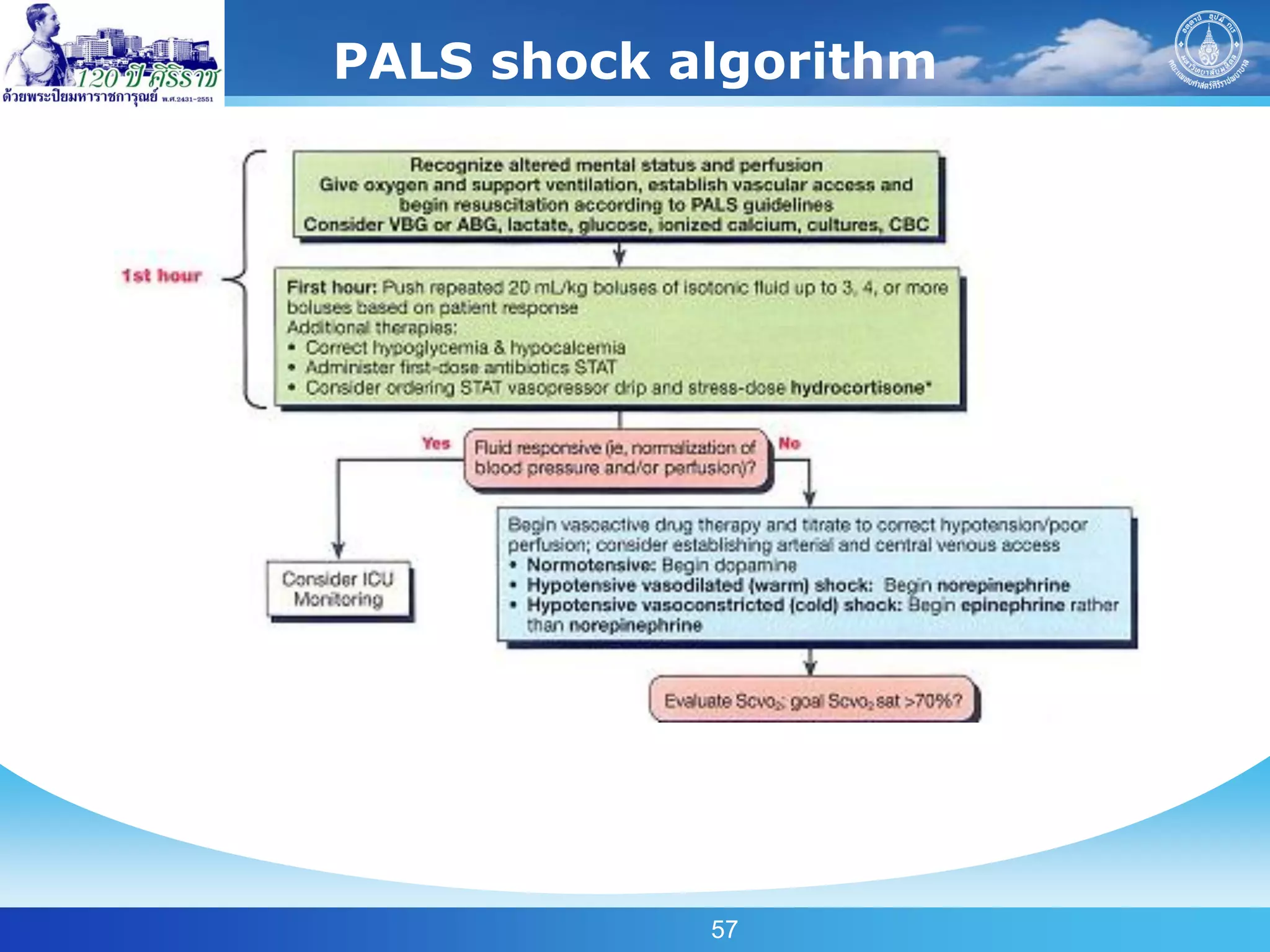

PALS shock algorithm




            57

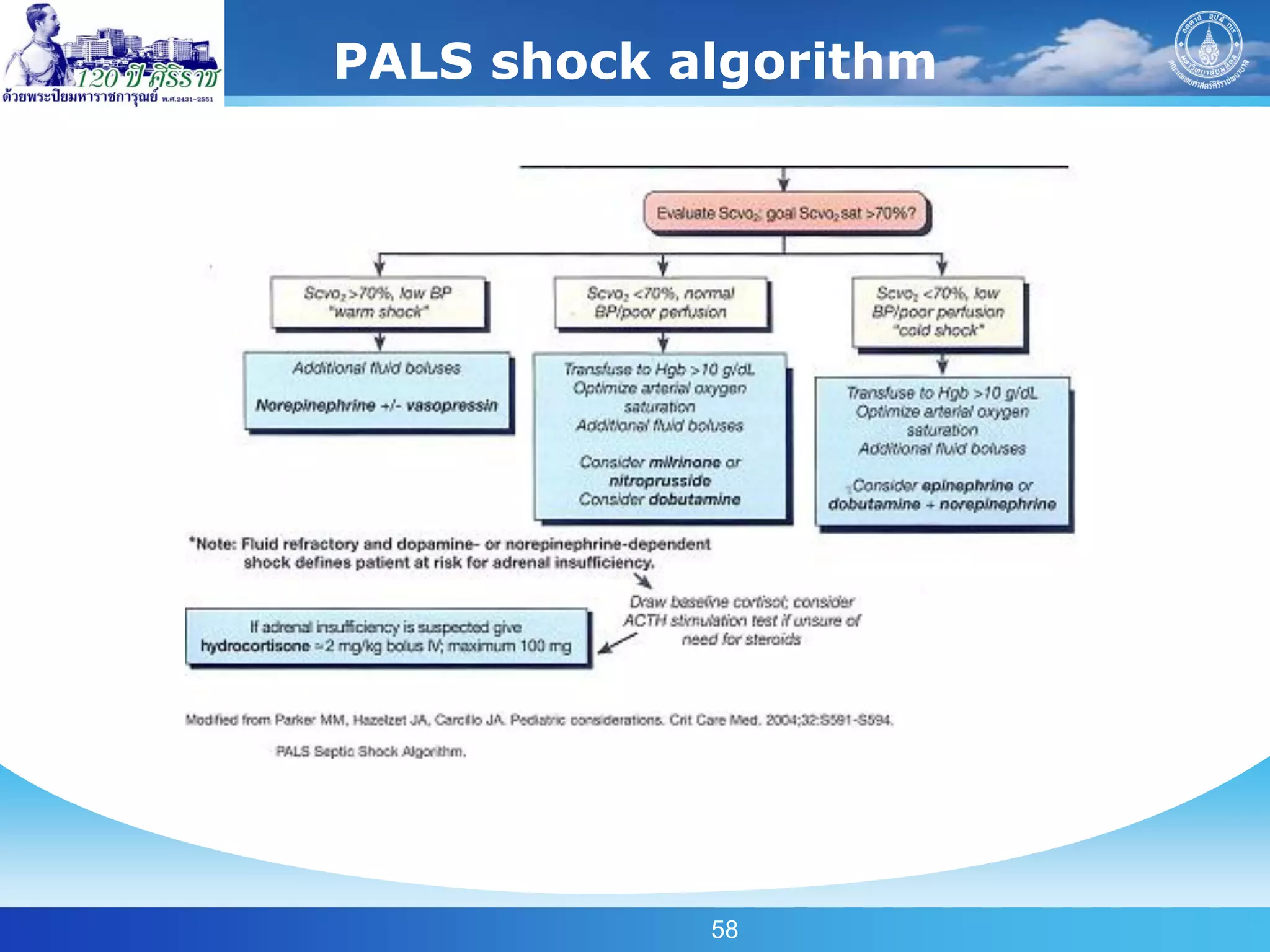

PALS shock algorithm




            58
59

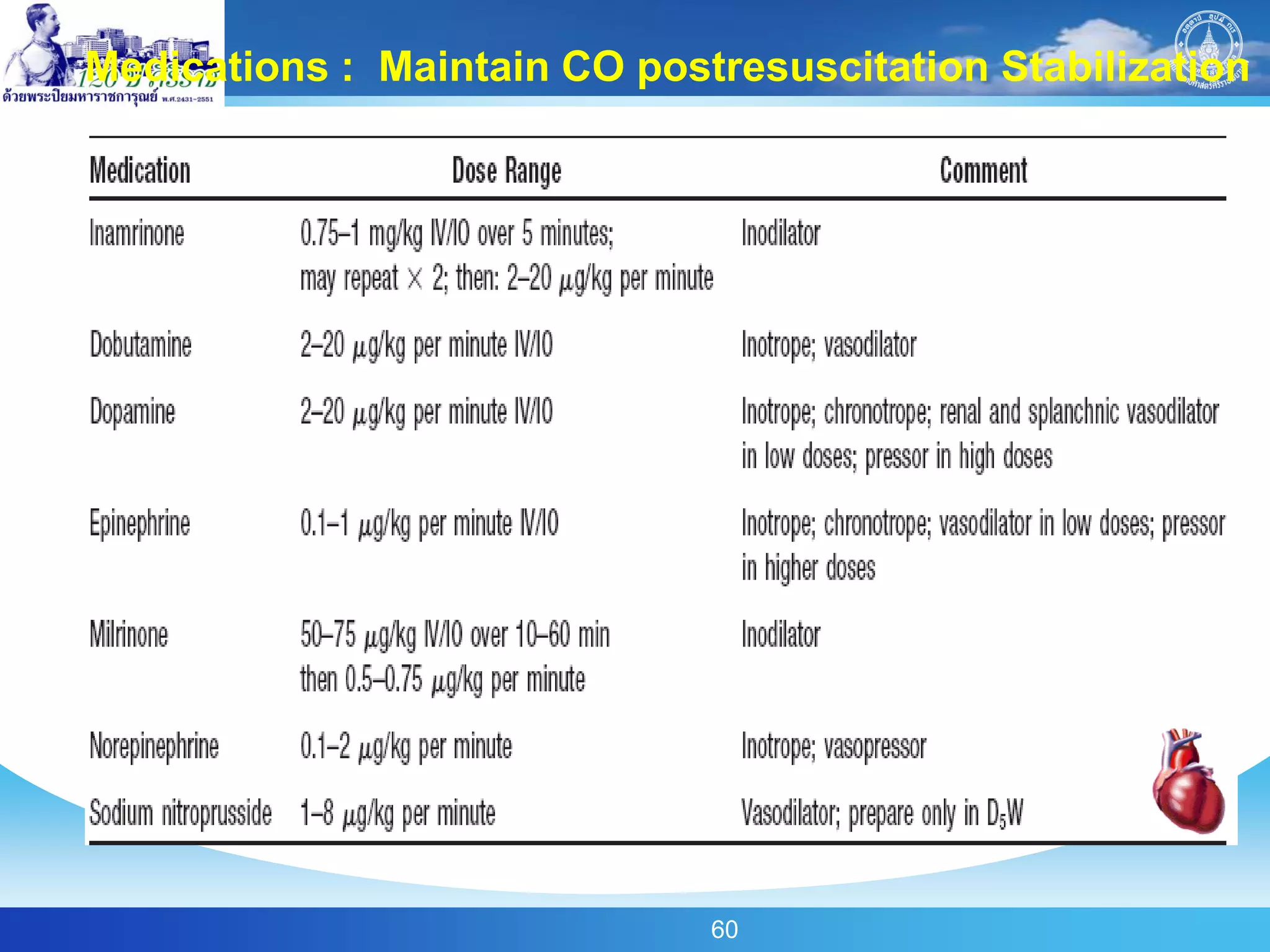

Medications : Maintain CO postresuscitation Stabilization




                              60
61

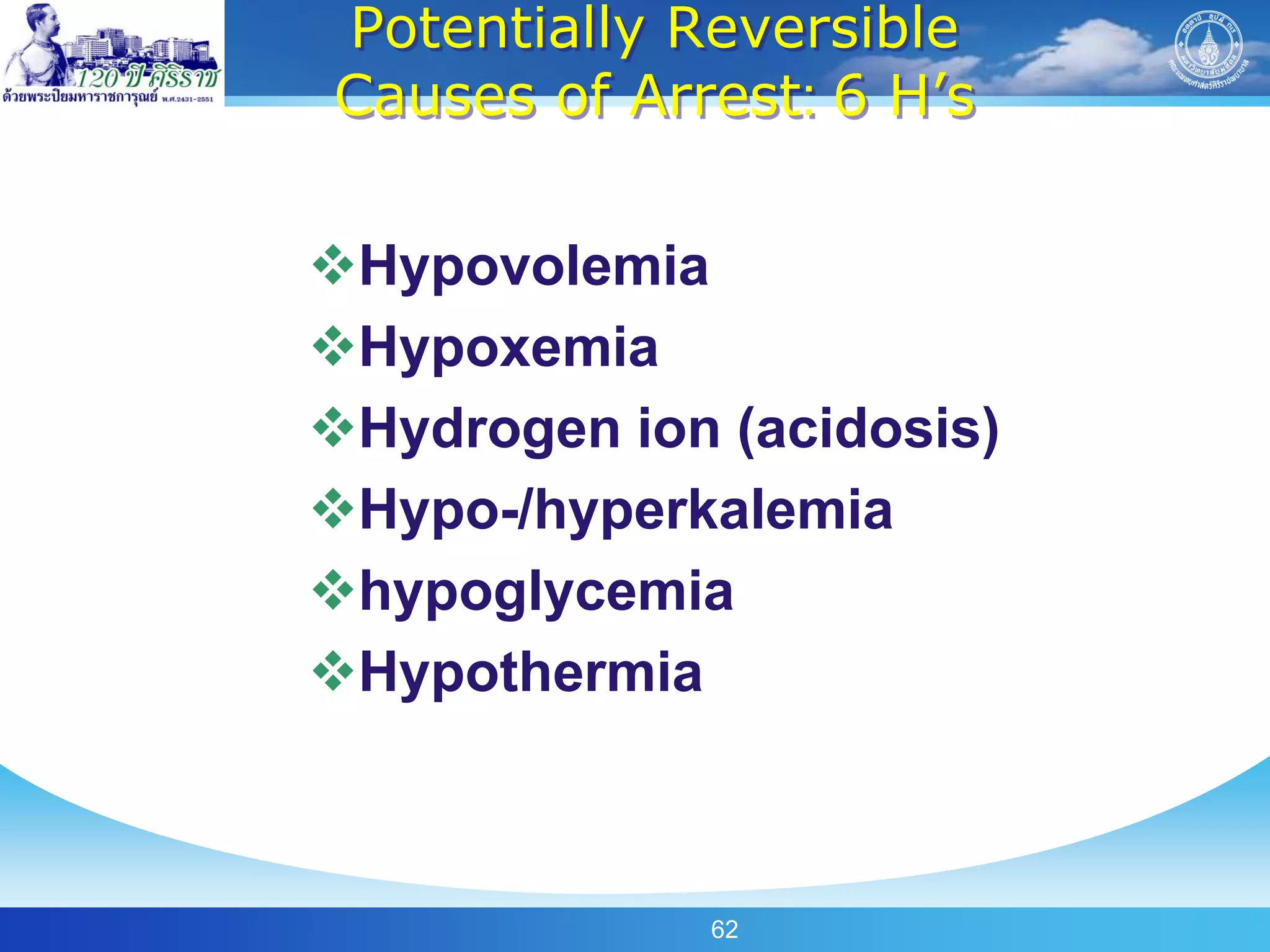

Potentially Reversible
Causes of Arrest: 6 H’s


Hypovolemia
Hypoxemia
Hydrogen ion (acidosis)
Hypo-/hyperkalemia
hypoglycemia
Hypothermia



             62

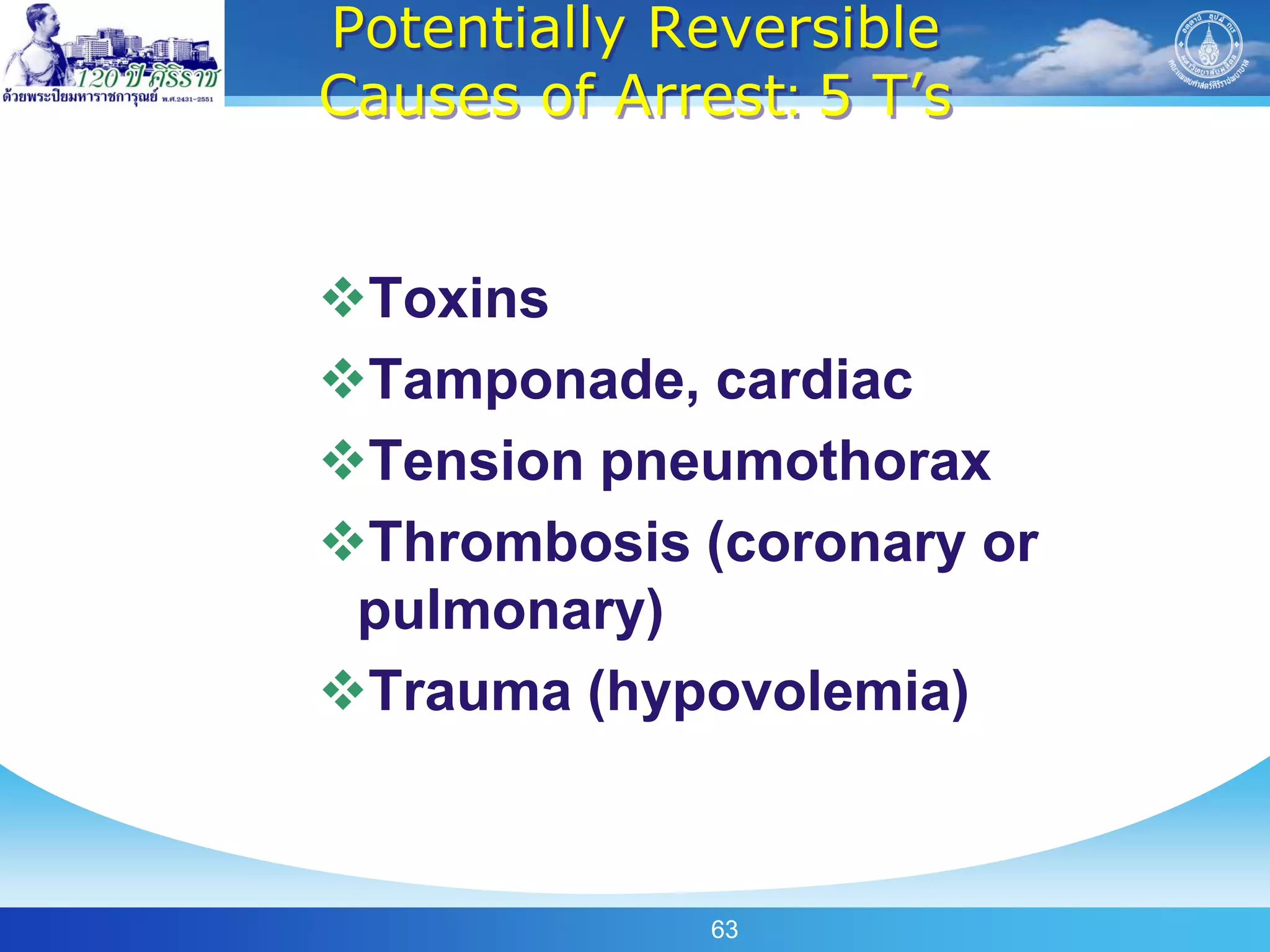

Potentially Reversible
Causes of Arrest: 5 T’s


Toxins
Tamponade, cardiac
Tension pneumothorax
Thrombosis (coronary or
 pulmonary)
Trauma (hypovolemia)



              63

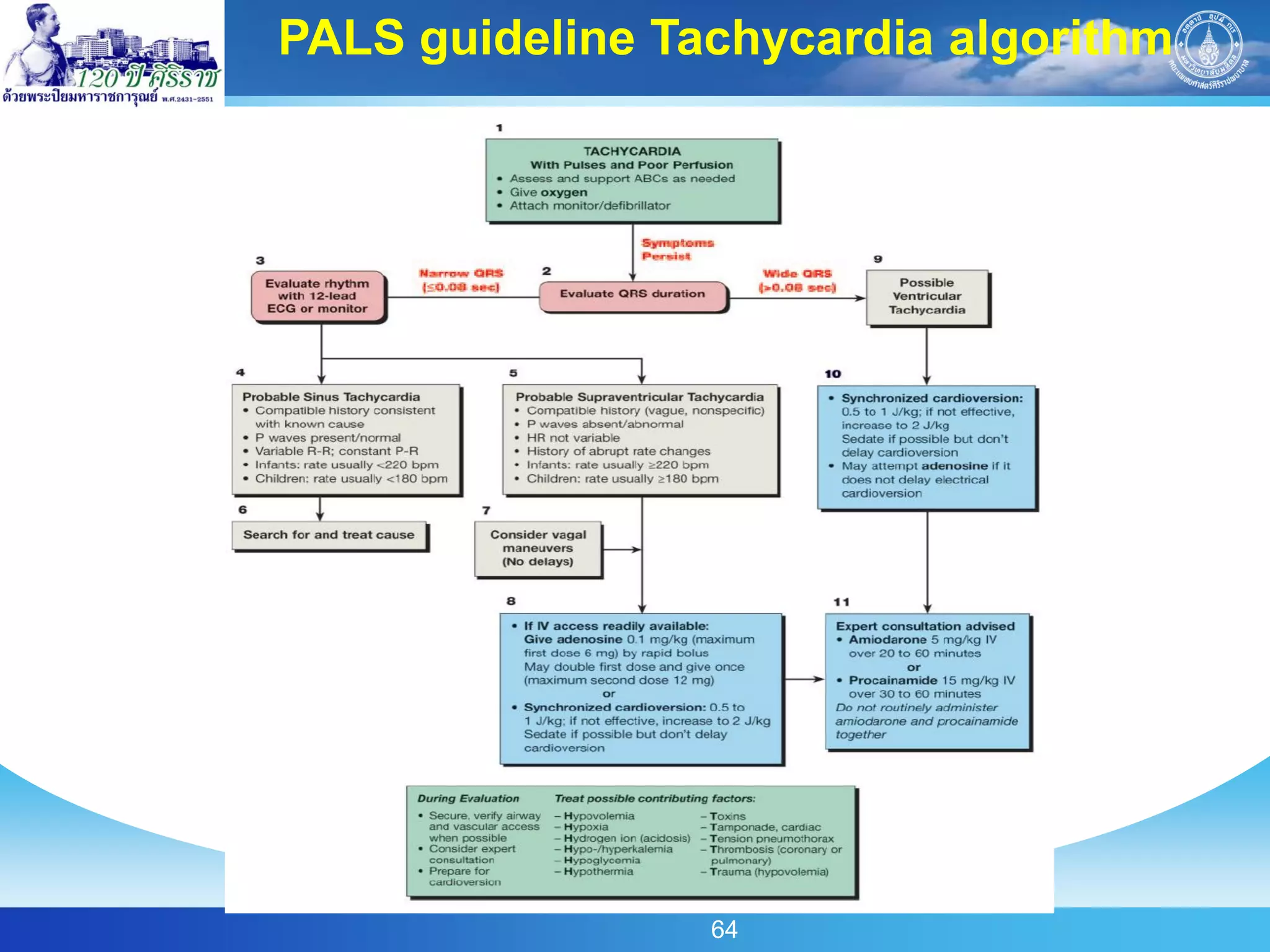

PALS guideline Tachycardia algorithm

PALS Tachycardia Algorithm




                 64

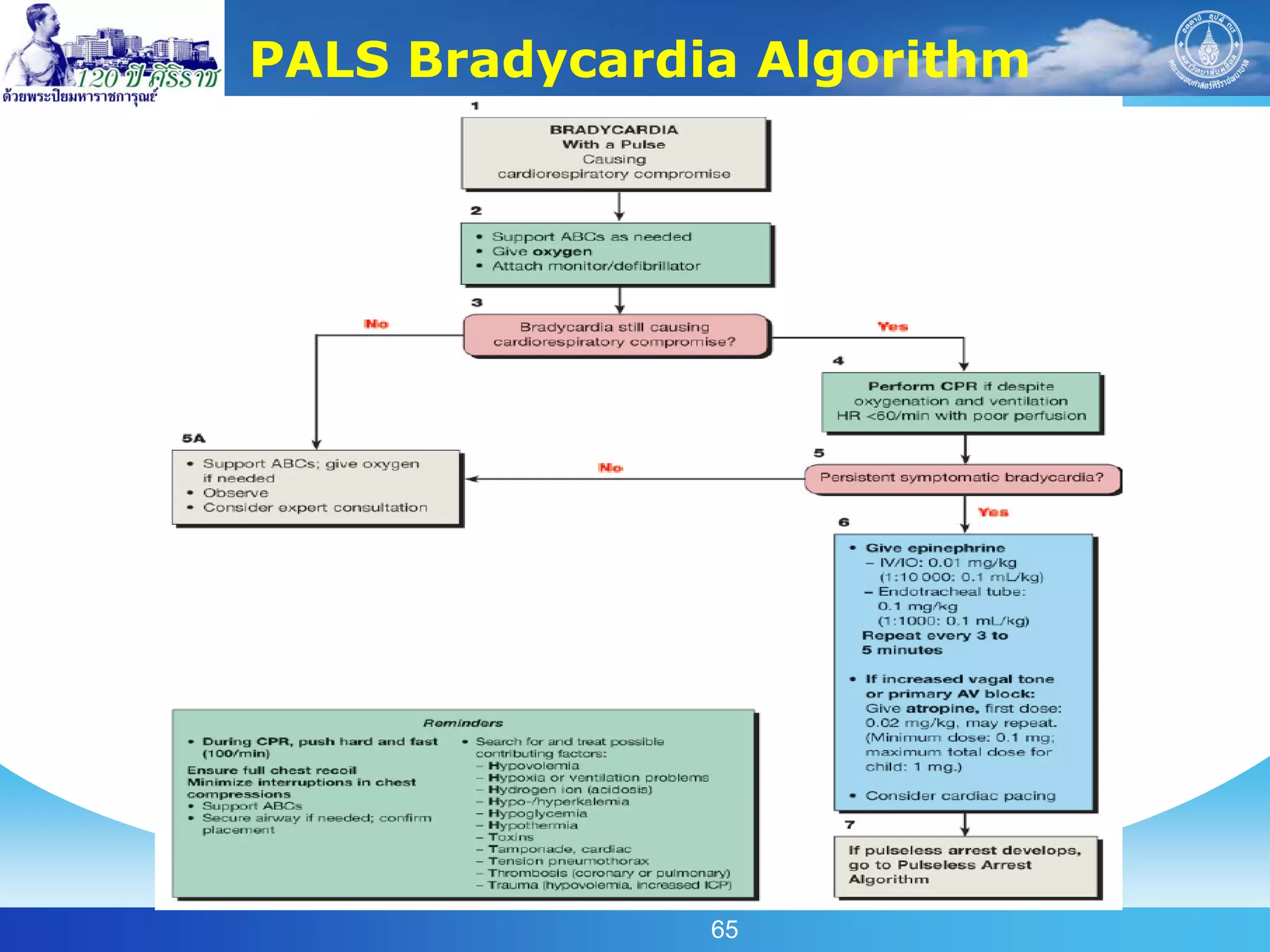

PALS Bradycardia Algorithm




               65

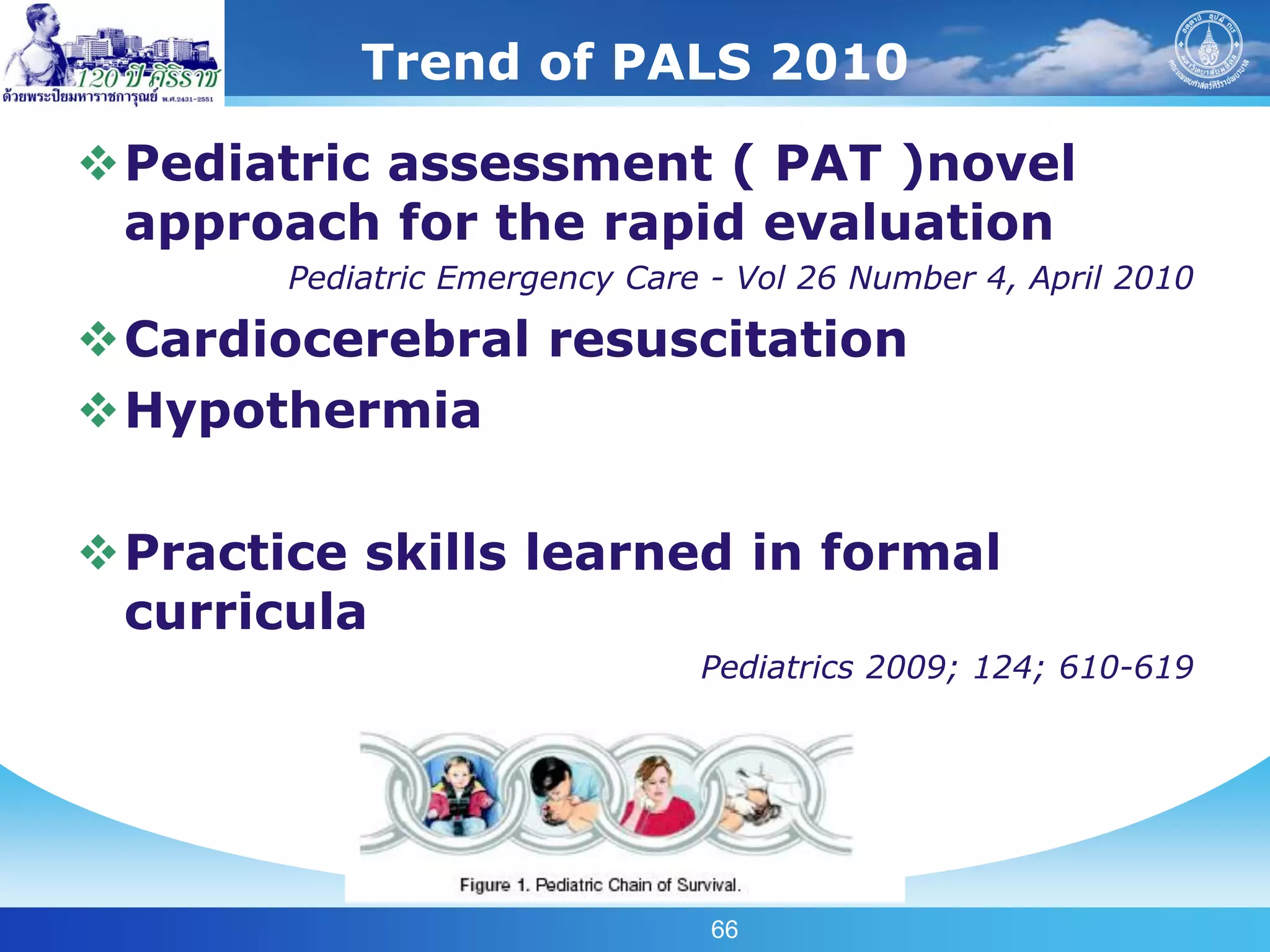

Trend of PALS 2010

Pediatric assessment ( PAT )novel
 approach for the rapid evaluation
       Pediatric Emergency Care - Vol 26 Number 4, April 2010

Cardiocerebral resuscitation
Hypothermia

Practice skills learned in formal
 curricula
                               Pediatrics 2009; 124; 610-619




                                66
67

More Related Content

What's hot

STABLE Course Notes
STABLE Course NotesSTABLE Course Notes
STABLE Course Notes
Alan Batt

endotracheal intubation-Anesthesia
endotracheal  intubation-Anesthesiaendotracheal  intubation-Anesthesia
endotracheal intubation-Anesthesia
NISAR ARAIN

Cpap final 2012_12 (2)
Cpap final 2012_12 (2)Cpap final 2012_12 (2)
Cpap final 2012_12 (2)dinterlandi

Airway management final
Airway management finalAirway management final
Airway management final
Siti Salihah Mohd Safian

EPISTAXIS
EPISTAXISEPISTAXIS
EPISTAXIS
Padmashree Dash

Respiratory distress syndrome
Respiratory distress syndromeRespiratory distress syndrome
Respiratory distress syndrome
DrOdongRichardJustin

Diseases of nasal septum
Diseases of nasal septumDiseases of nasal septum
Diseases of nasal septum
Manpreet Nanda

Emergency anaesthesia
Emergency anaesthesiaEmergency anaesthesia
Emergency anaesthesia
DrSakhawatHossainLip

Neonatal resuscitation programme, NRP
Neonatal  resuscitation programme, NRPNeonatal  resuscitation programme, NRP
Neonatal resuscitation programme, NRP
Lokanath Reddy Mummadi

management of foreign body inhalation and bronchoscopy in children
management of foreign body inhalation and bronchoscopy in childrenmanagement of foreign body inhalation and bronchoscopy in children
management of foreign body inhalation and bronchoscopy in children
anu_radha1209

Neurological affection larynx and pharynx
Neurological affection larynx and pharynxNeurological affection larynx and pharynx
Neurological affection larynx and pharynx
raju kafle

Newborn Resuscitation Program
Newborn Resuscitation ProgramNewborn Resuscitation Program
Newborn Resuscitation Program
DJ CrissCross

NON INVASIVE VENTILATION IN NEONATES-PART 2
NON INVASIVE VENTILATION IN NEONATES-PART 2NON INVASIVE VENTILATION IN NEONATES-PART 2
NON INVASIVE VENTILATION IN NEONATES-PART 2
Adhi Arya

Respiratory distress in neonates
Respiratory distress in neonatesRespiratory distress in neonates
Respiratory distress in neonates
Stacy A.J

Hypoxia and oxygen therapy
Hypoxia and oxygen therapyHypoxia and oxygen therapy
Hypoxia and oxygen therapyPreeti Upadhyay

T piece resuscitator
T piece resuscitatorT piece resuscitator
T piece resuscitator
Dr Inayat Ullah

Cannot intubate
Cannot intubateCannot intubate
Cannot intubate
Arvind Khare

Adenoidectomy and tonsillectomy
Adenoidectomy and tonsillectomyAdenoidectomy and tonsillectomy
Adenoidectomy and tonsillectomy
Joel Mathew


What's hot (20)

STABLE Course Notes
STABLE Course NotesSTABLE Course Notes
STABLE Course Notes

endotracheal intubation-Anesthesia
endotracheal  intubation-Anesthesiaendotracheal  intubation-Anesthesia
endotracheal intubation-Anesthesia

Cpap final 2012_12 (2)
Cpap final 2012_12 (2)Cpap final 2012_12 (2)
Cpap final 2012_12 (2)

Airway management final
Airway management finalAirway management final
Airway management final

EPISTAXIS
EPISTAXISEPISTAXIS
EPISTAXIS

Respiratory distress syndrome
Respiratory distress syndromeRespiratory distress syndrome
Respiratory distress syndrome

Diseases of nasal septum
Diseases of nasal septumDiseases of nasal septum
Diseases of nasal septum

Emergency anaesthesia
Emergency anaesthesiaEmergency anaesthesia
Emergency anaesthesia

Neonatal resuscitation programme, NRP
Neonatal  resuscitation programme, NRPNeonatal  resuscitation programme, NRP
Neonatal resuscitation programme, NRP

management of foreign body inhalation and bronchoscopy in children
management of foreign body inhalation and bronchoscopy in childrenmanagement of foreign body inhalation and bronchoscopy in children
management of foreign body inhalation and bronchoscopy in children

Vocal cord paralysis
Vocal  cord  paralysisVocal  cord  paralysis
Vocal cord paralysis

Neurological affection larynx and pharynx
Neurological affection larynx and pharynxNeurological affection larynx and pharynx
Neurological affection larynx and pharynx

Airway Management
Airway ManagementAirway Management
Airway Management

Newborn Resuscitation Program
Newborn Resuscitation ProgramNewborn Resuscitation Program
Newborn Resuscitation Program

NON INVASIVE VENTILATION IN NEONATES-PART 2
NON INVASIVE VENTILATION IN NEONATES-PART 2NON INVASIVE VENTILATION IN NEONATES-PART 2
NON INVASIVE VENTILATION IN NEONATES-PART 2

Respiratory distress in neonates
Respiratory distress in neonatesRespiratory distress in neonates
Respiratory distress in neonates

Hypoxia and oxygen therapy
Hypoxia and oxygen therapyHypoxia and oxygen therapy
Hypoxia and oxygen therapy

T piece resuscitator
T piece resuscitatorT piece resuscitator
T piece resuscitator

Cannot intubate
Cannot intubateCannot intubate
Cannot intubate

Adenoidectomy and tonsillectomy
Adenoidectomy and tonsillectomyAdenoidectomy and tonsillectomy
Adenoidectomy and tonsillectomy


Viewers also liked

Pediatric assessment
Pediatric assessmentPediatric assessment
Pediatric assessment
djorgenmorris

Assessment And Managment Of Critically Ill Child 1
Assessment And Managment Of Critically Ill Child 1Assessment And Managment Of Critically Ill Child 1
Assessment And Managment Of Critically Ill Child 1Dang Thanh Tuan

Systematic approach to the seriously ill or injured (PALS)
Systematic approach to the seriously ill or injured (PALS)Systematic approach to the seriously ill or injured (PALS)
Systematic approach to the seriously ill or injured (PALS)Hardik Shah

Algoritmos AHA 2015 ESPAÑOL
Algoritmos AHA 2015 ESPAÑOLAlgoritmos AHA 2015 ESPAÑOL
Algoritmos AHA 2015 ESPAÑOL
Elena Plaza Moreno

Algoritmos de reanimacion cardiopulmonar basica y avanzada.
Algoritmos de reanimacion cardiopulmonar basica y avanzada. Algoritmos de reanimacion cardiopulmonar basica y avanzada.
Algoritmos de reanimacion cardiopulmonar basica y avanzada.
Victoriano Mendez

Pals%20update%202005%20to%202010 chodchanok
Pals%20update%202005%20to%202010 chodchanokPals%20update%202005%20to%202010 chodchanok
Pals%20update%202005%20to%202010 chodchanokgamgamgam

Systematic approach to the seriously ill or injured child AG
Systematic approach to the seriously ill or injured child AGSystematic approach to the seriously ill or injured child AG
Systematic approach to the seriously ill or injured child AG
Akshay Golwalkar

Guias aha 2015 español
Guias aha 2015 españolGuias aha 2015 español
Guias aha 2015 español
Carlos Andres Sambon Arcila

preventing unplanned extubations
preventing unplanned extubationspreventing unplanned extubations
preventing unplanned extubationstxmxrn

Basic first aid presentation.
Basic first aid presentation.Basic first aid presentation.
Basic first aid presentation.
Emeka Anugom

Dosier algoritmos
Dosier algoritmosDosier algoritmos
Dosier algoritmos
vicangdel

Evaluation of critically ill child
Evaluation of critically ill childEvaluation of critically ill child
Evaluation of critically ill child
Deiaa Tamer

2015 aha-guidelines-highlights-thai
2015 aha-guidelines-highlights-thai2015 aha-guidelines-highlights-thai
2015 aha-guidelines-highlights-thai
Hummd Mdhum

PALS 2010
PALS 2010PALS 2010
Cpr for adults
Cpr for adultsCpr for adults
Cpr for adults
SULE AKIN

Assessment And Managment Of Critically Ill Child 2
Assessment And Managment Of Critically Ill Child 2Assessment And Managment Of Critically Ill Child 2
Assessment And Managment Of Critically Ill Child 2Dang Thanh Tuan

Traumi 01-corso primo soccorso
Traumi 01-corso primo soccorsoTraumi 01-corso primo soccorso
Traumi 01-corso primo soccorso
Davide Bolognin

Resp physiology & respiratory failure in children
Resp physiology & respiratory failure in childrenResp physiology & respiratory failure in children
Resp physiology & respiratory failure in children
Sameekshya Pradhan


Viewers also liked (20)

Pediatric assessment
Pediatric assessmentPediatric assessment
Pediatric assessment

Assessment And Managment Of Critically Ill Child 1
Assessment And Managment Of Critically Ill Child 1Assessment And Managment Of Critically Ill Child 1
Assessment And Managment Of Critically Ill Child 1

Systematic approach to the seriously ill or injured (PALS)
Systematic approach to the seriously ill or injured (PALS)Systematic approach to the seriously ill or injured (PALS)
Systematic approach to the seriously ill or injured (PALS)

Algoritmos AHA 2015 ESPAÑOL
Algoritmos AHA 2015 ESPAÑOLAlgoritmos AHA 2015 ESPAÑOL
Algoritmos AHA 2015 ESPAÑOL

Algoritmos de reanimacion cardiopulmonar basica y avanzada.
Algoritmos de reanimacion cardiopulmonar basica y avanzada. Algoritmos de reanimacion cardiopulmonar basica y avanzada.
Algoritmos de reanimacion cardiopulmonar basica y avanzada.

Pals%20update%202005%20to%202010 chodchanok
Pals%20update%202005%20to%202010 chodchanokPals%20update%202005%20to%202010 chodchanok
Pals%20update%202005%20to%202010 chodchanok

Systematic approach to the seriously ill or injured child AG
Systematic approach to the seriously ill or injured child AGSystematic approach to the seriously ill or injured child AG
Systematic approach to the seriously ill or injured child AG

Guias aha 2015 español
Guias aha 2015 españolGuias aha 2015 español
Guias aha 2015 español

preventing unplanned extubations
preventing unplanned extubationspreventing unplanned extubations
preventing unplanned extubations

Basic first aid presentation.
Basic first aid presentation.Basic first aid presentation.
Basic first aid presentation.

Dosier algoritmos
Dosier algoritmosDosier algoritmos
Dosier algoritmos

Evaluation of critically ill child
Evaluation of critically ill childEvaluation of critically ill child
Evaluation of critically ill child

2015 aha-guidelines-highlights-thai
2015 aha-guidelines-highlights-thai2015 aha-guidelines-highlights-thai
2015 aha-guidelines-highlights-thai

PALS 2010
PALS 2010PALS 2010
PALS 2010

Cpr for adults
Cpr for adultsCpr for adults
Cpr for adults

Assessment And Managment Of Critically Ill Child 2
Assessment And Managment Of Critically Ill Child 2Assessment And Managment Of Critically Ill Child 2
Assessment And Managment Of Critically Ill Child 2

Traumi 01-corso primo soccorso
Traumi 01-corso primo soccorsoTraumi 01-corso primo soccorso
Traumi 01-corso primo soccorso

Peds basicprinciplesmechanicalventilation
Peds basicprinciplesmechanicalventilationPeds basicprinciplesmechanicalventilation
Peds basicprinciplesmechanicalventilation

Approach to the emergency patient
Approach to the emergency patientApproach to the emergency patient
Approach to the emergency patient

Resp physiology & respiratory failure in children
Resp physiology & respiratory failure in childrenResp physiology & respiratory failure in children
Resp physiology & respiratory failure in children


Similar to PALS update 2005 to 2010

BASIC LIFE SUPPORT AHA 2020-1.pptx
BASIC LIFE SUPPORT AHA 2020-1.pptxBASIC LIFE SUPPORT AHA 2020-1.pptx
BASIC LIFE SUPPORT AHA 2020-1.pptx
Dr. Ravikiran H M Gowda

PALS Dr Chayanika Mishra.pptx
PALS Dr Chayanika Mishra.pptxPALS Dr Chayanika Mishra.pptx
PALS Dr Chayanika Mishra.pptx
Dr Debasish Mohapatra

Emt the respiratory system
Emt the respiratory systemEmt the respiratory system
Emt the respiratory systemDang Thanh Tuan

The Respiratory System
The Respiratory SystemThe Respiratory System
The Respiratory Systemshabeel pn

Ventura la ttt
Ventura la tttVentura la ttt
Ventura la ttt
Troy Pennington

Respiratorydistressinnewborn 171119184939-converted 3
Respiratorydistressinnewborn 171119184939-converted 3Respiratorydistressinnewborn 171119184939-converted 3
Respiratorydistressinnewborn 171119184939-converted 3
ishanvimarch2

Emt Respiratory System
Emt Respiratory SystemEmt Respiratory System
Emt Respiratory Systemshabeel pn

Kegawatan IPD Paru.ppt
Kegawatan IPD Paru.pptKegawatan IPD Paru.ppt
Kegawatan IPD Paru.ppt
vidi27

The difficult extubation
The difficult extubationThe difficult extubation
The difficult extubationwanted1361

CPR- Cardio Pulmonary Resusciatation (Pediatrics)
CPR- Cardio Pulmonary Resusciatation (Pediatrics)CPR- Cardio Pulmonary Resusciatation (Pediatrics)
CPR- Cardio Pulmonary Resusciatation (Pediatrics)
TheRoyAshish

Basic life support
Basic life supportBasic life support
Basic life support
Dr.Priyanka Das

Lecture presentation amls_lesson02_respiratory
Lecture presentation amls_lesson02_respiratoryLecture presentation amls_lesson02_respiratory
Lecture presentation amls_lesson02_respiratory
nds1977

Cpr and fbao
Cpr and fbao Cpr and fbao
Cpr and fbao
udit dixit

Resuscitation
ResuscitationResuscitation
UOUVP0hXjgghgcgjcuttfffutfdrtdduytffrdfxrgxrgd
UOUVP0hXjgghgcgjcuttfffutfdrtdduytffrdfxrgxrgdUOUVP0hXjgghgcgjcuttfffutfdrtdduytffrdfxrgxrgd
UOUVP0hXjgghgcgjcuttfffutfdrtdduytffrdfxrgxrgd
kartikkartik45

Pediatric airway management shapiro
Pediatric airway management   shapiroPediatric airway management   shapiro
Pediatric airway management shapiroDang Thanh Tuan

Approach to respiratory distress in children
Approach to respiratory distress in childrenApproach to respiratory distress in children
Approach to respiratory distress in children
Wasim Akram


Similar to PALS update 2005 to 2010 (20)

BASIC LIFE SUPPORT AHA 2020-1.pptx
BASIC LIFE SUPPORT AHA 2020-1.pptxBASIC LIFE SUPPORT AHA 2020-1.pptx
BASIC LIFE SUPPORT AHA 2020-1.pptx

PALS Dr Chayanika Mishra.pptx
PALS Dr Chayanika Mishra.pptxPALS Dr Chayanika Mishra.pptx
PALS Dr Chayanika Mishra.pptx

Emt the respiratory system
Emt the respiratory systemEmt the respiratory system
Emt the respiratory system

The Respiratory System
The Respiratory SystemThe Respiratory System
The Respiratory System

Ventura la ttt
Ventura la tttVentura la ttt
Ventura la ttt

Respiratorydistressinnewborn 171119184939-converted 3
Respiratorydistressinnewborn 171119184939-converted 3Respiratorydistressinnewborn 171119184939-converted 3
Respiratorydistressinnewborn 171119184939-converted 3

Emt Respiratory System
Emt Respiratory SystemEmt Respiratory System
Emt Respiratory System

Kegawatan IPD Paru.ppt
Kegawatan IPD Paru.pptKegawatan IPD Paru.ppt
Kegawatan IPD Paru.ppt

The difficult extubation
The difficult extubationThe difficult extubation
The difficult extubation

CPR- Cardio Pulmonary Resusciatation (Pediatrics)
CPR- Cardio Pulmonary Resusciatation (Pediatrics)CPR- Cardio Pulmonary Resusciatation (Pediatrics)
CPR- Cardio Pulmonary Resusciatation (Pediatrics)

Dyspnea
DyspneaDyspnea
Dyspnea

Basic life support
Basic life supportBasic life support
Basic life support

Lecture presentation amls_lesson02_respiratory
Lecture presentation amls_lesson02_respiratoryLecture presentation amls_lesson02_respiratory
Lecture presentation amls_lesson02_respiratory

Cpr and fbao
Cpr and fbao Cpr and fbao
Cpr and fbao

Unusual Cause of Pulmonary Hypertension
Unusual Cause of Pulmonary HypertensionUnusual Cause of Pulmonary Hypertension
Unusual Cause of Pulmonary Hypertension

Resuscitation
ResuscitationResuscitation
Resuscitation

UOUVP0hXjgghgcgjcuttfffutfdrtdduytffrdfxrgxrgd
UOUVP0hXjgghgcgjcuttfffutfdrtdduytffrdfxrgxrgdUOUVP0hXjgghgcgjcuttfffutfdrtdduytffrdfxrgxrgd
UOUVP0hXjgghgcgjcuttfffutfdrtdduytffrdfxrgxrgd

Pediatric airway management shapiro
Pediatric airway management   shapiroPediatric airway management   shapiro
Pediatric airway management shapiro

Oxygenation
OxygenationOxygenation
Oxygenation

Approach to respiratory distress in children
Approach to respiratory distress in childrenApproach to respiratory distress in children
Approach to respiratory distress in children


More from taem

ประชุมใหญ่สามัญประจำปี วิทยาลัยแพทย์ฉุกเฉินแห่งประเทศไทย 2562-2563
ประชุมใหญ่สามัญประจำปี วิทยาลัยแพทย์ฉุกเฉินแห่งประเทศไทย 2562-2563ประชุมใหญ่สามัญประจำปี วิทยาลัยแพทย์ฉุกเฉินแห่งประเทศไทย 2562-2563
ประชุมใหญ่สามัญประจำปี วิทยาลัยแพทย์ฉุกเฉินแห่งประเทศไทย 2562-2563
taem

Thai EMS legislation
Thai EMS legislationThai EMS legislation
Thai EMS legislation
taem

ACTEP2014 Agenda
ACTEP2014 AgendaACTEP2014 Agenda
ACTEP2014 Agenda
taem

ACTEP2014: What's new in endocrine emergency
ACTEP2014: What's new in endocrine emergencyACTEP2014: What's new in endocrine emergency
ACTEP2014: What's new in endocrine emergency
taem

ACTEP2014: What is simulation
ACTEP2014: What is simulationACTEP2014: What is simulation
ACTEP2014: What is simulation
taem

ACTEP2014: Upcoming trend of lung ultrasound
ACTEP2014: Upcoming trend of lung ultrasoundACTEP2014: Upcoming trend of lung ultrasound
ACTEP2014: Upcoming trend of lung ultrasound
taem

ACTEP2014: The routine to research R2R concept your way out of a research dea...
ACTEP2014: The routine to research R2R concept your way out of a research dea...ACTEP2014: The routine to research R2R concept your way out of a research dea...
ACTEP2014: The routine to research R2R concept your way out of a research dea...
taem

ACTEP2014: Therapeutic hypothermia for ACTEP 2014
ACTEP2014: Therapeutic hypothermia for ACTEP 2014ACTEP2014: Therapeutic hypothermia for ACTEP 2014
ACTEP2014: Therapeutic hypothermia for ACTEP 2014
taem

ACTEP2014: Sepsis marker in clinical use
ACTEP2014: Sepsis marker in clinical useACTEP2014: Sepsis marker in clinical use
ACTEP2014: Sepsis marker in clinical use
taem

ACTEP2014: Symp Experience in STEMI & NSTEMI & UA ACS cases in ED Ramathibodi...
ACTEP2014: Symp Experience in STEMI & NSTEMI & UA ACS cases in ED Ramathibodi...ACTEP2014: Symp Experience in STEMI & NSTEMI & UA ACS cases in ED Ramathibodi...
ACTEP2014: Symp Experience in STEMI & NSTEMI & UA ACS cases in ED Ramathibodi...
taem

ACTEP2014: Sepsis management has anything change
ACTEP2014: Sepsis management has anything change ACTEP2014: Sepsis management has anything change
ACTEP2014: Sepsis management has anything change
taem

ACTEP2014: Patient safety & risk management
ACTEP2014: Patient safety & risk managementACTEP2014: Patient safety & risk management
ACTEP2014: Patient safety & risk management
taem

ACTEP2014: How to set up guideline for MCI
ACTEP2014: How to set up guideline for MCIACTEP2014: How to set up guideline for MCI
ACTEP2014: How to set up guideline for MCI
taem

ACTEP2014: How to maximise resuscitation in trauma 2014
ACTEP2014: How to maximise resuscitation in trauma 2014ACTEP2014: How to maximise resuscitation in trauma 2014
ACTEP2014: How to maximise resuscitation in trauma 2014
taem

ACTEP2014: Hot zone
ACTEP2014: Hot zoneACTEP2014: Hot zone
ACTEP2014: Hot zone
taem

ACTEP2014: Hemodynamic US in critical care
ACTEP2014: Hemodynamic US in critical careACTEP2014: Hemodynamic US in critical care
ACTEP2014: Hemodynamic US in critical care
taem

ACTEP2014: Fast track
ACTEP2014: Fast trackACTEP2014: Fast track
ACTEP2014: Fast track
taem

ACTEP2014 ED director
ACTEP2014 ED directorACTEP2014 ED director
ACTEP2014 ED director
taem

ACTEP2014: ED design
ACTEP2014: ED designACTEP2014: ED design
ACTEP2014: ED design
taem

ACTEP2014: ED accreditation HA JCI TQA
ACTEP2014: ED accreditation HA JCI TQAACTEP2014: ED accreditation HA JCI TQA
ACTEP2014: ED accreditation HA JCI TQA
taem


More from taem (20)

ประชุมใหญ่สามัญประจำปี วิทยาลัยแพทย์ฉุกเฉินแห่งประเทศไทย 2562-2563
ประชุมใหญ่สามัญประจำปี วิทยาลัยแพทย์ฉุกเฉินแห่งประเทศไทย 2562-2563ประชุมใหญ่สามัญประจำปี วิทยาลัยแพทย์ฉุกเฉินแห่งประเทศไทย 2562-2563
ประชุมใหญ่สามัญประจำปี วิทยาลัยแพทย์ฉุกเฉินแห่งประเทศไทย 2562-2563

Thai EMS legislation
Thai EMS legislationThai EMS legislation
Thai EMS legislation

ACTEP2014 Agenda
ACTEP2014 AgendaACTEP2014 Agenda
ACTEP2014 Agenda

ACTEP2014: What's new in endocrine emergency
ACTEP2014: What's new in endocrine emergencyACTEP2014: What's new in endocrine emergency
ACTEP2014: What's new in endocrine emergency

ACTEP2014: What is simulation
ACTEP2014: What is simulationACTEP2014: What is simulation
ACTEP2014: What is simulation

ACTEP2014: Upcoming trend of lung ultrasound
ACTEP2014: Upcoming trend of lung ultrasoundACTEP2014: Upcoming trend of lung ultrasound
ACTEP2014: Upcoming trend of lung ultrasound

ACTEP2014: The routine to research R2R concept your way out of a research dea...
ACTEP2014: The routine to research R2R concept your way out of a research dea...ACTEP2014: The routine to research R2R concept your way out of a research dea...
ACTEP2014: The routine to research R2R concept your way out of a research dea...

ACTEP2014: Therapeutic hypothermia for ACTEP 2014
ACTEP2014: Therapeutic hypothermia for ACTEP 2014ACTEP2014: Therapeutic hypothermia for ACTEP 2014
ACTEP2014: Therapeutic hypothermia for ACTEP 2014

ACTEP2014: Sepsis marker in clinical use
ACTEP2014: Sepsis marker in clinical useACTEP2014: Sepsis marker in clinical use
ACTEP2014: Sepsis marker in clinical use

ACTEP2014: Symp Experience in STEMI & NSTEMI & UA ACS cases in ED Ramathibodi...
ACTEP2014: Symp Experience in STEMI & NSTEMI & UA ACS cases in ED Ramathibodi...ACTEP2014: Symp Experience in STEMI & NSTEMI & UA ACS cases in ED Ramathibodi...
ACTEP2014: Symp Experience in STEMI & NSTEMI & UA ACS cases in ED Ramathibodi...

ACTEP2014: Sepsis management has anything change
ACTEP2014: Sepsis management has anything change ACTEP2014: Sepsis management has anything change
ACTEP2014: Sepsis management has anything change

ACTEP2014: Patient safety & risk management
ACTEP2014: Patient safety & risk managementACTEP2014: Patient safety & risk management
ACTEP2014: Patient safety & risk management

ACTEP2014: How to set up guideline for MCI
ACTEP2014: How to set up guideline for MCIACTEP2014: How to set up guideline for MCI
ACTEP2014: How to set up guideline for MCI

ACTEP2014: How to maximise resuscitation in trauma 2014
ACTEP2014: How to maximise resuscitation in trauma 2014ACTEP2014: How to maximise resuscitation in trauma 2014
ACTEP2014: How to maximise resuscitation in trauma 2014

ACTEP2014: Hot zone
ACTEP2014: Hot zoneACTEP2014: Hot zone
ACTEP2014: Hot zone

ACTEP2014: Hemodynamic US in critical care
ACTEP2014: Hemodynamic US in critical careACTEP2014: Hemodynamic US in critical care
ACTEP2014: Hemodynamic US in critical care

ACTEP2014: Fast track
ACTEP2014: Fast trackACTEP2014: Fast track
ACTEP2014: Fast track

ACTEP2014 ED director
ACTEP2014 ED directorACTEP2014 ED director
ACTEP2014 ED director

ACTEP2014: ED design
ACTEP2014: ED designACTEP2014: ED design
ACTEP2014: ED design

ACTEP2014: ED accreditation HA JCI TQA
ACTEP2014: ED accreditation HA JCI TQAACTEP2014: ED accreditation HA JCI TQA
ACTEP2014: ED accreditation HA JCI TQA


Recently uploaded

Ocular injury ppt Upendra pal optometrist upums saifai etawah
Ocular injury  ppt  Upendra pal  optometrist upums saifai etawahOcular injury  ppt  Upendra pal  optometrist upums saifai etawah
Ocular injury ppt Upendra pal optometrist upums saifai etawah
pal078100

Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists  Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Saeid Safari

BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdfBENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
DR SETH JOTHAM

Evaluation of antidepressant activity of clitoris ternatea in animals
Evaluation of antidepressant activity of clitoris ternatea in animalsEvaluation of antidepressant activity of clitoris ternatea in animals
Evaluation of antidepressant activity of clitoris ternatea in animals
Shweta

Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 UpakalpaniyaadhyayaCharaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Dr KHALID B.M

The hemodynamic and autonomic determinants of elevated blood pressure in obes...
The hemodynamic and autonomic determinants of elevated blood pressure in obes...The hemodynamic and autonomic determinants of elevated blood pressure in obes...
The hemodynamic and autonomic determinants of elevated blood pressure in obes...
Catherine Liao

Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyayaCharaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Dr KHALID B.M

ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTSARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
Dr. Vinay Pareek

Prix Galien International 2024 Forum Program
Prix Galien International 2024 Forum ProgramPrix Galien International 2024 Forum Program
Prix Galien International 2024 Forum Program
Levi Shapiro

Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.GawadHemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
NephroTube - Dr.Gawad

Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdfAlcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Dr Jeenal Mistry

Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness JourneyTom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
greendigital

Factory Supply Best Quality Pmk Oil CAS 28578–16–7 PMK Powder in Stock
Factory Supply Best Quality Pmk Oil CAS 28578–16–7 PMK Powder in StockFactory Supply Best Quality Pmk Oil CAS 28578–16–7 PMK Powder in Stock
Factory Supply Best Quality Pmk Oil CAS 28578–16–7 PMK Powder in Stock
rebeccabio

ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptxANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
Swetaba Besh

ARTIFICIAL INTELLIGENCE IN HEALTHCARE.pdf
ARTIFICIAL INTELLIGENCE IN  HEALTHCARE.pdfARTIFICIAL INTELLIGENCE IN  HEALTHCARE.pdf
ARTIFICIAL INTELLIGENCE IN HEALTHCARE.pdf
Anujkumaranit

For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #GirlsFor Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
Savita Shen $i11

Physiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of TastePhysiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of Taste
MedicoseAcademics

24 Upakrama.pptx class ppt useful in all
24 Upakrama.pptx class ppt useful in all24 Upakrama.pptx class ppt useful in all
24 Upakrama.pptx class ppt useful in all
DrSathishMS1

basicmodesofventilation2022-220313203758.pdf
basicmodesofventilation2022-220313203758.pdfbasicmodesofventilation2022-220313203758.pdf
basicmodesofventilation2022-220313203758.pdf
aljamhori teaching hospital

New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
i3 Health


Recently uploaded (20)

Ocular injury ppt Upendra pal optometrist upums saifai etawah
Ocular injury  ppt  Upendra pal  optometrist upums saifai etawahOcular injury  ppt  Upendra pal  optometrist upums saifai etawah
Ocular injury ppt Upendra pal optometrist upums saifai etawah

Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists  Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists

BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdfBENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf

Evaluation of antidepressant activity of clitoris ternatea in animals
Evaluation of antidepressant activity of clitoris ternatea in animalsEvaluation of antidepressant activity of clitoris ternatea in animals
Evaluation of antidepressant activity of clitoris ternatea in animals

Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 UpakalpaniyaadhyayaCharaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya

The hemodynamic and autonomic determinants of elevated blood pressure in obes...
The hemodynamic and autonomic determinants of elevated blood pressure in obes...The hemodynamic and autonomic determinants of elevated blood pressure in obes...
The hemodynamic and autonomic determinants of elevated blood pressure in obes...

Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyayaCharaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya
Charaka Samhita Sutra Sthana 9 Chapter khuddakachatuspadadhyaya

ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTSARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS

Prix Galien International 2024 Forum Program
Prix Galien International 2024 Forum ProgramPrix Galien International 2024 Forum Program
Prix Galien International 2024 Forum Program

Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.GawadHemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad
Hemodialysis: Chapter 3, Dialysis Water Unit - Dr.Gawad

Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdfAlcohol_Dr. Jeenal Mistry MD Pharmacology.pdf
Alcohol_Dr. Jeenal Mistry MD Pharmacology.pdf

Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness JourneyTom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey

Factory Supply Best Quality Pmk Oil CAS 28578–16–7 PMK Powder in Stock
Factory Supply Best Quality Pmk Oil CAS 28578–16–7 PMK Powder in StockFactory Supply Best Quality Pmk Oil CAS 28578–16–7 PMK Powder in Stock
Factory Supply Best Quality Pmk Oil CAS 28578–16–7 PMK Powder in Stock

ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptxANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx

ARTIFICIAL INTELLIGENCE IN HEALTHCARE.pdf
ARTIFICIAL INTELLIGENCE IN  HEALTHCARE.pdfARTIFICIAL INTELLIGENCE IN  HEALTHCARE.pdf
ARTIFICIAL INTELLIGENCE IN HEALTHCARE.pdf

For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #GirlsFor Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls

Physiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of TastePhysiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of Taste

24 Upakrama.pptx class ppt useful in all
24 Upakrama.pptx class ppt useful in all24 Upakrama.pptx class ppt useful in all
24 Upakrama.pptx class ppt useful in all

basicmodesofventilation2022-220313203758.pdf
basicmodesofventilation2022-220313203758.pdfbasicmodesofventilation2022-220313203758.pdf
basicmodesofventilation2022-220313203758.pdf

New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...
New Directions in Targeted Therapeutic Approaches for Older Adults With Mantl...


PALS update 2005 to 2010

  • 1. From PALS guideline 2005, 2006, 2009 AHA : Emergency Medicine Conference : Future of Pre-hospital and Emergency Care Illustrated by Chodchanok Vijarnsorn MD. Division of Pediatric Cardiology, Department of Pediatrics, Faculty of Medicine, Siriraj Hospital 21/6/2010 1
  • 2. Agenda Two parts Call fast Look-listen-feel and airway maintain and check pulse Chest compression (new guideline) 2
  • 3. Etiologies: Out of hospital cardiac arrest : Respiratory failure & Shock By stand Basic life support alone In hospital cardiac arrest Multiple etiologies Poor outcome Effective CPR better survival * 3
  • 4. Many etiologies Respiratory failure Shock Cardiopulmonary failure Cardiopulmonary arrest Death Cardiopulmonary recovery Impaired Unimpaired neurologic neurologic recovery recovery 4
  • 5. Pre – cardiopulmonary failure  Respiratory distress  shock 4 steps : Assessment 1. General assessment 2. Primary assessment 3. Secondary assessment 4. Tertiary assessment 5
  • 6. 6
  • 7. General assessment  Pediatric assessment triangle (PAT) Appearance Breathing - restless?, -increase effort? -not interactive? -noise on respiration -muscle tone -nasalflaring -Cry/speech -retraction Circulation First few seconds -pale? mottling? Life threatening? -bleeding 7
  • 8. General assessment First few seconds Life threatening? Shock Respiratory distress Compensated/ Respiratory failure decompensated ACTION 8
  • 9. Primary assessment  Primary assessment : ABCDE  - A : airway  - B : breathing  - C : circulation  - D : disability  - E : exposure  ( PE, look listen feel, include V/S & oxygen saturation) ACTION 9
  • 10. A : Airway Chest movement Breath sound Feel : air passes through nose and mouth Upper airway : clear/ maintainable, not maintainable Increase respiratory effort, inspiratory force/absent? Snoring, stridor? Retraction? 10
  • 11. Breathing RR Respiratory effort Tidal volume Airway and lung sound Pulse oximetry  94% = adequate oxygenation  < 94% airway intervention  < 90% in 100% oxygen ( non rebreathing mask  advanced intervention : assisted ventilation 11
  • 12. 12
  • 13. Circulatory  Cardiovascular  End organ function - brain perfusion - skin color : mottling - skin perfusion - HR - renal perfusion ( - BP urine output) -Pulse (peripheral/central) - capillary refill 13
  • 14. Definition of hypotension  Term (0-28 day)…………… < 60 mmHg  Infant (1-12 mo)………….. < 70 mmHg  Children 1-10 y-o (5th P). < 70 + 2 (age yr)  Children > 10 y-o…………..< 90 mmHg 14
  • 15. Capillary refill Normal < 2 seconds Prolonged capillary refill > 2 sec In case : shock, hypothermia, severe dehydration Warm shock : capillary refill < 2 sec due to peripheral vasodilatation 15
  • 16. Pulse check : central pulse Use femoral / brachial pulse : < 1 year-old 16
  • 17. Disability AVPU pediatric response scale Glasglow coma scales Pupillary response to light AVPU Alert Voice Painful Unresponsiveness 17
  • 19. Action General management for all patients Airway position Oxygen Pulse oxymetry EKG monitor as indicated BLS as indicated 19
  • 20. Secondary assessment 3. Secondary assessment - SAMPLE - S : Signs and symptoms - A : Allergies - M : medication - P : past medical history - L : last meal - E : events leading to presentation ACTION 20
  • 21. Tertiary assessment  Laboratory : ABG, VBG, Hb, SVO2 sat, HCO3, lactate,  Radiography : CXR, echocardiography  Exhale CO2, PEFR, CVP  Emphasize : Anytime you identify a life threatening condition, initiate appropriate care immediately 21
  • 22. Assess Action Categorize Decide If you recognize a life threatening condition at any time, immediately begin life saving intervention and activate the emergency response system 22
  • 23. Summary PALS guideline AHA 2008 23
  • 24. Signs of life threatening condition Airway Complete or severe AO Breathing Apnea, significant work of breathing Circulation Absent pulse, poor perfusion, hypotension, bradycardia Disability Unresponsiveness, depress conscious Exposure Significant hypothermia, bleeding, purpura, abdominal distension due to bleeding 24
  • 25. Life saving intervention ACTION  ABC/CPR  100% oxygen  Assisted ventilation : bag mask, ETT  Cardiac and respiratory monitoring : EKG, pulse oximetry  Intravenous / I/O  Bolus isotonic crystalloid  Lab study : DTX, ABG  Drugs  Electrical therapy 25
  • 26. New recommendation : Bag & mask ventilation : E-C clamp Give 2 breath chest move? (12-20 breath/min for child) 26
  • 27. 27
  • 28. PALS and neonatal update Good PALS begin with good BLS Lay person (1 choice) : 30:2 (8 yr) HCP : 1 rescue : 30:2 HCP : 2 rescue : 15:2 (teenage) Child chest compression > 1 or 2 hands 28
  • 29. Chest compression Nipple line for child Below nipple line in infant 29
  • 30. 30

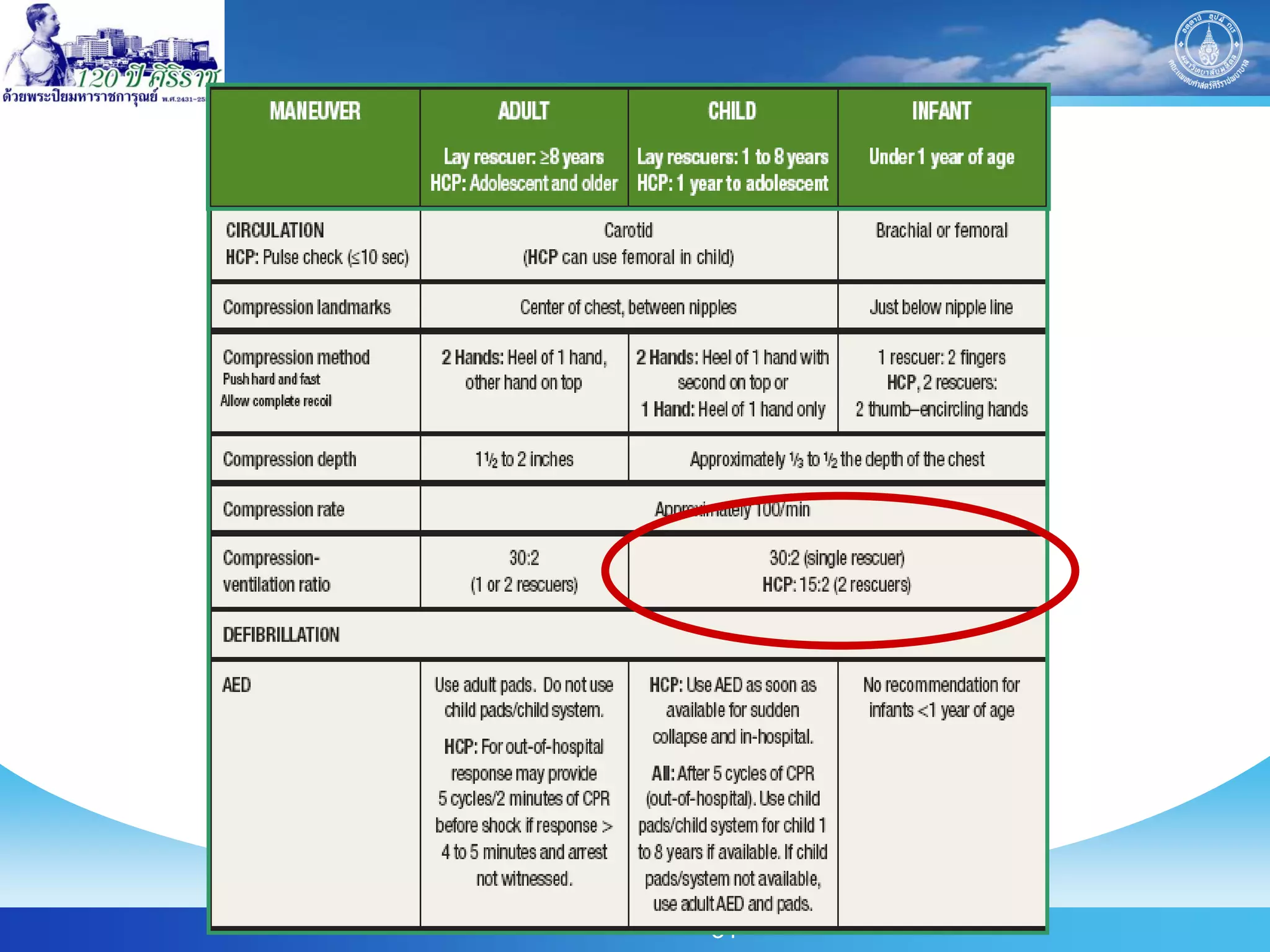

  • 31. 31
  • 32. Coronary Perfusion Pressure Improves With Sequential Compressions CPP at 5:1 ratio Survival with 15:2 CPP at 15:2 ratio 32
  • 33. “Continue CPR as much as possible except rhythm check” 33
  • 34. Key change in BLS Effective rescue breath and visualization of chest rising Fully recoil chest Single shock for VF (2 J/kg mono-bi phasic continue CPR, rhythm check only at 2 min) AED 1-8 years old 34
  • 35. Categorize  Determine the type and severity Type Severity Respiratory - Upper airway obstruction -Respiratory - Lower airway obstruction distress - lung parenchymal disease -Respiratory failure - Disorder control of breathing Circulatory - Hypovolemic shock -Compensated - Obstructive shock shock - Distributive shock -Hypotensive shock - Cardiogenic shock 35
  • 36. Recognition of respiratory distress and failure 36
  • 37. 37
  • 38. 38

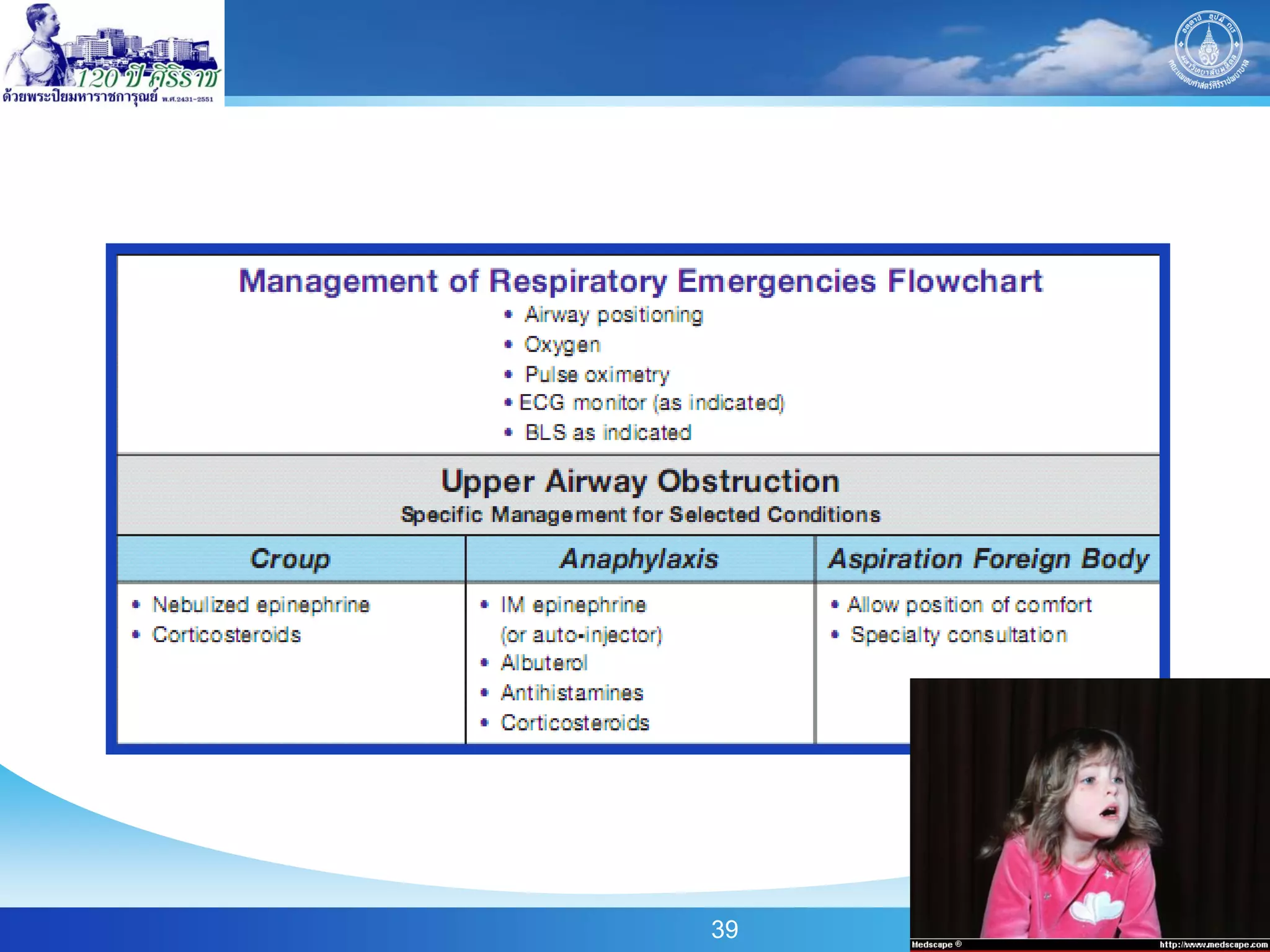

  • 39. 39

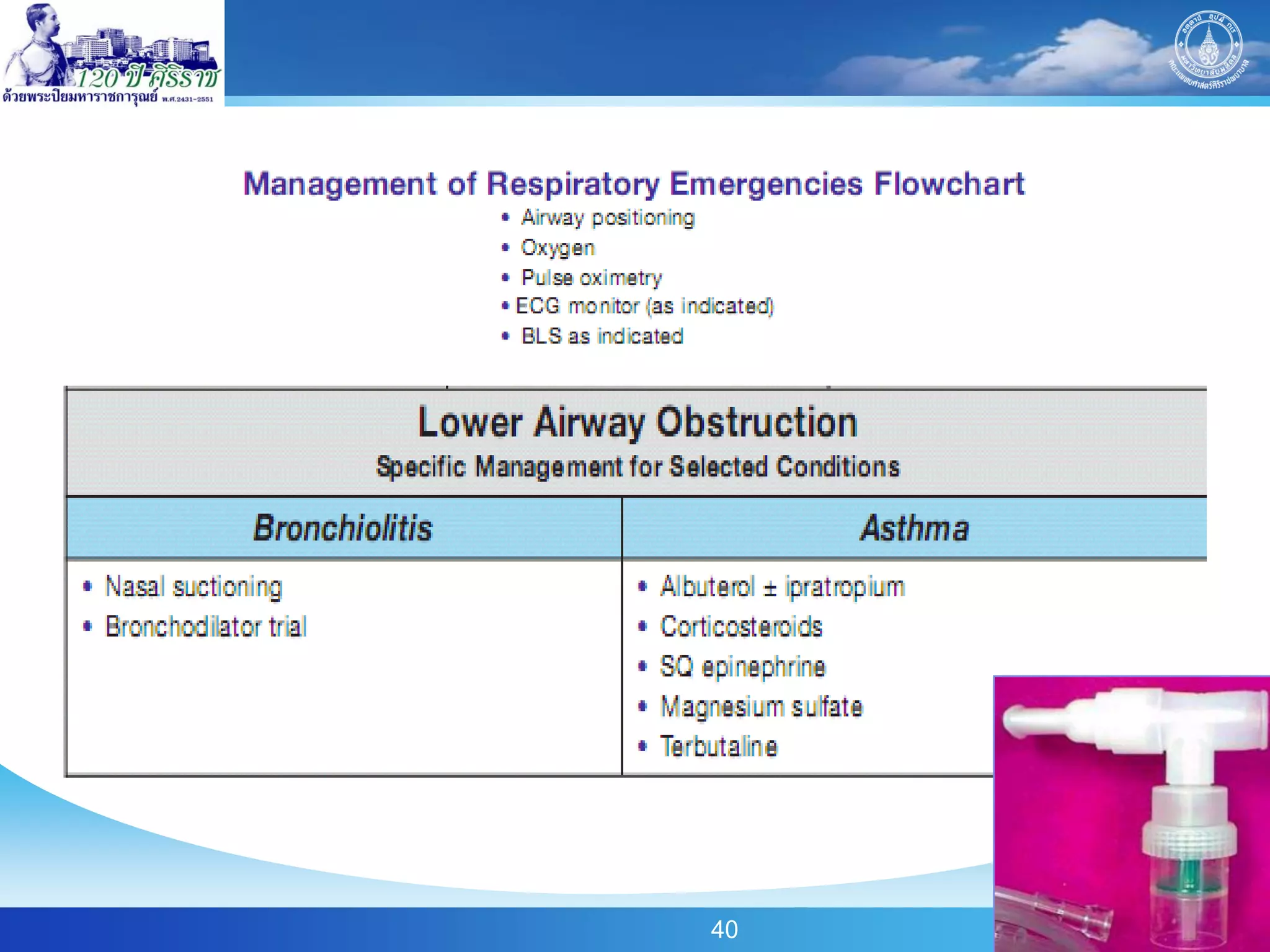

  • 40. 40

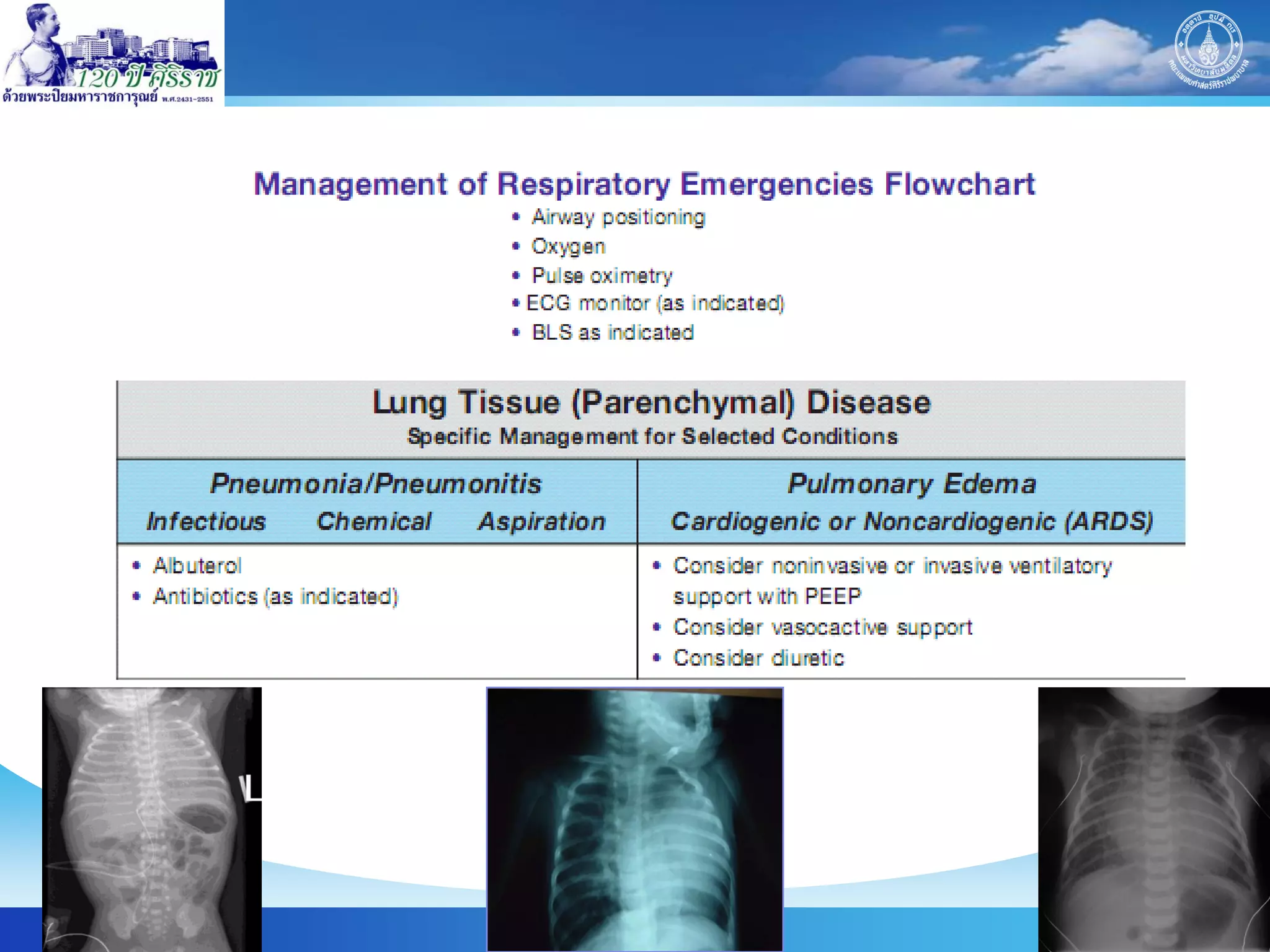

  • 41. 41
  • 42. 42
  • 43. Prehospital Tracheal Intubation vs Bag-Mask Ventilation Bag-mask ventilation : as effective as intubation if transport time is short Need training and experience Must confirmation of tube position Monitoring 43
  • 44. Use of Cuffed Endotracheal Tubes In-hospital setting, a cuffed ETT : as safe as an uncuffed tube for infants (except the newborn) and children Keep cuff inflation pressure <20 cm H2O Cuffed ETT size (mm) = (age (yr) /4) + 3 Uncuff size (mm): (age (yr) /4) + 4 Depth : age (yr)/2 + 12 44
  • 45. Insertion of the Laryngeal Mask Airway in Children  The LMA consists of a tube with a cuffed mask at the distal end.  The LMA is blindly introduced into the pharynx until resistance is met; the cuff is then inflated and ventilation assessed. 45
  • 46. Verification of Endotracheal Tube Placement bilateral chest movement and listen for equal breath sounds over both lung fields gastric insufflation sounds exhaled CO2 pulse oximeter direct laryngoscopy chest x-ray 46
  • 47. Colorimetric Exhaled CO2 Detector Colorimetric exhaled CO2 detector device changes color (from purple to yellow) with detection of exhaled CO2 “additional” confirmation with clinical assessment 47
  • 48. Recognition of shock in pediatric patient PALS update 2008-2009 48
  • 49. Myocardial contractility Heart rate CaO2, Hb Cardiac output preload Stroke volume Tissue perfusion Blood pressure afterload ปัจจัยที่มีผลต่อ tissue perfusion 49
  • 50. Etiology of shock  1.hypovolemic shock  - severe dehydration, blood loss, burn, sepsis  2.Cardiogenic shock  -congenital heart disease, acquire heart disease, myocarditis, arrhythmia  3.Distributive shock  -anaphylaxis, sepsis, spinal shock  4. Obstructive shock  - cardiac tamponade, tension pneumothorax 50

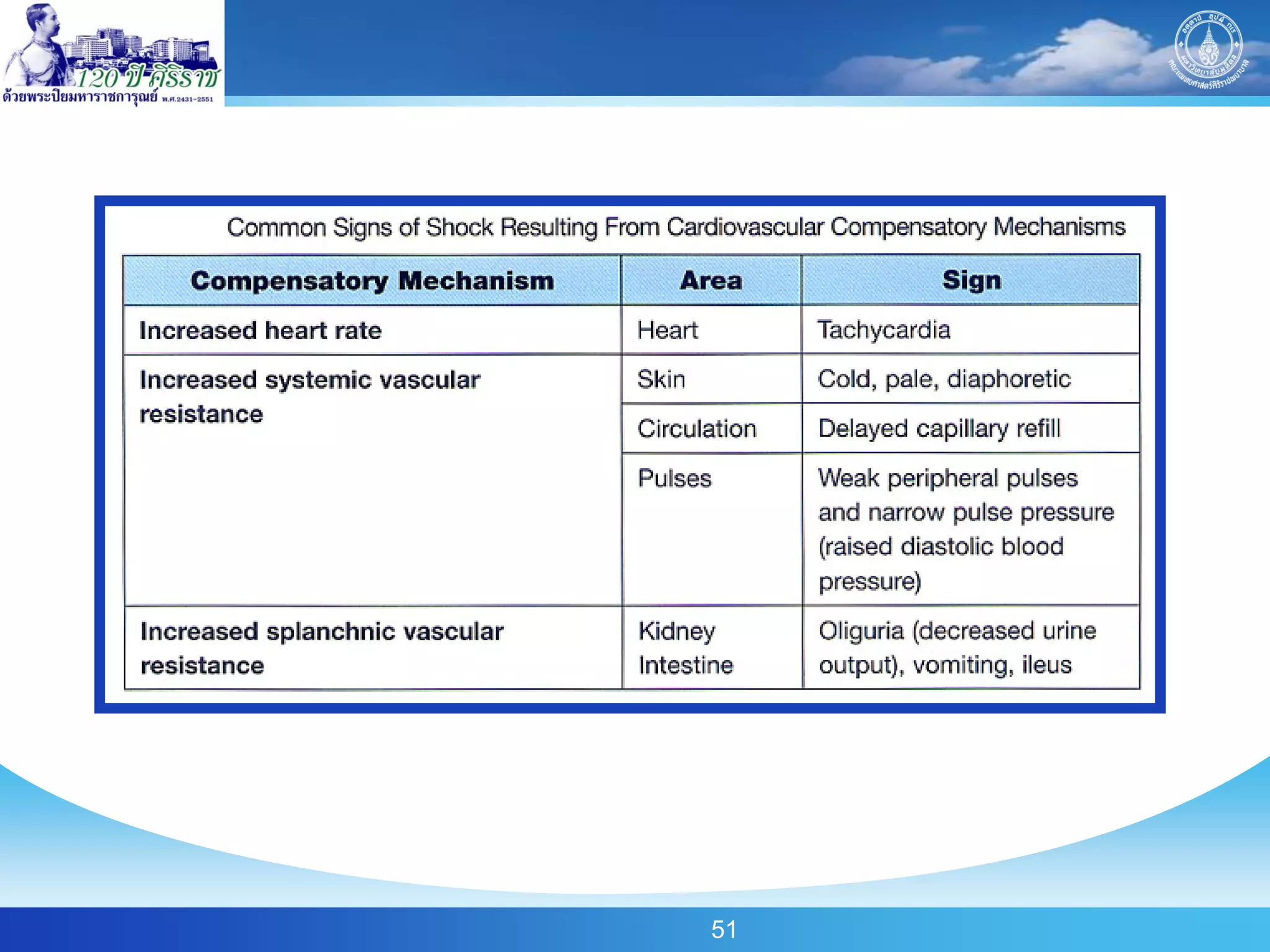

  • 51. 51
  • 52. Recognition of shock flow chart 52
  • 53. 53

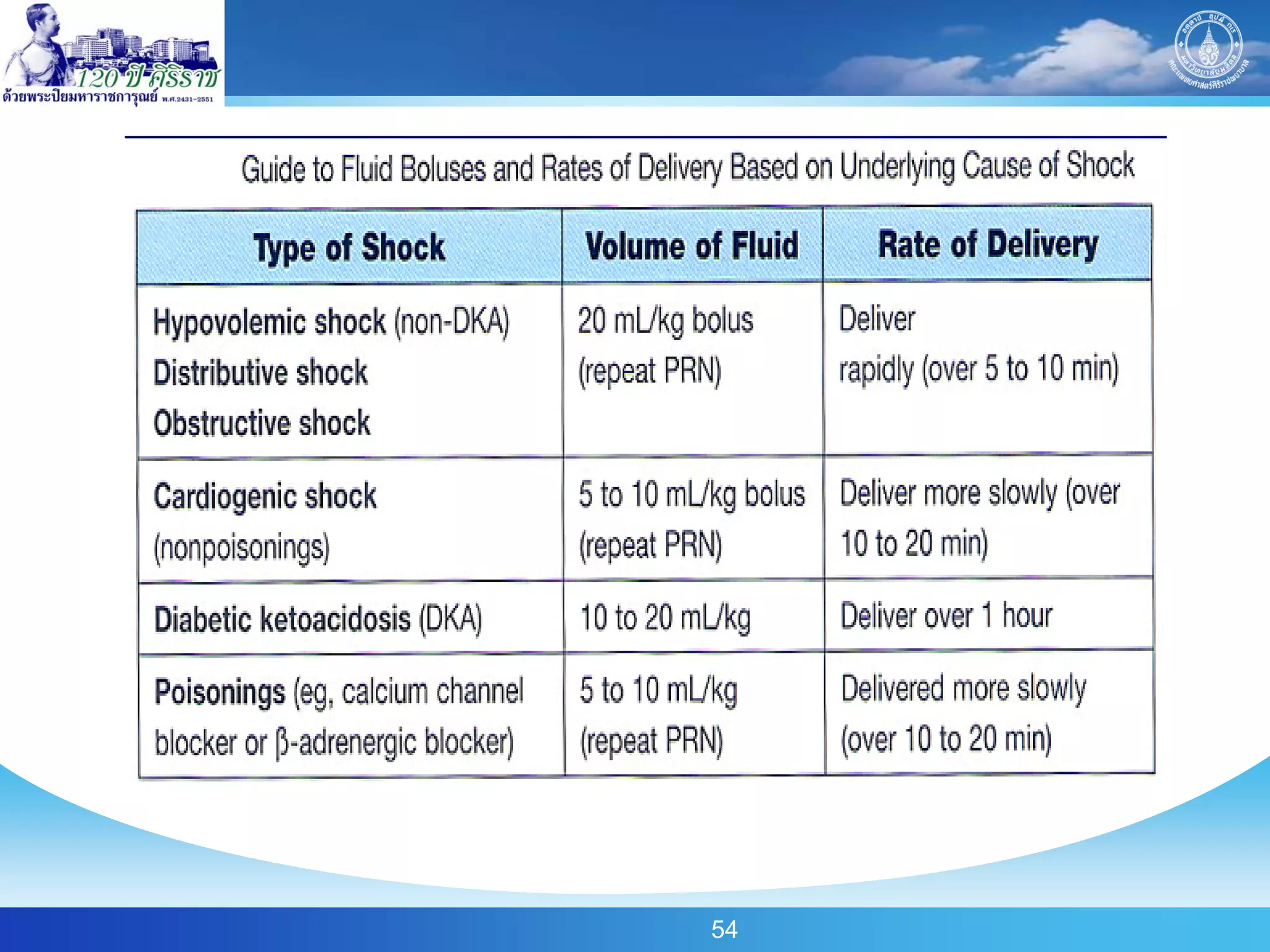

  • 54. 54
  • 56. 56
  • 59. 59
  • 60. Medications : Maintain CO postresuscitation Stabilization 60
  • 61. 61
  • 62. Potentially Reversible Causes of Arrest: 6 H’s Hypovolemia Hypoxemia Hydrogen ion (acidosis) Hypo-/hyperkalemia hypoglycemia Hypothermia 62
  • 63. Potentially Reversible Causes of Arrest: 5 T’s Toxins Tamponade, cardiac Tension pneumothorax Thrombosis (coronary or pulmonary) Trauma (hypovolemia) 63
  • 64. PALS guideline Tachycardia algorithm PALS Tachycardia Algorithm 64
  • 66. Trend of PALS 2010 Pediatric assessment ( PAT )novel approach for the rapid evaluation Pediatric Emergency Care - Vol 26 Number 4, April 2010 Cardiocerebral resuscitation Hypothermia Practice skills learned in formal curricula Pediatrics 2009; 124; 610-619 66
  • 67. 67
