Packers & bridge plugs

WELLCARE OIL TOOLS PVT LTD
PRODUCT INDEX
Product Type Page No.
HYDRAULIC PACKERS WITH ACCESSORIES & TOOLS (API 11D1 PRODUCTS)
 Hydraulic Set Production Packer (WC-HP-1)............................................................ 9
 Isolation Packer (WC-HP-2)............................................................................................ 11
 Hydraulic Set High Pressure High Angle Production Packer (WC-HP-3).......... 12
 Fully Hydraulic Set Large Bore Production Packer (WC-HPL-4)………………… 13
 Hydraulic Set High Pressure Production Packer (WC-HP-5)................................ 14
 Hydraulic Set High Angle Production Packer (WC-HP-6)...................................... 15
 Hydraulic Set Retrievable Packer (WC-HP-7)........................................................... 16
 Hydraulic Set Single String Retrievable Packer (WC-HP-8).................................. 18
 Hydraulic Set Dual Bore Production Packer (WC-HP-9)........................................ 19
 Hydro Trip Pressure Sub (WC-HTS)............................................................................. 21
 Auto Fill Pump Out Plug (WC-POP-A)…..……………………………………………….. 22
 Pump Out Plug With Half Mule (WC-POP-H)……………….…………………………. 22
 Pump Out Plug Without Mule (WC-POP) …………………………………………….… 23
 Shear Out Plug (WC-SOP)……………………………………………………………………. 23
 Safety Joint (WC-SJ-1)………………………………………………………………………… 24
 Tubing Safety Joint (WC-SJ-2)……………………………………………………………… 24
 Non Rotational Shear Out Safety Joint (WC-SOS-AR)………………………………. 24
 Ball Catcher Sub (WC-BCS)………………………………………………………………….. 25
MECHANICAL PACKERS WITH ACCESSORIES & TOOLS
 Mechanical Single Grip Retrievable Packer (WC-MECH-1)................................... 26
 Mechanical Double Grip & Double Grip Large Bore Retrievable Packer
(WC-MECH-2) & (WC-MECH-2 L)………………………….............................................. 27
 Lok-Set Mechanical Retrievable Double Grip Packer
(WC-MECH-3) & (WC-MECH-3 L)……..………………………………………………….. 29
 Mechanical Set Production Packer (WC-MECH-4)……………………………………. 31
 Compression Set Retrievable Packer (WC-MECH-5)…………………………………. 32
 Snap Set Compression Packer With Hold Down & Without Hold Down
33
(WC-MECH-6H) & (WC-MECH-6)…..……………………………………………….………
 Tension Set Packer (WC-TP)…………………..……………………………………………. 34
 Swab Cup Packer (WC-SP)….……………………………………………………………… 36
 Gas Vent Pumping Packer (WC-GVP) ……………………….………………………….. 36
SEAL BORE PACKERS WITH ACCESSORIES & TOOLS
 Hydraulic Set Single & Double Bore Retrievable Seal Bore Packer
(WC-HSRSP) & (WC-HDRSP)……………………………………...……………………….. 37
 Wire Line Set Retrievable Packer (WC-WSRP)………………………………………. 38
 Wire Line Set Retrievable Packer (WC-WSRP-2)….………………………………… 41
 Hydro-Pack Seal Bore Retrievable Packer (WC-HSSRP)..………………………….. 42
 Hydraulic Set Seal Bore Retrievable Packer (WC-HSSRP-1)..…………………….. 43
 Hydraulic Set High Performance Seal Bore Retrievable Packer
(WC-HSSRP-2)………………………………………………………..………………………….. 44
 Hydraulic Set High Performance Seal Bore Retrievable & Drillable Packer
(WC-HSSRP-3)………………………………………………………………………………………………... 45
 Hydraulic Set Single & Double Bore Drillable Packer (WC-HSSDP/HSDDP)... 46

1

 Wire Line Set Single & Double Bore Drillable Packer
(WC-WSSDP-1) & (WC-WSDDP-1)..………………………………………………………… 48
 Wire Line Set Large Seal Bore Drillable Packer (WC-WLSDP)………………… 49
 Wire Line Set Single & Large Seal Bore Drillable Packer (WC-WSSDP-2) &
50
(WC-WSDDP-2)……………………………………………….………………………..…….
 Drag Block Tubing Anchor/Catcher (WC-DBTAC)…………………………...……… 51
 Setting Tool Nipple (WC-STNE)……………………………………………….…………... 52
 Splined Expansion Joint (WC-SEP)………………………..…………………………….. 53
 Auto Lock Expansion Joint (WC-EP-A)……….………………………………………. 54
 Splined Expansion Joint (WC-SEP-1)…………………………….…………………... 54
 Expansion Joint (WC-EP)……………………………..…………………………………….. 55
 Seal Bore Extension (WC-SBE-1)………………………………………………………… 55
 Seal Bore Extension (WC-SBE)…………………………………………………………… 56
 Locator Type Packer Plug (WC-LRTPP)…..…………………………………………... 57
 Latching Type Packer Plug (WC-LHTPP)……………………………………………. 57
 Typical Hook-Up With Mill-out Extension And Seal Bore Extension………... 58
 Typical Hook-Up with Seal Bore Extension…………………………………………. 59
 Typical Hook-Up with Mill-out Extension And Flow Control Accessories…. 60
 Snap Latch Assembly (WC-SLA)………...………………………………….……………. 61
 Anchor Latch Assembly (WC-ALA)………………………………..……………………… 62
 Anchor Tubing Seal Assembly (WC-ATA)………………………………………….…… 62
 Locator Seal Assembly (WC-LSA)……………………………………….……………….. 63
 Tubing Seal Nipple (WC-TSN)…………….……………………………………………….. 64
 Seal Units (WC-SU)………………………………………………………….………………… 64
 Snap Latch Tubing Seal Assembly (WC-STSA)…………………………………..…... 65
 Locator Tubing Seal Assembly (WC-LTSA)……………………………………………. 66
 Locator Seal Assembly (WC-LRSA)……………………….…………………………….. 66
 Auto Orienting Bottom Sub With Half Mule Shoe (WC-BSWH-A)………………. 67
 Wireline Adapter Kit (WC-W)…………………………………………………………….. 68
 Hydraulic Setting Tool (WC-HST)……………………………………………………….. 69
 Packer Milling & Retrieving Tool (WC-MRT)……………………………………….… 70
 Retrieving Tool (WC-RT)..…………………………………………………………………. 71
 On/Off Overshot (WC-OS10)………………………………………………………………… 72
 Flow Coupling (WC-FC)…………………………………..………………………………... 73
 Coupling (WC-C)……………………………………………………………………………... 73
 Blast Joint (WC-BJ)……………………….………………………………………………… 74
 Non Perforated Production Tube (WC-NPPT)……………………….……………….. 75
 Perforated Spacer Tube (WC-PST)…………………………..…………………………. 75
 Wireline Entry Guide (WC-WEG)……………………….……………………………….. 75
 Crossover (Pin X Pin) (WC-C99)………………………………………………………….. 76
 Crossovers (Box X Box) And (Box X Pin) (WC-C88) & (WC-C89)...……………… 76
 Locator Seal Nipple (WC-LRSN)………………..…………………………………….. 77
 J-Latch Seal Nipple (WC-JLSN)………………………………………………………….. 77
 Collet Latch Seal Nipple (WC-CLSN)…………………………………………………… 78

2

 On/Off Tool Stingers (WC-TS10)……….………………………………………………… 79
 “H” Type On/Off Tool (WC-H10)…………………………………………..……………... 79
 Tubing Anchor Catcher (WC-TAC)……………………………………………………….. 80
 Telescoping Swivel Sub (WC-TSS)……………..……………………………………..... 81
 Adjustable Sub With Rotational Lock (WC-ASRL)…………………………………… 81
 Hydraulic Set Tubing Anchor Catcher (WC-HTAC)………………………………… 82
 Right Hand Set Tubing Anchor Catcher (WC-RTAC)………………………………. 83
CASING CLEAN UP TOOLS
 Casing Scrapper (WC-CS)………………….……………………………………………… 84
 Reverse Circulating Junk Basket (WC-RCB)…………………………………………. 85
 Core Type Junk Basket (WC-CJB)………….…………………………………………….. 86
 Impression Block (WC-IB)…………………………………….…………………………….. 87
 Boot Basket (Junk Sub) (WC-BB)……………………………………………………….. 88
 Washover Equipment……………………………………………………………………….. 89
BRIDGE PLUGS & CEMENT RETAINERS WITH ACCESSORIES & TOOLS
 Wire Line Set Mechanical Bridge Plug (WC-WMBP)……………………………… 92
 Wire Line Set Mechanical Cement Retainer (WC-WMCR)………………………. 93
 Hydro Mech. Bridge Plug (WC-HMBP)………………………………………………….. 94
 Composite Bridge Plug (WC-CBP)………………………………………………………... 95
 Wire Line Set Retrievable Bridge Plug (WC-WSRBP)……………………………... 95
 Retrieving Tool with washover shoe (WC-RTRB)…….……………………………… 96
 Snap Latch Setting tool (WC-SST-1)………………..………………………………….. 97
 Mech. Setting Tool (WC-MST)……………………………………………………………... 98
 Wire Line Adapter Kit (WC-WAK)………………………………………………………. 99
 Snap Latch Stinger Sub (WC-SSB)………………………………………………………. 100
 Control Unit (WC-CU)………………………………………………………………………… 100
FLOW CONTROL EQUIPMENTS (API 14L PRODUCTS)
 Seating Nipple (Bottom NO Go) (WC-SNR)…………………………………………….. 101
 Seating Nipple (TOP NO GO) (WCSNE)………………………………………………. 102
 Seating Nipple (WC-SNEN)………………………………………..………………………. 102
 Seating Nipple (WC-SNEX)………………………………………………………………….. 103
 Seating Nipple (WC-SNEXN)…………………………………………………….……….. 103
 Seating Nipple (WC-SNER)…………………………………………………………………. 104
 Seating Nipple (WC-SNERN)………………………………………….………………….. 104
 Seating Nipple (WC-SNA)……………………………………………………………………. 105
 Seating Nipple (WC-SND)…………………………………….…………………………… 105
 Down Holes Flow Regulators (WC-DFL) & (WC-DFJ)…………………………….. 106
 Non-Elastomeric Sliding Sleeve (WC-SSD) & (WC-SSU)…………………………. 107
 Sliding Sleeve (WC-SSEX)……………………….………………………………………… 108
 Sliding Sleeve (WC-SSL)…………………………………………………………………… 109
 Sliding Sleeve (WC-SSE))…………………………………………………………………... 110
 Shifting Tool (WC-STD2)………………………………………………………………….... 111
 Shifting Tool (WC-STOB)……………………………..……………………………………. 112
 Wire Line Stem (WC-WSM)………………………….…………………………………….. 112

3

 Equalizer Check Valve (WC-ECV-1)……………………………………………………. 113
 Equalizer Check Valve (WC-ECV-2)……………………………………………………. 113
 By-Pas Blanking Plug (WC-WBP-1)………………………………………………………. 114
 By-Pas Blanking Plug W/ Removable Mandrel (WC-WBP-2)…………………….. 115
 By-Pas Blanking Plug W/ Removable Mandrel (WC-WBP-3)…………………….. 116
 Probes…………………………………………………………………………………………… 117
 Running Tool (WC-RGTL)…...…………………………………………………………….. 118
 Gravel Pack Squeeze Tool (WC-GPST)…………………………………………………. 119

4

Material Selection
Wellcare equipment is offered in various material  Severely corrosive CO2 and H2S–nickel
configurations for a variety of well conditions. alloys such as 825, 925 and 718 at strength
Wellcare employs leaders in the field of levels of 110 ksi minimum yield strength
metallurgy and polymer chemistry to ensure and higher.
superior material recommendations are made to  Severely corrosive CO2, H2S and free
our customers. sulphur–nickel alloys such as 625 Plus,
725 and, less frequently, C-276 at strength
For corrosive wells, Wellcare corrosion levels of 120 ksi minimum yield strength
metallurgists and polymer scientists are available and higher
to provide expert material recommendations. To
provide the most cost-effective recommendations, For equipment required to perform a temporary
the well environment data form has been function and then allow quick removal by drilling
developed to aid in gathering the necessary well or milling, an additional group of materials is
data. used:

The following alloys and groups of alloys  Cast iron
are currently the most common materials used for  Reinforced polymer-based composites
the construction of packers and related
equipment: Besides the more common materials, Wellcare
manufactures packers and related equipment from
 Standard, non-corrosive service–low alloy
other materials when raw material availability,
steels (e.g. 4140) with mechanical
properties compatible with API P110 quantities, delivery schedules, etc., permit.
tubular. Example alloys include 316L austenitic, 22 Cr
 Non-corrosive service containing H2S– duplex, 25 Cr duplex, 25 Cr super duplex, alloy
low alloy steels (e.g. NACE MR0175 20Cb3, 28 Cr super austenitic, K-500 Monel,
compliant 4140) with mechanical alloy 2025, alloy 2535, alloy 2550, alloy G-3 and
properties compatible with API L80 others
tubulars.
 Corrosive CO2 service with little or no
H2S–Martensitic and PH stainless steels
(e.g. 9Cr, 13Cr, 17-4PH, alloy 450, Super
13Cr) with mechanical properties that vary
from 80 ksi to 110 ksi minimum yield
strength; the selection of the specific
corrosion-resistant alloy(s) depends on the
environment (pH, chlorides, temperature,
H2S, etc.,) and strength requirements

5

Elastomer Selection

Ideally, seal materials have high strength V-ring seal stacks can tolerate movement
and resiliency, and remain unaffected by while holding high pressures, providing
thermal or chemical environments. they are always contained within a
However, there is no single material that sealbore. Therefore, while holding
offers adequate levels of these differential pressure, they must remain in
characteristics for all downhole the sealbore. Selecting the most
applications. Effective sealing in downhole appropriate seal stack can be simplified by
environments often requires a combination referring to the seal stack service matrix
of materials to form a seal system. Several shown below.
sets of identical seal systems can be
combined to create a seal stack with Selecting the most appropriate seal stack
redundant seals. Choosing the optimum can be simplified by referring to the seal
seal stack requires knowledge of the stack service matrix shown below. For
application and downhole conditions. additional information regarding packer to
tubing seal systems, ask your Wellcare
Bonded seals are used in applications that representative for a copy of the following:
require seals to be repeatedly inserted into
and removed from the sealbore while  ―What to Consider When Designing
holding differential pressure. This action is Downhole Seals,‖ reprinted from
known as unloading. Bonded seals are World Oil magazine
composed of high-strength elastomers,  ―Factors and Conditions Which
usually nitrile or Viton™, which have Cause Seal Assemblies Used in
limited operational capabilities. Downhole Environments to Get
Stuck,‖ Engineering Tech Data
Applications beyond the capabilities of given below
bonded seals require more inert  ―Metal-to-Metal Sealing in Hostile
elastomers. Generally, these premium Environment Completion
elastomeric materials have lower Equipment,‖ Engineering Tech
resistance to extrusion than nitrile or Data.
Viton* and require the protection of a
containment system to prevent failures.
Sealing systems using contained premium
elastomers are offered as a chevron- or v-
ring-type seal stack.

6

Selection Guide
Packer-to-Tubing Packing Unit
Pressure Diffrential *Environment Compatibility
Temp. Range Light
Non - Unholding Unholding Oil Base Bromide High pH
Seal Type Brine
H₂S Completi Completi Completion Amine Inhibitors
Completi
PSI MPa PSI MPa ˚F ˚C on on Ph>10
on
Nitrile
10,000 68.9 NO NO 32-300 0-149 NO OK OK CaBr₂/Na
Chevron
Br₂ NO
70 Hard OK pH>10
Nitrile 5,000 34.4 5,000 34.4 32-200 0-93 NO OK OK OK
to OK
Bonded to 200˚F
250˚F to 250˚F
90 Hard ZNBr₂ pH<10
Nitrile 10,000 68.9 5,000 34.4 32-300 0-149 NO OK OK NO
Bonded
95 Hard
OK
Viton 10,000 68.9 5,000 34.4 32-250 0-121 5% OK OK OK NO
to 200˚F
Bonded
CaBr₂/Na
Br₂ OK
HN-Ryte 15,000 68.9 NO NO 32-350 0-177 2% OK OK to 250˚F OK OK
ZNBr₂
NO
32-300 0-149 15% OK OK OK
V-Ryte 15,000 103.3 NO NO OK NO
32-400 0-204 5% OK OK to 200˚F
80-300 27-149 20% OK OK
A-Ryte 15,000 103.3 NO NO NO OK OK
80-450 27-232 7% OK OK
80-300 27-149 20% OK OK
A-HEET 15,000 103.3 NO NO NO OK OK
80-450 27-232 15% OK OK
K-Ryte 15,000 103.3 NO NO 100-450 38-232 7% OK OK OK OK OK
K-HEET 15,000 103.3 NO NO 100-550 38-288 ◦ OK OK OK OK OK
Seal-Ryte 15,000 103.3 NO NO 40-450 4-232 7% OK OK OK OK OK
Seal-
15,000 103.3 NO NO 40-450 4-232 ◦ OK OK OK OK OK
HEET
R-Ryte 10,000 68.9 NO NO 325-450 163-232 7% OK OK OK OK OK
Molyglass 10,000 68.9 NO NO 125-300 52-149 15% OK OK OK OK OK
*Explosive decompression is chemical and mechanical in nature related to solubility of gas in elastomer and strength of that elastomer. Under rapid decompression,
*The elastomeric seals in these units may be susceptible to explosive decompression, however, explosive decompression does not occur while seals are in service.
◦ There are no known H2S limitations below 500°F (260°C).
7


Packer Performance Definition
The successful performance of any packer The numerical controlled system of
includes recognizing that the combined graphical representation and recorded
effects of varying differential pressure or tabular data system in accordance with
applied forces cannot be considered API 11 D1 (of level V3 as of now but
independently. Rating a production packer trending up to V0), is used to validate
in terms of differential pressure alone does permanent and retrievable packers are
not sufficiently describe the packer's compatible with the demands of today's
performance limits. To accurately measure critical completions. Ensuring all load
and compare the performance of various combinations fall inside the region formed
packers, an understanding of the by the curves confirms that the equipment
simultaneous effects of differential is adequate for the combined loading
pressure and axial loading is required. conditions. This area is called the ―safe
performance envelope‖ In those instances
Wellcare has developed a high-tech R&D where one or more sets of loading
center which is industry's first means of conditions fall outside the safe
describing a packer's performance performance envelope, a detailed
capabilities, under all possible cyclic evaluation of all aspects of the proposed
loading, temperature, pressure & completion system is required to upgrade
circulation conditions. its performance. Some conditions outside
The analytical system combines computer the safe performance envelope adversely
modeling, sophisticated numerical affect the packer’s ability to maintain its
stimulation techniques, including finite sealing integrity. Others may prevent the
element analysis, exhaustive laboratory packer from functioning as designed,
testing, and field verification. while retaining pressure integrity. For
To apply this technology, a graphical more information regarding testing and
solution is used to provide an accurate and simulation, testing and validation system
useful definition of a packer's safe of packers, contact your local Wellcare
operating region. Representative.
Wellcare incorporates API Quality
Management System of level Q1 with
100% inspection and testing of material,
component and products, so as to render
best customer satisfaction.

8

Hydraulic Set Production Packer:- lower packer can be set and tested down the casing. The
second packer can then be set, the sleeve below it opened,
Model: WC-HP-1& WC-HPL-1 and the second packer tested down the casing. The third
Prod.no. WC-20101 & WC-20112 packer is set and tested the same way. It is recommended
The Model ―WC-HP-1‖ is a hydrostatic and/or that a blanking plug be used to temporarily plug the tubing
hydraulic set packer that allows the tubing to be left in a for setting the packers because of the higher setting
compression or neutral condition. The Model WC-HPL-1 pressures.
Hydrostatic Packer is a large bore version of the WC-HP-1
Packer. Features, advantages, and operational procedures Releasing procedure:-
are basically the same as those described for the WC-HP-1. The standard ―WC-HP-1‖ Hydrostatic/Hydraulic
Packer is equipped with 30,000 lb. shear ring for a straight
Application:- upstrain release. Other shear values are available in 20,000
Used in multi-zone production where crooked or deviated to 50,000 lb. for all sizes 5-1/2 thru 9-5/8.
holes are not suitable for mechanical packers. An
installation where the wellhead is flanged up before the
packer is set.

Features:-
• No tubing manipulation required
• Withstands high hydrostatic pressures
• Hydraulic set for low hydrostatic head wells
• Locked in pack-off force
• No mandrel movement during setting
• Straight pull or optional rotational release
• Hydraulic hold-down for differential pressure from below

Setting procedure:-
The Model ―WC-HP-1‖ Hydrostatic/Hydraulic Packer is set
by pressuring the tubing to obtain a differential at the
packer. To accomplish this a means of temporarily plugging
the tubing below the packer must be provided.
Example: Run a WELLCARE Hydro-Trip Pressure
Sub, below the ―WC-HP-1‖ Hydrostatic/Hydraulic Packer
or a WELLCARE Flow Control Seating Nipple installed at MODEL: WC-HP-1
some point below the packer, with a Blanking Plug run and PRODUCT NO.: WC-20101
retrieved by standard wireline techniques. Wireline Re-
Entry Guide with Pump-Out Plug or Ball Seat can also be
used to blank off tubing.
If more than one ―WC-HP-1‖
Hydrostatic/Hydraulic Packer is to be run, place the tubing
plugging device below the lowest packer. When the tubing
is pressured in this case, all of the hydrostatic packers will
be set simultaneously. If it is desirable to individually set
and test each packer, the Model ―WC-HP-1‖
Hydrostatic/Hydraulic Packer is adaptable to individual
setting and testing by a simple adjustment of shear screws in
the segment retainer housing. Dress the lowest packer with
two brass shear screws. When dressing packers for this type
hook-up, all packers going on one string should be dressed
with shear screws from one box to ensure similarity of shear
values. Dress the second (middle packer in three-packer
hookups, or upper in two-packer hookups) with five brass
shear screws, and a third (upper) packer with eight brass
shear screws. This allows the packer to be set individually.
The first will set with approximately 1,000, the second
2,000 and the third 3,000 psi differential at the packer. In
order to test the packers individually, a means of temporary
communication between the tubing and the casing (i.e. a
Sliding Sleeve below each packer) will be necessary. The

9


SPECIFICATION GUIDE

10

Isolation Packer:-
Model : WC-HP-2
Prod. No. WC-20102
Isolation Packer is a hydraulic set, single string
tandem packer used in multiple zone wells. It is used as the
upper packer in multiple zone applications.

Setting:-
Run to setting depth, apply tubing pressure to set.

Features:-
 Economical Design
 Easily adjustable set and release shear screws
 Compact

MODEL: WC-HP-2
PRODUCT NO. WC-20102

11

Hydraulic Set High Pressure High Angle
Production Packer:-
Model : WC-HP-3
Prod. No. WC-20105
The Model ―WC-HP-3‖ is a pure Hydraulic Set
Packer that can be run in single or multiple zone
installations. It is highly recommended for deviated wells
where conditions are not suitable for Mechanical or Wire
line Set Packers.

Features/Benefits:-
 No tubing movement is required for setting the
Packer. This allows the well to be kept positively
controlled at all times because the tubing is landed
before circulating or displacing well fluids prior to
setting the packer. Two or more packers can be set
together or in any desired sequence.
 The ―WC-HP-3‖ Packer design features four bi- MODEL : WC-HP-3
directional, single piece slips located below a three PRODUCT NO. WC-20105
element packing system consisting of dual
durometer rubber elements. The slips are fully
enclosed in a shear pinned slip housing which is
protected by a full diameter guide located below
the slip housing.
 Two balanced pistons are utilized during the
setting of the Packer. The lower piston moves
down to set and anchor the slips while the upper
piston moves upward to compress the packing
element. This action imparts the entire setting force
to both slips and packing thus assuring a positive
anchor and pack-off. The pack-off is retained by a
tapered single ratchet ring that locks in and stores
the setting force applied to both the slips and
packing element.
 The ―WC-HP-3‖ Packer incorporates two methods
of release. Straight pull or rotation. Both methods
are done by the same releasing nut which is located
at the upper end of the Packer. Straight pull release
is accomplished by shearing retaining screws of a
predetermined quantity which frees the tubing.
Rotation release is accomplished by approximately
eight right hand turns of the Tubing which also
frees the Packer. Straight pull is then applied to
completely relax the Packer for retrieval. An
equalizing valve is also located in the releasing
portion. The positive acting valve is automatically SPECIFICATION DATA
opened during the releasing procedure to equalize
pressure and allow circulation between the annulus Casing Packer

and Tubing. In addition, a large diameter by-pass ID range in which Gage Standard Thread
OD Weight Packer may be run Nom ID Ring specification
area is located inside the packing mandrel which Min. Max. Size OD Box Up X Pin Down
allows fluid passage for rapid retrieving while inch
Lb/ft inch mm inch mm
inch inch inch
mm mm mm mm
reducing element swabbing.
5 1/2
4.625 4.950 1.93 4.500 2 3/8 OD EU 8RD
139. 14-23 45A
117.50 125.70 50.30 114.30 60.33
70

12

Fully Hydraulic Set Large Bore
Production Packer:-
Model :WC-HPL-4
Prod. No. WC-20103
Model ―WC-HLP-4‖ Retrievable Packer is fully
Hydraulic set large bore production packer, used for
production, zone isolation, multiple string completions,
combining hook ups and for stimulation.

The setting starts on application of pump pressure
to the tubing. The ―WC-HLP-4‖ sets and packs-off due to
the force applied by tubing pressures. The design of the
setting mechanism ensures sustained pack-off force
throughout the life of the Packer. Opposed Double Grip MODEL: WC-HPL-4
slips prevent movement of the Packer in either direction due PRODUCT NO. WC-20103
to pressure differentials, while allowing landing of the
tubing in tension, compression, or neutral.
The standard model ―WC-HLP-4‖ Packer is
equipped with Shear Screws for a straight pickup release.
The Packer is suitable for maximum 6,000 psi differential
pressure.

Features:-

 No Tubing Manipulation required: The setting
mechanism of this Packer is activated with pump
pressure. The Packer can be set after the well is
flanged up and the tubing is displaced.
 Setting Mechanism: The design of the setting
mechanism ensures sustained pack-off force
throughout life of the Packer. The tool does not
depend on trapped hydraulic pressure, but
mechanically locks initial setting forces into the
packing elements. Setting activation pressure can
be adjusted by dressing up with required number of
Shear Screws.
 Opposed: Double grip slips prevent movement of
the Packer in either direction due to pressure
differentials.
 Unloader valve: Provided for equalising the
pressure to nullify the swabbing of the Packing
element. SPECIFICATION GUIDE

 Multiple: Packing element system. Casing
ID Range in Packing Standard
OD Weight Size Nom. Gage Ring Element Thread
which Packer ID
(lb/ft) may Run OD OD Specification
In inch Box X pin
Min. Max.
20-23 4.625 4.778 45A2 2.375 4.540 4.525
5- 2 7/8 OD
15.5-20 4.778 4.950 45A4 2.375 4.651 4.635
1/2‖ EU. 8RD.
13-15.5 4.950 5.190 45B 2.375 4.815 4.800

13

Hydraulic Set High Pressure Production
Packer:-
Model : WC-HP-5
Product No. WC-20104
The WC-HP-5 retrievable production packer
combines hydraulic setting with a rugged three piece
element design, making it ideal for the most demanding
multi-zone and deviated hole applications.
The WC-HP-5 is readily customizable for
maximum performance in wells where H2S, CO2 amines or
other chemicals require modified metallurgical or
demanding elastomeric properties.
Faster running speeds and reduced completion time
are made possible with a compact, swab resistant element
design. Adjustable setting pressures permit running multiple
packers and selective setting utilizing a single, temporary
plug set below the bottom packer. MODEL : WC-HP-5
The WC-HP-5 mandrel does not move during PRODUCT NO. WC-20104
setting, ideal for situations where production tubing is
spaced out and the well flanged up.
It’s a straight pull release type packer.

Characteristic:-
 Pressure differential rating up to 10000 psi.
 No downward mandrel movement during setting
 Temperature rating up to 350°F.

Advantages:-
 Ideal packer for well with higher deviations
 Low shear out force required even under full
differential pressure
 In stacked packer installations, sequential release is
achievable

Applications:-
 Suitable for highly deviated wells
 Onshore offshore completions
 Oil & Gas production
 Water injection/Gas lift

14

Hydraulic Set High Angle Production
Packer:-
Model: WC-HP-6
It is ideal for use in deviated wells, multiple-packer
completions, and applications where the packer is to be set
after the wellhead is installed. Because no mandrel
movement occurs during setting, the WC-HP-6 Packer may
also be used in multiple-packer completions where all
packers are set simultaneously.
Set with a pressure differential, the WC-HP-6
packer has an easily adjustable setting-pressure feature and
a bidirectional mechanical slip system. The packer features MODEL: WC-HP-6
a unique design that allows debris to be circulated from
above the packer when releasing. A three-piece, dual-
durometer element system and a built-in equalizing and
circulating system ensure reduced risk and easy release.
No tubing movement is required to set the packer.
After the packer is set, the tubing can be landed in either
compression or neutral condition. The setting force is
mechanically locked into the sealing elements with a
positive ratchet-lock mechanism. The WC-HP-6 retrievable
packer is released with and upward pull exceeding the
rating of the shear release screws. Optionally, the WC-HP-6
packer is available with a rotation release mechanism.

Applications:-
 Deviated wells
 Multiple-zone, multiple-packer completions

Benefits:-
Specifications
 Designed for quick, reliable installation in straight
or highly deviated wells. Max.
Casing
Casing Weight Max. OD Nominal ID Working
 Easier and safer retrieval provided by built-in Size
(in mm)
Range, (lbs/ft) (In mm) (in mm) Temperature,
(°F or °C)
equalizing and circulating system 5.500
13-15.5 4.781 (121.4) 2.000 (50.8) 275 (135)
(139.7)
5.500
Features:- (139.7)
15.5-20 4.641 (117.9) 2.000 (50.8) 275 (135)
 Pressure differential rating up to 10000 psi. 5.500
20-23 4.500 (114.3) 2.000 (50.8) 275 (135)
 Easy release with a fully adjustable, straight- (139.7)
5.750
16.1-24.6 4.744 (120.5) 2.000 (50.8) 275 (135)
pickup shear mechanism (146.1)
6.625
 Short, compact design (168.3)
20-24 5.661 (143.8) 2.441 (62.0) 275 (135)

 Field-proven design 6.625
(168.3)
24-28 5.625 (142.9) 2.441 (62.0) 275 (135)
6.625
28-32 5.484 (139.3) 2.441 (62.0) 275 (135)
(168.3)
7.000
17-20 6.266 (159.2) 2.441 (62.0) 275 (135)
(177.8)
7.000
23-26 6.078 (154.4) 2.441 (62.0) 275 (135)
(177.8)
7.000
26-29 5.968 (151.6) 2.441 (62.0) 275 (135)
(177.8)
7.000
32-35 5.817 (147.8) 2.441 (62.0) 275 (135)
(177.8)

15

Hydraulic Set Retrievable Packer:-
Model :WC-HP-7
The Model WC-HP-7 Hydraulic-Set Retrievable
Packer is a single-string packer ideal for use in wells where
mechanical-set packers might experience difficulty in
running, setting, or retrieving. It can be used in single-
packer installations, as a lower packer in multiple-string
completions, or in tandem for single-string, selective,
multiple-zone completions.
The Model WC-HP-7 Packer can be used when
displacing and setting is desirable after the well is flanged-
up.

Features:-
 Mechanicl/Hydraulic-set, no rotation or
reciprocation required: tubing may be displaced,
well flanged-up, before packer is set
 Optional releasing methods: can be released by
either straight pull or right-hand rotation
 Mechanically locked in set position: holds
differential pressure from above or below without
hydraulic hold-down buttons. Locking piston and MODEL : WC-HP-7
collet prevent pressure generated piston forces PRODUCT NO.WC-20109
from acting on release shear screws during
production or treating
 Multiple element packing element system: two
hard, outer packing elements and a softer inner
packing element assure positive pack-off over a
wide range of well conditions
 Caged slips: reduce problems while running and
retrieving
 One-piece mandrel through packer
 Rated for 6,000 psi at 300°F

Application:-
 Run as single packer
 Run as the lower packer in multiple-string
completions
 Run in tandem for selective, multiple-zone
completions
 Run when displacing and setting is desirable after
well is flanged-up

16

Setting procedure:-
The Model WC-HP-7 Packer is run to the desired
setting depth on the tubing string.
The well may be flanged-up and the tubing displaced. While
displacing the tubing, rate must not exceed 3 bbl/min to
prevent damage to packing element. Apply 2,500 psi
differential pressure at the packer against a temporary
tubing plug installed below the packer.
Pressure applied to the tubing enters the piston
area, compressing the packing element and settings the
slips. As the slips grip the casing wall to prevent movement
of the packer, body lock rings are set to mechanically hold
the setting force in the packer until it is released.

Releasing procedure:-
The Model WC-HP-7 Packer is released by right-
hand rotation or straight pick-up. Either tension pulled at the
packer in excess of the shear screw values, or right-hand
rotation: releases the tie bar mandrel from the packing
element mandrel, opens
a circulating port above the packing element, and allows the
packer to be removed by continued upward movement of
the tubing.

17

Hydraulic Set Single String Retrievable
Packer:-
Model : WC-HP-8
The model WC-HP-8 is a hydraulic set single
string retrievable packer. Tubing pump pressure is used to
set the packer and the setting force is locked into the packer
by a body lock ring. Its design allows for multiple zone
completions. It can be run with other hydraulic packers or
mechanical set packers.
MODEL : WC-HP-8
Special Features:-
 Simple operation
 Compact
 Field adjustable setting pressure
 Field adjustable releasing force

Specification Data

18

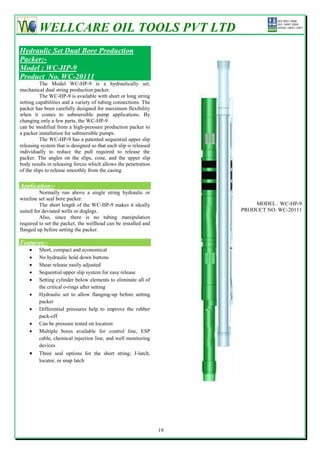

Hydraulic Set Dual Bore Production
Packer:-
Model : WC-HP-9
The Model WC-HP-9 is a hydraulically set,
mechanical dual string production packer.
The WC-HP-9 is available with short or long string
setting capabilities and a variety of tubing connections. The
packer has been carefully designed for maximum flexibility
when it comes to submersible pump applications. By
changing only a few parts, the WC-HP-9
can be modified from a high-pressure production packer to
a packer installation for submersible pumps.
The WC-HP-9 has a patented sequential upper slip
releasing system that is designed so that each slip is released
individually to reduce the pull required to release the
packer. The angles on the slips, cone, and the upper slip
body results in releasing forces which allows the penetration
of the slips to release smoothly from the casing.

Application:-
Normally run above a single string hydraulic or
wireline set seal bore packer.
The short length of the WC-HP-9 makes it ideally MODEL : WC-HP-9
suited for deviated wells or doglegs. PRODUCT NO. WC-20111
Also, since there is no tubing manipulation
required to set the packer, the wellhead can be installed and
flanged up before setting the packer.

Features:-
 Short, compact and economical
 No hydraulic hold down buttons
 Shear release easily adjusted
 Sequential upper slip system for easy release
 Setting cylinder below elements to eliminate all of
the critical o-rings after setting
 Hydraulic set to allow flanging-up before setting
packer
 Differential pressures help to improve the rubber
pack-off
 Can be pressure tested on location
 Multiple bores available for control line, ESP
cable, chemical injection line, and well monitoring
devices
 Three seal options for the short string; J-latch,
locator, or snap latch

19

Setting Procedure:-
The WC-HP-9 is set by temporarily plugging the
long string and pressuring the tubing.
When tubing pressure is applied to the packer, the
inlet port allows pressure differential to be present in the
setting chamber. This differential forces the setting cylinder
down and sets the lower slips. The setting mandrel is forced
up, and sets the upper slips and packs-off the elements. Any
relative motion between the setting cylinder and the setting
mandrel is held in place by the locking nut, which will
ratchet in only one direction. With a pressure differential
from above, the force is transferred through the outer
components of the packer and is supported by the lower
slips. With pressure differential from below the force
transfers through the outer components of the packer and is
supported by the upper slips.

Releasing Procedure:-
The WC-HP-9 is released by a straight pick-up on
the long string. The shear release value is adjustable.

SPECIFICATION WC-HP-9

20

Hydro Trip Pressure Sub:-
Model : WC-HTS
Hydro Trip Pressure Sub (WC-HTS) is installed in
the tubing string below a hydraulically actuated tool such as
a hydraulic packer to provide a method of applying the
tubing pressure required to activate the tool.
To set a hydrostatic packer, a ball is circulated
through the tubing and packer to the seat in the Hydro-Trip
Pressure Sub, and sufficient tubing pressure is applied to
activate the setting mechanism in the packer. After the
packer is set, a pressure increase to shear screws to allow
the ball seat to move down until the fingers snap back into a
groove. The sub is then full opening, and the ball passes on
down the tubing.
MODEL : WC-HTS

21

Auto Fill Pump Out Plug:-
Model : WC-POP-A (WC-20124)
The Model ―WC-POP-A‖ is used as a tubing Plug
device against which pressure can be applied in order to set
Hydraulic Set Packers. The Pump out Ball Seat Sub is made
up in the tail pipe below the Packer to be set. In this model
with the ball seating down, the Pump out Plug acts as a
reverse check valve preventing flow down the string, while
allowing the string to fill form below. Without need to drop
a ball to seat, the tubing can be pressured up. Once the
Packer is set, tubing pressure is increased to values shown in
the chart below to shear the screws holding the ball seat sub.
The ball seat and the ball with spring etc. are blown out of
the sub to the bottom of the well. Any tubing run below the
ball seat sub should have sufficient ID clearance to permit
passage of the ball, ball seat, spring etc.

Pump Out Plug With Half Mule:-
Model :WC-POP-H (WC-20125)
The Pump-Out Plug Ball Seat Sub, has been used
as a tubing plugging device against which pressure may be
applied in order to set the Packers. The Pump-Out Ball Seat
Sub is made up in the tail pipe below the packer and a
trapping ball is dropped through the packer to its seat in the
sub. Pressure is then applied to seat the packer . Once the
packer is set, tubing pressure is increased to values as shown
in the chart below to shear the screws holding the ball seat in
the sub. The ball and ball seat are blown out of the sub to the
bottom of the well. Any tubing run below The Ball Seat Sub
should have sufficient ID clearance to permit passage of the
ball and ball seat.

22

Pump Out Plug Without Mule:-
Model : WC-POP
By the use of this type of POP we can use more
tubing after the POP.

MODEL: WC-POP
PROD. NO. WC-20126

Shear Out Plug:-
Model : WC-SOP
Shear-out Plug provides a means of temporarily
plugging the bottom of a tubing string to avoid fluid flow up
the tubing while tripping in the hole and to pressure against
while setting hydraulic packers.

MODEL: WC-SOP
PROD. NO.WC-20121

23

Safety Joint:-
Model : WC-SJ-1
The safety joint provides for emergency recovery
of the major portion of the tubing string should it become
necessary to abandon the equipment below. Precision left
hand square threads facilitate release of the joint by right
hand tubing rotation. Equipment requiring right hand MODEL: WC-SJ-1
rotation should not be used to below the safety joint. PROD. NO.WC-20117

Tubing Safety Joint:-
Model : WC-SJ-2
The Safety Joint requires only a straight pull for
parting. These assemblies are often placed in the tubing
string between packers when two or more packers are run in
MODEL: WC-SJ-2
tandem. This safety joint should be placed above the
PROD. NO.WC-20118
position where sand or other adverse conditions may occur
to prevent normal movement of the tubing.

Non Rotational Shear Out Safety Joint:-
Model : WC-SOS-AR
Non rotational shear out safety joint is used
between packers In dual and triple completions and in
selective completions using hydrostatic single string
packers. It is also used when rotational releasing is not
MODEL: WC-SOS-AR
desired. When run above the upper packer in a single string
PROD. NO.WC-20119
completion, however, the shear value should be adjusted to
compensate for any hydraulic conditions that exist when the
string is landed, or that are created by well treating
operations. This model has torque transmission feature.

24

Ball Catcher Sub:-
Model : WC-BCS
Ball catcher sub provides a means of catching the
ball and sheared out ball seat from a landing collar. It
incorporates a perforated baffle plate to catch the ball and
ball seat yet allows fluid passage without restriction.
MODEL: WC-BCS
Features/Benefits:- PROD. NO.WC-20120

 Large bypass area the baffle plate in the catcher
sub is made with multiple sets of large diameter
holes. These holes are sized to catch the ball and
seat, but allow fluid to pass through the tool
without plugging.
 Internal parts rotationally locked.

25

Mechanical Single Grip Retrievable
Packer:-
Model : WC-MECH-1
The Model "WC-MECH-1" is a single grip,
compression set, retrievable packer.

Application:-
Most low pressure production, stimulation and
testing operations.

Features:-
 Automatically returns to run-in position when
moved up the hole
 Long stroke mandrel simplifies circulation of
fluids without releasing the packer
 Large by-pass allows speedy equalization of fluids MODEL: WC-MECH-1
 Rocker type slips PROD. NO.WC-20901
 Standard right-hand set, optional left-hand set
 Parts interchangeable with other manufacturers

Setting procedure:-
The Model " WC-MECH-1" Single Grip Packer is run
in with the by-pass valve in the open position to permit free
circulation both through and around the packer. The packer
should be run one foot below setting depth. To set the
Model " WC-MECH-1", pick-up the tubing to the desired
setting position, rotate to the right, and then slack-off. The
J-pin will move clear of the J-slot and the cone will move
under the slips. Application of set-down weight, for
standard packing element system (7,000 lb. for sizes 4-1/2
thru 5-1/2, 5,000 lb. for size 5-1/2 x 2-7/8, 9,000 lb. for size
7", 11,000 lb. for size 8-5/8, and 15,000 lb. for size 9-5/8),
closes and seals the by-pass valve, sets the slips, and packs-
off the packing elements. The formation below the packer,
which is now completely isolated from the annulus above, is
accessible only through the tubing string.

Releasing procedure:-
To release the packer, raise the tubing string the full
length of the packer. When the J-pin of the bottom sub
engages the slip stop ring (jay housing), the J-pin is
automatically moved into the running position. This allows
the tool to be moved up or down the wellbore as necessary.
When the tubing is raised to release the packer, the by-
pass valve opens to permit circulation through and around
the packer.

26

Mechanical Double Grip & Double Grip which is now completely isolated from the annulus above, is
accessible only through the tubing string.
Large Bore Retrievable Packer:-
Model : WC-MECH-2 & WC-MECH-2L Releasing procedure:-
Product No. WC-20902 & WC-20903 To release the packer, raise the tubing string the
The model ―WC-MECH-2‖ Retrievable Casing full length of the packer. When the J-pin of the bottom sub
Packer is a retrievable set-down packer that features a large engages the slip stop ring (jay housing), the J-pin
bypass area through the Packer. The bypass area is automatically moves into the running position. This allows
controlled by a face-seal type bypass valve which is actuated the tool to be moved up or down the wellbore as necessary.
by a 30‖ inch stroke mandrel. The Packer is available in a When the tubing is raised to release the packer, the by-pass
single-grip version for use as a conventional long-stroke valve opens to permit circulation through and around the
production packer, and in a double-grip version (with hold- packer.
down) for combination production and well stimulation
operations. NOTE: If the J-Pin should un-jay when the tubing is slacked
The double-grip packer, for use where pressure off, rotate to the left (only enough to remove any right-hand
differential from below the packer is anticipated, features an torque form the tool) and pick up.
integral hydraulic button-type hold-down that is located
below the bypass valve.
The double-grip packer also incorporates a unique,
built-in, ―differential lock‖ which utilizes a balance sleeve
actuated by pressure from below the packer. This pressure
creates an additional downward force which, combined with
set-down weight, helps maintain the force necessary to keep
the bypass valve closed.

Features:-
 Differential lock helps keep the by-pass closed and
locked to the mandrel during high pressure
operations
 Automatically returns to run-in position when
moved up the hole
 Hydraulic hold-down for differential pressure from
below
 Long stroke mandrel simplifies circulation of
fluids without releasing the packer
 Large by-pass allows speedy equalization of fluids MODEL: WC-MECH-2
 Rocker type slips PROD. NO.WC-20902
 Standard right-hand set, optional left-hand set

Setting procedure:-
The Model " WC-MECH-2" Double Grip Packer is
run in with the by-pass valve in the open position to permit
free circulation both through and around the packer. The
packer should be run one foot below setting depth. To set
the Model " WC-MECH-2", pick-up the tubing to the
desired setting position, rotate to the right, and then slack-
off. The J-pin will move clear of the J slot and the cone will
move under the slips. Application of set-down weight, for
standard packing element system (7,000 lb. for sizes 4-1/2
thru 5-1/2, 5,000 lb. for size 5-1/2 x 2-7/8, 9,000 lb. for size
7", 11,000 lb. for size 8-5/8, and 15,000 lb. for size 9-5/8),
closes and seals the by-pass valve, sets the slips, and packs-
off the packing elements. The formation below the packer,

27


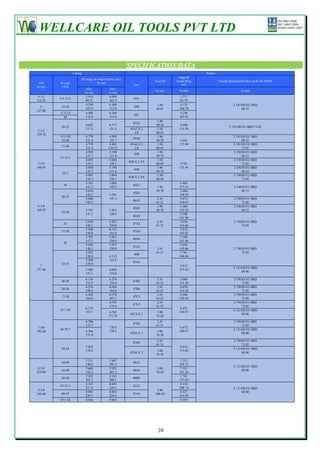

SPECIFICATION DATA
Casing Packer
Gage &
ID range in which Packer may
Nom ID Guide Ring Thread specification Box up & Pin Down
OD Weight be run
Size OD
In mm Lb/ft
Min. Max.
In mm In mm In mm
In mm In mm
4 1/2 3.910 4.090 3.771
9.5-13.5 43A
114.30 99.31 103.9 95.78
4.250 4.408 1.89 4.125 2 3/8 OD EU 8RD
5 15-18 43B
107.9 112.0 48.01 104.78 60.33
127.00
11.5-15 4.408 4.560 4.250
43C
26 112.0 115.8 107.95
1.96
45A2
4.625 4.777 49.78 4.500
20-23 2 7/8 OD EU 8RD 73.02
117.5 121.3 45A2 X 2 2.38 114.30
5 1/2
3/8 60.45
139.70
15.5-20 4.778 4.950 1.96 2 3/8 OD EU 8RD
45A4
14-20 121.4 125.7 49.78 4.641 60.33
4.778 4.892 45A4 X 2 2.38 117.88 2 7/8 OD EU 8RD
17-20
121.4 124.25 3/8 60.45 73.02
4.950 5.190 1.96 2 3/8OD EU 8RD
45B
125.7 131.8 49.78 60.33
13-15.5
4.893 5.044 2.38 2 7/8OD EU 8RD
45B X 2 3/8
5 3/4 124.3 128.1 60.45 4.781 73.02
146.05 4.950 5.190 1.96 121.44 2 3/8OD EU 8RD
45B
125.7 131.8 49.78 60.33
22.5
4.893 5.044 2.38 2 7/8OD EU 8RD
45B X 2 3/8
124.3 128.1 60.45 73.02
5.561 5.609 5.405
34 45E2
141.2 142.5 1.96 137.31 2 3/8OD EU 8RD
5.610 49.78 5.484 60.33
45E4
142.5 5.791 139.29
28-32
5.600 147.1 2.41 5.475 2 7/8OD EU 8RD
46A2
142.2 61.21 139.07 73.02
6 5/8 1.96 5.484 2 3/8OD EU 8RD
45EF
168.28 5.791 5.921 49.78 139.29 60.33
24-28
147.1 150.4 5.588
46A4
141.94
5.830 5.937 2.41 5.656 2 7/8OD EU 8RD
24 47A2
148.1 150.8 61.21 143.66 73.02
5.938 6.135 5.812
17-20 47A4
150.8 155.8 147.62
5.791 5.921 5.588
46A4
147.1 150.4 141.94
38
5.830 5.937 5.656
47A2
148.1 150.8 2.41 143.66 2 7/8OD EU 8RD
5.922 61.21 5.781 73.02
46B
150.4 6.135 146.84
5.938 155.8
47A4
32-35 150.8
7 5.812
3 1/2 OD EU 8RD
177.80 5.989 6.094 147.62
88.90
152.1 154.8
6.136 6.276 2.41 5.968 2 7/8OD EU 8RD
26-29 47B2
155.8 159.4 61.21 151.59 73.02
6.276 6.456 2.41 6.078 2 7/8OD EU 8RD
20-26 47B4
159.4 164.0 61.21 154.38 73.02
6.456 6.578 2.41 6.266 2 7/8OD EU 8RD
17-20 47C2
164.0 167.1 61.21 159.16 73.02
6.797 2.41 2 7/8OD EU 8RD
47C4
172.6 61.21 73.02
6.579 6.453
33.7-39 3 1/2 OD EU 8RD
167.1 6.765 3.00 163.91
47C4 X 3 88.90
171.83 76.20
6.788 2.41 2 7/8OD EU 8RD
47D2
172.7 61.21 73.02
7 5/8 7.025 6.672
24.29.7 3 1/2 OD EU 8RD
193.68 6.766 178.4 3.00 169.47
47D2 X 3 88.90
171.9 76.20
2.41 2 7/8OD EU 8RD
47D4
61.21 73.02
7.025 6.812
20-24 3 1/2 OD EU 8RD
178.4 3.00 173.02
47D4 X 3 88.90
76.20
7.511 7.687 7.312
44-49 49A2
190.8 195.2 185.72
3 1/2 OD EU 8RD
8 5/8 7.688 7.921 3.00 7.531
32-40 49A4 88.90
219.08 195.3 201.2 76.20 191.29
7.922 8.191 7.781
20-28 49B2
201.2 208.1 197.64
8.343 8.681 8.218
47-53.5 51A2
211.9 220.5 208.74 3 1/2 OD EU 8RD
9 5/8 3.96
8.681 8.835 8.437 88.90
244.48 40-47 51A4 100.58
220.5 224.4 214.30
29.3-36 8.836 9.063 8.593

28

Lok-Set Mechanical Retrievable Double
Grip Packer:-
Model: WC-MECH-3 & WC-MECH-3L
Product No.WC-20905 & WC-20906
The Model ―WC-MECH-3‖ is a general purpose
packer for production, injection, zone isolation, or remedial
operations. It holds pressure from above or below while
allowing the tubing to be placed in tension, compression, or
in a neutral condition. The ―WC-MECH-3‖ is a Full-Bore
Double-Grip Retrievable Packer with an integral Unloader.
Opposed, non-transferring dovetail Slips prevent movement
of the Packer in either direction due to pressure differentials,
while allowing landing of the tubing in tension,
compression, or neutral. The Lock segments serve as a
releasable Lock Ring to maintain pack-off once the packer is
set, and locks the Unloader in the closed position until the
tool is released. The split Lock and Control Segments allow
the tool to be both set and released with right-hand rotation.
The Retrievable Lok-Set Packers are compression set
retrievable packers that allow the tubing to be left in a
tension, compression, or neutral condition.
MODEL: WC-MECH-3
Applications:- PROD.NO. WC-20905
most production, injection and zone isolation
operations.

Features:-
 Internal by-pass
 Opposed dovetail slips positive set
 Holds pressure from above or below
 Can leave tubing in a tension, compression or
neutral condition
 Right hand rotation sets and releases the packer
 Retracted dovetail slips
 Converts to mechanical bridge plug with the
addition of a valve
 Optional packing element systems

Note:-The WC-MECH-3L Lok-Set is similar to the
WC-MECH-3 and is recommended when a larger-than-
normal bore through the packer is required.

Setting procedure:-
Hang the WC-MECH-3 packer to completely
stretch it out before starting in the hole. Immediately prior Upon reaching setting depth, slowly lower the
to running in, rotate the drag block housing sub-assembly packer while rotating the tubing (approximately 2 turns
several turns to the left to make sure the segments are right at the tool) until the packer takes weight. Set-down a
functioning properly. Do not rotate the drag block housing minimum of 6,000 lbs. to initially set the upper slips.
sub-assembly to the right as this will bind the control Lowering of the tool must take place while rotating for the
segments and prevent them from moving after reaching tool to set properly.
setting depth.

29

To fully engage the lower slips, apply an upstrain (10,000 to compression or neutral.
20,000 lbs. for sizes 4.1/2 thru 5.1/2 and 7 and 7.5/8 ) Releasing procedure:-
against the tool. When the tubing is to be landed in tension, Apply an upstrain of approximately 3,000 to 6,000
a strain greater than the landing strain should be applied lbs. and rotate the tubing (four to eight turns at the tool) to
during the setting operation. the right until the tool moves up the hole. When releasing
To completely set upper slips and pack-off the the packer with pressure in favor of the tubing, rotate tubing
packing element system apply set-down weight (6,000 lbs, to the right slowly
for sizes 4.1/2 thru 5.1/2 , 10,000 lbs. for size 7 and 7.5/8 ). enough to equalize before the lower slips disengage.
If sufficient set-down weight is not available, such as in Continue to rotate to the right several turns while
very shallow wells, the tool can be set and packed-off by moving up the hole to be certain the slips are fully
left-hand rotation. retracted.
The tubing may now be hung in tension,

MECH3 SPECIFICATION DATA MECH3-L SPECIFICATION DATA

30

Mechanical Set Production Packer:-
Model: WC-MECH-4
Product No.WC-20907
The model ―WC-MECH-4‖ is a Mechanical Set,
Double grip Retrievable Production Packer for medium to
high Pressure application.
The Packer allows unrestricted flow and passage of
full gauge wire line tools and accessories with an
unrestricted ID, making it ideal for zone isolation injection
and production applications.
It can be set with production tubing in tension,
compression or neutral maximizing effectiveness in shallow
wells or fiberglass tubing operation. The packer’s
mechanical lock-set action closes an internal bypass and
allows application of pressure above or below the packer.
The packer is released by a ¼ right-hand turn at
the tool, followed by straight pickup of the production
tubing.
Optional emergency release feature is also
available on request.

Characteristics:- MODEL: WC-MECH-4
 Pressure differential rating up to 6,000 Psi. PROD.NO. WC-20907
 10,000 Psi., Differential rating packer is also
available.
 Allows tubing to be left in tension, compression or
neutral.
 Internal By-Pass allows packer to equalize prior to
releasing.
 Temperature rating : Up to 300° F.

Advantages:-
 An ideal production packer.
 Withstands pressure differentials from above and
below.
 Ideal packer for Production, Stimulation &
Injection purposes.
 Tubing can be recovered leaving packer downhole
by using an On-Off tool.

Application:-
 Onshore-Offshore work over.
 Oil & Gas Production.
 High Pressure Water Injection.
Multi setting in single run to check casing leaks.

31

Compression Set Retrievable Packer:-
Model: WC-MECH-5
Product No.WC-20908
Compression Set Retrievable Packer is high
pressure, full opening, compression set tools for squeeze
cementing, acidizing, fracturing and other stimulation
procedures. This tools features a pressure balanced unloader
that closes when the packer sets. While pressure aids in
maintaining the seal, the unloader can be easily opened
under high differential pressure. The large internal by-pass
reduces swabbing when running and retrieving.

Special features:-
 Large internal by-pass.
 Built in pressure-balanced unloader.
 1/4 turn set-straight pick up release (standard).
 Equalizing ports directly above elements. MODEL: WC-MECH-5
 Additional J-slot arrangements available. PROD.NO. WC-20908

32

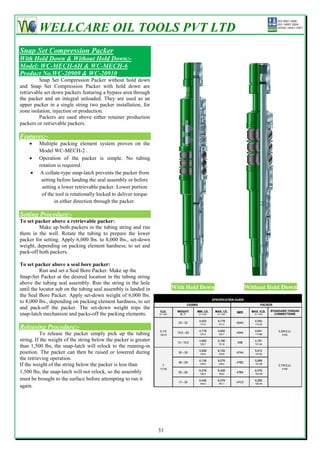

Snap Set Compression Packer
With Hold Down & Without Hold Down:-
Model: WC-MECH-6H & WC-MECH-6
Product No.WC-20909 & WC-20910
Snap Set Compression Packer without hold down
and Snap Set Compression Packer with hold down are
retrievable set down packers featuring a bypass area through
the packer and an integral unloaded. They are used as an
upper packer in a single string two packer installation, for
zone isolation, injection or production.
Packers are used above either retainer production
packers or retrievable packers.

Features:-
 Multiple packing element system proven on the
Model WC-MECH-2 .
 Operation of the packer is simple. No tubing
rotation is required.
 A collate-type snap-latch prevents the packer from
setting before landing the seal assembly or before
setting a lower retrievable packer. Lower portion
of the tool is rotationally locked to deliver torque
in either direction through the packer.

Setting Procedure:-
To set packer above a retrievable packer:
Make up both packers in the tubing string and run
them in the well. Rotate the tubing to prepare the lower
packer for setting. Apply 6,000 lbs. to 8,000 lbs., set-down
weight, depending on packing element hardness, to set and
pack-off both packers.

To set packer above a seal bore packer:
Run and set a Seal Bore Packer. Make up the
Snap-Set Packer at the desired location in the tubing string
above the tubing seal assembly. Run the string in the hole
until the locator sub on the tubing seal assembly is landed in With Hold Down Without Hold Down
the Seal Bore Packer. Apply set-down weight of 6,000 lbs.
to 8,000 lbs., depending on packing element hardness, to set
and pack-off the packer. The set-down weight trips the
snap-latch mechanism and packs-off the packing elements.

To release the packer simply pick up the tubing
string. If the weight of the string below the packer is greater
than 1,500 lbs, the snap-latch will relock to the running-in
position. The packer can then be raised or lowered during
the retrieving operation.
If the weight of the string below the packer is less than
1,500 lbs, the snap-latch will not relock, so the assembly
must be brought to the surface before attempting to run it
again.

33

Tension Set Packer:-
Model: WC-TP
Product No.WC-20904
Tension packer is compact, economical retrievable
packer, primarily used in waterflood applications, this
packer can also be used for production and/or treating
operations. It is used where a set down packer is
impractical. Because the tension set, it is ideally suited for
shallow wells where set down weight is not available.

Application:-
Waterflood, shallow or low fluid level wells with
insufficient tubing weight to set compression packers.

Features:-
 Compact
 J-slot control for normal set and release
 Shear ring secondary release
 Right-hand emergency release MODEL :WC-TP
 Rocker type slips PROD. NO. WC-20904
 Inexpensive

Setting Procedure:-
Run the packer to desired setting depth, making the
last movement downward. Rotate the tubing to the left 1/4
turn at the tool. Pick-up tubing to apply desired tension and
maintain pack-off.

Lower the tubing at least one foot more than is
needed to remove applied tension so that the J-pin will
move fully to the top of the J-slot. Rotate the tubing to the
right 1/4 turn at the packer so slips will now be in the
running position. Packer can be moved to a new position
and reset or it can be retrieved.
As an alternate release method, the packer has shear rings
designed to part at tension varying from 13,000-100,000 lb.
The cone, packing element and guide drop down and are
carried out of the hole by the bottom sub. If normal release
is not possible, left-hand square threads on the top sub of
the packer allows the tubing to be retrieved when the packer
will not otherwise release.

34


35

Swab Cup Packer:-
Model : WC-SP
Swab Cup Packer is an economical means of
isolating casing leaks and depleted zones and is also a
production or injection packer for low pressure application,
this packer can be run with cups opposed or in the same
direction with packing element back-up rings for higher
pressure application and comes in a full range of tubing and
casing sizes in two-cup or four-cup models.

Special Features:-
 Economic design
 Cup direction option
 Tubing size options

Gas Vent Pumping Packer
Model : WC-GVP
Gas Vent Pumping Packer offers an inexpensive
option for isolating casing leaks or depleted perforations in
pumping wells. This tools prevents gas lock by allowing gas
to vent to the surface past damaged zones. The interval
between top and bottom cups can be any length. Available
with double or multiple cups.

Special Features:-
 Inexpensive alternative to squeeze job.
 Variable intervals easily adjusted.
 Optional double to multiple cups.

STANDARD 4 CUP VERSION

36

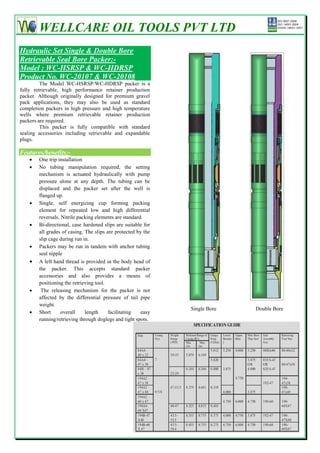

Hydraulic Set Single & Double Bore
Retrievable Seal Bore Packer:-
Model : WC-HSRSP & WC-HDRSP
Product No. WC-20107 & WC-20108
The Model WC-HSRSP/WC-HDRSP packer is a
fully retrievable, high performance retainer production
packer. Although originally designed for premium gravel
pack applications, they may also be used as standard
completion packers in high pressure and high temperature
wells where premium retrievable retainer production
packers are required.
This packer is fully compatible with standard
sealing accessories including retrievable and expandable
plugs.

Features/benefits:-
 One trip installation
 No tubing manipulation required, the setting
mechanism is actuated hydraulically with pump
pressure alone at any depth. The tubing can be
displaced and the packer set after the well is
flanged up.
 Single, self energizing cup forming packing
element for repeated low and high differential
reversals. Nitrile packing elements are standard.
 Bi-directional, case hardened slips are suitable for
all grades of casing. The slips are protected by the
slip cage during run in.
 Packers may be run in tandem with anchor tubing
seal nipple
 A left hand thread is provided in the body head of
the packer. This accepts standard packer
accessories and also provides a means of
positioning the retrieving tool.
 The releasing mechanism for the packer is not
affected by the differential pressure of tail pipe
weight.
Single Bore Double Bore
 Short overall length facilitating easy
running/retrieving through doglegs and tight spots.

37

Wire Line Set Retrievable Packer:-
Model : WC-WSRP
Model ―WC-WSRP‖ Wire Line Set Retrievable
Packer is a Retrievable Packer which is Hydraulically set by
pressure in the production tubing. It is particularly suitable
for Extended Reach Drilling (ERD) Wells. It is run with
WELLCARE Running Tool and the retrieving of this packer
is done independently from the tubing by means of
Retrieving Tool, manipulated on a work string.

Applications:-
Model ―WC-WSRP‖ Wire Line Set Retrievable
Packer can be used as a simple/Single or oil production
wells or in water or gas injection wells. The stresses created
on the tubing are contained by it and therefore upper joint of
the tubing must be checked to see that it can stand these
stresses. MODEL : WC-WSRP

Advantages:-

 Run and set with the production tubing.
 Hydraulic setting eliminates the requirements for
spacing out and the use of sliding sleeves. (opening
and closing) for the displacement of fluids.
 Effects on the tubing (compression and tension) are
transmitted to slips-there is no shear ring which
limits these stress.
 Retrieval independent of tubing with a Retrieving
Tool. It can be left at the bottom of the well with a
wireline plug in a nipple to isolate the formation.
 Opposed slips (without hold down positioned
under the packing to avoid setting. Problems with
retrieval due to annulus.
 Available for standard, H2S (or CO2) service
NACE MR 01-75.

38

Operation:- Retrieving Procedure:-
1. Run the ―WC-RT‖ Retrieving Tool on the work
string or the tubing.
Running:-
2. Put Set down weight 3000-5000 Lbs on the Packer,
 Check that the outside diameter corresponds to the may be slickly rotated to the right to engage the
weight of the tubing. collate of the Retrieving Tool under the supporting
sleeve of the Packer.
 Lubricate the polished bore.
3. PULL ! In principle the packer should release with
 Install the test pins in the corresponding holes keep
a pull of 5-10tons. In order to fully retrieve the
them in place with a heavy duty elastic band or
Packer up-ward and down ward motion of
adhesive strip.
retrieving string will help. Once the screws have
 Pressurize the assembly make sure that all air is
sheared the support sleeve moves upwards freeing
eliminated. Remove test plugs and all test pins.
the support beneath the finger of the collet. The
 Lower the packer slowly to the position. Be careful
latter can then flex and detach itself from the
when entering liners.
Housing. On upward movement of the body of the
 Install and land tubing Hanger. packer the compression of the packing element is
 Test the tubing by running (remaining attached to) released and the slips retracted. The Setting Sleeve
a Standing valve in a nipple above the Packer. is supported by the Ring witch rests on the top of
 Install the well head. the piston above the o-ring.
 Displace the mud with a ―completion‖ fluid in the
annulus by introducing a lighter fluid (diesel/gas NOTE:- The ―WC-RT‖ has a limited resistance to tensile
oil) for example into the tubing. load –e.g. the 3.900‖ size has a rating of 50,000 Lbs.

Setting Procedure:- Disengaging the ―WC-RT‖:-
 The Packer is run in the model ―WC-W‖ wire line A safety release feature is also provided in
adapter kit. Attached to the model ―WC-HST‖ Retrieving Tool for emergency release. Six nos. of brass
Hydraulic Setting Tool on the drill pipe and lower screw are provided in Shear Ring having value 3565lbs. per
to setting depth. screw. For emergency release of tool give 10-15 right hand
 The tubing fits automatically as it is run in, though rotation followed by a straight pull of 22,000 lbs
a ported top sub in the setting assembly.
 The port also permit circulation at any time.
 A 1-7/16‖ Brass Ball is pumped down to seat in the
hydraulic setting tool.
 Approximately 1500 psi is applied to set the packer
slips. Following which the pressure is released and
or tension applied to shear the Release stud of the
Wire line Adapter Kit. The hydraulic setting Tool
along with Wire line adapter kit can then be
retrieved leaving the packer set in hole.

39

SPECIFICATION GUIDE

CASING PACKER DIMENSION
ID THRU ACCESS.
SEAL SEALS SIZES
OD WEIGHT PACKER SIZE PACKER OD
BORE
IN LBS/FT IN IN IN

5 1/2‖ 17-20 2 7/8‖ X 5 1/2" 2.688 4.567 1.995 40-26

26-29 5.955
2 7/8‖ X 7‖ 3.250 2.406 80-32
32-35 5.810
7
26-29 5.955
3 1/2‖ X 7‖ 4.000 2.992 80-40
32-35 5.810
3 1/2‖X9 5/8‖ 4.000 2.992 80-40
40-47 4.750 8.425 3.000 190-47
4 1/2‖ X 9 5/8‖
4.875 4.000 190-48
9 5/8‖
3 1/2‖ X 9 5/8‖ 4.000 2.992 190-40
43.5-53.5 4.750 8.335 3.000 190-47
4 1/2‖ X 9 5/8‖
4.875 4.000 190-48

ID will vary with tubing weight.

40

Wire Line Set Retrievable Packer:-
Model :WC-WSRP-2
The Model WC-WSRP-2 is a Retrievable Seal
Bore Packer designed for use in applications where a long
tailpipe assembly is required. It is set hydraulically using a
Hydraulic Setting Tool with appropriate Wireline Adapter
Kit and once set does not require string weight or tension to
remain anchored. All the load bearing parts are designed to
withstand high tensile loads and the bidirectional slips
prevent any movement of the tool. The packer is retrieved
by a straight pull shear release mechanism.
The packer has two seal bores in the standard 7‖
size, a full bore 4.00‖ (101.60mm) ID and an upper seal
bore ID of 4.75‖ (120.65mm) to accept an anchor seal
assembly.

Features and Benefits:-
 Designed for use in vertical, deviated or horizontal MODEL : WC-WSRP-2
well completions. PRODUCT NO. WC-20802
 Bi-directional slips which prevent movement after
setting.
 An internal locking system maintains pack-off.
 Full bore ID matches tubing and extended tailpipe.
 Both setting pressure and shear release are field
adjustable.
 Ideal for anchoring a liner in the multi-zone
stimulation system.

41

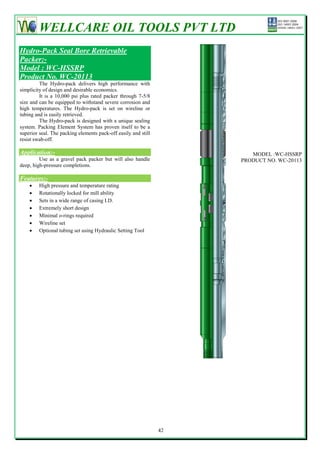

Hydro-Pack Seal Bore Retrievable
Packer:-
Model : WC-HSSRP
The Hydro-pack delivers high performance with
simplicity of design and desirable economics.
It is a 10,000 psi plus rated packer through 7-5/8
size and can be equipped to withstand severe corrosion and
high temperatures. The Hydro-pack is set on wireline or
tubing and is easily retrieved.
The Hydro-pack is designed with a unique sealing
system. Packing Element System has proven itself to be a
superior seal. The packing elements pack-off easily and still
resist swab-off.

Application:- MODEL :WC-HSSRP
Use as a gravel pack packer but will also handle PRODUCT NO. WC-20113
deep, high-pressure completions.

Features:-
 High pressure and temperature rating
 Rotationally locked for mill ability
 Sets in a wide range of casing I.D.
 Extremely short design
 Minimal o-rings required
 Wireline set
 Optional tubing set using Hydraulic Setting Tool

42

Hydraulic Set Seal Bore Retrievable
Packer :-
Model : WC-HSSRP-1

Introduction
The WELLCARE WC-HSSRP-1 packer is a fully
retrievable, high performance retainer production packer.
Although originally designed for premium gravel pack
applications, they may also be used as standard completion
packers in high pressure and/or high temperature wells
where premium retrievable retainer production packers are
required.
The Model WC-HSSRP-1 Packer is fully compatible with
standard WELLCARE sealing accessories including
retrievable and/or expandable plugs. Model : WC-HSSRP-1

Features/Benefits

• One trip installation.
• No tubing manipulation required. The setting mechanism
is actuated hydraulically with pump pressure alone at any
depth. The tubing can be displaced and the packer set after
the well is flanged up.
• Single, self-energizing cup-forming packing element for
repeated low and high differential reversals. Nitrile packing
elements are standard.
• Bi-directional, case hardened slips are suitable for all
grades of casing. The slips are protected by the slip cage
during run-in.
• Packers may be run in tandem with Anchor Tubing Seal
Nipple
• A left hand thread is provided in the body head of the
packer. This accepts standard packer accessories and also
provides a means of positioning the retrieving tool.
• The releasing mechanism for the packer is not affected by
differential pressure or tail pipe weight.
• Short overall length facilitating easy running/retrieving
through doglegs and tight spots.

43

Hydraulic Set High Performance Seal • Tubing may be run with Locator Tubing Seal Assembly
pinned in WC-HSSRP-2 (Packer Bore Receptacle). WC-
Bore Retrievable Packer:- HSSRP-2 will be connected to Packer through Anchor
Model : WC-HSSRP-2 Tubing Seal Nipple.
• Packers may be run with Anchor Tubing Seal Nipple
Product No. WC-20115 above the Packer.
• A left hand thread is provided in the body head of the
Introduction packer. This accepts standard packer accessories and also
The WELLCARE ―WC-HSSRP-2‖ packer is a fully provides a means of positioning the retrieving tool.
retrievable, high performance retainer production packer. • Packer is design for Straight Pull retrievable applications
Although originally designed for premium gravel pack • Short overall length facilitating easy running/retrieving
applications, it may also be used as standard completion through doglegs and tight spots.
packer in high pressure and/or high temperature wells where • Short length of Retrieving Tool required to retrieve the
premium retrievable retainer production packer is required. Packer.
The Model ―WC-HSSRP-2‖ Packer is fully compatible with
standard WELLCARE sealing accessories including
retrievable and or expandable plugs.
The WELLCARE Model ―WC-HSSRP-2‖ has the
advantage over WELLCARE Model ―WC-HSSRP-1‖
Packer since it has benefit of a Shear Ring provided in the
Body of the Packer enabling the Packer to be retrieved by
straight pull using a Retrieving Tool of short length.

Features/Benefits
• One trip installation. Model : WC-HSSRP-2
• No tubing manipulation required. The setting mechanism
Prod. No. : WC-20115
is actuated hydraulically with pump pressure alone at any
depth, and The tubing can be displaced and the packer set
after the well is flanged up.
• Single, self-energizing cup-forming packing element for
repeated low and high differential reversals. Nitrile packing
elements are standard.
• Bi-directional, case hardened slips are suitable for all
grades of casing. The slips are protected by the slip cage
during run-in.

44

Hydraulic Set High Performance Seal • An O-ring pressure-test kit is available to enable shop-
testing of packer assemblies, ensuring their integrity before
Bore Retrievable & Drillable Packer:- shipment offshore and thereby reducing the risk of
Model : WC-HSSRP-3 nonproductive time.
• Rotationally locked components facilitate deployment by
Product No. WC-20116 enabling rotation into liner tops and horizontal sections and
Wellcare’s “WC-HSSRP-3” production packers are high by facilitating milling.
performance, hydraulic-set, retrievable seal bore packers for • One-trip installation saves rig time.
medium to high-pressure production and testing • Hydraulic setting capability eliminates the need for tubing
applications. These rugged, dependable packers can be manipulation and allows packer to be set after wellhead is
retrieved with tubing or drill pipe and the retrieving tool. flanged up, expediting installation of the completion.
These packers feature a large upper seal bore that
maximizes the ID of the completion to optimize well access.
Production packers are fully engineered and have passed Options
rigorous ISO 14310 Level 3 tests. The packers are available • Alternative materials and connections are available
in most oilfield material specifications—from alloy steel to
corrosion-resistant alloy (CRA) materials—that are suitable
for hydrogen sulfide (H2S) service.
Production packers accept Wellcare’s standard permanent
packer accessories.

Applications
• One-trip applications on land or offshore
• Deviated and horizontal wells
• Running with tubing-conveyed perforating (TCP) guns
suspended below the packer
• High-pressure, high-flow applications
• Applications in which tubing movement may be
encountered
Model : WC-HSSRP-3
Features, Advantages and Benefits
• Setting cylinder below the element reduces leak paths to
maximize completion integrity.
• Packers are easily retrieved for well intervention
operations using the retrieving tool.

45

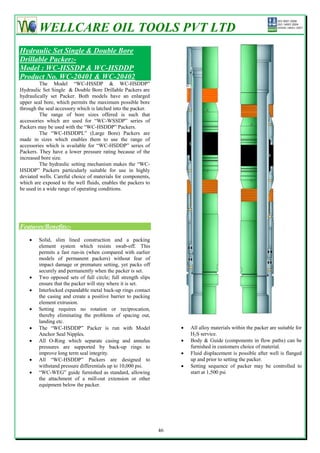

Hydraulic Set Single & Double Bore
Drillable Packer:-
Model : WC-HSSDP & WC-HSDDP
The Model ―WC-HSSDP & WC-HSDDP‖
Hydraulic Set Single & Double Bore Drillable Packers are
hydraulically set Packer. Both models have an enlarged
upper seal bore, which permits the maximum possible bore
through the seal accessory which is latched into the packer.
The range of bore sizes offered is such that
accessories which are used for ―WC-WSSDP‖ series of
Packers may be used with the ―WC-HSDDP‖ Packers.
The ―WC-HSDDPL‖ (Large Bore) Packers are
made in sizes which enables them to use the range of
accessories which is available for ―WC-HSDDP‖ series of
Packers. They have a lower pressure rating because of the
increased bore size.
The hydraulic setting mechanism makes the ―WC-
HSDDP‖ Packers particularly suitable for use in highly
deviated wells. Careful choice of materials for components,
which are exposed to the well fluids, enables the packers to
be used in a wide range of operating conditions.

Features/Benefits:-

 Solid, slim lined construction and a packing
element system which resists swab-off. This
permits a fast run-in (when compared with earlier
models of permanent packers) without fear of
impact damage or premature setting, yet packs off
securely and permanently when the packer is set.
 Two opposed sets of full circle; full strength slips
ensure that the packer will stay where it is set.
 Interlocked expandable metal back-up rings contact
the casing and create a positive barrier to packing
element extrusion.
 Setting requires no rotation or reciprocation,
thereby eliminating the problems of spacing out,
landing etc.
 The ―WC-HSDDP‖ Packer is run with Model  All alloy materials within the packer are suitable for
Anchor Seal Nipples. H2S service.
 All O-Ring which separate casing and annulus  Body & Guide (components in flow paths) can be
pressures are supported by back-up rings to furnished in customers choice of material.
improve long term seal integrity.  Fluid displacement is possible after well is flanged
 All ―WC-HSDDP‖ Packers are designed to up and prior to setting the packer.
withstand pressure differentials up to 10,000 psi.  Setting sequence of packer may be controlled to
 ―WC-WEG‖ guide furnished as standard, allowing start at 1,500 psi
the attachment of a mill-out extension or other
equipment below the packer.

46


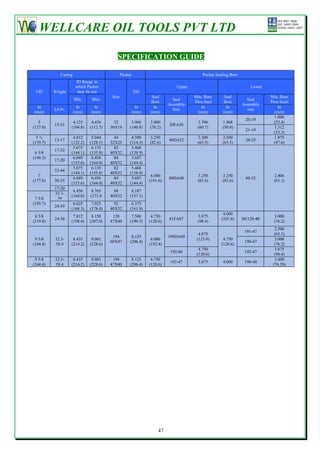

SPECIFICATION GUIDE

Casing Packer Packer Sealing Bore
ID Range in
which Packer Upper Lower
OD Weight may be run OD
Size Seal Min. Bore Seal Min. Bore
Min. Max. Seal Seal
Bore Thru Seal Bore Thru Seats
Assembly Assembly
In In In In In In In In
Lb/Ft. Size size
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
1.000
20-19
5 4.125 4.436 32 3.968 3.000 2.390 1.968 (25.4)
15-21 20FA30
(127.0) (104.8) (112.7) 30X19 (100.8) (76.2) (60.7) (50.0) 1.312
21-19
(33.3)
5½ 4.812 5.044 44 4.500 3.250 2.500 2.500 1.875
13-17 40DA32 20-25
(139.7) (122.2) (128.1) 32X25 (114.3) (82.6) (63.5) (63.5) (47.6)
5.675 6.135 82 5.468
17-32
6 5/8 (144.1) (155.8) 40X32 (138.9)
(168.3) 6.049 6.456 84 5.687
17-20
(153.6) (164.0) 40X32 (144.4)
5.675 6.135 82 5.468
32-44
(144.1) (155.8) 40X32 (138.9)
7 4.000 3.250 3.250 2.406
6.049 6.456 84 5.687 80DA40 80-32
(177.8) 20-35 (101.6) (82.6) (82.6) (61.1)
(153.6) (164.0) 40X32 (144.4)
17-20
6.456 6.765 88 6.187
33.7-
(164.0) (171.8 40X32 (157.1)
7 5/8 39
(193.7) 6.625 7.025 92 6.375
24-39
(168.3) (178.4) 40X32 (161.9)
4.000
8 5/8 7.812 8.150 128 7.500 4.750 3.875 3.000
24-36 81FA47 (101.6) 80/120-40
(219.8) (198.4) (207.0) 47X40 (190.5) (120.6) (98.4) (76.2)
2.500
191-47
4.875 (63.5)
194 8.125 190DA60
9 5/8 32.3- 8.435 9.001 6.000 (123.8) 4.750 3.000
60X47 (206.4) 190-47
(244.4) 58.4 (214.2) (228.6) (152.4) (120.6) (76.2)
4.750 3.875
192-60 192-47
(120.6) (98.4)
9 5/8 32.3- 8.435 9.001 194 8.125 4.750 3.000
192-47 3.875 4.000 190-40
(244.4) 58.4 (214.2) (228.6) 47X40 (206.4) (120.6) (76.20)

47

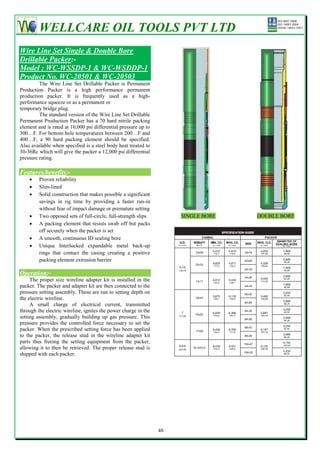

Wire Line Set Single & Double Bore
Drillable Packer:-
Model : WC-WSSDP-1 & WC-WSDDP-1
The Wire Line Set Drillable Packer is Permanent
Production Packer is a high performance permanent
production packer. It is frequently used as a high-
performance squeeze or as a permanent or
temporary bridge plug.
The standard version of the Wire Line Set Drillable
Permanent Production Packer has a 70 hard nitrile packing
element and is rated at 10,000 psi differential pressure up to
300…F. For bottom hole temperatures between 200…F and
400…F, a 90 hard packing element should be specified.
Also available when specified is a steel body heat treated to
30-36Rc which will give the packer a 12,000 psi differential
pressure rating.

Features/benefits:-
 Proven reliability
 Slim-lined
 Solid construction that makes possible a significant
savings in rig time by providing a faster run-in
without fear of impact damage or premature setting
 Two opposed sets of full-circle, full-strength slips SINGLE BORE DOUBLE BORE
 A packing element that resists swab off but packs
off securely when the packer is set
 A smooth, continuous ID sealing bore
 Unique Interlocked expandable metal back-up
rings that contact the casing creating a positive
packing element extrusion barrier

Operation:-
The proper size wireline adapter kit is installed in the
packer. The packer and adapter kit are then connected to the
pressure setting assembly. These are run to setting depth on
the electric wireline.
A small charge of electrical current, transmitted
through the electric wireline, ignites the power charge in the
setting assembly, gradually building up gas pressure. This
pressure provides the controlled force necessary to set the
packer. When the prescribed setting force has been applied
to the packer, the release stud in the wireline adapter kit
parts thus freeing the setting equipment from the packer,
allowing it to then be retrieved. The proper release stud is
shipped with each packer.

48

Wire Line Set Large Seal Bore Drillable
Packer:-
Model : WC-WLSDP
Retainer Production Packer is large bore version of
Retainer Production Packer. They combine the features of
the model ―WC-WSSDP-1‖ with the largest bore through
any drillable Packer.

Features/benefits:-
 Solid, slim-line construction and a packing
element system that resists swab-off. This
provides a faster run-in time without fear of
impact damage or premature setting, yet packs-off
securely and permanently when the Packer is set.
 Two opposed sets of full-circle; full strength slips
assure that the Packer will stay where it is set.
MODEL : WC-WLSDP
 Unique interlocked, expandable metal back-up
rings contact the casing and create a positive
barrier to Packing Element extrusion.
 The largest possible opening through a drillable
Packer.

49

Wire line set single seal bore & large seal
bore drillable packer:-
Model :WC-WSSDP-2 & WC-WSDDP-2
Wire liner set single seal bore & large seal bore
packers are high performance completion packers featuring
a standard operating envelope of 12,000 psi pressure rating,
in most sizes at 400°F.
The Model WC-WLSDP features a larger bore
than the WC-WSSDP for use with larger diameter
production tubing. Both packers feature a setting sleeve,
seal bore mandrel, opposed full circle slips and cones, and a
packing element assembly with a back-up system for
maximum pressure integrity.
Optional bottom guides are threaded to the mandrel
for including accessories such as seal bore extensions, mill-
out extensions other Tail pipe assemblies.
A range of available special rubber elements and alloy
material mandrel for flow wetted parts ensure compatibility
with wellbore fluids.

Features and benefits:-
 Setting on wireline, coiled tubing or tubing work
string to provide operational versatility
 12,000 psi pressure rating at 400°F standard in
most sizes
 Full circle, opposed slips to minimize induced
loads in supporting casing
 Seal bore ID in packer mandrel for optimum seal
performance
 Slimline design for fast, easy running
 Optional bottom guides for quick addition of mill
out extensions, seal bore extensions and other
accessories SINGLE BORE DOUBLE BORE
 Complete selection of elastomers and materials for
flow wetted components match equipment to
wellbore conditions.
 Wireline setting with wireline adapter kit
 Setting on tubing work string by hydraulic setting
tool
 Full circle, opposed slips
 Polished seal bore ID in packer mandrel for
optimum seal performance
 One size covers most casing ranges

50

Drag Block Tubing Anchor/Catcher:-
Model : WC-DBTAC
Drag Block Tubing Anchor/Catcher is a retrievable
positive-action tubing anchor designed to hold the tubing
string in tension or compression. It has drag blocks to allow
the anchor to be run deeper than conventional drag spring
anchors. The anchor prevents movement of the tubing
during pumping strokes; and holds it stationary if it should
part. The use of a tension tubing anchor increases pump
efficiency, reduces rod and tubing wear, and keeps tubing
and rods from falling into the well in case of a part.

Special Features:-
 Enclosed slips.
 Rotational release or shear release. MODEL : WC-DBTAC
 Shear release value easily adjusted. PROD. NO. WC-22501

51

Setting Tool Nipple:-
Model : WC-STNE
Packer Setting Tool Nipple is attached to left hand
square thread of the Packer by means of Setting Nut. Fluid
Ports are positioned opposite the holes of the Packer Body
so the pressure may be applied to set the Packer. These
Fluid ports are sealed off within the Packer Bore by an O-
ring below and Chevron Seal above. Setting Tool is
released by rotating 15 turn of right hand rotation and
picked up.

MODEL : WC-STNE

52

Splined Expansion Joint:-
Model : WC-SEP
Splined Expansion Joint is designed to be used in
single and dual string completions to accommodate changes
in tubing length caused by variations in temperature. They
are capable of maintaining the pressure integrity of the
tubing while allowing the string to safely expand and
contract, and can be run above rotational release or straight
pickup release packers.
It may be shear pinned at one-foot intervals along
its entries stroke length, allowing the operator to select the
proper expansion and/or contraction stroke that will be
required after the splined expansion joint has been installed.
The splines allow for torque through the joint.

Features:- MODEL : WC-SEP
 Rotationally locked at all times for transmitting
torque when required.
 Multi-spline design for high torque load.
 Maximized tension carrying capability.
 ID compatible with tubing ID.
 Tool can be pinned at one foot spacing from closed
to fully stroked position.
 Shear value can be adjusted by varying the number
of shear screws.
 Torsional Rating 7,500 ft-lb Standard Service
application at 110,000 psi material yield. 5,500 ft-lb
for Sour Service application at 80,000 psi material
yield.
 Pressure rating 7,500 psi for Standard Service
application at 110,000 psi material yield.
 5,000 psi for Sour Service application at 80,000 psi
material.

Operation:-
It is pinned and run in the closed or partially
extended position. When allowing for thermal expansion,
the splined expansion joint is shear pinned in the fully
extended position. If it is made up on the production string
for the purpose of allowing for thermal expansion, and is
being run above a hydraulic set packer, then the shear value
of the shear pins must be sufficient to accommodate the
proper setting of the packer without prematurely shearing
the expansion joint. Used on a production string that must
land in a permanent packer, the shear pins must have
sufficient shear resistance so that the expansion joint will
not inadvertently close when the packer stinger is landed
and engaged.

53

Auto Lock Expansion Joint:-
Model : WC-EP-A
This Auto-Lock Expansion Joint is used on a
subsurface single or dual-string hanger completion to
provide a means of spacing-out between the surface hanger
and the subsurface hanger. The tool is activated by up and
down motion and is designed to overcome seal friction and
snap force when stinging into the subsurface hanger. The
Auto-Lock Expansion Joint is also rotationally locked for
releasing from the Subsurface Hanger.

Features:-
 Control ring actuated by linear movement
 No rotation of the string is necessary to actuate the MODEL : WC-EP-A
tool PRODUCT NO. WC-22202
 Rotational capability at all times

Splined Expansion Joint:-
Model : WC-SEP-1
Product No.WC-22204
The Model ―WC-SEP-1‖ Splined Expansion Joint
is designed for use above packers in well completions
where rotation through the tool is required. Torque can be
applied through the tool in any position.

Features/Benefits:-
 Tool can be shear-pinned in the extended,
collapsed, or middle position
 Rugged bonded seals for continuous service
 Metal goods suitable for H2S service MODEL : WC-SEP-1
 Rotational-lock in any position to transmit torque
when required

54

Expansion Joint:-
Model : WC-EP
The Model ―WC-EP‖ Expansion Joint is a tool
designed for use in dual-string completions. The main
feature of the tool is the thin-walled design, combined with
optimized pressure and tensile rating. The Model ―WC-EP‖
Expansion Joint incorporates a 14-inch premium seal unit
and short debris barrier above the seals. The standard tool
has a 10 ft. stroke.

Features
 ID compatible with tubing ID MODEL:WC-EP
PRODUCT NO. 22201
 OD compatible with dual-string applications
 5,000 psi minimum rating in burst and collapse
 Stroke optional to 10 ft.
 Maximized tension carrying capability
 Suitable for H2S service
 Premium seals are standard (alternative seal types
are available upon request)

Seal Bore Extension:-
Seal Bore Extension can be run
below a ―WC-WSSDP-1‖. Seal Bore Extension is run
to provide additional sealing bore when a long Seal
Bore Assembly is run to accommodate considerable
tubing movement. The Seal Bore Extension has the
same ID as the corresponding Packer seal bore it is
run with. Thus all seals of a long Seal Assembly seat
off in the Seal Bore Extension. If the top set of seal
normally sealing in the Packer bore should get
damaged, the Seal Bore Extension still provide a
sealing surface for the lower seat.

55

Seal Bore Extension:-
Model :WC-SBE
Seal Bore Extension is used in installation where
floating seals are required due to tubing contractions. This
packer accessory allows for a continuous seal bore and is
available in length up to twenty feet.

Seal Bore To Mill-Out Coupling:-
Model : WC-SBMC
Seal Bore to Mill-Out Coupling is used to connect
mill-out extensions to seal bore extensions.

Concentric Bottom:-
Model : WC-SBCB
Concentric Bottom is used to connect seal bore
extensions to a packer.

Concentric Coupling:-
Model : WC-SBCC
Concentric Coupling is used to connect seal bore
extensions to increase length.

Wireline Re-Entry Bottom:-
Model : WC-SBRB
Wireline Re-Entry Bottom is used as the packer
bottom when an extension below a packer is not required.

56

Locator Type Packer Plug:-
Model : WC-LRTPP
Locator type packer plug is used to convert a
model WC-WSSDP-1 & WC-WLSDP retainer production
packer that has been previously set, into a temporary bridge
plug. It permits the performance of pressuring operation
above the packer without affecting the zones below. It is
attached with shear screws to a shear sub which is made up
on the bottom of the work string or a retrievable squeeze
tool. Set-down weight shears the screws and leaves the plug
in the packer. It is retrieved with a conventional overshot.

MODEL : WC-LRTPP

Latching Type Packer Plug:-
Model : WC-LHTPP
Latching type packer plug is used for the same
purpose and in the same way as the locator type but will
hold pressure in both directions. It is run in the same way
but is retrieved by holding a slight up strain and turning to
the right 15 turns after engaging with a conventional
overshot.

MODEL : WC-LHTPP

57

Typical Hook-Up With Millout Extension And Seal Bore Extension:-

Seal Bore Packer
Permanent Packers are generally available for threading extensions below
the Packer

Guide
Guides are threaded bottom subs for Seal Bore Packers, and can be ordered
separately or as an integral part of the Packer. They are available as box
thread down to accommodate Mill out Extensions or Seal Bore Extensions
or, as pin thread down to Crossover to other tail-pipe. Standard Mill out
Extension utilizes API tapered thread connections. Other threads are
available on request. Seal Bore Extension connections utilize a straight
thread and need not be specified.

Mill out Extension
For Packers that will eventually be milled out using the Packer Milling Tool,
the Mill out Extension is used to provide the length and inside diameter
necessary to accommodate the Mandrel and Catch sleeve of a standard
Milling Tool. Mill out Extensions are not required when using the Packer
Milling Tool.

Connector Sub Mill out
Extension-To-Seal Bore Extension

Seal Bore Extension With Blank Bottom

58

Typical Hook-Up With Seal Bore Extension:-
Seal Bore Packer
the Packer

Guide
Guides are threaded bottom subs for Seal Bore Packers, and can be ordered
separately or as an integral part of the Packer. They are available as box
thread down to accommodate Mill out Extensions or Seal Bore Extensions
or, as pin thread down to Crossover to other tail-pipe. Standard Mill out
Extension utilize API tapered thread connections. Other threads are
available on request. Seal Bore Extension connections utilize a straight
thread and need not be specified.

Seal Bore Extension
A Seal Bore Extension is used to provide additional sealing bore when a
long seal assembly is run to accommodate Tubing movement. The Seal
Bore Extension has the same ID as the Packer. Packer with continuous seal
bores are milled out and retrieved with the Packer Milling Tool.

Concentric Coupling
Seal Bore Extensions can be joined using this coupling to achieve any length
required.

Seal Bore Extension

Crossover Sub-Seal Bore Extension-To-Tailpipe
Using this sub tail-pipe or other accessories can be run below Seal Bore
Extension as required.

59

Typical Hook-Up With Mill out Extension And Flow Control Accessories:-

Seal Bore Packer
the Packer

Guide for mill-out extension
These packers are the same basic packers as the regular versions as far as
construction, running and setting, holding characteristics, etc, are concerned.
The only difference is the lower guide. Which in threaded to accept the
various extensions.

Mill-out Extension
For Packers that will eventually be milled out using the Packer Milling Tool,
the Mill-out Extension is used to provide the length and inside diameter
necessary to accommodate the Mandrel and Catch sleeve of a standard
Milling Tool. Mill-out Extensions are not required when using the Packer
Milling Tool.

Crossover Sub-Mill-out Extension To Tailpipe

Tubing Coupling

Spacer Tube

Setting Nipple

Tubing Coupling

Perforated Spacer Tube

Seating Nipple

Tubing Coupling

Spacer Tube

Wire Line Entry Guide

60

Snap Latch Assembly:-
Model : WC-SLA
Snap Latch Seal Assembly latches into the packer
upon set down (like our Anchor Latch Seal Assembly). It
can be removed with straight pull of 10,000 to 12,000 lbs.
above tubing weight. The Snap Latch Seal Assembly is used
where a mechanical indication is required to verify the seal
assembly is properly positioned in the packer bore.

MODEL: WC-SLA

61

Anchor Latch Assembly:-
Model : WC-ALA
Anchor Latch Assembly is used when floating
seals are not required. This assembly allows the tubing
string to be in tension or compression. Upon set down
anchor latches into the packer and can be removed with
eight to ten right-hand turns.

MODEL : WC-ALA

Anchor Tubing Seal Assembly:-
Model : WC-ATA
Designed for anchoring the tubing string to the
packer. Used where well conditions require the tubing to be
landed in tension or where insufficient tubing weight is
available to prevent seal movement.
The latch, in conjunction with the left-hand square
threads located on top of the packer body, locks the tubing
string into the packer. When properly landed in the packer,
tubing tension will be held by the latch, preventing seal
movement.
Standard assembly is supplied with two seal units.
MODEL : WC-ATA
PRODUCT No. WC-22103

62

Locator Seal Assembly:-
Model: WC-LSA
Locator Seal Assembly is used in installations
which require floating seals. Once landed, the seal locator
prevents downward movement of the tubing while allowing
the seal to move with tubing contraction.
MODEL: WC-LSA

Half Mule Shoe Guide MODEL: WC-MG
Model : WC-MG PRODUCT NO. WC-22105
Half Mule Shoe Guide is standard with the seal
assembly to allow for easy entry into the packer bore.

Mill-Out Extension:- MODEL: WC-MOE
Model : WC-MOE PRODUCT NO. WC-22106
Mill-Out Extension is used in installations where
floating seals are required due to tubing contractions. In
addition, this packer accessory provides a larger ID between
a packer bore and a seal bore extension allowing a packer is
milled out.

Mill Out Bottom:-
Model : WC-MOB MODEL: WC-MOB
Product No. WC-22107 PRODUCT NO. WC-22107
Mill-Out Bottom is used to connect a mill-out
extension to a packer.

Knock-Out Plug Bottom:-
Model : WC-KOP MODEL: WC-KOP
When Knock-Out Bottom is run below the packer,
the knock-out plug allows a packer to serve as a bridge plug
holding pressure from above and below.

63

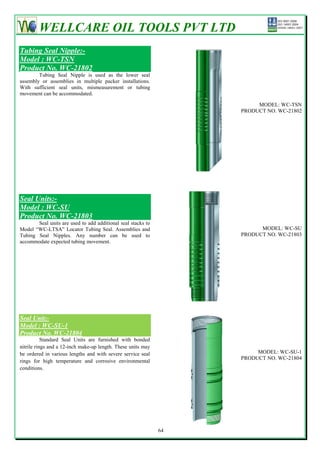

Tubing Seal Nipple:-
Model : WC-TSN
Tubing Seal Nipple is used as the lower seal
assembly or assemblies in multiple packer installations.
With sufficient seal units, mismeasurement or tubing
movement can be accommodated.

MODEL: WC-TSN

Seal Units:-
Model : WC-SU
Seal units are used to add additional seal stacks to
Model ―WC-LTSA‖ Locator Tubing Seal. Assemblies and MODEL: WC-SU
Tubing Seal Nipples. Any number can be used to PRODUCT NO. WC-21803
accommodate expected tubing movement.

Seal Unit:-
Model : WC-SU-1
Standard Seal Units are furnished with bonded
nitrile rings and a 12-inch make-up length. These units may
be ordered in various lengths and with severe service seal MODEL: WC-SU-1
rings for high temperature and corrosive environmental
conditions.

64

Snap Latch Tubing Seal Assembly:-
Model : WC-STSA
Snap-latch Seal Assembly provides a leak proof
seal between the packer and the production string. It is
ideally suited for all applications requiring a snap-in/snap-
out indication that the seals are in or out the packer bore.
The snap-latch seal assembly is most often run on
the bottom of an upper gravel pack assembly in a dual-zone
completion. It is latched into the top packer of the lower
gravel pack to guarantee the production seals are properly
seated and the upper-zone gravel pack assembly is in the
proper location. MODEL: WC-STSA
Standard assembly is supplied with two seal units. PRODUCT NO. WC-21702

65

Locator Tubing Seal Assembly:-
Model : WC-LTSA
Locator Tubing Seal Assembly is designed for
limiting downward movement of the seals in the packer
bore. Normally landed with the tubing in compression
sufficient to prevent seal movement upward. Any number of
seal units can be added for increased length. Standard
assembly includes two seal units.

MODEL: WC-LTSA

Locator Seal Assembly:-
Model : WC-LRSA
Locator Seal Assembly is designed for hostile
environments, high temperatures and high pressures.
It utilizes metal parts that meet the requirements of NACE
standard MR-0175 for sulfide stress cracking resistant
materials and is suitable for use in H2S environments. This
locator may also be used in non H2S environments where
pressure and temperature requirement warrants.

MODEL: WC-LRSA
Features / Benefits:- PRODUCT NO. WC-21703
The standard Seal System consists of three sets of
seals and three debris barriers. The seals are arranged so
that they are protected by the debris barriers in the event of
tubing movement. The two lower debris barries and two
lower seal stacks are the main working seals and should
never be allowed to leave the seal bore. The upper debris
barrier and seal stack are a back-up and also prevent settings
from entering the bore, which could lead to sticking or seal
damage.

66

Auto Orienting Bottom Sub With Half
Mule Shoe:-
Model : WC-BSWH-A
The bottom sub of L.T.S.A. is provided with MODEL: WC-BSWH-A
double-start helical groove and two Guide Pins. Half Mule PRODUCT NO. WC-21704
Shoe as shown in the accompanying illustration.
The double start helix provides for uniform self
orienting action of the Half Mule Shoe to permit easy entry
in the Packer bore.

67

Wireline Adapter Kit:-
Model : WC-W
The Wireline Adapter Kit enables both the series
or permanent packers to be set by wireline on a pressure
setting tool, or to be mated to the hydraulic stetting tool.

Application:-
 Cased hole.
 Deviations to 65°.
 Wireline-set packers.

Benefits:-
 Substantial rig time saving over hydraulically
setting packer.
 Long field life. MODEL: WC-W
PROD. NO. WC-21601
Features:-
 Mates to size 10 or 20 wireline pressure setting
assembly.
 Mates to hydraulic-setting tool.
 Rugged design.

In its most common use with a wireline setting tool, the
system allows for a substantial reduction in rig time over
setting on tubing with a hydraulic setting tool.
This kit can be run with a fast-or slow-burning
power charge and 35,000-lbf or 55,000lbf [15,873-kg or
24943-kg]. Shear stud or setting tools which has a
maximum shear force of 83,000 lbf [37,642 kg]. The system
is adaptable to many packer configuration.

68

Hydraulic Setting Tool:-
Model : WC-HST
The Model WC-HST Hydraulic Setting Tool is
used to hydraulically set the packers on tubing or drill pipe.

Application:-
Particularly useful for setting packers in deviated
wells or wells where it is difficult to get down hole with a
wire line set packer.
Features:-
 Tubing conveyed
 Can push tools to bottom in deep or deviated wells
 Tubing will fill and drain automatically
 Setting Tool can be tested from above after setting
the packer
MODEL: WC-HST
 Well can be circulated from above after setting the PRODUCT No.WC-21201
packer
 Setting pressure may be adjusted by varying the
number of shear pins

Setting Procedure:-
When setting the Packers, sufficient pressure must
be applied to set the upper slips which is applied to the
tubing. Tension is then pulled for final pack-off and setting
of the packer.
When setting the Packer, sufficient pressure must
be applied to set the slips, pack-off the element, and shear-
out of the packer, if drive-loc pins are used.
The tubing may be allowed to fill as the packer is
lowered and then a ball dropped to plug off the tubing.
Pressure is then applied to the tubing activating the
chambers of the Hydraulic Setting Tool.
In order to apply the proper setting force to the
packer, both hydrostatic and pump pressure must be
considered. Please consult a Wellcare Technician or refer to
the Hydraulic Setting Tool tech documentation to calculate
proper setting force.

Rotational
Bleed pressure off of tubing. Before attempting to release
the Hydraulic Setting Tool and Adapter Kit from the packer,
consideration must be given to the pressures acting on the
tools. Balance the forces so that a slight up strain remains.
Rotate to the right six to eight turns while holding the up
strain to release from the packer.
Shear
The Hydraulic Setting Tool will automatically release from
the tool when sufficient force is applied.

69

Packer Milling & Retrieving Tool:-
Model :WC-MRT
Wellcare packer milling & retrieving tool is an
internally engaging fishing tool designed for the partially
milling & retrieving of permanent production packers.
This tool is a combination of mill and spear that
recovers drillable packers in a one trip milling and recovery
operation. It is ideal for high angle holes. MODEL : WC-MRT
Operation:-
The milling tool passes through the seal bore of the
packer, mills the packer upper slips loose and pulls the
packer after it has been milled over, in a single trip.
A packer retriever is assembled with the proper
size slip to engage the bottom of a specific bore packer, and
made up on the lower end of sufficiently lone stinger
extension to permit the retriever to be lowered completely
through the packer during the milling operation.
A pin connection is usually supplied at tools upper
end, however, a coupling or crossover could be provided to
convert upper connection into a box connection.

70

Retrieving Tool:-
Model : WC-RT
Product No. 21301
The Model WC-RT Retrieving Tool is used to
retrieve the packers.
The Retrieving Tool is run in the hole and set
down force is applied when the packer is contacted. A set
down force of 15,000 pounds is sufficient to fully latch the
Retrieving Tool into the packer. At this point, the release
collet is positioned directly below the support ring of the
packer. Straight pull will engage the release collet and the
support ring. Tension force is applied which will shear the
screws in the support ring and shift it upward thus releasing
the packer.
The retrieving tool may be released from the packer at any
time by rotating the tubing to the right while holding an up
strain.

MODEL:WC-RT

71

On/Off Overshot:-
Model : WC-OS10
Product No. 22601
The On/Off Overshot was designed to disconnect
and connect the tubing string form a double grip production
packer that does not require tension or compression to
maintain a pack-off. The On/ Off Tool applications consist
of treating, fracturing, testing and production applications.
The profile stingers run with the overshot are available in a
variety of profiles sizes and materials.

Features:-
 Proven bonded seal system
 Built for strength and durability
 Variety of profile nipples
 Available in special metallurgy
 Available shear pinned up or down position
 Available in spring loaded design

72

Flow Coupling:-
Model : WC-FC
Product No. 22701
The Flow Couplings are used in the tubing string
of a flowing well, in conjunction with nipples or sliding
sleeves, to protect the tubing from abrasive action caused by
turbulent flow through restricted areas.

Coupling:-
Model : WC-C
Product No. 22702
The Couplings are used as joint elements between
parts of the string. They are box/box thread, with threads on
the same size and type.
The Couplings are manufactured as per customers
specifications.
The mechanical properties, dimensional and
surface condition characteristics, measure proceeding and MODEL:WC-C
inspection meet API 5CT standard. PROD. NO. WC-22702

73

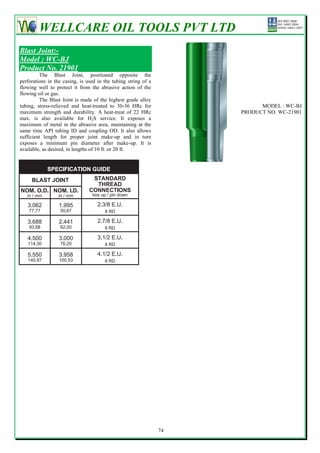

Blast Joint:-
Model : WC-BJ
Product No. 21901
The Blast Joint, positioned opposite the
perforations in the casing, is used in the tubing string of a
flowing well to protect it from the abrasive action of the
flowing oil or gas.
The Blast Joint is made of the highest grade alloy
tubing, stress-relieved and heat-treated to 30-36 HRc for MODEL : WC-BJ
maximum strength and durability. A heat-treat of 22 HRc PRODUCT NO. WC-21901
max. is also available for H2S service. It exposes a
maximum of metal in the abrasive area, maintaining at the
same time API tubing ID and coupling OD. It also allows
sufficient length for proper joint make-up and in turn
exposes a minimum pin diameter after make-up. It is
available, as desired, in lengths of 10 ft. or 20 ft.

74

Non Perforated Production Tube:- Model
: WC-NPPT
Product No. 22801
The Non-Perforated Production Tube is made-up at
the bottom of the production string. Its basic purpose is to
act as a stinger (or extension) to keep the packer flapper
valve open when producing or when working below the
packer.

Perforated Spacer Tube:-
Model : WC-PST
Product No. 22802
The Perforated Spacer Tube is used at the end of a
tubing string to provide an alternate flow path in cases
where wire line measuring devices are used.
The Perforated Spacer Tube is made of low grade
material and its assembly consists of a perforated nipple
with standard tubing thread, a crossover coupling up, and a
crossover sub down.
Perforated Spacer Tube are available with special
box thread up and pin thread down, upon request. Non Perforated Perforated

Wire line Entry Guide:-
Model : WC-WEG
Product No. 22901
The Wire line Entry Guide is designed to be run on
the bottom of the tubing string. It will aid wire line tools that
have passed out the bottom of the tubing to re-enter without
hanging up.

75

Crossover (Pin/Pin):-
Model : WC-C99
The Crossovers are used as joint elements between
parts of the string. They are pin/pin thread, with threads on
the same size or on different ones.
The Crossovers are manufactured as per customers
specifications.
They are manufactured with mechanical properties
similar to N-80 standard.

MODEL: WC-C99
PROD. NO. WC-22703

Crossovers (Box/Box) And (Box/Pin):-
Model : WC-C88 & WC-C89
Product No. 22704 & WC-22705
The Crossovers are used as joint elements
between parts of the string, where an adaptation
between different thread ends is required.
The Crossovers are manufactured as per
customers specifications.
They are manufactured with mechanical
properties similar to N-80 standard.

MODEL : WC-C88 MODEL : WC-C89
PROD. NO. WC-22704 PROD. NO. WC-22705

76

Locator Seal Nipple:-
Model: WC-LRSN
The Locator Seal Nipple provides a seal between
the tubing and the Hydraulic Packer. The seal nipple simply
stabs into the seal bore of the packer and requires no tension
or rotation to remove it.

MODEL : WC-LRSN
PROD. NO. WC-21805

J-Latch Seal Nipple:-
Model: WC-JLSN
The Model J-Latch Seal Nipple connects the tubing
to the Model Hydraulic packer and holds the tubing in
compression or tension. The J-latch automatically latches
into the packer when set-down weight is applied. A 1/4 turn
to the right, at the packer, and pick-up is required to release
the seal nipple from the tool.

MODEL : WC-JLSN
PROD. NO. WC-21806

77

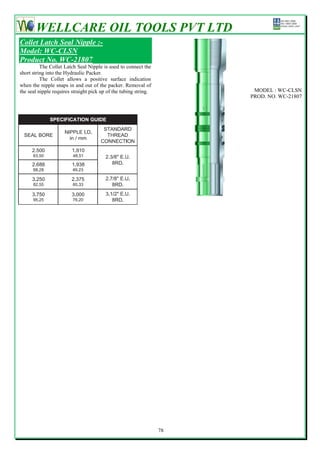

Collet Latch Seal Nipple :-
Model: WC-CLSN
The Collet Latch Seal Nipple is used to connect the
short string into the Hydraulic Packer.
The Collet allows a positive surface indication
when the nipple snaps in and out of the packer. Removal of
the seal nipple requires straight pick up of the tubing string. MODEL : WC-CLSN
PROD. NO. WC-21807

78

On/Off Tool Stingers:-
On/Off Tool Stingers are used to disconnect the
tubing string from a packer. The stingers are used with the
Overshot and are available in a variety of profile types, sizes
and from a broad range of material types.

MODEL: WC-TS10-1 MODEL:WC-TS10-2 MODEL:WC-TS10-3
PROD. NO.WC-22602 PROD. NO.WC-22603 PROD. NO.WC-22604

Type On/Off Tool:-
This type of On/Off Tool is used in liner
applications to disconnect the liner from the tubing string.
The overshot is the liner top or guide, while the stinger is
used for the running tool. The seals have been relocated to
the stinger allowing the seal to be replaced.

0

MODEL: WC-H10-1 MODEL: WC-H10-2
PROD. NO.WC-22605 PROD. NO.WC-22606

79

Tubing Anchor Catcher:-
Model: WC-TAC
The Tubing Anchor Catcher is a rugged, compact,
mechanical tool that anchors tubing in tension, holding it
stationary during pump strokes. The anchor also holds the
tubing stationary should it part. Anchoring the tubing
prevents it from buckling and breathing. This increases
pumping efficiency while reducing rod, tubing, and casing
wear. When properly set, there is no slip movement to cause
casing damage. Unlike other anchor catchers, this tool can
be lowered down hole after emergency shear out without MODEL: WC-TAC
resetting slips. PROD. NO. WC-22502

Applications:-
Anchor the tubing string in tension or compression
in wells of any depth. This prevents movement of the tubing
string during pumping operation, thus increasing pump
efficiency and decreasing rod wear.

Features:-
 Drag springs protect slips during run-in
 Sets in tension or compression
 Ample area for gas migration around anchor
 Rotational or shear release
 Tool may be rotationally released and reset
 Drag springs and shear pins are easily replaced in
the field

Setting Procedure:-
The Anchor Catcher is installed on tubing, usually
above or below a pump.
Anchor is run to depth, and the tubing is rotated left
to set. Casing weight determines number of turns required.
Pick-up on tubing to check setting of slips. Pull desired
tension on anchor to check spacing.

CAUTION: Do not overstretch tubing, as this may tend to
shear release anchor catcher.

Remove tension from tool. Rotate tubing to the
right until anchor releases. If the anchor does not release
normally, a straight pull will shear the pins allowing the
anchor to be removed from the well.

80

Telescoping Swivel Sub:-
Model: WC-TSS
The Telescoping Swivel Sub allows easy make-up
of the tubing string between multi-string packers by
enabling rotation as well as telescoping action. The Sub is
24 long, but can be furnished in various lengths.

MODEL: WC-TSS
PROD. NO. WC-23001

Adjustable Sub With Rotational Lock:-
Model: WC-ASRL
The Adjustable Sub is designed to be installed
below the Hydraulic Packer in order to make it easier to
connect or space out the tubing between multiple string
packers. The rotational lock allows you to lock the sub in MODEL: WC-ASRL
place at any desired length (up to 24) and prevent PROD. NO. WC-23002
telescoping or rotational movement.

81

Hydraulic Set Tubing Anchor Catcher:-
Model: WC-HTAC
The Hydraulic Set Tubing Anchor Catcher is a
pressure actuated, fully retrievable anchor catcher designed
to hold the tubing string in tension or compression.
No tubing manipulation is required in order to set
the anchor. Once set, bi-directional slips anchor the tubing to
prevent upward or downward movement during rod MODEL: WC-HTAC
pumping and to prevent tubing from falling should it part. PROD. NO. WC-22503
Applying tubing pressure against a temporary tubing plug
run below the anchor catcher sets the anchor catcher. The
anchor catcher is released by pulling sufficient force to shear
the release screws. The number (up to 12) predetermines the
shear value (4,000 lb. each) of the releasing mechanism.

Application:-
Anchor the tubing string in tension or compression
in wells of any depth. This prevents movement of the tubing
string during pumping operation, thus increasing pump
efficiency and decreasing rod wear.

Features:-
 Bi-directional slips anchor the tubing to prevent
upward or downward movement
 Sets in tension or compression
 Increases pump efficiency
 Improves operating costs by reducing maintenance
and down time caused by tubing or sucker rod wear

Setting Procedure:-
Run anchor catcher to desired depth and space out
completion using normal procedures.
If an expendable seating sub is used to temporarily
plug the tubing, drop the bronze setting ball. Allow
substantial time for the ball to gravitate to the ball seat.

CAUTION: Do not pump ball into place. Pressure up on the
tubing to 1,200 psi minimum above hydrostatic pressure at
the anchor. Increase the pressure to the shear value
necessary to pump out the ball seat.

To release the Hydraulic Set Anchor Catcher, pull
tension on the tubing until the predetermined value of the
shear pins is applied at the tool and the pins shear. The tool
may then be retrieved from the wellbore.

82

Right Hand Set Tubing Anchor Catcher:-
Model: WC-RTAC
It is a right hand set tool which acts as a tubing
anchor to maintain tension in the tubing string and as a
tubing catcher to prevent parted pipe from falling to the
bottom of the well.

Applications:-
To completions using Progressive Cavity Pump
systems. MODEL: WC-RTAC
PROD. NO. WC-22504
Features:-
 Provides no-turn feature for Progressive Cavity
Pump operations
 Increases pump efficiency and helps prevent the
tubing from backing off
 Rotate right to set
 Optional release straight pull, shear release
(primary), left rotation (secondary)

Setting Procedure:-
At the desired setting depth, rotate the tubing to the
right with hand wrenches until the slips contact the casing
(approximately five to eight turns). Maintain right hand
torque while alternately pulling strain and setting down
several times to work all the slack out of the tool.

An up strain greater than the total shear strength of
the shear pins plus the weight of the tubing should release
the tool. Optional release procedure, with tubing in slight
compression, rotate the tubing to the left (5 to 8 turns at the
tool) to retract the cones from the slips and allow the slips to
move back into the housing. To insure a complete release,
reciprocate the tubing string a few feet while rotating a few
more turns to the left before starting out of the hole.

Caution: Left-hand rotation may back-off tubing.

83

Casing Scraper:-
Model: WC-CS
The Wellcare Casing Scraper is designed to remove scale,
mud cake, cement sheath, embedded bullets, and other
foreign material from the inside of the casing wall.
Maintaining a clean casing I.D. is vital to the efficient MODEL: WC-CS
operation of down-hole tools used in drilling the well. The PROD. NO. WC-20701
resulting smooth surface properly prepares the casing for
subsequent down-hole operations such as packer setting and
squeeze tools.

Construction:-
Manufactured from alloy steel and heat treated to
provide strength and durability, each scraper must pass rigid
nondestructive testing to ensure the highest quality product.
Each tool has six blades specially aligned on the body to
provide the maximum cutting surface area for vertical and
rotational scraping. The blades are designed to give
optimum shearing action with the least amount of restriction
to returning well fluid. The splined body provides absolute
safety and security by locking each blade onto an integral
part of the scraper. This unique body design also allows for
ease of maintenance and dressing of the tool. All casing
scrapers can be easily set for positive or spring loaded
scraping action. Even when set positive to drift, the spring
loaded design will effectively scrape multi-weighted casing
within the well. All blades are cast steel and heat treated to
provide long lasting service life.

Assembly:-
Assembly of the casing scraper is quick and simple
and can easily be done in the field. Secure the tool body. Insert
springs into the blade body drive. Set blade over body splines at
center of tool, compress blade and slide into splines. Install
remaining blades in the same manner. Offset the upper blade set
from the lower set by one spline. Secure blades to body with
split collar ring.

84

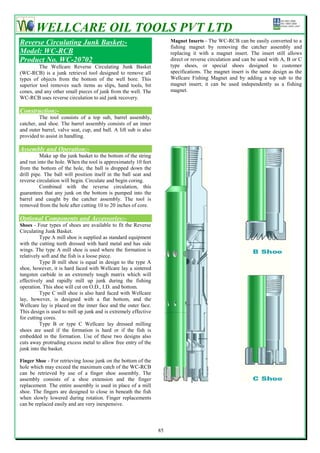

Reverse Circulating Junk Basket:- Magnet Inserts - The WC-RCB can be easily converted to a
fishing magnet by removing the catcher assembly and
Model: WC-RCB replacing it with a magnet insert. The insert still allows
Product No. WC-20702 direct or reverse circulation and can be used with A, B or C
The Wellcare Reverse Circulating Junk Basket type shoes, or special shoes designed to customer
(WC-RCB) is a junk retrieval tool designed to remove all specifications. The magnet insert is the same design as the
types of objects from the bottom of the well bore. This Wellcare Fishing Magnet and by adding a top sub to the
superior tool removes such items as slips, hand tools, bit magnet insert; it can be used independently as a fishing
cones, and any other small pieces of junk from the well. The magnet.
WC-RCB uses reverse circulation to aid junk recovery.

Construction:-
The tool consists of a top sub, barrel assembly,
catcher, and shoe. The barrel assembly consists of an inner
and outer barrel, valve seat, cup, and ball. A lift sub is also
provided to assist in handling.

Assembly and Operation:-
Make up the junk basket to the bottom of the string
and run into the hole. When the tool is approximately 10 feet
from the bottom of the hole, the ball is dropped down the
drill pipe. The ball will position itself in the ball seat and
reverse circulation will begin. Circulate and begin coring.
Combined with the reverse circulation, this
guarantees that any junk on the bottom is pumped into the
barrel and caught by the catcher assembly. The tool is
removed from the hole after cutting 10 to 20 inches of core.

Optional Components and Accessories:-
Shoes - Four types of shoes are available to fit the Reverse
Circulating Junk Basket.
Type A mill shoe is supplied as standard equipment
with the cutting teeth dressed with hard metal and has side
wings. The type A mill shoe is used where the formation is
relatively soft and the fish is a loose piece.
Type B mill shoe is equal in design to the type A
shoe, however, it is hard faced with Wellcare lay a sintered
tungsten carbide in an extremely tough matrix which will
effectively and rapidly mill up junk during the fishing
operation. This shoe will cut on O.D., I.D. and bottom.
Type C mill shoe is also hard faced with Wellcare
lay, however, is designed with a flat bottom, and the
Wellcare lay is placed on the inner face and the outer face.
This design is used to mill up junk and is extremely effective
for cutting cores.
Type B or type C Wellcare lay dressed milling
shoes are used if the formation is hard or if the fish is
embedded in the formation. Use of these two designs also
cuts away protruding excess metal to allow free entry of the
junk into the basket.

Finger Shoe - For retrieving loose junk on the bottom of the
hole which may exceed the maximum catch of the WC-RCB
can be retrieved by use of a finger shoe assembly. The
assembly consists of a shoe extension and the finger
replacement. The entire assembly is used in place of a mill
shoe. The fingers are designed to close in beneath the fish
when slowly lowered during rotation. Finger replacements
can be replaced easily and are very inexpensive.

85

Core-Type Junk Basket:-
Model: WC-CJB
The Wellcare Core-Type Junk Basket is a junk
retrieval tool designed to retrieve all types of objects from
the bottom of the well bore. This easy-to-use tool removes
such items as slips, hand tools, and bit cones. The basic
assembly consists of a top sub, barrel, type A mill shoe,
upper and lower catchers.

Make up the core basket to the bottom of the string
and run it in the hole to a point several feet from the bottom.
With direct circulation, the coring action on the junk
proceeds until a 24 inch core is cut. The fingers in the upper
catcher break the core when an upward strain is applied to
the string. The lower catcher fingers then form a close-
fitting basket that traps the core with its retrieved junk. As in
the other junk basket designs, they are free to revolve within
the shoe, thus eliminating finger breakage.

Three types of milling shoes are available for all core-
type basket systems: Type A shoe with side wings, Type B shoe
with hard-faced Wellcare lay sintered tungsten carbide, and
Type C shoe with flat bottom and Wellcare lay on the inner and
outer faces.
Magnet Inserts – A magnet insert can be used in place of the
catcher assemblies, thus converting the tool to a fishing magnet.
Finger Shoe – A finger shoe is used to retrieve junk that may
be too large to enter the catchers.

86

Impression Block
Model: WC-IB
The Wellcare Impression Block is an accessory
tool used to accurately determine the dimensions and
configuration of the upper end of a fish as well as to
check its condition and position in the well bore. The soft
lead lower end of the impression block captures an
impression of the fish upon making contact. Impression
blocks are manufactured with a pin connection up and a MODEL: WC-IB
layer of soft lead on the lower end of the tool. Circulation PROD. NO. WC-20704
holes will be provided on request.

Make up the impression block to the bottom of the
fishing string. Run into hole until impression block is near top
of fish. Slowly lower pipe until making contact with fish. Do
not rotate. Apply weight to impression block and then pull out
of hole. The impression made will assist the operator in
determining what tools are needed to prepare and retrieve the
fish.

87

Boot Basket (Junk Sub):-
Model: WC-BB
The Wellcare Boot Basket (Junk Sub) is an
accessory tool used in milling or drilling operations. It is
designed to prevent cuttings that are too heavy to be
circulated from settling to the bottom of the hole.

Construction:-
Boot baskets are manufactured from high-strength
heat treated alloy steel to withstand wear. Heavy-duty ribs are
attached to the cup to prevent it from being crushed and to
guide the tool through tight places while tripping out of the
hole. These ribs are not welded to the main body of the tool,
further enhancing its strength.

Boot baskets are used directly above the mill or drill
bit. On severe milling jobs, it is customary to run two or three
baskets in tandem above the mill. This tandem running not only
increases the capacity to remove the cuttings, but also provides
extra stabilization for the mill. Boot baskets can be run in either
open hole or inside casing. When the basket is working inside a
casing, hard faced pads, dressed to the same O.D. as the mill or
bit, should be used.

The standard boot basket is a welded assembly with a
10 inch deep cup. Long and extra long baskets are available;
these provide a 20 or 30 inch deep cup.

MODEL : WC-BB
PROD. NO. WC-20705

88

Washover Equipment:-
 Washover Pipe
 Washover Safety Joint
 Lift Plugs
 Drive Subs
 Rotary Shoes

Washover Pipe:-
Model: WC-WOP
Wellcare offers one of the largest selections of
washover tubulars in the industry. All washover pipe has a two-
step, double-shouldered thread joint with flush outside and
inside diameters. This buttress-type thread assures quick make-
up and high torsion strength. A wide assortment of sizes is
available ranging in outside diameters from 31/2 to 20 inches.
Consult the table for available sizes and washover string design
considerations.

89

Washover Safety Joint:-
Model: WC-WSJ
The Wellcare Washover Safety Joint is
manufactured to provide safe and easy release and make-up
whenever disengagement from the washover string becomes
necessary. This dependable, field tough tool is designed to
transmit torque in either direction when placed in the
washover string.
Construction – The Wellcare Washover Safety MODEL : WC-WSJ
Joint consists of a pin section, a box section, and a friction PROD. NO. WC-20707
ring. The internal connection of the safety joint is a coarse
acme thread used to facilitate easy pack-off and re-
engagement. A knurled release ring between the box and pin
sections maintain torsion integrity until back off procedure
is initiated. An O-ring seal contains pressure while the safety
joint is made up.
Assembly – To assemble, install the safety joint in
the drill string and make up the service connection to a
torque of approximately 60 to 75% of the string connections.
In washover strings, the safety joint should be
located between the drill pipe and the washover pipe.
Wellcare Washover Safety Joints are provided with a tool
joint box thread up and a washover pipe pin thread down.
To disengage the safety joint while down-hole,
place pipe in tension and apply left-hand torque. Hold torque
while slowly lowering pipe until safety joint breaks.
Continue to unscrew safety joint to the left. To re-engage the
safety joint, lower pipe until pin section of safety joint lands
on box section. Apply one point of weight. Rotate to the left
one or two turns. Then rotate to the right until torque builds
up, indicating safety joint is made up.

90

Rotary shoes:-
Type WC-RSA rotary shoe is a drag type shoe
used to cut soft formations and only cuts on the bottom.

Type WC-RSB rotary shoe is used inside casings
to washover on a fish without damaging the casing. It cuts
on the bottom only.

Type WC-RSC rotary shoe is used inside casing
and cuts on the bottom only. It is designed not to damage the
casing or the fish. ―WC-RSA‖ ―WC-RSB‖ ―WC-RSC‖

Type WC-RSD rotary shoe is designed to cut
formation only. It only cuts on the O.D. and bottom.

Type WC-RSE rotary shoe is designed to use
inside casing and to cut metal on a fish. It cuts on the I.D.
and bottom.

Type WC-RSF rotary shoe is designed to use
inside casing and to cut soft formations as it only cuts on the
bottom.

Type WC-RSG rotary shoe is designed for use in ―WC-RSD‖ ―WC-RSE‖
an open hole and is used to cut formations, cement, and
metal. It cuts on the O.D., I.D., and bottom.

Type WC-RSM rotary shoe is designed for use in
an open hole to cut formation, cement, and metal where
clearances inside the hole are limited. It cuts on the O.D. and
bottom.

Type WC-RSN rotary shoe is designed for use ―WC-RSF‖ ―WC-RSG‖ ―WC-RSM‖
inside casing to dress and size the fish. It cuts on the I.D.
and bottom.

Type WC-RSP rotary shoe is designed to cut
formations, metal, and cement. It cuts on the O.D., I.D. and
bottom.

Type WC-RSR rotary shoe is designed for use in
an open hole to cut formation, cement, and metal. It cuts on
the O.D. and bottom.
―WC-RSN‖ ―WC-RSP‖ ―WC-RSR‖
Type WC-RSS rotary shoe is designed to cut metal
in the fish without damage to the casing. It cuts on the I.D.
and bottom.

Type WC-RST rotary shoe is designed for use in
an open hole to cut metal, cement, and formation. It cuts on
the O.D., I.D., and bottom.

Type WC-RSZ rotary shoe is designed for use
inside casing to cut metal on the fish. It cuts on the I.D. and
bottom. ―WC-RSS‖ ―WC-RST‖ ―WC-RSZ‖

91

WIRE LINE SET MECHANICAL
BRIDGE PLUG –
Model: WC-WMBP
The Model WC-WMBP Bridge Plug is a modular
designed drillable bridge plug.
Applications include: temporary and permanent zone
isolation or well abandonment.
Features
 Wireline or mechanical set
 Slim line design allows for quick wireline
runs
 Simple conversion to cement retainer
 Easily drilled
MODEL:WC-WMBP
PROD. NO.WC-21403

92

WIRE LINE SET MECHANICAL
CEMENT RETAINER –
Model: WC-WMCR
The Cemented Retainer is a modular designed
drillable cement retainer.
Applications include: acidizing, fracturing or cementing
with a cement retainer.

Features

 Simple surface controlled valve
 Allows pressure testing before squeeze
 Valve automatically closes when the
stinger is removed, locking in the squeeze MODEL:WC-WMCR
pressure PROD. NO.WC-23201
 Valve protects sensitive zones in low fluid
wells
 Simple conversion to bridge plug
 Mechanical or wireline set
 Easily drilled

93

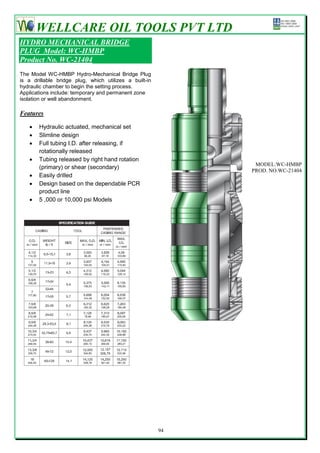

HYDRO MECHANICAL BRIDGE
PLUG Model: WC-HMBP
The Model WC-HMBP Hydro-Mechanical Bridge Plug
is a drillable bridge plug, which utilizes a built-in
hydraulic chamber to begin the setting process.
Applications include: temporary and permanent zone
isolation or well abandonment.

Features

 Hydraulic actuated, mechanical set
 Slimline design
 Full tubing I.D. after releasing, if
rotationally released
 Tubing released by right hand rotation
MODEL:WC-HMBP
(primary) or shear (secondary)
PROD. NO.WC-21404
 Easily drilled
 Design based on the dependable PCR
product line
 5 ,000 or 10,000 psi Models

94

COMPOSITE BRIDGE PLUG :-
Model: WC-CBP
MODEL:WC-CBP
PROD. NO.WC-21405
MODEL WC-CBP is a wireline set, medium pressure bridge
plug these plugs are constructed out
of high-tech composite materials that are easily drillable
even with coiled tubing unit and the cuttings flow back to
surface without creating wellbore debris.

WIRE LINE SET RETRIEVABLE
BRIDGE PLUG:-

The model ―WSRBP‖ is a wireline set retrievable
bridge plug capable of holding differential pressure from
above or below. The ―WSRBP‖ may be set on conventional
wireline or hydraulic packer-setting tools. The short design
is easy to retrieve on tubing, coil tubing or sandline, using the
appropriate retrieval tool. When the retrieving tool engages
the top of the bridge plug, the equalizing valve opens before
the bridge plug is released, preventing the bridge plug from
moving with differential pressure.
Features
• Wireline, hydraulic, or coiled tubing set
• Caged bi-directional slips
• Equalizing valve opens before plug is released
• Straight pull release
• Over shot will wash to gage ring for easy retrieval
• Rotational safety release mechanism
• Optional sand line or coiled tubing retrieval
• Swab resistant packing element system
Benefits
• Carbide slips are standard for long life and durability
• Compact design for tight doglegs, short lubricators
• Simple, rig-friendly operation
• Holds pressure from above and below
• Easy, dependable retrieval
Applications
• Acidizing, fracturing and cementing
• Casing pressure testing
• Wellhead repair or replacement
• Zone isolation

MODEL: WC-WSRBP MODEL: WC-WSRBP-2
PROD. NO. WC-21401 PROD. NO. WC-21402

95

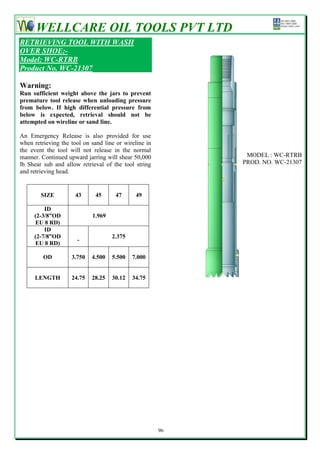

RETRIEVING TOOL WITH WASH
OVER SHOE:-
Model: WC-RTRB

Warning:
Run sufficient weight above the jars to prevent
premature tool release when unloading pressure
from below. If high differential pressure from
below is expected, retrieval should not be
attempted on wireline or sand line.

An Emergency Release is also provided for use
when retrieving the tool on sand line or wireline in
the event the tool will not release in the normal
manner. Continued upward jarring will shear 50,000 MODEL : WC-RTRB
lb Shear sub and allow retrieval of the tool string PROD. NO. WC-21307
and retrieving head.

SIZE 43 45 47 49

ID
(2-3/8”OD 1.969
EU 8 RD)
ID
(2-7/8”OD 2.375
-
EU 8 RD)

OD 3.750 4.500 5.500 7.000

LENGTH 24.75 28.25 30.12 34.75

96

SNAP LATCH SETTING TOOL:-
Model: WC-SST-1
The Model WC-SST-1 Snap Latch Setting Tool is a
mechanical setting tool used to set the Model
WC-SST-1 Cement Retainer.

The Model WC-SST-1 Snap Latch Setting Tool
contains a built-in snap-latch feature which
allows the setting tool to be latched into the cement
retainer with set-down weight and
released with up strain after setting and rotationally
releasing from the retainer.
This essentially allows the setting tool to function as a
snap latch stinger sub which
provides an upward stop as the tubing is raised. At this
stop the valve is closed but the
stinger sub seal is still in the bore of the retainer. The MODEL : WC-SST-1
run in string can be internally pressure PROD. NO. WC-23301
tested in this position.

97

MECHANICAL SETTING TOOL
Model: WC-MST
The Model WC-MST is a mechanical setting tool for
drillable cement retainers and bridge plugs.
Applications include: setting cement retainers or bridge
plugs on tubing or drill pipe.

Features
 Allows single run for squeeze work
 Locked to cement retainer or bridge plug MODEL:WC-MST
PROD. NO.WC-23302
to avoid premature setting or loss
 Top slips partially covered to protect from
accidental damage
 Modular design
 Will set other manufacture cement
retainers or bridge plugs

98

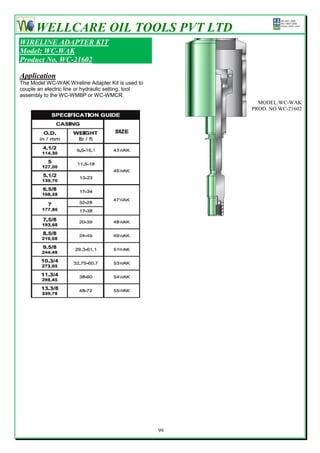

WIRELINE ADAPTER KIT
Model: WC-WAK

Application
The Model WC-WAK Wireline Adapter Kit is used to
couple an electric line or hydraulic setting, tool
assembly to the WC-WMBP or WC-WMCR.
MODEL:WC-WAK
PROD. NO.WC-21602

99

SNAP LATCH STINGER SUB
Model: WC-SSB
The Model WC-SSB Snap Latch Stinger Sub is used
with Model WC-WMCR Wireline Set Cement
Retainers. It features a snap-in, snap-out-type latch
that provides a surface indication of the stinger being
landed in the cement retainer (giving assurance that
the sleeve valve is open) or the stinger sub being MODEL:WC-SSB
removed from the cement retainer (and the sleeve PROD. NO.WC-23003
valve closed).

CONTROL UNIT
Model: WC-CU
Description / Application
The Model WC-CU Control Unit is made up above the
stinger sub and provides a centring device for entering
the retainer bore.

MODEL:WC-CU
PROD. NO.WC-21417

100

SEATING NIPPLE (BOTTON NO GO)
Model: WC-SNR
The Model “WC-SNR” Nipple is a Bottom No-Go
Seating Nipple which allows for the location of
various flow control devices in the production string
May be used in the following applications:
 Land blanking plugs to shut in well or to
test the production tubing
 Land velocity type safety valves
 Land equalizing check valves
 Land circulating blanking plugs
 Land chokes to reduce surface flowing
pressures MODEL:WC-SNR
PROD. NO.WC-21810
 Land instrument hangers with geophysical
devices such as pressure and temperature
recorders
 Restricted I.D. catches tools dropped
during wireline work

Features
 Honed internal sealing bores for maximum
sealing performance
 Locking-groove / bottom No-Go shoulder
combination accepts bottom No-Go locks
 All premium threads available

101

SEATING NIPPLE (TOP NO-GO)
Model: WC-SNF
The Model "WC-SNF" Nipple is a Top No-Go or
Selective Seating Nipple.
Be sure to consider carefully the location and number
of the "WC-SNF" Seating Nipple to provide
maximum versatility in the positioning of the various MODEL:WC-SNF
flow control accessories. PROD. NO.WC-21811

Features

 Accepts selective or top No-Go locks
 Honed internal sealing bores for
maximum sealing capabilities
 Locking groove/No-Go shoulder
combination above seal bore

SEATING NIPPLE
Model: WC-SNEN
The Model "WC-SNEN" Nipple is designed to permit
the landing and locking of flow controls in
predetermined nipple locations in the tubing.

Features

 Designed for single nipple installation or as
the bottom nipple in a series of selected MODEL:WC-SNEN
nipples PROD. NO.WC-21812
 Full opening packing bore, with locking recess
at the top of the nipple and a slightly restricted
No-Go at the bottom to prevent wireline tools
from dropping out of the tubing string and
being lost
 Restricted I.D. catches tools dropped during
wireline work

102

SEATING NIPPLE
Model: WC-SNEX
The Model "WC-SNEX" Nipple offers an expanded
versatility to downhole selection.
Any desired number of "WC-SNEX" Nipples can be
placed in the production string, thereby
offering an unlimited number of positions for setting
and locking sub surface controls. MODEL:WC-SNEX
Features PROD. NO.WC-21813
 Versatility to reduce completion and
production costs
 Nipple bore compatible with tubing size and
weight to permit maximum flow capacity
 Designed for standard tubing weight

SEATING NIPPLE
Model: WC-SNEXN
The Model "WC-SNEXN" Nipple is designed for use in
single nipple installations or as the bottom nipple when
placed in a series of WELLCARE "WC-SNEX" Landing
Nipples.
Features
 Full-opening packing bore, with a locking
recess at the top of the nipple and slightly
restricted I.D.
 No-Go at the bottom to prevent wireline tools
from dropping out of the tubing string and
being lost
 Restricted I.D. catches tools dropped during
MODEL:WC-SNEXN
wireline work PROD. NO.WC-21814

103

SEATING NIPPLE
Model: WC-SNER

The Model “WC-SNER” Seating Nipple is designed to
provide a degree of down hole selectivity. MODEL:WC-SNER
An operator can place as many selective nipples with PROD. NO.WC-21815
the same I.D. as desired in the tubing string to provide
an unlimited number of positions for setting and locking
sub surface flow controls. Then one nipple can be
selected that will be the best location for the flow
control.
If this location is unsatisfactory, or well conditions
change, the flow control may be moved up or down the
tubing string wherever another nipple is located all by
wireline under pressure without killing the well.

SEATING NIPPLE
Model: WC-SNERN
The Model “WC-SNERN” No-Go Seating Nipple is
designed for use in single nipple installations
or as the bottom nipple in conjunction with a series of
WC-SNEX or WC-SNER Seating Nipples. MODEL:WC-SNERN
The seating nipples have the same packing bore I.D. PROD. NO.WC-21816
for a particular tubing size and weight.
The WC-SNER and WC-SNERN Seating Nipples are
for heavy weight tubing.

104

SEATING NIPPLE
Model: WC-SNA
The Model WC-SNA Seating Nipple is a top No-Go,
reduced bore polished nipple. It is commonly used with an
equalizing standing valve and does not contain a locking
recess.

MODEL:WC-SNA
PROD. NO.WC-21817

SEATING NIPPLE
Model: WC-SND
The Model WC-SND Seating Nipple is a top No-Go
nipple utilized to permit the seating, locking and
sealing of locks with attached flow control devices in
the production tubing.

MODEL:WC-SND
PROD. NO.WC-21818

105

DOWNHOLE FLOW REGULATORS
Model: WC-DFJ & WC-DFL

The Models WC-DFJ and WC-DFL Downhole Flow
Regulators are pressure-compensated flow rate control
valves which, when landed in a WC-SND Bypass
Ported Seating Nipple, provide a simple, economical,
and efficient method for individually regulating volumes
injected into multiple zones down one tubing string.
The regulators are designed to maintain, regardless of
changes in pump and formation pressures, a
predetermined fluid injection rate. (however, the
minimum required pressure drop of 100 psi across the
regulator must be available). Both regulators are
compatible with wireline operations and equipment.
The WC-DFJ type (with slide throttle) should be used
at higher flow rates, while the WC-DFL type (with face
throttle), since it is less susceptible to plugging by
solids, should be used at lower flow rates. Both
present and future flow rates should be considered
before selecting which Model to run.

106

NON-ELASTOMERIC SLIDING
SLEEVES
Model: WC-SSD & WC-SSU
The Models WC-SSD and WC-SSU Non-Elastomeric
Sliding Sleeves are high performance, equalizing
sliding sleeves which allow communication between
the tubing and annulus for circulation or selective zone
production. The sleeve is available in WC-SSD
downshift to open or WC-SSU up shift to open
versions.

Features

 A nipple profile above and a packing bore
above and below the communication ports
 The Model WC-STOB shifting tool is used to
open or close the valves
 Modular design permits conversion from a
WC-SSU to WC-SSD or vice versa, by only
changing the upper and lower subs
 The seal stack is manufactured from high-
strength, non-elastomeric compounds
chemically inert

107

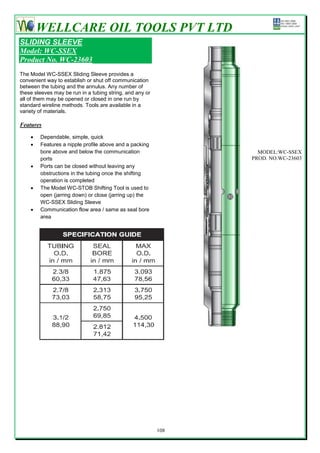

SLIDING SLEEVE
Model: WC-SSEX
The Model WC-SSEX Sliding Sleeve provides a
convenient way to establish or shut off communication
between the tubing and the annulus. Any number of
these sleeves may be run in a tubing string, and any or
all of them may be opened or closed in one run by
standard wireline methods. Tools are available in a
variety of materials.

Features

 Dependable, simple, quick
 Features a nipple profile above and a packing
bore above and below the communication MODEL:WC-SSEX
ports PROD. NO.WC-23603
 Ports can be closed without leaving any
obstructions in the tubing once the shifting
operation is completed
 The Model WC-STOB Shifting Tool is used to
open (jarring down) or close (jarring up) the
WC-SSEX Sliding Sleeve
 Communication flow area / same as seal bore
area

108

SLIDING SLEEVE
Model: WC-SSL
The Model "WC-SSL" Sliding Sleeve is a down hole
flow control device mounted in the production tubing to
provide communication between the tubing and casing
annulus.

Features

 Dependable, simple and quick
 Features a nipple profile above and a packing
bore above and below the communication
ports
obstructions in the tubing once the shifting MODEL:WC-SSL
PROD. NO.WC-23604
 The WELLCARE "WC-STD2" Shifting Tool is
used to open (jarring up) or close (jarring
down) the sleeve

109

SLIDING SLEEVE
Model: WC-SSE
Features

 Dependable, simple and quick
 Features a nipple profile above and a
packing bore above and below the
communication ports
obstructions in the tubing once the shifting
 The WELLCARE "WC-STOB" Shifting
Tool is used to open (jarring down) or
close (jarring up) the sleeve
 All premium threads available MODEL:WC-SSE
PROD. NO.WC-23605

110

SHIFTING TOOL
Model: WC-STD2
The Model WC-STD2 Shifting Tool is a wireline
operated tool used to open and close the Model
WC-SSL Sliding Sleeve. Any number of sleeves, of the
same size, in a single tubing string can be shifted in
any combination or in any sequence.

Features

 Open and close sleeves in one trip
 Automatic locating collet
 The shifting tool has a shear pin release
mechanism for emergency release
MODEL:WC-STD2
 After the shifting tool is seated in a sleeve, it
PROD. NO.WC-23701
can be released without shifting the sleeve

111

SHIFTING TOOL
Model: WC-STOB
The Model WC-STOB Shifting Tool is used to move
the inner sleeve to its open or closed position in sliding
sleeves circulating devices.
The shifting tool engages the recess in the upper (or
lower) end of the inner sleeve to permit the sleeve to MODEL:WC-STOB
be shifted by a jarring action. The tool is designed to PROD. NO.WC-23702
release itself only after the sleeve reaches its fully
open or closed position. This automatic-releasing
feature incorporates a releasing profile on the key itself
that acts to compress the key spring and release the
positioning tool. A shear pin is an added feature
designed to release the tool
 in the event well conditions make it
impossible to shift the sleeve.

WIRELINE STEM
Model: WC-WSM
Description
The Wireline Stem, also called weight bars, are
wireline service accessories used to add weight to the
wireline tool string to counteract the force of wellbore
pressure on the cross-sectional area of the wire and to MODEL:WC-WSM
increase the effectiveness of upward or downward PROD. NO.WC-20709
jarring with link or tubular jars. Wireline Stem normally
consists of a solid bar of alloy steel and has a fishing
neck and a pin thread connection on the upper end
and a box thread connection on the lower end.

112

EQUALIZING CHECK VALVES
Model: WC-ECV-1
Equalizing Check Valves are sometimes called
Standing Valves because they prevent fluid flow in one
direction (downward) while allowing full fluid flow in the
opposite direction (upward). The WC-ECV-1 seats on
the top No-Go shoulder of an R type profile which
prevents downwards movement. It is not locked into
the profile, and has a built-in method of allowing MODEL:WC-ECV-1
equalizing before pulling. Available in a variety of PROD. NO.WC-23416
materials.

EQUALIZING CHECK VALVE
Model: WC-ECV-2
Equalizing Check Valves are sometimes called
Standing Valves because they prevent fluid flow in one
direction (downward) while allowing full fluid flow in the
opposite direction (upward). The WC-ECV-2 seats on
the top No-Go shoulder of an F type profile which
prevents downward movement. It is not locked into the
profile, and has a built-in method of allowing equalizing
before pulling. Available in a variety of materials.
MODEL:WC-ECV-2
PROD. NO.WC-23417

113

BY-PASS BLANKING PLUG W/
REMOVIBLE MANDREL
Model: WC-WBP-1
The Model WC-WBP-1 By-Pass Blanking Plug, a
selectively run wireline retrievable tubing plug, is
designed with a removable mandrel to equalize
pressures.
The running tool holds the removable mandrel in the
bypass position to allow fluid bypass while running
through several of the same size nipples. When the
plug is locked into the desired seating nipple, the
removable mandrel is shifted and locked to close the
by-pass ports. MODEL:WC-WBP-1
In order to equalize, a standard wireline pulling tool PROD. NO.WC-23801
latches onto and retrieves the removable mandrel.
When the pressures become stabilized through the by-
pass ports the plug can be retrieved with a standard
pulling tool.

114

REMOVABLE MANDREL
Model: WC-WBP-2
The Model WC-WBP-2 By-Pass Blanking Plug, a top
No-Go wireline retrievable tubing plug, is designed with
a retrievable mandrel to equalize pressures.
The running tool holds the retrievable mandrel in the
by-pass position to allow fluid bypass when landing in
the setting nipple. Once the plug is locked into the
desired seating nipple, the removable mandrel is
shifted and locked to close the by-pass ports.
In order to equalize, a standard wireline pulling tool MODEL:WC-WBP-2
latches onto and retrieves the removable mandrel. PROD. NO.WC-23802
When the pressure become equalized through the
bypass ports, the plug can be retrieved with a standard
pulling tool.

115

REMOVABLE MANDREL
Model: WC-WBP-3
The Model WC-WBP-3 By Pass Blanking Plug, a
bottom No-Go wireline retrievable tubing plug, is
designed with a removable mandrel to equalize
pressures.
The running tool holds the removable mandrel the
bypass position to allow fluid bypass when landing in
the seating nipple. Once plug is locked into the desired
seating nipple, the removable mandrel is shifted and
locked to close the by-pass ports. MODEL:WC-WBP-3
In order to equalize, a standard wireline pulling tool PROD. NO.WC-23803
latches onto and retrieves the removable mandrel.
When the pressures become equalized through the by-
pass ports, the plug can be retrieved with a standard
pulling tool.

116

PROBES
Model: WC-PB , WC-PA & WC-PAC
Product No. WC-23901 , WC-23902 &
WC-23903
The Model WC-PA and WC-PAC Probes are used to
close the up-facing locks on any flow control accessory
having an S type lock. The Model WC-PA Probe,
equipped to carry a prong on the lower end, is used
when a prong is required and the Model WC-PAC , not
equipped for a prong,
should be used in all areas where a prong is not
required. As the probe enters the fishing
neck the blade automatically swivels past the down-
facing locks and retracts the up-facing
locks before the pulling tool latches on. The flange
shoulders against the fishing neck of
the accessory when setting or jarring down.
The Model WC-PB Probe is used to close the locks on
any flow control accessory having a W
or Z (top or bottom No-Go) type lock. The Model WC-
PB Probe is equipped to carry a prong
made up on the lower end.

“ WC-PB” “WC-PA”

“WC-PAC”

117

RUNNING TOOL
Model: WC-RGTL
The Model WC-RGTL Running Tool is used to run in
and land various types of flow control devices.
It has a box down connection for connecting the Model
A Shank when required.
The tool is run with either a thread protector or locating
ring, depending on the application.
The tool is dressed with a thread protector for all
applications that do not require a No-Go on the tool MODEL:WC-RGTL
itself. This includes all running of flow control devices PROD. NO. WC-24001
equipped with W and Z , Type Locks. Flow control
devices equipped with S Type Locks may be run this
way EXCEPT when landing in sliding sleeves. The use
of the tool in this application could cause the lock to be
positioned in the sliding sleeve rather than in the
locking groove.
The addition of the proper size locating ring does in
effect convert the tool to a No-Go type running tool.
This is used when running flow control devices
equipped with S type locks for landing in sliding
sleeves. It is desirable to use the locating ring
whenever running a flow control device equipped with
an S Type Lock because the locating ring acts as a
positive tool positioner by virtue of the No-Go feature.

118

GRAVEL PACK SQUEEZE TOOL
Model: WC-GPST
The Model WC-GPST Gravel Pack Squeeze Tool can
be removed directly from the packer using tension in
the string. This tool has a lock that is supported by a
retain piston working hydraulic by pressuring the
annulus.
The Model WC-GPST Gravel Pack Squeeze Tool was
designed to be used with the Packers Models:WC-
HSSRP-2.
Features / Benefits
 It is not necessary to use rotation because
the tool is removed from the packer by
using tension in the string.
 Ideal for deviated hole.
MODEL:WC-GPST
 In case of emergency the tool can be PROD. NO. WC-24002
removed by using rotation in the string
 When the Model WC-GPST Gravel Pack
Squeeze Tool is assembled together with
the setting tool , it allows the following:
 A way to connect the left hand square
thread to support the gravel pack set,
during the run in to the well.
 The packer setting by using pressuring in
the string.
 A correct space between the sessile etc,
to allow a control of the fluid circulation
during the sand injection and reverse
circulation.

119

Packers & bridge plugs

More Related Content

What's hot

Viewers also liked

Similar to Packers & bridge plugs

Recently uploaded

Packers & bridge plugs
