Overview on scrum development process
- 1.
- 2. Introduction to Scrumand Scrum Team • Defining Scrum – Scrum is based on the following core agile values • Iterative and incremental development • Frequent delivery • Involvement of customer • Self organizing cross functional team – It is based on empirical rather than prescriptive process control

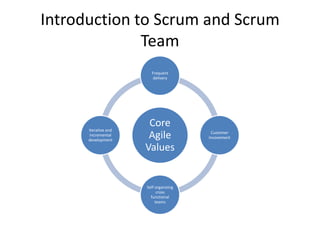

- 3. Introduction to Scrumand Scrum Team Core Agile Values Frequent delivery Customer Invovement Self organizing cross functional teams Iterative and incremental development
- 4. Introduction to Scrumand Scrum Team
- 5. Introduction to Scrumand Scrum Team • Defining Scrum
- 6. Introduction to Scrumand Scrum Team • Scrum roles 1. Product owner • Creates product backlog • Works closely with the development team to ensure everyone in the team understands requirements • Qualities of product owner – Clear vision – Capacity to gather requirements – Good Communication Skills – Problem solving skills – Decision making ability

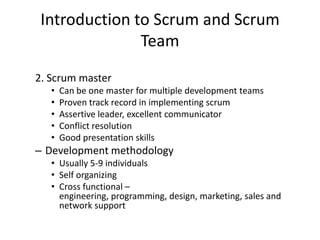

- 7. Introduction to Scrumand Scrum Team 2. Scrum master • Can be one master for multiple development teams • Proven track record in implementing scrum • Assertive leader, excellent communicator • Conflict resolution • Good presentation skills – Development methodology • Usually 5-9 individuals • Self organizing • Cross functional – engineering, programming, design, marketing, sales and network support

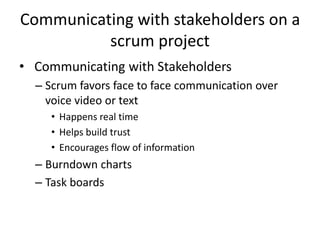

- 8. Communicating with stakeholderson a scrum project • Communicating with Stakeholders – Scrum favors face to face communication over voice video or text • Happens real time • Helps build trust • Encourages flow of information – Burndown charts – Task boards

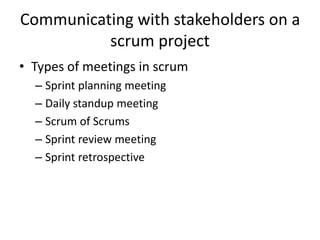

- 9. Communicating with stakeholderson a scrum project • Types of meetings in scrum – Sprint planning meeting – Daily standup meeting – Scrum of Scrums – Sprint review meeting – Sprint retrospective

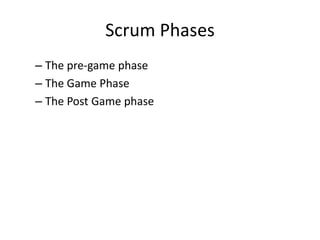

- 10. Scrum Phases – Thepre-game phase – The Game Phase – The Post Game phase
- 11. The pre gamephase – The pre-game phase • Replaces initiating and planning phases in a traditional development approach • It involves activities that has to be completed before the project activity begins • Pre-game phase may last from days to weeks depending upon the nature of the project and initial amount of work required to prepare and plan for it • Overall goal is to get buy in or approval from customer or customer representative.

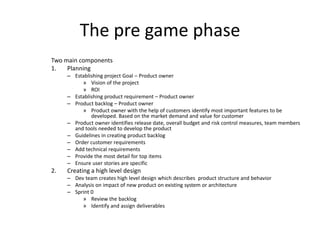

- 12. The pre gamephase Two main components 1. Planning – Establishing project Goal – Product owner » Vision of the project » ROI – Establishing product requirement – Product owner – Product backlog – Product owner » Product owner with the help of customers identify most important features to be developed. Based on the market demand and value for customer – Product owner identifies release date, overall budget and risk control measures, team members and tools needed to develop the product – Guidelines in creating product backlog – Order customer requirements – Add technical requirements – Provide the most detail for top items – Ensure user stories are specific 2. Creating a high level design – Dev team creates high level design which describes product structure and behavior – Analysis on impact of new product on existing system or architecture – Sprint 0 » Review the backlog » Identify and assign deliverables

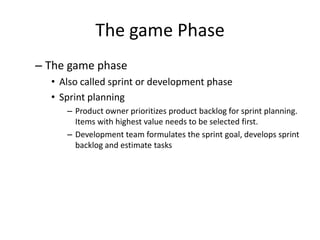

- 13. The game Phase –The game phase • Also called sprint or development phase • Sprint planning – Product owner prioritizes product backlog for sprint planning. Items with highest value needs to be selected first. – Development team formulates the sprint goal, develops sprint backlog and estimate tasks
- 14. The post gamePhase – The post game phase • Developing user documentation • Integration testing • Product testing

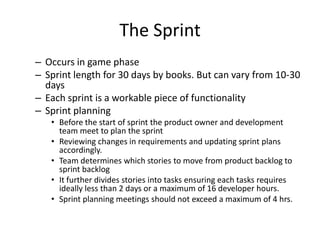

- 15. The Sprint – Occursin game phase – Sprint length for 30 days by books. But can vary from 10-30 days – Each sprint is a workable piece of functionality – Sprint planning • Before the start of sprint the product owner and development team meet to plan the sprint • Reviewing changes in requirements and updating sprint plans accordingly. • Team determines which stories to move from product backlog to sprint backlog • It further divides stories into tasks ensuring each tasks requires ideally less than 2 days or a maximum of 16 developer hours. • Sprint planning meetings should not exceed a maximum of 4 hrs.

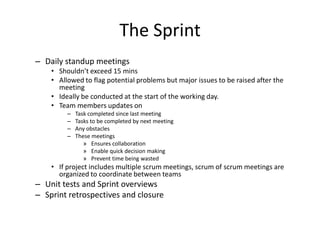

- 16. The Sprint – Dailystandup meetings • Shouldn’t exceed 15 mins • Allowed to flag potential problems but major issues to be raised after the meeting • Ideally be conducted at the start of the working day. • Team members updates on – Task completed since last meeting – Tasks to be completed by next meeting – Any obstacles – These meetings » Ensures collaboration » Enable quick decision making » Prevent time being wasted • If project includes multiple scrum meetings, scrum of scrum meetings are organized to coordinate between teams – Unit tests and Sprint overviews – Sprint retrospectives and closure

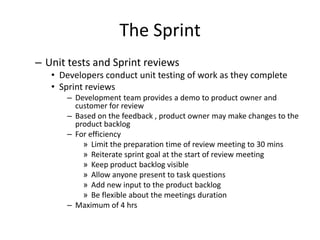

- 17. The Sprint – Unittests and Sprint reviews • Developers conduct unit testing of work as they complete • Sprint reviews – Development team provides a demo to product owner and customer for review – Based on the feedback , product owner may make changes to the product backlog – For efficiency » Limit the preparation time of review meeting to 30 mins » Reiterate sprint goal at the start of review meeting » Keep product backlog visible » Allow anyone present to task questions » Add new input to the product backlog » Be flexible about the meetings duration – Maximum of 4 hrs

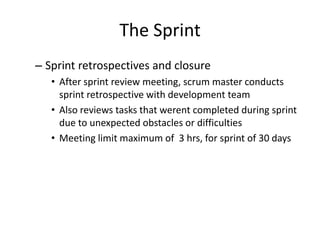

- 18. The Sprint – Sprintretrospectives and closure • After sprint review meeting, scrum master conducts sprint retrospective with development team • Also reviews tasks that werent completed during sprint due to unexpected obstacles or difficulties • Meeting limit maximum of 3 hrs, for sprint of 30 days

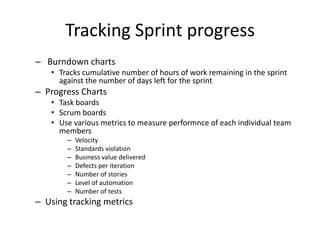

- 19. Tracking Sprint progress –Burndown charts • Tracks cumulative number of hours of work remaining in the sprint against the number of days left for the sprint – Progress Charts • Task boards • Scrum boards • Use various metrics to measure performnce of each individual team members – Velocity – Standards violation – Business value delivered – Defects per iteration – Number of stories – Level of automation – Number of tests – Using tracking metrics
