Slides from Luigi Dell'Aquila talk @ codemotion roma 2014

1. ROME 11-12 april 2014ROME 11-12 april 2014
OrientDB: a Document-Graph Database
ready for the Cloud
OrientDB Committer
OrientDB Academy Coordinator at Orient Technologies LTD
Project Manager at AssetData S.r.l.
Email: l.dellaquila – at – orientechnologies.com
Twitter: @ldellaquila
Luigi Dell’Aquila

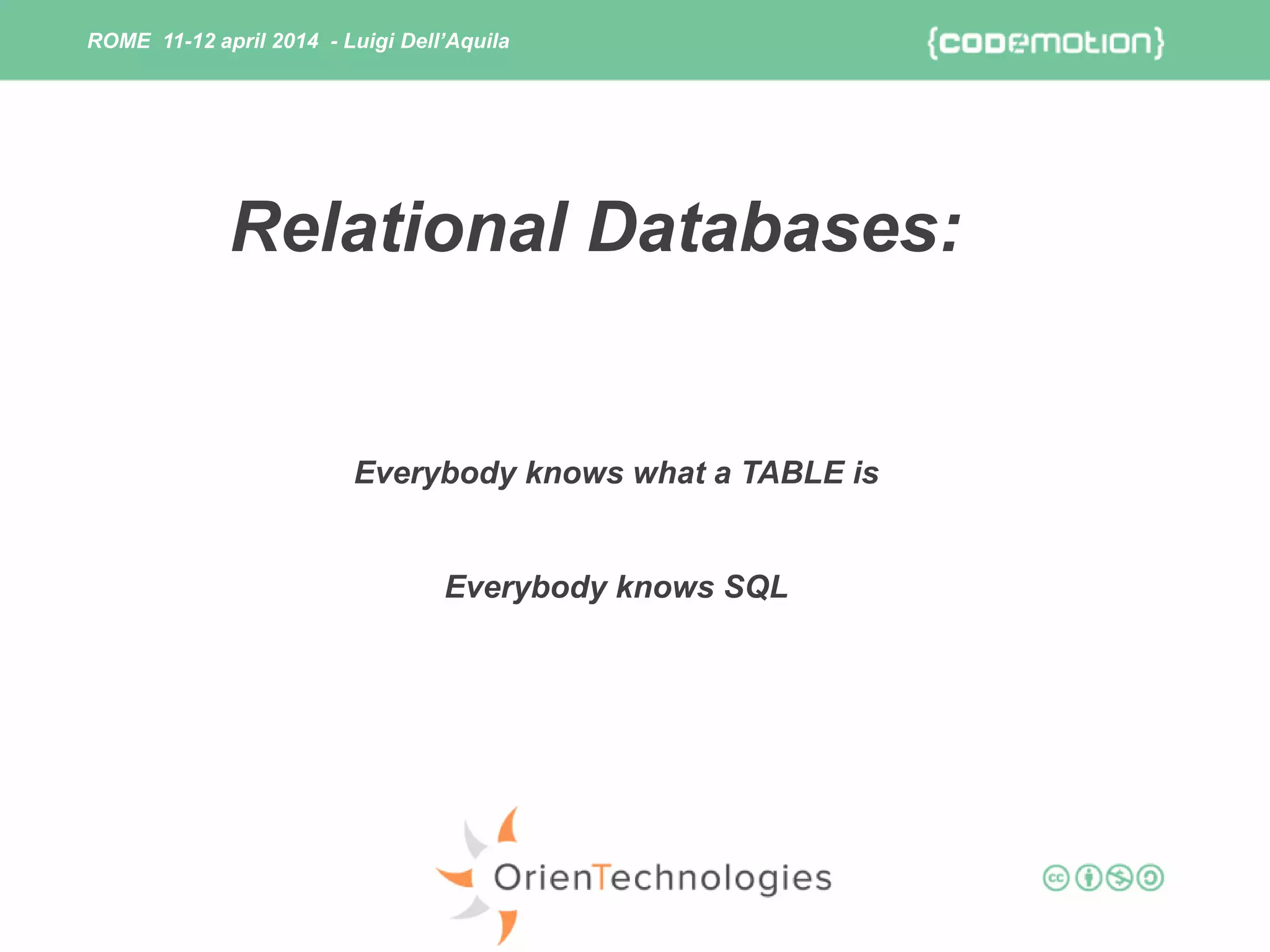

2. ROME 11-12 april 2014 - Luigi Dell’Aquila
Relational Databases:
Everybody knows what a TABLE is
Everybody knows SQL

3. ROME 11-12 april 2014 - Luigi Dell’Aquila
These are tables,
Data ARE Tables!

4. ROME 11-12 april 2014 - Luigi Dell’Aquila
These are tables,
Data ARE Tables!

5. ROME 11-12 april 2014 - Luigi Dell’Aquila
These are tables,
Data ARE Tables!

6. ROME 11-12 april 2014 - Luigi Dell’Aquila
But this is not

7. ROME 11-12 april 2014 - Luigi Dell’Aquila
But this is not

8. ROME 11-12 april 2014 - Luigi Dell’Aquila
But this is not

9. ROME 11-12 april 2014 - Luigi Dell’Aquila
But this is not

10. ROME 11-12 april 2014 - Luigi Dell’Aquila
But this is not

11. ROME 11-12 april 2014 - Luigi Dell’Aquila
These are
GRAPHS!

12. ROME 11-12 april 2014 - Luigi Dell’Aquila
And sometimes
Representing them in tables
Can be difficult
And
Inefficient

13. ROME 11-12 april 2014 - Luigi Dell’Aquila
Think about it…

14. ROME 11-12 april 2014 - Luigi Dell’Aquila
When you write your code
You have to deal with
Links, References, Pointers

15. ROME 11-12 april 2014 - Luigi Dell’Aquila
When you write your code
You have to deal with
Collections and Maps
(and dynamic data structures!)

16. ROME 11-12 april 2014 - Luigi Dell’Aquila
When you write your code
You have to deal with
Nested and complex objects

17. ROME 11-12 april 2014 - Luigi Dell’Aquila
When you write your code
You have to deal with
Class hierarchies,
Inheritance, Polymorphism

18. ROME 11-12 april 2014 - Luigi Dell’Aquila
Would You Like
A Storage Layer
That Supports ALL
These Conceps
Out Of The Box?

19. ROME 11-12 april 2014
This is why
Was born
- Luigi Dell’Aquila

20. ROME 11-12 april 2014 - Luigi Dell’Aquila
Two data models:
Graph
and
Document

21. ROME 11-12 april 2014 - Luigi Dell’Aquila
Classes, not Tables
create class Person
create class Student extends Person
select from Person
Polymorphic query: returns both instances of Person and
Student

22. ROME 11-12 april 2014 - Luigi Dell’Aquila
Dynamic schema
create class Person
insert into Person (name, surname) values (“Luigi”,
“Dell’Aquila”)
No need to fully specify the class structure, you can work in
schemaless mode

23. ROME 11-12 april 2014 - Luigi Dell’Aquila
Complex attributes
Update person
set address = {
“street”: “5th Ave”,
“city”: “NY”
},
tags = [“developer”, “artist”, “geek”]
Collections and embedded properties

24. ROME 11-12 april 2014 - Luigi Dell’Aquila
Physical links
(no Join!)
Update person set address.city =
(select from city where name = ‘Rome’)
where name = ‘Luigi’
Select address.city.country.name
from Person where name = ‘Luigi’
Dot notation instead of Join
No need for foreign keys
O(1) computational cost – compared to O(log N) in relational Join

25. ROME 11-12 april 2014 - Luigi Dell’Aquila
The Graph API
(TinkerPop Blueprints)
Traverse out(“Friend”) from
(select from Person where name = ‘Luigi’)
while address.city = ‘Rome’
Find my friends network in my city (friends, firends of frineds,
friends of friends of friends…)
Deep traversal, no need to know in advance HOW deep

26. ROME 11-12 april 2014 - Luigi Dell’Aquila
Every record has unique ID
Select from Person
{"result": [
{
"@rid": "#13:0",
"@class": “Person",
"name": "Luigi",
"surname": "Dell'Aquila",
"friendOf": "#13:1"
}
]}

27. ROME 11-12 april 2014 - Luigi Dell’Aquila
Every record has unique ID
Select from Person
{"result": [
{
"@rid": "#13:0",
"@class": “Person",
"name": "Luigi",
"surname": "Dell'Aquila",
"friendOf": "#13:1"
}
]}

28. ROME 11-12 april 2014 - Luigi Dell’Aquila
Every record has unique ID
Select from Person
{"result": [
{
"@rid": "#13:0",
"@class": “Person",
"name": "Luigi",
"surname": "Dell'Aquila",
"friendOf": "#13:1"
}
]}

29. ROME 11-12 april 2014 - Luigi Dell’Aquila
Record ID (RID)
=
Physical position

30. ROME 11-12 april 2014 - Luigi Dell’Aquila
Traversing relationships
=
Following a physical path

31. ROME 11-12 april 2014 - Luigi Dell’Aquila
It means:
• Accessing linked data is very efficient
• No calculation *
• Independent from cluster size **
• Deep traversal is allowed and encouraged ***
* In RDMS, a Join is calculated EVERY TIME you execute a query
** RDBS use index-based optimization to speed up joins, but index
access is O(log N), so it depends on data size – what about Big
Data???
*** in RDMS multiple joins are inefficient (would you dare to write a
query with 1000 joins?)

32. ROME 11-12 april 2014 - Luigi Dell’Aquila
But OrientDB
Gives you more!

33. ROME 11-12 april 2014 - Luigi Dell’Aquila
Javascript In the Storage
Extend the query language
With you own functions

34. ROME 11-12 april 2014 - Luigi Dell’Aquila
Javascript functions
As REST services

35. ROME 11-12 april 2014 - Luigi Dell’Aquila
But of course you can use it
from

36. ROME 11-12 april 2014 - Luigi Dell’Aquila
90’s are gone
Today you need

37. ROME 11-12 april 2014 - Luigi Dell’Aquila
Scalability

38. ROME 11-12 april 2014 - Luigi Dell’Aquila
High availability

39. ROME 11-12 april 2014 - Luigi Dell’Aquila
Fault tolerance

40. ROME 11-12 april 2014 - Luigi Dell’Aquila
Today everybody
(with a little luck)
Can write a killer app
And reach billions of users

41. ROME 11-12 april 2014 - Luigi Dell’Aquila
provides:
Replication (Multi Master)
and
Sharding
Also on cloud infrastructures

42. ROME 11-12 april 2014 - Luigi Dell’Aquila
HAZELCAST HAZELCAST
HAZELCAST
Multi Master

43. ROME 11-12 april 2014 - Luigi Dell’Aquila
Example

44. ROME 11-12 april 2014 - Luigi Dell’Aquila
HAZELCAST HAZELCAST
HAZELCAST
Amazon
Elastic
Load
Balancing
+
Auto
Scaling

45. ROME 11-12 april 2014 - Luigi Dell’Aquila
HOWTO 1/3
Key pair

46. ROME 11-12 april 2014 - Luigi Dell’Aquila
HOWTO 2/3
Security group

47. ROME 11-12 april 2014 - Luigi Dell’Aquila
HOWTO 3/3

48. ROME 11-12 april 2014ROME 11-12 april 2014
http://www.orientechnologies.com
http://www.orientechnologies.com/training
https://github.com/orientechnologies/orientdb/
Job opportunities: jobs@assetdata.it
References

49. ROME 11-12 april 2014ROME 11-12 april 2014
http://www.orientechnologies.com/event/orientdb-
planet-first-conference-orientdb-rome-italy/
OrientDB Planet
