mongoDB
• Written in: C++
• Data model: uses BSON (binary JSON),
lightweight, traversable, efficient
• Based on ‘document model’
• Use NoSQL (not only SQL), SQL is used
for RDBMS
• Retains some friendly properties of SQL
• License: AGPL (Drivers:Apache)

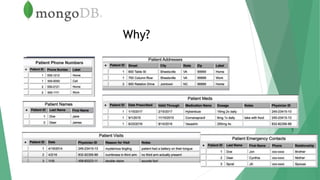

Why?
Why?
Why?
Why?
Why?
Why?
Why?
Drawbacks of such complexity
 Hard to understand
 Hard to add features
 Inefficient

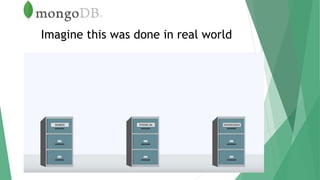

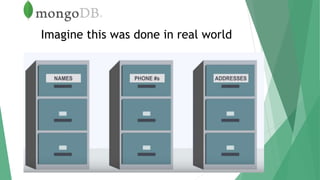

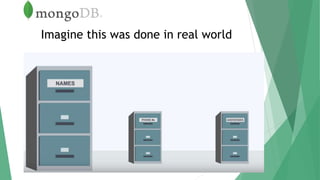

Imagine this was done in real world
Imagine this was done in real world
Imagine this was done in real world
Imagine this was done in real world
 mongoDB takes entirely different approach
 Here, Data is stored in records (called as
documents)
 Separate documents for each patient (example)

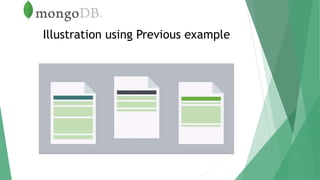

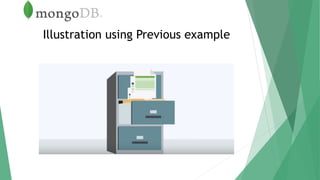

Illustration using Previous example
Illustration using Previous example
Illustration using Previous example
Illustration using Previous example
Hence,
 Efficient for computer to process
 Natural and easy for humans to read
 They can adapt
MongoDB terminology
 Databases
 Collections (Table in RDBMS)
 Documents (Tuple/Rows in RDBMS)
MongoDB Distributed Systems Architecture
Replication Sets
 Single-master!
 Maintains backup copies of database
instance
 Secondaries can elect a new primary within
seconds if primary goes down
Architecture
Replica Set Quirks
 Replicas only address durability, not ability to
scale
 A majority of the servers in your set must agree
on the primary
 Even number of servers (2) does not work
Architecture
Write process
 All write operation go through primary, which
applies the write operation.
 Write operation then records operations on
primary’s operation log “oplog”
 Secondary are continuously replicating the oplog
and applying the operations to themselves in an
asynchronous process
Architecture
Workloads Isolation
 Combines different classes of workload
Architecture
Sharding
 To meet the needs of app with large data sets and
high throughput requirements
Architecture
Sharding
 Mongos talks to exactly three Config server
Architecture

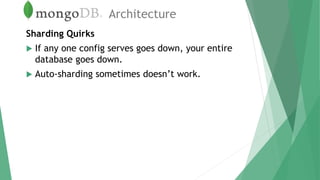

Sharding Quirks
 If any one config serves goes down, your entire
database goes down.
 Auto-sharding sometimes doesn’t work.
Architecture
Data Locality
 MongoDB zoned sharding allows precise control
over where data is physically stored in a cluster.
 Enables developers- data placement by
geographic region
 Developer can assign each shard to a zone
representing the physical location.
 Any number of shards can be associated with each
zone, and each zone can be scaled independently
of the other
Architecture

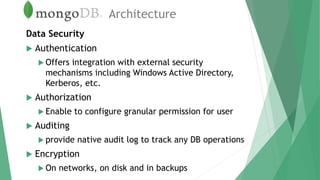

Data Security
 Authentication
 Offers integration with external security
mechanisms including Windows Active Directory,
Kerberos, etc.
 Authorization
 Enable to configure granular permission for user
 Auditing
 provide native audit log to track any DB operations
 Encryption
 On networks, on disk and in backups
Architecture

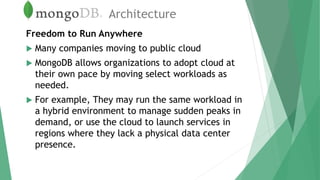

Freedom to Run Anywhere
 Many companies moving to public cloud
 MongoDB allows organizations to adopt cloud at
their own pace by moving select workloads as
needed.
 For example, They may run the same workload in
a hybrid environment to manage sudden peaks in
demand, or use the cloud to launch services in
regions where they lack a physical data center
presence.
Advantages over RDBMS
 Schema less
 Deep query ability
 Ease of scale-out
 Structure of single object is clear
 Uses internal memory for storing the working set,
enabling faster access of data
 Mapping of application objects to database
objects is not needed
Why use MongoDB?
 Document Oriented Storage
 Index on any attribute
 Replication and high availability
 Auto-sharding
 Rich queries
 Built-in aggregation capabilities, MapReduce,
GridFS
 Professional support by MongoDB
Where to use MongoDB?
 Big Data
 Content Management and Delivery
 Mobile and Social infrastructure
 User Data Management
 Data Hub
References-
 https://www.mongodb.com/what-is-mongodb
Mongodb Architectural Guide
 https://www.tutorialspoint.com/mongodb/
MongoDB Tutorials – TutorialsPoints
 Understanding mongodb, by Frank Kane - Youtube
video
 MongoDB in 5 minutes with Eliot Horowitz –
Youtube video
Thank You
