Orientation relation with facebow and hinge axis and abvance in facebow

Guided by-
Dr. Dilip Dhamankar
Dr. Sashi Purna
Dr. Brajesh Dammani
Dr. Ashwin Aidasani
Dr. Abhay Narayane
Presented by-
Dr. Pratik Hodar
2nd yr post graduate student
2Orientation Relation

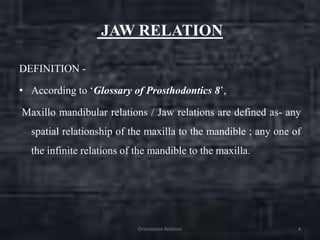

JAW RELATION
DEFINITION -
• According to ‘Glossary of Prosthodontics 8’,
Maxillo mandibular relations / Jaw relations are defined as- any
spatial relationship of the maxilla to the mandible ; any one of
the infinite relations of the mandible to the maxilla.
Orientation Relation 4

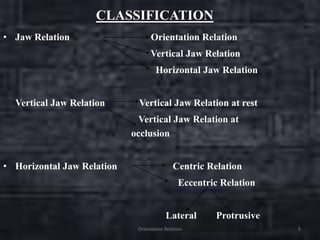

CLASSIFICATION
• Jaw Relation Orientation Relation
Vertical Jaw Relation
Horizontal Jaw Relation
Vertical Jaw Relation Vertical Jaw Relation at rest
Vertical Jaw Relation at
occlusion
• Horizontal Jaw Relation Centric Relation
Eccentric Relation
Lateral Protrusive

Introductio
n

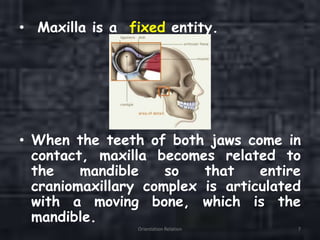

• Maxilla is a fixed entity.
• When the teeth of both jaws come in
contact, maxilla becomes related to
the mandible so that entire
craniomaxillary complex is articulated
with a moving bone, which is the
mandible.

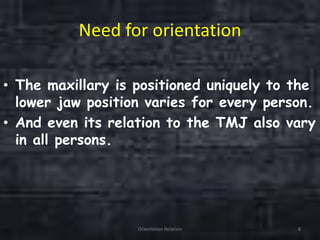

Need for orientation
• The maxillary is positioned uniquely to the
lower jaw position varies for every person.
• And even its relation to the TMJ also vary
in all persons.

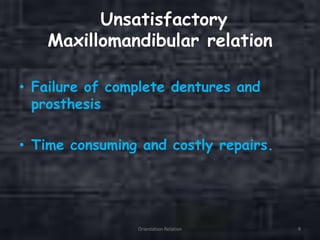

Unsatisfactory
Maxillomandibular relation
• Failure of complete dentures and
prosthesis
• Time consuming and costly repairs.

• The opening movement to bring the jaw
from occlusal to rest position is almost a
pure hinge movement.
• Here the mandible moves on an arc of a
circle with a definite radius from the
temporomandibular joint. This path of the
condyle is determined by the curvature of
the condylar head and the curvature of
glenoid fossa.

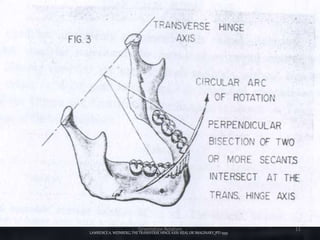

LAWRENCEA. WEINBERG, THE TRANSVERSE HINGEAXIS: REAL OR IMAGINARY,JPD 1959

LAWRENCEA. WEINBERG, THE TRANSVERSE HINGEAXIS: REAL OR IMAGINARY,JPD 1959

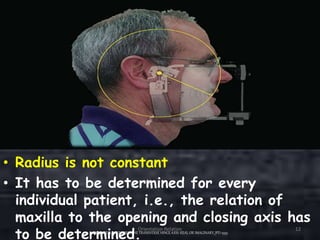

• Radius is not constant
• It has to be determined for every
individual patient, i.e., the relation of
maxilla to the opening and closing axis has
to be determined.LAWRENCEA. WEINBERG, THE TRANSVERSE HINGEAXIS: REAL OR IMAGINARY,JPD 1959

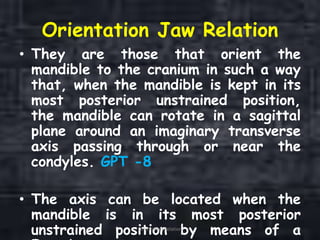

Orientation Jaw Relation
• They are those that orient the
mandible to the cranium in such a way
that, when the mandible is kept in its
most posterior unstrained position,
the mandible can rotate in a sagittal
plane around an imaginary transverse
axis passing through or near the
condyles. GPT -8
• The axis can be located when the
mandible is in its most posterior
unstrained position by means of aOrientation Relation 13

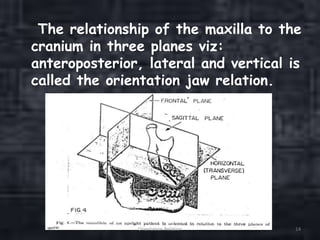

The relationship of the maxilla to the
cranium in three planes viz:
anteroposterior, lateral and vertical is
called the orientation jaw relation.

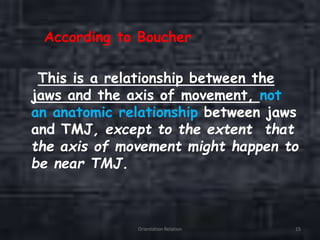

According to Boucher
This is a relationship between the
jaws and the axis of movement, not
an anatomic relationship between jaws
and TMJ, except to the extent that
the axis of movement might happen to
be near TMJ.

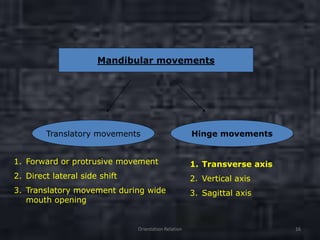

Mandibular movements
Translatory movements Hinge movements
1. Forward or protrusive movement
2. Direct lateral side shift
3. Translatory movement during wide
mouth opening
1. Transverse axis
2. Vertical axis
3. Sagittal axis

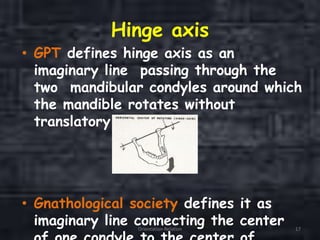

Hinge axis
• GPT defines hinge axis as an
imaginary line passing through the
two mandibular condyles around which
the mandible rotates without
translatory movement.
• Gnathological society defines it as
imaginary line connecting the centerOrientation Relation 17

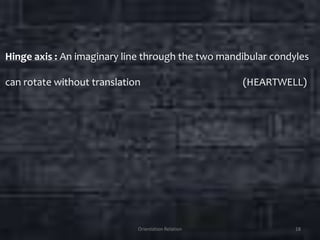

Hinge axis : An imaginary line through the two mandibular condyles
can rotate without translation (HEARTWELL)

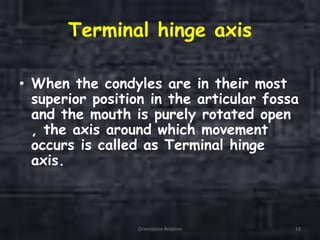

Terminal hinge axis
• When the condyles are in their most
superior position in the articular fossa
and the mouth is purely rotated open
, the axis around which movement
occurs is called as Terminal hinge
axis.

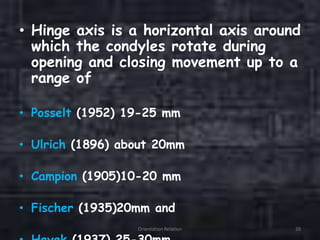

• Hinge axis is a horizontal axis around
which the condyles rotate during
opening and closing movement up to a
range of
• Posselt (1952) 19-25 mm
• Ulrich (1896) about 20mm
• Campion (1905)10-20 mm
• Fischer (1935)20mm and

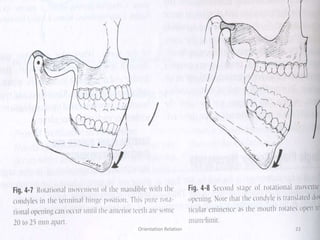

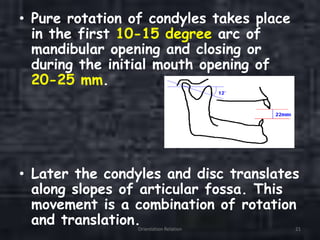

• Pure rotation of condyles takes place
in the first 10-15 degree arc of
mandibular opening and closing or
during the initial mouth opening of
20-25 mm.
• Later the condyles and disc translates
along slopes of articular fossa. This
movement is a combination of rotation
and translation.Orientation Relation 21

• Graphic records of mandibular
movements and radiographic
investigations of the TMJ have
repeatedly shown that this assumption
is well founded, and that in normal
subjects and for small opening
movements the horizontal axis of
rotation does in fact pass through the
condyles.

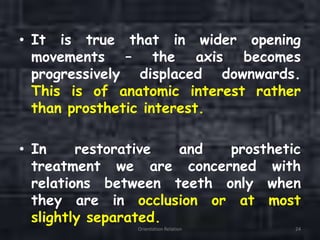

• It is true that in wider opening
movements – the axis becomes
progressively displaced downwards.
This is of anatomic interest rather
than prosthetic interest.
• In restorative and prosthetic
treatment we are concerned with
relations between teeth only when
they are in occlusion or at most
slightly separated.

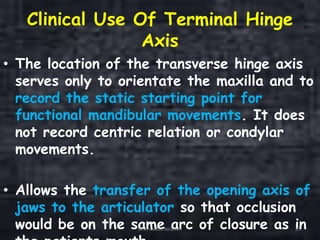

Clinical Use Of Terminal Hinge
Axis
• The location of the transverse hinge axis
serves only to orientate the maxilla and to
record the static starting point for
functional mandibular movements. It does
not record centric relation or condylar
movements.
• Allows the transfer of the opening axis of
jaws to the articulator so that occlusion
would be on the same arc of closure as inOrientation Relation 25

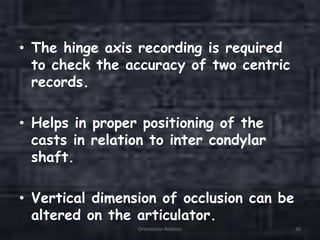

• The hinge axis recording is required
to check the accuracy of two centric
records.
• Helps in proper positioning of the
casts in relation to inter condylar
shaft.
• Vertical dimension of occlusion can be
altered on the articulator.

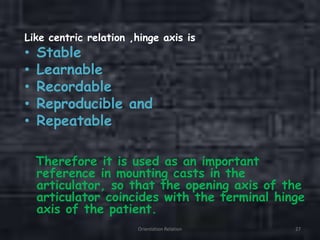

Like centric relation ,hinge axis is
• Stable
• Learnable
• Recordable
• Reproducible and
• Repeatable
Therefore it is used as an important
reference in mounting casts in the
articulator, so that the opening axis of the
articulator coincides with the terminal hinge
axis of the patient.

History of hinge axis
• Grays Anatomy – flinge like action
• Snow – developed face bow
• Mc Collum, Sheart & others – 1921 –
discovered the positive method of locating
this axis.
• Sloane – 1952 – demonstrated mandibular
axis as biomechanical fact
• Sincher – variable wide range is possible.

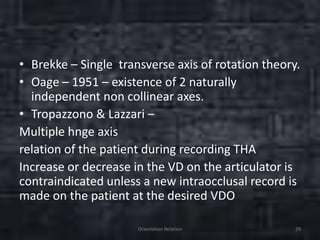

• Brekke – Single transverse axis of rotation theory.
• Oage – 1951 – existence of 2 naturally
independent non collinear axes.
• Tropazzono & Lazzari –
Multiple hnge axis
relation of the patient during recording THA
Increase or decrease in the VD on the articulator is
contraindicated unless a new intraocclusal record is
made on the patient at the desired VDO

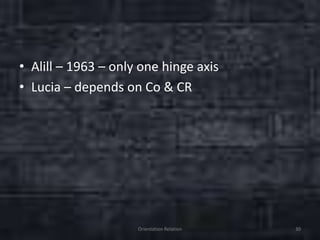

• Alill – 1963 – only one hinge axis
• Lucia – depends on Co & CR

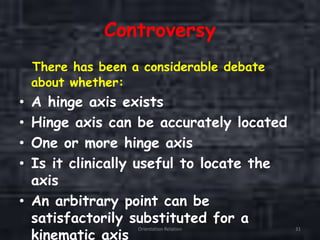

Controversy
There has been a considerable debate
about whether:
• A hinge axis exists
• Hinge axis can be accurately located
• One or more hinge axis
• Is it clinically useful to locate the
axis
• An arbitrary point can be
satisfactorily substituted for a
kinematic axis

Review of literature

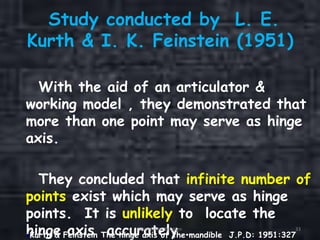

Study conducted by L. E.
Kurth & I. K. Feinstein (1951)
With the aid of an articulator &
working model , they demonstrated that
more than one point may serve as hinge
axis.
They concluded that infinite number of
points exist which may serve as hinge
points. It is unlikely to locate the
hinge axis accurately .Kurth & Feinstein The hinge axis of the mandible J.P.D: 1951:327

Study conducted by Robert G
Scholl Horn (1957)
He recorded the arbitrary center & true
hinge axis in 70 dental students.
He concluded that arbitrary axis of rotation

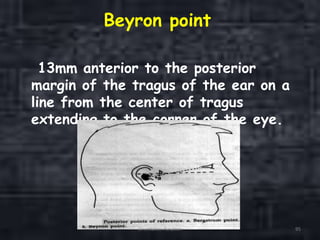

which is 13mm ant. to the posterior margin
of the tragus on tragal canthus line lies
close to an average determined axis.
In 95% of subjects Kinematic center lies
within 5mm radius , which is considered to
be within normal limits.
So determining kinematic center is not
necessary.R.G. Schallhorn .A study of the arbitrary center &the kinematic center of rotation for face bow

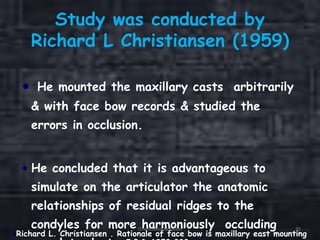

Study was conducted by
Richard L Christiansen (1959)
He mounted the maxillary casts arbitrarily
& with face bow records & studied the
errors in occlusion.
He concluded that it is advantageous to
simulate on the articulator the anatomic
relationships of residual ridges to the
condyles for more harmoniously occluding
Richard L. Christiansen . Rationale of face bow is maxillary east mounting

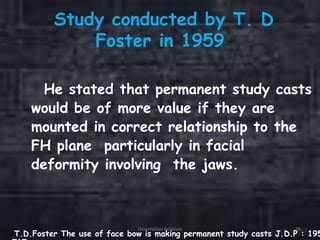

Study conducted by T. D
Foster in 1959
He stated that permanent study casts
would be of more value if they are
mounted in correct relationship to the
FH plane particularly in facial
deformity involving the jaws.
T.D.Foster The use of face bow is making permanent study casts J.D.P : 195

Study was conducted by Arne
Lauritzen & George H. Bodner in
1961.
They marked true hinge axis &
arbitrary hinge axis by 3 methods
.They concluded that in 67% of
cases the true hinge axis was 5 to 13
mm away from the arbitrarily located
hinge axis points.
Lauritzen & Wolford Hinge axis location on an experimental basis J.P.D 196

Study was conducted by Vincent R.
Trappazzan , Jhon B.Lazzari in
1961.
They conducted the study on 14
subjects .
They concluded that in 57.2% of the
subjects, more than one hinge axis
point was located on either one or
both sides.
42.8% of the subjects showed single
hinge axis point on left & right sideVincent R. Trapazzano & John B. Lazzari A study of Hinge axis

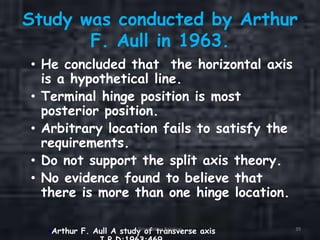

Study was conducted by Arthur
F. Aull in 1963.
• He concluded that the horizontal axis
is a hypothetical line.
• Terminal hinge position is most
posterior position.
• Arbitrary location fails to satisfy the
requirements.
• Do not support the split axis theory.
• No evidence found to believe that
there is more than one hinge location.
Arthur F. Aull A study of transverse axisOrientation Relation 39

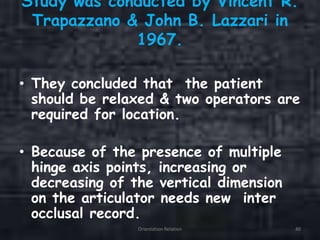

Study was conducted by Vincent R.
Trapazzano & John B. Lazzari in
1967.
• They concluded that the patient
should be relaxed & two operators are
required for location.
• Because of the presence of multiple
hinge axis points, increasing or
decreasing of the vertical dimension
on the articulator needs new inter
occlusal record.

Study was conducted by Virgillo
Ferrario, Chairello Sforza,
Graziano Serrao & Johannes H.
Schmitz in 2002
• They assessed reliability of the face bow
by comparing the values with those
obtained by computerized non invasive
instrument.
• They concluded that face bow reliably
reproduced the spatial orientation of the
occlusal plane relative to the true
Virgillo Ferrario, et al Three dimensional assessment of the reliability of a
postural face bow transfer J.P.D.2002:87:210.Orientation Relation 41

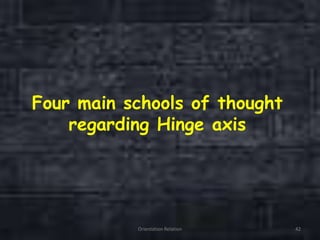

Four main schools of thought
regarding Hinge axis

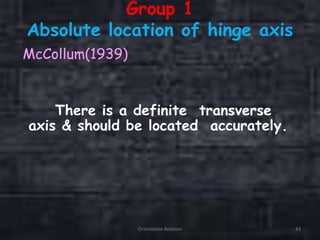

Group 1
Absolute location of hinge axis
McCollum(1939)
There is a definite transverse
axis & should be located accurately.

• With the use of face-bow the articulator axis can be related
to the maxillary cast in the same way as the anatomic axis is
related to human maxilla.
• In doing so the path of closure of mandible and the
articulator will be the same
• This helps in placement of cusps in a way that it does not
collide during border movements
• The hinge axis is a component of every masticatory
movement. This entity cannot be disregarded
• The hinge axis relationships between the articulator and
the jaw must be the same. Otherwise the mechanical
reproduction of jaw motions on the articulator is
impossible.

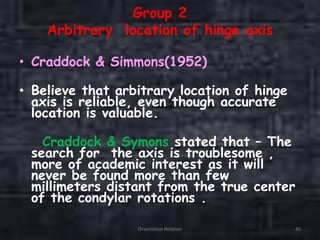

Group 2
Arbitrary location of hinge axis
• Craddock & Simmons(1952)
• Believe that arbitrary location of hinge
axis is reliable, even though accurate
location is valuable.
Craddock & Symons stated that – The
search for the axis is troublesome ,
more of academic interest as it will
never be found more than few
millimeters distant from the true center
of the condylar rotations .

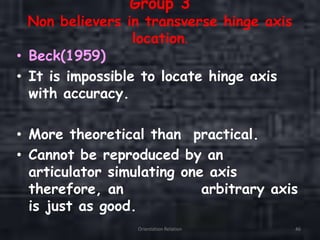

Group 3
Non believers in transverse hinge axis
location.
• Beck(1959)
• It is impossible to locate hinge axis
with accuracy.
• More theoretical than practical.
• Cannot be reproduced by an
articulator simulating one axis
therefore, an arbitrary axis
is just as good.

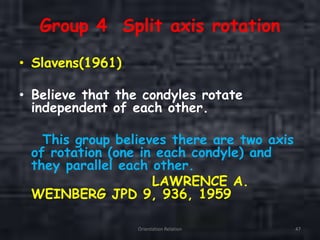

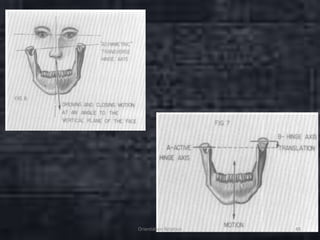

Group 4 Split axis rotation
• Slavens(1961)
• Believe that the condyles rotate
independent of each other.
This group believes there are two axis
of rotation (one in each condyle) and
they parallel each other.
LAWRENCE A.
WEINBERG JPD 9, 936, 1959

Face bow
The face bow is a caliper like device
that is used to record the relationship
of the jaws to the temporomandibular
joints or the opening axis of the jaws
and to orient the casts in the same
relationship to the opening axis of the
articulator.
Boucher 11th edition

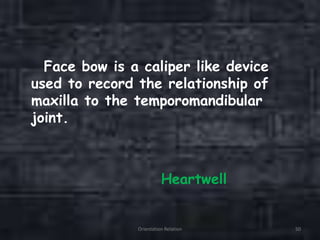

Face bow is a caliper like device
used to record the relationship of
maxilla to the temporomandibular
joint.
Heartwell

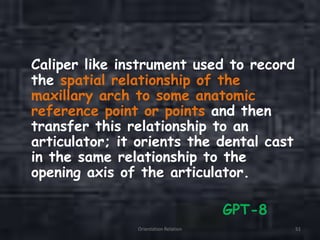

Caliper like instrument used to record
the spatial relationship of the
maxillary arch to some anatomic
reference point or points and then
transfer this relationship to an
articulator; it orients the dental cast
in the same relationship to the
opening axis of the articulator.
GPT-8

History and Evolution of
Face bow

Bonwill, (1860) determined the distance
from the center of each condyle to the
median incisal point and the lower teeth as
10cm. He used this standard for mounting
his casts in the articulator.
• V
Disadvantage
He did not mention at what level below
the condylar mechanism the occlusal planeOrientation Relation 53
Brandrup WognsenThe Face-bow. ITS Signlflcance: AND Application j. Pros. Dent. 1953

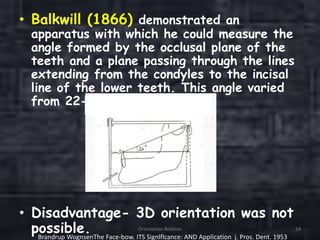

• Balkwill (1866) demonstrated an
apparatus with which he could measure the
angle formed by the occlusal plane of the
teeth and a plane passing through the lines
extending from the condyles to the incisal
line of the lower teeth. This angle varied
from 22-30°.
• Disadvantage- 3D orientation was not
possible. Orientation Relation 54

• Hayes (1880) introduced first example
of functional face bow like device
intended for locating the position of the
casts correctly in the articulator. He
named the device as articulating
caliper

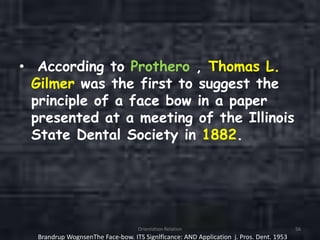

• According to Prothero , Thomas L.
Gilmer was the first to suggest the
principle of a face bow in a paper
presented at a meeting of the Illinois
State Dental Society in 1882.

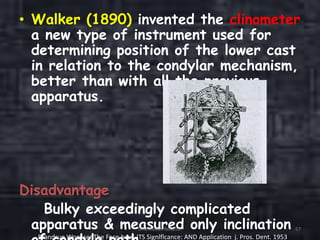

• Walker (1890) invented the clinometer
a new type of instrument used for
determining position of the lower cast
in relation to the condylar mechanism,
better than with all the previous
apparatus.
Disadvantage
Bulky exceedingly complicated
apparatus & measured only inclinationOrientation Relation 57

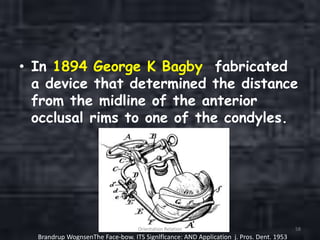

• In 1894 George K Bagby fabricated
a device that determined the distance
from the midline of the anterior
occlusal rims to one of the condyles.

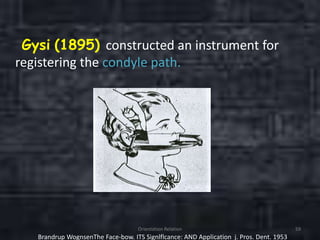

Gysi (1895) constructed an instrument for
registering the condyle path.

• George B. Snow (1899)
Invented a device which became
prototype for modern face bow.
• The Snow facebow, 1924, the first instrument used by B. B.
McCollum to locate the “hinge axis.”

Since the introduction of Snow's
apparatus, no fundamental changes
have been made in the face bow
design.
Snow determined the position of
the casts in the articulator not
only in regard to distance of the
mid incisal point from the condyles
but also the other points of the
occlusal plane were given theOrientation Relation 61

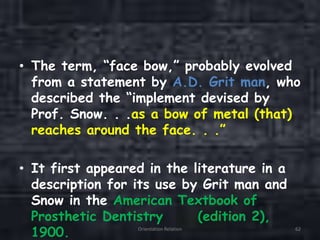

• The term, “face bow,” probably evolved
from a statement by A.D. Grit man, who
described the “implement devised by
Prof. Snow. . .as a bow of metal (that)
reaches around the face. . .”
• It first appeared in the literature in a
description for its use by Grit man and
Snow in the American Textbook of
Prosthetic Dentistry (edition 2),
1900. Orientation Relation 62

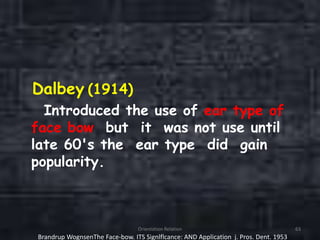

Dalbey (1914)
Introduced the use of ear type of
face bow but it was not use until
late 60's the ear type did gain
popularity.

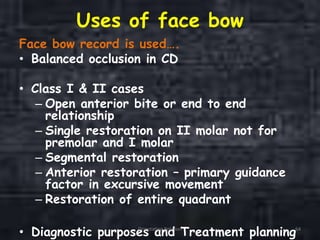

Uses of face bow
Face bow record is used….
• Balanced occlusion in CD
• Class I & II cases
– Open anterior bite or end to end
relationship
– Single restoration on II molar not for
premolar and I molar
– Segmental restoration
– Anterior restoration – primary guidance
factor in excursive movement
– Restoration of entire quadrant
• Diagnostic purposes and Treatment planningOrientation Relation 64

Articulators that do not offer
possibility to use facebows are more
like model holders

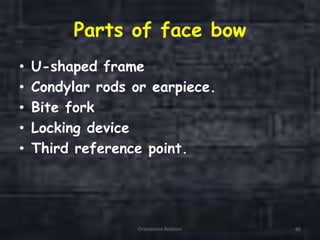

Parts of face bow
• U-shaped frame
• Condylar rods or earpiece.
• Bite fork
• Locking device
• Third reference point.

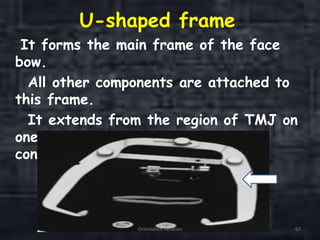

U-shaped frame
It forms the main frame of the face
bow.
All other components are attached to
this frame.
It extends from the region of TMJ on
one side to the other side without
contacting the face.

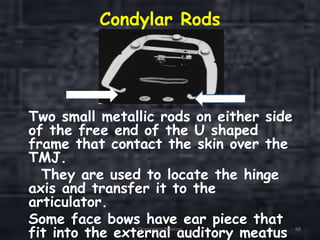

Condylar Rods
Two small metallic rods on either side
of the free end of the U shaped
frame that contact the skin over the
TMJ.
They are used to locate the hinge
axis and transfer it to the
articulator.
Some face bows have ear piece that
fit into the external auditory meatusOrientation Relation 68

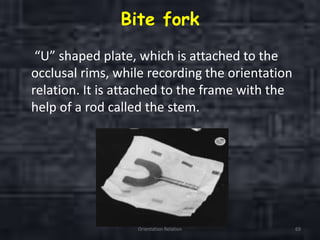

Bite fork
“U” shaped plate, which is attached to the
occlusal rims, while recording the orientation
relation. It is attached to the frame with the
help of a rod called the stem.

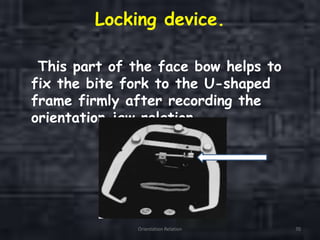

Locking device.
This part of the face bow helps to
fix the bite fork to the U-shaped
frame firmly after recording the
orientation jaw relation.

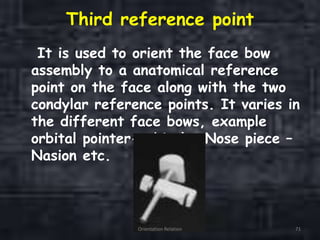

Third reference point
It is used to orient the face bow
assembly to a anatomical reference
point on the face along with the two
condylar reference points. It varies in
the different face bows, example

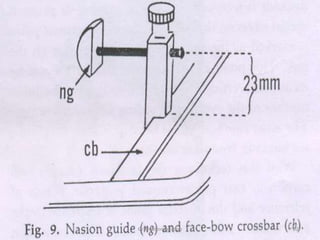

orbital pointer-orbitale, Nose piece –
Nasion etc.

Classification
Face bow
Arbitrary Kinematic
Fascia type Ear piece type
With orbital indicatorWith nasal relator

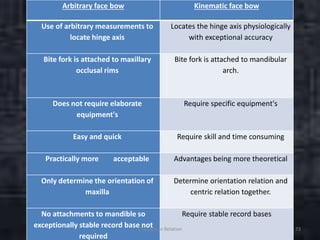

Arbitrary face bow Kinematic face bow
Use of arbitrary measurements to
locate hinge axis
Locates the hinge axis physiologically
with exceptional accuracy
Bite fork is attached to maxillary
occlusal rims
Bite fork is attached to mandibular
arch.
Does not require elaborate
equipment's
Require specific equipment's
Easy and quick Require skill and time consuming
Practically more acceptable Advantages being more theoretical
Only determine the orientation of
maxilla
Determine orientation relation and
centric relation together.
No attachments to mandible so
exceptionally stable record base not
required
Require stable record bases

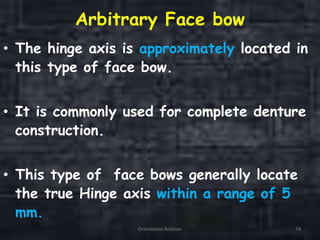

Arbitrary Face bow
• The hinge axis is approximately located in
this type of face bow.
• It is commonly used for complete denture
construction.
• This type of face bows generally locate
the true Hinge axis within a range of 5
mm.

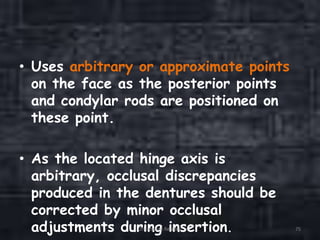

• Uses arbitrary or approximate points
on the face as the posterior points
and condylar rods are positioned on
these point.
• As the located hinge axis is
arbitrary, occlusal discrepancies
produced in the dentures should be
corrected by minor occlusal
adjustments during insertion.Orientation Relation 75

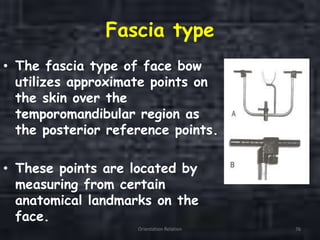

Fascia type
• The fascia type of face bow
utilizes approximate points on
the skin over the
temporomandibular region as
the posterior reference points.
• These points are located by
measuring from certain
anatomical landmarks on the
face.

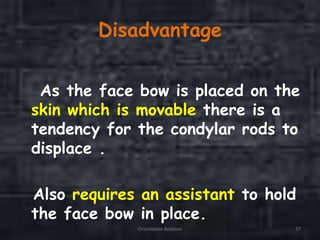

Disadvantage
As the face bow is placed on the
skin which is movable there is a
tendency for the condylar rods to
displace .
Also requires an assistant to hold
the face bow in place.

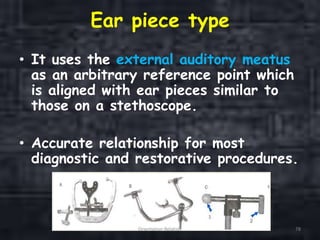

Ear piece type
• It uses the external auditory meatus
as an arbitrary reference point which
is aligned with ear pieces similar to
those on a stethoscope.
• Accurate relationship for most
diagnostic and restorative procedures.

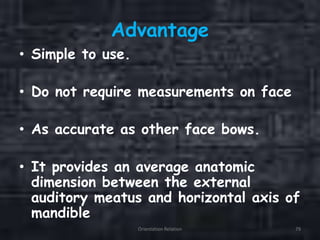

Advantage
• Simple to use.
• Do not require measurements on face
• As accurate as other face bows.
• It provides an average anatomic
dimension between the external
auditory meatus and horizontal axis of
mandible

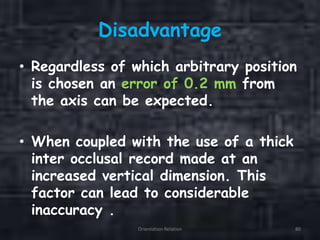

Disadvantage
• Regardless of which arbitrary position
is chosen an error of 0.2 mm from
the axis can be expected.
• When coupled with the use of a thick
inter occlusal record made at an
increased vertical dimension. This
factor can lead to considerable
inaccuracy .

Spring bow (Hanau’s face bow)
• It is an earpiece face bow made of
spring steel and simply springs open
and close to various head widths.
• Most commonly used face bow.
• This instrument is designed to orient
the occlusal plane to the Frankfort
horizontal plane by means for a third
point of referenceOrientation Relation 81

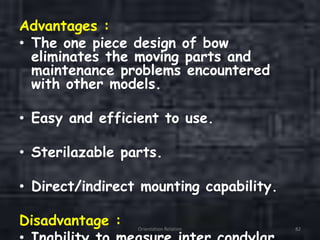

Advantages :
• The one piece design of bow
eliminates the moving parts and
maintenance problems encountered
with other models.
• Easy and efficient to use.
• Sterilazable parts.
• Direct/indirect mounting capability.
Disadvantage : Orientation Relation 82

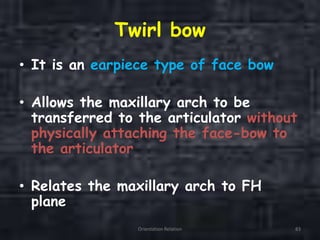

Twirl bow
• It is an earpiece type of face bow
• Allows the maxillary arch to be
transferred to the articulator without
physically attaching the face-bow to
the articulator
• Relates the maxillary arch to FH
plane

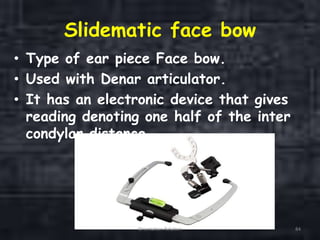

Slidematic face bow
• Type of ear piece Face bow.
• Used with Denar articulator.
• It has an electronic device that gives
reading denoting one half of the inter
condylar distance.

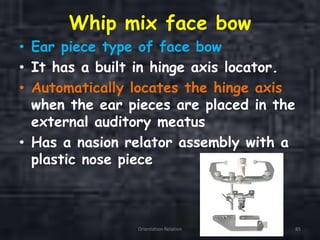

Whip mix face bow
• Ear piece type of face bow
• It has a built in hinge axis locator.
• Automatically locates the hinge axis
when the ear pieces are placed in the
external auditory meatus
• Has a nasion relator assembly with a
plastic nose piece

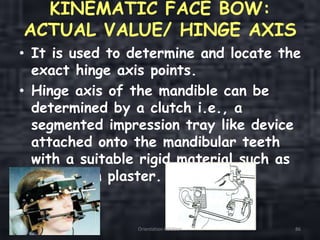

KINEMATIC FACE BOW:
ACTUAL VALUE/ HINGE AXIS
• It is used to determine and locate the
exact hinge axis points.
• Hinge axis of the mandible can be
determined by a clutch i.e., a
segmented impression tray like device
attached onto the mandibular teeth
with a suitable rigid material such as
impression plaster.

Indication :
• When it is critical to precisely
reproduce the exact opening and
closing movement of the patient to
the articulator.
Draw backs :
• Extensive chair side.
• Expensive
• Rarely indicated for routine
articulators with prosthodontic
procedures.

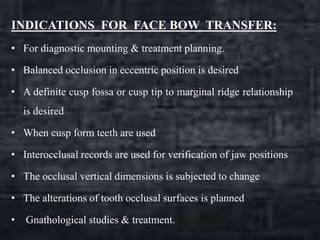

INDICATIONS FOR FACE BOW TRANSFER:
• For diagnostic mounting & treatment planning.
• Balanced occlusion in eccentric position is desired
• A definite cusp fossa or cusp tip to marginal ridge relationship
is desired
• When cusp form teeth are used
• Interocclusal records are used for verification of jaw positions
• The occlusal vertical dimensions is subjected to change
• The alterations of tooth occlusal surfaces is planned
• Gnathological studies & treatment.

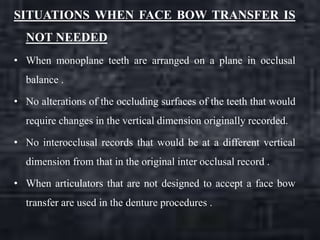

SITUATIONS WHEN FACE BOW TRANSFER IS
NOT NEEDED
• When monoplane teeth are arranged on a plane in occlusal
balance .
• No alterations of the occluding surfaces of the teeth that would
require changes in the vertical dimension originally recorded.
• No interocclusal records that would be at a different vertical
dimension from that in the original inter occlusal record .
• When articulators that are not designed to accept a face bow
transfer are used in the denture procedures .

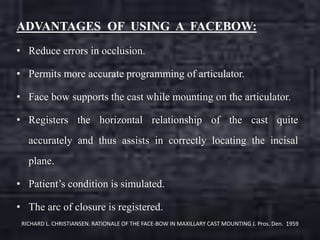

ADVANTAGES OF USING A FACEBOW:
• Reduce errors in occlusion.
• Permits more accurate programming of articulator.
• Face bow supports the cast while mounting on the articulator.
• Registers the horizontal relationship of the cast quite
accurately and thus assists in correctly locating the incisal
plane.
• Patient’s condition is simulated.
• The arc of closure is registered.
RICHARD L. CHRISTIANSEN. RATIONALE OF THE FACE-BOW IN MAXILLARY CAST MOUNTING J. Pros. Den. 1959

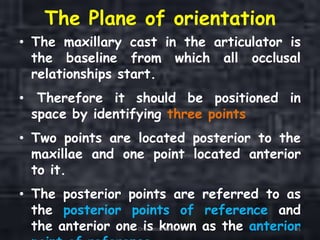

The Plane of orientation
• The maxillary cast in the articulator is
the baseline from which all occlusal
relationships start.
• Therefore it should be positioned in
space by identifying three points
• Two points are located posterior to the
maxillae and one point located anterior
to it.
• The posterior points are referred to as
the posterior points of reference and
the anterior one is known as the anteriorOrientation Relation 91

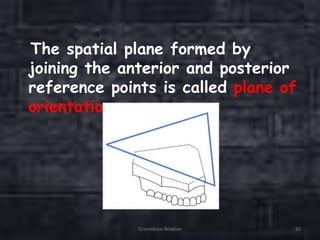

The spatial plane formed by
joining the anterior and posterior
reference points is called plane of
orientation.

Prior to aligning the face bow on
the face, the posterior reference
points and the anterior reference
point must be located and marked.

Posterior reference points
The position of the terminal hinge
axis on either side of the face is
generally taken as the posterior
reference points.

Beyron point
13mm anterior to the posterior
margin of the tragus of the ear on a
line from the center of tragus
extending to the corner of the eye.

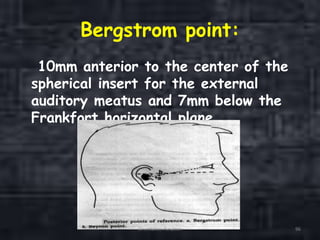

Bergstrom point:
10mm anterior to the center of the
spherical insert for the external
auditory meatus and 7mm below the
Frankfort horizontal plane.

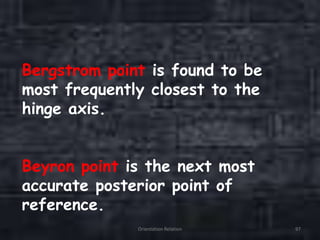

Bergstrom point is found to be
most frequently closest to the
hinge axis.
Beyron point is the next most
accurate posterior point of
reference.

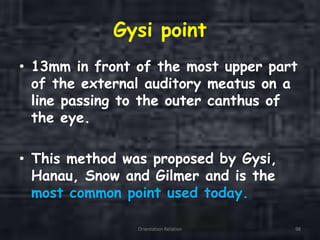

Gysi point
• 13mm in front of the most upper part
of the external auditory meatus on a
line passing to the outer canthus of
the eye.
• This method was proposed by Gysi,
Hanau, Snow and Gilmer and is the
most common point used today.

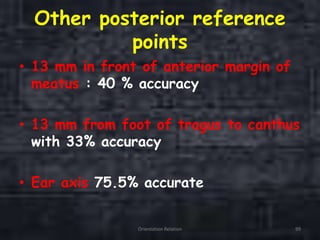

Other posterior reference
points
• 13 mm in front of anterior margin of
meatus : 40 % accuracy
• 13 mm from foot of tragus to canthus
with 33% accuracy
• Ear axis 75.5% accurate

Why Anterior Point of
Reference?
• Anterior point of the triangular spatial
plane determines which plane in the head
will become the plane of reference when
the prosthesis is being fabricated.
• When three points are used the position
can be repeated
• To visualize the anterior teeth and their
occlusion in the articulator in same frame
of reference that would be used whenOrientation Relation 100

Orbitale
• In the skull, orbitale is the lowest
point of the infra orbital rim.
• On a patient it can be palpated
through the overlying tissue and the
skin.
• One orbitale and the two posterior
points that determine the horizontal
axis of rotation will define the axis
orbital plane. Orientation Relation 101

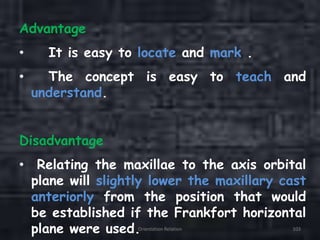

Advantage
• It is easy to locate and mark .
• The concept is easy to teach and
understand.
Disadvantage
• Relating the maxillae to the axis orbital
plane will slightly lower the maxillary cast
anteriorly from the position that would
be established if the Frankfort horizontal
plane were used.Orientation Relation 103

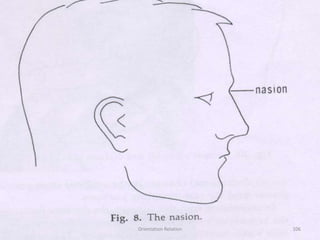

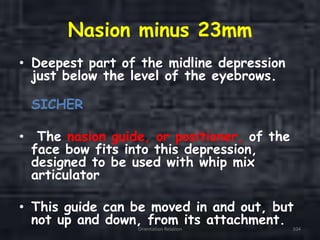

Nasion minus 23mm
• Deepest part of the midline depression
just below the level of the eyebrows.
SICHER
• The nasion guide, or positioner, of the
face bow fits into this depression,
designed to be used with whip mix
articulator
• This guide can be moved in and out, but
not up and down, from its attachment.Orientation Relation 104

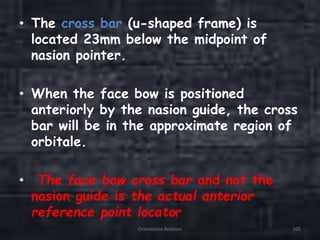

• The cross bar (u-shaped frame) is
located 23mm below the midpoint of
nasion pointer.
• When the face bow is positioned
anteriorly by the nasion guide, the cross
bar will be in the approximate region of
orbitale.
• The face bow cross bar and not the
nasion guide is the actual anterior
reference point locator

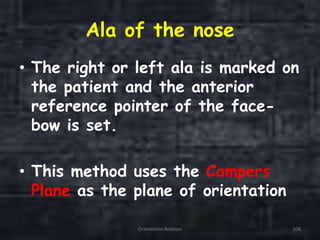

Ala of the nose
• The right or left ala is marked on
the patient and the anterior
reference pointer of the face-
bow is set.

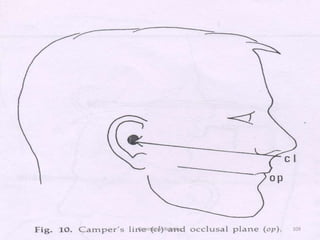

• This method uses the Campers
Plane as the plane of orientation

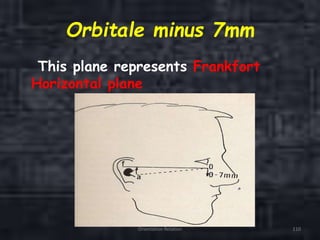

Orbitale minus 7mm
This plane represents Frankfort
Horizontal plane

43 mm superior from lower
border of upper lip
• This plane represents Denar reference
plane
• Denar face bow uses this reference
point

Face bow transfer
• Face bows that can be utilized with Hanau
articulator
Fascia
Ear piece
Twirl bow
Spring bow
Kinematic
• Face bows that can be utilized with Whip mix
articulator
Quick mount ear piece
Kinematic
• Face bows that can be utilized with Denar
articulator
Fascia
Ear piece Orientation Relation 112

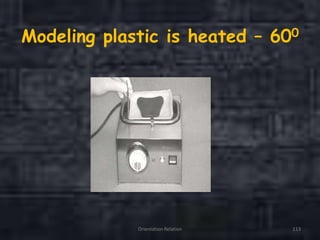

Modeling plastic is heated – 600

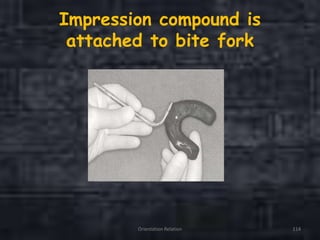

Impression compound is
attached to bite fork

It is positioned over the
maxillary teeth

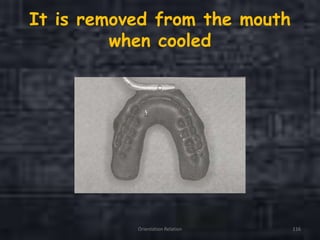

It is removed from the mouth
when cooled

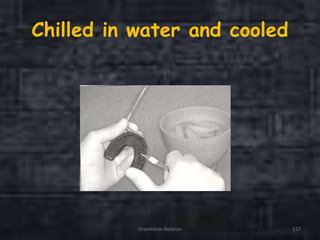

Chilled in water and cooled

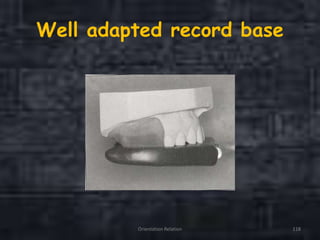

Well adapted record base

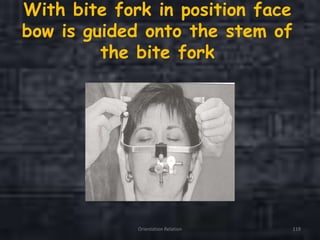

With bite fork in position face
bow is guided onto the stem of
the bite fork

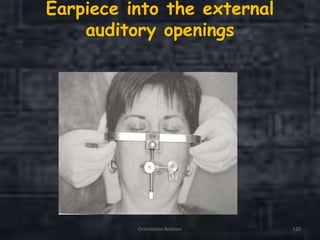

Earpiece into the external
auditory openings

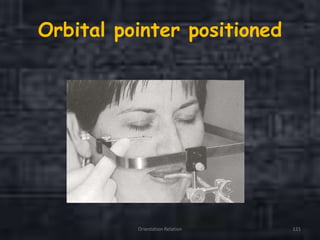

Orbital pointer positioned

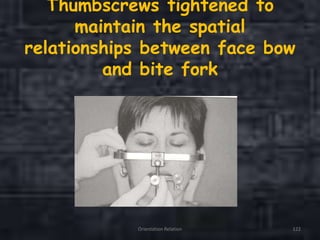

Thumbscrews tightened to
maintain the spatial
relationships between face bow
and bite fork

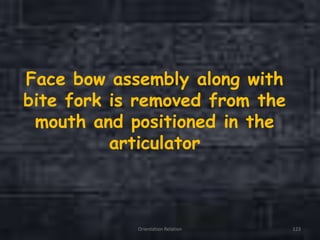

Face bow assembly along with
bite fork is removed from the
mouth and positioned in the
articulator

How to take a face bow record
using arbitrary face bow
5 min Video

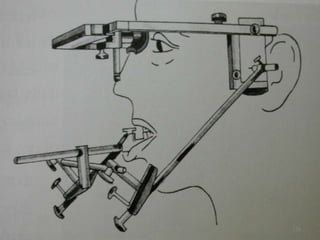

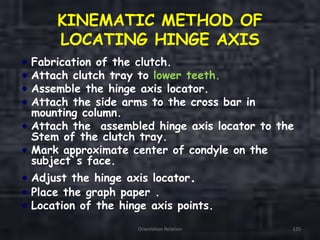

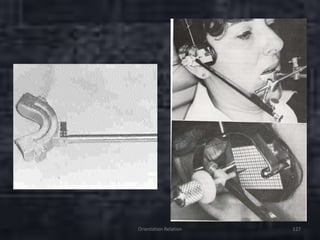

KINEMATIC METHOD OF
LOCATING HINGE AXIS
Fabrication of the clutch.
Attach clutch tray to lower teeth.
Assemble the hinge axis locator.
Attach the side arms to the cross bar in
mounting column.
Attach the assembled hinge axis locator to the
Stem of the clutch tray.
Mark approximate center of condyle on the
subject`s face.
Adjust the hinge axis locator.
Place the graph paper .
Location of the hinge axis points.

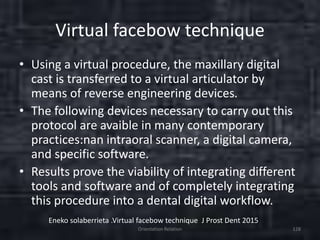

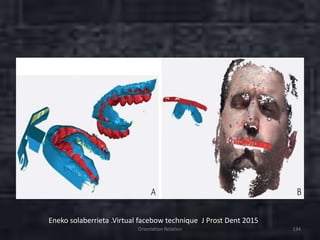

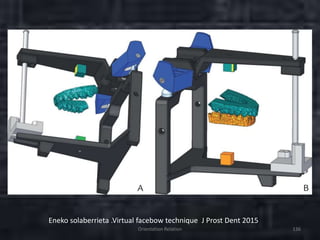

Virtual facebow technique
• Using a virtual procedure, the maxillary digital
cast is transferred to a virtual articulator by
means of reverse engineering devices.
• The following devices necessary to carry out this
protocol are avaible in many contemporary
practices:nan intraoral scanner, a digital camera,
and specific software.
• Results prove the viability of integrating different
tools and software and of completely integrating
this procedure into a dental digital workflow.

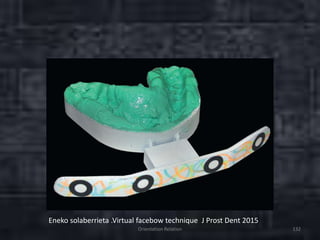

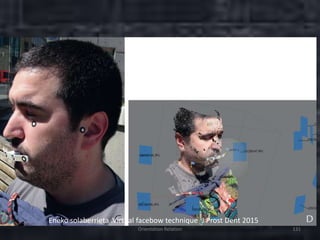

Eneko solaberrieta .Virtual facebow technique J Prost Dent 2015

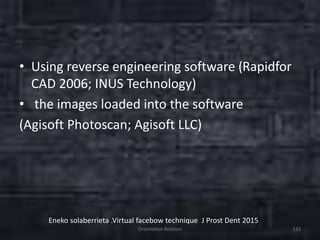

• Using reverse engineering software (Rapidfor
CAD 2006; INUS Technology)
• the images loaded into the software
(Agisoft Photoscan; Agisoft LLC)

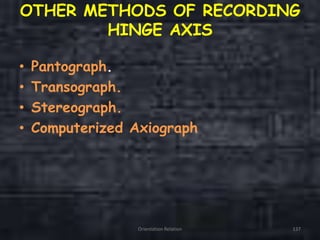

OTHER METHODS OF RECORDING
HINGE AXIS
• Pantograph.
• Transograph.
• Stereograph.
• Computerized Axiograph

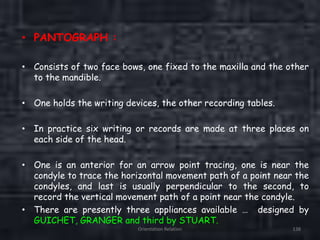

• PANTOGRAPH :
• Consists of two face bows, one fixed to the maxilla and the other
to the mandible.
• One holds the writing devices, the other recording tables.
• In practice six writing or records are made at three places on
each side of the head.
• One is an anterior for an arrow point tracing, one is near the
condyle to trace the horizontal movement path of a point near the
condyles, and last is usually perpendicular to the second, to
record the vertical movement path of a point near the condyle.
• There are presently three appliances available … designed by
GUICHET, GRANGER and third by STUART.

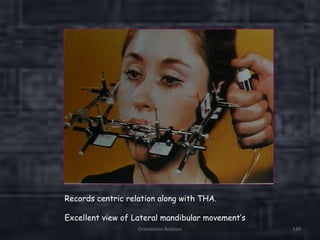

Records centric relation along with THA.
Excellent view of Lateral mandibular movement’s

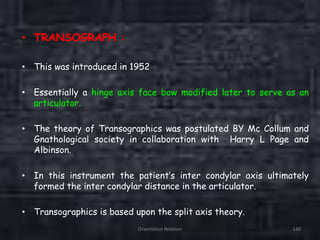

• TRANSOGRAPH :
• This was introduced in 1952
• Essentially a hinge axis face bow modified later to serve as an
articulator.
• The theory of Transographics was postulated BY Mc Collum and
Gnathological society in collaboration with Harry L Page and
Albinson.
• In this instrument the patient’s inter condylar axis ultimately
formed the inter condylar distance in the articulator.
• Transographics is based upon the split axis theory.

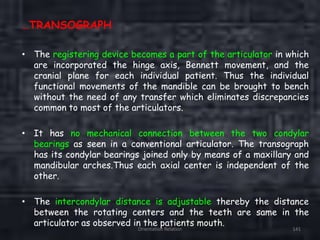

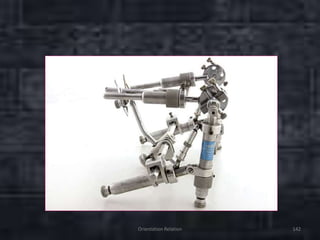

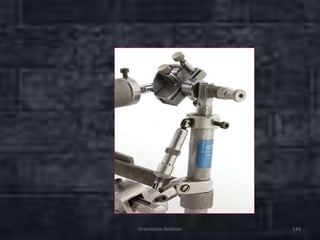

…TRANSOGRAPH
• The registering device becomes a part of the articulator in which
are incorporated the hinge axis, Bennett movement, and the
cranial plane for each individual patient. Thus the individual
functional movements of the mandible can be brought to bench
without the need of any transfer which eliminates discrepancies
common to most of the articulators.
• It has no mechanical connection between the two condylar
bearings as seen in a conventional articulator. The transograph
has its condylar bearings joined only by means of a maxillary and
mandibular arches.Thus each axial center is independent of the
other.
• The intercondylar distance is adjustable thereby the distance
between the rotating centers and the teeth are same in the
articulator as observed in the patients mouth.

Conclusion
• Failure to use the face bow leads to error
in occlusion.
• Hinge axis is a component of every
masticatory movement of the mandible and
therefore cannot be disregarded and this
hinge axis should be accurately captured
and transferred to the articulator. So it
becomes a fine representative of the
patient and biologically acceptable
restoration is possible.
• Whatever may be controversy reasoned by
in the use of face bow but it should formOrientation Relation 144

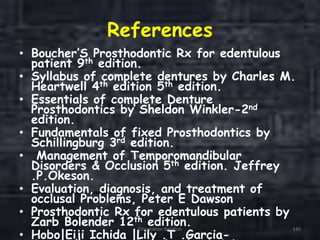

References
• Boucher’S Prosthodontic Rx for edentulous
patient 9th edition.
• Syllabus of complete dentures by Charles M.
Heartwell 4th edition 5th edition.
• Essentials of complete Denture
Prosthodontics by Sheldon Winkler-2nd
edition.
• Fundamentals of fixed Prosthodontics by
Schillingburg 3rd edition.
• Management of Temporomandibular
Disorders & Occlusion 5th edition. Jeffrey
.P.Okeson.
• Evaluation, diagnosis, and treatment of
occlusal Problems, Peter E Dawson
• Prosthodontic Rx for edentulous patients by
Zarb Bolender 12th edition.
• Hobo|Eiji Ichida |Lily .T .Garcia-

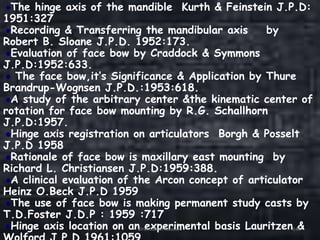

The hinge axis of the mandible Kurth & Feinstein J.P.D:
1951:327
Recording & Transferring the mandibular axis by
Robert B. Sloane J.P.D. 1952:173.
Evaluation of face bow by Craddock & Symmons
J.P.D:1952:633.
The face bow,it’s Significance & Application by Thure
Brandrup-Wognsen J.P.D.:1953:618.
A study of the arbitrary center &the kinematic center of
rotation for face bow mounting by R.G. Schallhorn
J.P.D:1957.
Hinge axis registration on articulators Borgh & Posselt
J.P.D 1958
Rationale of face bow is maxillary east mounting by
Richard L. Christiansen J.P.D:1959:388.
A clinical evaluation of the Arcon concept of articulator
Heinz O.Beck J.P.D 1959
The use of face bow is making permanent study casts by
T.D.Foster J.D.P : 1959 :717
Hinge axis location on an experimental basis Lauritzen &Orientation Relation 146

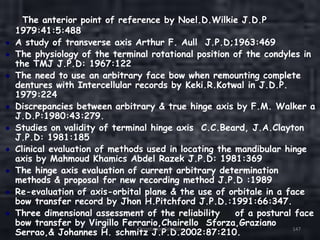

The anterior point of reference by Noel.D.Wilkie J.D.P
1979:41:5:488
A study of transverse axis Arthur F. Aull J.P.D;1963:469
The physiology of the terminal rotational position of the condyles in
the TMJ J.P.D: 1967:122
The need to use an arbitrary face bow when remounting complete
dentures with Intercellular records by Keki.R.Kotwal in J.D.P.
1979:224
Discrepancies between arbitrary & true hinge axis by F.M. Walker a
J.D.P:1980:43:279.
Studies on validity of terminal hinge axis C.C.Beard, J.A.Clayton
J.P.D: 1981:185
Clinical evaluation of methods used in locating the mandibular hinge
axis by Mahmoud Khamics Abdel Razek J.P.D: 1981:369
The hinge axis evaluation of current arbitrary determination
methods & proposal for new recording method J.P.D :1989
Re-evaluation of axis-orbital plane & the use of orbitale in a face
bow transfer record by Jhon H.Pitchford J.P.D.:1991:66:347.
Three dimensional assessment of the reliability of a postural face
bow transfer by Virgillo Ferrario,Chairello Sforza,Graziano
Serrao,& Johannes H. schmitz J.P.D.2002:87:210.Orientation Relation 147

Orientation relation with facebow and hinge axis and abvance in facebow

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Orientation relation with facebow and hinge axis and abvance in facebow

Similar to Orientation relation with facebow and hinge axis and abvance in facebow (20)

Recently uploaded

Recently uploaded (20)

Orientation relation with facebow and hinge axis and abvance in facebow
