1. Osama Mustafa
0
OBIEE 11.1.1.9 – Linux
ODI 11.1.9 – Linux
OBIA 11.1.1.10.1 – Linux
TABADU INSTALLATION
STEPS

2. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 1 of 66

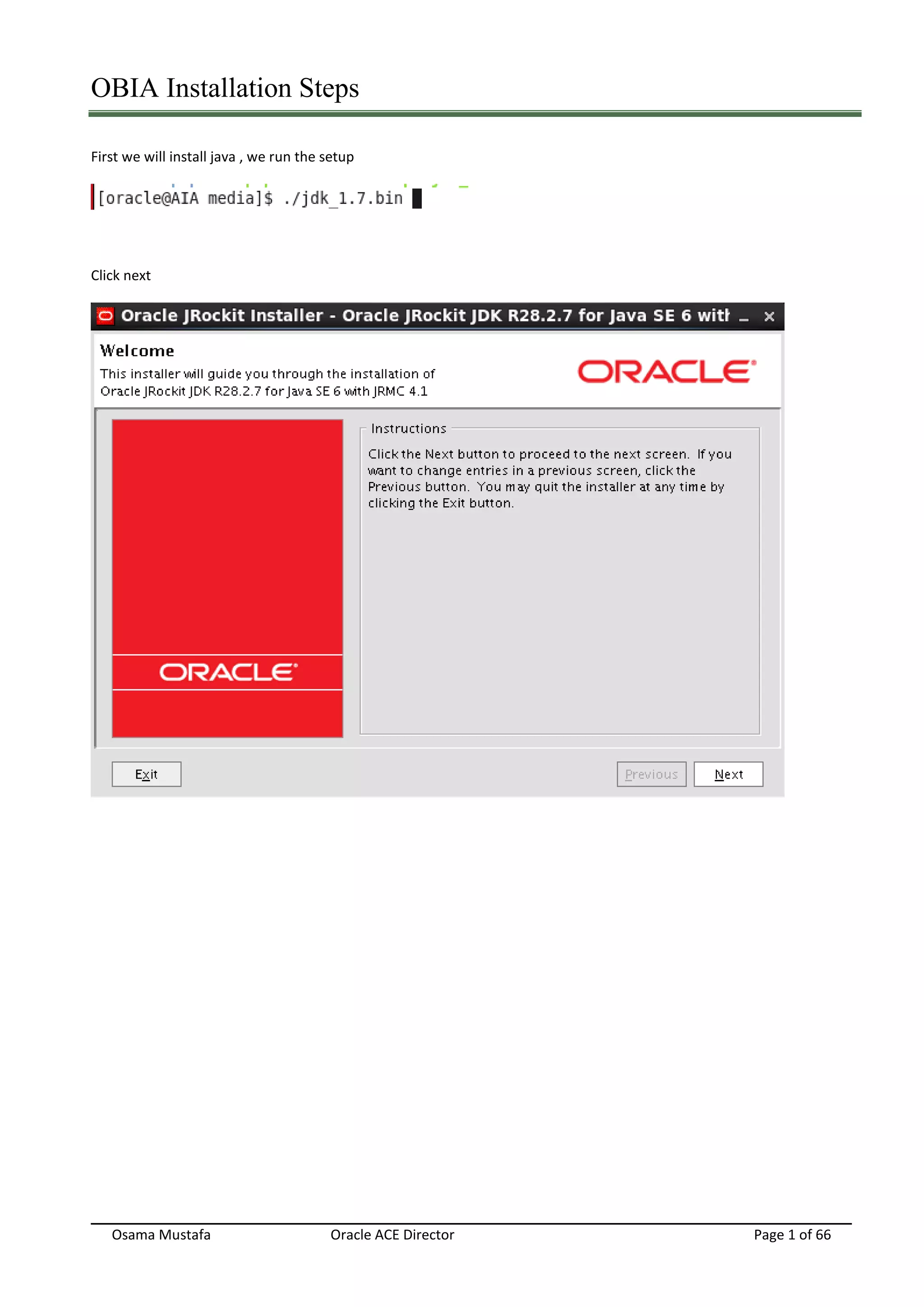

First we will install java , we run the setup
Click next

3. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 2 of 66
Specify the path

4. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 3 of 66

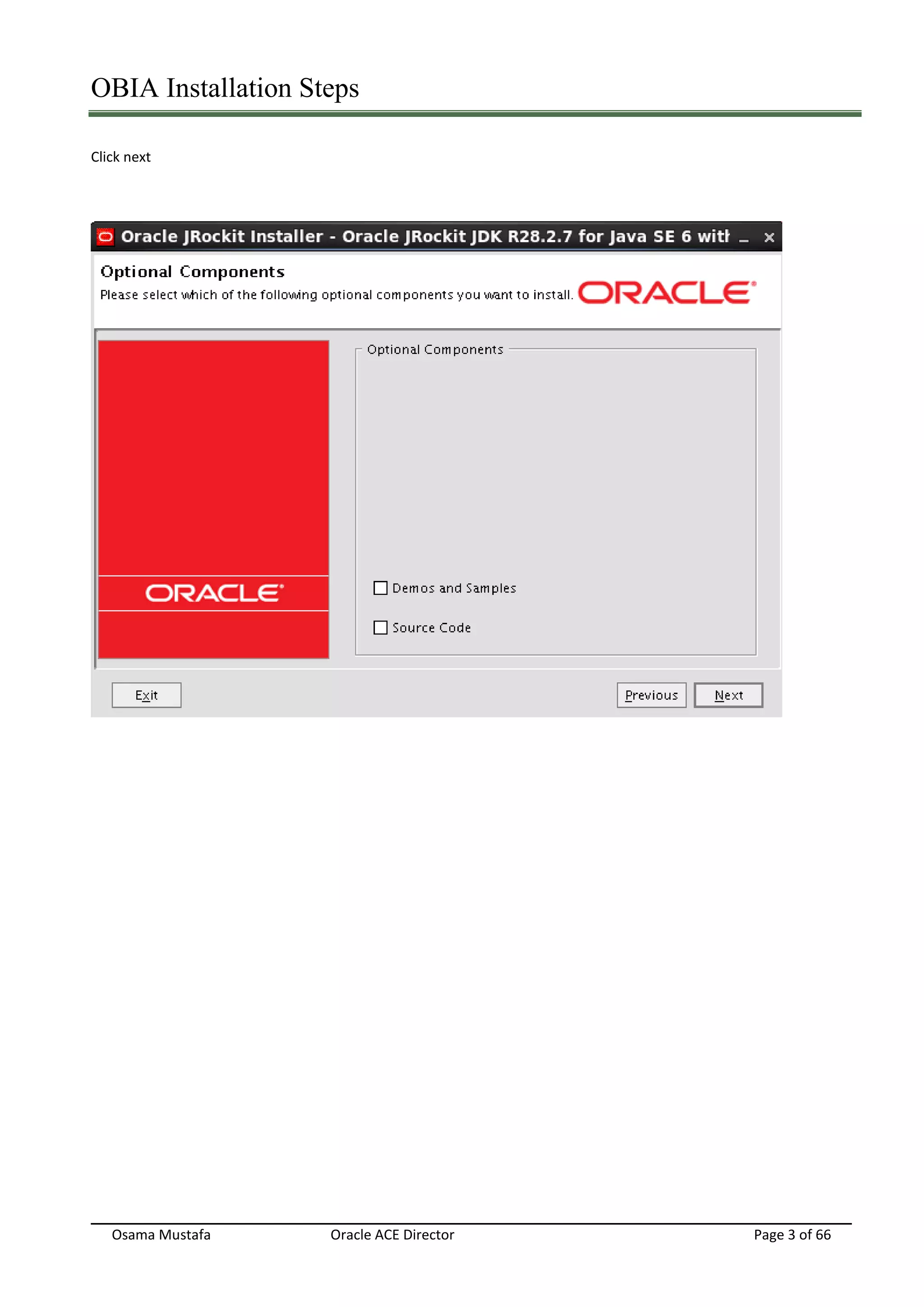

Click next

5. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 4 of 66

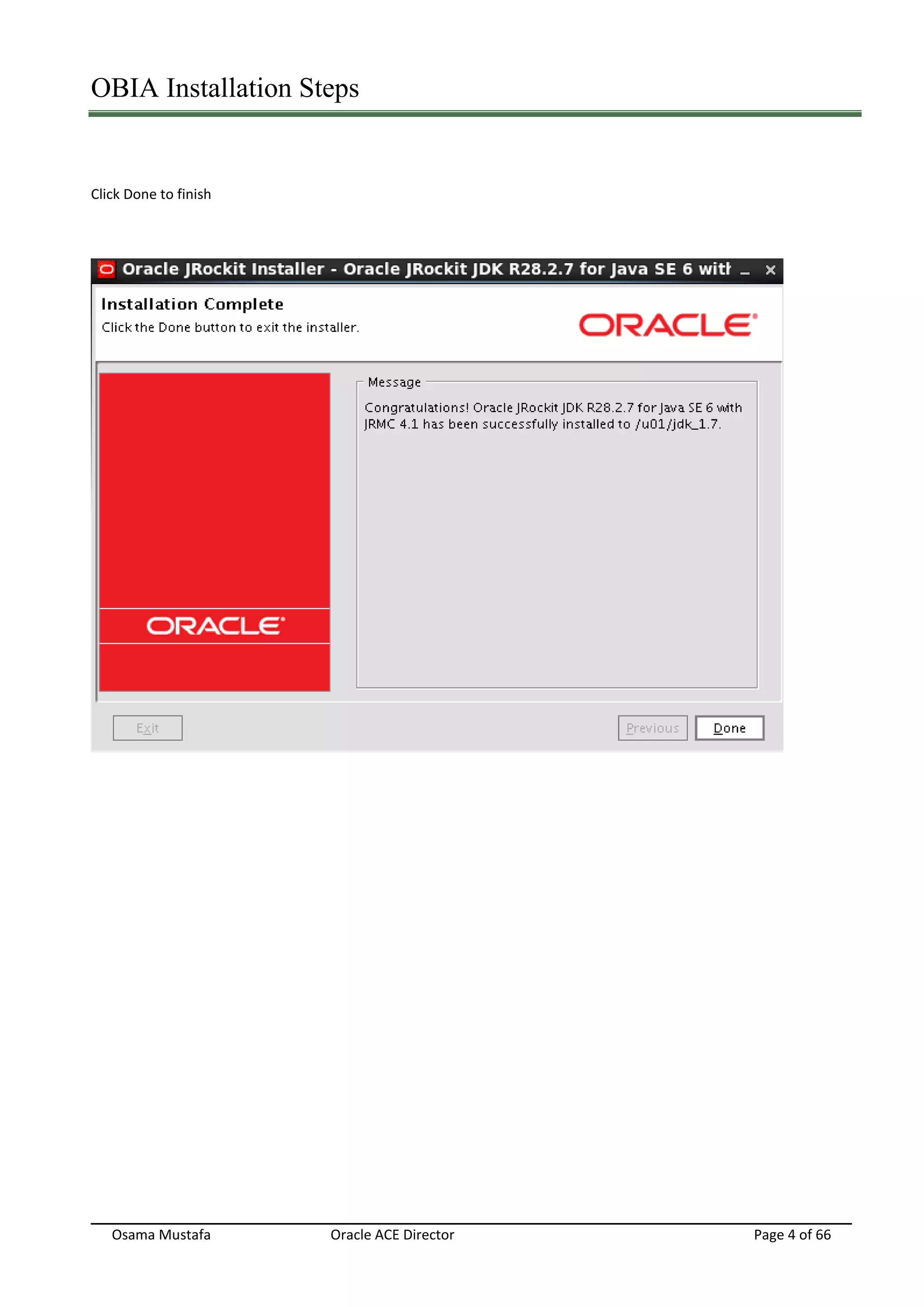

Click Done to finish

6. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 5 of 66

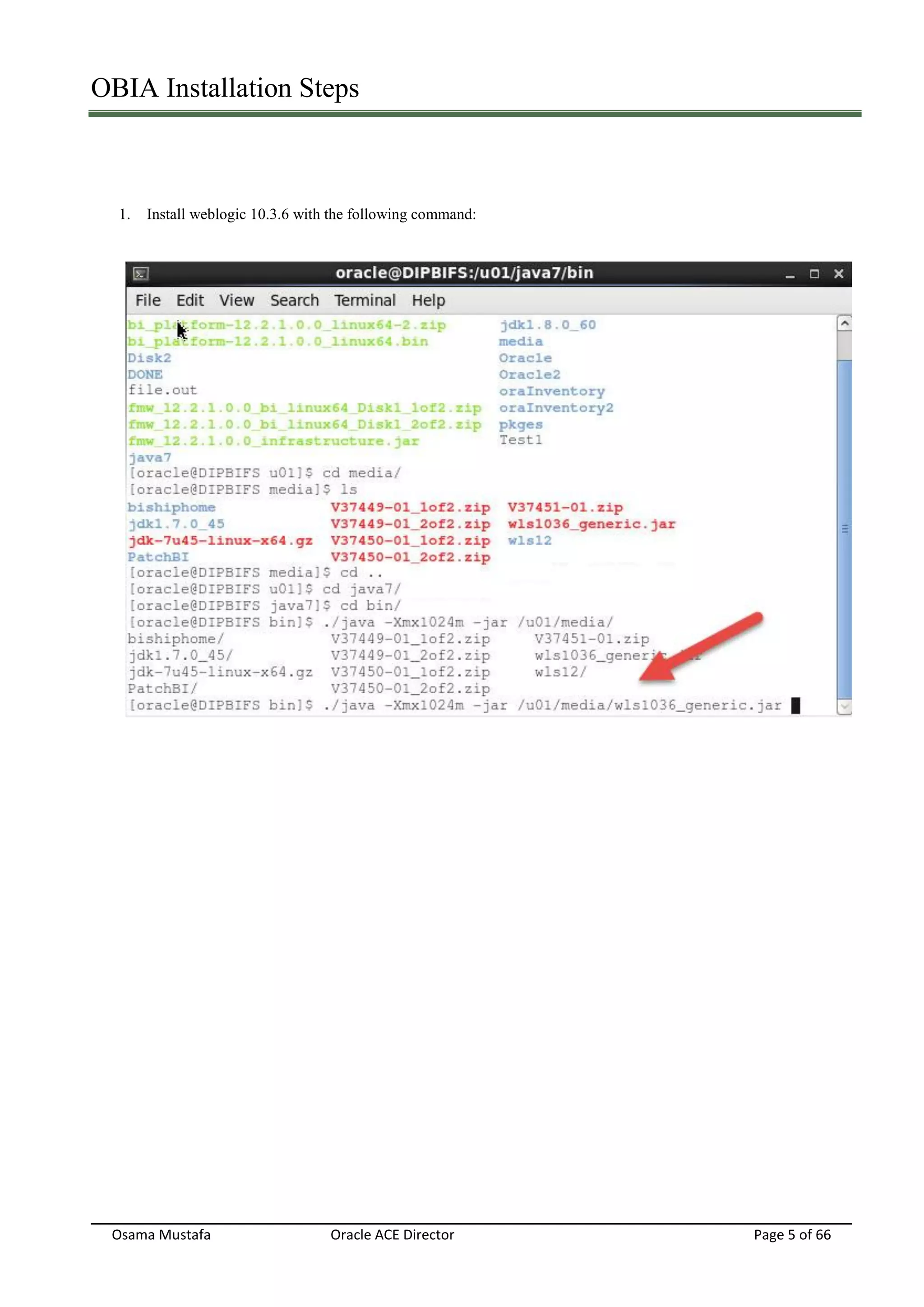

1. Install weblogic 10.3.6 with the following command:

7. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 6 of 66

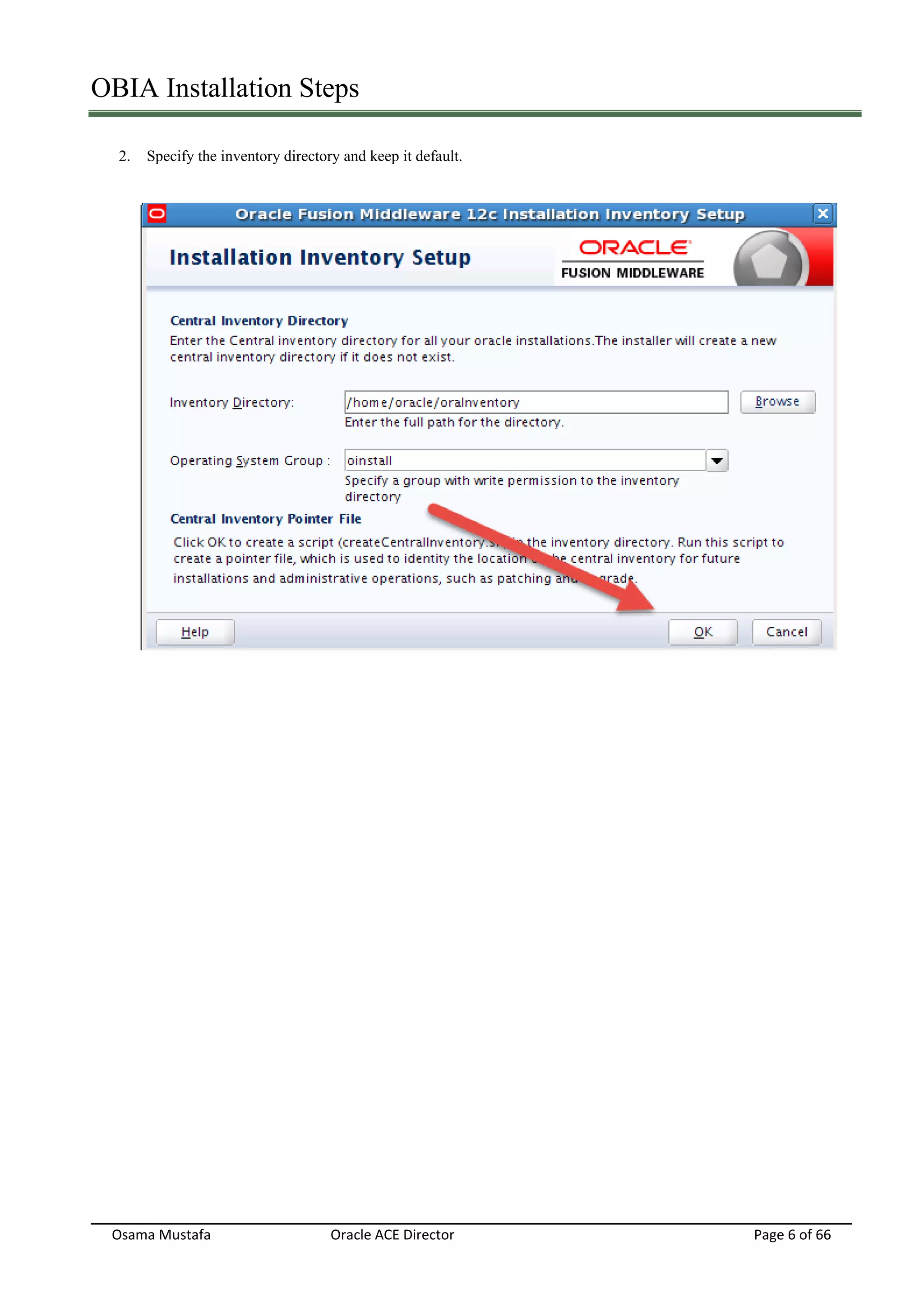

2. Specify the inventory directory and keep it default.

8. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 7 of 66

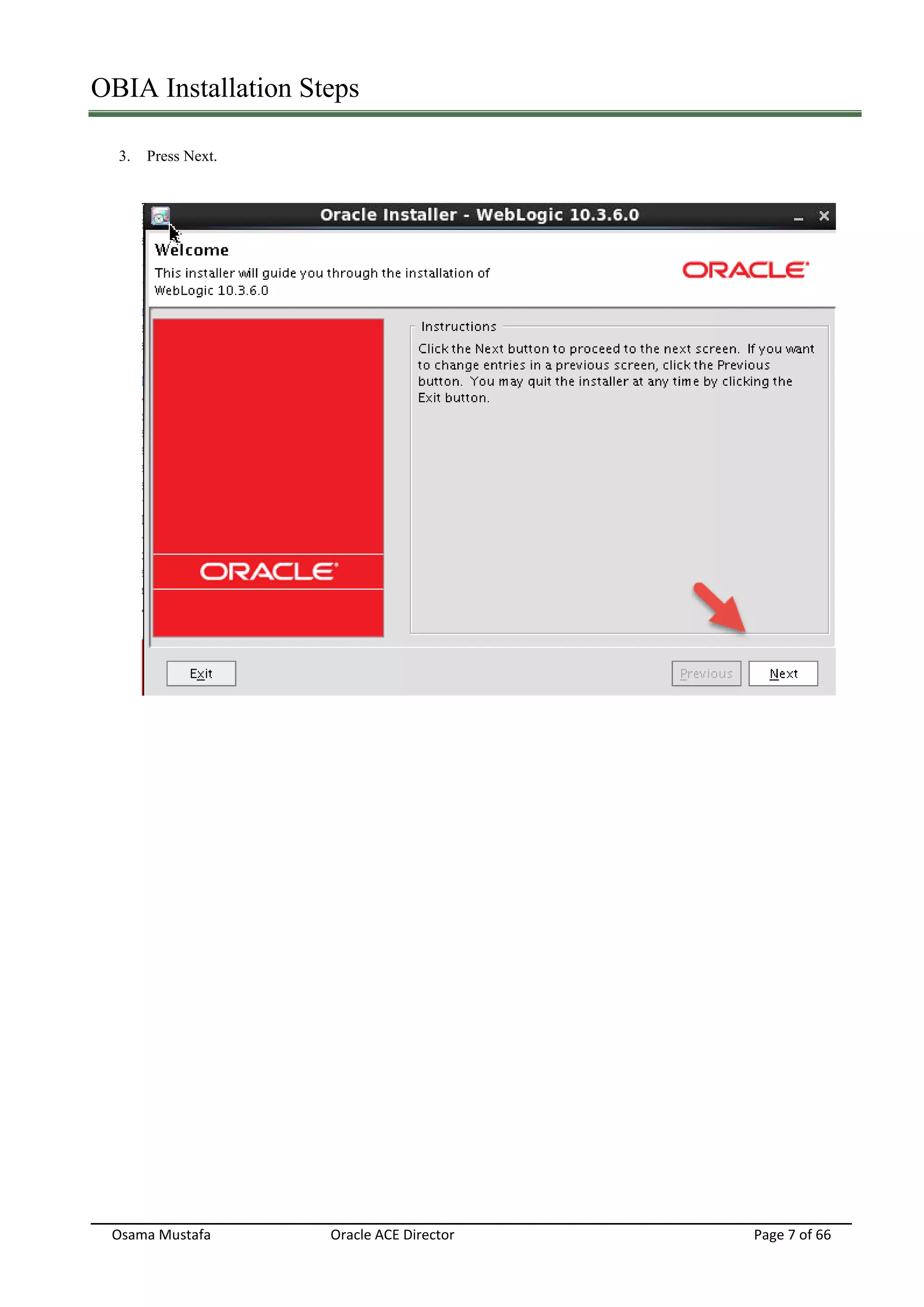

3. Press Next.

9. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 8 of 66
5. Press Next.

10. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 9 of 66

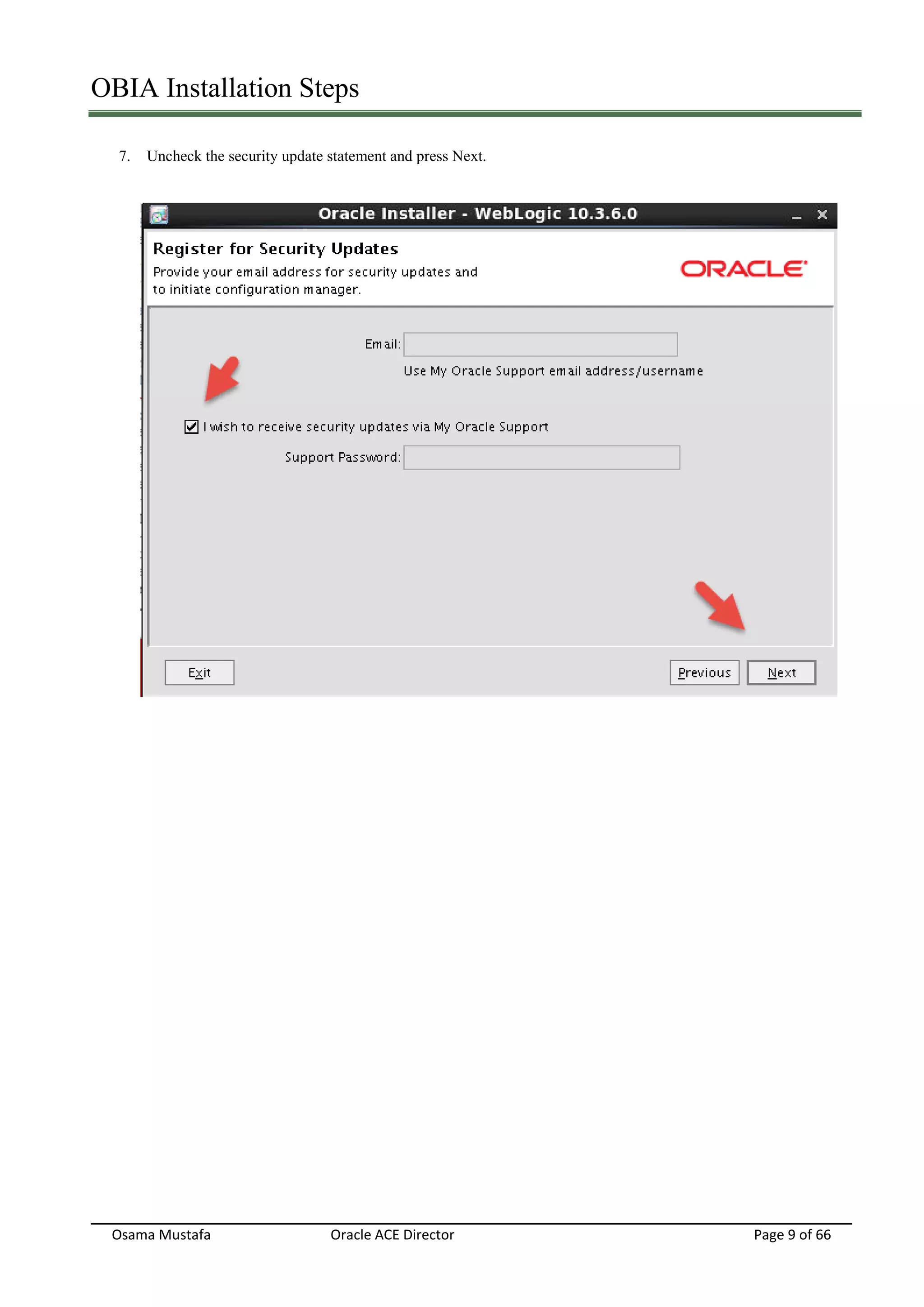

7. Uncheck the security update statement and press Next.

11. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 10 of 66

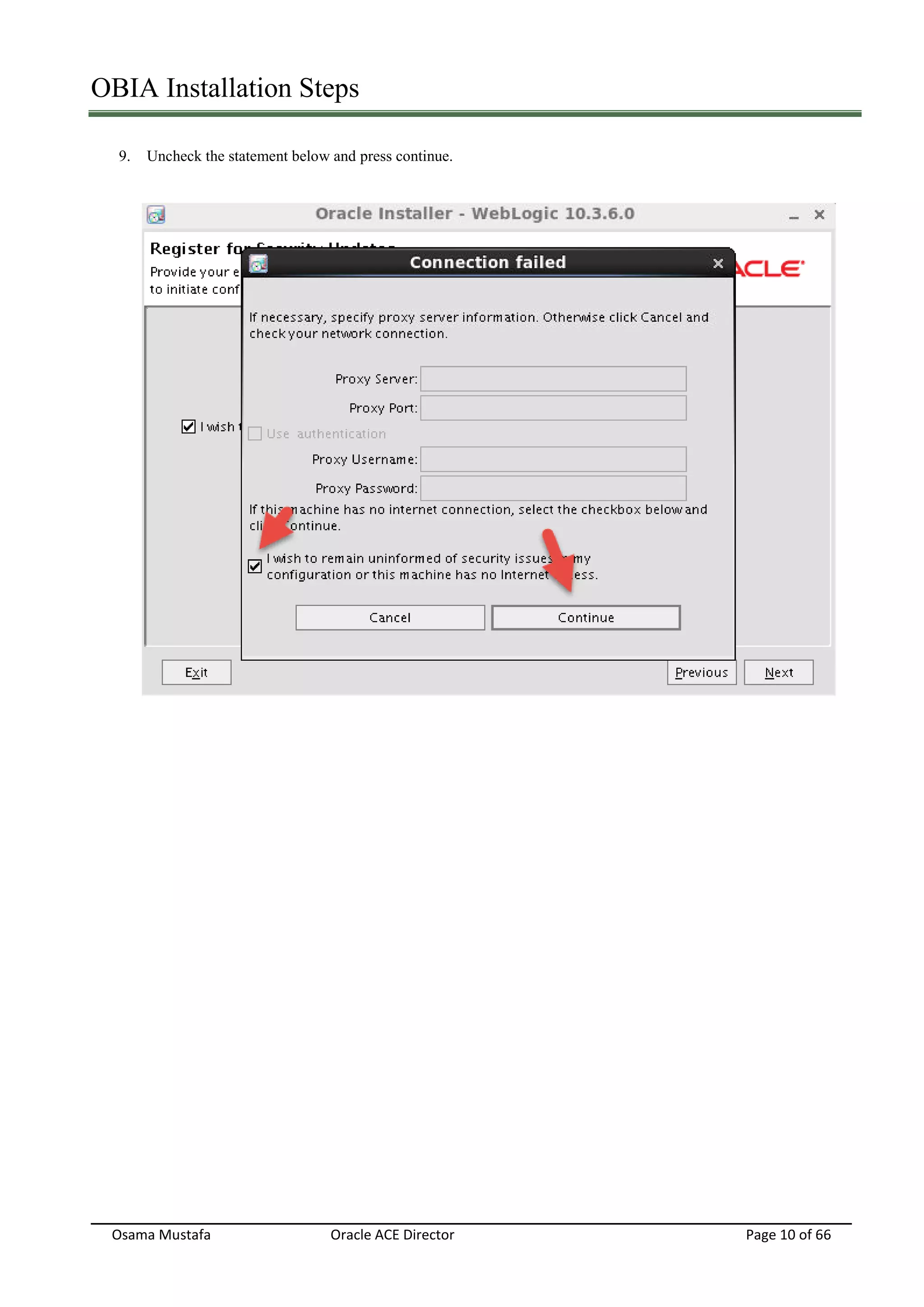

9. Uncheck the statement below and press continue.

12. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 11 of 66

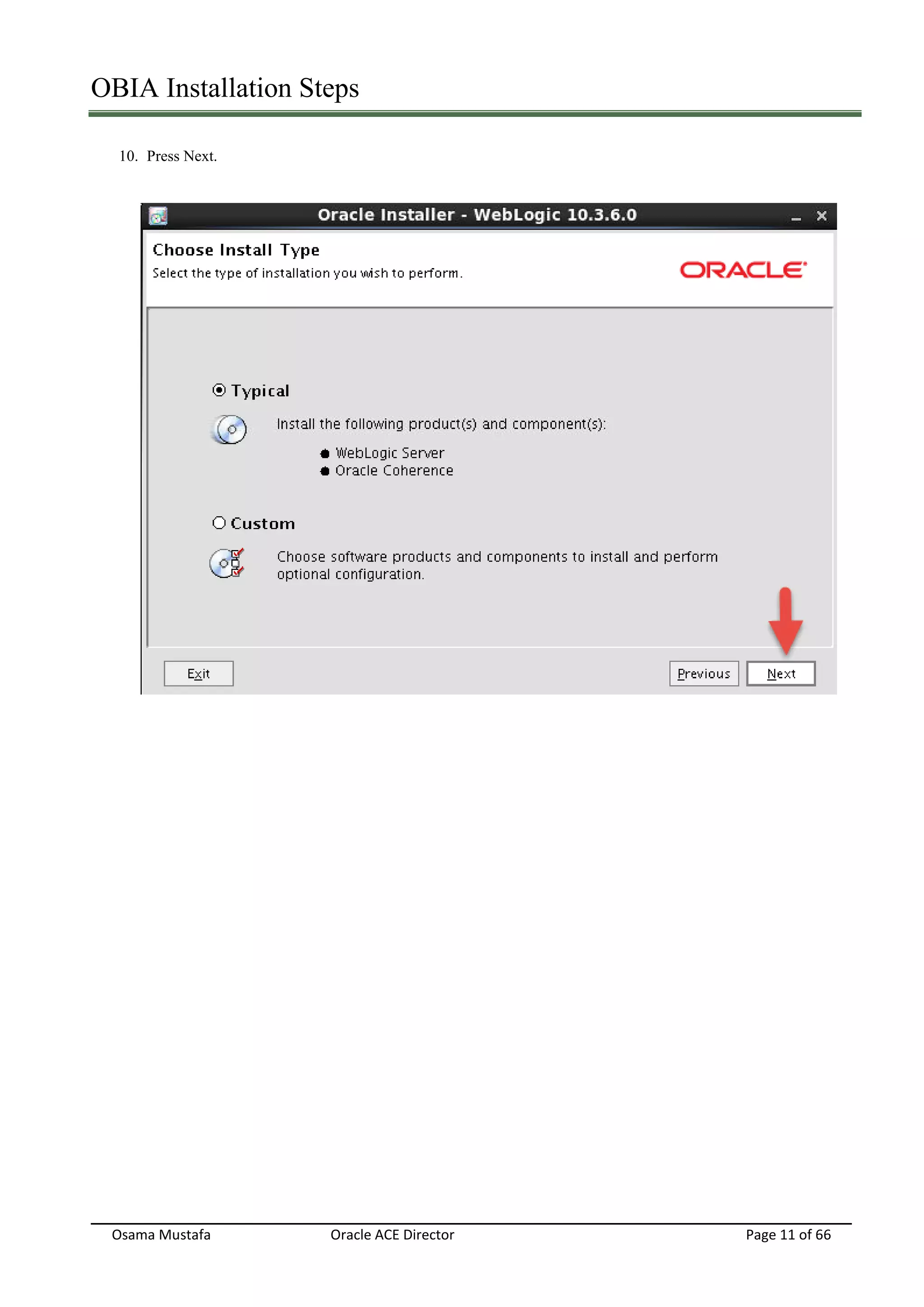

10. Press Next.

13. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 12 of 66

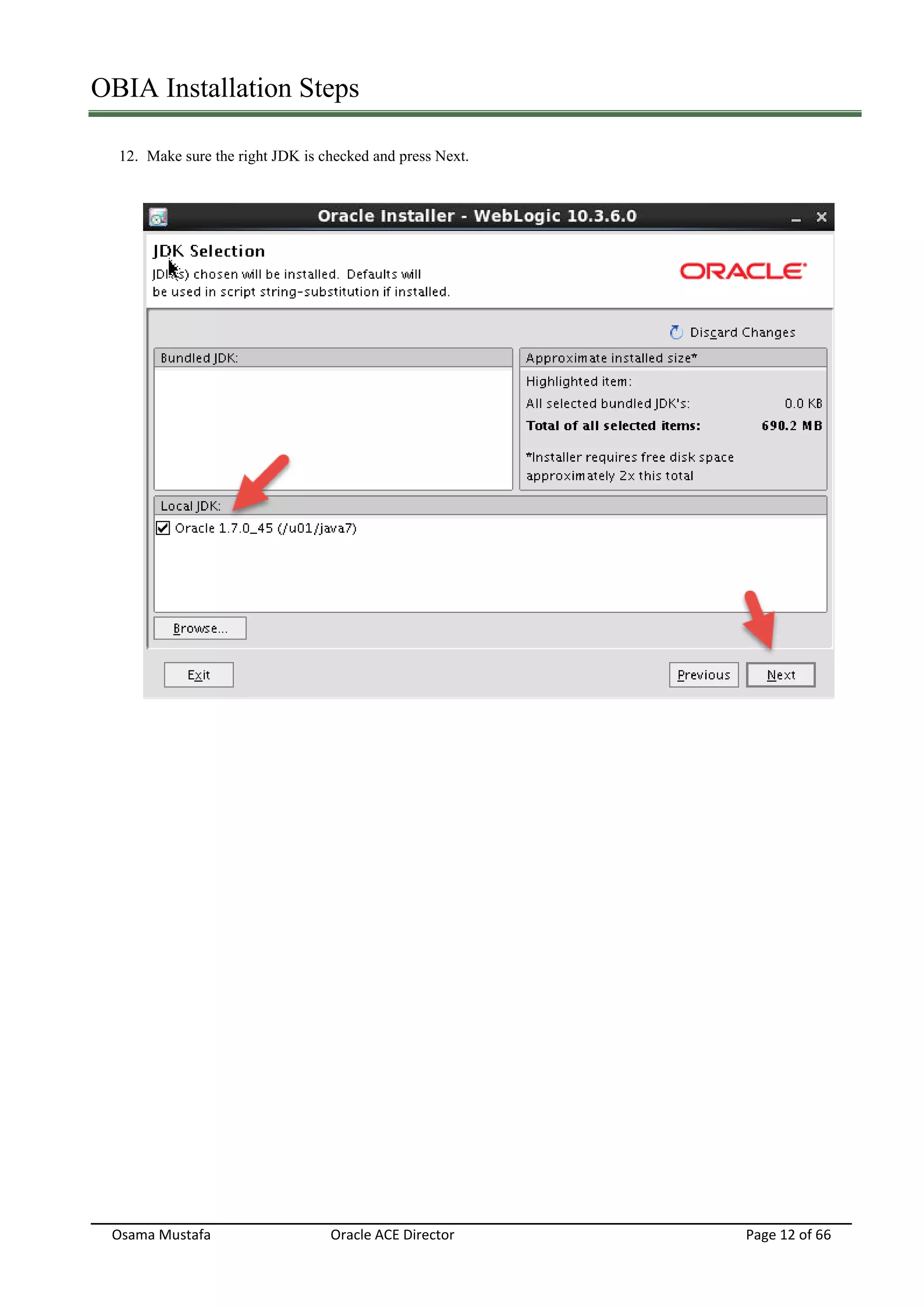

12. Make sure the right JDK is checked and press Next.

14. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 13 of 66

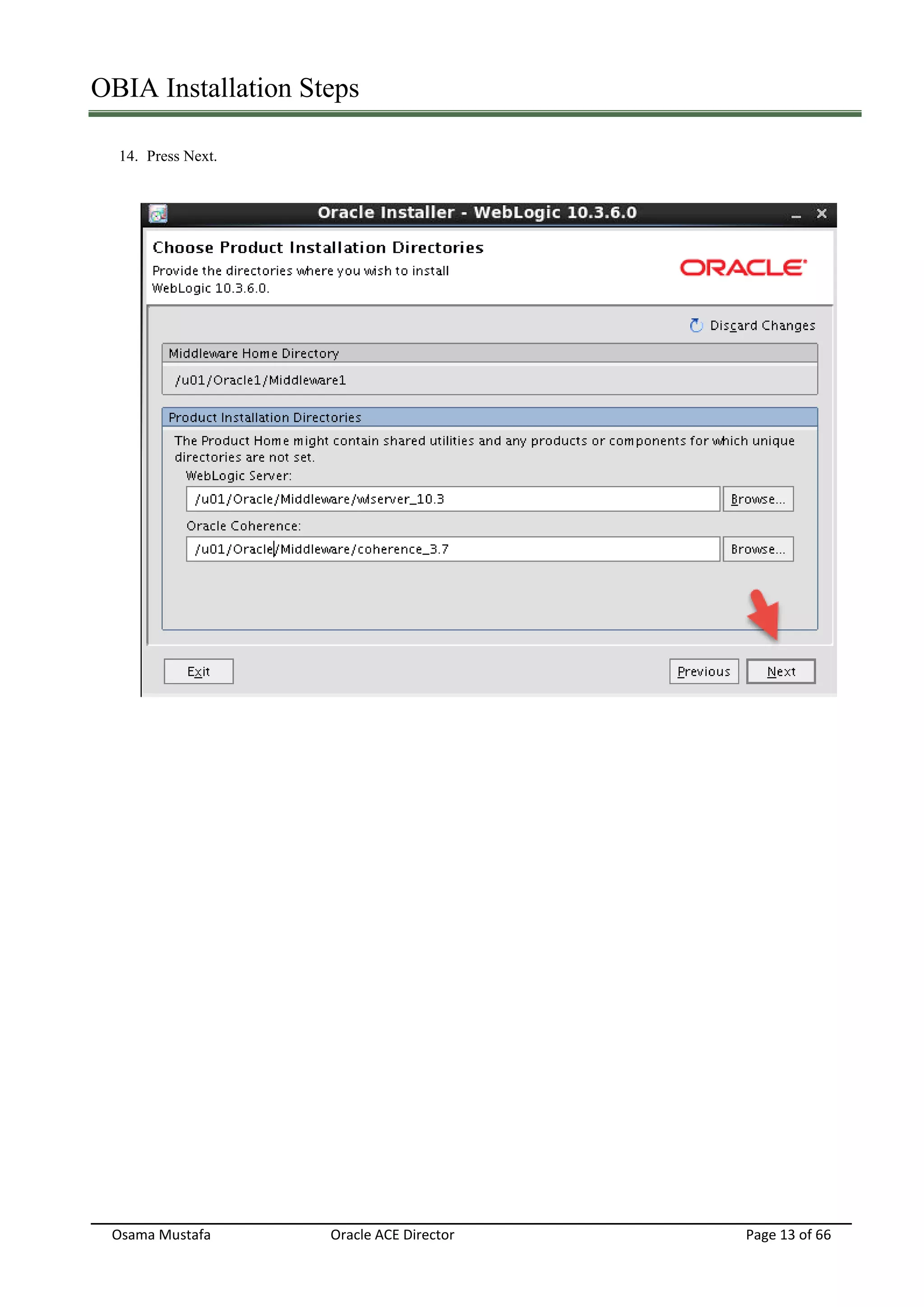

14. Press Next.

15. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 14 of 66

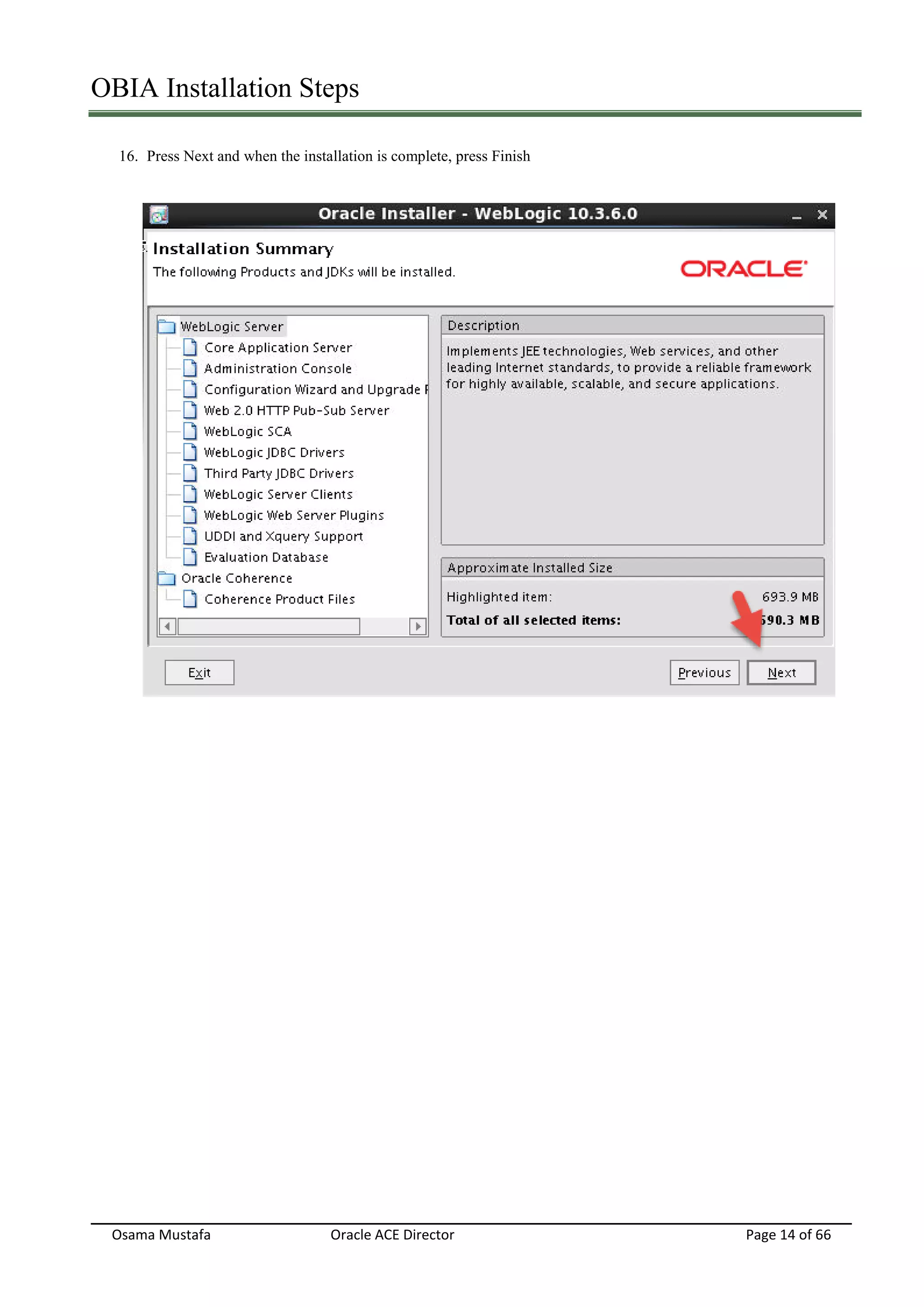

16. Press Next and when the installation is complete, press Finish

16. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 15 of 66

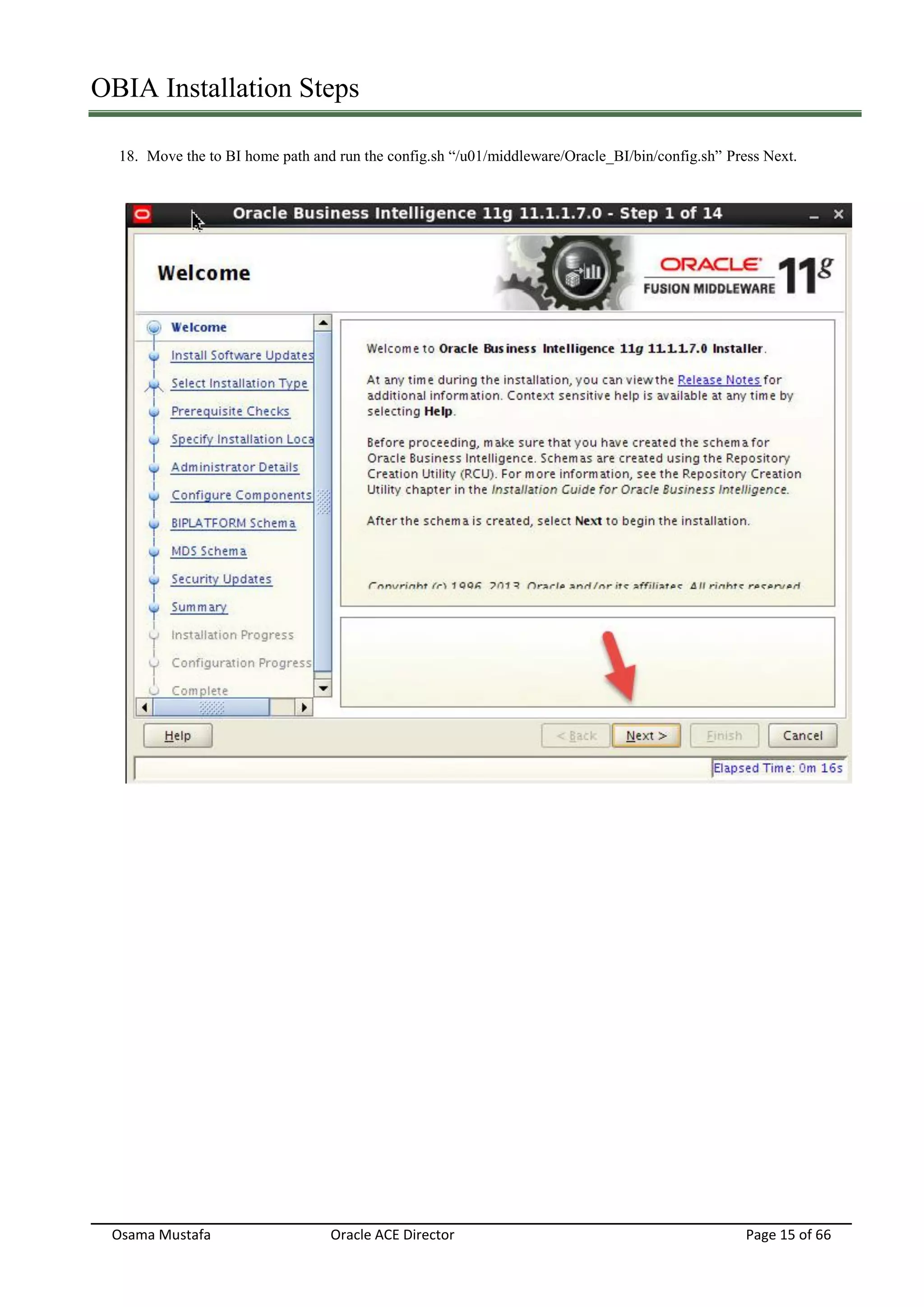

18. Move the to BI home path and run the config.sh “/u01/middleware/Oracle_BI/bin/config.sh” Press Next.

17. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 16 of 66

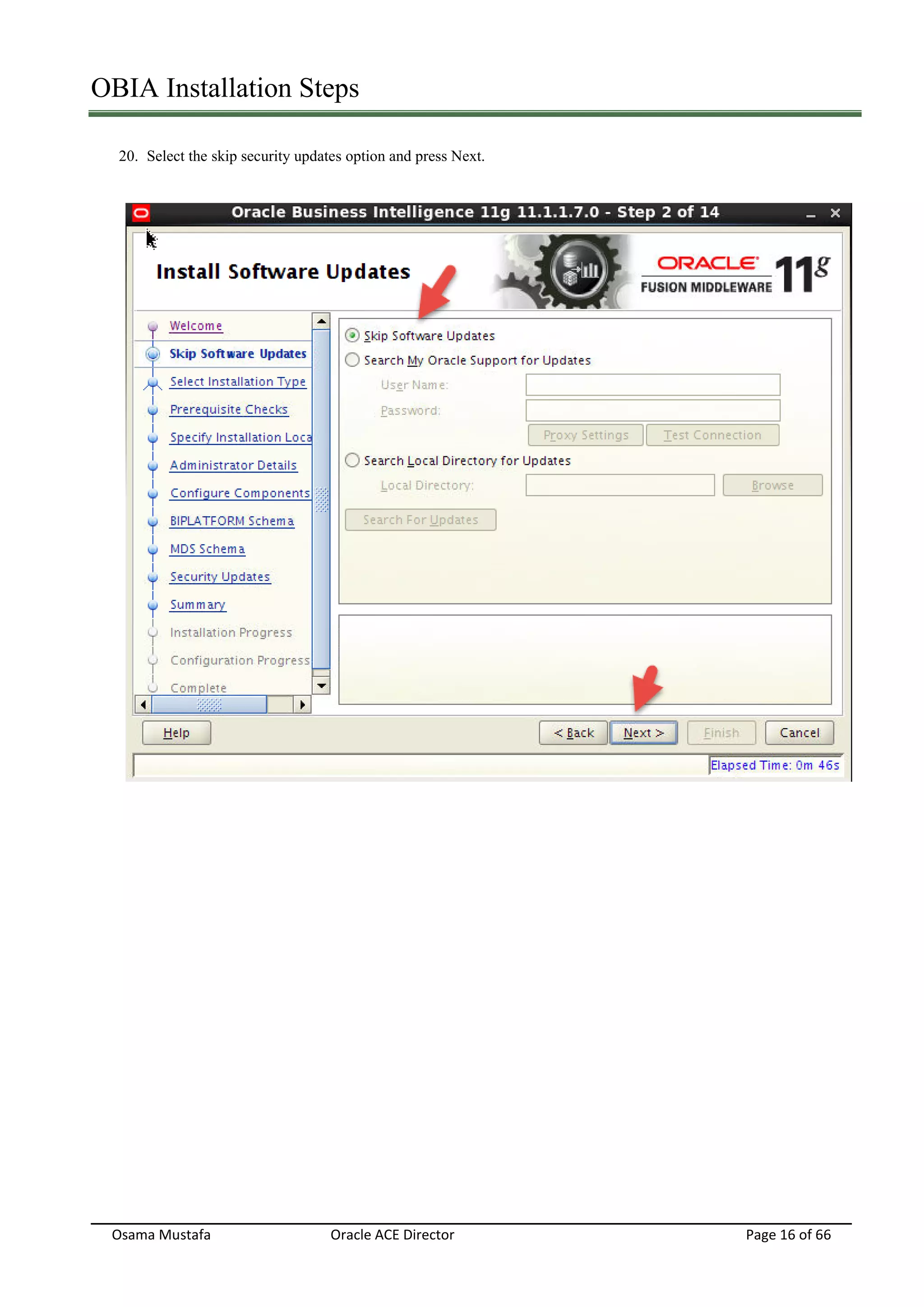

20. Select the skip security updates option and press Next.

18. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 17 of 66

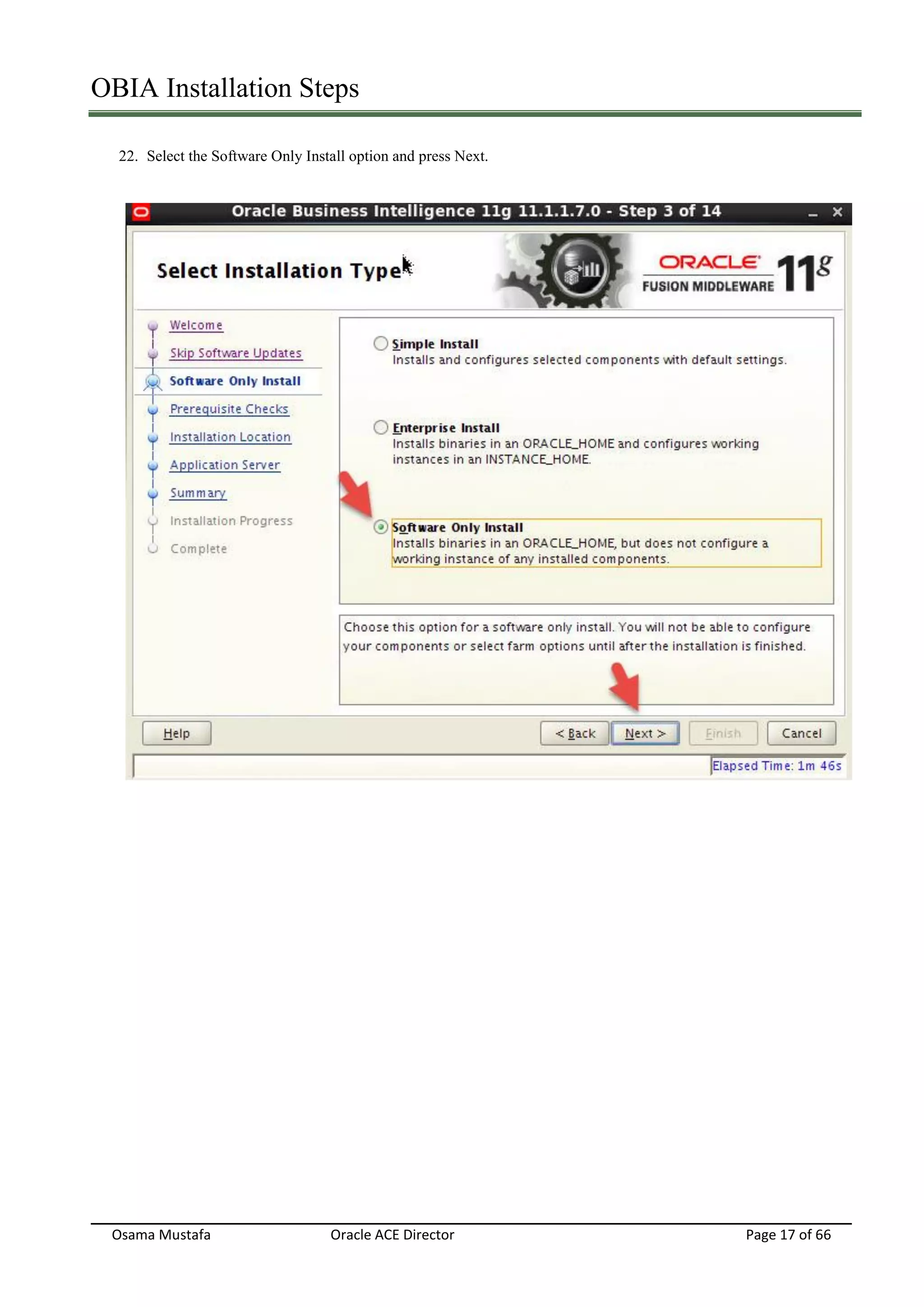

22. Select the Software Only Install option and press Next.

19. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 18 of 66

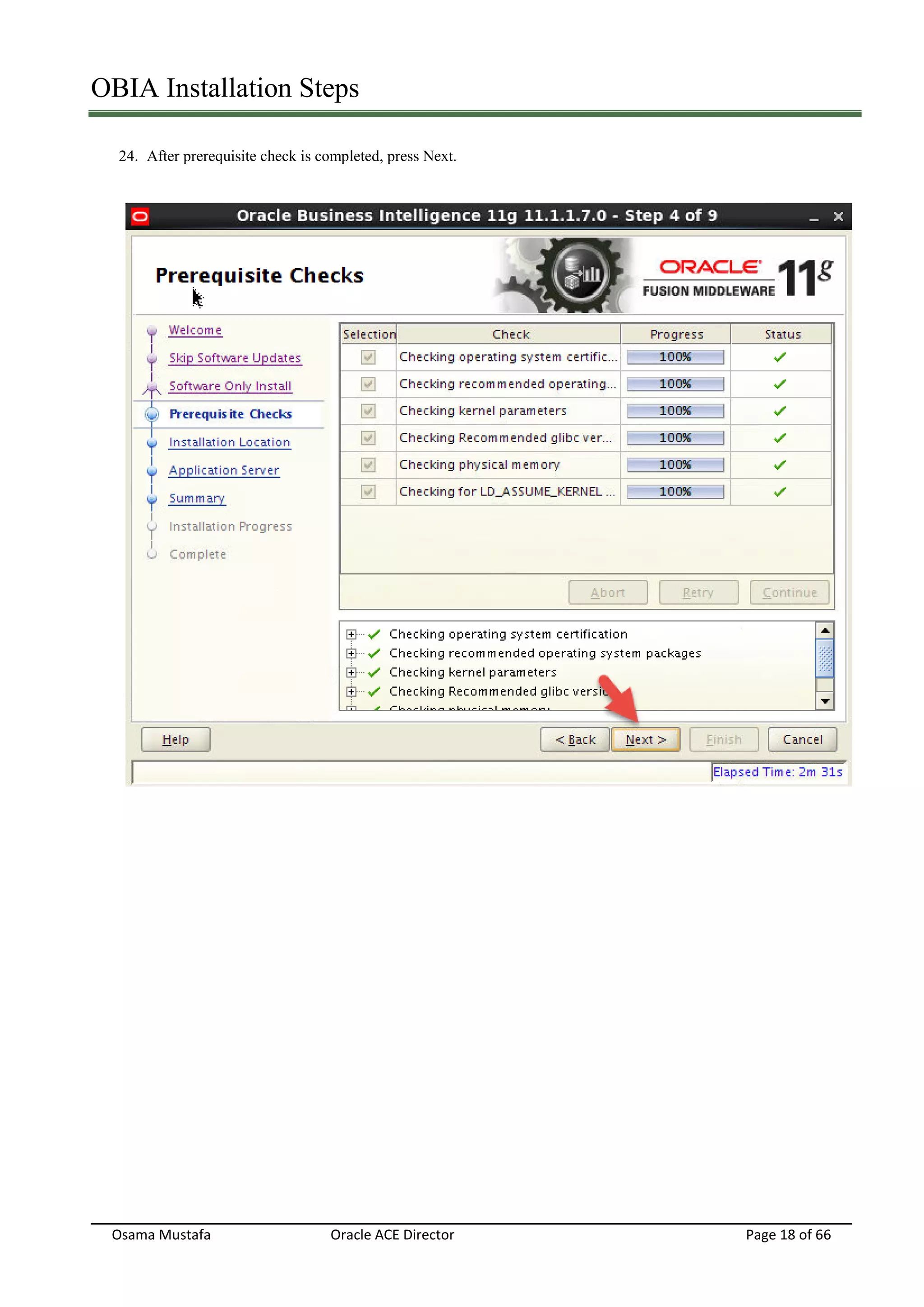

24. After prerequisite check is completed, press Next.

20. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 19 of 66

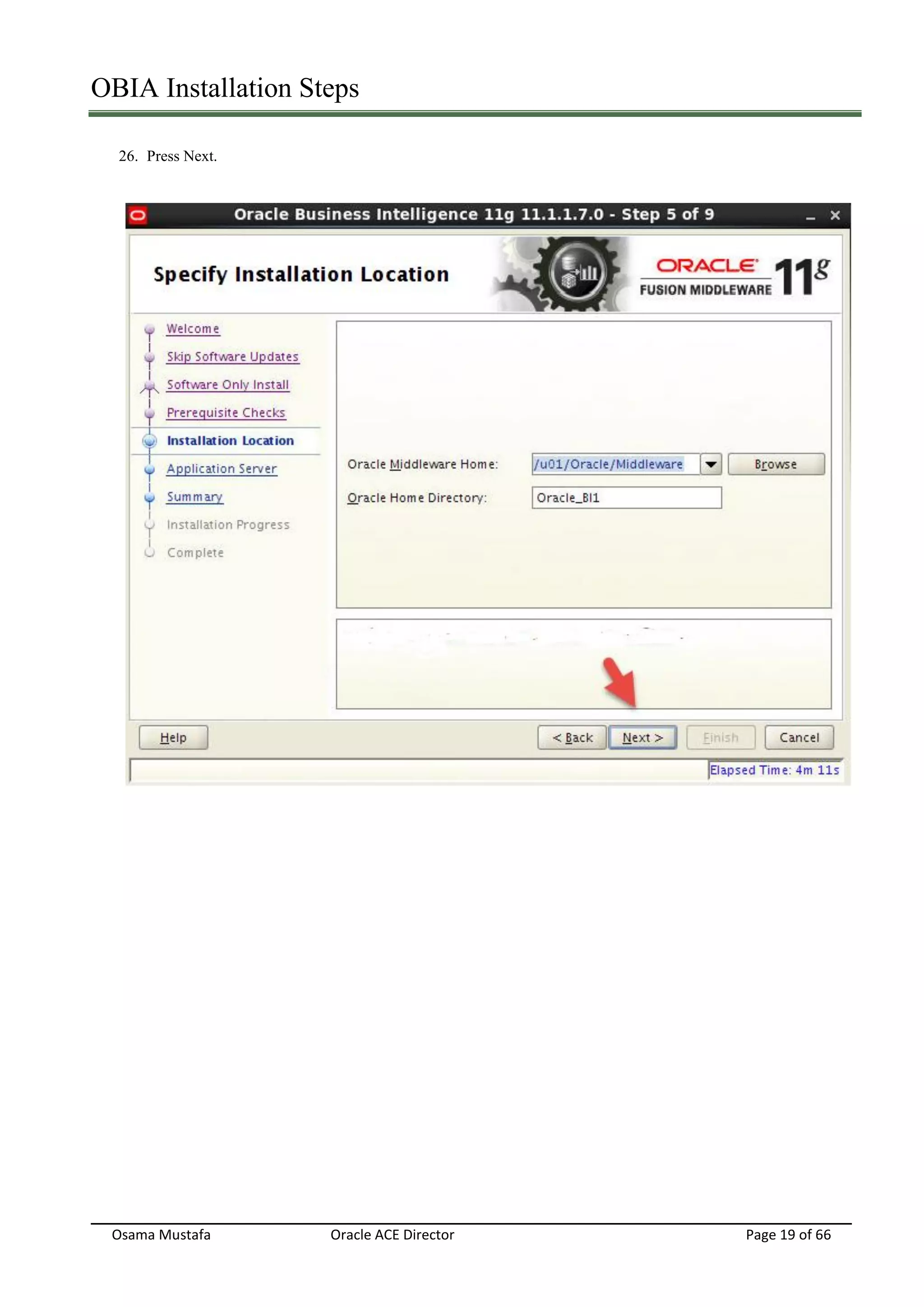

26. Press Next.

21. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 20 of 66

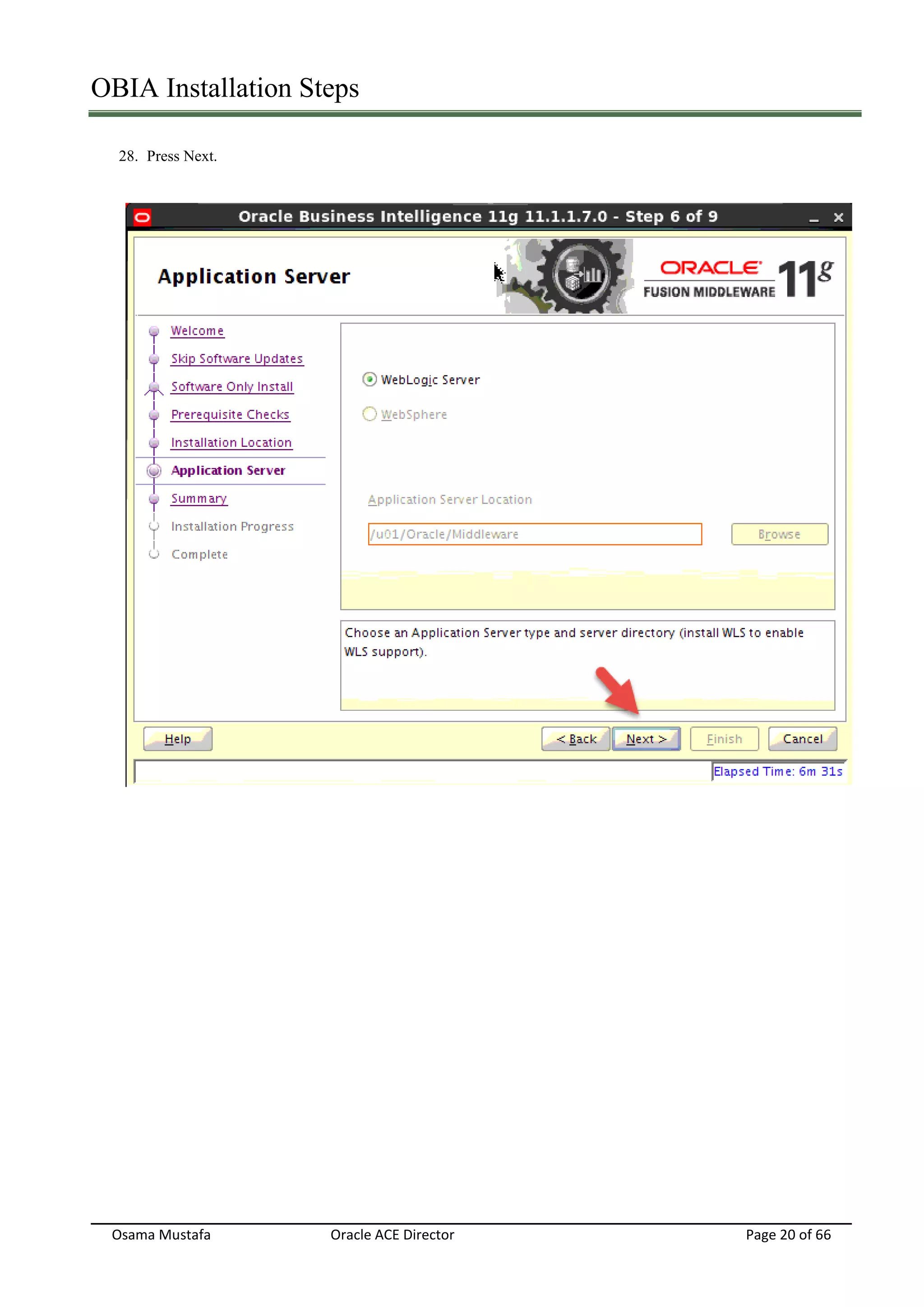

28. Press Next.

22. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 21 of 66

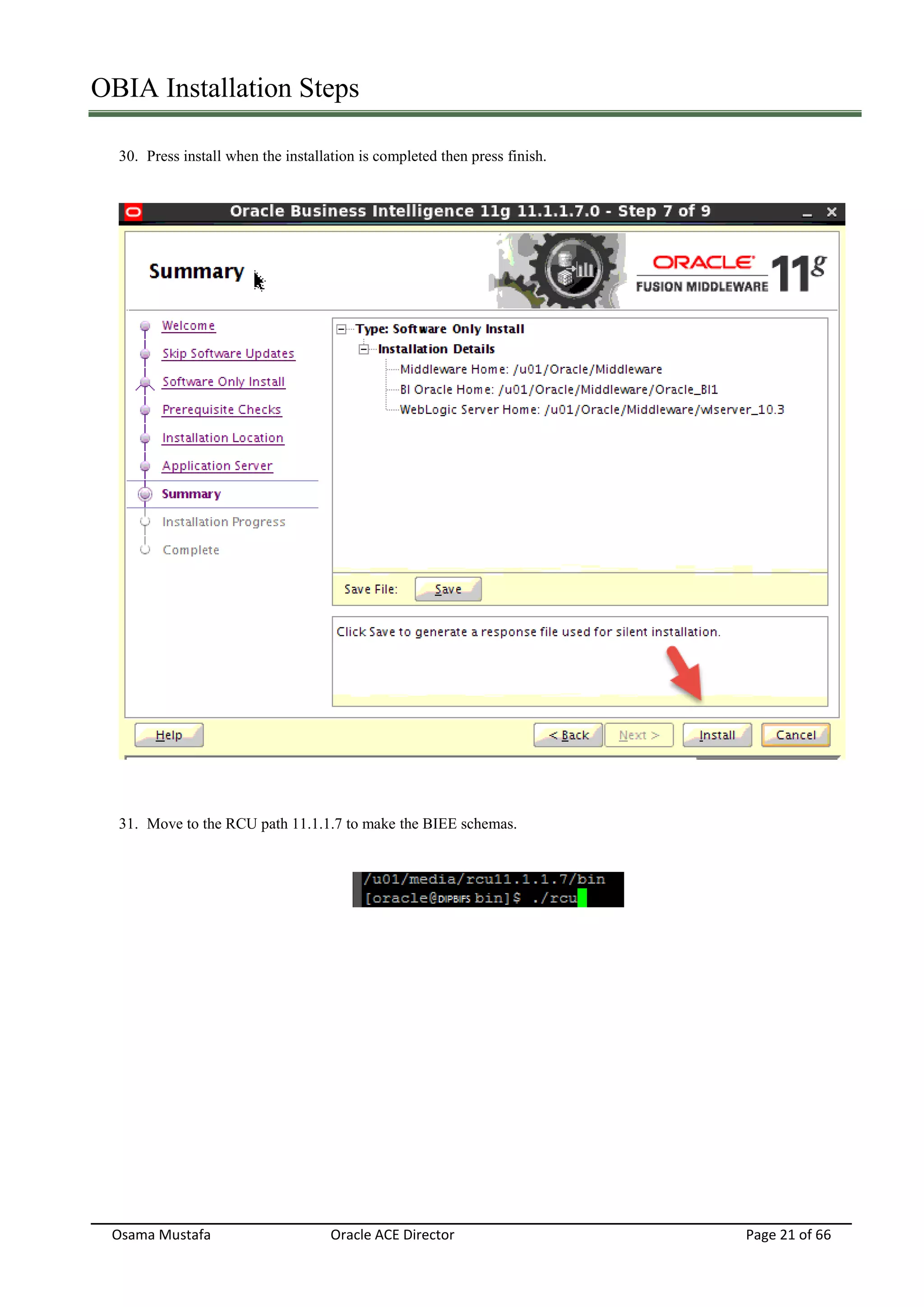

30. Press install when the installation is completed then press finish.
31. Move to the RCU path 11.1.1.7 to make the BIEE schemas.

23. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 22 of 66

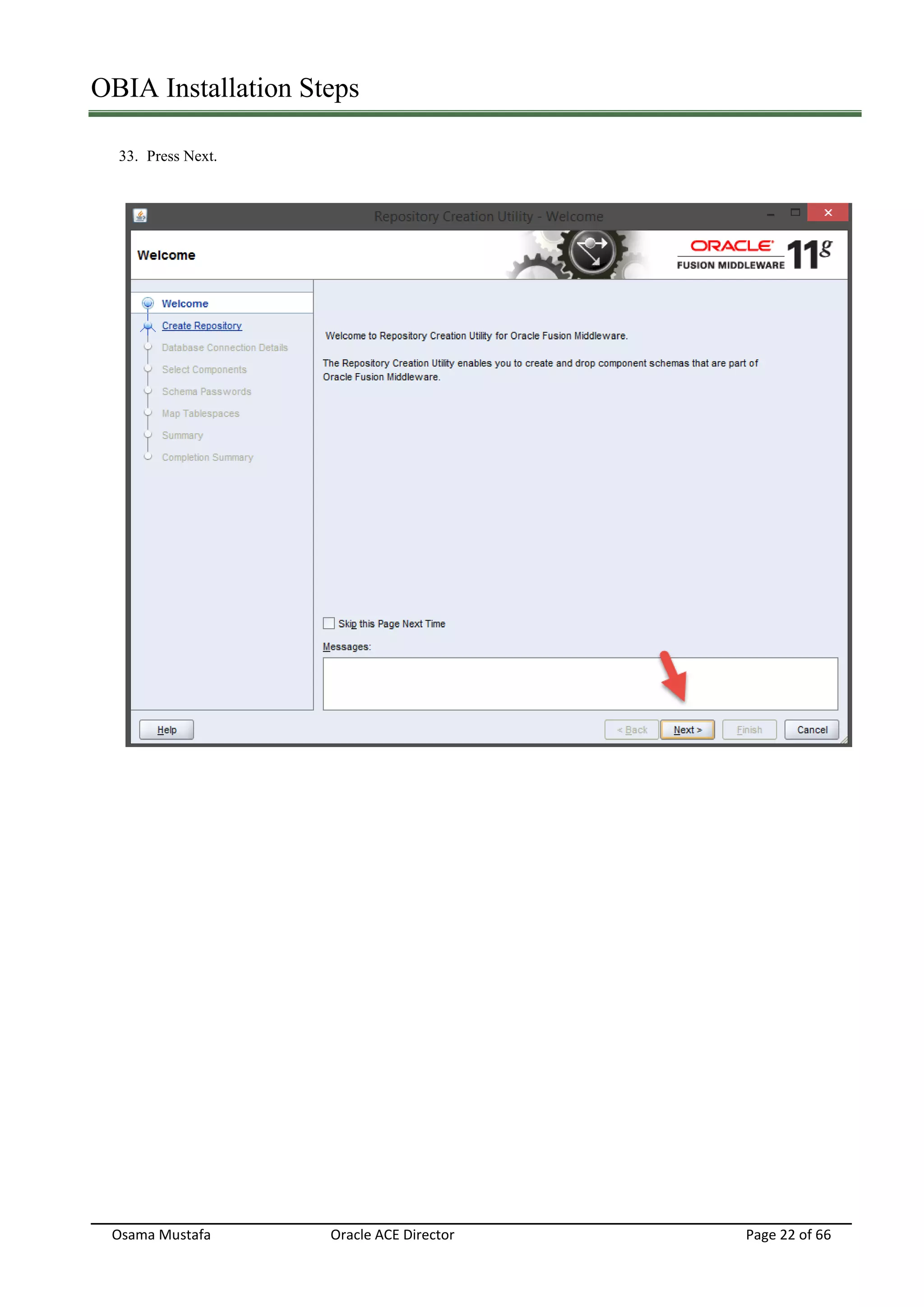

33. Press Next.

24. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 23 of 66

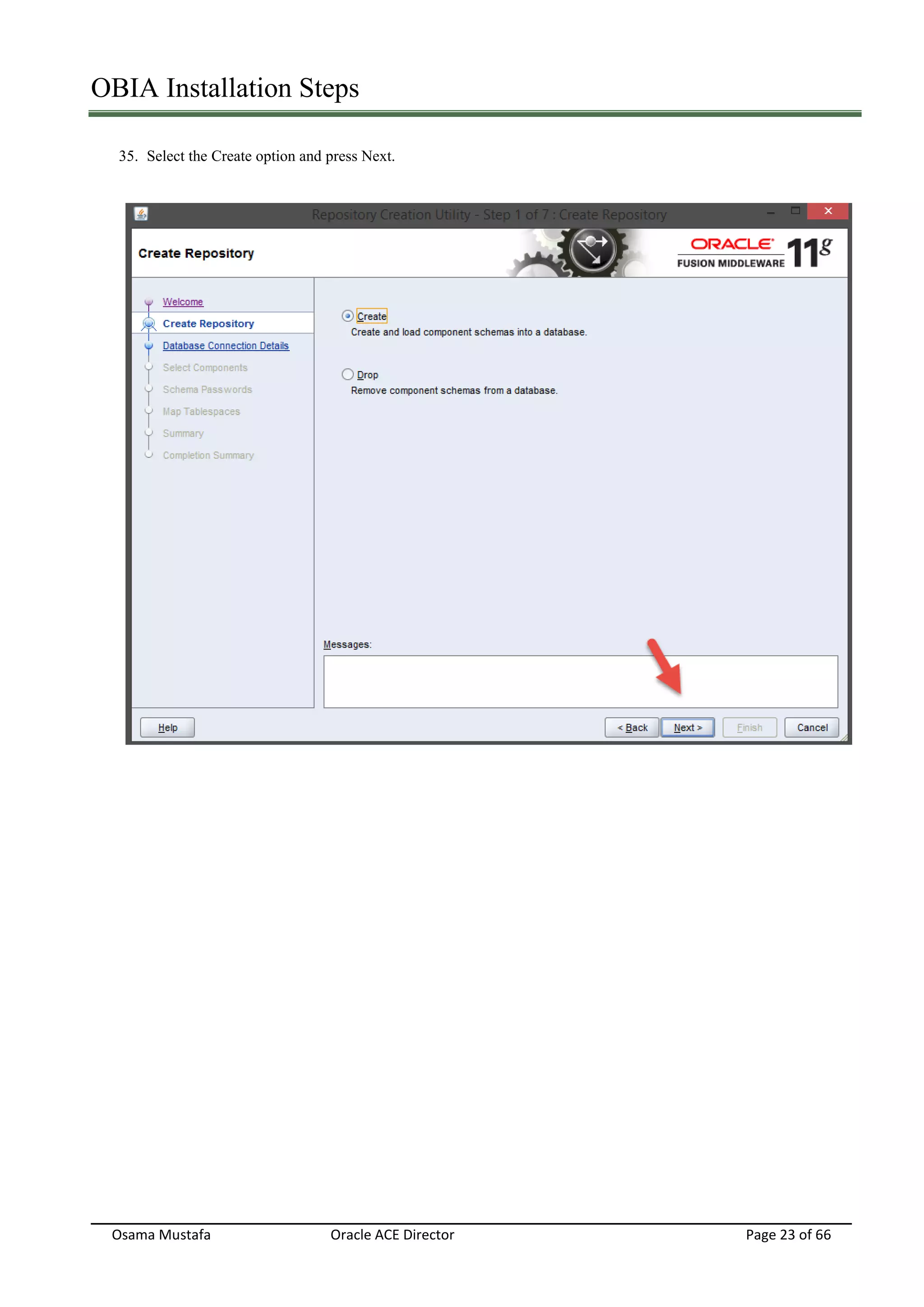

35. Select the Create option and press Next.

25. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 24 of 66

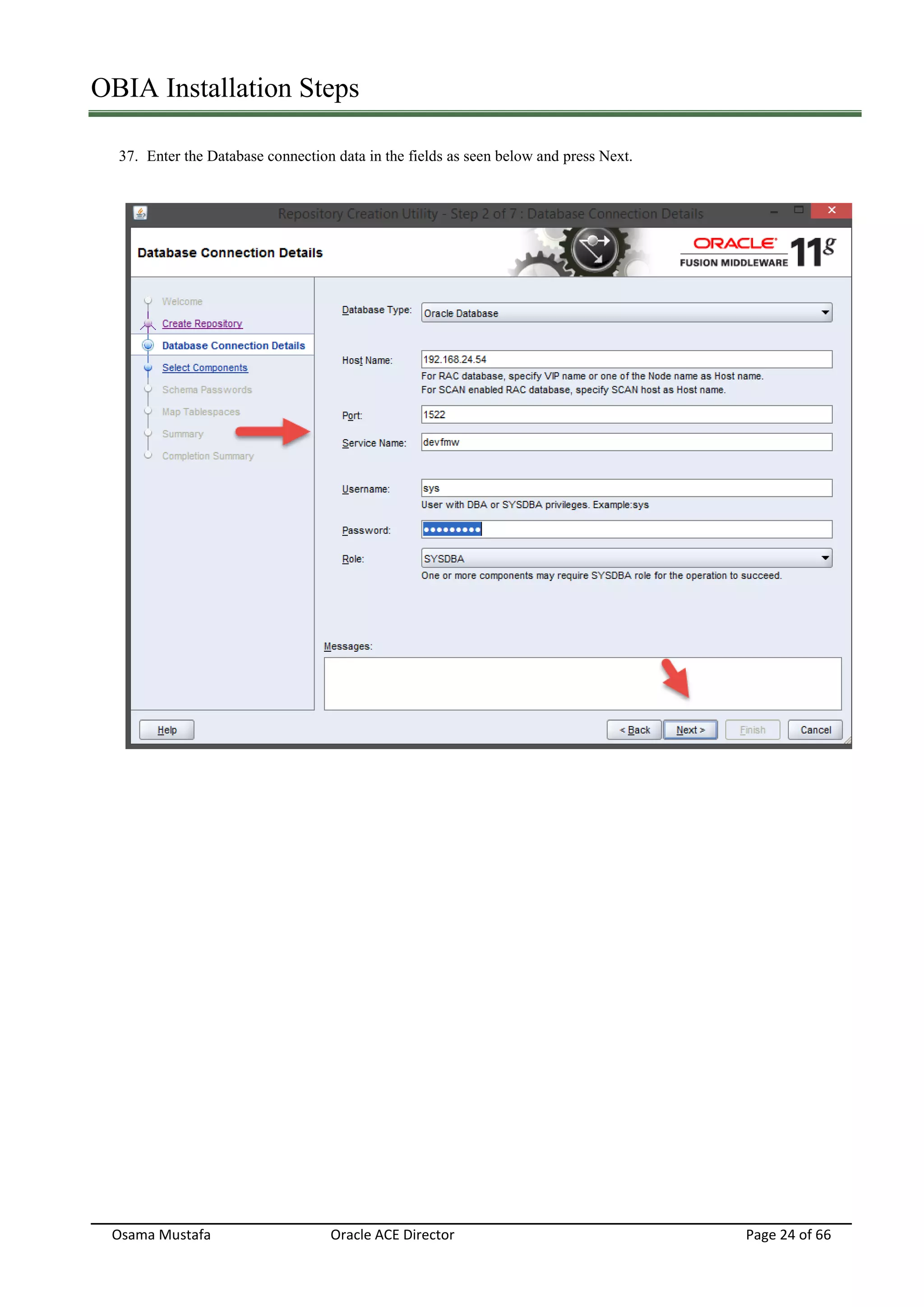

37. Enter the Database connection data in the fields as seen below and press Next.

26. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 25 of 66

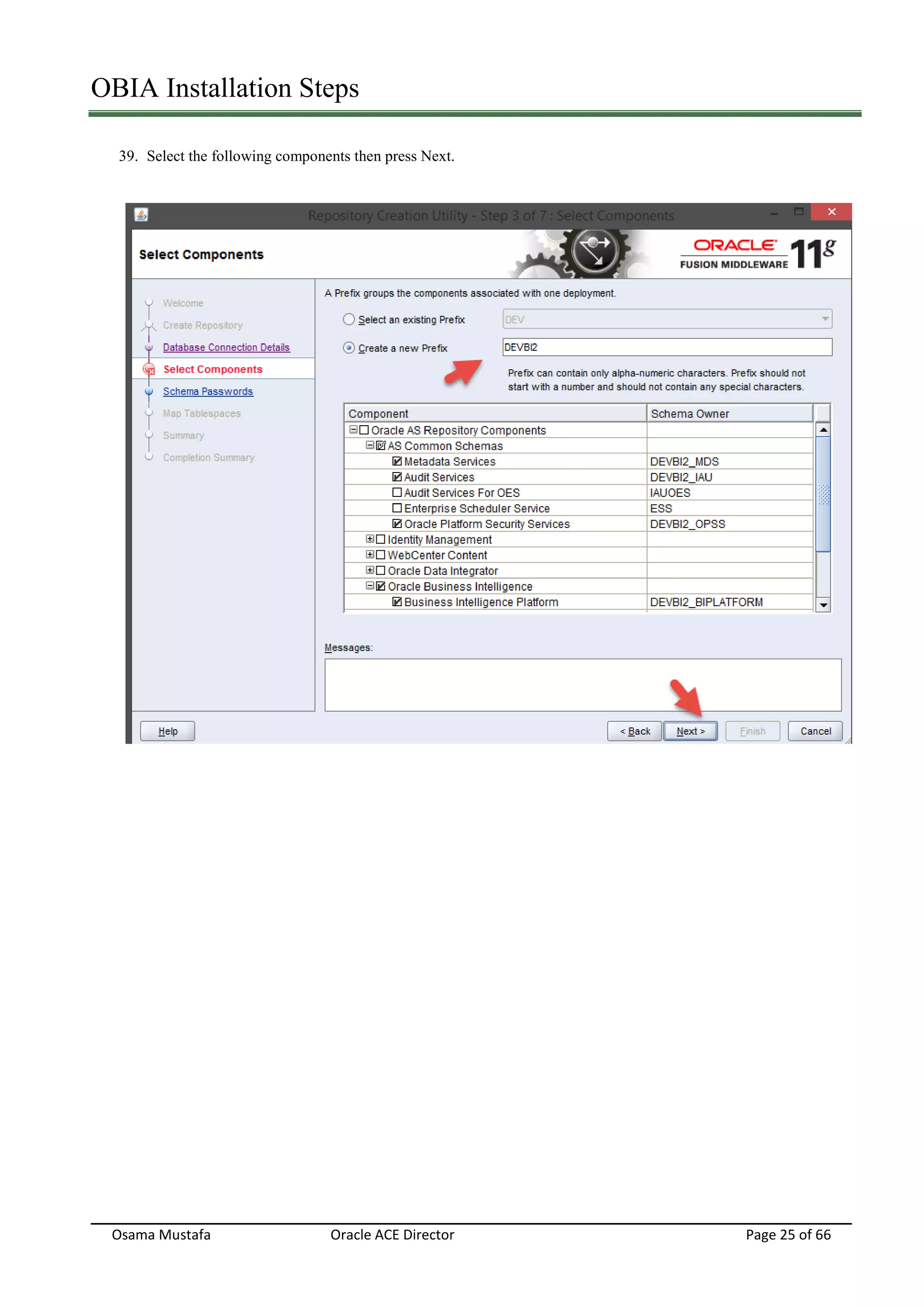

39. Select the following components then press Next.

27. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 26 of 66

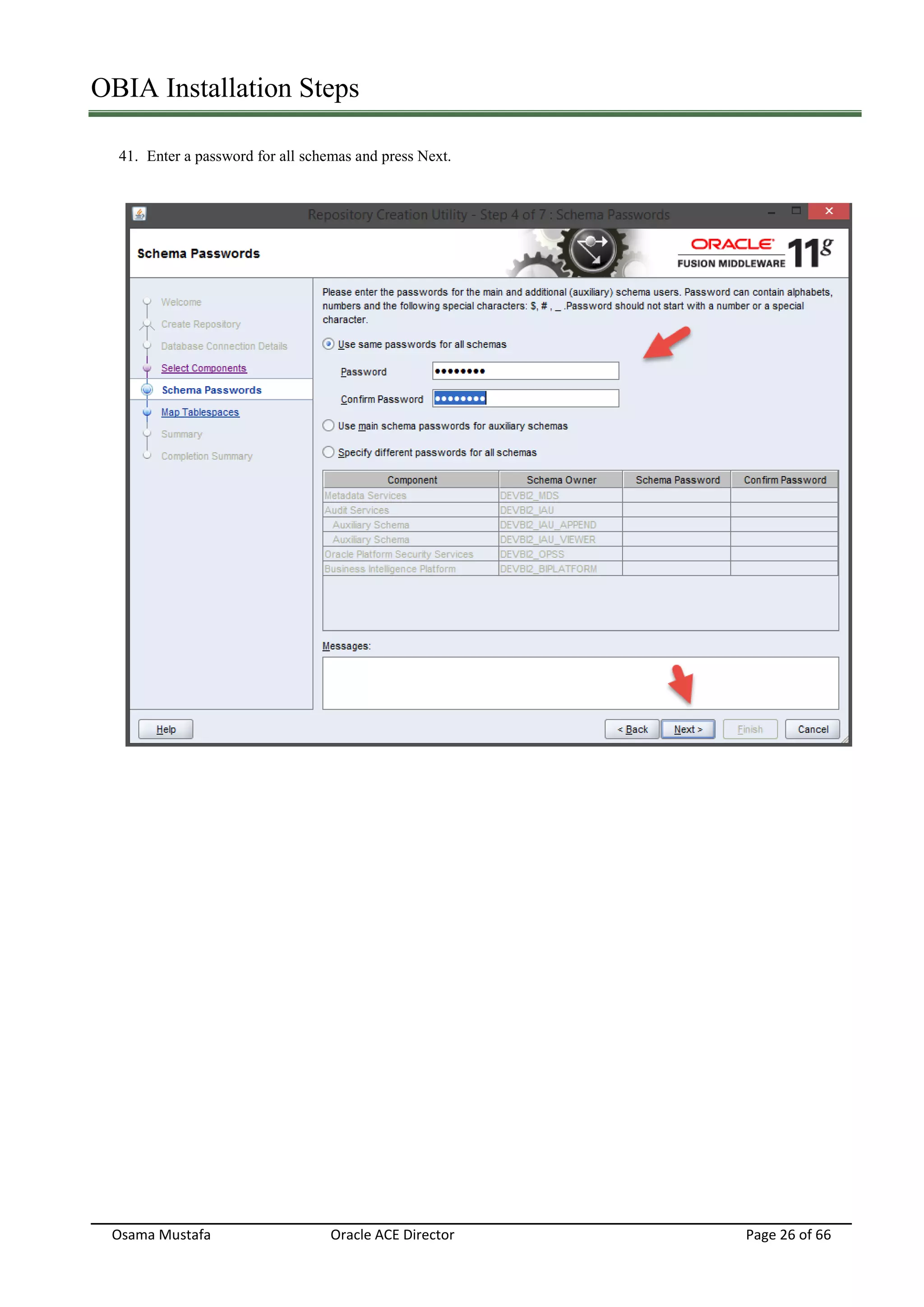

41. Enter a password for all schemas and press Next.

28. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 27 of 66

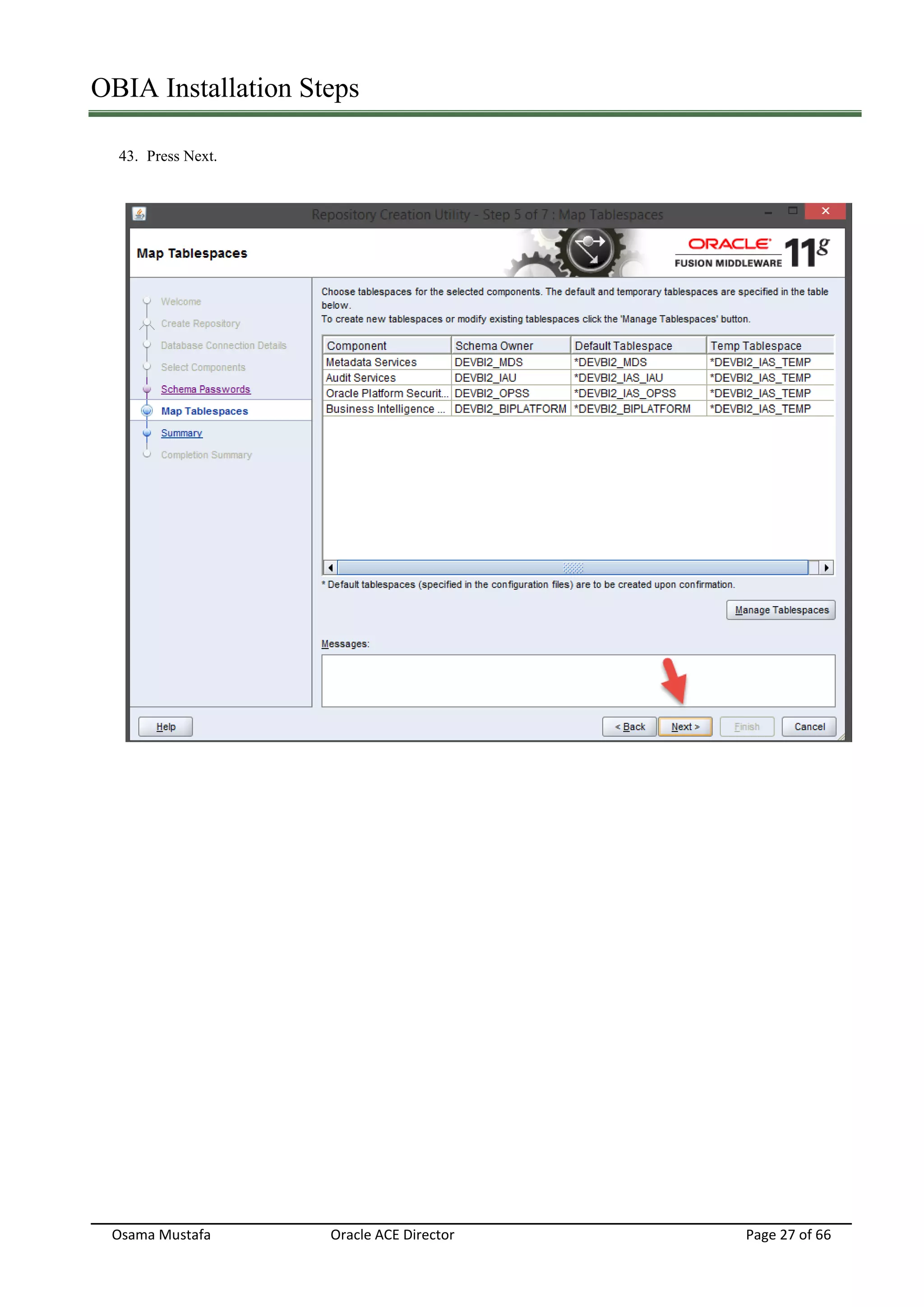

43. Press Next.

29. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 28 of 66

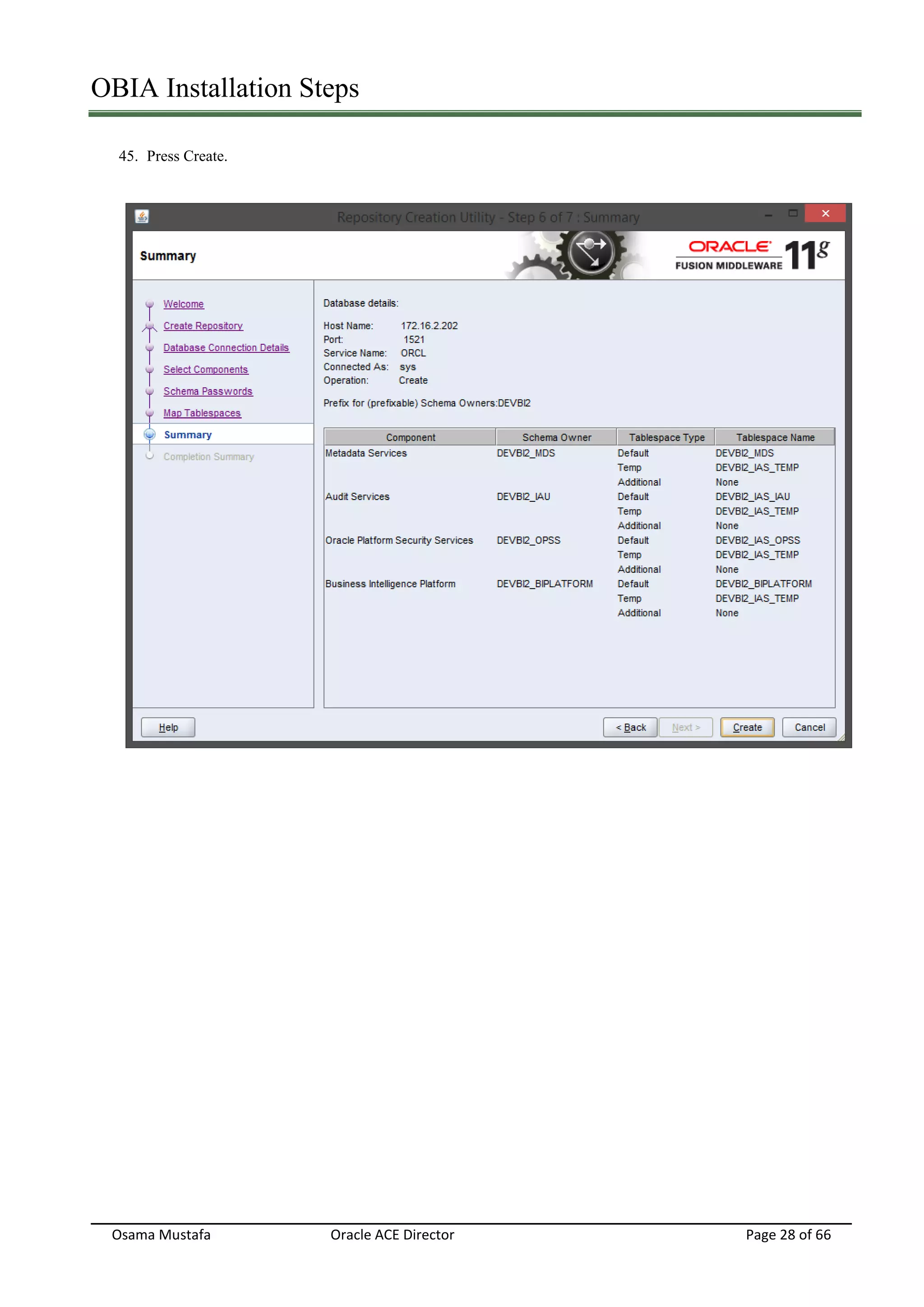

45. Press Create.

30. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 29 of 66

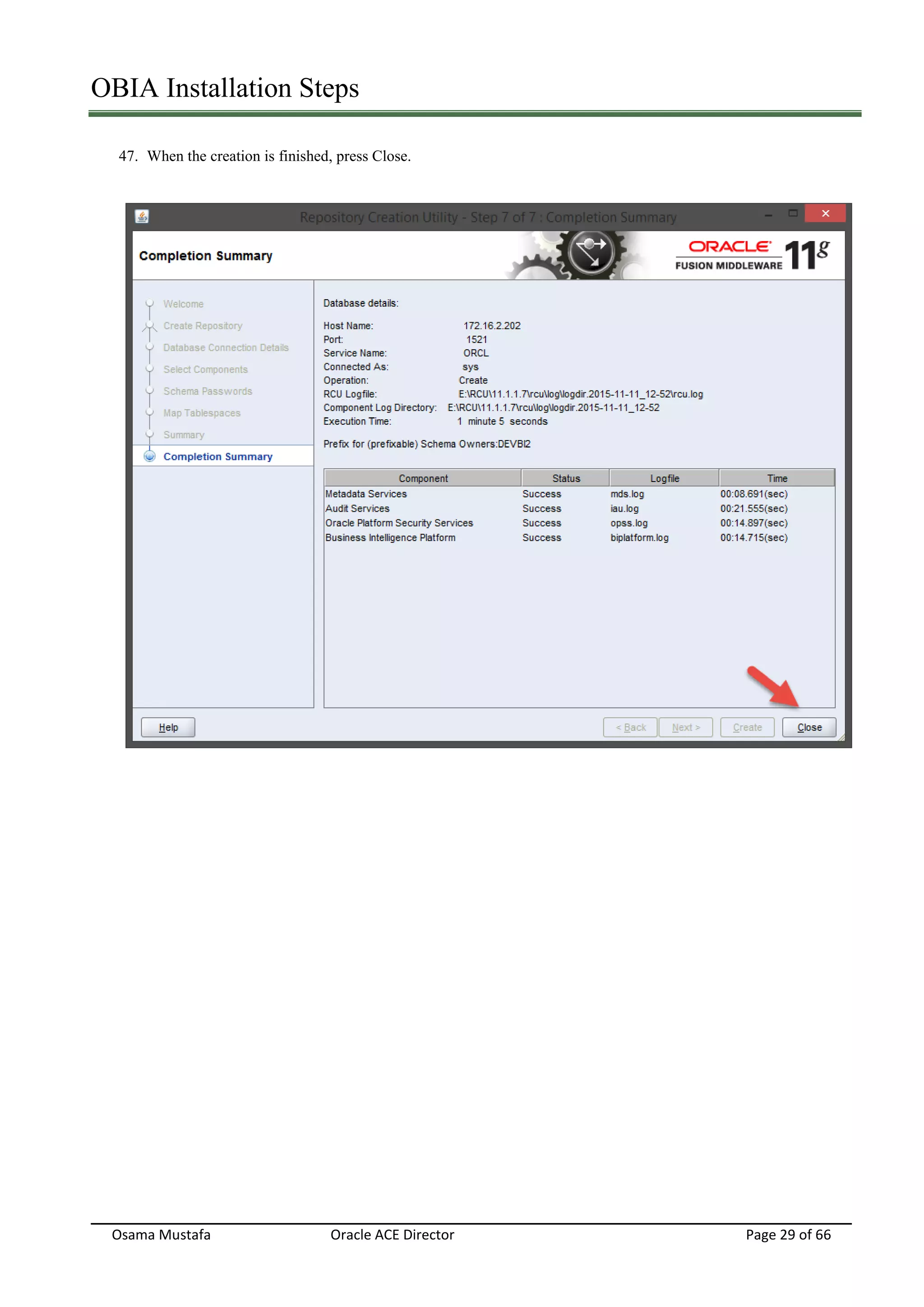

47. When the creation is finished, press Close.

31. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 30 of 66

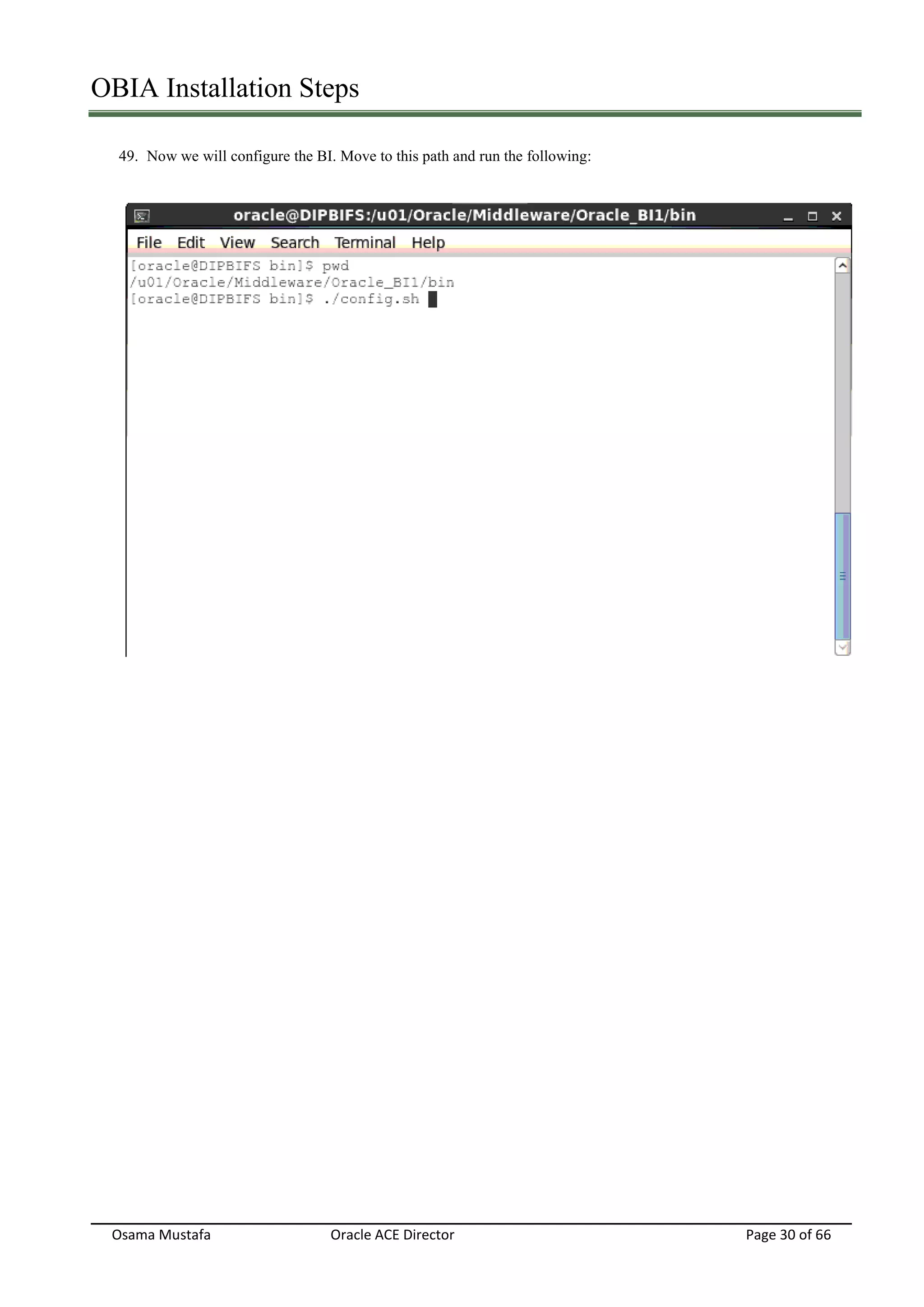

49. Now we will configure the BI. Move to this path and run the following:

32. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 31 of 66

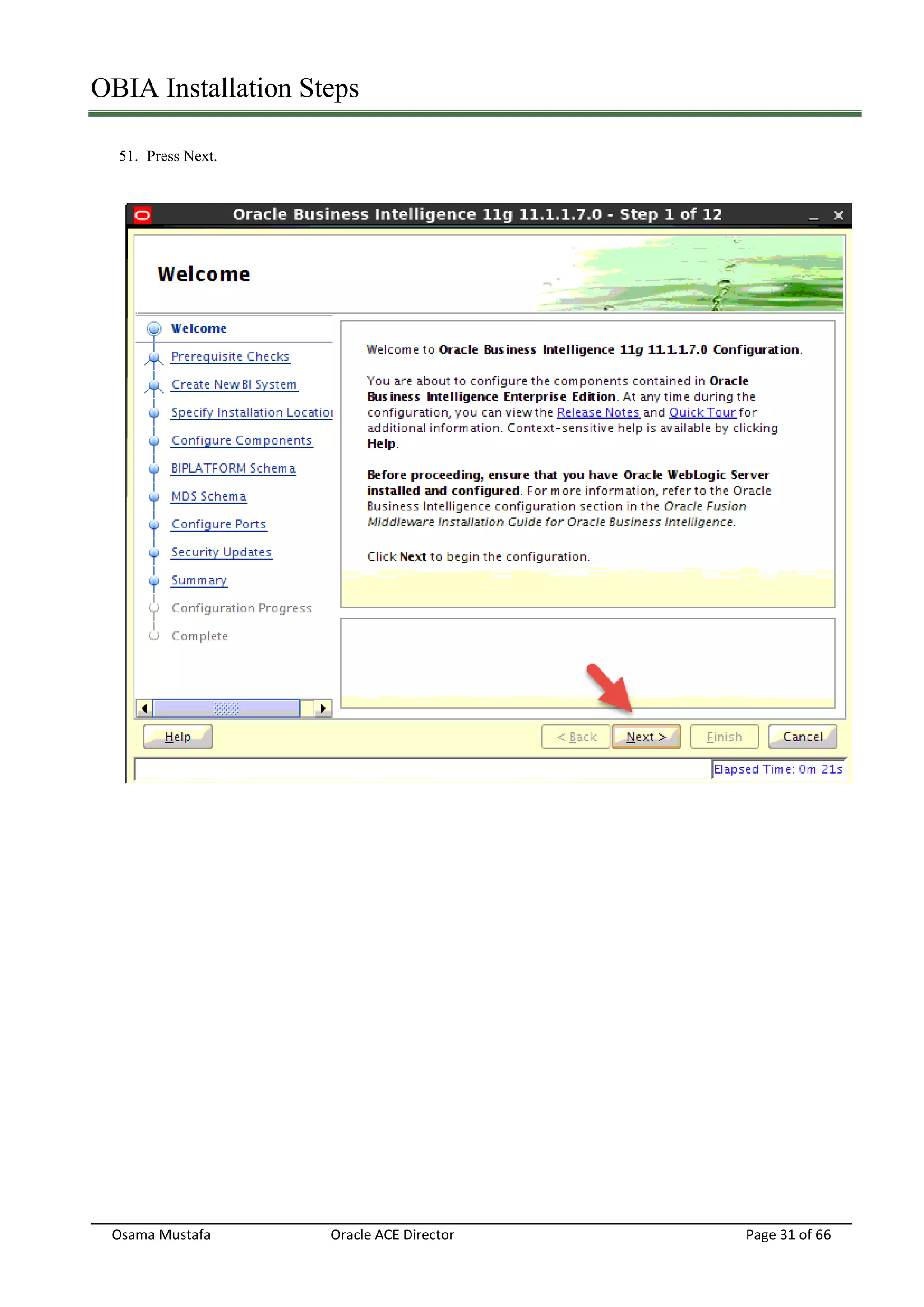

51. Press Next.

33. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 32 of 66

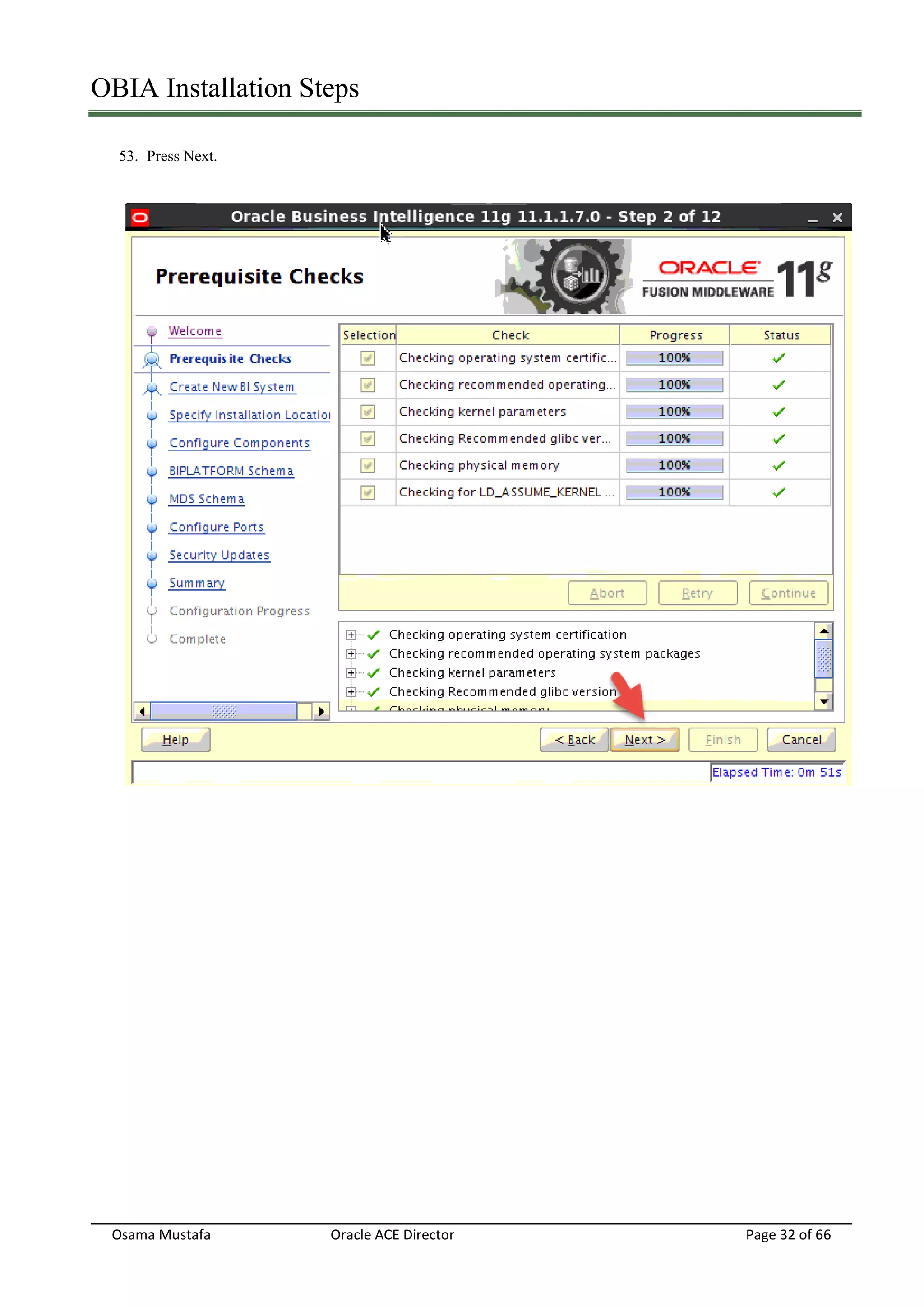

53. Press Next.

34. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 33 of 66
55. Enter the WebLogic password and press Next.

35. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 34 of 66

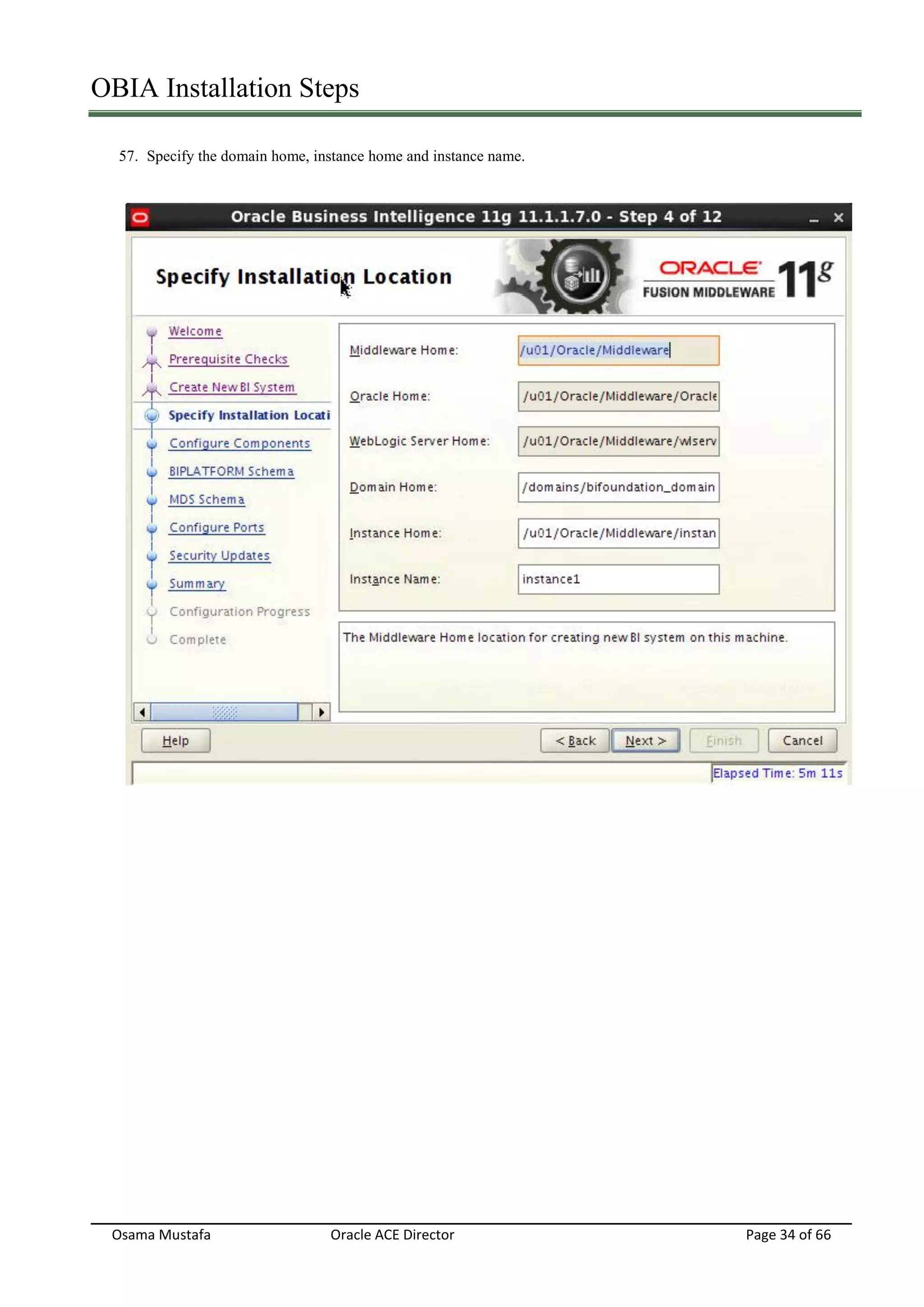

57. Specify the domain home, instance home and instance name.

36. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 35 of 66

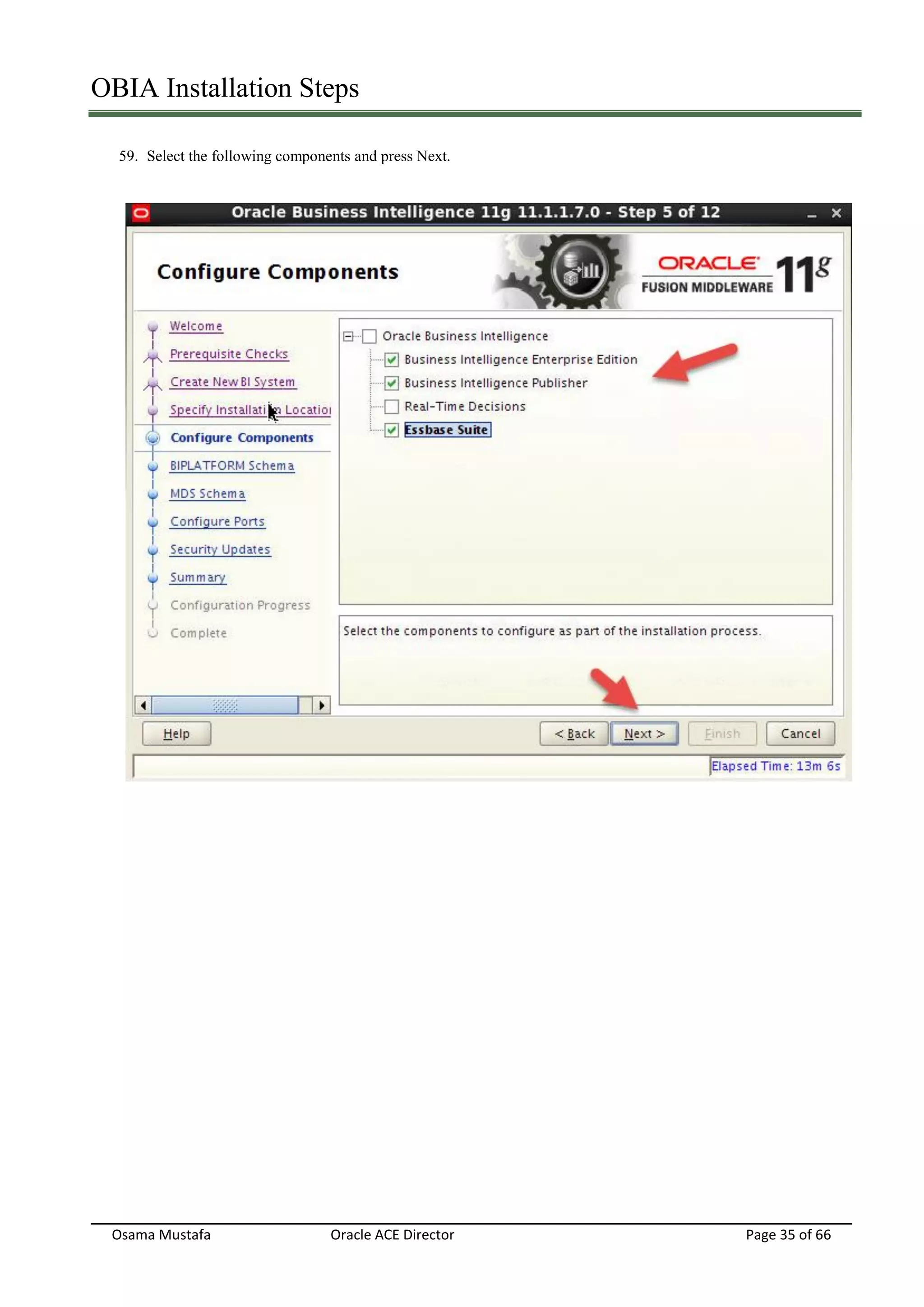

59. Select the following components and press Next.

37. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 36 of 66

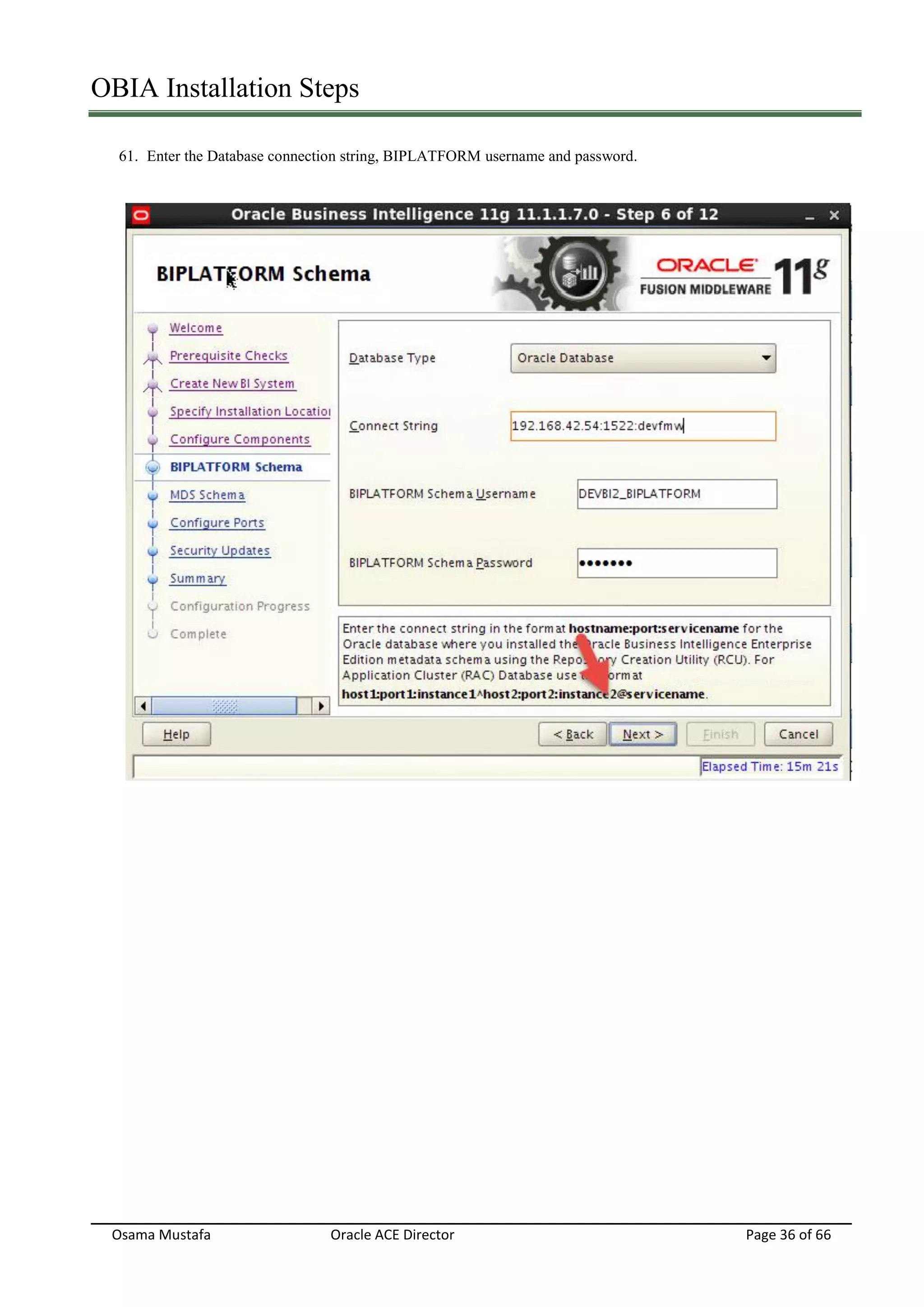

61. Enter the Database connection string, BIPLATFORM username and password.

38. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 37 of 66

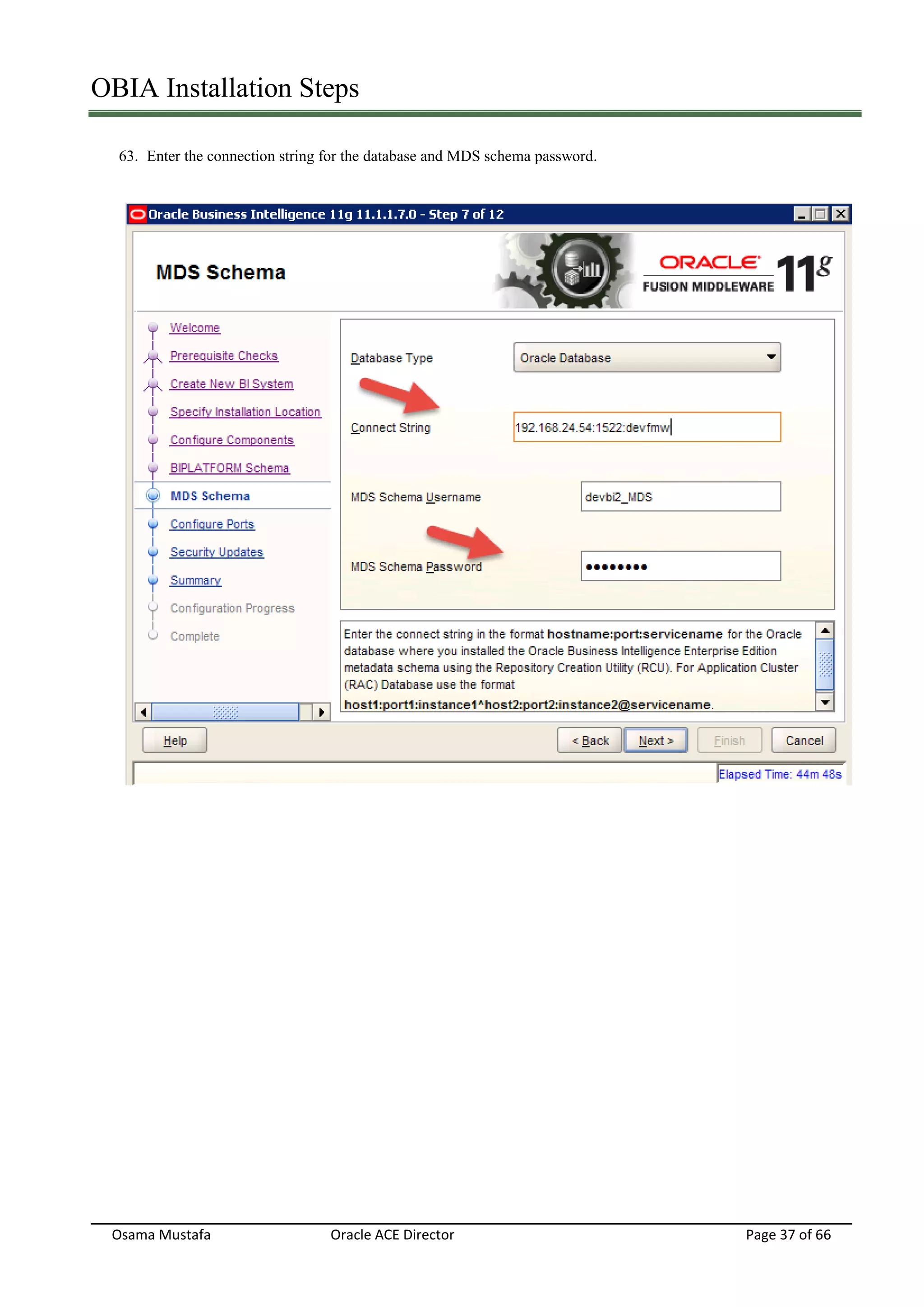

63. Enter the connection string for the database and MDS schema password.

39. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 38 of 66
65. Keep the Auto Port Configuration option and press Next.

40. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 39 of 66

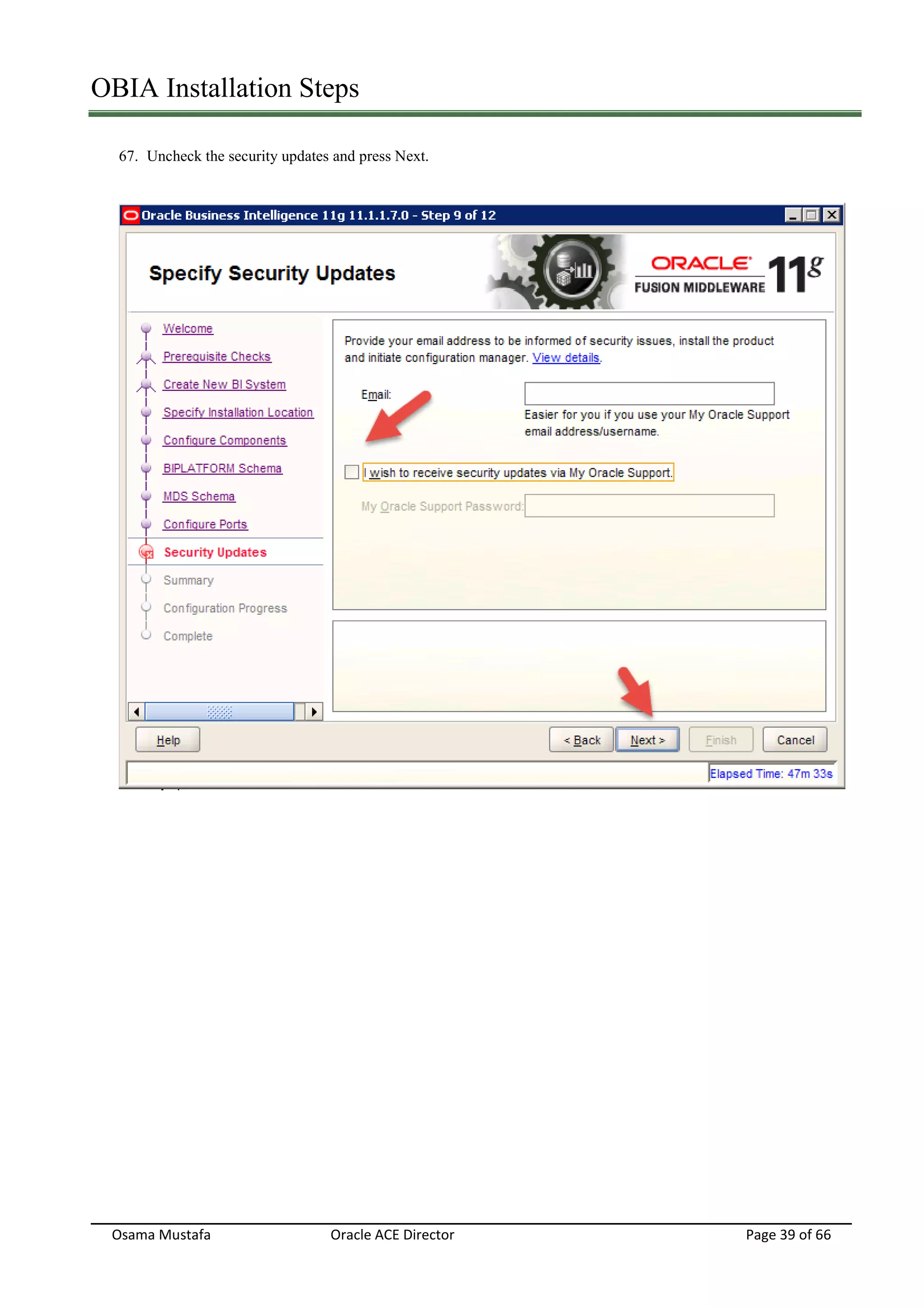

67. Uncheck the security updates and press Next.

41. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 40 of 66
69. Press Next.
70. BI installer will start and after completion, press Cancel.
71. Now the OBIEE server is installed we have to install Oracle ODI software only and skip repository creation.
Run the installer

42. OBIA Installation Steps

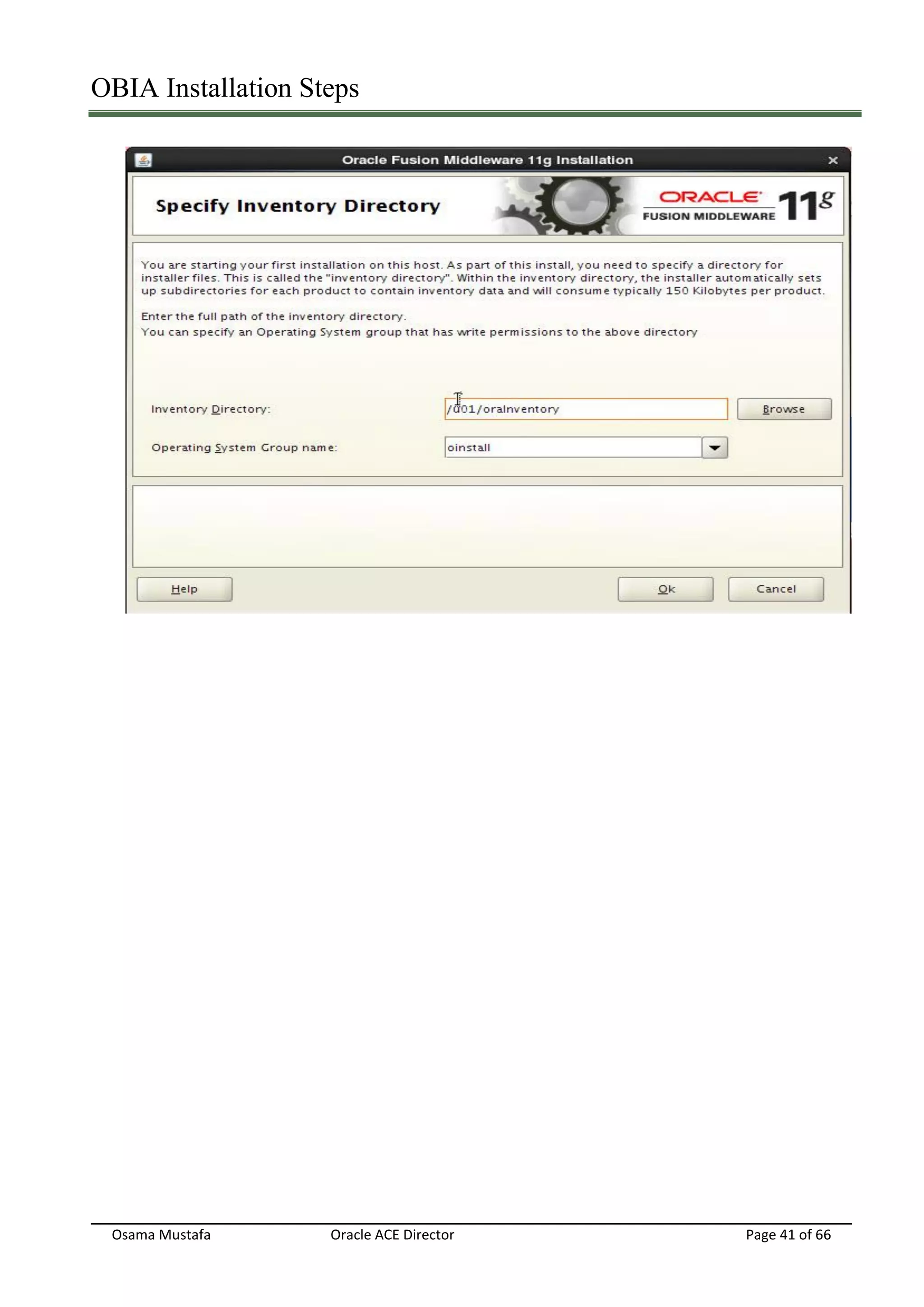

Osama Mustafa Oracle ACE Director Page 41 of 66

43. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 42 of 66

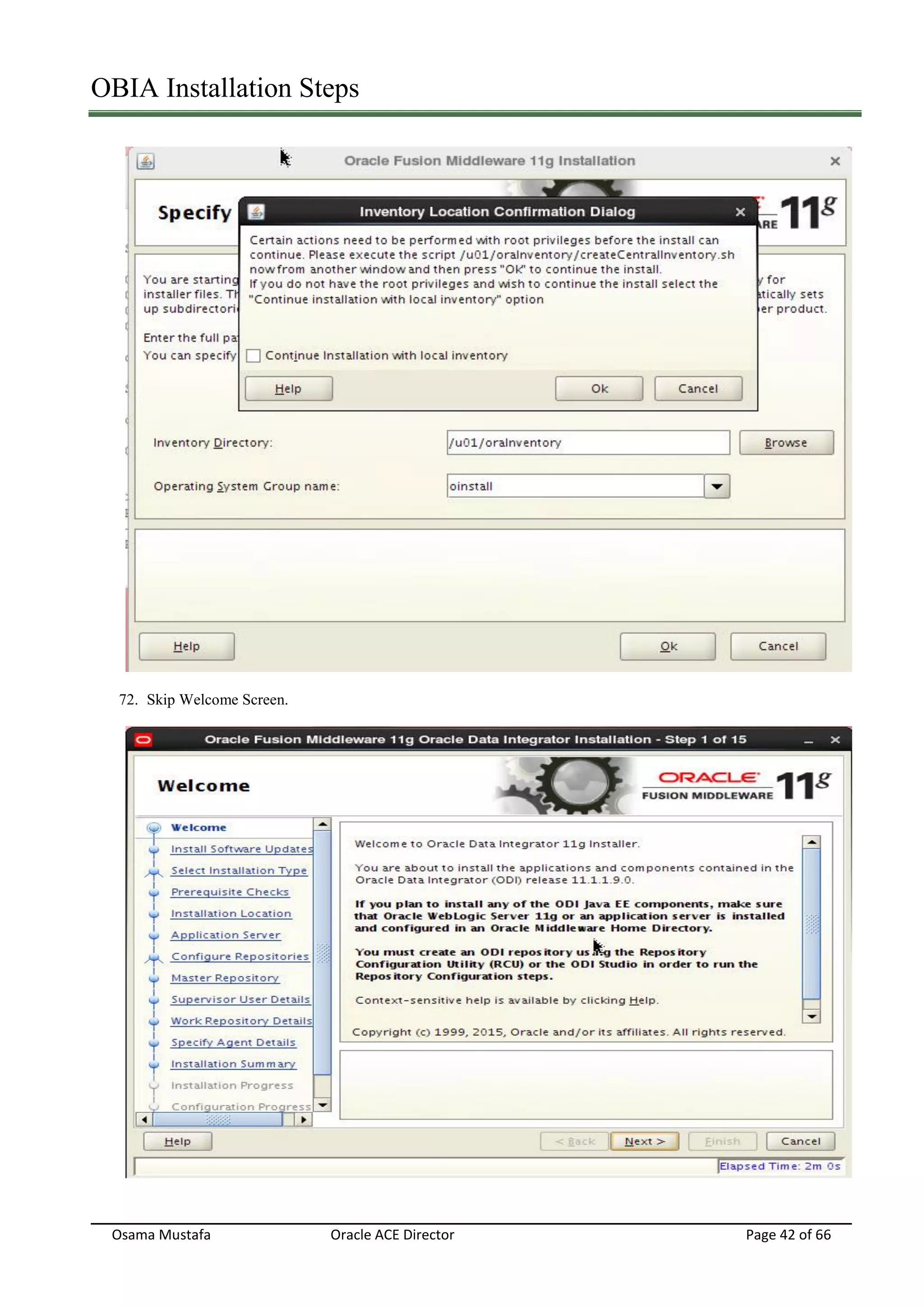

72. Skip Welcome Screen.

44. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 43 of 66

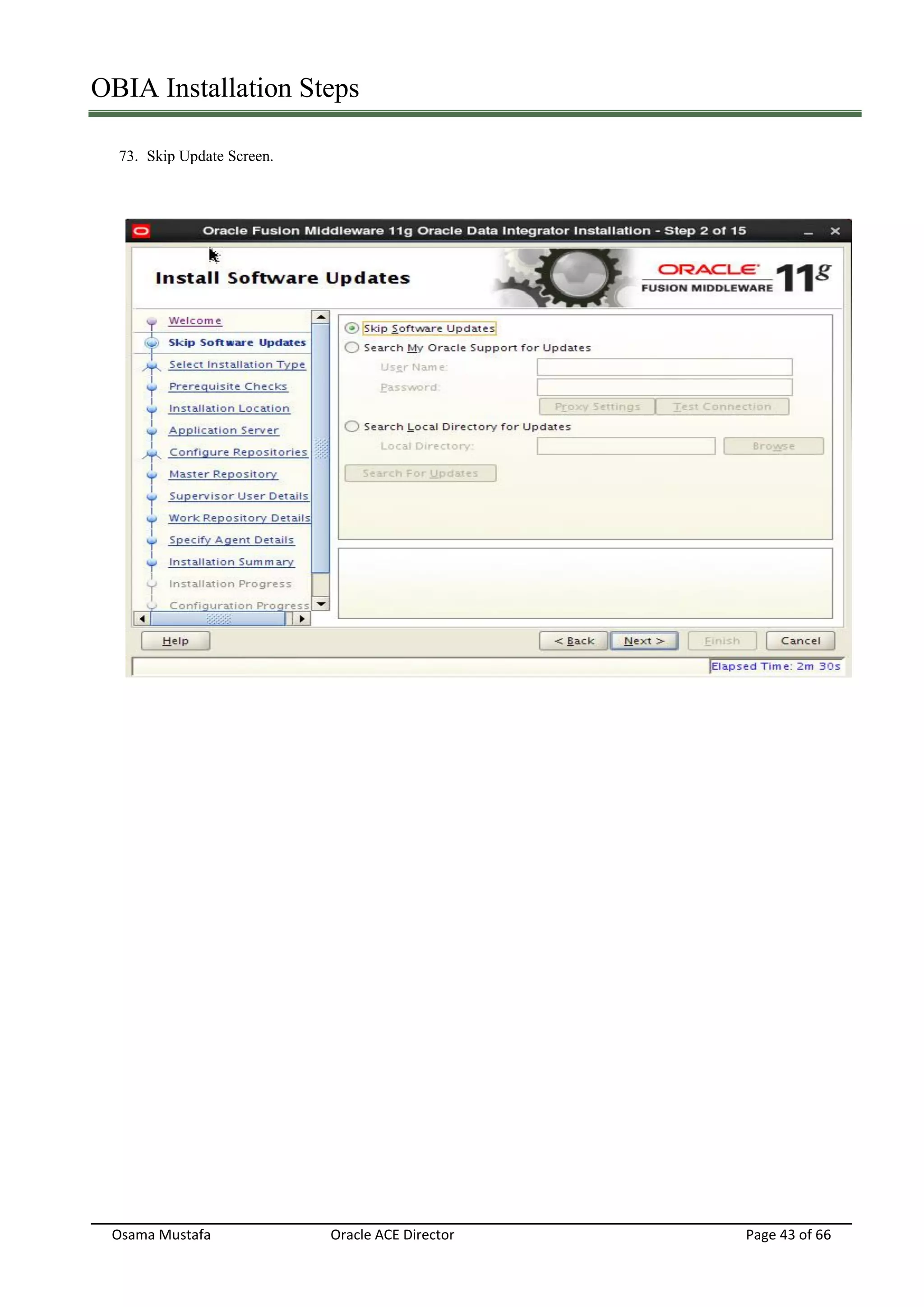

73. Skip Update Screen.

45. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 44 of 66

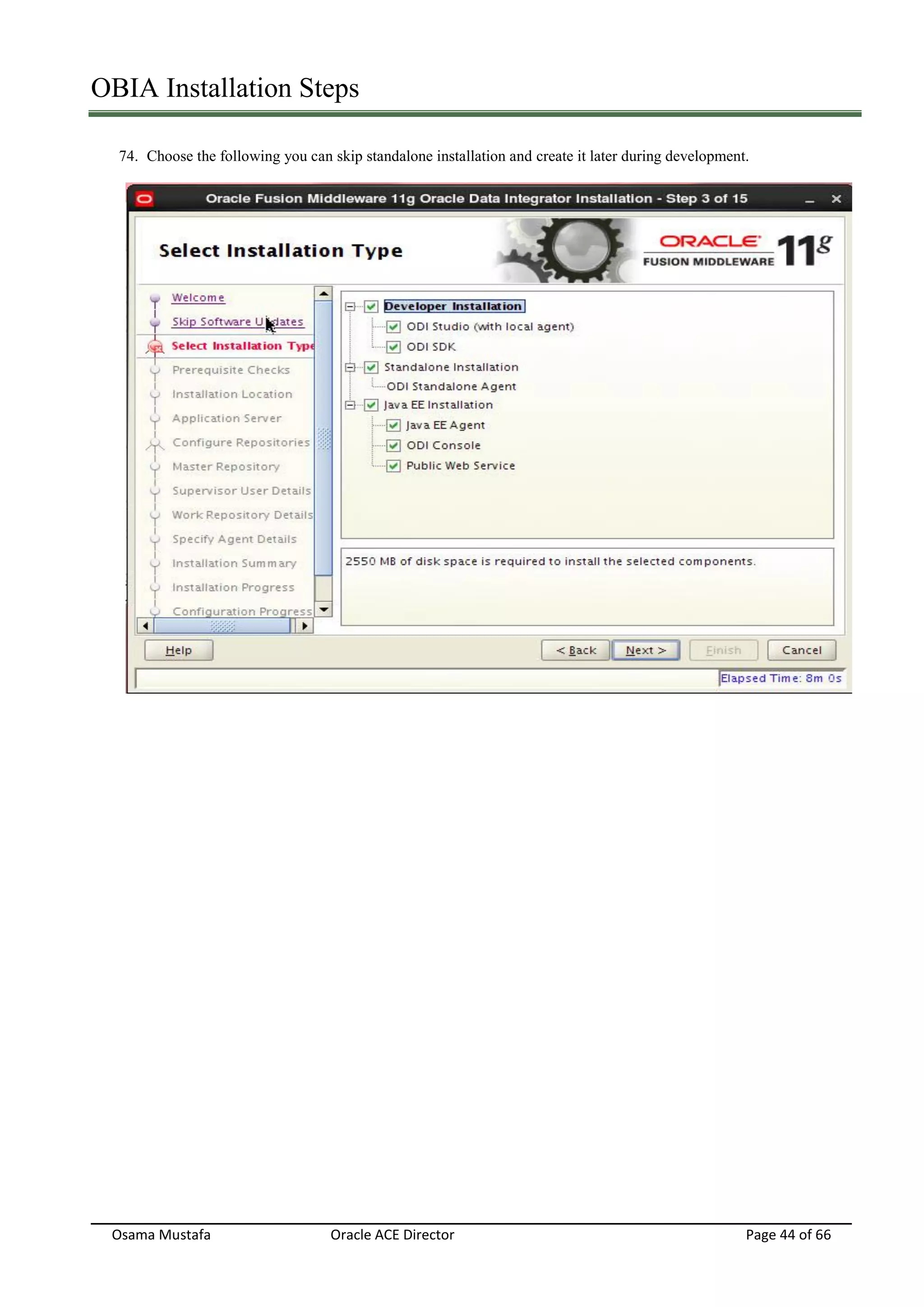

74. Choose the following you can skip standalone installation and create it later during development.

46. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 45 of 66

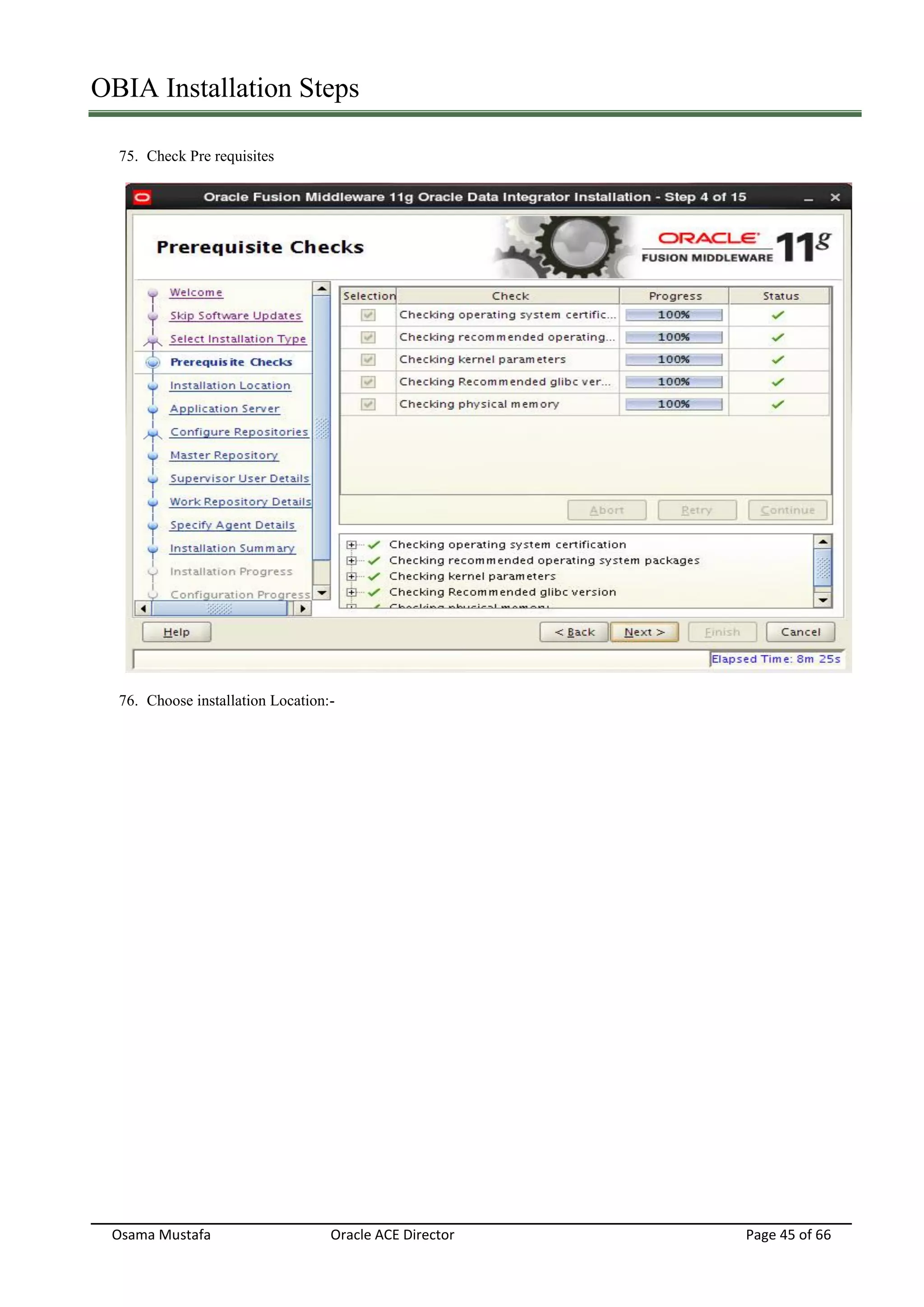

75. Check Pre requisites
76. Choose installation Location:-

47. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 46 of 66

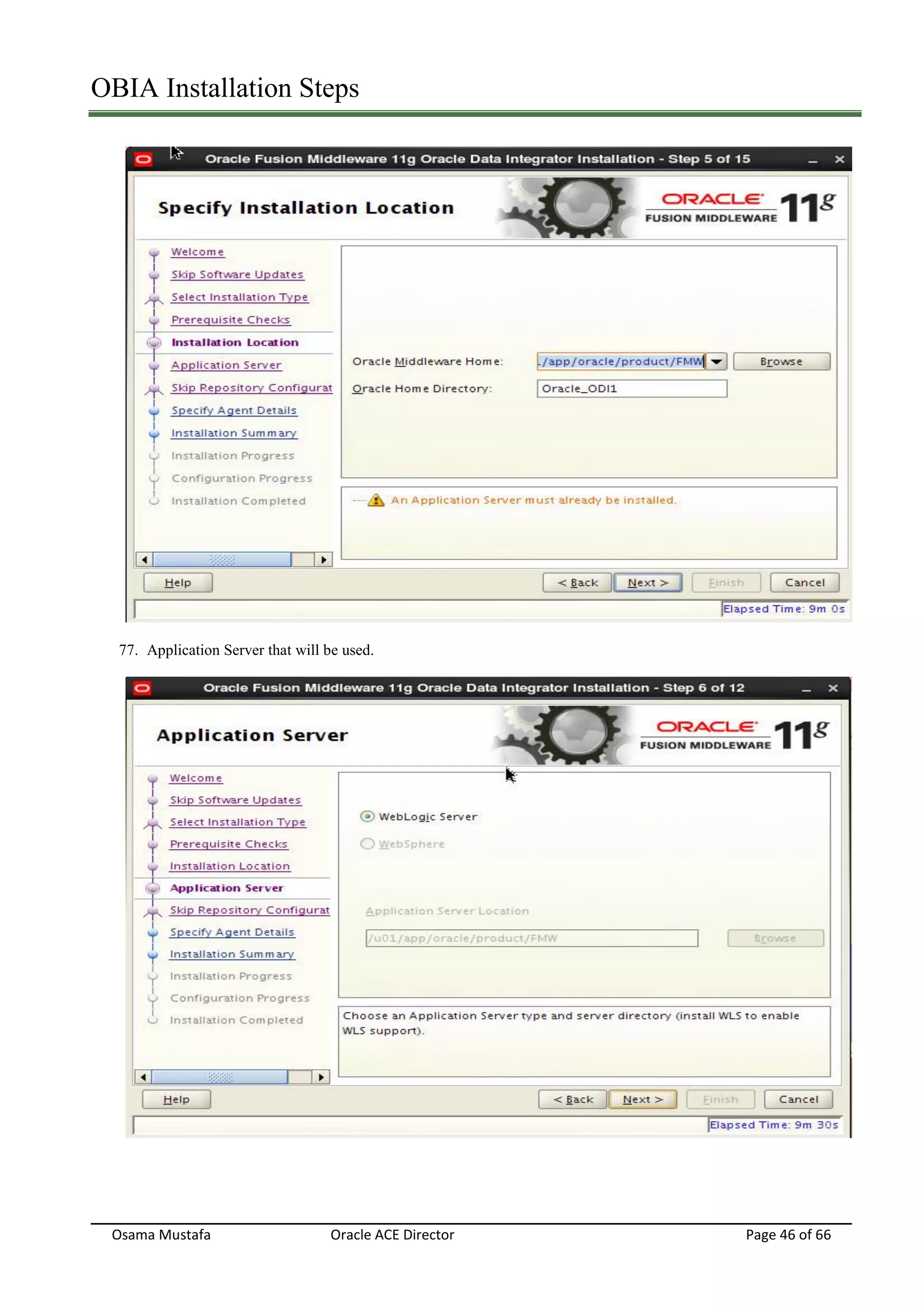

77. Application Server that will be used.

48. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 47 of 66

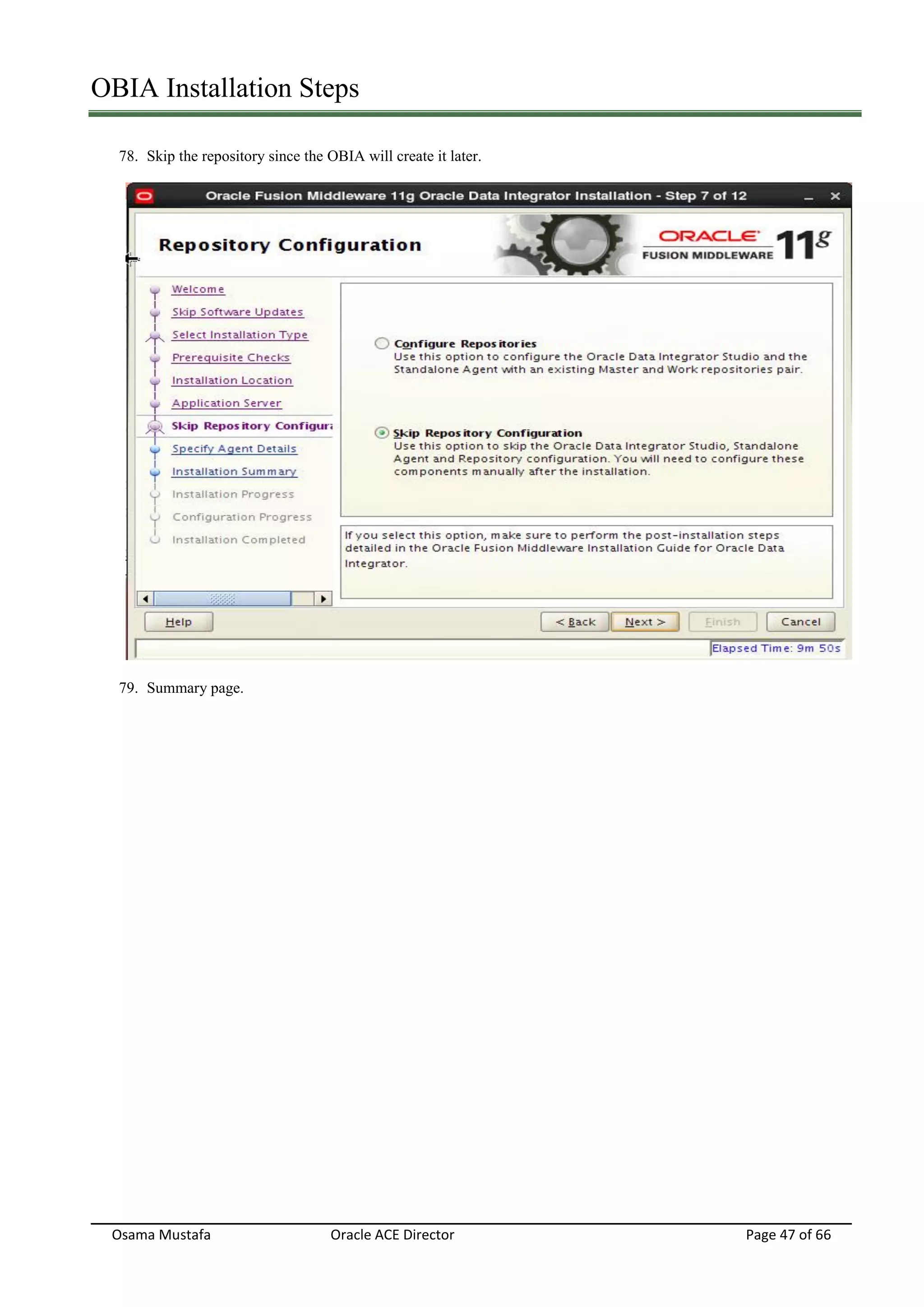

78. Skip the repository since the OBIA will create it later.

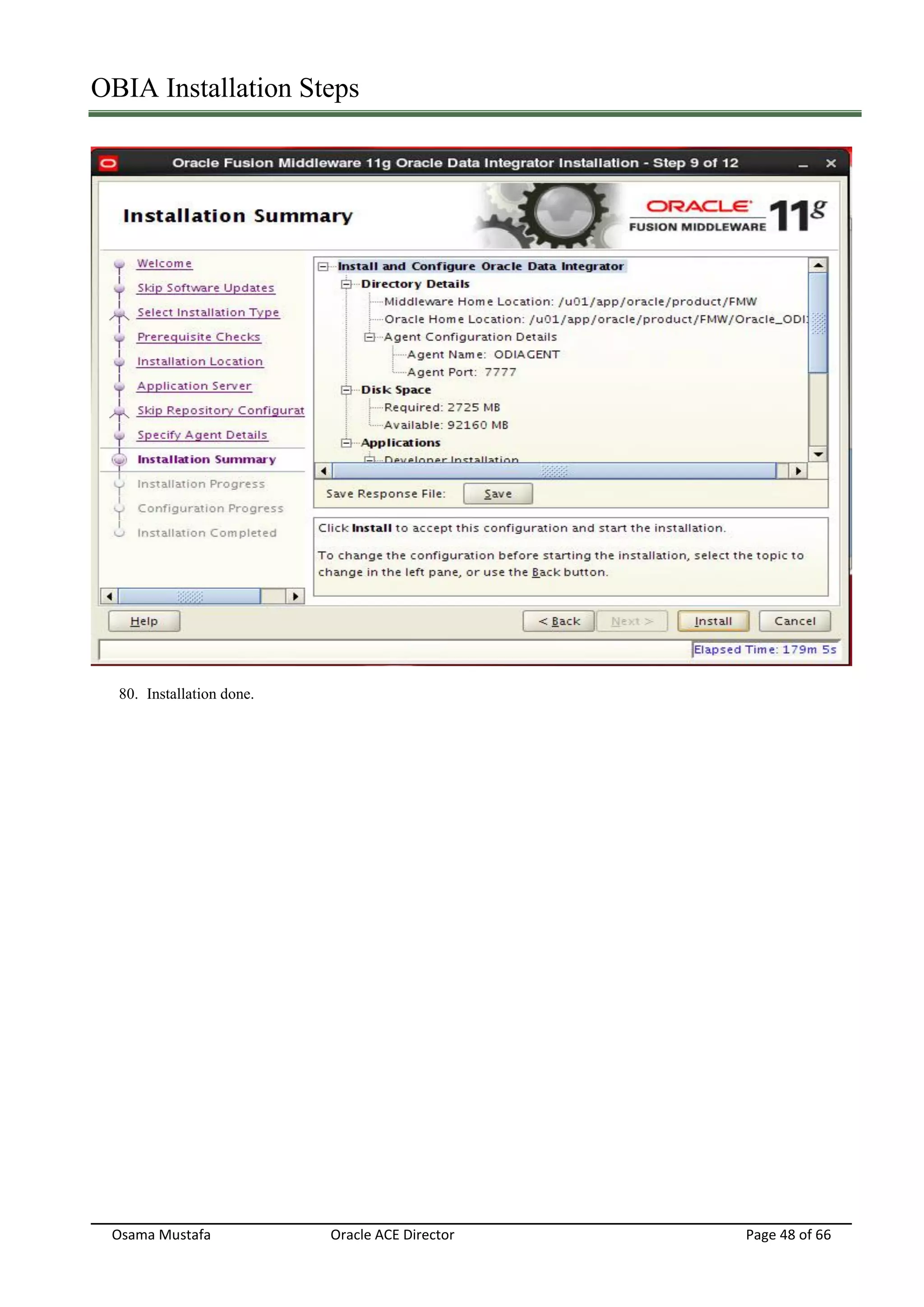

79. Summary page.

49. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 48 of 66

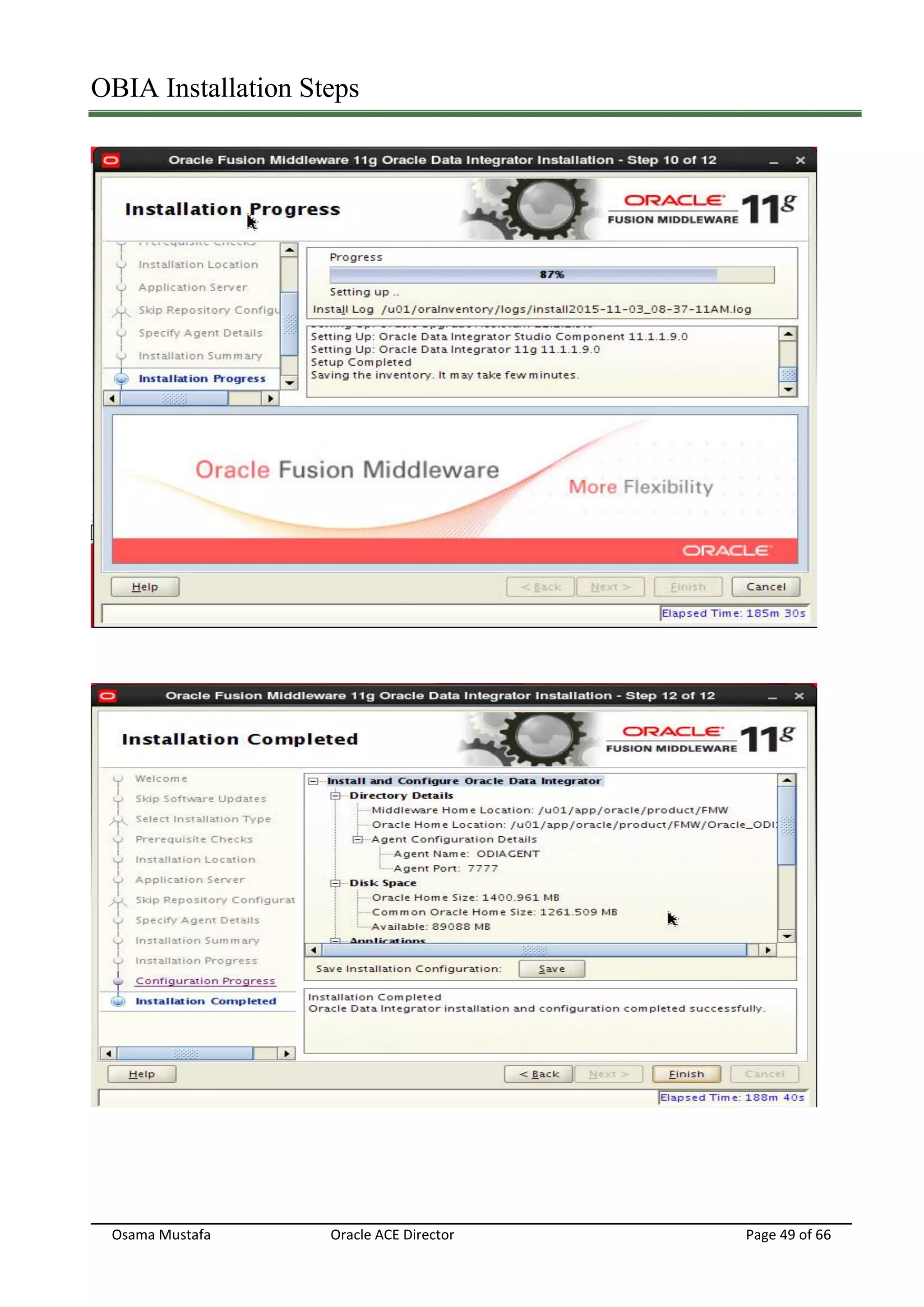

80. Installation done.

50. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 49 of 66

51. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 50 of 66
81. In this steps you should install OBIA Installation, before this the RCU should be created to OBIA RCU.
82. Choose export directory for OBIA:-

52. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 51 of 66

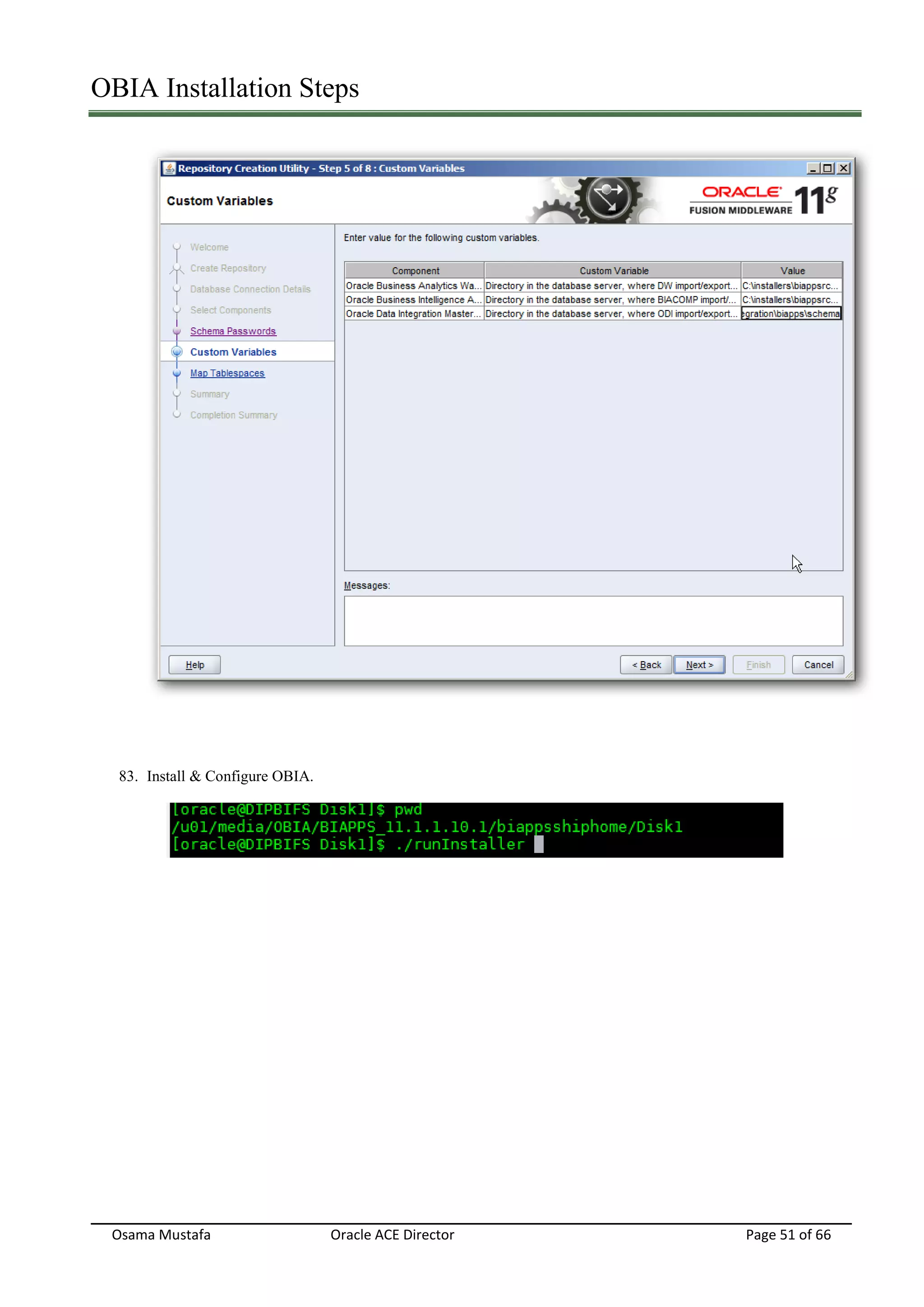

83. Install & Configure OBIA.

53. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 52 of 66

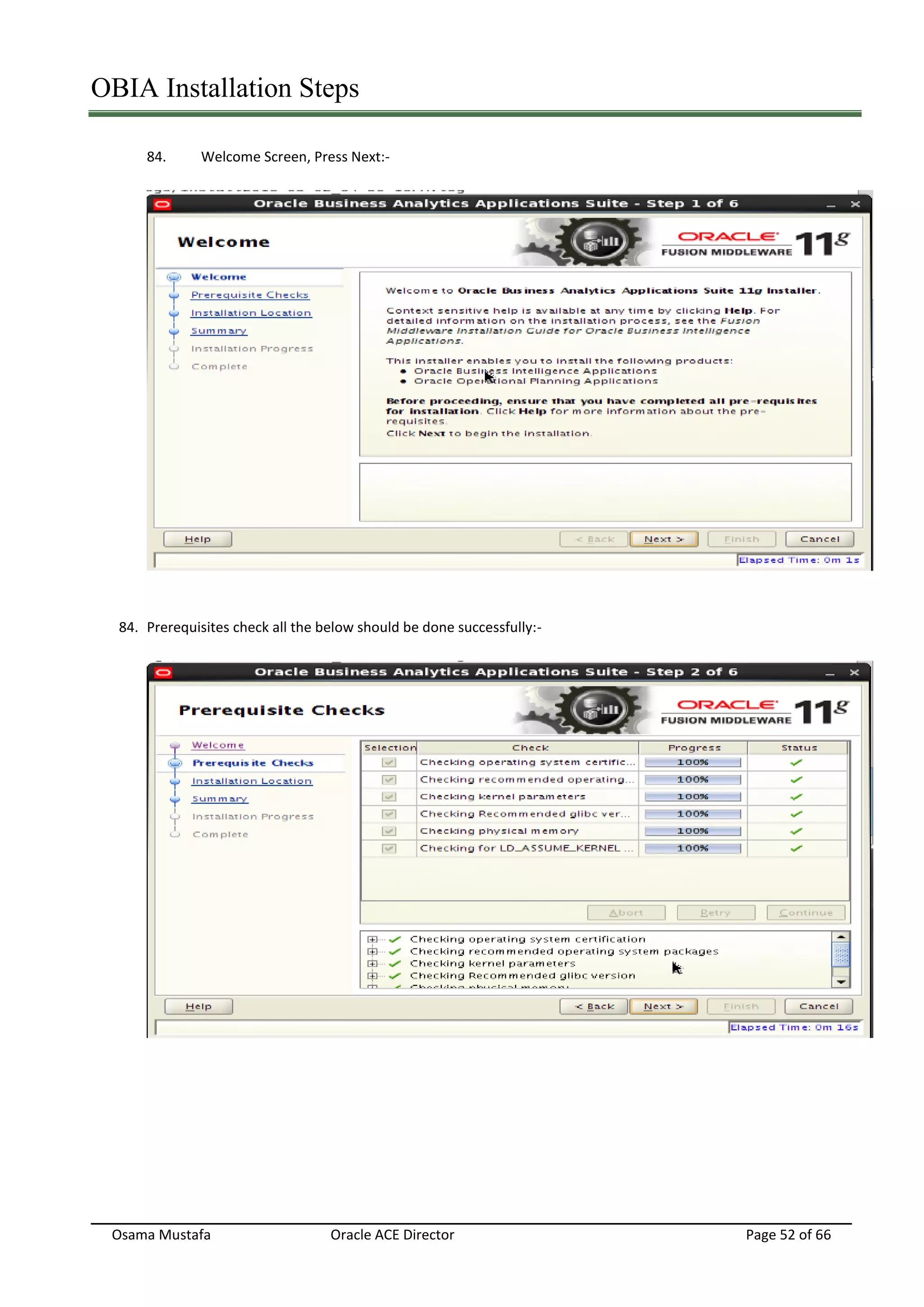

84. Welcome Screen, Press Next:-
84. Prerequisites check all the below should be done successfully:-

54. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 53 of 66

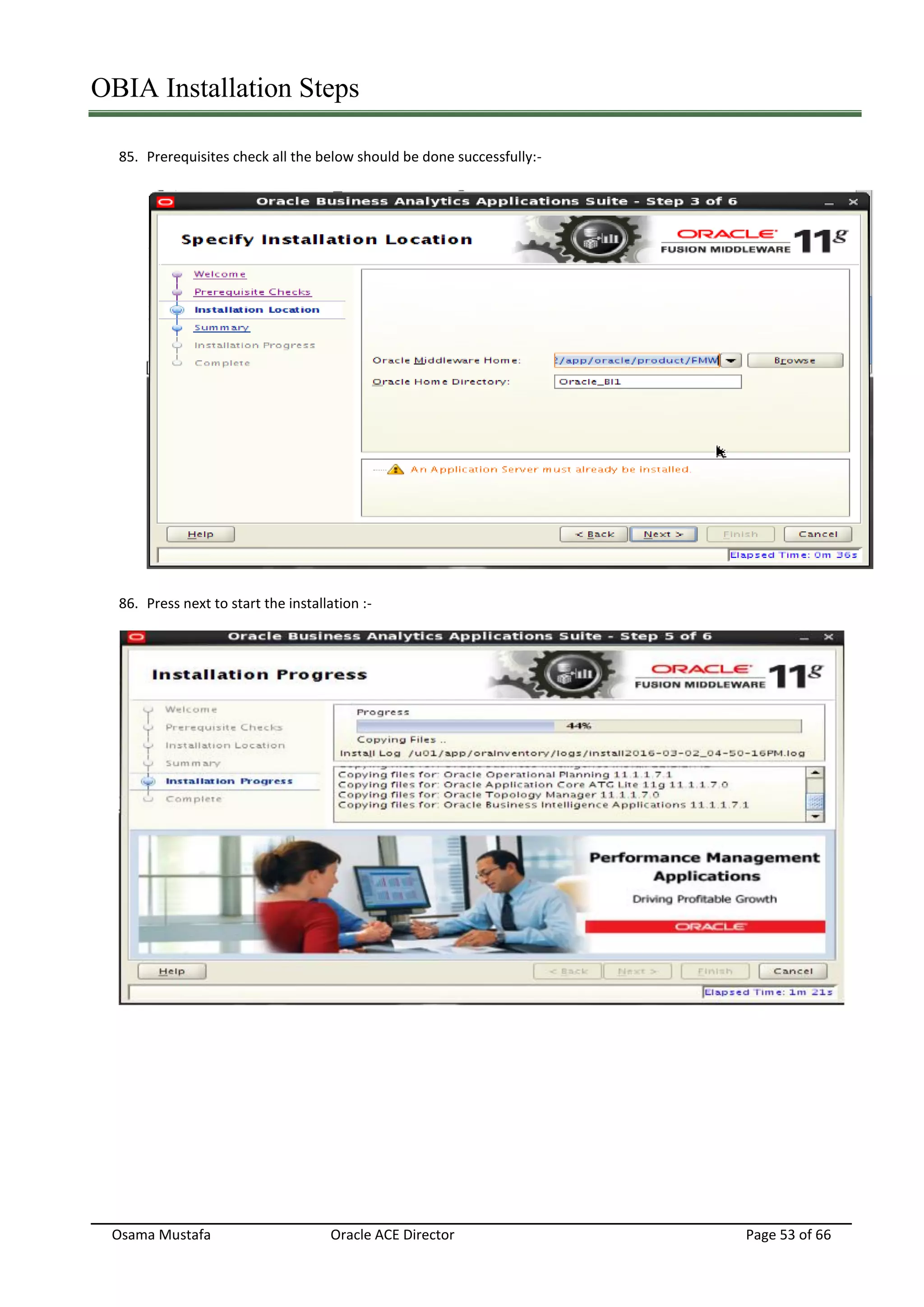

85. Prerequisites check all the below should be done successfully:-
86. Press next to start the installation :-

55. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 54 of 66

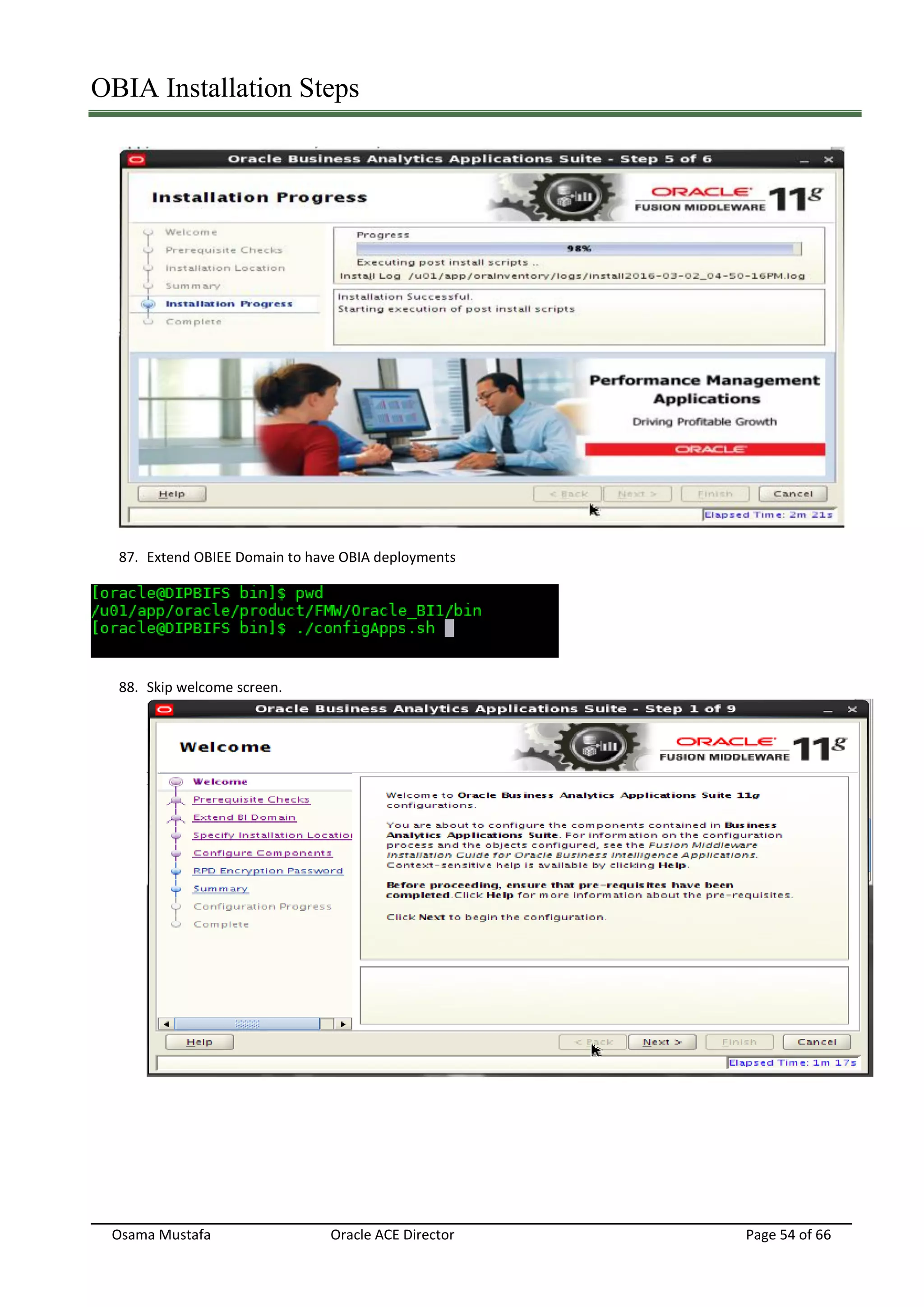

87. Extend OBIEE Domain to have OBIA deployments
88. Skip welcome screen.

56. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 55 of 66

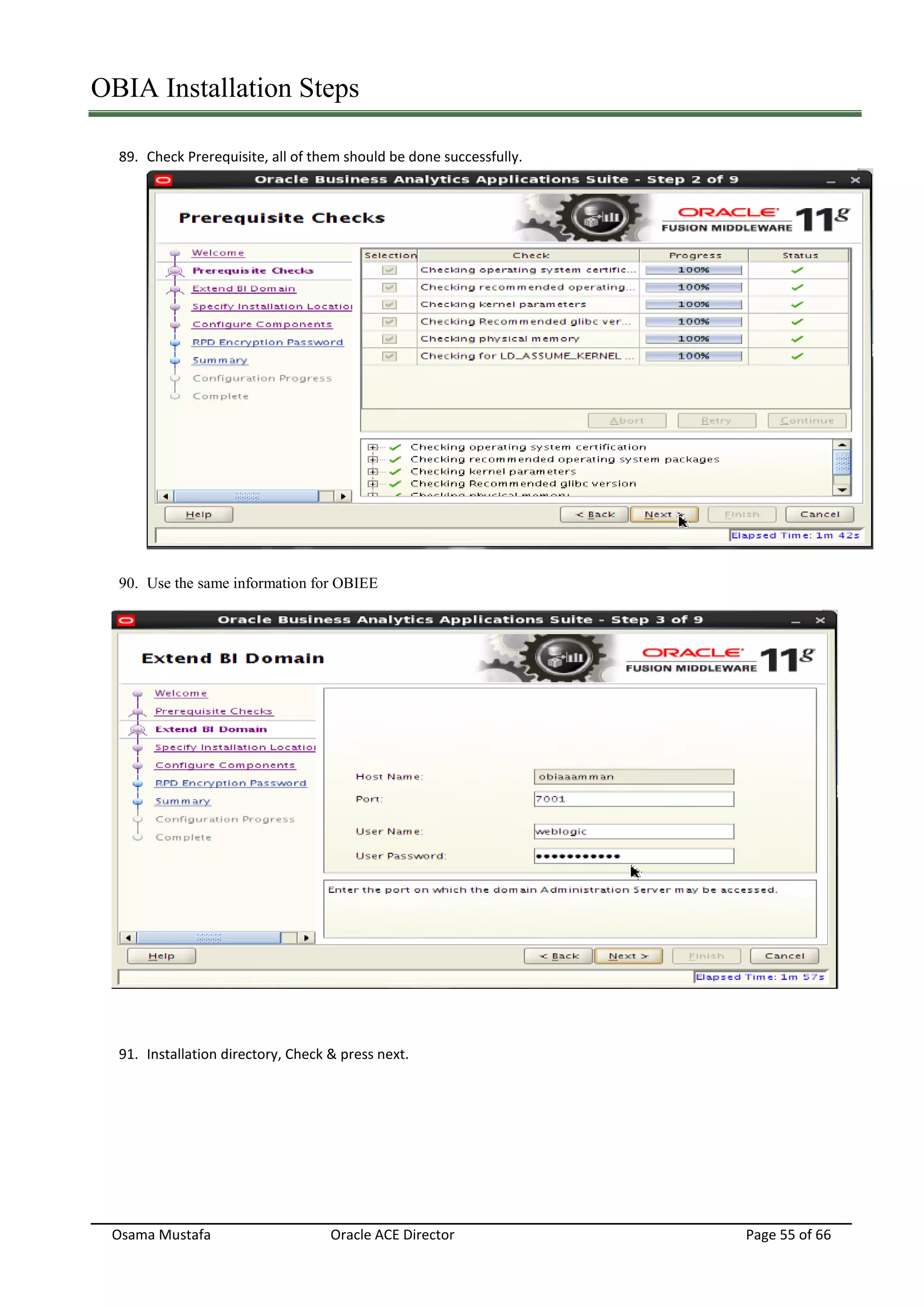

89. Check Prerequisite, all of them should be done successfully.
90. Use the same information for OBIEE
91. Installation directory, Check & press next.

57. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 56 of 66

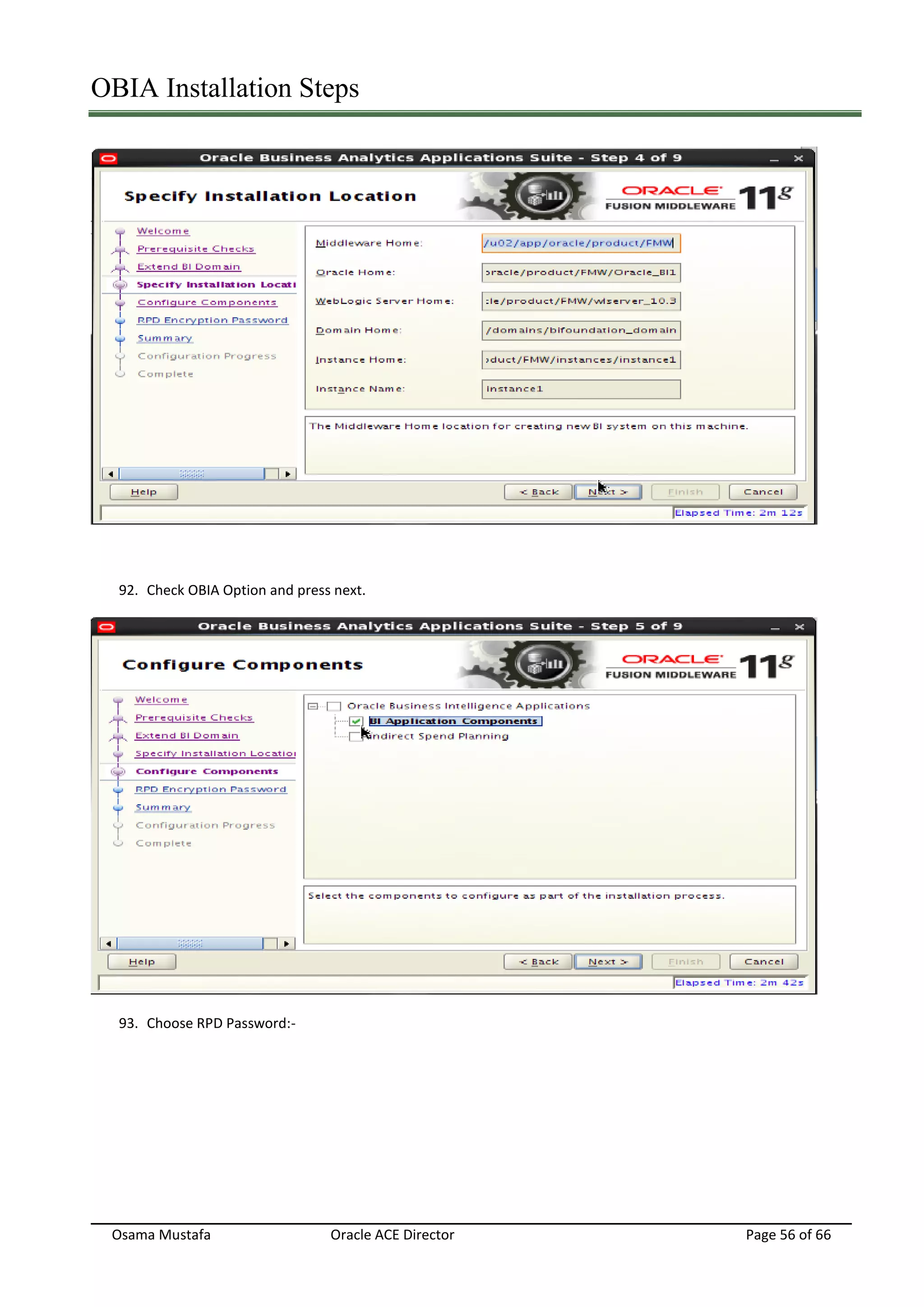

92. Check OBIA Option and press next.
93. Choose RPD Password:-

58. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 57 of 66
94. Choose Admin Password for OBIA

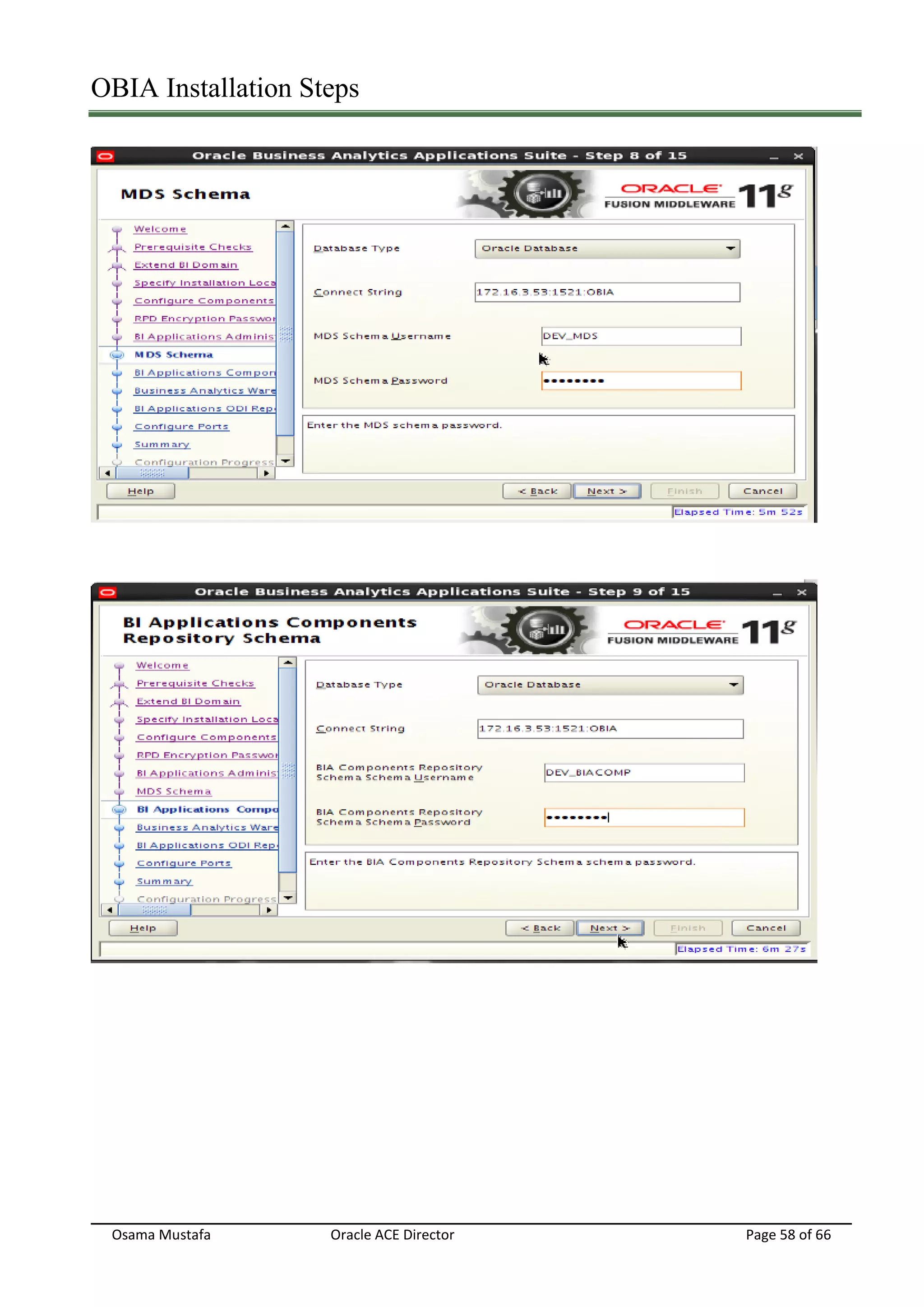

95. Choose DB connection and The Schema that created Using RCU in previous steps.

59. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 58 of 66

60. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 59 of 66

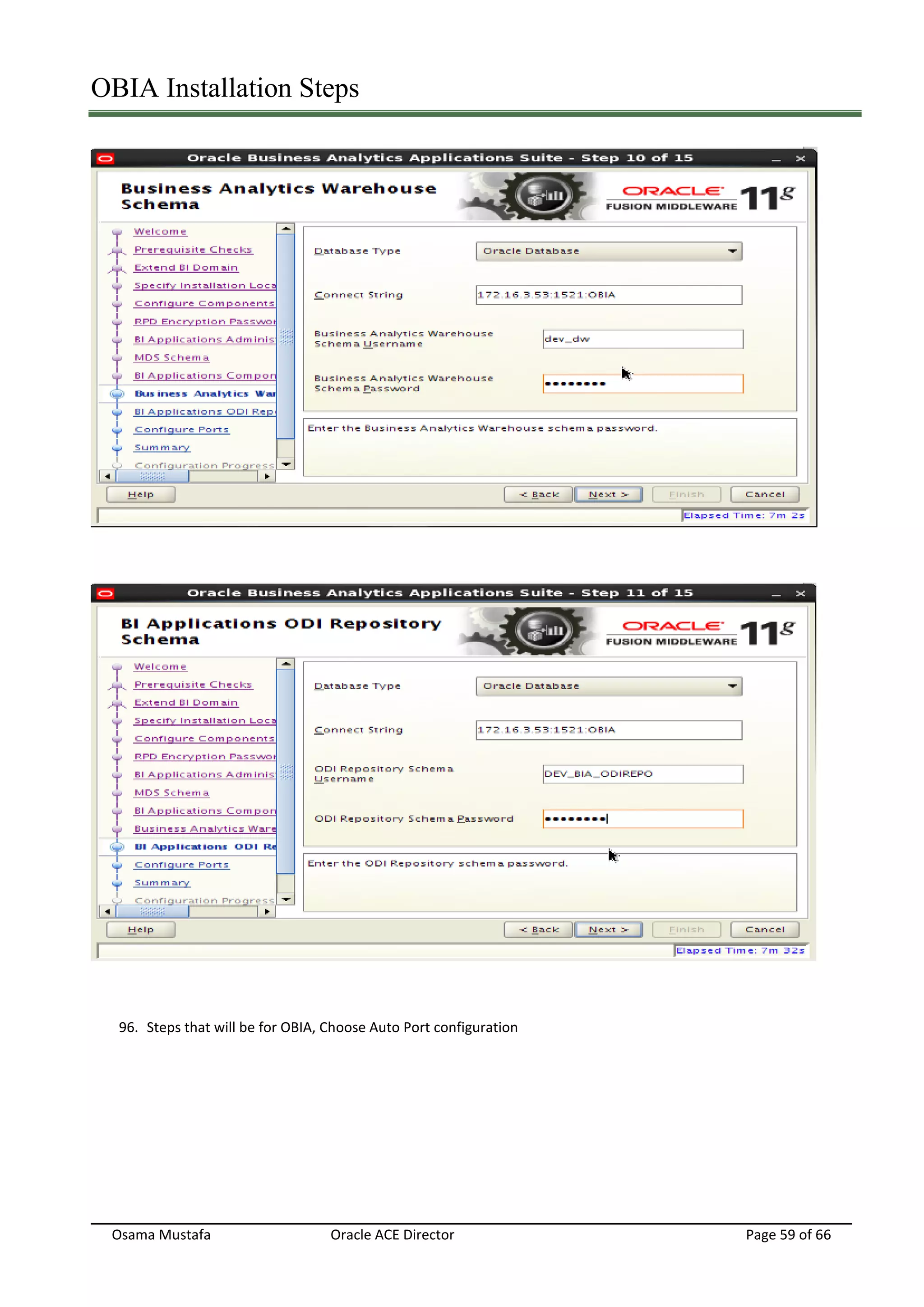

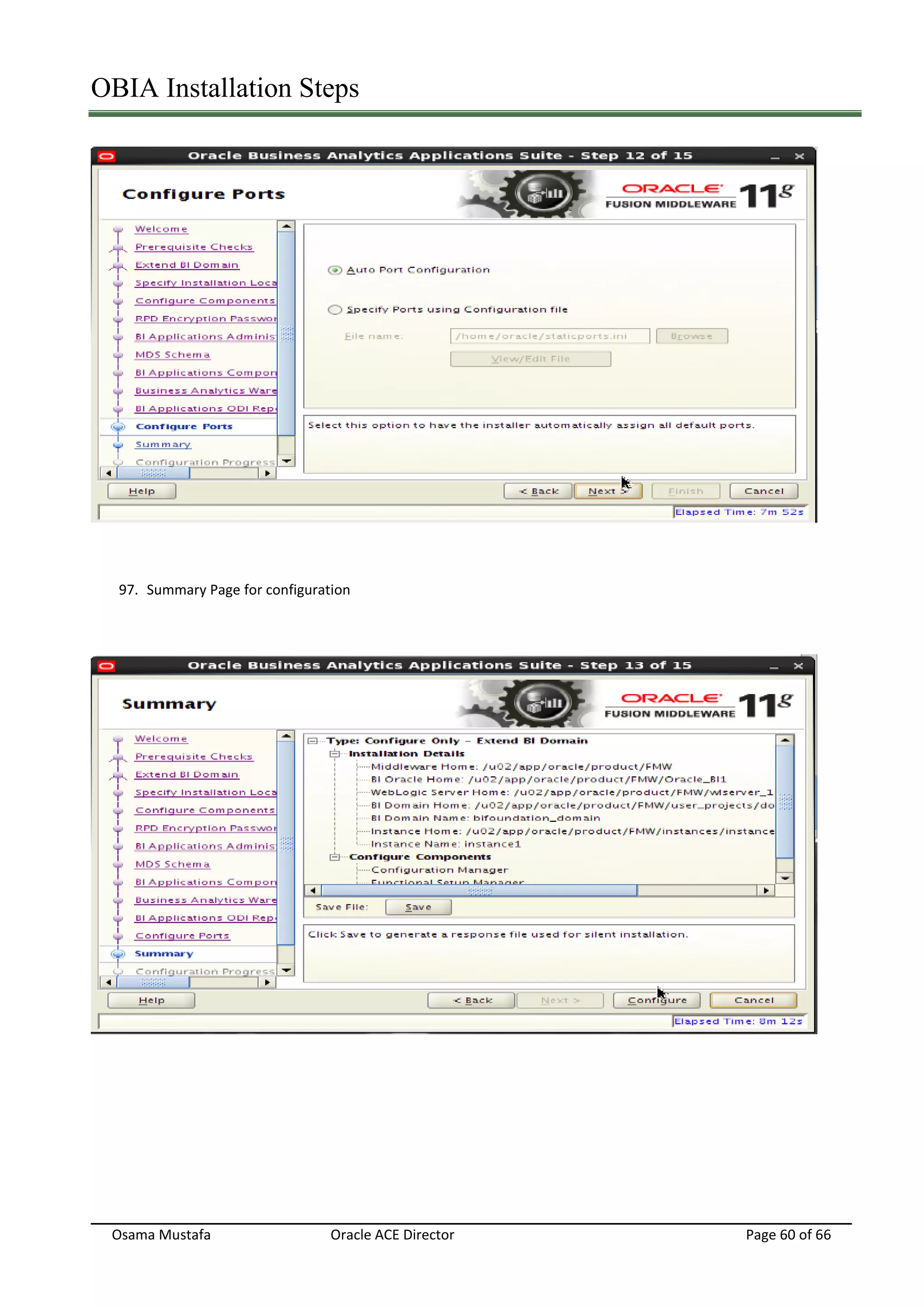

96. Steps that will be for OBIA, Choose Auto Port configuration

61. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 60 of 66
97. Summary Page for configuration

62. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 61 of 66

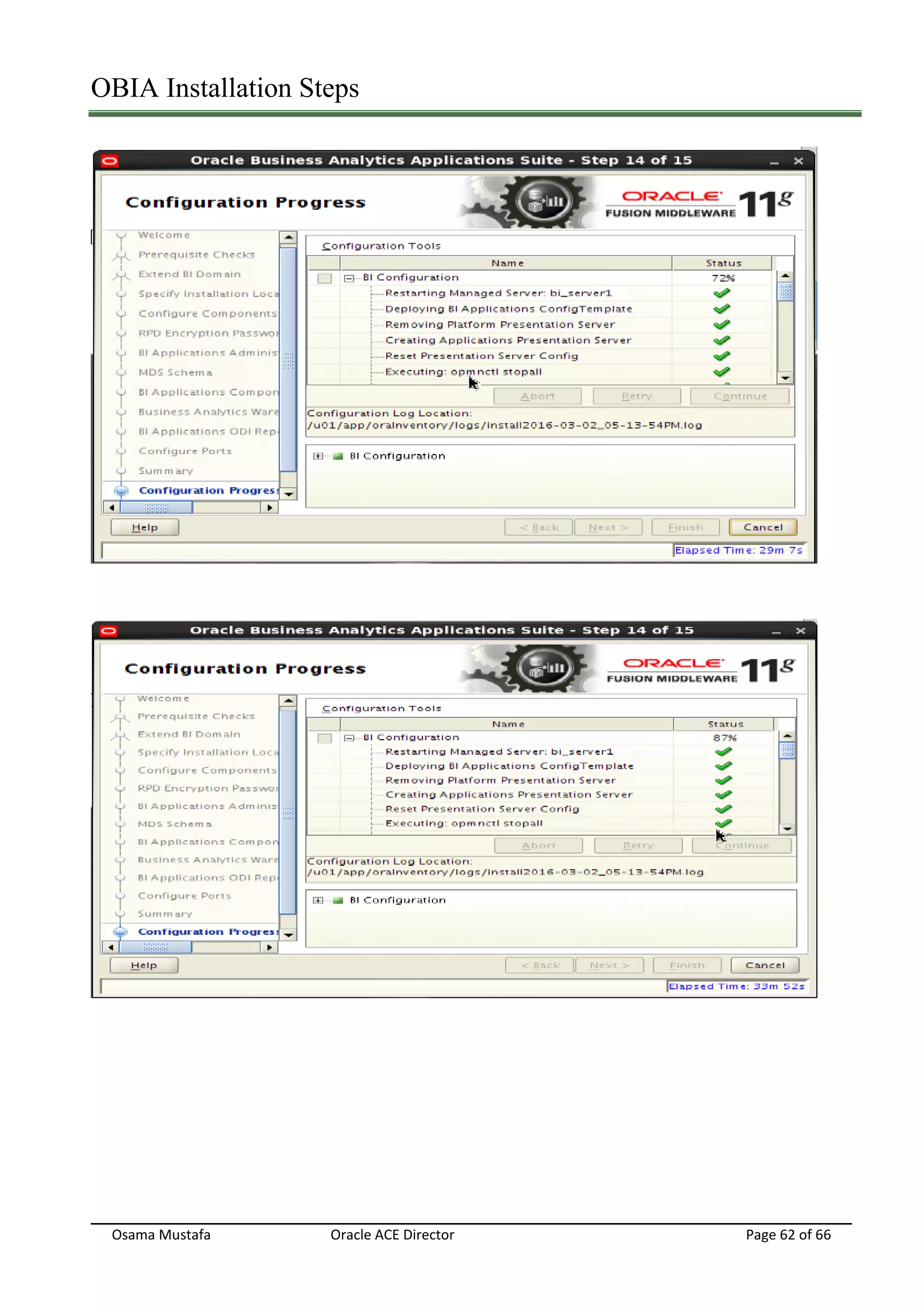

98. Installation & Extend in Progress.

63. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 62 of 66

64. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 63 of 66

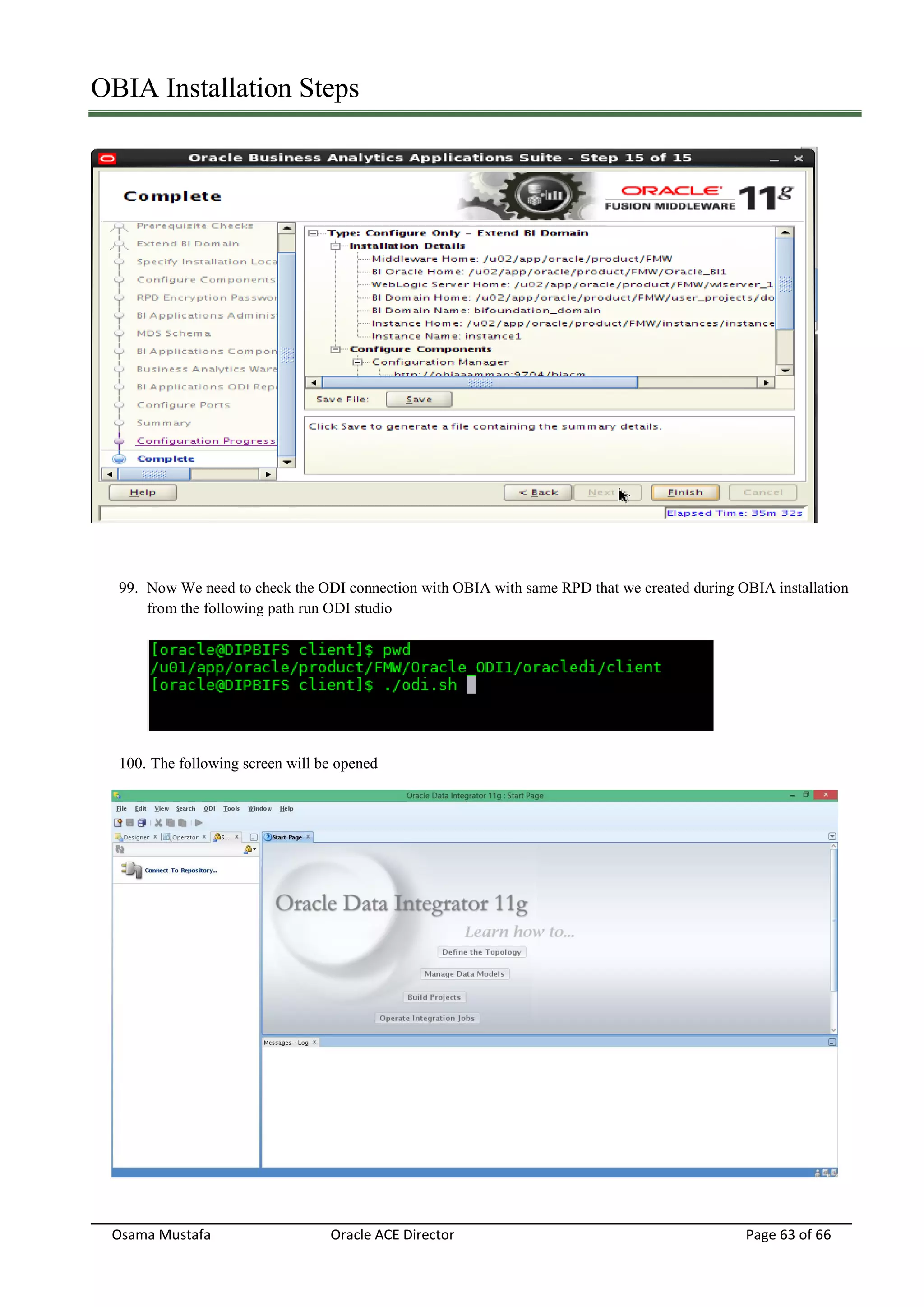

99. Now We need to check the ODI connection with OBIA with same RPD that we created during OBIA installation
from the following path run ODI studio
100. The following screen will be opened

65. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 64 of 66

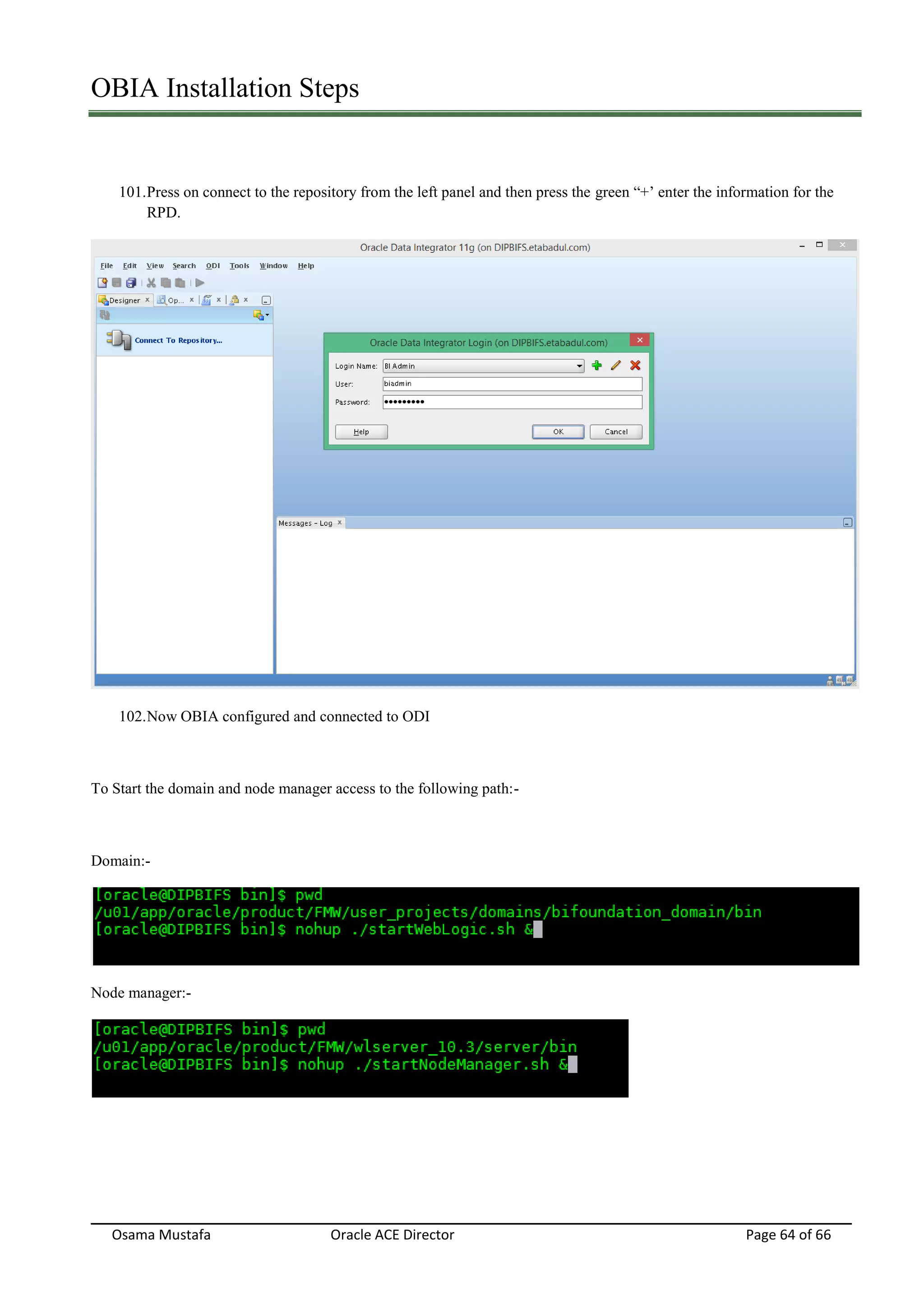

101.Press on connect to the repository from the left panel and then press the green “+’ enter the information for the
RPD.
102.Now OBIA configured and connected to ODI
To Start the domain and node manager access to the following path:-
Domain:-
Node manager:-

66. OBIA Installation Steps
Osama Mustafa Oracle ACE Director Page 65 of 66

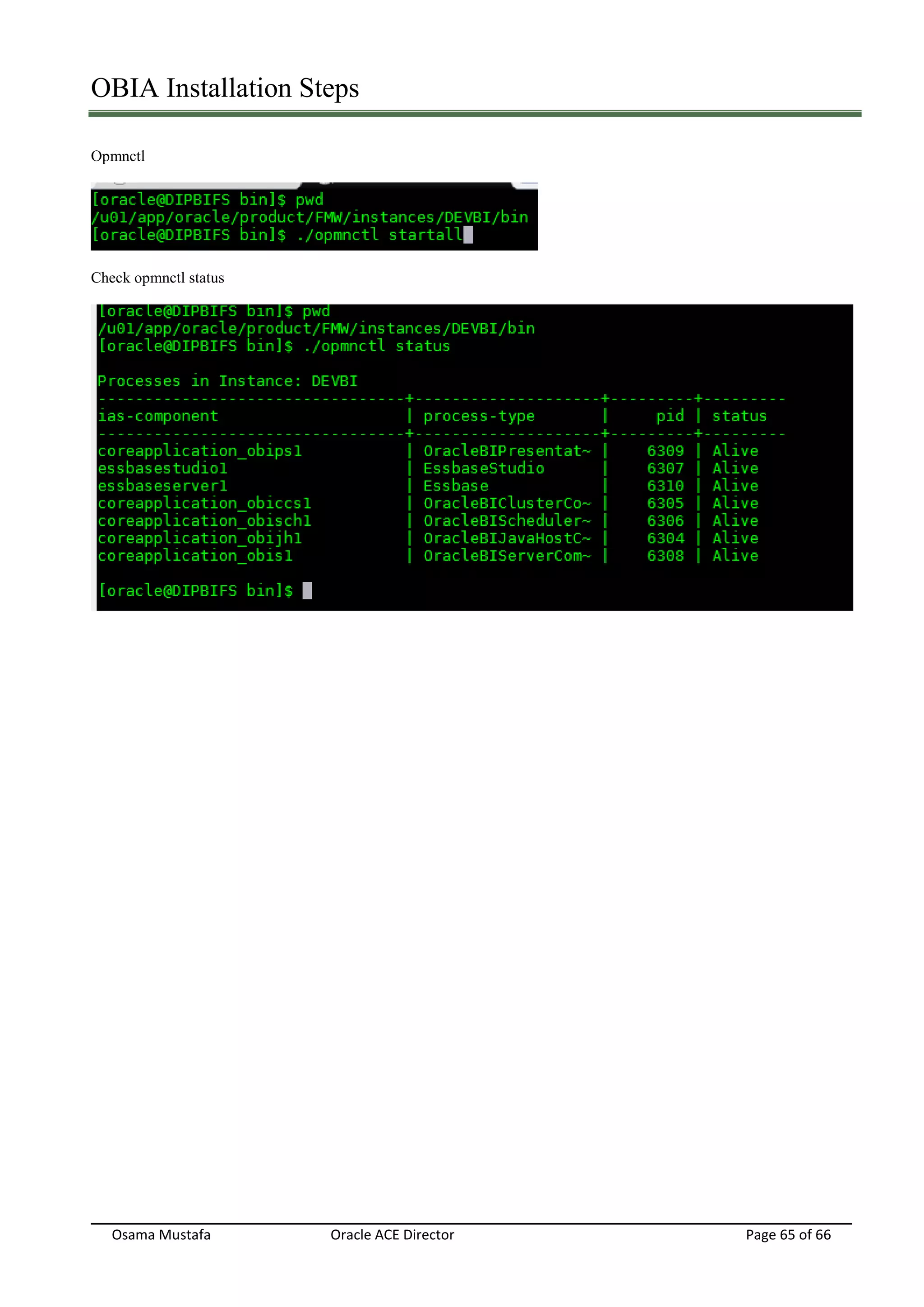

Opmnctl
Check opmnctl status
