MDS XML Versus MUDE:
RPD Multi-User Development and SCM
Options
Stewart Bryson
Chief Innovation Officer, Global Operations
Rittman Mead

www.rittmanmead.com inquiries@rittmanmead.com @rittmanmead www.facebook.com/rittmanmeadwww.rittmanmead.com inquiries@rittmanmead.com @rittmanmead www.facebook.com/rittmanmeadwww.rittmanmead.com inquiries@rittmanmead.com @rittmanmead www.facebook.com/rittmanmeadwww.rittmanmead.com inquiries@rittmanmead.com @rittmanmead www.facebook.com/rittmanmead
Stewart Bryson
•Oracle ACE Director
•@StewartBryson
•stewart.bryson@rittmanmead.com
•Chief Innovation Officer for Rittman Mead Global
•Community Speaker and Enthusiast
•Writer for Rittman Mead Blog: 
http://www.rittmanmead.com/blog
•BI Content Chair for Kscope14
•Real Time BI with Kevin & Stewart
‣iTunes: http://bit.ly/realtimebi
‣YouTube: http://www.youtube.com/user/
realtimebi

www.rittmanmead.com inquiries@rittmanmead.com @rittmanmead www.facebook.com/rittmanmeadwww.rittmanmead.com inquiries@rittmanmead.com @rittmanmead www.facebook.com/rittmanmeadwww.rittmanmead.com inquiries@rittmanmead.com @rittmanmead www.facebook.com/rittmanmeadwww.rittmanmead.com inquiries@rittmanmead.com @rittmanmead www.facebook.com/rittmanmead

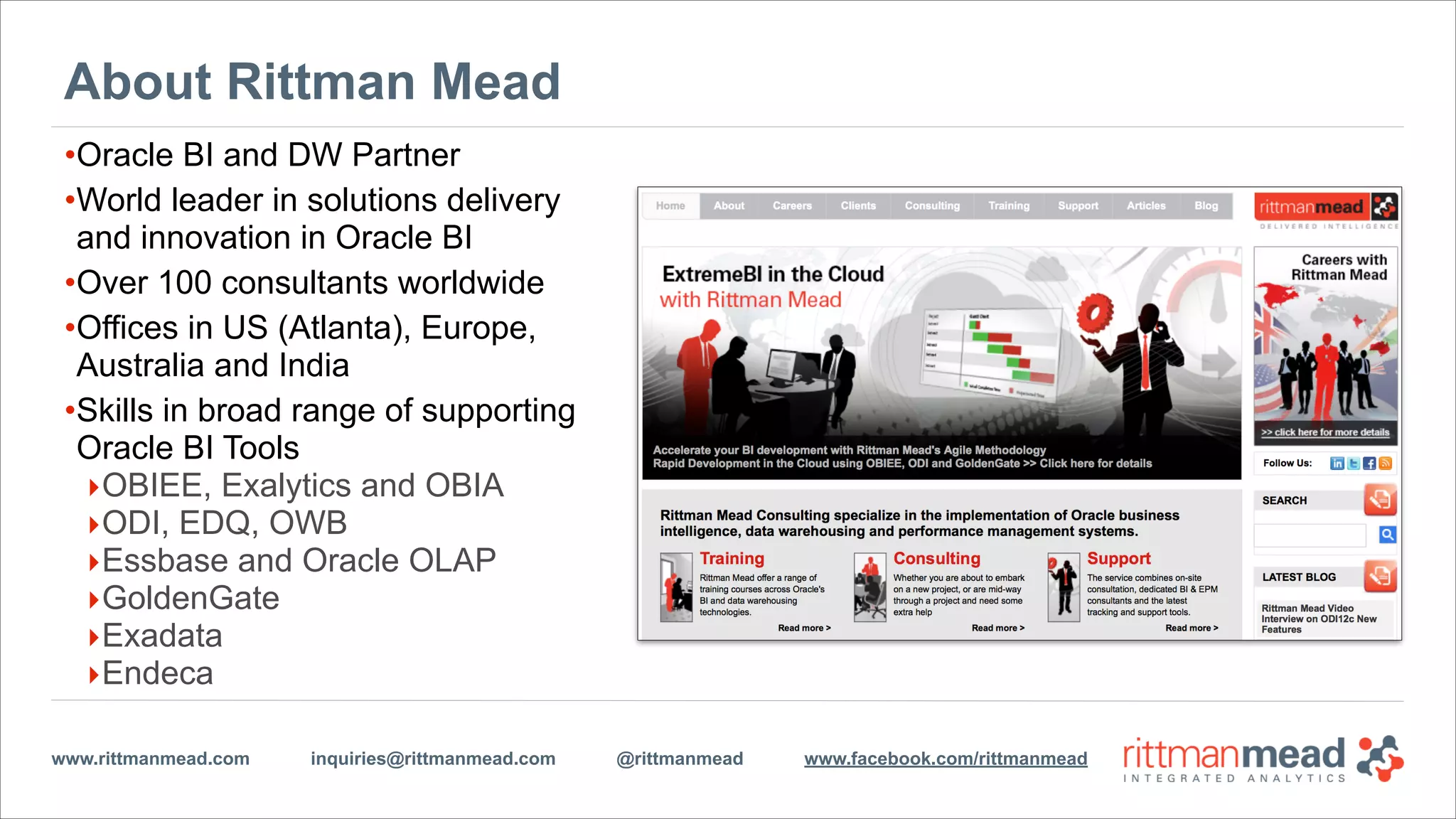

About Rittman Mead
•@RittmanMead
•Oracle BI and DW Partner
•Innovation leader in Oracle BI
•Over 100 consultants worldwide
•Offices in US (Atlanta), Europe,
Australia, India and South Africa
•Skills in broad range of supporting
Oracle BI Tools
‣OBIEE, Exalytics and OBIA
‣ODI, EDQ, OWB
‣Essbase and Oracle OLAP
‣GoldenGate
‣Exadata
‣Endeca

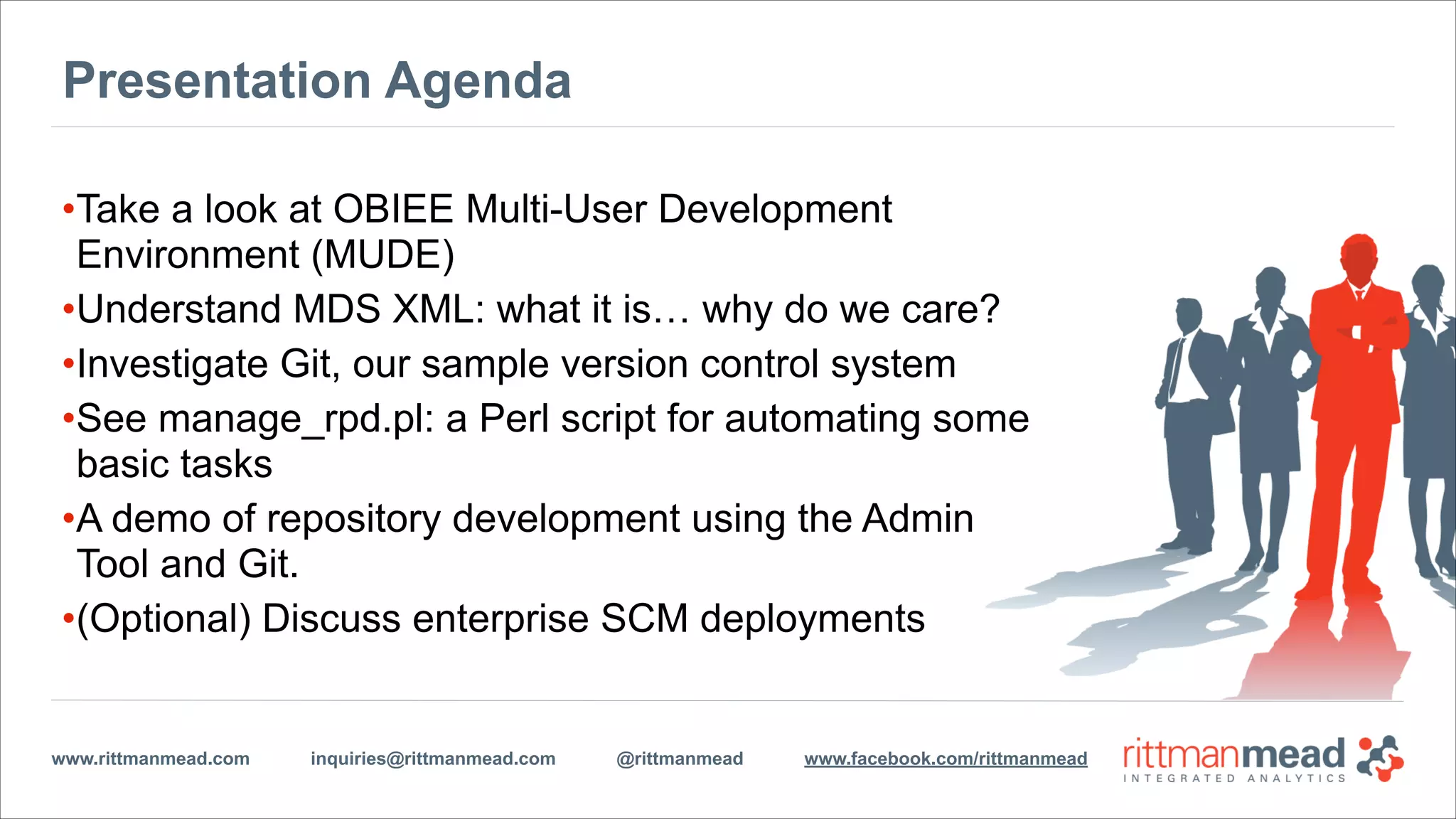

Presentation Agenda
•Take a look at OBIEE Multi-User Development
Environment (MUDE)
•Understand MDS XML: what it is… why do we care?
•Investigate Git, our sample version control system
•See manage_rpd.pl: a Perl script for automating some
basic tasks
•A demo of repository development using the Admin
Tool and Git.
•(Optional) Discuss enterprise SCM deployments

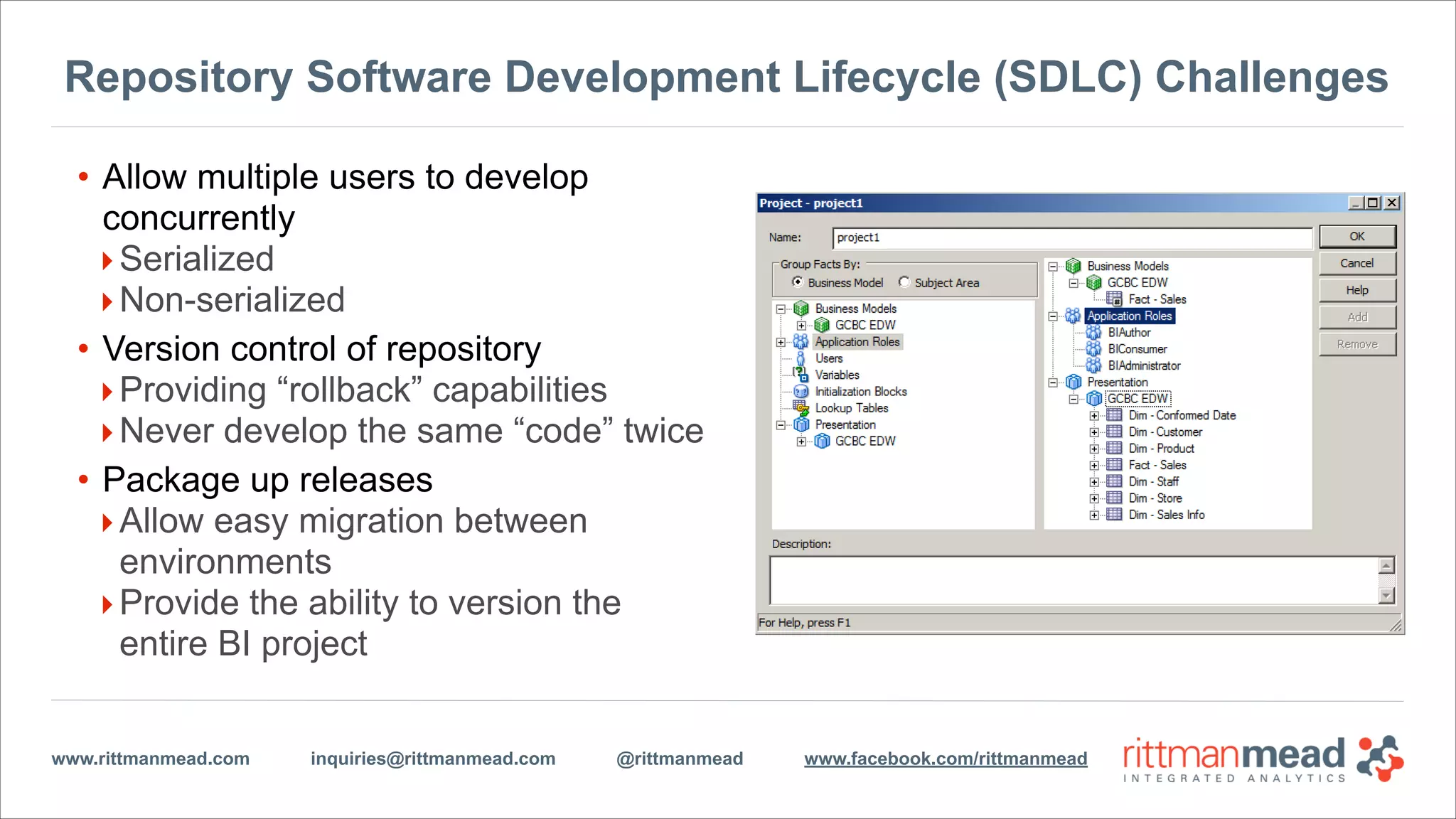

Repository Software Development Lifecycle (SDLC) Challenges
• Allow multiple users to develop
concurrently
‣Serialized
‣Non-serialized
• Version control of repository
‣Providing “rollback” capabilities
‣Never develop the same “code” twice
• Package up releases
‣Allow easy migration between
environments
‣Provide the ability to version the
entire BI project

1

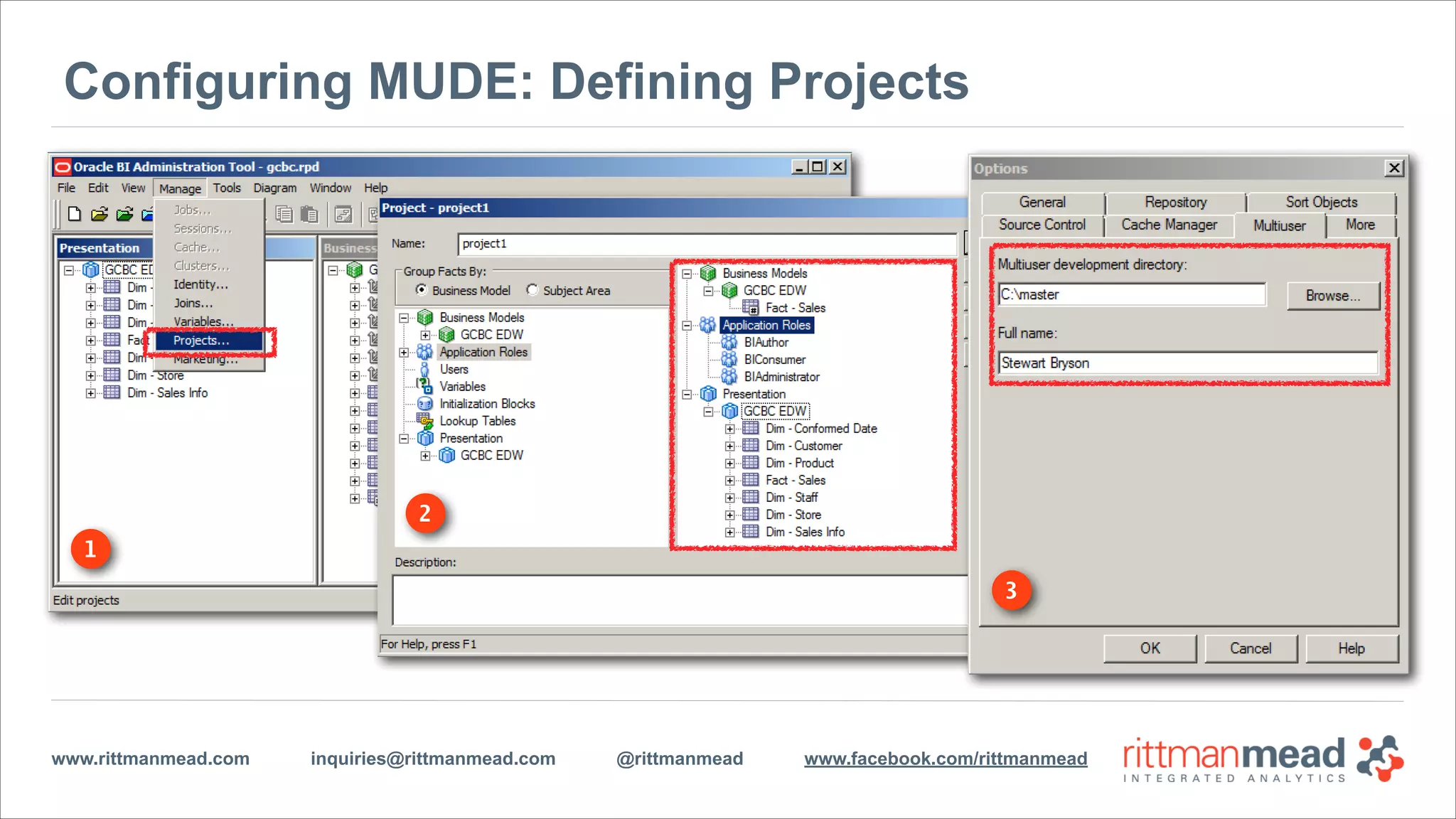

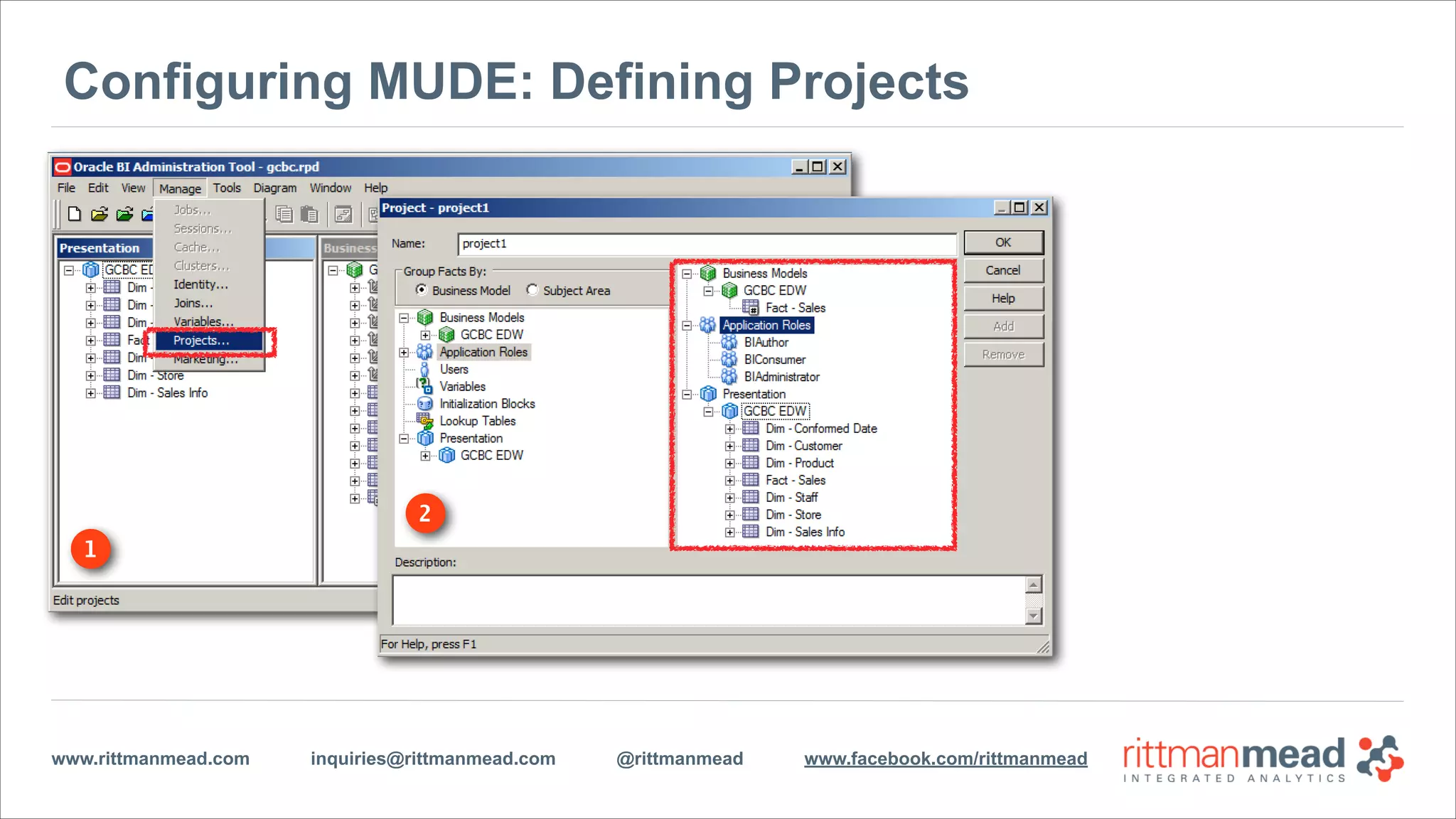

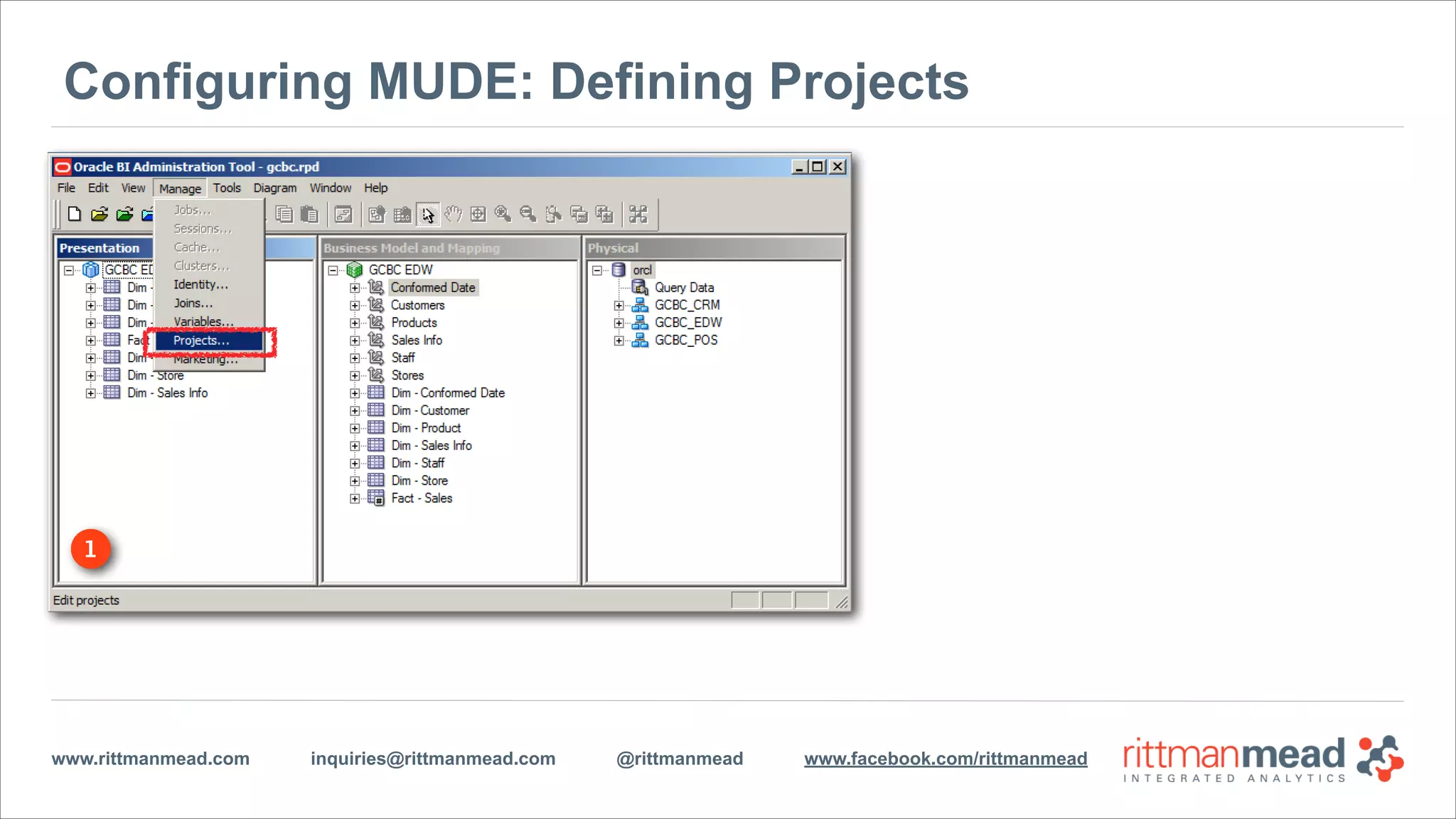

Configuring MUDE: Defining Projects

1
2

1
2
3

1

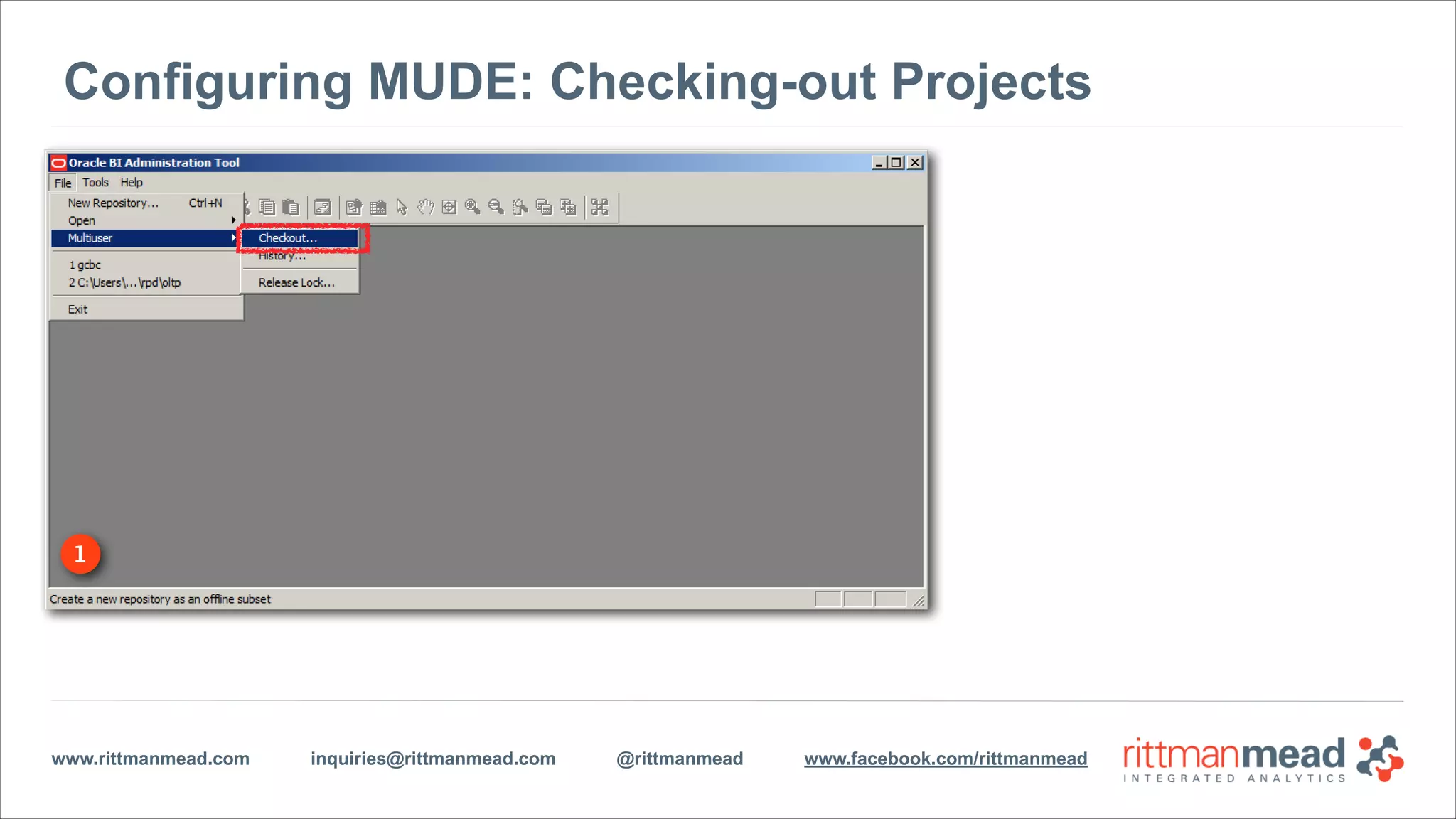

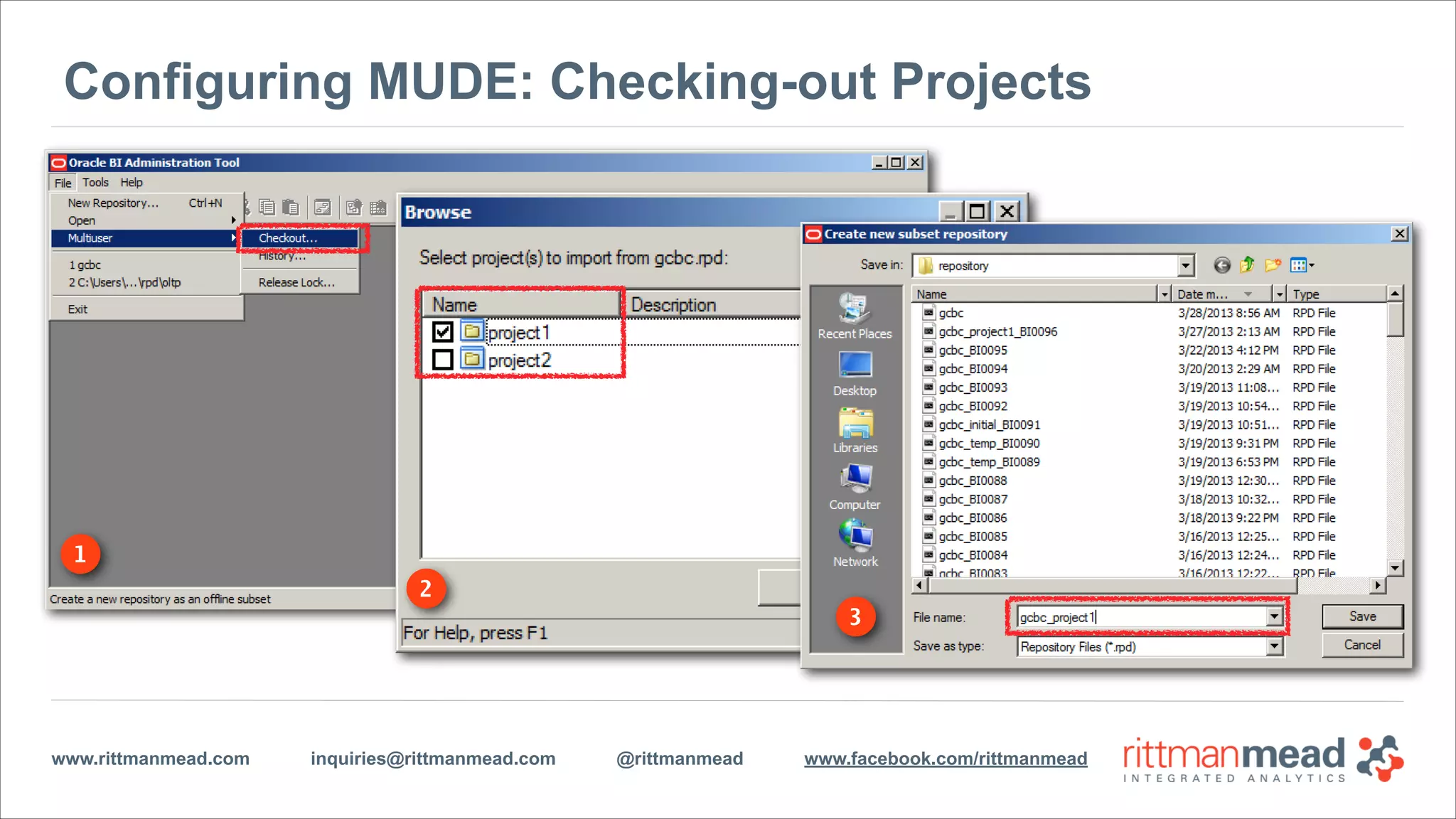

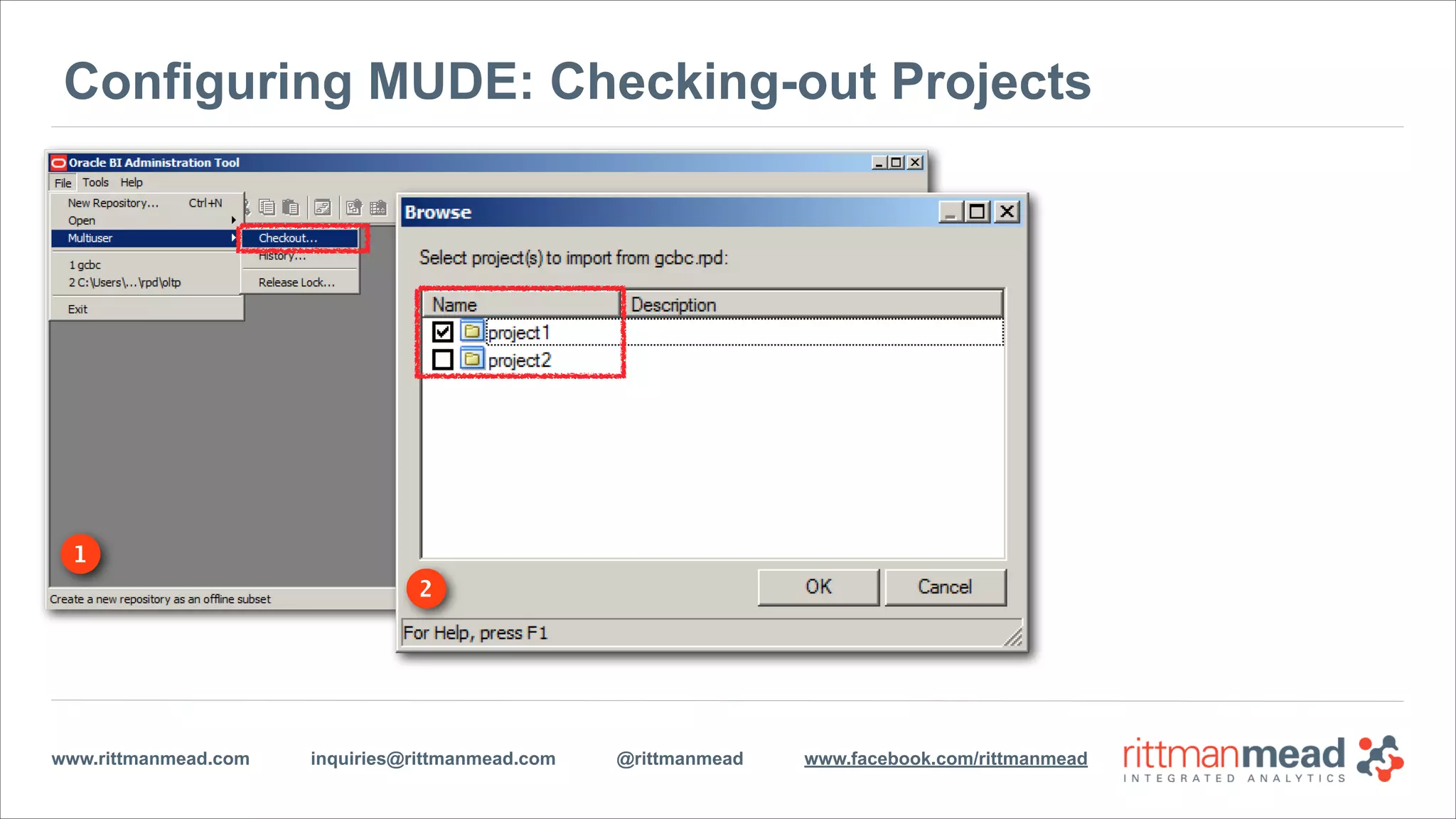

Configuring MUDE: Checking-out Projects

1
2

1
2
3

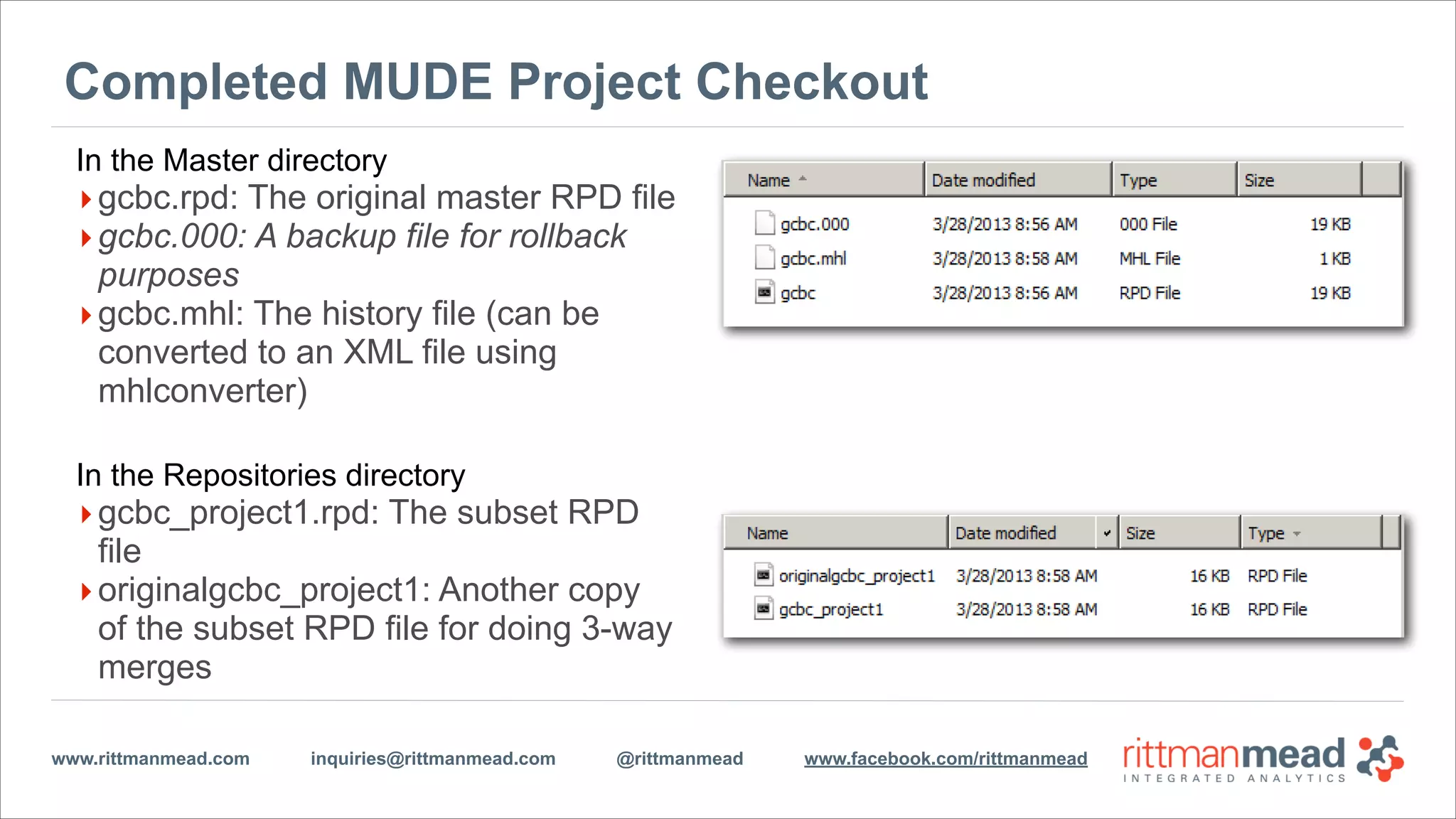

Completed MUDE Project Checkout
In the Master directory
‣gcbc.rpd: The original master RPD file
‣gcbc.000: A backup file for rollback
purposes
‣gcbc.mhl: The history file (can be
converted to an XML file using
mhlconverter)
!
In the Repositories directory
‣gcbc_project1.rpd: The subset RPD
file
‣originalgcbc_project1: Another copy
of the subset RPD file for doing 3-way
merges

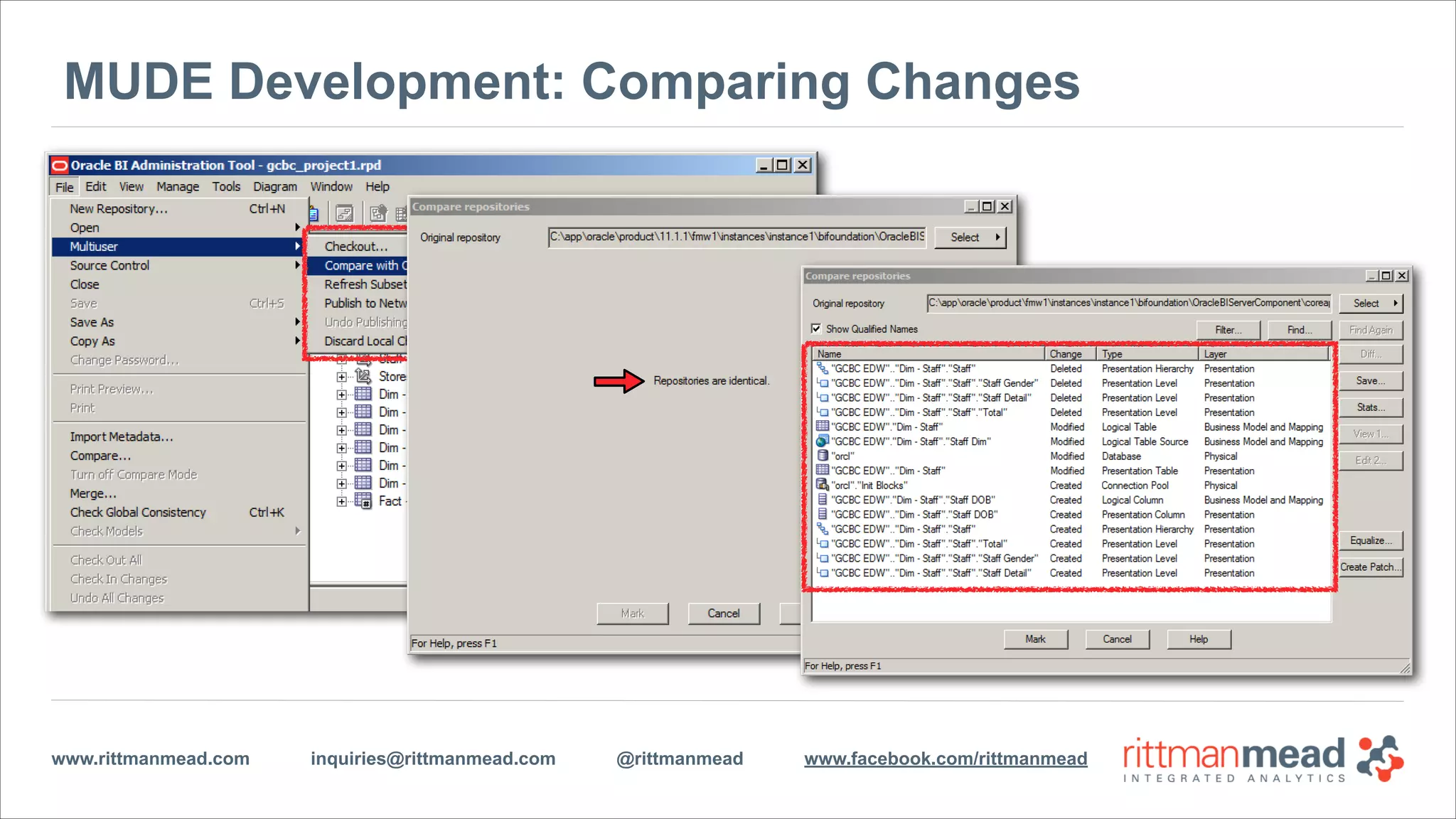

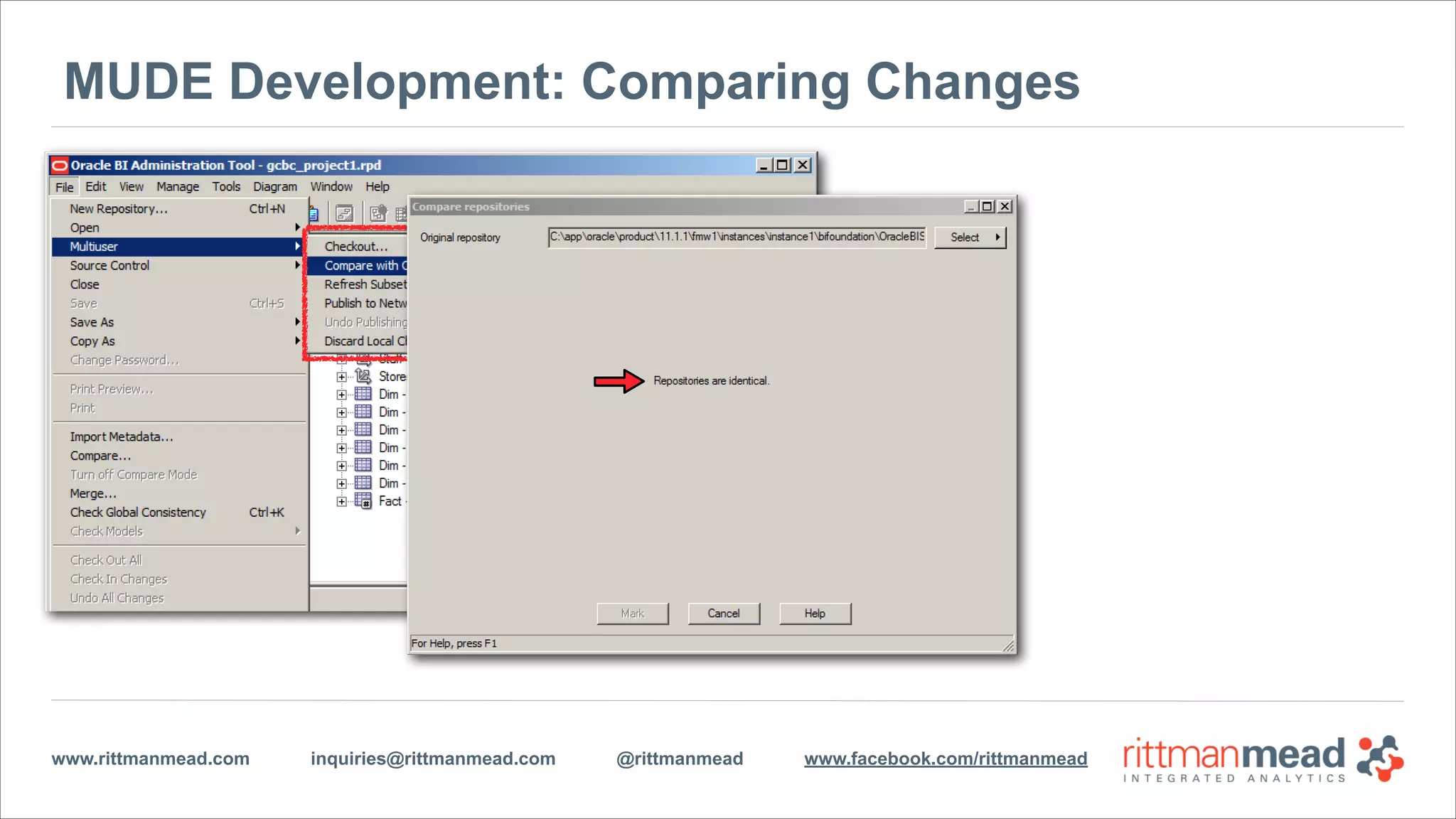

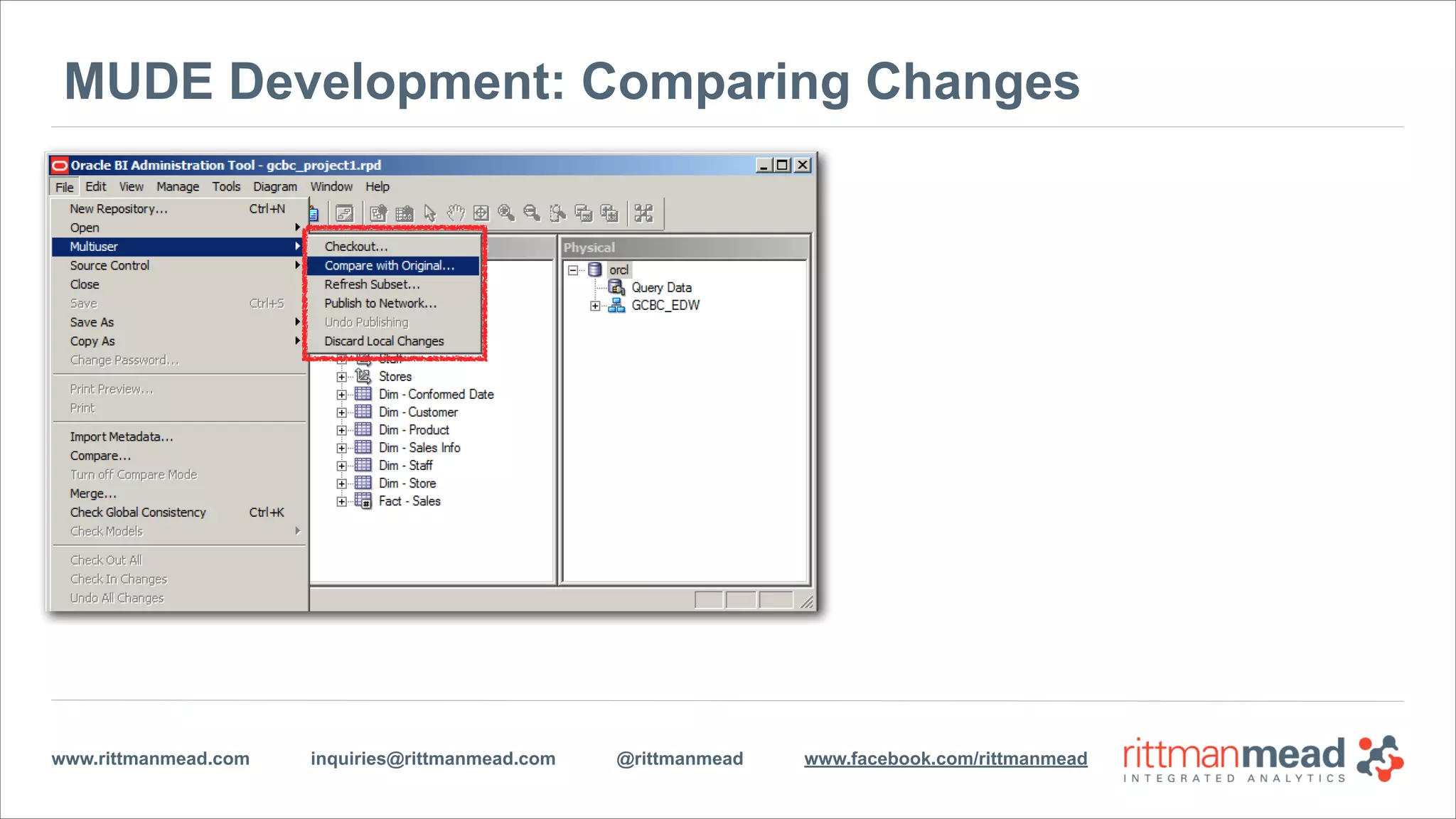

MUDE Development: Comparing Changes

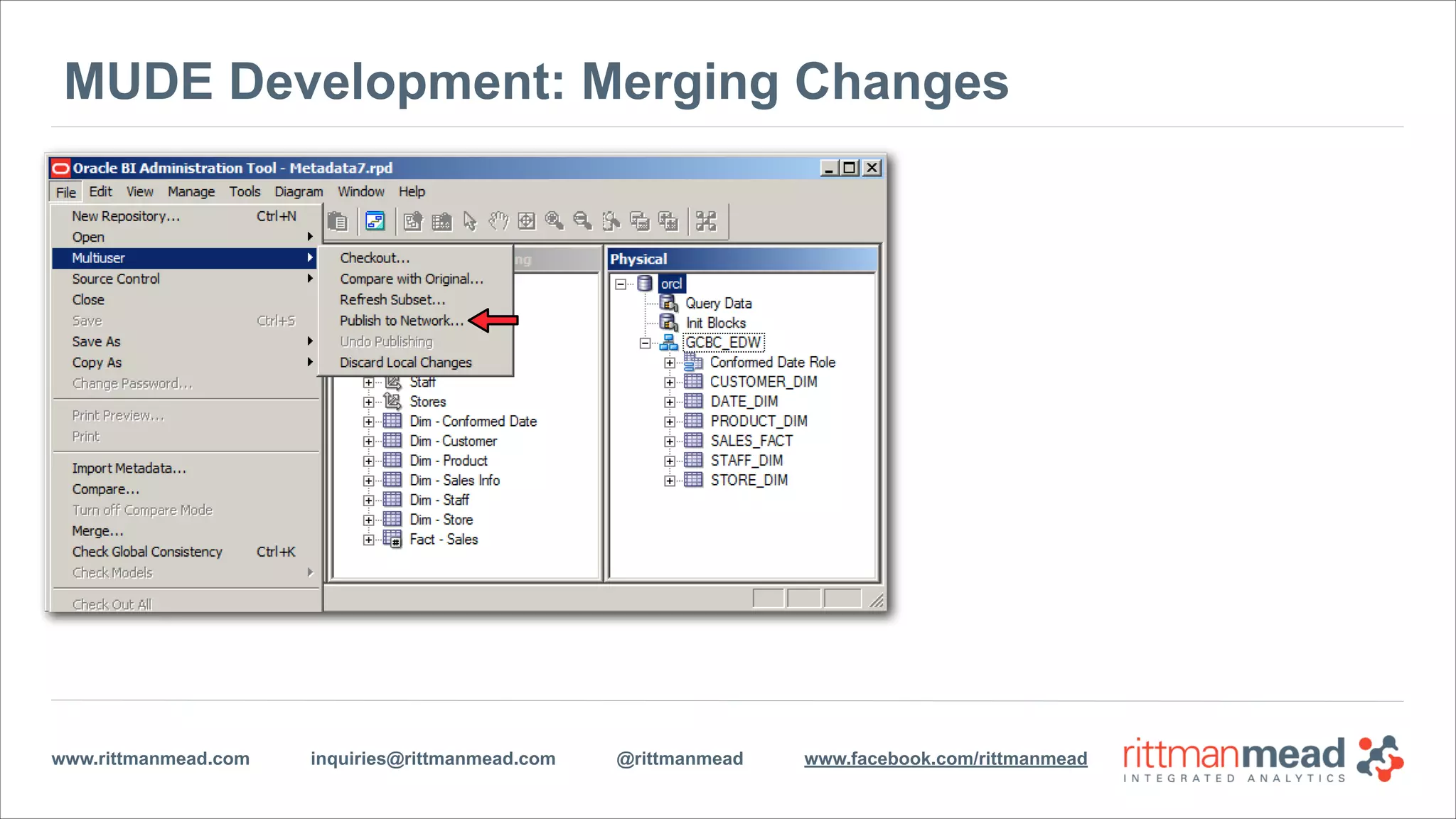

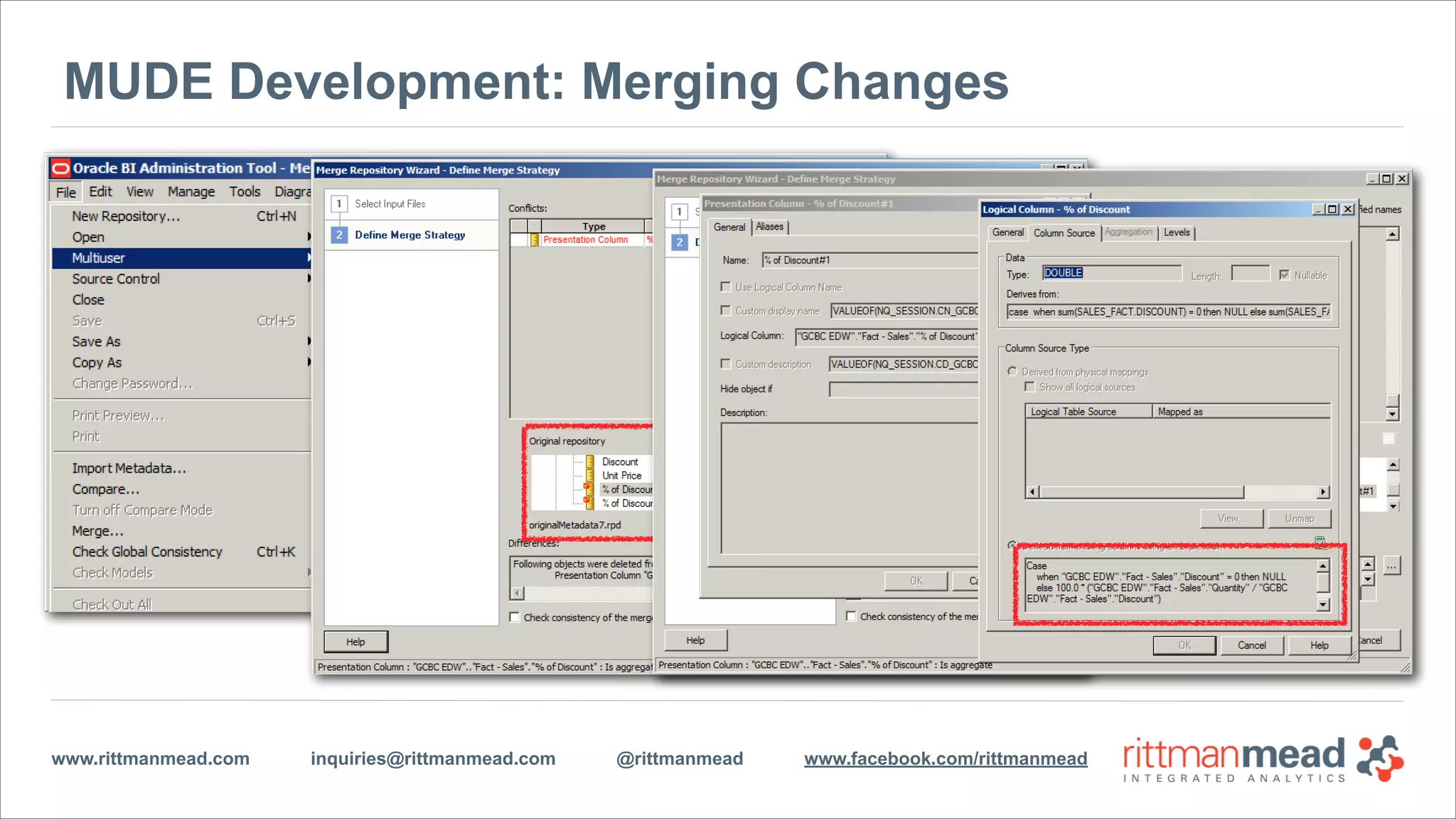

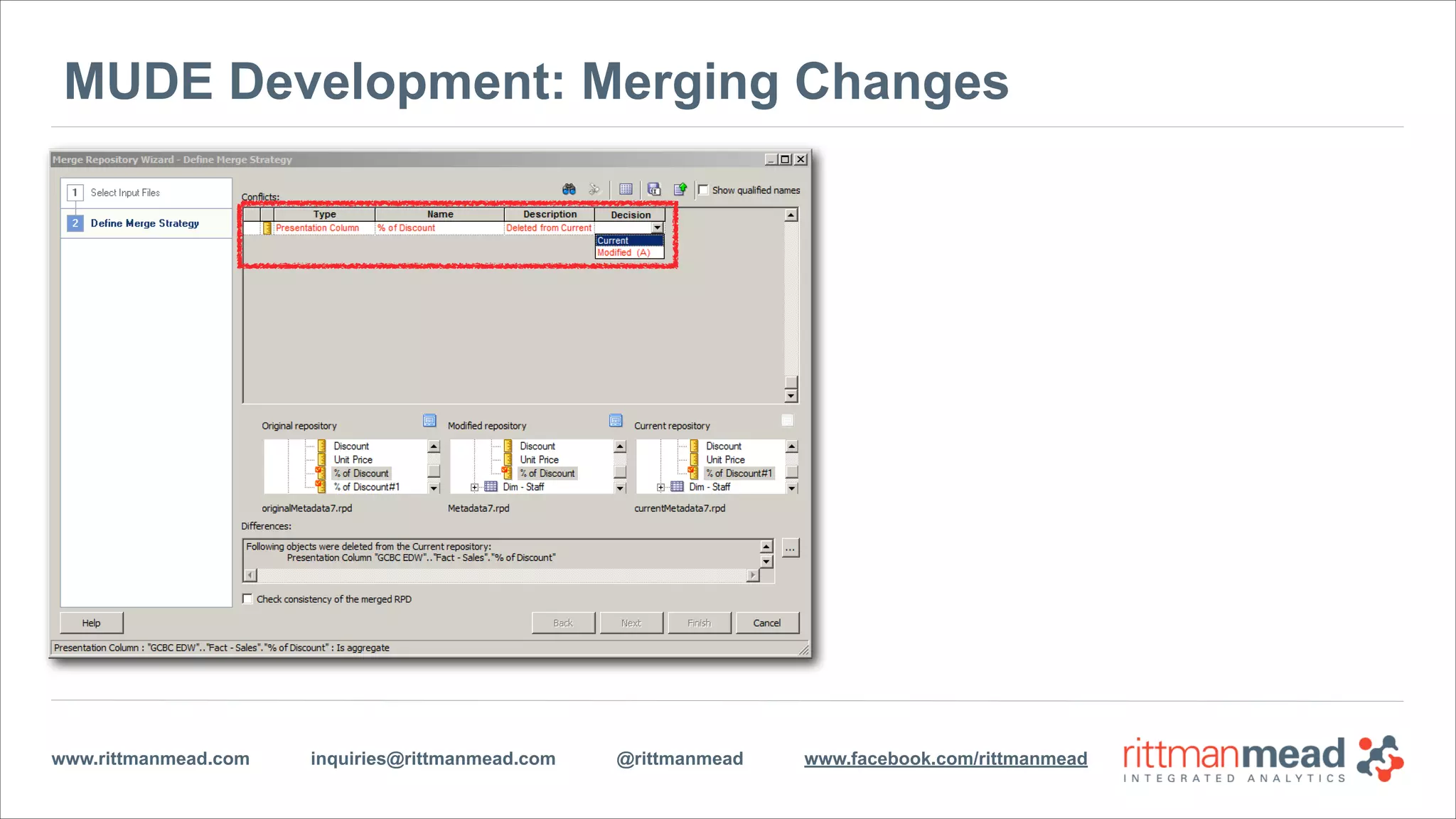

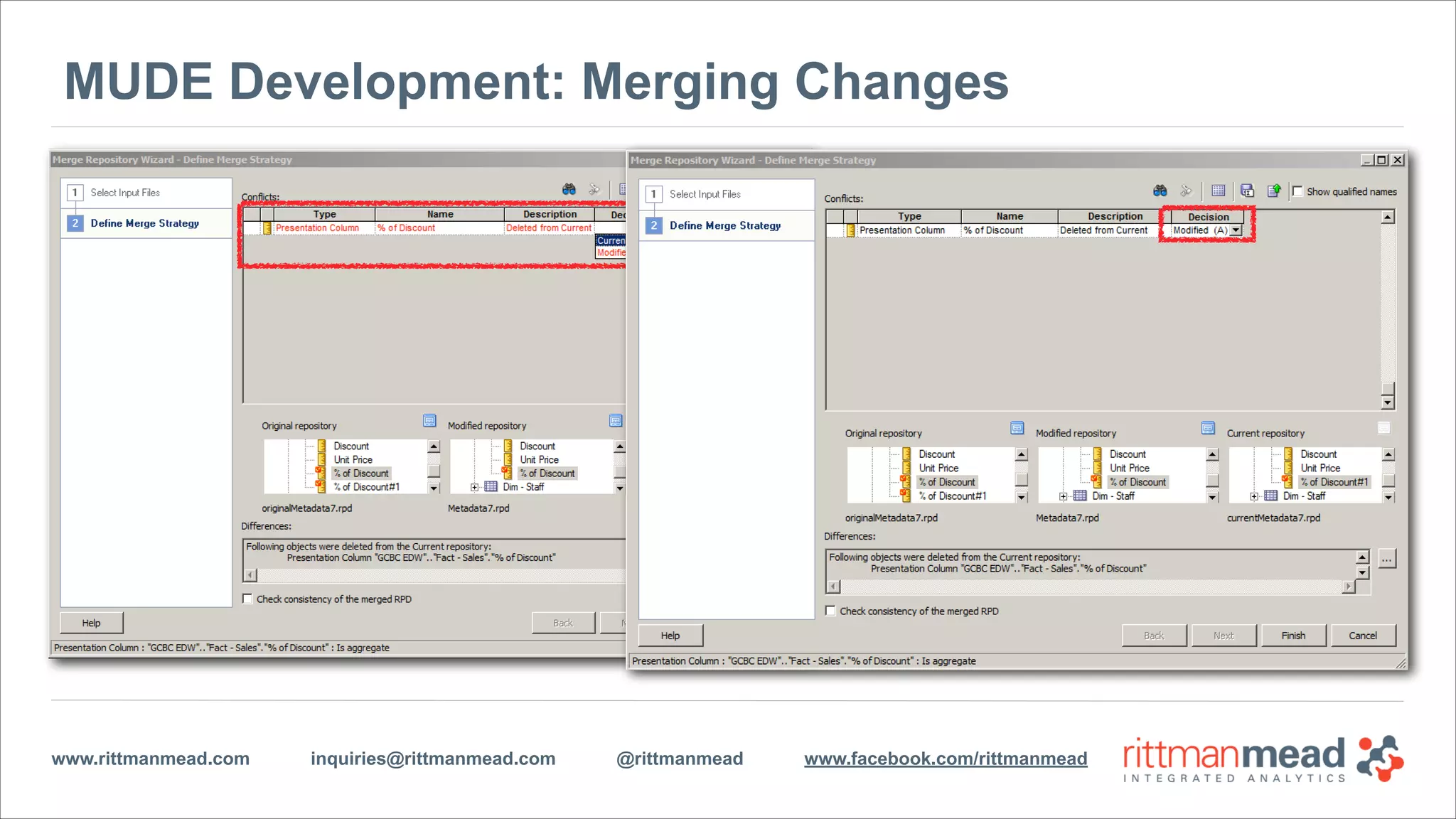

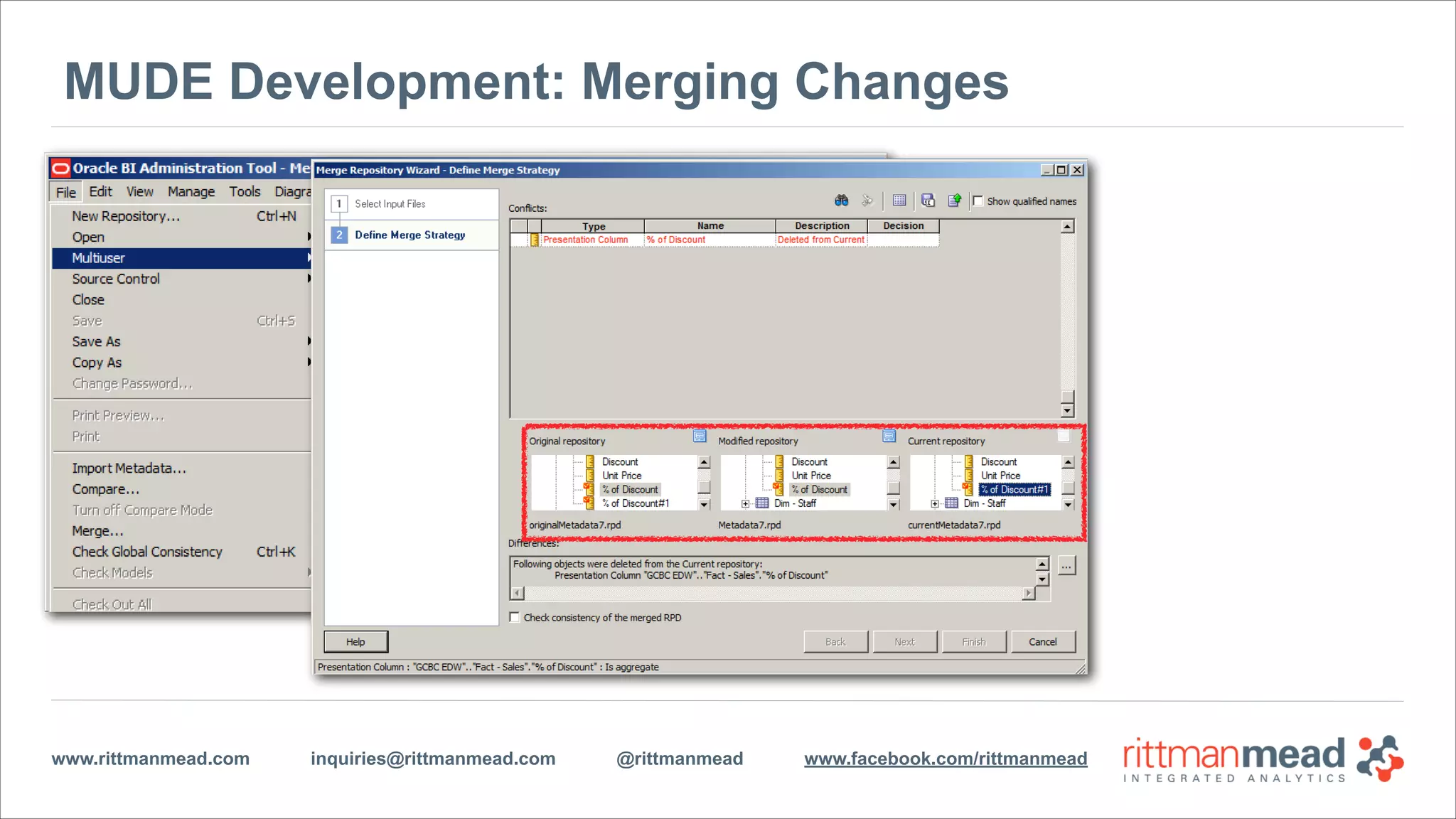

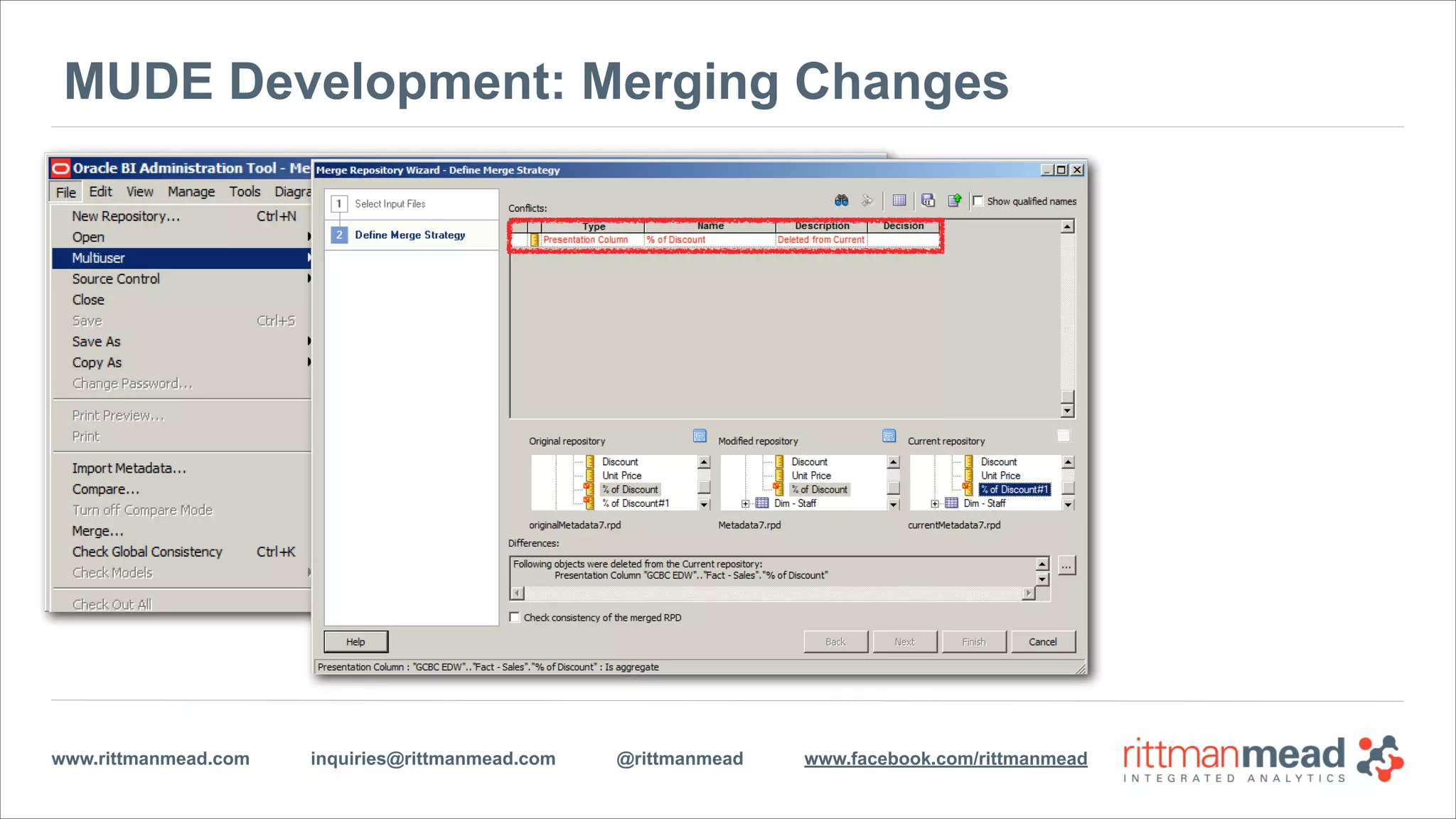

MUDE Development: Merging Changes

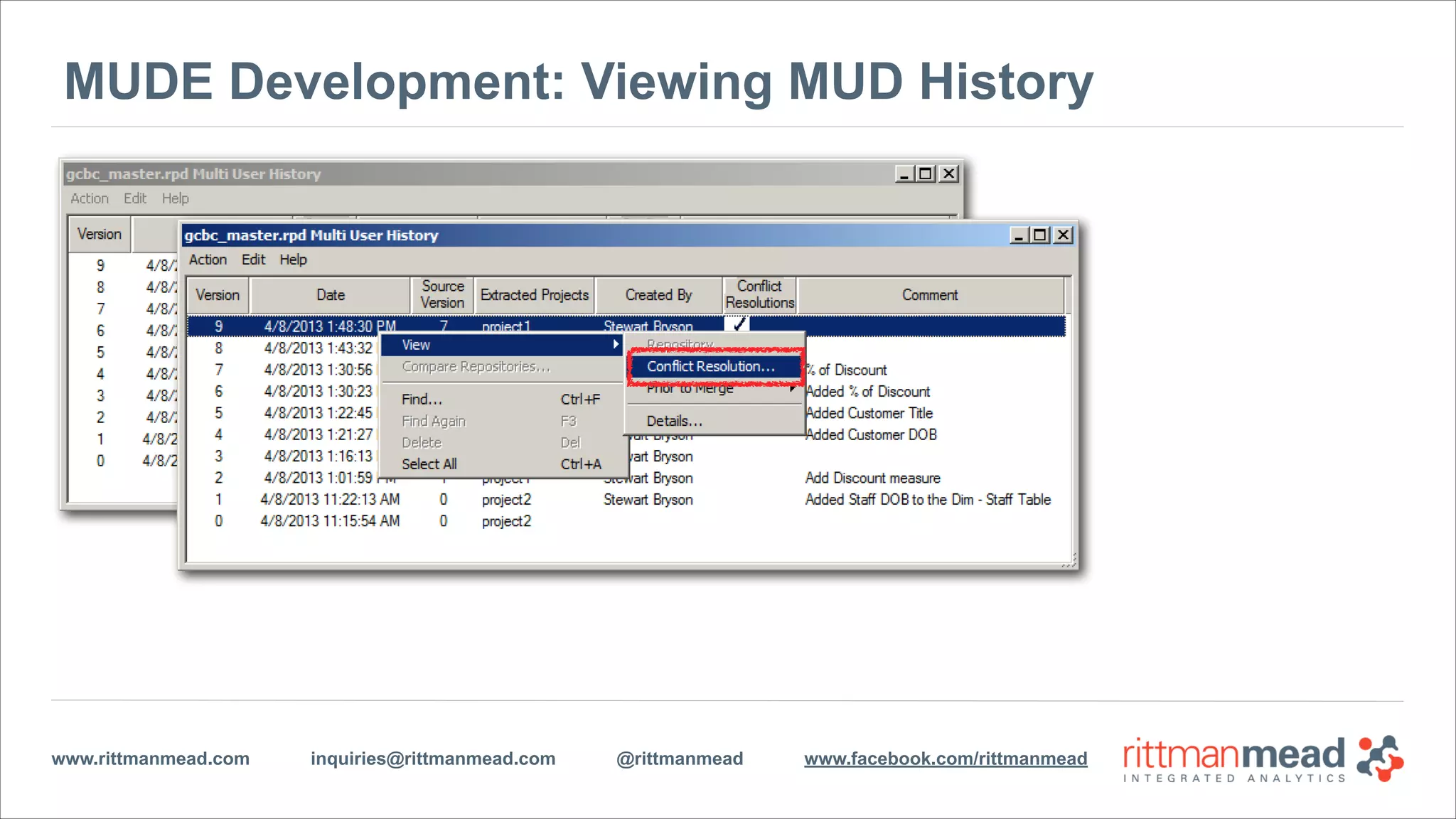

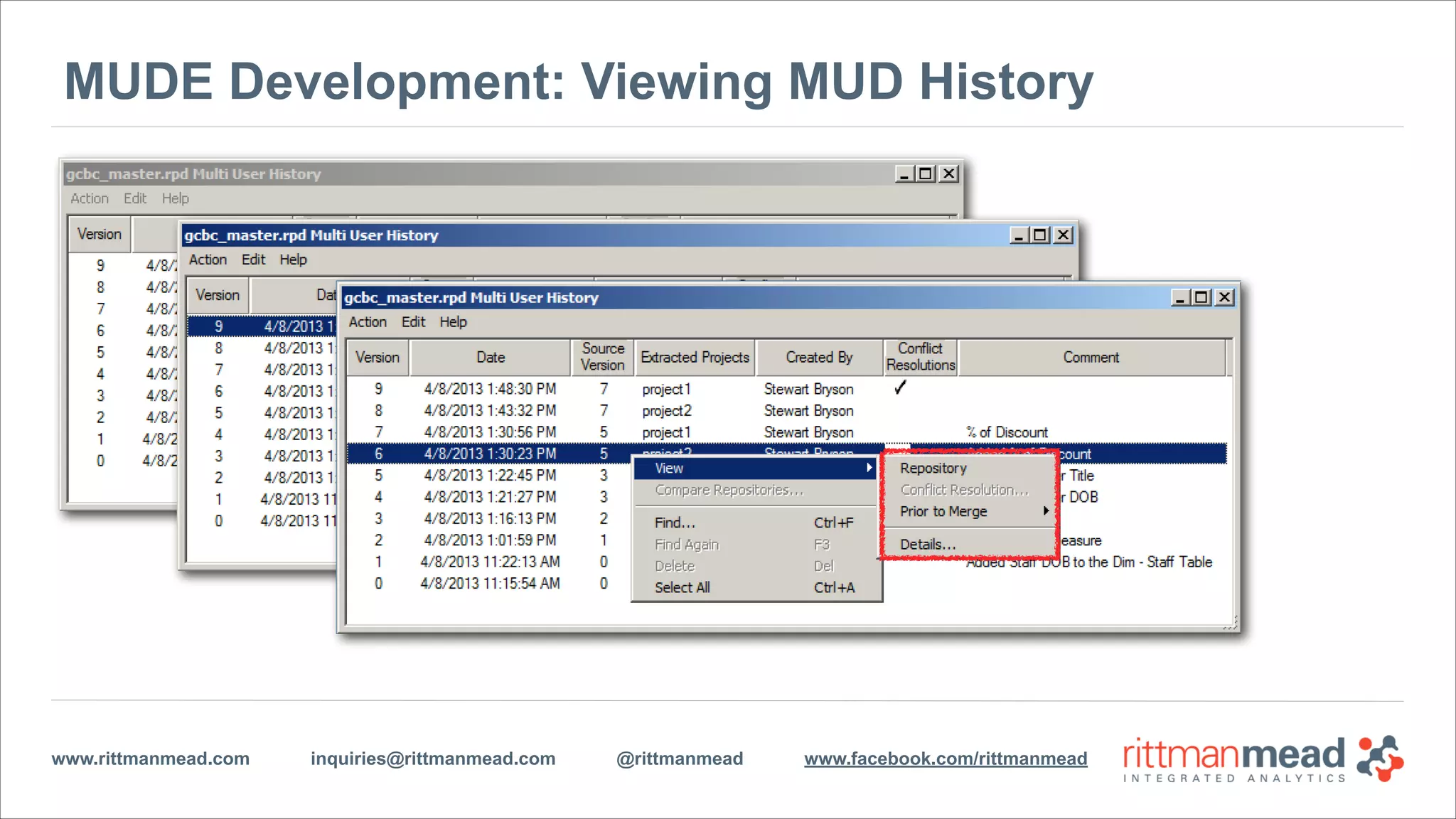

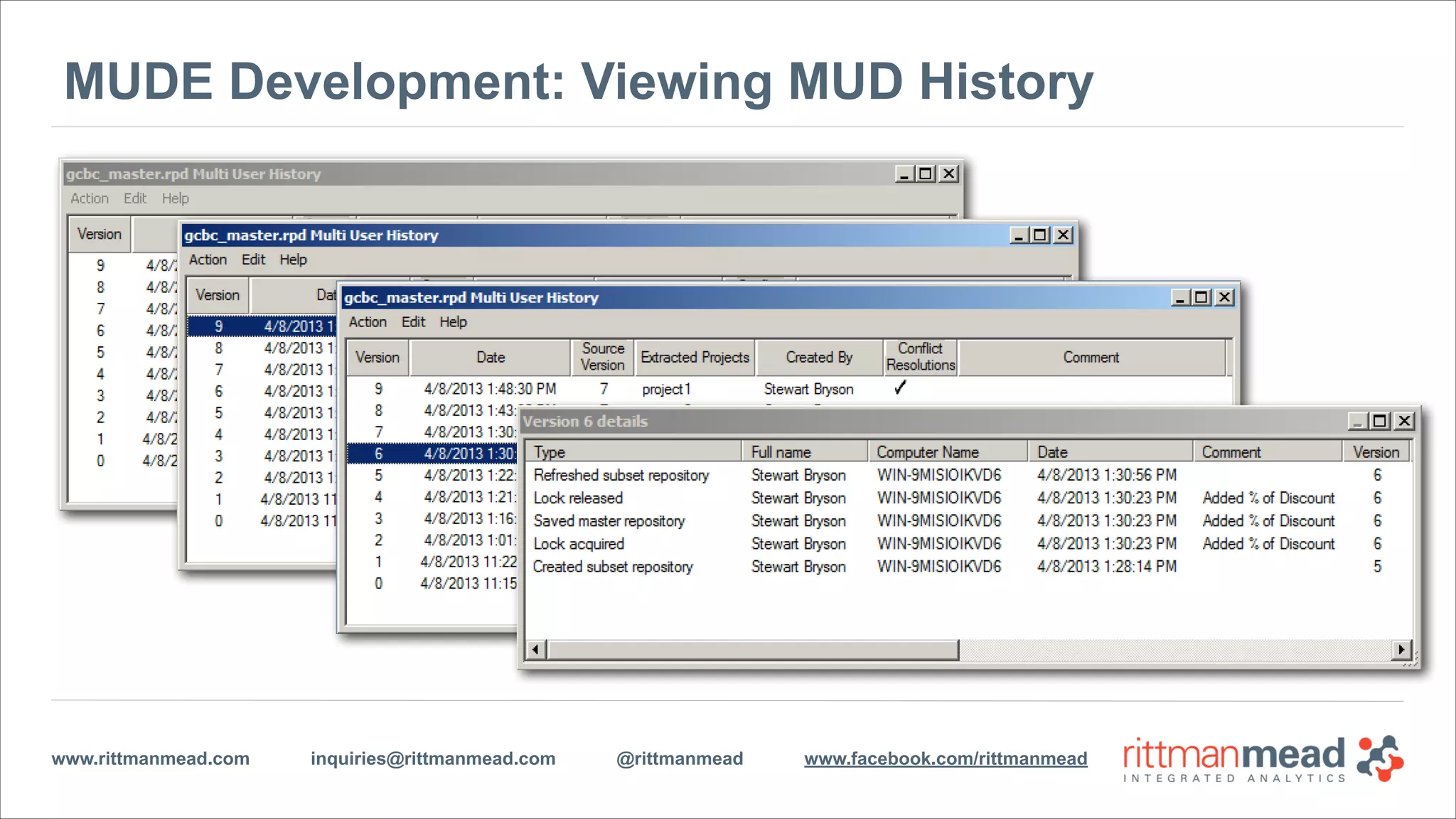

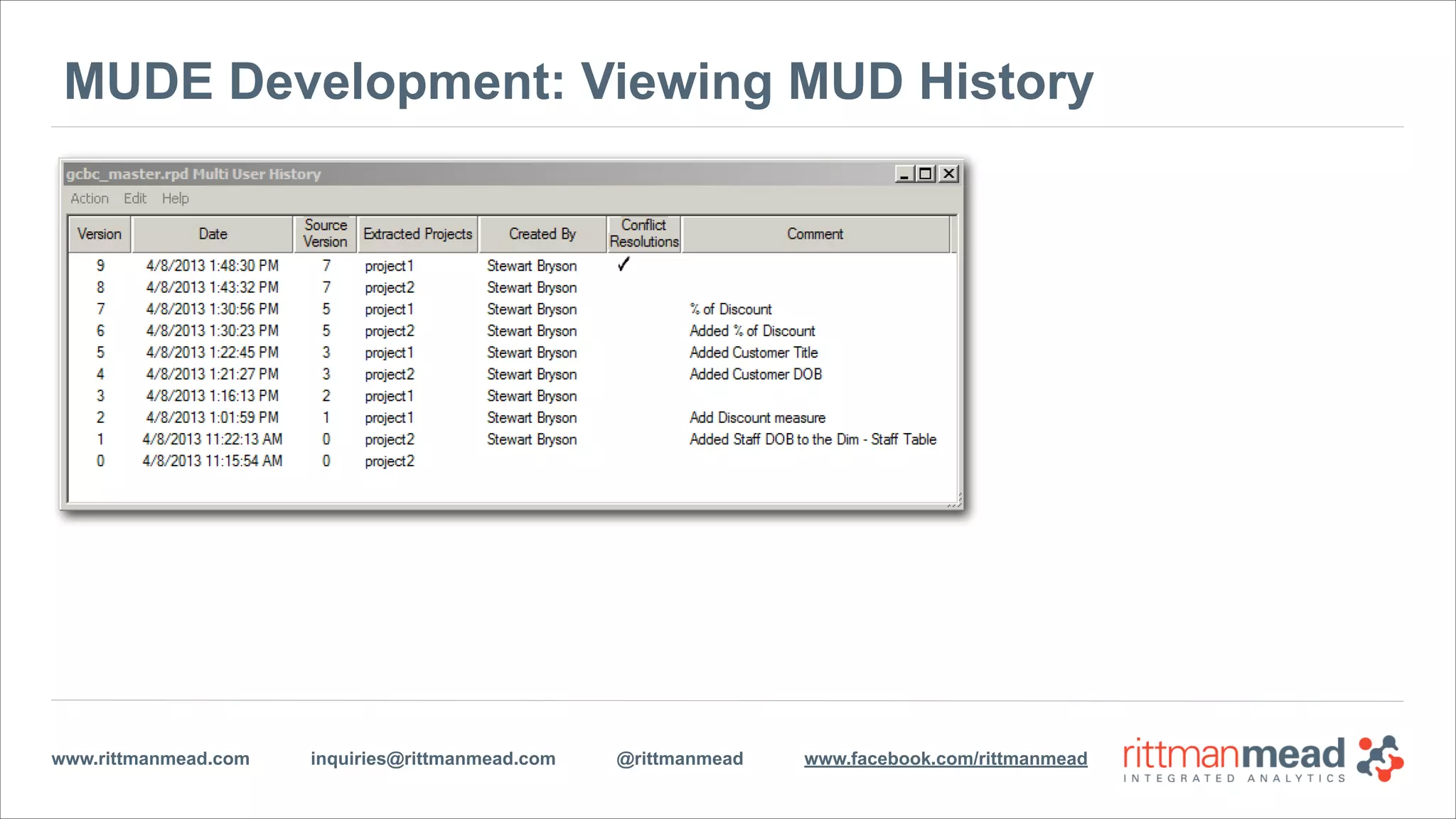

MUDE Development: Viewing MUD History

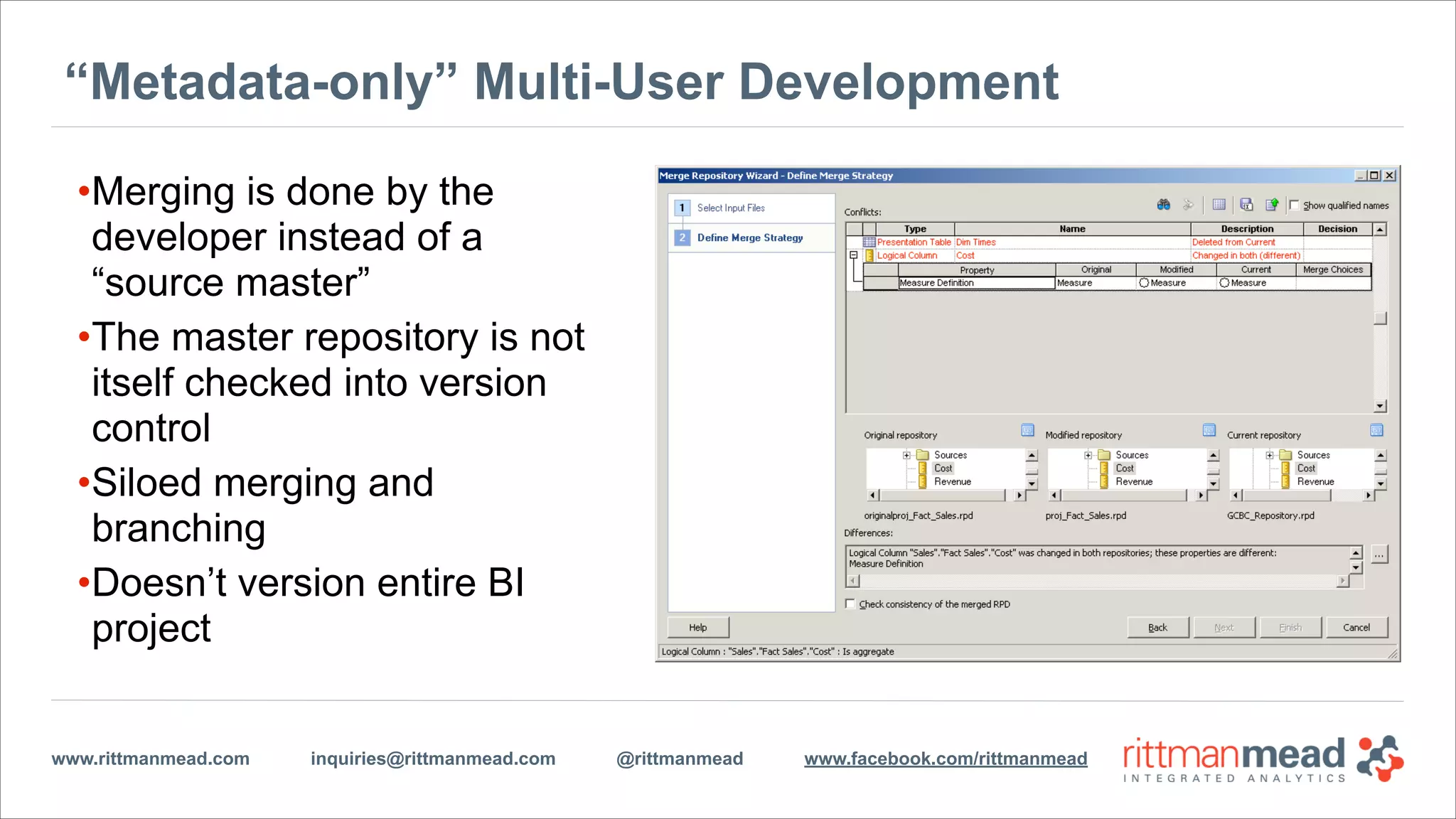

“Metadata-only” Multi-User Development
•Merging is done by the
developer instead of a
“source master”
•The master repository is not
itself checked into version
control
•Siloed merging and
branching
•Doesn’t version entire BI
project

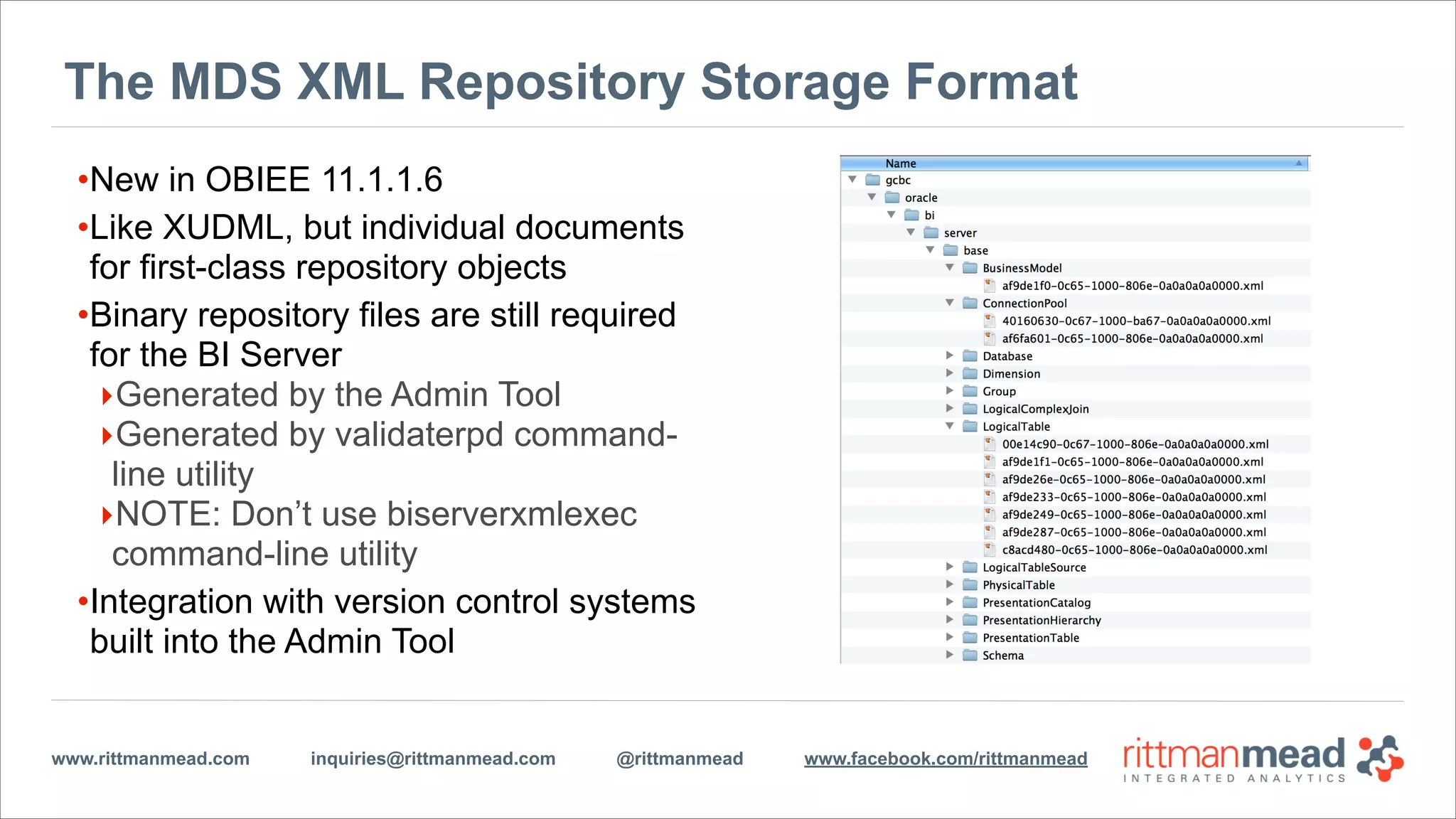

The MDS XML Repository Storage Format
•New in OBIEE 11.1.1.6
•Like XUDML, but individual documents
for first-class repository objects
•Binary repository files are still required
for the BI Server
‣Generated by the Admin Tool
‣Generated by validaterpd command-
line utility
‣NOTE: Don’t use biserverxmlexec
command-line utility
•Integration with version control systems
built into the Admin Tool

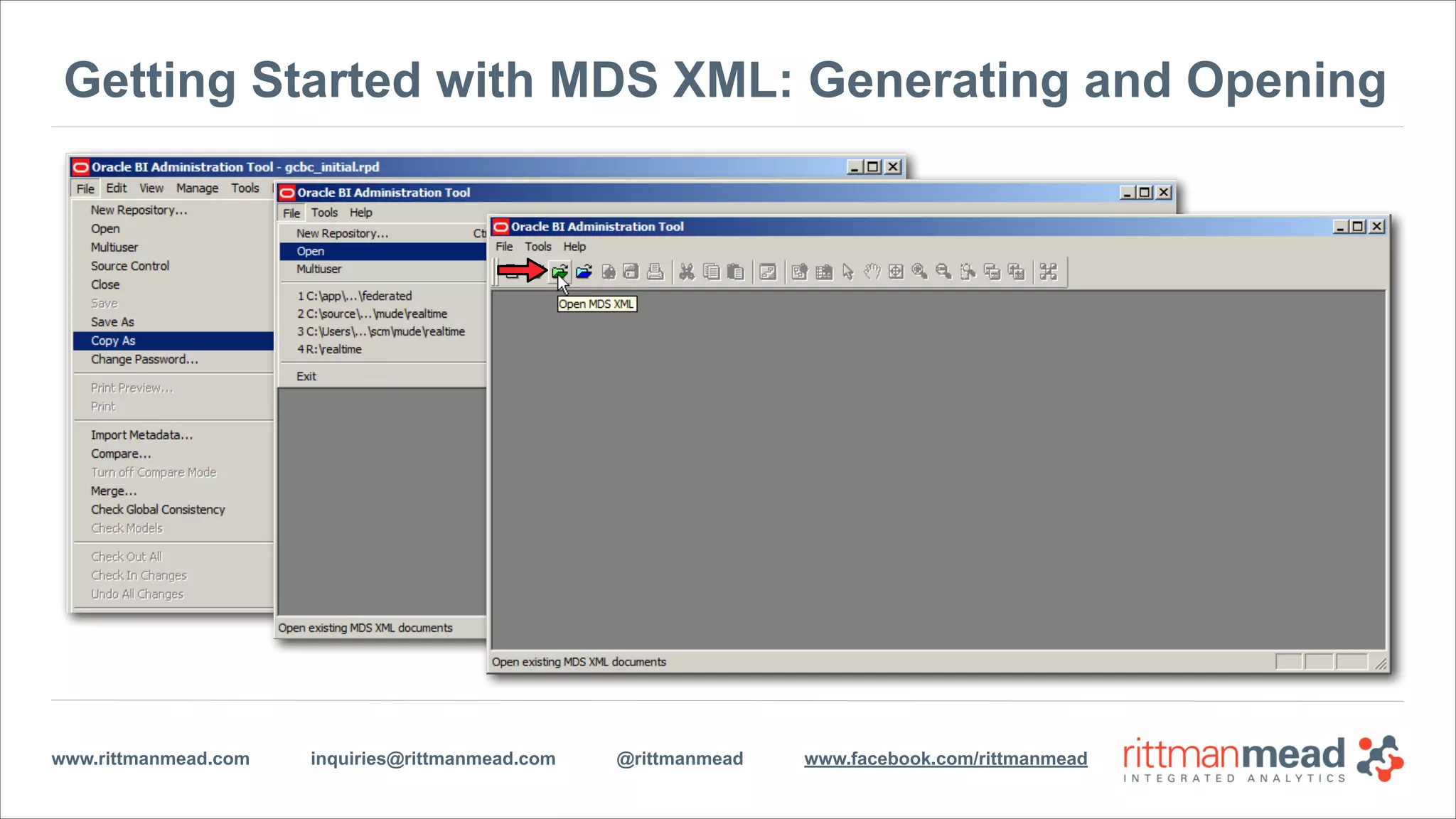

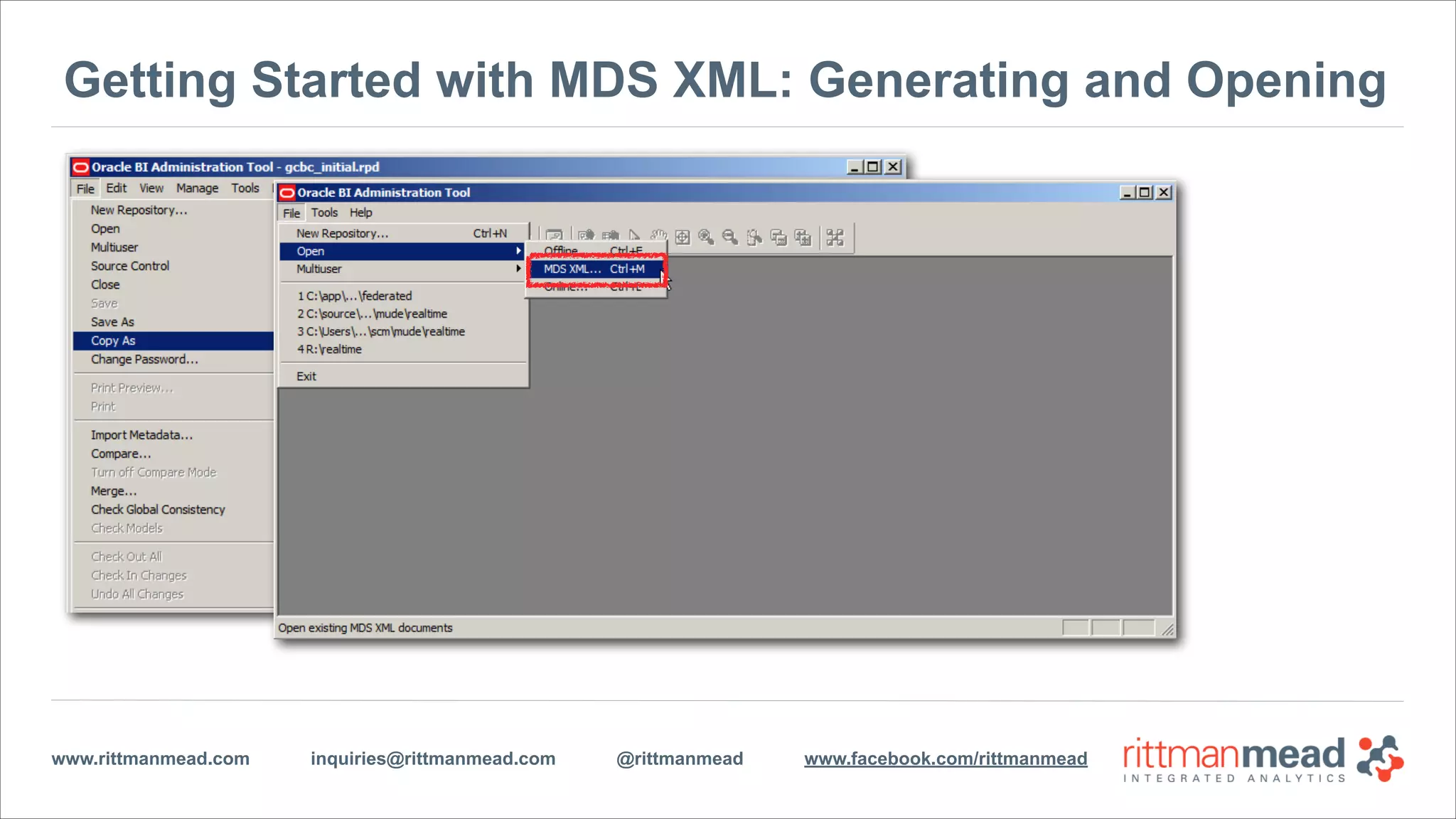

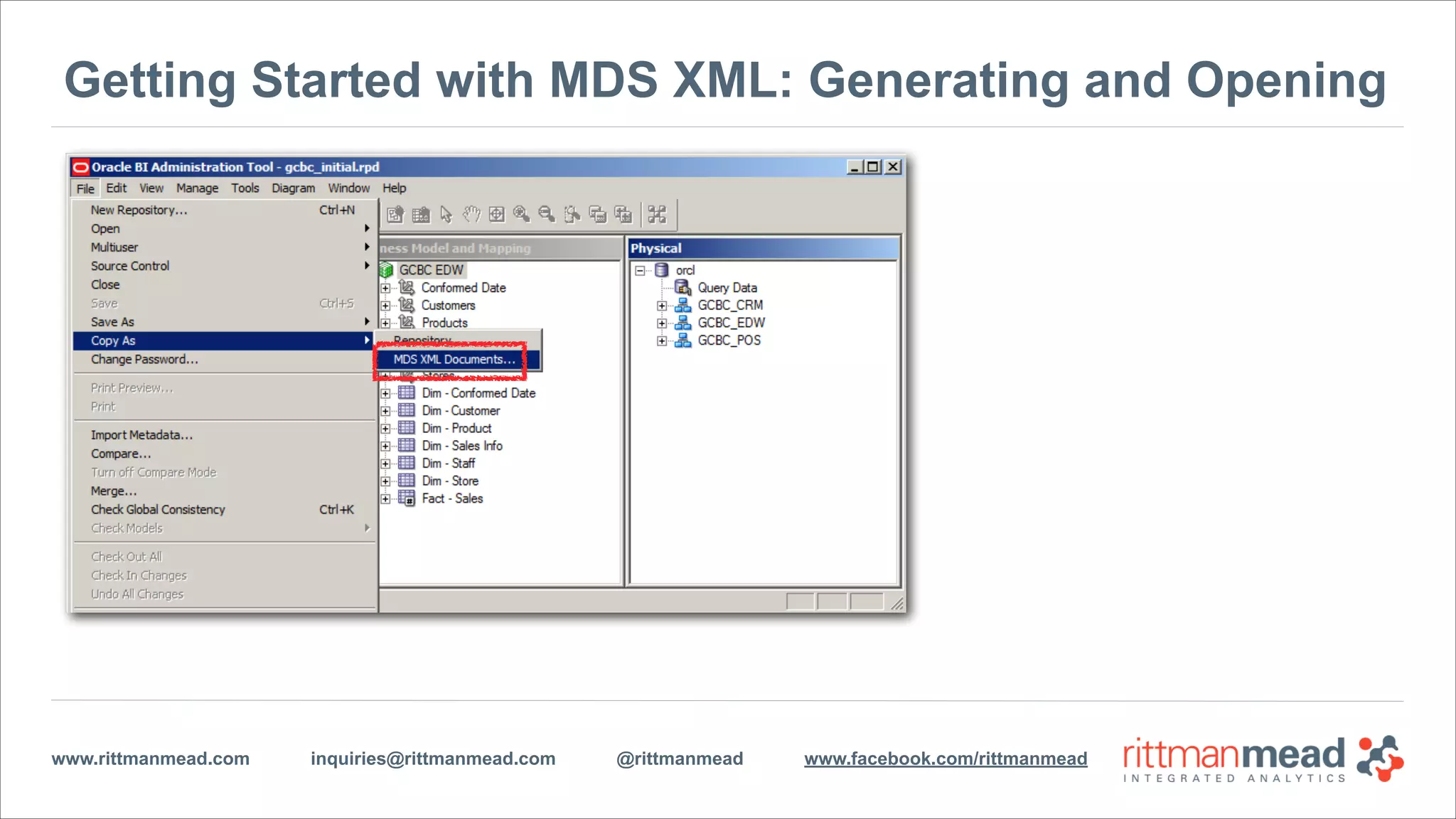

Getting Started with MDS XML: Generating and Opening

1

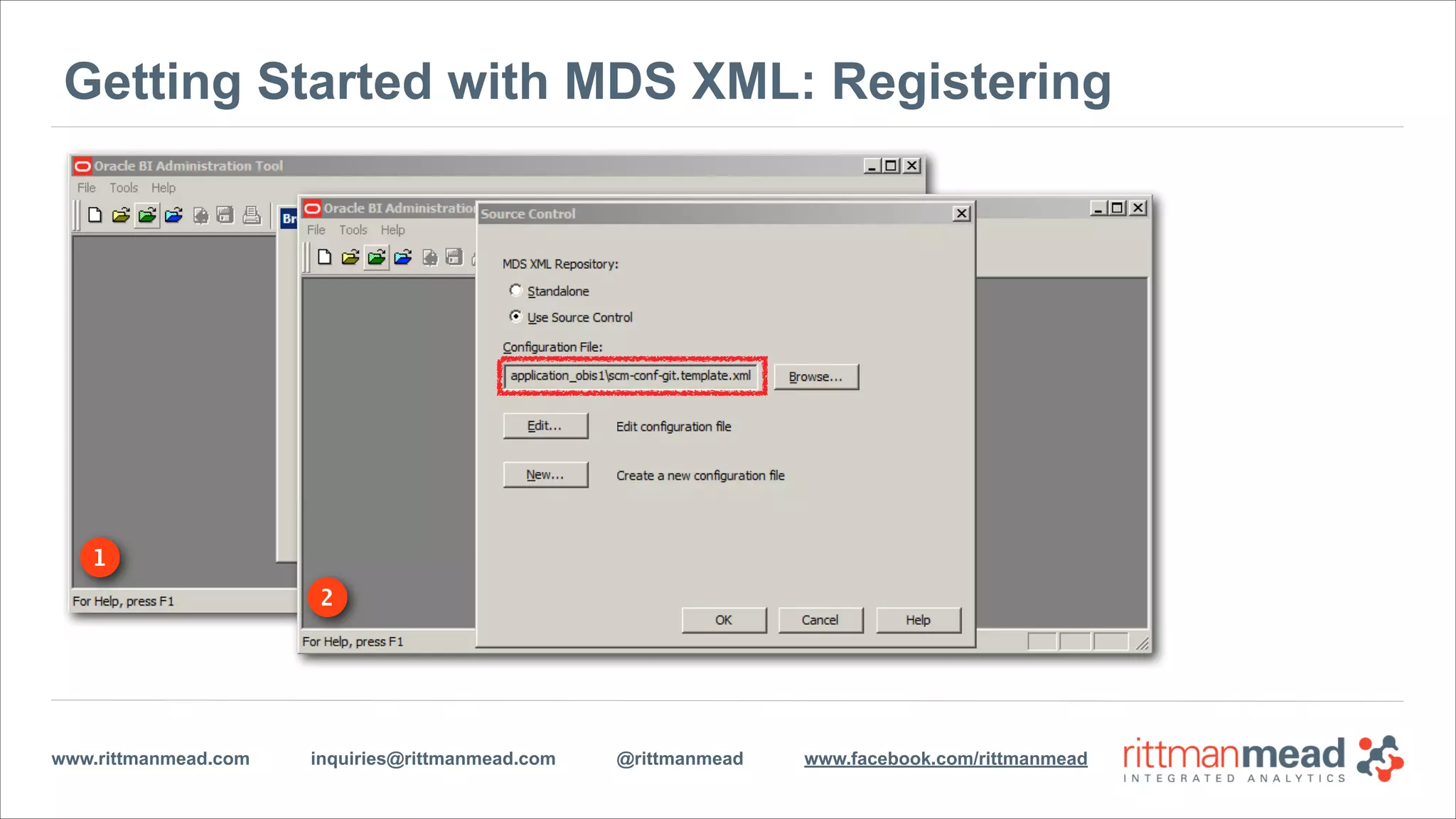

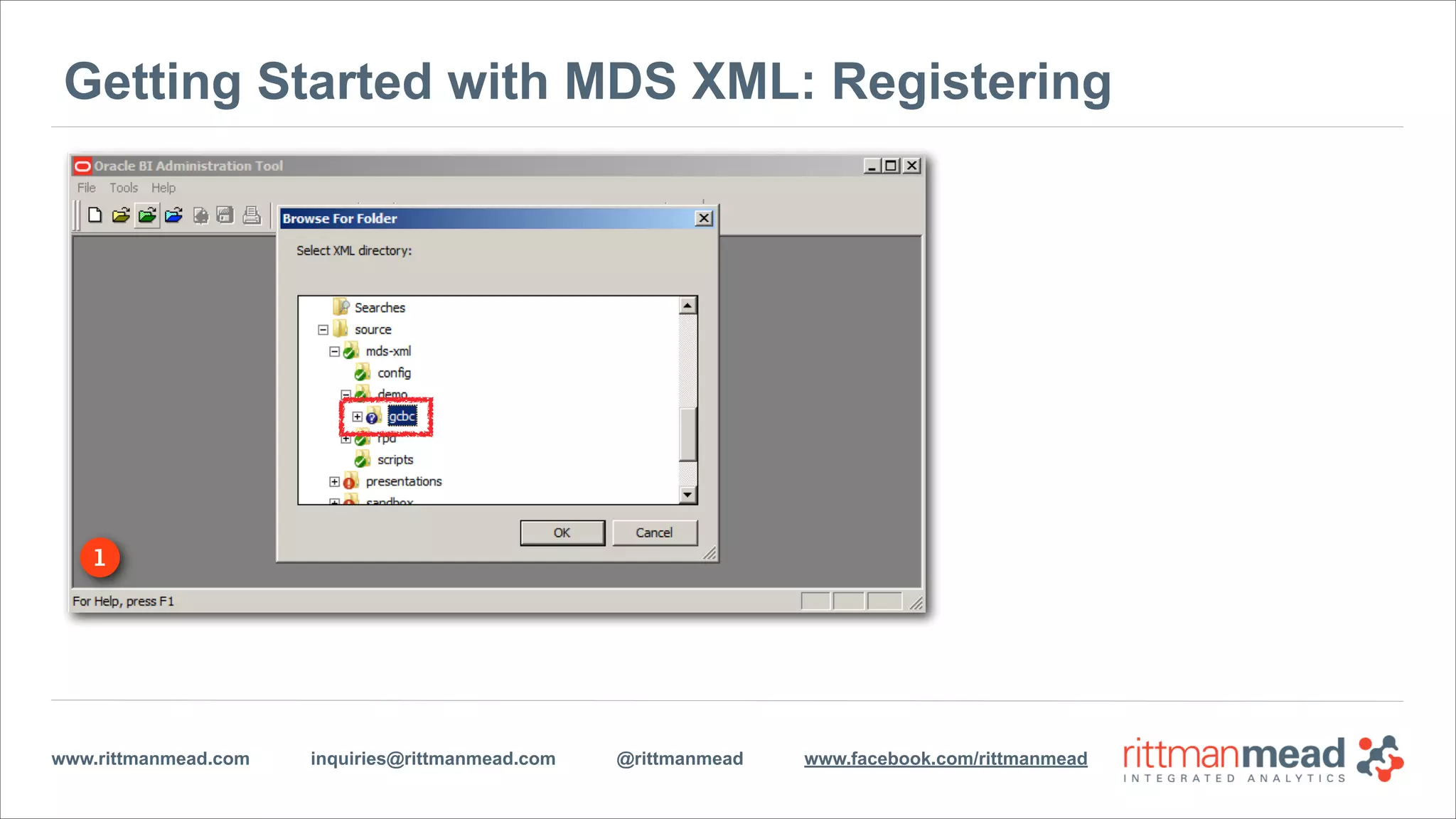

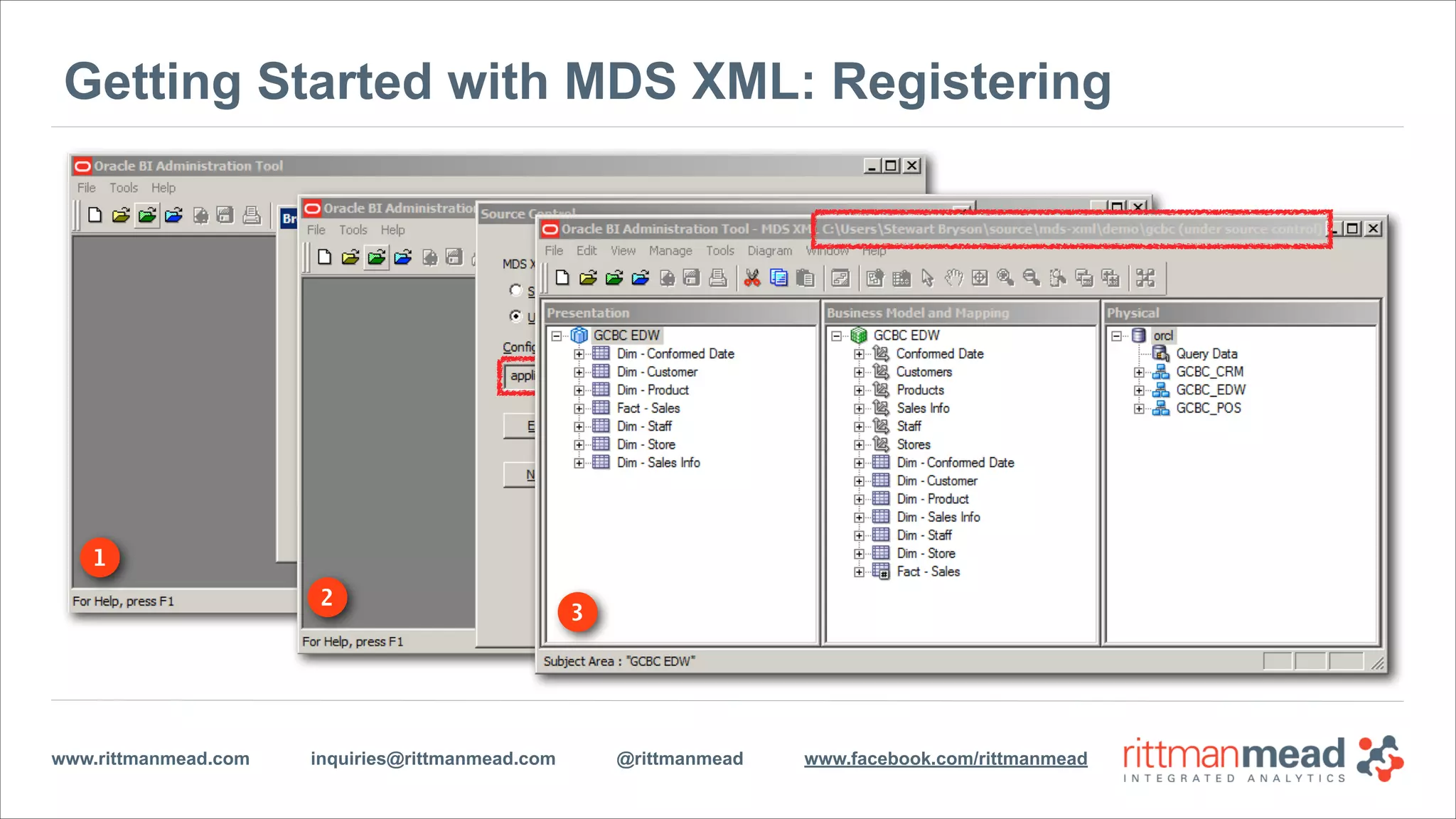

Getting Started with MDS XML: Registering

1
2

1
2
3

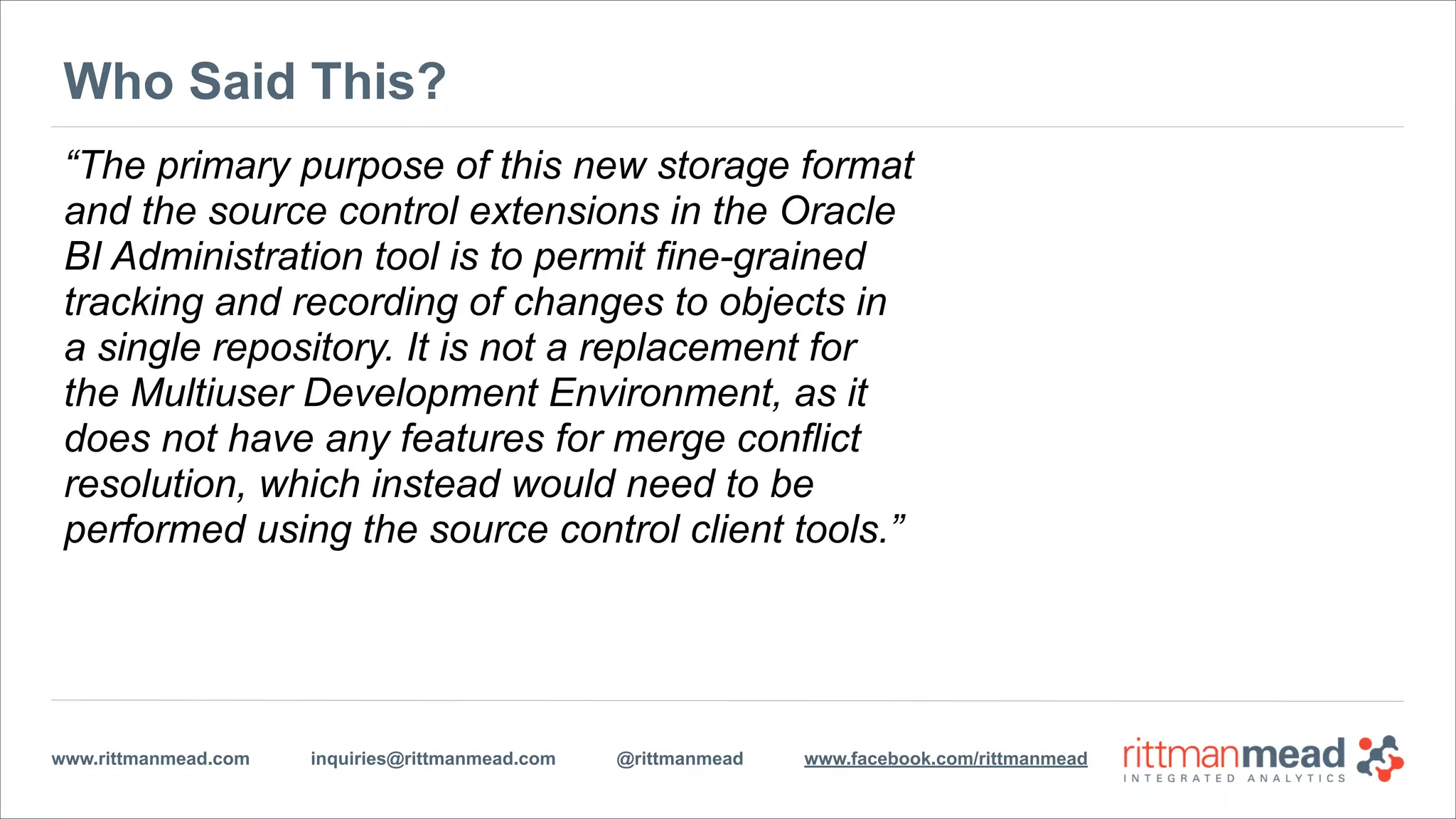

Who Said This?
“The primary purpose of this new storage format
and the source control extensions in the Oracle
BI Administration tool is to permit fine-grained
tracking and recording of changes to objects in
a single repository. It is not a replacement for
the Multiuser Development Environment, as it
does not have any features for merge conflict
resolution, which instead would need to be
performed using the source control client tools.”

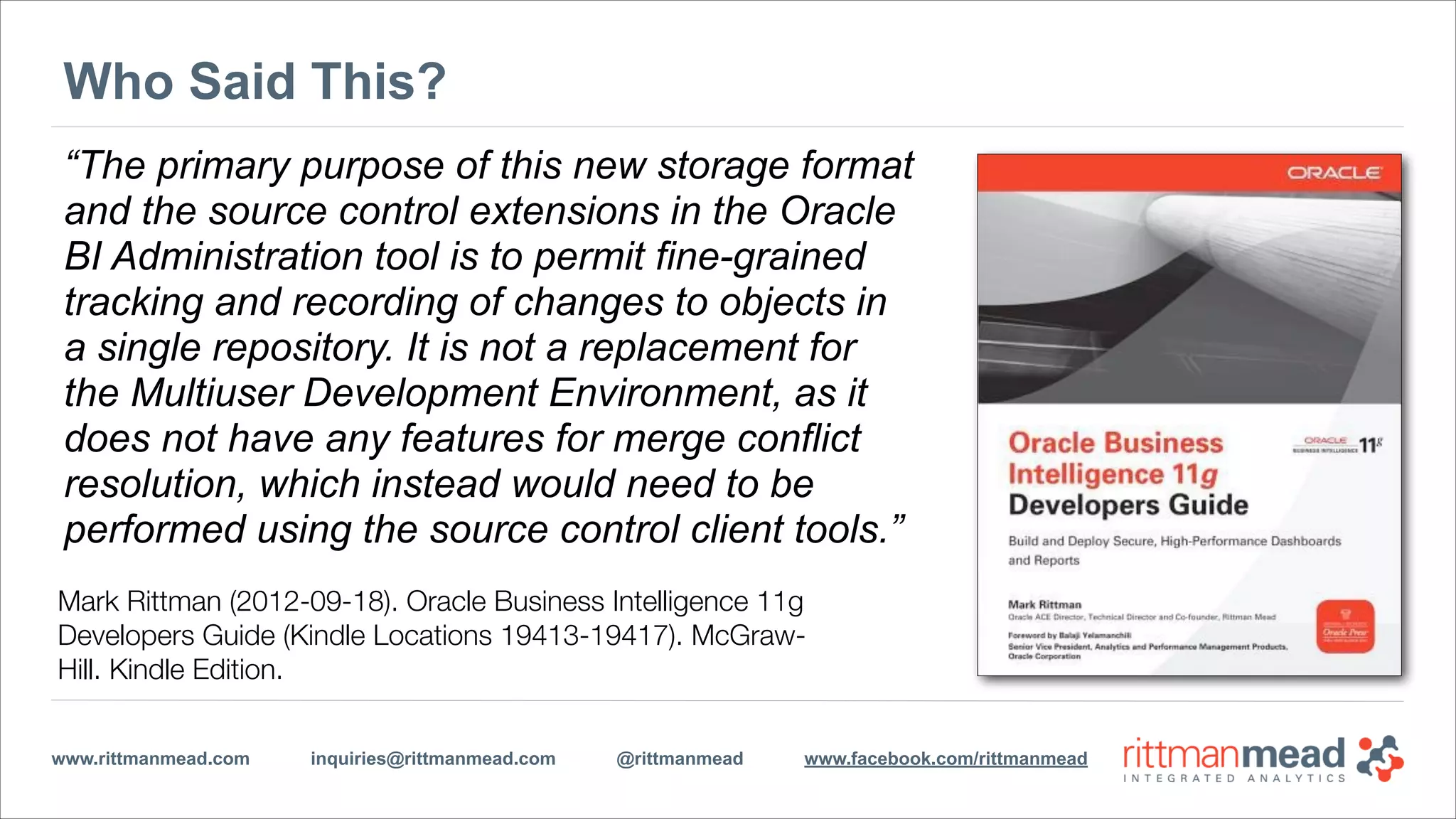

Who Said This?
“The primary purpose of this new storage format
and the source control extensions in the Oracle
BI Administration tool is to permit fine-grained
tracking and recording of changes to objects in
a single repository. It is not a replacement for
the Multiuser Development Environment, as it
does not have any features for merge conflict
resolution, which instead would need to be
performed using the source control client tools.”
Mark Rittman (2012-09-18). Oracle Business Intelligence 11g
Developers Guide (Kindle Locations 19413-19417). McGraw-
Hill. Kindle Edition.

Version Control using GIT
•Initially designed and developed by
Linus Torvalds for Linux kernel
development
•Local repository for remote
publishing
‣Continual local commits
‣Periodic network publication
•Commands we care about today:

Version Control using GIT
•Initially designed and developed by
Linus Torvalds for Linux kernel
development
•Local repository for remote
publishing
‣Continual local commits
‣Periodic network publication
•Commands we care about today:
==> git checkout!
==> git commit!
==> git merge!
==> git rebase!
==> git reset!
==> git push/pull

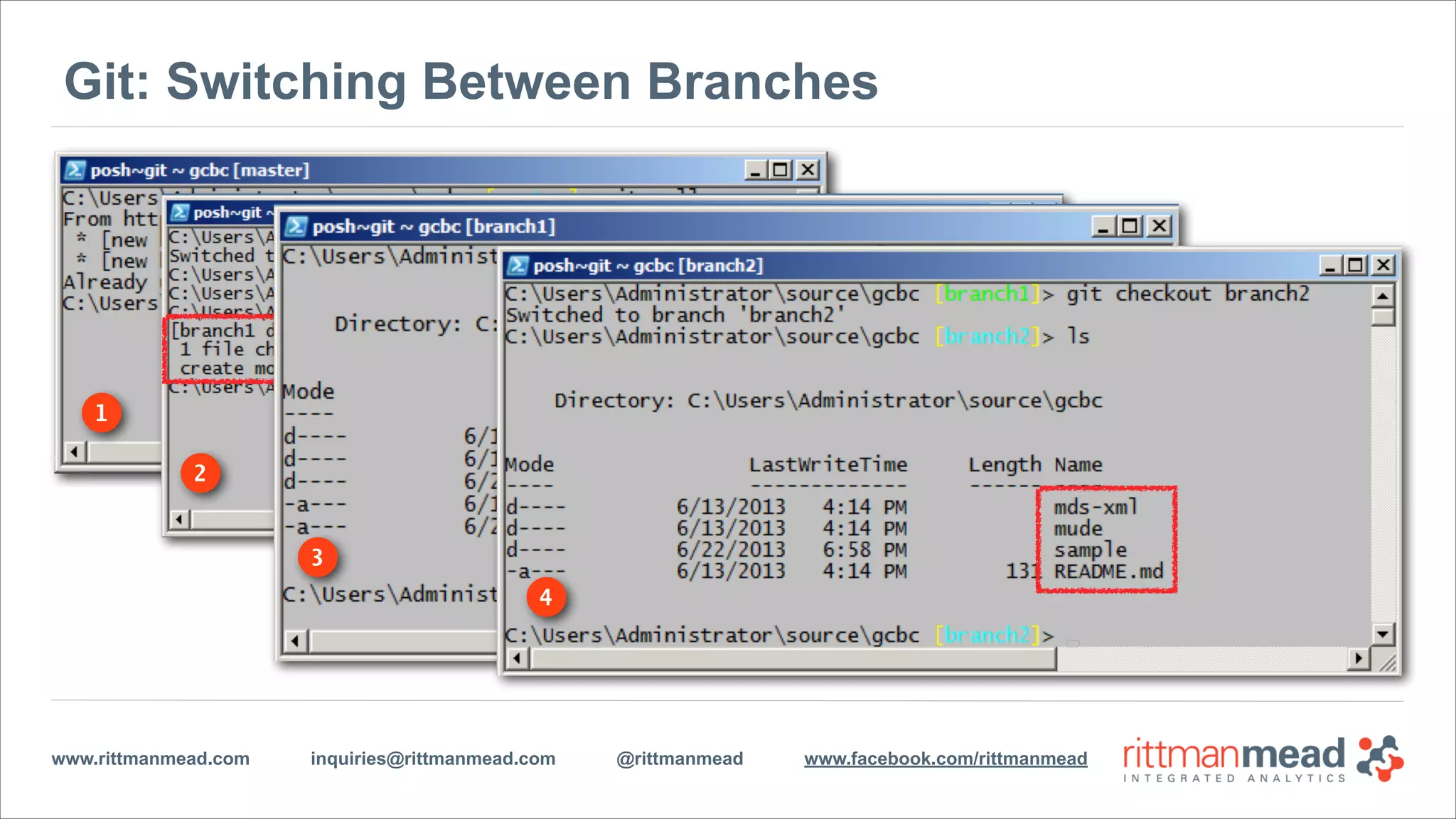

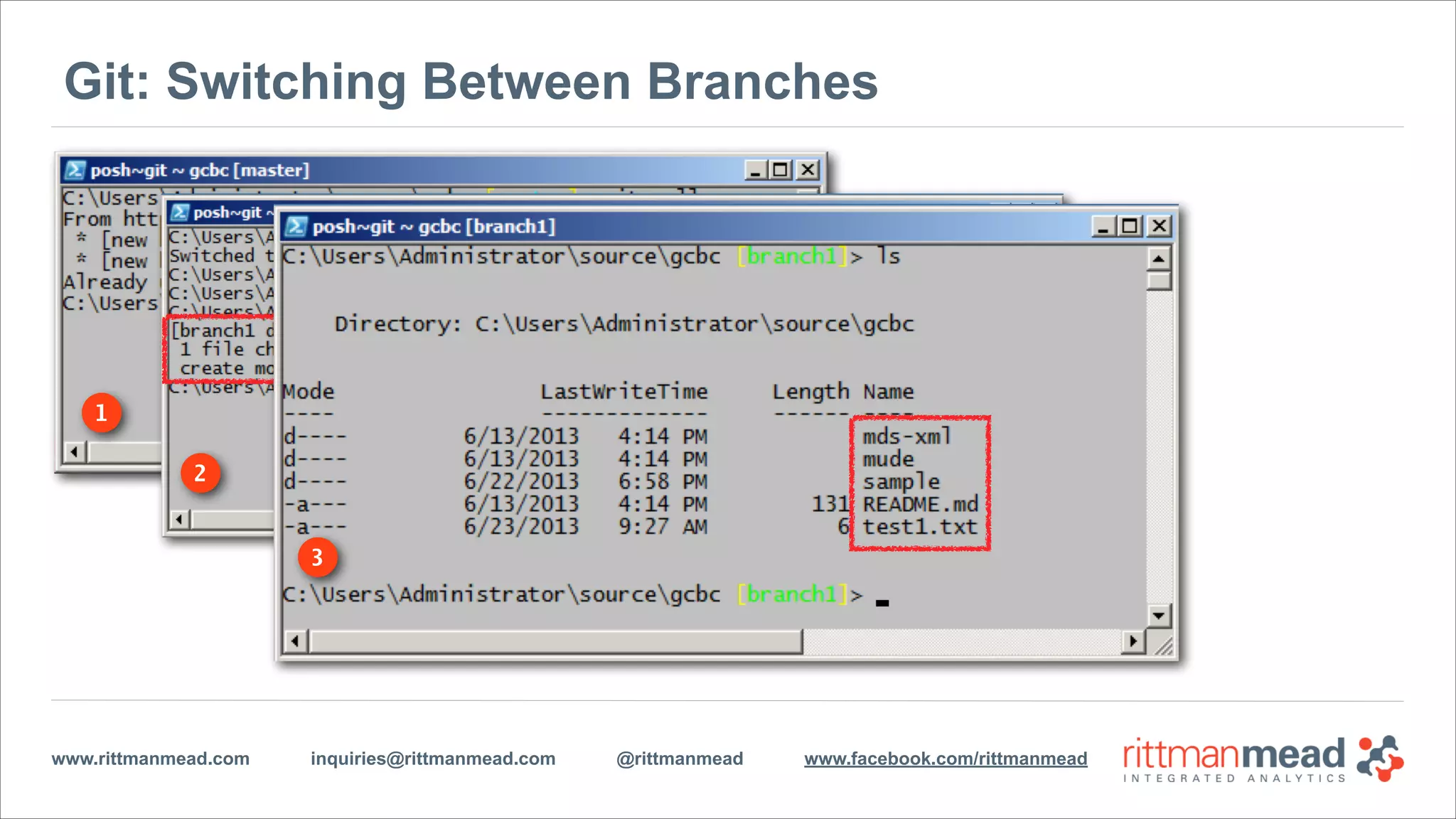

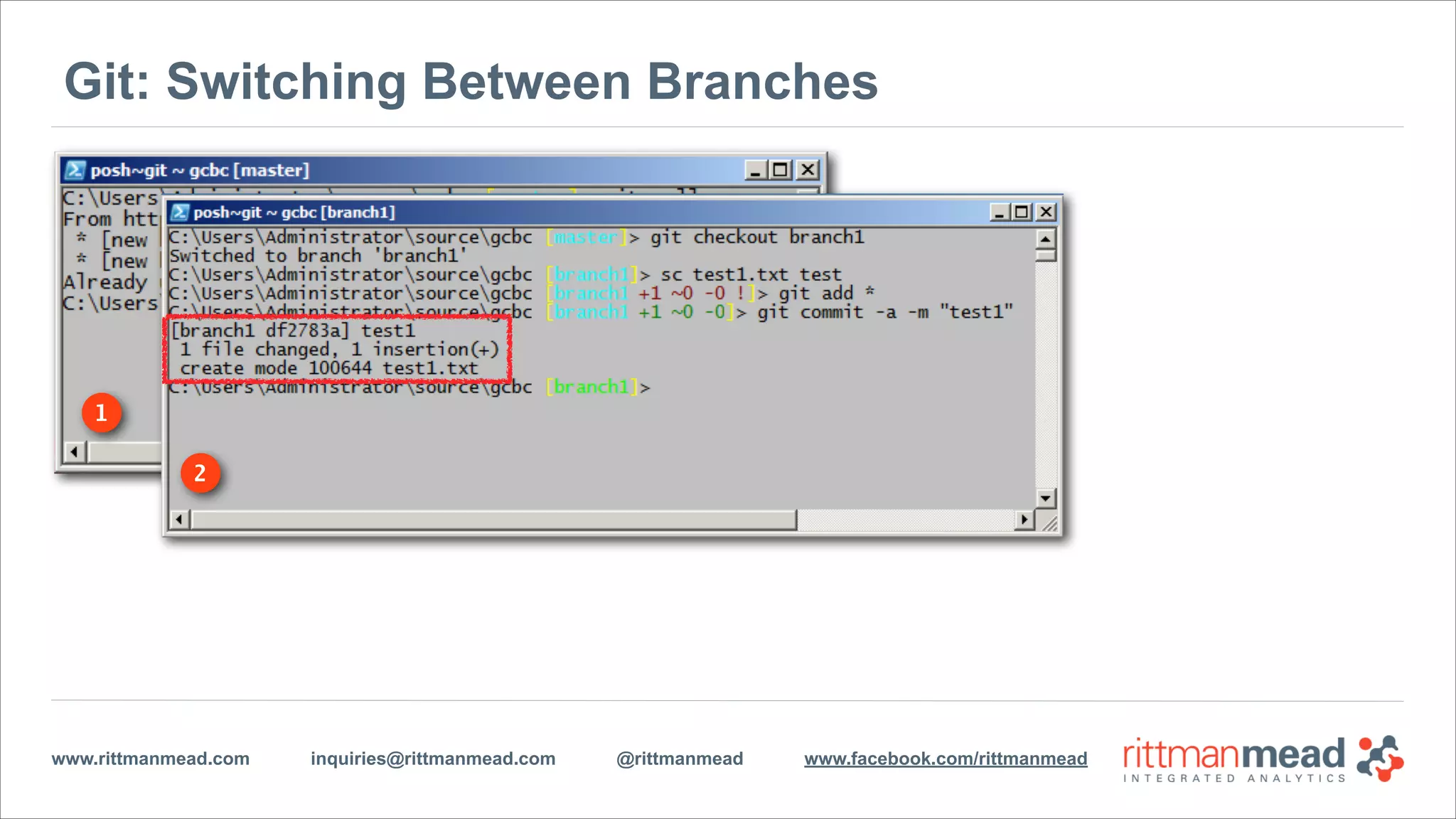

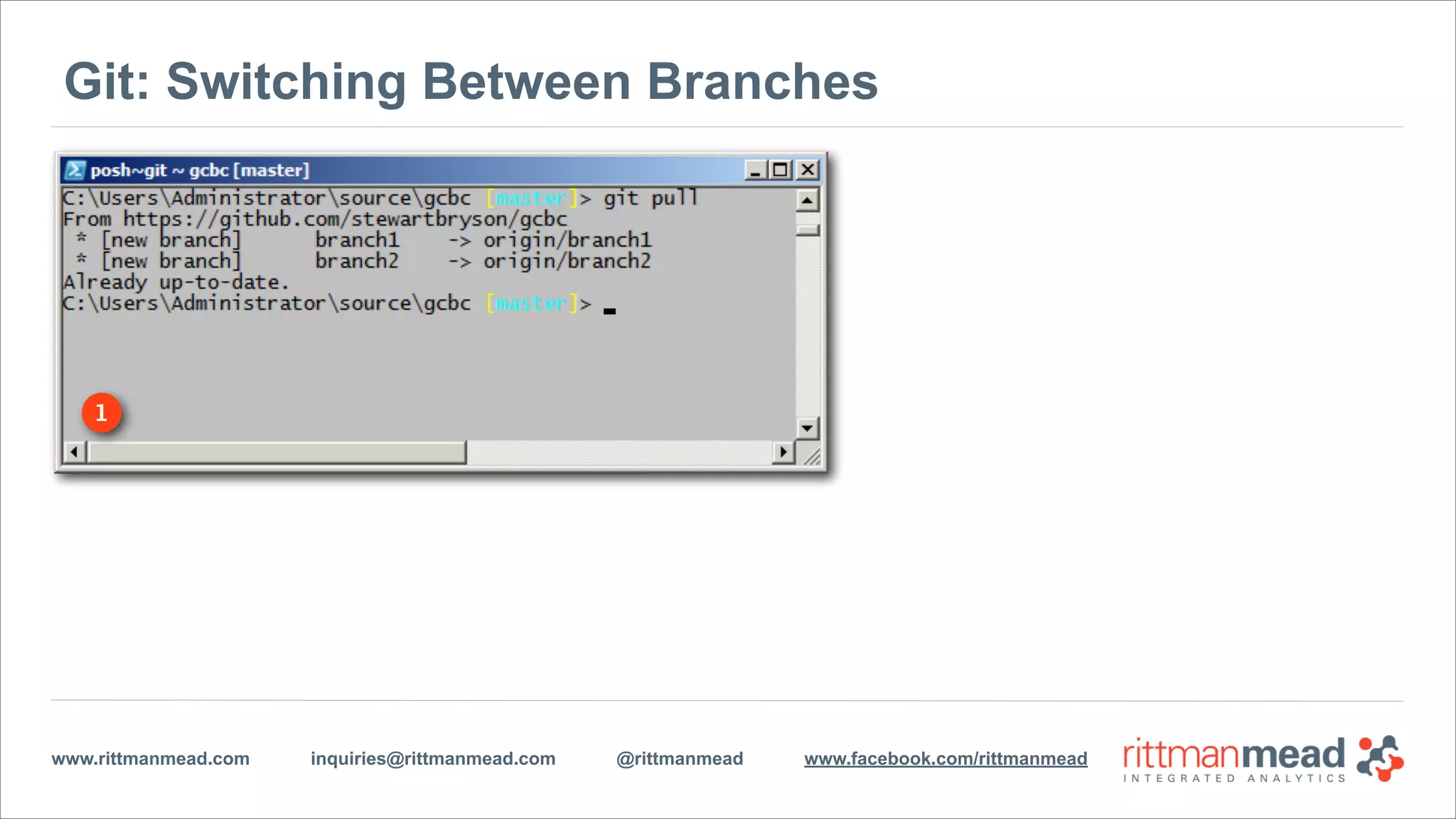

Git: Switching Between Branches
1

1
2

1
2
3

1
2
3
4

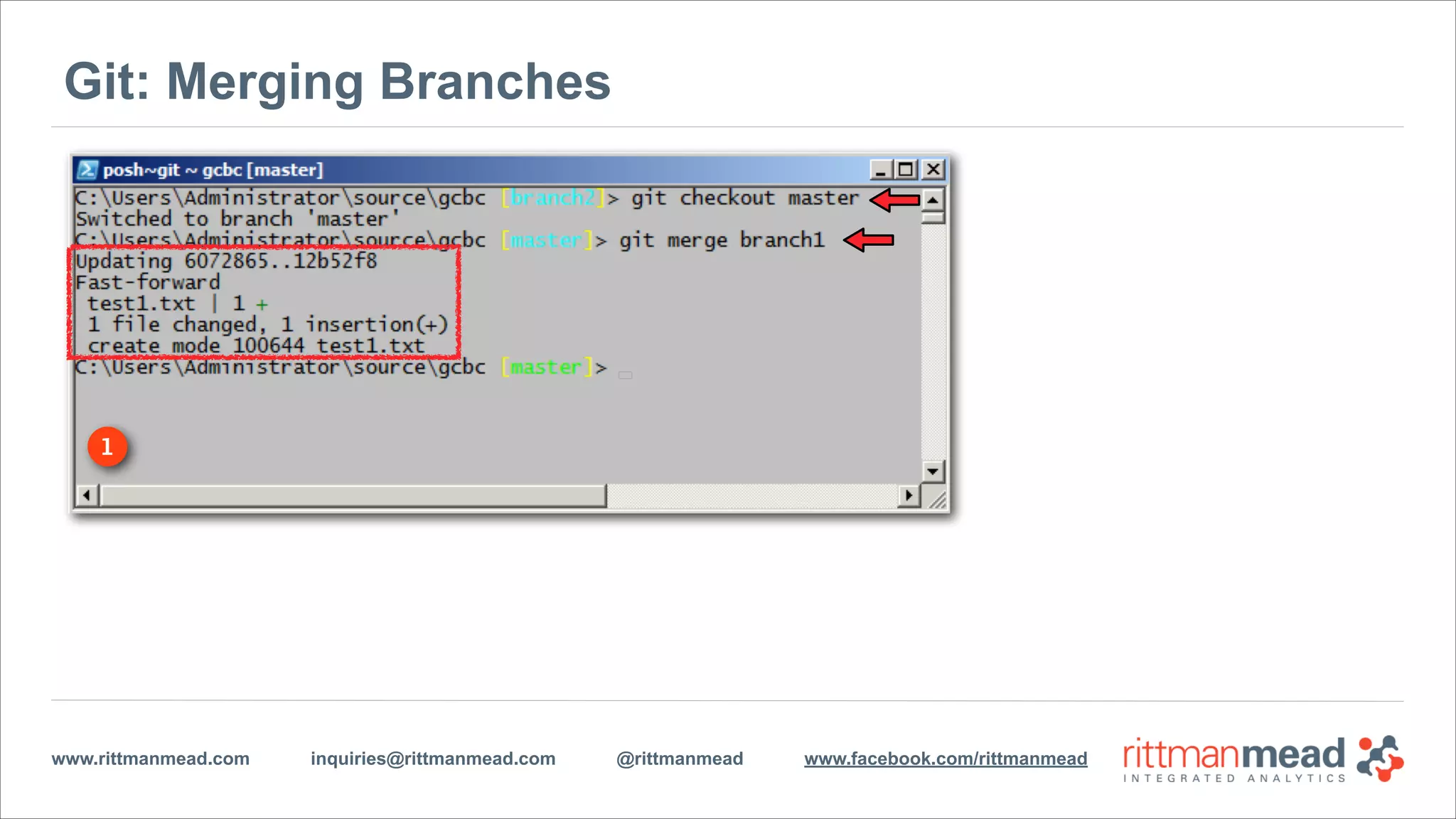

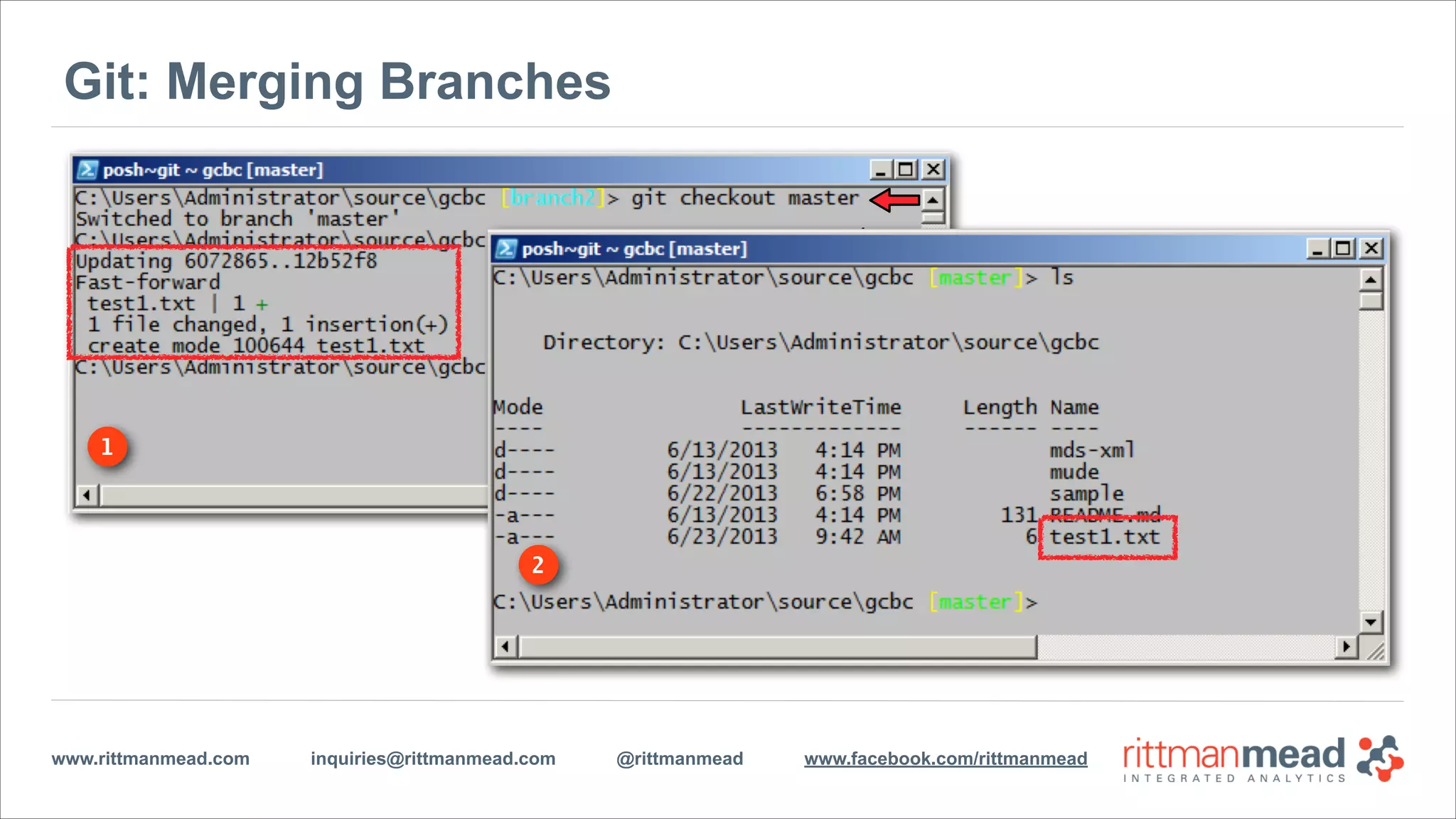

Git: Merging Branches
1

Git: Merging Branches
1
2

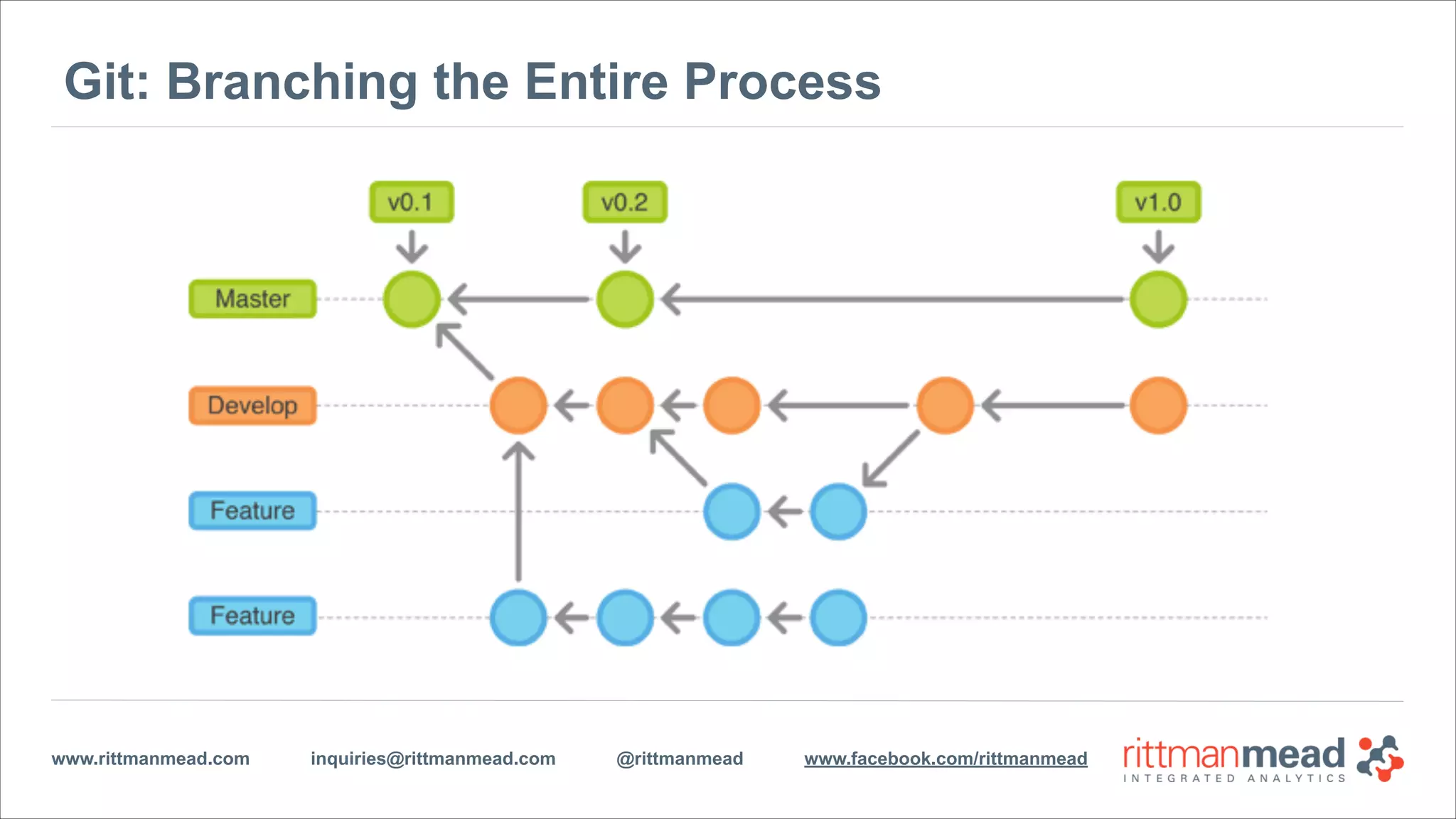

Git: Branching the Entire Process

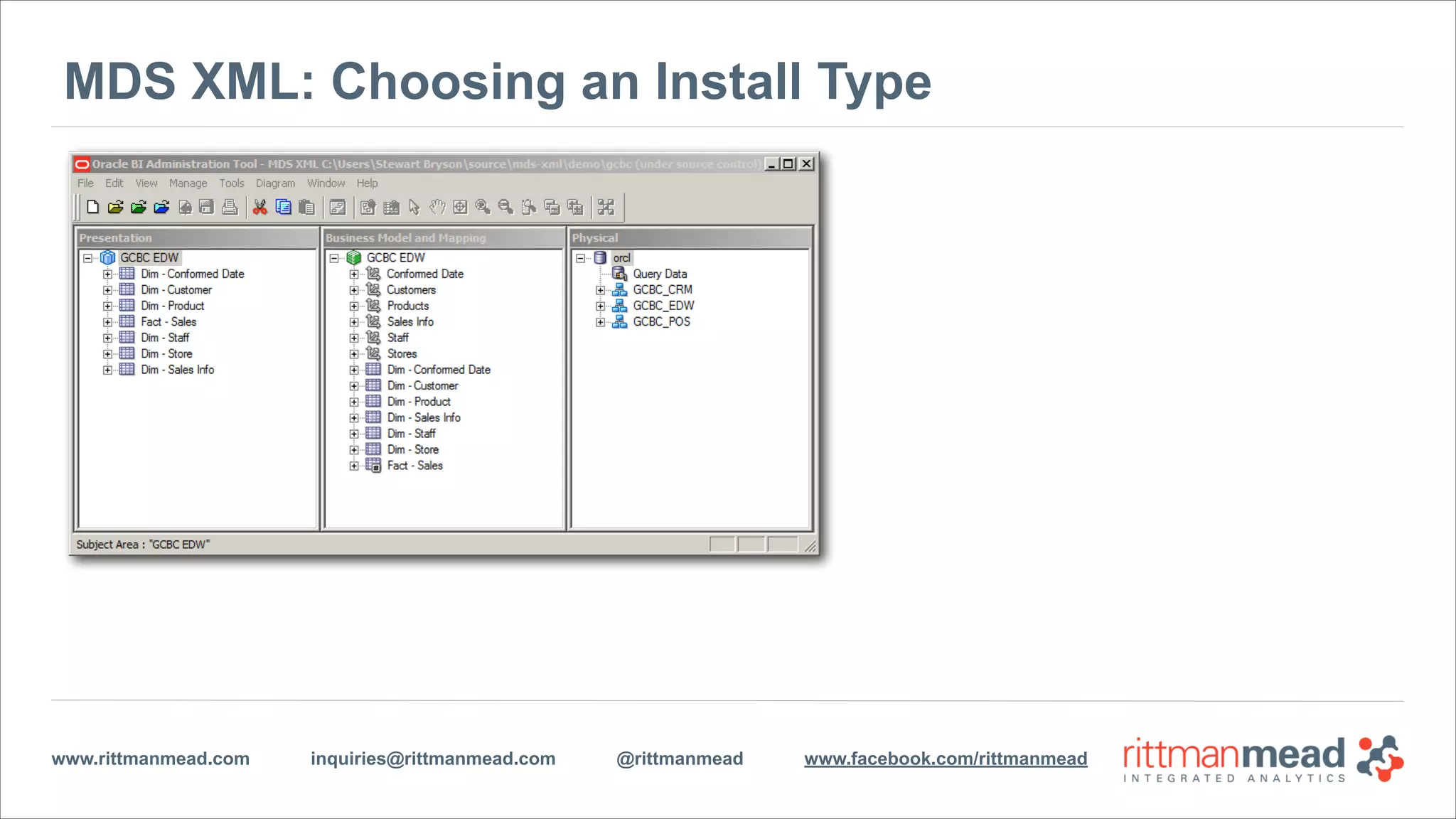

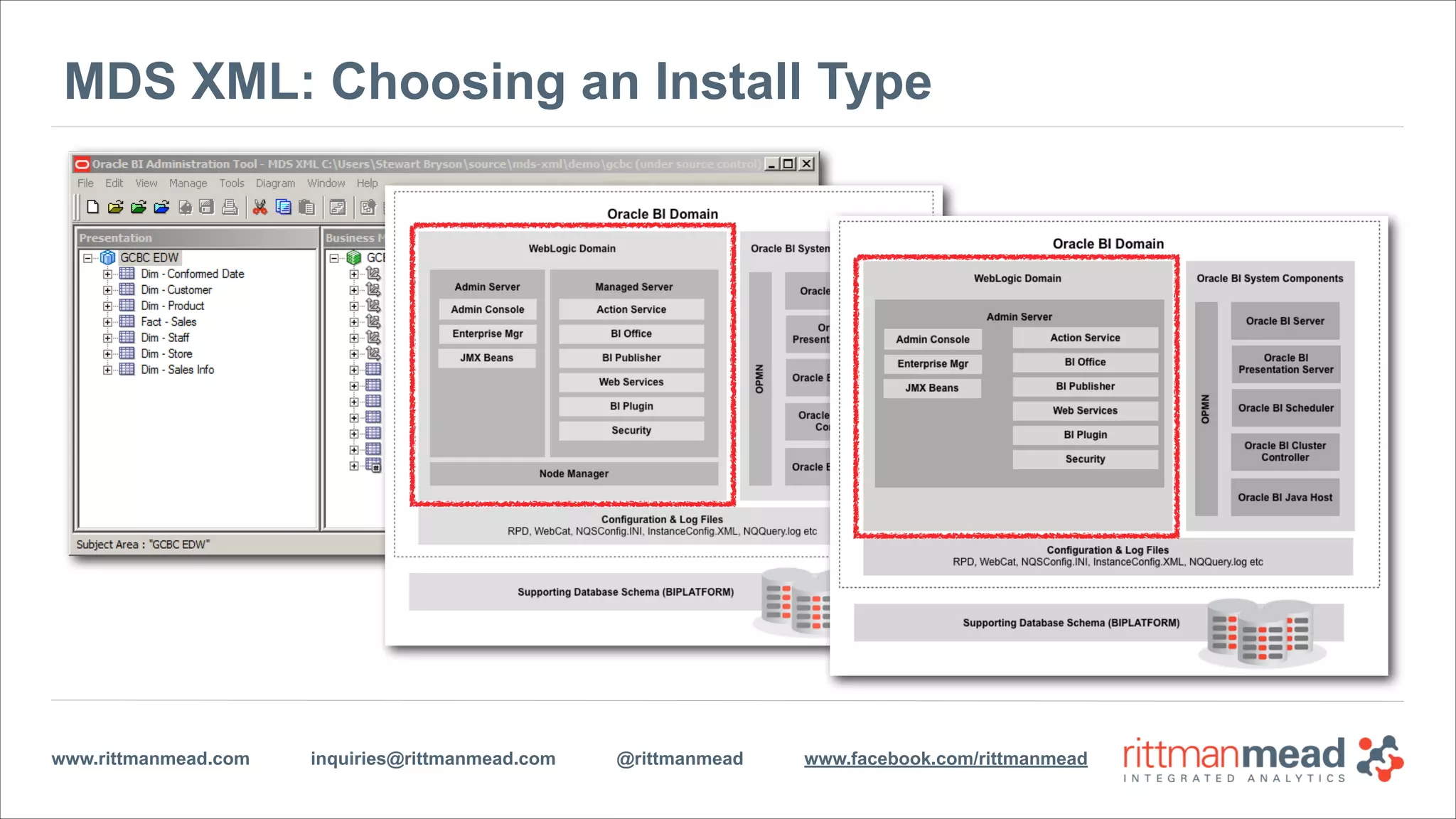

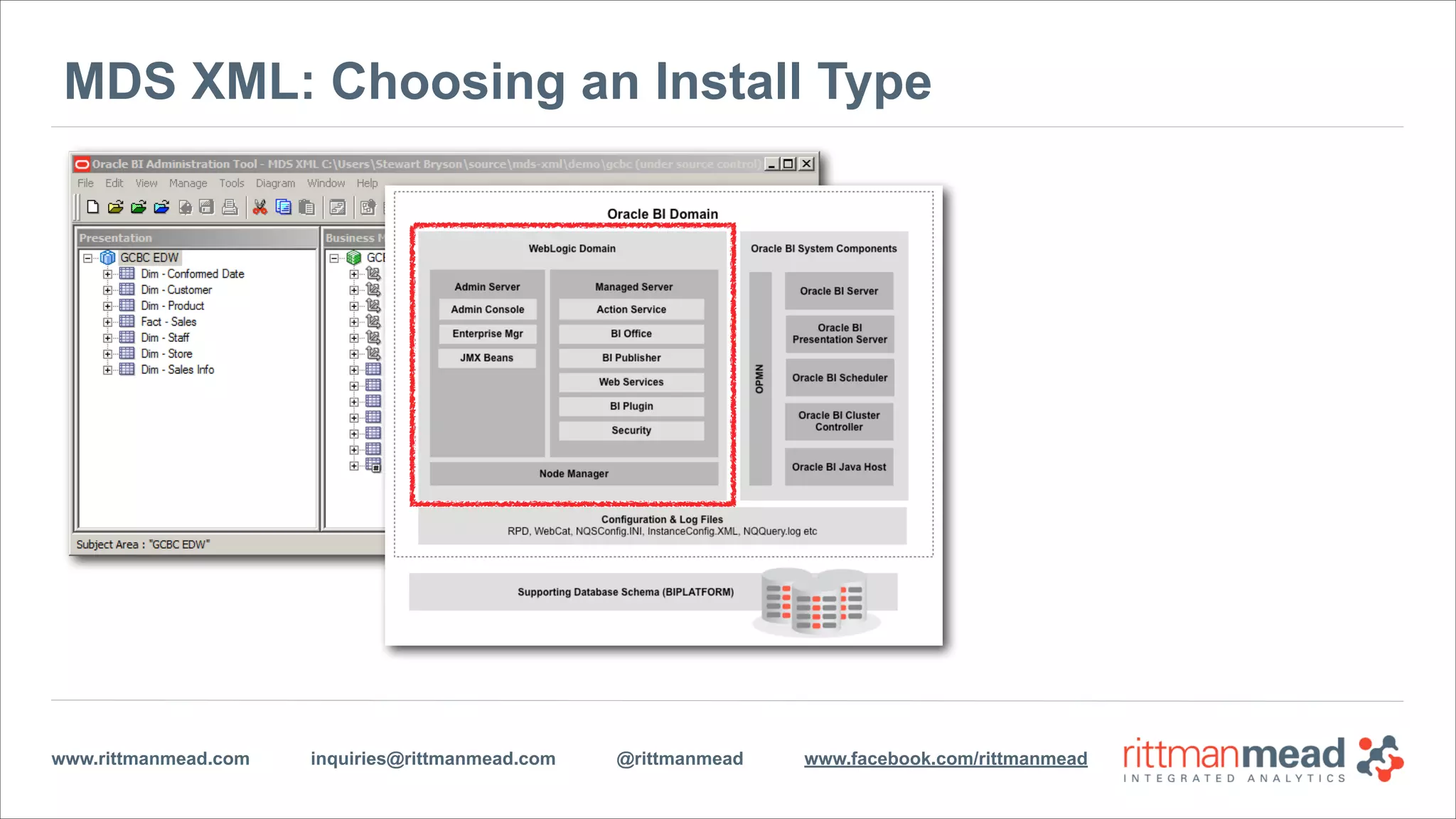

MDS XML: Choosing an Install Type
Client Installation
Using the Administration
Tool to do standalone
development

Enterprise Installation
Separate containers for Admin
and Managed Servers

Simple Installation
Single Container uses a smaller
footprint for laptops and VMs

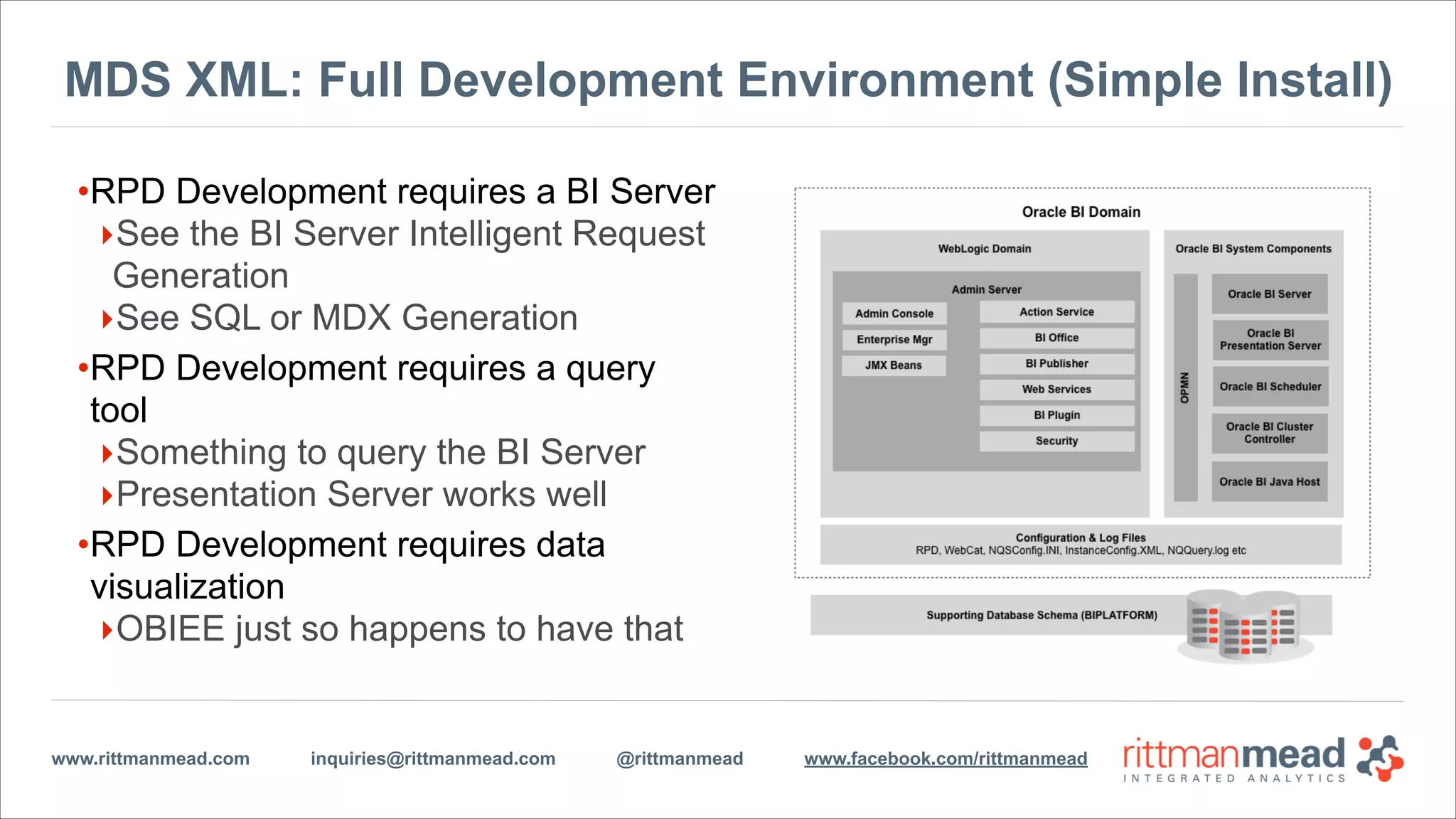

MDS XML: Full Development Environment (Simple Install)
•RPD Development requires a BI Server
‣See the BI Server Intelligent Request
Generation
‣See SQL or MDX Generation
•RPD Development requires a query
tool
‣Something to query the BI Server
‣Presentation Server works well
•RPD Development requires data
visualization
‣OBIEE just so happens to have that

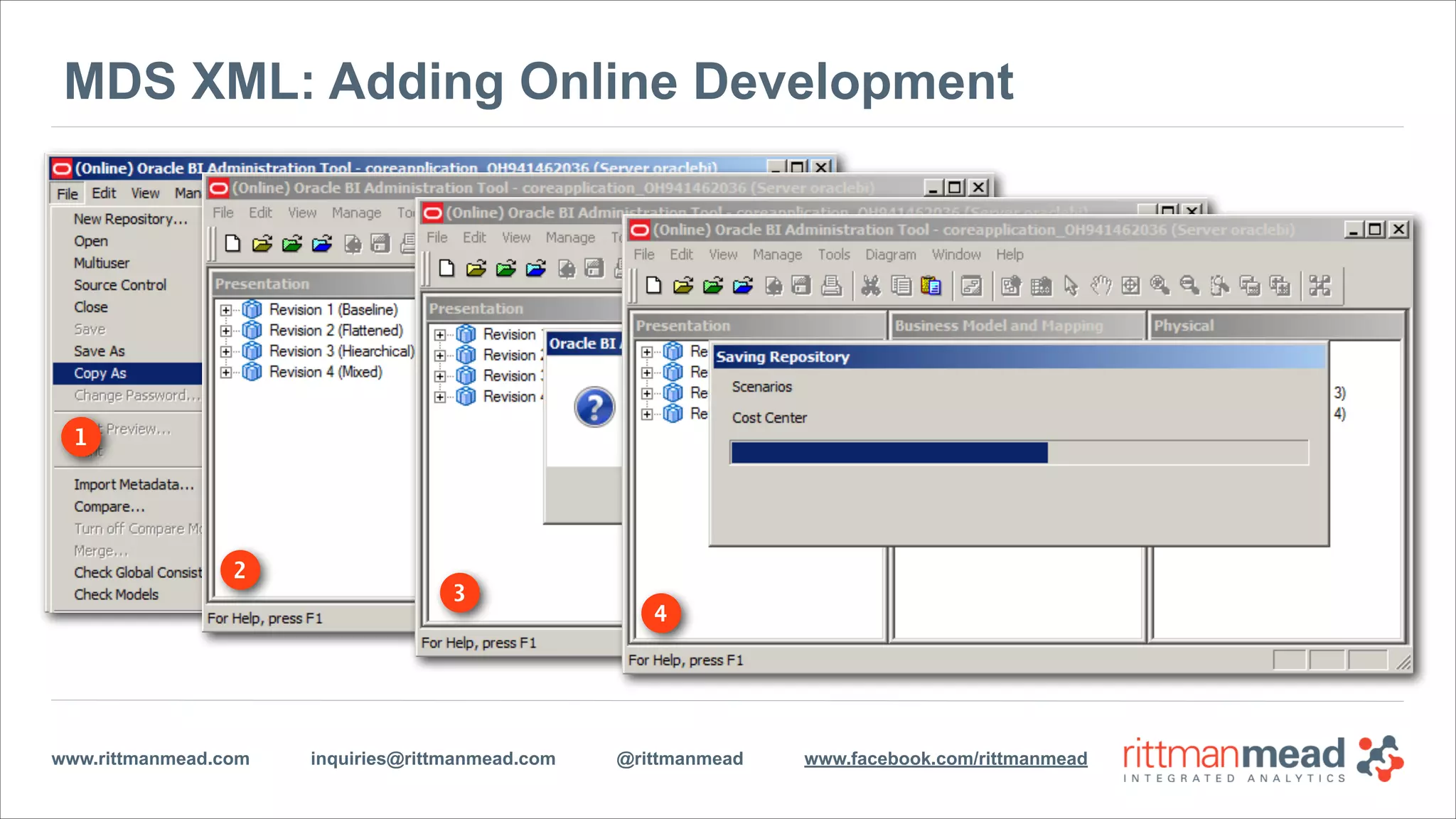

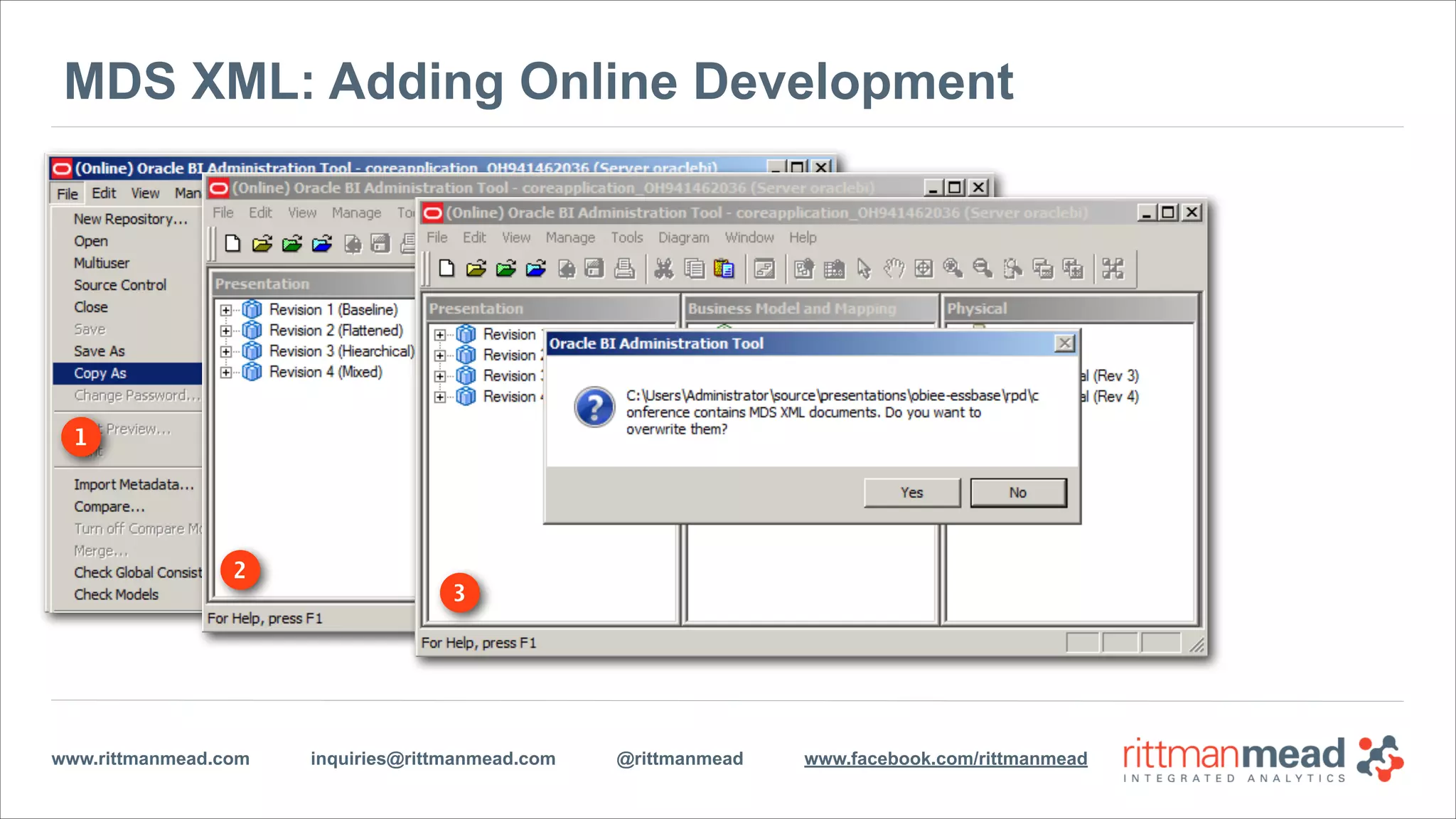

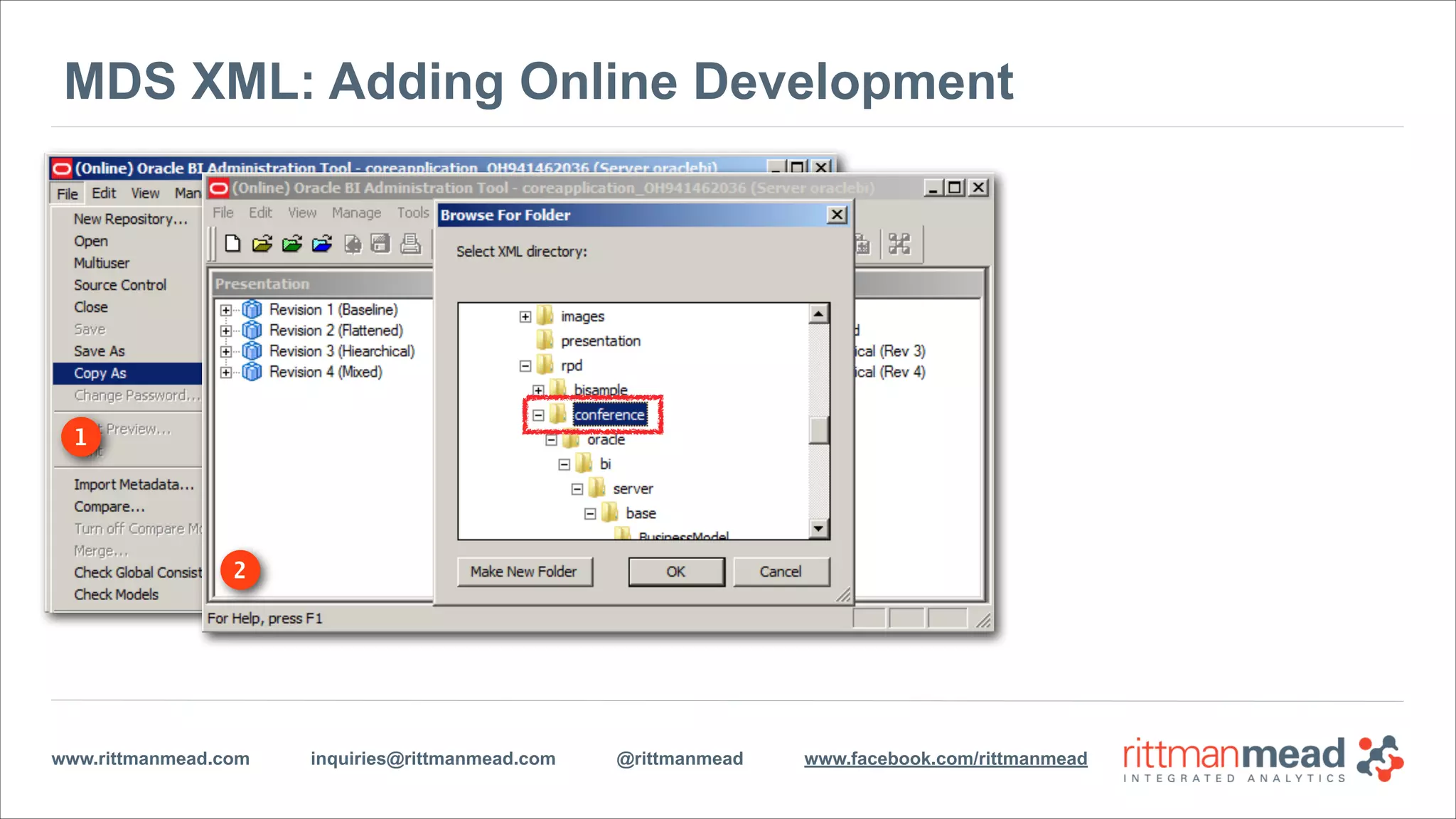

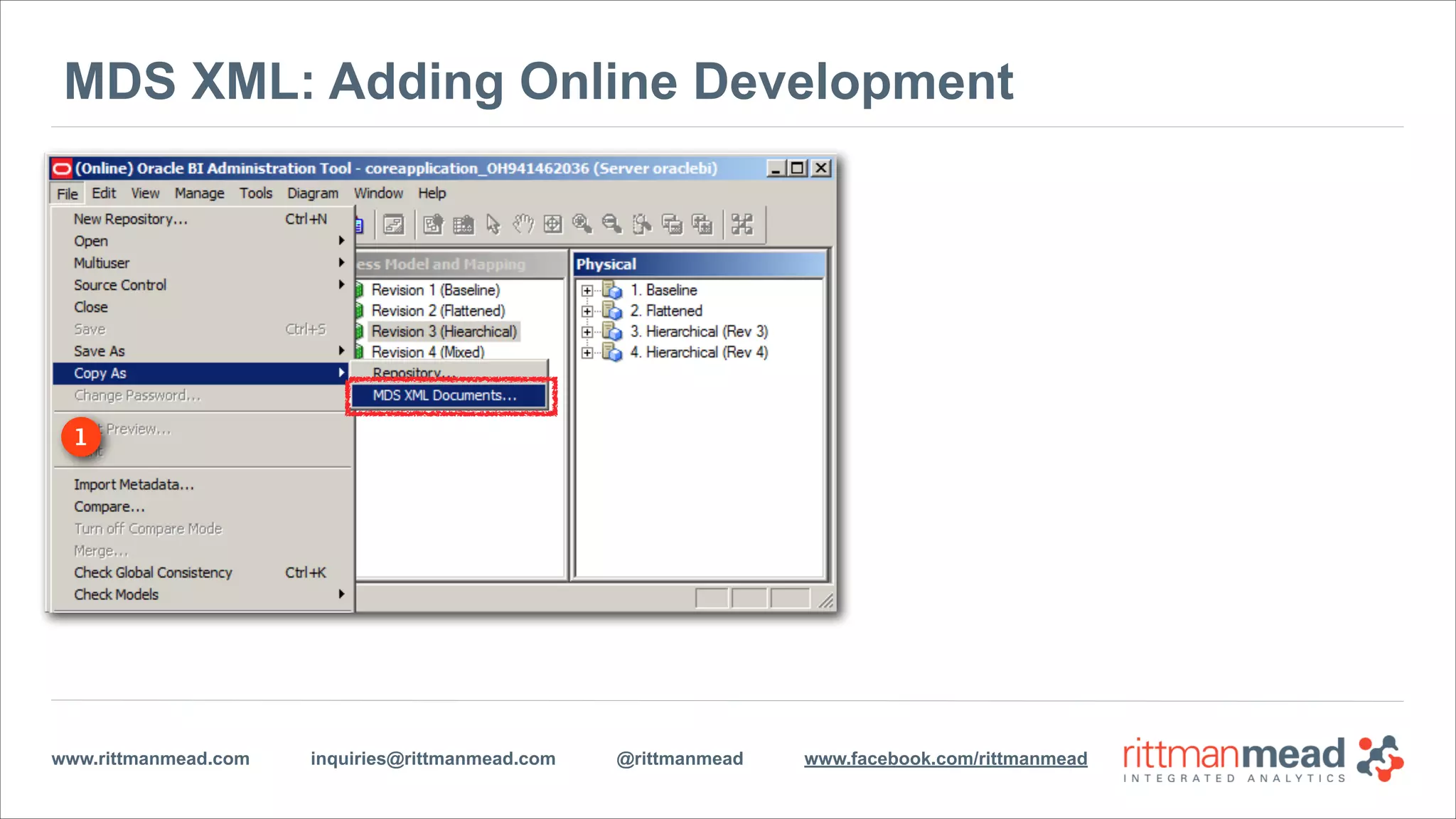

MDS XML: Adding Online Development
1

1
2

1
2
3

1
2
3
4

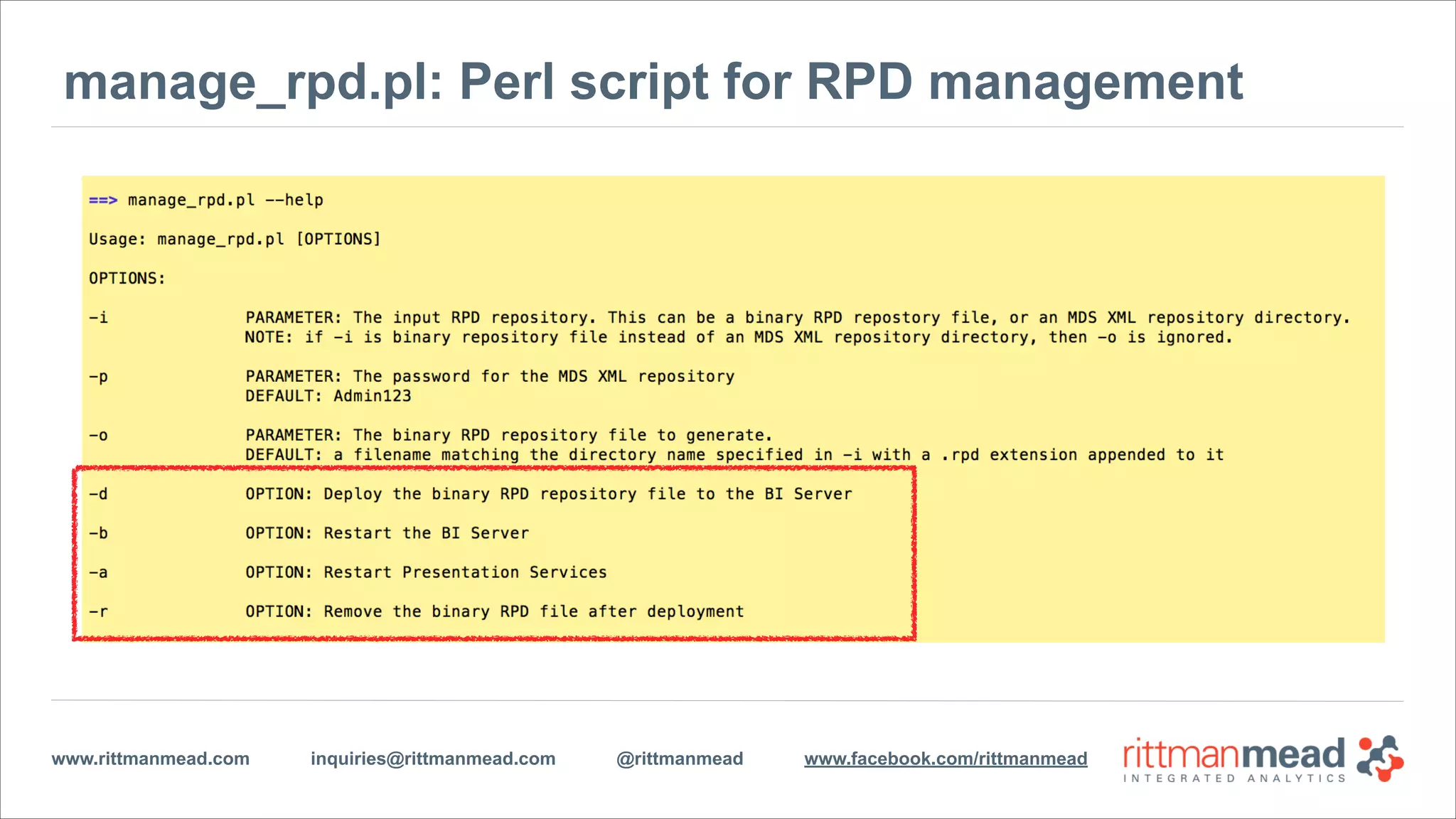

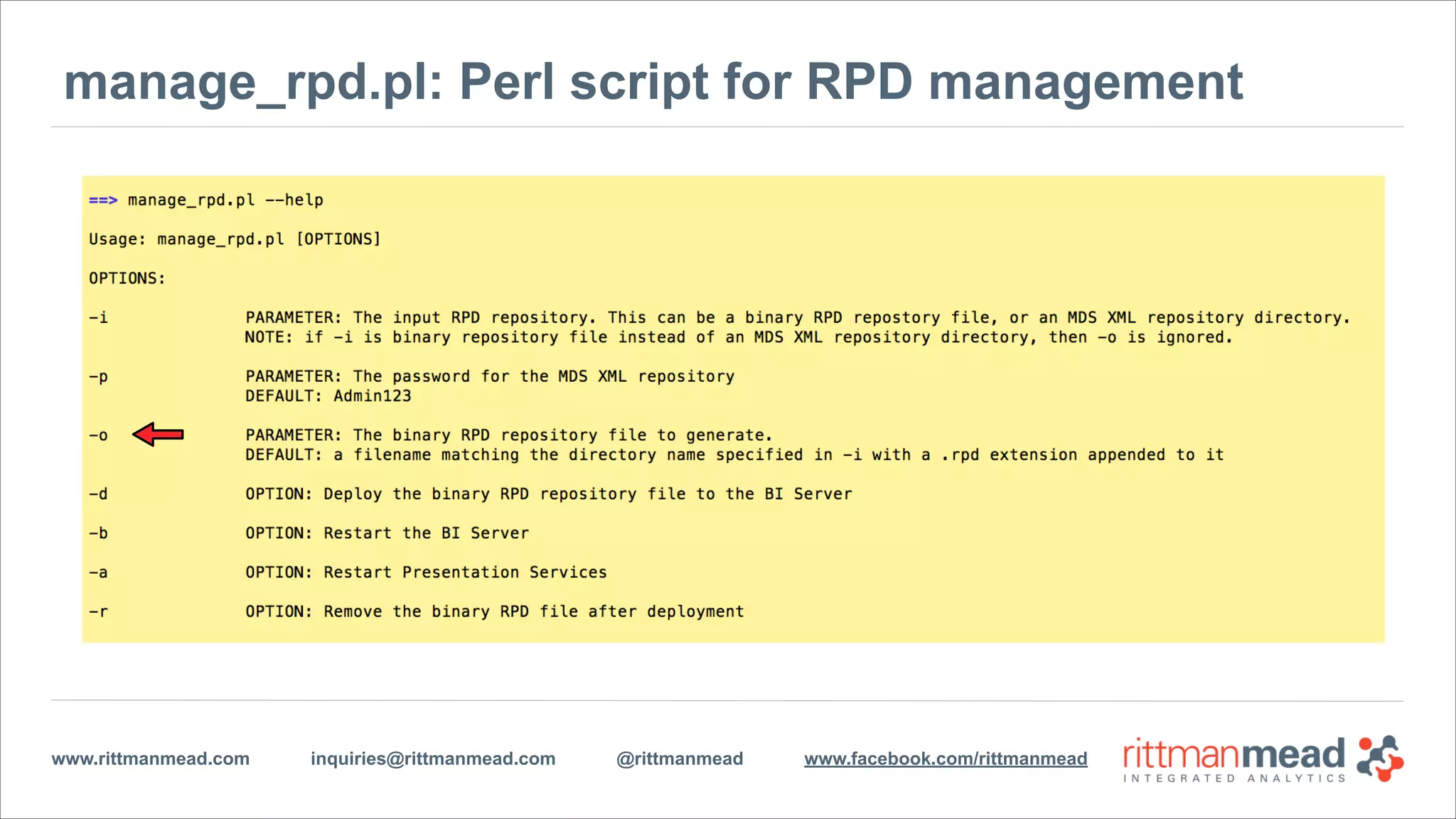

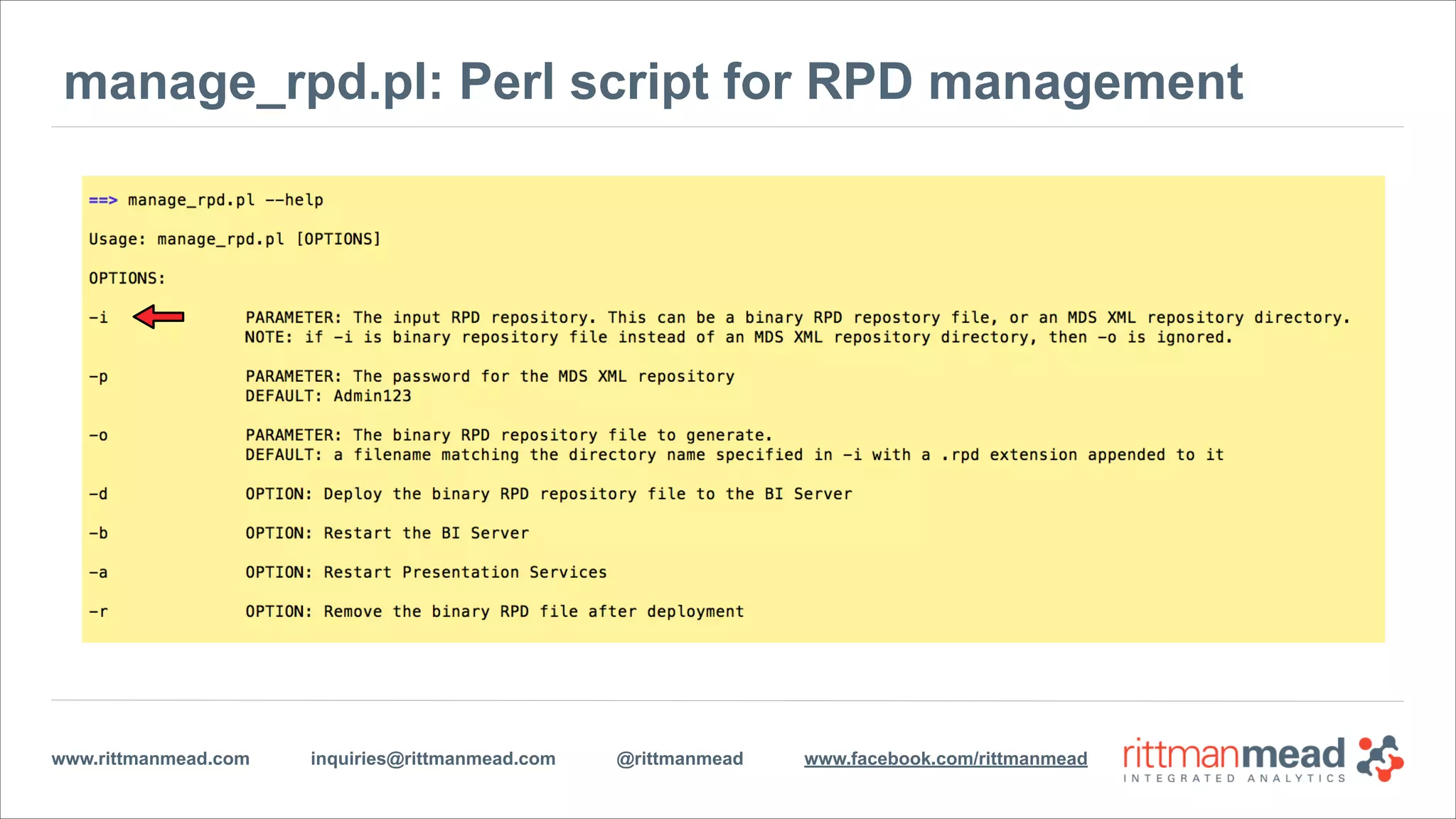

manage_rpd.pl: Perl script for RPD management

DEMO
MDS XML Multi-User Development
using Git

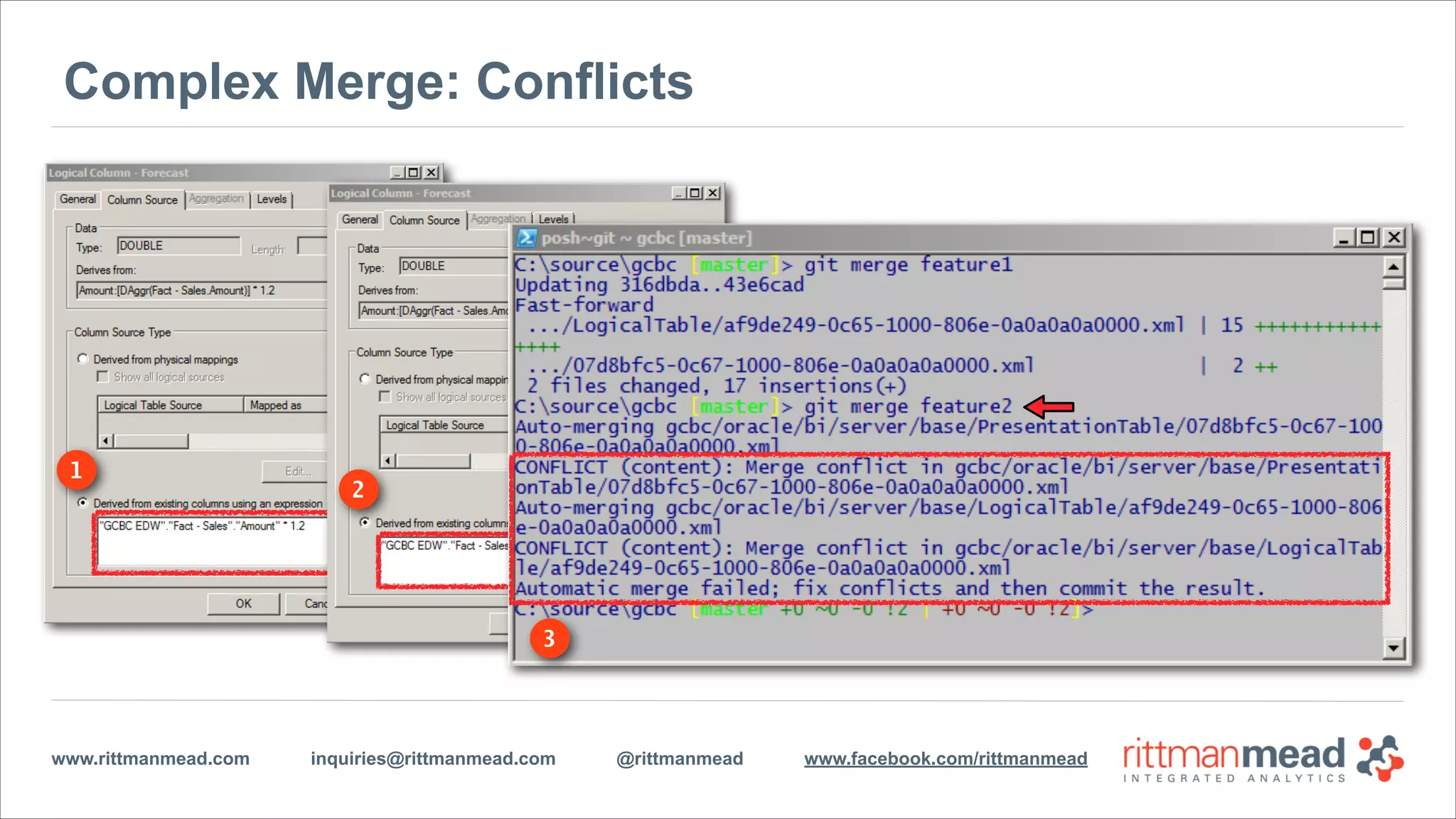

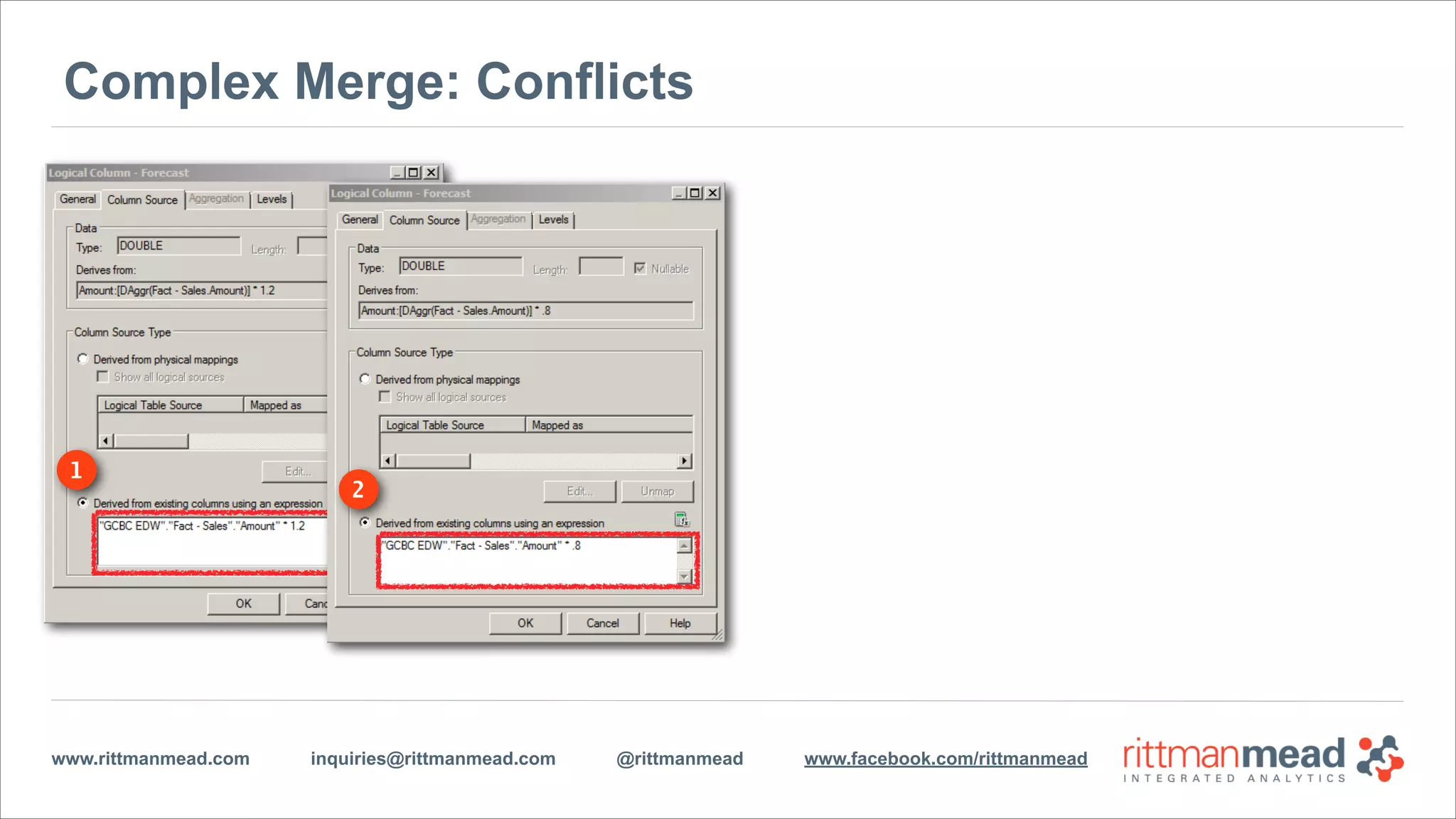

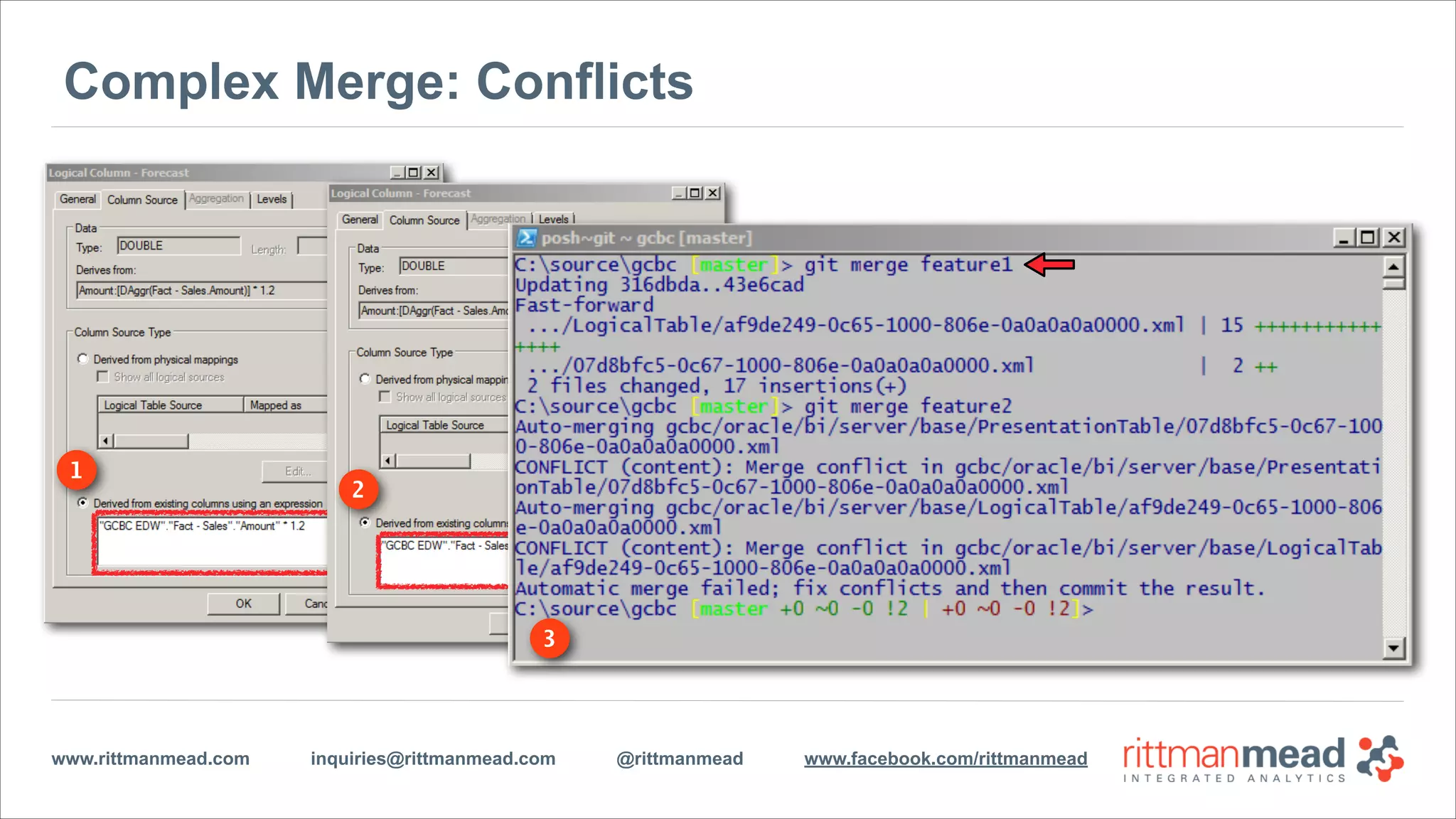

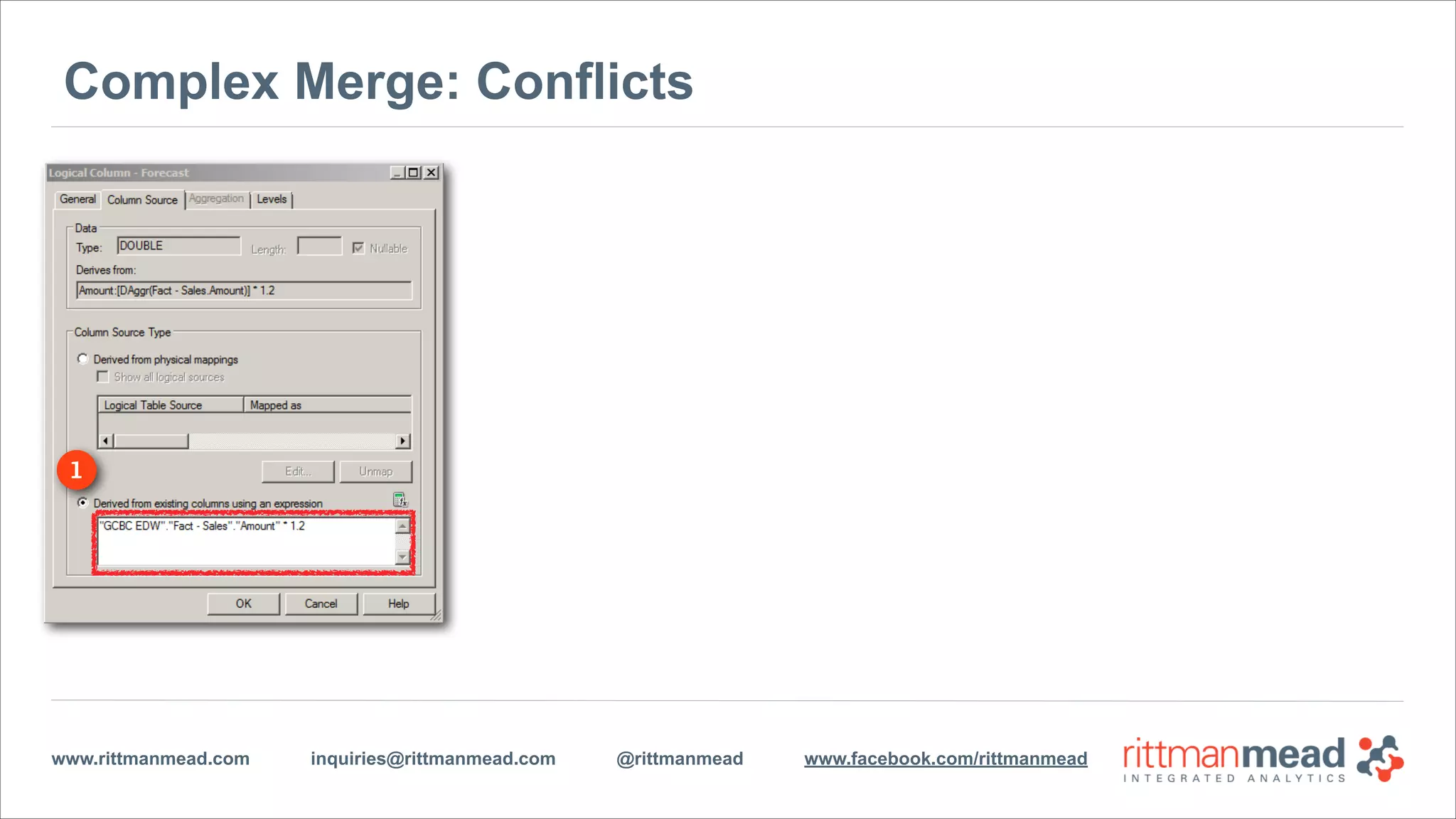

Complex Merge: Conflicts
1

1
2

1
2
3

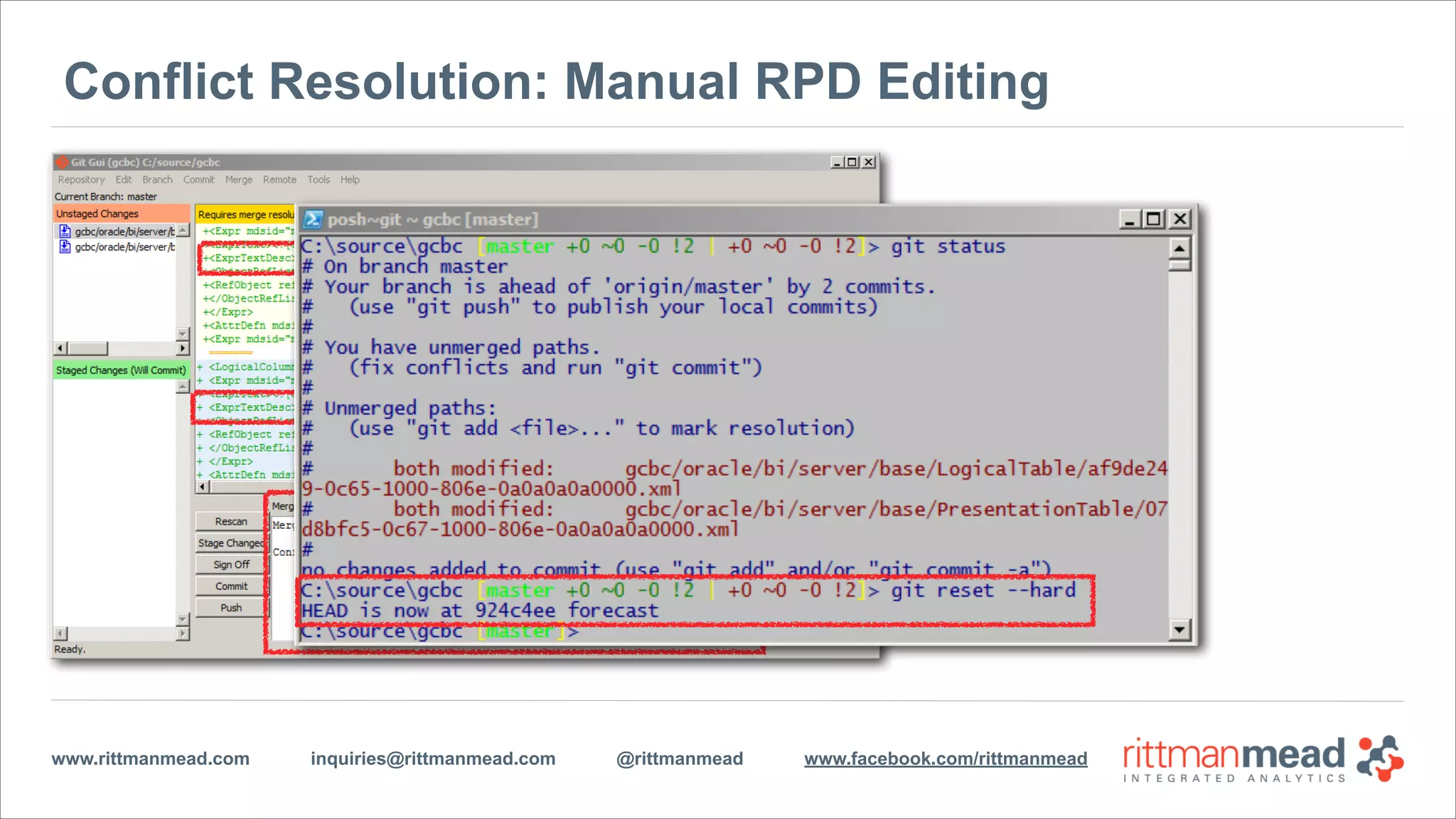

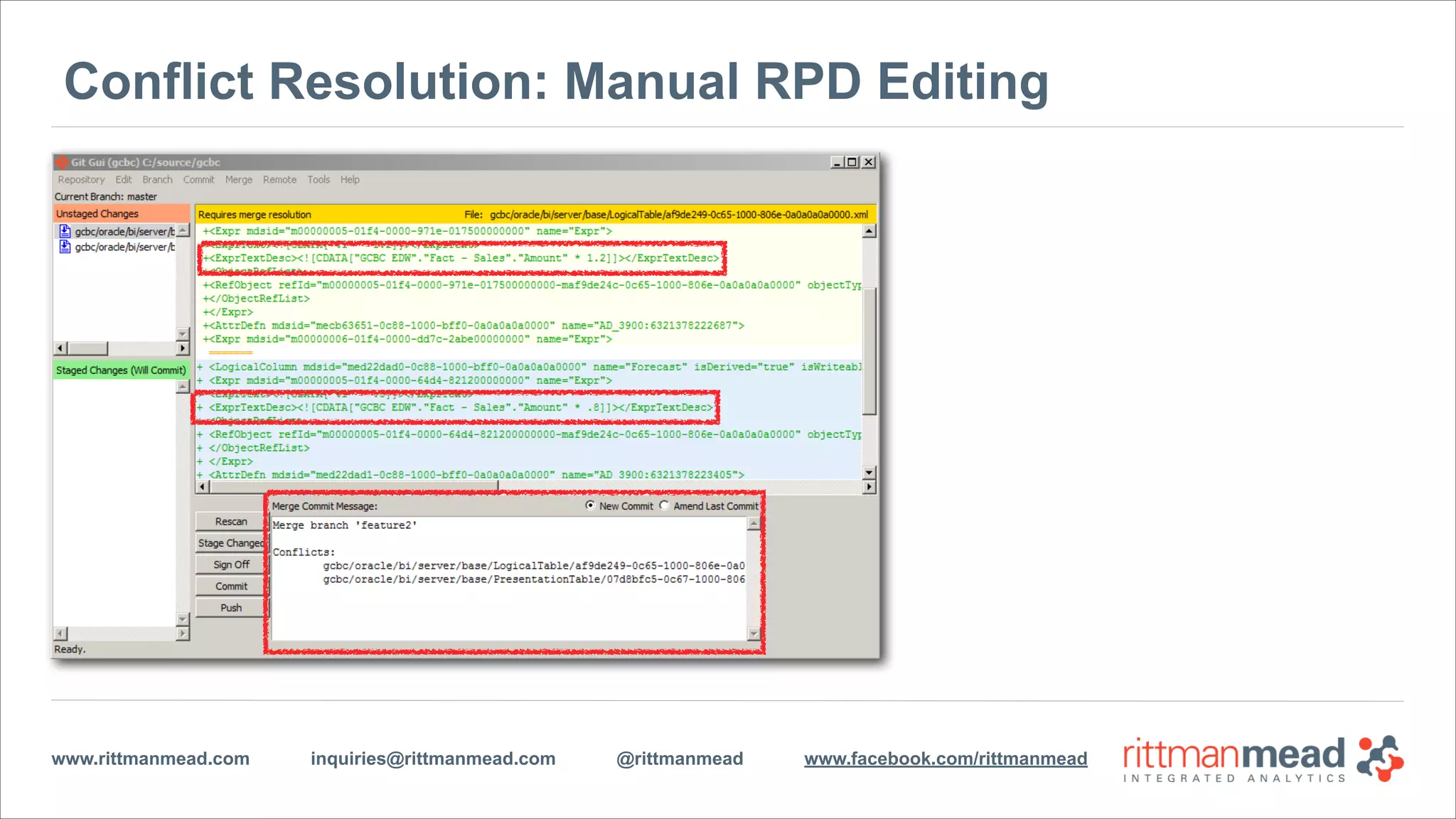

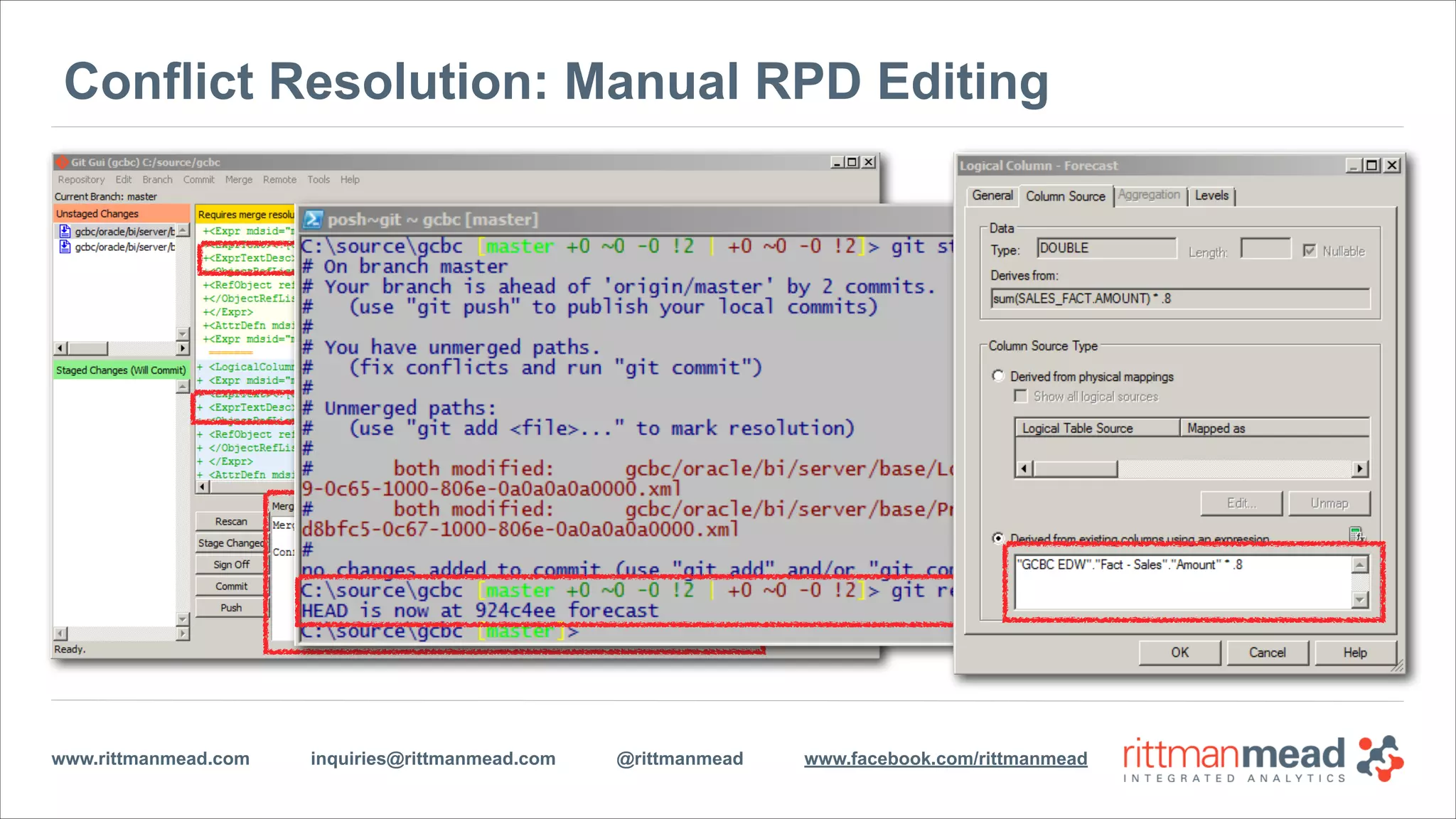

Conflict Resolution: Manual RPD Editing

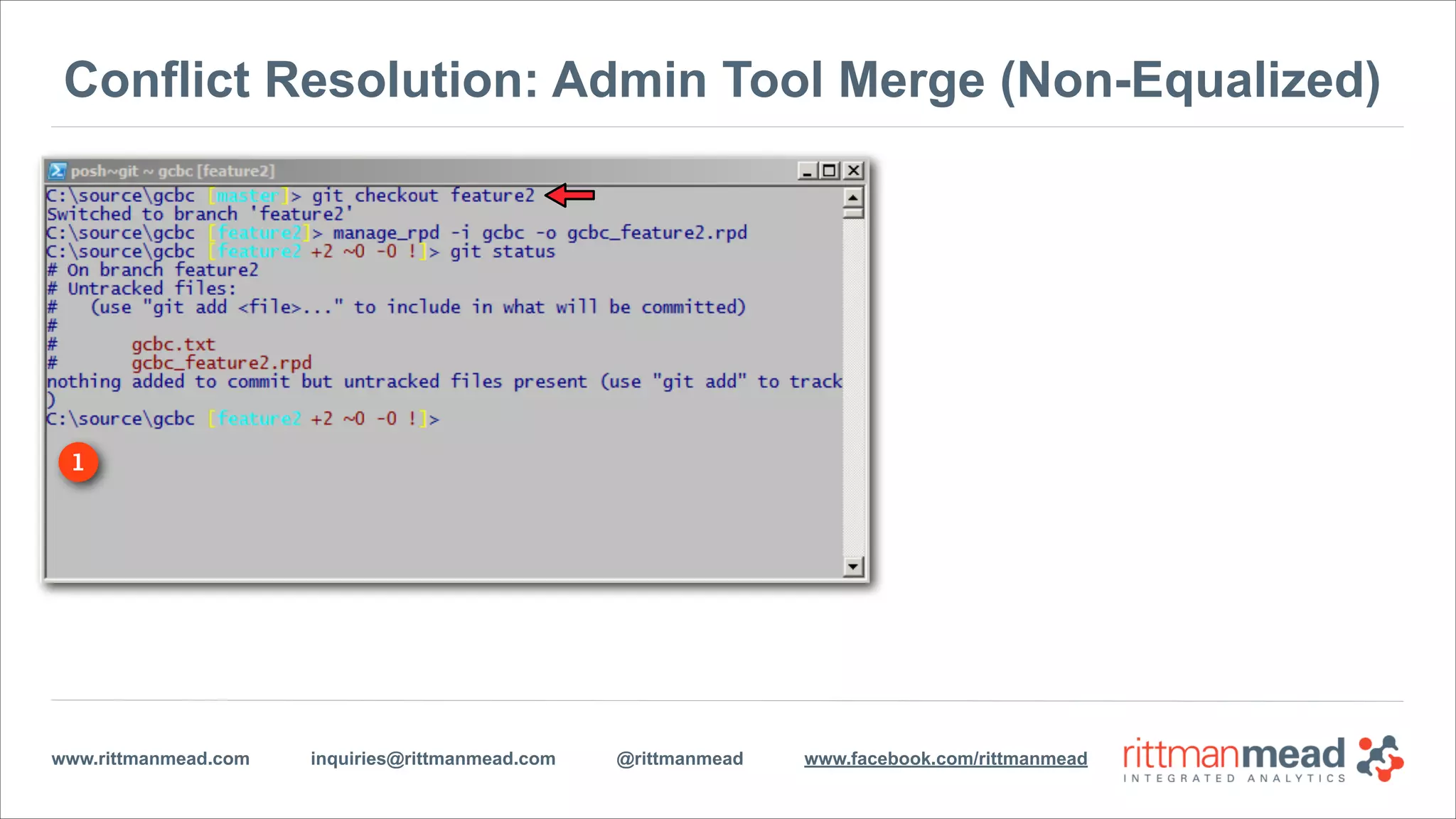

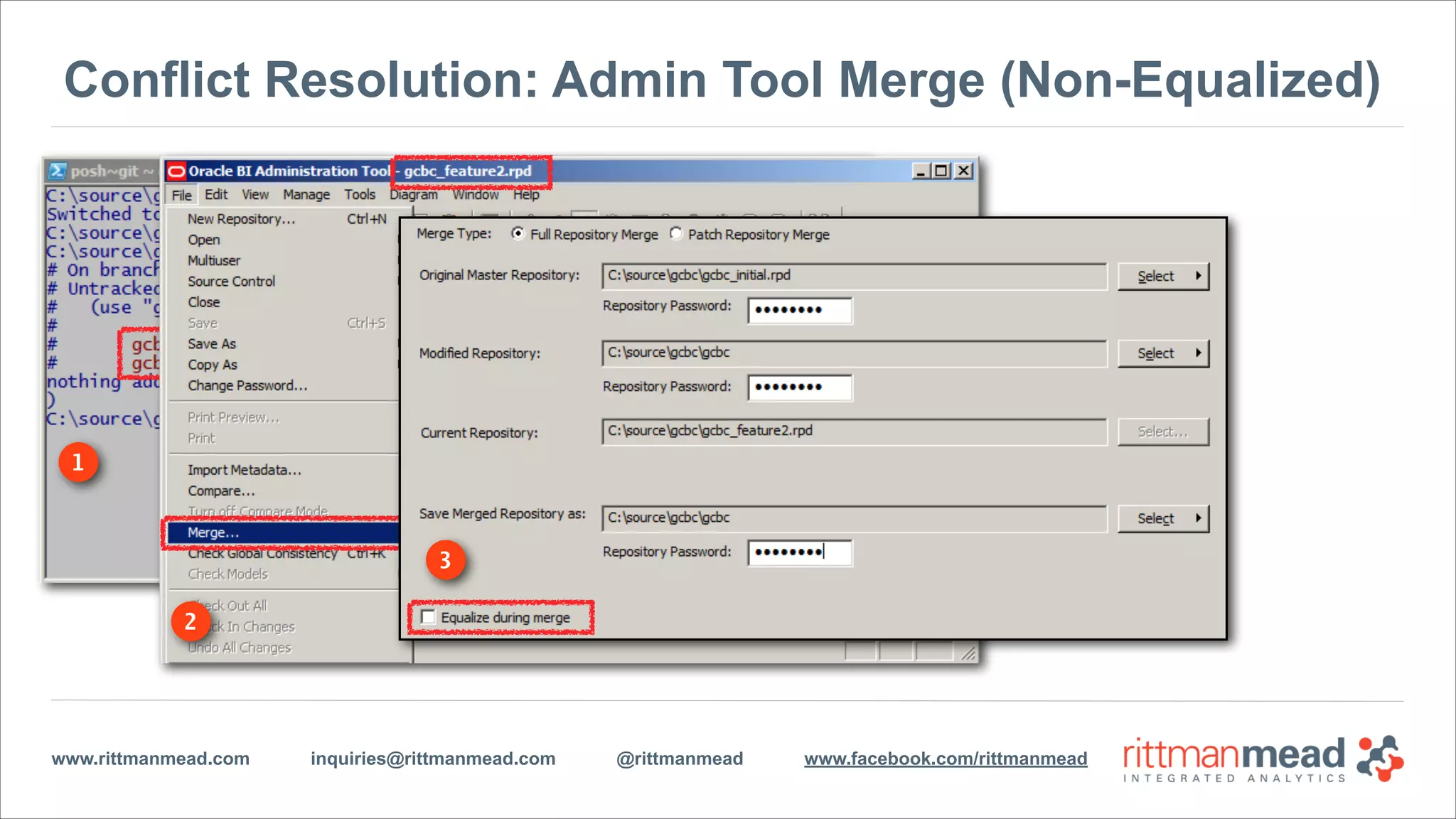

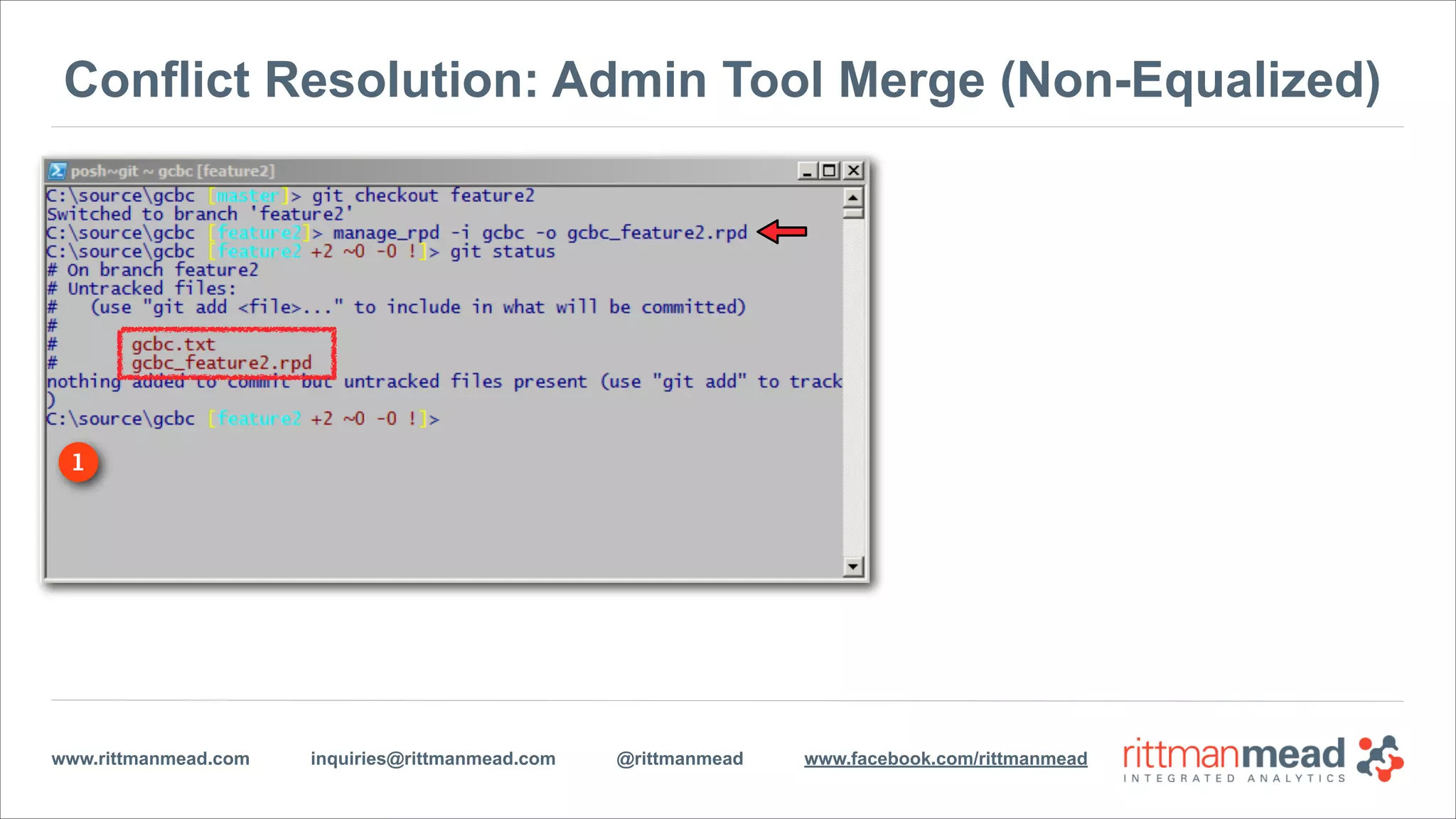

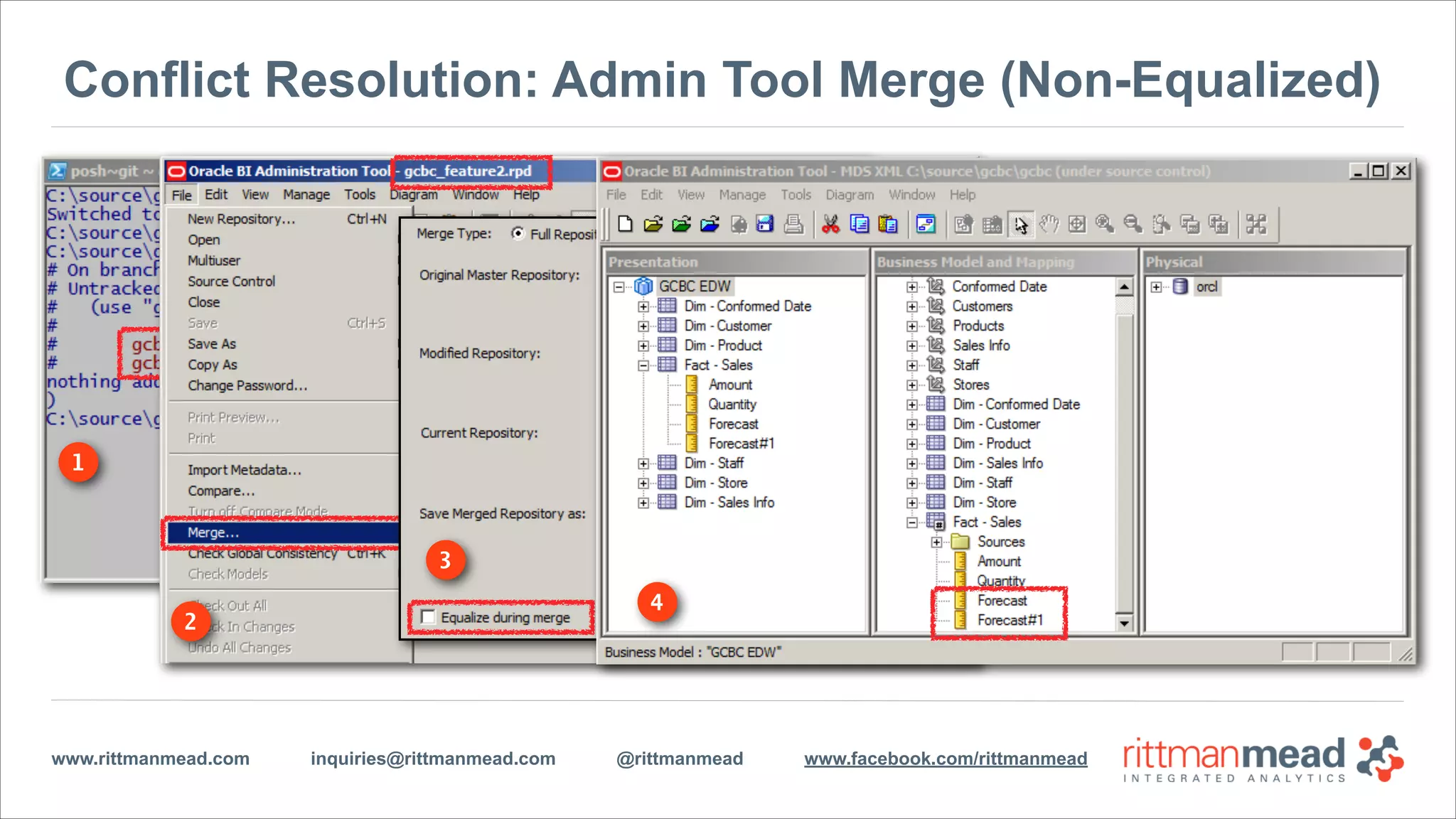

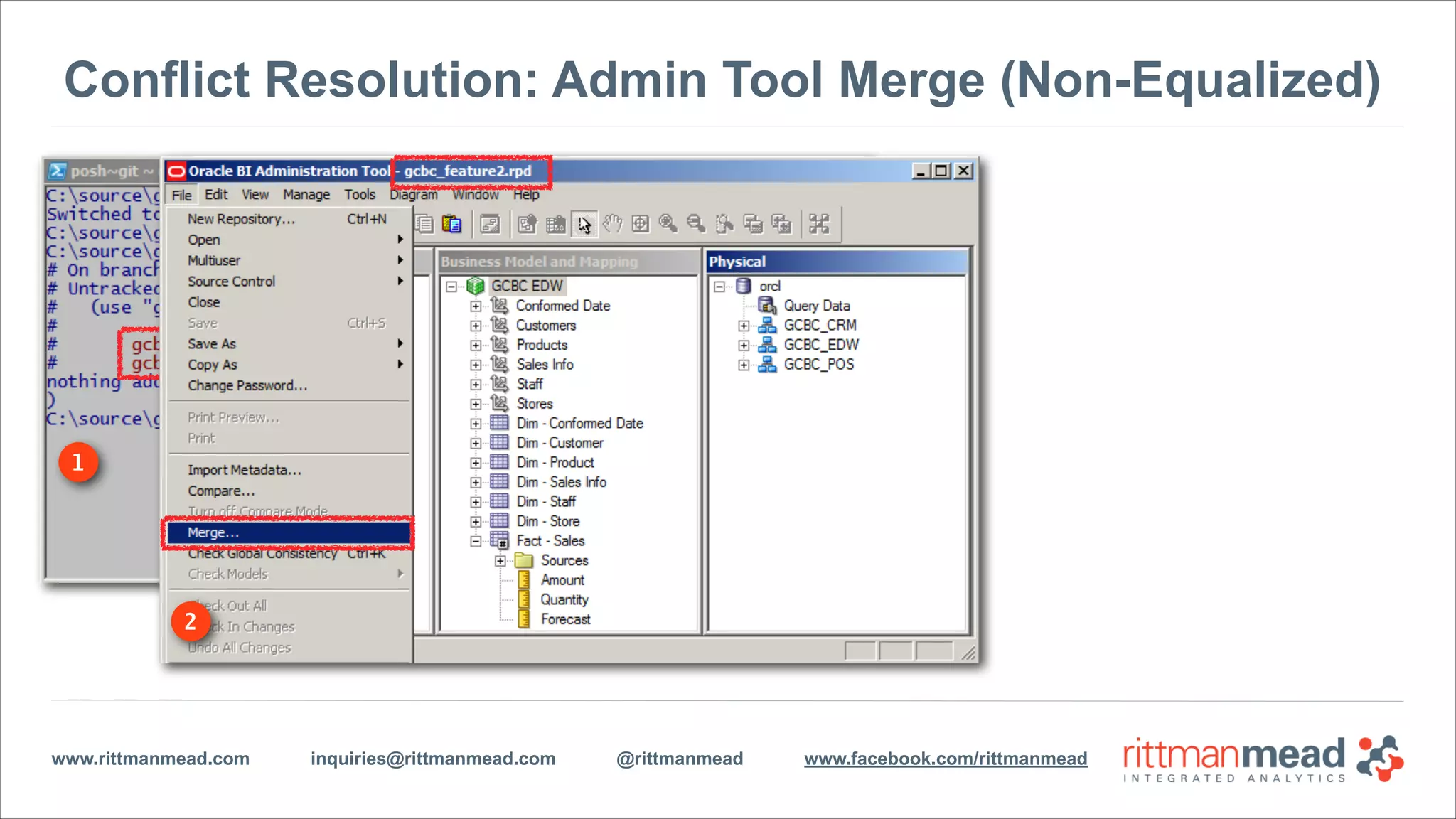

Conflict Resolution: Admin Tool Merge (Non-Equalized)
1

1
2

1
2
3

1
2
3
4

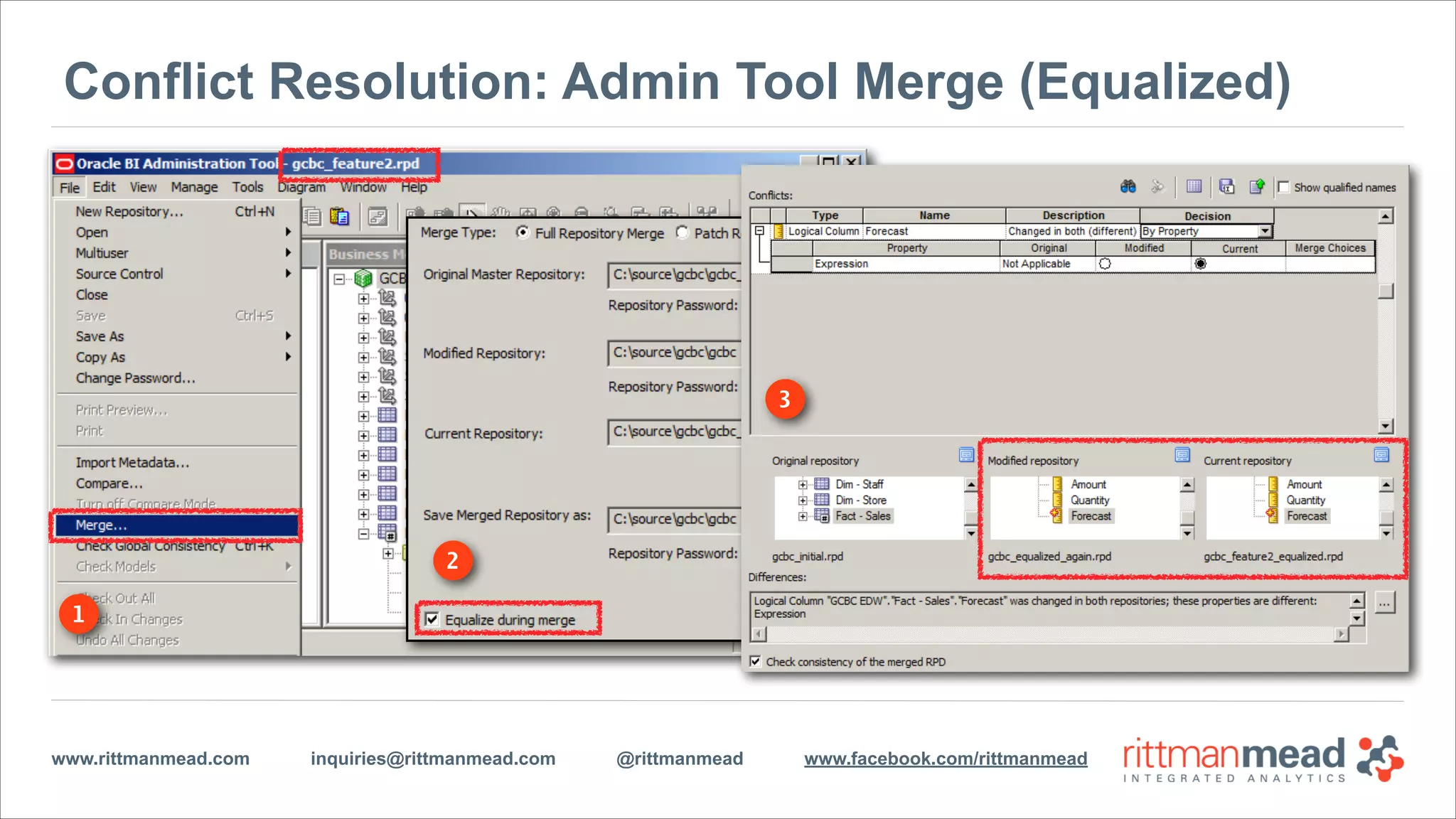

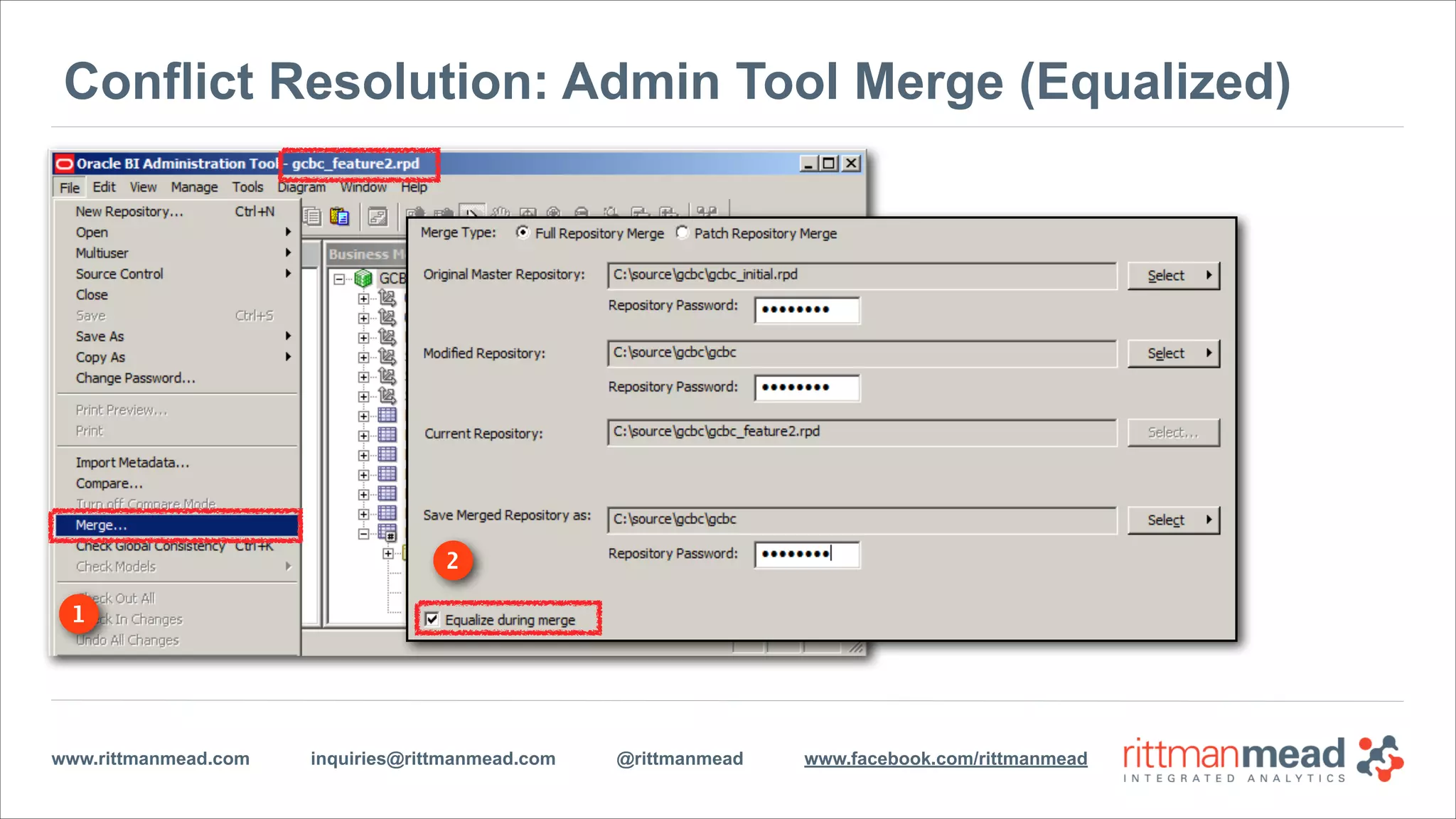

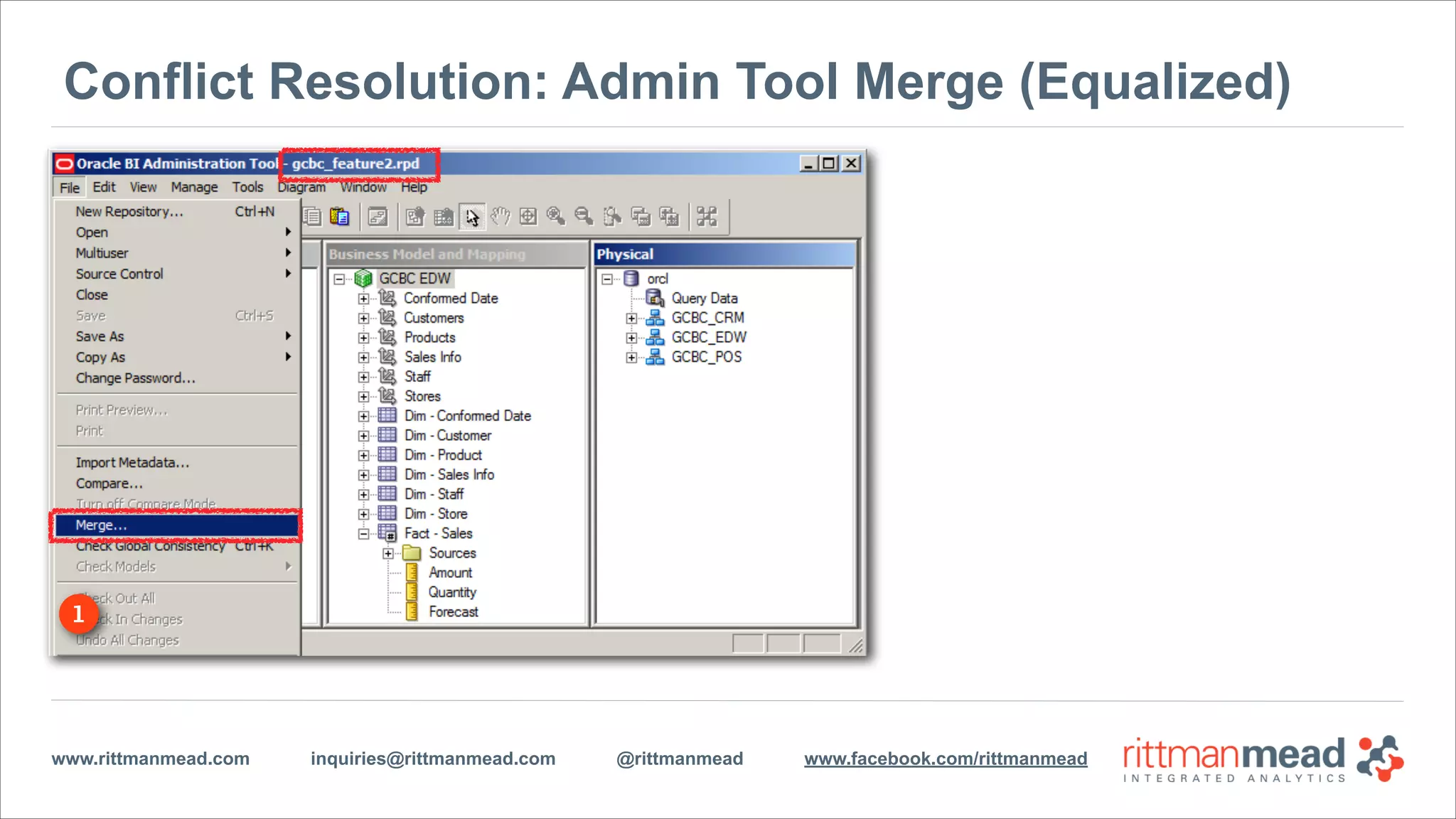

Conflict Resolution: Admin Tool Merge (Equalized)
1

1
2

1
2
3

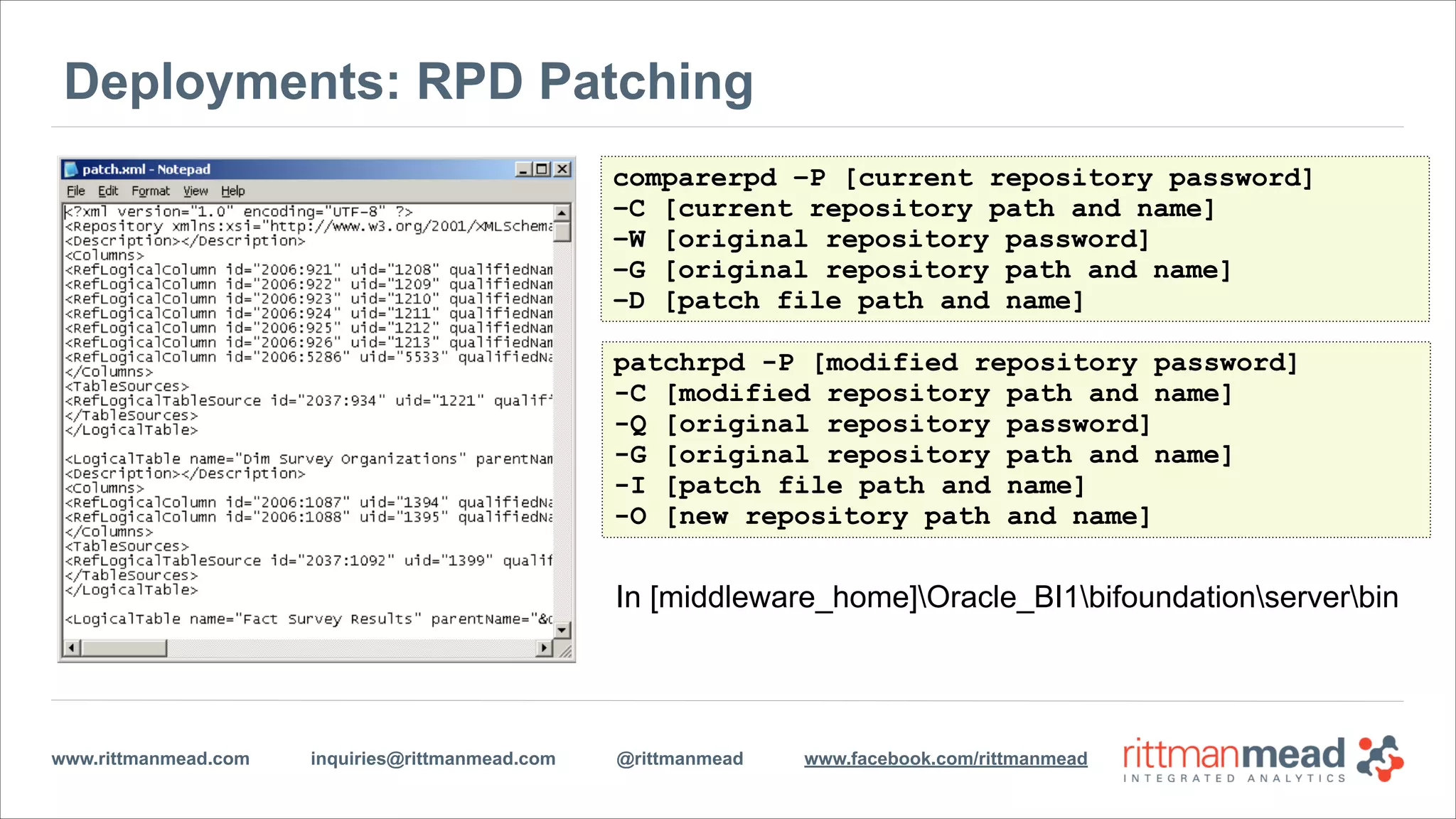

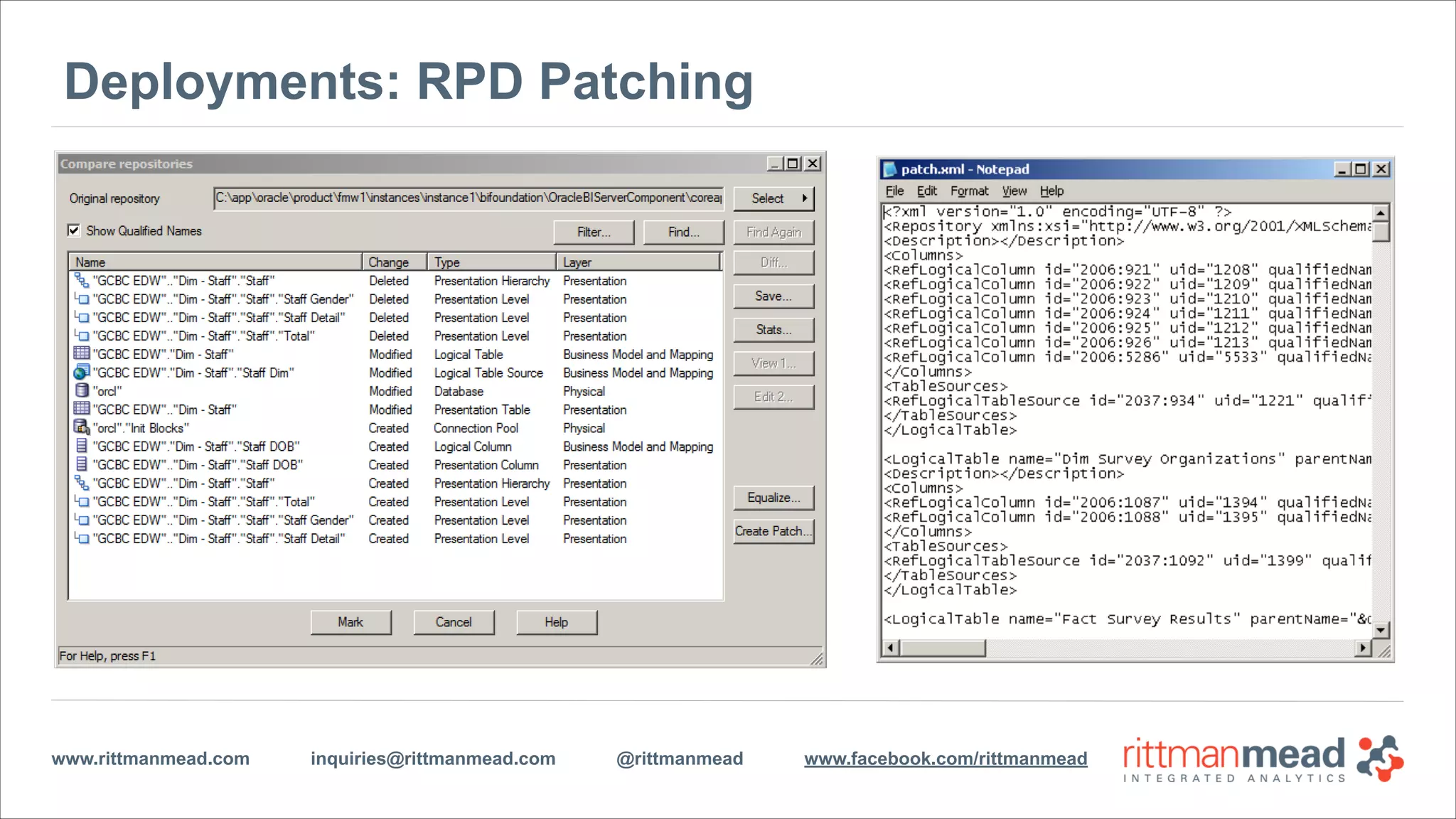

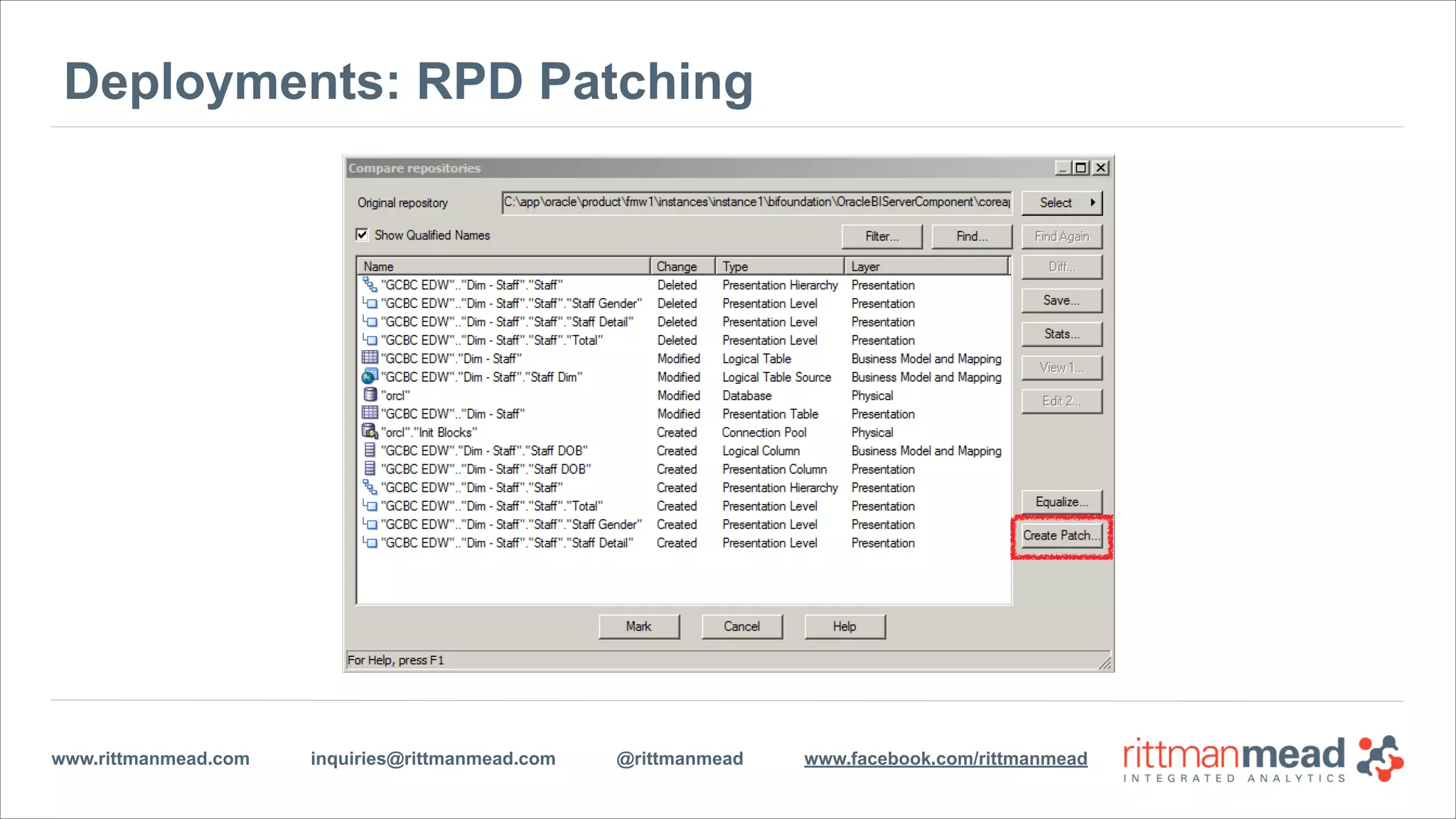

Deployments: RPD Patching

Deployments: RPD Patching
patchrpd -P [modified repository password]
-C [modified repository path and name]
-Q [original repository password]
-G [original repository path and name]
-I [patch file path and name]
-O [new repository path and name]
comparerpd –P [current repository password]
–C [current repository path and name]
–W [original repository password]
–G [original repository path and name]
–D [patch file path and name]
In [middleware_home]Oracle_BI1bifoundationserverbin

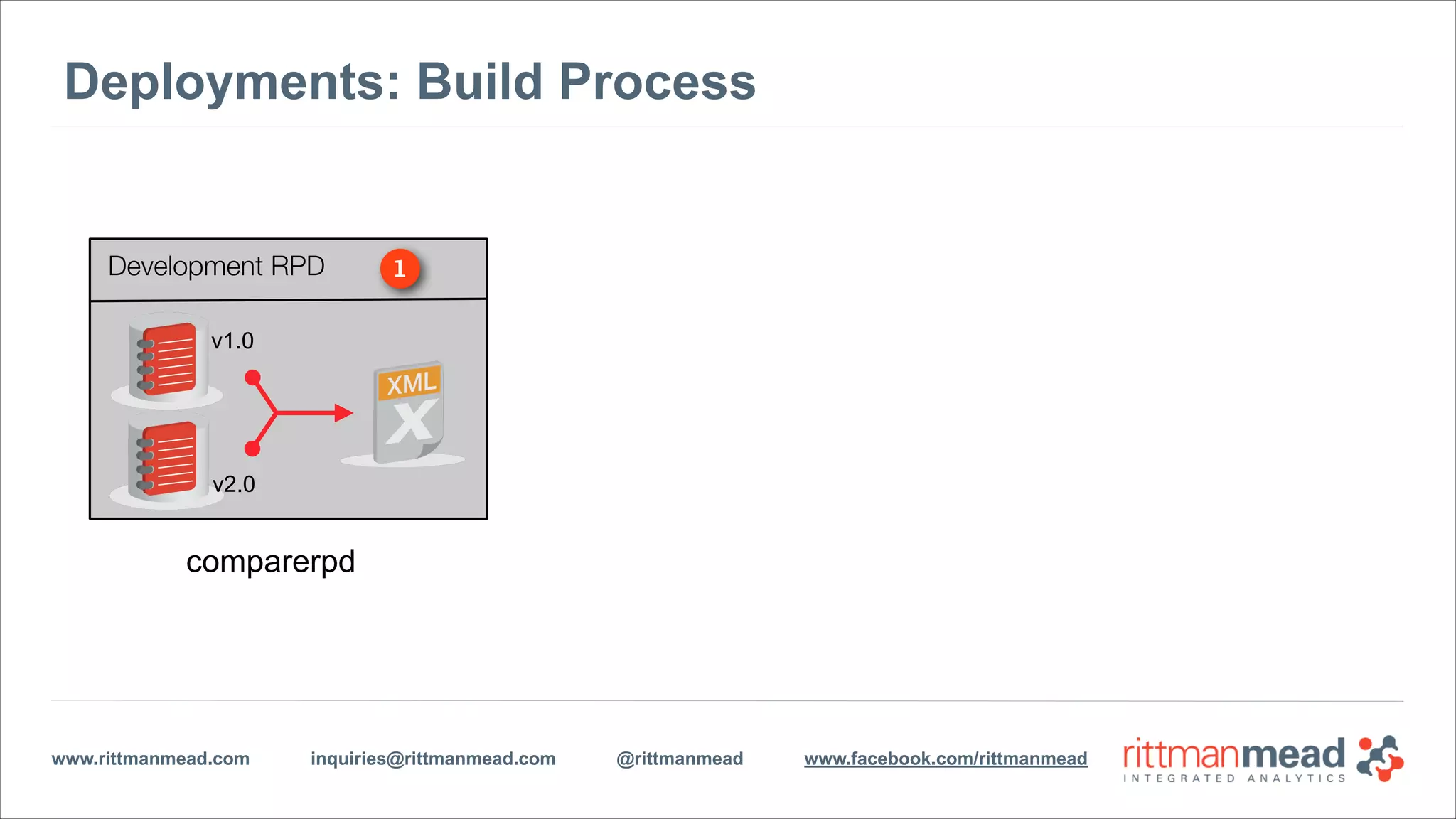

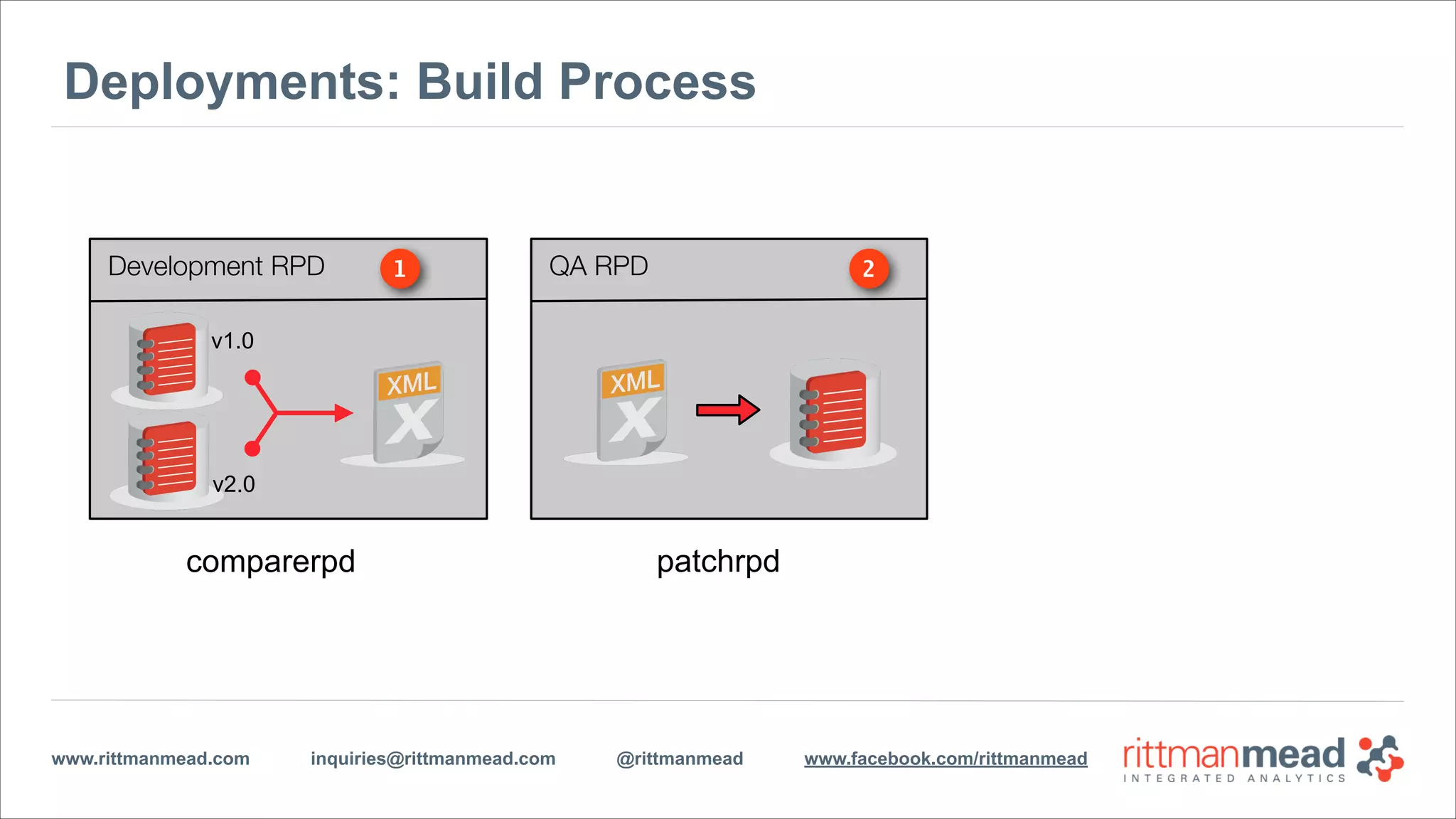

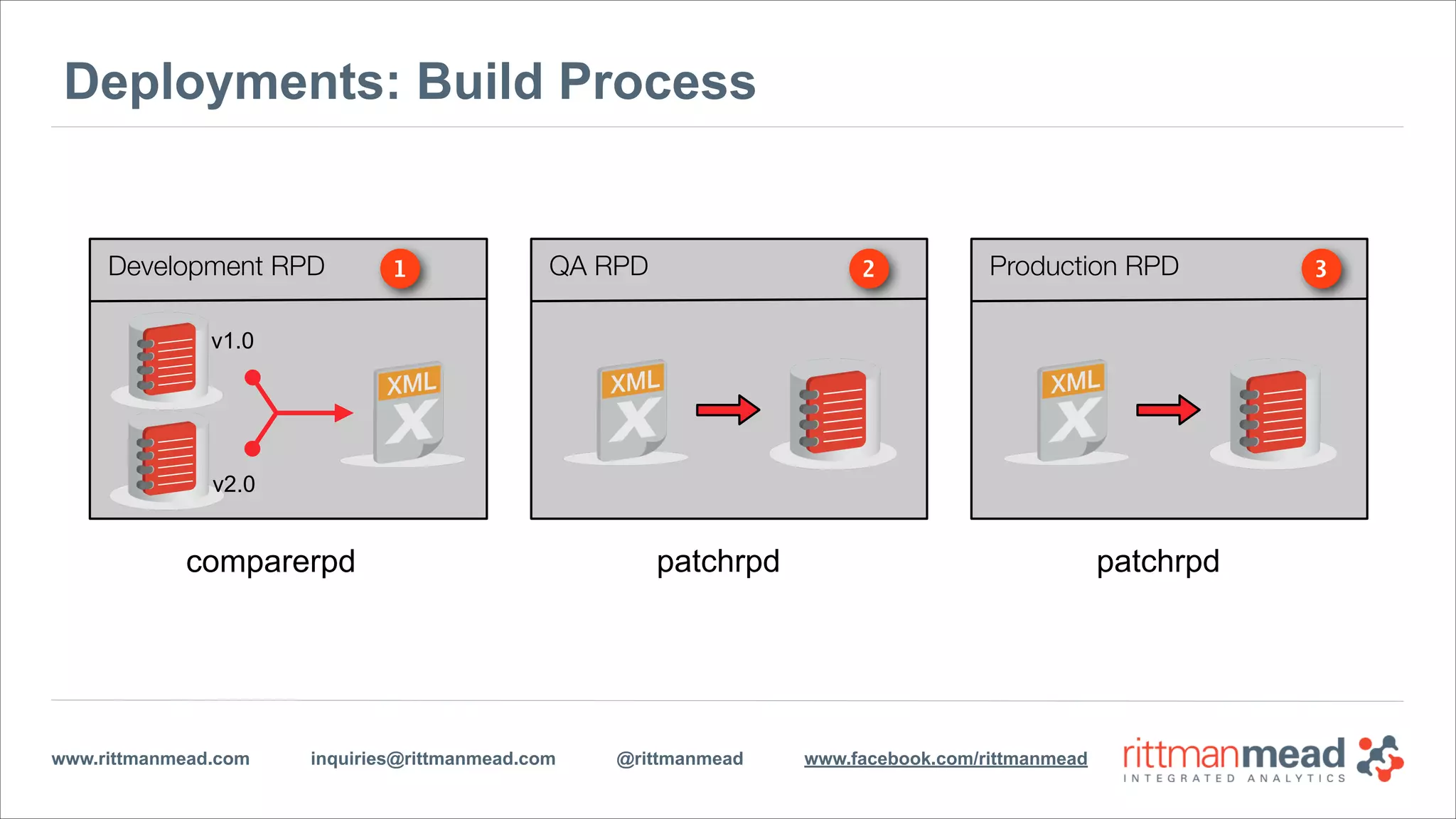

Deployments: Build Process
Development RPD
comparerpd
v1.0
v2.0
1

Development RPD
comparerpd
v1.0
v2.0
1 QA RPD
patchrpd
2

Development RPD
comparerpd
v1.0
v2.0
1 QA RPD
patchrpd
2 Production RPD
patchrpd
3

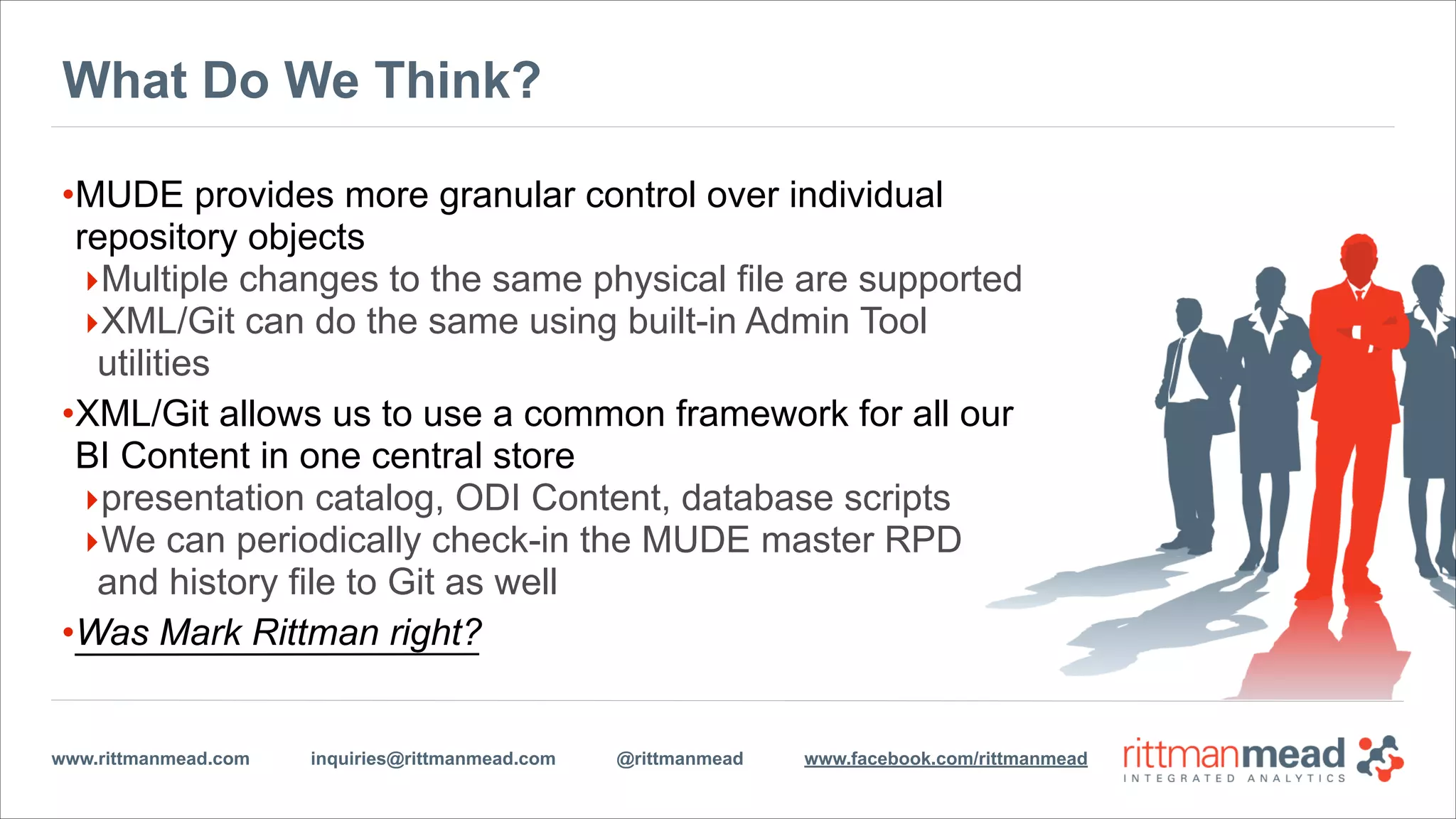

What Do We Think?
•MUDE provides more granular control over individual
repository objects
‣Multiple changes to the same physical file are supported
‣XML/Git can do the same using built-in Admin Tool
utilities
•XML/Git allows us to use a common framework for all our
BI Content in one central store
‣presentation catalog, ODI Content, database scripts
‣We can periodically check-in the MUDE master RPD
and history file to Git as well
•Was Mark Rittman right?

Contact Information
Stewart Bryson
Chief Innovation Ofﬁcer
Rittman Mead
stewart.bryson@rittmanmead.com
@stewartbryson
https://github.com/RittmanMead/scripts
