Al kannan obiee implementation with ebs
- 1. Overview of a simple Implementation with Oracle E-Business as the Data Source , Feb 27th 2009 Presented by Al Kannan
- 2. Discussion Outline Objectives & Audience Introduction to OBIEE Architecture Installation Repository Creation Simple Report Example Star Schema Report Example Next Steps Q&A

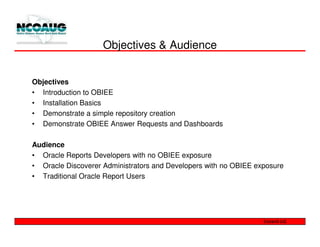

- 3. Objectives & Audience Objectives • Introduction to OBIEE • Installation Basics • Demonstrate a simple repository creation • Demonstrate OBIEE Answer Requests and Dashboards Audience • Oracle Reports Developers with no OBIEE exposure • Oracle Discoverer Administrators and Developers with no OBIEE exposure • Traditional Oracle Report Users

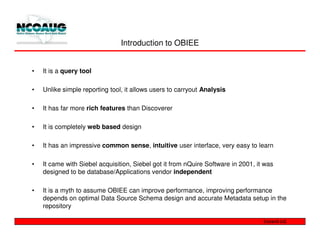

- 4. Introduction to OBIEE • It is a query tool • Unlike simple reporting tool, it allows users to carryout Analysis • It has far more rich features than Discoverer • It is completely web based design • It has an impressive common sense, intuitive user interface, very easy to learn • It came with Siebel acquisition, Siebel got it from nQuire Software in 2001, it was designed to be database/Applications vendor independent • It is a myth to assume OBIEE can improve performance, improving performance depends on optimal Data Source Schema design and accurate Metadata setup in the repository

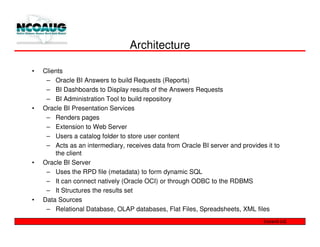

- 5. Architecture • Clients – Oracle BI Answers to build Requests (Reports) – BI Dashboards to Display results of the Answers Requests – BI Administration Tool to build repository • Oracle BI Presentation Services – Renders pages – Extension to Web Server – Users a catalog folder to store user content – Acts as an intermediary, receives data from Oracle BI server and provides it to the client • Oracle BI Server – Uses the RPD file (metadata) to form dynamic SQL – It can connect natively (Oracle OCI) or through ODBC to the RDBMS – It Structures the results set • Data Sources – Relational Database, OLAP databases, Flat Files, Spreadsheets, XML files

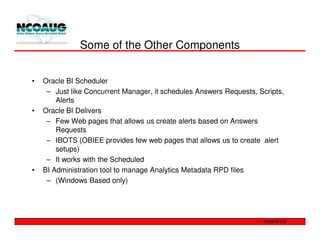

- 6. Some of the Other Components • Oracle BI Scheduler – Just like Concurrent Manager, it schedules Answers Requests, Scripts, Alerts • Oracle BI Delivers – Few Web pages that allows us create alerts based on Answers Requests – IBOTS (OBIEE provides few web pages that allows us to create alert setups) – It works with the Scheduled • BI Administration tool to manage Analytics Metadata RPD files – (Windows Based only)

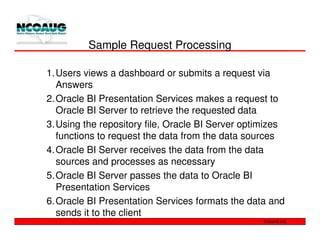

- 7. Sample Request Processing 1. Users views a dashboard or submits a request via Answers 2. Oracle BI Presentation Services makes a request to Oracle BI Server to retrieve the requested data 3. Using the repository file, Oracle BI Server optimizes functions to request the data from the data sources 4. Oracle BI Server receives the data from the data sources and processes as necessary 5. Oracle BI Server passes the data to Oracle BI Presentation Services 6. Oracle BI Presentation Services formats the data and sends it to the client

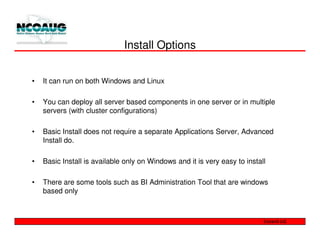

- 8. Install Options • It can run on both Windows and Linux • You can deploy all server based components in one server or in multiple servers (with cluster configurations) • Basic Install does not require a separate Applications Server, Advanced Install do. • Basic Install is available only on Windows and it is very easy to install • There are some tools such as BI Administration Tool that are windows based only

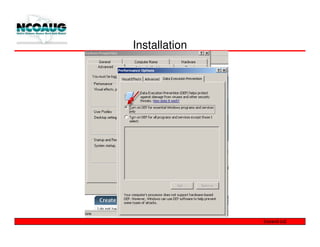

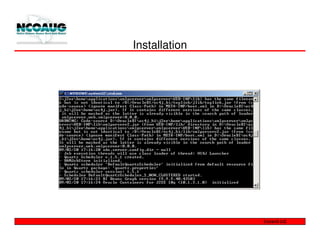

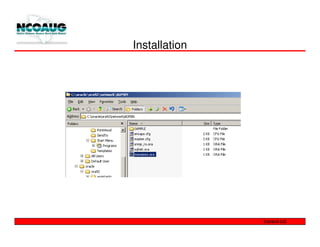

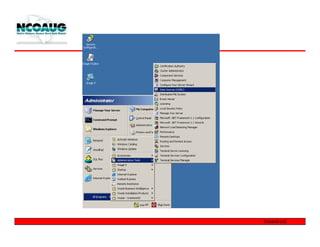

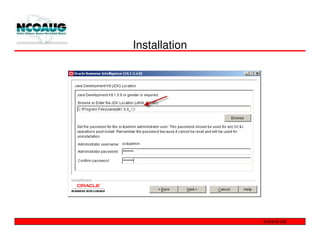

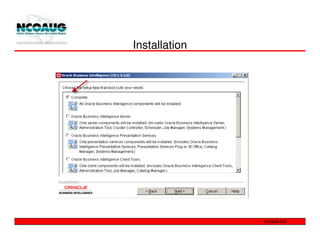

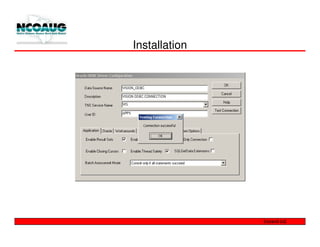

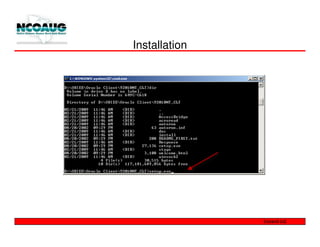

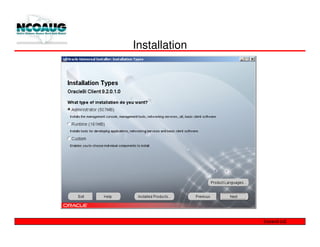

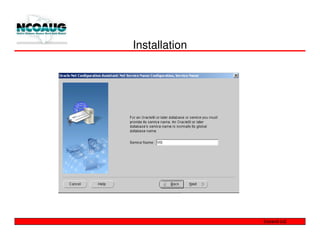

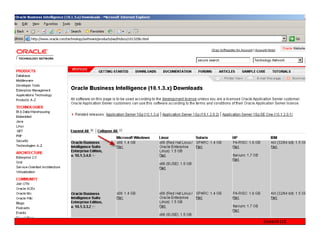

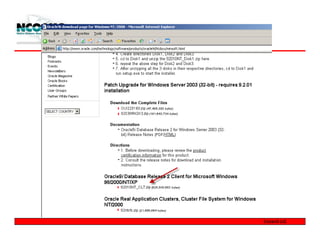

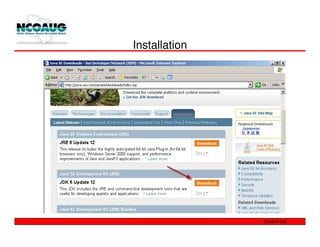

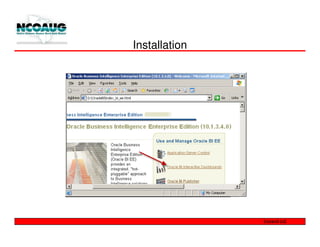

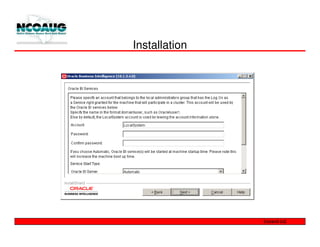

- 9. Installation

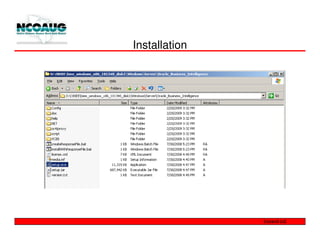

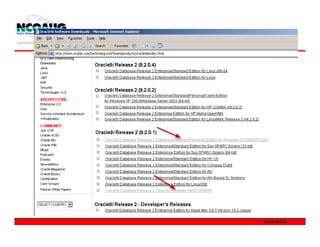

- 10. Installation

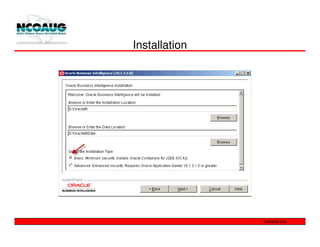

- 11. Installation
- 12. Installation
- 13. Installation

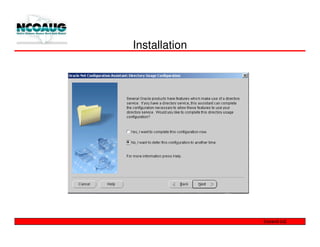

- 14. Installation
- 15. Installation
- 16. Installation

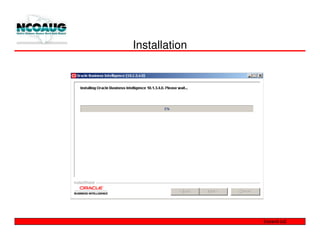

- 17. Installation

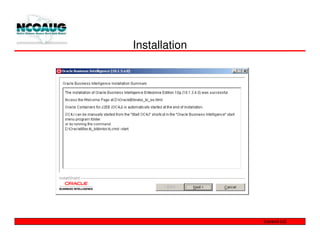

- 18. Installation
- 19. Installation
- 20. Installation
- 21. Installation
- 22. Installation
- 23. Installation
- 24. Installation
- 25. Installation
- 26. Installation
- 27. Installation
- 28. Installation
- 29. Installation
- 30. Installation
- 31. Installation

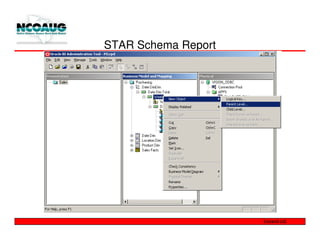

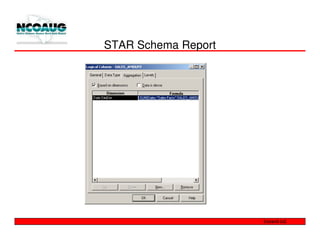

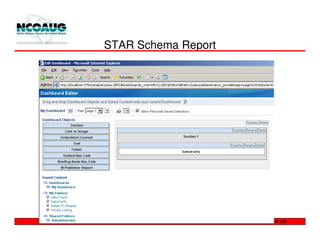

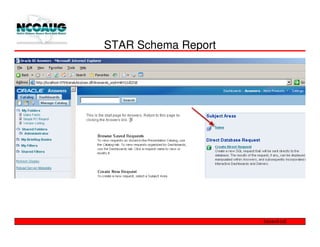

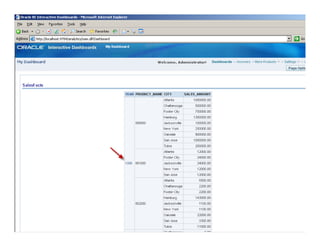

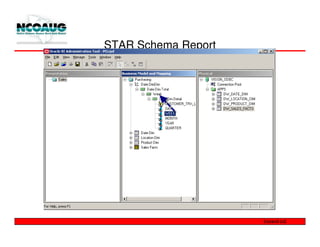

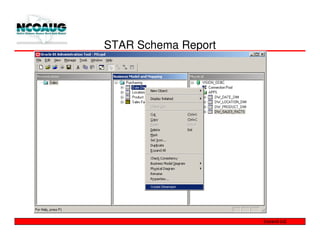

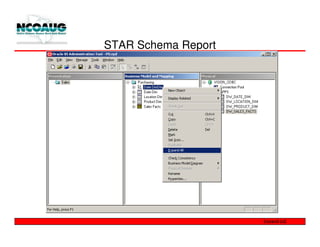

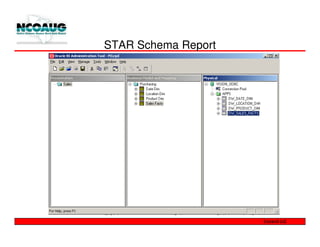

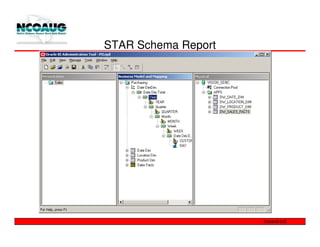

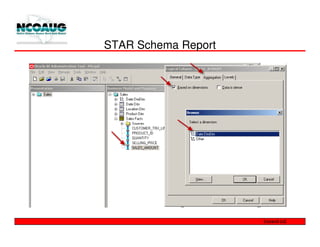

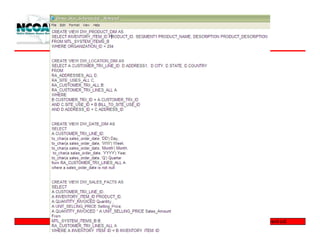

- 100. STAR Schema Report
- 101. STAR Schema Report
- 102. STAR Schema Report

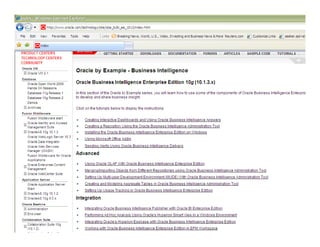

- 103. Next Steps
