To enable the mobile app designer in OBIEE 11.1.1.7.1, two patches must be applied after upgrading: 17004920 to enable support in the web catalog, and 17220944 for mobile functionality. The domain must then be extended using the BI-MAD template to deploy the mobile app features, and the security configuration updated to add grants for mobile app design. Restarting the servers makes the mobile app designer available in the OBIEE dashboard.

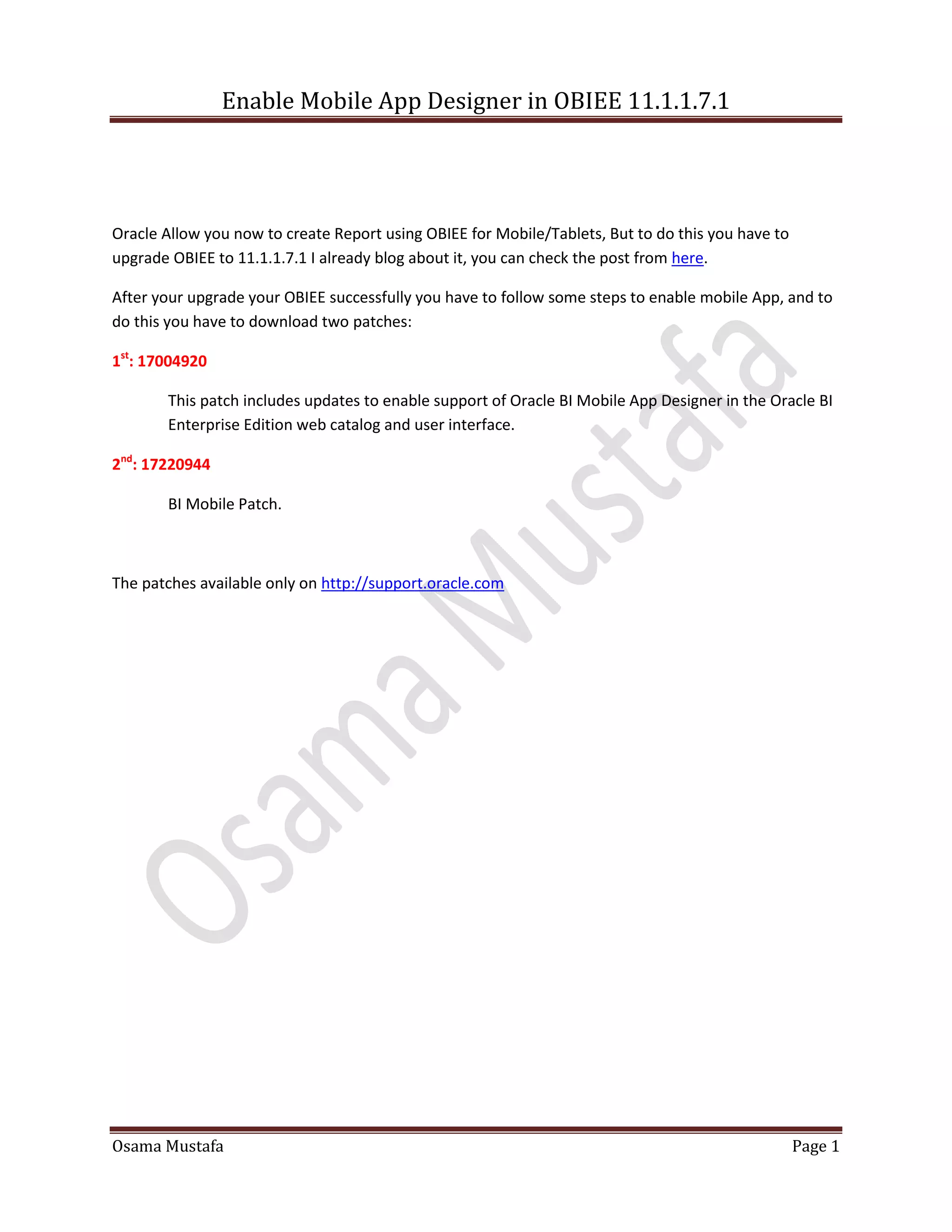

1. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Oracle Allow you now to create Report using OBIEE for Mobile/Tablets, But to do this you have to
upgrade OBIEE to 11.1.1.7.1 I already blog about it, you can check the post from here.
After your upgrade your OBIEE successfully you have to follow some steps to enable mobile App, and to
do this you have to download two patches:
1st: 17004920
This patch includes updates to enable support of Oracle BI Mobile App Designer in the Oracle BI
Enterprise Edition web catalog and user interface.
2nd: 17220944
BI Mobile Patch.
The patches available only on http://support.oracle.com
Osama Mustafa
Page 1

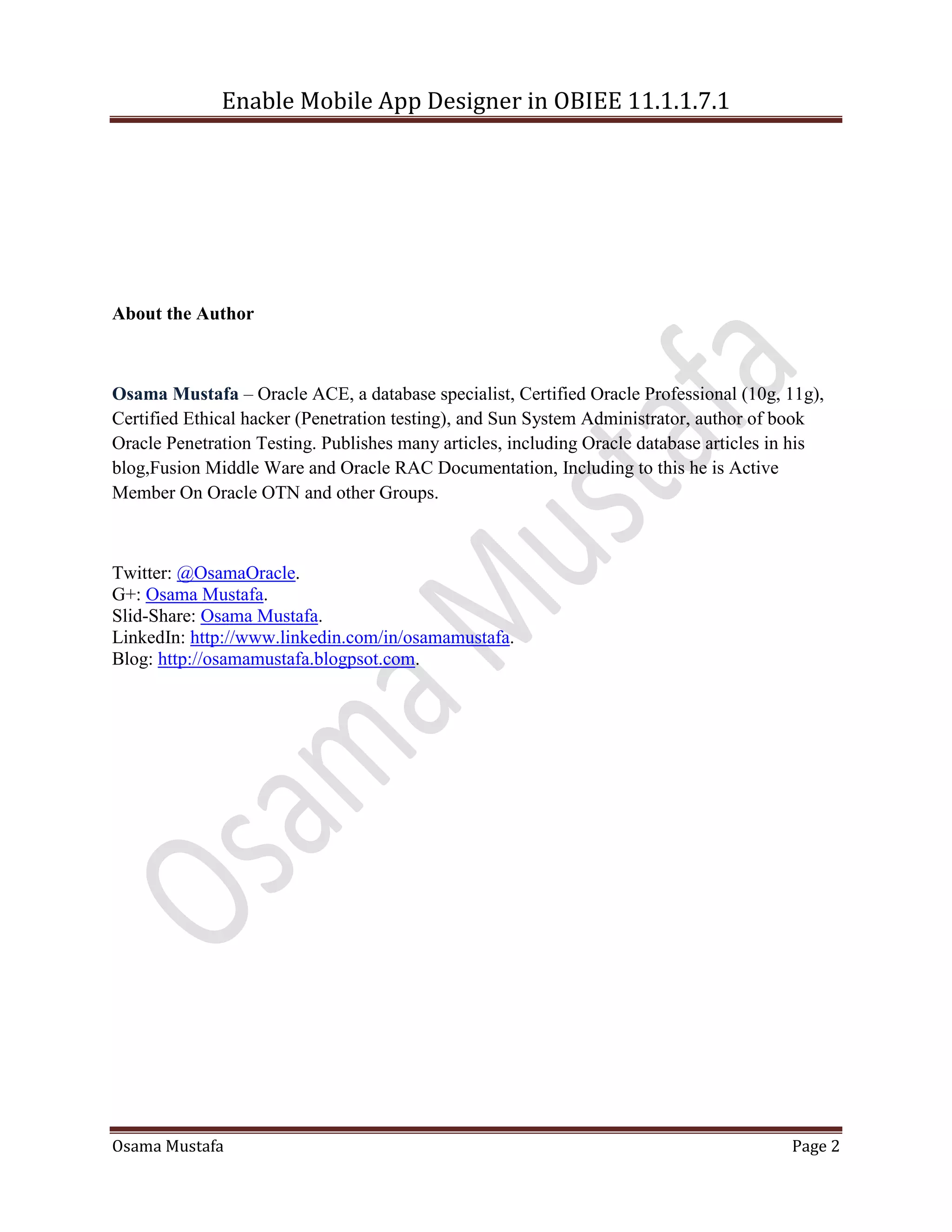

2. Enable Mobile App Designer in OBIEE 11.1.1.7.1
About the Author
Osama Mustafa – Oracle ACE, a database specialist, Certified Oracle Professional (10g, 11g),
Certified Ethical hacker (Penetration testing), and Sun System Administrator, author of book
Oracle Penetration Testing. Publishes many articles, including Oracle database articles in his
blog,Fusion Middle Ware and Oracle RAC Documentation, Including to this he is Active
Member On Oracle OTN and other Groups.
Twitter: @OsamaOracle.
G+: Osama Mustafa.
Slid-Share: Osama Mustafa.
LinkedIn: http://www.linkedin.com/in/osamamustafa.
Blog: http://osamamustafa.blogpsot.com.
Osama Mustafa
Page 2

3. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Step #1:
Stop All OBIEE Services, for AdminServer use stopWeblogic.sh and opmnctl stopall for OBIEE instance.
Step #2:
It’s Better to take backup for OBIEE,PRD and catalog.
Step #3:
Upload the downloaded patches to the server and unzip them.
Step #4:
Set your Environment Variable like the below:
[oracle@SERVER-OBIEE#]export ORACLE_HOME=/u01/app/fmw/Oracle_BI1/
[oracle@SERVER-OBIEE#]export JAVA_HOME=/u01/app/fmw/Oracle_BI1/jdk
[oracle@SERVER-OBIEE#]export MY_PATCH=/share/Patch/
[oracle@SERVER-OBIEE#]
export PATH=$ORACLE_HOME/OPatch:$JAVA_HOME/bin:$ORACLE_HOME/bin:$PATH
Step #5:
Apply the Patch using the below command:
opatch napply –silent $MY_PATCH –id 17004920, 17220944
The Final Output should be
Optach Finish Successfully.
Osama Mustafa
Page 3

4. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Now if you tried to run AdminServer,Managed Server and instance Services mobile App will not be
appearing in OBIEE Dashboard, Follow the below Steps :
Post Installation OBIEE Mobile Patch:
Remember to make sure all the services must be off.
Step #1:
Extend BI Domain to enable mobile app by Deploy BI-MAD.
Osama Mustafa
Page 4

5. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Choose where your domain location is:
After this screen you have to choose Extend with Template, the template location located in
<MW-HOME>/Oracle_BI1/common/templates/applications/
Till you reach this location chooses the below:
oracle.bimad_template_11.1.1.jar
Osama Mustafa
Page 5

6. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Osama Mustafa
Page 6

7. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Press Next
Osama Mustafa
Page 7

8. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Press Next
Osama Mustafa
Page 8

9. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Press Next
Osama Mustafa
Page 9

10. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Press Next
Osama Mustafa
Page 10

11. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Osama Mustafa
Page 11

12. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Osama Mustafa
Page 12

13. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Step #2:
Update Security Configuration for OBIEE, in this step you have to start AdminServer for OBIEE using
startWeblogic.sh.
Security File located : <MW-HOME>/Oracle_BI1/bifoundation/install
For OBIEE Location <MW_HOME>/Oracle_BI1/common/bin/ run wlst.sh
./wlst.sh <MW-HOME>/Oracle_BI1/bifoundation/install/addMADCodeGrants.py
t3://DOMAIN-IP:7001 weblogic
Enter the password after this
Warning: An insecure protocol was used to connect to the
server. To ensure on-the-wire security, the SSL port or
Admin port should be used instead.
Location changed to domainRuntime tree. This is a read-only tree with DomainMBea
n as the root.
For more help, use help(domainRuntime)
Already in Domain Runtime Tree
Already in Domain Runtime Tree
Already in Domain Runtime Tree
Already in Domain Runtime Tree
Already in Domain Runtime Tree
Already in Domain Runtime Tree
Entries for BI Mobile App Designer have been added successfully.
Disconnected from weblogic server: AdminServer
Osama Mustafa
Page 13

14. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Step #3:
Start bi Server using Admin Server Console , and Enter to Analytics by Default and opmnctl startall
http://Domain-Server-ip:9704/Analytics
Login to Dashboard using Administrator User.
Step #4:
Create Apps Library Folder in Catalog.
Osama Mustafa
Page 14

15. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Step #5:
Create New Folder under Shared Folder Called it “Mobile Apps Library”
And make sure the permission is correct on this folder like the below.
Osama Mustafa
Page 15

16. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Osama Mustafa
Page 16

17. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Step #6:
Step-up the Configuration file and to do this:
Open the xmlp-server-config.xml file. It is located under
<DOMAIN_HOME>/config/bipublisher/repository/Admin/Configuration.
And the below line
<property name="APPS_LIBRARY_FOLDER_LOCAL" value="/Apps Library"/>
Step #7:
Restart The BI Server included with Instance.
Congratulation you are done check the below.
Osama Mustafa
Page 17

18. Enable Mobile App Designer in OBIEE 11.1.1.7.1
Osama Mustafa
Page 18
