The document discusses how to integrate the SonarQube code quality analysis tool with projects. It covers downloading and installing SonarQube, configuring it to work with various databases and web servers, and integrating it with build tools like Maven and Jenkins to analyze code on pull requests and during regular builds. The document also provides an overview of the metrics and reports that SonarQube can generate, such as lines of code, rule violations, code coverage, complexity, and comparing metrics over time.

1. Integrate with
Sonar
@somkiat

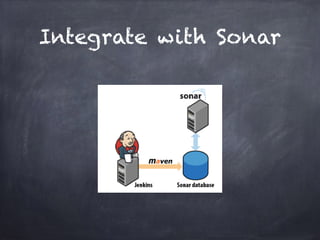

2. Integrate with Sonar

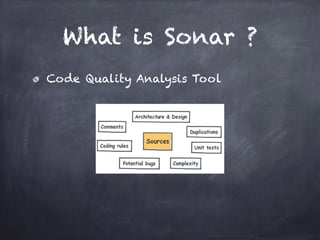

3. What is Sonar ?
Code Quality Analysis Tool

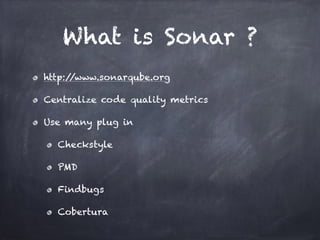

4. What is Sonar ?
http://www.sonarqube.org
Centralize code quality metrics
Use many plug in
Checkstyle
PMD
Findbugs
Cobertura

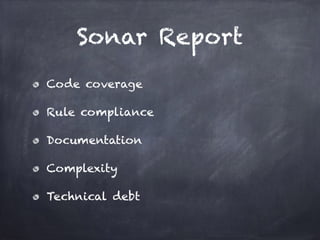

5. Sonar Report
Code coverage
Rule compliance
Documentation
Complexity
Technical debt

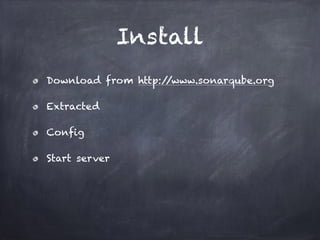

6. Install
Download from http://www.sonarqube.org
Extracted
Config
Start server

7. Config Database
Database in <sonar>/conf/sonar.properties
Default DB = H2

8. Config Web server
Database in <sonar>/conf/sonar.properties
Default port 9000

9. Start Sonar Server
<sonar>/bin/<your os>/sonar.sh start

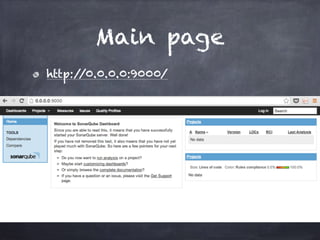

10. Main page
http://0.0.0.0:9000/

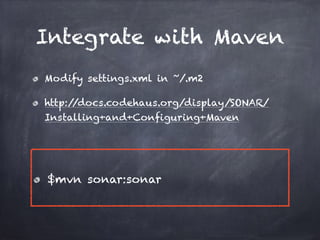

11. Integrate with Maven
Modify settings.xml in ~/.m2
http://docs.codehaus.org/display/SONAR/
Installing+and+Configuring+Maven
$mvn sonar:sonar

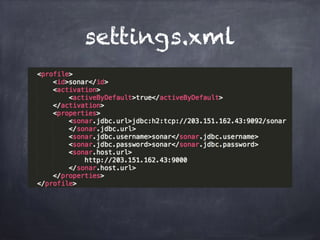

12. settings.xml

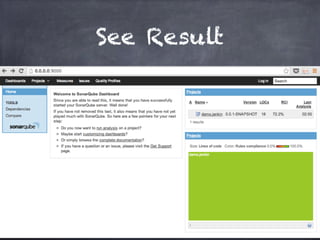

13. See Result

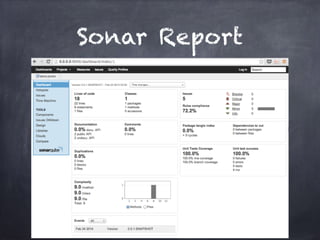

14. Sonar Report

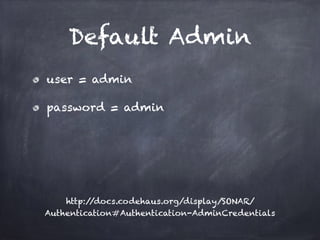

15. Default Admin
user = admin
password = admin
http://docs.codehaus.org/display/SONAR/
Authentication#Authentication-AdminCredentials

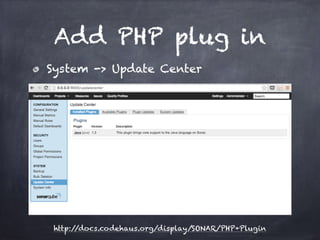

16. Add PHP plug in
System -> Update Center
http://docs.codehaus.org/display/SONAR/PHP+Plugin

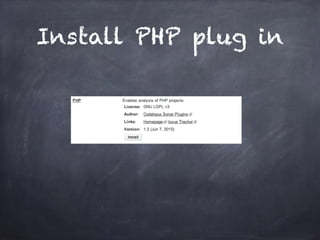

17. Install PHP plug in

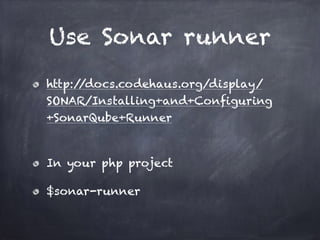

18. Use Sonar runner
http://docs.codehaus.org/display/
SONAR/Installing+and+Configuring
+SonarQube+Runner
In your php project
$sonar-runner

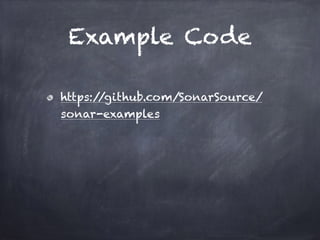

19. Example Code
https://github.com/SonarSource/
sonar-examples

20. Configuration
sonar-project.properties

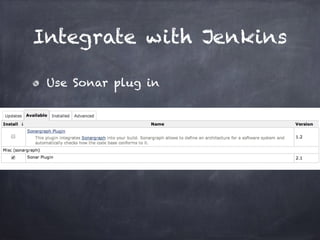

21. Integrate with Jenkins
Use Sonar plug in

22. For Java

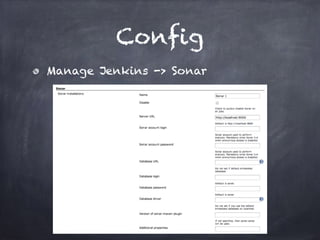

23. Config
Manage Jenkins -> Sonar

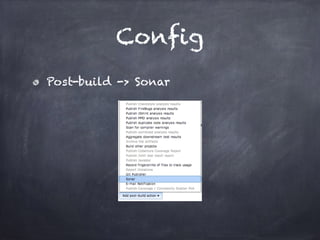

24. Config
Post-build -> Sonar

25. Config Sonar

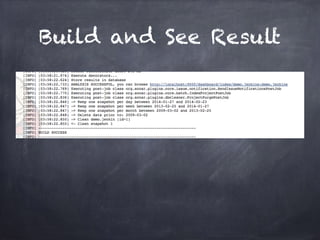

26. Build and See Result

27. For PHP

28. Manage Jenkins
Config Sonar Runner

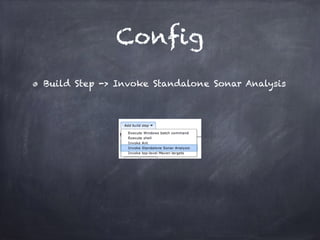

29. Config
Build Step -> Invoke Standalone Sonar Analysis

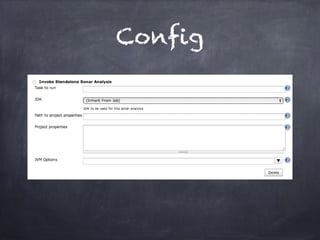

30. Config

31. Build and See Result

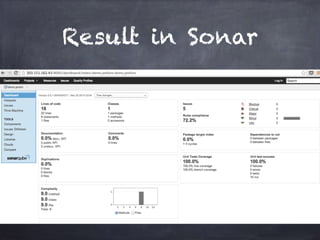

32. Result in Sonar

33. Basic Metrics
Line of code/classes/methods
Rule compliance Index and Violation
Comments
Duplicate code
Method/class complexity (Cyclometric)
Code coverage
Test results

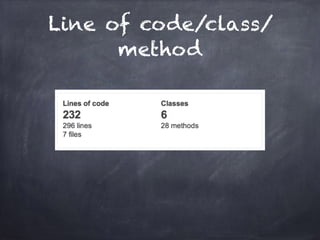

34. Line of code/class/
method

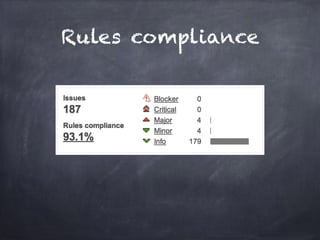

35. Rules compliance

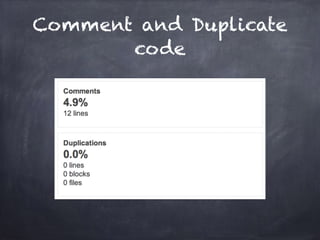

36. Comment and Duplicate
code

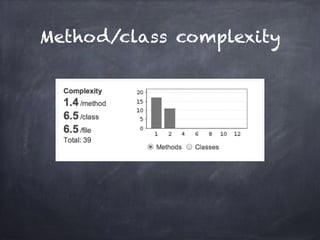

37. Method/class complexity

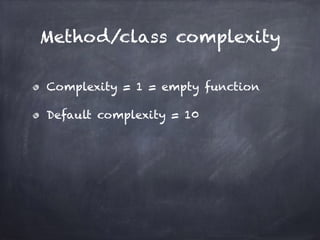

38. Method/class complexity
Complexity = 1 = empty function
Default complexity = 10

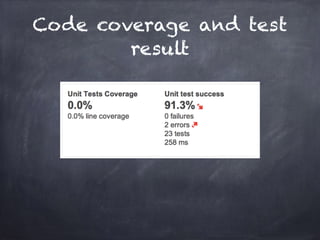

39. Code coverage and test
result

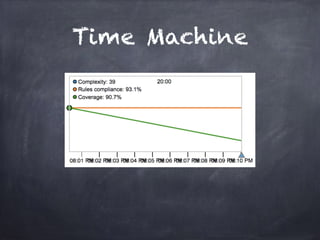

40. Time Machine

41. Time Machine
Compare any of the metric over a
period of time
What is improving ?
What is degrading ?

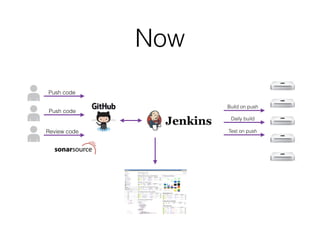

42. Now
Push code
Push code
Review code
Build on push
Daily build
Test on push
