Oracle Database Backup Cloud Service

Copyright © 2016 Oracle and/or its affiliates. All rights reserved. |
Oracle Database Backup Cloud Service
Simplify And Lower The Cost Of Protecting Oracle Databases
Click-through Demo using CLI & Enterprise Manager Cloud Control 13c
Jan’16
2

Demo: Oracle Database Backup Service
4 Simple Steps
1. Subscribe 2. Install 3. Configure RMAN 4. Backup & Recovery

Demo: Step #1
• Subscribe Oracle Database Backup Service
(or)
• Sign-up for a Trial

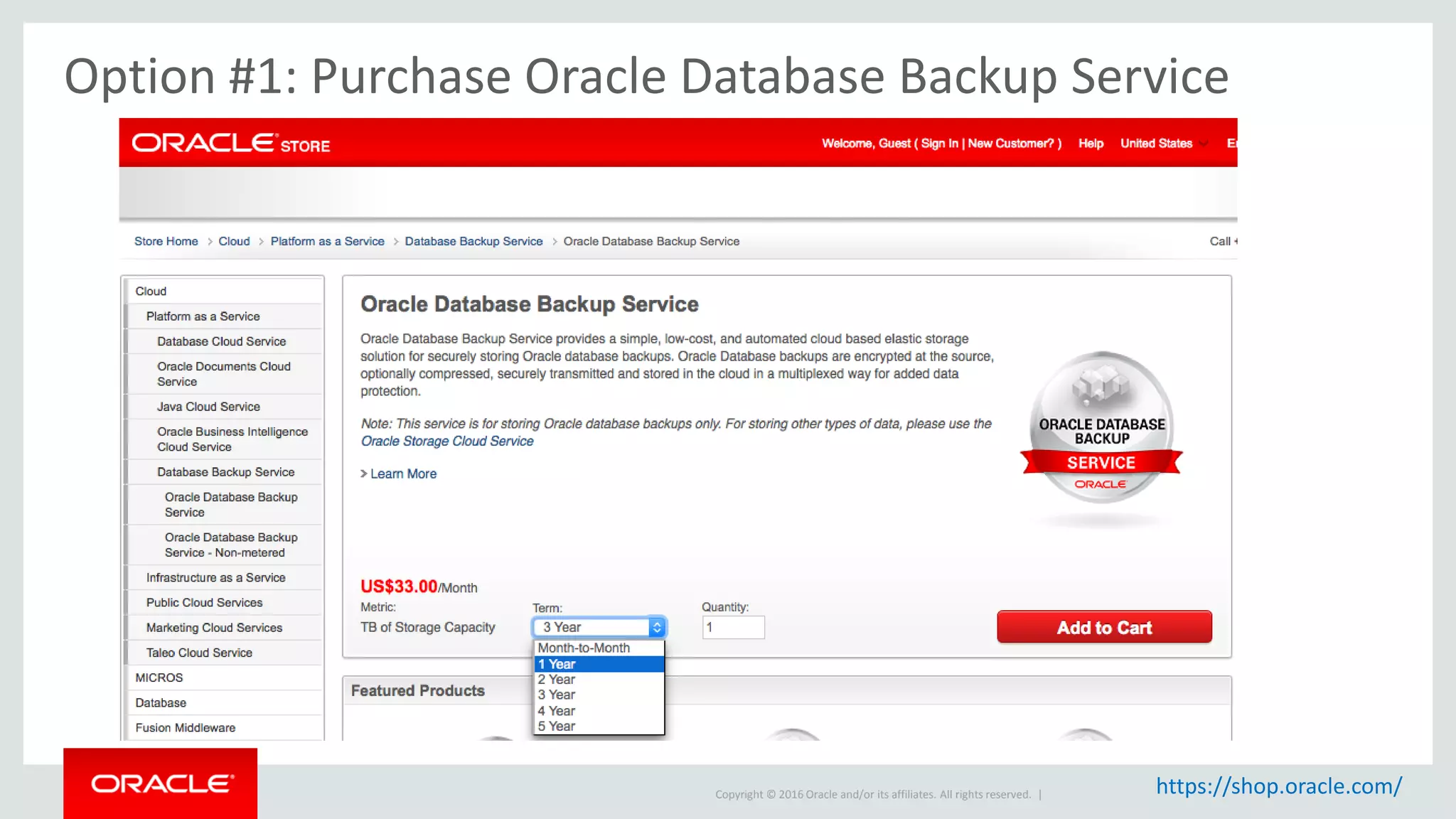

Option #1: Purchase Oracle Database Backup Service
https://shop.oracle.com/

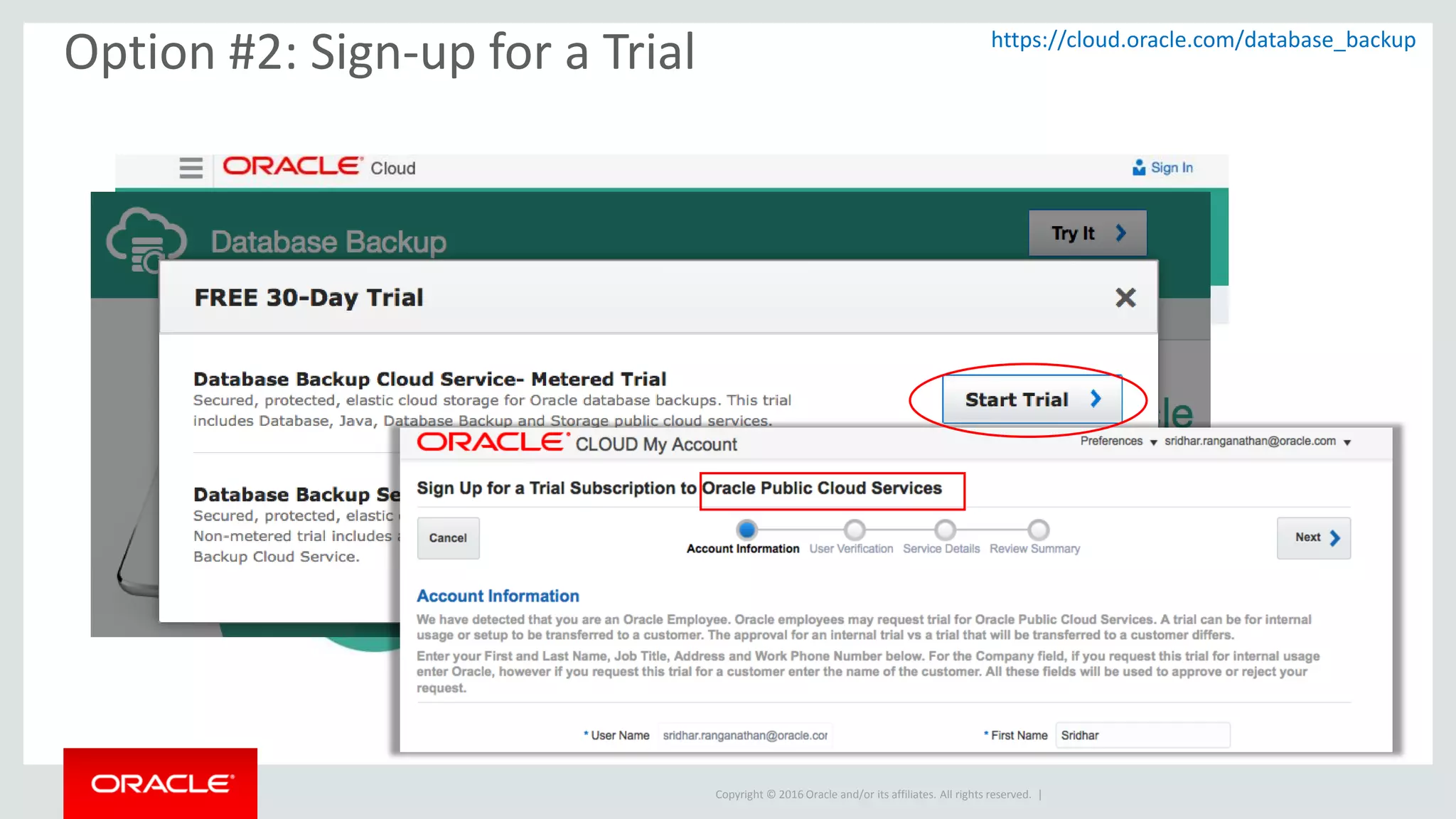

Option #2: Sign-up for a Trial https://cloud.oracle.com/database_backup

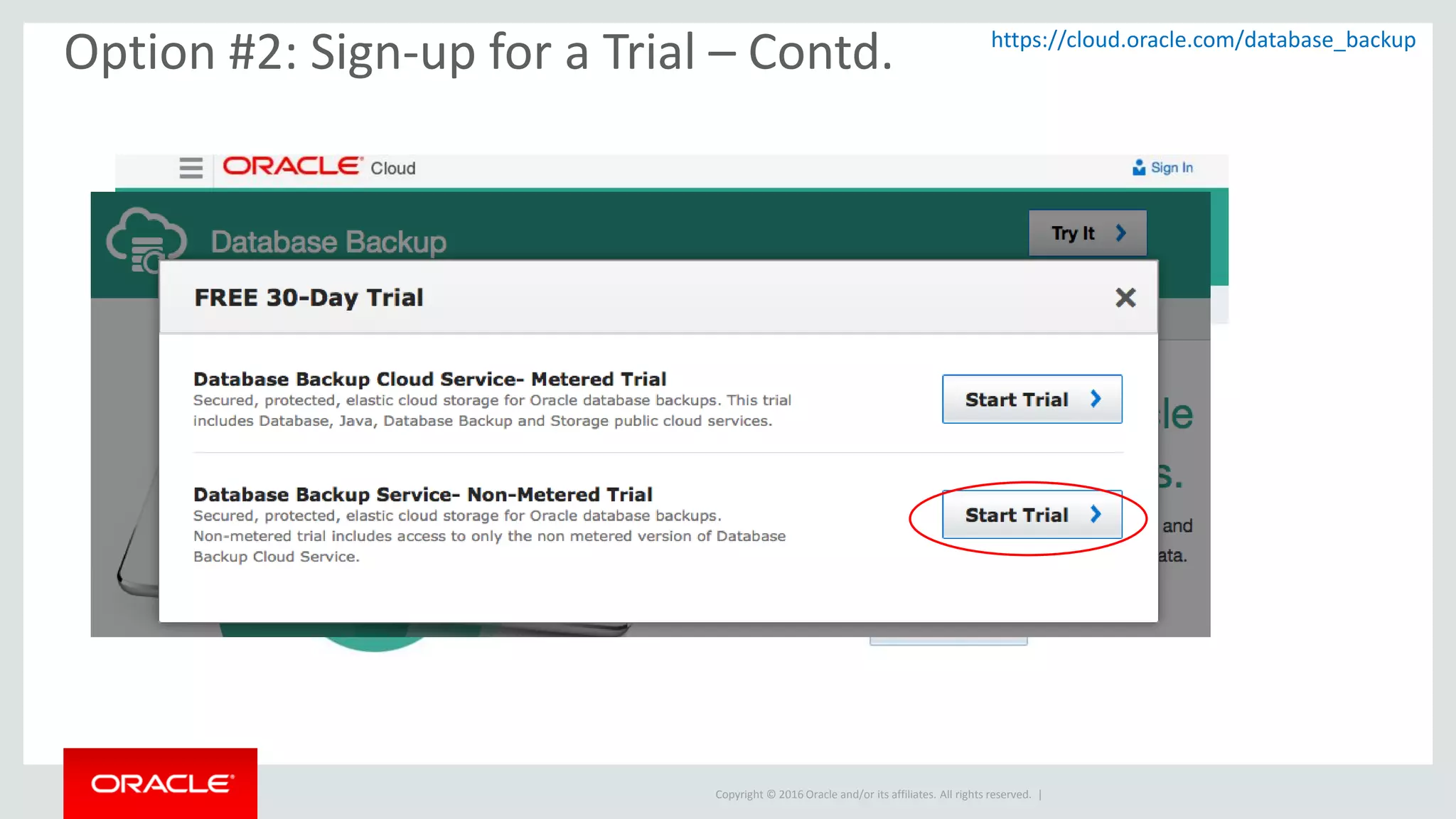

Option #2: Sign-up for a Trial – Contd. https://cloud.oracle.com/database_backup

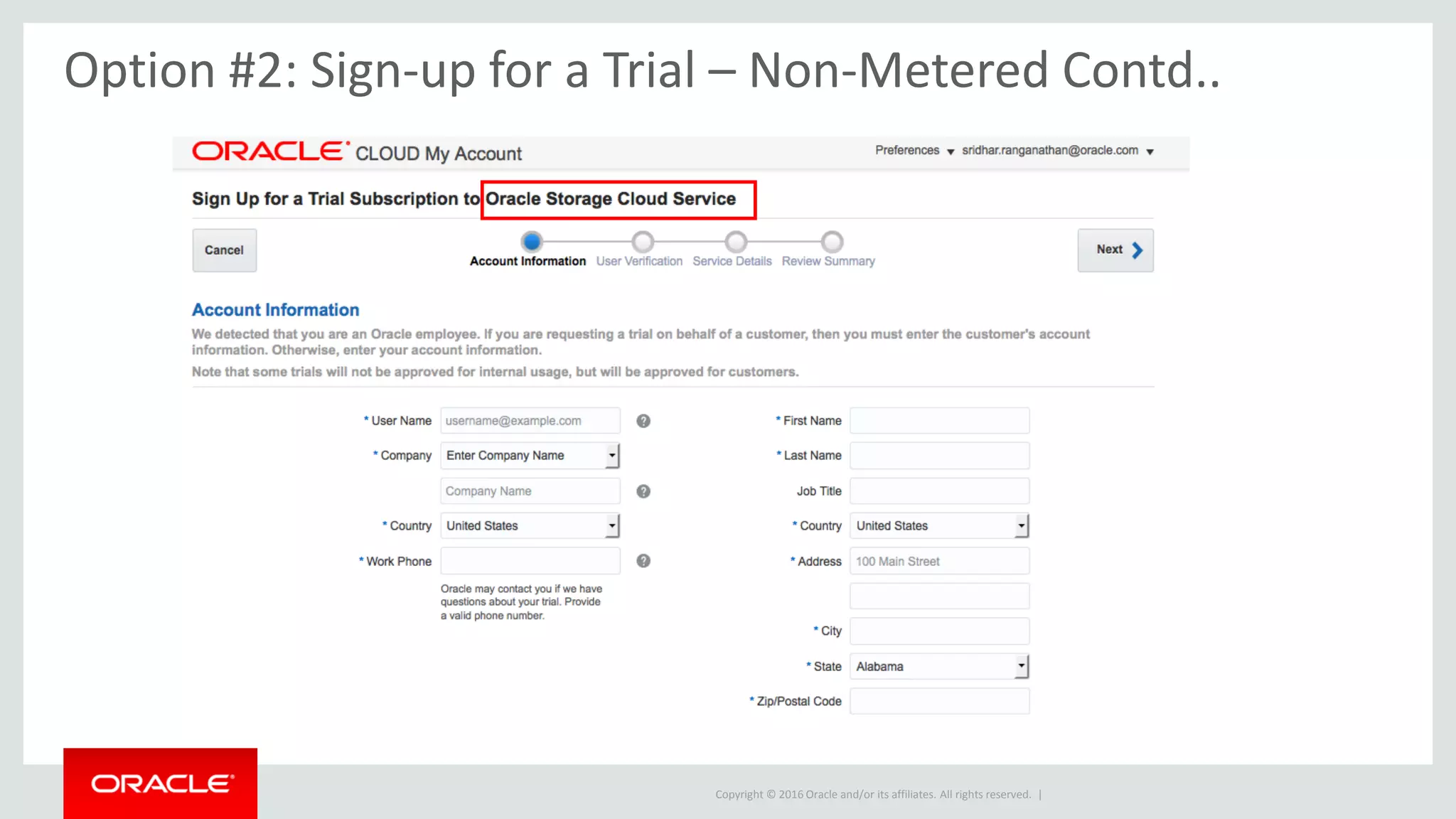

Option #2: Sign-up for a Trial – Non-Metered Contd..

Option #2: Sign-up for a Trial – Non-Metered Contd..
After Submission, wait for the activation email. Then Activate the Service

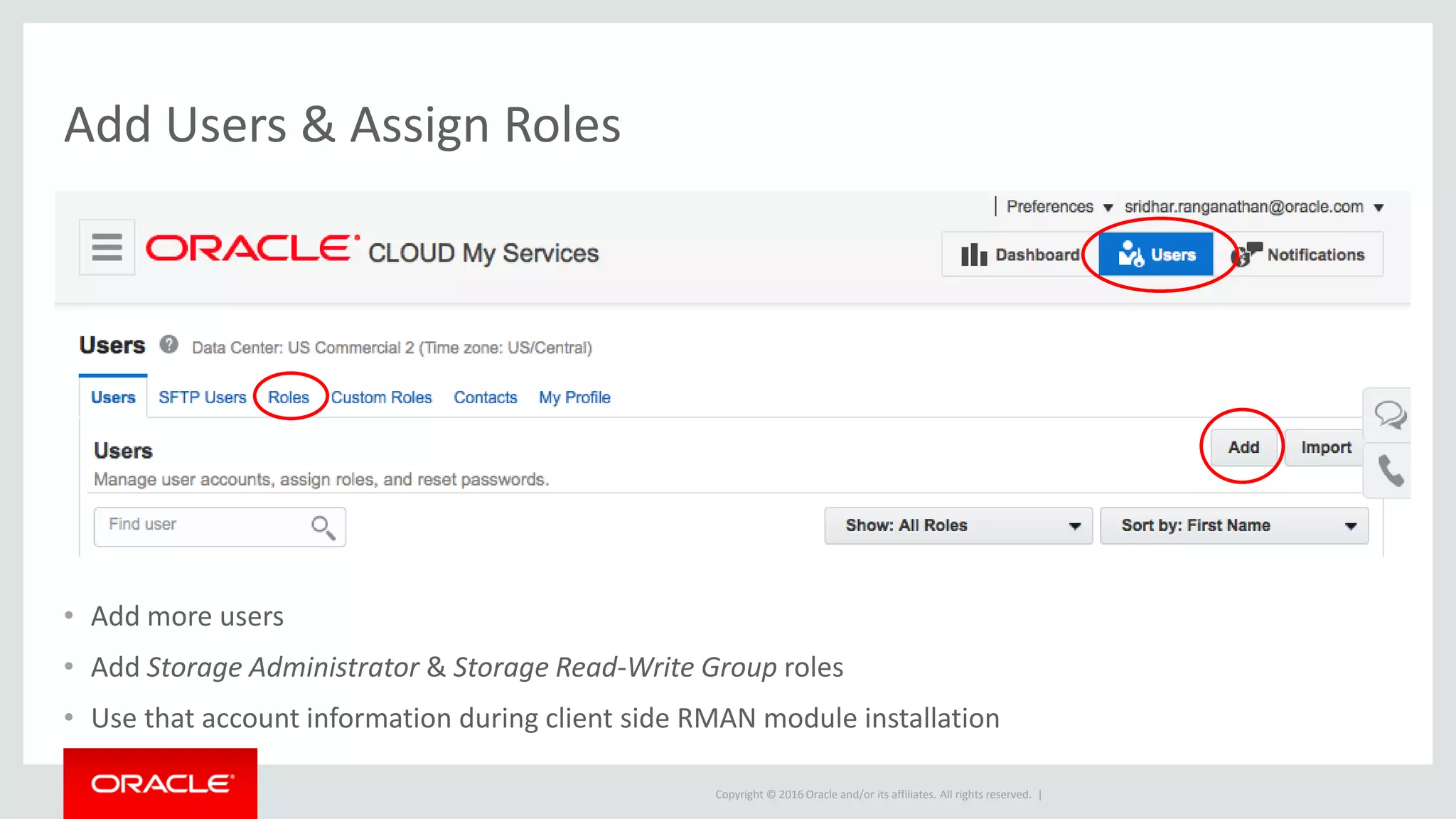

Add Users & Assign Roles
• Add more users
• Add Storage Administrator & Storage Read-Write Group roles
• Use that account information during client side RMAN module installation

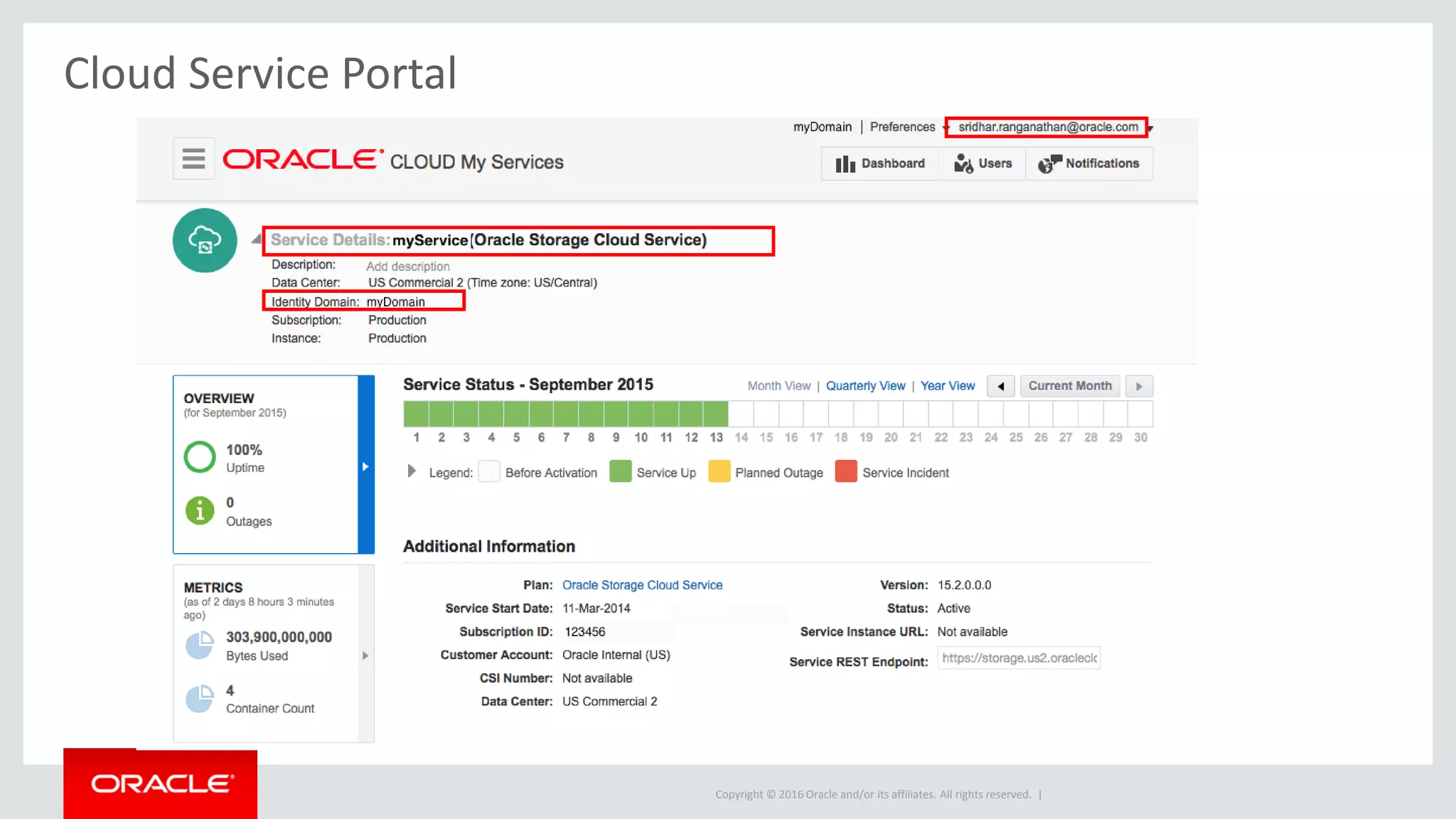

Cloud Service Portal

• Download the Installer from OTN
• Install the module

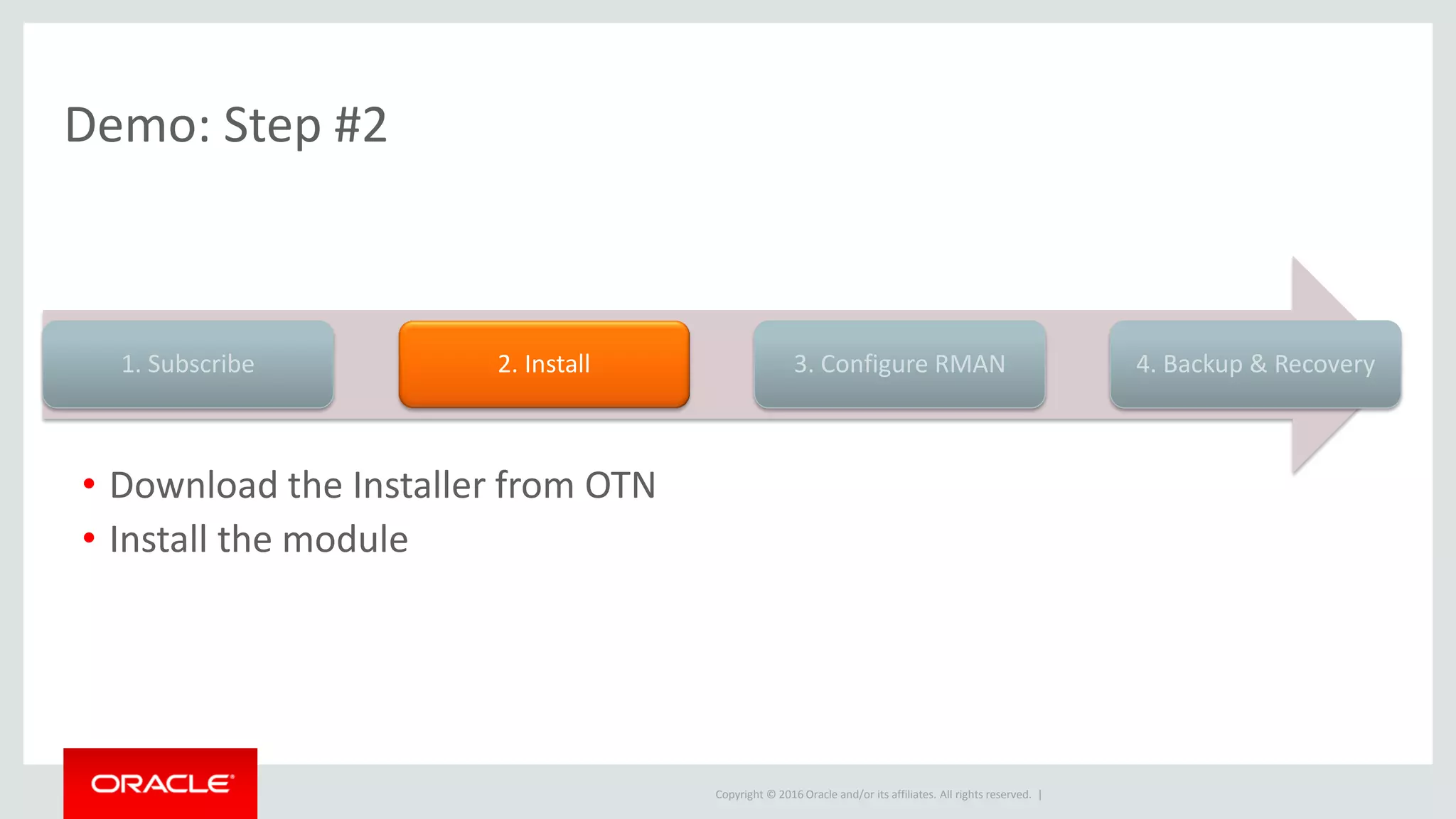

Demo: Step #2

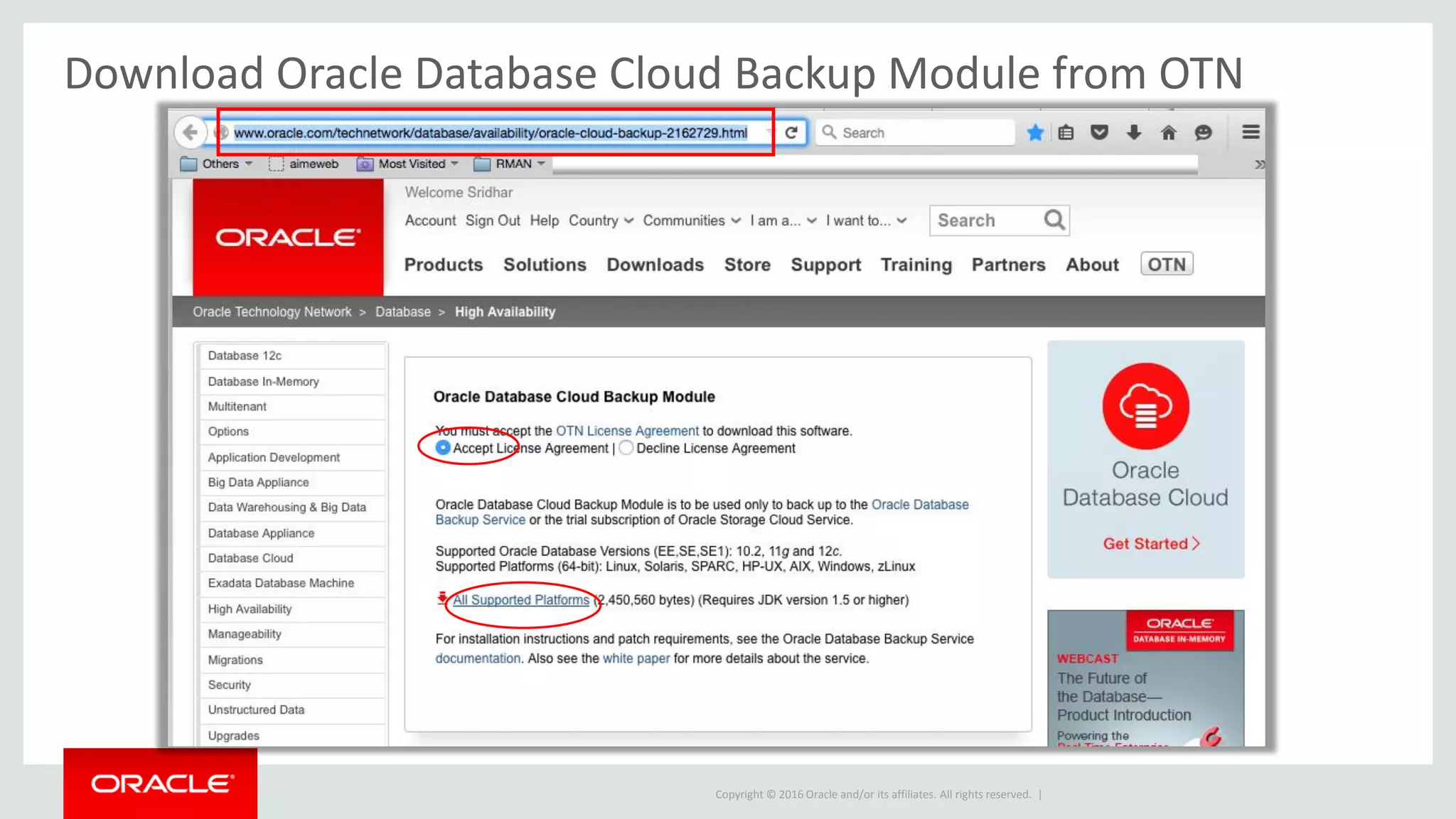

Download Oracle Database Cloud Backup Module from OTN

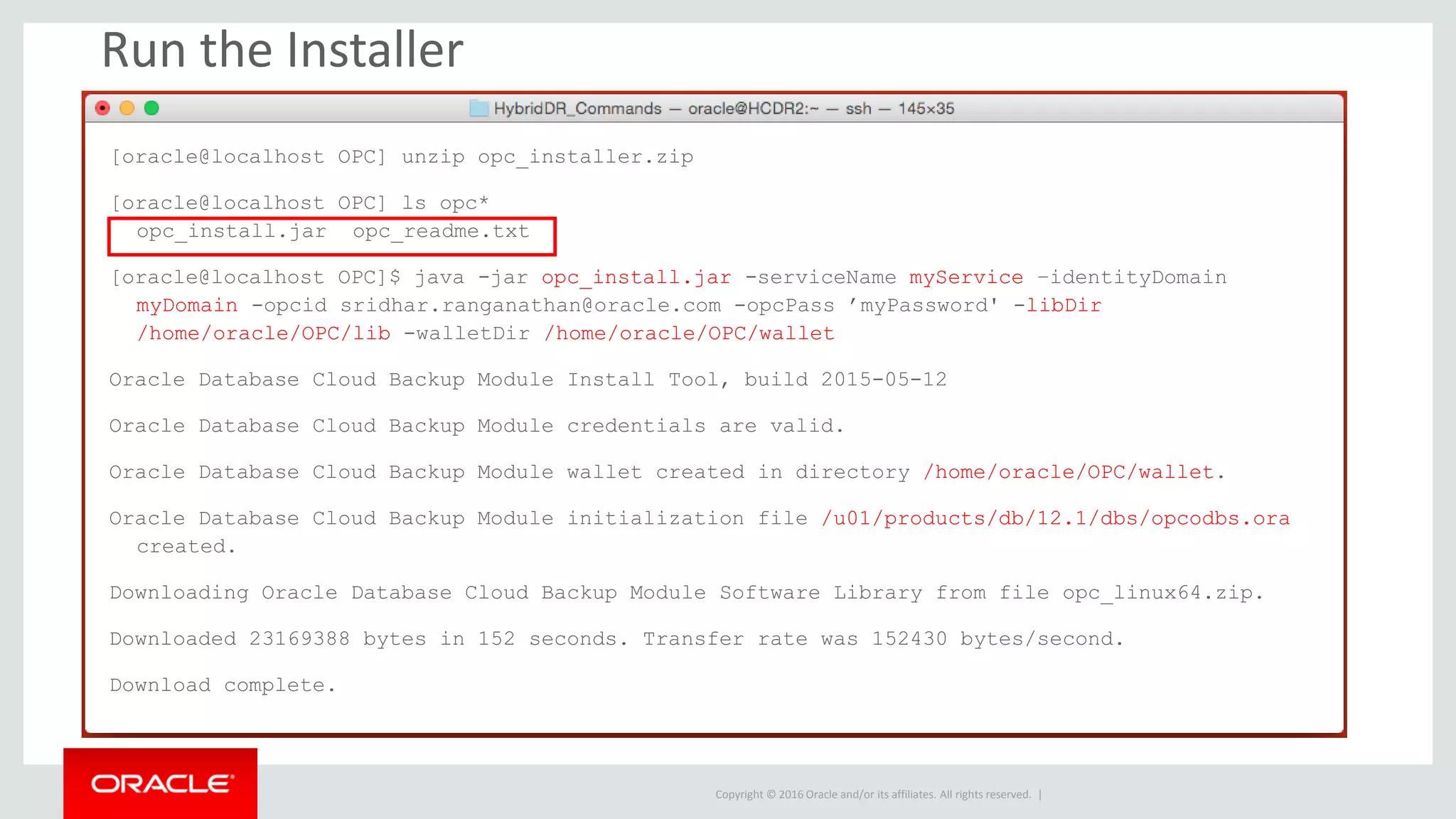

Run the Installer
[oracle@localhost OPC] unzip opc_installer.zip
[oracle@localhost OPC] ls opc*
opc_install.jar opc_readme.txt
[oracle@localhost OPC]$ java -jar opc_install.jar -serviceName myService –identityDomain
myDomain -opcid sridhar.ranganathan@oracle.com -opcPass ’myPassword' -libDir
/home/oracle/OPC/lib -walletDir /home/oracle/OPC/wallet
Oracle Database Cloud Backup Module Install Tool, build 2015-05-12
Oracle Database Cloud Backup Module credentials are valid.
Oracle Database Cloud Backup Module wallet created in directory /home/oracle/OPC/wallet.
Oracle Database Cloud Backup Module initialization file /u01/products/db/12.1/dbs/opcodbs.ora
created.
Downloading Oracle Database Cloud Backup Module Software Library from file opc_linux64.zip.
Downloaded 23169388 bytes in 152 seconds. Transfer rate was 152430 bytes/second.
Download complete.

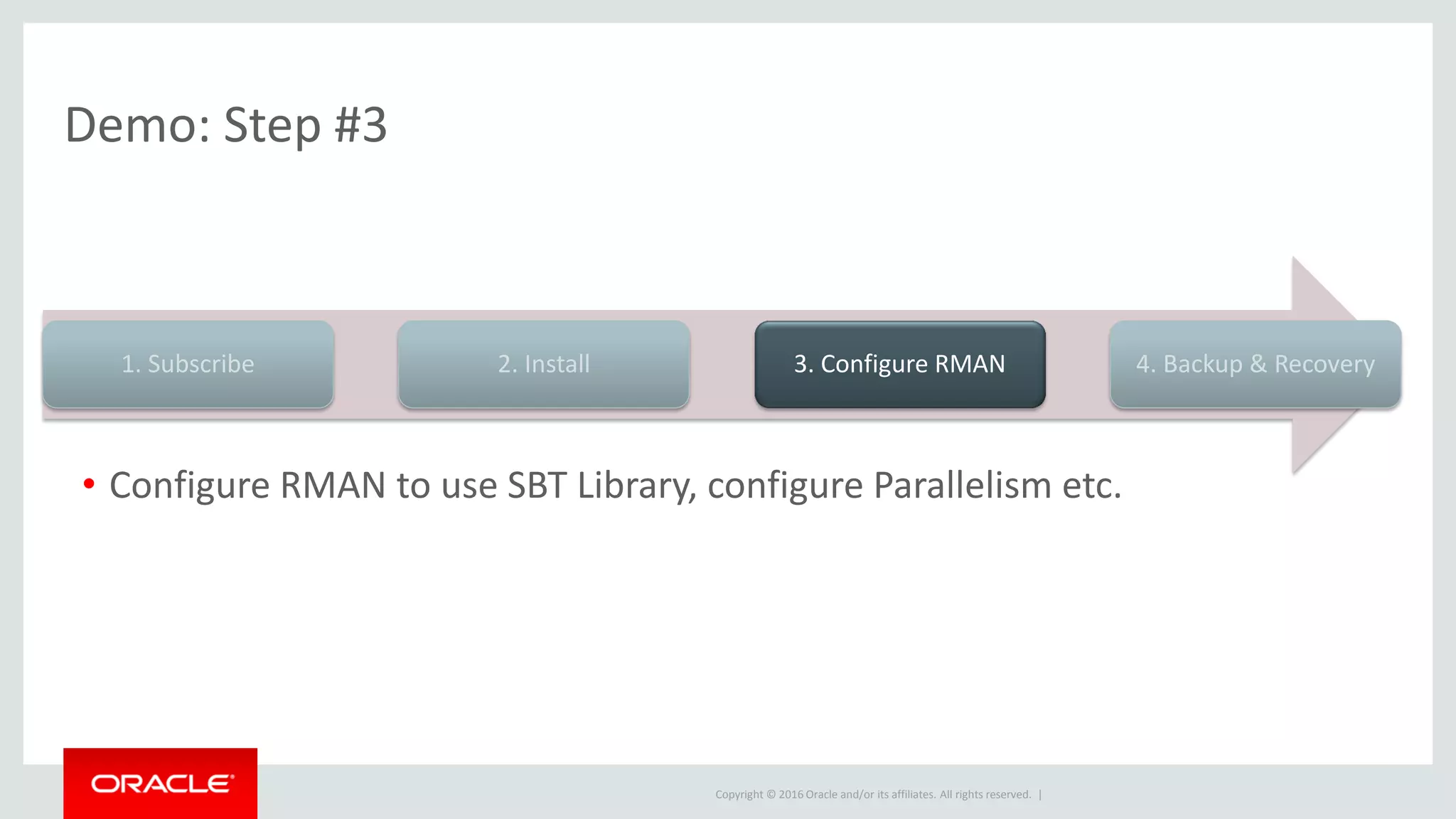

Demo: Step #3
• Configure RMAN to use SBT Library, configure Parallelism etc.

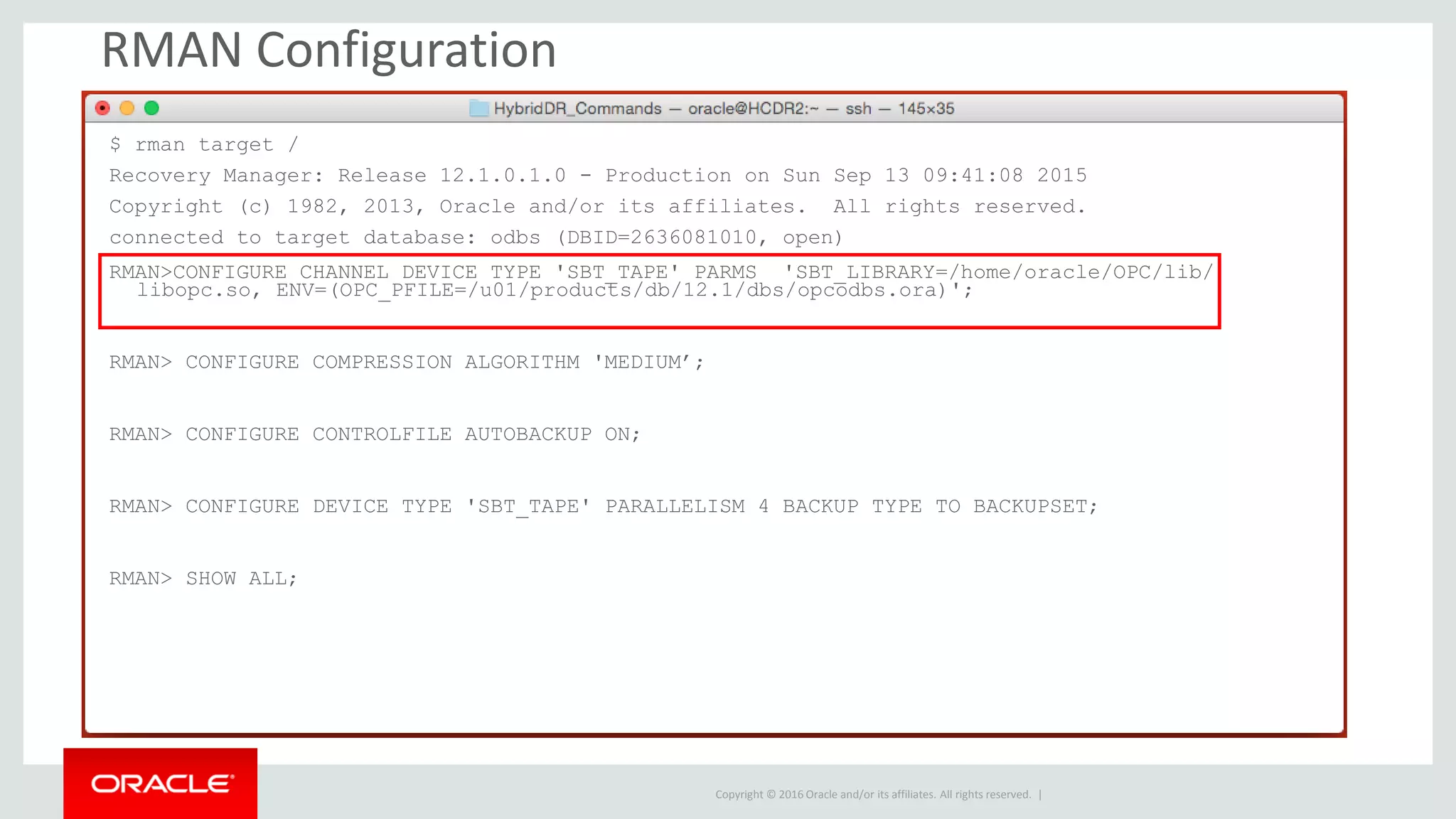

RMAN Configuration
$ rman target /
Recovery Manager: Release 12.1.0.1.0 - Production on Sun Sep 13 09:41:08 2015
Copyright (c) 1982, 2013, Oracle and/or its affiliates. All rights reserved.
connected to target database: odbs (DBID=2636081010, open)
RMAN>CONFIGURE CHANNEL DEVICE TYPE 'SBT_TAPE' PARMS 'SBT_LIBRARY=/home/oracle/OPC/lib/
libopc.so, ENV=(OPC_PFILE=/u01/products/db/12.1/dbs/opcodbs.ora)';
RMAN> CONFIGURE COMPRESSION ALGORITHM 'MEDIUM’;
RMAN> CONFIGURE CONTROLFILE AUTOBACKUP ON;
RMAN> CONFIGURE DEVICE TYPE 'SBT_TAPE' PARALLELISM 4 BACKUP TYPE TO BACKUPSET;
RMAN> SHOW ALL;

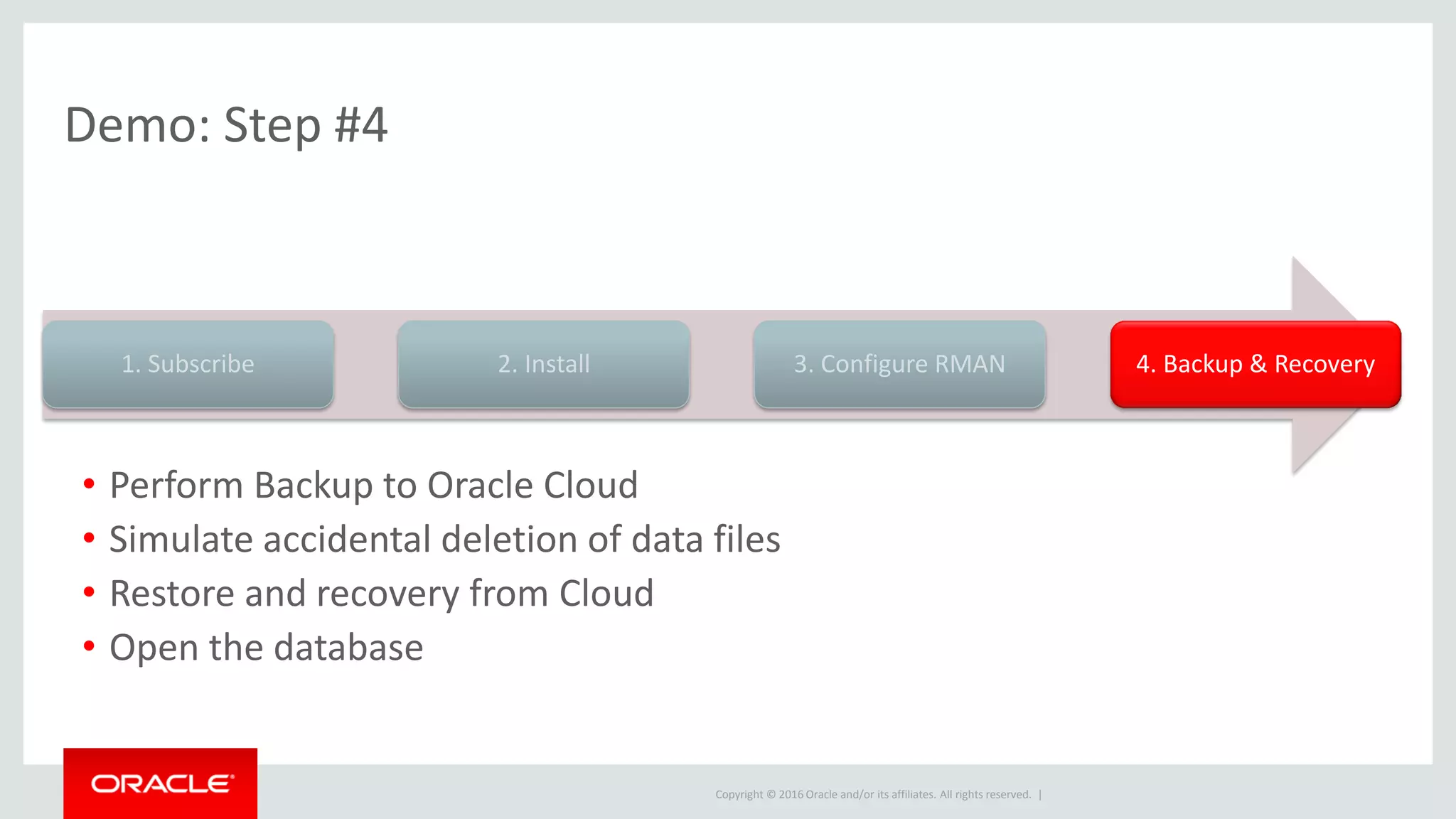

Demo: Step #4
• Perform Backup to Oracle Cloud
• Simulate accidental deletion of data files
• Restore and recovery from Cloud
• Open the database

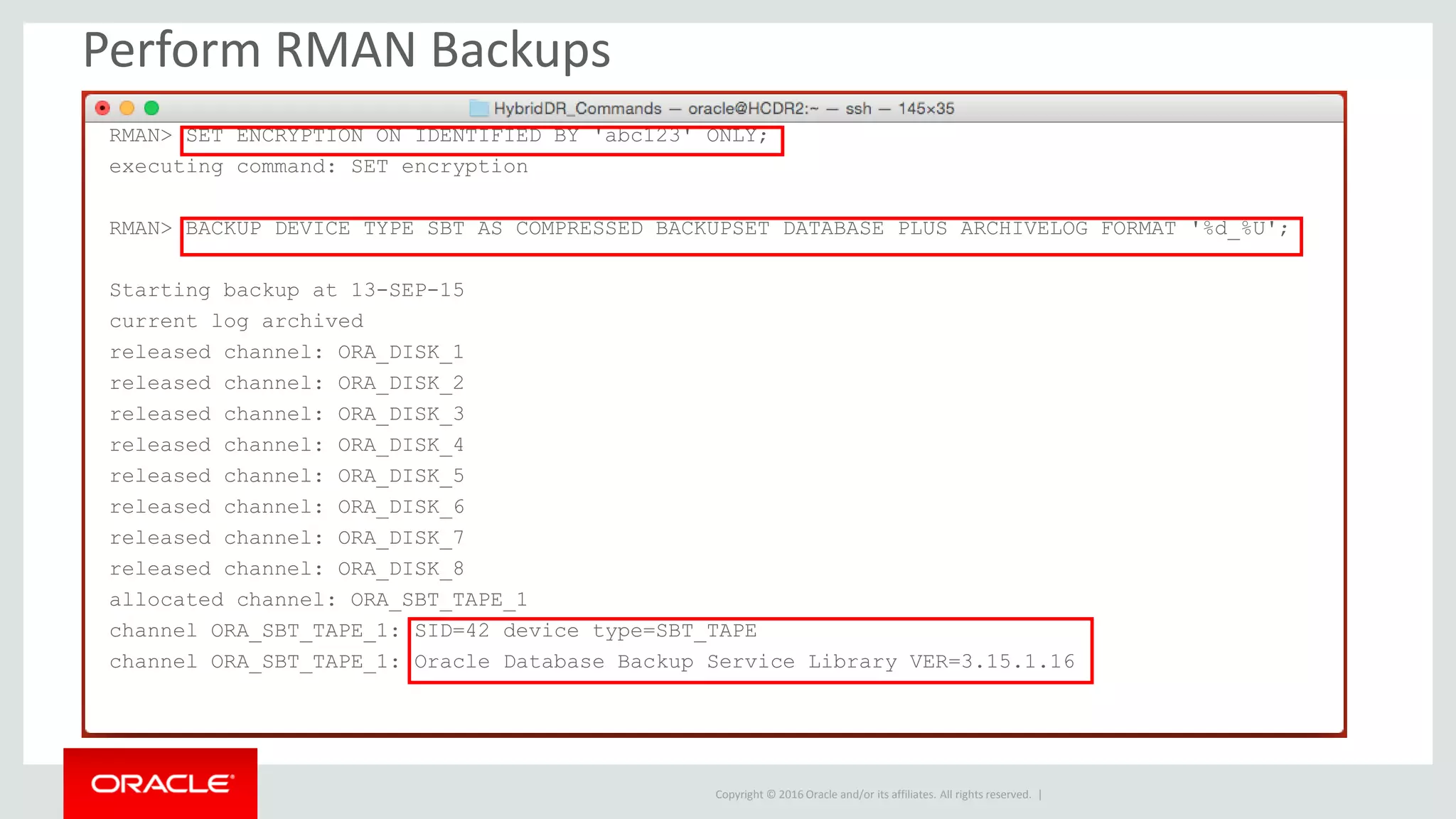

Perform RMAN Backups
RMAN> SET ENCRYPTION ON IDENTIFIED BY 'abc123' ONLY;
executing command: SET encryption
RMAN> BACKUP DEVICE TYPE SBT AS COMPRESSED BACKUPSET DATABASE PLUS ARCHIVELOG FORMAT '%d_%U';
Starting backup at 13-SEP-15
current log archived
released channel: ORA_DISK_1
allocated channel: ORA_SBT_TAPE_1
channel ORA_SBT_TAPE_1: SID=42 device type=SBT_TAPE
channel ORA_SBT_TAPE_1: Oracle Database Backup Service Library VER=3.15.1.16

Perform RMAN Backups Contd..
channel ORA_SBT_TAPE_1: starting compressed archived log backup set
channel ORA_SBT_TAPE_1: specifying archived log(s) in backup set
input archived log thread=1 sequence=7 RECID=23 STAMP=890304044
channel ORA_SBT_TAPE_1: starting piece 1 at 13-SEP-15
channel ORA_SBT_TAPE_1: finished piece 1 at 13-SEP-15
piece handle=ODBSLAB_2gqh1thm_1_1 tag=TAG20150913T104054 comment=API Version 2.0,MMS Version
3.15.1.16

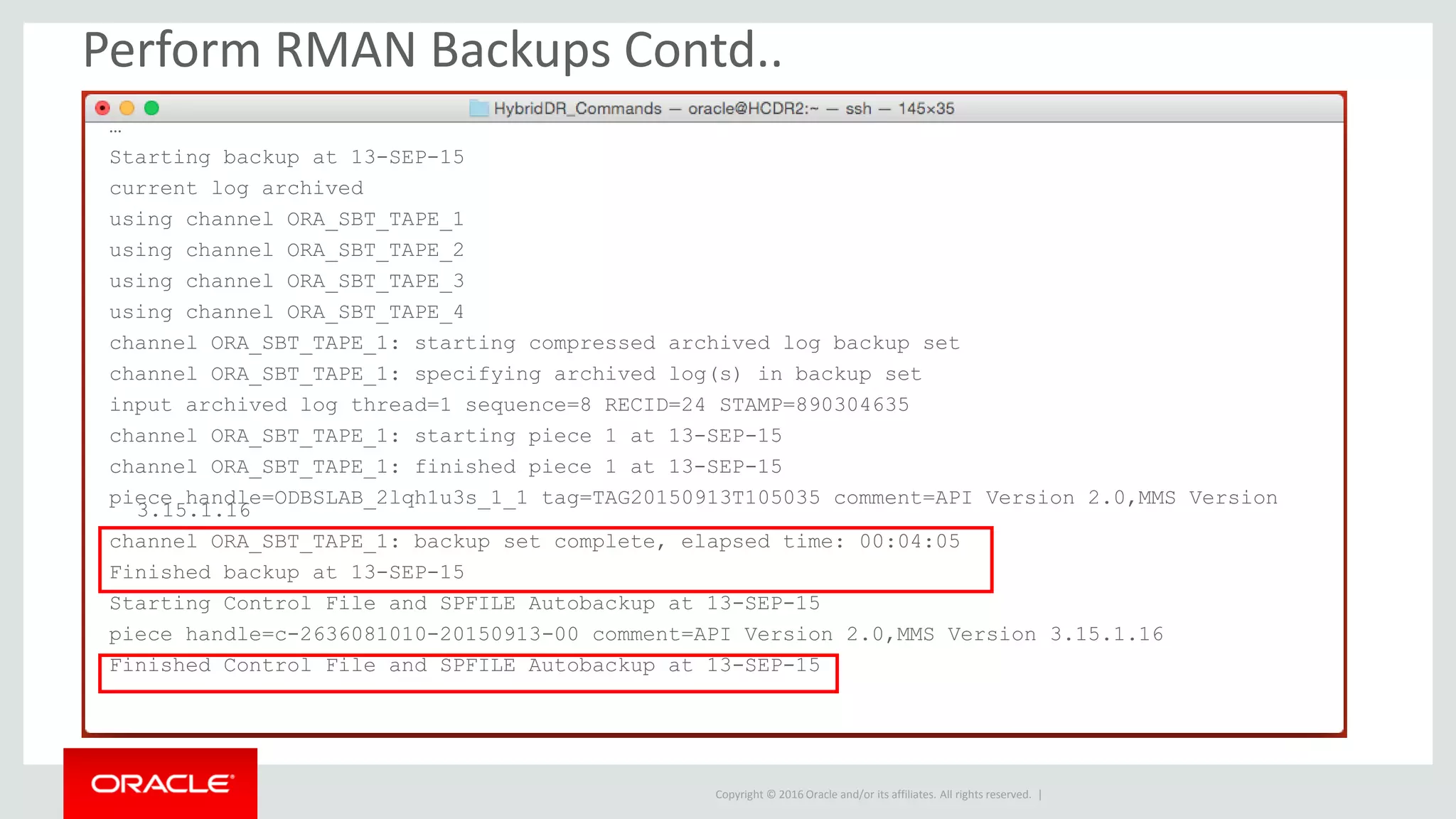

Perform RMAN Backups Contd..
…
Starting backup at 13-SEP-15
current log archived
using channel ORA_SBT_TAPE_1
channel ORA_SBT_TAPE_1: starting compressed archived log backup set
channel ORA_SBT_TAPE_1: specifying archived log(s) in backup set
input archived log thread=1 sequence=8 RECID=24 STAMP=890304635
channel ORA_SBT_TAPE_1: starting piece 1 at 13-SEP-15
channel ORA_SBT_TAPE_1: finished piece 1 at 13-SEP-15
piece handle=ODBSLAB_2lqh1u3s_1_1 tag=TAG20150913T105035 comment=API Version 2.0,MMS Version
3.15.1.16
channel ORA_SBT_TAPE_1: backup set complete, elapsed time: 00:04:05
Finished backup at 13-SEP-15
Starting Control File and SPFILE Autobackup at 13-SEP-15
piece handle=c-2636081010-20150913-00 comment=API Version 2.0,MMS Version 3.15.1.16
Finished Control File and SPFILE Autobackup at 13-SEP-15

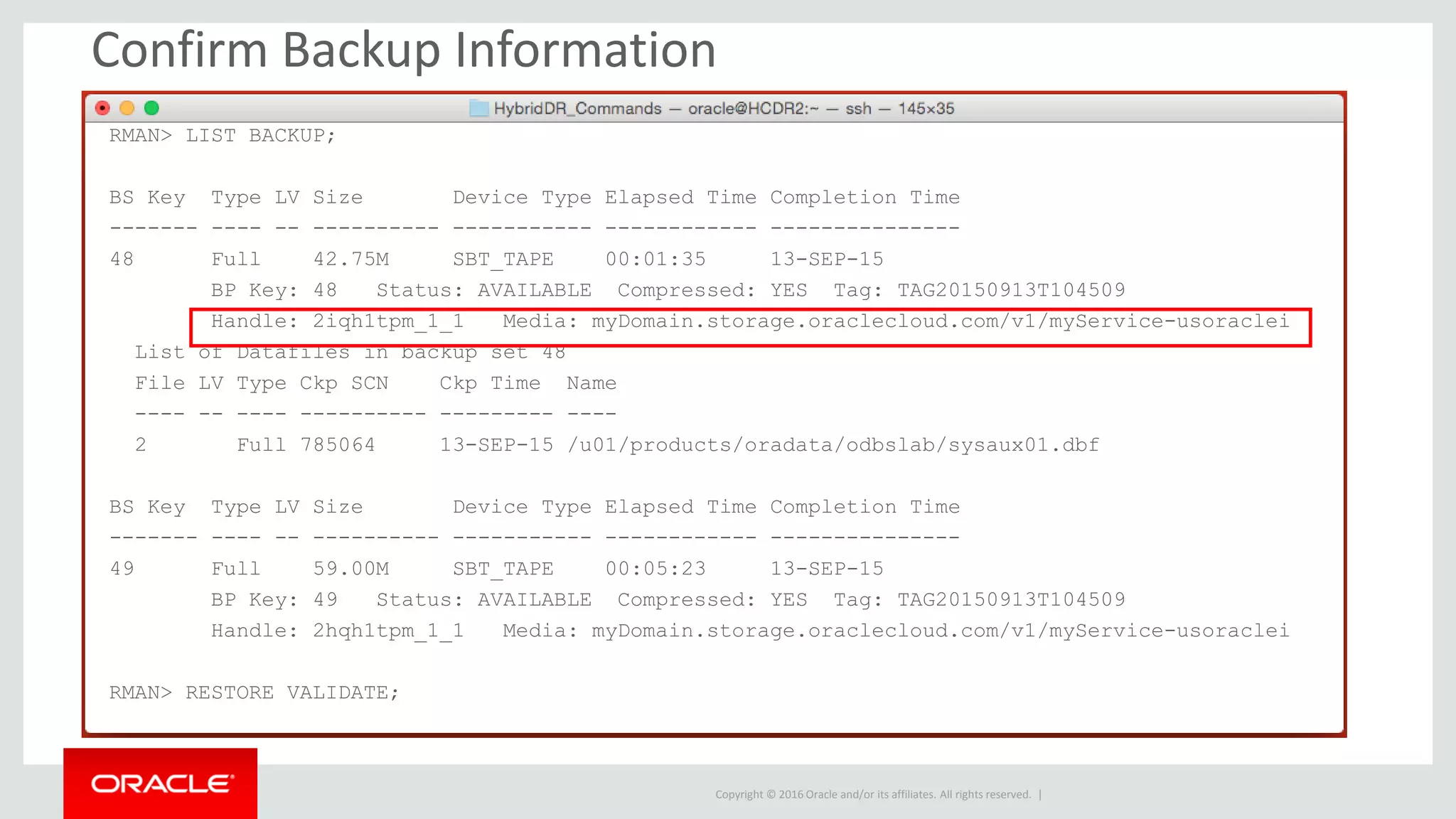

Confirm Backup Information
RMAN> LIST BACKUP;
BS Key Type LV Size Device Type Elapsed Time Completion Time
------- ---- -- ---------- ----------- ------------ ---------------
48 Full 42.75M SBT_TAPE 00:01:35 13-SEP-15
BP Key: 48 Status: AVAILABLE Compressed: YES Tag: TAG20150913T104509
Handle: 2iqh1tpm_1_1 Media: myDomain.storage.oraclecloud.com/v1/myService-usoraclei
List of Datafiles in backup set 48
File LV Type Ckp SCN Ckp Time Name
---- -- ---- ---------- --------- ----
2 Full 785064 13-SEP-15 /u01/products/oradata/odbslab/sysaux01.dbf
BS Key Type LV Size Device Type Elapsed Time Completion Time
------- ---- -- ---------- ----------- ------------ ---------------
49 Full 59.00M SBT_TAPE 00:05:23 13-SEP-15
BP Key: 49 Status: AVAILABLE Compressed: YES Tag: TAG20150913T104509
Handle: 2hqh1tpm_1_1 Media: myDomain.storage.oraclecloud.com/v1/myService-usoraclei
RMAN> RESTORE VALIDATE;

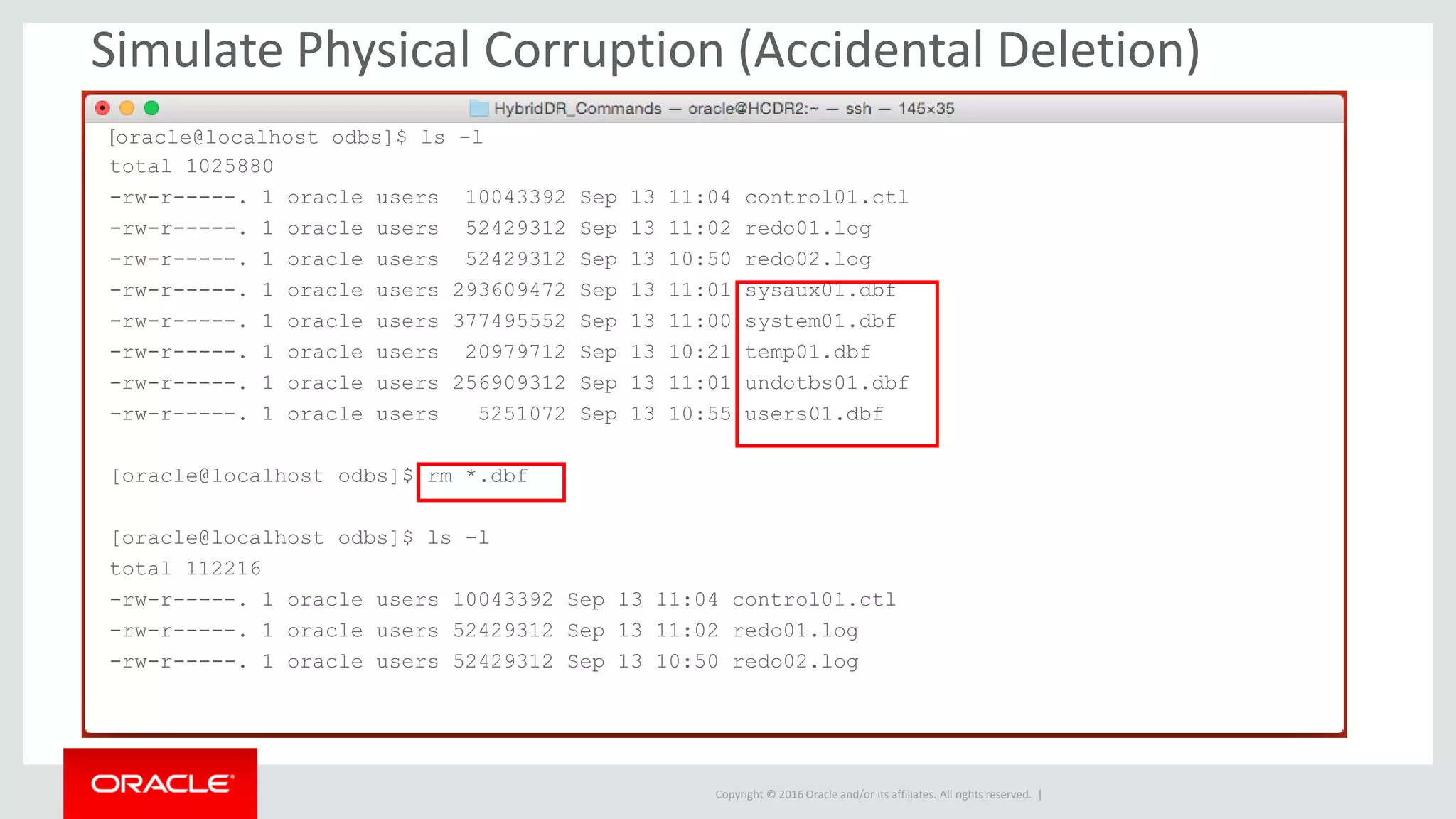

Simulate Physical Corruption (Accidental Deletion)
[oracle@localhost odbs]$ ls -l
total 1025880
-rw-r-----. 1 oracle users 10043392 Sep 13 11:04 control01.ctl
-rw-r-----. 1 oracle users 52429312 Sep 13 11:02 redo01.log
-rw-r-----. 1 oracle users 293609472 Sep 13 11:01 sysaux01.dbf
-rw-r-----. 1 oracle users 377495552 Sep 13 11:00 system01.dbf
-rw-r-----. 1 oracle users 20979712 Sep 13 10:21 temp01.dbf
-rw-r-----. 1 oracle users 256909312 Sep 13 11:01 undotbs01.dbf
-rw-r-----. 1 oracle users 5251072 Sep 13 10:55 users01.dbf
[oracle@localhost odbs]$ rm *.dbf
[oracle@localhost odbs]$ ls -l
total 112216
-rw-r-----. 1 oracle users 10043392 Sep 13 11:04 control01.ctl

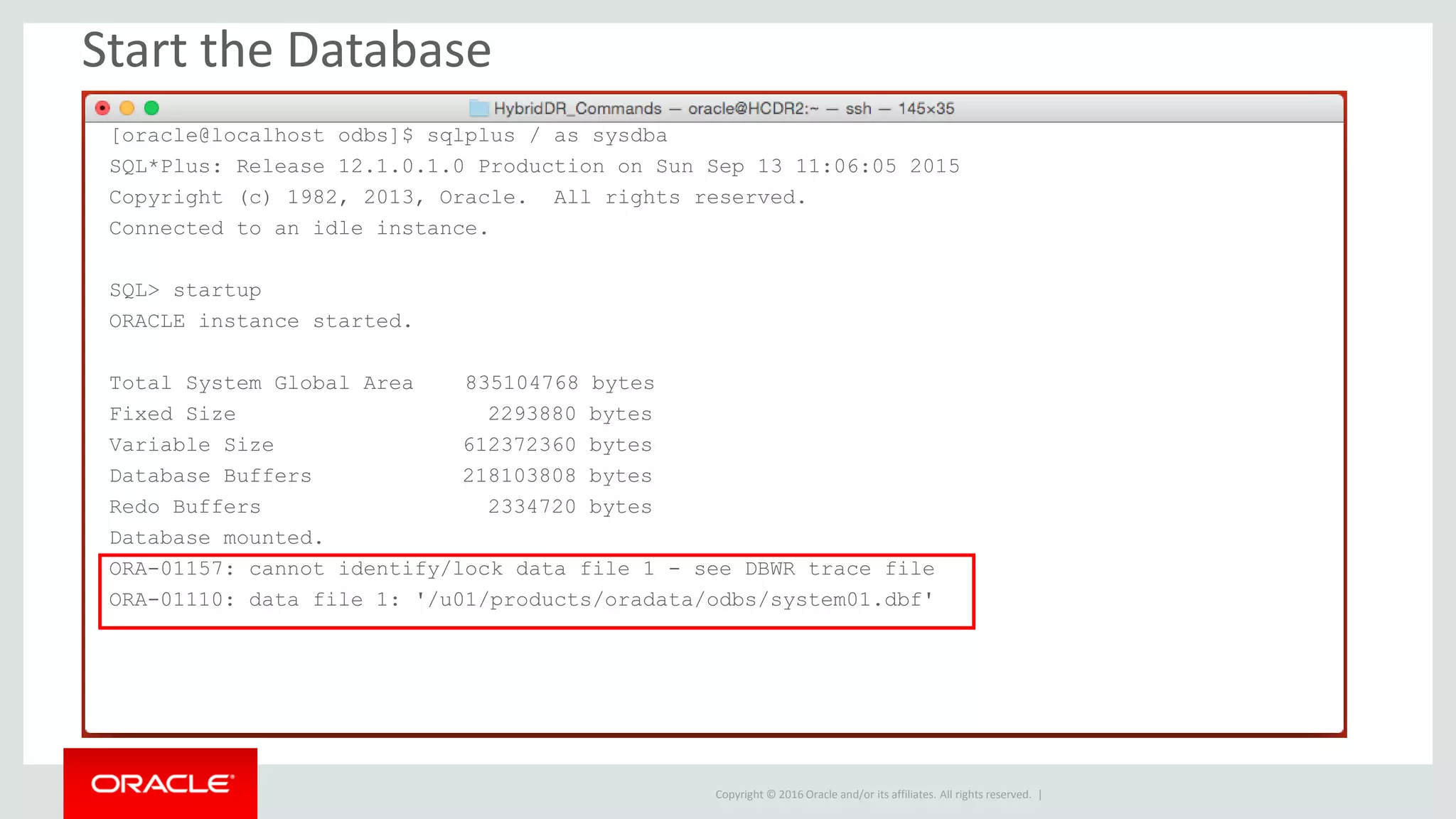

Start the Database
[oracle@localhost odbs]$ sqlplus / as sysdba
SQL*Plus: Release 12.1.0.1.0 Production on Sun Sep 13 11:06:05 2015
Copyright (c) 1982, 2013, Oracle. All rights reserved.
Connected to an idle instance.
SQL> startup
ORACLE instance started.
Total System Global Area 835104768 bytes
Fixed Size 2293880 bytes
Variable Size 612372360 bytes
Database Buffers 218103808 bytes
Redo Buffers 2334720 bytes
Database mounted.
ORA-01157: cannot identify/lock data file 1 - see DBWR trace file
ORA-01110: data file 1: '/u01/products/oradata/odbs/system01.dbf'

Perform RMAN RESTORE
RMAN> SET DECRYPTION IDENTIFIED BY 'abc123';
executing command: SET decryption
using target database control file instead of recovery catalog
RMAN> RESTORE DATABASE;
Starting restore at 13-SEP-15
…

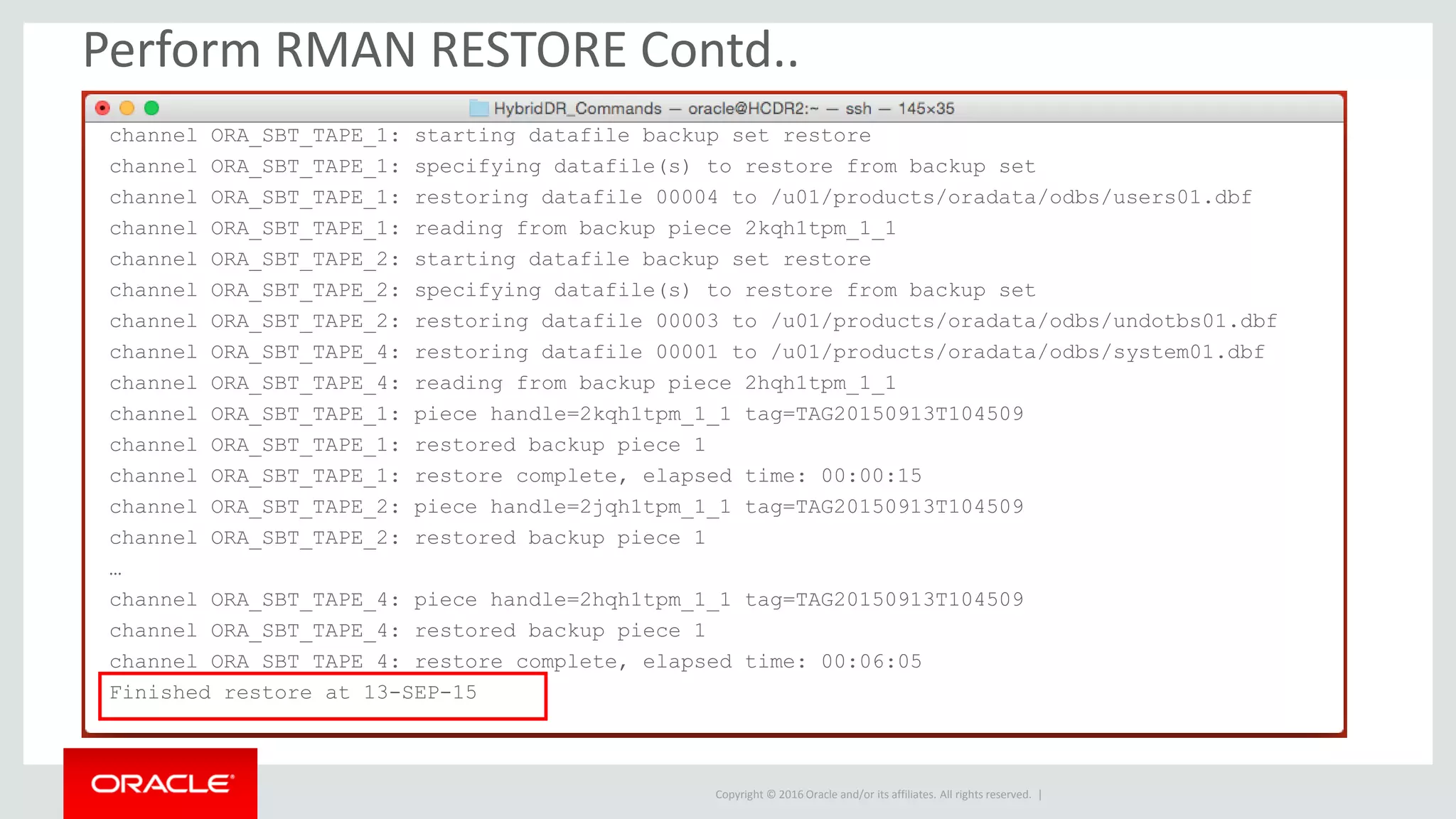

Perform RMAN RESTORE Contd..
channel ORA_SBT_TAPE_1: starting datafile backup set restore
channel ORA_SBT_TAPE_1: specifying datafile(s) to restore from backup set
channel ORA_SBT_TAPE_1: restoring datafile 00004 to /u01/products/oradata/odbs/users01.dbf
channel ORA_SBT_TAPE_1: reading from backup piece 2kqh1tpm_1_1
channel ORA_SBT_TAPE_2: starting datafile backup set restore
channel ORA_SBT_TAPE_2: specifying datafile(s) to restore from backup set
channel ORA_SBT_TAPE_2: restoring datafile 00003 to /u01/products/oradata/odbs/undotbs01.dbf
channel ORA_SBT_TAPE_4: restoring datafile 00001 to /u01/products/oradata/odbs/system01.dbf
channel ORA_SBT_TAPE_4: reading from backup piece 2hqh1tpm_1_1
channel ORA_SBT_TAPE_1: piece handle=2kqh1tpm_1_1 tag=TAG20150913T104509
channel ORA_SBT_TAPE_1: restored backup piece 1
channel ORA_SBT_TAPE_1: restore complete, elapsed time: 00:00:15
channel ORA_SBT_TAPE_2: piece handle=2jqh1tpm_1_1 tag=TAG20150913T104509
…
channel ORA_SBT_TAPE_4: piece handle=2hqh1tpm_1_1 tag=TAG20150913T104509
channel ORA_SBT_TAPE_4: restore complete, elapsed time: 00:06:05
Finished restore at 13-SEP-15

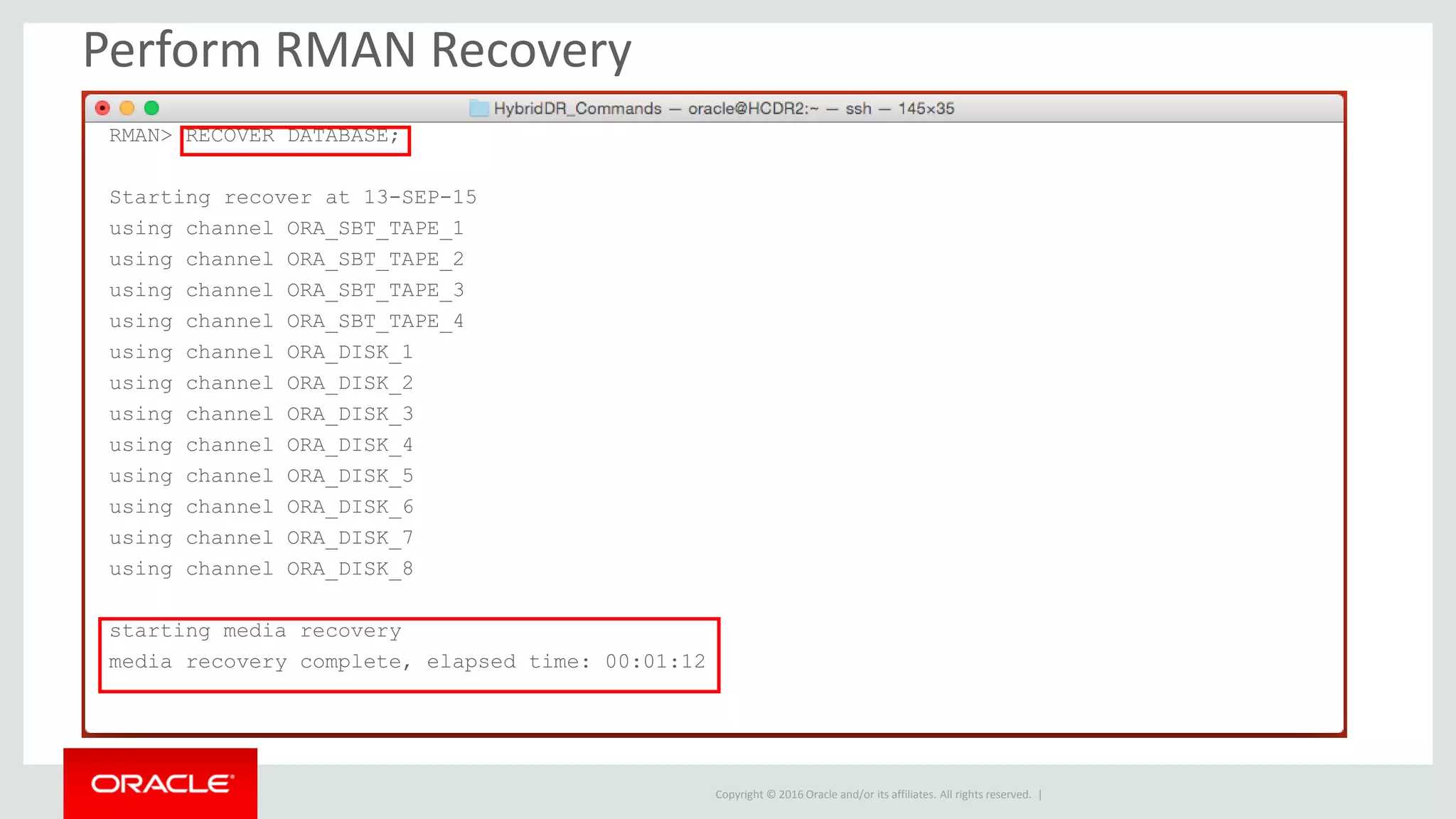

Perform RMAN Recovery
RMAN> RECOVER DATABASE;
Starting recover at 13-SEP-15
using channel ORA_DISK_1
starting media recovery
media recovery complete, elapsed time: 00:01:12

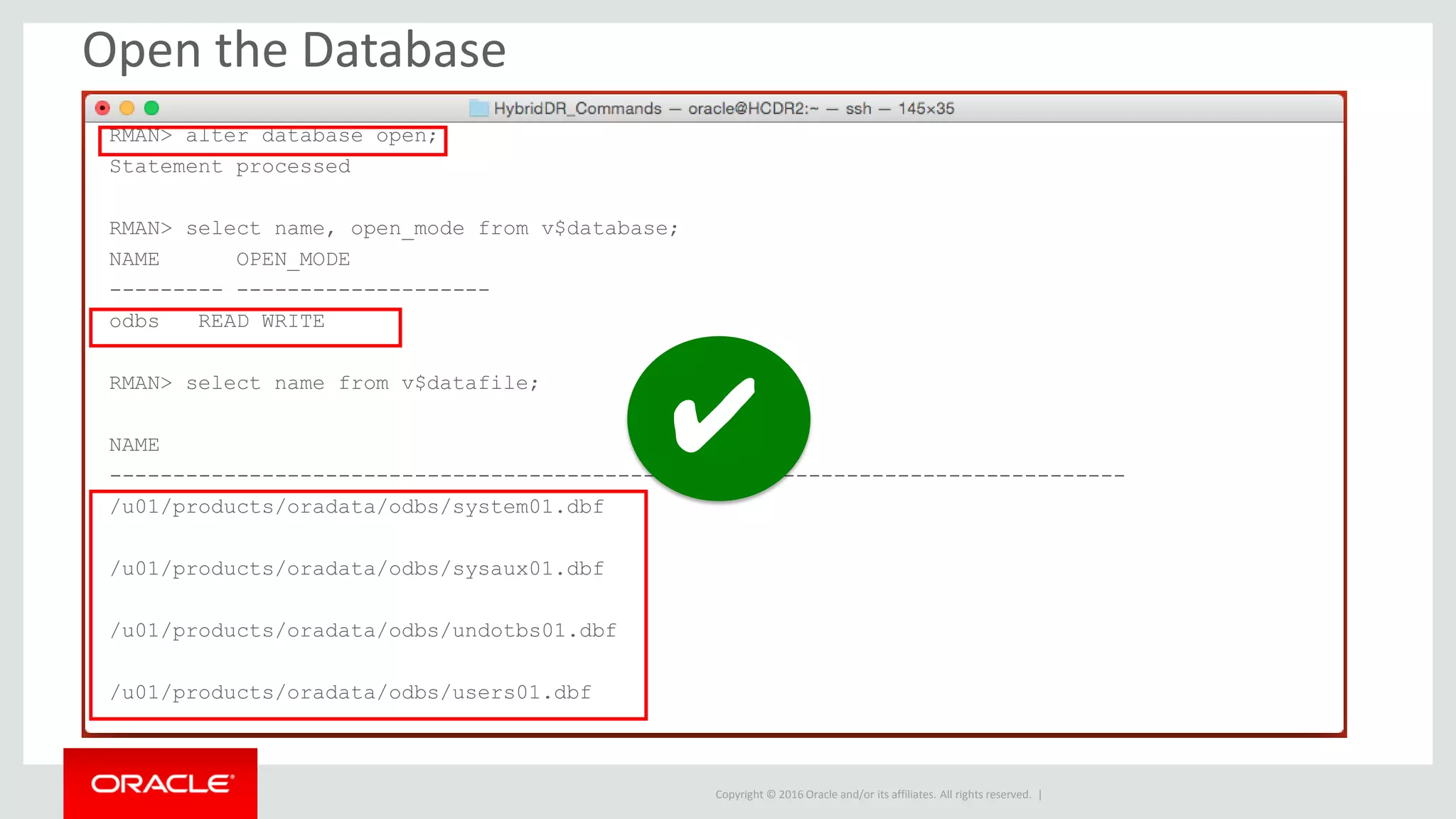

Open the Database
RMAN> alter database open;
Statement processed
RMAN> select name, open_mode from v$database;
NAME OPEN_MODE
--------- --------------------
odbs READ WRITE
RMAN> select name from v$datafile;
NAME
--------------------------------------------------------------------------------
/u01/products/oradata/odbs/system01.dbf
/u01/products/oradata/odbs/sysaux01.dbf
/u01/products/oradata/odbs/undotbs01.dbf
/u01/products/oradata/odbs/users01.dbf
✔

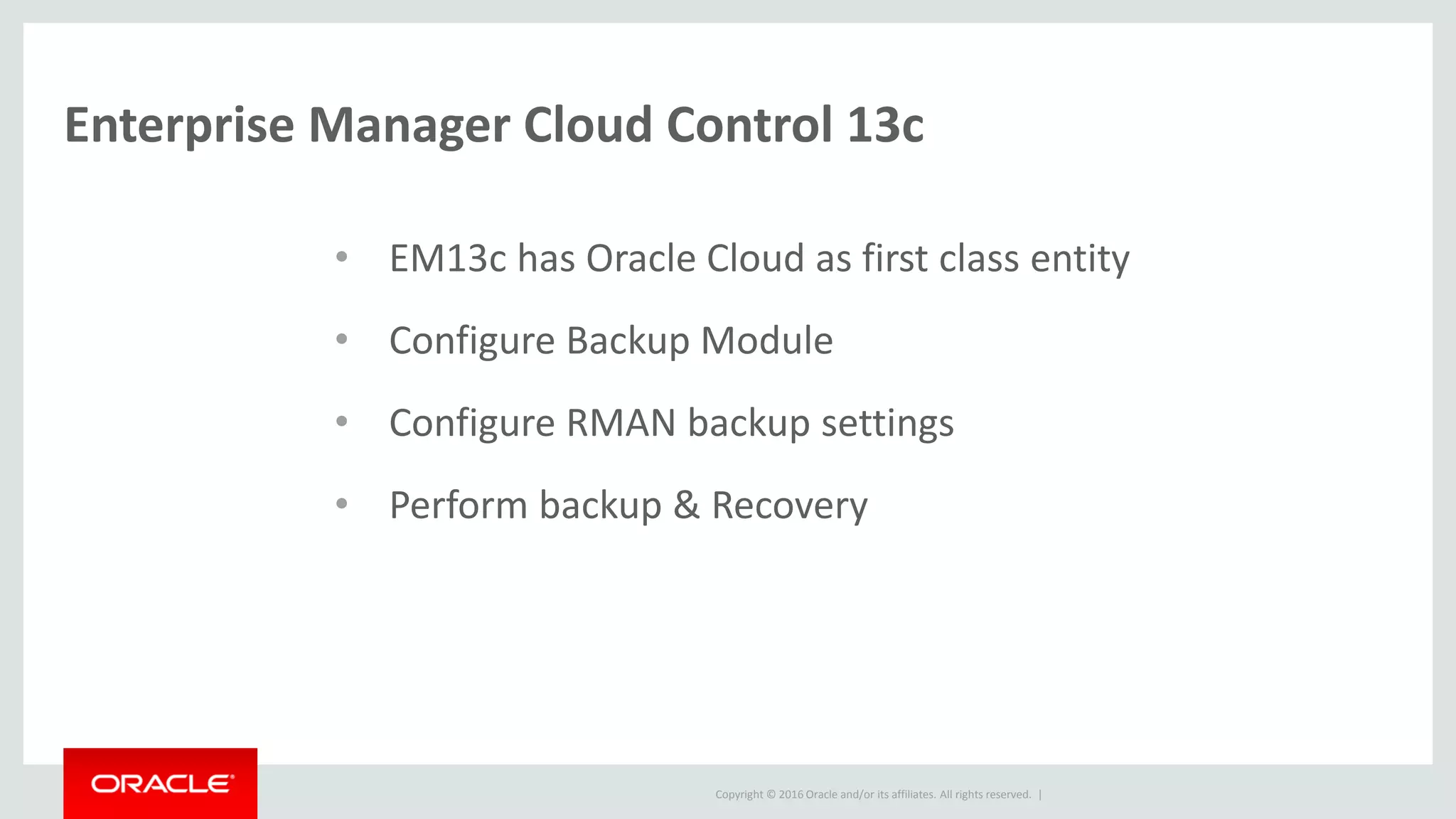

Enterprise Manager Cloud Control 13c
• EM13c has Oracle Cloud as first class entity
• Configure Backup Module
• Configure RMAN backup settings
• Perform backup & Recovery

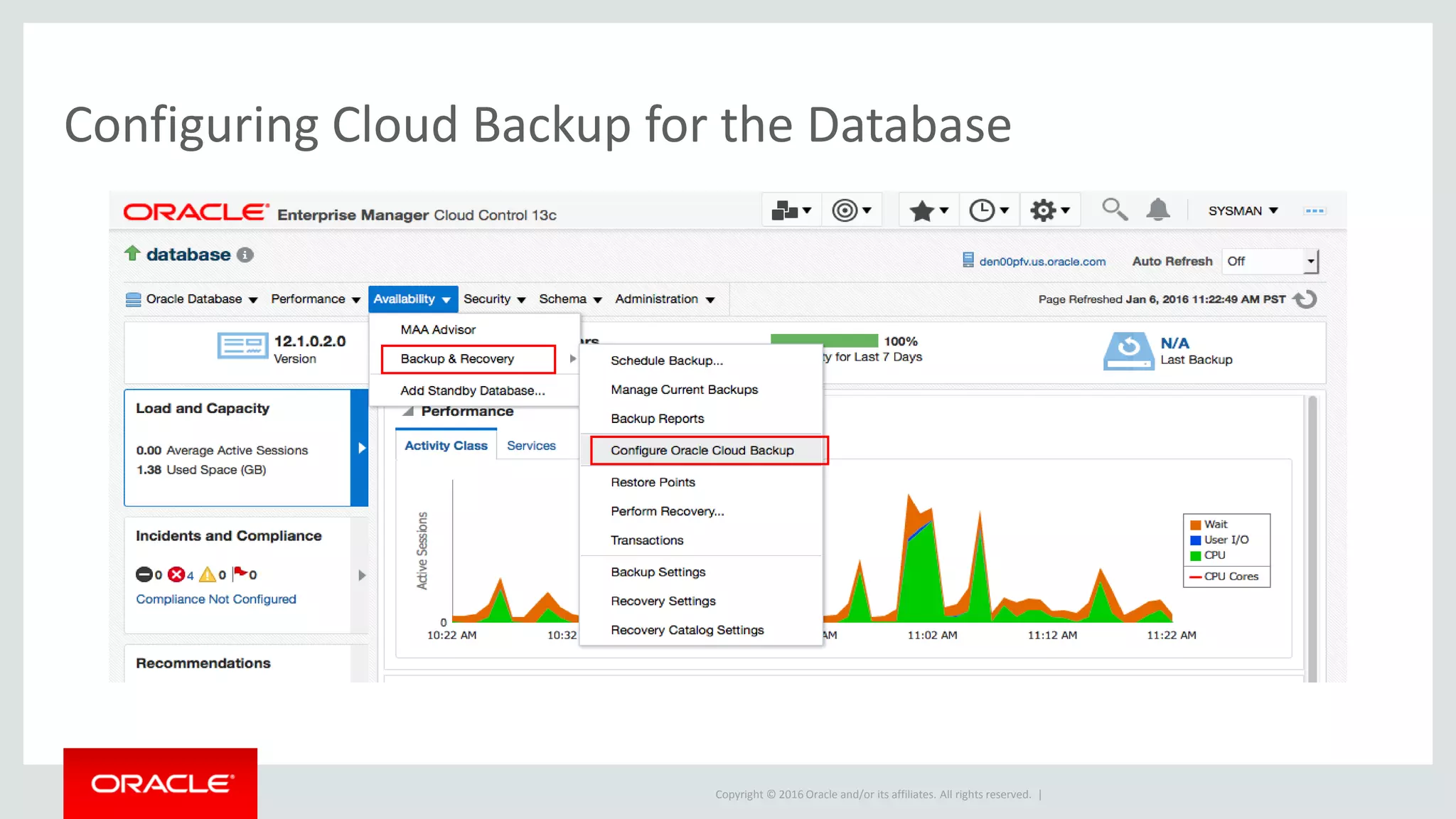

Configuring Cloud Backup for the Database

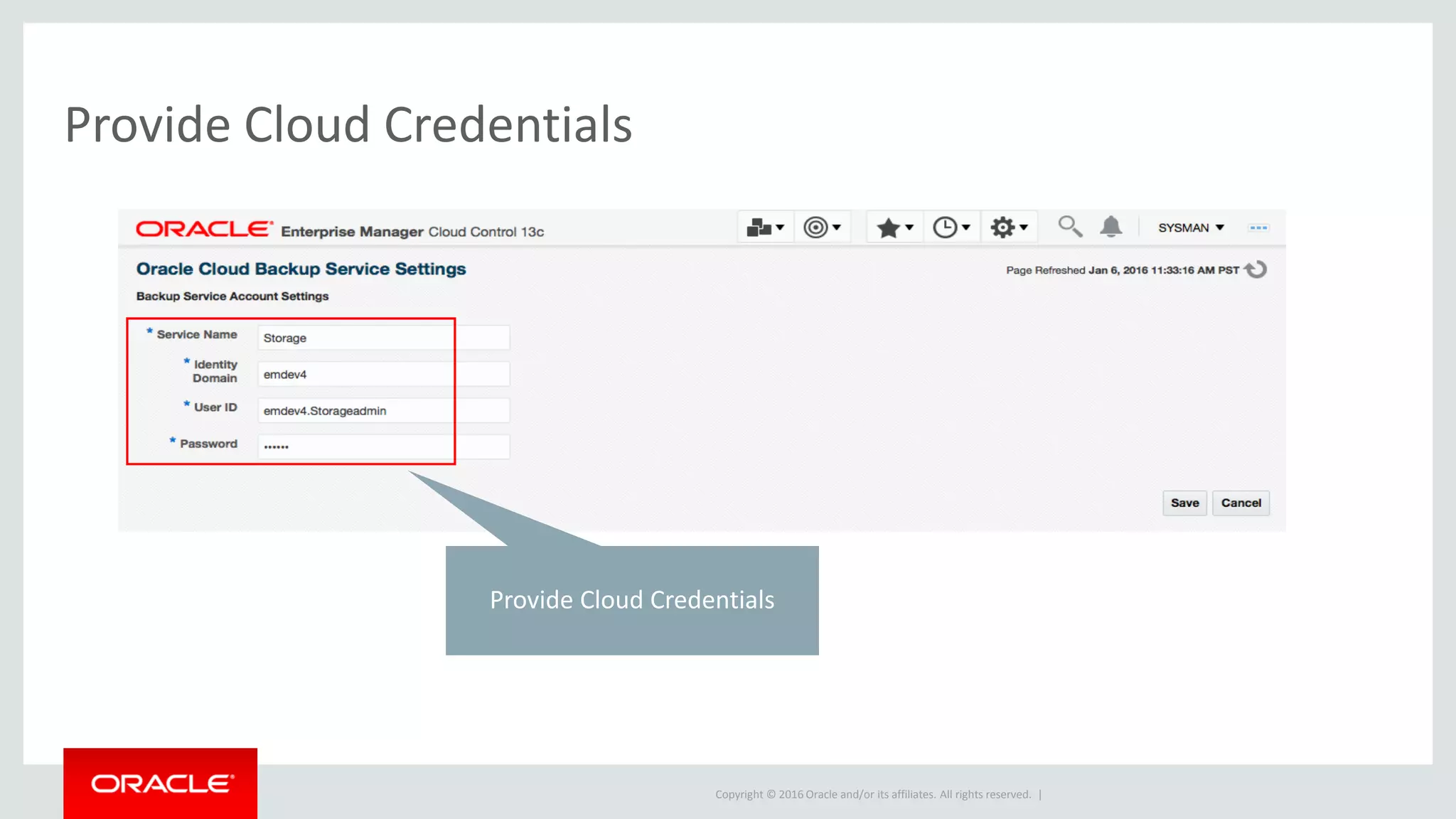

Provide Cloud Credentials
Provide Cloud Credentials

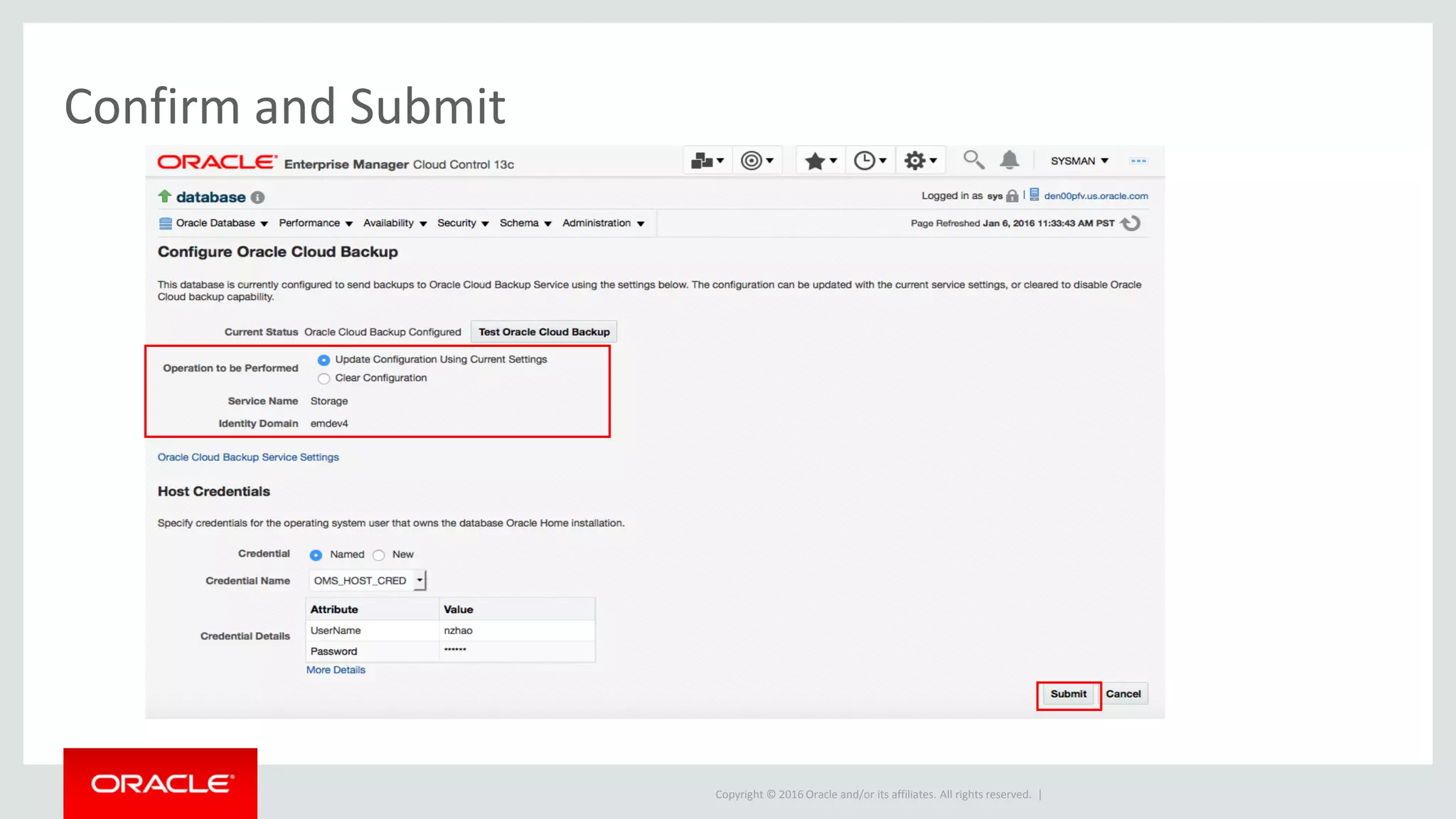

Confirm and Submit

Backup Settings: Choose Customized Option

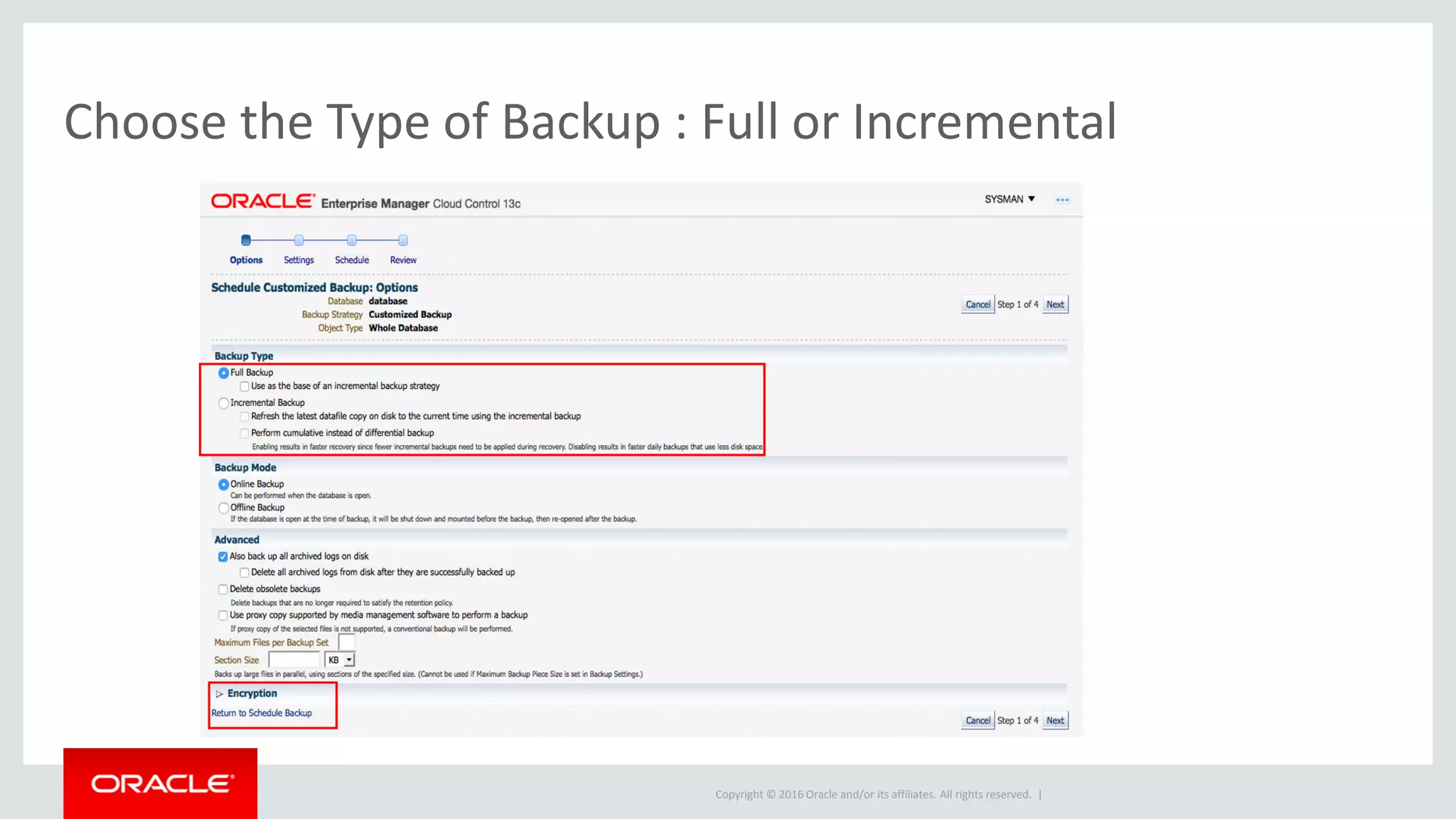

Choose the Type of Backup : Full or Incremental

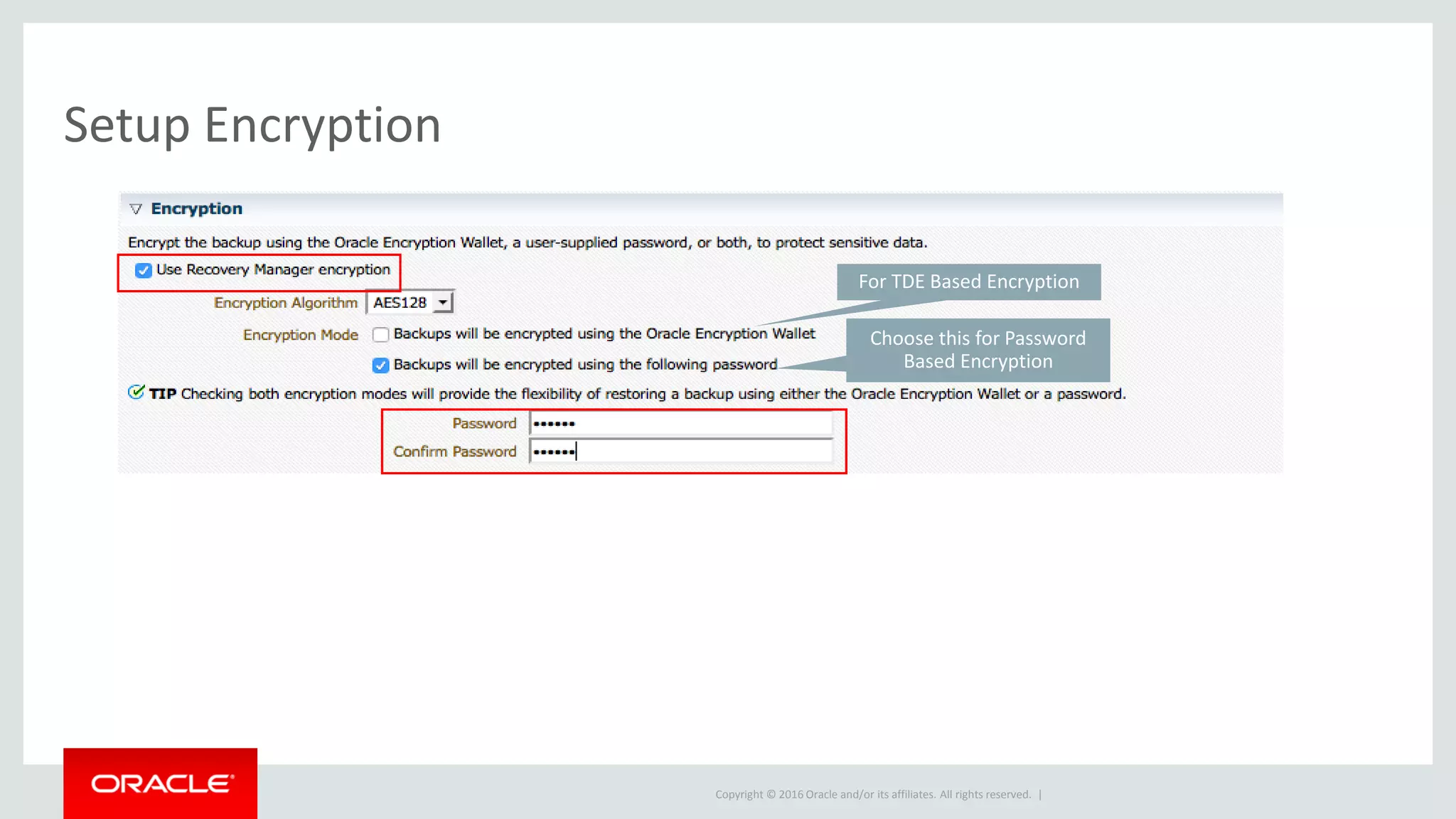

Setup Encryption
Choose this for Password
Based Encryption
For TDE Based Encryption

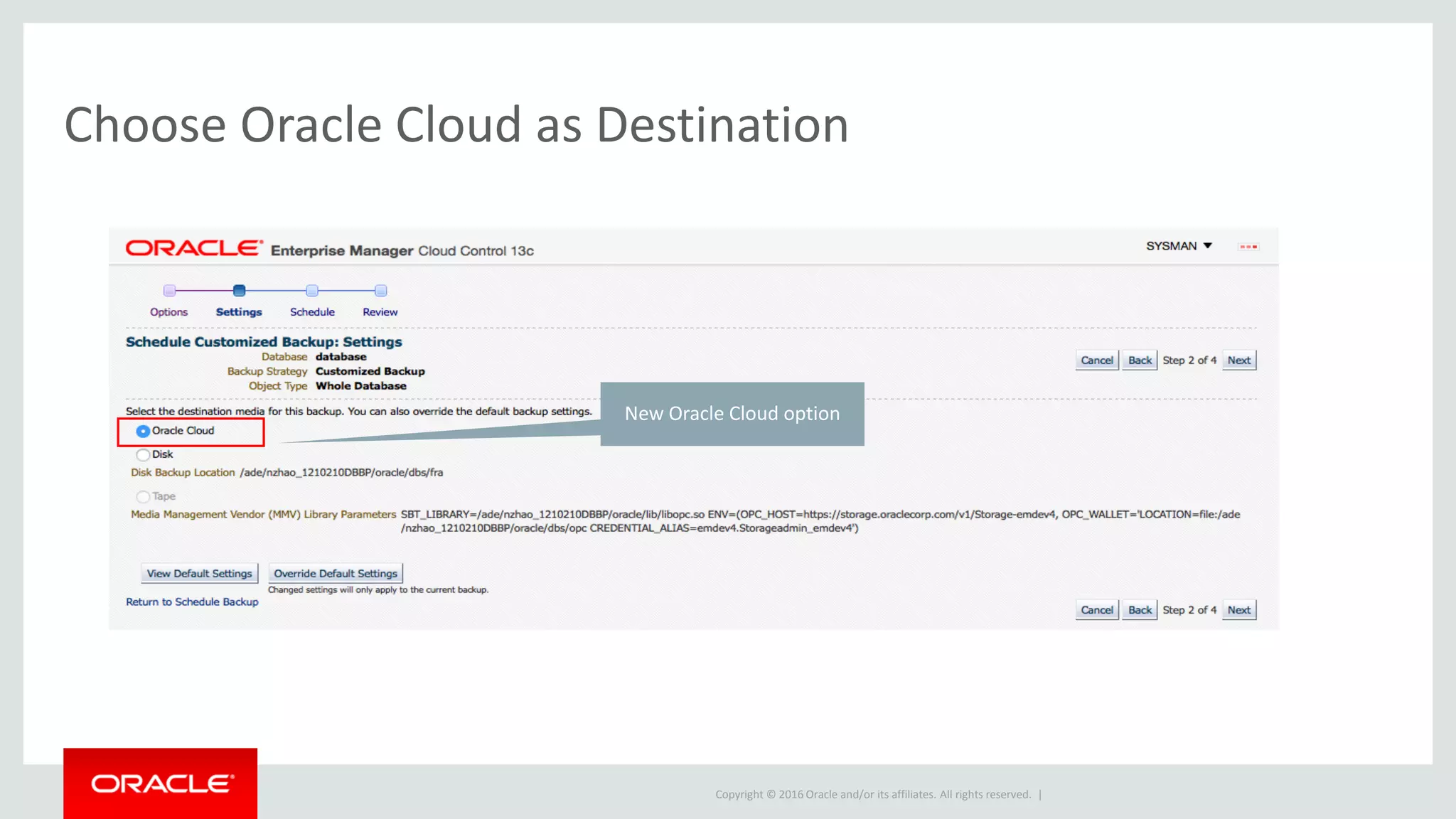

Choose Oracle Cloud as Destination
New Oracle Cloud option

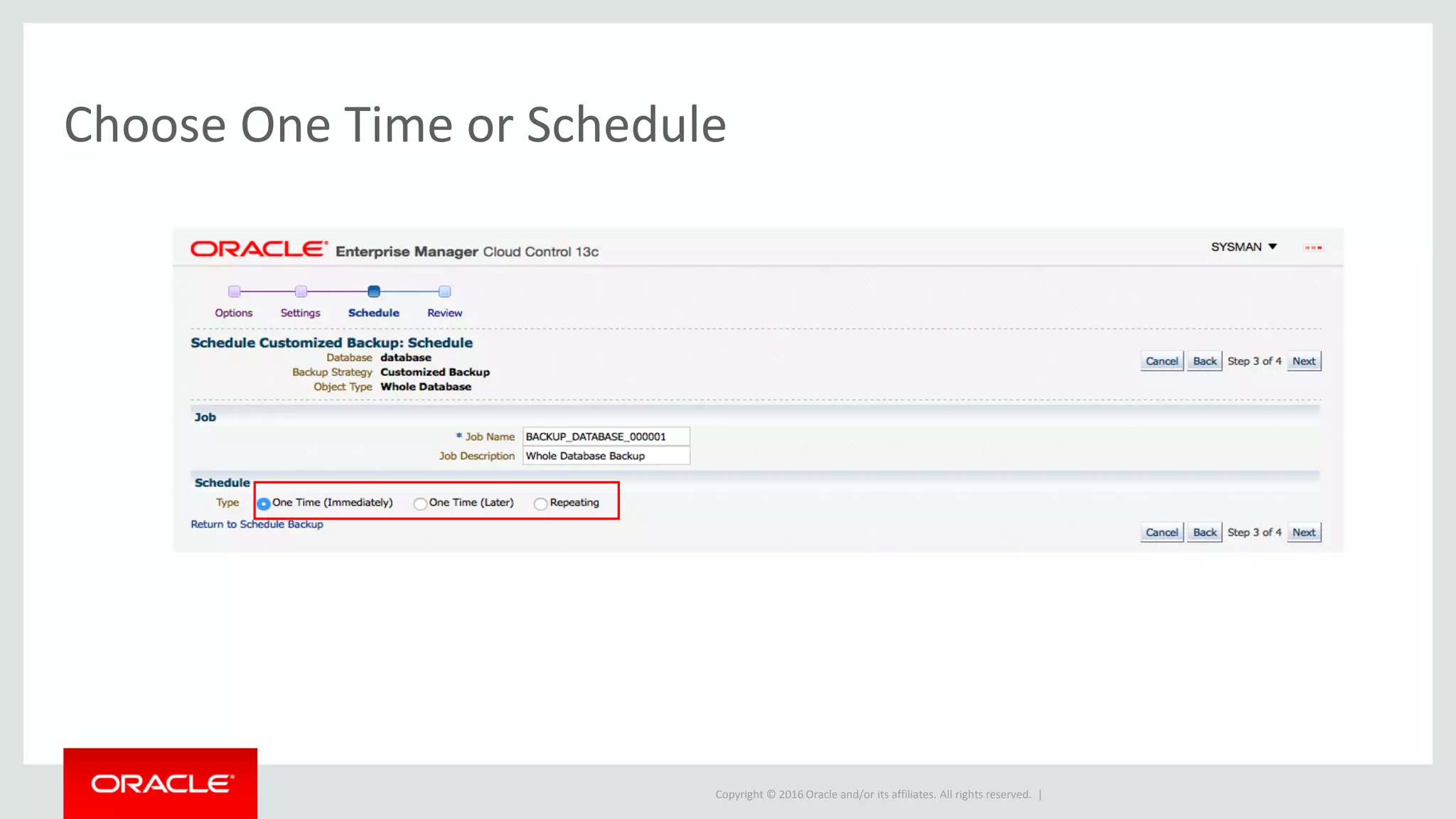

Choose One Time or Schedule

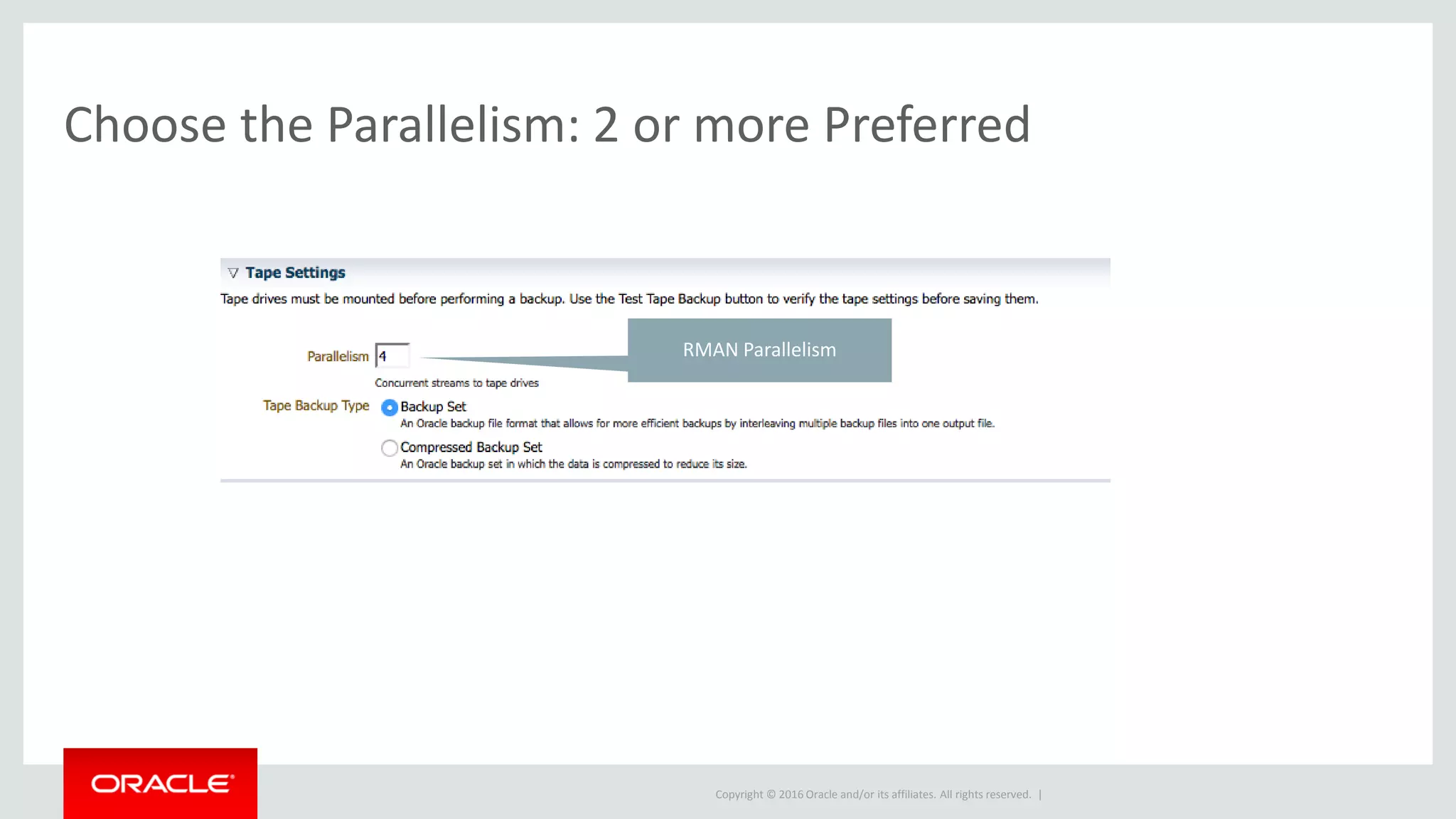

Choose the Parallelism: 2 or more Preferred
RMAN Parallelism

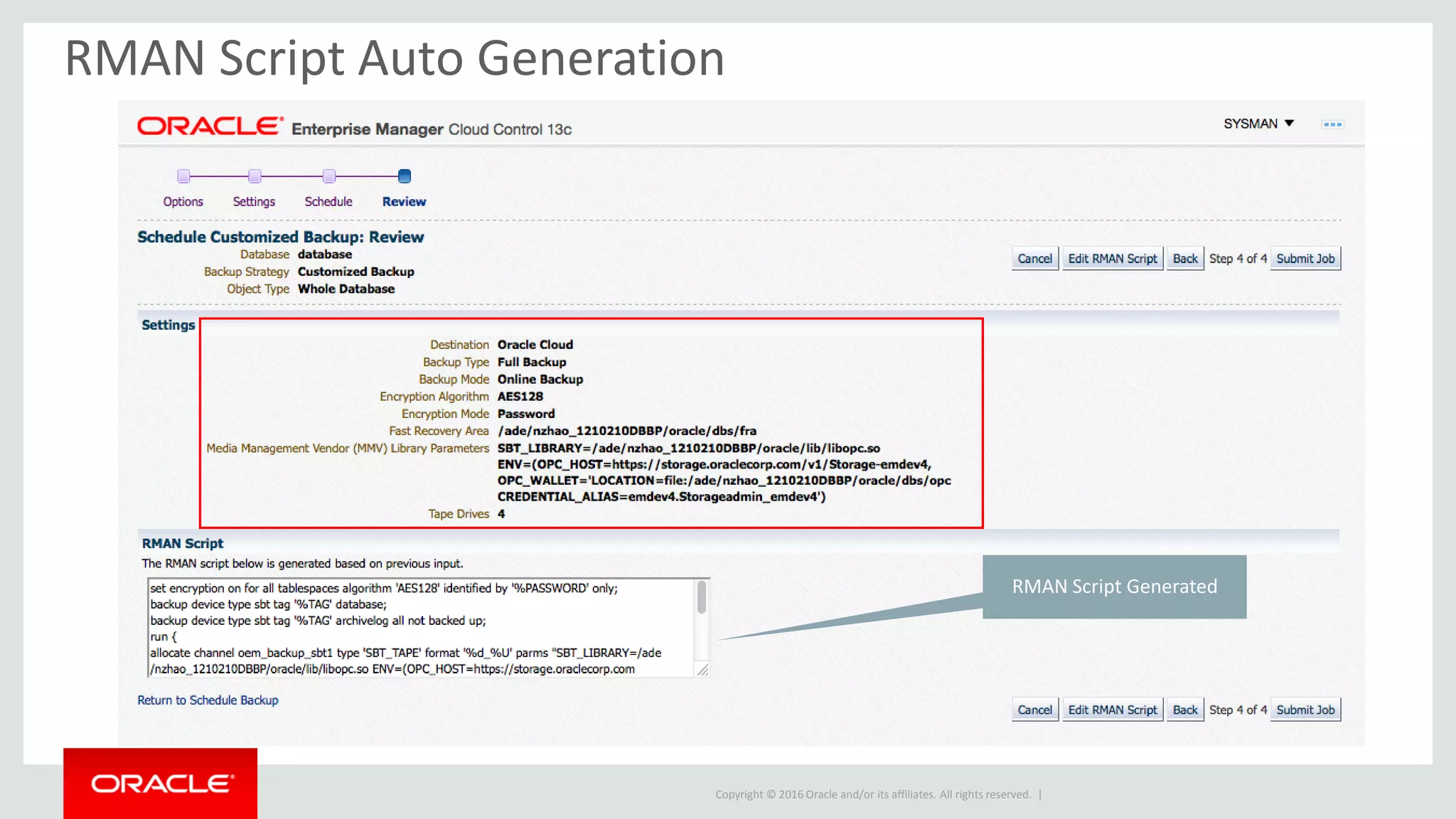

RMAN Script Auto Generation
RMAN Script Generated

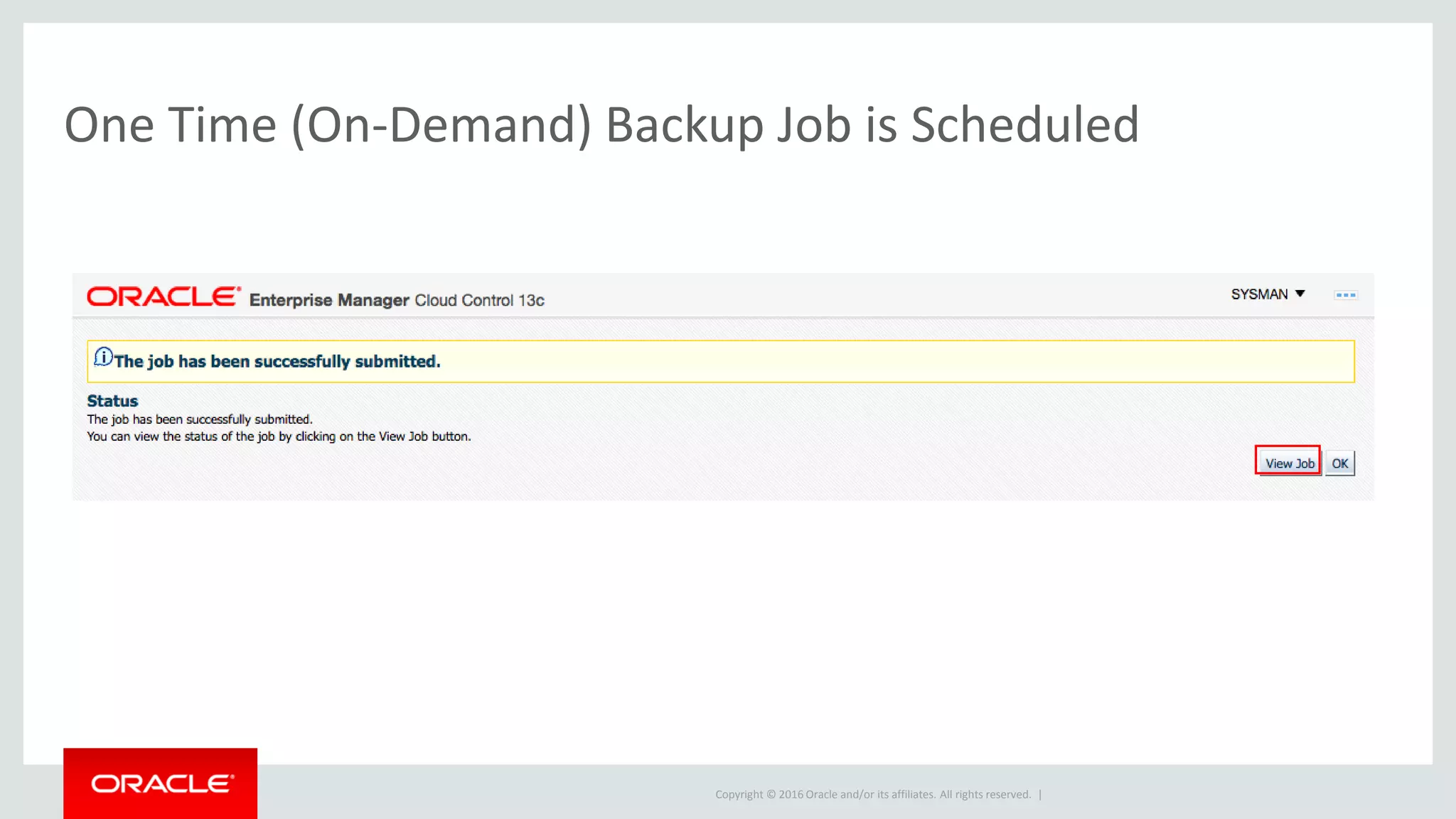

One Time (On-Demand) Backup Job is Scheduled

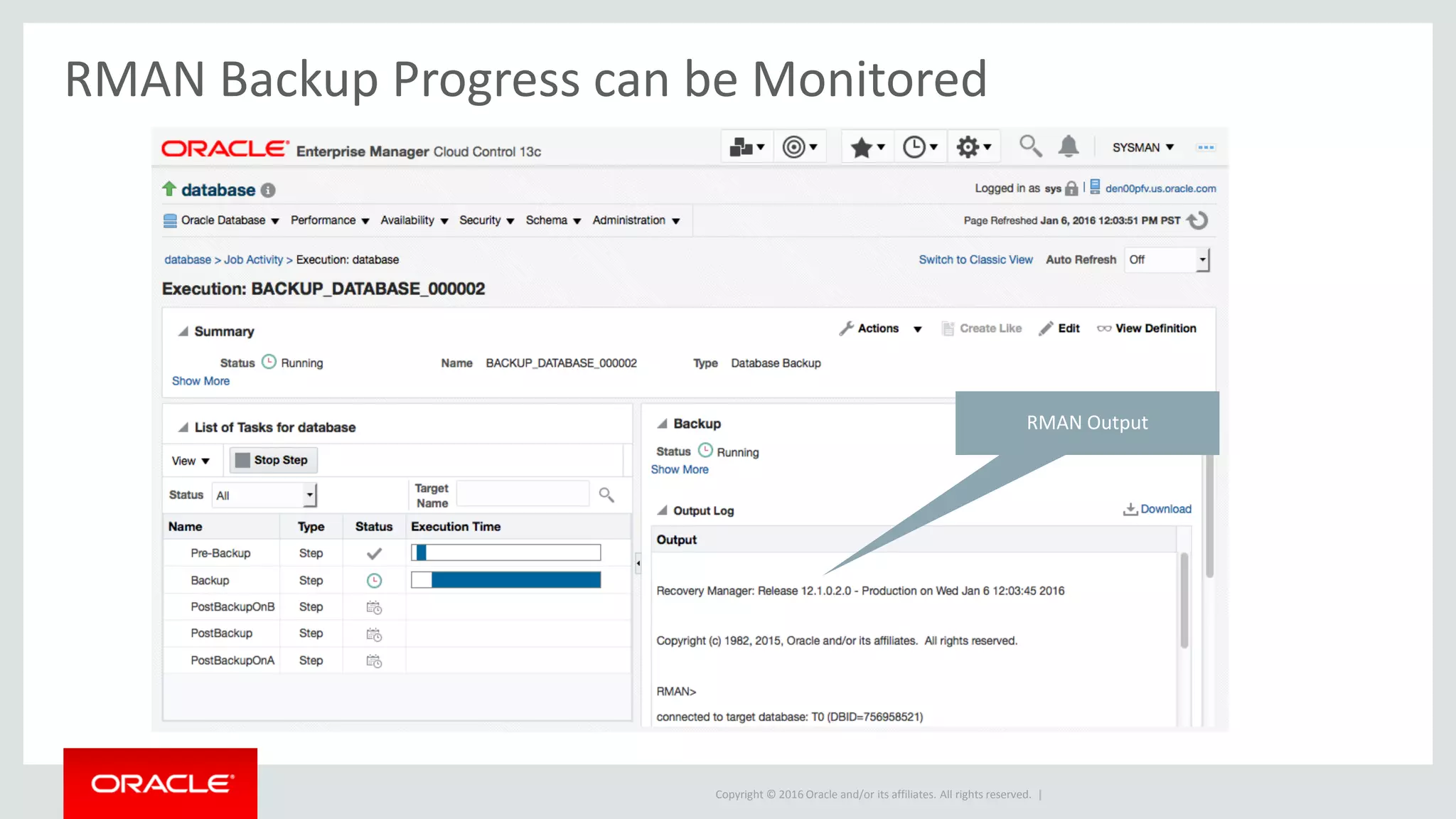

RMAN Backup Progress can be Monitored
RMAN Output

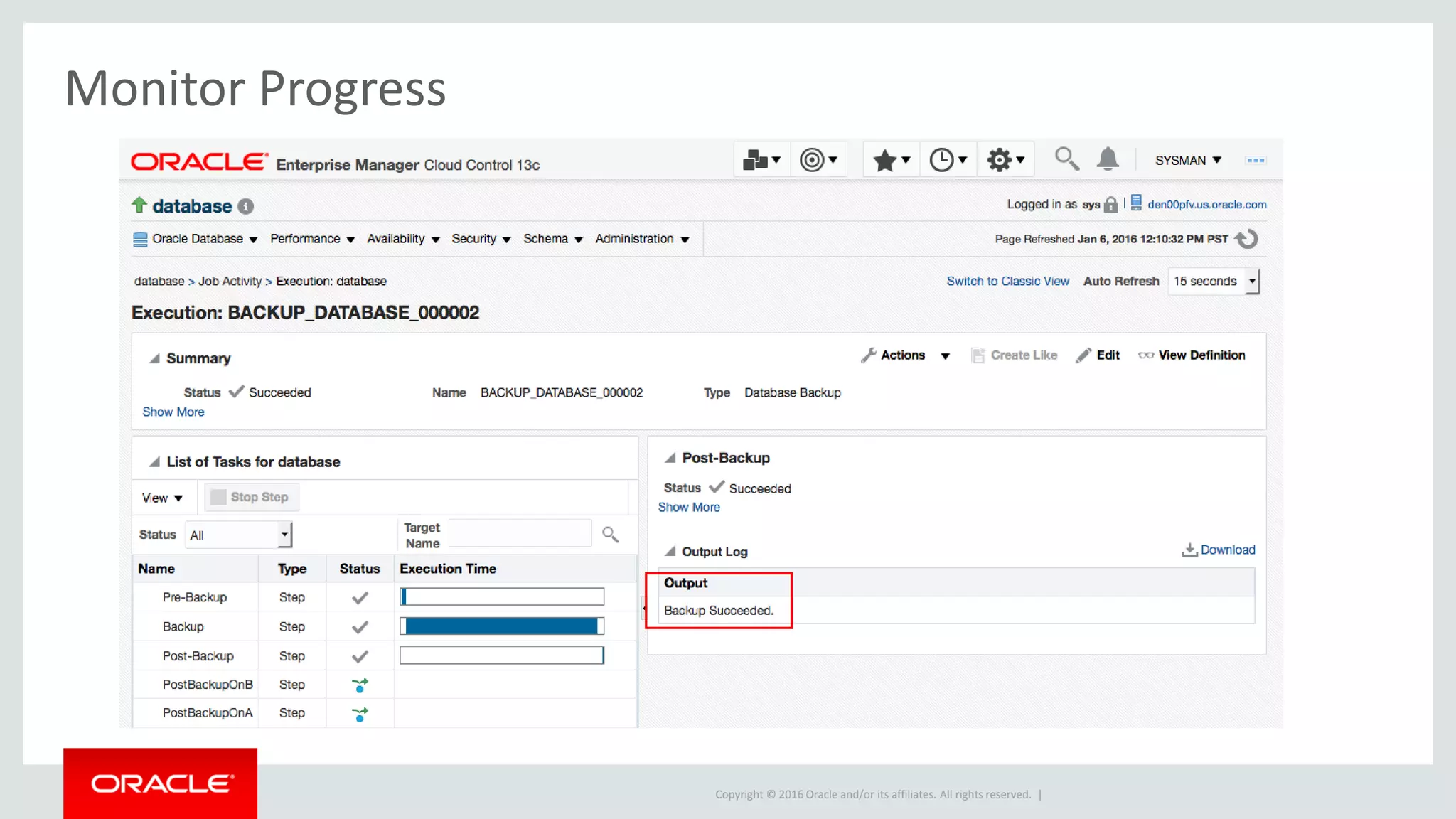

Monitor Progress

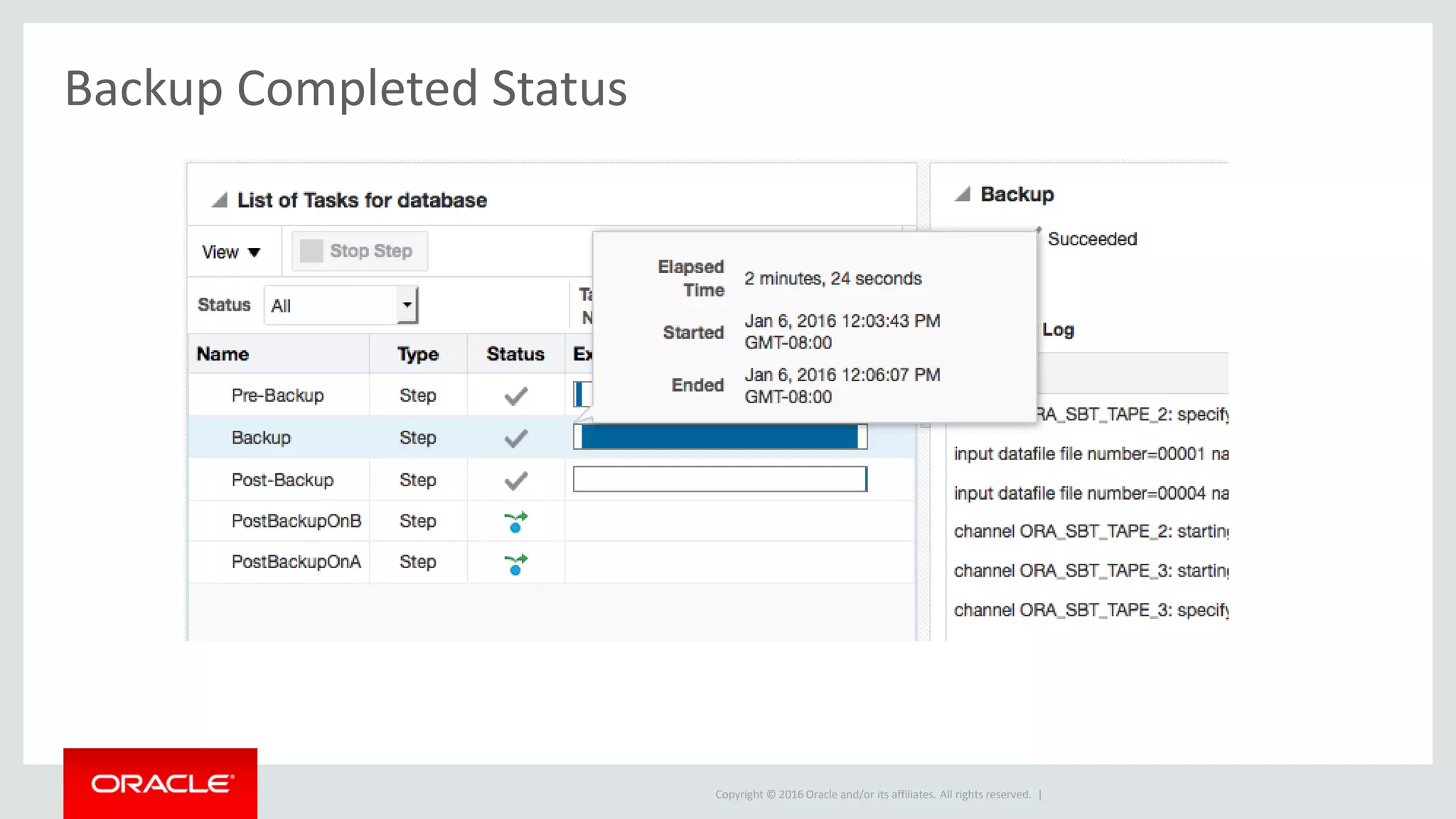

Backup Completed Status

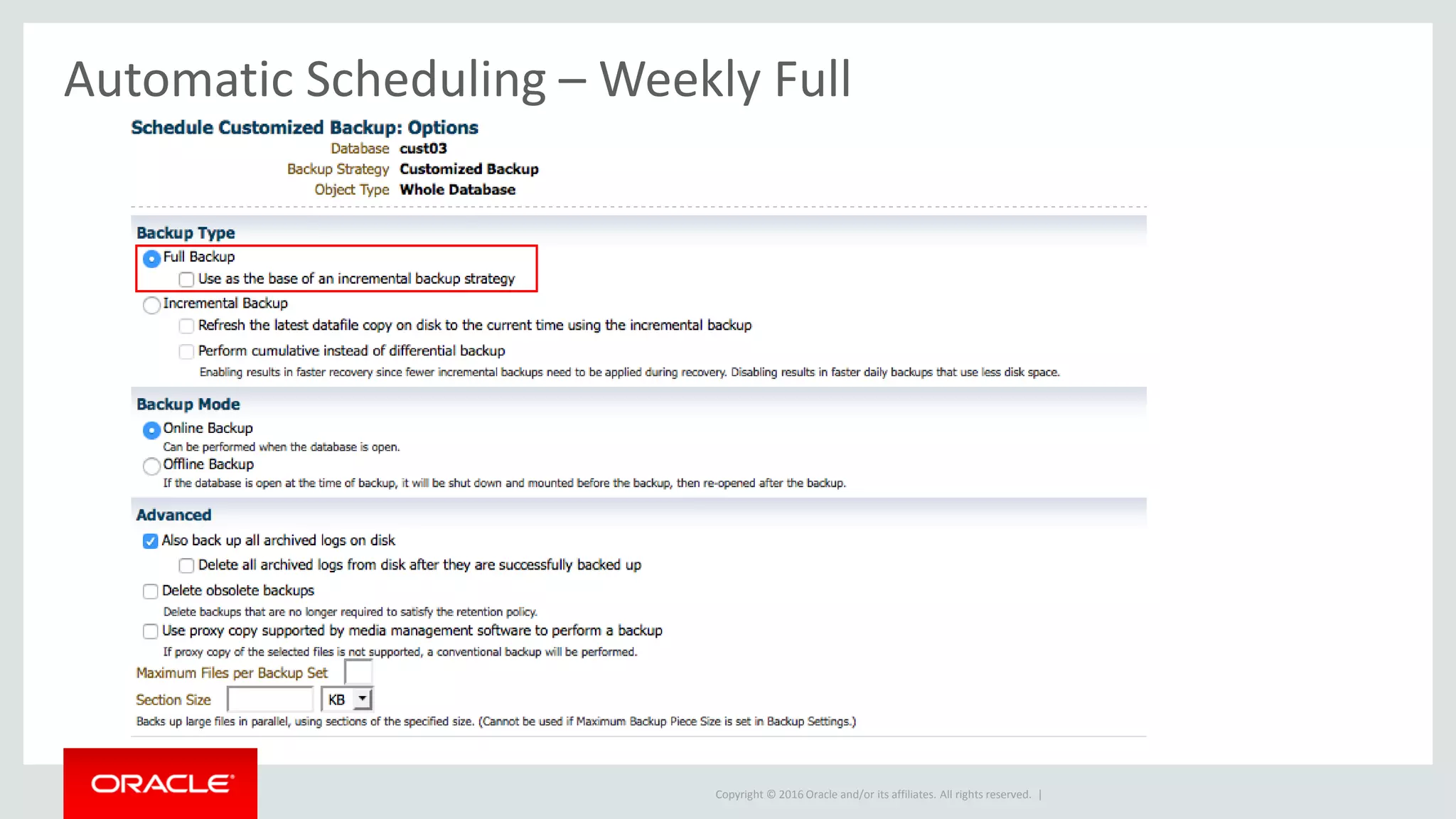

Automatic Scheduling – Weekly Full

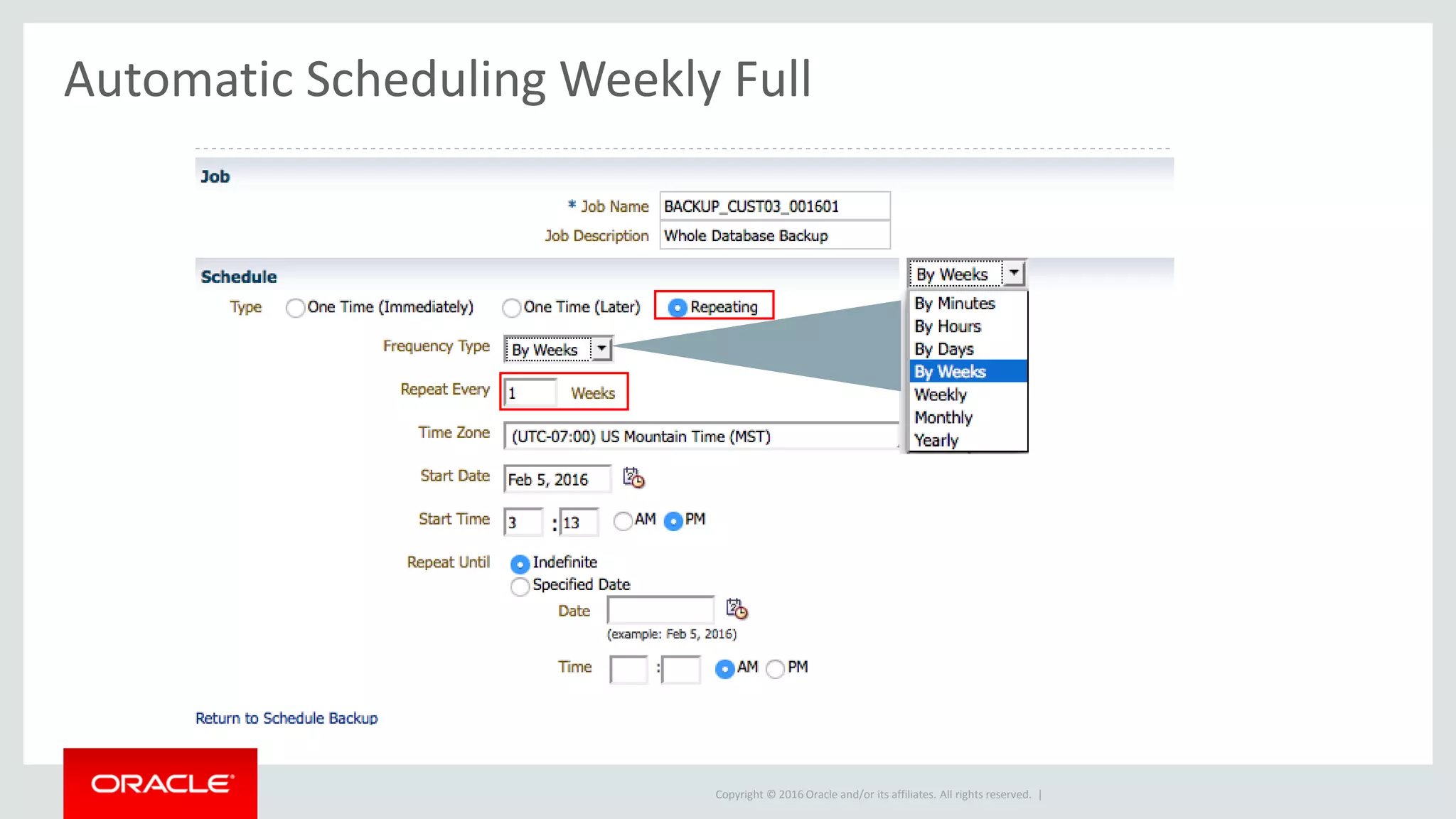

Automatic Scheduling Weekly Full

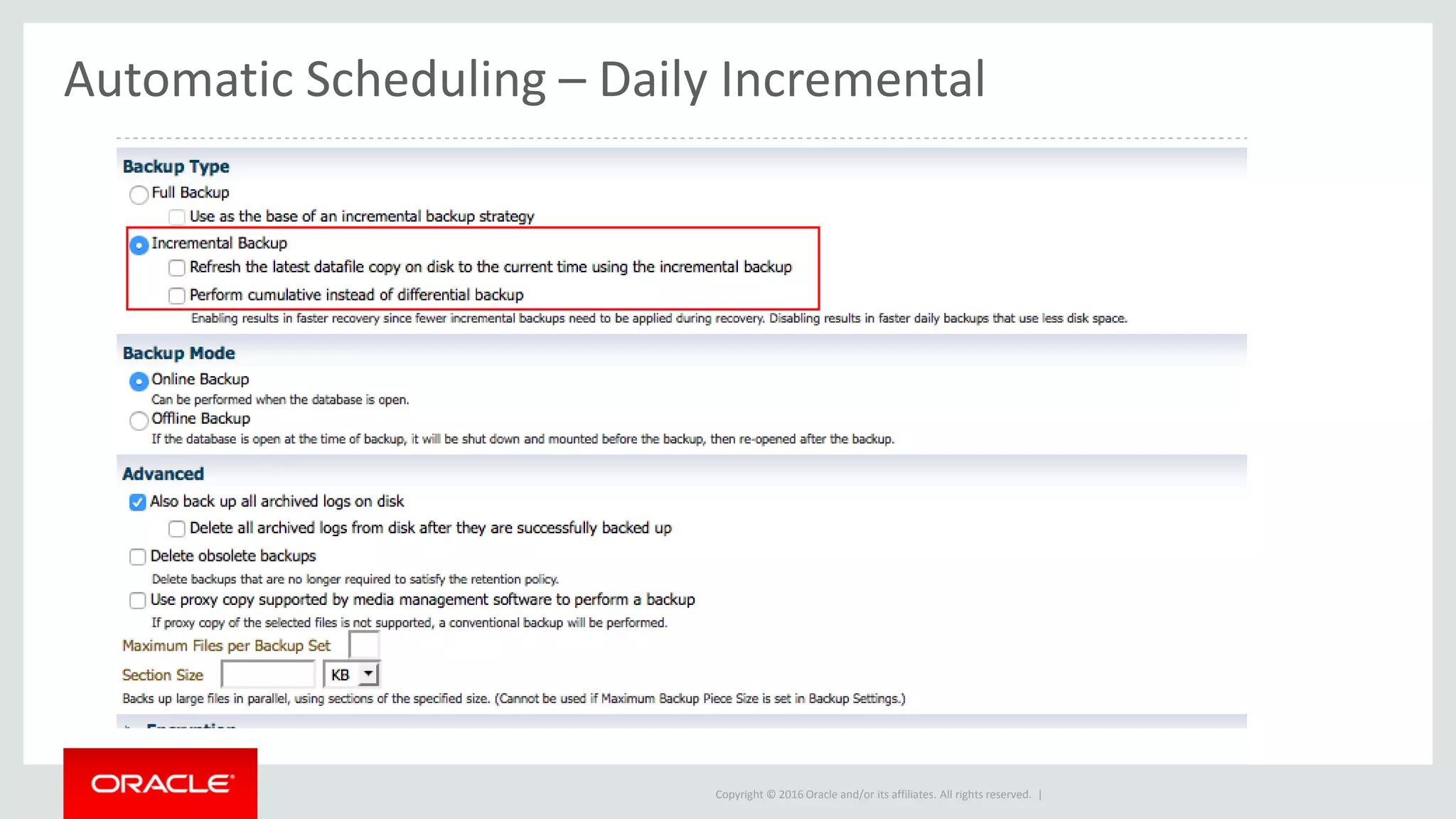

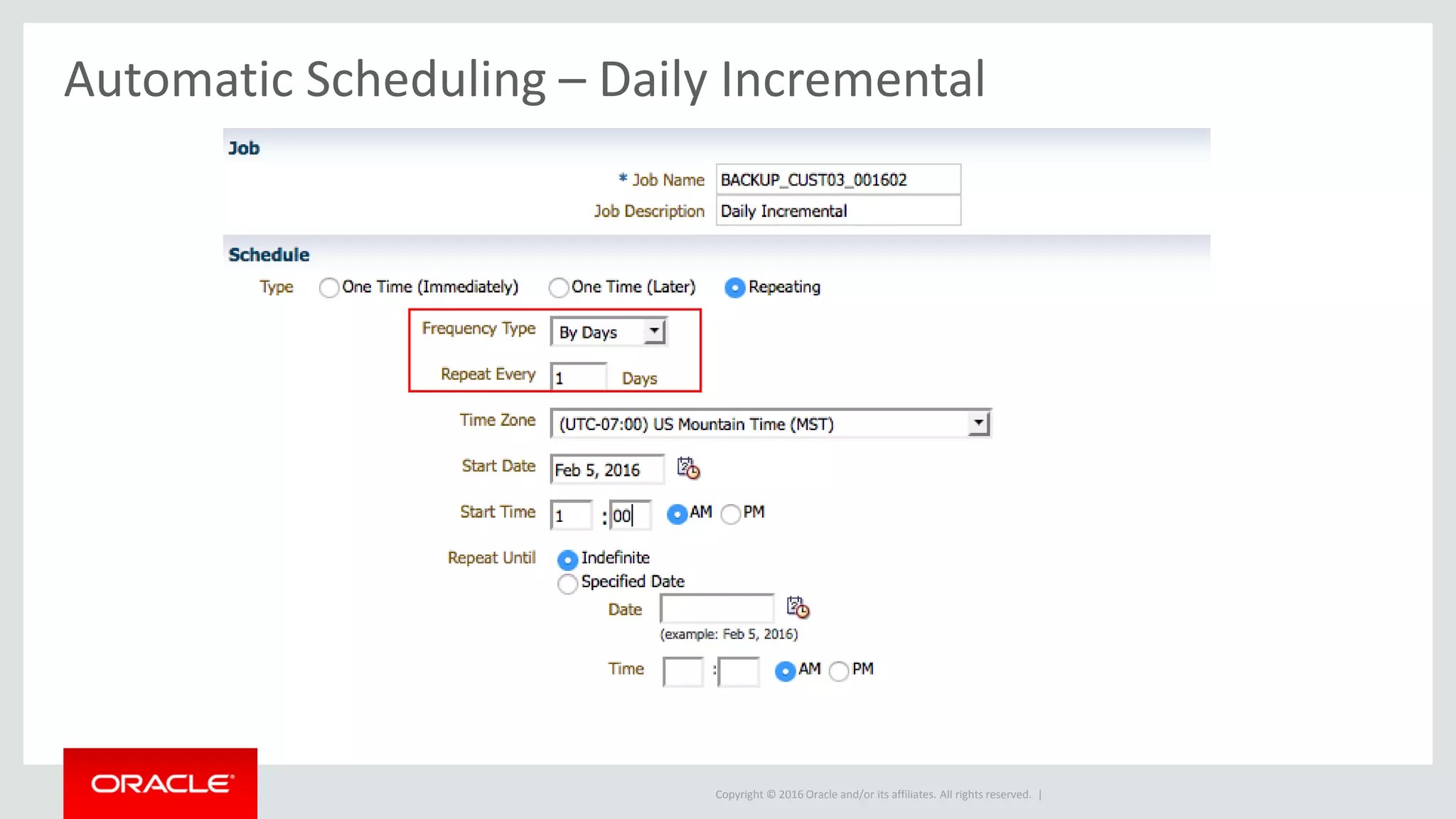

Automatic Scheduling – Daily Incremental

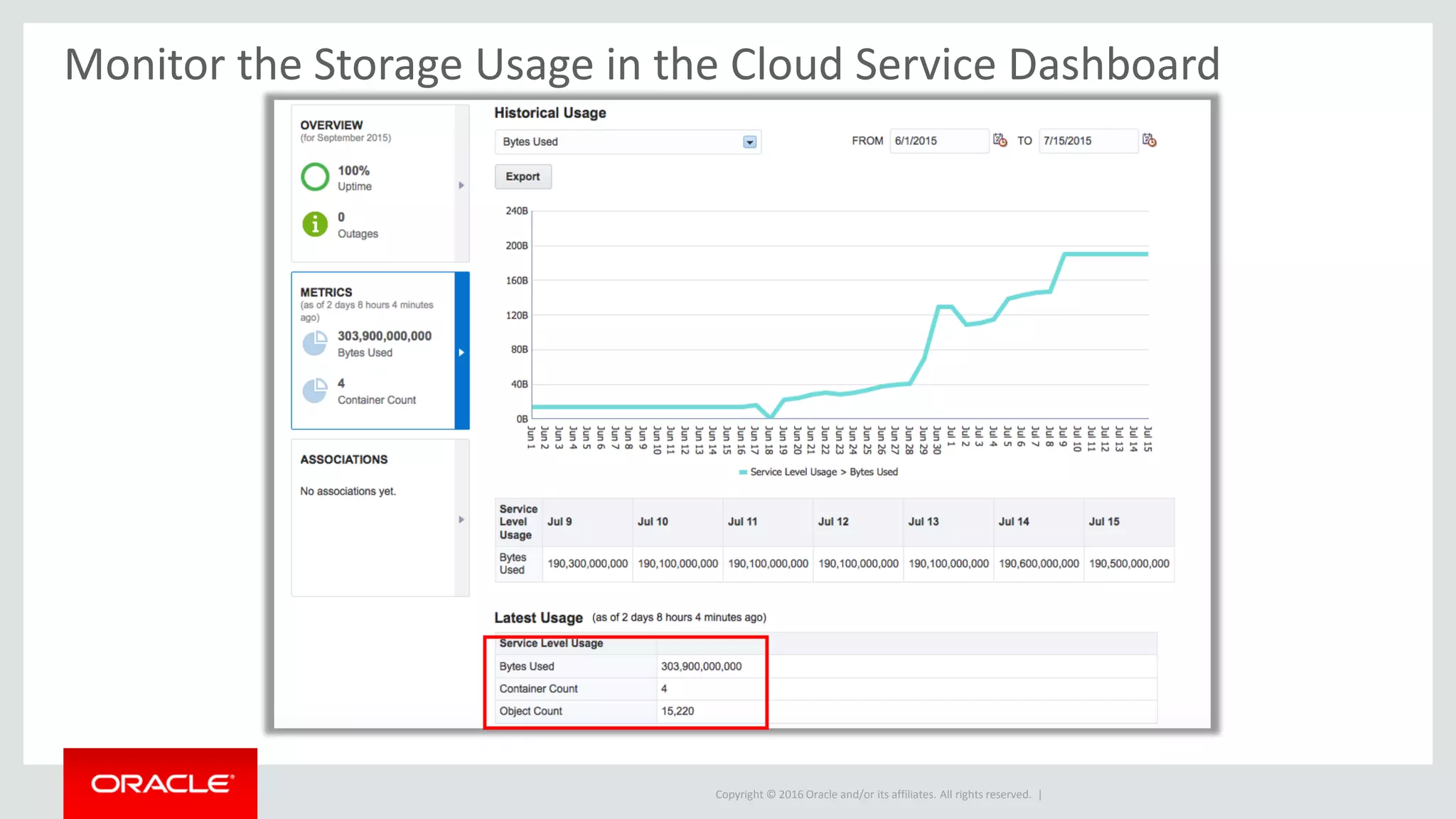

Monitor the Storage Usage in the Cloud Service Dashboard

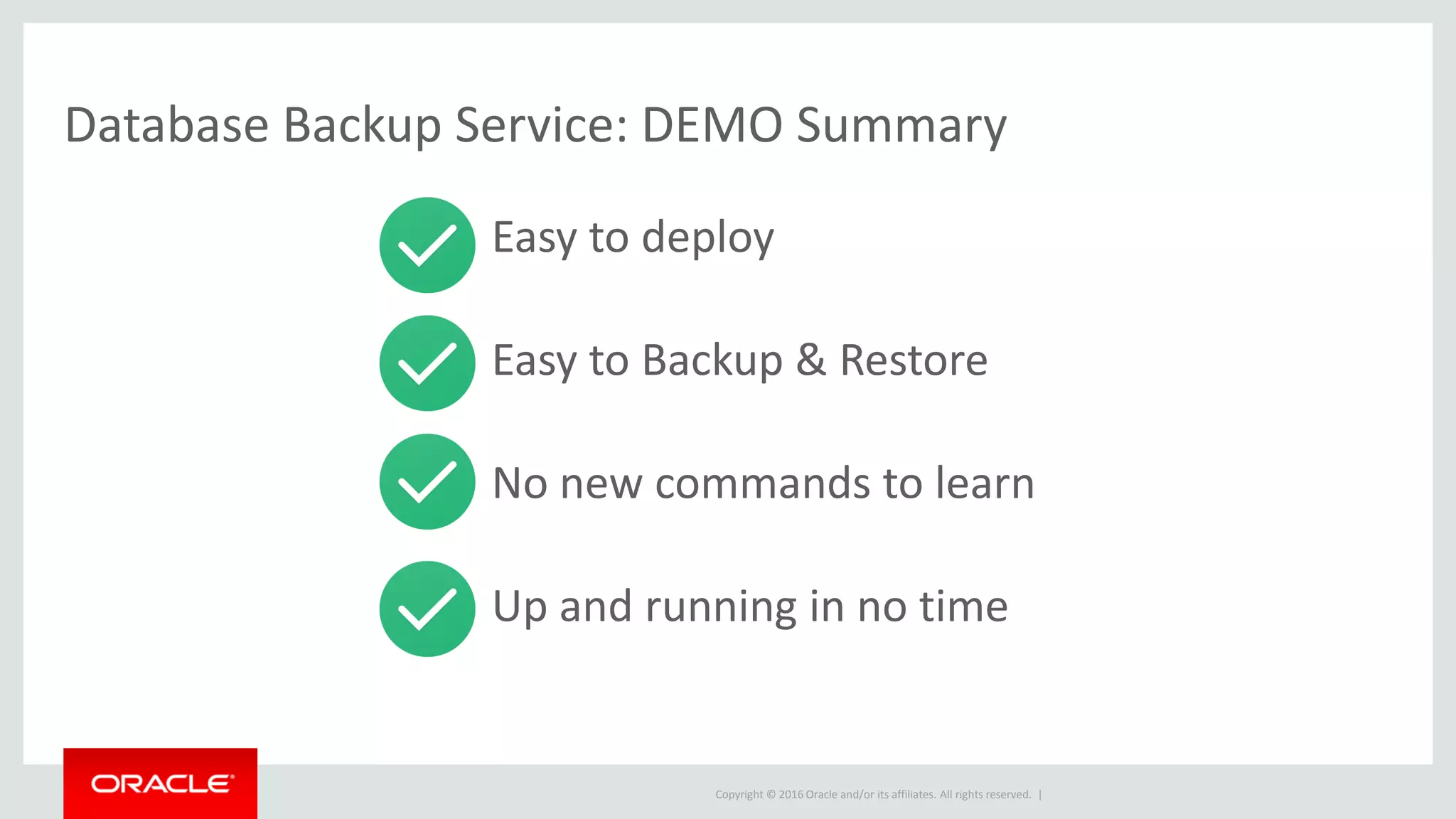

Database Backup Service: DEMO Summary
Easy to deploy
Easy to Backup & Restore
No new commands to learn
Up and running in no time
