Cloning 2

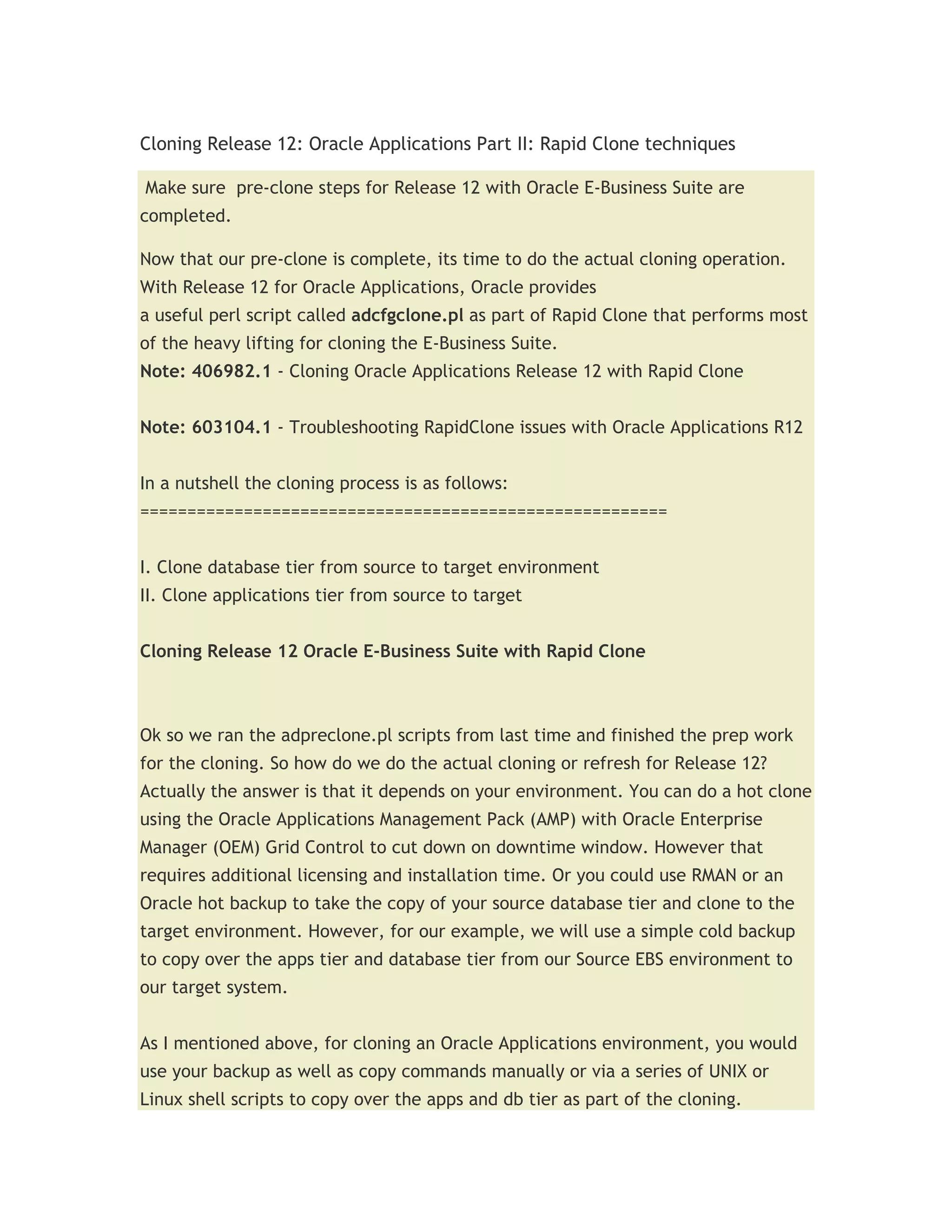

Cloning Release 12: Oracle Applications Part II: Rapid Clone techniques

Make sure pre-clone steps for Release 12 with Oracle E-Business Suite are
completed.

Now that our pre-clone is complete, its time to do the actual cloning operation.
With Release 12 for Oracle Applications, Oracle provides
a useful perl script called adcfgclone.pl as part of Rapid Clone that performs most
of the heavy lifting for cloning the E-Business Suite.
Note: 406982.1 - Cloning Oracle Applications Release 12 with Rapid Clone

Note: 603104.1 - Troubleshooting RapidClone issues with Oracle Applications R12

In a nutshell the cloning process is as follows:
========================================================

I. Clone database tier from source to target environment
II. Clone applications tier from source to target

Cloning Release 12 Oracle E-Business Suite with Rapid Clone

Ok so we ran the adpreclone.pl scripts from last time and finished the prep work
for the cloning. So how do we do the actual cloning or refresh for Release 12?
Actually the answer is that it depends on your environment. You can do a hot clone
using the Oracle Applications Management Pack (AMP) with Oracle Enterprise
Manager (OEM) Grid Control to cut down on downtime window. However that
requires additional licensing and installation time. Or you could use RMAN or an
Oracle hot backup to take the copy of your source database tier and clone to the
target environment. However, for our example, we will use a simple cold backup
to copy over the apps tier and database tier from our Source EBS environment to
our target system.

As I mentioned above, for cloning an Oracle Applications environment, you would
use your backup as well as copy commands manually or via a series of UNIX or
Linux shell scripts to copy over the apps and db tier as part of the cloning.

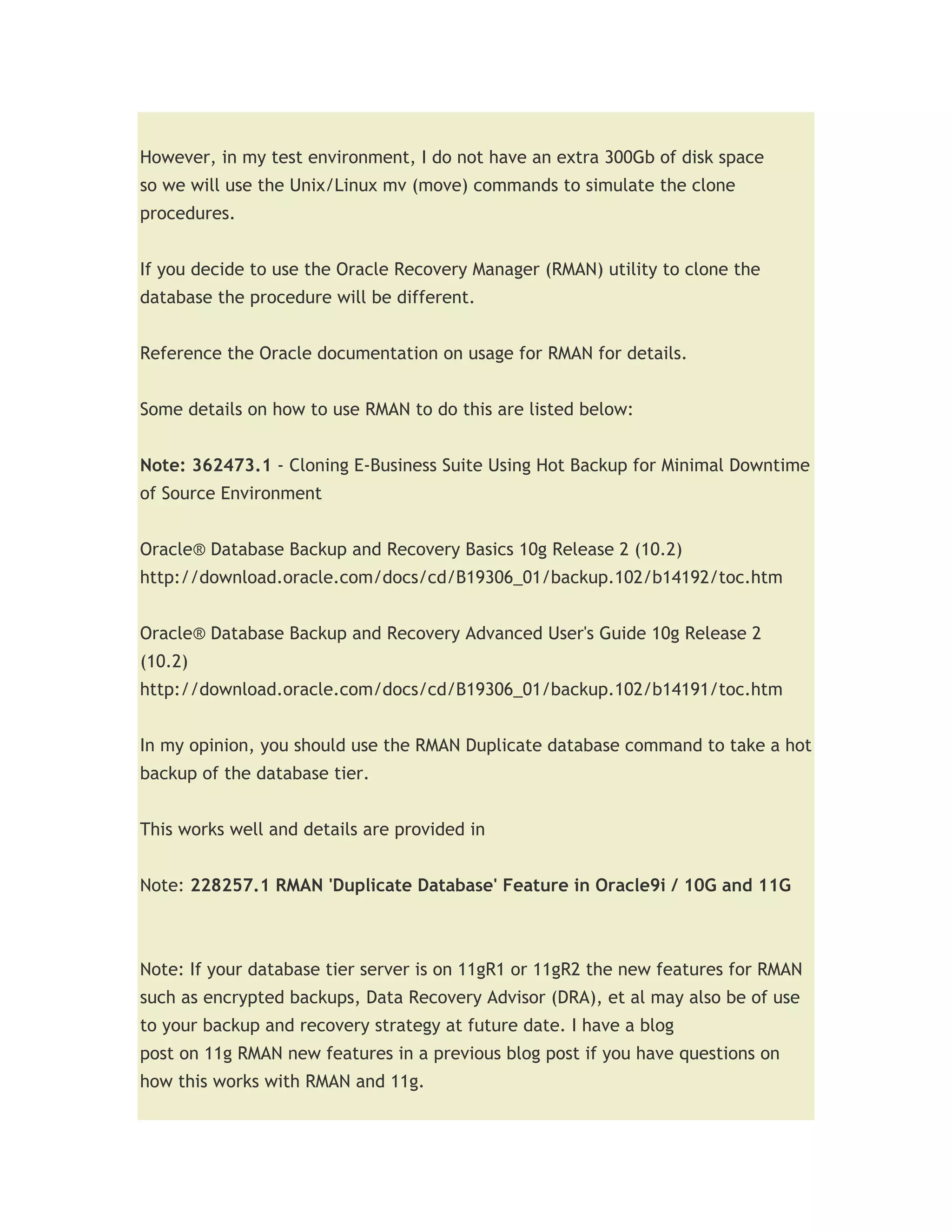

However, in my test environment, I do not have an extra 300Gb of disk space
so we will use the Unix/Linux mv (move) commands to simulate the clone
procedures.

If you decide to use the Oracle Recovery Manager (RMAN) utility to clone the
database the procedure will be different.

Reference the Oracle documentation on usage for RMAN for details.

Some details on how to use RMAN to do this are listed below:

Note: 362473.1 - Cloning E-Business Suite Using Hot Backup for Minimal Downtime
of Source Environment

Oracle® Database Backup and Recovery Basics 10g Release 2 (10.2)
http://download.oracle.com/docs/cd/B19306_01/backup.102/b14192/toc.htm

Oracle® Database Backup and Recovery Advanced User's Guide 10g Release 2
(10.2)
http://download.oracle.com/docs/cd/B19306_01/backup.102/b14191/toc.htm

In my opinion, you should use the RMAN Duplicate database command to take a hot
backup of the database tier.

This works well and details are provided in

Note: 228257.1 RMAN 'Duplicate Database' Feature in Oracle9i / 10G and 11G

Note: If your database tier server is on 11gR1 or 11gR2 the new features for RMAN
such as encrypted backups, Data Recovery Advisor (DRA), et al may also be of use
to your backup and recovery strategy at future date. I have a blog
post on 11g RMAN new features in a previous blog post if you have questions on
how this works with RMAN and 11g.

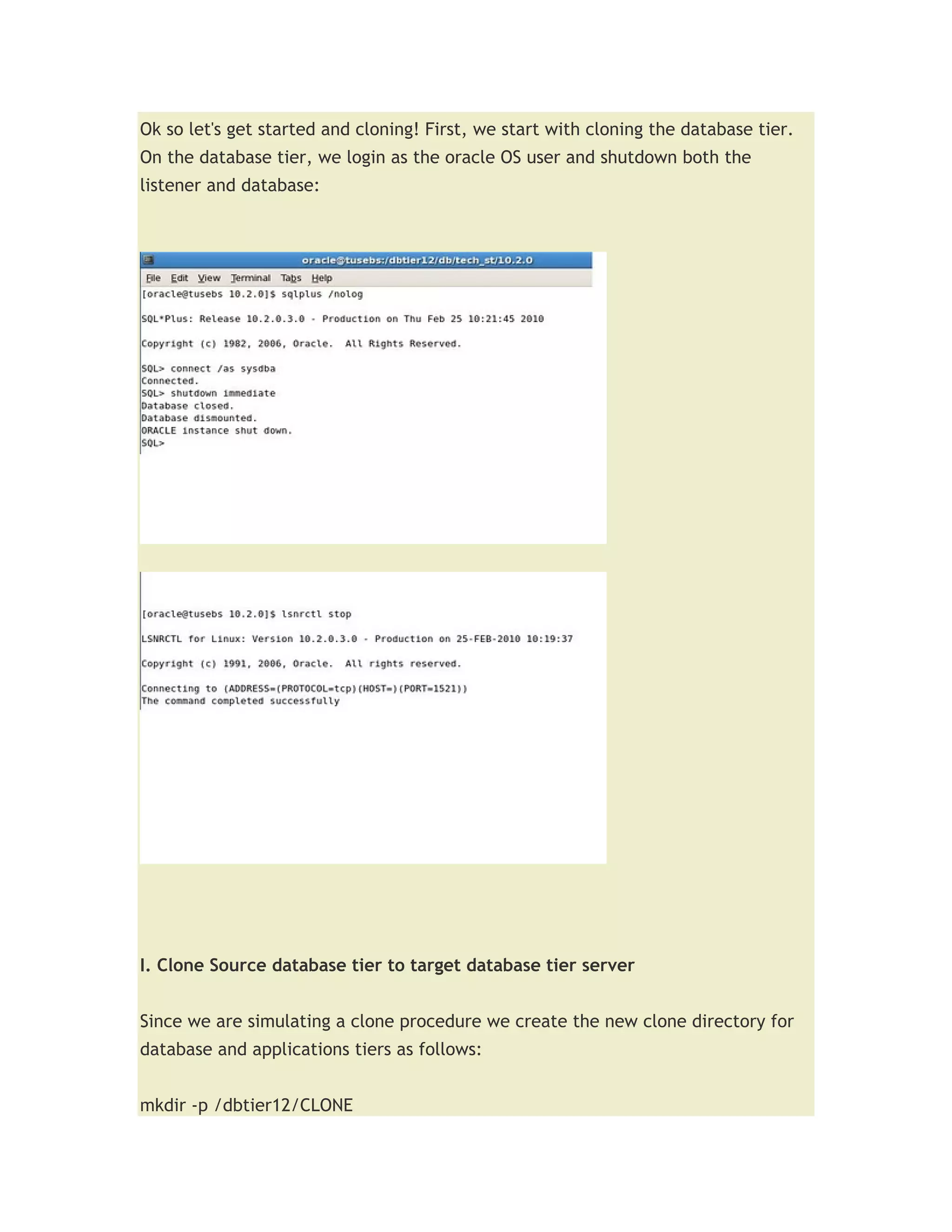

Ok so let's get started and cloning! First, we start with cloning the database tier.
On the database tier, we login as the oracle OS user and shutdown both the
listener and database:

I. Clone Source database tier to target database tier server

Since we are simulating a clone procedure we create the new clone directory for
database and applications tiers as follows:

mkdir -p /dbtier12/CLONE

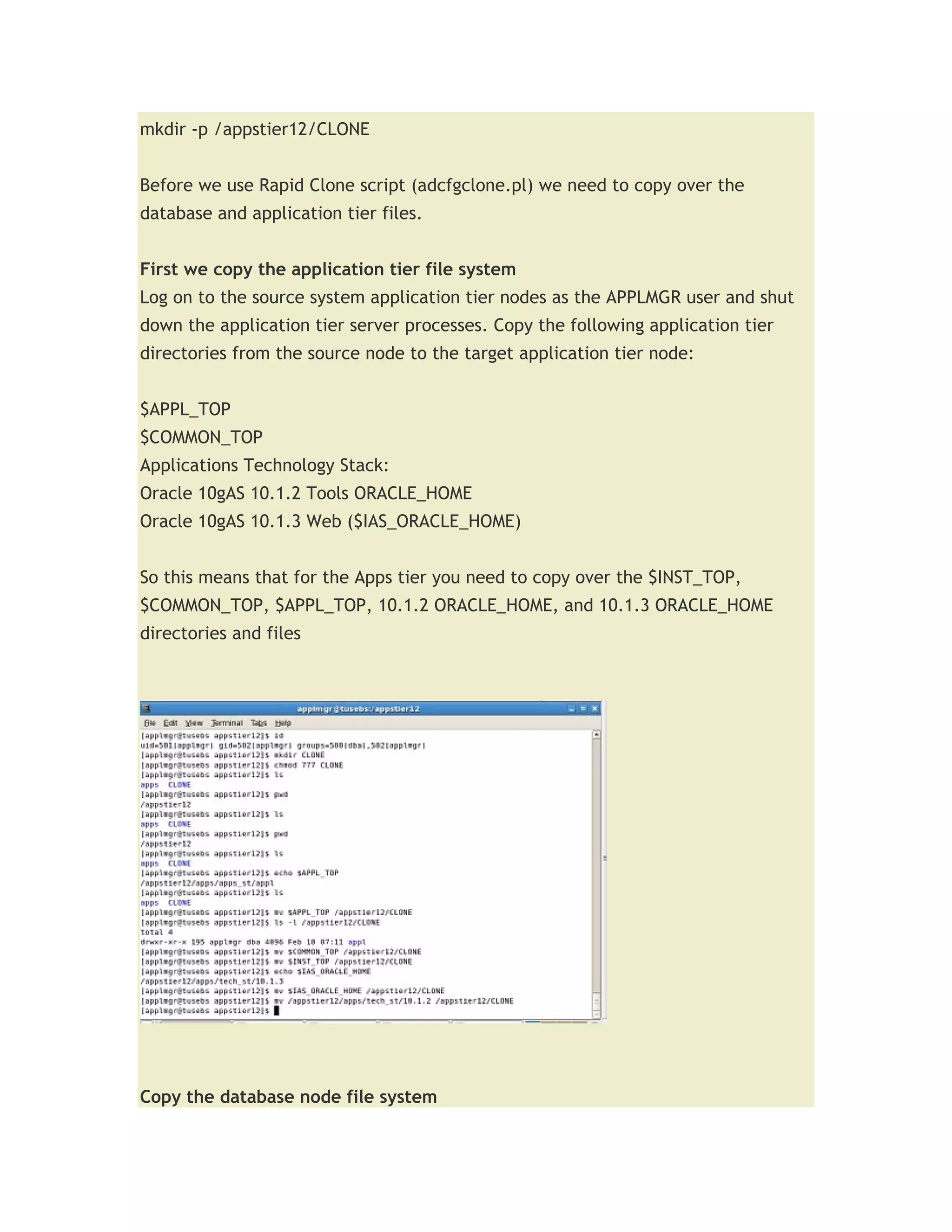

mkdir -p /appstier12/CLONE

Before we use Rapid Clone script (adcfgclone.pl) we need to copy over the
database and application tier files.

First we copy the application tier file system
Log on to the source system application tier nodes as the APPLMGR user and shut
down the application tier server processes. Copy the following application tier
directories from the source node to the target application tier node:

$APPL_TOP
$COMMON_TOP
Applications Technology Stack:
Oracle 10gAS 10.1.2 Tools ORACLE_HOME
Oracle 10gAS 10.1.3 Web ($IAS_ORACLE_HOME)

So this means that for the Apps tier you need to copy over the $INST_TOP,
$COMMON_TOP, $APPL_TOP, 10.1.2 ORACLE_HOME, and 10.1.3 ORACLE_HOME
directories and files

Copy the database node file system

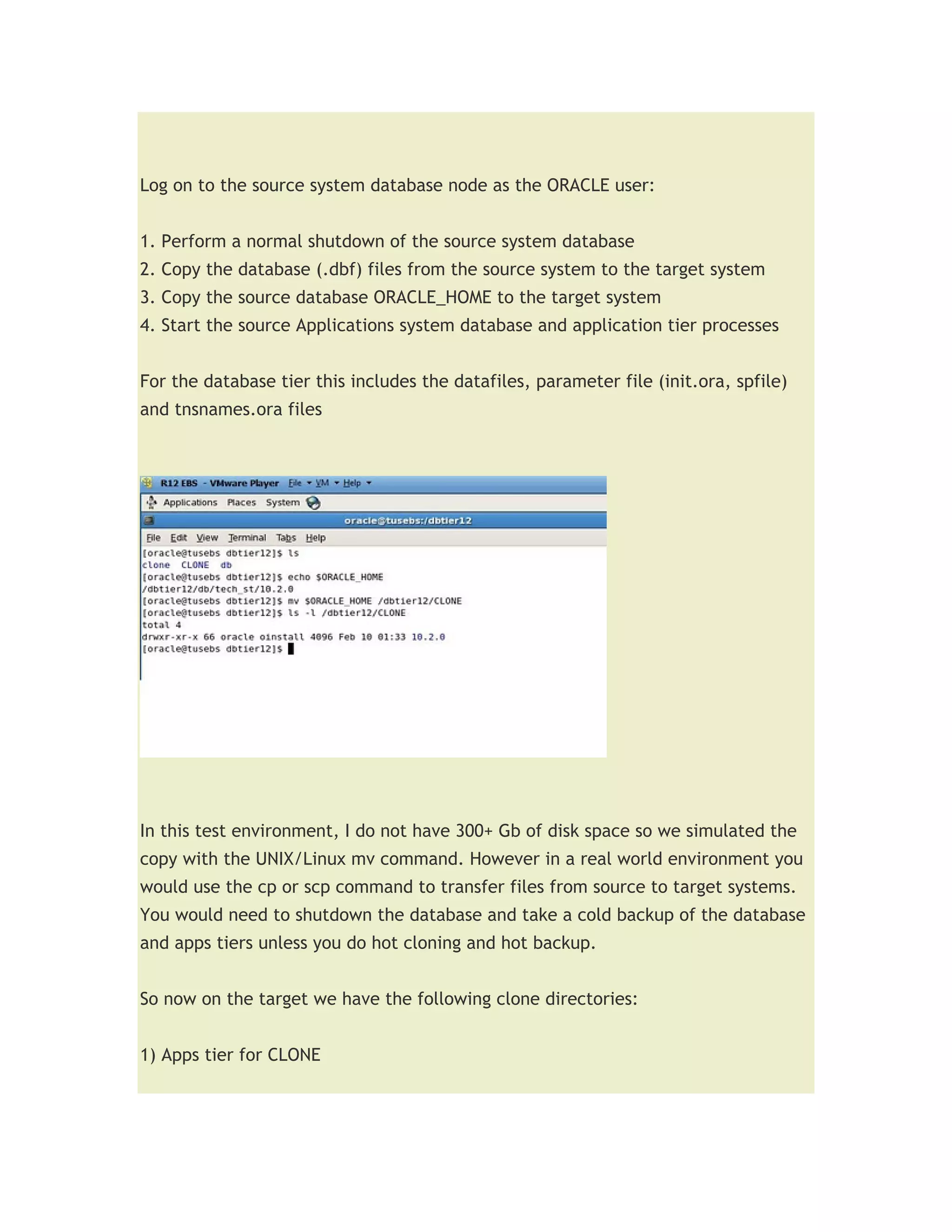

Log on to the source system database node as the ORACLE user:

1. Perform a normal shutdown of the source system database
2. Copy the database (.dbf) files from the source system to the target system
3. Copy the source database ORACLE_HOME to the target system
4. Start the source Applications system database and application tier processes

For the database tier this includes the datafiles, parameter file (init.ora, spfile)
and tnsnames.ora files

In this test environment, I do not have 300+ Gb of disk space so we simulated the
copy with the UNIX/Linux mv command. However in a real world environment you
would use the cp or scp command to transfer files from source to target systems.
You would need to shutdown the database and take a cold backup of the database
and apps tiers unless you do hot cloning and hot backup.

So now on the target we have the following clone directories:

1) Apps tier for CLONE

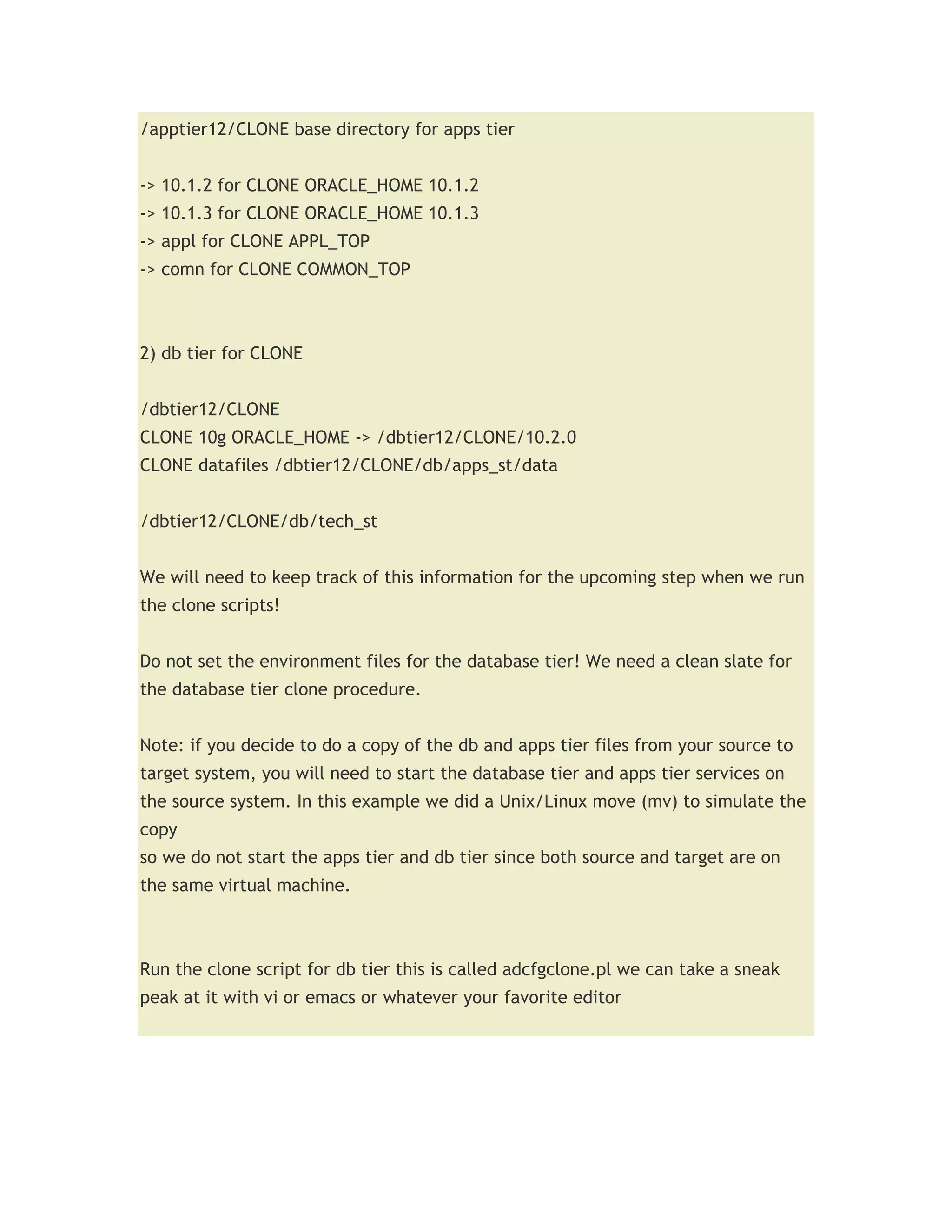

/apptier12/CLONE base directory for apps tier

-> 10.1.2 for CLONE ORACLE_HOME 10.1.2
-> 10.1.3 for CLONE ORACLE_HOME 10.1.3
-> appl for CLONE APPL_TOP
-> comn for CLONE COMMON_TOP

2) db tier for CLONE

/dbtier12/CLONE
CLONE 10g ORACLE_HOME -> /dbtier12/CLONE/10.2.0
CLONE datafiles /dbtier12/CLONE/db/apps_st/data

/dbtier12/CLONE/db/tech_st

We will need to keep track of this information for the upcoming step when we run
the clone scripts!

Do not set the environment files for the database tier! We need a clean slate for
the database tier clone procedure.

Note: if you decide to do a copy of the db and apps tier files from your source to
target system, you will need to start the database tier and apps tier services on
the source system. In this example we did a Unix/Linux move (mv) to simulate the
copy
so we do not start the apps tier and db tier since both source and target are on
the same virtual machine.

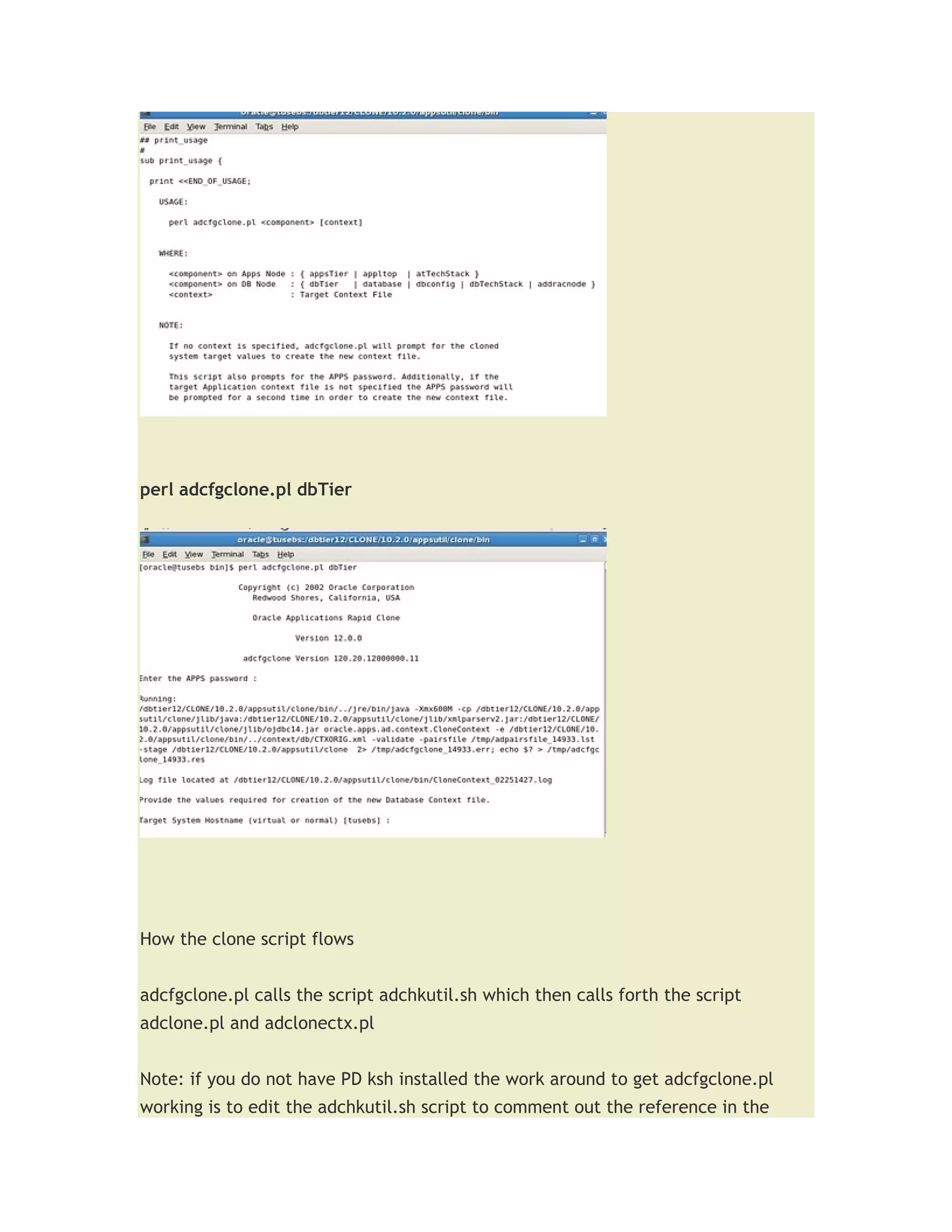

Run the clone script for db tier this is called adcfgclone.pl we can take a sneak
peak at it with vi or emacs or whatever your favorite editor

perl adcfgclone.pl dbTier

How the clone script flows

adcfgclone.pl calls the script adchkutil.sh which then calls forth the script
adclone.pl and adclonectx.pl

Note: if you do not have PD ksh installed the work around to get adcfgclone.pl
working is to edit the adchkutil.sh script to comment out the reference in the

script to look for the PD ksh shell.

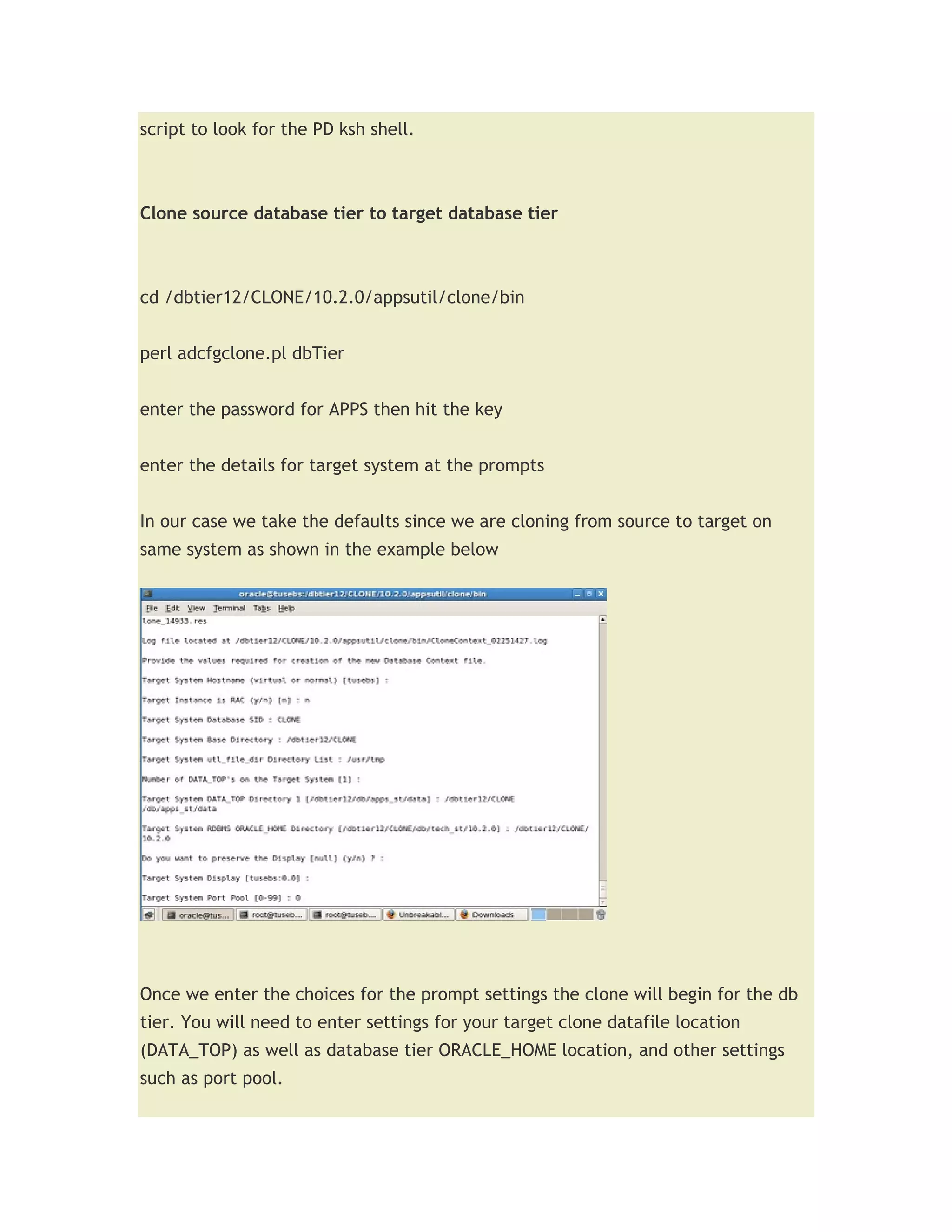

Clone source database tier to target database tier

cd /dbtier12/CLONE/10.2.0/appsutil/clone/bin

perl adcfgclone.pl dbTier

enter the password for APPS then hit the key

enter the details for target system at the prompts

In our case we take the defaults since we are cloning from source to target on
same system as shown in the example below

Once we enter the choices for the prompt settings the clone will begin for the db
tier. You will need to enter settings for your target clone datafile location
(DATA_TOP) as well as database tier ORACLE_HOME location, and other settings
such as port pool.

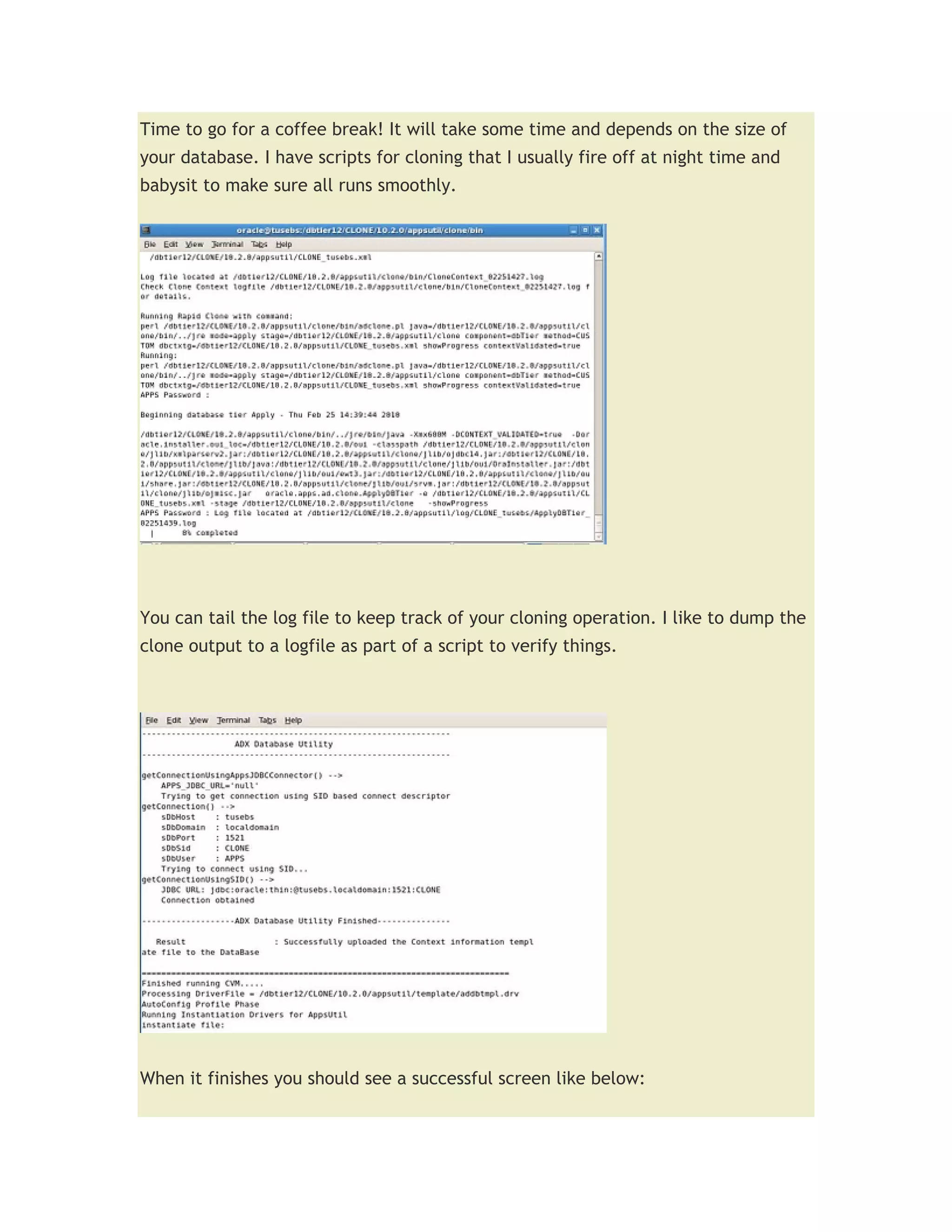

Time to go for a coffee break! It will take some time and depends on the size of
your database. I have scripts for cloning that I usually fire off at night time and
babysit to make sure all runs smoothly.

You can tail the log file to keep track of your cloning operation. I like to dump the
clone output to a logfile as part of a script to verify things.

When it finishes you should see a successful screen like below:

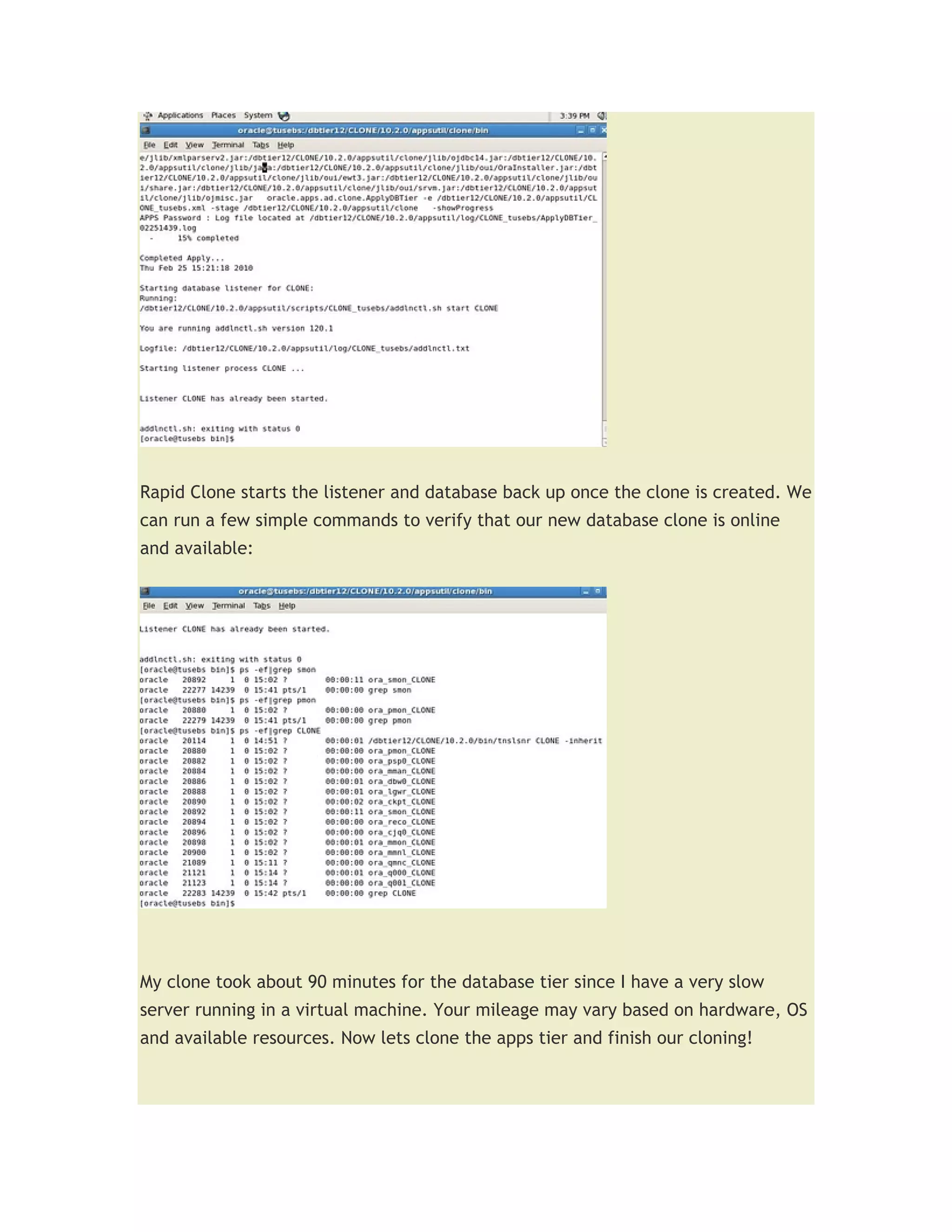

Rapid Clone starts the listener and database back up once the clone is created. We
can run a few simple commands to verify that our new database clone is online
and available:

My clone took about 90 minutes for the database tier since I have a very slow
server running in a virtual machine. Your mileage may vary based on hardware, OS
and available resources. Now lets clone the apps tier and finish our cloning!

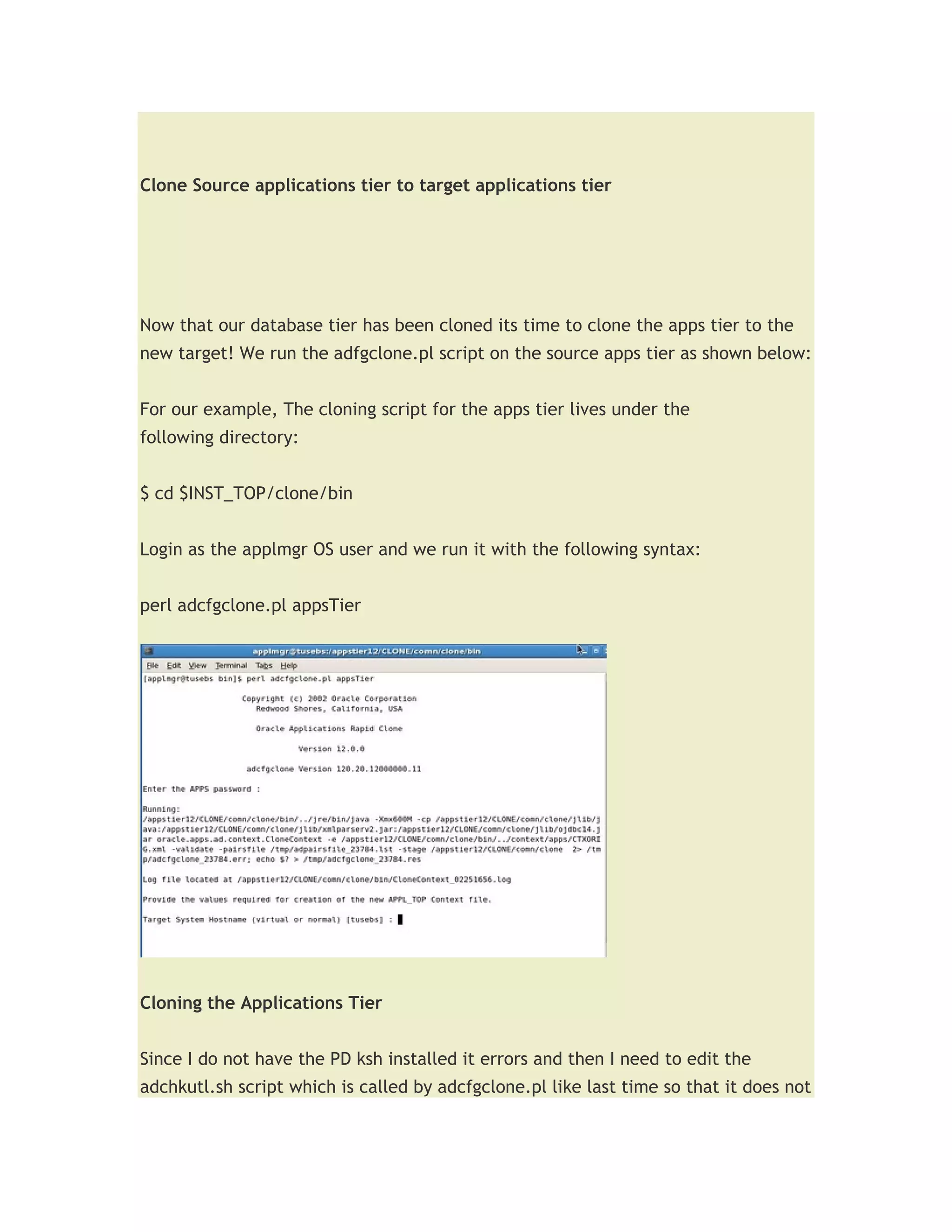

Clone Source applications tier to target applications tier

Now that our database tier has been cloned its time to clone the apps tier to the
new target! We run the adfgclone.pl script on the source apps tier as shown below:

For our example, The cloning script for the apps tier lives under the
following directory:

$ cd $INST_TOP/clone/bin

Login as the applmgr OS user and we run it with the following syntax:

perl adcfgclone.pl appsTier

Cloning the Applications Tier

Since I do not have the PD ksh installed it errors and then I need to edit the
adchkutl.sh script which is called by adcfgclone.pl like last time so that it does not

try to search for the PD ksh.

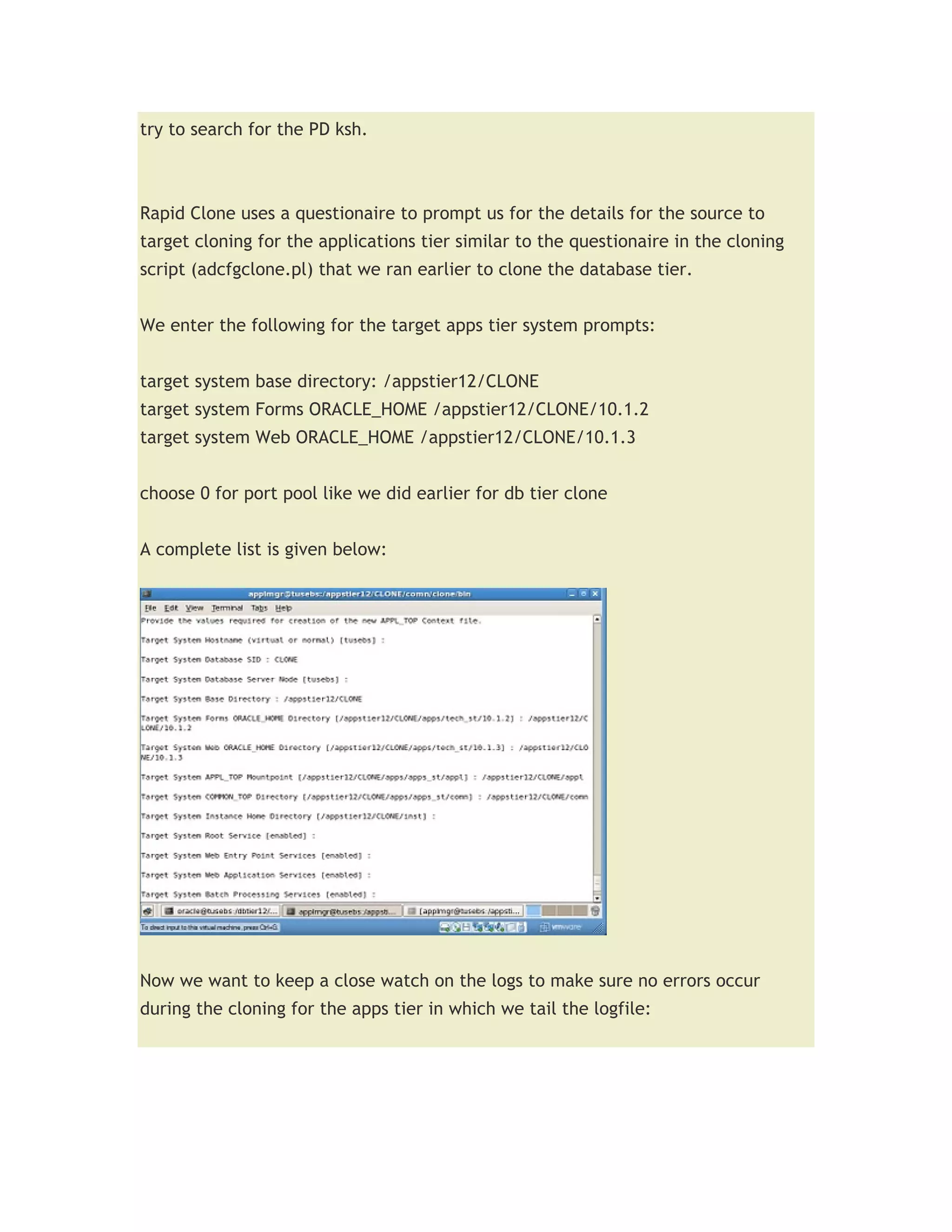

Rapid Clone uses a questionaire to prompt us for the details for the source to
target cloning for the applications tier similar to the questionaire in the cloning
script (adcfgclone.pl) that we ran earlier to clone the database tier.

We enter the following for the target apps tier system prompts:

target system base directory: /appstier12/CLONE
target system Forms ORACLE_HOME /appstier12/CLONE/10.1.2
target system Web ORACLE_HOME /appstier12/CLONE/10.1.3

choose 0 for port pool like we did earlier for db tier clone

A complete list is given below:

Now we want to keep a close watch on the logs to make sure no errors occur
during the cloning for the apps tier in which we tail the logfile:

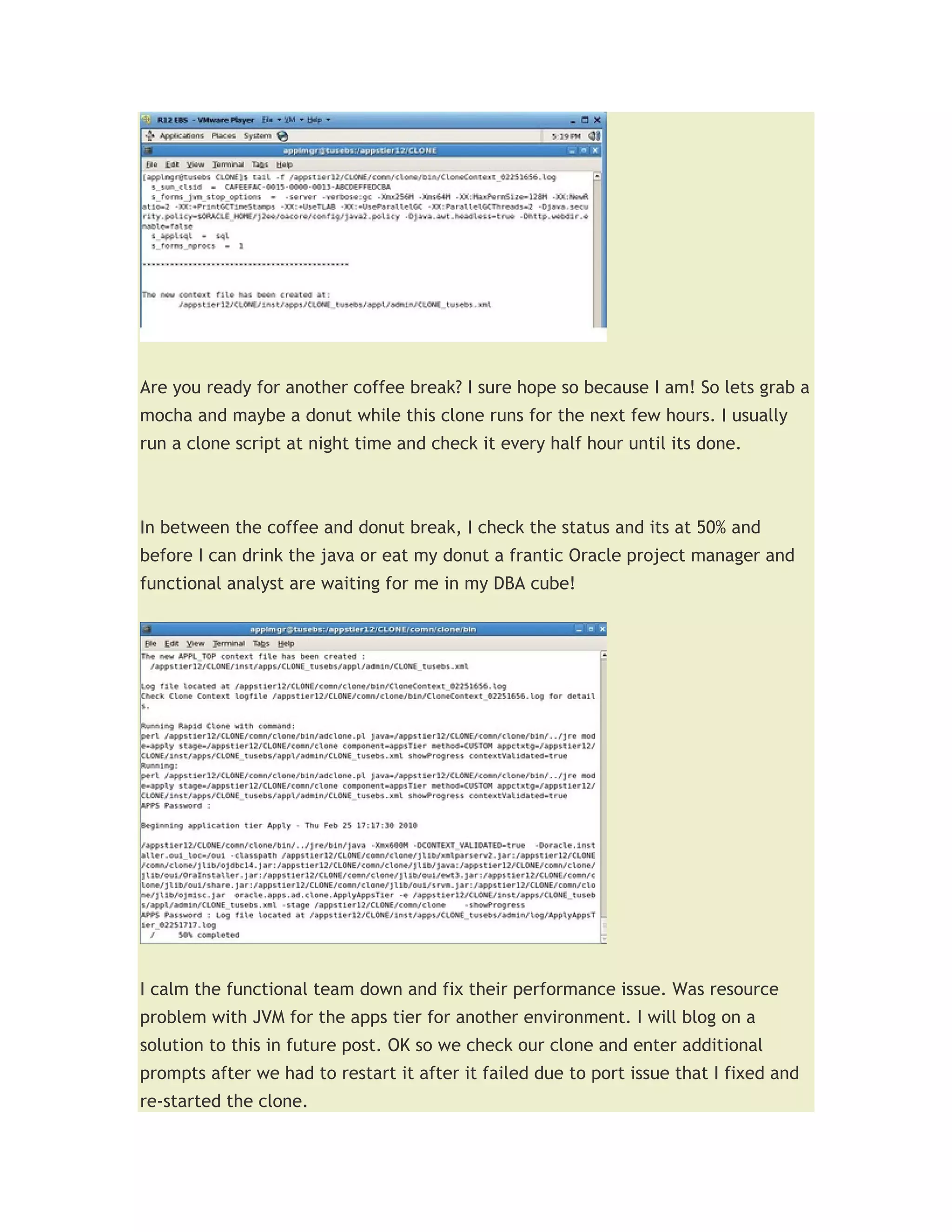

Are you ready for another coffee break? I sure hope so because I am! So lets grab a
mocha and maybe a donut while this clone runs for the next few hours. I usually
run a clone script at night time and check it every half hour until its done.

In between the coffee and donut break, I check the status and its at 50% and
before I can drink the java or eat my donut a frantic Oracle project manager and
functional analyst are waiting for me in my DBA cube!

I calm the functional team down and fix their performance issue. Was resource
problem with JVM for the apps tier for another environment. I will blog on a
solution to this in future post. OK so we check our clone and enter additional
prompts after we had to restart it after it failed due to port issue that I fixed and
re-started the clone.

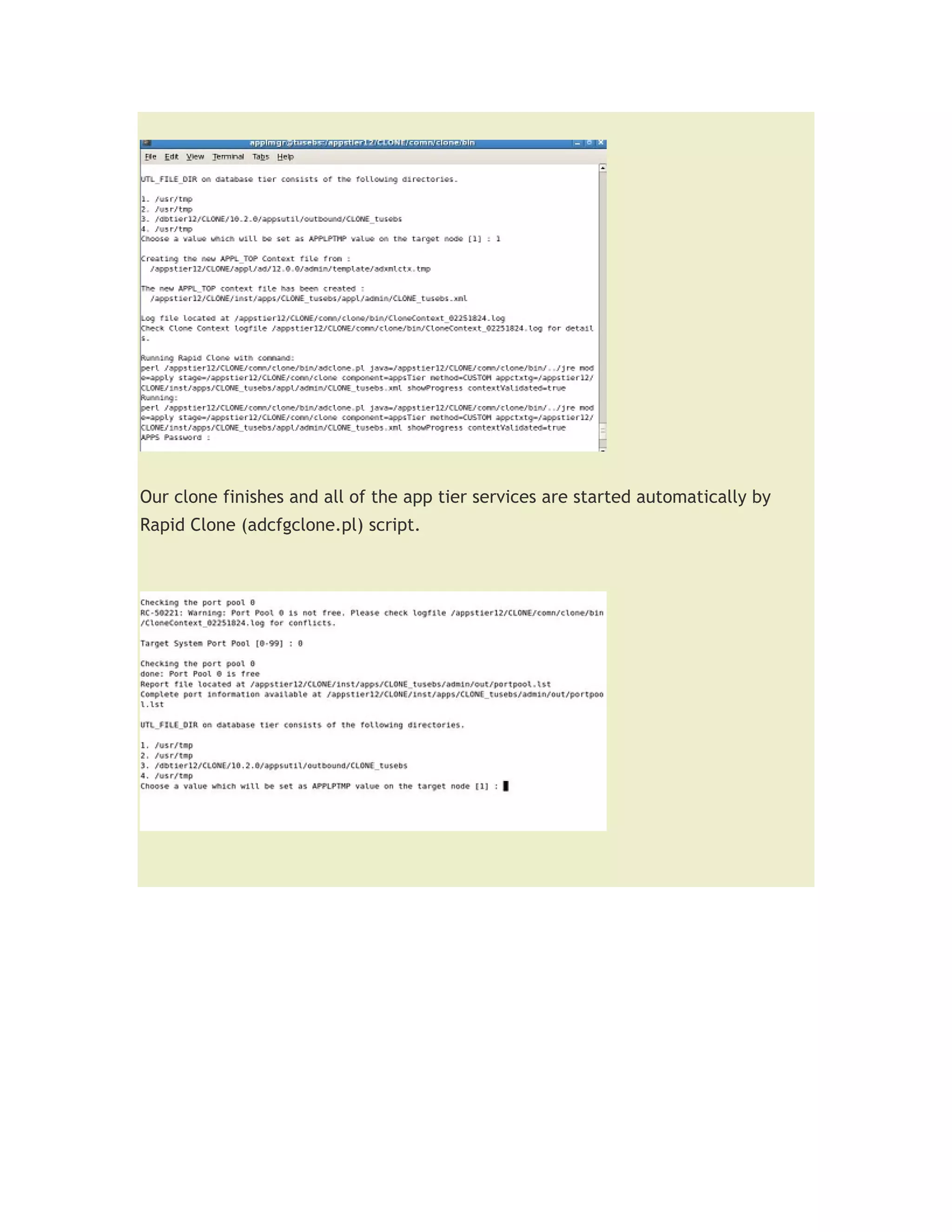

Our clone finishes and all of the app tier services are started automatically by
Rapid Clone (adcfgclone.pl) script.

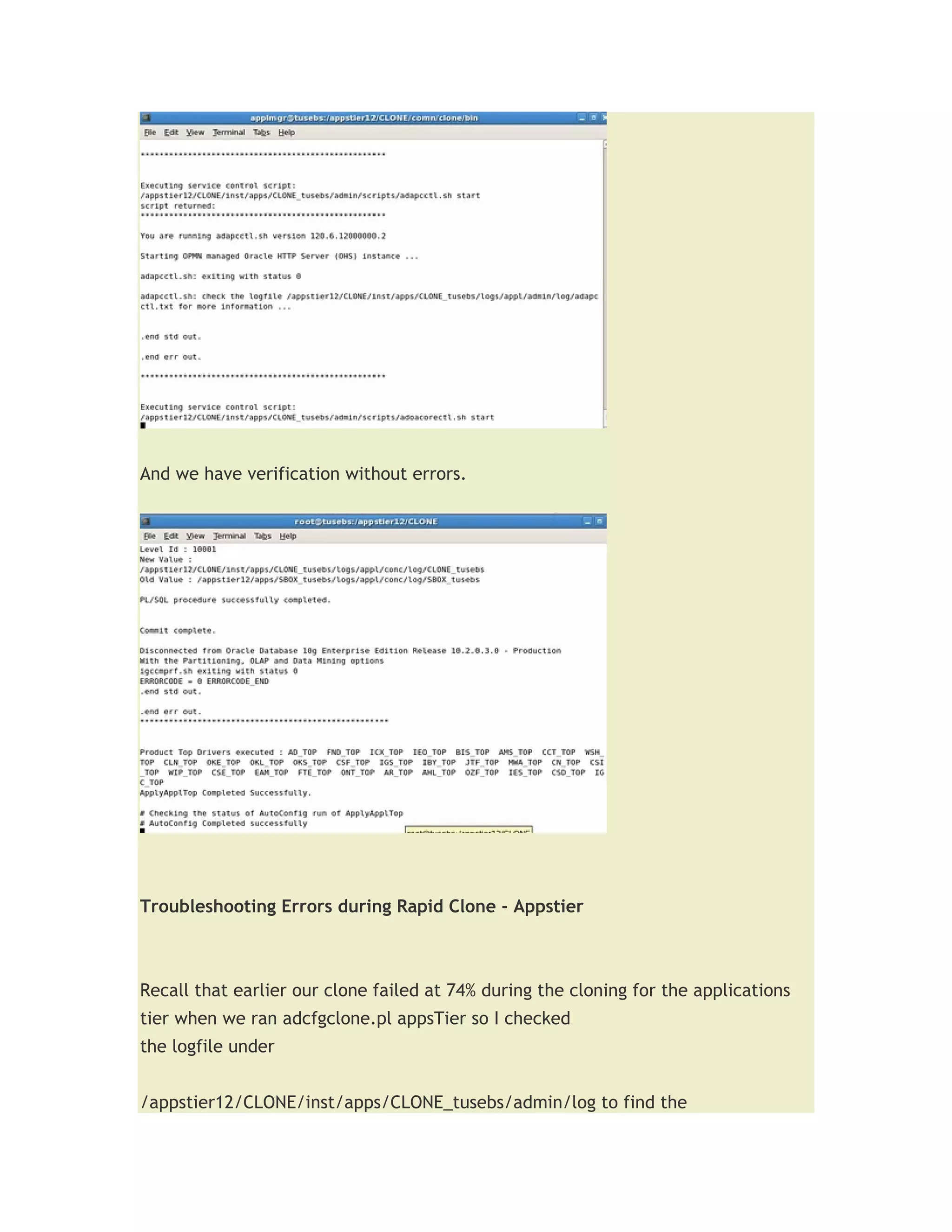

And we have verification without errors.

Troubleshooting Errors during Rapid Clone - Appstier

Recall that earlier our clone failed at 74% during the cloning for the applications
tier when we ran adcfgclone.pl appsTier so I checked
the logfile under

/appstier12/CLONE/inst/apps/CLONE_tusebs/admin/log to find the

specific failure since it failed during the ApplyAppsTier phase

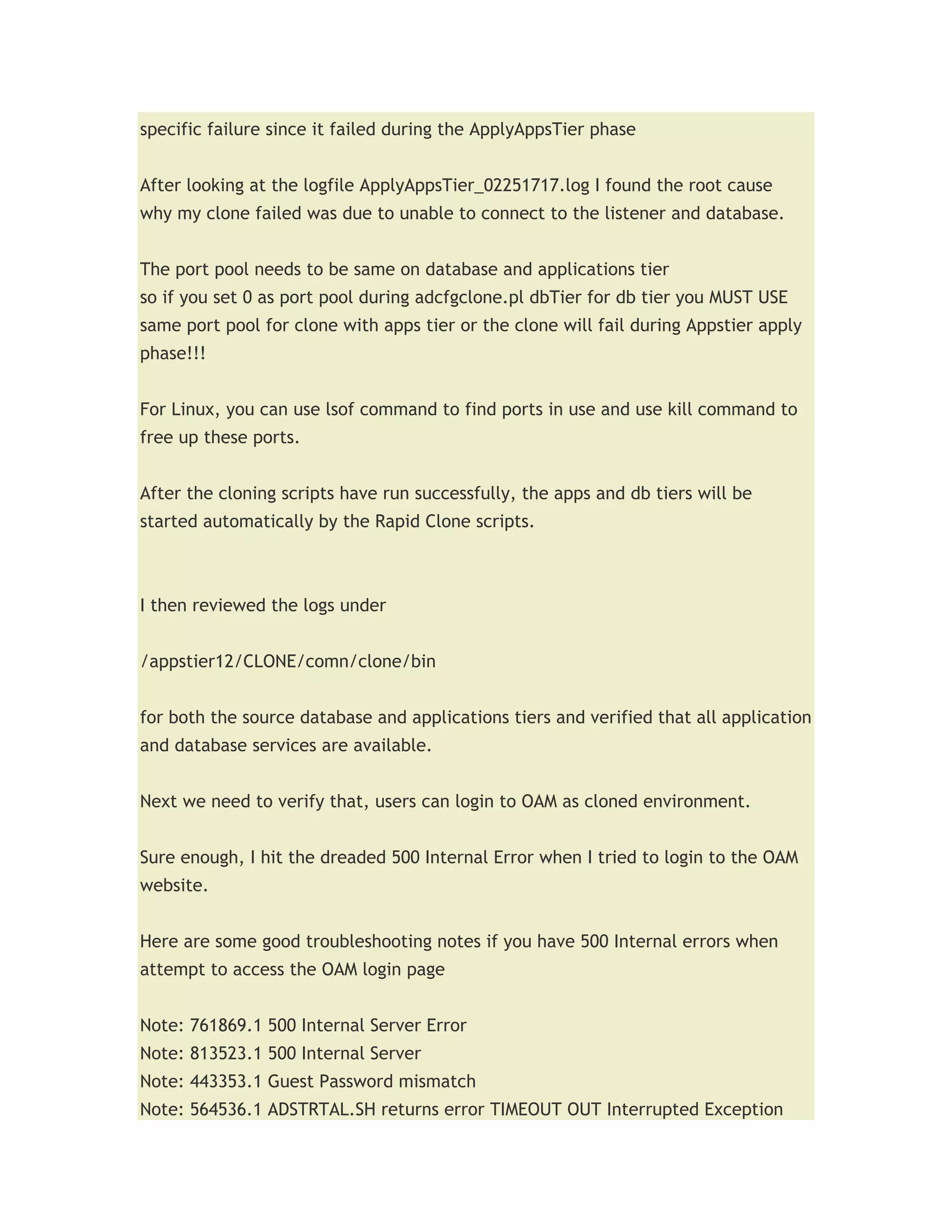

After looking at the logfile ApplyAppsTier_02251717.log I found the root cause
why my clone failed was due to unable to connect to the listener and database.

The port pool needs to be same on database and applications tier
so if you set 0 as port pool during adcfgclone.pl dbTier for db tier you MUST USE
same port pool for clone with apps tier or the clone will fail during Appstier apply
phase!!!

For Linux, you can use lsof command to find ports in use and use kill command to
free up these ports.

After the cloning scripts have run successfully, the apps and db tiers will be
started automatically by the Rapid Clone scripts.

I then reviewed the logs under

/appstier12/CLONE/comn/clone/bin

for both the source database and applications tiers and verified that all application
and database services are available.

Next we need to verify that, users can login to OAM as cloned environment.

Sure enough, I hit the dreaded 500 Internal Error when I tried to login to the OAM
website.

Here are some good troubleshooting notes if you have 500 Internal errors when
attempt to access the OAM login page

Note: 761869.1 500 Internal Server Error
Note: 813523.1 500 Internal Server
Note: 443353.1 Guest Password mismatch
Note: 564536.1 ADSTRTAL.SH returns error TIMEOUT OUT Interrupted Exception

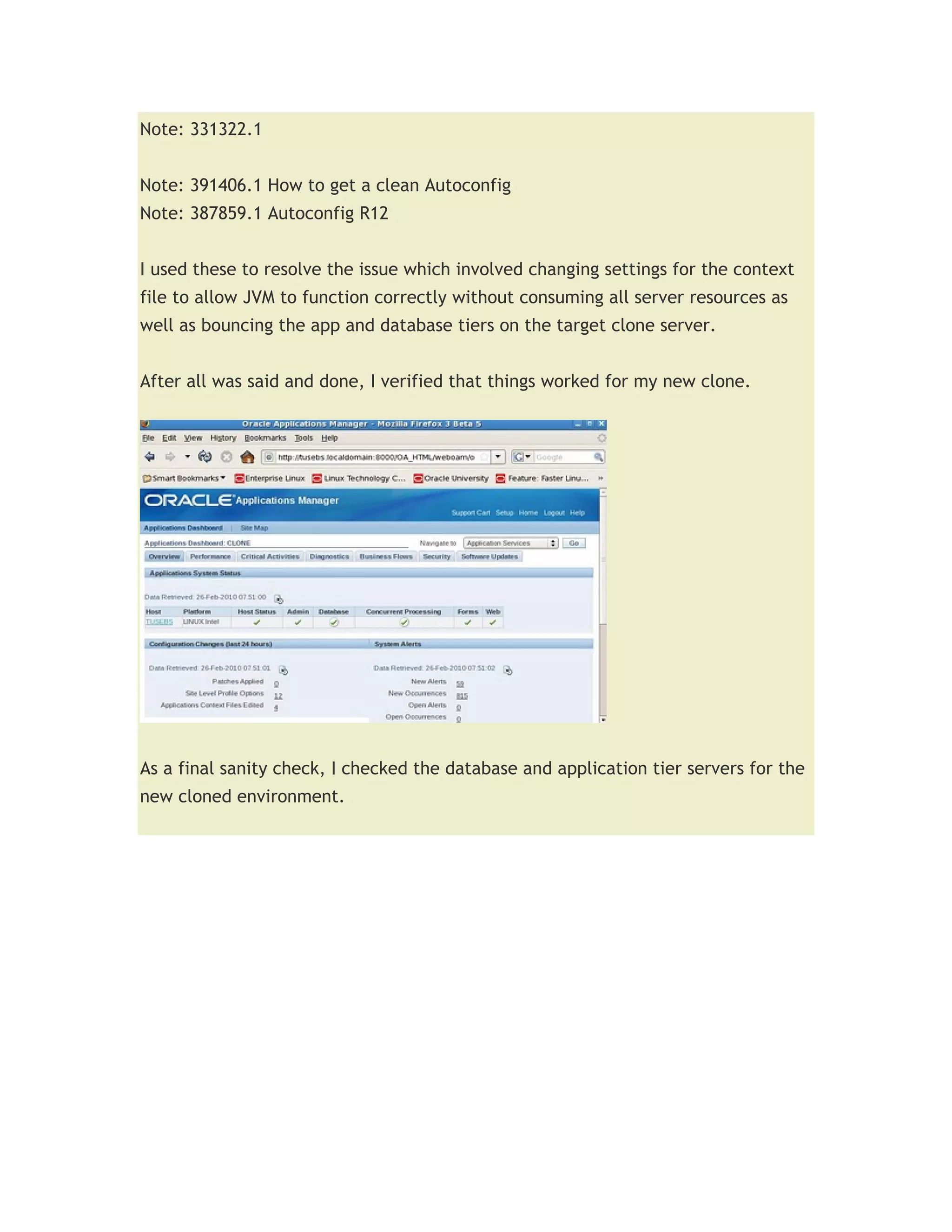

Note: 331322.1

Note: 391406.1 How to get a clean Autoconfig
Note: 387859.1 Autoconfig R12

I used these to resolve the issue which involved changing settings for the context
file to allow JVM to function correctly without consuming all server resources as
well as bouncing the app and database tiers on the target clone server.

After all was said and done, I verified that things worked for my new clone.

As a final sanity check, I checked the database and application tier servers for the
new cloned environment.

Good the cloned database is functional and available. Lastly, I checked that all of
the application tier services were online.

Finishing Tasks for Cloning Operations

1. Workflow settings for new clone
2. Verify login and accounts work correctly
3. Check status for SSO and OID

While we did not check on workflow, this is one area that you must address in your

cloned environments. Also, run tests to check that the authentication is working
correctly with accounts that use SSO and OID. If you do not perform these checks
then users will have problems logging into the cloned systems after a refresh.

Congratulations! You now can perform the cloning and refresh tasks that are
critical skills to have as a hardcore Oracle Apps DBA!

Cloning 2

More Related Content

What's hot

Viewers also liked

Similar to Cloning 2

More from Deepti Singh

Cloning 2
