1. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
Oracle Database Appliance
X6-2 Family
Rostislav Gemrot
Arrow ECS, a.s.

2. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

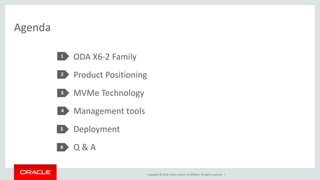

Agenda
ODA X6-2 Family
Product Positioning
MVMe Technology
Management tools
Deployment
Q & A
1
2
3
4
5
6

3. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

4. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
Expanding Engineered Systems to a broader market
Introducing the New Oracle Database Appliances
New Entry Price Point
Starting at $18K List Price
4
Expanded Database Support
Enterprise Edition & Standard Edition, Standard
Edition 1 & Standard Edition 2

5. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
Oracle Database Appliance
Expanded Portfolio, Starting at $18,000 USD
Oracle Database Appliance X6-2S
Oracle Database Appliance X6-2L
Oracle Database Appliance X6-2-HA
ENTRY
PERFORMANCE
HIGH AVAILABILITY
CONSOLIDATION
Oracle Database Appliance X6-2M

6. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
OPTIMIZED
for the Oracle Database with
built-in expertise for single
instance and high availability
deployments
AFFORDABLE
access to engineered
systems for SE2 and EE
at ¼ the entry price
SIMPLE
to deploy both databases
and applications in a
single appliance
6
Oracle Database Appliance Family
• Reduce the time to production; deploy in as
little as 30 minutes
• Simplify administration with zero admin
storage and automated patching
• Single vendor support for full Oracle stack
and cloud
• Optimized for the Oracle Database with built-
in expertise for single instance and high
availability deployments
• Complete solution using the Oracle co-
engineered stack; Hardware, OS, Database,
Middleware, and Apps
• Future proof your IT investments with cloud
equivalents and extensions
• All Flash Appliances for Extreme Performance
• Reduce Oracle software licensing cost, with
capacity on demand
• Affordable and reliable cloud based back up
• Achieve operational savings with single vendor
engineered deployment and maintenance

7. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
ODA Family—Target Customer
S
M
L
HA
• Very cost sensitive
• Few databases
• Typically for database workloads
• Want double the performance than ODA X6-2S Model
• Multiple databases
• Host applications as well as database
• Double the storage capacity (than S & M models) for larger EE databases
• Wants cost-effective flash performance
• Needs to match license cost to demand (Pay as you grow)
• Achieve the highest levels of availability for DB and App workloads
• Plans to deploy Real Application Clusters
• Requires a highly available solution-in-a-box
ENTRY
PERFORMANCE
CONSOLIDATION
HIGH AVAILABILITY

8. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | 8

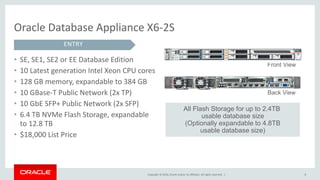

Oracle Database Appliance X6-2S
• SE, SE1, SE2 or EE Database Edition
• 10 Latest generation Intel Xeon CPU cores
• 128 GB memory, expandable to 384 GB
• 10 GBase-T Public Network (2x TP)
• 10 GbE SFP+ Public Network (2x SFP)
• 6.4 TB NVMe Flash Storage, expandable
to 12.8 TB
• $18,000 List Price
ENTRY
All Flash Storage for up to 2.4TB
usable database size
(Optionally expandable to 4.8TB
usable database size)
Front View
Back View

9. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. | 9

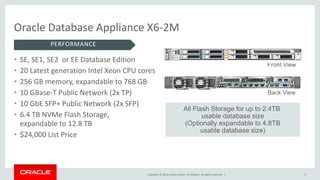

Oracle Database Appliance X6-2M
• SE, SE1, SE2 or EE Database Edition
• 20 Latest generation Intel Xeon CPU cores
• 256 GB memory, expandable to 768 GB
• 10 GBase-T Public Network (2x TP)
• 10 GbE SFP+ Public Network (2x SFP)
• 6.4 TB NVMe Flash Storage,
expandable to 12.8 TB
• $24,000 List Price
PERFORMANCE
All Flash Storage for up to 2.4TB
usable database size
(Optionally expandable to 4.8TB
usable database size)
Front View
Back View

10. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

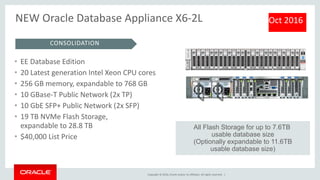

NEW Oracle Database Appliance X6-2L Oct 2016
CONSOLIDATION
• EE Database Edition
• 20 Latest generation Intel Xeon CPU cores
• 256 GB memory, expandable to 768 GB
• 10 GBase-T Public Network (2x TP)
• 10 GbE SFP+ Public Network (2x SFP)
• 19 TB NVMe Flash Storage,
expandable to 28.8 TB
• $40,000 List Price
All Flash Storage for up to 7.6TB
usable database size
(Optionally expandable to 11.6TB
usable database size)

11. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

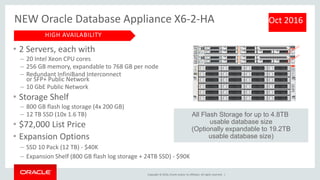

NEW Oracle Database Appliance X6-2-HA Oct 2016
HIGH AVAILABILITY
• 2 Servers, each with
– 20 Intel Xeon CPU cores
– 256 GB memory, expandable to 768 GB per node
– Redundant InfiniBand Interconnect
or SFP+ Public Network
– 10 GbE Public Network
• Storage Shelf
– 800 GB flash log storage (4x 200 GB)
– 12 TB SSD (10x 1.6 TB)
• $72,000 List Price
• Expansion Options
– SSD 10 Pack (12 TB) - $40K
– Expansion Shelf (800 GB flash log storage + 24TB SSD) - $90K
All Flash Storage for up to 4.8TB
usable database size
(Optionally expandable to 19.2TB
usable database size)

12. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

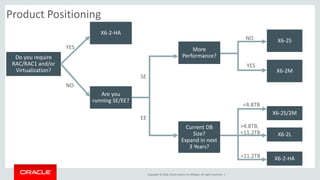

Product Positioning
Do you require
RAC/RAC1 and/or
Virtualization?
YES
NO
X6-2-HA
Are you
running SE/EE?
EE
SE
More
Performance?
NO
YES
X6-2S
X6-2M
Current DB
Size?
Expand in next
3 Years?
X6-2-HA
X6-2L
X6-2S/2M
<4.8TB
>4.8TB,
<11.2TB
>11.2TB

13. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

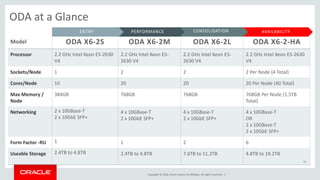

Model ODA X6-2S ODA X6-2M ODA X6-2L ODA X6-2-HA
Processor 2.2 GHz Intel Xeon E5-2630
V4
2.2 GHz Intel Xeon E5-
2630 V4
2.2 GHz Intel Xeon E5-
2630 V4
2.2 GHz Intel Xeon E5-2630
V4
Sockets/Node 1 2 2 2 Per Node (4 Total)
Cores/Node 10 20 20 20 Per Node (40 Total)
Max Memory /
Node
384GB 768GB 768GB 768GB Per Node (1.5TB
Total)
Networking 2 x 10GBase-T
2 x 10GbE SFP+
4 x 10GBase-T
2 x 10GbE SFP+
4 x 10GBase-T
2 x 10GbE SFP+
4 x 10GBase-T
OR
2 x 10GBase-T
2 x 10GbE SFP+
Form Factor -RU 1 1 2 6
Useable Storage 2.4TB to 4.8TB 2.4TB to 4.8TB 7.6TB to 11.2TB 4.8TB to 19.2TB
AVAILABILITY
ODA at a Glance
13
CONSOLIDATIONPERFORMANCEENTRY

14. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

15. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

16. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

17. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

18. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

19. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

20. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

21. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

22. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

23. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

24. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

25. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

26. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

27. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

28. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

29. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

30. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

31. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

32. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

33. Copyright © 2014, Oracle and/or its affiliates. All rights reserved. |

34. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

35. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |
