Oracle Open World Presentation - Oracle RMAN Best Practices for Cloud Backups

Oracle OpenWorld 2019
S A N F R A N C I S C O
Copyright © 2019 Oracle and/or its affiliates.

Oracle Recovery Manager
Best Practices for Cloud Backups
TIP4789
Marco Calmasini
Sr. Principal Product Manager, Oracle
Niklas Iveslatt
Partner and Senior DB Architect, Arisant

The following is intended to outline our general product direction. It is intended for information purposes only,
and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or
functionality, and should not be relied upon in making purchasing decisions. The development, release,
timing, and pricing of any features or functionality described for Oracle’s products may change and remains at
the sole discretion of Oracle Corporation.
Statements in this presentation relating to Oracle’s future plans, expectations, beliefs, intentions and prospects
are “forward-looking statements” and are subject to material risks and uncertainties. A detailed discussion of
these factors and other risks that affect our business is contained in Oracle’s Securities and Exchange
Commission (SEC) filings, including our most recent reports on Form 10-K and Form 10-Q under the heading
“Risk Factors.” These filings are available on the SEC’s website or on Oracle’s website
at http://www.oracle.com/investor. All information in this presentation is current as of September 2019 and
Oracle undertakes no duty to update any statement in light of new information or future events.
Safe Harbor

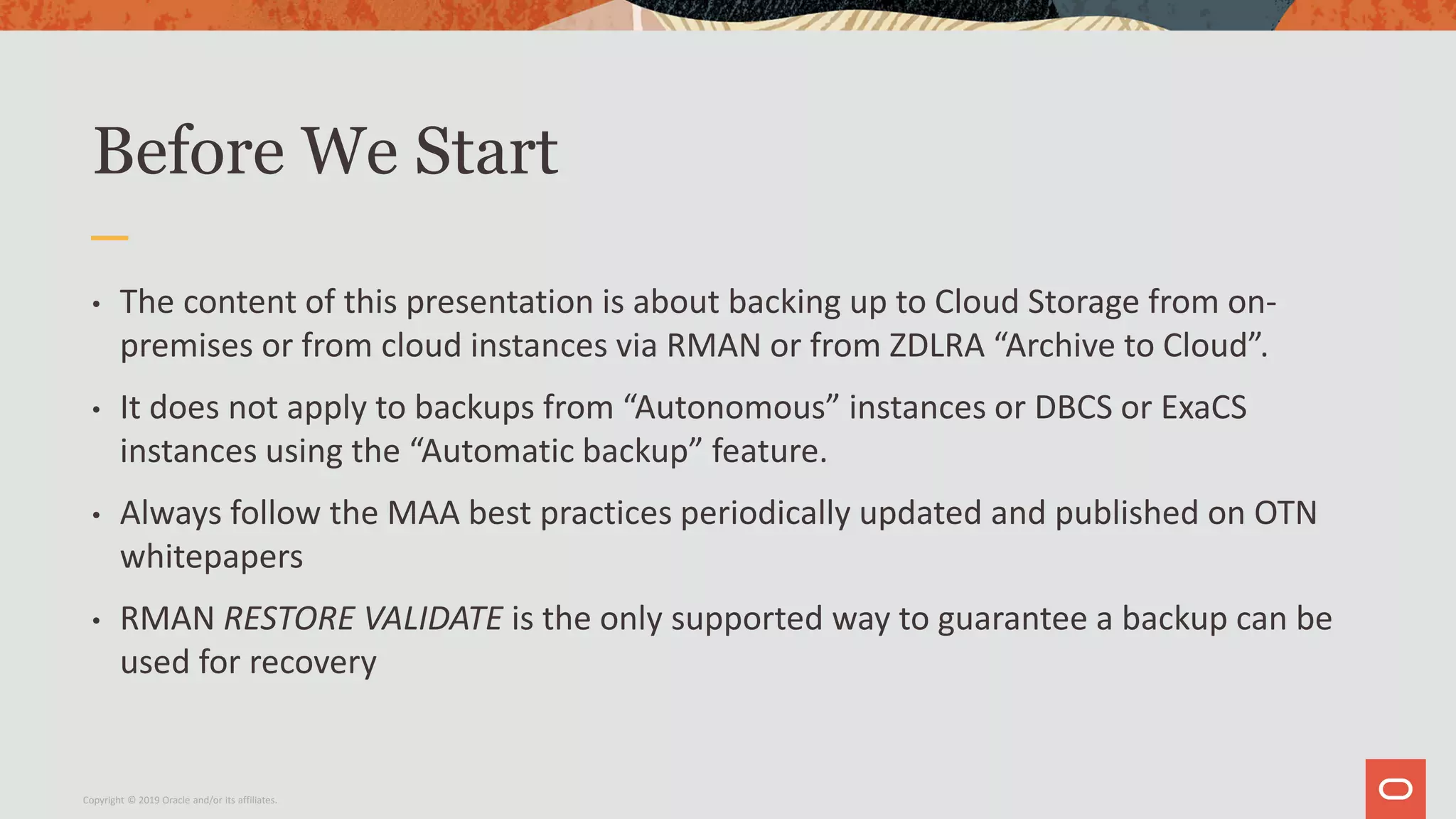

Before We Start
• The content of this presentation is about backing up to Cloud Storage from on-
premises or from cloud instances via RMAN or from ZDLRA “Archive to Cloud”.
• It does not apply to backups from “Autonomous” instances or DBCS or ExaCS
instances using the “Automatic backup” feature.
• Always follow the MAA best practices periodically updated and published on OTN
whitepapers
• RMAN RESTORE VALIDATE is the only supported way to guarantee a backup can be
used for recovery

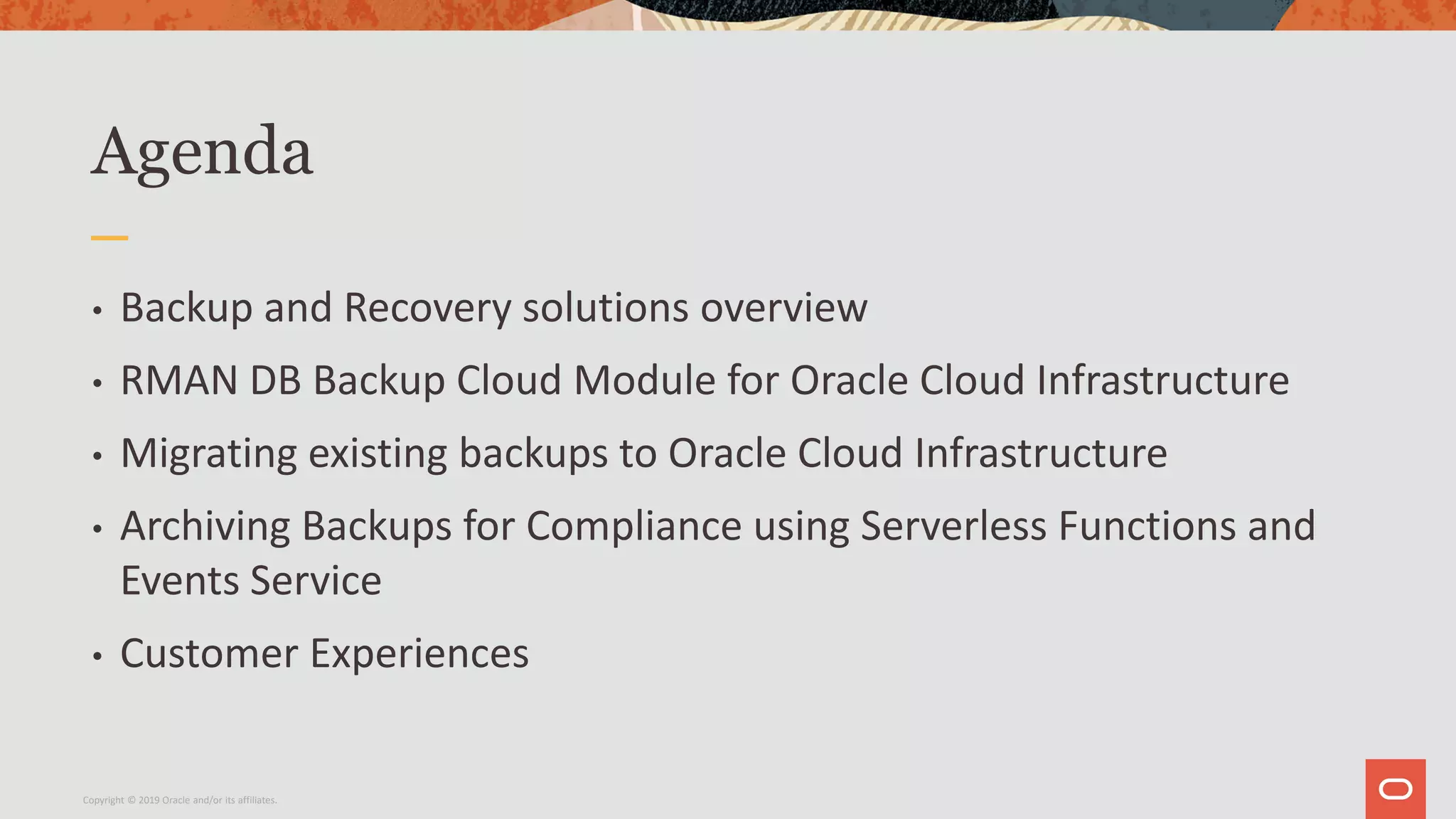

Agenda
• Backup and Recovery solutions overview
• RMAN DB Backup Cloud Module for Oracle Cloud Infrastructure
• Migrating existing backups to Oracle Cloud Infrastructure
• Archiving Backups for Compliance using Serverless Functions and
Events Service
• Customer Experiences

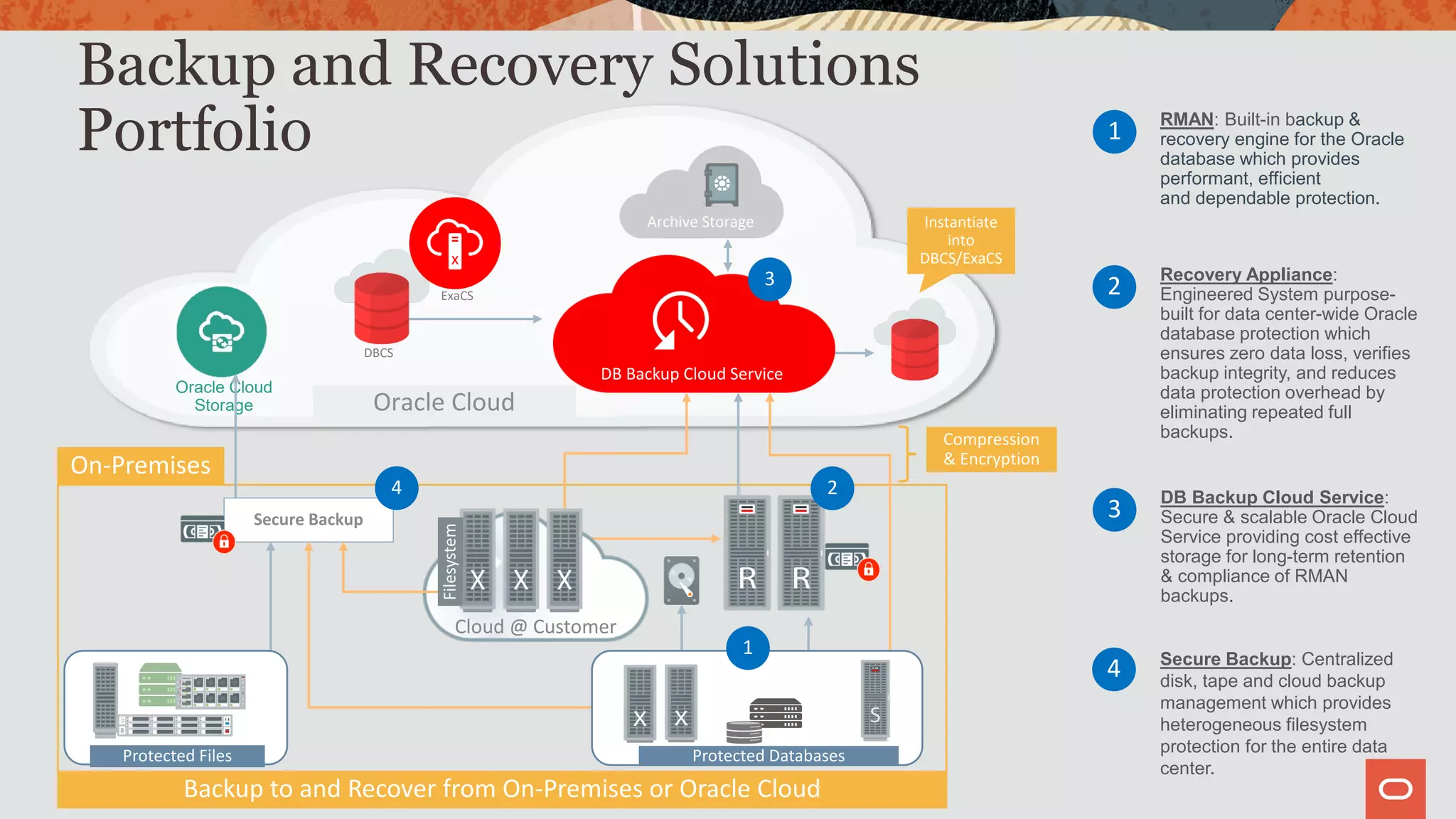

Backup and Recovery Solutions Overview

Oracle Cloud
Protected Files
ExaCS
DBCS
Instantiate
into
DBCS/ExaCS
DB Backup Cloud Service
Secure Backup
On-Premises
Oracle Cloud
Storage
Compression
& Encryption
Backup to and Recover from On-Premises or Oracle Cloud
Protected Databases
Cloud @ Customer
Filesystem
RMAN: Built-in backup &
recovery engine for the Oracle
database which provides
performant, efficient
and dependable protection.
Recovery Appliance:
Engineered System purpose-
built for data center-wide Oracle
database protection which
ensures zero data loss, verifies
backup integrity, and reduces
data protection overhead by
eliminating repeated full
backups.
DB Backup Cloud Service:
Secure & scalable Oracle Cloud
Service providing cost effective
storage for long-term retention
& compliance of RMAN
backups.
Secure Backup: Centralized
disk, tape and cloud backup
management which provides
heterogeneous filesystem
protection for the entire data
center.
1
1
2
23
3
4
4
Archive Storage
Backup and Recovery Solutions
Portfolio

Database Backup Cloud Module
New OCI Native Module

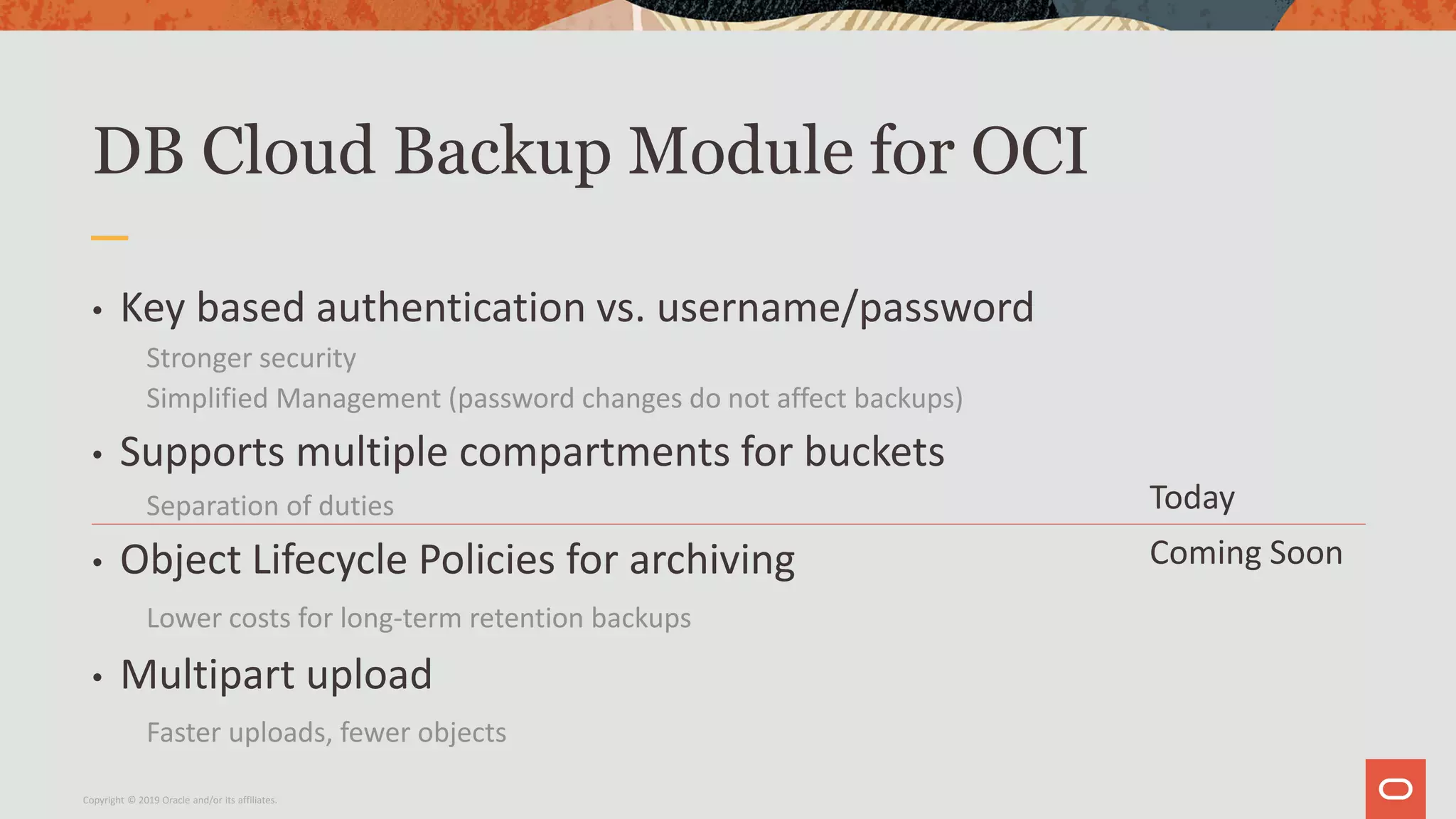

DB Cloud Backup Module for OCI
• Key based authentication vs. username/password
Stronger security
Simplified Management (password changes do not affect backups)
• Supports multiple compartments for buckets
Separation of duties
• Object Lifecycle Policies for archiving
Lower costs for long-term retention backups
• Multipart upload
Faster uploads, fewer objects
Today
Coming Soon

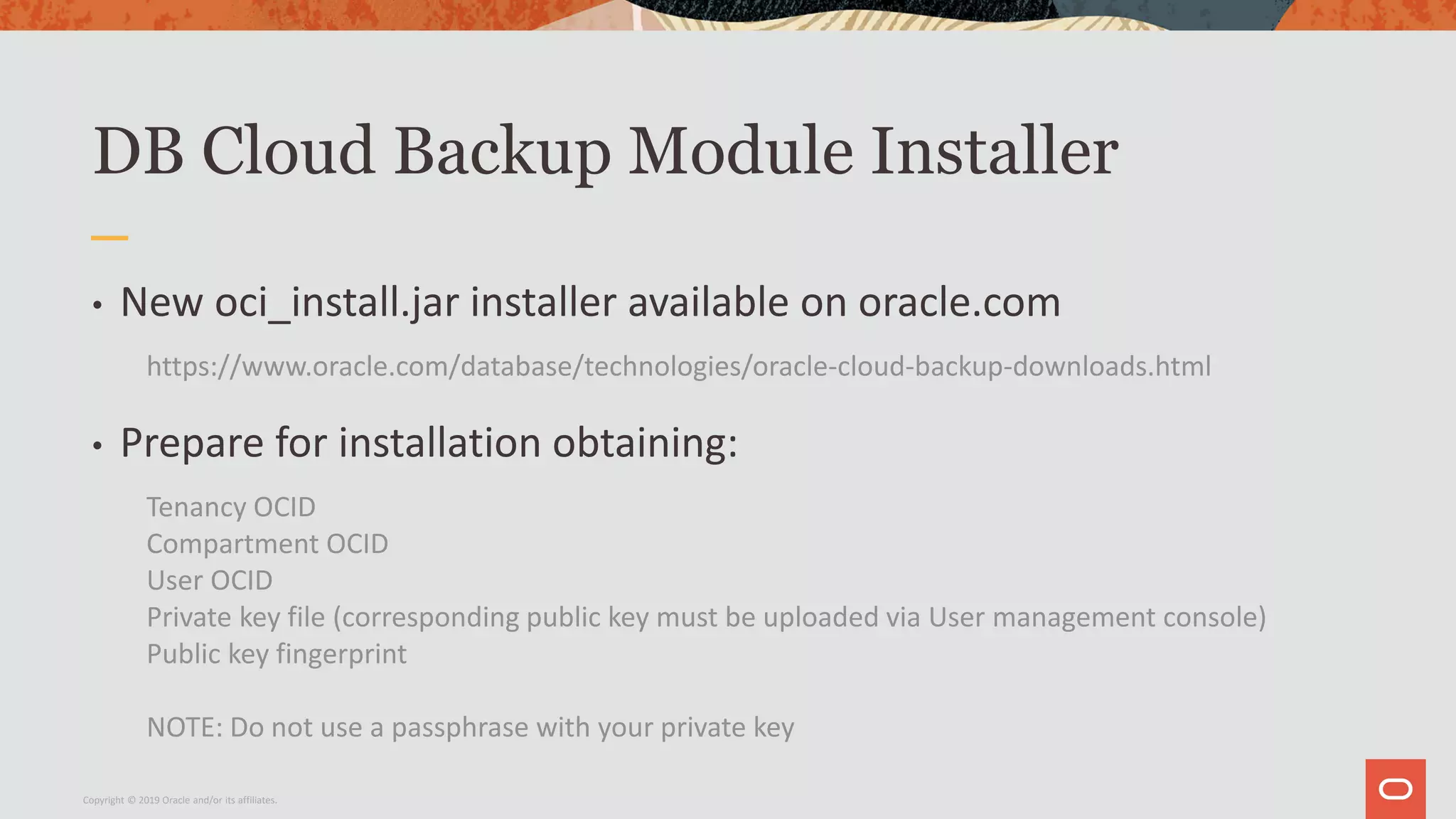

DB Cloud Backup Module Installer
• New oci_install.jar installer available on oracle.com
https://www.oracle.com/database/technologies/oracle-cloud-backup-downloads.html
• Prepare for installation obtaining:
Tenancy OCID
Compartment OCID
User OCID
Private key file (corresponding public key must be uploaded via User management console)
Public key fingerprint
NOTE: Do not use a passphrase with your private key

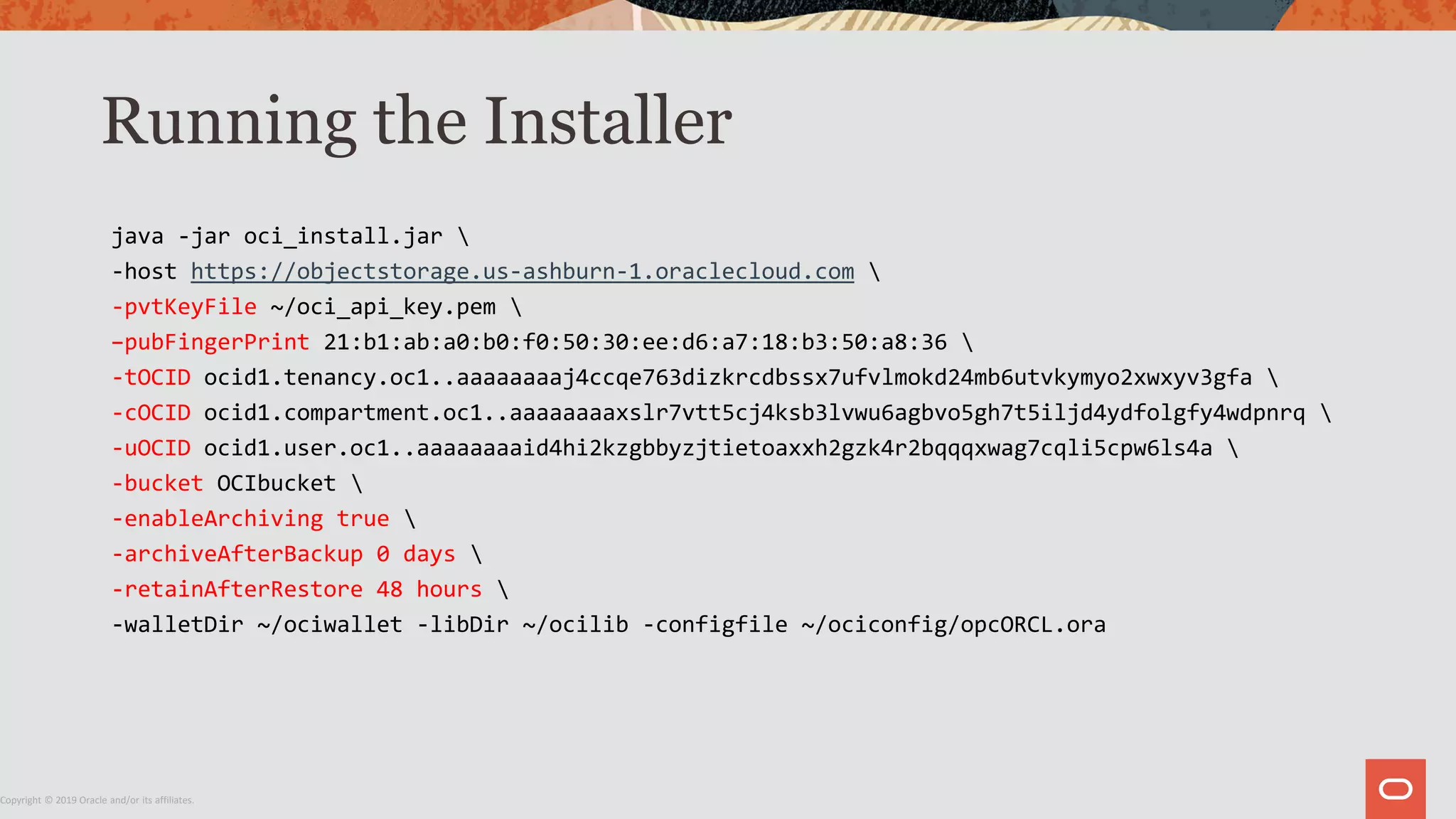

Running the Installer
java -jar oci_install.jar
-host https://objectstorage.us-ashburn-1.oraclecloud.com
-pvtKeyFile ~/oci_api_key.pem
–pubFingerPrint 21:b1:ab:a0:b0:f0:50:30:ee:d6:a7:18:b3:50:a8:36
-tOCID ocid1.tenancy.oc1..aaaaaaaaj4ccqe763dizkrcdbssx7ufvlmokd24mb6utvkymyo2xwxyv3gfa
-cOCID ocid1.compartment.oc1..aaaaaaaaxslr7vtt5cj4ksb3lvwu6agbvo5gh7t5iljd4ydfolgfy4wdpnrq
-uOCID ocid1.user.oc1..aaaaaaaaid4hi2kzgbbyzjtietoaxxh2gzk4r2bqqqxwag7cqli5cpw6ls4a
-bucket OCIbucket
-enableArchiving true
-archiveAfterBackup 0 days
-retainAfterRestore 48 hours
-walletDir ~/ociwallet -libDir ~/ocilib -configfile ~/ociconfig/opcORCL.ora

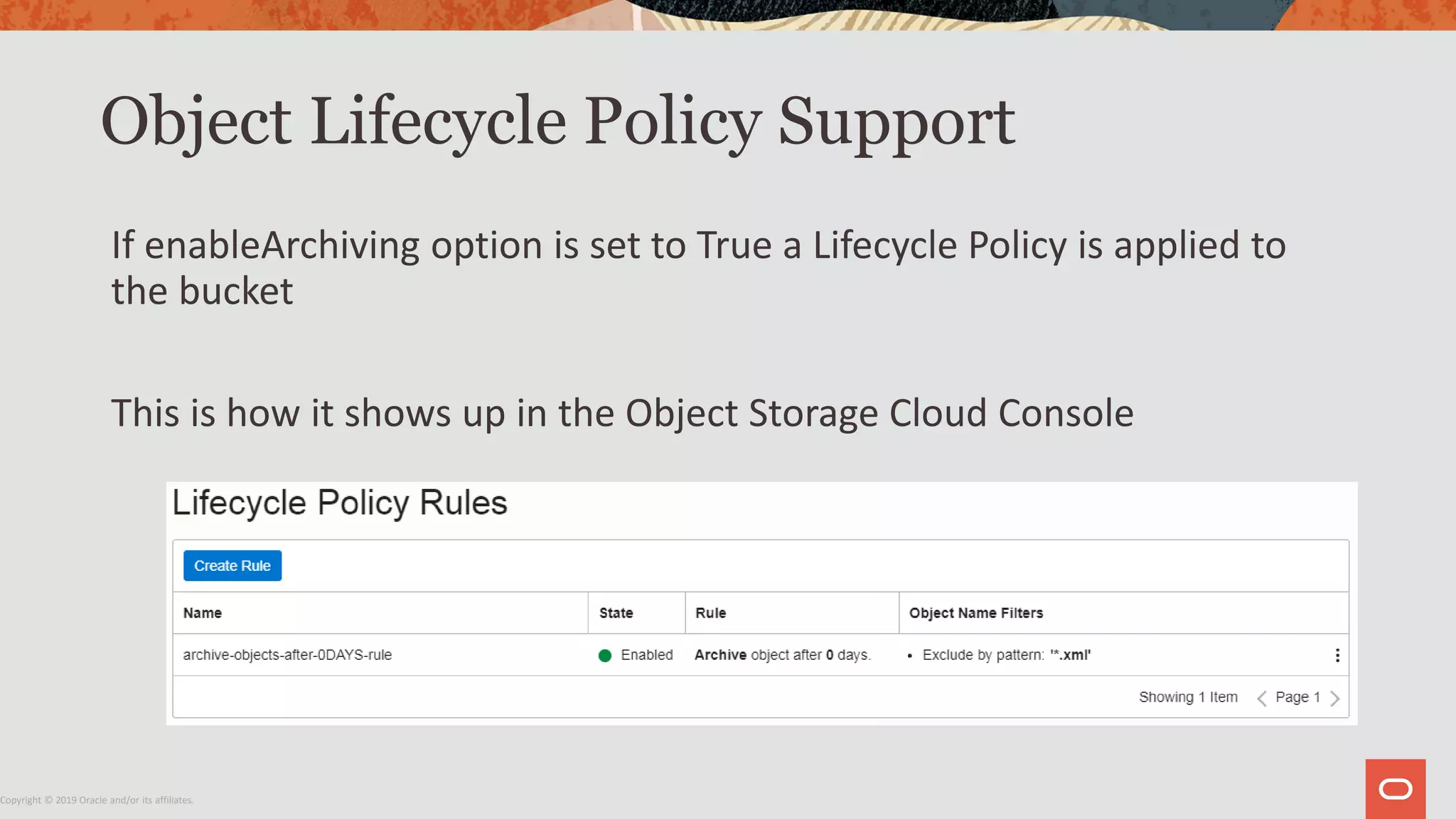

Object Lifecycle Policy Support
If enableArchiving option is set to True a Lifecycle Policy is applied to
the bucket
This is how it shows up in the Object Storage Cloud Console

RMAN configuration and Archive Ops
CONFIGURE CHANNEL DEVICE TYPE 'SBT_TAPE' FORMAT '%d_%U' PARMS
'SBT_LIBRARY=/home/oracle/ocilib/libopc.so
ENV=(OPC_PFILE=/home/oracle/opcORCL.ora)';
If enableArchiving is true backup pieces are archived automatically by Object Storage Service (must
be granted permission to manage objects)
Archived backups must be restored to Standard Object Storage before RMAN can access them for
actual DB restore or recovery operations
RMAN RESTORE PREVIEW– displays archived backup pieces as “remote”
RMAN RESTORE PREVIEW RECALL – initiates restore from archive to standard object storage
List of Backup Sets
===================
BS Key Type LV Size Device Type Elapsed Time Completion Time
------- ---- -- ---------- ----------- ------------ ---------------
179 Full 256.00K SBT_TAPE 00:00:02 14-SEP-19
BP Key: 179 Status: AVAILABLE Compressed: NO Tag: TAG20190914T100406
Handle: 89ubntom_1_1 Media: objectstorage.us-ashburn-..ecloud.com/n/oradbclouducm/tdemoaug22
List of Datafiles in backup set 179
File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name
---- -- ---- ---------- --------- ----------- ------ ----
21 Full 4715399 14-SEP-19 NO /ade/b/3380669573/oracle/dbs/tbs_25.f
using channel ORA_SBT_TAPE_1
using channel ORA_DISK_1
archived logs generated after SCN 4715399 not found in repository
recovery will be done up to SCN 4715399
Media recovery start SCN is 4715399
Recovery must be done beyond SCN 4715399 to clear datafile fuzziness
List of remote backup files
============================
validation succeeded for backup piece
Finished restore at 14-SEP-19
List of Backup Sets
===================
BS Key Type LV Size Device Type Elapsed Time Completion Time
------- ---- -- ---------- ----------- ------------ ---------------
179 Full 256.00K SBT_TAPE 00:00:02 14-SEP-19
BP Key: 179 Status: AVAILABLE Compressed: NO Tag: TAG20190914T100406
List of Datafiles in backup set 179
File LV Type Ckp SCN Ckp Time Abs Fuz SCN Sparse Name
---- -- ---- ---------- --------- ----------- ------ ----
21 Full 4715399 14-SEP-19 NO /ade/b/3380669573/oracle/dbs/tbs_25.f
using channel ORA_SBT_TAPE_1
using channel ORA_DISK_1
archived logs generated after SCN 4715399 not found in repository
recovery will be done up to SCN 4715399
Media recovery start SCN is 4715399
Recovery must be done beyond SCN 4715399 to clear datafile fuzziness
Initiated recall for the following list of remote backup files
==========================================================
validation succeeded for backup piece
Finished restore at 14-SEP-19

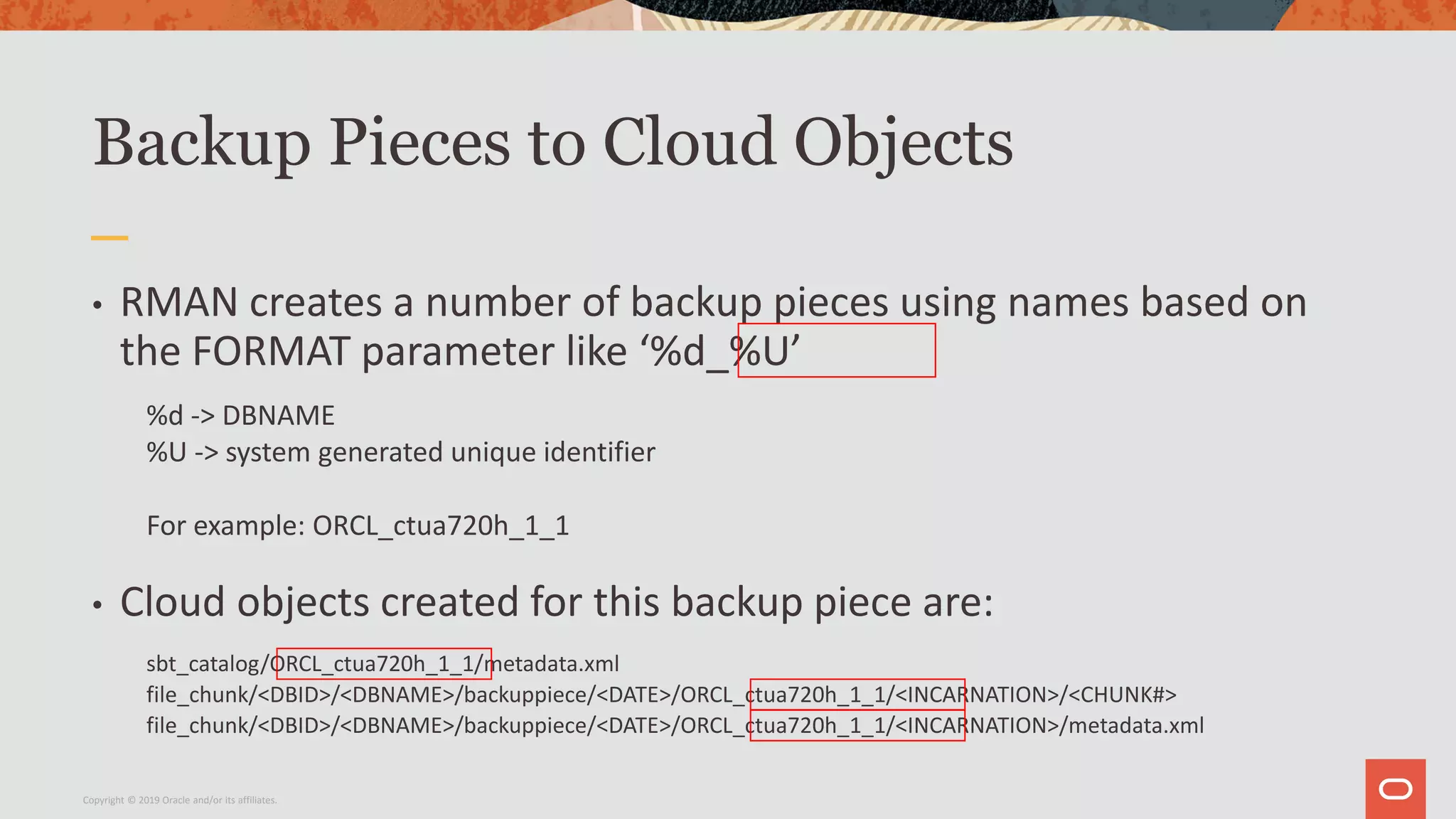

Backup Pieces to Cloud Objects
• RMAN creates a number of backup pieces using names based on
the FORMAT parameter like ‘%d_%U’
%d -> DBNAME
%U -> system generated unique identifier
For example: ORCL_ctua720h_1_1
• Cloud objects created for this backup piece are:
sbt_catalog/ORCL_ctua720h_1_1/metadata.xml
file_chunk/<DBID>/<DBNAME>/backuppiece/<DATE>/ORCL_ctua720h_1_1/<INCARNATION>/<CHUNK#>
file_chunk/<DBID>/<DBNAME>/backuppiece/<DATE>/ORCL_ctua720h_1_1/<INCARNATION>/metadata.xml

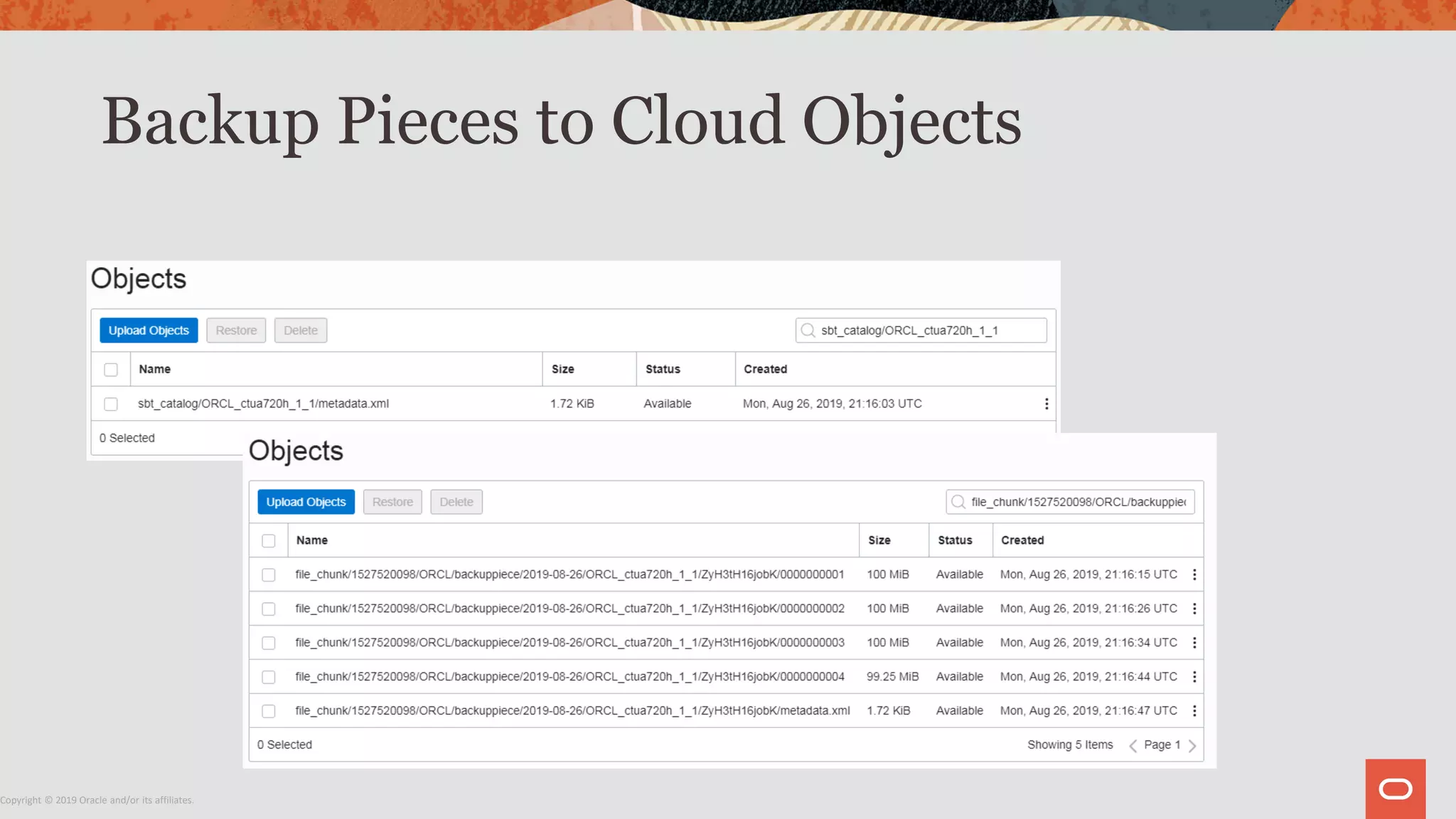

Backup Pieces to Cloud Objects
ORCL_ctua720h_1_1

Moving Oracle Backups From Other Cloud Infrastructures

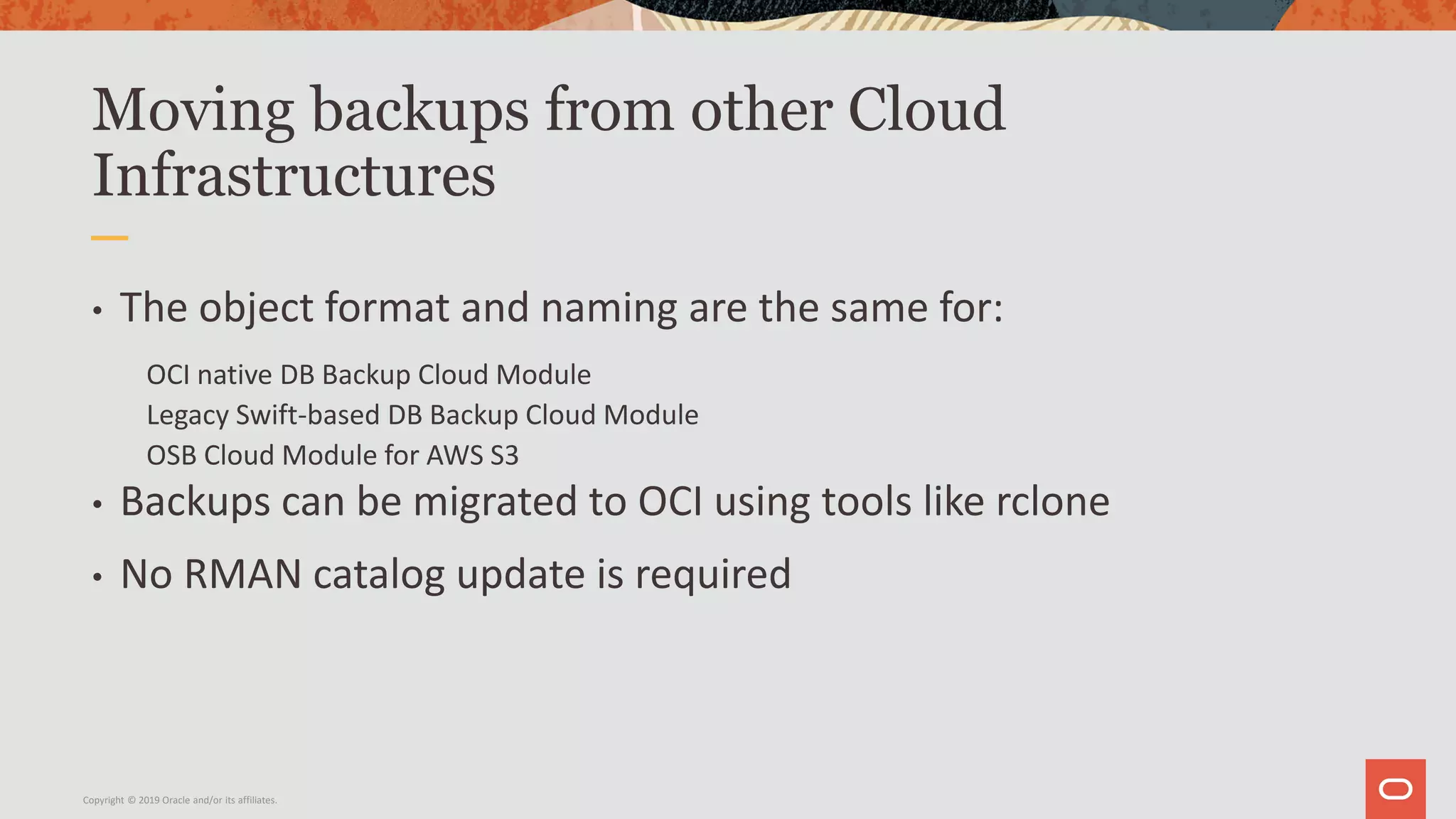

Moving backups from other Cloud
Infrastructures
• The object format and naming are the same for:
OCI native DB Backup Cloud Module
Legacy Swift-based DB Backup Cloud Module
OSB Cloud Module for AWS S3
• Backups can be migrated to OCI using tools like rclone
• No RMAN catalog update is required

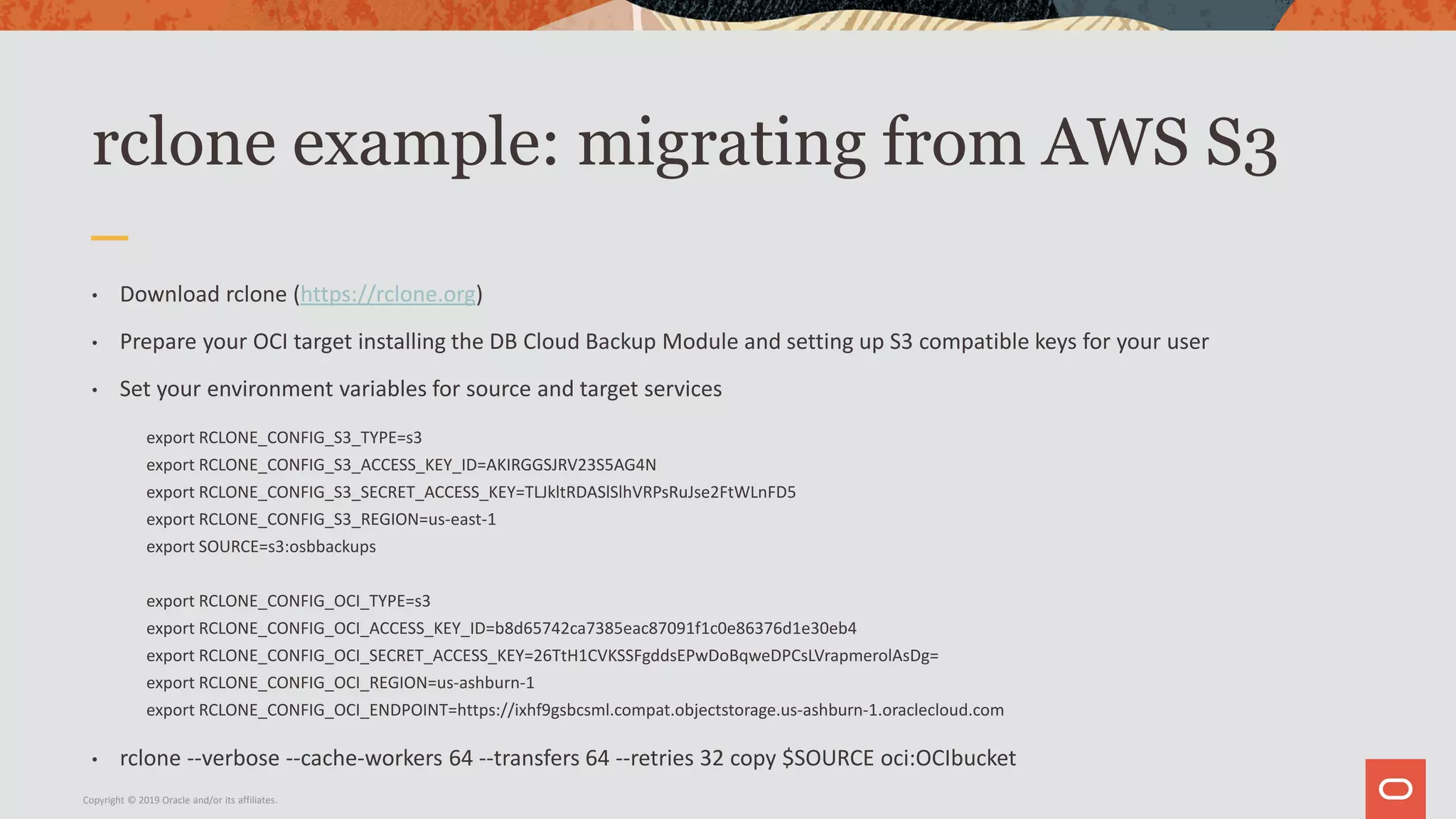

rclone example: migrating from AWS S3
• Download rclone (https://rclone.org)
• Prepare your OCI target installing the DB Cloud Backup Module and setting up S3 compatible keys for your user
• Set your environment variables for source and target services
export RCLONE_CONFIG_S3_TYPE=s3
export RCLONE_CONFIG_S3_ACCESS_KEY_ID=AKIRGGSJRV23S5AG4N
export RCLONE_CONFIG_S3_SECRET_ACCESS_KEY=TLJkltRDASlSlhVRPsRuJse2FtWLnFD5
export RCLONE_CONFIG_S3_REGION=us-east-1
export SOURCE=s3:osbbackups
export RCLONE_CONFIG_OCI_TYPE=s3
export RCLONE_CONFIG_OCI_ACCESS_KEY_ID=b8d65742ca7385eac87091f1c0e86376d1e30eb4
export RCLONE_CONFIG_OCI_SECRET_ACCESS_KEY=26TtH1CVKSSFgddsEPwDoBqweDPCsLVrapmerolAsDg=
export RCLONE_CONFIG_OCI_REGION=us-ashburn-1
export RCLONE_CONFIG_OCI_ENDPOINT=https://ixhf9gsbcsml.compat.objectstorage.us-ashburn-1.oraclecloud.com
• rclone --verbose --cache-workers 64 --transfers 64 --retries 32 copy $SOURCE oci:OCIbucket

Archiving Backups for Compliance
An example using Events
Service and Serverless
Functions

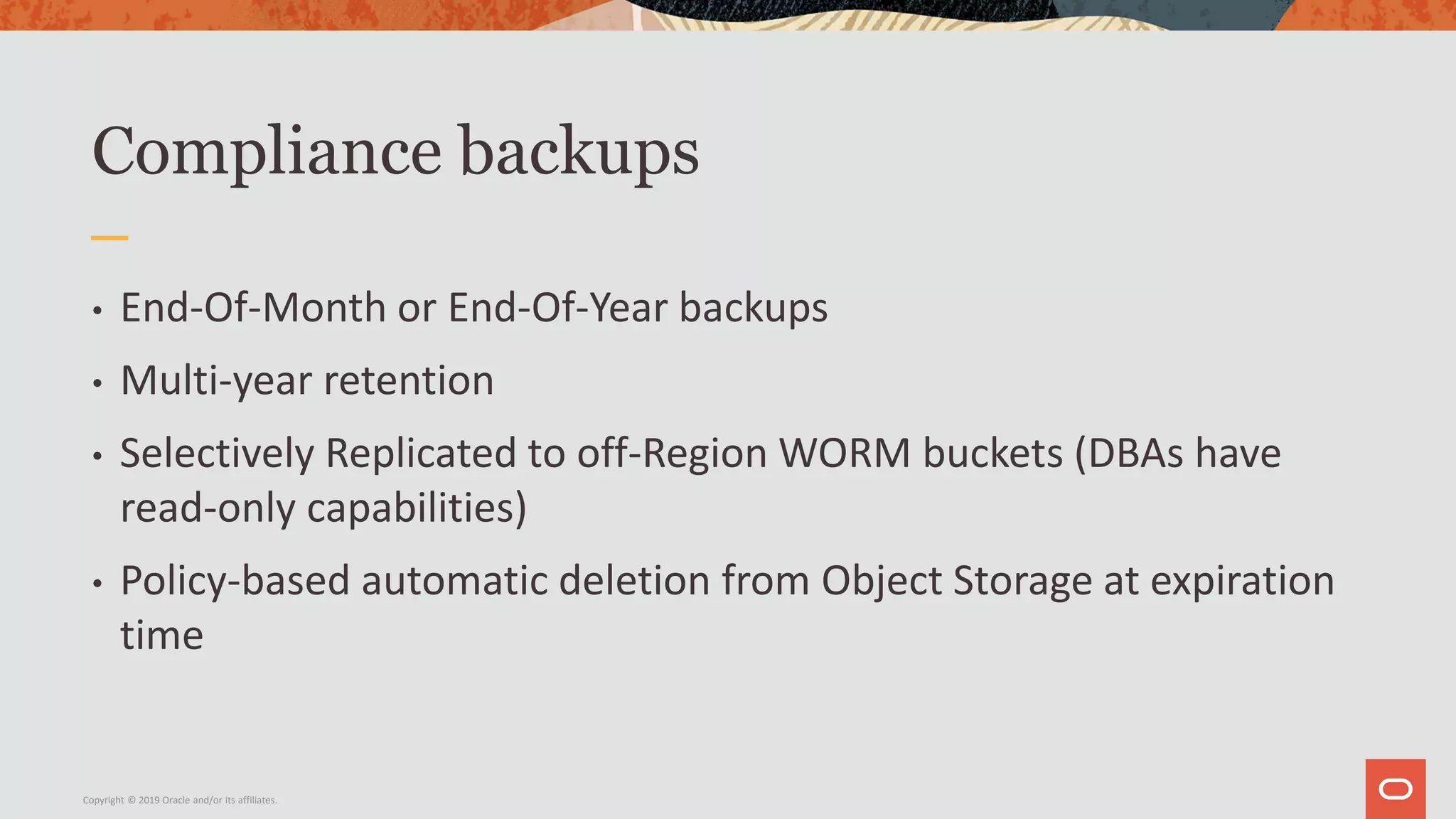

Compliance backups
• End-Of-Month or End-Of-Year backups
• Multi-year retention
• Selectively Replicated to off-Region WORM buckets (DBAs have
read-only capabilities)
• Policy-based automatic deletion from Object Storage at expiration
time

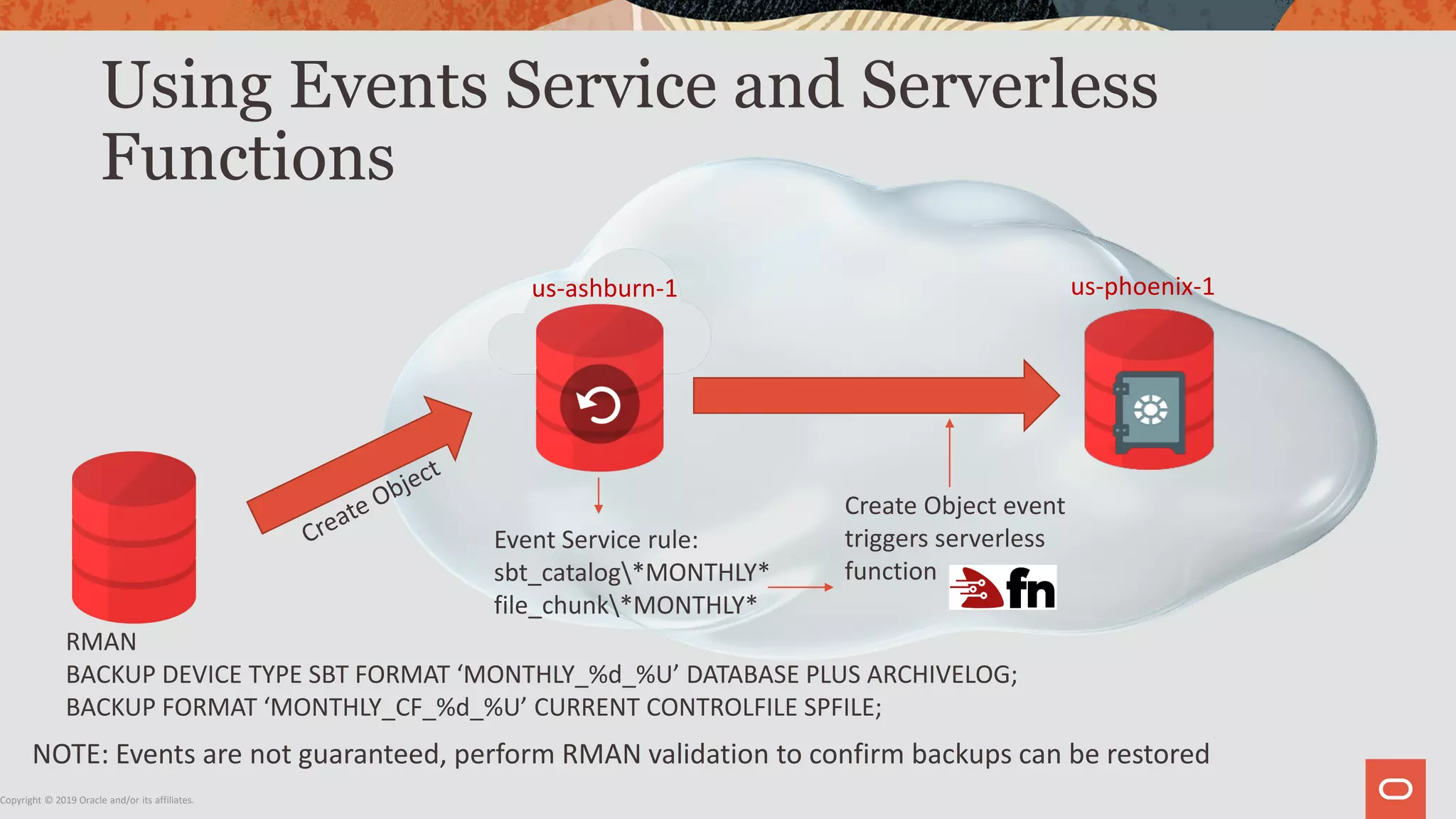

Using Events Service and Serverless
Functions
Create Object event
triggers serverless
function
RMAN
BACKUP DEVICE TYPE SBT FORMAT ‘MONTHLY_%d_%U’ DATABASE PLUS ARCHIVELOG;
BACKUP FORMAT ‘MONTHLY_CF_%d_%U’ CURRENT CONTROLFILE SPFILE;
Event Service rule:
sbt_catalog*MONTHLY*
file_chunk*MONTHLY*
us-phoenix-1us-ashburn-1
NOTE: Events are not guaranteed, perform RMAN validation to confirm backups can be restored

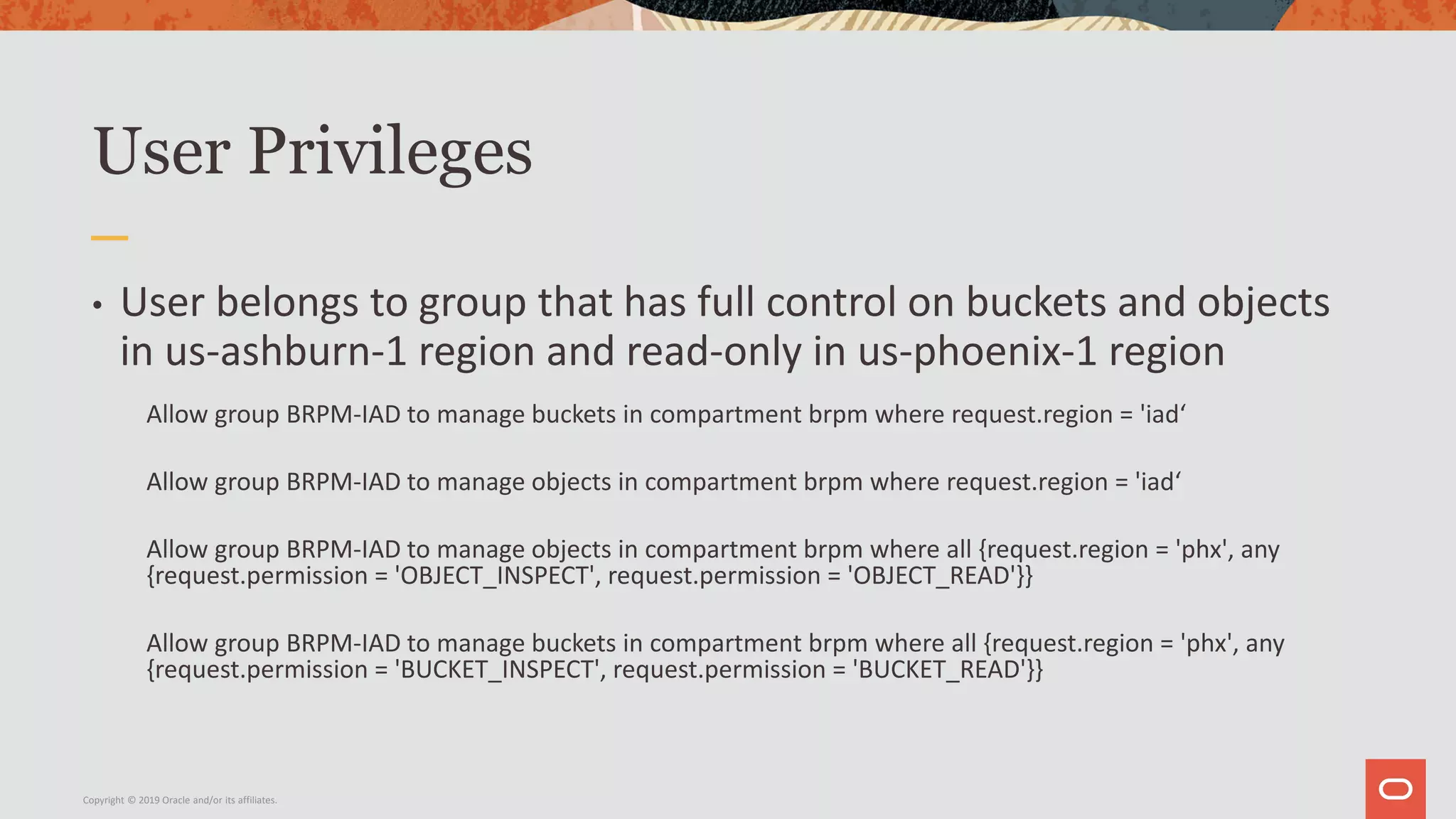

User Privileges
• User belongs to group that has full control on buckets and objects
in us-ashburn-1 region and read-only in us-phoenix-1 region
Allow group BRPM-IAD to manage buckets in compartment brpm where request.region = 'iad‘
Allow group BRPM-IAD to manage objects in compartment brpm where request.region = 'iad‘
Allow group BRPM-IAD to manage objects in compartment brpm where all {request.region = 'phx', any
{request.permission = 'OBJECT_INSPECT', request.permission = 'OBJECT_READ'}}
Allow group BRPM-IAD to manage buckets in compartment brpm where all {request.region = 'phx', any
{request.permission = 'BUCKET_INSPECT', request.permission = 'BUCKET_READ'}}

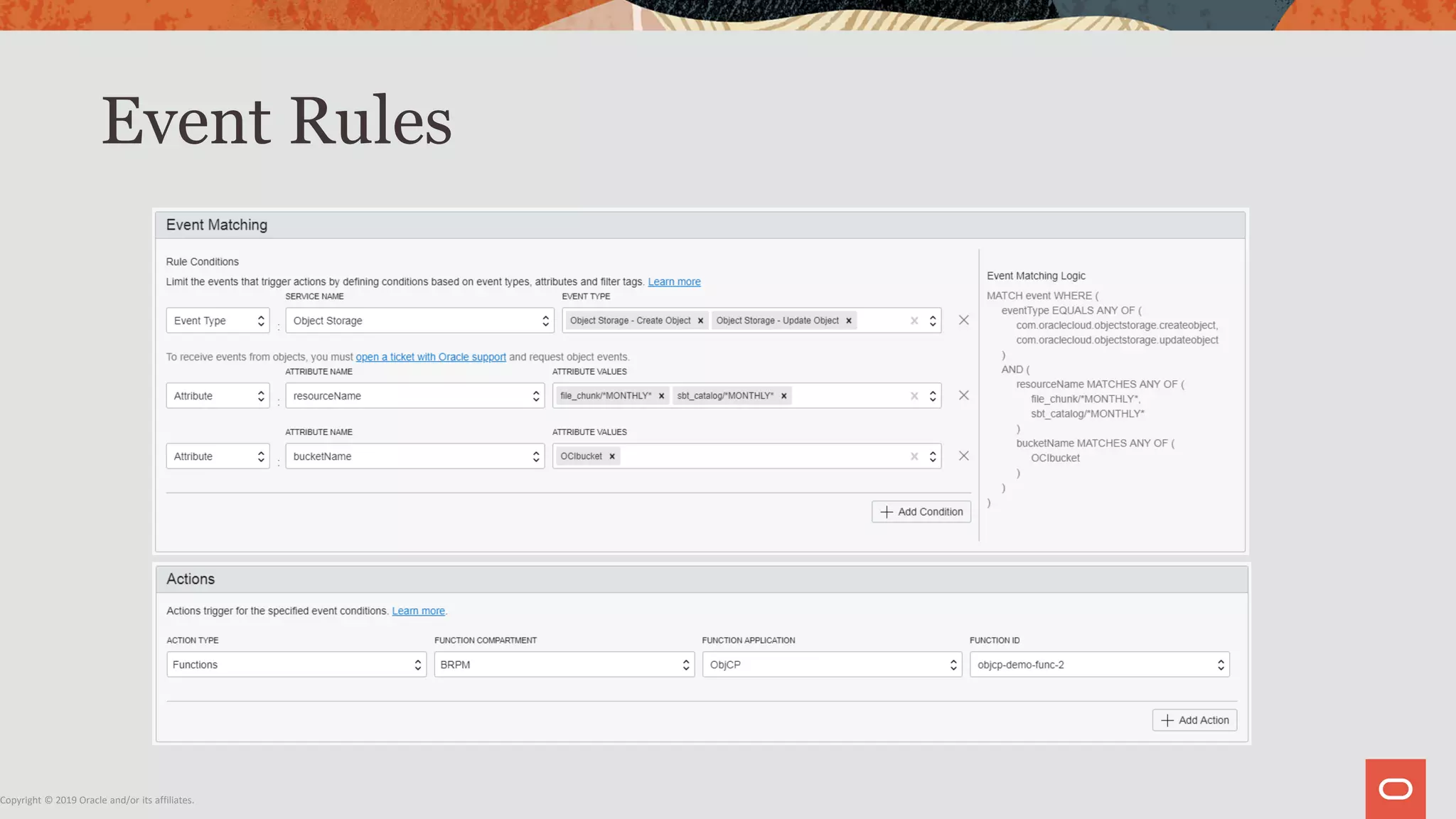

Event Rules

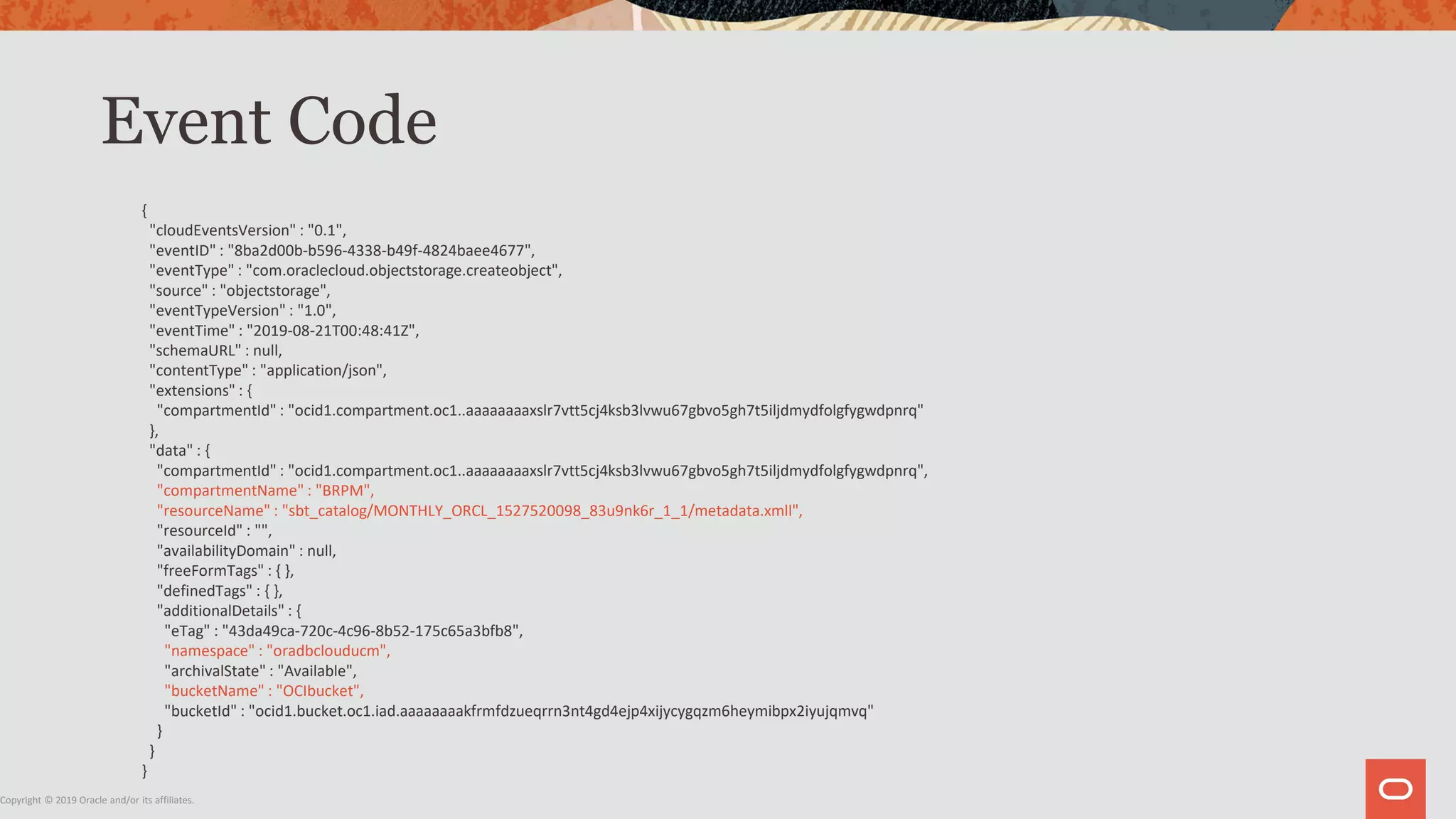

Event Code
{
"cloudEventsVersion" : "0.1",
"eventID" : "8ba2d00b-b596-4338-b49f-4824baee4677",
"eventType" : "com.oraclecloud.objectstorage.createobject",
"source" : "objectstorage",
"eventTypeVersion" : "1.0",
"eventTime" : "2019-08-21T00:48:41Z",
"schemaURL" : null,
"contentType" : "application/json",
"extensions" : {
"compartmentId" : "ocid1.compartment.oc1..aaaaaaaaxslr7vtt5cj4ksb3lvwu67gbvo5gh7t5iljdmydfolgfygwdpnrq"
},
"data" : {
"compartmentId" : "ocid1.compartment.oc1..aaaaaaaaxslr7vtt5cj4ksb3lvwu67gbvo5gh7t5iljdmydfolgfygwdpnrq",
"compartmentName" : "BRPM",
"resourceName" : "sbt_catalog/MONTHLY_ORCL_1527520098_83u9nk6r_1_1/metadata.xmll",
"resourceId" : "",
"availabilityDomain" : null,
"freeFormTags" : { },
"definedTags" : { },
"additionalDetails" : {
"eTag" : "43da49ca-720c-4c96-8b52-175c65a3bfb8",
"namespace" : "oradbclouducm",
"archivalState" : "Available",
"bucketName" : "OCIbucket",
"bucketId" : "ocid1.bucket.oc1.iad.aaaaaaaakfrmfdzueqrrn3nt4gd4ejp4xijycygqzm6heymibpx2iyujqmvq"
}
}
}

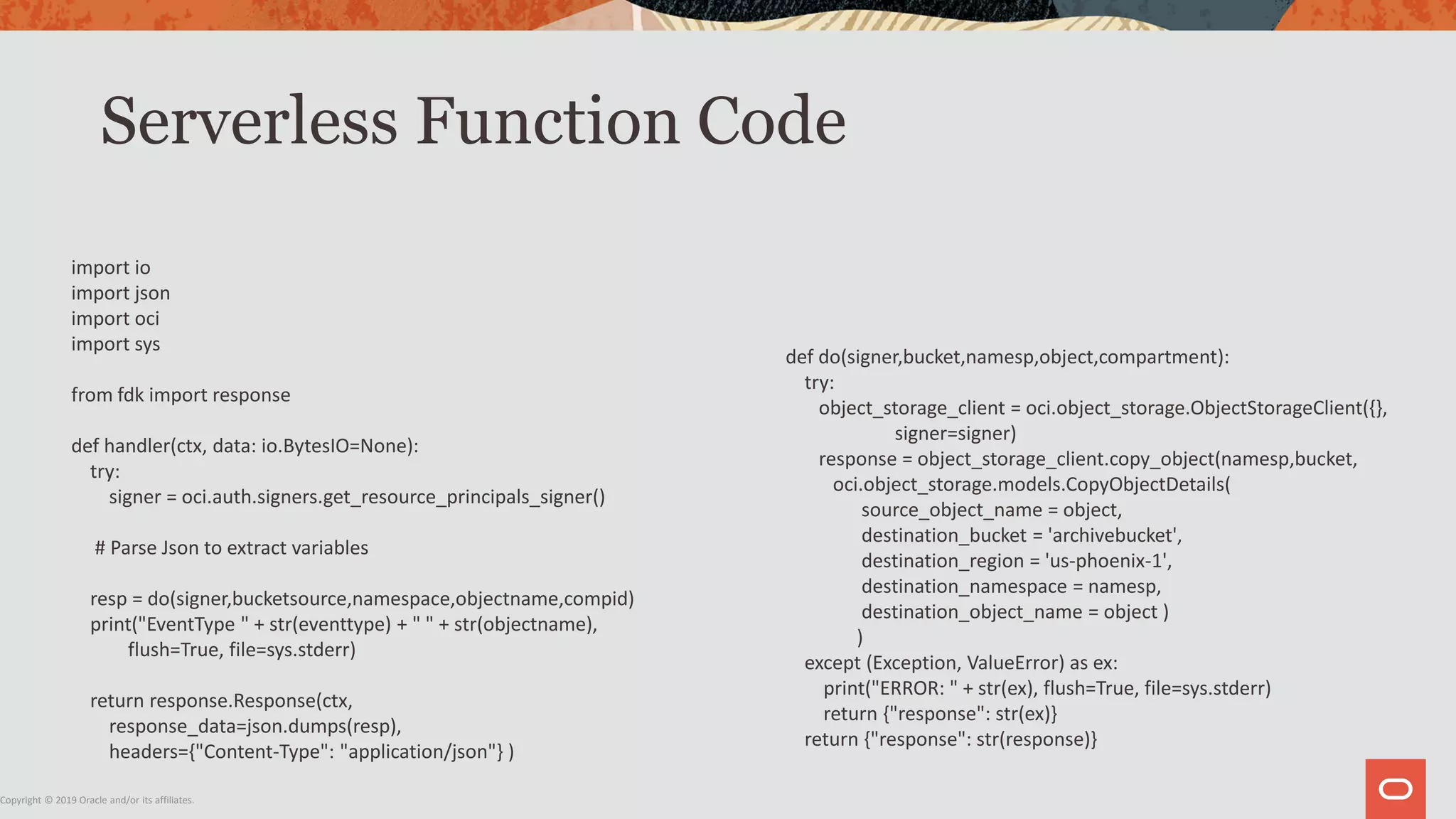

Serverless Function Code
def do(signer,bucket,namesp,object,compartment):
try:
object_storage_client = oci.object_storage.ObjectStorageClient({},
signer=signer)
response = object_storage_client.copy_object(namesp,bucket,
oci.object_storage.models.CopyObjectDetails(
source_object_name = object,
destination_bucket = 'archivebucket',
destination_region = 'us-phoenix-1',
destination_namespace = namesp,
destination_object_name = object )
)
except (Exception, ValueError) as ex:
print("ERROR: " + str(ex), flush=True, file=sys.stderr)
return {"response": str(ex)}
return {"response": str(response)}
import io
import json
import oci
import sys
from fdk import response
def handler(ctx, data: io.BytesIO=None):
try:
signer = oci.auth.signers.get_resource_principals_signer()
# Parse Json to extract variables
resp = do(signer,bucketsource,namespace,objectname,compid)
print("EventType " + str(eventtype) + " " + str(objectname),
flush=True, file=sys.stderr)
return response.Response(ctx,
response_data=json.dumps(resp),
headers={"Content-Type": "application/json"} )

DEMO

Customer experiences
Niklas Iveslatt
Arisant

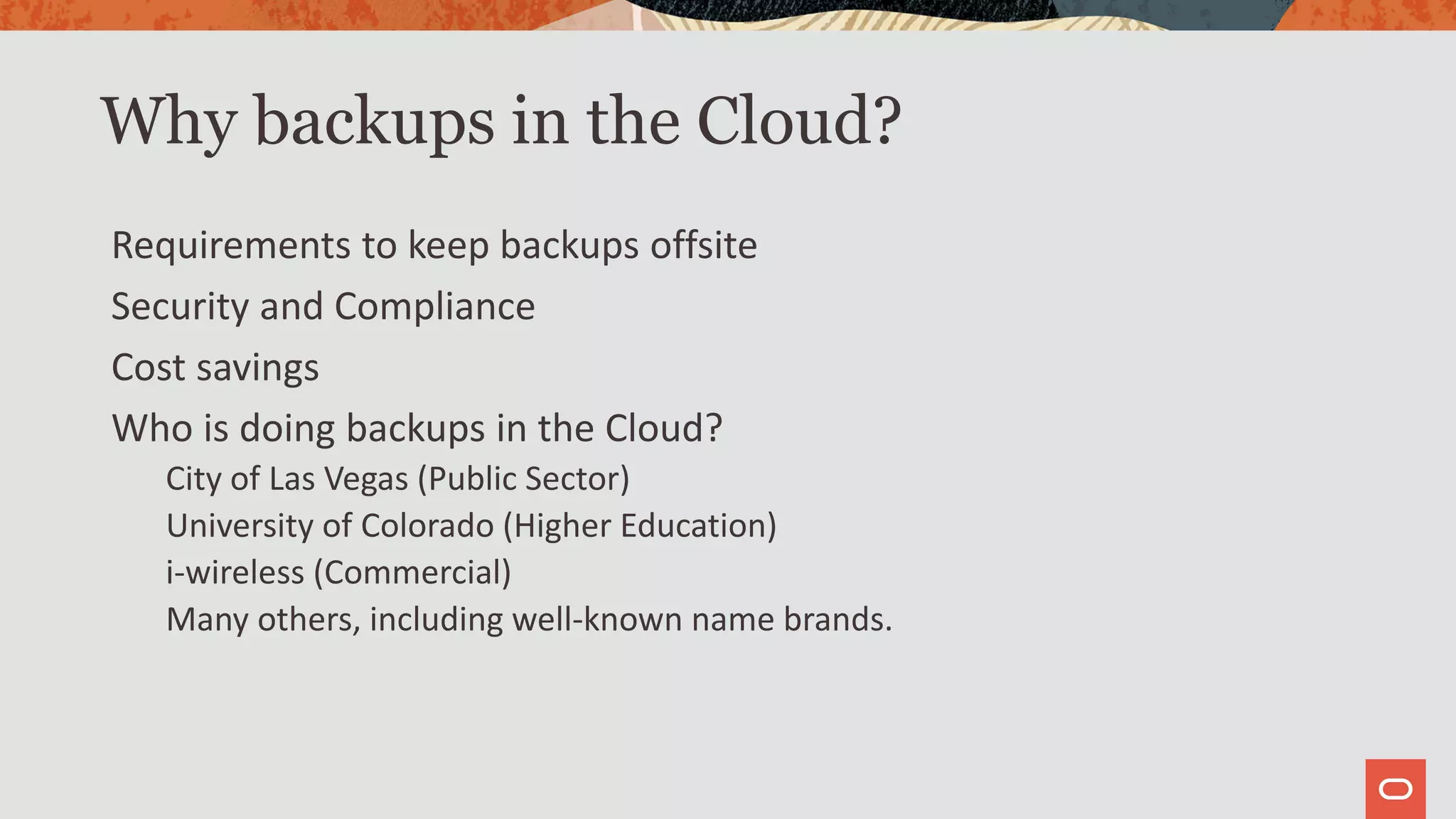

Why backups in the Cloud?
Requirements to keep backups offsite
Security and Compliance
Cost savings
Who is doing backups in the Cloud?
City of Las Vegas (Public Sector)
University of Colorado (Higher Education)
i-wireless (Commercial)
Many others, including well-known name brands.

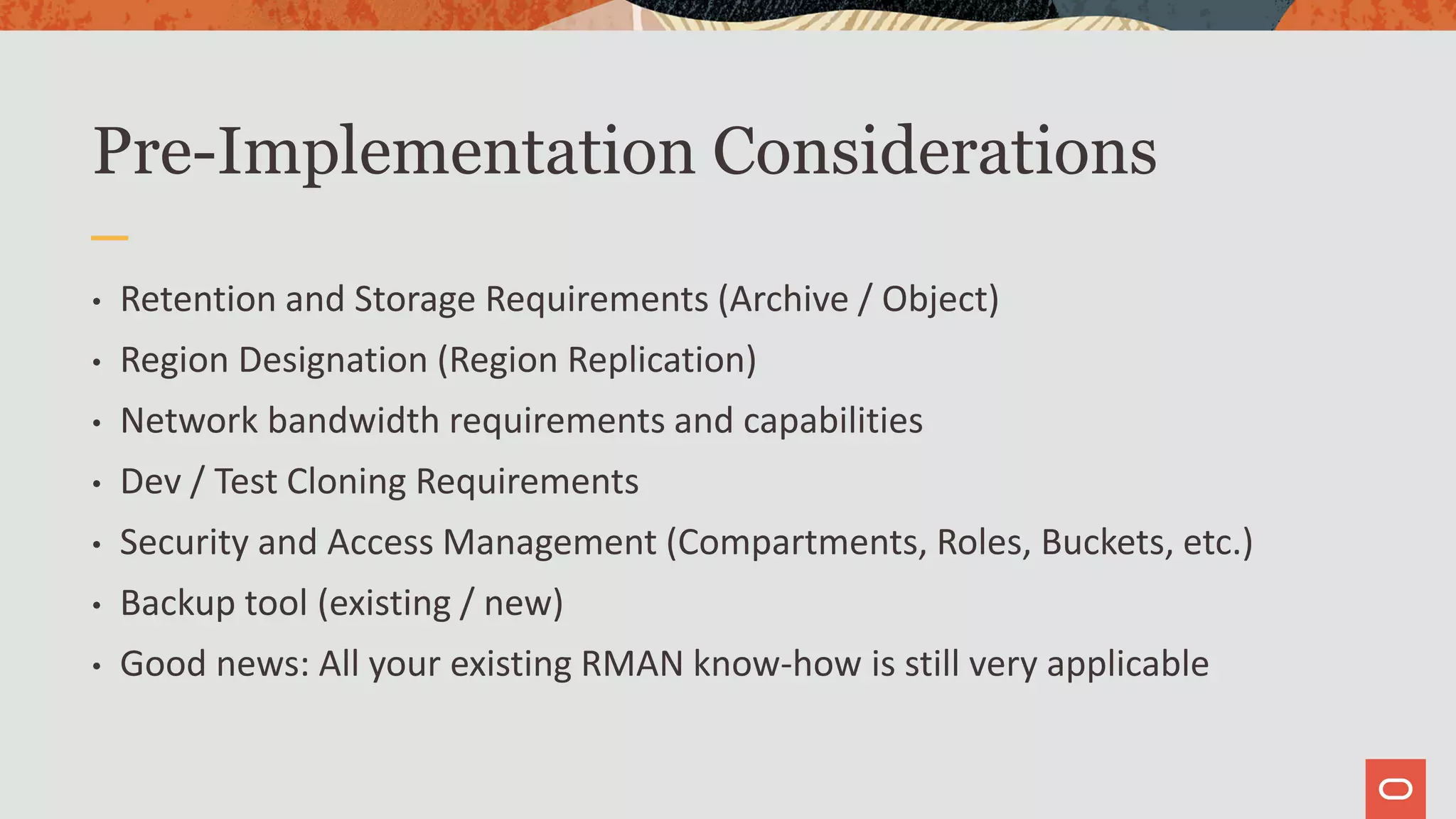

Pre-Implementation Considerations
• Retention and Storage Requirements (Archive / Object)
• Region Designation (Region Replication)
• Network bandwidth requirements and capabilities
• Dev / Test Cloning Requirements
• Security and Access Management (Compartments, Roles, Buckets, etc.)
• Backup tool (existing / new)
• Good news: All your existing RMAN know-how is still very applicable

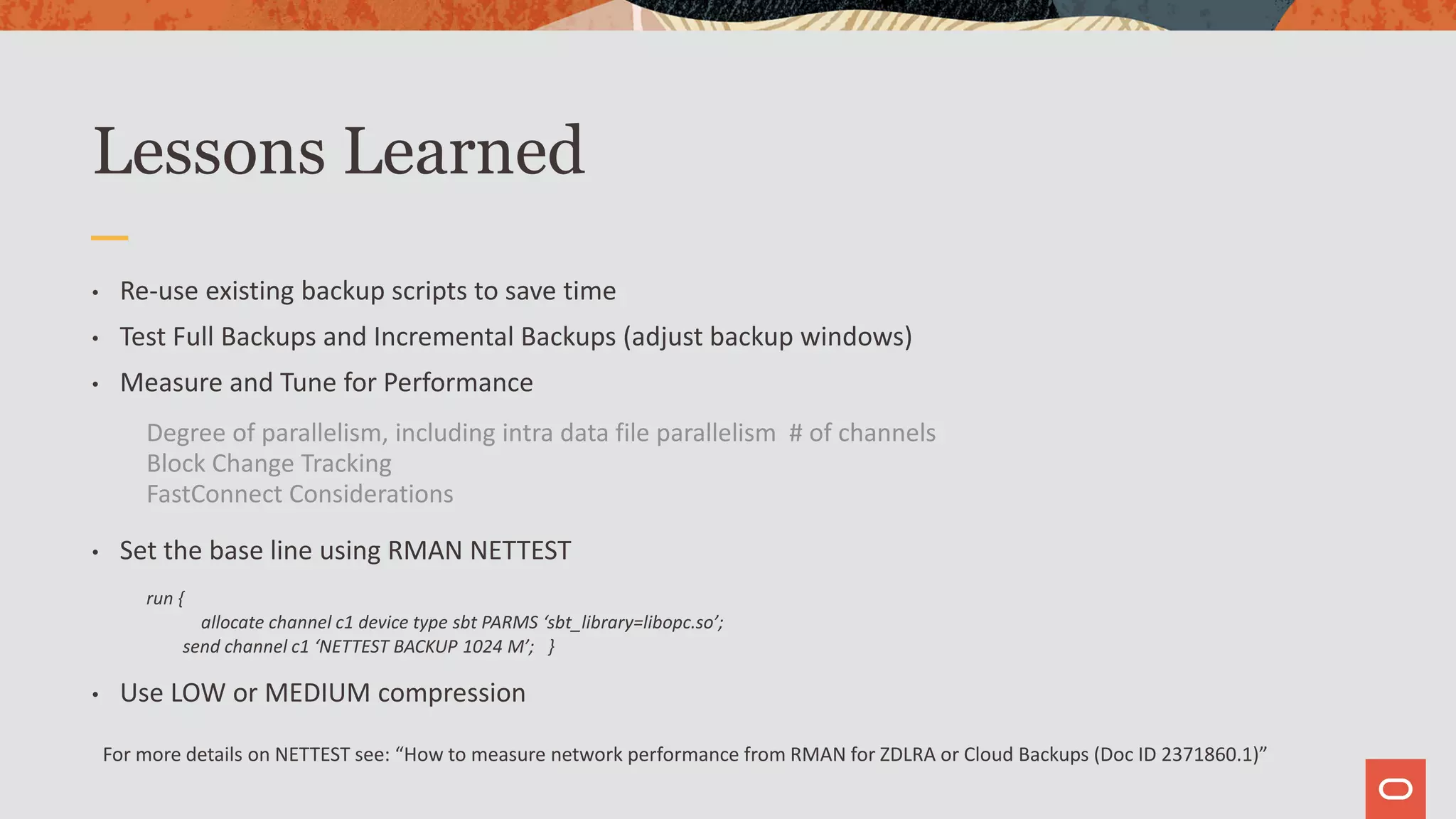

Lessons Learned
• Re-use existing backup scripts to save time
• Test Full Backups and Incremental Backups (adjust backup windows)
• Measure and Tune for Performance
Degree of parallelism, including intra data file parallelism # of channels
Block Change Tracking
FastConnect Considerations
• Set the base line using RMAN NETTEST
run {
allocate channel c1 device type sbt PARMS ‘sbt_library=libopc.so’;
send channel c1 ‘NETTEST BACKUP 1024 M’; }
• Use LOW or MEDIUM compression
For more details on NETTEST see: “How to measure network performance from RMAN for ZDLRA or Cloud Backups (Doc ID 2371860.1)”

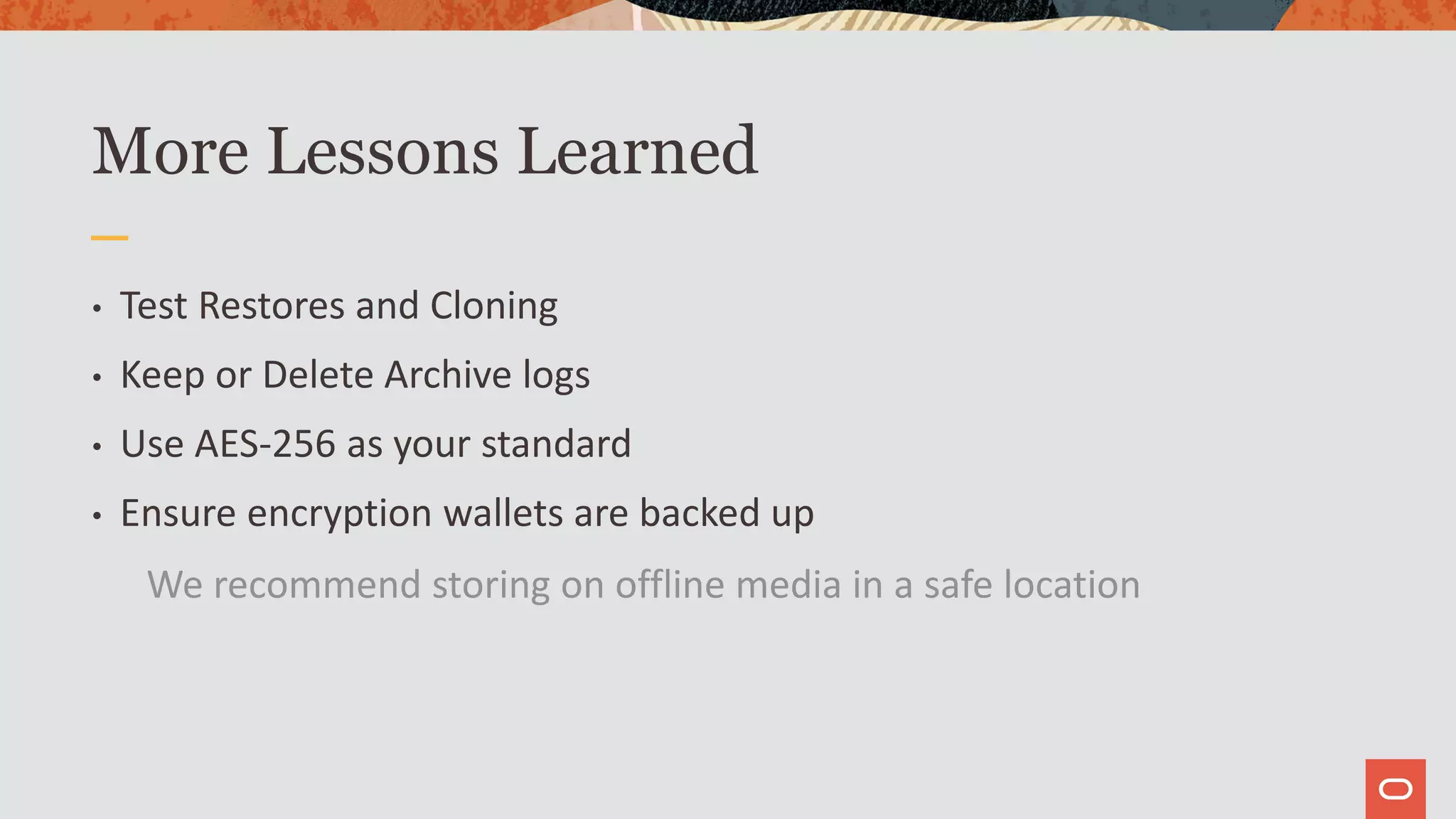

More Lessons Learned
• Test Restores and Cloning
• Keep or Delete Archive logs
• Use AES-256 as your standard
• Ensure encryption wallets are backed up
We recommend storing on offline media in a safe location

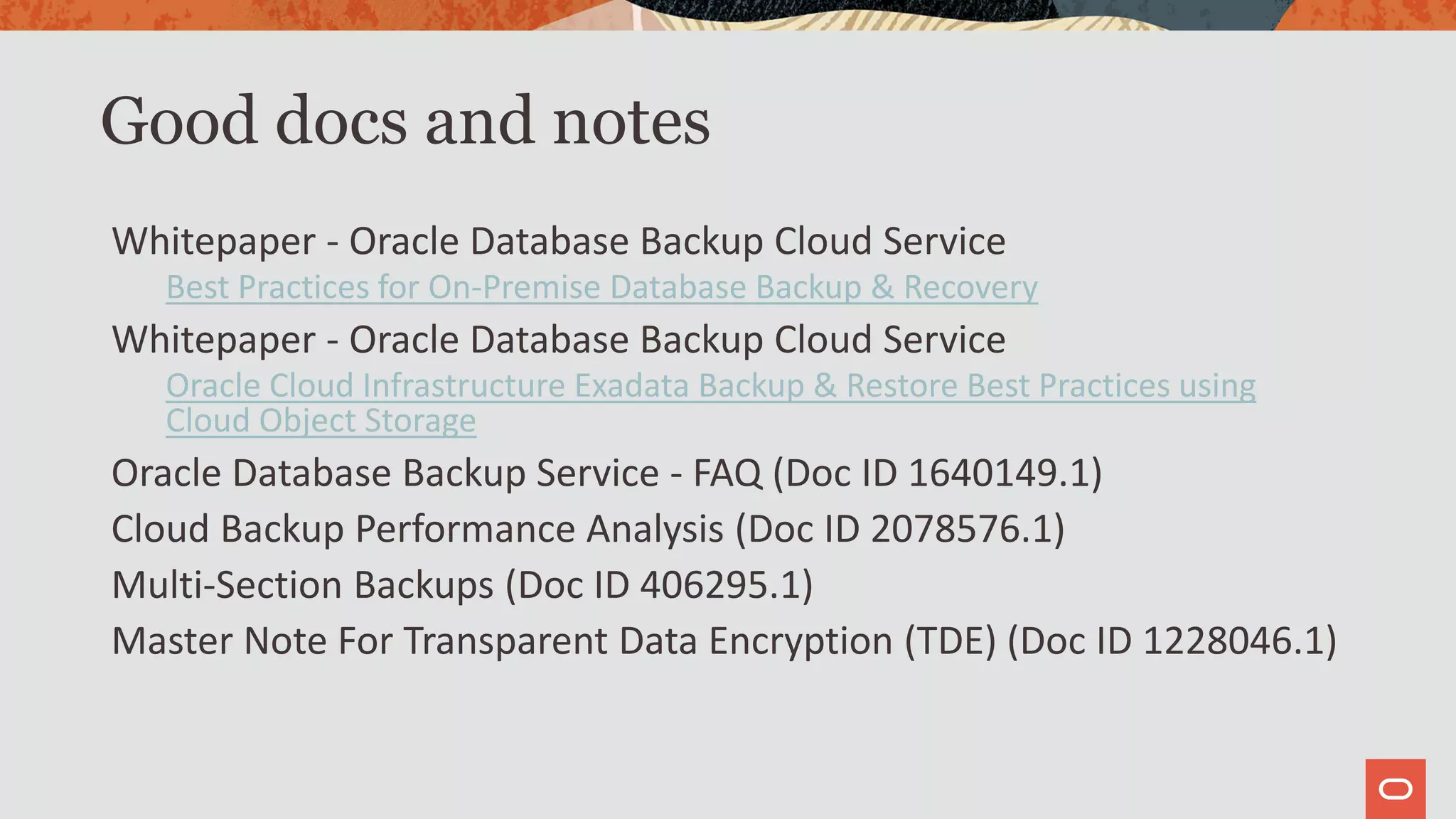

Good docs and notes
Whitepaper - Oracle Database Backup Cloud Service
Best Practices for On-Premise Database Backup & Recovery
Whitepaper - Oracle Database Backup Cloud Service
Oracle Cloud Infrastructure Exadata Backup & Restore Best Practices using
Cloud Object Storage
Oracle Database Backup Service - FAQ (Doc ID 1640149.1)
Cloud Backup Performance Analysis (Doc ID 2078576.1)
Multi-Section Backups (Doc ID 406295.1)
Master Note For Transparent Data Encryption (TDE) (Doc ID 1228046.1)

Where To Go Next
Tomorrow
3:45-4:30
4:45-5:30
Realizing Value from the Zero Data Loss Recovery
Appliance: Eaton's Journey
Moscone South - Room 152C
Zero Data Loss Recovery Appliance: Expanding
Integration with Oracle Cloud Kelly Smith, Javier
Ruiz, Durga Malella Moscone South 212
Thursday
1:15-2:00 Zero Data Loss Recovery Appliance: Latest
Practices from Oracle Development
Tim Chien, Jony Safi, Joe Scanlon
Moscone South 212

Oracle Open World Presentation - Oracle RMAN Best Practices for Cloud Backups

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Oracle Open World Presentation - Oracle RMAN Best Practices for Cloud Backups

Similar to Oracle Open World Presentation - Oracle RMAN Best Practices for Cloud Backups (20)

Recently uploaded

Recently uploaded (20)

Oracle Open World Presentation - Oracle RMAN Best Practices for Cloud Backups
