This document provides information about the table structures and queries related to Oracle Cloud HCM - Human Capital Management Solution. It includes the names and descriptions of over 20 tables used to store employee, organization, and other HCM data. It also provides examples of several common queries to retrieve employee profiles, degrees, assignments, and other information from these tables.

1. Preface
The document is created based on online references related to Oracle Cloud HCM - Human Capital
Management Solution which may be changed based on version or implementation cases.
Credit
S.M. ASSADUZZAMAN SARKER

2. HCM Table Structure & Others
2 | P a g e
Contents
Tables............................................................................................................................................................4
HR_ORGANIZATION_UNITS_F_TL............................................................................................................4
HR_ORGANIZATION_UNITS .....................................................................................................................4
PER_LOCATIONS.......................................................................................................................................4
HR_ALL_POSITIONS_F_TL ........................................................................................................................5
PER_ALL_PEOPLE_F..................................................................................................................................5
PER_PEOPLE_EXTRA_INFO_F...................................................................................................................5
PER_ASSIGNMENT_SUPERVISORS_F.......................................................................................................5
PER_GRADES_F.........................................................................................................................................6
PER_IMAGES.............................................................................................................................................6
PER_PERSONS...........................................................................................................................................6
PER_PERSON_NAMES_F ..........................................................................................................................6
PER_PEOPLE_LEGISLATIVE_F_V...............................................................................................................6
PER_PHONES ............................................................................................................................................7
PER_RELIGIONS ........................................................................................................................................7
PER_ALL_PEOPLE_F_V..............................................................................................................................7
PER_ASSIGNMENT_SUPERVISORS_F.......................................................................................................7
PER_ALL_PEOPLE_F_V..............................................................................................................................7
PER_ADDRESSES_F...................................................................................................................................7
PER_PAYROLL_STATUTORY_UNITS .........................................................................................................8
PER_PERSON_ADDR_USAGES_F..............................................................................................................8
HCM_EXTENDED_LOOKUP_CODES_B .....................................................................................................8
PER_DEPARTMENTS.................................................................................................................................9
PER_EMAIL_ADDRESSES_V......................................................................................................................9
PER_JOBS..................................................................................................................................................9
CMP_SALARY............................................................................................................................................9
PER_NATIONAL_IDENTIFIERS...................................................................................................................9
PER_ASSIGNMENTS_F..............................................................................................................................9
PER_CONTACT_RELSHIPS_F............................................................................................................10
PER_CONTRACTS_F ................................................................................................................................10
PER_LOCATION_EXTRA_INFO_F_..........................................................................................................11

3. HCM Table Structure & Others
3 | P a g e

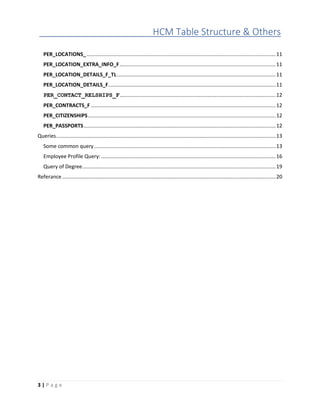

PER_LOCATIONS_...................................................................................................................................11
PER_LOCATION_EXTRA_INFO_F............................................................................................................11
PER_LOCATION_DETAILS_F_TL..............................................................................................................11
PER_LOCATION_DETAILS_F....................................................................................................................11
PER_CONTACT_RELSHIPS_F............................................................................................................12
PER_CONTRACTS_F ................................................................................................................................12
PER_CITIZENSHIPS..................................................................................................................................12
PER_PASSPORTS.....................................................................................................................................12
Queries........................................................................................................................................................13
Some common query..............................................................................................................................13
Employee Profile Query:.........................................................................................................................16
Query of Degree......................................................................................................................................19
Referance....................................................................................................................................................20

4. HCM Table Structure & Others
4 | P a g e

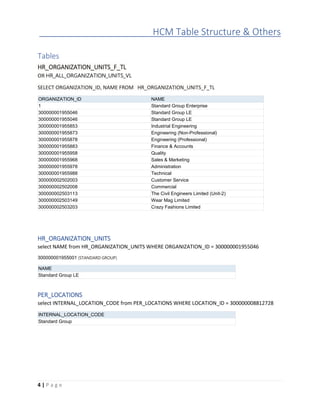

Tables
HR_ORGANIZATION_UNITS_F_TL
OR HR_ALL_ORGANIZATION_UNITS_VL
SELECT ORGANIZATION_ID, NAME FROM HR_ORGANIZATION_UNITS_F_TL
ORGANIZATION_ID NAME
1 Standard Group Enterprise
300000001955046 Standard Group LE
300000001955046 Standard Group LE
300000001955853 Industrial Engineering
300000001955873 Engineering (Non-Professional)
300000001955878 Engineering (Professional)
300000001955883 Finance & Accounts
300000001955958 Quality
300000001955968 Sales & Marketing
300000001955978 Administration
300000001955988 Technical
300000002502003 Customer Service
300000002502008 Commercial
300000002503113 The Civil Engineers Limited (Unit-2)
300000002503149 Wear Mag Limited
300000002503203 Crazy Fashions Limited
HR_ORGANIZATION_UNITS
select NAME from HR_ORGANIZATION_UNITS WHERE ORGANIZATION_ID = 300000001955046
300000001955001 (STANDARD GROUP)
NAME
Standard Group LE
PER_LOCATIONS
select INTERNAL_LOCATION_CODE from PER_LOCATIONS WHERE LOCATION_ID = 300000008812728
INTERNAL_LOCATION_CODE
Standard Group

5. HCM Table Structure & Others
5 | P a g e

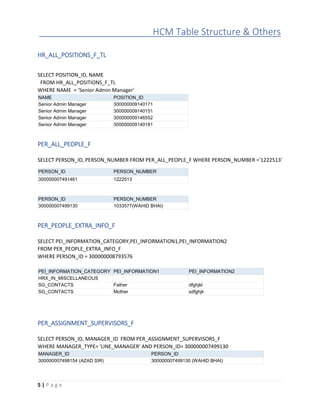

HR_ALL_POSITIONS_F_TL
SELECT POSITION_ID, NAME
FROM HR_ALL_POSITIONS_F_TL
WHERE NAME = 'Senior Admin Manager'
NAME POSITION_ID
Senior Admin Manager 300000009140171
Senior Admin Manager 300000009140151
Senior Admin Manager 300000009146552
Senior Admin Manager 300000009140181
PER_ALL_PEOPLE_F
SELECT PERSON_ID, PERSON_NUMBER FROM PER_ALL_PEOPLE_F WHERE PERSON_NUMBER ='1222513'
PERSON_ID PERSON_NUMBER
300000007491461 1222513
PERSON_ID PERSON_NUMBER
300000007499130 1033577(WAHID BHAI)
PER_PEOPLE_EXTRA_INFO_F
SELECT PEI_INFORMATION_CATEGORY,PEI_INFORMATION1,PEI_INFORMATION2
FROM PER_PEOPLE_EXTRA_INFO_F
WHERE PERSON_ID = 300000008793576
PEI_INFORMATION_CATEGORY PEI_INFORMATION1 PEI_INFORMATION2
HRX_IN_MISCELLANEOUS
SG_CONTACTS Father dfghjkl
SG_CONTACTS Mother sdfghjk
PER_ASSIGNMENT_SUPERVISORS_F
SELECT PERSON_ID, MANAGER_ID FROM PER_ASSIGNMENT_SUPERVISORS_F
WHERE MANAGER_TYPE= 'LINE_MANAGER' AND PERSON_ID= 300000007499130
MANAGER_ID PERSON_ID
300000007498154 (AZAD SIR) 300000007499130 (WAHID BHAI)

6. HCM Table Structure & Others
6 | P a g e
PER_GRADES_F
SELECT GRADE_CODE, GRADE_ID FROM PER_GRADES_F
GRADE_ID GRADE_CODE
300000001955508 SMC-M3
300000001955511 S3
300000001955514 SMC-M2
300000001955517 W7
300000001955520 JMC-M9
PER_IMAGES
SELECT IMAGE_ID,IMAGE FROM PER_IMAGES WHERE PERSON_ID =300000007491461
IMAGE_ID IMAGE
100000004602850 AFLAKJFLKAJFLKACNLKLLJLAKJFLKAJLK…..
PER_PERSONS
SELECT BLOOD_TYPE, TO_CHAR(DATE_OF_BIRTH, 'DD-MON-RR') DATE_OF_BIRTH FROM PER_PERSONS
WHERE PERSON_ID =300000007491461
BLOOD_TYPE DATE_OF_BIRTH
O+ 30-12-81
PER_PERSON_NAMES_F
SELECT FULL_NAME, KNOWN_AS SHORT_NAME FROM PER_PERSON_NAMES_F
WHERE PERSON_ID =300000007491461 AND PERSON_NAME_ID = 300000007491465
FULL_NAME SHORT_NAME
S.M. ASSADUZZAMAN SARKER ASSADUZZAMAN
PER_PEOPLE_LEGISLATIVE_F_V
SELECT SEX,MARITAL_STATUS,HIGHEST_EDUCATION_LEVEL
FROM PER_PEOPLE_LEGISLATIVE_F_V WHERE PERSON_ID = 300000007491461
SEX MARITAL_STATUS HIGHEST_EDUCATION_LEVEL
M M M.Sc

7. HCM Table Structure & Others
7 | P a g e
PER_PHONES
SELECT PHONE_NUMBER , PHONE_TYPE FROM PER_PHONES WHERE PERSON_ID =300000007491461
PHONE_TYPE PHONE_NUMBER
W1 01716591619
PER_RELIGIONS
SELECT RELIGION FROM PER_RELIGIONS WHERE PERSON_ID =300000007491461
RELIGION
MUSLIM
PER_ALL_PEOPLE_F_V
SELECT PRIMARY_EMAIL_ID,PRIMARY_PHONE_ID,MAILING_ADDRESS_ID,PRIMARY_NID_ID
FROM PER_ALL_PEOPLE_F_V
WHERE PERSON_ID =300000007491461
PRIMARY_EMAIL_ID PRIMARY_PHONE_ID MAILING_ADDRESS_ID PRIMARY_NID_ID
300000007491481 300000007491482 300000007491474 300000007491484
PER_ASSIGNMENT_SUPERVISORS_F
SELECT *
FROM PER_ASSIGNMENT_SUPERVISORS_F
--WHERE ADDRESS_ID = 300000007491474
PER_ALL_PEOPLE_F_V
ADDRESS & OTHER INFO
PER_ADDRESSES_F
SELECT ADDRESS_LINE_1,
ADDRESS_LINE_2,COUNTRY,POSTAL_CODE,REGION_1,REGION_2,REGION_3,TOWN_OR_CITY
FROM PER_ADDRESSES_F WHERE ADDRESS_ID = 300000007491474
ADDRESS_LINE_
1
ADDRESS_LINE_
2
COUNTR
Y
POSTAL_COD
E
REGION_
1
REGION_
2
REGION_
3
TOWN_OR_CIT
Y
Village: Taluk
khutamara
Lalmonirhat BD Lalmonirhat
Sadar-5500
Lalmonirh
at Sadar
Rangpur Lalmonirh
at
Lalmonirhat

8. HCM Table Structure & Others
8 | P a g e

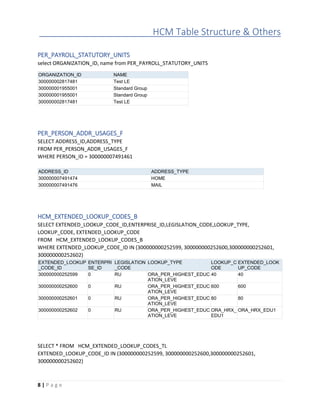

PER_PAYROLL_STATUTORY_UNITS
select ORGANIZATION_ID, name from PER_PAYROLL_STATUTORY_UNITS
ORGANIZATION_ID NAME
300000002817481 Test LE
300000001955001 Standard Group
300000001955001 Standard Group
300000002817481 Test LE
PER_PERSON_ADDR_USAGES_F
SELECT ADDRESS_ID,ADDRESS_TYPE
FROM PER_PERSON_ADDR_USAGES_F
WHERE PERSON_ID = 300000007491461
ADDRESS_ID ADDRESS_TYPE
300000007491474 HOME
300000007491476 MAIL
HCM_EXTENDED_LOOKUP_CODES_B
SELECT EXTENDED_LOOKUP_CODE_ID,ENTERPRISE_ID,LEGISLATION_CODE,LOOKUP_TYPE,
LOOKUP_CODE, EXTENDED_LOOKUP_CODE
FROM HCM_EXTENDED_LOOKUP_CODES_B
WHERE EXTENDED_LOOKUP_CODE_ID IN (300000000252599, 300000000252600,300000000252601,
300000000252602)
EXTENDED_LOOKUP
_CODE_ID
ENTERPRI
SE_ID
LEGISLATION
_CODE
LOOKUP_TYPE LOOKUP_C
ODE
EXTENDED_LOOK
UP_CODE
300000000252599 0 RU ORA_PER_HIGHEST_EDUC
ATION_LEVE
40 40
300000000252600 0 RU ORA_PER_HIGHEST_EDUC
ATION_LEVE
600 600
300000000252601 0 RU ORA_PER_HIGHEST_EDUC
ATION_LEVE
80 80
300000000252602 0 RU ORA_PER_HIGHEST_EDUC
ATION_LEVE
ORA_HRX_
EDU1
ORA_HRX_EDU1
SELECT * FROM HCM_EXTENDED_LOOKUP_CODES_TL
EXTENDED_LOOKUP_CODE_ID IN (300000000252599, 300000000252600,300000000252601,
300000000252602)

9. HCM Table Structure & Others
9 | P a g e
PER_DEPARTMENTS
SELECT NAME, ORGANIZATION_ID FROM PER_DEPARTMENTS WHERE ORGANIZATION_ID =
300000001955938
ORGANIZATION_ID NAME
300000001955938 Information Technology & Services
PER_EMAIL_ADDRESSES_V
SELECT EMAIL_ADDRESS FROM PER_EMAIL_ADDRESSES_V WHERE PERSON_ID =300000007491461
EMAIL_ADDRESS
assaduzzaman.s@standard-group.com
PER_JOBS
SELECT NAME,JOB_FAMILY_ID FROM PER_JOBS WHERE JOB_ID=300000008328813
NAME JOB_FAMILY_ID
System Analyst 300000006583496
CMP_SALARY
SELECT SALARY_AMOUNT, CURRENCY_CODE, SALARY_BASIS_CODE
FROM CMP_SALARY
WHERE PERSON_ID =300000007491461
SALARY_AMOUNT SALARY_BASIS_CODE CURRENCY_CODE
10000 MONTHLY BDT
PER_NATIONAL_IDENTIFIERS
SELECT NATIONAL_IDENTIFIER_NUMBER
FROM PER_NATIONAL_IDENTIFIERS
WHERE PERSON_ID =300000007491461
NATIONAL_IDENTIFIER_NUMBER
2696405625007
PER_ASSIGNMENTS_F
Employee History Table

10. HCM Table Structure & Others
10 | P a g e
PERSON_ID CONTENT_TYPE_NA
ME
CONTENT_ITEM_NA
ME
SPECIFICAI
ON
GRAD
E
INSTITUT
E
LEVEL_ COM_YEA
R
3000000074953
70
Degrees M.S.S Economics 2nd National
University
Masters 2006
3000000074953
70
Degrees H.S.C Science 2nd Dhaka
Board
Higher
Seconda
ry
2001
3000000074953
70
Degrees S.S.C Science 1st Dhaka
Board
Seconda
ry
1998
3000000074953
70
Degrees B.S.S Economics 2nd National
University
Graduate 2005
PER_CONTACT_RELSHIPS_F
CONTACT_PERSON_ID CONTACT_RELATIONSHIP_ID CREATED_BY
300000008793802 300000008793806 BROTHER
300000008888357 300000008888361 S
300000009039001 300000009039005 IN_FR
300000009130558 300000009130562 IN_FR
300000008767985 300000008767989 BROTHER
PER_CONTRACTS_F
SELECT ASSIGNMENT_ID,CONTRACT_NUMBER,PERSON_ID,PERIOD_OF_SERVICE_ID FROM
PER_CONTRACTS_F
PERSON_ID CONTRACT_NUMBER PERIOD_OF_SERVICE_ID ASSIGNMENT_ID
300000008218399 CONT2000006 300000008305199 300000008305200
300000008319872 CONT2000007 300000008319887 300000008319888
300000008674906 CONT2000009 300000008674910 300000008674911
300000008794269 CONT2000051 300000008794273 300000008794274
300000008862119 CONT1000002 300000008862128 300000008862129

11. HCM Table Structure & Others
11 | P a g e
PER_LOCATION_EXTRA_INFO_F_
NO DATA
PER_LOCATIONS_
NO DATA
PER_LOCATION_EXTRA_INFO_F
May be valid data
PER_LOCATION_DETAILS_F_TL
SELECT LOCATION_DETAILS_ID, LOCATION_CODE,LOCATION_NAME DESCRIPTION FROM
PER_LOCATION_DETAILS_F_TL
LOCATION_DETAILS_ID LOCATION_CODE DESCRIPTION
300000001955242 CEC-2 CEC-2
300000001955260 CEL-WOVEN CEL-WOVEN
300000009277776 Test Location Test Location
300000001955272 SFL SFL
300000001955266 SDL SDL
PER_LOCATION_DETAILS_F
SELECT LOCATION_DETAILS_ID, LOCATION_ID, MAIN_ADDRESS_ID
FROM PER_LOCATION_DETAILS_F
LOCATION_DETAILS_ID LOCATION_ID MAIN_ADDRESS_ID
300000001955242 300000001955241 300000001955244
300000001955260 300000001955259 300000001955262
300000009277776 300000009277777 300000009277779
300000001955272 300000001955271 300000001955274
300000001955266 300000001955265 300000001955268

12. HCM Table Structure & Others
12 | P a g e
SELECT LOCATION_ID,LOC_ADDRESS_USAGE_ID, ADDRESS_USAGE_TYPE
FROM PER_LOC_ADDRESS_USAGES_F
LOCATION_ID LOC_ADDRESS_USAGE_ID ADDRESS_USAGE_TYPE
300000001955241 300000001955243 MAIN
300000001955259 300000001955261 MAIN
300000006721016 300000006721017 MAIN
300000009277777 300000009277778 MAIN
300000001955265 300000001955267 MAIN
PER_CONTACT_RELSHIPS_F
CONTACT_PERSON_ID CONTACT_RELATIONSHIP_ID CREATED_BY
300000008793802 300000008793806 BROTHER
300000008888357 300000008888361 S
300000009039001 300000009039005 IN_FR
300000009130558 300000009130562 IN_FR
300000008767985 300000008767989 BROTHER
PER_CONTRACTS_F
SELECT ASSIGNMENT_ID,CONTRACT_NUMBER,PERSON_ID,PERIOD_OF_SERVICE_ID FROM
PER_CONTRACTS_F
PERSON_ID CONTRACT_NUMBER PERIOD_OF_SERVICE_ID ASSIGNMENT_ID
300000008218399 CONT2000006 300000008305199 300000008305200
300000008319872 CONT2000007 300000008319887 300000008319888
300000008674906 CONT2000009 300000008674910 300000008674911
300000008794269 CONT2000051 300000008794273 300000008794274
300000008862119 CONT1000002 300000008862128 300000008862129
PER_CITIZENSHIPS
select CITIZENSHIP_ID, LEGISLATION_CODE from per_citizenships
where PERSON_ID = 300000007499130
CITIZENSHIP_ID LEGISLATION_CODE
300000009236083 BD
PER_PASSPORTS
SELECT
PASSPORT_NUMBER,PASSPORT_TYPE,ISSUE_DATE,EXPIRATION_DATE,ISSUING_AUTHORITY,ISSUING_C
OUNTRY,ISSUING_LOCATION,PROFESSION
FROM PER_PASSPORTS
WHERE PERSON_ID = 300000007499130
PASSPORT_N
UMBER
PASSPORT_
TYPE
ISSUE_D
ATE
EXPIRATION
_DATE
ISSUING_AUTH
ORITY
ISSUING_CO
UNTRY
ISSUING_LOC
ATION
PROFES
SION
34567890

13. HCM Table Structure & Others
13 | P a g e
Queries
Some common query
SELECT DISTINCT ENTITY_TYPE
FROM PER_ACTION_OCCURRENCES
ENTITY_TYPE
Salary
Position
Grade
Location
Organization
Job
BEN_PL_TYP_F
NO VALID DATA
PER_RATES_F
NO DATA
PAY_ENTRY_PCT_DIST
NO DATA
SELECT ORGANIZATION_ID, ESTABLISHMENT_ID,LOCATION_ID
FROM HR_ALL_ORGANIZATION_UNITS_F
ORGANIZATION_ID ESTABLISHMENT_ID LOCATION_ID
1
300000001955046 300000001950038
300000001955046 300000001950038
300000001955853
300000001955868
SELECT NAME, ORGANIZATION_ID
FROM HR_ORGANIZATION_UNITS_F_TL
NAME ORGANIZATION_ID
Standard Group Enterprise 1
Standard Group LE 300000001955046
Standard Group LE 300000001955046
Industrial Engineering 300000001955853
Engineering (Non-Professional) 300000001955873

14. HCM Table Structure & Others
14 | P a g e
SELECT DISTINCT ORG_INFORMATION_ID, ORG_INFORMATION_CONTEXT,
ORGANIZATION_ID
FROM HR_ORGANIZATION_INFORMATION_F
ORG_INFORMATION_ID ORG_INFORMATION_CONTEXT ORGANIZATION_ID
300000006724780 FUN_BUSINESS_UNIT 300000006724777
300000002501983 PER_WORK_DAY_INFO 300000001955001
300000002503960 PER_ORG_MANAGER_INFO 300000002503958
300000006711474 PER_ORG_MANAGER_INFO 300000001955978
300000006724672 FUN_BUSINESS_UNIT 300000006724669
SELECT DISTINCT ORG_UNIT_CLASSIFICATION_ID,ACTION_OCCURRENCE_ID,CLASSIFICATION_CODE,
LEGISLATION_CODE,STATUS,ORGANIZATION_ID,SET_ID,CATEGORY_CODE
FROM HR_ORG_UNIT_CLASSIFICATIONS_F
ORG_UNIT_CLASSI
FICATION_ID
ACTION_OCCU
RRENCE_ID
CLASSIFICATI
ON_CODE
LEGISLATIO
N_CODE
STA
TUS
ORGANIZA
TION_ID
SET_ID CATEGORY_
CODE
300000001955934 30000000195593
2
DEPARTMENT A 3000000019
55933
300000000
001412
DEPARTMEN
T
300000001955959 30000000195595
7
DEPARTMENT A 3000000019
55958
300000000
001412
DEPARTMEN
T
300000001955979 30000000671147
7
DEPARTMENT A 3000000019
55978
300000000
001412
DEPARTMEN
T
300000002503096 30000000250309
7
FUN_BUSINES
S_UNIT
A 3000000025
03095
FUN_BUSINE
SS_UNIT
300000002503114 30000000250311
5
FUN_BUSINES
S_UNIT
A 3000000025
03113
FUN_BUSINE
SS_UNIT
SELECT DISTINCT CLASSIFICATION_CODE,CATEGORY_CODE
FROM HR_ORG_UNIT_CLASSIFICATIONS_F
CLASSIFICATION_CODE CATEGORY_CODE
HCM_TRU HCM_TRU
HCM_LRU HCM_LRU
HCM_REPORTING_ESTABLISHMENT HCM_REPORTING_ESTABLISHMENT
INV NO_EFF_CATEGORY
DEPARTMENT DEPARTMENT
HCM_TRU HCM_TRU_US
HCM_LEMP HCM_LEMP_US
FUN_BUSINESS_UNIT FUN_BUSINESS_UNIT
HCM_PSU HCM_PSU_US
HCM_PSU HCM_PSU
ENTERPRISE ENTERPRISE
CONTRACTS_RESOURCE_ORGANIZATION NO_EFF_CATEGORY
HCM_LEMP HCM_LEMP

15. HCM Table Structure & Others
15 | P a g e
select LOOKUP_TYPE,LOOKUP_CODE,MEANING
FROM HR_LOOKUPS
WHERE LOOKUP_TYPE = 'CONTACT'
LOOKUP_TYPE LOOKUP_CODE MEANING
CONTACT A Adopted child
CONTACT BROTHER Brother
CONTACT C Child
CONTACT DP Domestic partner
CONTACT EMRG Emergency
SELECT CF.CATEGORY_CODE, OI.ORG_INFORMATION_ID, OI.ORG_INFORMATION_CONTEXT,
O.NAME , AL.ESTABLISHMENT_ID
FROM HR_ORG_UNIT_CLASSIFICATIONS_F CF, HR_ORGANIZATION_INFORMATION_F OI,
HR_ORGANIZATION_UNITS_F_TL O,
HR_ALL_ORGANIZATION_UNITS_F AL
WHERE CF.CATEGORY_CODE =' FUN_BUSINESS_UNIT '
AND CF.ORGANIZATION_ID = OI.ORGANIZATION_ID
AND CF.ORGANIZATION_ID = O.ORGANIZATION_ID
AND CF.ORGANIZATION_ID = AL.ORGANIZATION_ID
ORG_INFORMATION_ID ORG_INFORMATION_CONTEXT NAME ESTABLISHMENT_ID
300000002503188 FUN_BUSINESS_UNIT Adhunik Poshak Shilpa Limited
300000002503314 FUN_BUSINESS_UNIT Kazipur Fashions Limited (Unit-1)
300000002503404 FUN_BUSINESS_UNIT Standard Group Limited (Baraiderchala)
300000006724650 FUN_BUSINESS_UNIT Standard Stitches (Gmts Unit) Limited
300000006724780 FUN_BUSINESS_UNIT Adhunik Plastic Industries Limited
SELECT CF.CATEGORY_CODE, OI.ORG_INFORMATION_ID, OI.ORG_INFORMATION_CONTEXT,
O.NAME , AL.ESTABLISHMENT_ID
FROM HR_ORG_UNIT_CLASSIFICATIONS_F CF, HR_ORGANIZATION_INFORMATION_F OI,
HR_ORGANIZATION_UNITS_F_TL O,
HR_ALL_ORGANIZATION_UNITS_F AL
WHERE CF.CATEGORY_CODE = 'HCM_REPORTING_ESTABLISHMENT'
AND CF.ORGANIZATION_ID = OI.ORGANIZATION_ID
AND CF.ORGANIZATION_ID = O.ORGANIZATION_ID
AND CF.ORGANIZATION_ID = AL.ORGANIZATION_ID

16. HCM Table Structure & Others
16 | P a g e
ORG_INFORMATIO
N_ID
ORG_INFORMATION_CONTEX
T
NAME CATEGORY_CODE
300000002503866 PER_ORG_MANAGER_INFO Peak Fashions Limited HCM_REPORTING_ESTABLISHMENT
300000002503938 PER_ORG_MANAGER_INFO Adhunik Poshak Shilpa
Limited
HCM_REPORTING_ESTABLISHMENT
300000002746079 PER_ORG_MANAGER_INFO Standard Fashions Limited HCM_REPORTING_ESTABLISHMENT
300000002503888 PER_ORG_MANAGER_INFO Wear Mag Limited HCM_REPORTING_ESTABLISHMENT
300000002503960 PER_ORG_MANAGER_INFO Crazy Fashions Limited HCM_REPORTING_ESTABLISHMENT
SELECT ORGANIZATION_ID , NAME FROM HR_ORGANIZATION_UNITS_F_TL
WHERE ORGANIZATION_ID IN (
300000001955938, -- ORGANIZATION_ID--
300000001955001, --LEGAL_ENTITY_ID --
300000002503131, -- BUSINESS_UNIT_ID -
300000002503842, -- ESTABLISHMENT_ID--
NULL -- SET_OF_BOOKS_ID
)
ORGANIZATION_ID NAME
300000001955001 Standard Group
300000001955001 Standard Group
300000001955938 Information Technology & Services
300000002503131 The Civil Engineers Limited (Woven Unit)
300000002503842 The Civil Engineers Limited
Employee Profile Query:
/* Formatted on 11/19/2020 12:57:56 PM (QP5 v5.215.12089.38647) */
SELECT DISTINCT
M.PERSON_ID,
M.ASSIGNMENT_NUMBER,
N.FULL_NAME,
N.KNOWN_AS SHORT_NAME,
M.ASSIGNMENT_NAME DESIGNATION,
M.ASSIGNMENT_ID,
M.TIME_NORMAL_FINISH OUTTIME,
M.TIME_NORMAL_START INTIME,
M.ASSIGNMENT_STATUS_TYPE ACTIVE_INACTIVE,
M.ASS_ATTRIBUTE2 LOCATION,
M.ASS_ATTRIBUTE1 FLOOR_,
M.ASS_ATTRIBUTE3 SAL_TYPE,
PP.BLOOD_TYPE,
TO_CHAR (PP.DATE_OF_BIRTH, 'DD-MON-RR') DATE_OF_BIRTH,
CASE
WHEN P.SEX = 'M' THEN 'Male'
WHEN P.SEX = 'F' THEN 'Female'
ELSE NULL
END

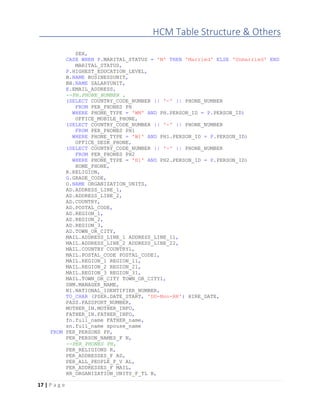

17. HCM Table Structure & Others
17 | P a g e
SEX,
CASE WHEN P.MARITAL_STATUS = 'M' THEN 'Married' ELSE 'Unmarried' END
MARITAL_STATUS,
P.HIGHEST_EDUCATION_LEVEL,
B.NAME BUSINESSUNIT,
BB.NAME SALARYUNIT,
E.EMAIL_ADDRESS,
--PH.PHONE_NUMBER ,
(SELECT COUNTRY_CODE_NUMBER || '-' || PHONE_NUMBER
FROM PER_PHONES PH
WHERE PHONE_TYPE = 'WM' AND PH.PERSON_ID = P.PERSON_ID)
OFFICE_MOBILE_PHONE,
(SELECT COUNTRY_CODE_NUMBER || '-' || PHONE_NUMBER
FROM PER_PHONES PH1
WHERE PHONE_TYPE = 'W1' AND PH1.PERSON_ID = P.PERSON_ID)
OFFICE_DESK_PHONE,
(SELECT COUNTRY_CODE_NUMBER || '-' || PHONE_NUMBER
FROM PER_PHONES PH2
WHERE PHONE_TYPE = 'H1' AND PH2.PERSON_ID = P.PERSON_ID)
HOME_PHONE,
R.RELIGION,
G.GRADE_CODE,
O.NAME ORGANIZATION_UNITS,
AD.ADDRESS_LINE_1,
AD.ADDRESS_LINE_2,
AD.COUNTRY,
AD.POSTAL_CODE,
AD.REGION_1,
AD.REGION_2,
AD.REGION_3,
AD.TOWN_OR_CITY,
MAIL.ADDRESS_LINE_1 ADDRESS_LINE_11,
MAIL.ADDRESS_LINE_2 ADDRESS_LINE_22,
MAIL.COUNTRY COUNTRY1,
MAIL.POSTAL_CODE POSTAL_CODE1,
MAIL.REGION_1 REGION_11,
MAIL.REGION_2 REGION_21,
MAIL.REGION_3 REGION_31,
MAIL.TOWN_OR_CITY TOWN_OR_CITY1,
SNM.MANAGER_NAME,
NI.NATIONAL_IDENTIFIER_NUMBER,
TO_CHAR (PSER.DATE_START, 'DD-Mon-RR') HIRE_DATE,
PASS.PASSPORT_NUMBER,
MOTHER_IN.MOTHER_INFO,
FATHER_IN.FATHER_INFO,
fn.full_name FATHER_name,
sn.full_name spouse_name
FROM PER_PERSONS PP,
PER_PERSON_NAMES_F N,
--PER_PHONES PH,
PER_RELIGIONS R,
PER_ADDRESSES_F AD,
PER_ALL_PEOPLE_F_V AL,
PER_ADDRESSES_F MAIL,
HR_ORGANIZATION_UNITS_F_TL B,

18. HCM Table Structure & Others
18 | P a g e
HR_ORGANIZATION_UNITS_F_TL BB,
PER_NATIONAL_IDENTIFIERS NI,
PER_PERIODS_OF_SERVICE PSER,
PER_PERSON_ADDR_USAGES_F AU,
PER_PERSON_ADDR_USAGES_F AUMAIL,
PER_ALL_ASSIGNMENTS_M M,
PER_PEOPLE_LEGISLATIVE_F_V P,
PER_EMAIL_ADDRESSES_V E,
PER_GRADES_F G,
HR_ORGANIZATION_UNITS O,
(SELECT SUP.PERSON_ID, SN.FULL_NAME MANAGER_NAME
FROM PER_ASSIGNMENT_SUPERVISORS_F SUP, PER_PERSON_NAMES_F SN
WHERE SUP.MANAGER_TYPE = 'LINE_MANAGER'
AND SUP.MANAGER_ID = SN.PERSON_ID
AND SN.NAME_TYPE = 'GLOBAL') SNM,
(SELECT FF.PERSON_ID, FF.PEI_INFORMATION2 MOTHER_INFO
FROM PER_PEOPLE_EXTRA_INFO_F FF
WHERE PEI_INFORMATION1 = 'Mother'
AND PEI_INFORMATION_CATEGORY = 'SG_CONTACTS') MOTHER_IN,
(SELECT FF.PERSON_ID, FF.PEI_INFORMATION2 FATHER_INFO
FROM PER_PEOPLE_EXTRA_INFO_F FF
WHERE PEI_INFORMATION1 = 'Mother'
AND PEI_INFORMATION_CATEGORY = 'SG_CONTACTS') FATHER_IN,
(SELECT p.FULL_NAME, r.PERSON_ID
FROM PER_ALL_PEOPLE_F f,
PER_PERSON_NAMES_F p,
PER_CONTACT_RELSHIPS_F r
WHERE p.person_id = f.person_id
AND r.CONTACT_PERSON_ID = p.person_id
AND p.NAME_TYPE = 'GLOBAL'
AND CONTACT_TYPE = 'IN_FR') fn,
(SELECT p.FULL_NAME, r.PERSON_ID
FROM PER_ALL_PEOPLE_F f,
PER_PERSON_NAMES_F p,
PER_CONTACT_RELSHIPS_F r
WHERE p.person_id = f.person_id
AND r.CONTACT_PERSON_ID = p.person_id
AND p.NAME_TYPE = 'GLOBAL'
AND CONTACT_TYPE = 'DP') sn,
PER_PASSPORTS PASS
WHERE --M.PERSON_ID= 300000007491461 --
300000007491461
--N.PERSON_NAME_ID = 300000007491465
--AND AD.ADDRESS_ID = 300000007491474
N.NAME_TYPE = 'GLOBAL'
AND M.PRIMARY_FLAG = 'Y'
AND ASSIGNMENT_TYPE IN ('E', 'C')
--and ph.PHONE_TYPE ='W1'
AND SYSDATE BETWEEN M.EFFECTIVE_START_DATE AND M.EFFECTIVE_END_DATE
AND M.BUSINESS_UNIT_ID = B.ORGANIZATION_ID
AND M.ESTABLISHMENT_ID = BB.ORGANIZATION_ID
AND M.PERSON_ID = P.PERSON_ID
AND M.PERSON_ID = NI.PERSON_ID
AND M.PERSON_ID = AL.PERSON_ID
AND M.PERSON_ID = MOTHER_IN.PERSON_ID(+)

19. HCM Table Structure & Others
19 | P a g e

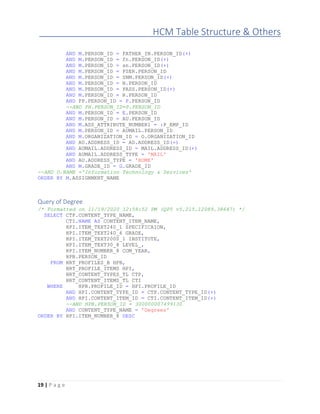

AND M.PERSON_ID = FATHER_IN.PERSON_ID(+)
AND M.PERSON_ID = fn.PERSON_ID(+)
AND M.PERSON_ID = sn.PERSON_ID(+)
AND M.PERSON_ID = PSER.PERSON_ID
AND M.PERSON_ID = SNM.PERSON_ID(+)
AND M.PERSON_ID = N.PERSON_ID
AND M.PERSON_ID = PASS.PERSON_ID(+)
AND M.PERSON_ID = R.PERSON_ID
AND PP.PERSON_ID = P.PERSON_ID
--AND PH.PERSON_ID=P.PERSON_ID
AND M.PERSON_ID = E.PERSON_ID
AND M.PERSON_ID = AU.PERSON_ID
AND M.ASS_ATTRIBUTE_NUMBER1 = :P_EMP_ID
AND M.PERSON_ID = AUMAIL.PERSON_ID
AND M.ORGANIZATION_ID = O.ORGANIZATION_ID
AND AU.ADDRESS_ID = AD.ADDRESS_ID(+)
AND AUMAIL.ADDRESS_ID = MAIL.ADDRESS_ID(+)
AND AUMAIL.ADDRESS_TYPE = 'MAIL'
AND AU.ADDRESS_TYPE = 'HOME'
AND M.GRADE_ID = G.GRADE_ID
--AND O.NAME ='Information Technology & Services'
ORDER BY M.ASSIGNMENT_NAME
Query of Degree
/* Formatted on 11/19/2020 12:58:52 PM (QP5 v5.215.12089.38647) */
SELECT CTP.CONTENT_TYPE_NAME,
CTI.NAME AS CONTENT_ITEM_NAME,
HPI.ITEM_TEXT240_1 SPECIFICAION,
HPI.ITEM_TEXT240_6 GRADE,
HPI.ITEM_TEXT2000_1 INSTITUTE,
HPI.ITEM_TEXT30_8 LEVEL_,
HPI.ITEM_NUMBER_8 COM_YEAR,
HPB.PERSON_ID
FROM HRT_PROFILES_B HPB,
HRT_PROFILE_ITEMS HPI,
HRT_CONTENT_TYPES_TL CTP,
HRT_CONTENT_ITEMS_TL CTI
WHERE HPB.PROFILE_ID = HPI.PROFILE_ID
AND HPI.CONTENT_TYPE_ID = CTP.CONTENT_TYPE_ID(+)
AND HPI.CONTENT_ITEM_ID = CTI.CONTENT_ITEM_ID(+)
--AND HPB.PERSON_ID = 300000007499130
AND CONTENT_TYPE_NAME = 'Degrees'
ORDER BY HPI.ITEM_NUMBER_8 DESC

20. HCM Table Structure & Others
20 | P a g e
Referance
HCM Detail documentation
https://docs.oracle.com/en/cloud/saas/human-resources/20b/faigh/person.html#FAIGH1115189
hcm table structure
https://docs.oracle.com/en/cloud/saas/human-resources/20c/oedmh/overview.html#overview
https://docs.oracle.com/en/cloud/saas/human-resources/20b/oedmh/global-human-
resources.html#tables
https://docs.oracle.com/en/cloud/saas/human-resources/20c/oedmh/global-
payroll.html#payallpayrollsf-22193
https://docs.oracle.com/en/cloud/saas/human-resources/20b/oedmh/global-human-
resources.html#global-human-resources
SOME COMMONLY USED QUERIES IN ORACLE HCM CLOUD
https://www.apps2fusion.com/oracle-fusion-online-training/fusion-applications/fusion-payroll/2343-
some-commonly-used-queries-in-oracle-hcm-cloud
Fusion Middleware Data Modeling Guide for Oracle Business Intelligence Publisher
https://docs.oracle.com/middleware/12211/bip/BIPDM/GUID-9A9233A9-1D48-4D50-AB00-
7FDD29EB0E23.htm#BIPDM534
Fusion Middleware Report Designer's Guide for Oracle Business Intelligence Publisher
https://docs.oracle.com/middleware/12211/bip/BIPRD/GUID-58D7E662-146A-44AA-86F9-
111E2C6DB3A5.htm#BIPRD2395
Fusion Middleware Report Designer's Guide for Oracle Business Intelligence Publisher
https://docs.oracle.com/middleware/12211/bip/BIPRD/GUID-58D7E662-146A-44AA-86F9-
111E2C6DB3A5.htm#BIPRD2392
http://oraclemasterminds.blogspot.com/2016/09/advanced-rtf-template-image-chart-and.html
https://oraclecloudhcmtechfunc.blogspot.com/2019/02/how-to-get-profile-images-in-otbi-report.html
https://emqu-test.fa.ap1.oraclecloud.com/hcmUI/personImage?personId=300000007499130

21. HCM Table Structure & Others
21 | P a g e

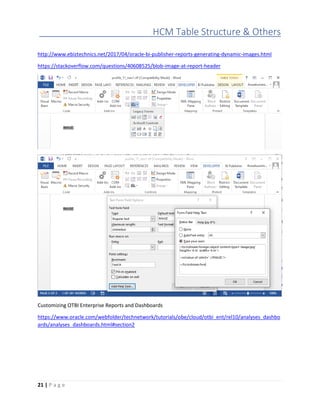

http://www.ebiztechnics.net/2017/04/oracle-bi-publisher-reports-generating-dynamic-images.html
https://stackoverflow.com/questions/40608525/blob-image-at-report-header
Customizing OTBI Enterprise Reports and Dashboards
https://www.oracle.com/webfolder/technetwork/tutorials/obe/cloud/otbi_ent/rel10/analyses_dashbo
ards/analyses_dashboards.html#section2
